The document discusses virtual manufacturing and non-linear finite element analysis. It notes that virtual manufacturing uses simulation technology, computer hardware, and operating systems to create a virtual lab for product creation and non-linear finite element analysis. This analysis examines the structural behavior, design changes, and effects of changes for a product through the engineering tools.

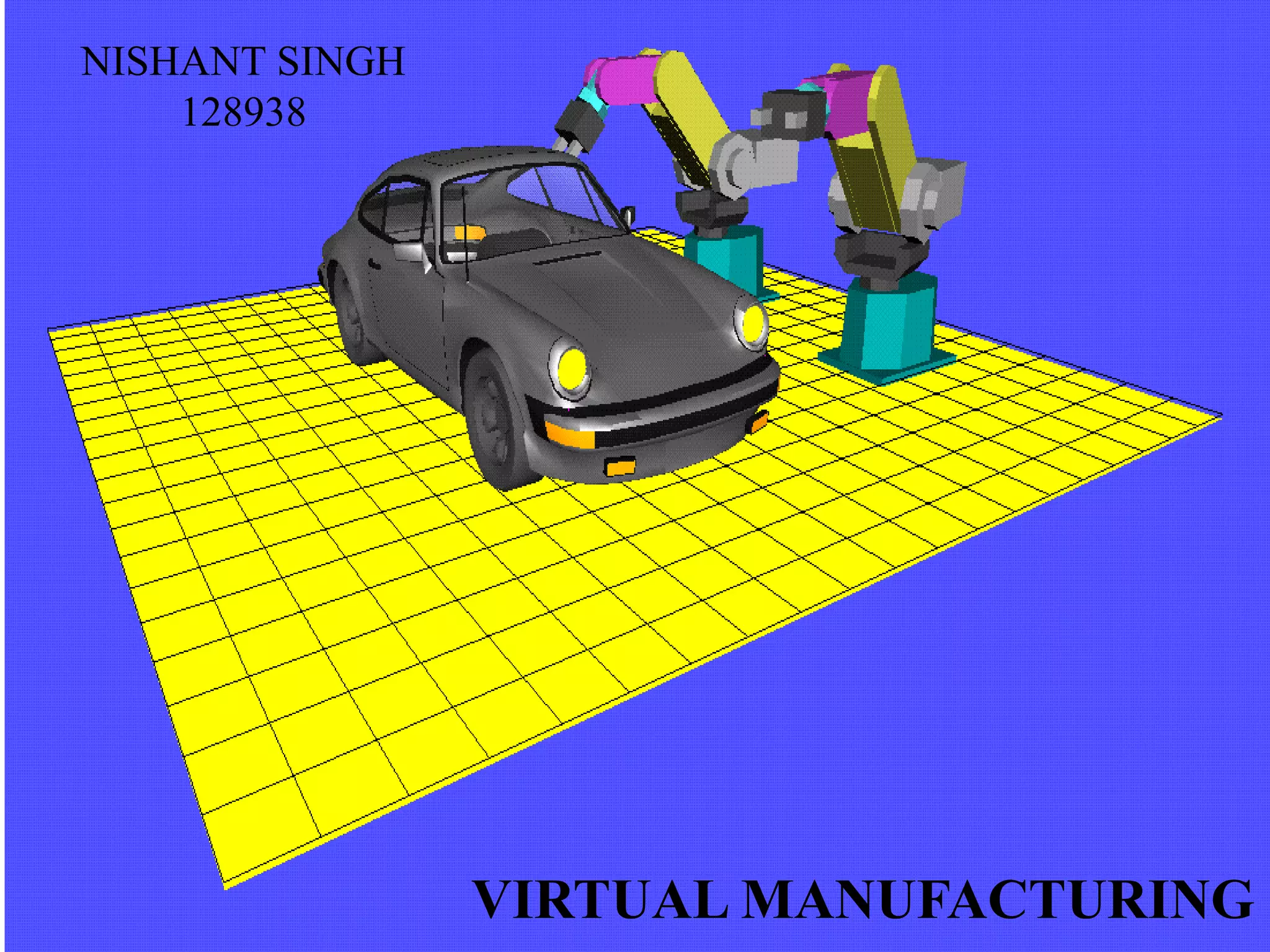

1. NISHANT SINGH
128938
VIRTUAL MANUFACTURING

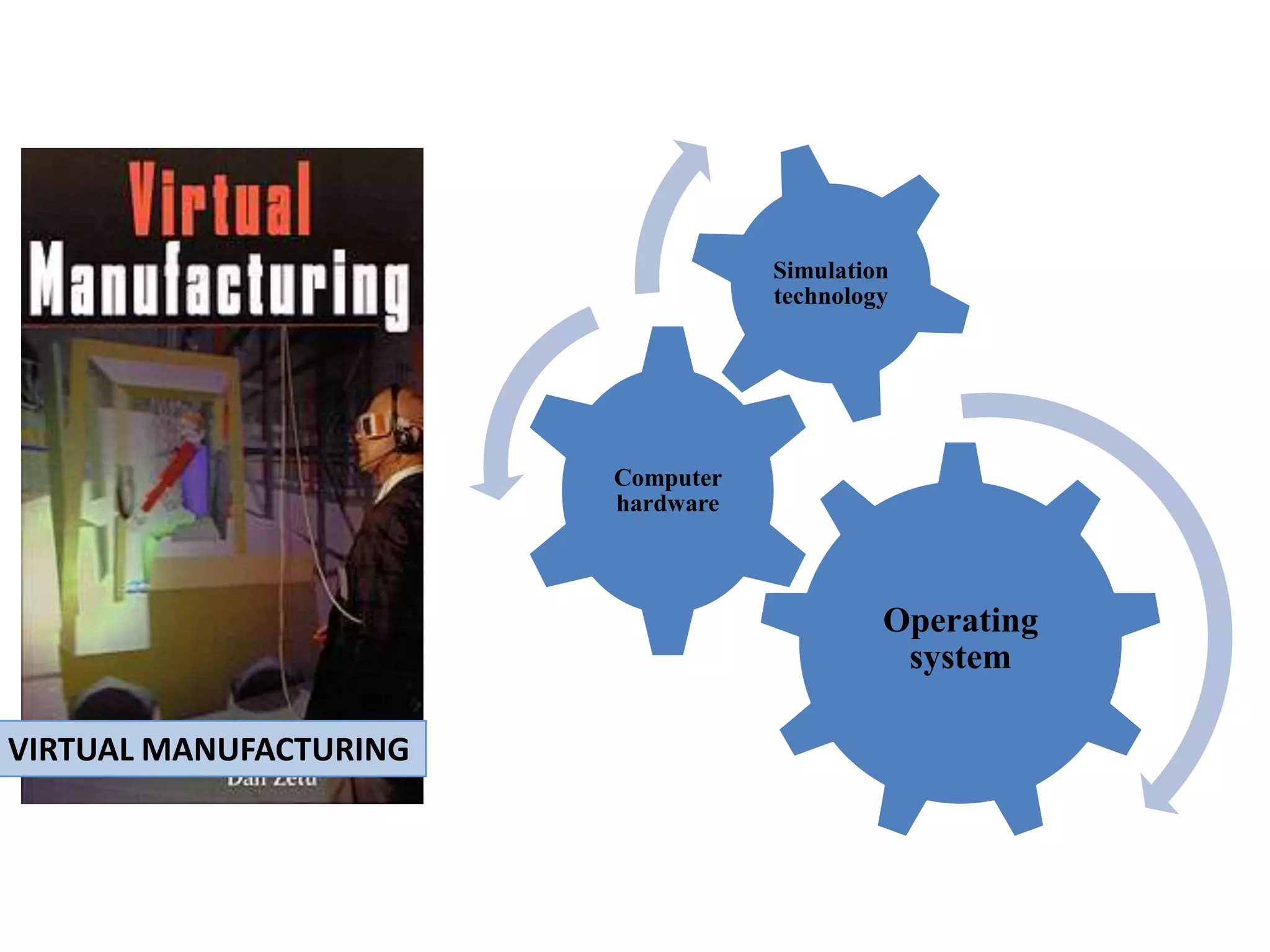

2. Simulation
technology
Computer
hardware
Operating
system
VIRTUAL MANUFACTURING

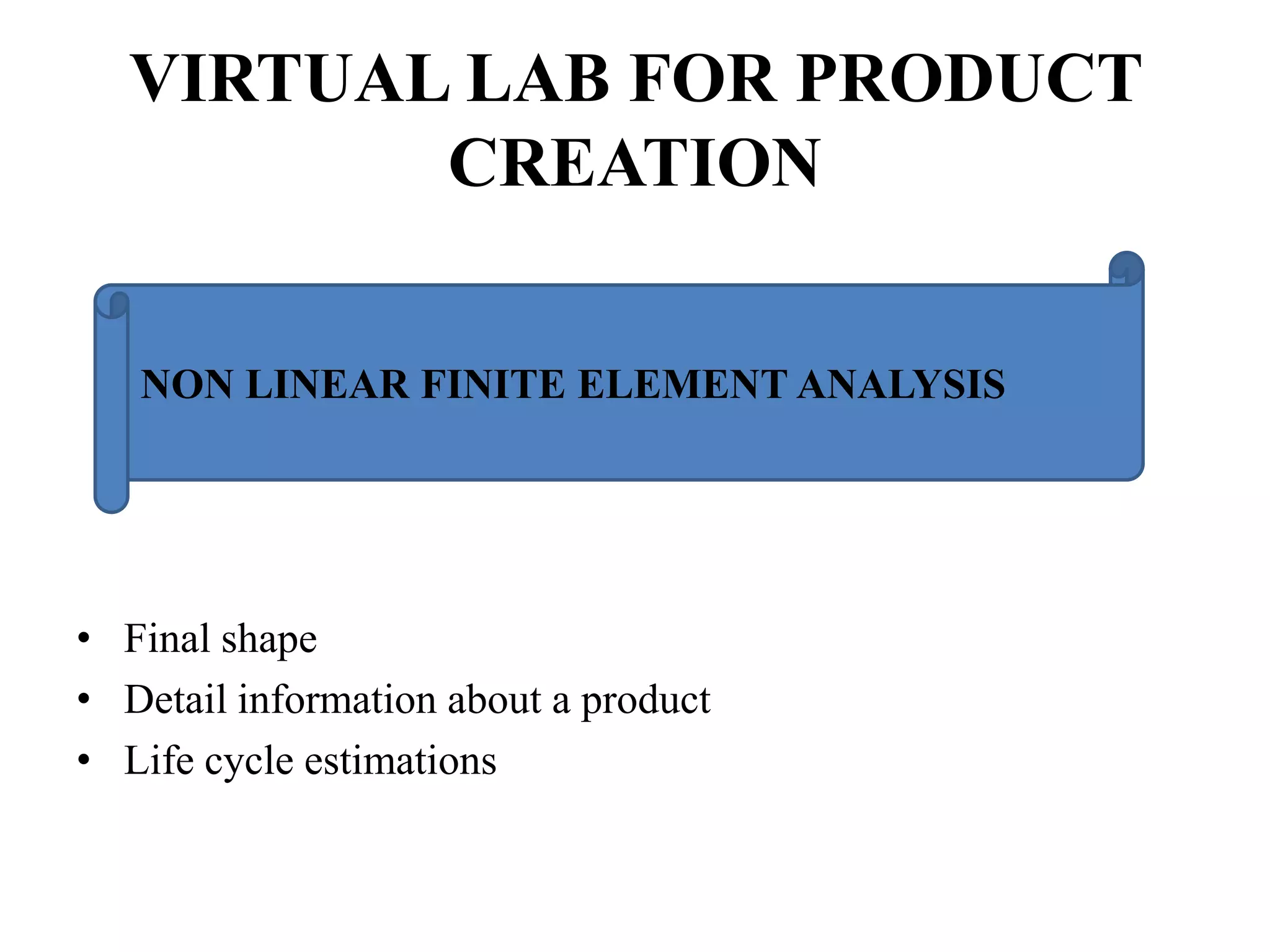

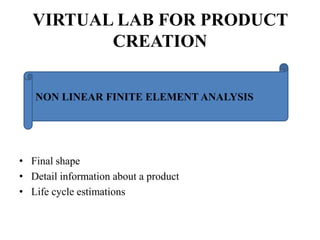

3. VIRTUAL LAB FOR PRODUCT
CREATION
NON LINEAR FINITE ELEMENT ANALYSIS
• Final shape
• Detail information about a product
• Life cycle estimations

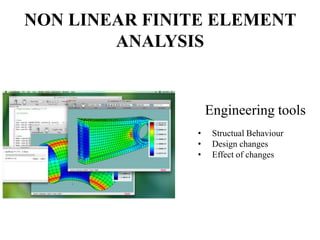

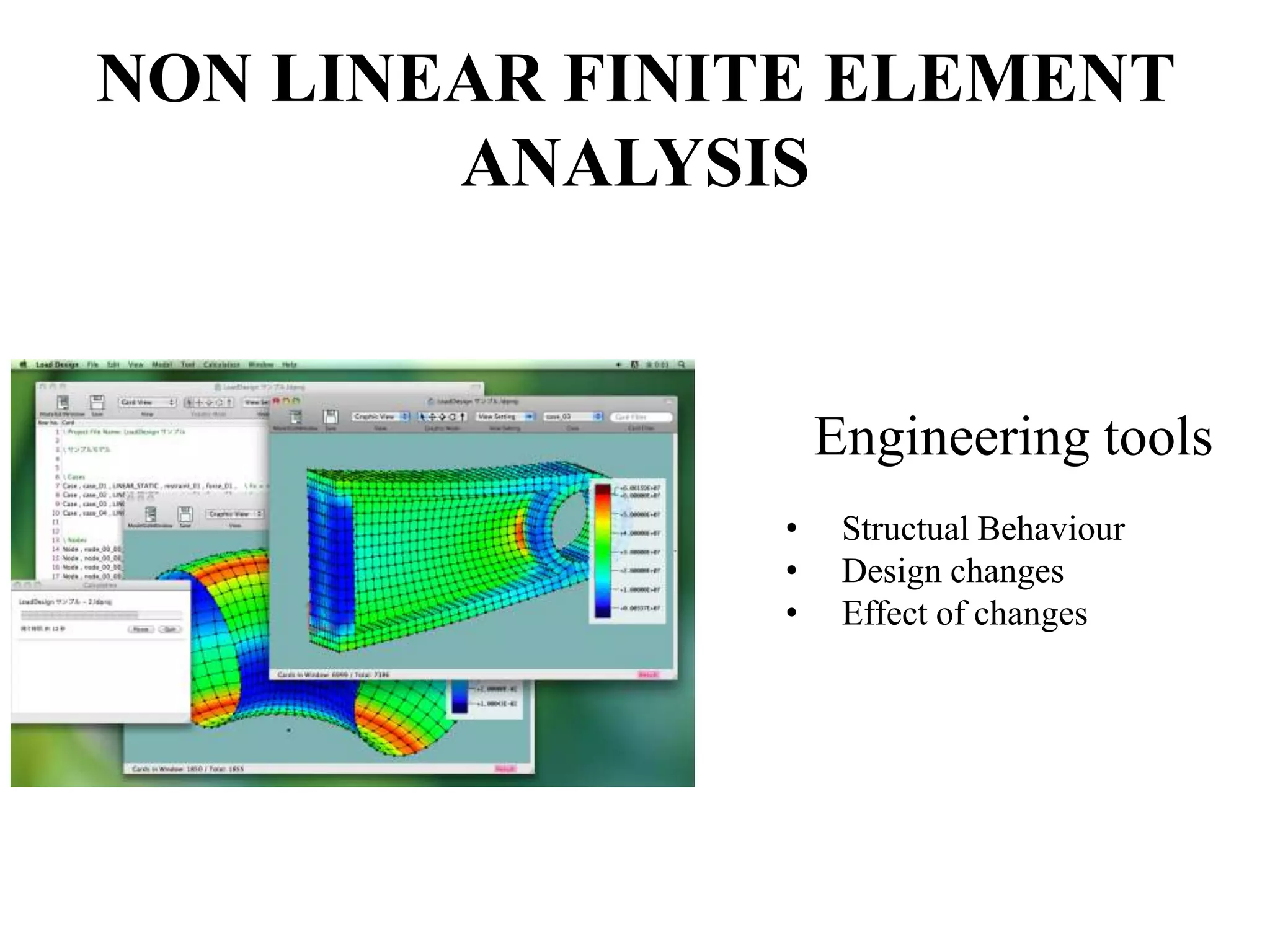

4. NON LINEAR FINITE ELEMENT
ANALYSIS
Engineering tools
•
•
•
Structual Behaviour
Design changes
Effect of changes

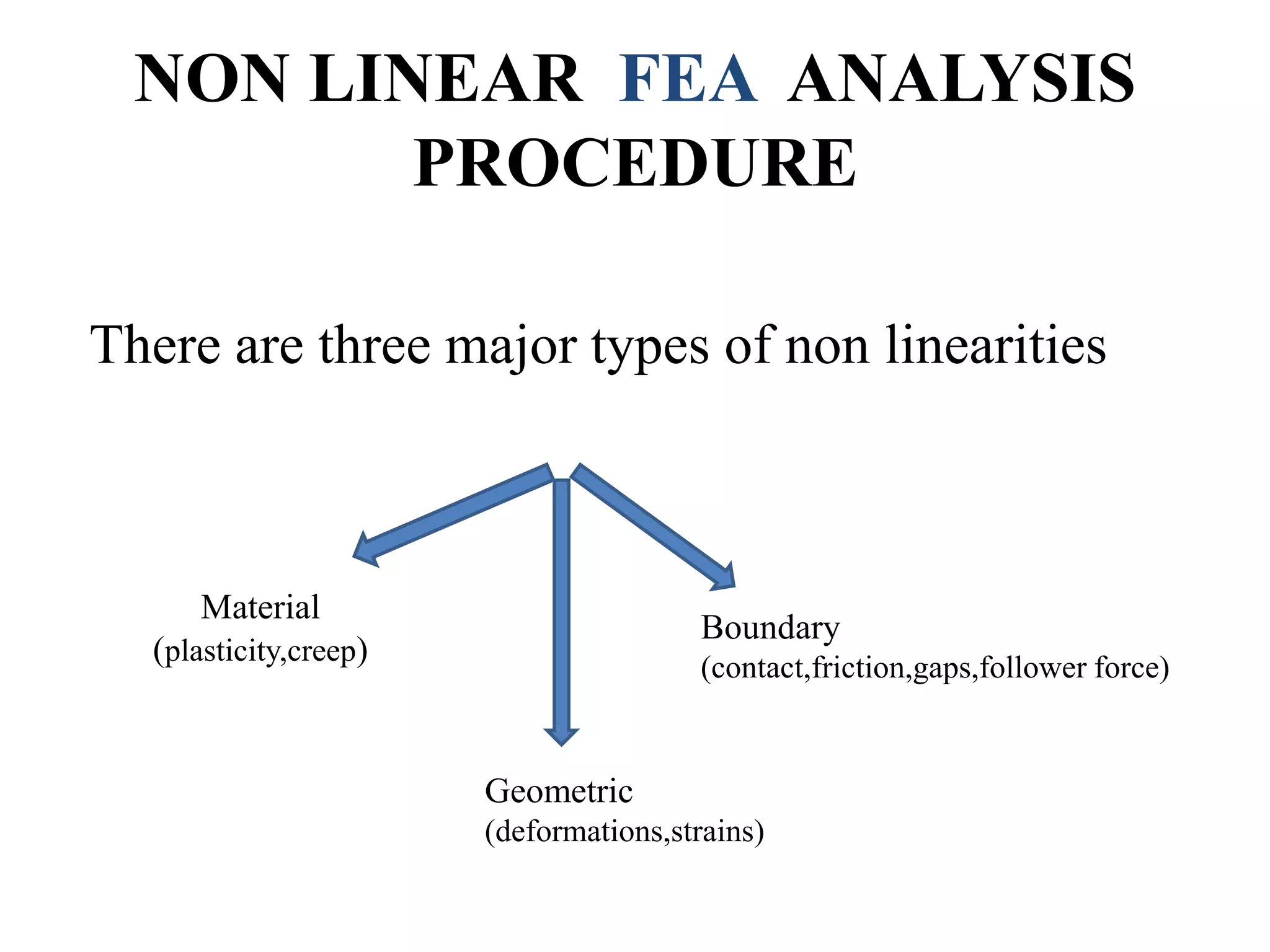

5. NON LINEAR FEA ANALYSIS
PROCEDURE
There are three major types of non linearities
Material
Boundary
(plasticity,creep)
(contact,friction,gaps,follower force)
Geometric
(deformations,strains)

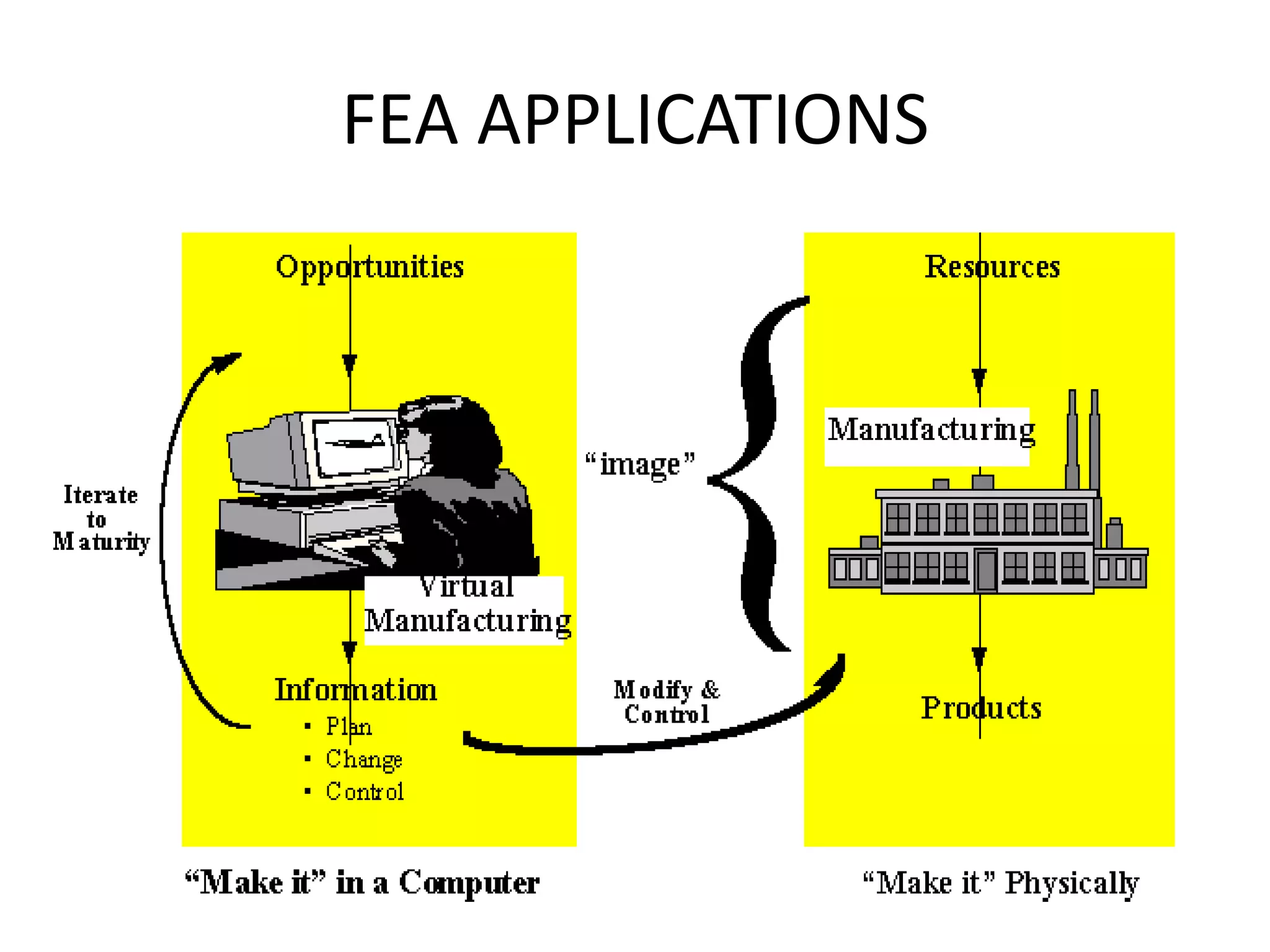

6. FEA APPLICATIONS

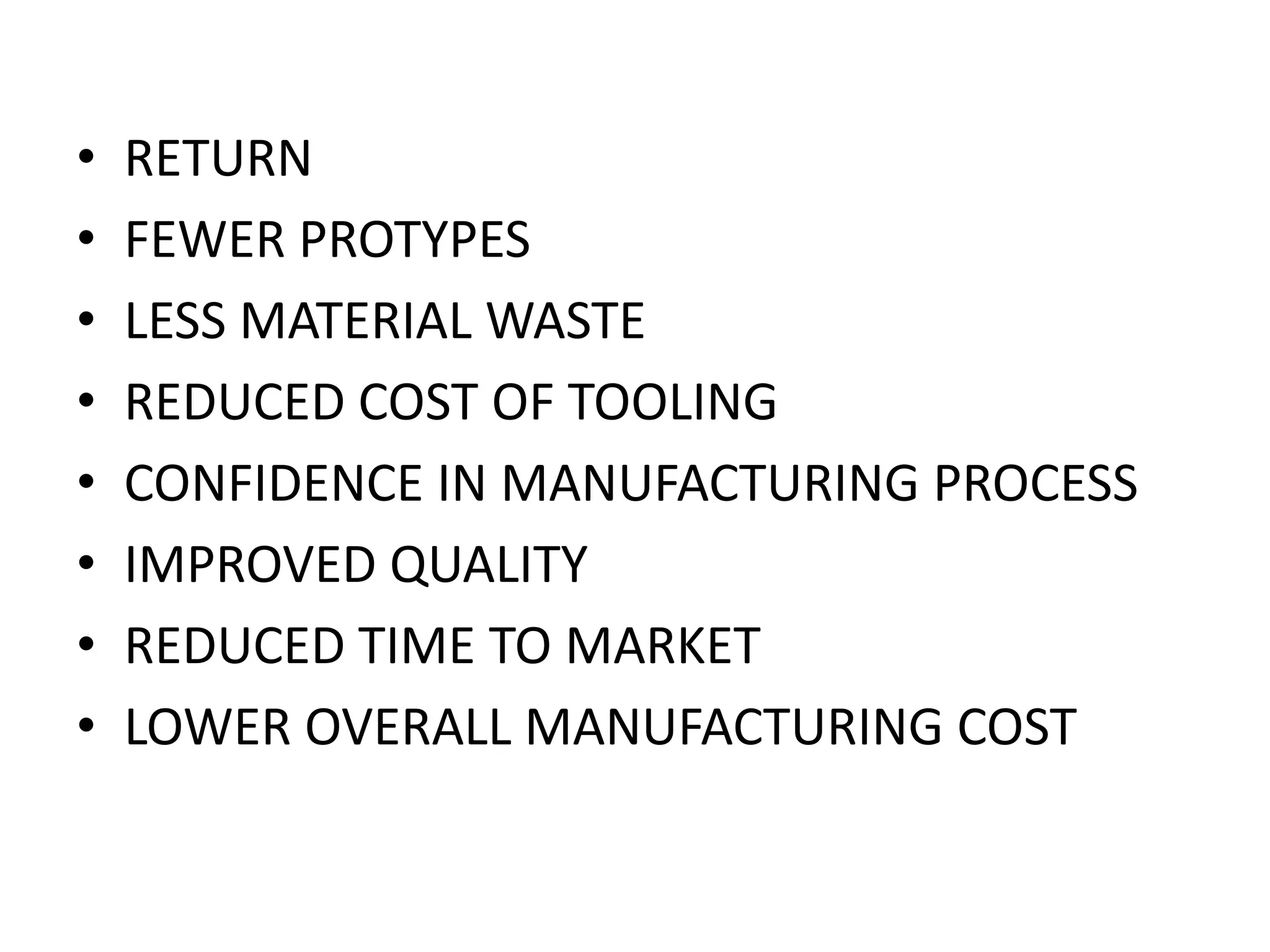

7. •
•
•
•
•
•
•
•
RETURN
FEWER PROTYPES
LESS MATERIAL WASTE
REDUCED COST OF TOOLING
CONFIDENCE IN MANUFACTURING PROCESS
IMPROVED QUALITY
REDUCED TIME TO MARKET
LOWER OVERALL MANUFACTURING COST

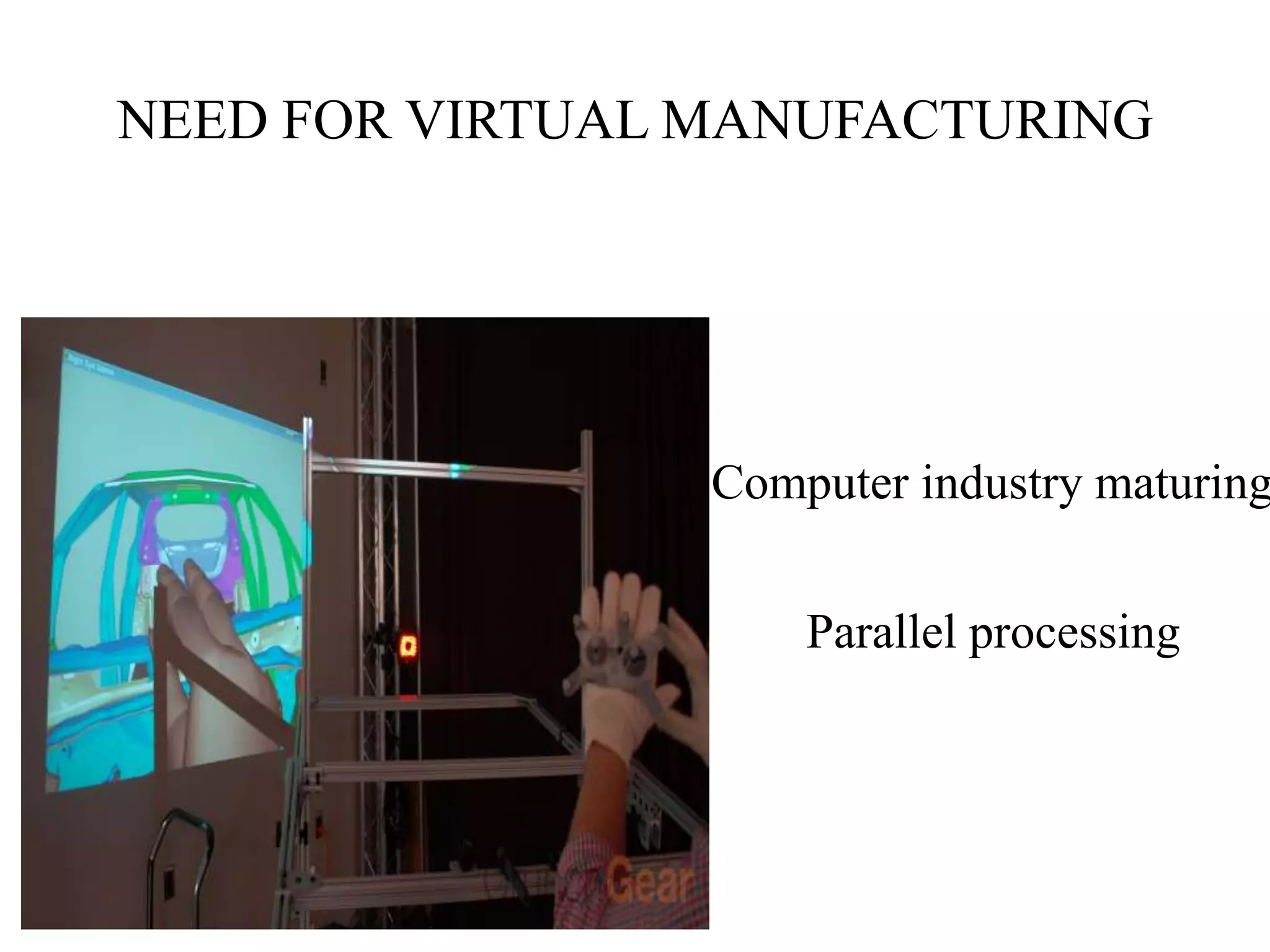

8. NEED FOR VIRTUAL MANUFACTURING
Computer industry maturing
Parallel processing

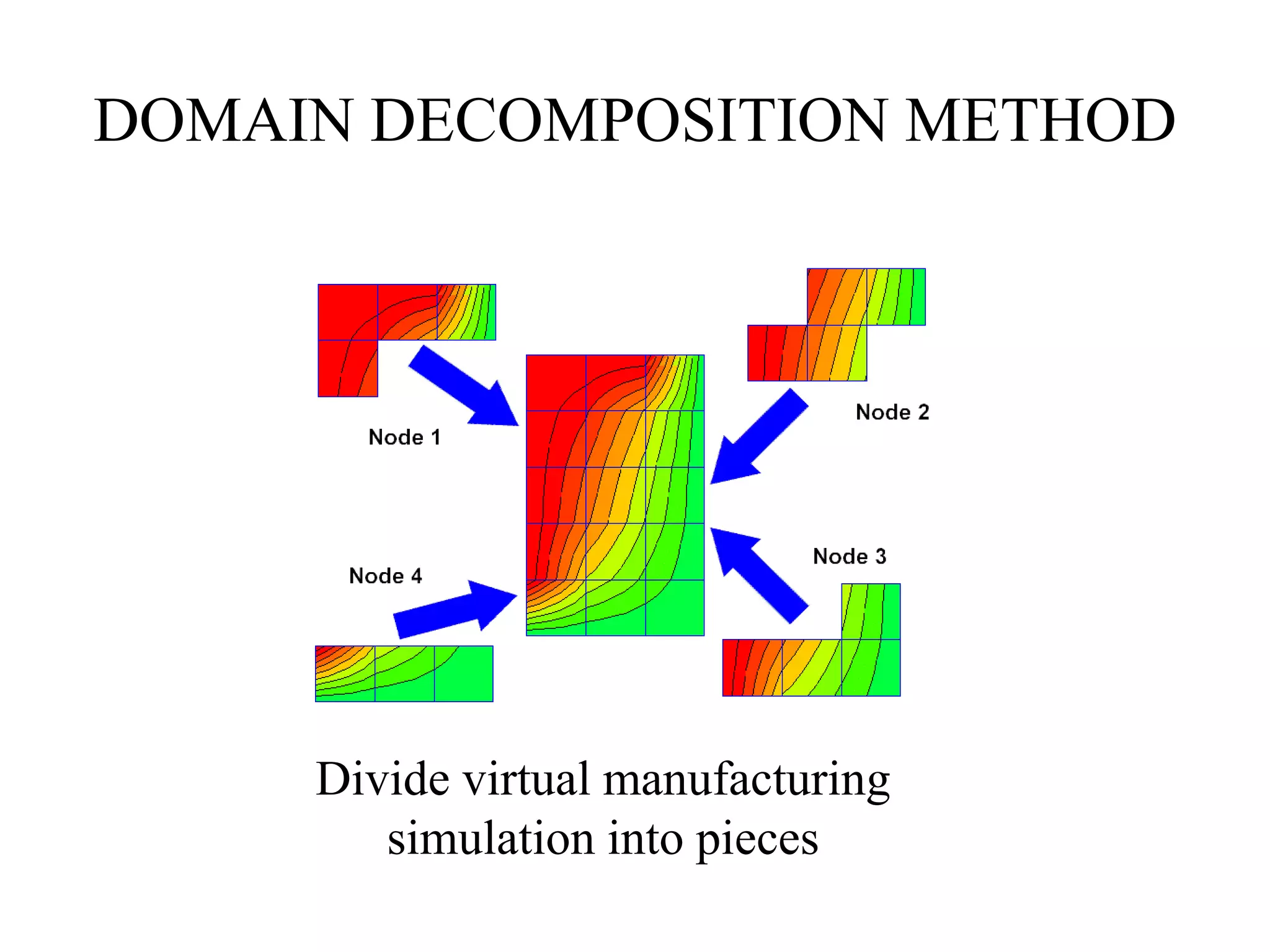

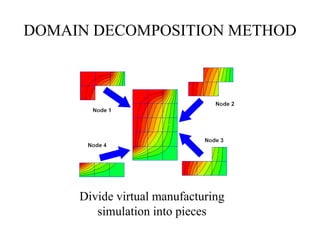

9. DOMAIN DECOMPOSITION METHOD
Divide virtual manufacturing
simulation into pieces

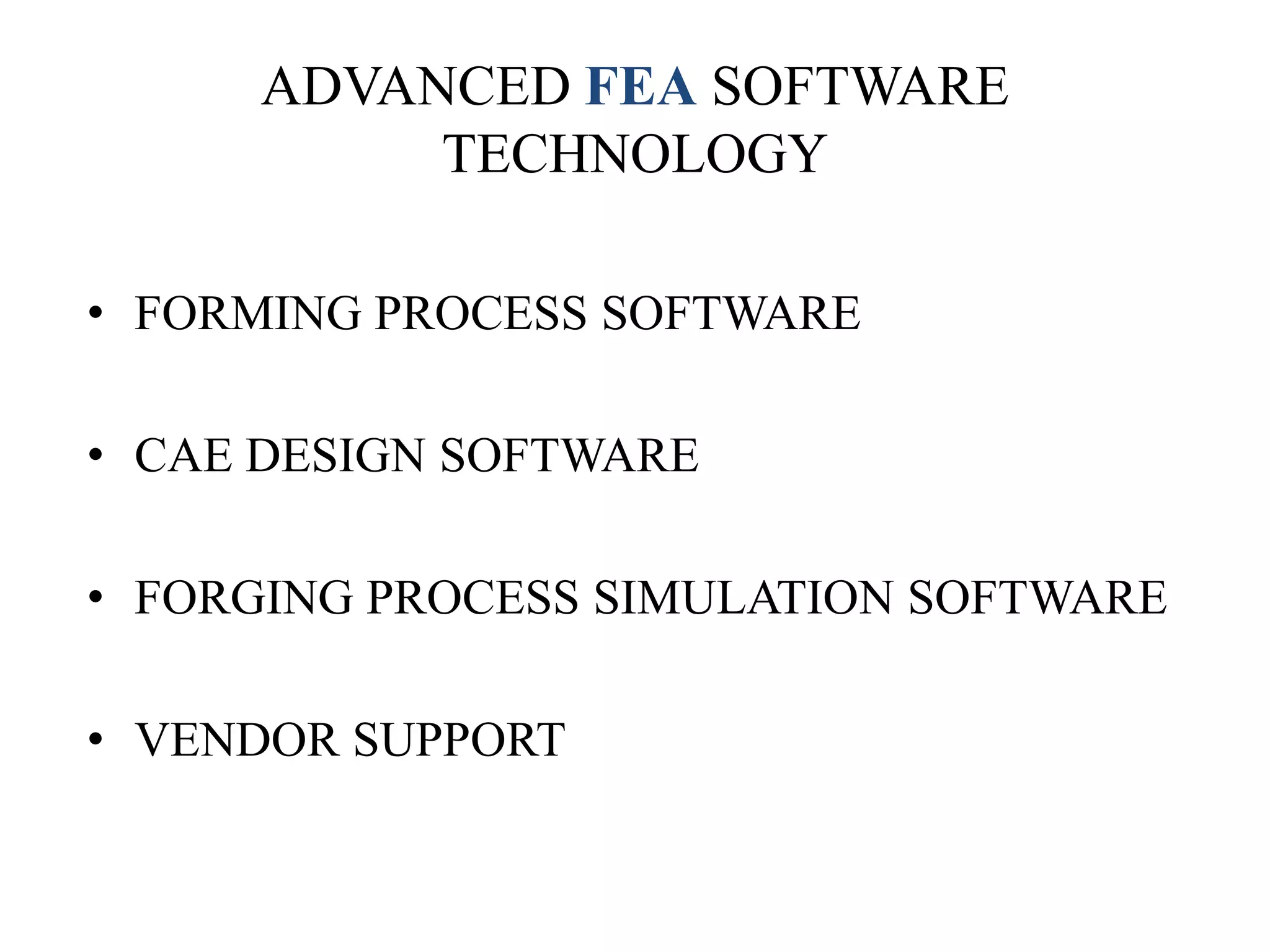

10. ADVANCED FEA SOFTWARE
TECHNOLOGY
• FORMING PROCESS SOFTWARE
• CAE DESIGN SOFTWARE
• FORGING PROCESS SIMULATION SOFTWARE
• VENDOR SUPPORT
