This document provides an overview of CAD-CAM (computer-aided design and computer-aided manufacturing). It discusses the history of CAD-CAM from its origins in the 1950s to its development and integration in later decades. The document defines CAD as using computers to aid the product design process, while CAM refers to using computers in manufacturing planning and control. It then covers the technologies behind CAD-CAM, its advantages like increased productivity and ability to alter designs with minimal effort, and limitations such as requiring expensive software and specialized skills. The document also lists several industries that utilize CAD-CAM and popular CAD-CAM software programs before concluding with thoughts on future developments in the field.
What is CAD?
Computer-aided design is defined as the use of computer systems to assist in the creation, modification, analysis, or optimization of a design. CAD software is used to increase the productivity of the designer, improve design quality, document communication, and create databases for manufacturing. CAD uses computers to help design something in 2D (curves and figures) or 3D (curves, surfaces, and solids).
Fundamentals of CAD/ CAM, Application of computers for Design and Manufacturing, Benefits of CAD/ CAM - Computer peripherals for CAD/ CAM, Design workstation, Graphic terminal, CAD/ CAM software- definition of system software and application software, CAD/ CAM database and structure
Lecture # 03 Design for Additive ManufacturingSolomon Tekeste
Design for Additive Manufacturing (DfAM)
DfAM - A generic term used to describe rules and parameters for a part design to be produced with an AM process
DfAM - is the practice of designing products to reduce or minimize manufacturing and assembly difficulties and costs,
DfAM aims
To take advantages of the unique AM technologies capabilities to design and optimize a product/component,
To utilize the characteristics of AM methods to improve the product/component functions according to the capability of the selected AM process.
In doing so, the designers should tailor their designs to maximize the advantages of AM methods, such as complex geometries and lightweight
Design Aspect and Design Consideration in AM
Design aspect
Any particular feature which can be quantified at the design phase.
Includes;
Geometric features of the part’s shape (overhangs, bores, channels, etc.)
Part’s programming parameters (layer thickness, orientation, etc.).
Design consideration
The result on the manufactured part
Specific properties of the process and quantified with certain key performance indicators.
These includes; surface roughness, accuracy, build time, etc.
Design Aspect and Design Consideration in AM
With conventional manufacturing processes, these aspects are mostly a concern for the production engineer rather than for the designer;
But, the significance of these aspects is high for the outcome in AM technologies.
computer-aided design and computer-aided manufacturing) refers to computer software that is used to both design and manufacture products. ... CAD/CAM applications are used to both design a product and program manufacturing processes, specifically, CNC machining.
What is CAD?
Computer-aided design is defined as the use of computer systems to assist in the creation, modification, analysis, or optimization of a design. CAD software is used to increase the productivity of the designer, improve design quality, document communication, and create databases for manufacturing. CAD uses computers to help design something in 2D (curves and figures) or 3D (curves, surfaces, and solids).
Fundamentals of CAD/ CAM, Application of computers for Design and Manufacturing, Benefits of CAD/ CAM - Computer peripherals for CAD/ CAM, Design workstation, Graphic terminal, CAD/ CAM software- definition of system software and application software, CAD/ CAM database and structure
Lecture # 03 Design for Additive ManufacturingSolomon Tekeste
Design for Additive Manufacturing (DfAM)
DfAM - A generic term used to describe rules and parameters for a part design to be produced with an AM process
DfAM - is the practice of designing products to reduce or minimize manufacturing and assembly difficulties and costs,
DfAM aims
To take advantages of the unique AM technologies capabilities to design and optimize a product/component,
To utilize the characteristics of AM methods to improve the product/component functions according to the capability of the selected AM process.
In doing so, the designers should tailor their designs to maximize the advantages of AM methods, such as complex geometries and lightweight
Design Aspect and Design Consideration in AM
Design aspect
Any particular feature which can be quantified at the design phase.
Includes;
Geometric features of the part’s shape (overhangs, bores, channels, etc.)
Part’s programming parameters (layer thickness, orientation, etc.).
Design consideration
The result on the manufactured part
Specific properties of the process and quantified with certain key performance indicators.
These includes; surface roughness, accuracy, build time, etc.
Design Aspect and Design Consideration in AM
With conventional manufacturing processes, these aspects are mostly a concern for the production engineer rather than for the designer;
But, the significance of these aspects is high for the outcome in AM technologies.
computer-aided design and computer-aided manufacturing) refers to computer software that is used to both design and manufacture products. ... CAD/CAM applications are used to both design a product and program manufacturing processes, specifically, CNC machining.
Fundamentals of CAD/ CAM, Application of computers for Design and Manufacturing, Benefits of CAD/ CAM - Computer peripherals for CAD/ CAM, Design workstation, Graphic terminal, CAD/ CAM software- definition of system software and application software, CAD/ CAM database and structure. Geometric Modeling
CADD MASTRE TRAINING CENTER in Nagpur is a Central India's leading & Best Training institute for CAD/CAM/CAE/CFD/PPM Trainings, CADD Mastre Training Institute is
AN ISO 9001-2008 Certified Company, CADD Mastre Partnering with world leader in CAD,CAM & CAE Industries, CADD Mastre committed to building a skilled manpower pool for Regional & global industry requirements. The company which was set up in 2007, to help the Manufacturing & Construction industry overcome its human resource challenges, offering learning solutions to Individuals, Enterprises and Engineering and Polytechnic Institutions in India.
AutoCAD is a 2D and 3D computer desi.pptxinnocentvk155
AutoCAD is a 2D and 3D computer-aided design (CAD) software application developed by Autodesk.[1] It was first released in December 1982 for the CP/M and IBM PC platforms as a desktop app running on microcomputers with internal graphics controllers.

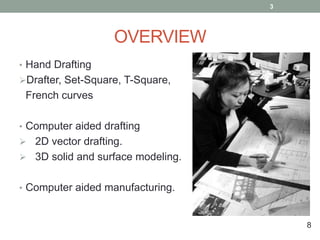

4. 3D solid and surface modeling.Computer aided manufacturing. 3 8

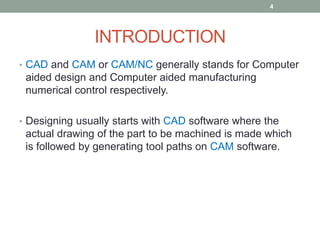

5. INTRODUCTION CAD and CAM or CAM/NC generally stands for Computer aided design and Computer aided manufacturing numerical control respectively. Designing usually starts with CAD software where the actual drawing of the part to be machined is made which is followed by generating tool paths on CAM software. 4
6. DEFINITION OF CAD-CAM Computer Aided Design (CAD) is defined as the application of computer and graphics software to aid the product design from conceptualization to documentation. Computer Aided Manufacturing (CAM) is defined as the effective use of computer in manufacturing planning and control. 5 10

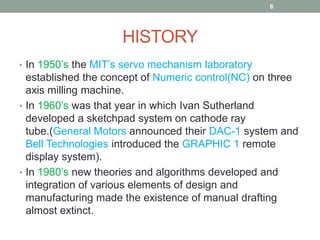

7. HISTORY In 1950’s the MIT’s servo mechanism laboratory established the concept of Numeric control(NC) on three axis milling machine. In 1960’s was that year in which Ivan Sutherland developed a sketchpad system on cathode ray tube.(General Motors announced their DAC-1 system and Bell Technologies introduced the GRAPHIC 1 remote display system). In 1980’snew theories and algorithms developed and integration of various elements of design and manufacturing made the existence of manual drafting almost extinct. 6

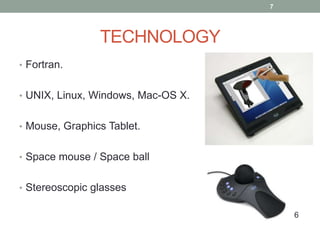

8. TECHNOLOGY Fortran. UNIX, Linux, Windows, Mac-OS X. Mouse, Graphics Tablet. Space mouse / Space ball Stereoscopic glasses 7 6
9. CAD-CAM Advantages Increased productivity. Error free drafting. Repeatability. Improved Collaboration. Lower overhead costs. Designs can be altered with minimal effort. It gives us a “zoom” feature similar to a camera lens. Three- dimensional modeling. Ability to create a sectional view. Generating G and M codes. 8 4
10. CAD-CAM Limitations Expensive software. Special Skills required. Expensive machines required. High maintenance cost. Nature of material of the object. 9 11

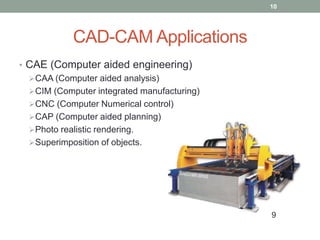

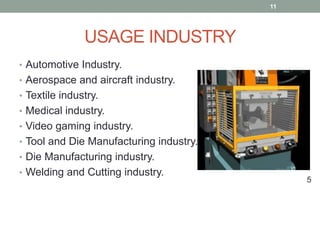

17. USAGE INDUSTRY Automotive Industry. Aerospace and aircraft industry. Textile industry. Medical industry. Video gaming industry. Tool and Die Manufacturing industry. Die Manufacturing industry. Welding and Cutting industry. 11 5

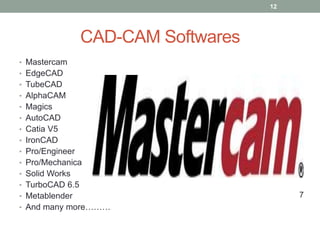

18. CAD-CAM Softwares Mastercam EdgeCAD TubeCAD AlphaCAM Magics AutoCAD Catia V5 IronCAD Pro/Engineer Pro/Mechanica Solid Works TurboCAD 6.5 Metablender And many more……… 12 7

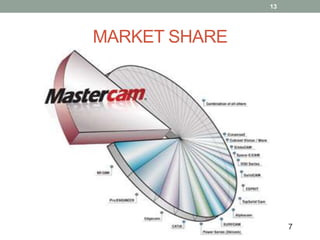

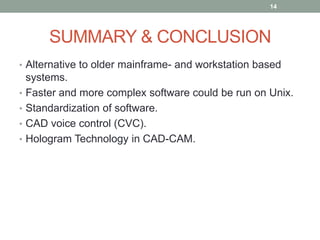

20. SUMMARY & CONCLUSION Alternative to older mainframe- and workstation based systems. Faster and more complex software could be run on Unix. Standardization of software. CAD voice control (CVC). Hologram Technology in CAD-CAM. 14
