Vertical air conditioning systems use vertical vents on the floor to direct cool air in areas that lack walls or ceilings. These omnidirectional vents can be turned in any direction. A package air conditioning system keeps all components like the condenser, compressor, and blower in a single unit. It draws in fresh air, cools it through condenser coils, and pushes the air through vents via the blower. At a cinema mall in Vadodara, vertical vents were placed at the entrance on the ground floor, getting air from the basement through 2-meter high vents above human height with blowers above. Package AC and ducting were also used to pass cool air to the theater space.

1. Vertical Air Conditioning System
By: Yash Oza
Parth Patel

2. Introduction
• Vertical Air Conditioning System is a form of
central air conditioning system consisting
mainly vertical vents that direct cool air from
the floor itself.
• It is used where floor requires cool air but
there is a lack of walls and/or ceiling is too
high.
• These vents are omnidirectional because they
can be turned in any direction.

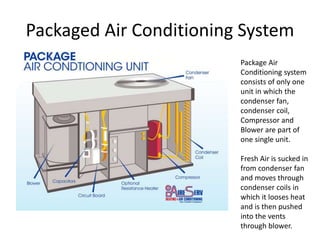

3. Packaged Air Conditioning System
Package Air
Conditioning system
consists of only one
unit in which the
condenser fan,
condenser coil,
Compressor and
Blower are part of
one single unit.
Fresh Air is sucked in
from condenser fan
and moves through
condenser coils in
which it looses heat
and is then pushed
into the vents
through blower.

4. Working of Package Air Conditioning
System
Air circulation
through a
Package Air
conditioning
System.

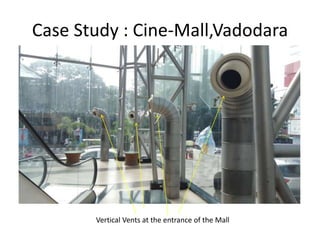

5. Case Study : Cine-Mall,Vadodara
Vertical Vents at the entrance of the Mall

6. Vertical Vents System
This vents are
placed on the
ground floor
(Entrance) and get
the air from the
basement.
These Vents are
2.0m in height and
blower is above
human scale.

7. Use of Package Air Conditioning
System

8. Ducting Of Vents
Part of this kind of air conditioning system.
External Duct heading towards top of the
building to pass cool air to the theatre space.
