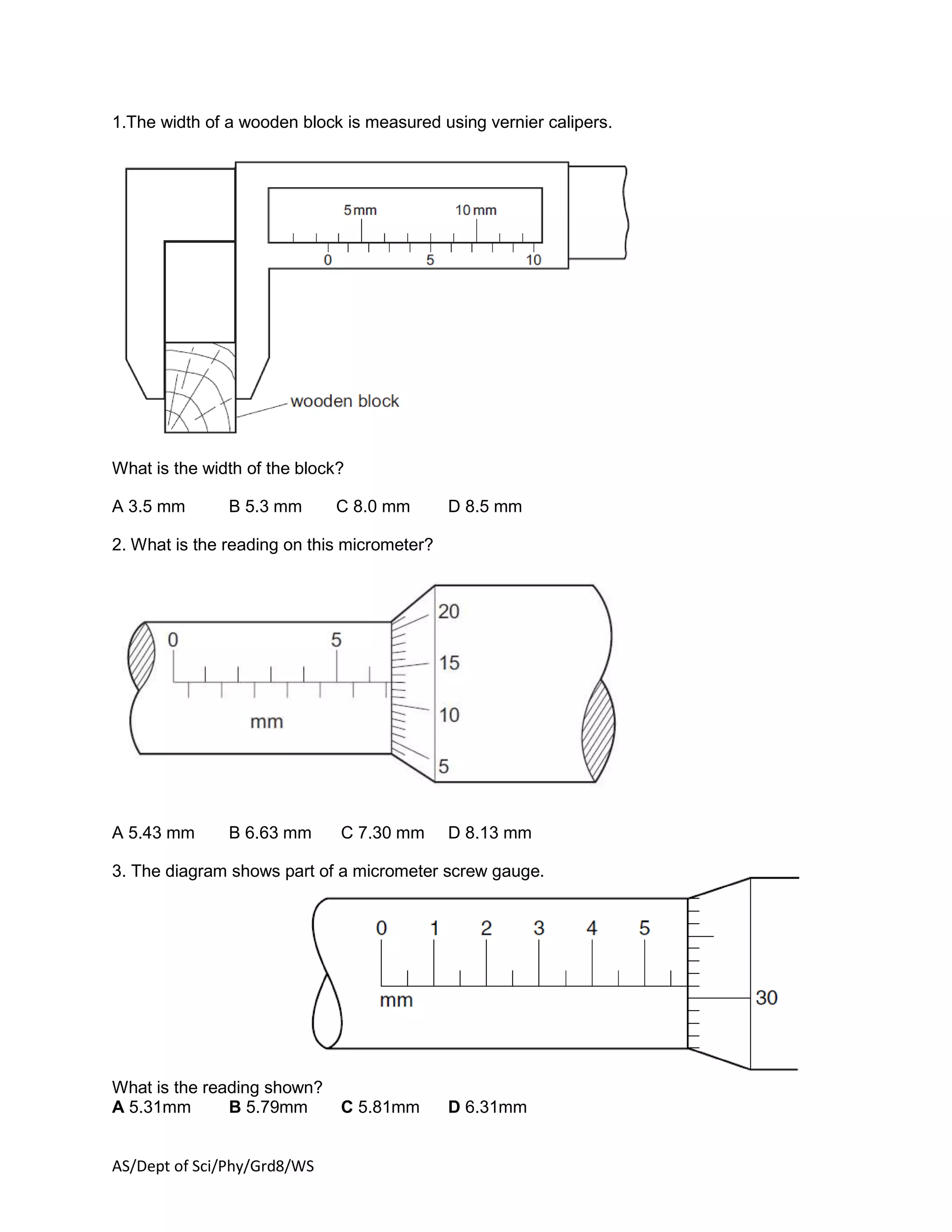

1. AS/Dept of Sci/Phy/Grd8/WS
1.The width of a wooden block is measured using vernier calipers.
What is the width of the block?
A 3.5 mm B 5.3 mm C 8.0 mm D 8.5 mm
2. What is the reading on this micrometer?
A 5.43 mm B 6.63 mm C 7.30 mm D 8.13 mm
3. The diagram shows part of a micrometer screw gauge.
What is the reading shown?
A 5.31mm B 5.79mm C 5.81mm D 6.31mm

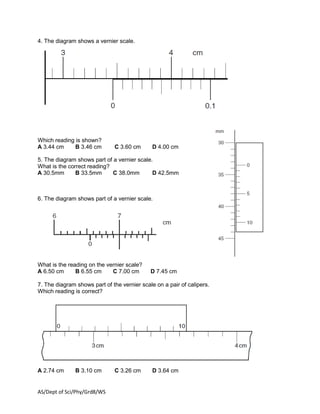

2. AS/Dept of Sci/Phy/Grd8/WS
4. The diagram shows a vernier scale.
Which reading is shown?
A 3.44 cm B 3.46 cm C 3.60 cm D 4.00 cm
5. The diagram shows part of a vernier scale.
What is the correct reading?
A 30.5mm B 33.5mm C 38.0mm D 42.5mm
6. The diagram shows part of a vernier scale.
What is the reading on the vernier scale?
A 6.50 cm B 6.55 cm C 7.00 cm D 7.45 cm
7. The diagram shows part of the vernier scale on a pair of calipers.
Which reading is correct?
A 2.74 cm B 3.10 cm C 3.26 cm D 3.64 cm
