a overview on Verilog http://posedge.ir/ آموزش FPGA بخش اول آموزش verilog

1. Verilog Overview
MAHMOUD HAGHIGHI
WWW.POSEDGE.IR
VERILOG OVERVIEW12/20/2015 1

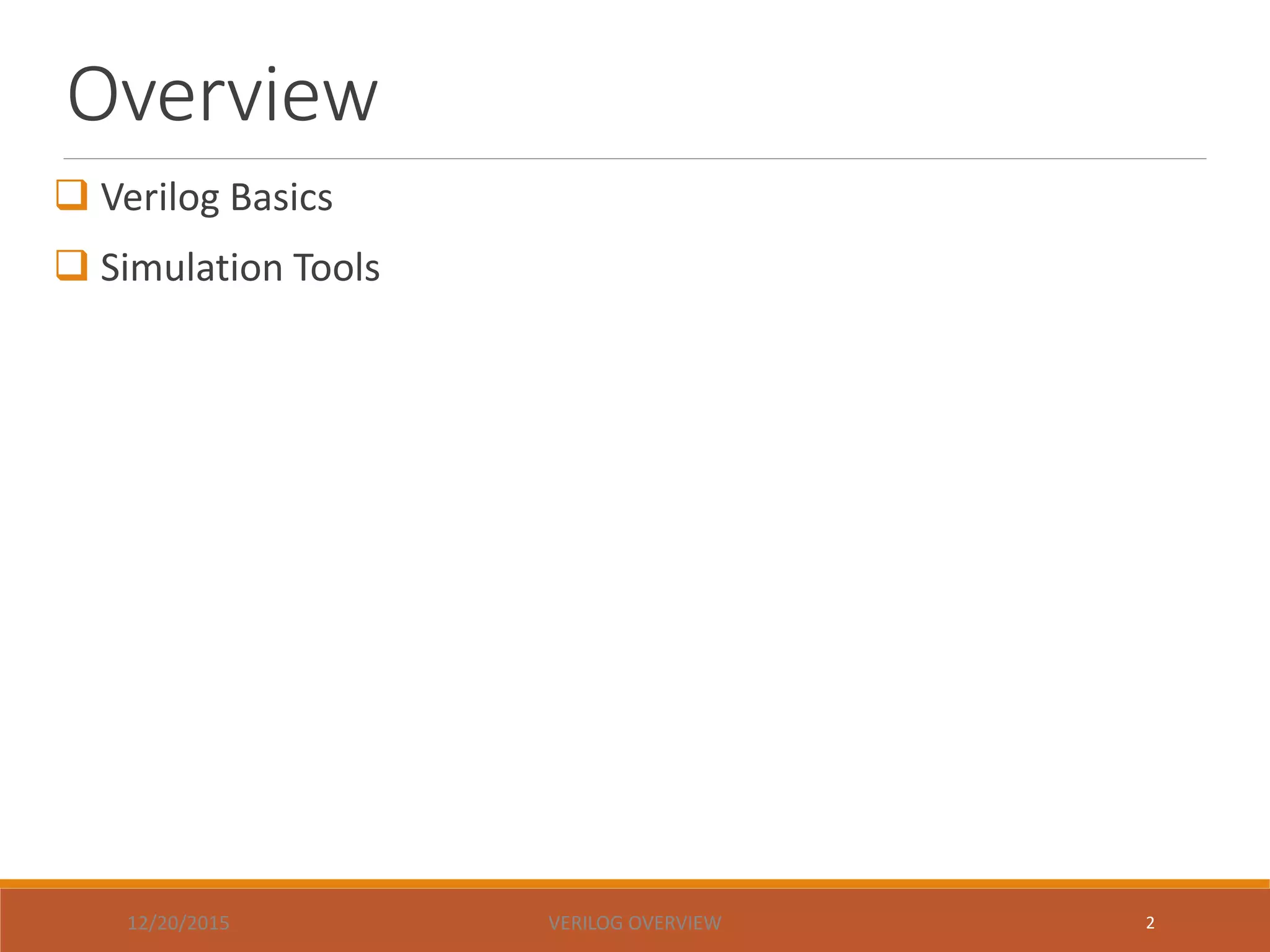

2. Overview
 Verilog Basics
 Simulation Tools
VERILOG OVERVIEW12/20/2015 2

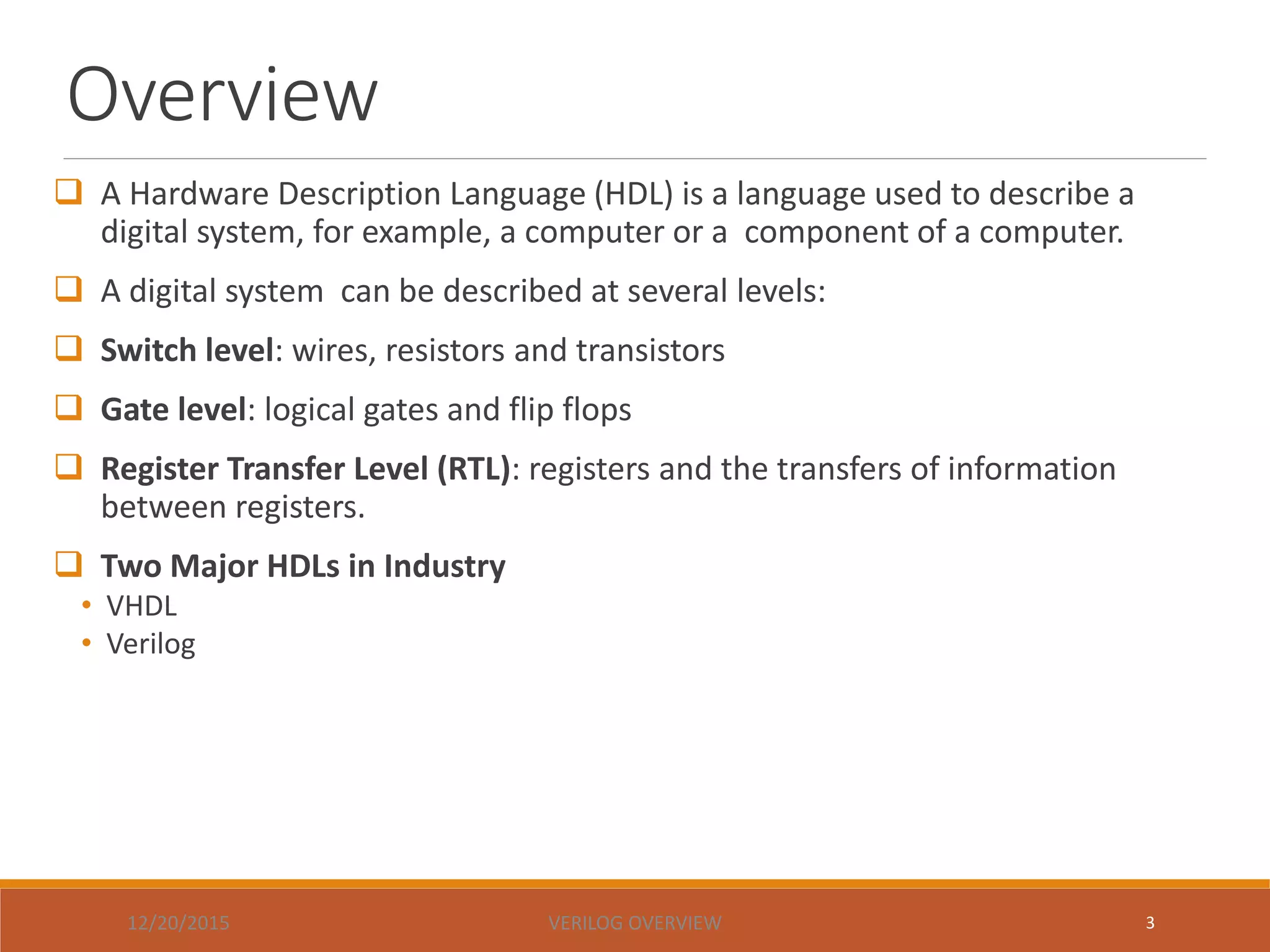

3. Overview
 A Hardware Description Language (HDL) is a language used to describe a
digital system, for example, a computer or a component of a computer.
 A digital system can be described at several levels:
 Switch level: wires, resistors and transistors
 Gate level: logical gates and flip flops
 Register Transfer Level (RTL): registers and the transfers of information
between registers.
 Two Major HDLs in Industry
• VHDL
• Verilog
VERILOG OVERVIEW12/20/2015 3

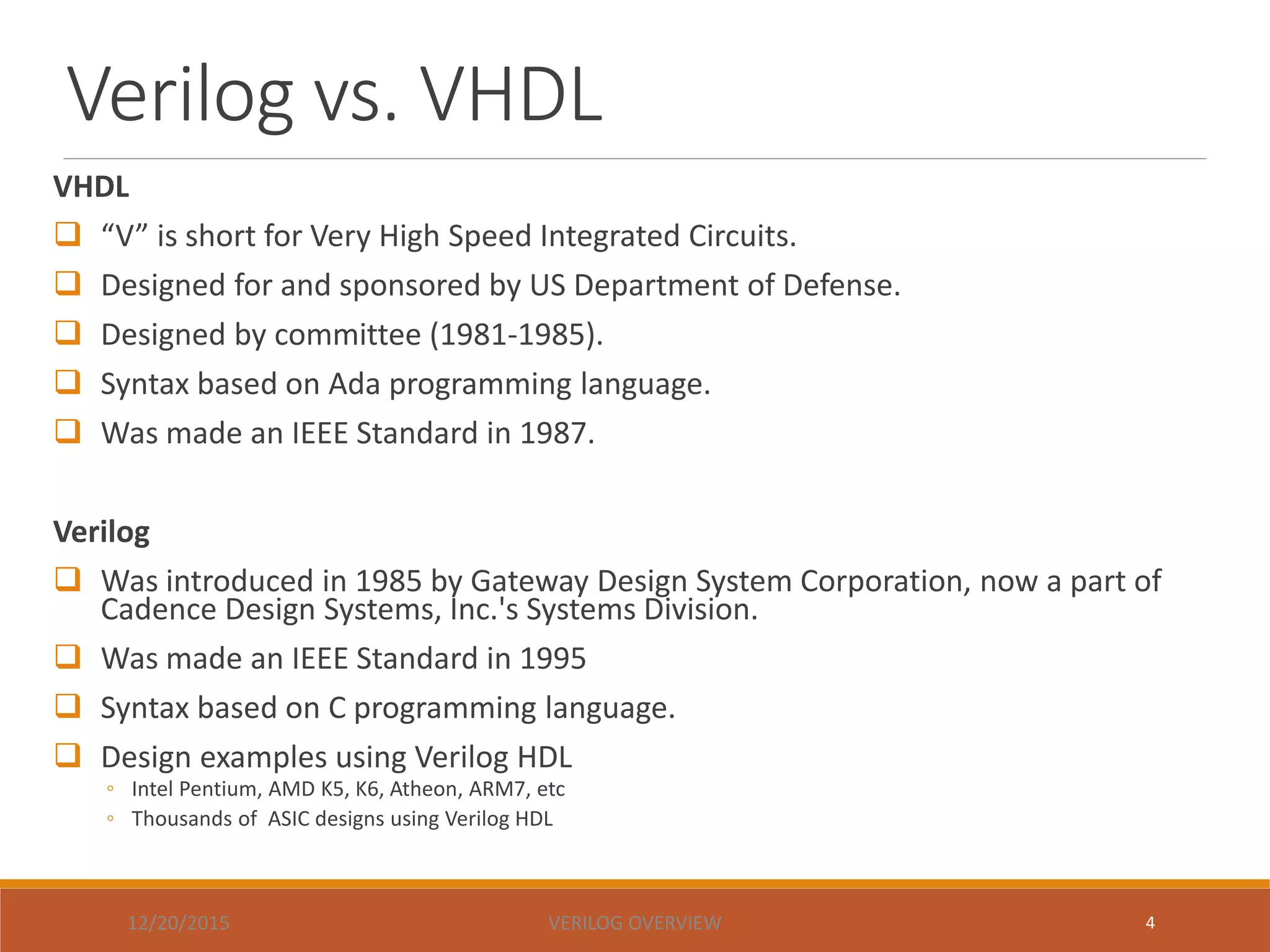

4. Verilog vs. VHDL
VHDL
 “V” is short for Very High Speed Integrated Circuits.
 Designed for and sponsored by US Department of Defense.
 Designed by committee (1981-1985).
 Syntax based on Ada programming language.
 Was made an IEEE Standard in 1987.
Verilog
 Was introduced in 1985 by Gateway Design System Corporation, now a part of
Cadence Design Systems, Inc.'s Systems Division.
 Was made an IEEE Standard in 1995
 Syntax based on C programming language.
 Design examples using Verilog HDL
◦ Intel Pentium, AMD K5, K6, Atheon, ARM7, etc
◦ Thousands of ASIC designs using Verilog HDL
VERILOG OVERVIEW12/20/2015 4

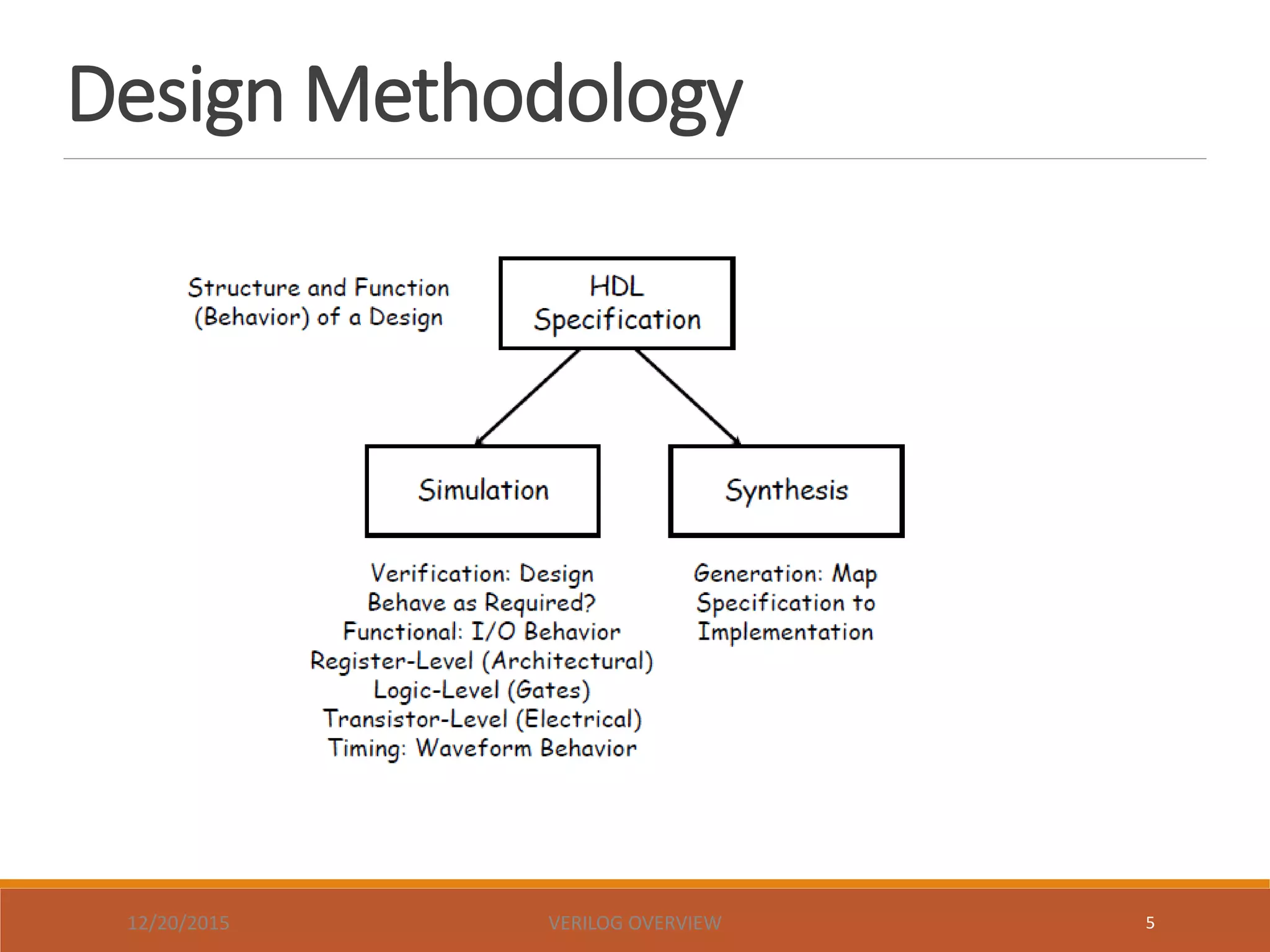

5. Design Methodology
VERILOG OVERVIEW12/20/2015 5

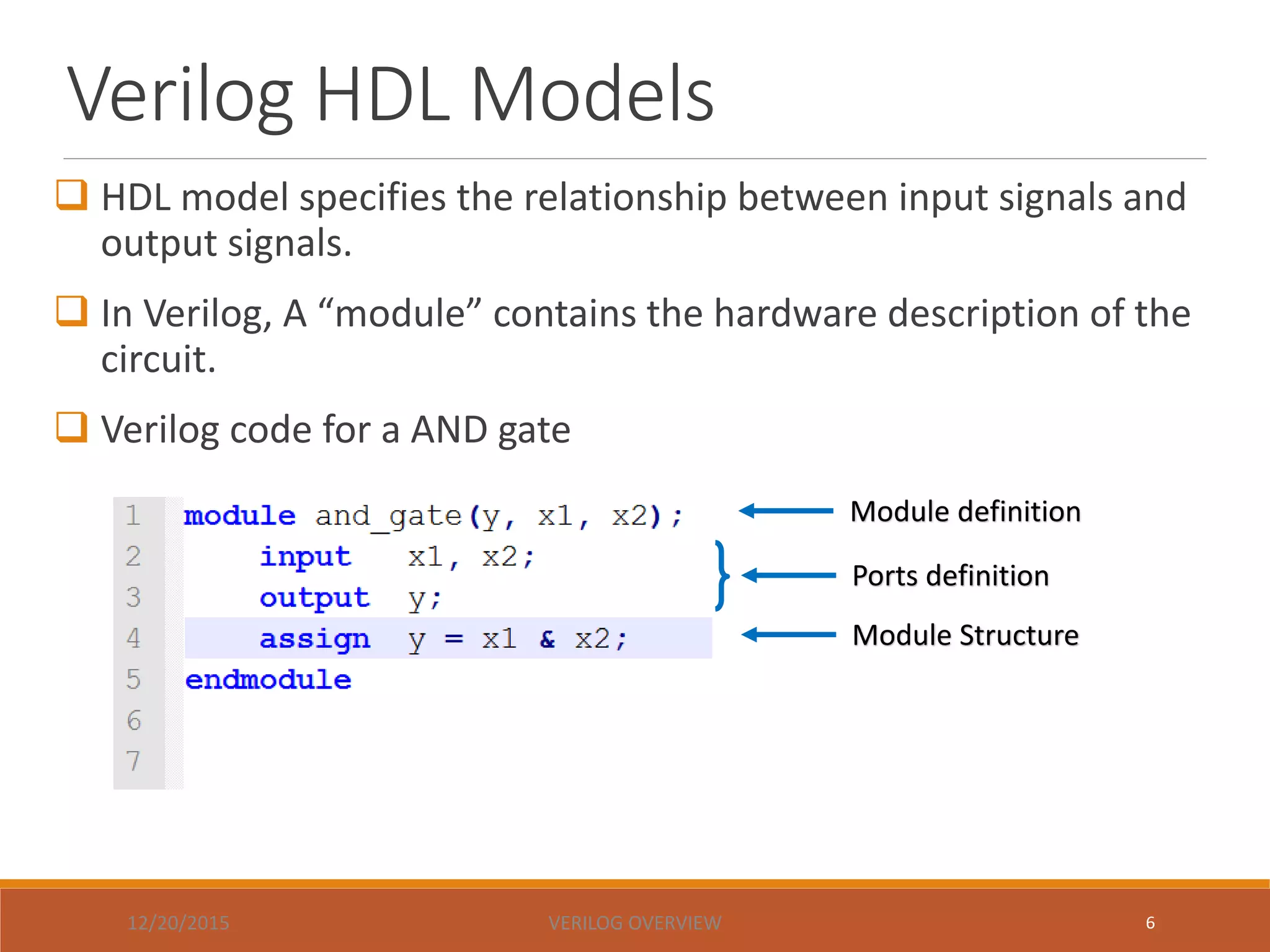

6. Verilog HDL Models
 HDL model specifies the relationship between input signals and
output signals.
 In Verilog, A “module” contains the hardware description of the
circuit.
 Verilog code for a AND gate
Module definition
Ports definition
Module Structure
VERILOG OVERVIEW12/20/2015 6

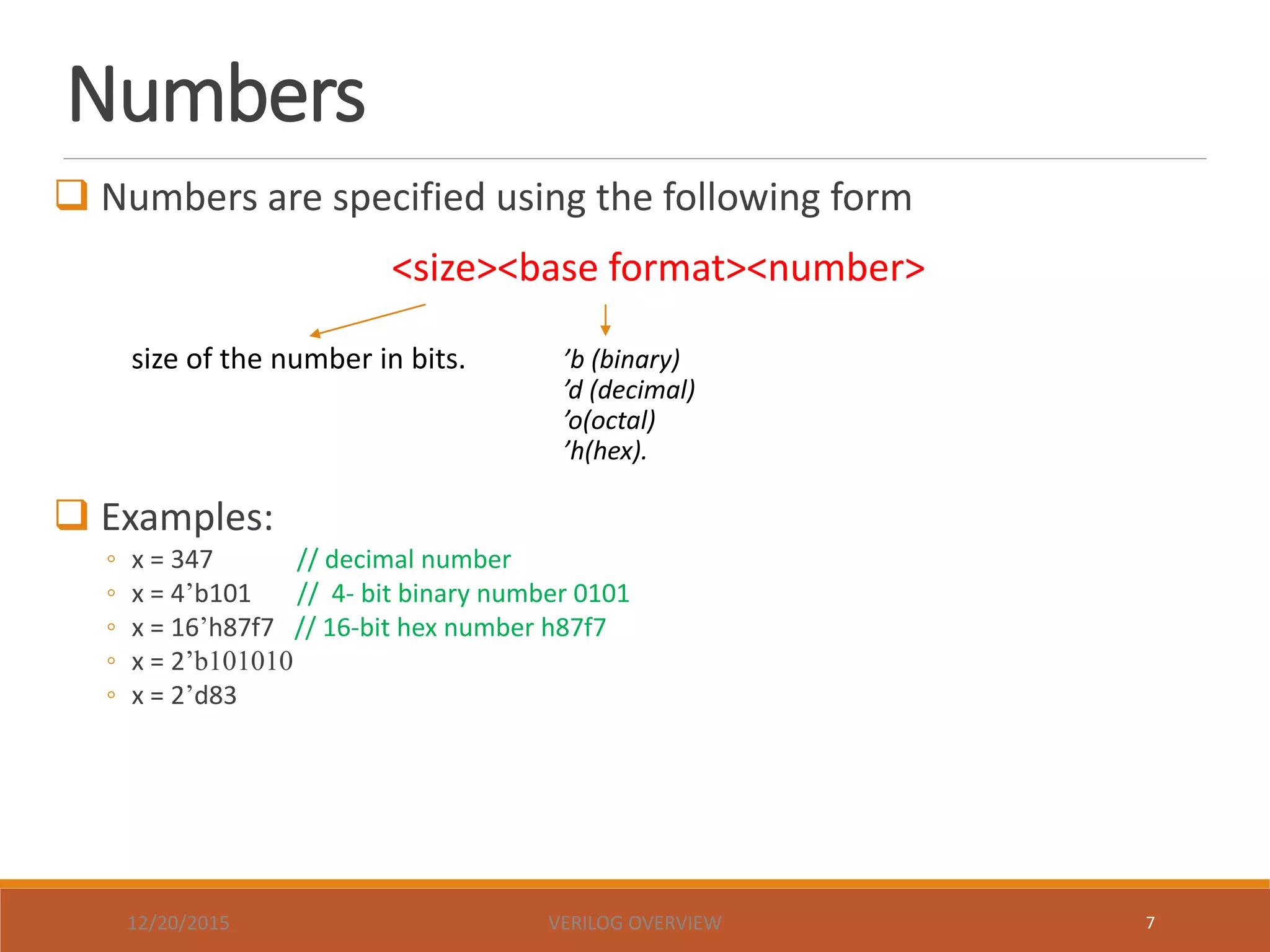

7. Numbers
 Numbers are specified using the following form
<size><base format><number>
 Examples:
◦ x = 347 // decimal number
◦ x = 4’b101 // 4- bit binary number 0101
◦ x = 16’h87f7 // 16-bit hex number h87f7
◦ x = 2’b101010
◦ x = 2’d83
size of the number in bits. ’b (binary)
’d (decimal)
’o(octal)
’h(hex).
VERILOG OVERVIEW12/20/2015 7

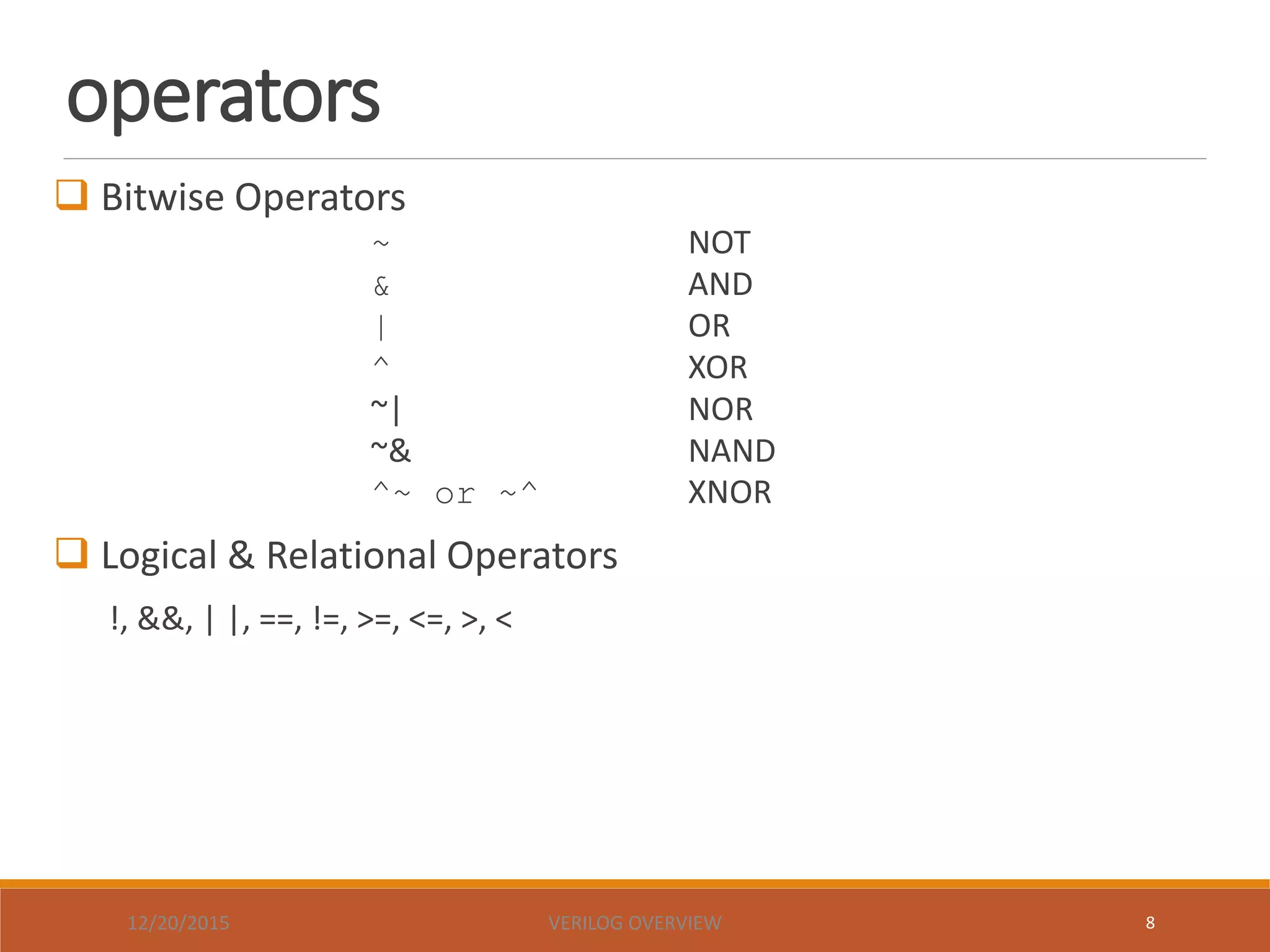

8. operators
 Bitwise Operators
~ NOT
& AND
| OR
^ XOR
~| NOR
~& NAND
^~ or ~^ XNOR
 Logical & Relational Operators
!, &&, | |, ==, !=, >=, <=, >, <
VERILOG OVERVIEW12/20/2015 8

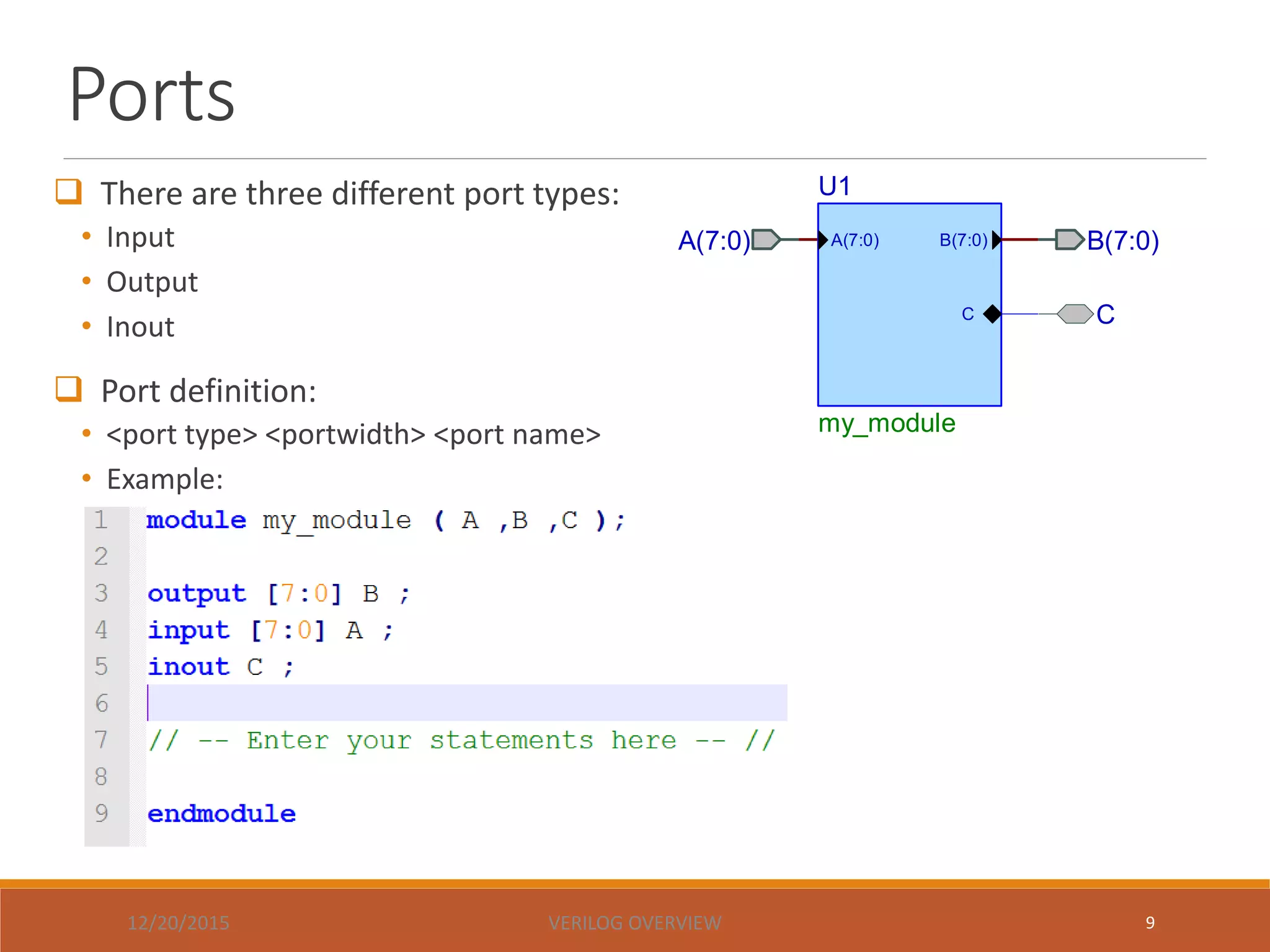

9. Ports
 There are three different port types:
• Input
• Output
• Inout
 Port definition:
• <port type> <portwidth> <port name>
• Example:
A(7:0) B(7:0)
C
my_module
U1
A(7:0) B(7:0)
C
VERILOG OVERVIEW12/20/2015 9

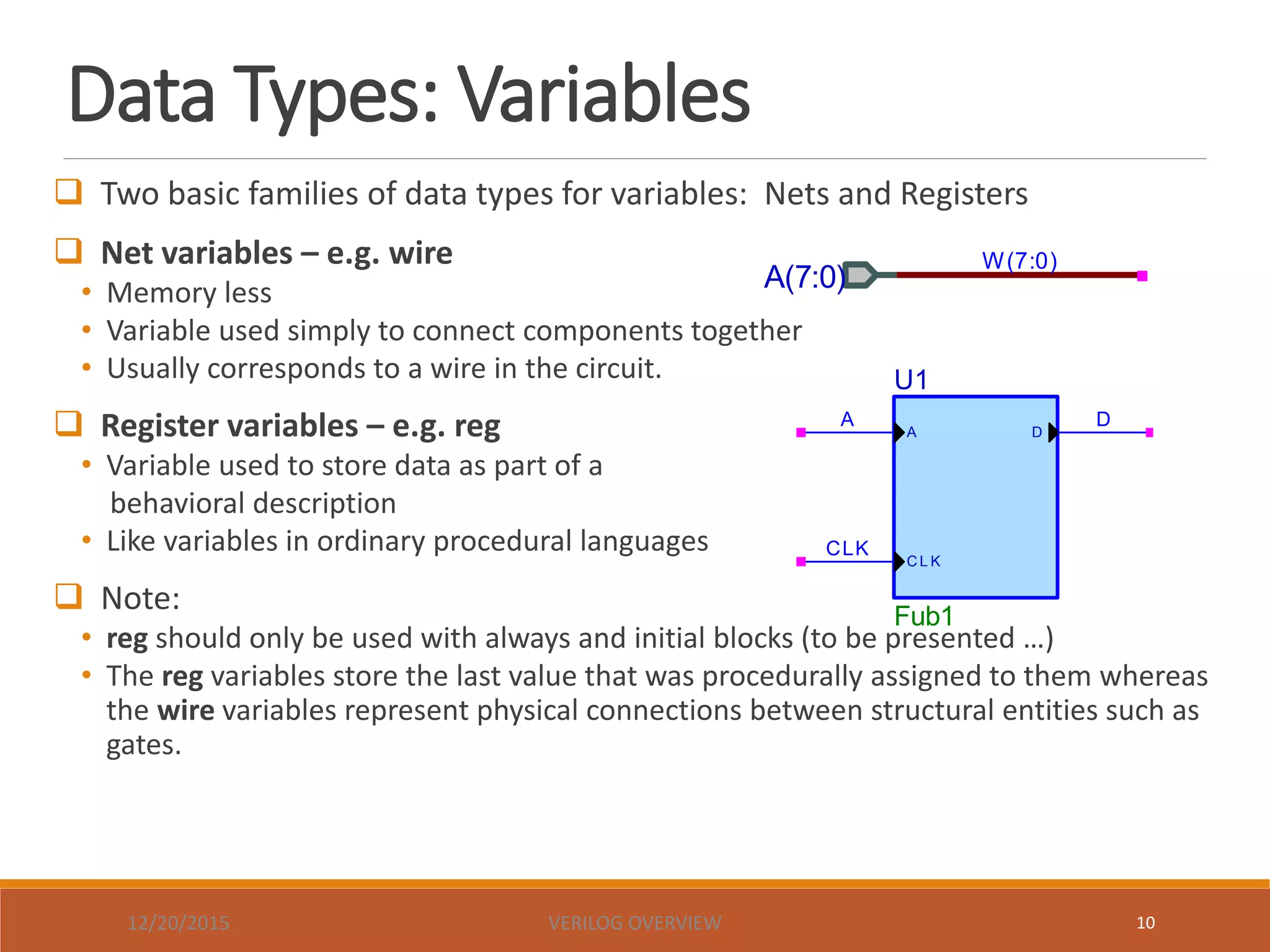

10. Data Types: Variables
 Two basic families of data types for variables: Nets and Registers
 Net variables – e.g. wire
• Memory less
• Variable used simply to connect components together
• Usually corresponds to a wire in the circuit.
 Register variables – e.g. reg
• Variable used to store data as part of a
behavioral description
• Like variables in ordinary procedural languages
 Note:
• reg should only be used with always and initial blocks (to be presented …)
• The reg variables store the last value that was procedurally assigned to them whereas
the wire variables represent physical connections between structural entities such as
gates.
A(7:0)
W(7:0)
C L K
A D
Fub1
U1
DA
CLK
VERILOG OVERVIEW12/20/2015 10

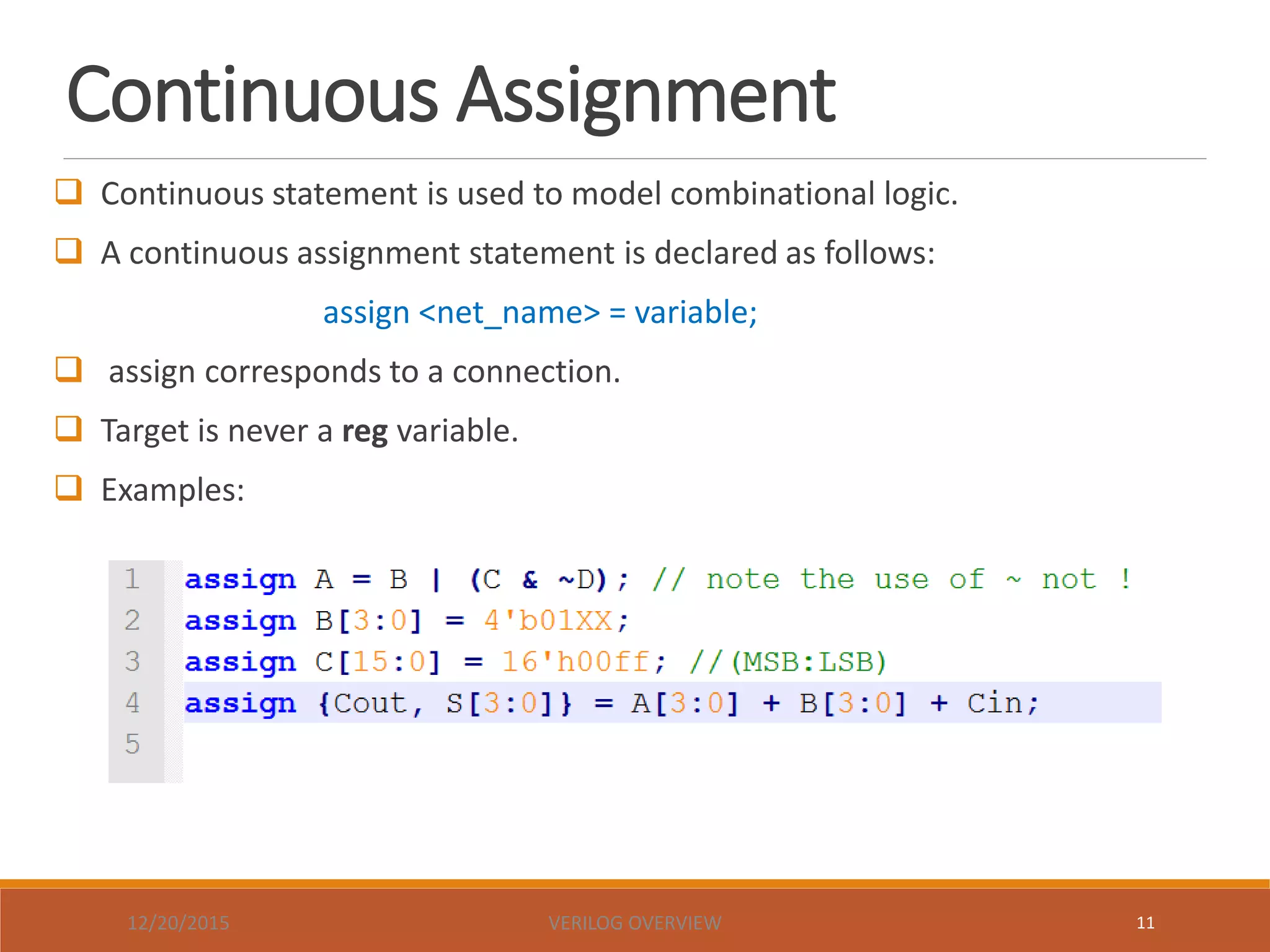

11. Continuous Assignment
 Continuous statement is used to model combinational logic.
 A continuous assignment statement is declared as follows:
assign <net_name> = variable;
 assign corresponds to a connection.
 Target is never a reg variable.
 Examples:
VERILOG OVERVIEW12/20/2015 11

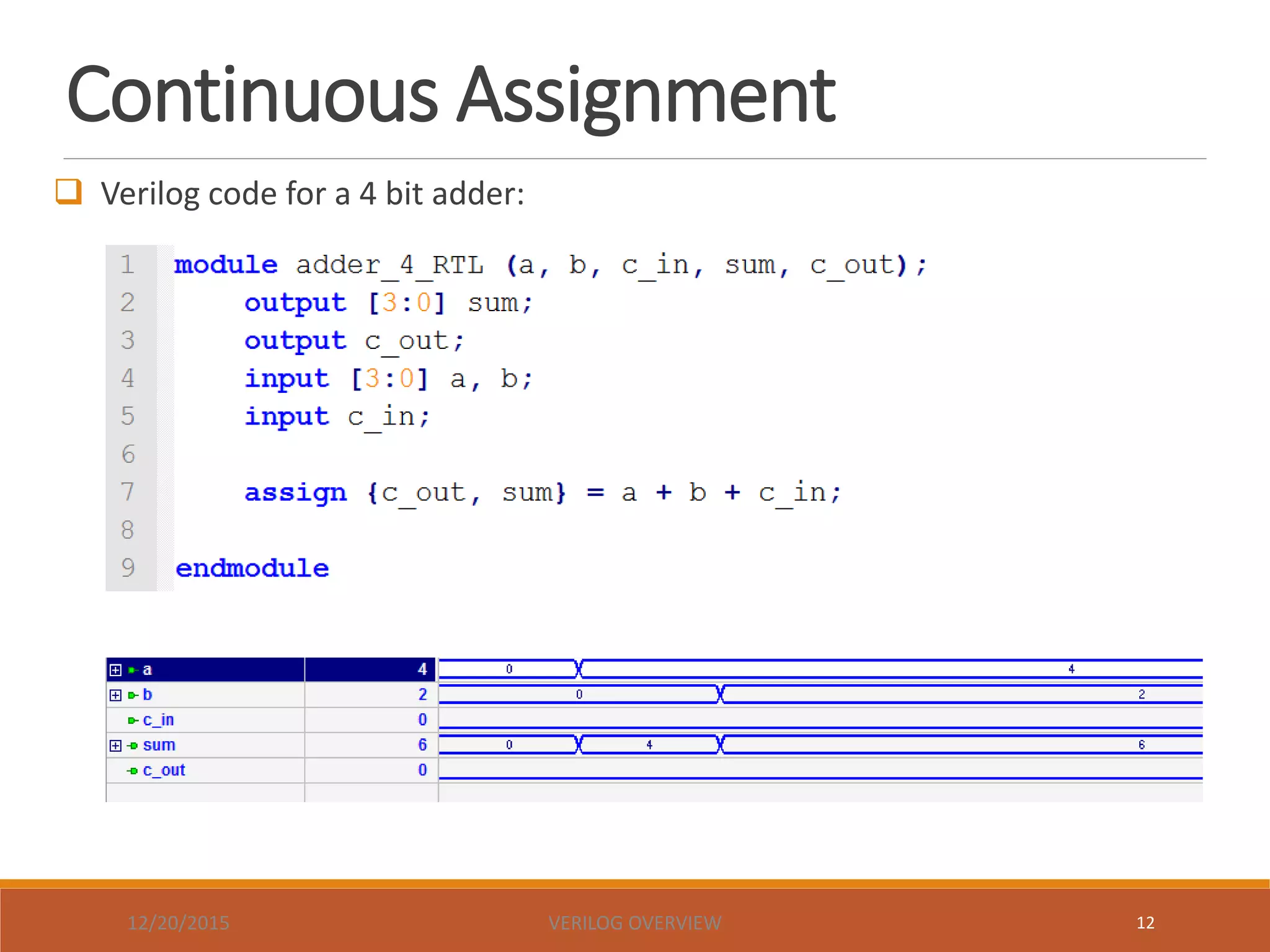

12. Continuous Assignment
 Verilog code for a 4 bit adder:
VERILOG OVERVIEW12/20/2015 12

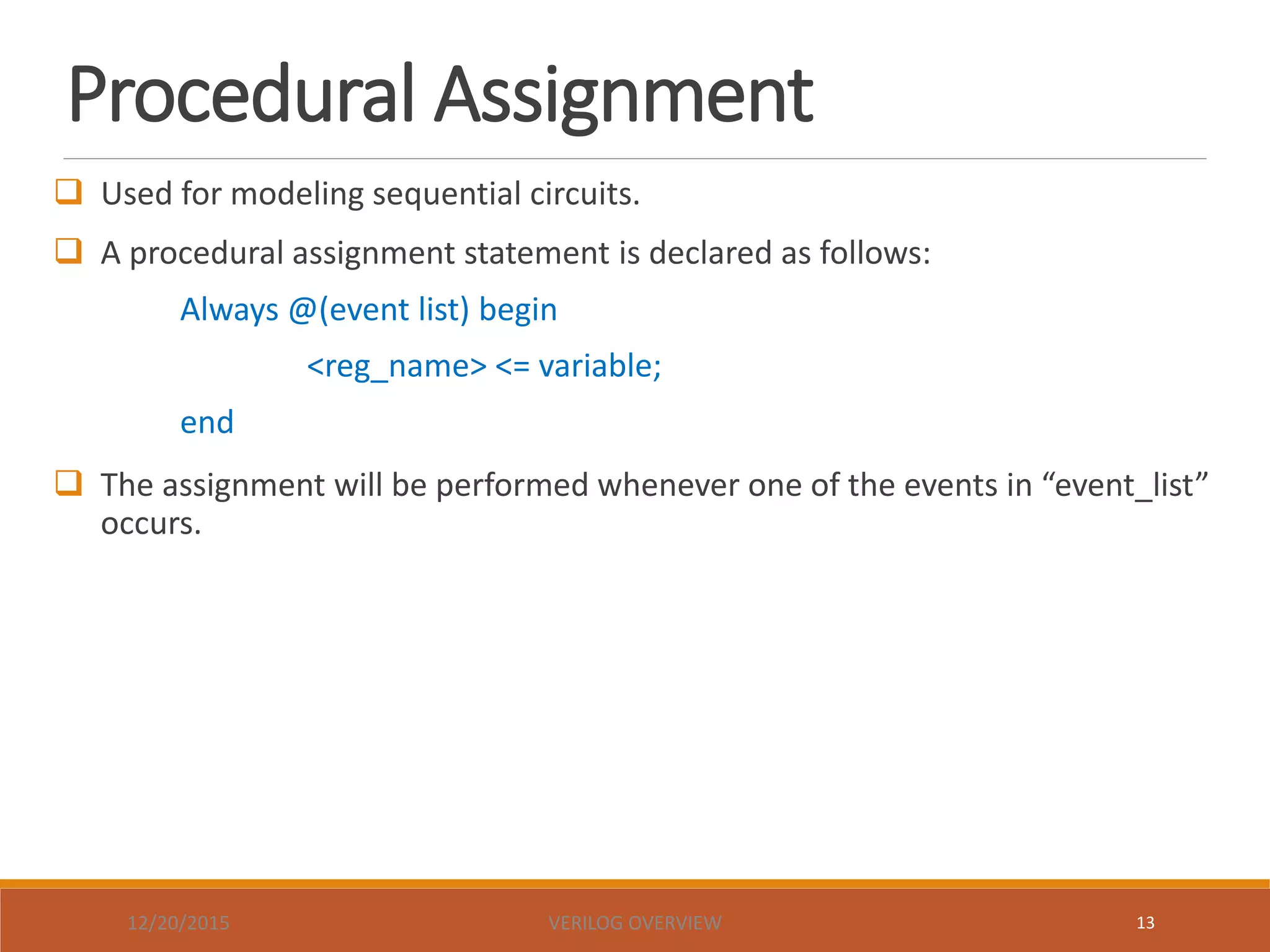

13. Procedural Assignment
 Used for modeling sequential circuits.
 A procedural assignment statement is declared as follows:
Always @(event list) begin
<reg_name> <= variable;
end
 The assignment will be performed whenever one of the events in “event_list”
occurs.
VERILOG OVERVIEW12/20/2015 13

14. Procedural Assignment
 Example: D-FF
VERILOG OVERVIEW12/20/2015 14
D
clk
Out

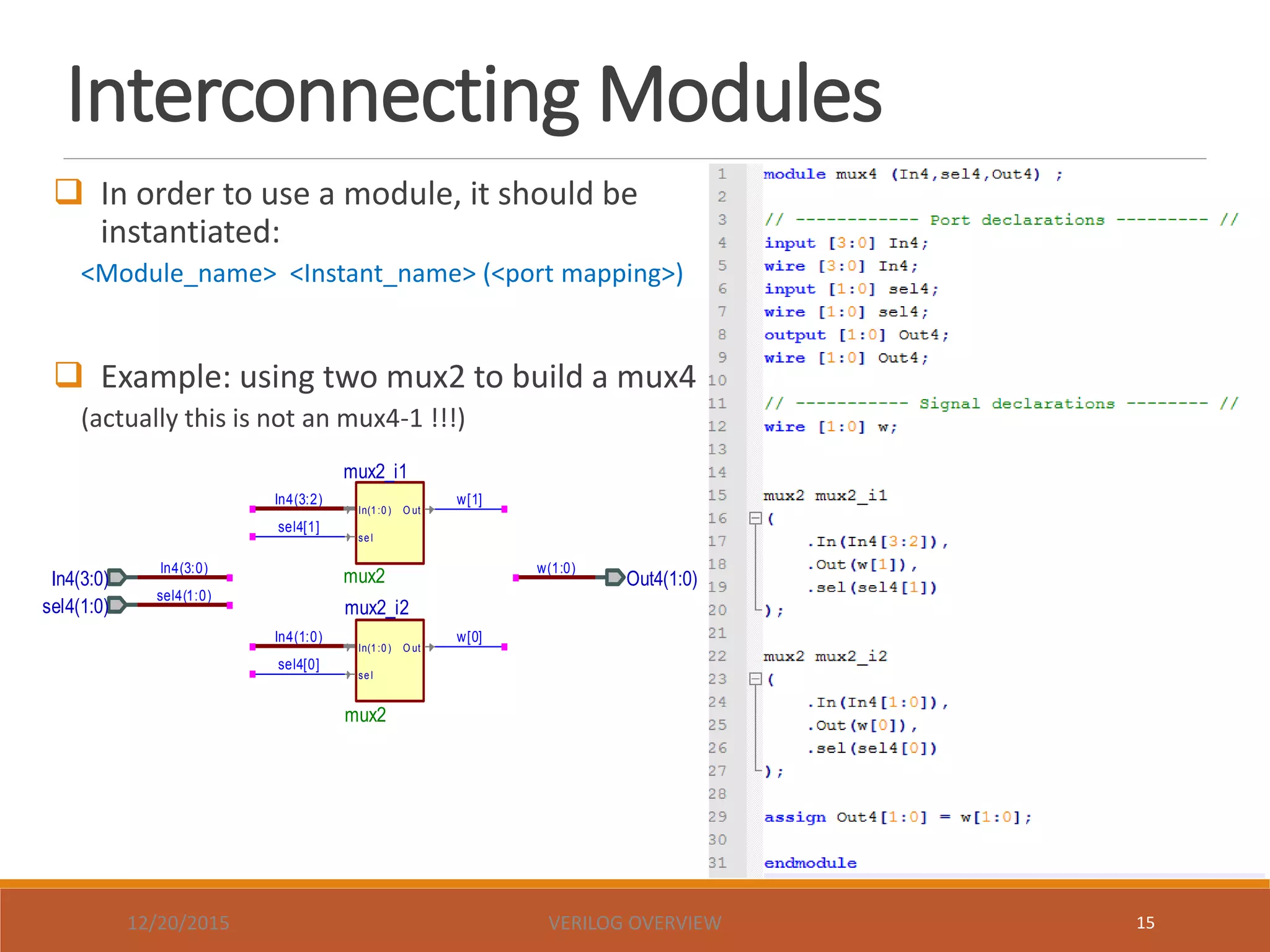

15. Interconnecting Modules
 In order to use a module, it should be
instantiated:
<Module_name> <Instant_name> (<port mapping>)
 Example: using two mux2 to build a mux4
(actually this is not an mux4-1 !!!)
In(1 :0 ) O ut
se l
mux2_i1
mux2In4(3:0)
sel4(1:0)
In(1 :0 ) O ut
se l
mux2_i2
mux2
In4(3:2)
In4(1:0)
sel4[1]
sel4[0]
Out4(1:0)
w(1:0)
w[1]
w[0]
In4(3:0)
sel4(1:0)
VERILOG OVERVIEW12/20/2015 15

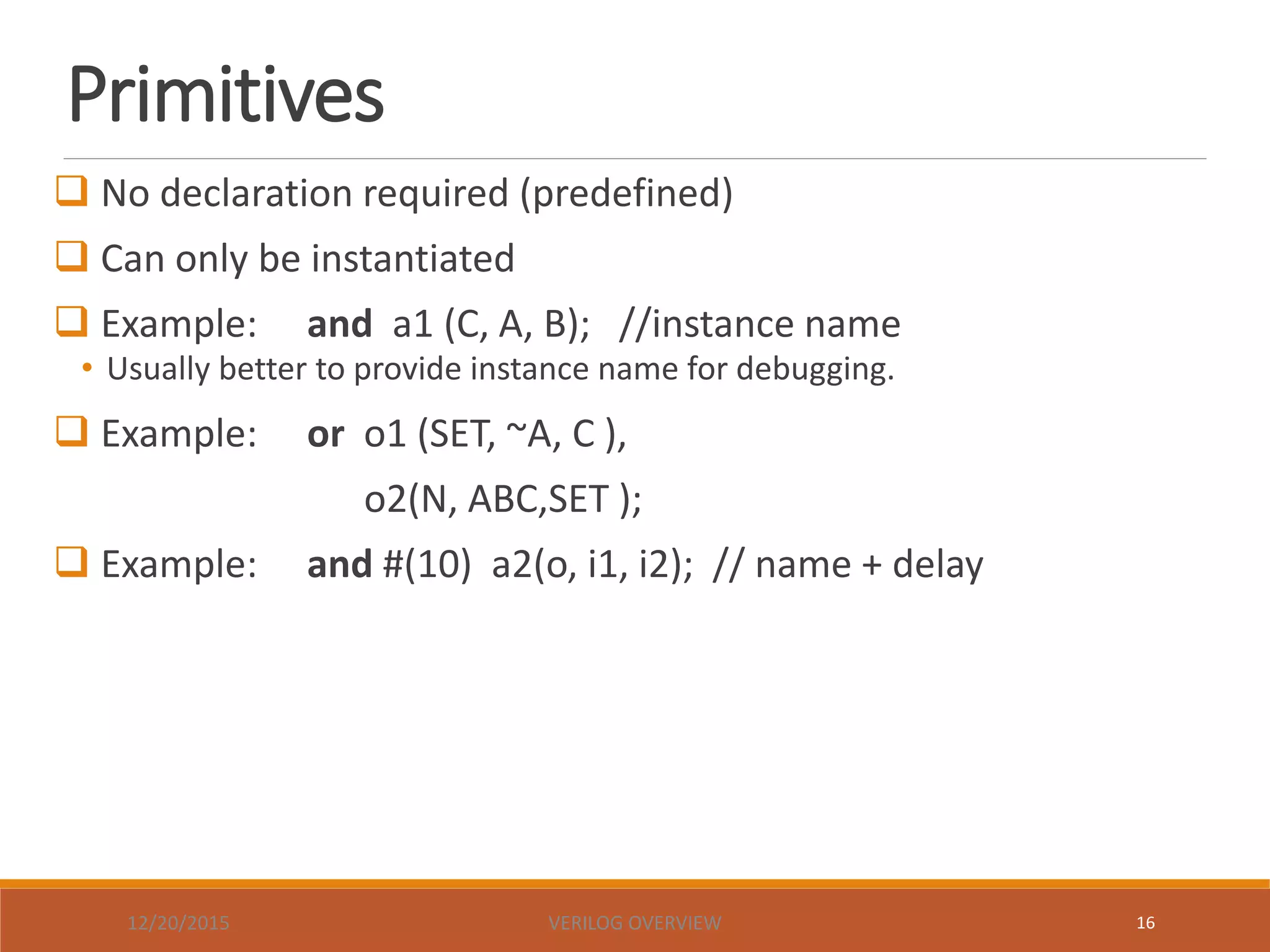

16. Primitives
 No declaration required (predefined)
 Can only be instantiated
 Example: and a1 (C, A, B); //instance name
• Usually better to provide instance name for debugging.
 Example: or o1 (SET, ~A, C ),
o2(N, ABC,SET );
 Example: and #(10) a2(o, i1, i2); // name + delay
VERILOG OVERVIEW12/20/2015 16

17. 12/20/2015 VERILOG OVERVIEW 17

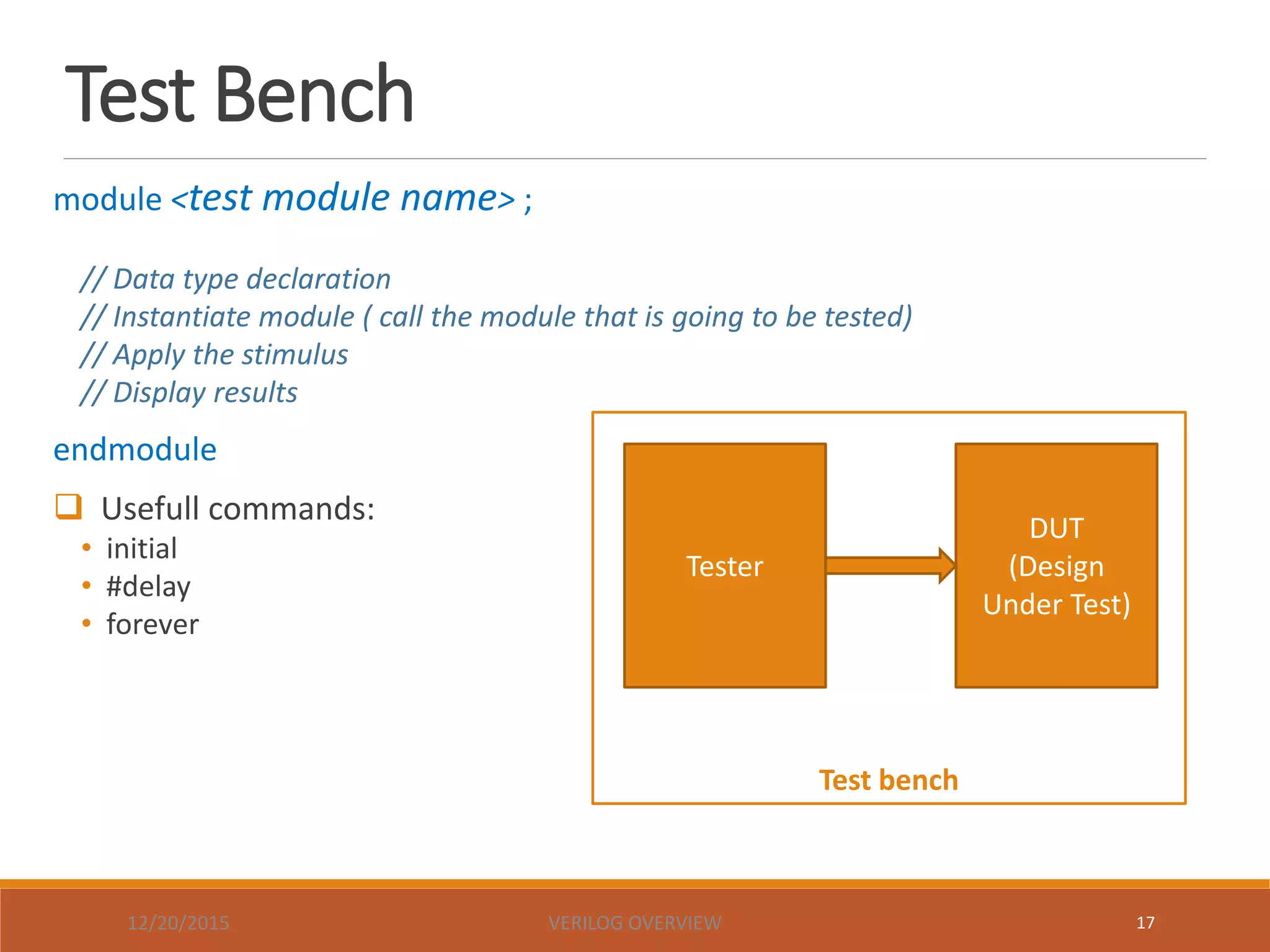

Test Bench
module <test module name> ;
// Data type declaration
// Instantiate module ( call the module that is going to be tested)
// Apply the stimulus
// Display results
endmodule
 Usefull commands:
• initial
• #delay
• forever
Tester
DUT
(Design
Under Test)
Test bench

18. 12/20/2015 VERILOG OVERVIEW 18
Test Bench Example

19. Simulation Tools
VERILOG OVERVIEW12/20/2015 19

20. Overview
 Simulation tools:
• Aldec Active-HDL
• Xilinx Isim
• Modelsim
• Altium Designer
• …
 Simulation Phases:
• Pre-synthesize (our talk)
• Post-synthesize
• Post-Place and root
VERILOG OVERVIEW12/20/2015 20

21. Active HDL Tutorial
 Creating a simple project in Active HDL
 Step 1: Create a new workspace
VERILOG OVERVIEW12/20/2015 21

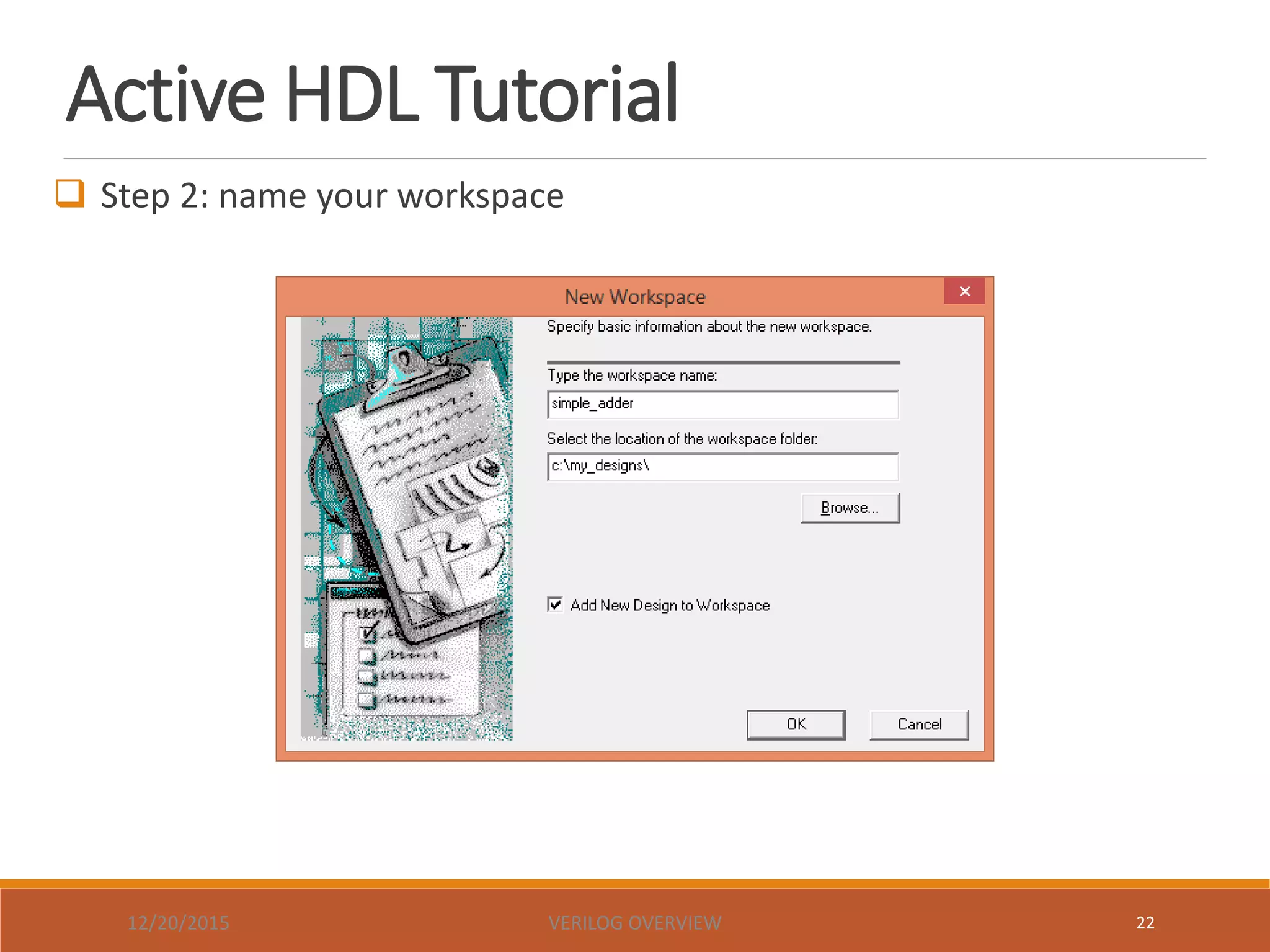

22. Active HDL Tutorial
 Step 2: name your workspace
VERILOG OVERVIEW12/20/2015 22

23. Active HDL Tutorial
 Step 3: Choose “Create an Empty Design with Design Flow”.
VERILOG OVERVIEW12/20/2015 23

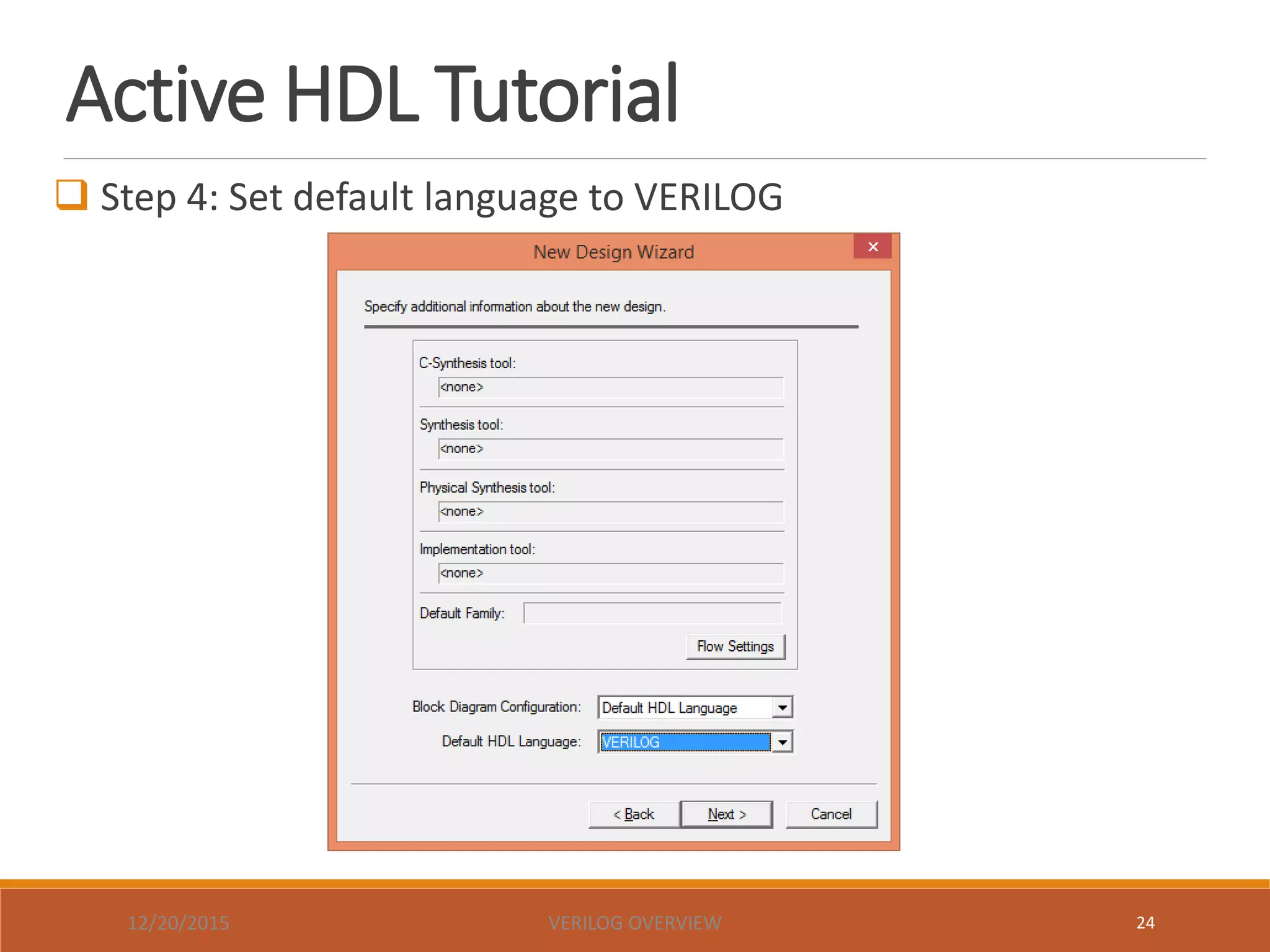

24. Active HDL Tutorial
 Step 4: Set default language to VERILOG
VERILOG OVERVIEW12/20/2015 24

25. Active HDL Tutorial

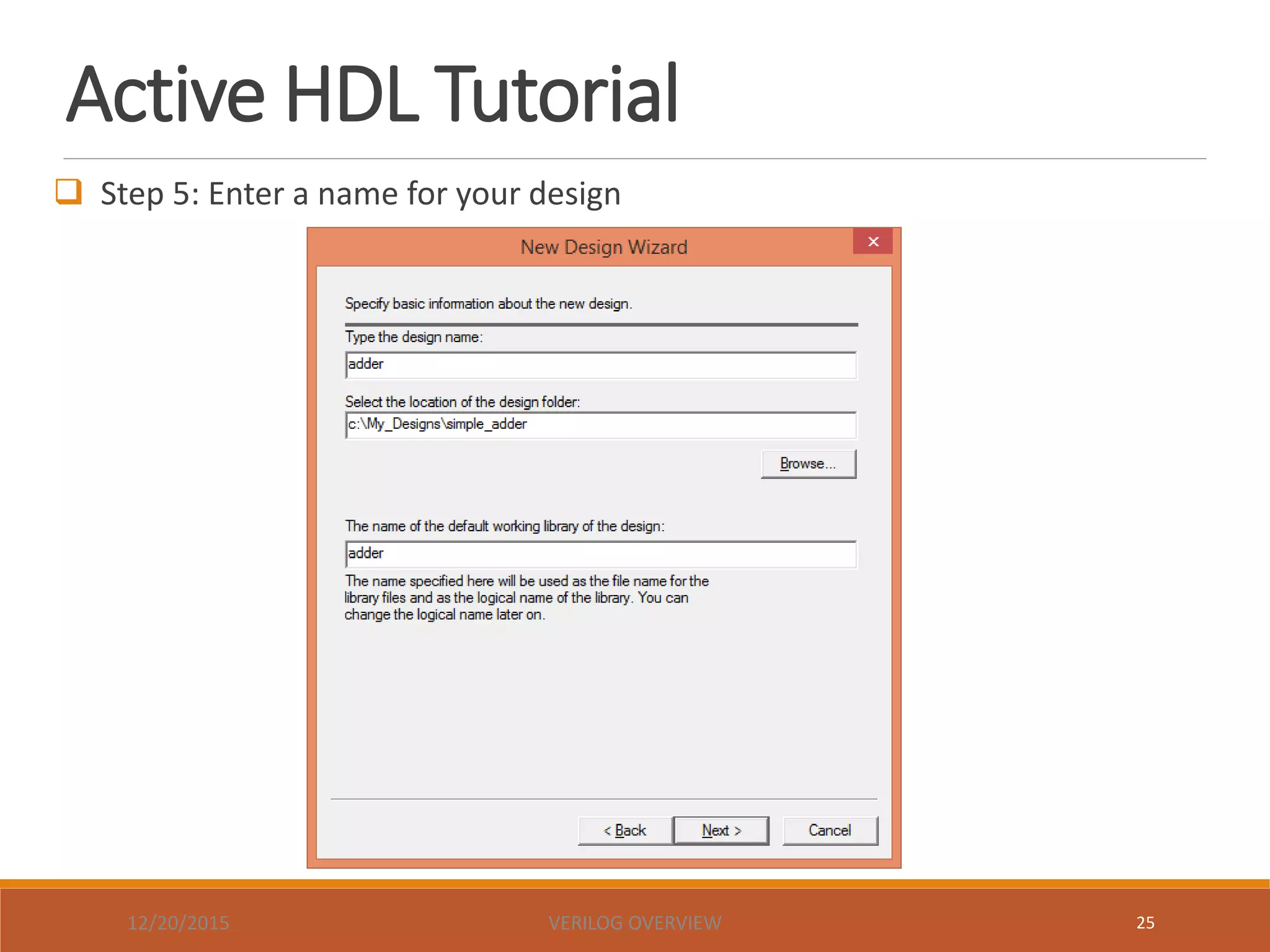

 Step 5: Enter a name for your design
VERILOG OVERVIEW12/20/2015 25

26. Active HDL Tutorial

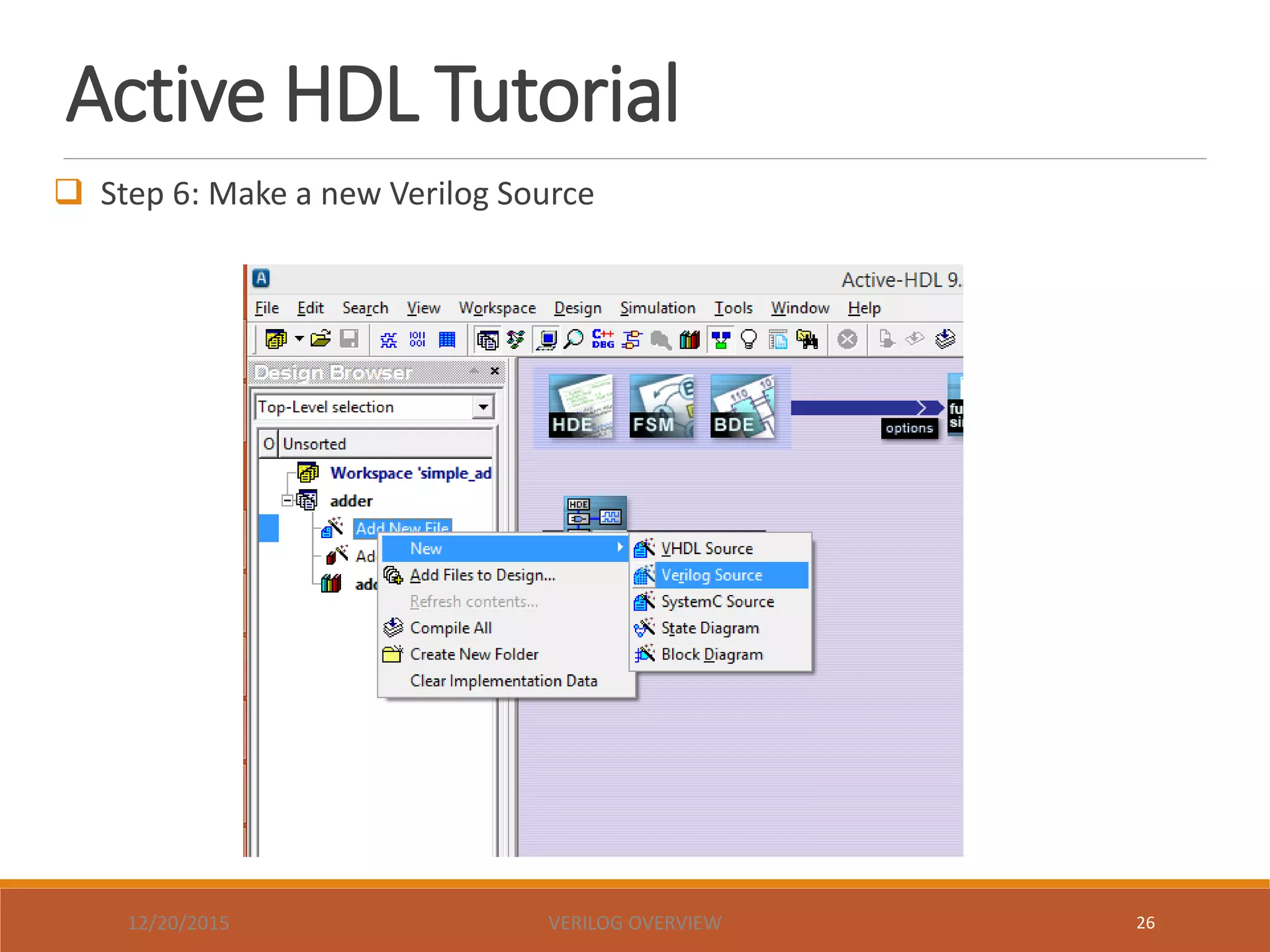

 Step 6: Make a new Verilog Source
VERILOG OVERVIEW12/20/2015 26

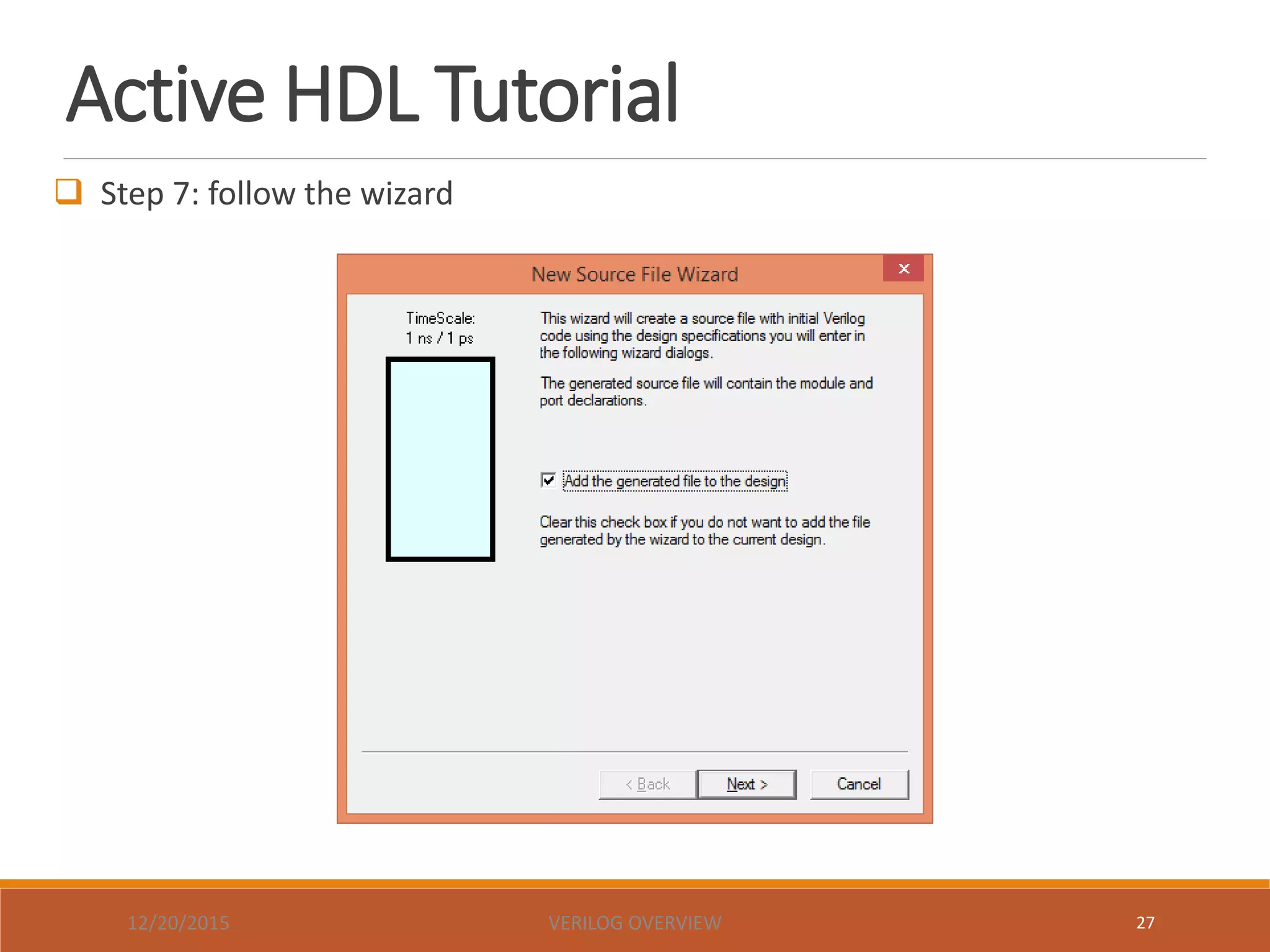

27. Active HDL Tutorial
 Step 7: follow the wizard
VERILOG OVERVIEW12/20/2015 27

28. Active HDL Tutorial

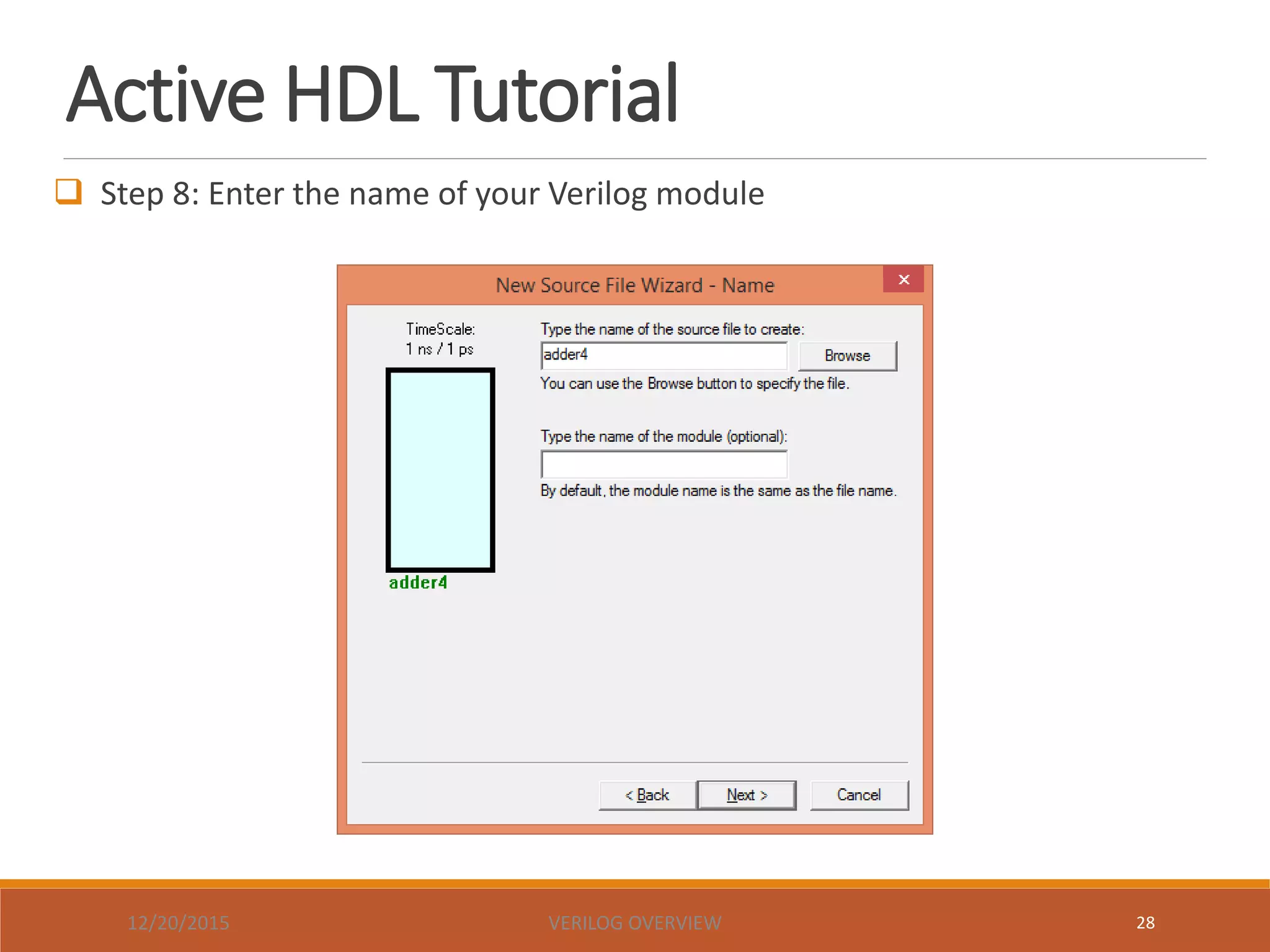

 Step 8: Enter the name of your Verilog module
VERILOG OVERVIEW12/20/2015 28

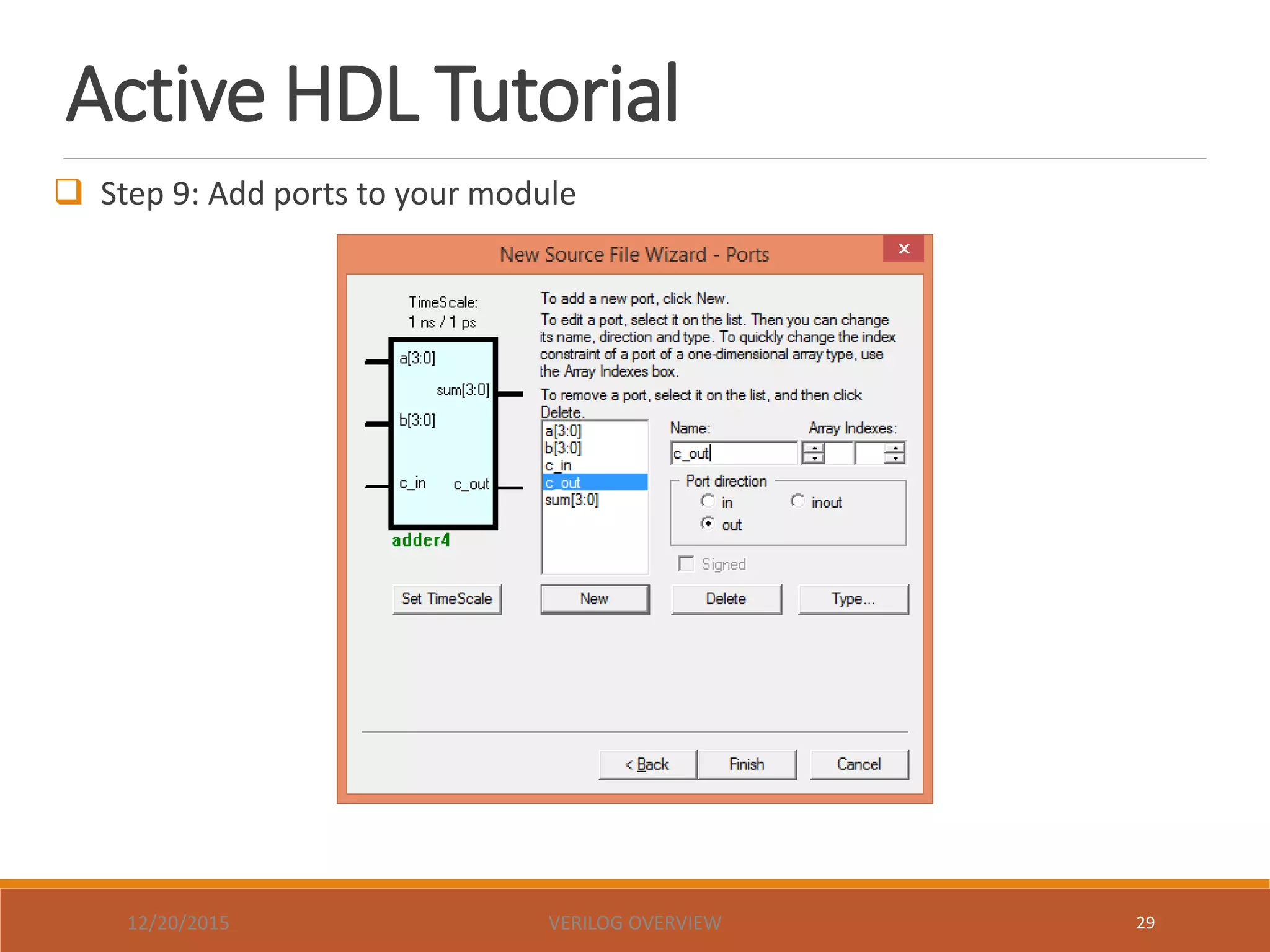

29.  Step 9: Add ports to your module
Active HDL Tutorial
VERILOG OVERVIEW12/20/2015 29

30. Active HDL Tutorial

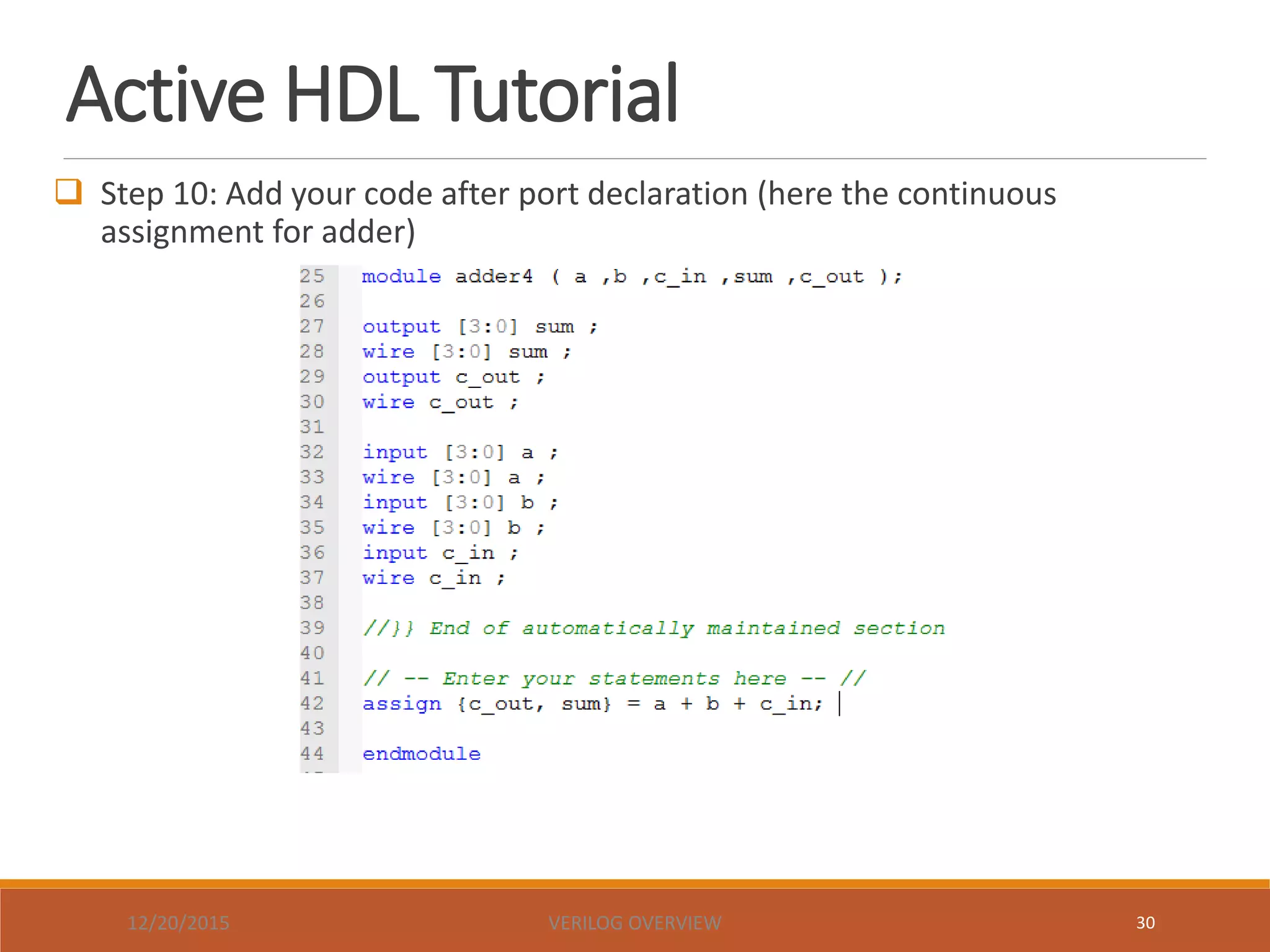

 Step 10: Add your code after port declaration (here the continuous
assignment for adder)
VERILOG OVERVIEW12/20/2015 30

31. Active HDL Tutorial

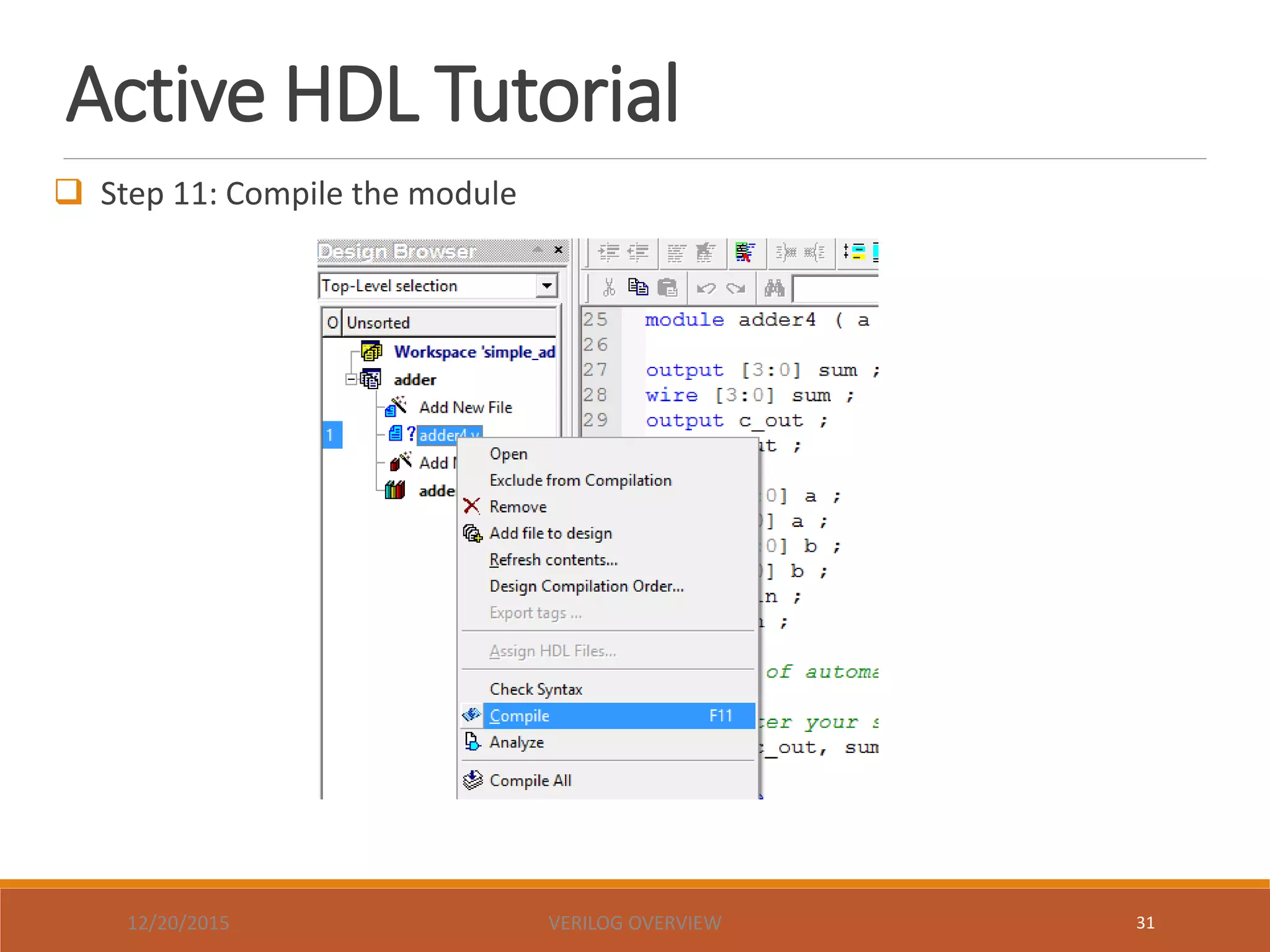

 Step 11: Compile the module
VERILOG OVERVIEW12/20/2015 31

32. Active HDL Tutorial

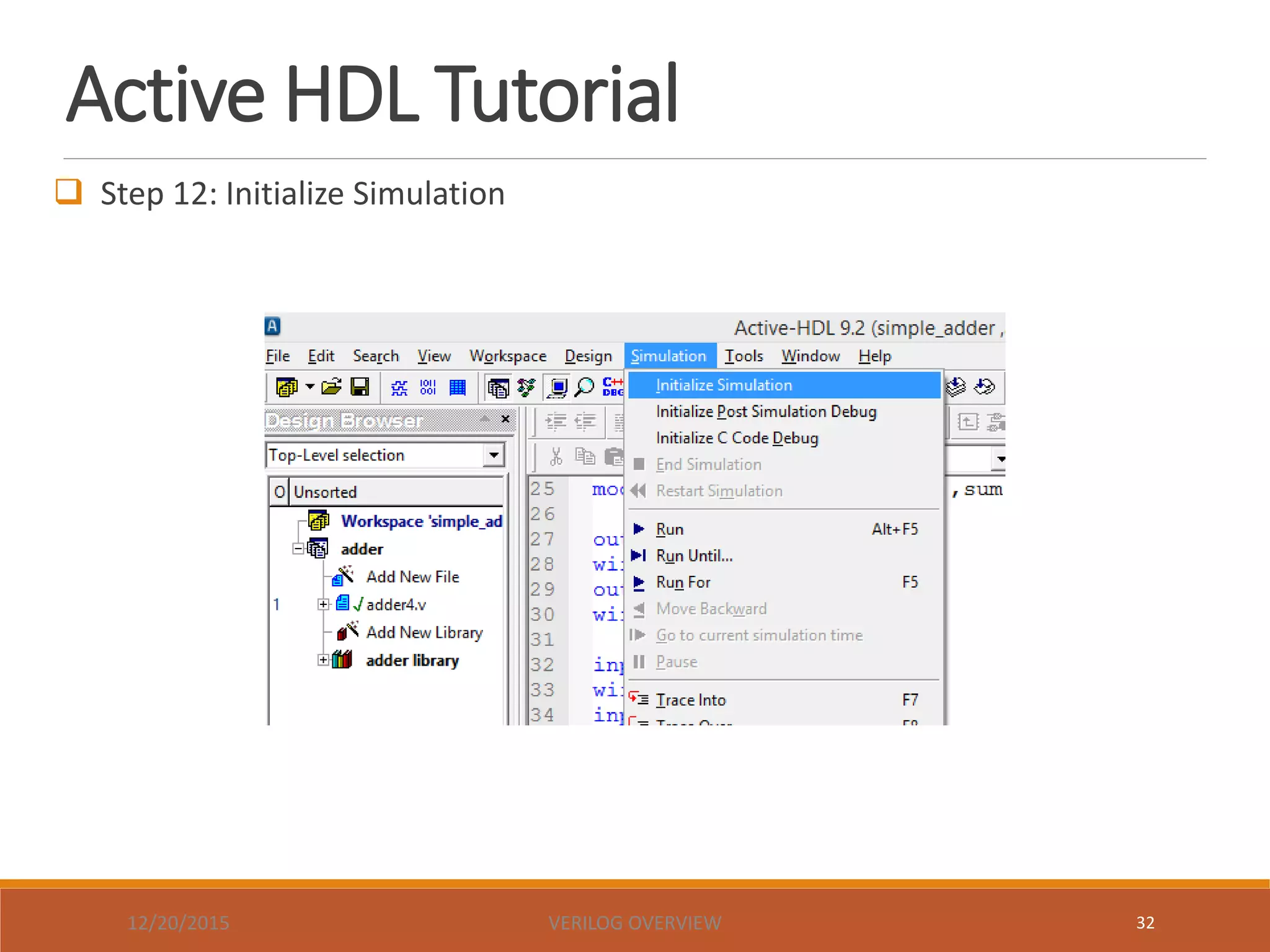

 Step 12: Initialize Simulation
VERILOG OVERVIEW12/20/2015 32

33. Active HDL Tutorial
 Step 13: the software will ask you to select the Top-level module… do it!
VERILOG OVERVIEW12/20/2015 33

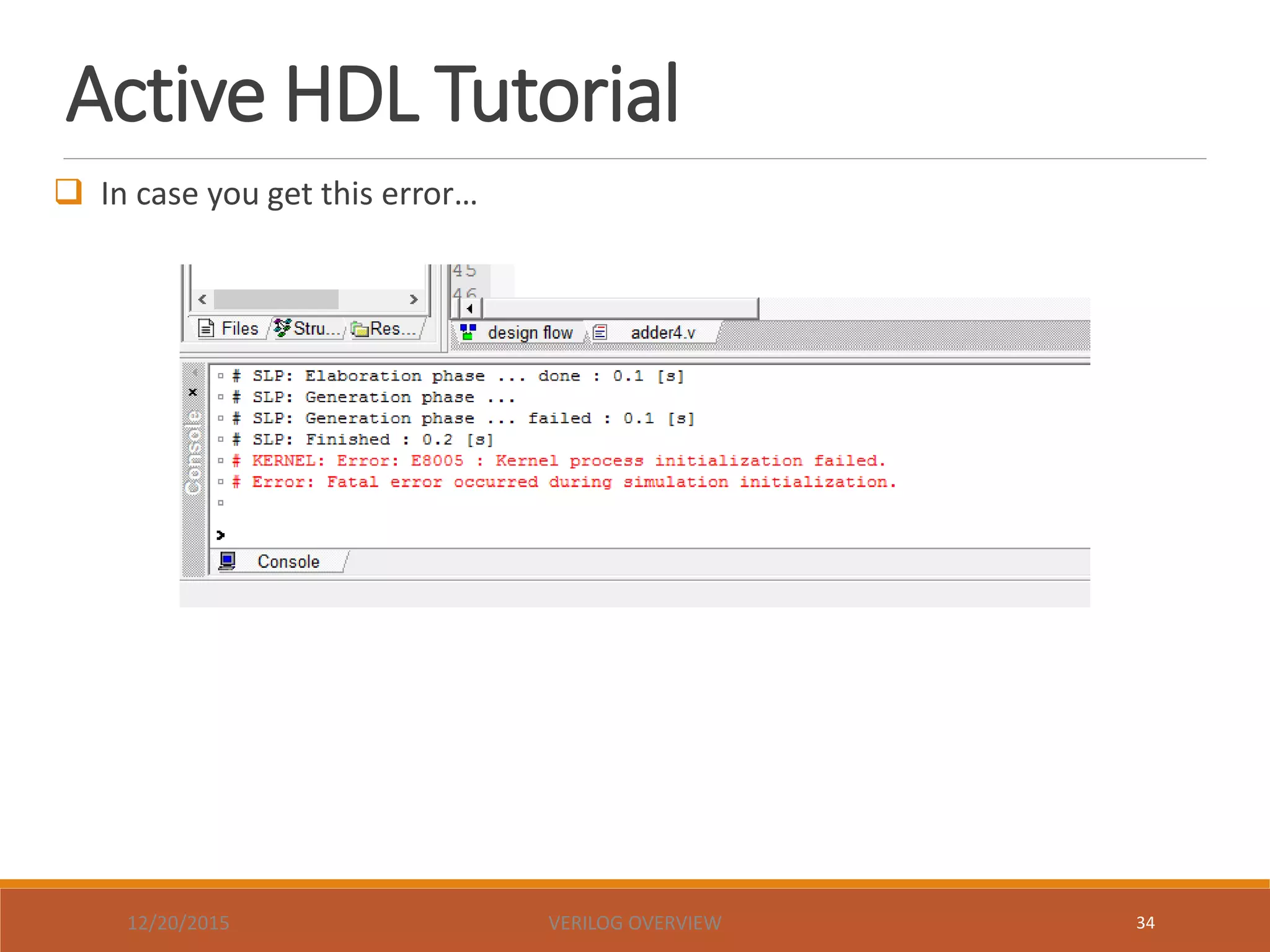

34. Active HDL Tutorial
 In case you get this error…
VERILOG OVERVIEW12/20/2015 34

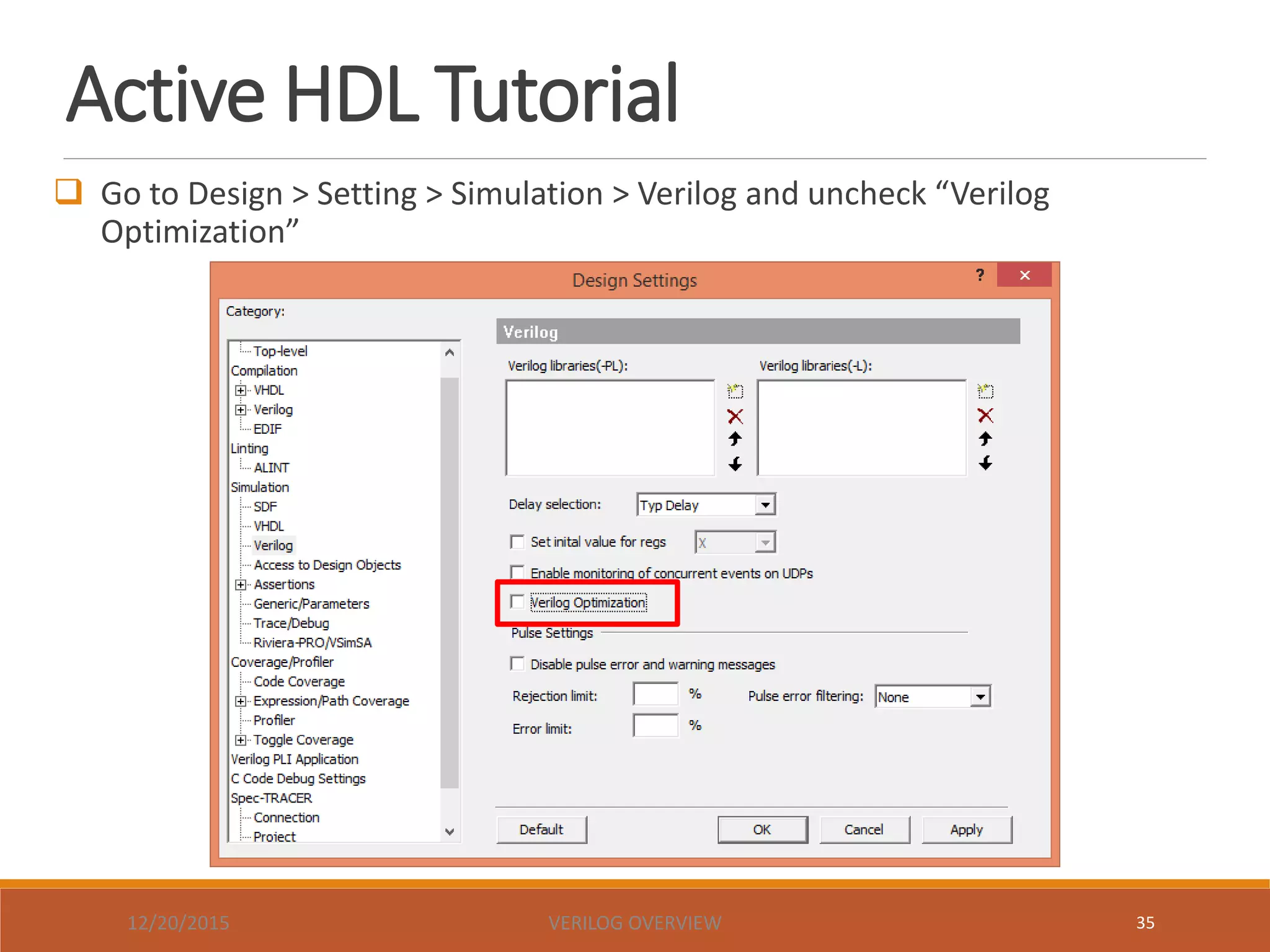

35. Active HDL Tutorial
 Go to Design > Setting > Simulation > Verilog and uncheck “Verilog
Optimization”
VERILOG OVERVIEW12/20/2015 35

36. Active HDL Tutorial
 Step 14: from File > New > Waveform open a new waveform window
VERILOG OVERVIEW12/20/2015 36

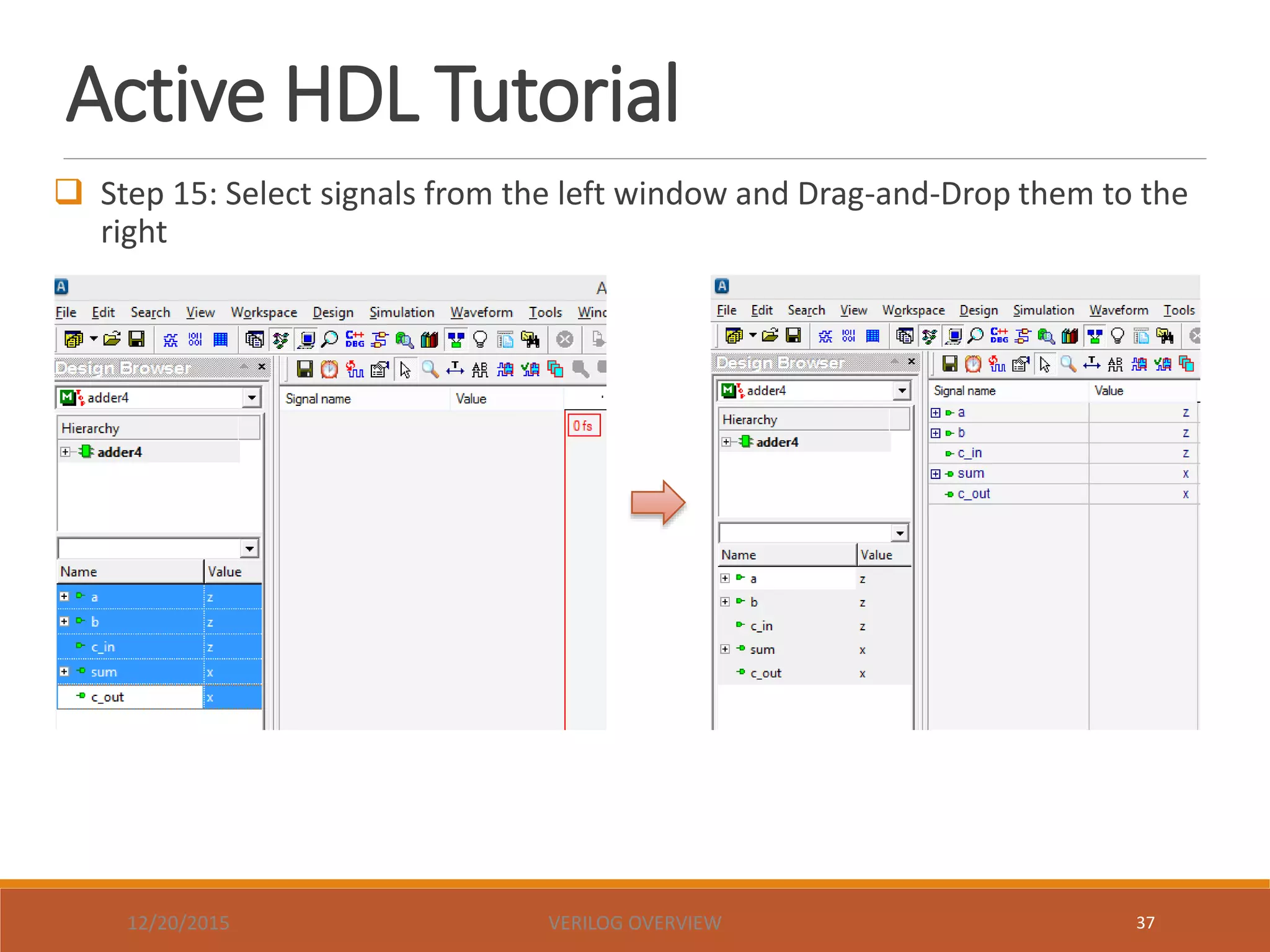

37. Active HDL Tutorial
 Step 15: Select signals from the left window and Drag-and-Drop them to the
right
VERILOG OVERVIEW12/20/2015 37

38. Active HDL Tutorial
 Step 16: Right click on any signal in the right panel and select Stimulators (if it
is already inactive, make sure initialization is performed)
VERILOG OVERVIEW12/20/2015 38

39. Active HDL Tutorial
 Step 17: choose stimulator for input signala
VERILOG OVERVIEW12/20/2015 39

40. Active HDL Tutorial
 Step 18: now you can run simulation by pressing “run for” button.
VERILOG OVERVIEW12/20/2015 40

41. 12/20/2015 VERILOG OVERVIEW 41
For more tutorials please visit our website
Click Here
