This document discusses behavioral modeling in Verilog using procedures. It covers: 1. Procedures are sections of code intended for a specific task and execute sequentially like hardware blocks. 2. Modules can contain multiple procedures that execute concurrently. Everything in behavioral modeling uses procedural blocks. 3. Procedural blocks can use "initial" blocks that execute once at time zero or "always" blocks that execute forever during simulation. Initial blocks are for test benches while always blocks model hardware.

1. 1
Verilog HDLVerilog HDL
ASIC DESIGN USING
FPGA
BEIT VII
KICSIT
Sept 19 2012 Lecture 8

2. 2

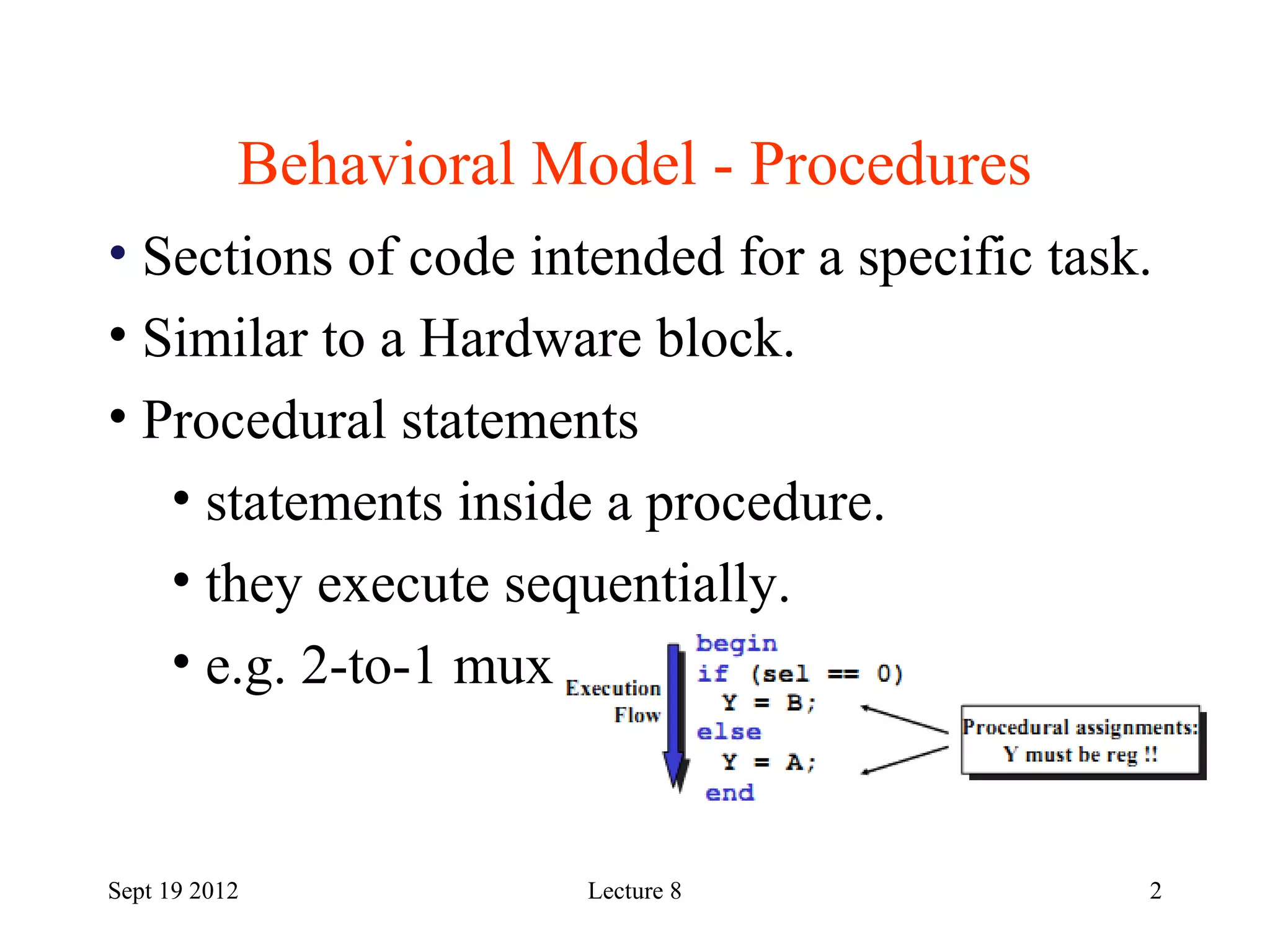

Behavioral Model - Procedures
Sept 19 2012
• Sections of code intended for a specific task.
• Similar to a Hardware block.
• Procedural statements
• statements inside a procedure.
• they execute sequentially.
• e.g. 2-to-1 mux
Lecture 8

3. 3
Behavioral Model - Procedures
Sept 19 2012
• Modules can contain any number of procedures
• Procedures execute in parallel (in respect to each
other)
• In behavioral modeling, everything comes in a
procedural block
Lecture 8

4. 4
Behavioral Model - Procedures
Sept 19 2012
• Procedural block can be expressed in two types
of blocks:
• initial → they execute only once
• always → they execute forever (until
simulation finishes)
Lecture 8

5. 5
“Initial” Blocks
Sept 19 2012
• This block starts with initial keyword
• This is not used in RTL
• This is non synthesizable
• All initial blocks execute concurrently in order
independent
• They execute only once
• This block is used only in Test Bench
Lecture 8

6. 6
“Initial” Blocks
Sept 19 2012
• Start execution at sim. time zero and finish when
their last statement executes.
module nothing;
initial
$display (“I’m the first”);
initial begin
#50;
$display(“Really?”);
end
endmodule
Lecture 8

7. 7
“Always” Blocks
Sept 19 2012
• This block starts with always keyword
• This block is more like H/W.
• Always Blocks execute forever until simulation
finishes.
• The always block can be viewed as continuously
repeated activity in a digital circuit starting from
power on.
Lecture 8

8. 8
“Always” Blocks
Sept 19 2012
• Start execution at sim time zero and continue
until sim finishes.
Lecture 8

9. 9
Procedural assignments
Sept 19 2012
• Blocking assignment =
• Regular assignment inside procedural block
• Assignment takes place immediately
• LHS must be a register
Lecture 8

10. 10
Procedural assignments
Sept 19 2012
• Nonblocking assignment <=
• Compute right hand side
• Assignment takes place at the end of block
• LHS must be a register
Lecture 8

11. 11
Procedural assignments
Sept 19 2012
• Nonblocking statements are used;
• whenever it is desired to make several register
assignments within the same time step without
regard to order or dependence upon each other.
• They are executed in two steps:
• The simulator evaluates the RHS.
• The assignment occurs at the end of the
time step.
Lecture 8

12. 12
Procedural assignments
Sept 19 2012
• The order of concurrent evaluation is indeterminate
• Concurrent blocking assignments have
unpredictable results
always @(posedge clk)
#5 A = A + 1;
always @(posedge clk)
#5 B = A + 1;
• new value of B could be evaluated before or
after A changes Lecture 8

13. 13
Procedural assignments
Sept 19 2012
• Concurrent non-blocking assignments have
predictable results
always @(posedge clk)
#5 A <= A + 1;
always @(posedge clk)
#5 B <= A + 1;
• New value of B will always be evaluated before
A changes.
Lecture 8

14. 14
Example: Blocking/Non-blocking
Sept 19 2012 Lecture 8
