The document outlines a presentation on Vagrant, a tool for creating portable development environments, presented by Daniel Lopes at a Drupal meetup in Shanghai. It discusses Vagrant's benefits, motivations for its use, and practical aspects including setup, configuration, provisioning methods, and resource links. The presentation aims to simplify environment setup and ensure consistency among development teams.

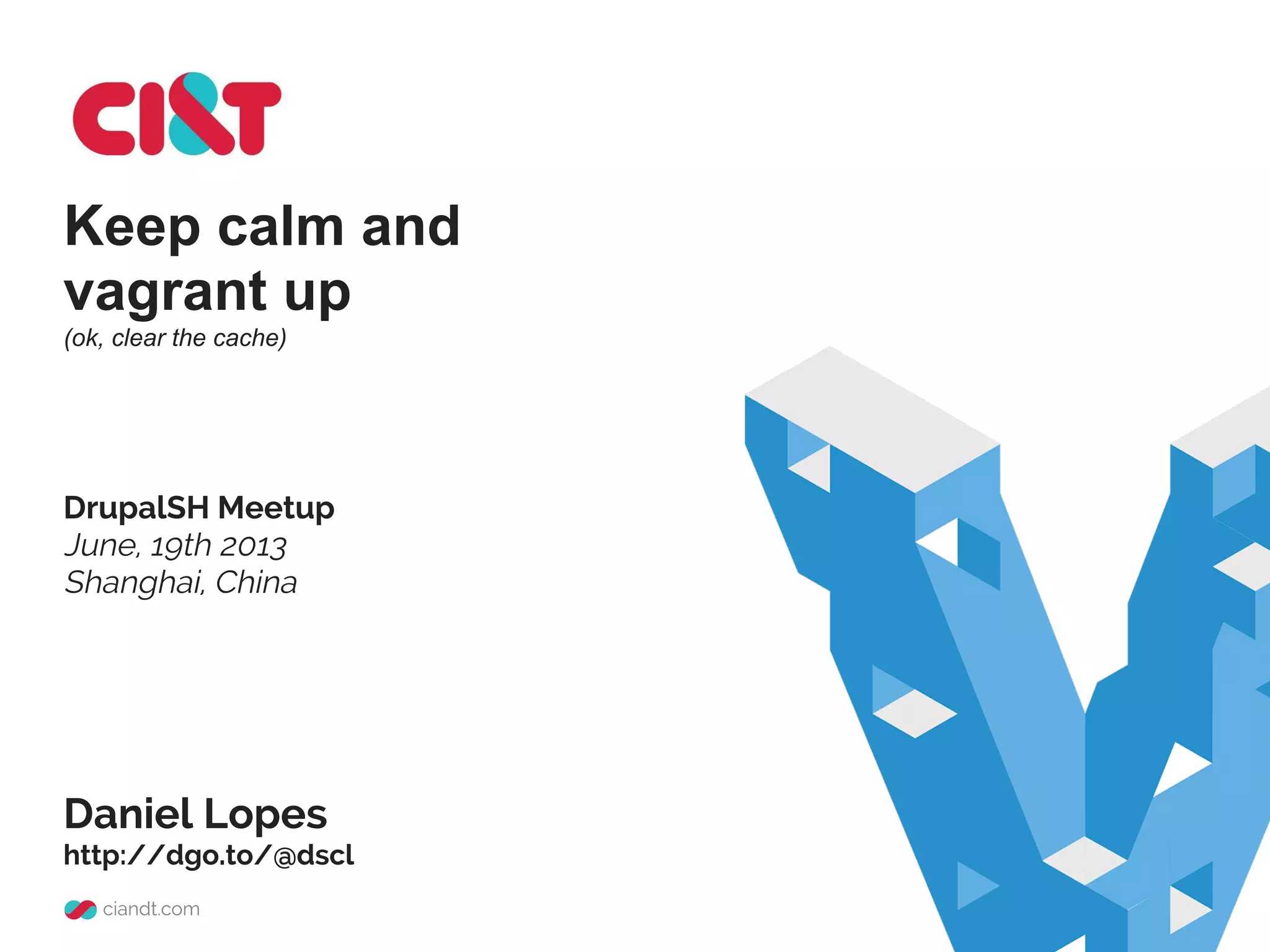

1. Keep calm and
vagrant up
(ok, clear the cache)
DrupalSH Meetup
June, 19th 2013
Shanghai, China
Daniel Lopes
http://dgo.to/@dscl

2. WAIT!
vagrant
what ???

3. NOT SO FAST...

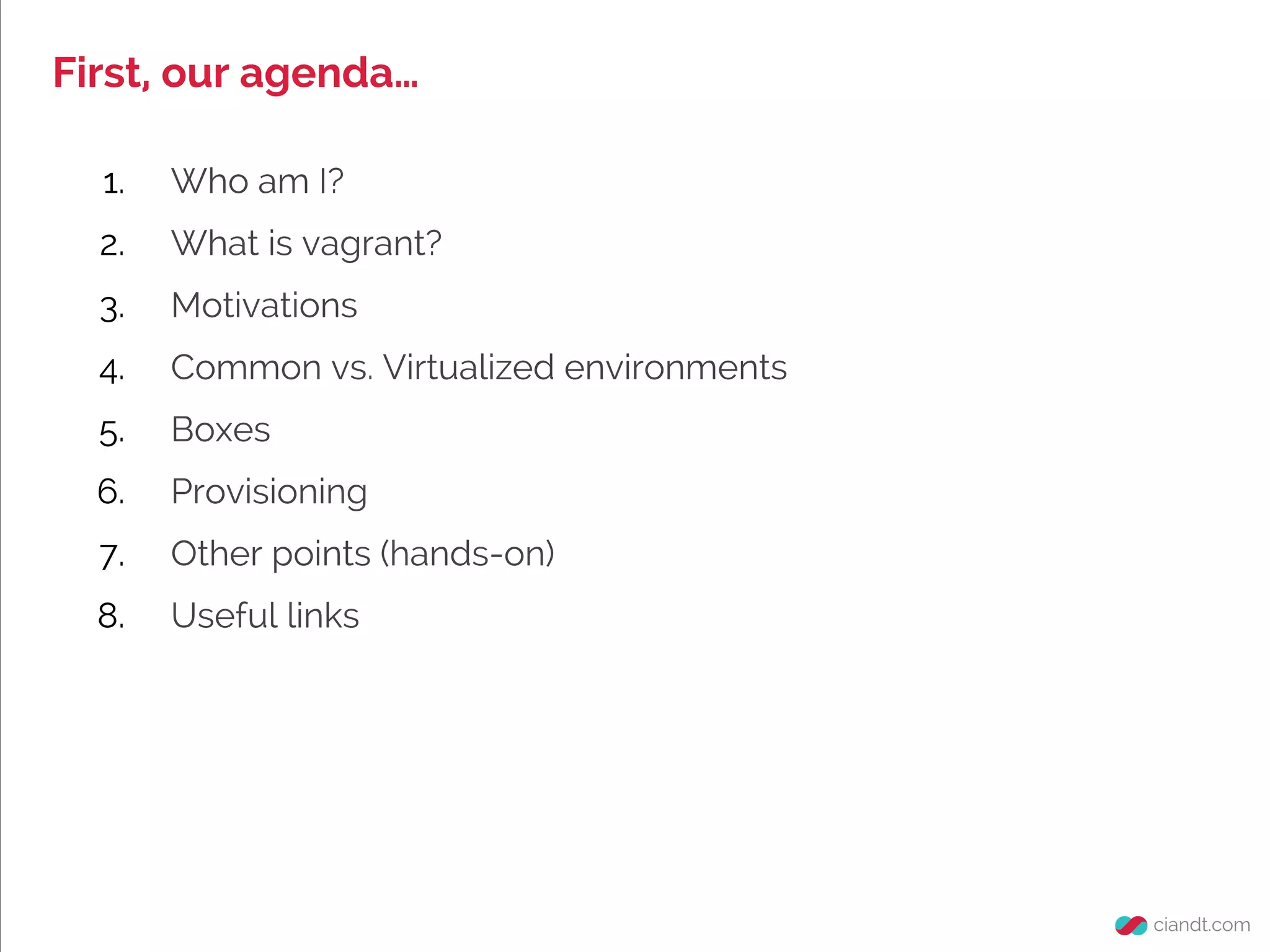

4. 1. Who am I?
2. What is vagrant?
3. Motivations
4. Common vs. Virtualized environments
5. Boxes
6. Provisioning
7. Other points (hands-on)
8. Useful links
First, our agenda…

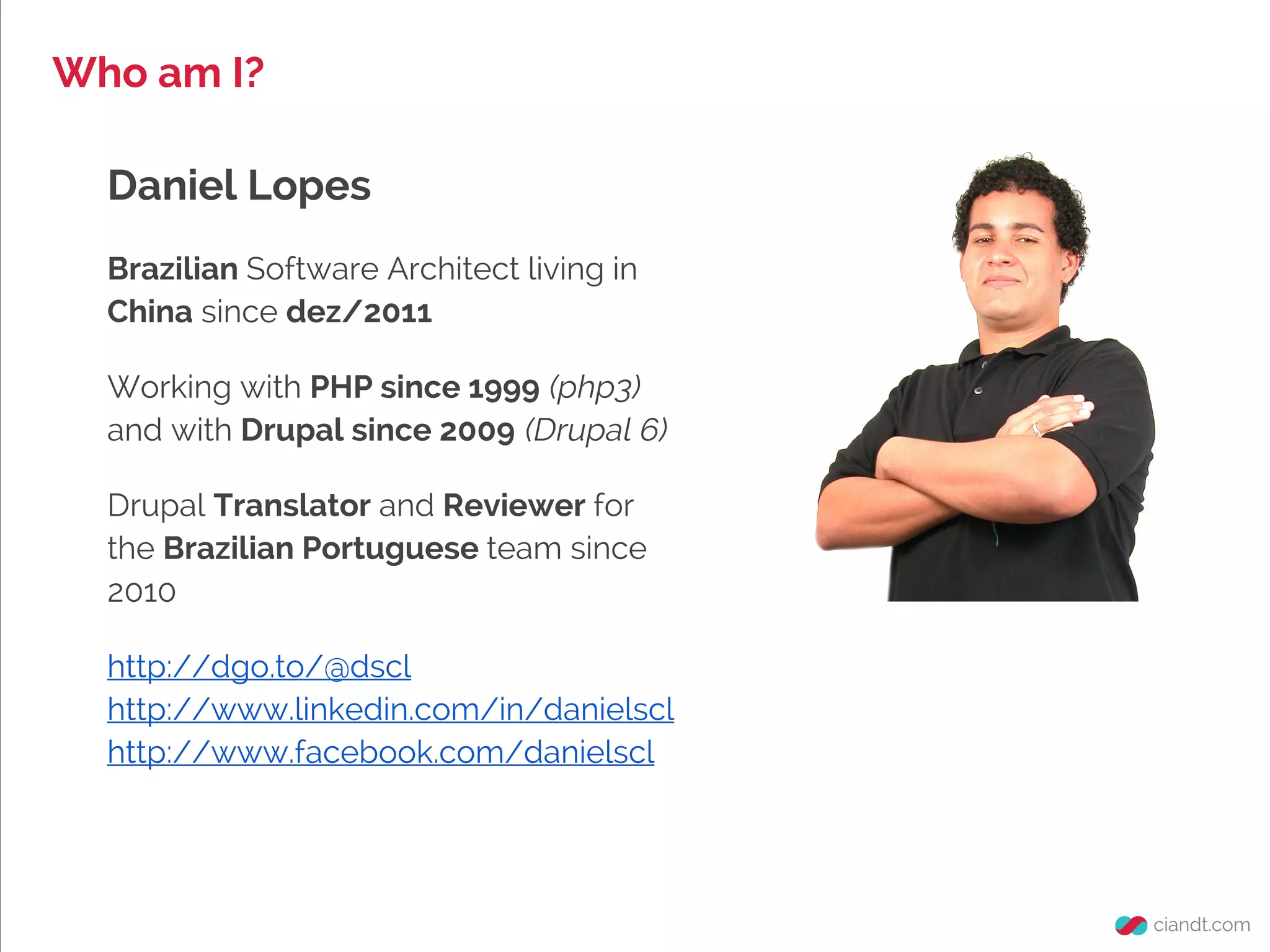

5. Daniel Lopes
Brazilian Software Architect living in
China since dez/2011
Working with PHP since 1999 (php3)
and with Drupal since 2009 (Drupal 6)
Drupal Translator and Reviewer for
the Brazilian Portuguese team since
2010
http://dgo.to/@dscl
http://www.linkedin.com/in/danielscl
http://www.facebook.com/danielscl
Who am I?

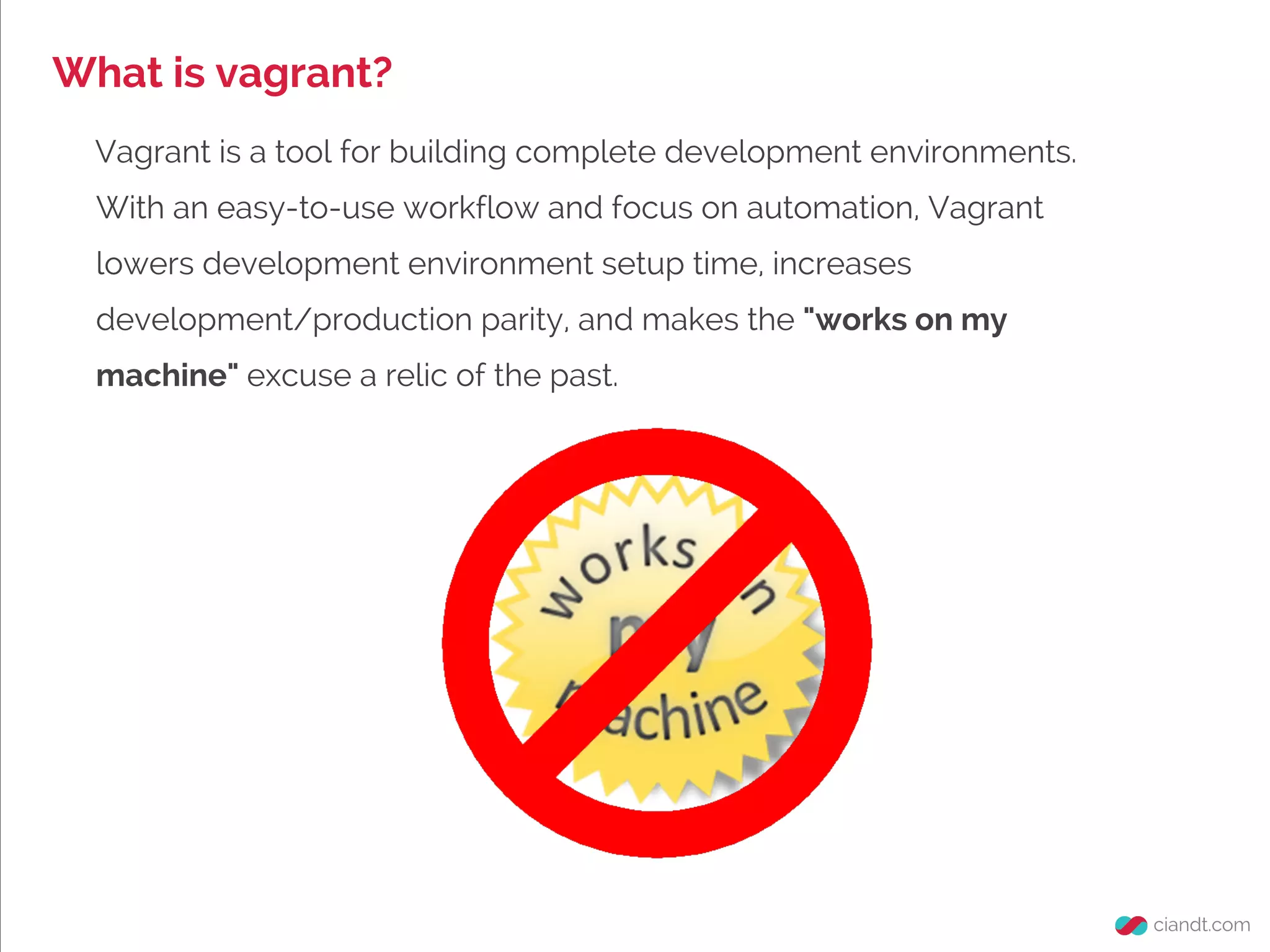

6. What is vagrant?
Vagrant is a tool for building complete development environments.
With an easy-to-use workflow and focus on automation, Vagrant
lowers development environment setup time, increases
development/production parity, and makes the "works on my
machine" excuse a relic of the past.

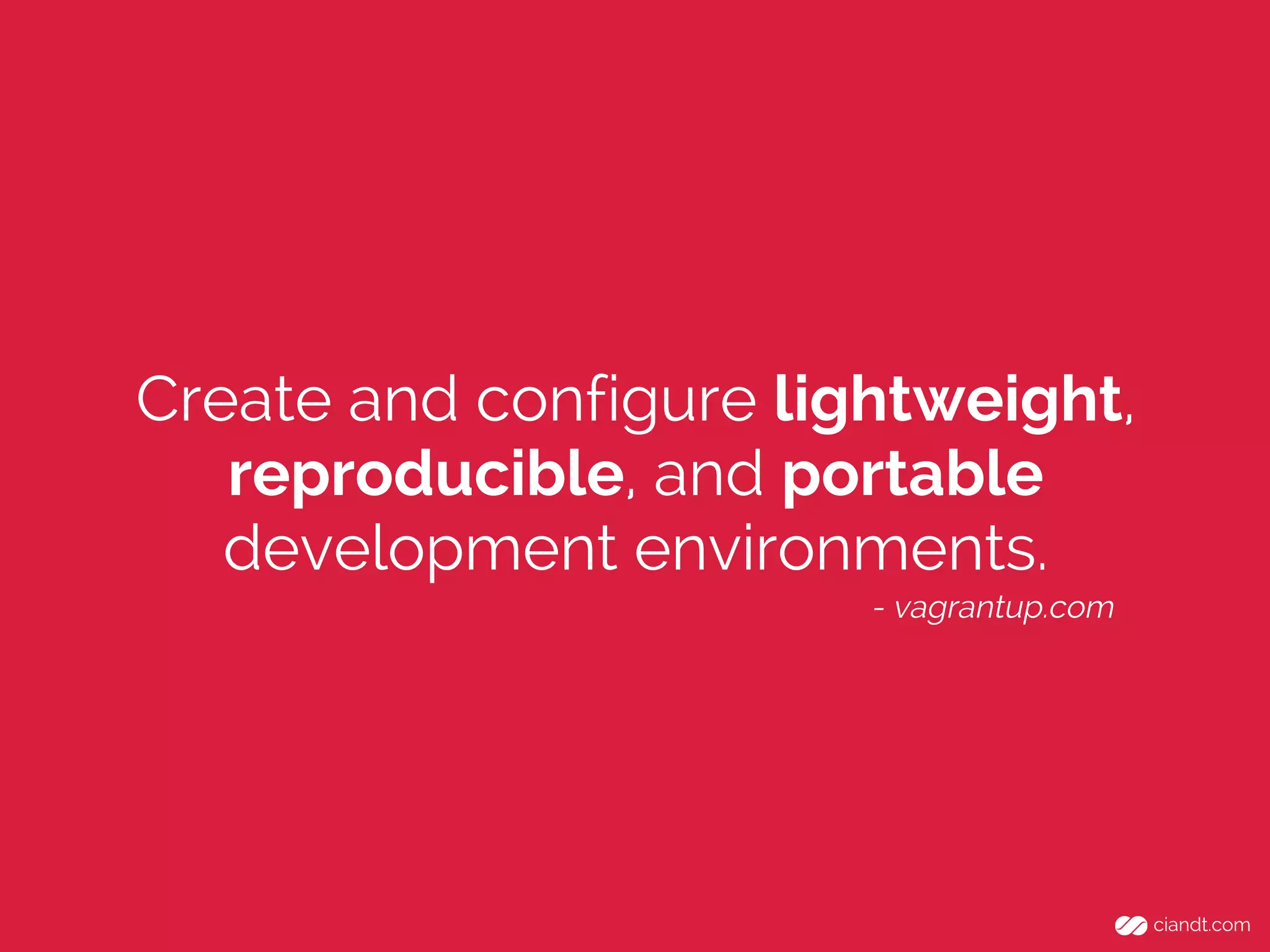

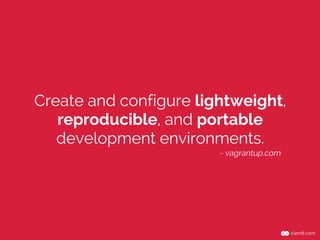

7. Create and configure lightweight,
reproducible, and portable
development environments.
- vagrantup.com

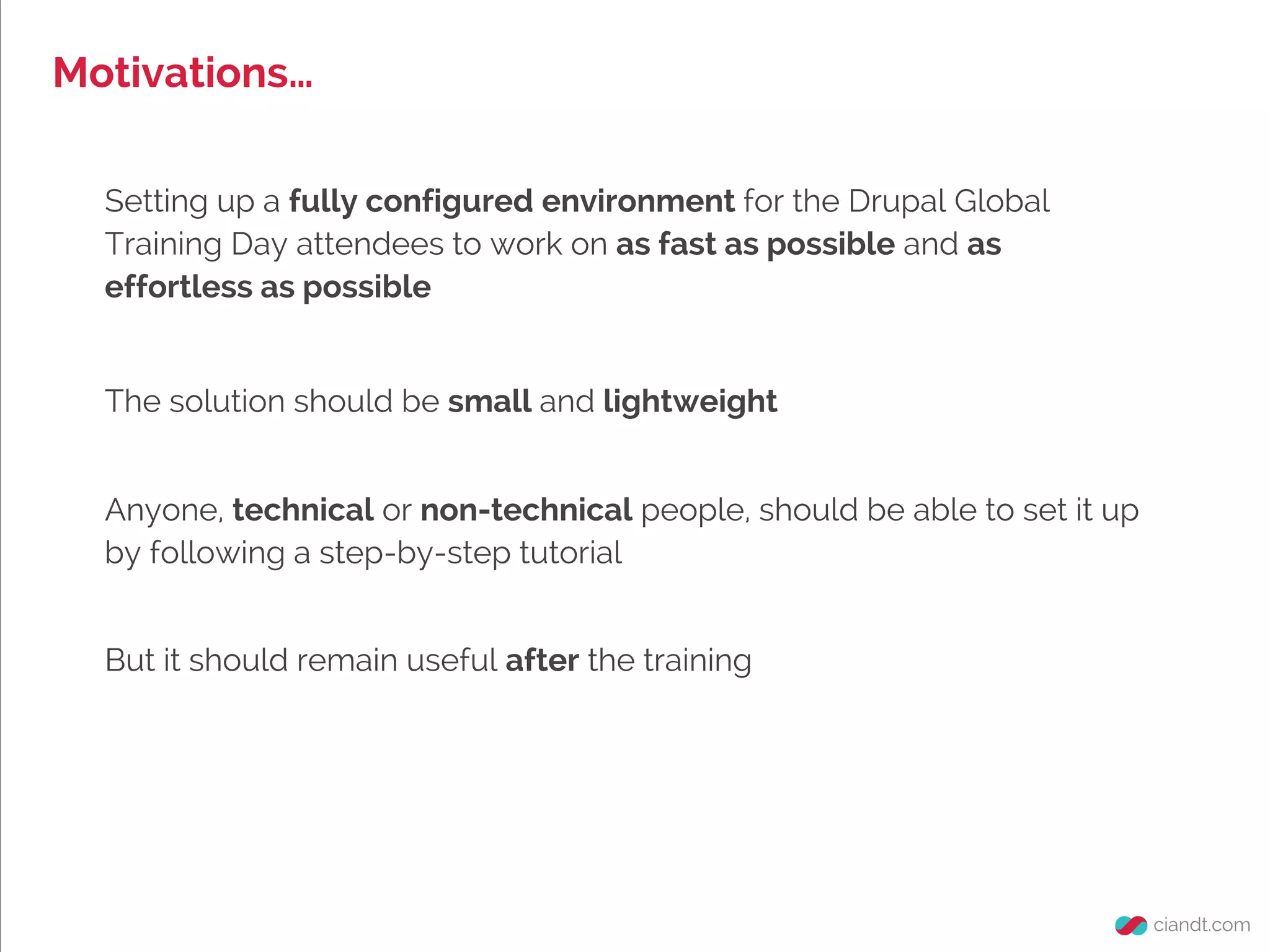

8. Motivations…
Setting up a fully configured environment for the Drupal Global
Training Day attendees to work on as fast as possible and as
effortless as possible
Anyone, technical or non-technical people, should be able to set it up
by following a step-by-step tutorial
The solution should be small and lightweight
But it should remain useful after the training

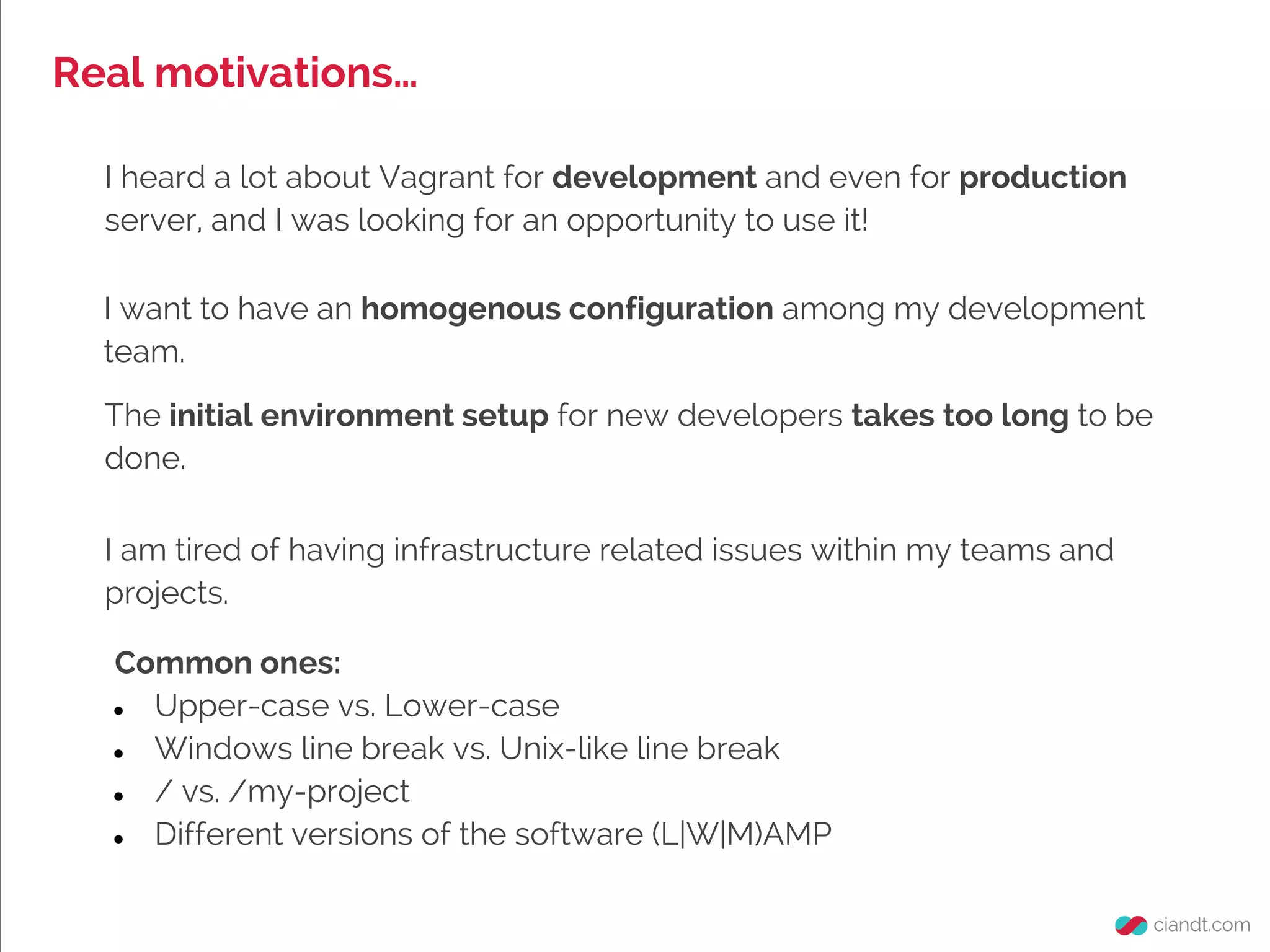

9. Real motivations…
I heard a lot about Vagrant for development and even for production
server, and I was looking for an opportunity to use it!
Common ones:
● Upper-case vs. Lower-case
● Windows line break vs. Unix-like line break
● / vs. /my-project
● Different versions of the software (L|W|M)AMP
I am tired of having infrastructure related issues within my teams and
projects.
I want to have an homogenous configuration among my development
team.
The initial environment setup for new developers takes too long to be
done.

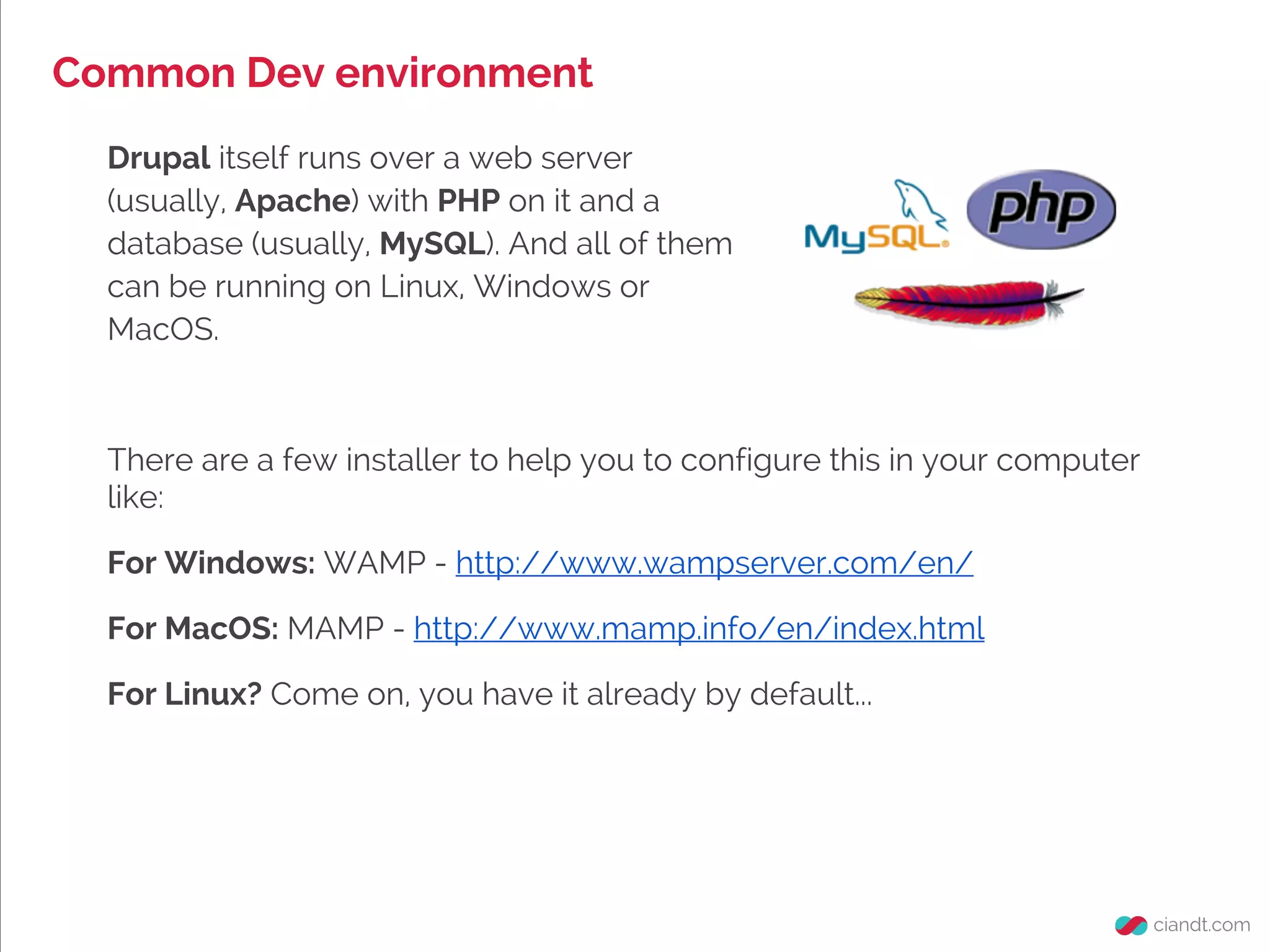

10. Common Dev environment
Drupal itself runs over a web server
(usually, Apache) with PHP on it and a
database (usually, MySQL). And all of them
can be running on Linux, Windows or
MacOS.
There are a few installer to help you to configure this in your computer
like:
For Windows: WAMP - http://www.wampserver.com/en/
For MacOS: MAMP - http://www.mamp.info/en/index.html
For Linux? Come on, you have it already by default...

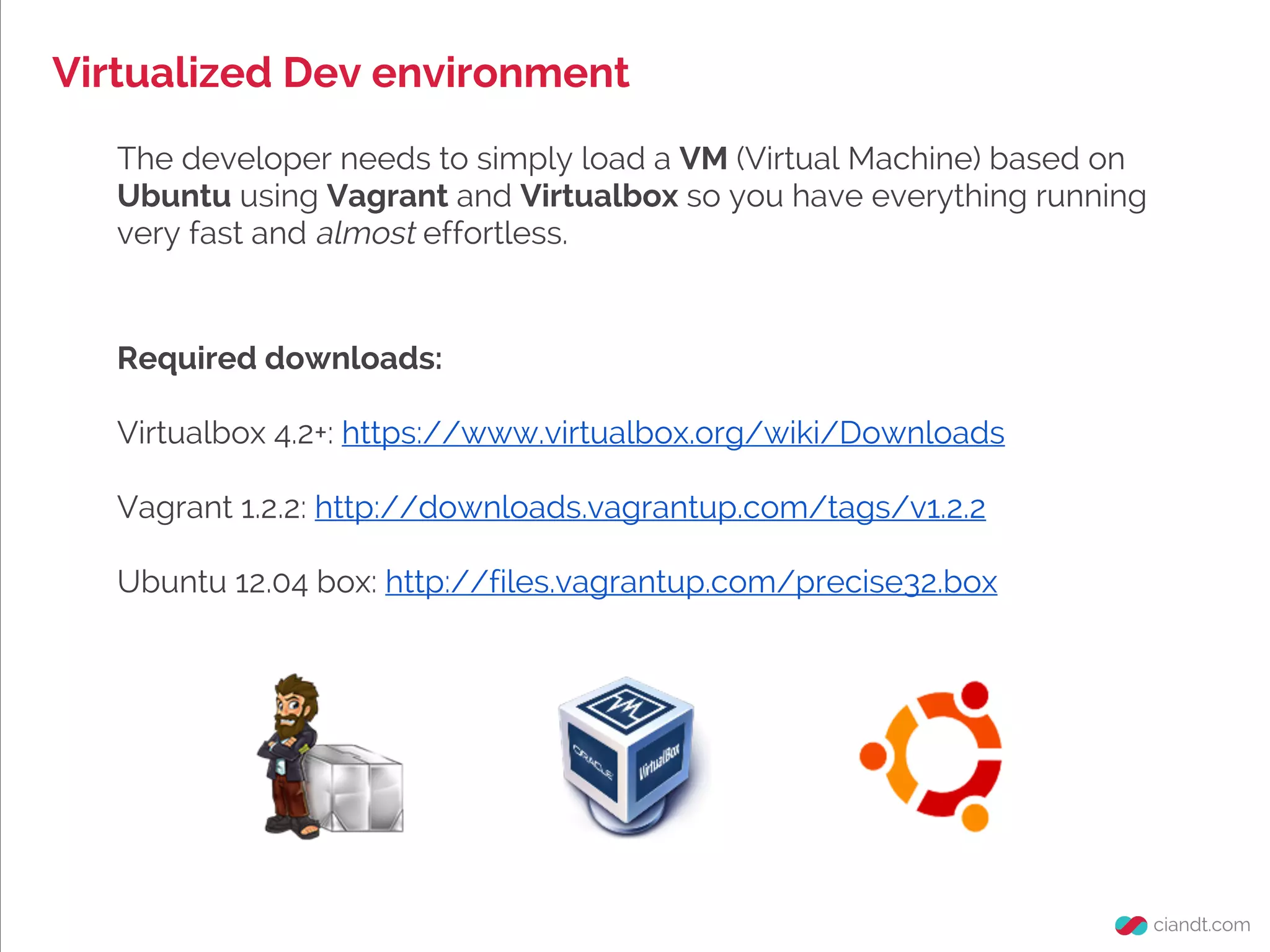

11. Virtualized Dev environment
The developer needs to simply load a VM (Virtual Machine) based on
Ubuntu using Vagrant and Virtualbox so you have everything running
very fast and almost effortless.
Required downloads:
Virtualbox 4.2+: https://www.virtualbox.org/wiki/Downloads
Vagrant 1.2.2: http://downloads.vagrantup.com/tags/v1.2.2
Ubuntu 12.04 box: http://files.vagrantup.com/precise32.box

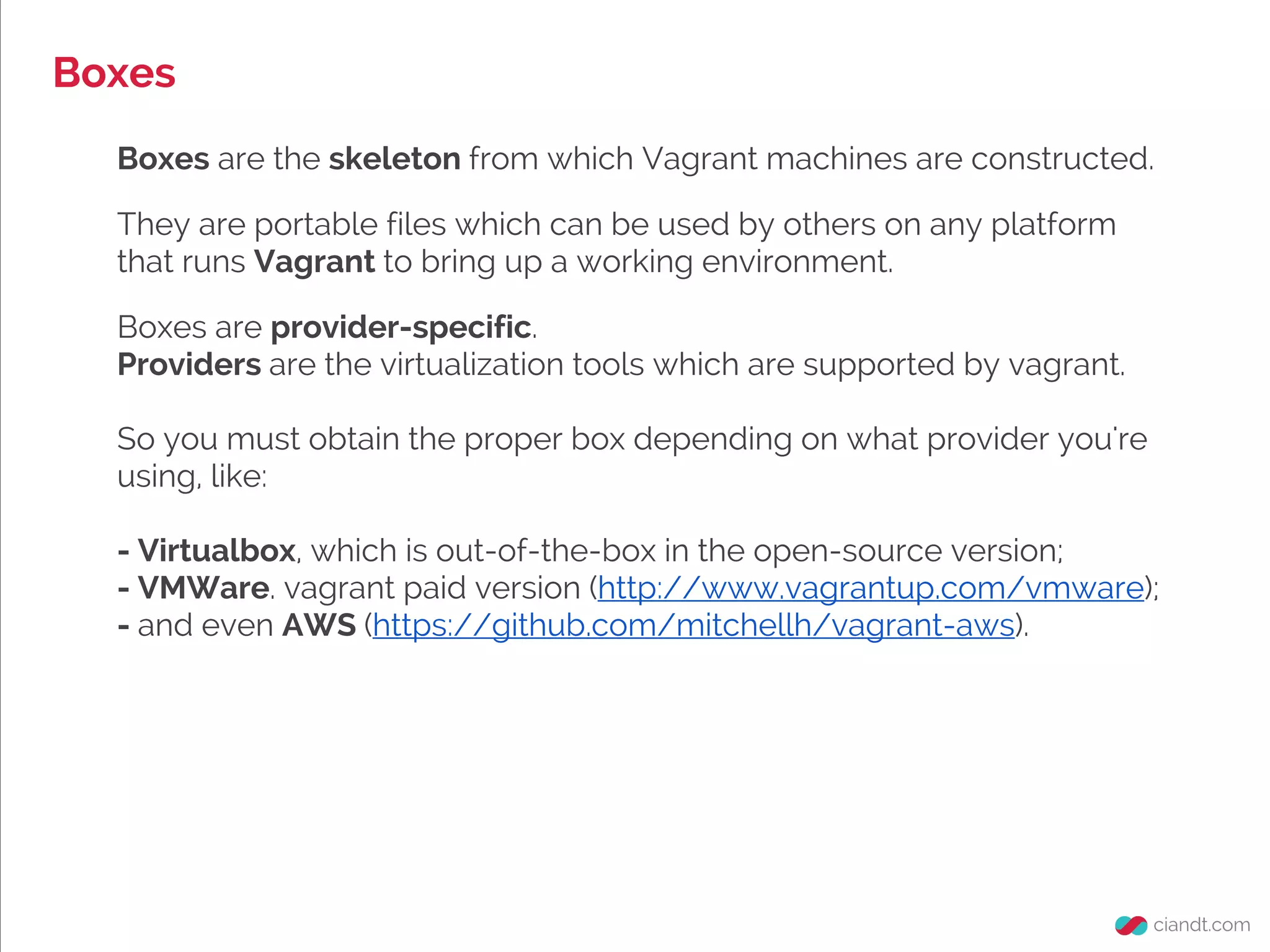

12. Boxes
Boxes are the skeleton from which Vagrant machines are constructed.
They are portable files which can be used by others on any platform
that runs Vagrant to bring up a working environment.
Boxes are provider-specific.
Providers are the virtualization tools which are supported by vagrant.
So you must obtain the proper box depending on what provider you're
using, like:
- Virtualbox, which is out-of-the-box in the open-source version;
- VMWare. vagrant paid version (http://www.vagrantup.com/vmware);
- and even AWS (https://github.com/mitchellh/vagrant-aws).

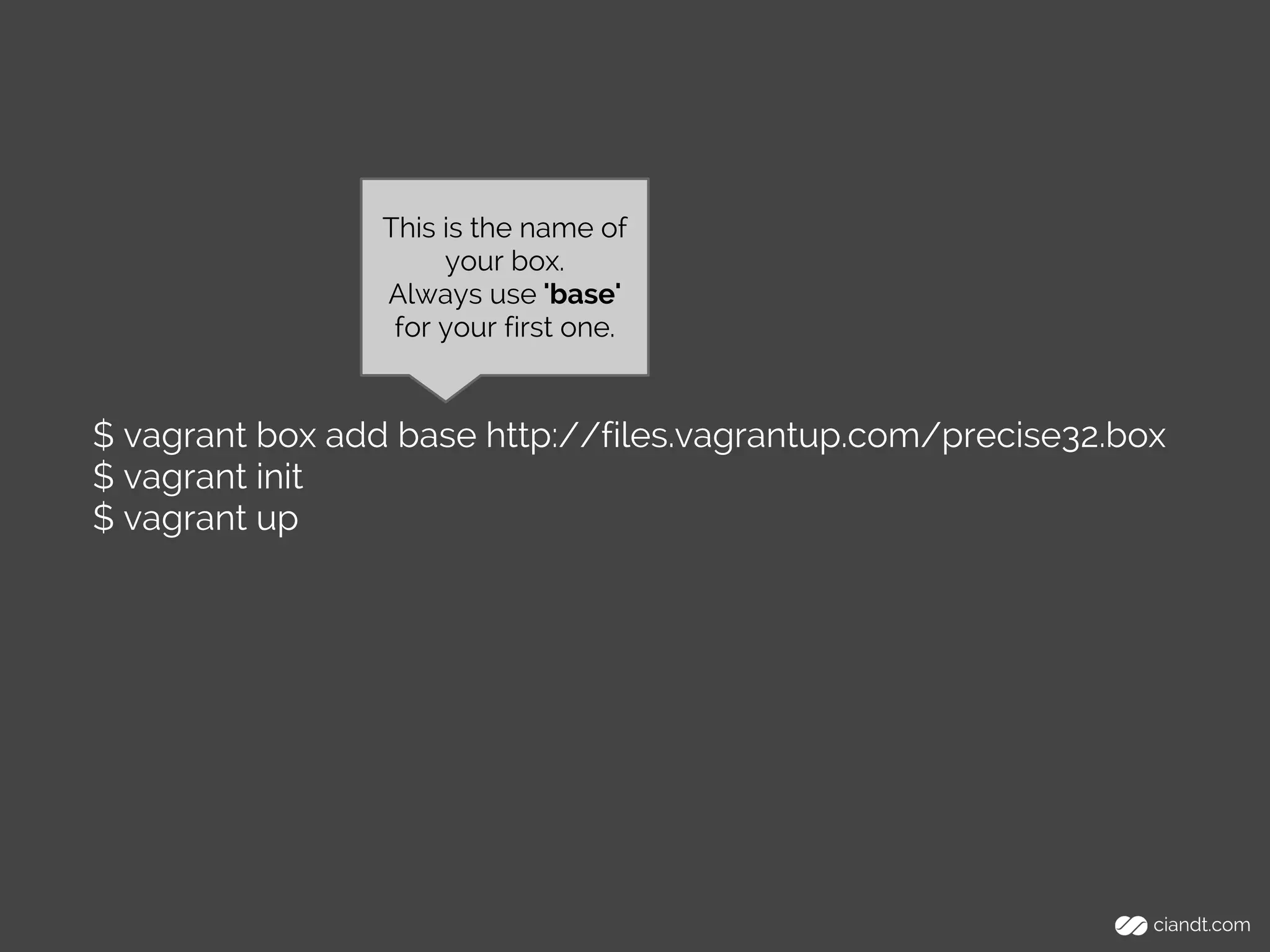

13. $ vagrant box add base http://files.vagrantup.com/precise32.box
$ vagrant init
$ vagrant up
This is the name of
your box.
Always use 'base'
for your first one.

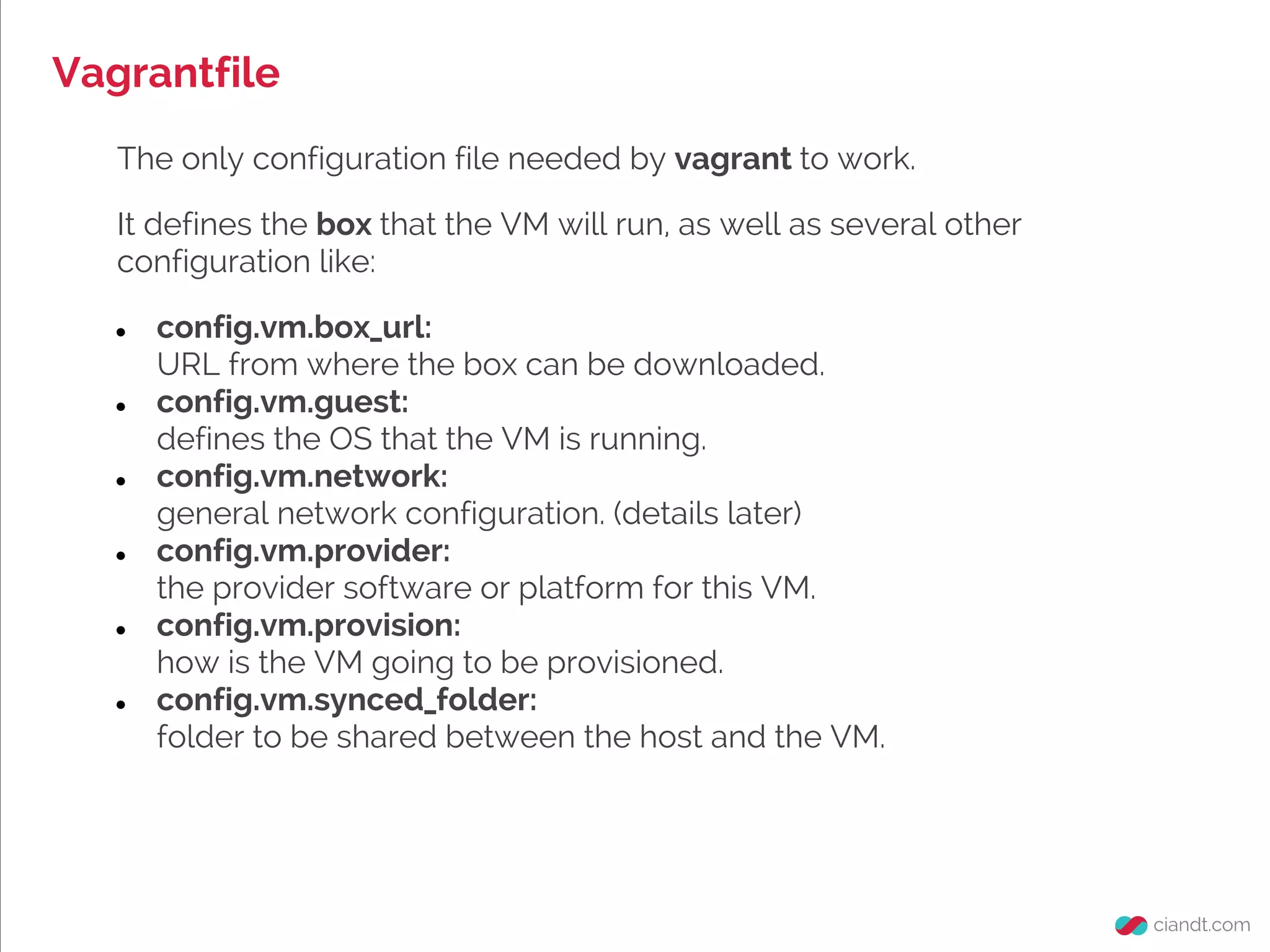

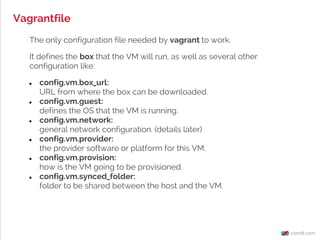

14. Vagrantfile
The only configuration file needed by vagrant to work.
It defines the box that the VM will run, as well as several other
configuration like:
● config.vm.box_url:
URL from where the box can be downloaded.
● config.vm.guest:
defines the OS that the VM is running.
● config.vm.network:
general network configuration. (details later)
● config.vm.provider:
the provider software or platform for this VM.
● config.vm.provision:
how is the VM going to be provisioned.
● config.vm.synced_folder:
folder to be shared between the host and the VM.

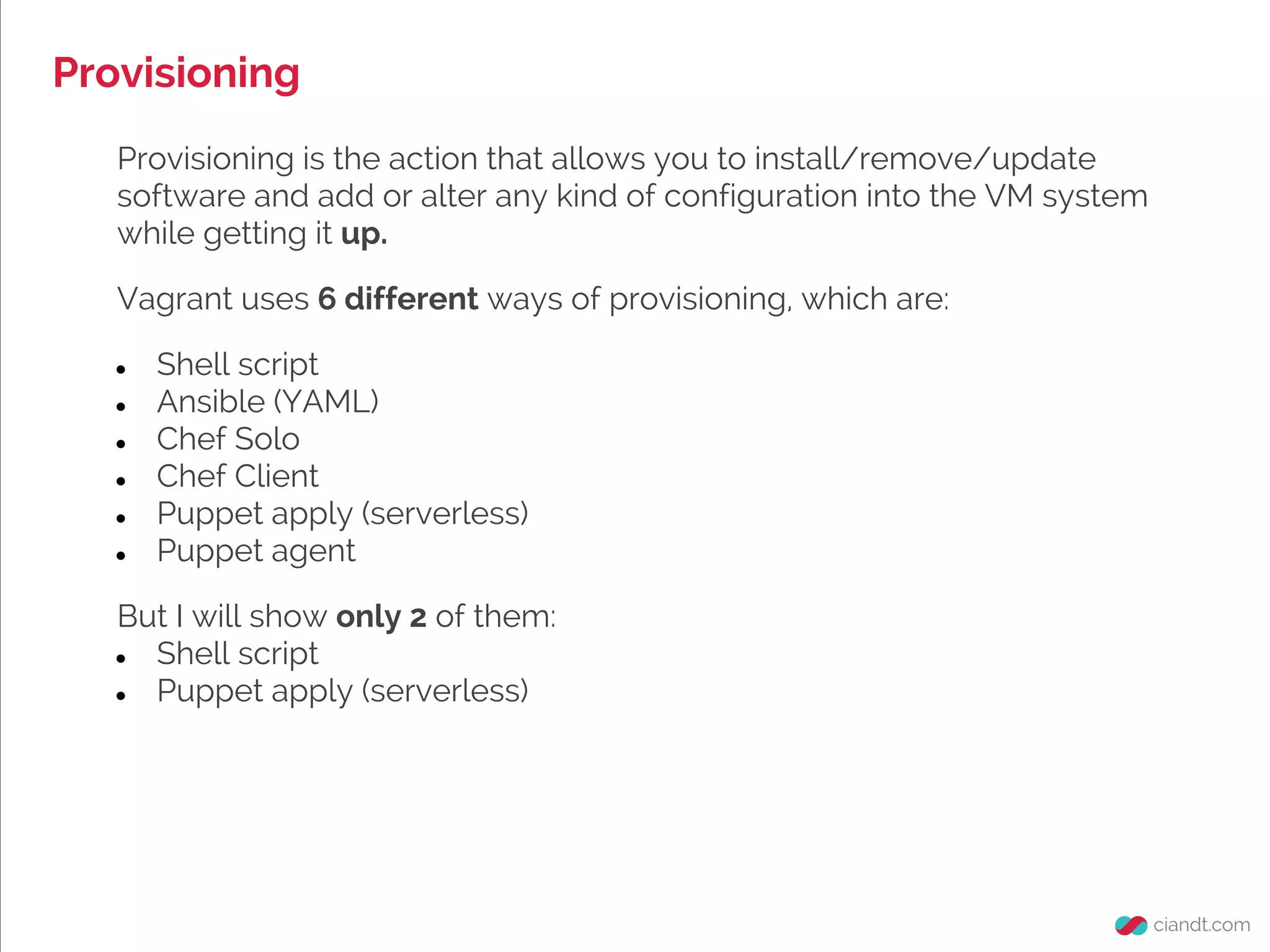

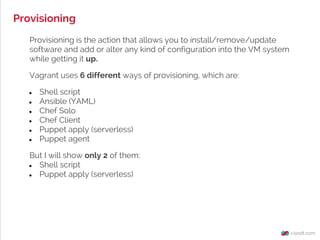

15. Provisioning
Provisioning is the action that allows you to install/remove/update
software and add or alter any kind of configuration into the VM system
while getting it up.
Vagrant uses 6 different ways of provisioning, which are:
● Shell script
● Ansible (YAML)
● Chef Solo
● Chef Client
● Puppet apply (serverless)
● Puppet agent
But I will show only 2 of them:
● Shell script
● Puppet apply (serverless)

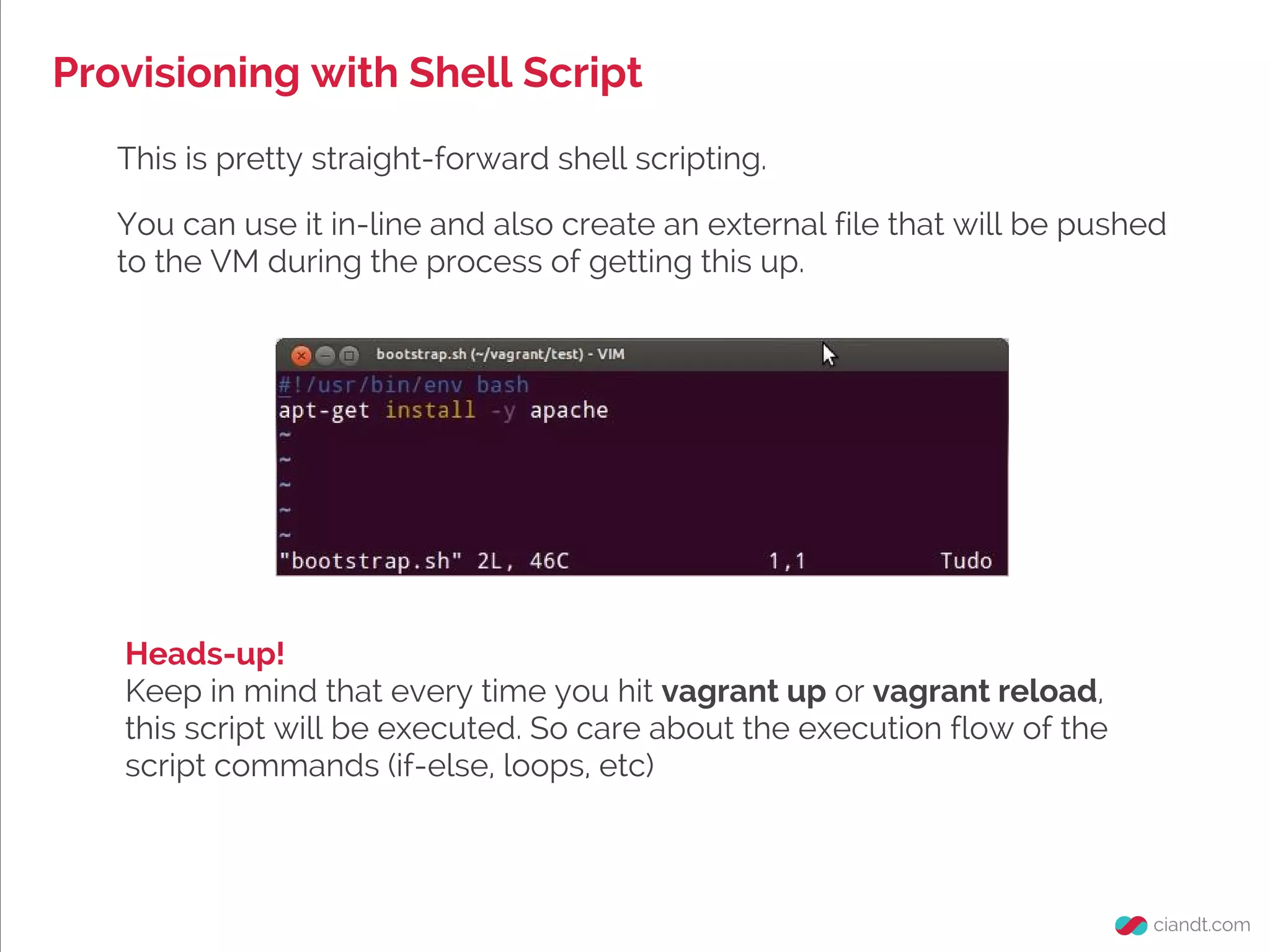

16. Provisioning with Shell Script
This is pretty straight-forward shell scripting.
You can use it in-line and also create an external file that will be pushed
to the VM during the process of getting this up.
Heads-up!
Keep in mind that every time you hit vagrant up or vagrant reload,
this script will be executed. So care about the execution flow of the
script commands (if-else, loops, etc)

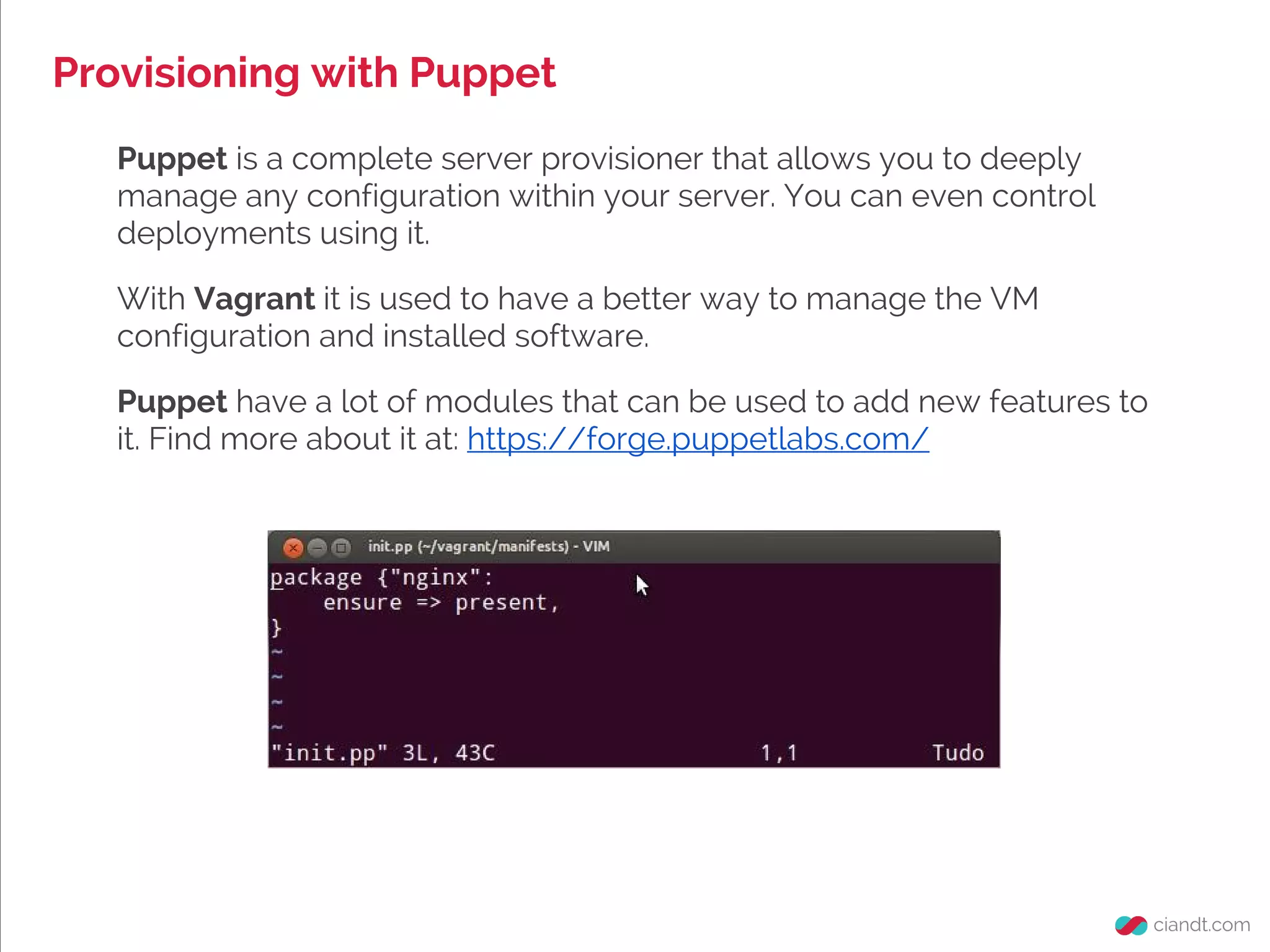

17. Provisioning with Puppet
Puppet is a complete server provisioner that allows you to deeply
manage any configuration within your server. You can even control
deployments using it.
With Vagrant it is used to have a better way to manage the VM
configuration and installed software.
Puppet have a lot of modules that can be used to add new features to
it. Find more about it at: https://forge.puppetlabs.com/

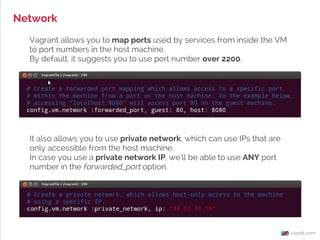

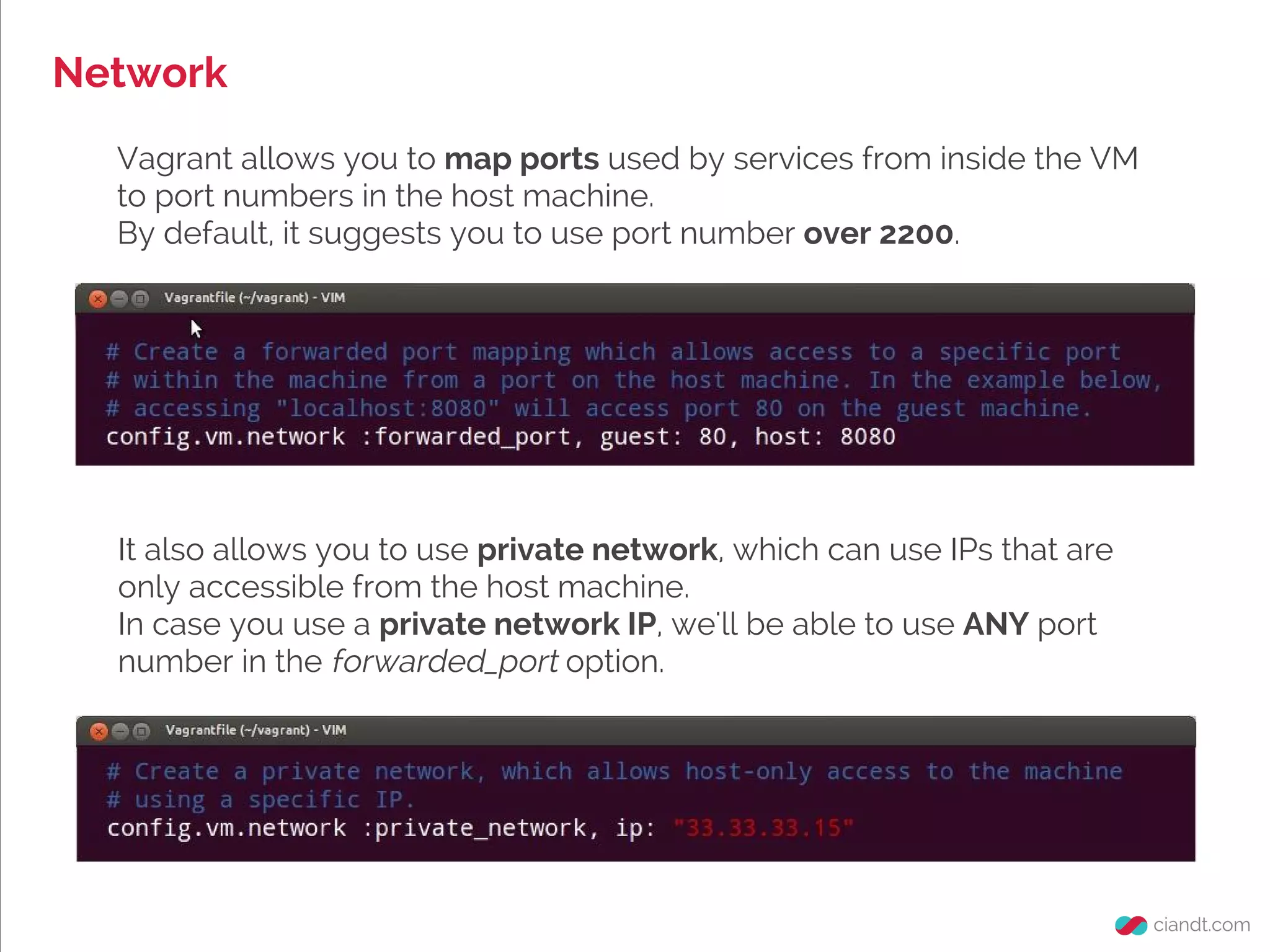

18. Network
Vagrant allows you to map ports used by services from inside the VM
to port numbers in the host machine.
By default, it suggests you to use port number over 2200.
It also allows you to use private network, which can use IPs that are
only accessible from the host machine.
In case you use a private network IP, we'll be able to use ANY port
number in the forwarded_port option.

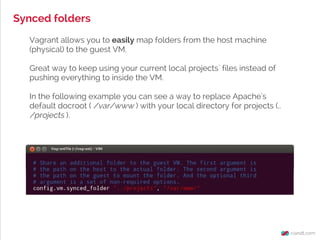

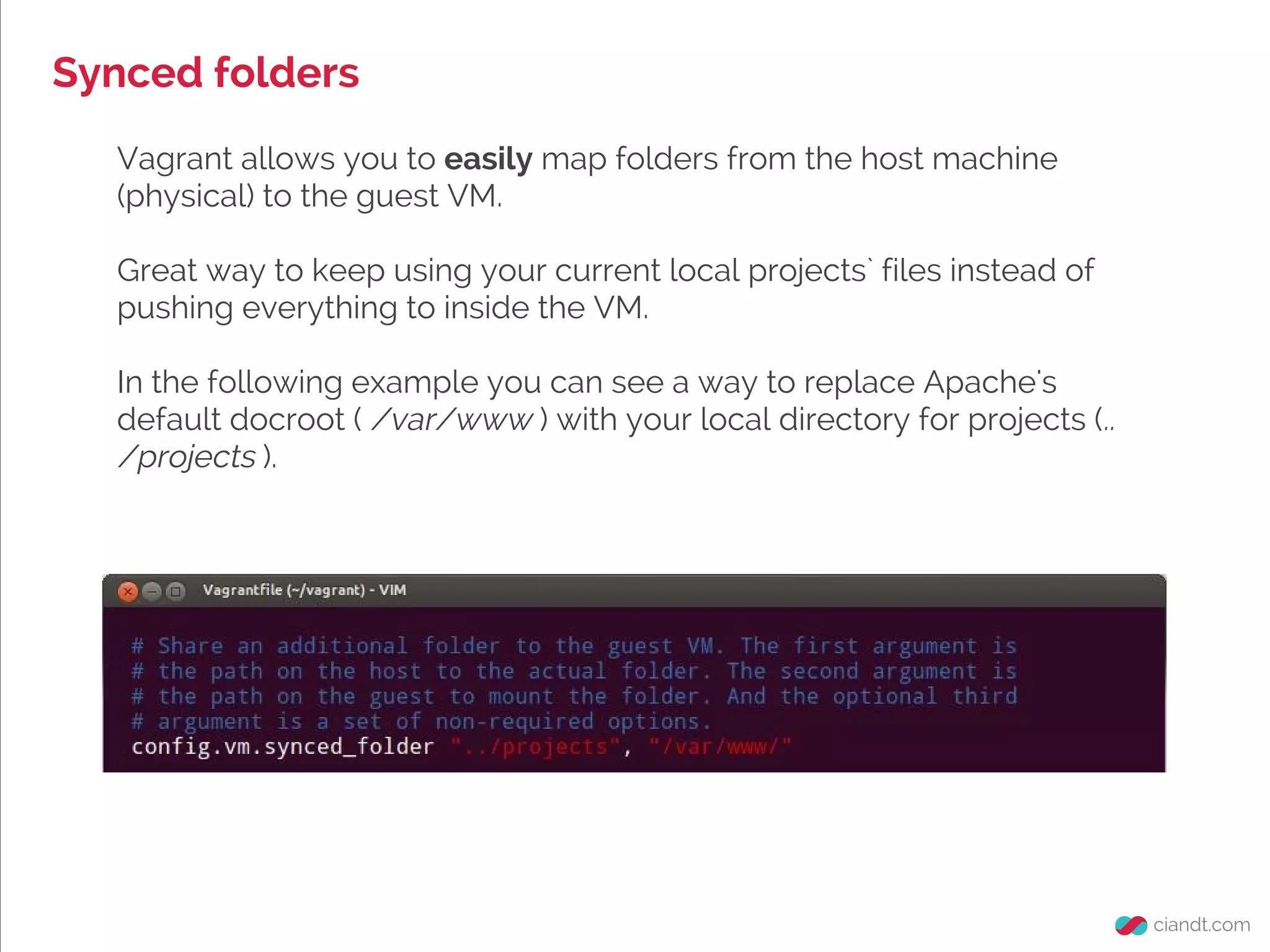

19. Synced folders
Vagrant allows you to easily map folders from the host machine
(physical) to the guest VM.
Great way to keep using your current local projects` files instead of
pushing everything to inside the VM.
In the following example you can see a way to replace Apache's
default docroot ( /var/www ) with your local directory for projects (..
/projects ).

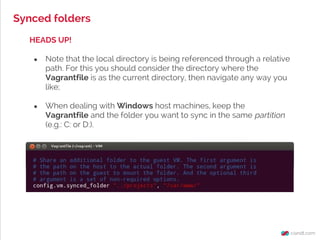

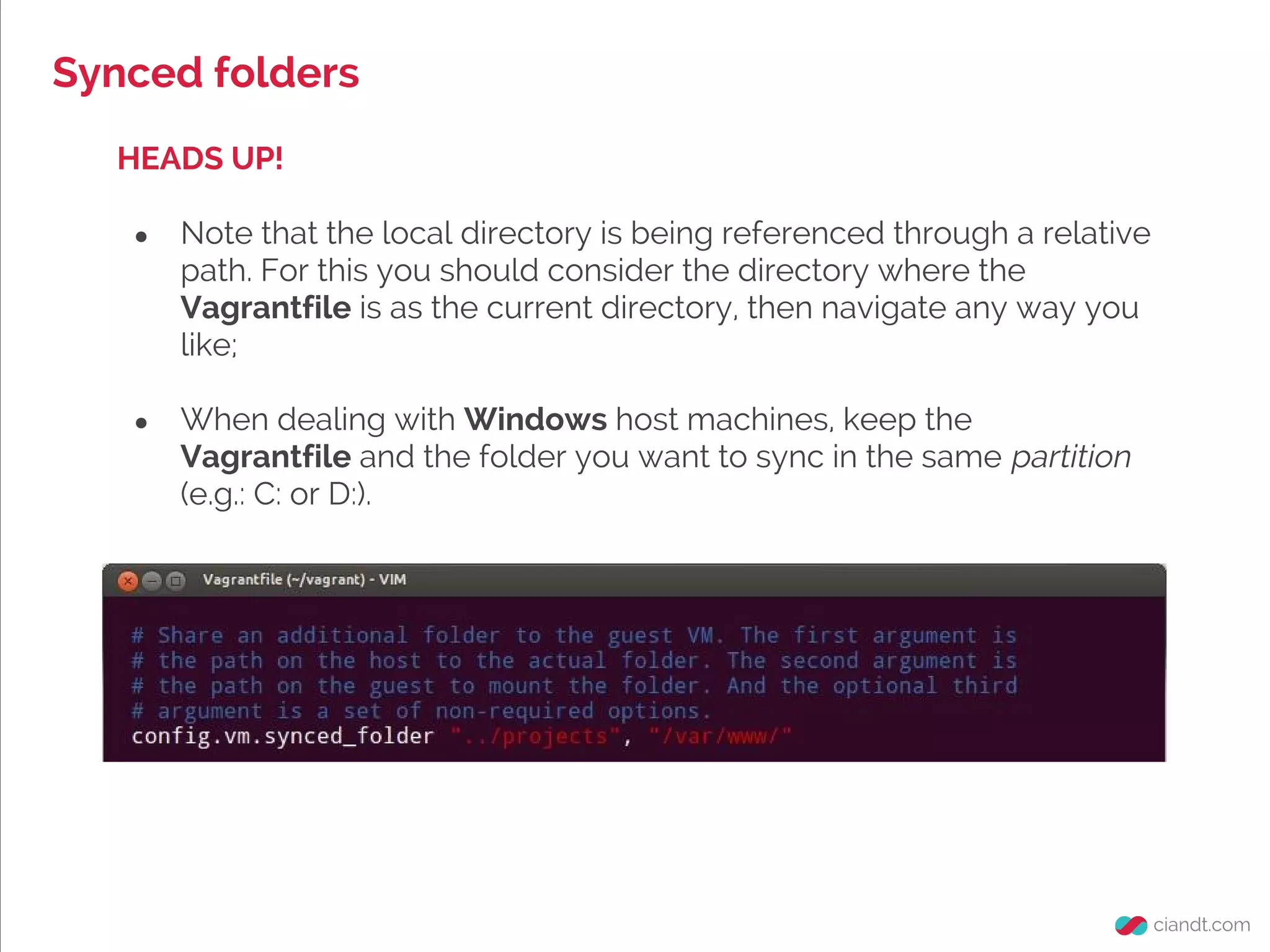

20. Synced folders
HEADS UP!
● Note that the local directory is being referenced through a relative
path. For this you should consider the directory where the
Vagrantfile is as the current directory, then navigate any way you
like;
● When dealing with Windows host machines, keep the
Vagrantfile and the folder you want to sync in the same partition
(e.g.: C: or D:).

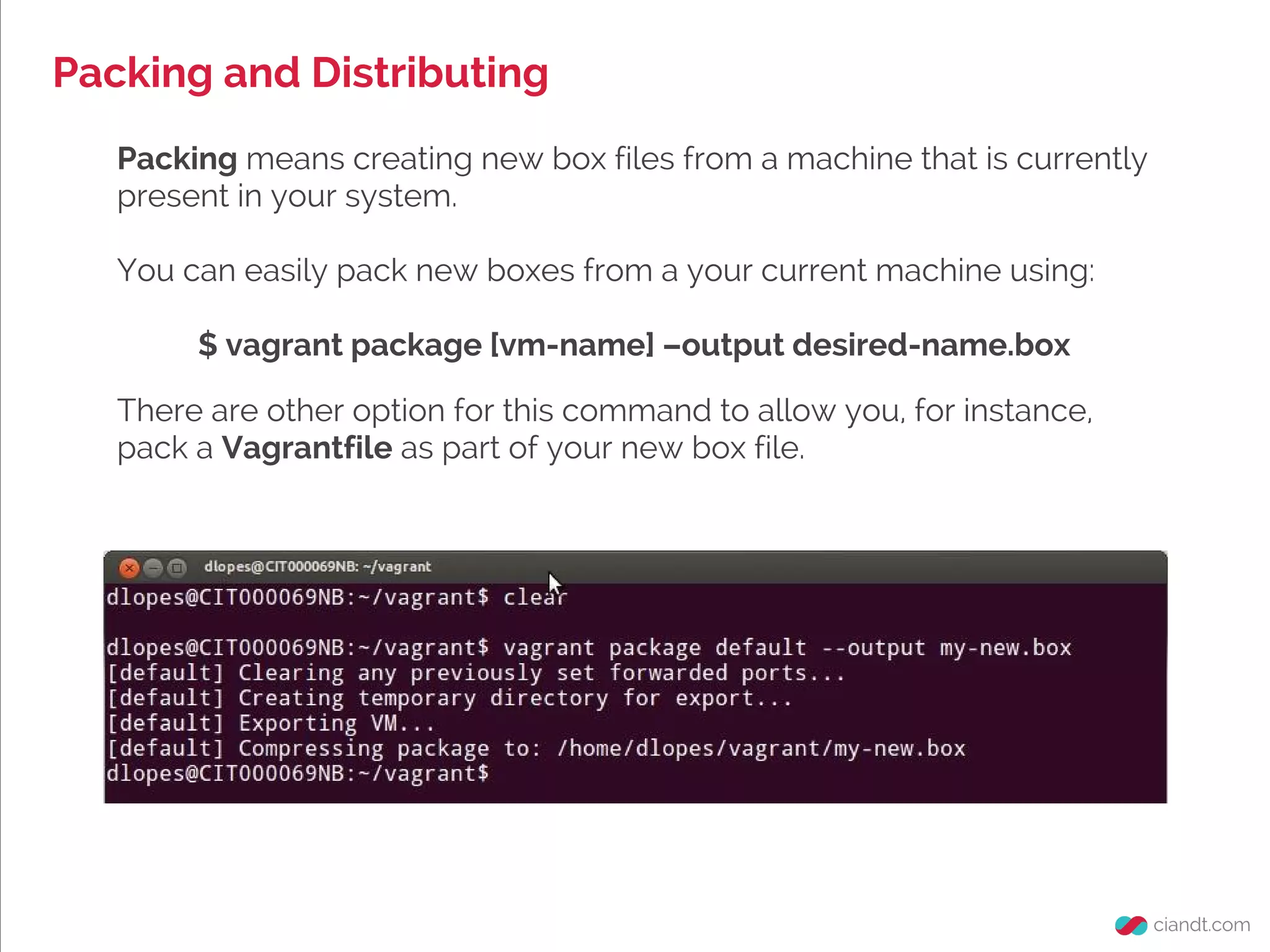

21. Packing and Distributing
Packing means creating new box files from a machine that is currently
present in your system.
You can easily pack new boxes from a your current machine using:
$ vagrant package [vm-name] –output desired-name.box
There are other option for this command to allow you, for instance,
pack a Vagrantfile as part of your new box file.

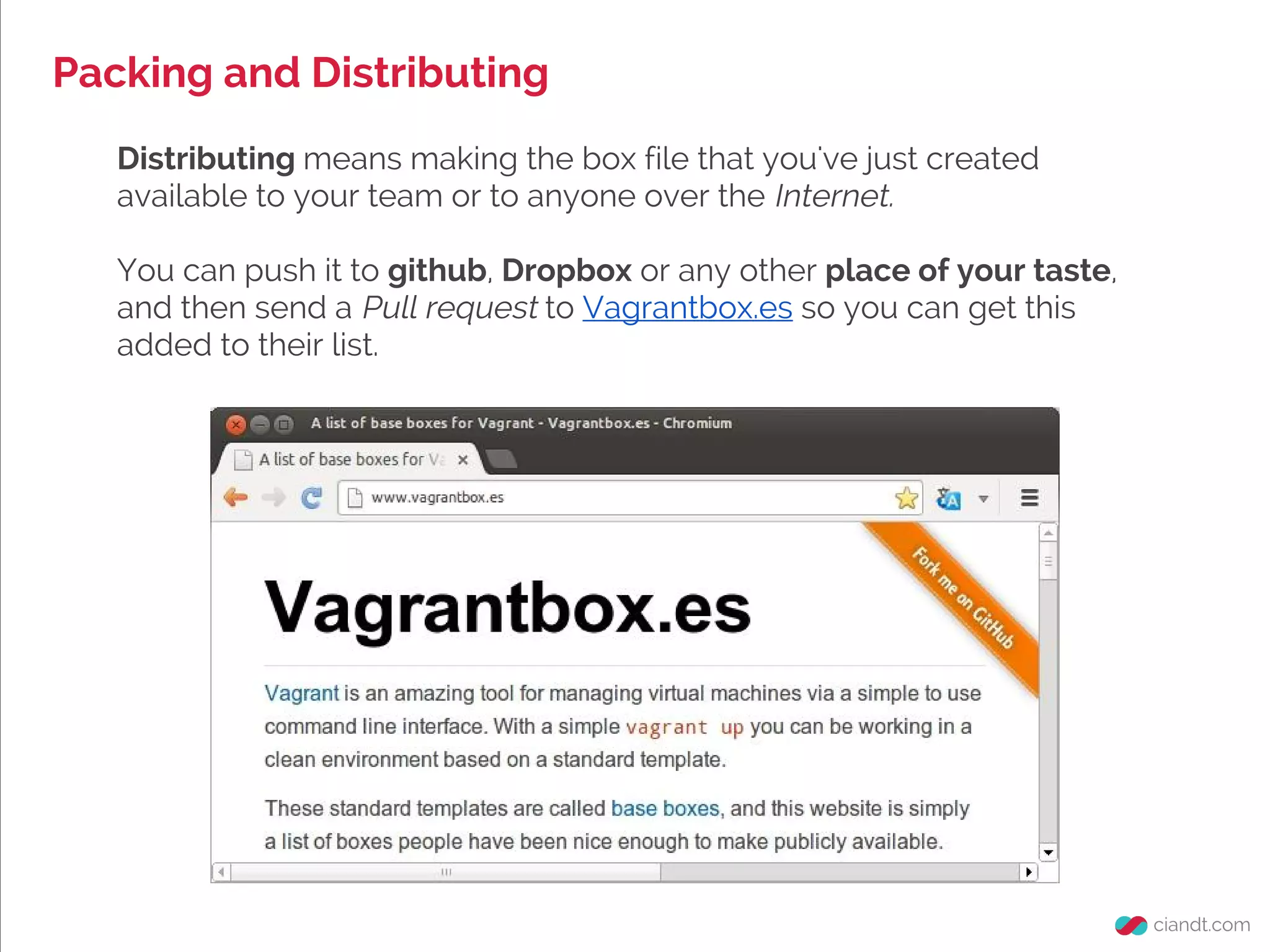

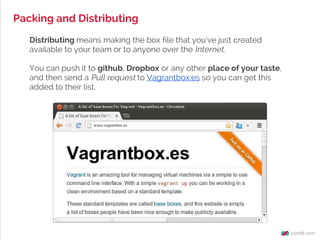

22. Packing and Distributing
Distributing means making the box file that you've just created
available to your team or to anyone over the Internet.
You can push it to github, Dropbox or any other place of your taste,
and then send a Pull request to Vagrantbox.es so you can get this
added to their list.

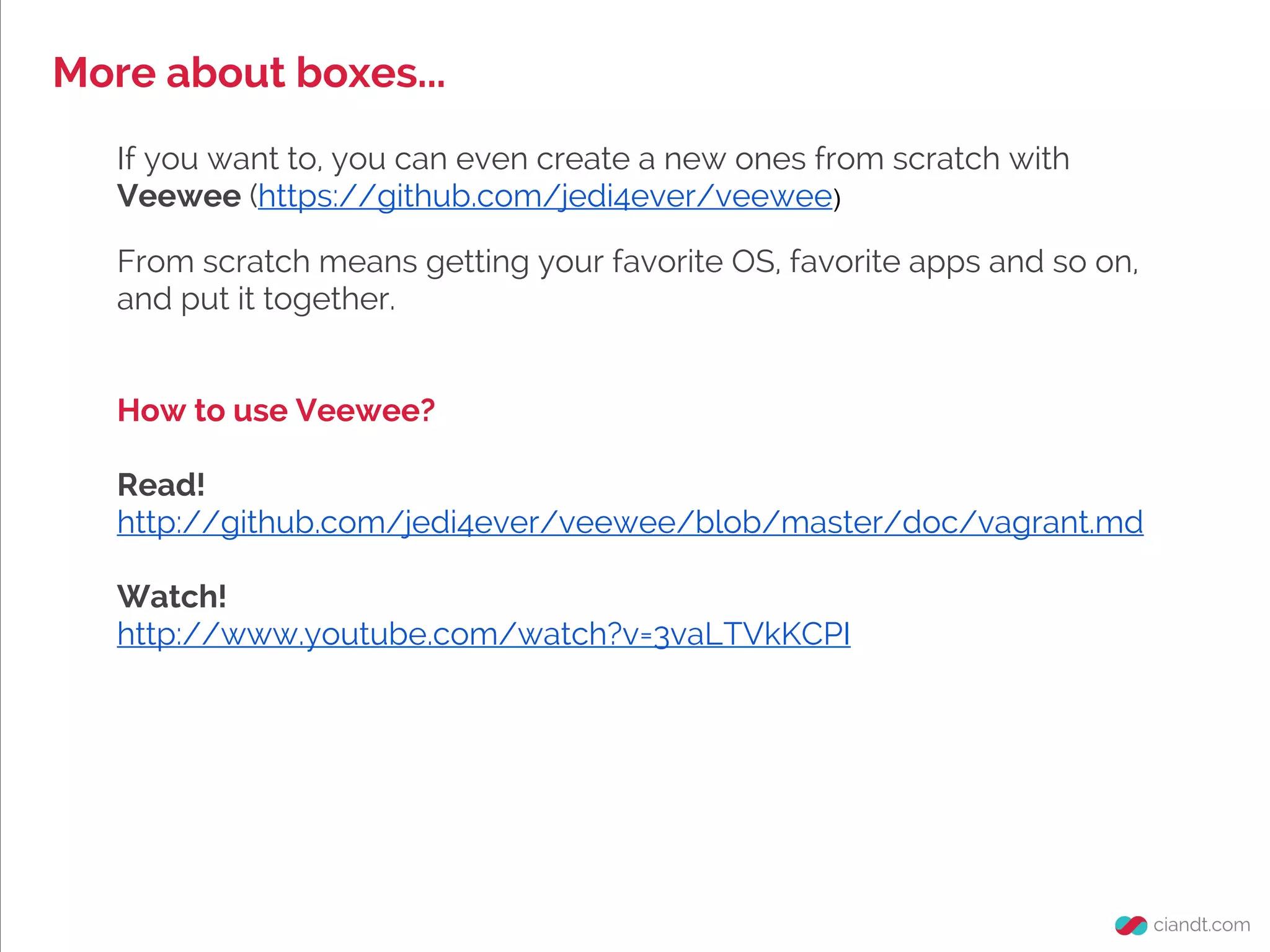

23. More about boxes...
If you want to, you can even create a new ones from scratch with
Veewee (https://github.com/jedi4ever/veewee)
From scratch means getting your favorite OS, favorite apps and so on,
and put it together.
How to use Veewee?
Read!
http://github.com/jedi4ever/veewee/blob/master/doc/vagrant.md
Watch!
http://www.youtube.com/watch?v=3vaLTVkKCPI

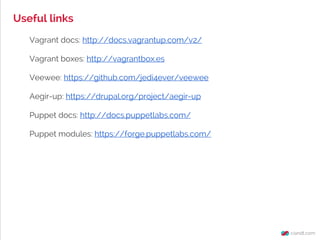

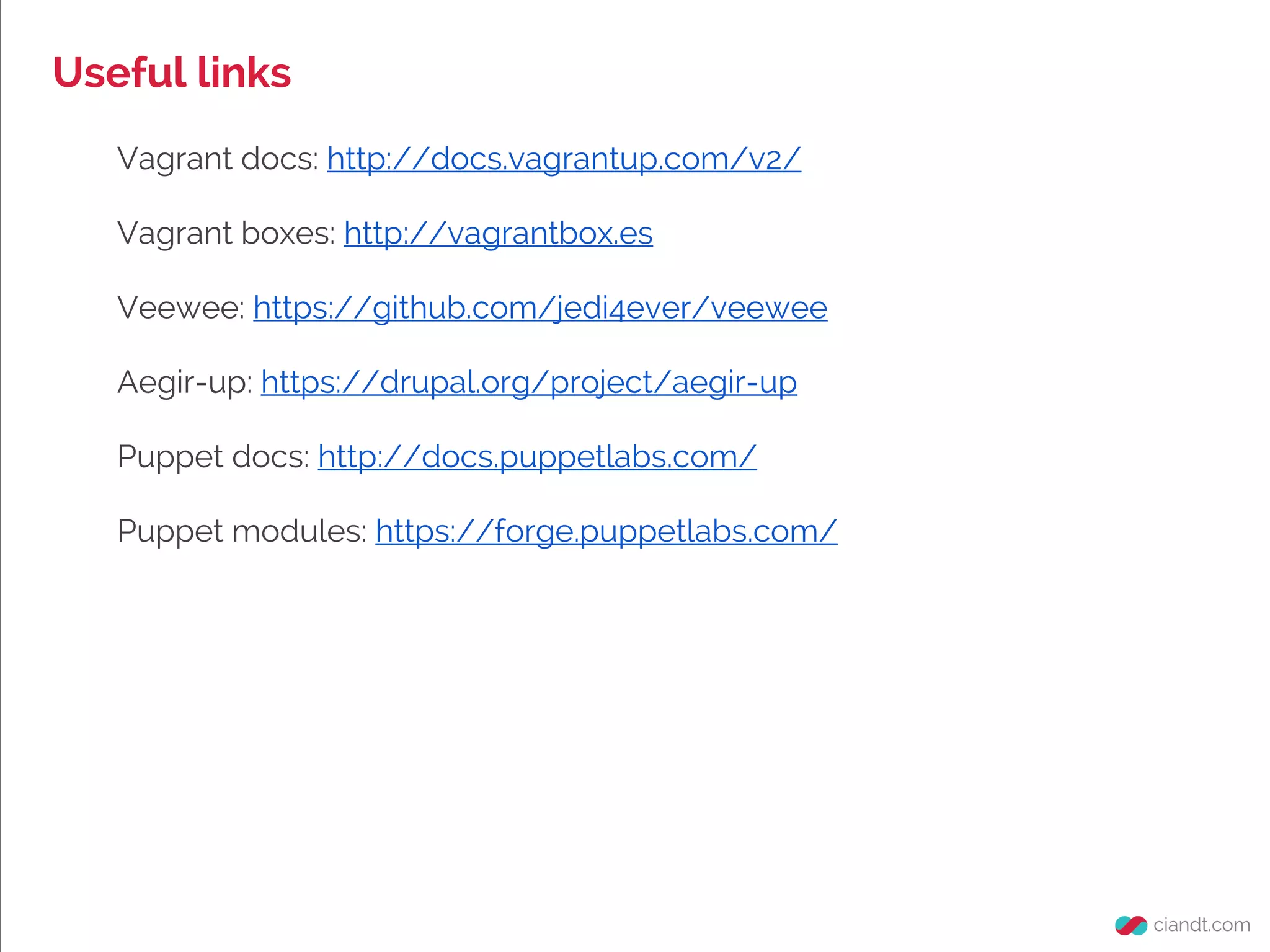

24. Useful links
Vagrant docs: http://docs.vagrantup.com/v2/
Vagrant boxes: http://vagrantbox.es
Veewee: https://github.com/jedi4ever/veewee
Aegir-up: https://drupal.org/project/aegir-up
Puppet docs: http://docs.puppetlabs.com/
Puppet modules: https://forge.puppetlabs.com/

25. THANKS A
LOT FOR
YOUR TIME
