1. Vagrant Hands on Workshop for
Beginners
Liora Milbaum
DevOps & ALM Evangelist

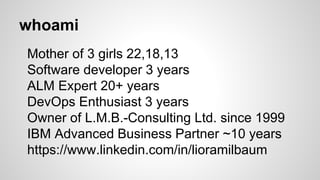

2. whoami
Mother of 3 girls 22,18,13
Software developer 3 years
ALM Expert 20+ years
DevOps Enthusiast 3 years
Owner of L.M.B.-Consulting Ltd. since 1999
IBM Advanced Business Partner ~10 years
https://www.linkedin.com/in/lioramilbaum

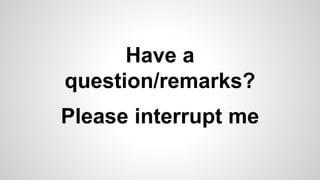

4. Please interrupt me
Have a
question/remarks?

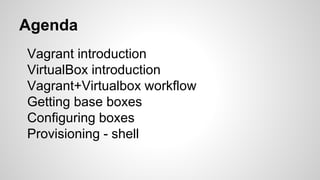

5. Vagrant introduction
VirtualBox introduction
Vagrant+Virtualbox workflow
Getting base boxes
Configuring boxes
Provisioning - shell
Agenda

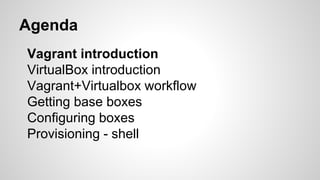

6. Vagrant introduction
VirtualBox introduction
Vagrant+Virtualbox workflow
Getting base boxes
Configuring boxes
Provisioning - shell
Agenda

7. What is Vagrant good for?
Create and configure lightweight, reproducible
and portable development environments
https://www.vagrantup.com/

8. Vagrant in high level
Command line tool
Automates VM creation: Virtualbox, VMWare,
Hyper-V, AWS….
Integrates with configuration management
tools: shell, chef, Ansible, Puppet….
Runs on: Linux, Windows, MacOS

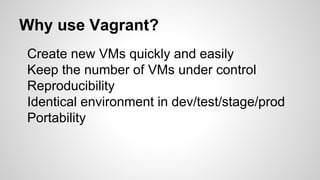

9. Why use Vagrant?
Create new VMs quickly and easily
Keep the number of VMs under control
Reproducibility
Identical environment in dev/test/stage/prod
Portability

10. Vagrant introduction
VirtualBox introduction
Vagrant+Virtualbox workflow
Getting base boxes
Configuring boxes
Provisioning - shell
Agenda

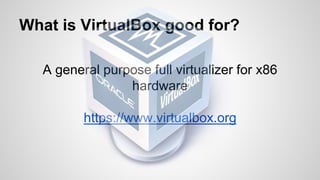

11. What is VirtualBox good for?
A general purpose full virtualizer for x86
hardware
https://www.virtualbox.org

12. Vagrant introduction
VirtualBox introduction
Vagrant+Virtualbox workflow
Getting base boxes
Configuring boxes
Provisioning - shell
Agenda

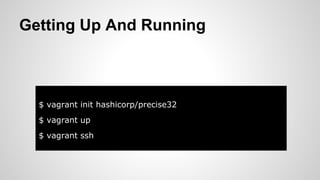

14. $ vagrant init hashicorp/precise32
$ vagrant up
$ vagrant ssh
Getting Up And Running

15. What happened under the hood
$ vagrant init hashicorp/precise32
A Vagrantfile is created
VAGRANTFILE_API_VERSION = ‘2’
vagrant.configure(VAGRANTFILE_API_VERSION) do |config|
config.vm.box = ‘hashicorp/precise32’
end

16. What happened under the hood
$ vagrant up
The base box is downloaded and stored locally
in ~/.vagrant.d/boxes
A new VM is created and configured with the base box as
a template
The VM is booted
The box is provisioned

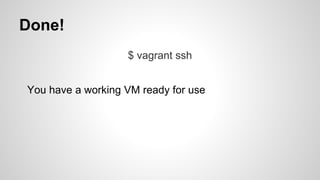

17. Done!
$ vagrant ssh
You have a working VM ready for use

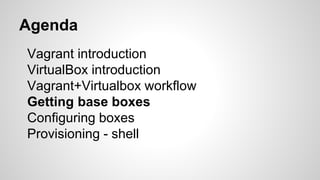

18. Vagrant introduction
VirtualBox introduction
Vagrant+Virtualbox workflow
Getting base boxes
Configuring boxes
Provisioning - shell
Agenda

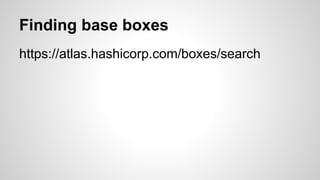

19. Finding base boxes
https://atlas.hashicorp.com/boxes/search

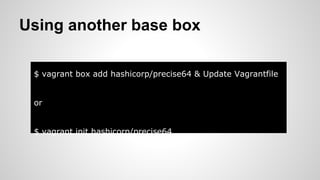

20. Using another base box
$ vagrant box add hashicorp/precise64 & Update Vagrantfile
or
$ vagrant init hashicorp/precise64

21. Vagrantfile after
VAGRANTFILE_API_VERSION = ‘2’
vagrant.configure(VAGRANTFILE_API_VERSION) do |config|
config.vm.box = ‘hashicorp/precise64’
end

22. Applying the change
$ vagrant destroy
$ vagrant up
$ vagrant ssh

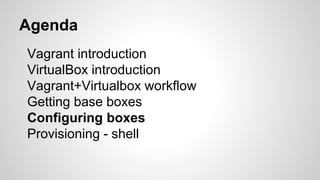

23. Vagrant introduction
VirtualBox introduction
Vagrant+Virtualbox workflow
Getting base boxes
Configuring boxes
Provisioning - shell
Agenda

24. Modified VM
VAGRANTFILE_API_VERSION = ‘2’
vagrant.configure(VAGRANTFILE_API_VERSION) do |config|
config.vm.box = ‘hashicorp/precise64’
config.vm.provider :virtualbox do |vb|
vb.name = HOST_NAME
vb.customize [‘modifyvm’, :id, ‘--memory’, 256]
end
end

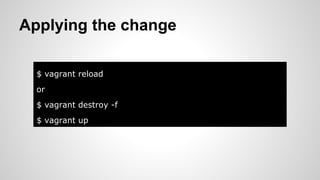

25. Applying the change
$ vagrant reload
or
$ vagrant destroy -f
$ vagrant up

26. Task
Create a VM:
Name - DevOpsTLV
Memory - 1GB
CPUs - 2

27. $ vagrant init user/box # Create Vagrantfile for specified
base box
$ vim/notepad Vagrantfile # Customize your box
$ vagrant up # Create VM if needed and boot
$ vagrant reload # After every change to Vagrantfile
$ vagrant halt # Poweroff
$ vagrant destroy # Clean up!
$ vagrant ssh # log in
$ vagrant status # Status of your VM
Summery

28. Vagrant introduction
VirtualBox introduction
Vagrant+Virtualbox workflow
Getting base boxes
Configuring boxes
Provisioning - shell
Agenda

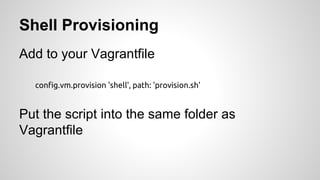

29. Shell Provisioning
Add to your Vagrantfile
config.vm.provision 'shell', path: 'provision.sh'
Put the script into the same folder as
Vagrantfile

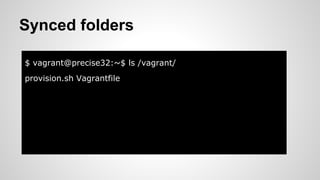

30. $ vagrant@precise32:~$ ls /vagrant/
provision.sh Vagrantfile
Synced folders

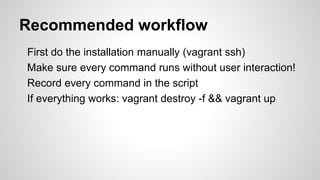

31. Recommended workflow
First do the installation manually (vagrant ssh)
Make sure every command runs without user interaction!
Record every command in the script
If everything works: vagrant destroy -f && vagrant up

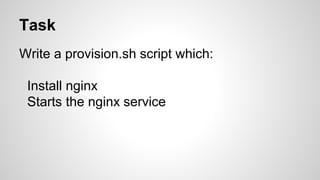

32. Task
Write a provision.sh script which:
Install nginx
Starts the nginx service

33. That’s it
(for today)
Credit to Bert Van Vreckem
http://slidedeck.io/bertvv/vagrant-presentation
