The UTG-8 is a simple, smart, and effective ultrasonic thickness gauge. It has a measurement range of 0.63-500 mm for steel with a discreetness of 0.01 mm or 0.001 inches. It is lightweight at 176 grams and measures 35x70x125 mm. The device has multiple calibration and measurement modes for thickness readings using a connected probe.

1. Simple, Smart, Effective!Simple, Smart, Effective!
UTG-8UTG-8

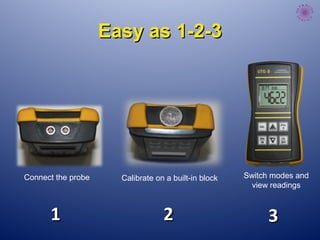

2. Easy as 1-2-3Easy as 1-2-3
Connect the probe Calibrate on a built-in block Switch modes and
view readings
11 22 33

3. Keys legendKeys legend
Switch instrument ON and OFF
Probe zeroing
Run calibration
Switch between Metric and English units
Switch Measure / Scanning modes.
Increase current value
Switch backlight mode.
Decrease current value.

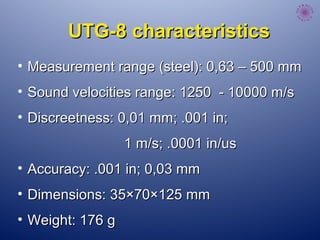

4. UTG-8 characteristicsUTG-8 characteristics
• Measurement range (steel): 0,63 – 500 mmMeasurement range (steel): 0,63 – 500 mm
• Sound velocities range: 1250 - 10000 m/sSound velocities range: 1250 - 10000 m/s
• Discreetness: 0,01 mm; .001 in;Discreetness: 0,01 mm; .001 in;
1 m/s; .0001 in/us1 m/s; .0001 in/us
• Accuracy: .001 in; 0,03 mmAccuracy: .001 in; 0,03 mm
• Dimensions:Dimensions: 35×70×12535×70×125 mmmm
• Weight: 176 gWeight: 176 g

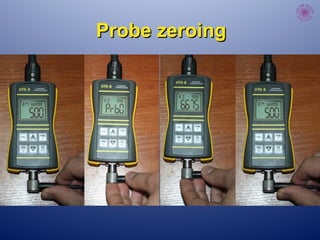

5. Probe zeroingProbe zeroing

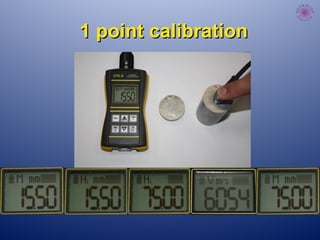

6. 1 point calibration1 point calibration

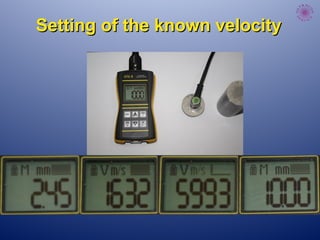

7. Setting of the known velocitySetting of the known velocity

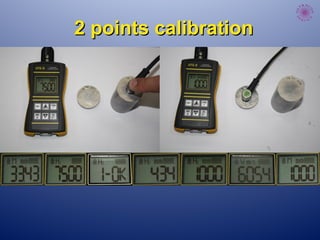

8. 2 points calibration2 points calibration

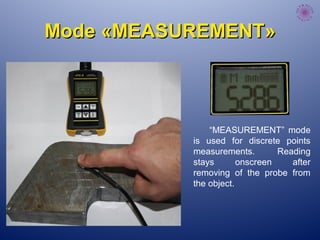

9. “MEASUREMENT” mode
is used for discrete points
measurements. Reading
stays onscreen after
removing of the probe from
the object.
ModeMode ««MEASUREMENTMEASUREMENT»»

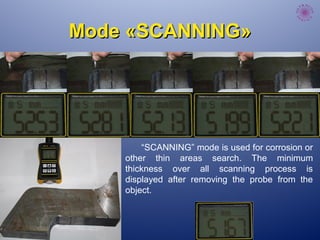

10. ModeMode ««SCANNINGSCANNING»»
“SCANNING” mode is used for corrosion or
other thin areas search. The minimum
thickness over all scanning process is
displayed after removing the probe from the
object.
