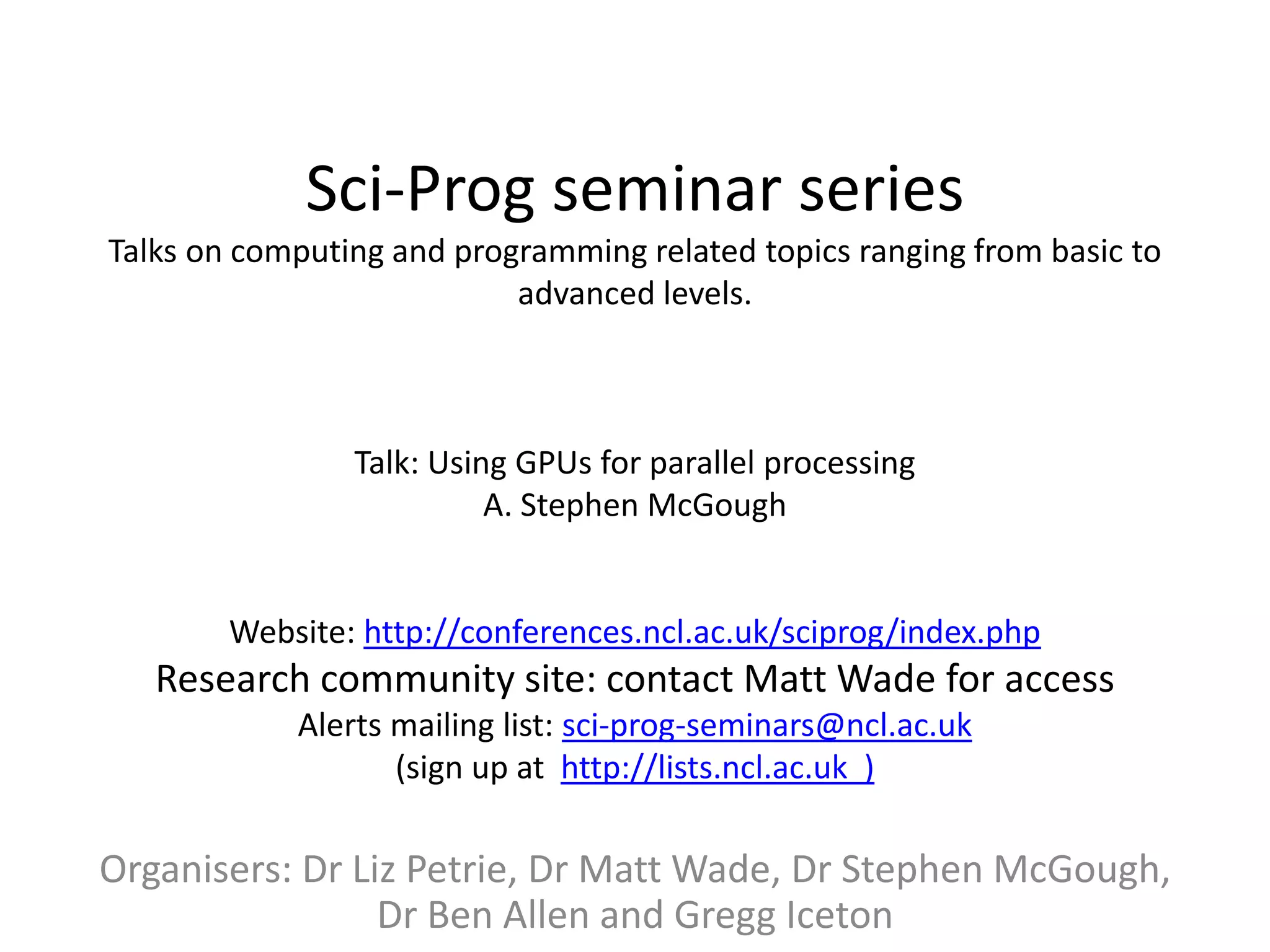

1. Sci-Prog seminar series
Talks on computing and programming related topics ranging from basic to
advanced levels.
Talk: Using GPUs for parallel processing
A. Stephen McGough
Website: http://conferences.ncl.ac.uk/sciprog/index.php
Research community site: contact Matt Wade for access
Alerts mailing list: sci-prog-seminars@ncl.ac.uk
(sign up at http://lists.ncl.ac.uk )
Organisers: Dr Liz Petrie, Dr Matt Wade, Dr Stephen McGough,
Dr Ben Allen and Gregg Iceton

2. Using GPUs for parallel processing
A. Stephen McGough

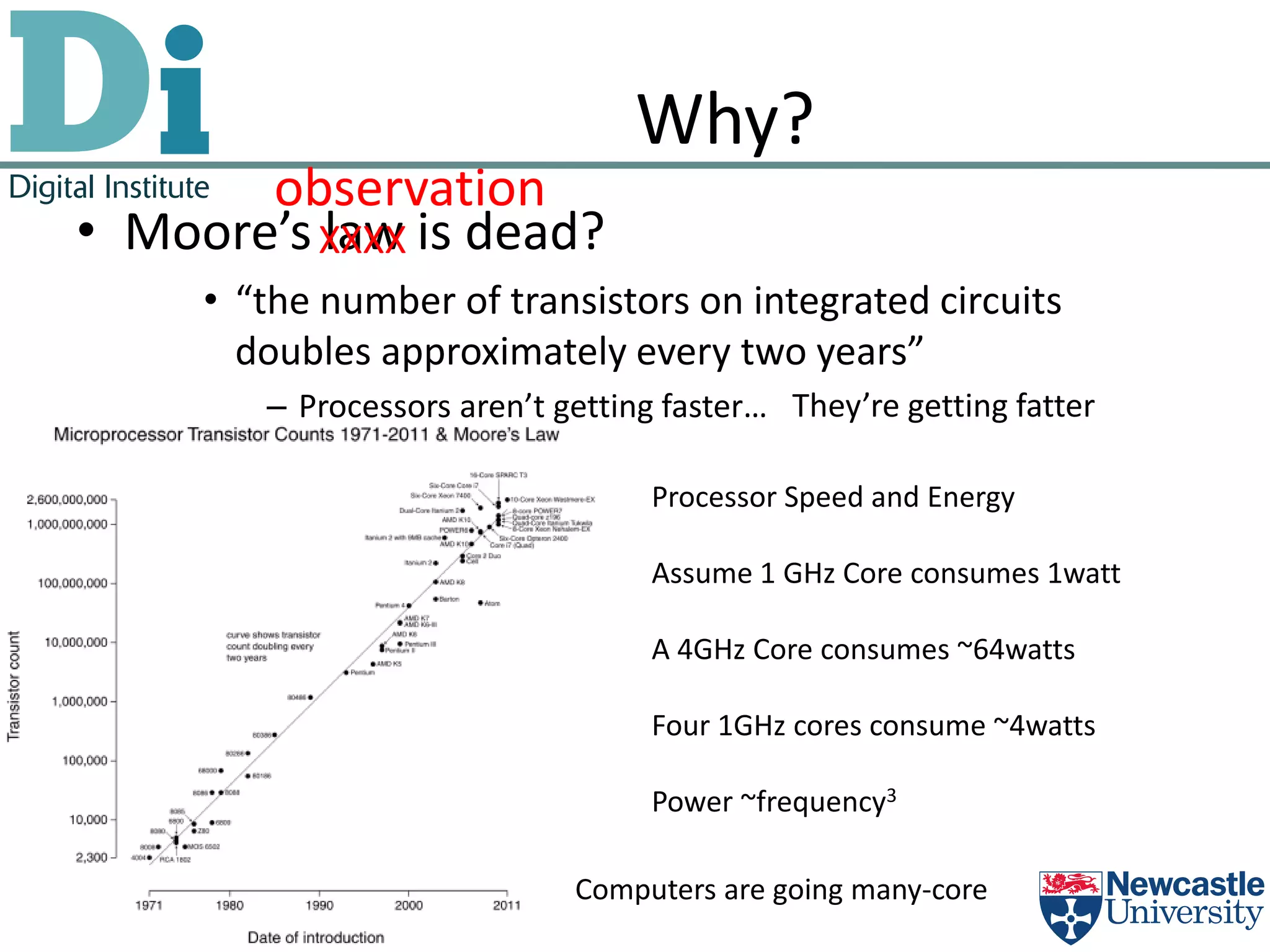

3. Why?
observation
• Moore’s XXXX is dead?
law
• “the number of transistors on integrated circuits
doubles approximately every two years”
– Processors aren’t getting faster… They’re getting fatter
Processor Speed and Energy
Assume 1 GHz Core consumes 1watt
A 4GHz Core consumes ~64watts
Four 1GHz cores consume ~4watts
Power ~frequency3
Computers are going many-core

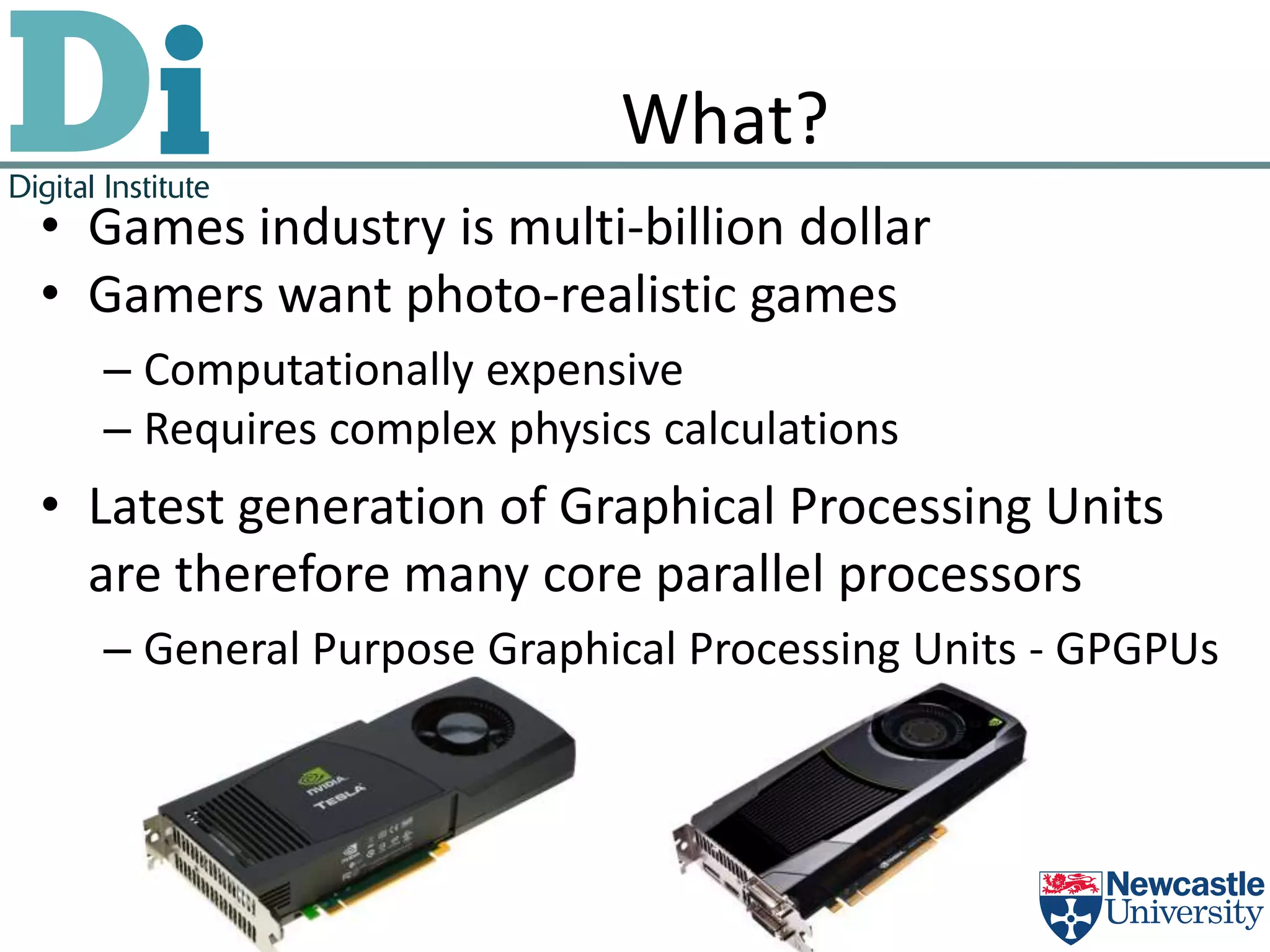

4. What?
• Games industry is multi-billion dollar
• Gamers want photo-realistic games
– Computationally expensive
– Requires complex physics calculations
• Latest generation of Graphical Processing Units
are therefore many core parallel processors
– General Purpose Graphical Processing Units - GPGPUs

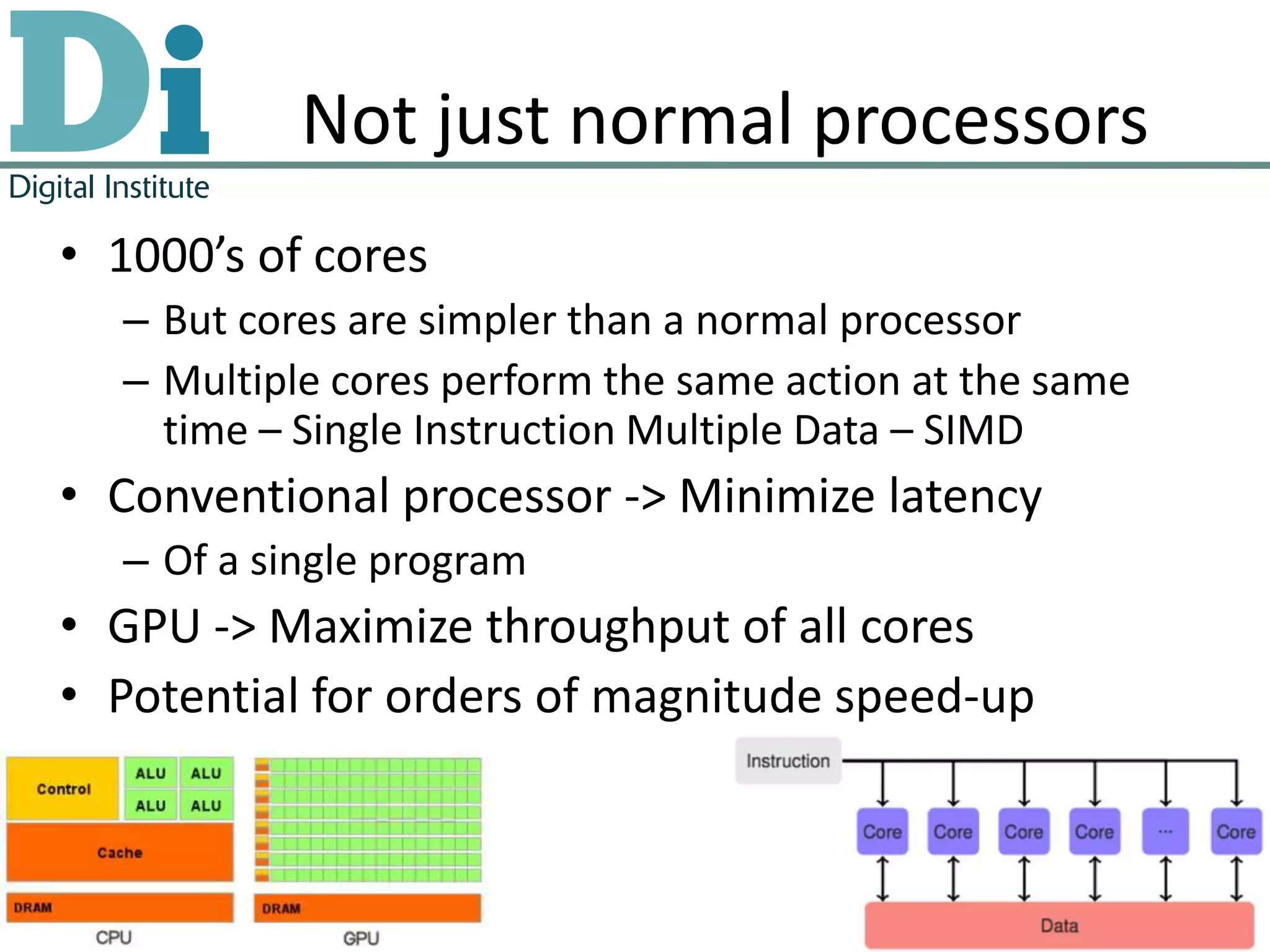

5. Not just normal processors
• 1000’s of cores
– But cores are simpler than a normal processor
– Multiple cores perform the same action at the same
time – Single Instruction Multiple Data – SIMD
• Conventional processor -> Minimize latency
– Of a single program
• GPU -> Maximize throughput of all cores
• Potential for orders of magnitude speed-up

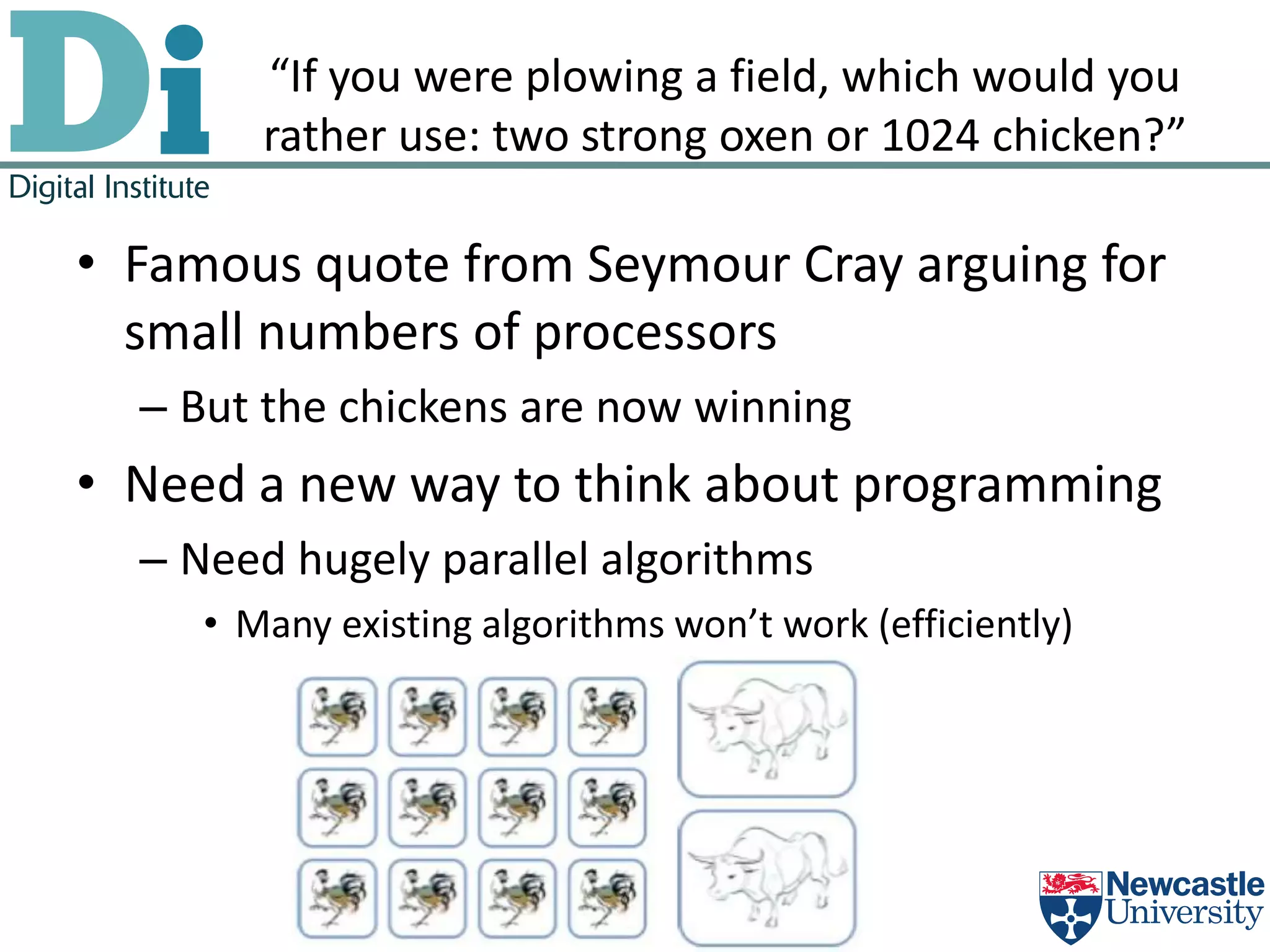

6. “If you were plowing a field, which would you
rather use: two strong oxen or 1024 chicken?”
• Famous quote from Seymour Cray arguing for
small numbers of processors
– But the chickens are now winning
• Need a new way to think about programming
– Need hugely parallel algorithms
• Many existing algorithms won’t work (efficiently)

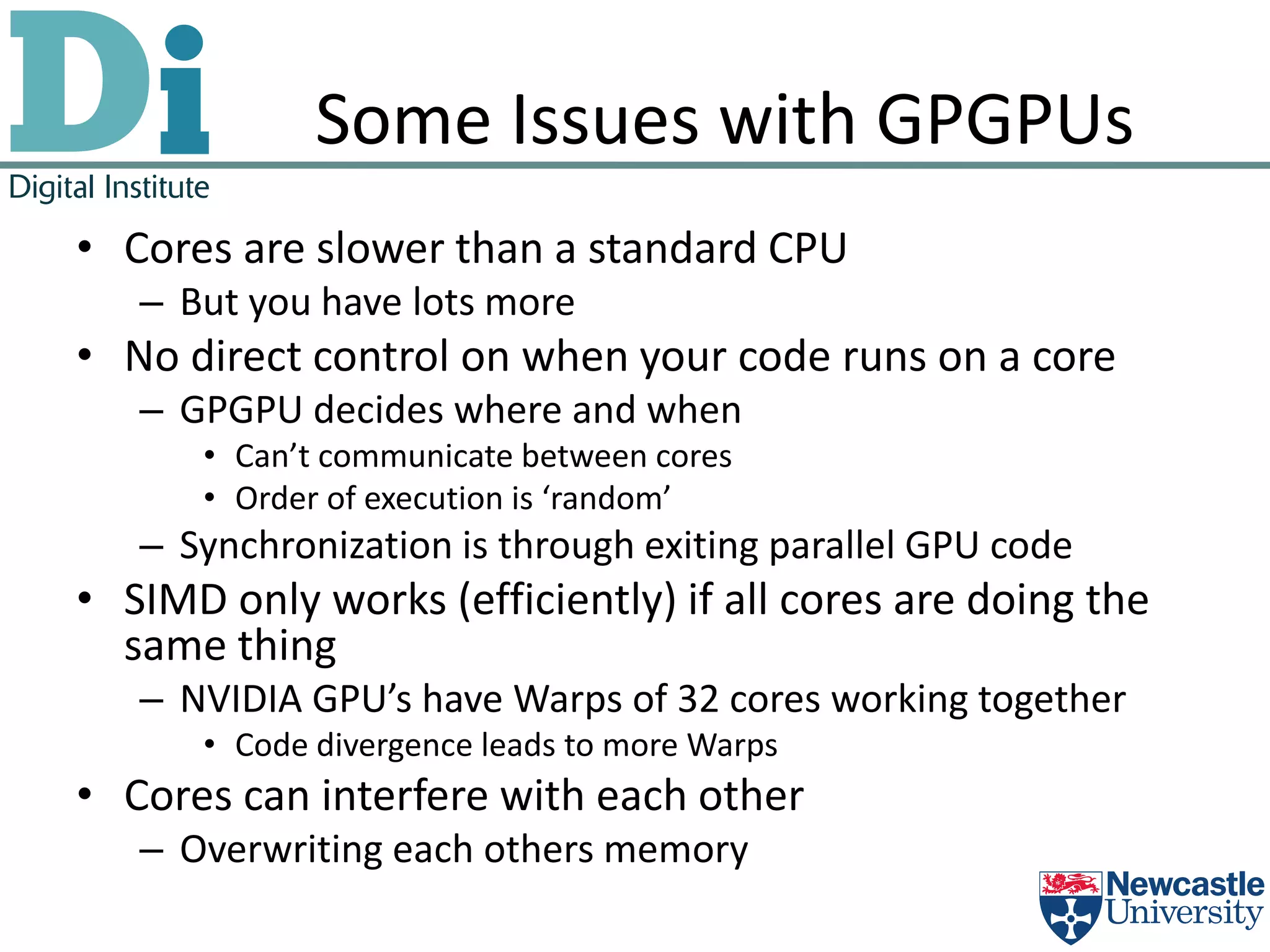

7. Some Issues with GPGPUs
• Cores are slower than a standard CPU
– But you have lots more
• No direct control on when your code runs on a core
– GPGPU decides where and when
• Can’t communicate between cores
• Order of execution is ‘random’
– Synchronization is through exiting parallel GPU code
• SIMD only works (efficiently) if all cores are doing the
same thing
– NVIDIA GPU’s have Warps of 32 cores working together
• Code divergence leads to more Warps
• Cores can interfere with each other
– Overwriting each others memory

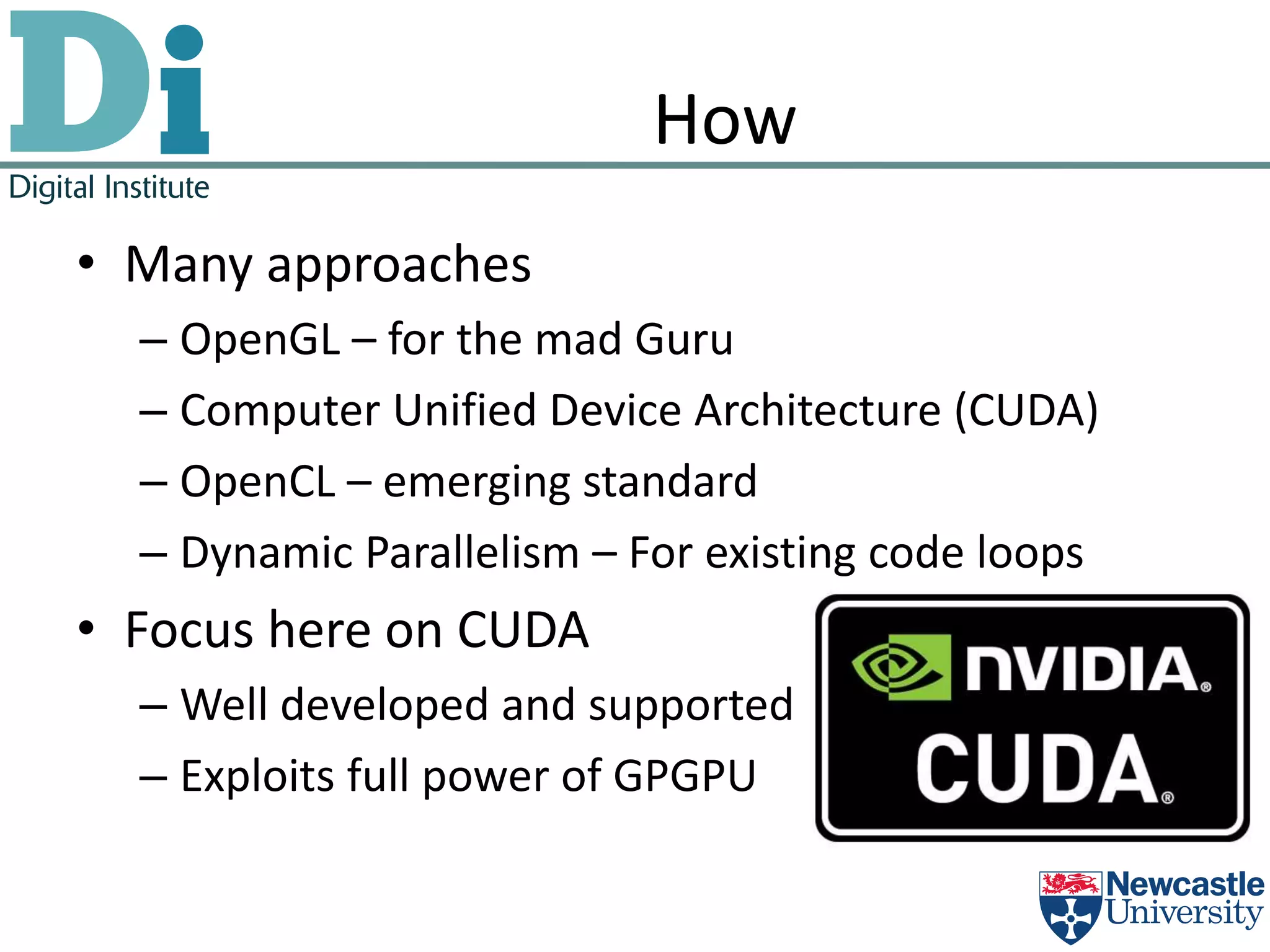

8. How
• Many approaches
– OpenGL – for the mad Guru
– Computer Unified Device Architecture (CUDA)
– OpenCL – emerging standard
– Dynamic Parallelism – For existing code loops
• Focus here on CUDA
– Well developed and supported
– Exploits full power of GPGPU

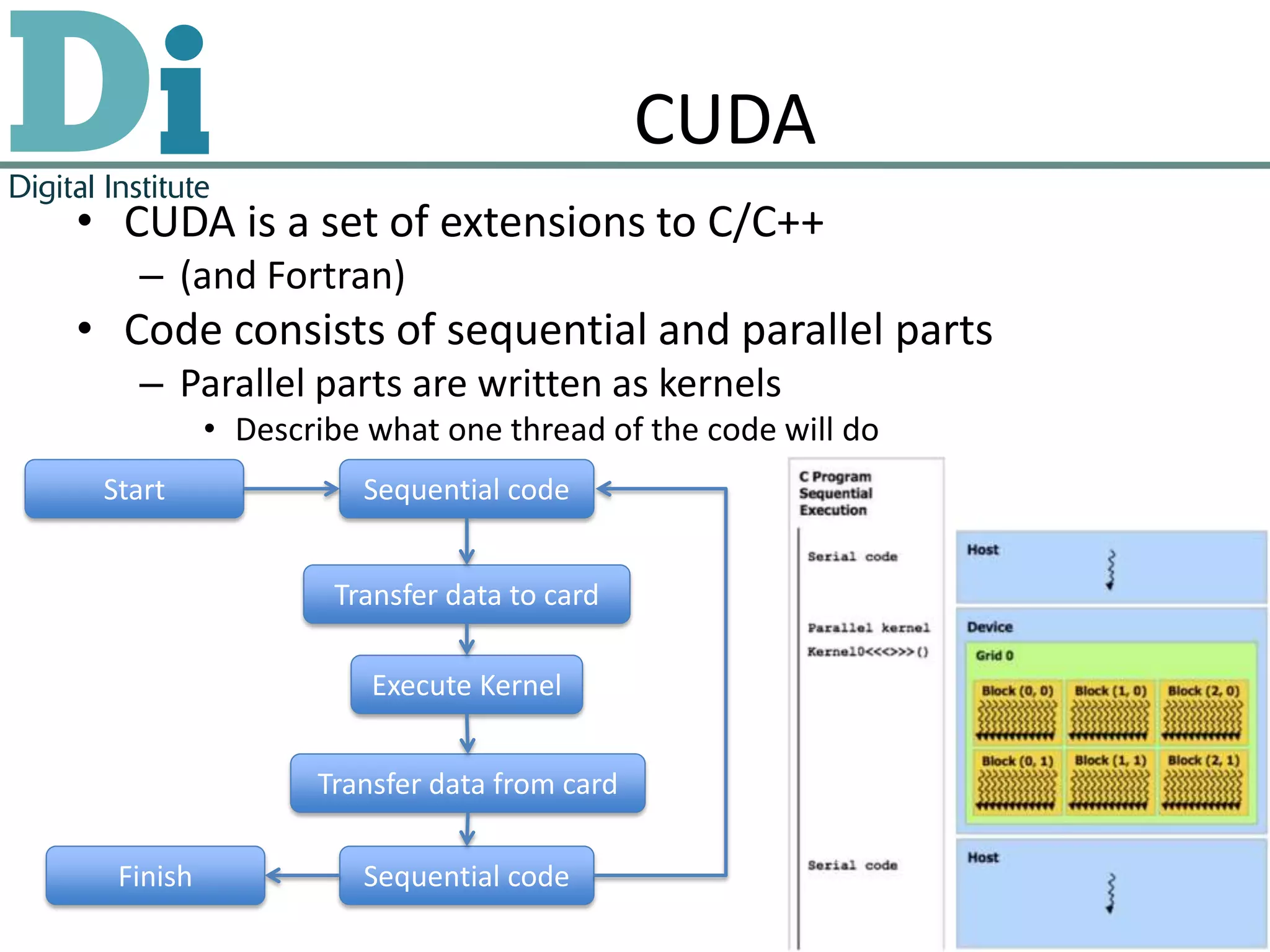

9. CUDA
• CUDA is a set of extensions to C/C++
– (and Fortran)
• Code consists of sequential and parallel parts
– Parallel parts are written as kernels
• Describe what one thread of the code will do
Start Sequential code
Transfer data to card
Execute Kernel
Transfer data from card
Finish Sequential code

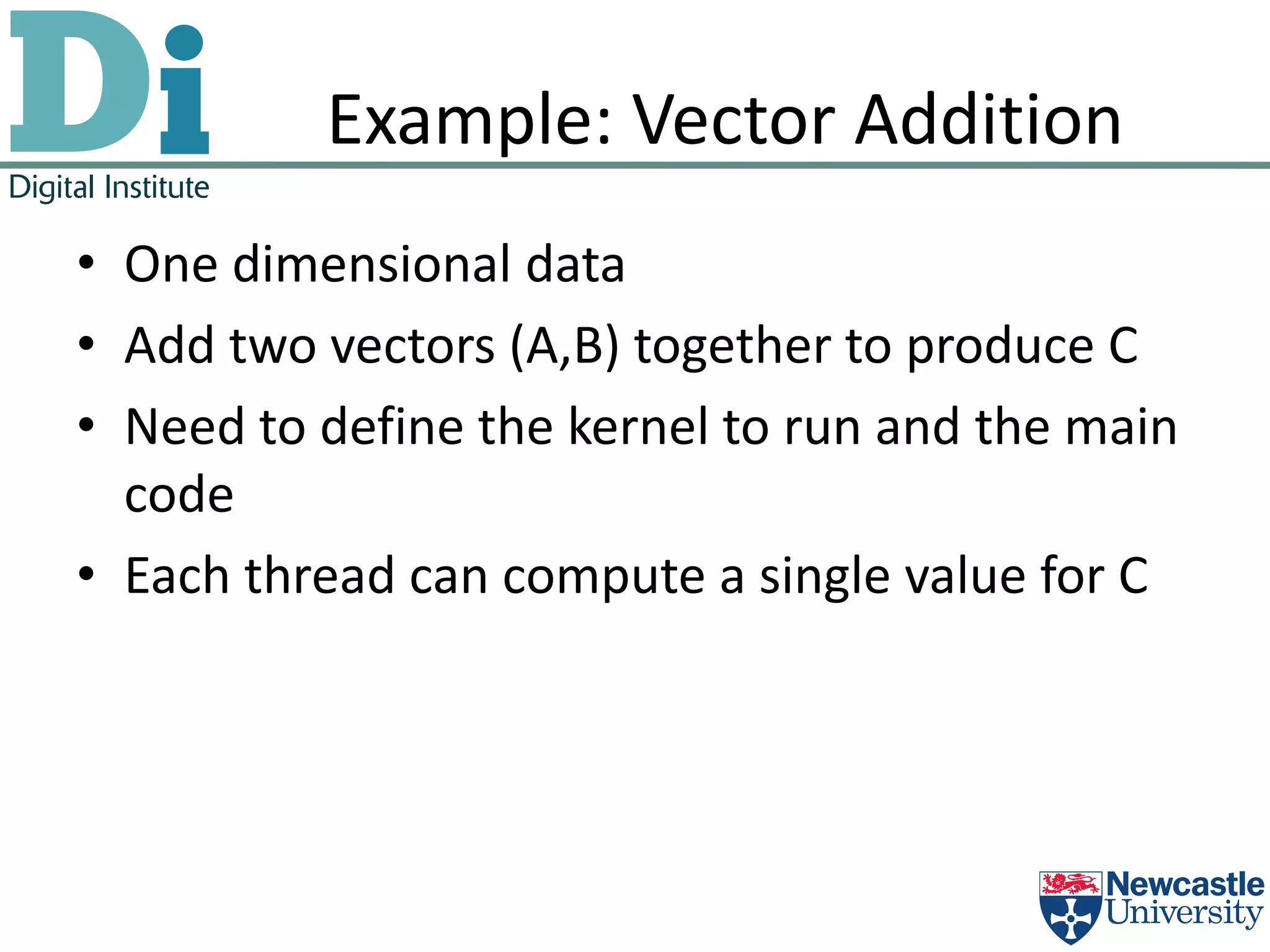

10. Example: Vector Addition
• One dimensional data
• Add two vectors (A,B) together to produce C
• Need to define the kernel to run and the main
code
• Each thread can compute a single value for C

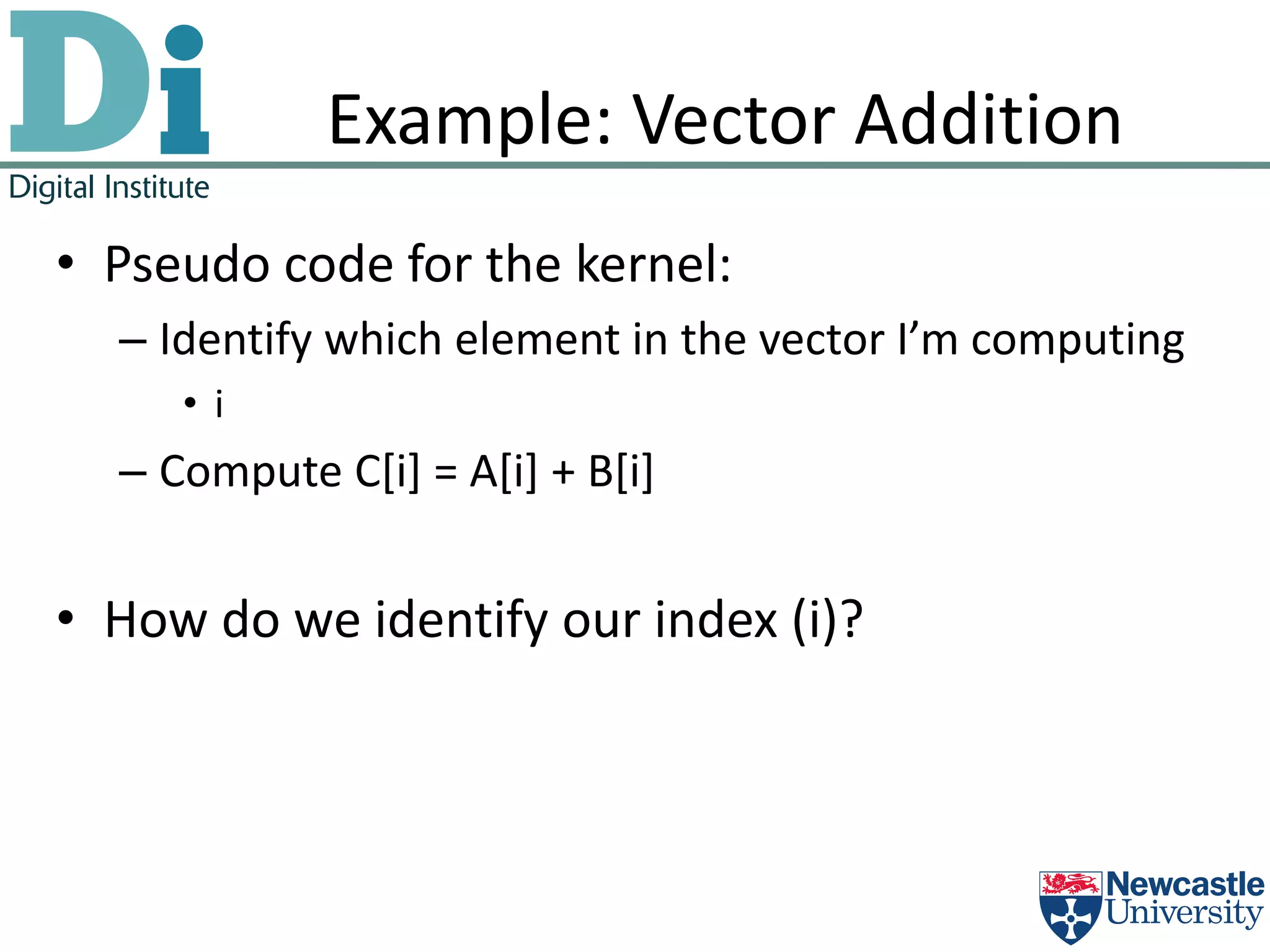

11. Example: Vector Addition
• Pseudo code for the kernel:
– Identify which element in the vector I’m computing
•i
– Compute C[i] = A[i] + B[i]
• How do we identify our index (i)?

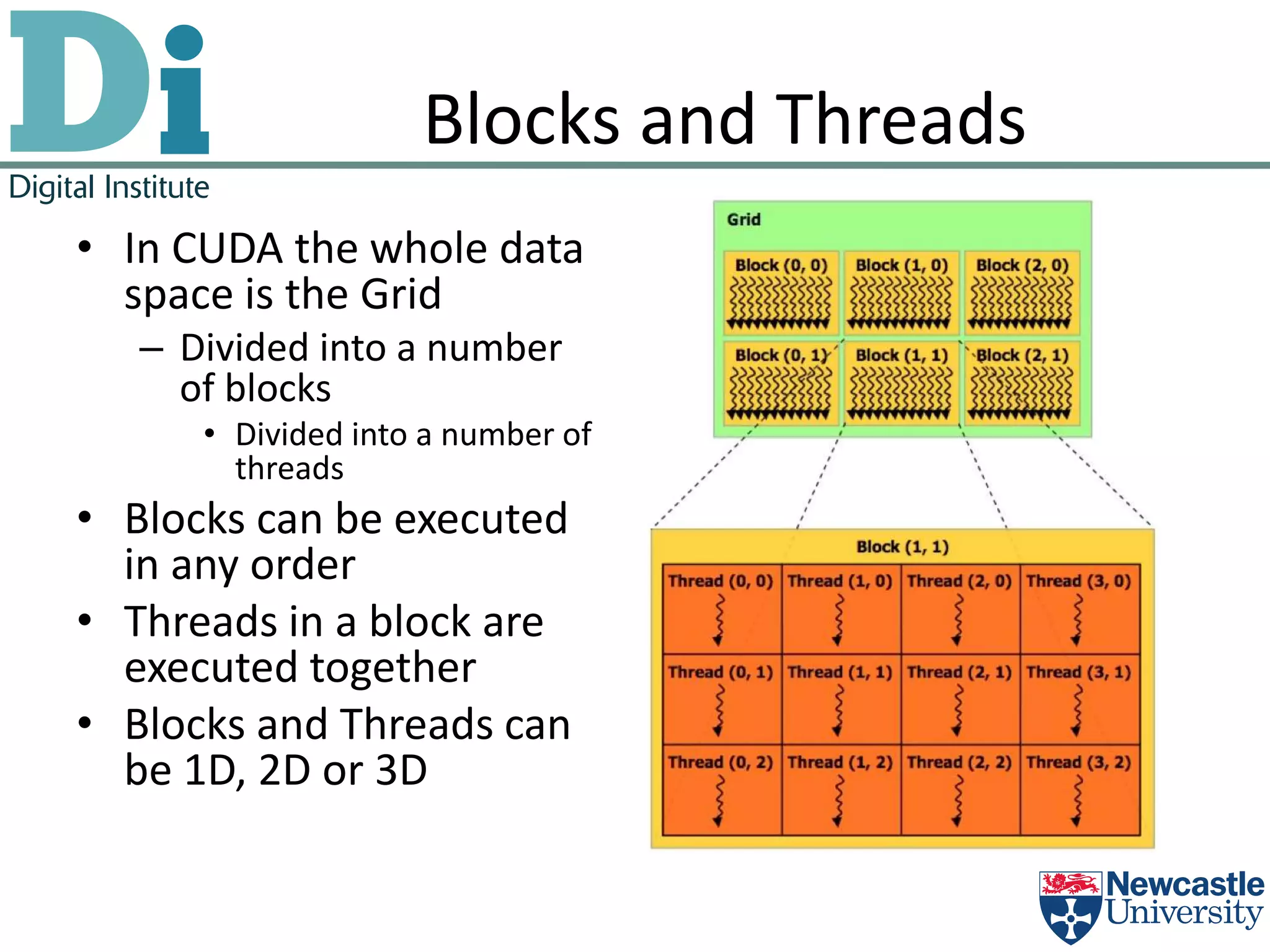

12. Blocks and Threads
• In CUDA the whole data
space is the Grid
– Divided into a number
of blocks
• Divided into a number of
threads
• Blocks can be executed
in any order
• Threads in a block are
executed together
• Blocks and Threads can
be 1D, 2D or 3D

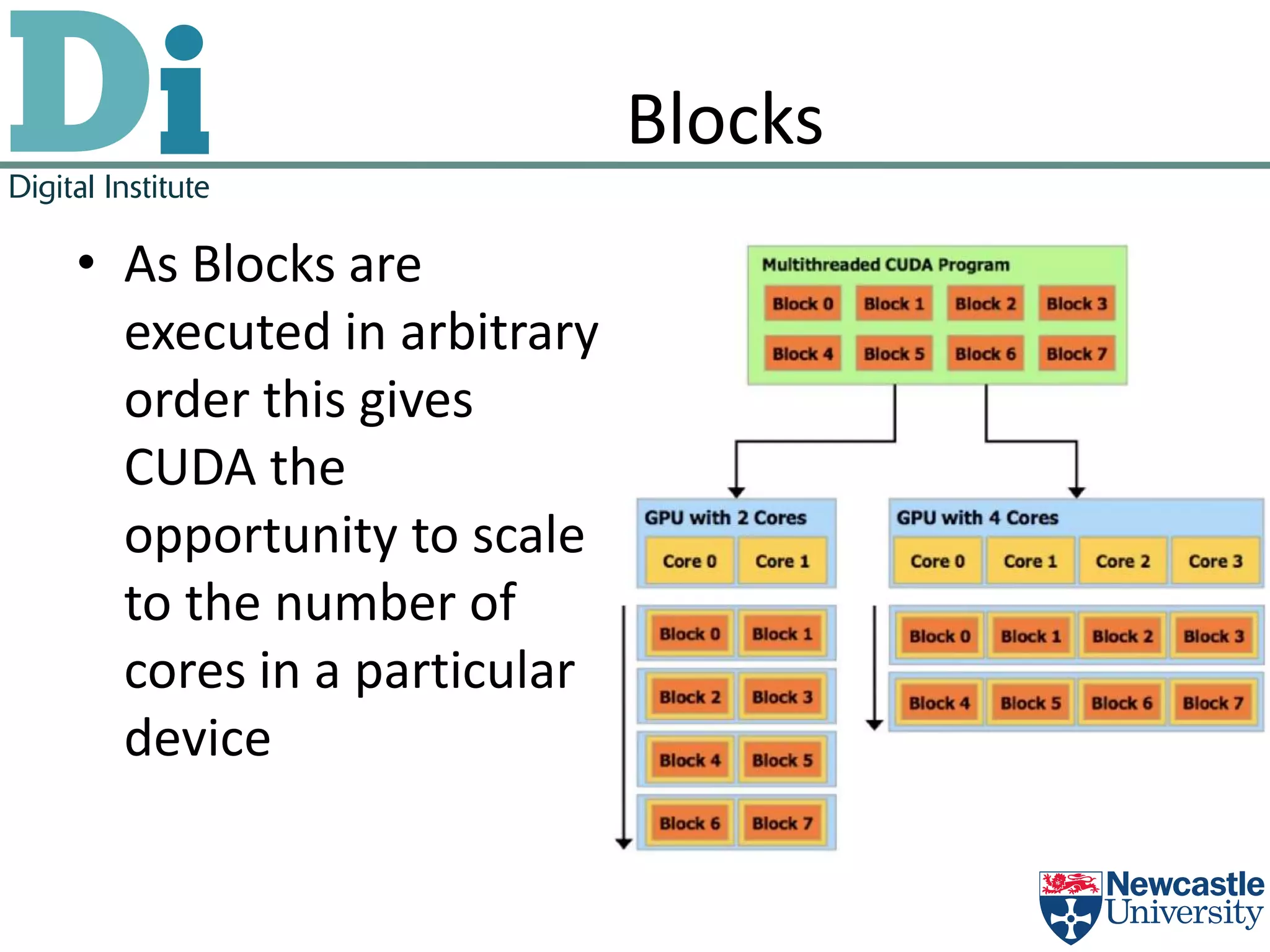

13. Blocks
• As Blocks are
executed in arbitrary
order this gives
CUDA the
opportunity to scale
to the number of
cores in a particular
device

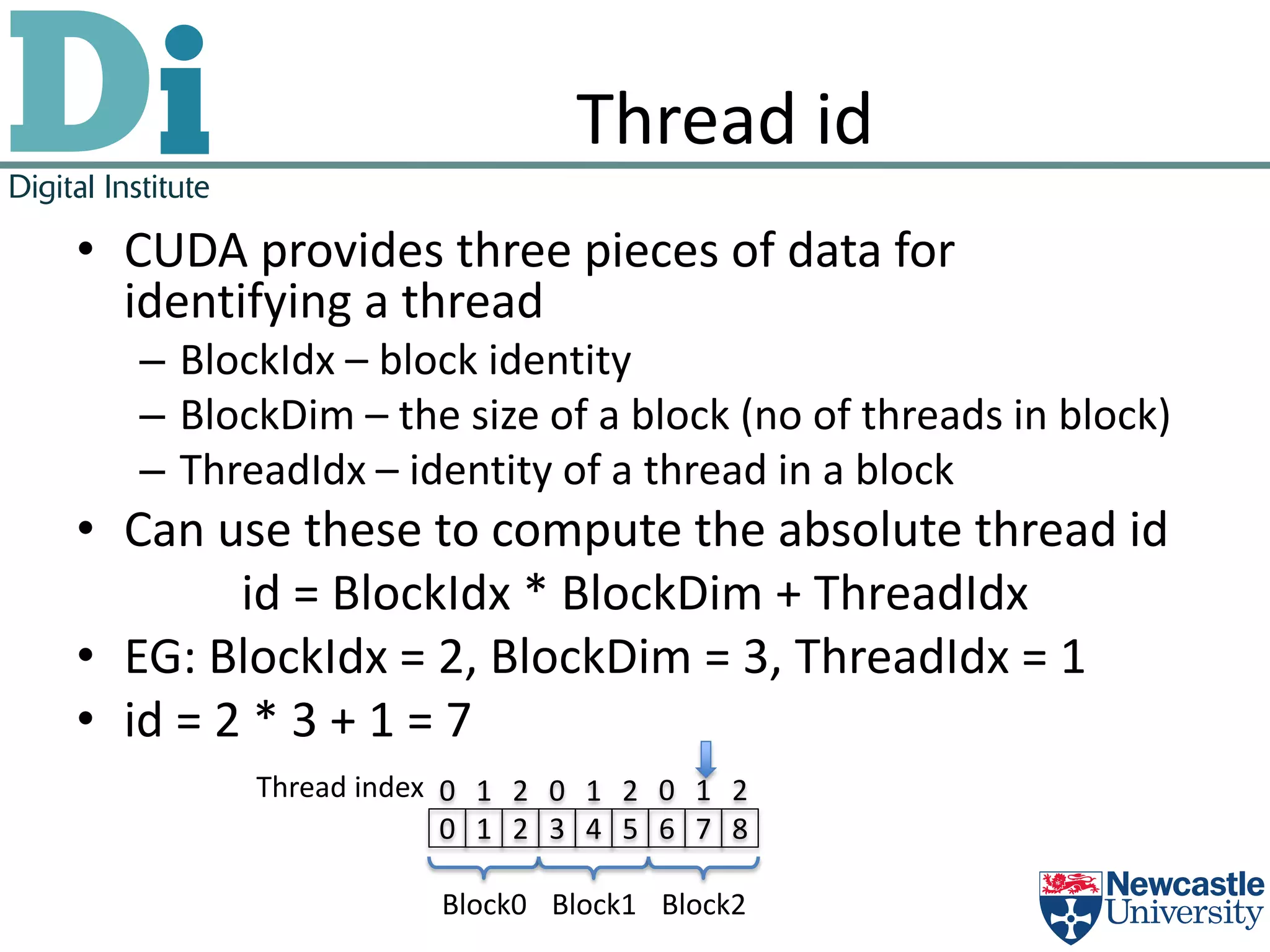

14. Thread id
• CUDA provides three pieces of data for
identifying a thread
– BlockIdx – block identity
– BlockDim – the size of a block (no of threads in block)
– ThreadIdx – identity of a thread in a block
• Can use these to compute the absolute thread id
id = BlockIdx * BlockDim + ThreadIdx
• EG: BlockIdx = 2, BlockDim = 3, ThreadIdx = 1
• id = 2 * 3 + 1 = 7
Thread index 0 1 2 0 1 2 0 1 2
0 1 2 3 4 5 6 7 8
Block0 Block1 Block2

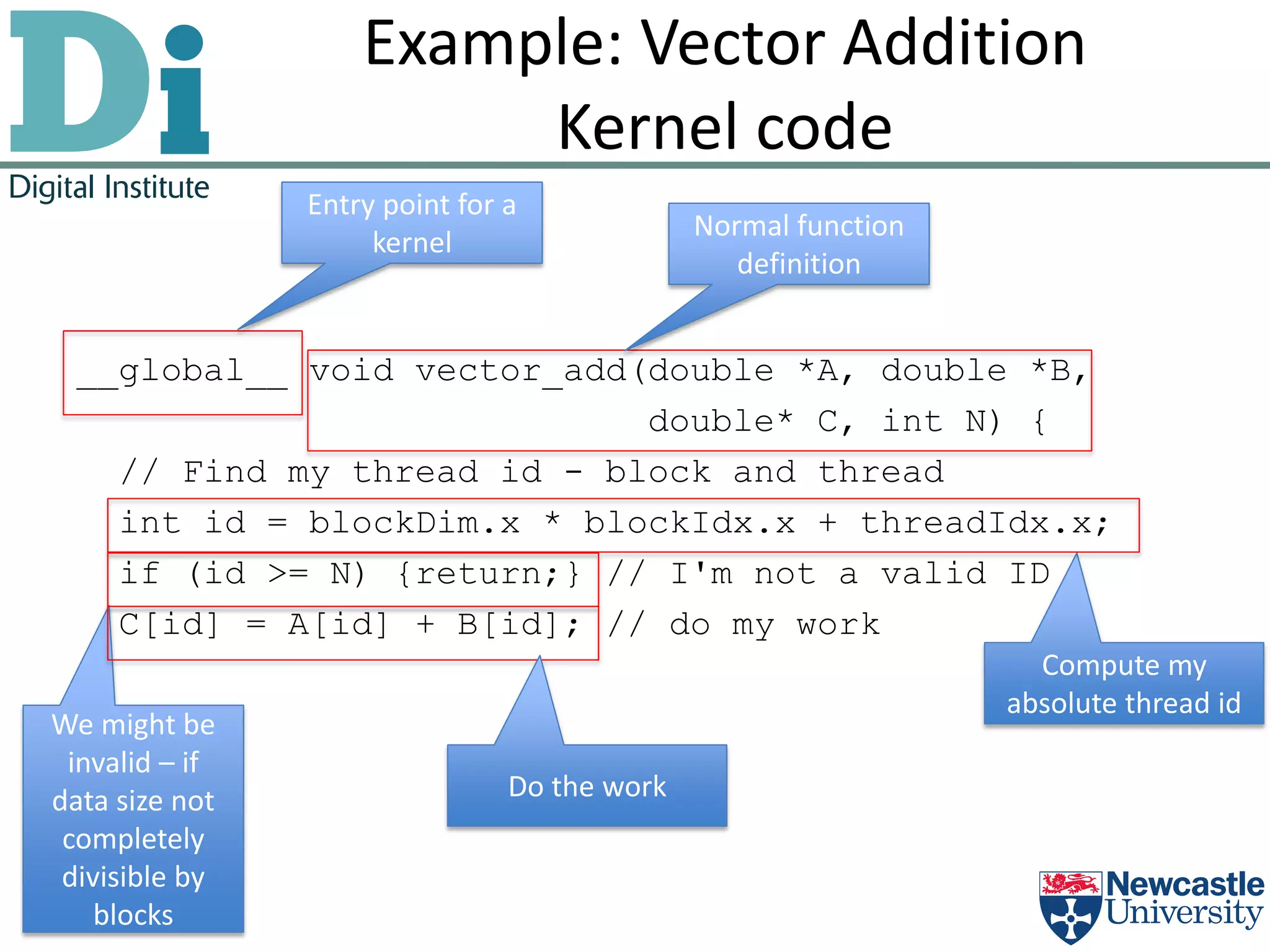

15. Example: Vector Addition
Kernel code
Entry point for a
Normal function
kernel
definition
__global__ void vector_add(double *A, double *B,
double* C, int N) {
// Find my thread id - block and thread
int id = blockDim.x * blockIdx.x + threadIdx.x;
if (id >= N) {return;} // I'm not a valid ID
C[id] = A[id] + B[id]; // do my work
} Compute my
absolute thread id
We might be
invalid – if
data size not Do the work
completely
divisible by
blocks

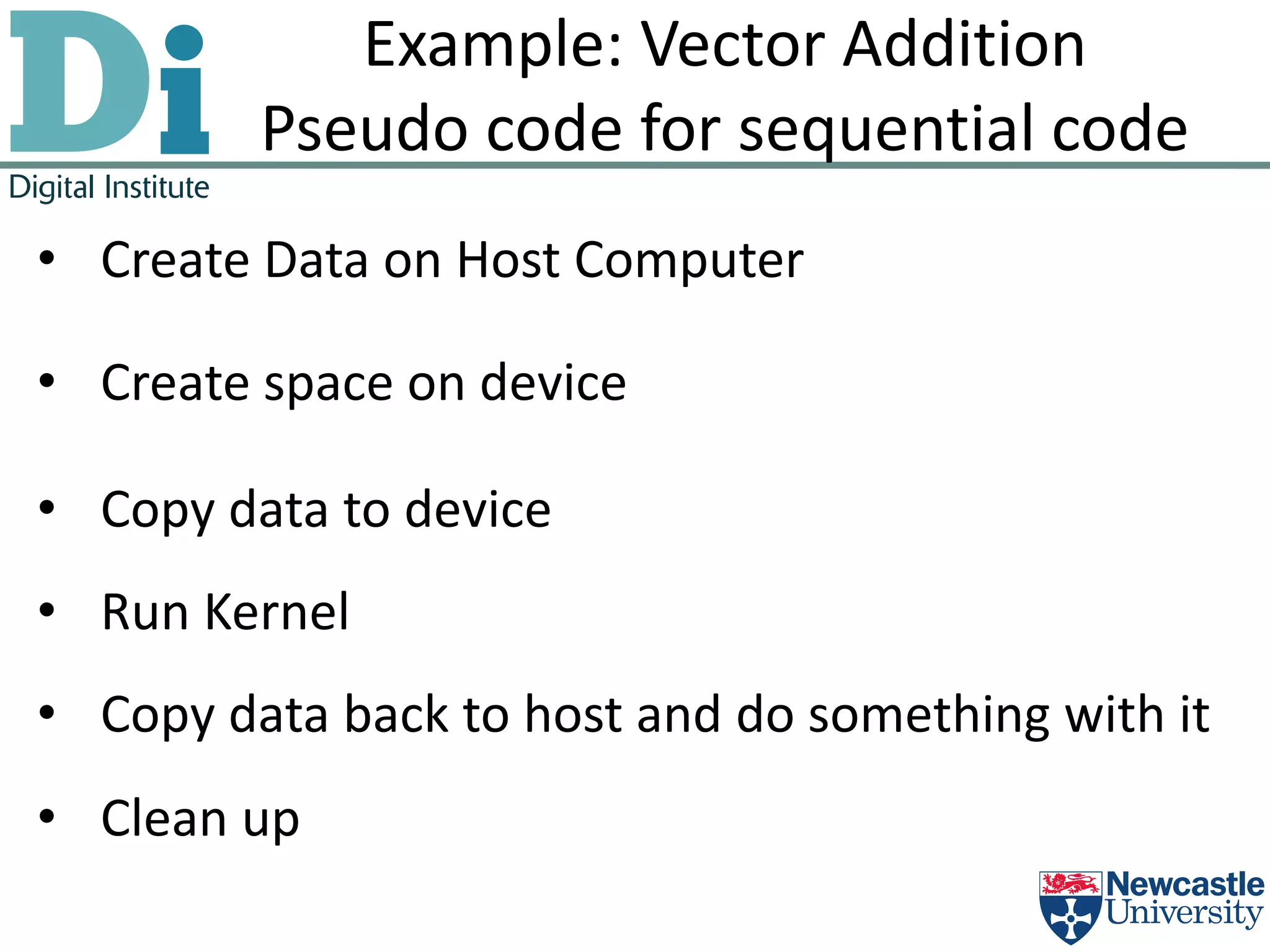

16. Example: Vector Addition
Pseudo code for sequential code
• Create Data on Host Computer
• Create space on device
• Copy data to device
• Run Kernel
• Copy data back to host and do something with it
• Clean up

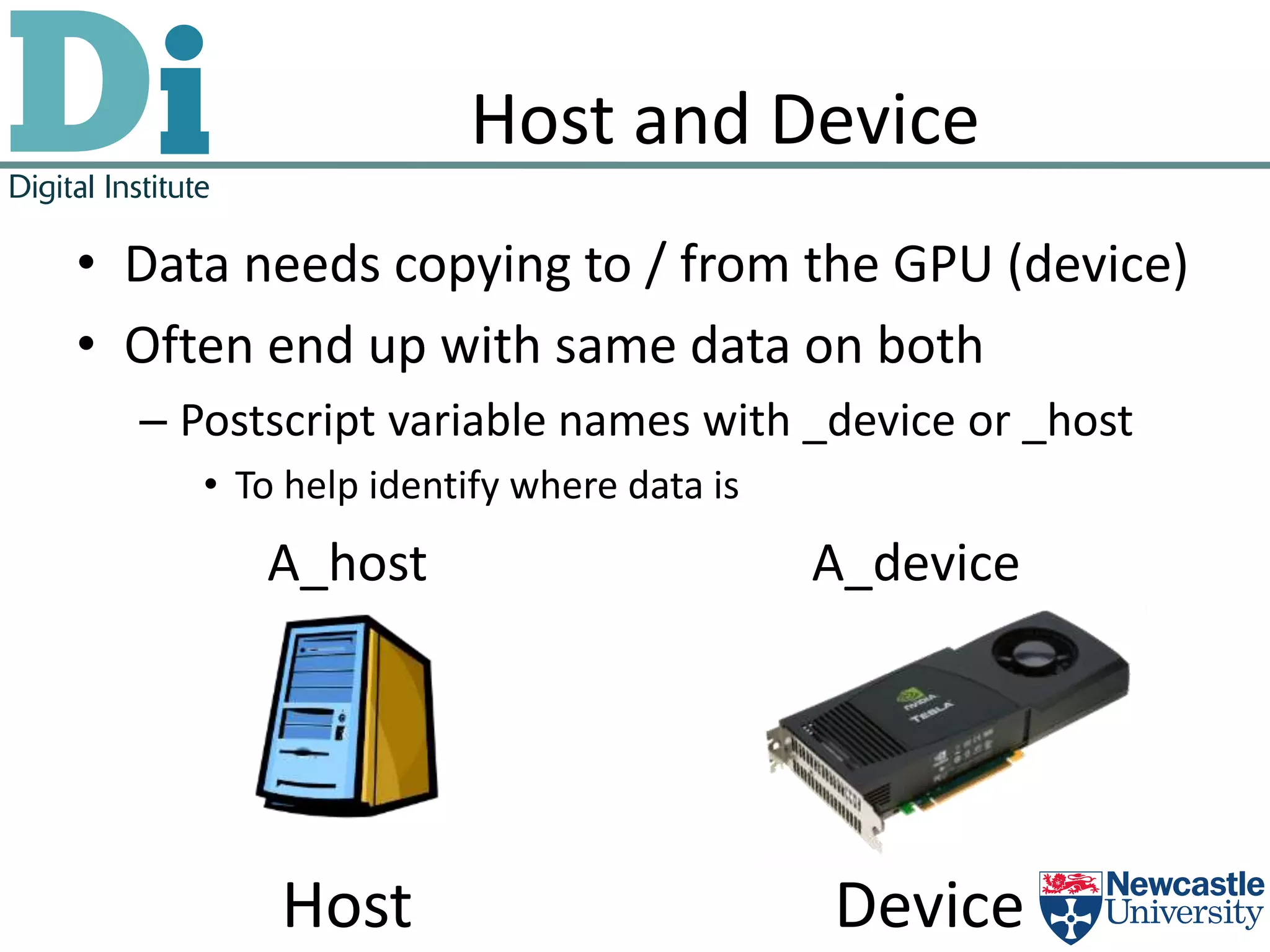

17. Host and Device
• Data needs copying to / from the GPU (device)
• Often end up with same data on both
– Postscript variable names with _device or _host
• To help identify where data is
A_host A_device
Host Device

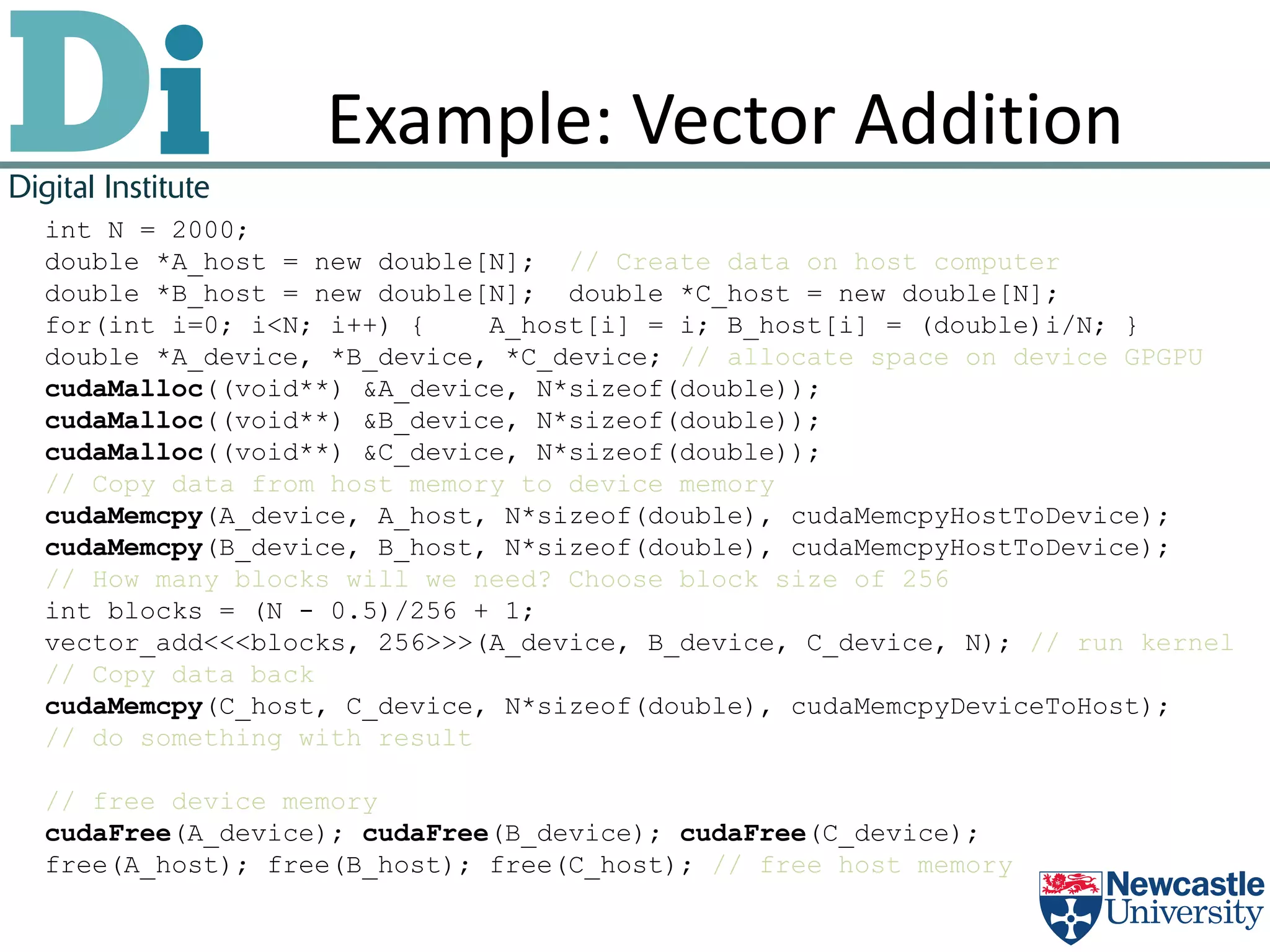

18. Example: Vector Addition
int N = 2000;
double *A_host = new double[N]; // Create data on host computer
double *B_host = new double[N]; double *C_host = new double[N];
for(int i=0; i<N; i++) { A_host[i] = i; B_host[i] = (double)i/N; }
double *A_device, *B_device, *C_device; // allocate space on device GPGPU
cudaMalloc((void**) &A_device, N*sizeof(double));
cudaMalloc((void**) &B_device, N*sizeof(double));
cudaMalloc((void**) &C_device, N*sizeof(double));
// Copy data from host memory to device memory
cudaMemcpy(A_device, A_host, N*sizeof(double), cudaMemcpyHostToDevice);
cudaMemcpy(B_device, B_host, N*sizeof(double), cudaMemcpyHostToDevice);
// How many blocks will we need? Choose block size of 256
int blocks = (N - 0.5)/256 + 1;
vector_add<<<blocks, 256>>>(A_device, B_device, C_device, N); // run kernel
// Copy data back
cudaMemcpy(C_host, C_device, N*sizeof(double), cudaMemcpyDeviceToHost);
// do something with result
// free device memory
cudaFree(A_device); cudaFree(B_device); cudaFree(C_device);
free(A_host); free(B_host); free(C_host); // free host memory

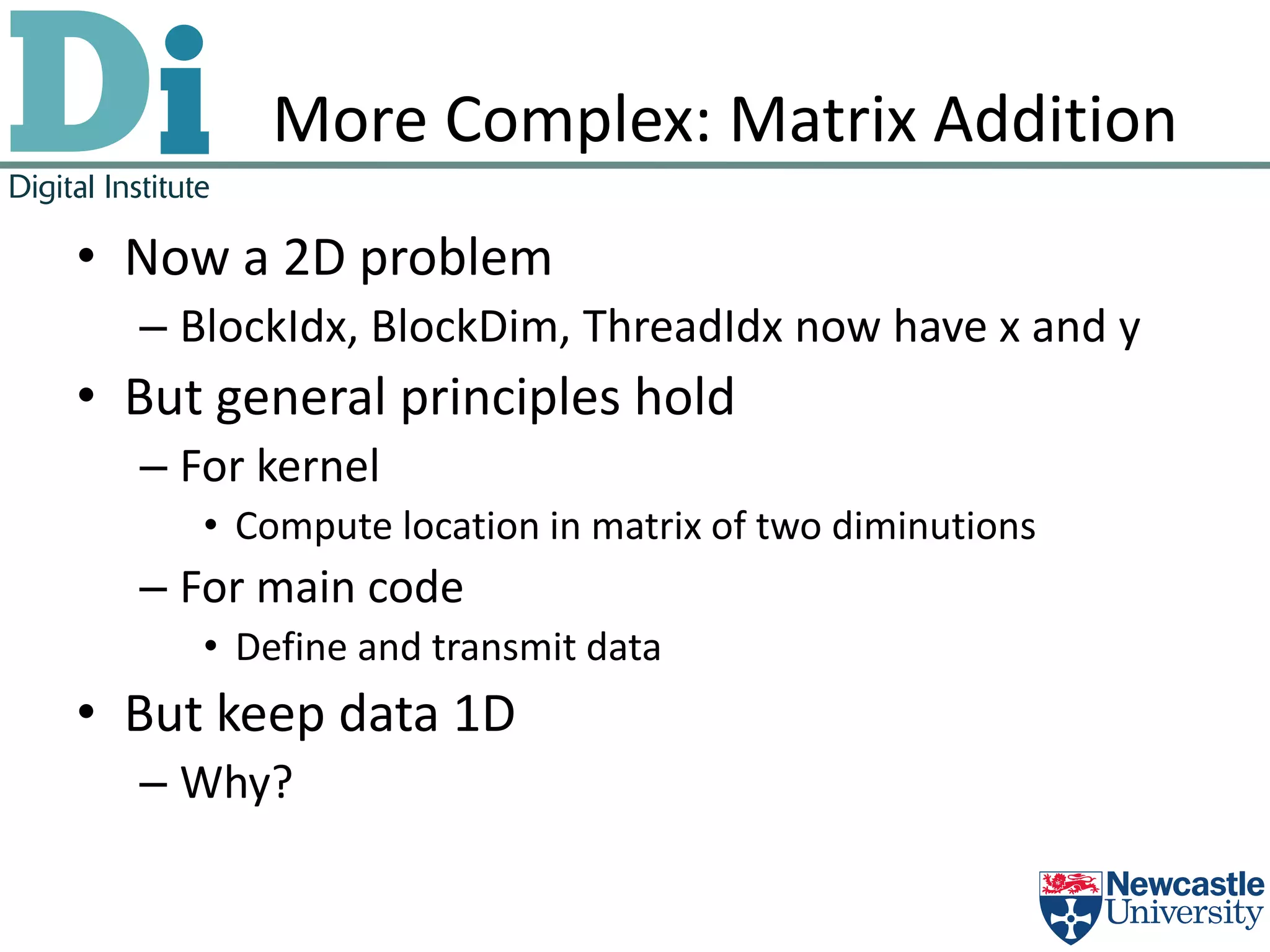

19. More Complex: Matrix Addition
• Now a 2D problem
– BlockIdx, BlockDim, ThreadIdx now have x and y
• But general principles hold
– For kernel
• Compute location in matrix of two diminutions
– For main code
• Define and transmit data
• But keep data 1D
– Why?

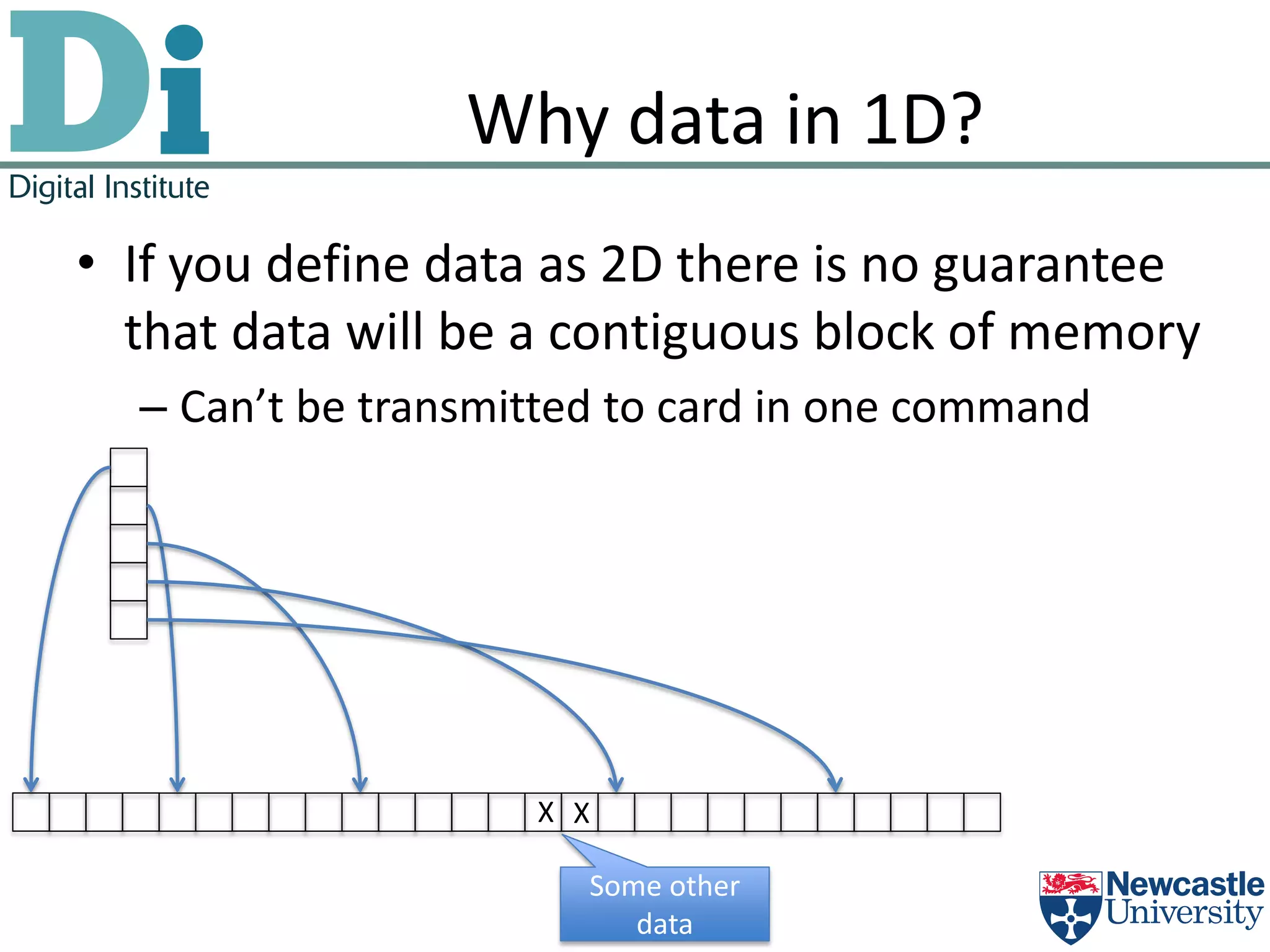

20. Why data in 1D?
• If you define data as 2D there is no guarantee
that data will be a contiguous block of memory
– Can’t be transmitted to card in one command
X X
Some other
data

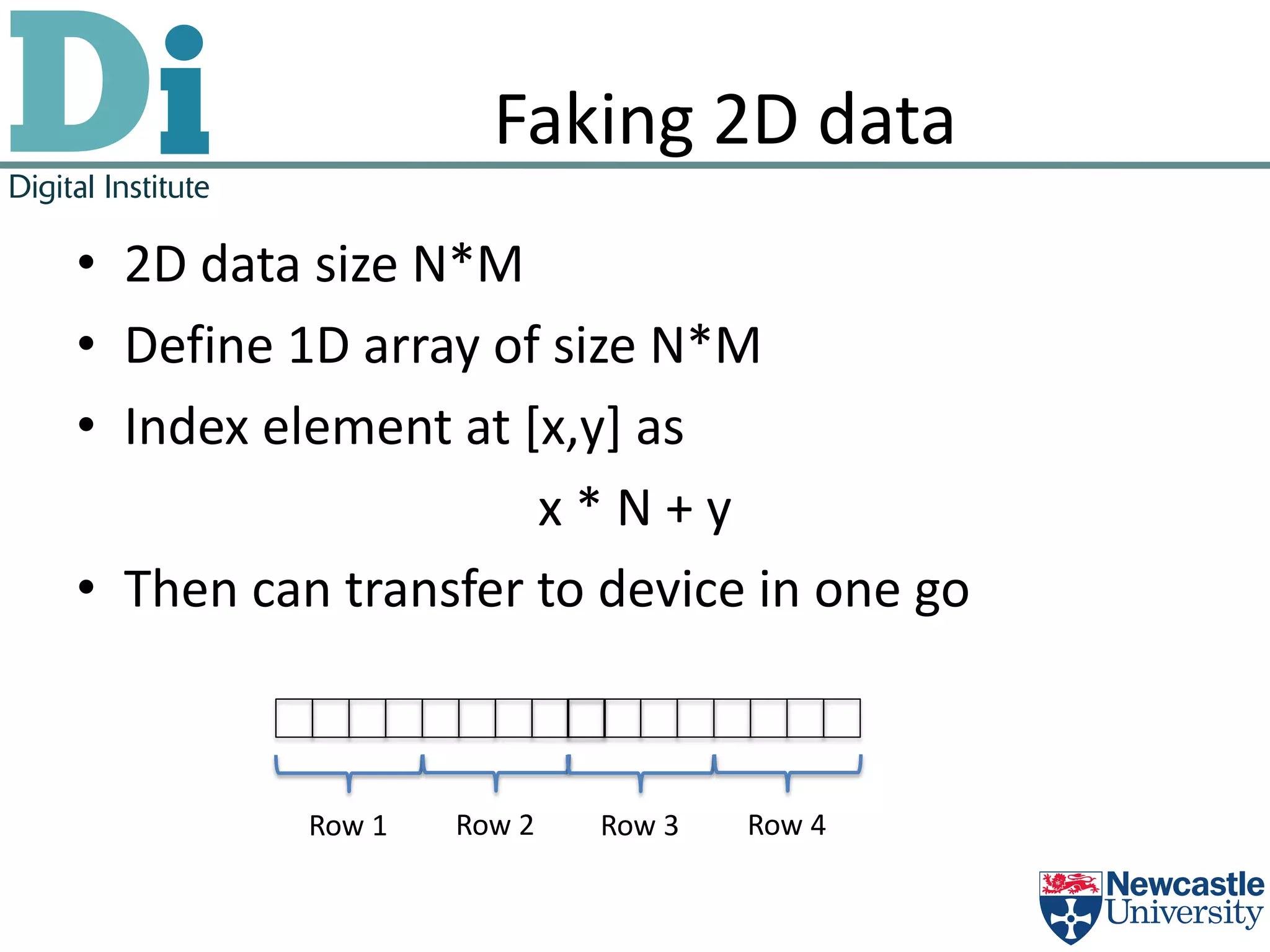

21. Faking 2D data
• 2D data size N*M
• Define 1D array of size N*M
• Index element at [x,y] as
x*N+y
• Then can transfer to device in one go
Row 1 Row 2 Row 3 Row 4

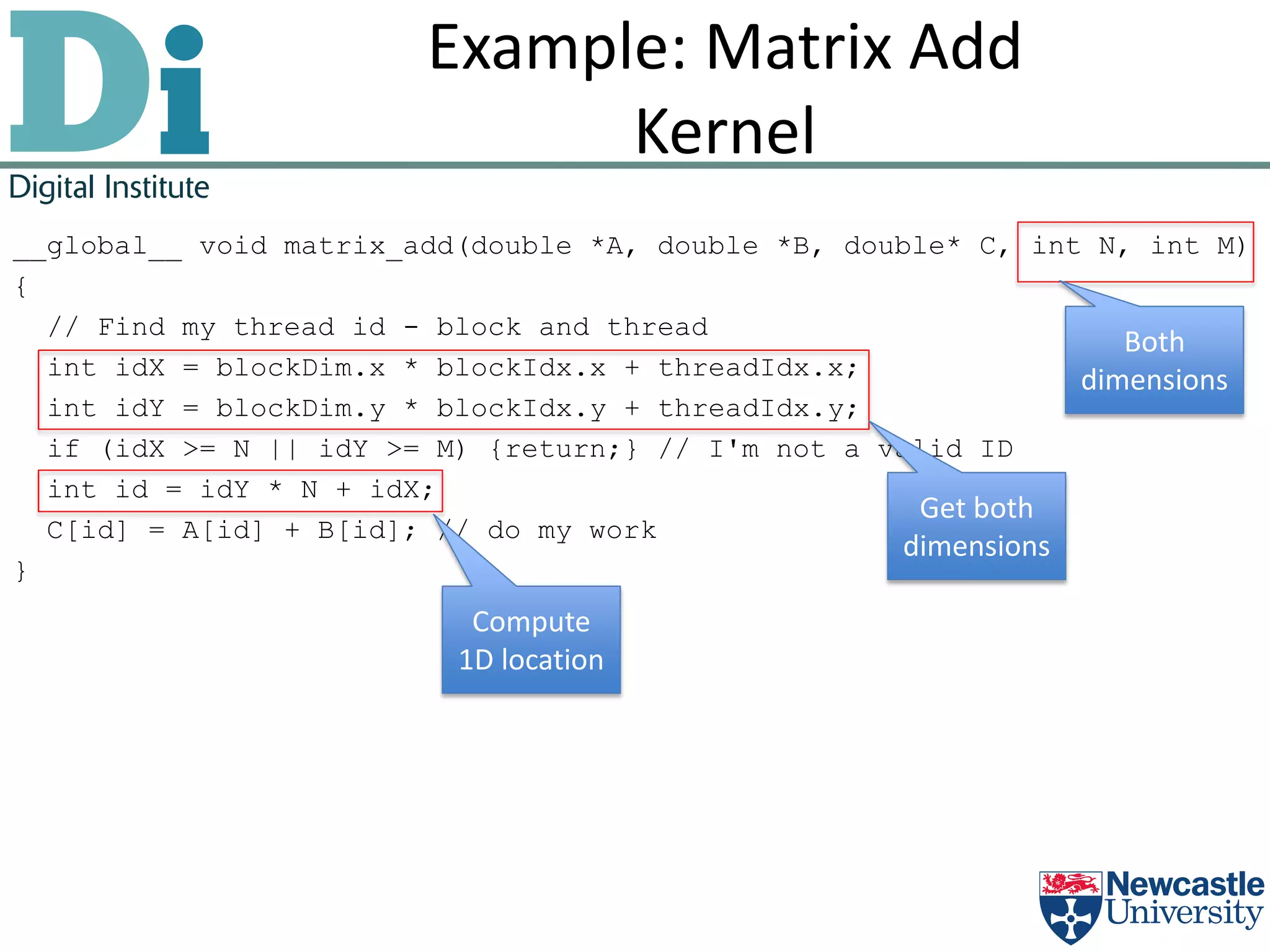

22. Example: Matrix Add
Kernel
__global__ void matrix_add(double *A, double *B, double* C, int N, int M)
{
// Find my thread id - block and thread
Both
int idX = blockDim.x * blockIdx.x + threadIdx.x;
dimensions
int idY = blockDim.y * blockIdx.y + threadIdx.y;
if (idX >= N || idY >= M) {return;} // I'm not a valid ID
int id = idY * N + idX;
Get both
C[id] = A[id] + B[id]; // do my work
dimensions
}
Compute
1D location

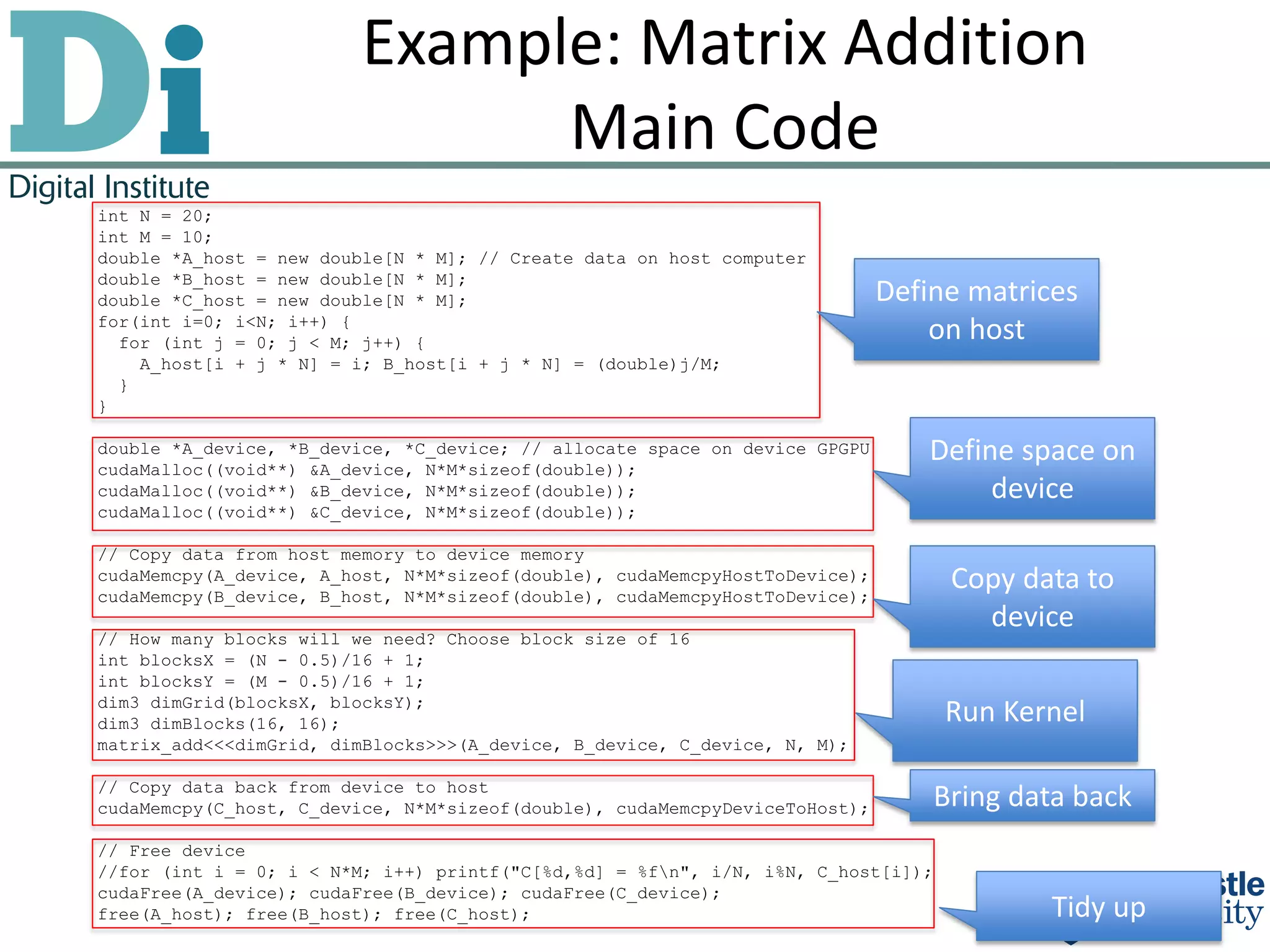

23. Example: Matrix Addition
Main Code
int N = 20;
int M = 10;
double *A_host = new double[N * M]; // Create data on host computer
double *B_host = new double[N * M];
double *C_host = new double[N * M]; Define matrices
for(int i=0; i<N; i++) {
for (int j = 0; j < M; j++) {
on host
A_host[i + j * N] = i; B_host[i + j * N] = (double)j/M;
}
}
double *A_device, *B_device, *C_device; // allocate space on device GPGPU
cudaMalloc((void**) &A_device, N*M*sizeof(double));
Define space on
cudaMalloc((void**) &B_device, N*M*sizeof(double)); device
cudaMalloc((void**) &C_device, N*M*sizeof(double));
// Copy data from host memory to device memory
cudaMemcpy(A_device, A_host, N*M*sizeof(double), cudaMemcpyHostToDevice);
cudaMemcpy(B_device, B_host, N*M*sizeof(double), cudaMemcpyHostToDevice);
Copy data to
device
// How many blocks will we need? Choose block size of 16
int blocksX = (N - 0.5)/16 + 1;
int blocksY = (M - 0.5)/16 + 1;
dim3 dimGrid(blocksX, blocksY);
dim3 dimBlocks(16, 16); Run Kernel
matrix_add<<<dimGrid, dimBlocks>>>(A_device, B_device, C_device, N, M);
// Copy data back from device to host
cudaMemcpy(C_host, C_device, N*M*sizeof(double), cudaMemcpyDeviceToHost); Bring data back
// Free device
//for (int i = 0; i < N*M; i++) printf("C[%d,%d] = %fn", i/N, i%N, C_host[i]);
cudaFree(A_device); cudaFree(B_device); cudaFree(C_device);
free(A_host); free(B_host); free(C_host); Tidy up

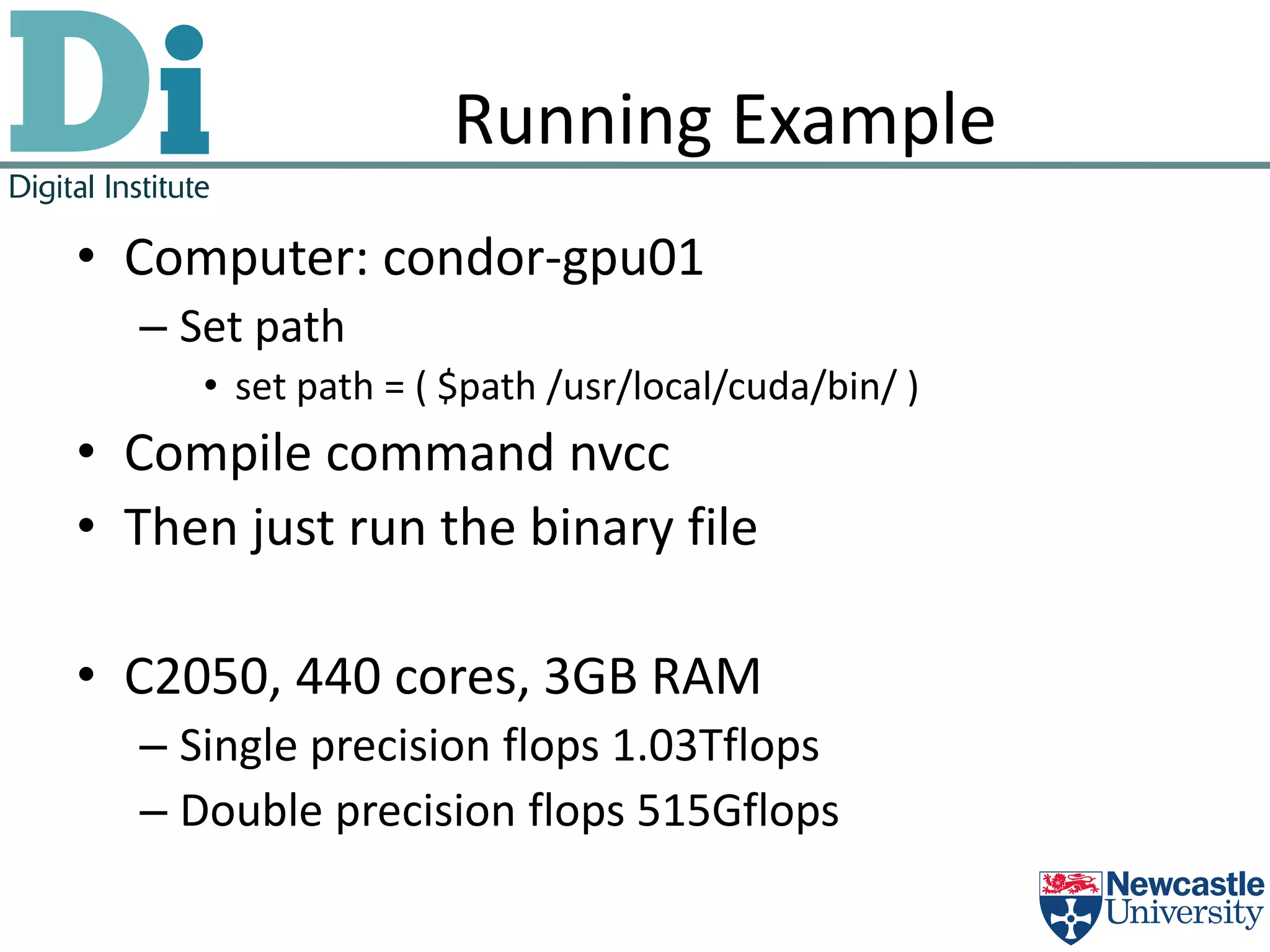

24. Running Example
• Computer: condor-gpu01
– Set path
• set path = ( $path /usr/local/cuda/bin/ )
• Compile command nvcc
• Then just run the binary file
• C2050, 440 cores, 3GB RAM
– Single precision flops 1.03Tflops
– Double precision flops 515Gflops

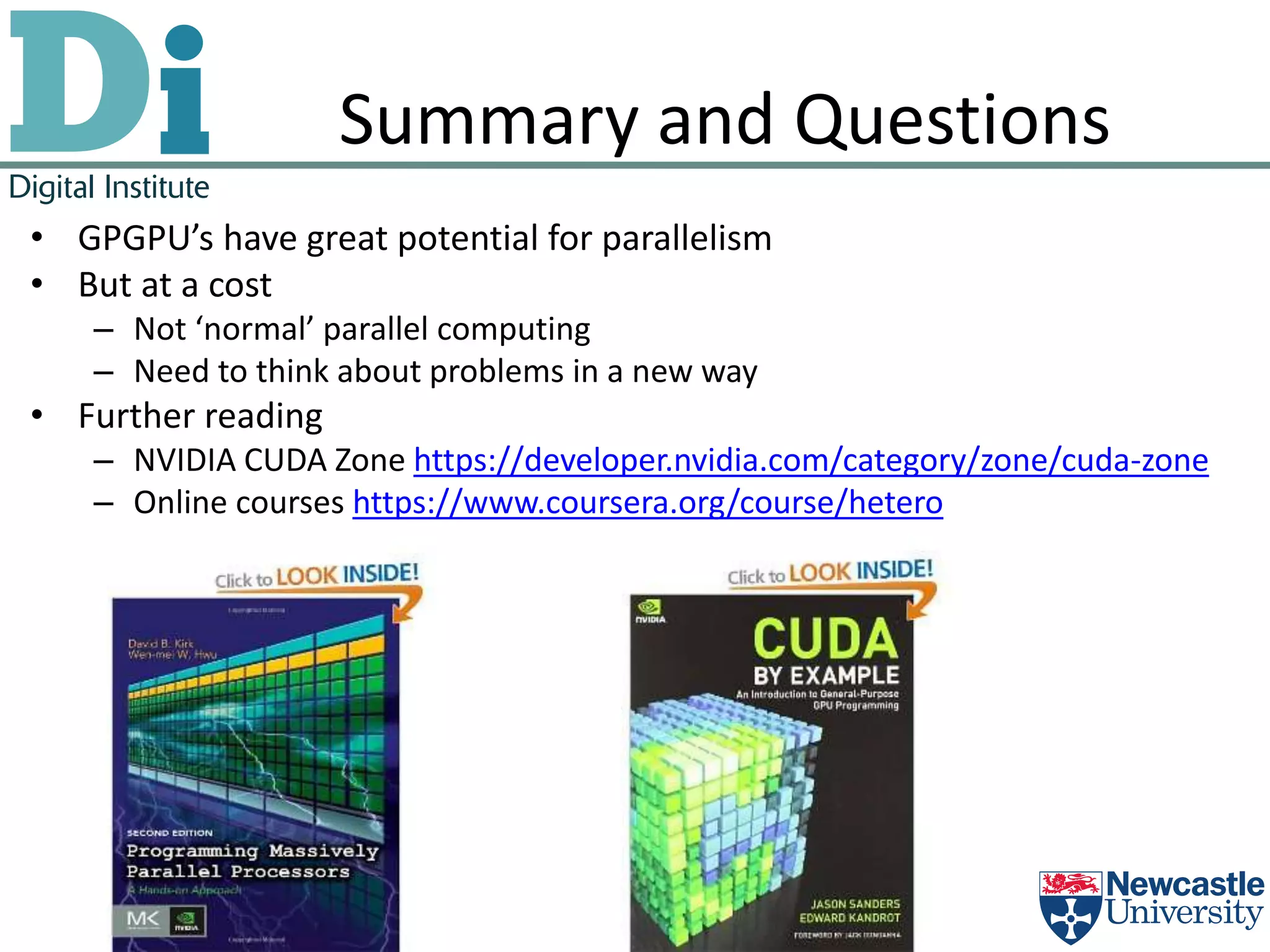

25. Summary and Questions
• GPGPU’s have great potential for parallelism
• But at a cost
– Not ‘normal’ parallel computing
– Need to think about problems in a new way
• Further reading
– NVIDIA CUDA Zone https://developer.nvidia.com/category/zone/cuda-zone
– Online courses https://www.coursera.org/course/hetero
