© 2016 LigaData, Inc. All Rights Reserved.
Using Deep Learning to
do Real-Time Scoring in
Practical Applications
SFbayACM Data Science SIG, Monday, 1/25/2016
By Greg Makowski
www.Linkedin.com/in/GregMakowski
greg@LigaDATA.com
Community @ http://Kamanja.org
Try out

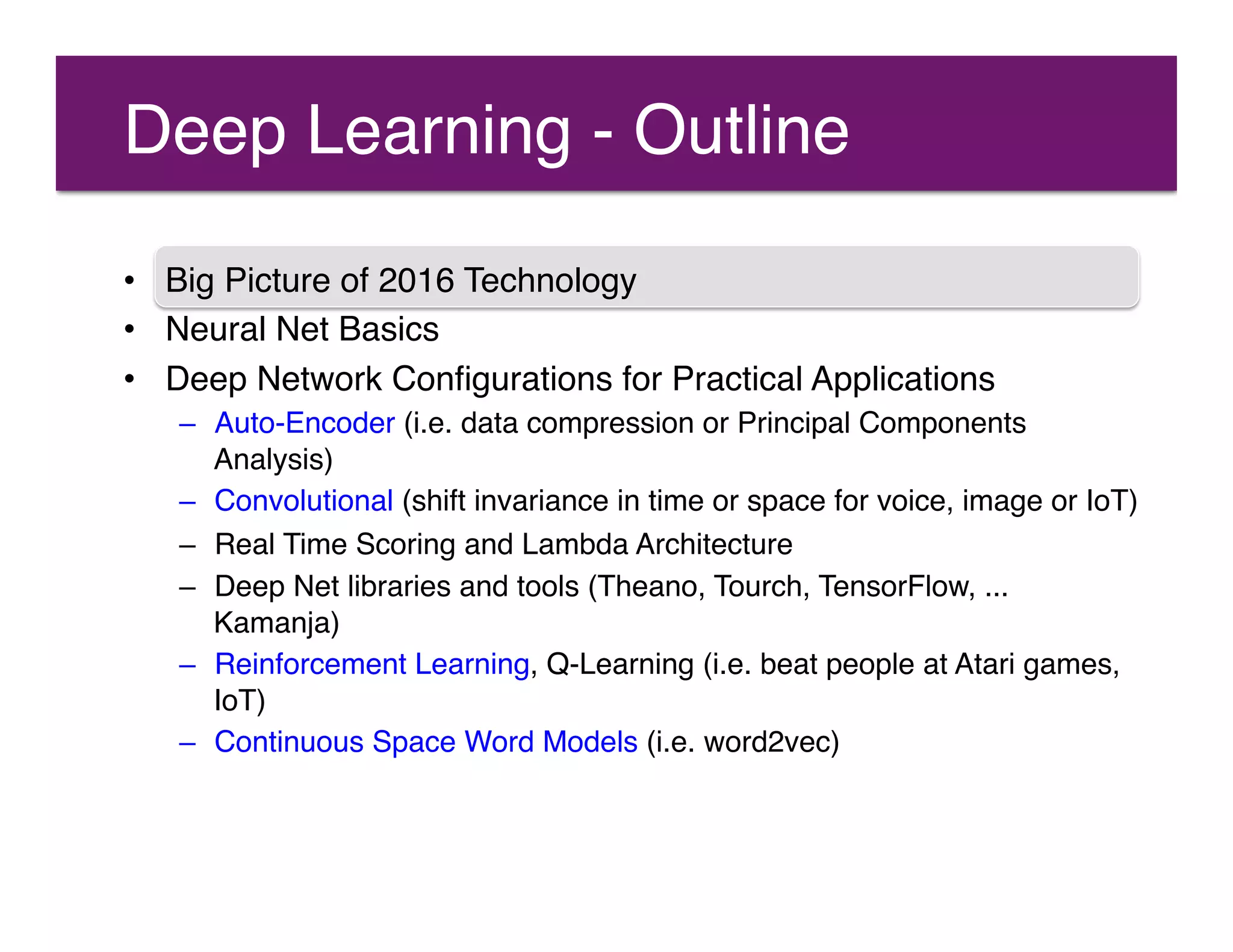

•  Big Picture of 2016 Technology
•  Neural Net Basics
•  Deep Network Configurations for Practical Applications
–  Auto-Encoder (i.e. data compression or Principal Components
Analysis)
–  Convolutional (shift invariance in time or space for voice, image or IoT)
–  Real Time Scoring and Lambda Architecture
–  Deep Net libraries and tools (Theano, Tourch, TensorFlow, ...
Kamanja)
–  Reinforcement Learning, Q-Learning (i.e. beat people at Atari games,
IoT)
–  Continuous Space Word Models (i.e. word2vec)
Deep Learning - Outline
David
Clearley
Is Deep Learning Hype?
Is this just a “buzzword of the day or year?”
Is this improvement at the normal pace?
Is Deep Learning Hype?
Is this just a “buzzword of the day or year?”
Is this improvement at the normal pace?
NO !
Not only a buzzword
This is a leap in the rate of improvement!
So What? Show me…
http://whatsnext.nuance.com/in-the-labs/what-is-deep-machine-learning/
Deep Learning Caused about an 18% / Year Reduction
in Error in Speech Recognition (Nuance)
not	only	did	DNNs	drive
error	rates	down	at	once,	…
they	promise	a	lot	of
poten8al	for	the	years	to
come.
It is no overstatement to say
that DNNs were the single
largest contributor to
innovation across many of
our products in recent years.
http://whatsnext.nuance.com/in-the-labs/what-is-deep-machine-learning/
2008, 09, 10, 11, 12, 13, 14, 15
Deep Learning Caused about an 18% / Year Reduction
in Error in Speech Recognition (Nuance)
What	if	Moore’s	Law	changed	from	2X	to	4x	over	the	last	7	years,
because	of	a	new	technology	advance!
not	only	did	DNNs	drive
error	rates	down	at	once,	…
they	promise	a	lot	of
poten8al	for	the	years	to
come.
It is no overstatement to say
that DNNs were the single
largest contributor to
innovation across many of
our products in recent years.
Neural Net training is 10+ times faster on GPU’s

The gaming market is pushing for faster GPU speeds
https://jonpeddie.com/publications/
whitepapers/an-analysis-of-the-gpu-
market
https://developer.nvidia.com/cudnn
•  Big Picture of 2016 Technology
•  Neural Net Basics
•  Deep Network Configurations for Practical Applications
–  Auto-Encoder (i.e. data compression or Principal Components
Analysis)
–  Convolutional (shift invariance in time or space for voice, image or IoT)
–  Real Time Scoring and Lambda Architecture
–  Deep Net libraries and tools (Theano, Tourch, TensorFlow, ...
Kamanja)
–  Reinforcement Learning, Q-Learning (i.e. beat people at Atari games,
IoT)
–  Continuous Space Word Models (i.e. word2vec)
Deep Learning - Outline
Advantages	of	a	Net
over	Regression
10
field	1
field	2
$
c
$
$
$
$
$
$
$
$	$
$	 $
$
$
c
c
c
c
c
c
c
c
c
c
c
c
c
c
c
c	 c
c
c
c	 c
c
c
c
A Regression
Solution
“Linear”
Fit one Line
$	 c
Target	values	for	a
data	point	with	source
field	values	graphed	by
	“field	1”	and	“field	2”
Showing ONE target field, with values of $ or c
https://en.wikipedia.org/wiki/Regression_analysis
Advantages of a Net !
over Regression!
11
field	1
field	2
$
c
$
$
$
$
$
$
$
$	$
$	 $
$
$
c
c
c
c
c
c
c
c
c
c
c
c
c
c
c
c	 c
c
c
c	 c
c
c
c
A Neural Net
Solution
“Non-Linear”
Several
regions
which are
not adjacent
Hidden nodes
can be line or
circle
https://en.wikipedia.org/wiki/Artificial_neural_network
!
A Comparison of a Neural Net!
and Regression!
A Logistic regression formula:
Y = f( a0 + a1*X1 + a2*X2 + a3*X3)
a* are coefficients
Backpropagation, cast in a similar form:
H1 = f(w0 + w1*I1 + w2*I2 + w3*I3)
H2 = f(w4 + w5*I1 + w6*I2 + w7*I3)
:
Hn = f(w8 + w9*I1 + w10*I2 + w11*I3)
O1 = f(w12 + w13*H1 + .... + w15*Hn)
On = ....
w* are weights, AKA coefficients
I1..In are input nodes or input variables.
H1..Hn are hidden nodes, which extract features of the data.
O1..On are the outputs, which group disjoint categories.
Look at ratio of training records v.s. free parameters (complexity, regularization)
a0
a1	 a2	 a3
X1	 X2	 X3
Y
Input	1	 I2	 I3
Bias
H1	 Hidden	2
Output
w1
w2
w3
Dot product is
Cosine similarity,
used broadly
Tensors
are matrices
of N dimensions
Think of Separating Land vs. Water
13
1 line,
Regression
(more errors)
5 Hidden Nodes in
a Neural Network
Different algorithms use
different Basis Functions:
•  One line
•  Many horizontal & vertical lines
•  Many diagonal lines
•  Circles
Decision Tree
12 splits
(more elements,
Less computation)
Q) What is too detailed? “Memorizing high tide boundary” and applying it at all times
•  Big Picture of 2016 Technology
•  Neural Net Basics
•  Deep Network Configurations for Practical Applications
–  Auto-Encoder (i.e. data compression or Principal Components
Analysis)
–  Convolutional (shift invariance in time or space for voice, image or IoT)
–  Real Time Scoring and Lambda Architecture
–  Deep Net libraries and tools (Theano, Tourch, TensorFlow, ...
Kamanja)
–  Reinforcement Learning, Q-Learning (i.e. beat people at Atari games,
IoT)
–  Continuous Space Word Models (i.e. word2vec)
Deep Learning - Outline
http://deeplearning.net/
http://www.kdnuggets.com/
http://www.analyticbridge.com/
Leading up to an Auto Encoder

•  Supervised Learning
–  Regression (one layer, one line, one dot-product)
•  50 inputs à 1 output
–  Possible nets:
•  256 à 120 à 1
•  256 à 120 à 5 (trees, regression, SVM & most algs are limited to 1
output)
•  256 ! 120 ! 60 ! 1 (can try 2 hidden layers, 3 sets of weights)
•  256 à 180 à 120 à 60 à 1 (start getting into training stability problems,
with 1990’s training processes)
•  Unsupervised Learning
–  Clustering (traditional unsupervised):
•  60 inputs (no output target); produce 1-2 new (cluster ID & distance)
Auto Encoder (like data compression)

Relate input to output, through compressed middle
At each step of training
Only train the black connections
256
256
180
Output
(same as input values)
Input
…256
120
180 …
256
180
…
…
…
Step 1,
Train 1st Hidden Layer (Tensor)
Step 2,
Train 2nd Hidden Layer (Tensor)
Called “Auto Encoder” because
input values = target values
Unsupervised, there are no additional target values
“Data Compression” because
Compress 256 numbers into 180 numbers
Auto Encoder (like data compression)

Relate input to output, through compressed middle
•  Supervised Learning
–  Regression, Tree or Net: 50 inputs à 1 output
–  Possible nets:
•  256 à 120 à 1
•  256 à 120 à 5 (trees, regressions, SVD and most are limited to 1 output)
•  256 à 120 à 60 à 1
•  256 à 180 à 120 à 60 à 1
•  Unsupervised Learning
–  Clustering (traditional unsupervised):
•  60 inputs (no target); produce 1-2 new (cluster ID & distance)
–  Unsupervised training of a net, assign (target record == input record) AUTO-
ENCODING
–  Train net in stages,
•  256 à 180 à 256
à 120 à
à 120 à
à 120 à
•  Add supervised layer to forecast 10 target categories
à 10
Because of symmetry,
Only need to update
mirrored weights once
(start getting long training times to stabilize, or may not finish,
The BREAKTHROUGH provided by DEEP LEARNING)
4 hidden layers w/ unsupervised training
1 layer at end w/ supervised training
https://en.wikipedia.org/wiki/Deep_learning
Auto Encoder (like data compression)

With Supervised Layers on Top
Unsupervised output
Like cluster output,
Only large values are a match
(not distance)
Train Supervised Layers on Top
Regular Back Propagation
Using unsupervised nodes as input
256
180
120
120
:
Target specific to the problem
Fraud risk * $
Cat, dog, human, other
256
180
120
120
:
50
1, 2, 10 or…
Auto Encoder

How it can be generally used to solve problems
•  Add supervised layer to forecast 10 target categories
–  4 hidden layers trained with unuspervised training,
–  1 new layer, trained with supervised learning
à 10
•  Outlier detection
•  The “activation” at each of the 120 output nodes indicates the “match” to
that cluster or compressed feature
•  When scoring new records, can detect outliers with a process like
If ( max_output_match < 0.333) then suspected outlier
•  How is it like PCA?
–  Individual hidden nodes in the same layer are “different” or “orthogonal”
Fraud Detection Example using

Deep Learning – auto encoders
•  Unsupervised Learning of Normal Behavior(Outlier Detection)
–  May want to preprocess transaction data - in the context of the
person’s past normal behavior
•  0..1, where 1 is the most SURPRISING for that person to act
•  0..1, where 1 is the most RISKY of fraud
•  General, descriptive attributes that can be used for interactions
•  Filter out from the training data – the most surprising & risky
•  Want to the net to learn “normal” records
–  Train 5-10 layers deep, end up with 50 to 100+ nodes at end
–  Score records on membership in final nodes
•  Transactions that are far from all final nodes are candidates for outliers
•  Validate with existing surprising & risky. Add application post-processing
•  Supervised Learning
–  Add two layers on top, train to predict normal vs. surprising/risky
labeled data (if it is available)
•  Big Picture of 2016 Technology
•  Neural Net Basics
•  Deep Network Configurations for Practical Applications
–  Auto-Encoder (i.e. data compression or Principal Components
Analysis)
–  Convolutional (shift invariance in time or space for voice, image or IoT)
–  Real Time Scoring and Lambda Architecture
–  Deep Net libraries and tools (Theano, Tourch, TensorFlow, ...
Kamanja)
–  Reinforcement Learning, Q-Learning (i.e. beat people at Atari games,
IoT)
–  Continuous Space Word Models (i.e. word2vec)
Deep Learning - Outline
Internet of Things (IoT) is heavily signal data
http://www.datasciencecentral.com/profiles/blogs/the-internet-of-things-data-science-and-big-data
Convolutional Neural Net (CNN)

Enables detecting shift invariant patterns
In Speech and Image applications, patterns vary by size, can be shifted right or left
Challenge: finding a bounding box for a pattern is almost as hard as detecting the pat.
Neural Nets can be explicitly trained to provide a FFT (Fast Fourier Transform)
to convert data from time domain to the frequency domain – but typically an explicit FFT is used
Internet of
Things Signal
Data
Convolutional Neural Net (CNN)

Enables detecting shift invariant patterns
In Speech and Image applications, patterns vary by size, can be shifted right or left
Challenge: finding a bounding box for a pattern is almost as hard as detecting the pat.
Solution: use a siding convolution to detect the pattern
CNN can use very long observational windows, up to 400 ms, long context
Convolution – Shift Horizontal
•  SAME	25	WEIGHTS	FEED	INTO
EACH	OUTPUT
•  Backpropaga8on	weight
update	is	averaged
•  Otherwise	NO	convolu8on	and
HUGE	complexity!
Max pooling
Layer output = 1.2
Convolution
https://en.wikipedia.org/wiki/Convolution
Convolution – Shift Horizontal & Vertical
Max pooling
Layer output
= 0.8
Convolution – 3 Weight Patterns, Shifted 2D
Hidden Layer 1 Output Sections Per Convolution 3(10x3) – detection layer
Hidden Layer
1 Weights
Per Conv.
Pattern
Input pixels,
audio, video
or IoT signal
(14 x 7).
Convolutions
can be over 3+
dimensions
(video frames,
time invariance)
Max pooling layer output = 0.8 Max pooling layer output = 1.0 Max pooling layer output = 0.9
Convolution Neural Net (CNN)

Same Low Level Features can support different output
http://stats.stackexchange.com/questions/146413/why-convolutional-neural-networks-belong-to-deep-learning
Previous Slides Showed Training
this Hidden 1 Layer
Same Training process
for later hidden layers,
one at a time
Think of fraud detection
higher level
node patterns
Convolution Neural Net:

from LeNet-5
Gradient-Based Learning Applied to Document Recognition
Proceedings of the IEEE, Nov 1998
Yann LeCun, Leon Bottou, Yoshua Bengio and Patrick Haffner
Director
Facebook, AI Research
http://yann.lecun.com/Can do some size invariance,
but it adds to the layers
Using Deep Learning to do Real-Time Scoring in Practical Applications
Convolution Neural Net (CNN)
•  How is a CNN trained differently than a typical back
propagation (BP) network?
–  Parts of the training which is the same:
•  Present input record
•  Forward pass through the network
•  Back propagate error (i.e. per epoch)
–  Different parts of training:
•  Some connections are CONSTRAINED to the same value
–  The connections for the same pattern, sliding over all input space
•  Error updates are averaged and applied equally to the one set of weight
values
•  End up with the same pattern detector feeding many nodes at the next
level
http://www.cs.toronto.edu/~rgrosse/icml09-cdbn.pdf
Convolutional Deep Belief Networks for Scalable
Unsupervised Learning of Hierarchical Representations, 2009
The Mammalian Visual Cortex is Hierarchical

(The Brain is a Deep Neural Net - Yann LeCun)
http://www.pamitc.org/cvpr15/files/lecun-20150610-cvpr-keynote.pdf
0
1
2
3
4
5
6
7
8
9
1011
Convolution Neural Net (CNN)

Facebook example
https://gigaom.com/2014/03/18/facebook-shows-off-its-deep-learning-skills-with-deepface/
Convolution Neural Net (CNN)

Yahoo + Stanford example – find a face in a pic, even upside down
http://www.dailymail.co.uk/sciencetech/article-2958597/Facial-recognition-breakthrough-Deep-Dense-software-spots-faces-images-partially-hidden-UPSIDE-DOWN.html
Convolutional Neural Nets (CNN)

Robotic Grasp Detection (IoT)
http://pjreddie.com/media/files/papers/grasp_detection_1.pdf
•  Big Picture of 2016 Technology
•  Neural Net Basics
•  Deep Network Configurations for Practical Applications
–  Auto-Encoder (i.e. data compression or Principal Components
Analysis)
–  Convolutional (shift invariance in time or space for voice, image or IoT)
–  Real Time Scoring and Lambda Architecture
–  Deep Net libraries and tools (Theano, Tourch, TensorFlow, ...
Kamanja)
–  Reinforcement Learning, Q-Learning (i.e. beat people at Atari games,
IoT)
–  Continuous Space Word Models (i.e. word2vec)
Deep Learning - Outline
Real Time Scoring

Neural Net Optimizations
•  Auto-Encoding nets
–  Can grow to millions of connections, and start to get computational
–  Can reduce connections by 5% to 25+% with pruning & retraining
•  Train with increased regularization settings
•  Drop connections with near zero weights, then retrain
•  Drop nodes with fan in connections which don’t get used much later,
such as in your predictive problem
•  Perform sensitivity analysis – delete possible input fields
•  Convolutional Neural Nets
–  With large enough data, can even skip the FFT preprocessing step
–  Can use wider than 10ms audio sampling rates for speed up
•  Implement other preprocessing as lookup tables (i.e. Bayesian
Priors)
•  Use cloud computing, do not limit to device computing
•  Large models don’t fit à use model or data parallelism to
train
© 2016 LigaData, Inc. All Rights Reserved.
 39
Real Time Scoring – Enterprise App Architecture uses

Lambda Architecture – for both Batch and Real Time
•  First architecture to really define how batch and stream processing can work together
•  Founded on the concepts of immutability and re-computation, with human fault tolerance
•  Pre-computes the results of batch & real-time processes as a set of views, & query layer
merges the views
https://en.wikipedia.org/wiki/Lambda_architecture
Speed Layer
Batch Layer
Query
Master
Data
Batch
Processing
Speed
Processing Real-time
AnalyticsSpeed
Views
Batch
Views
Merged
ViewsNew
Data B
New
Data A
© 2016 LigaData, Inc. All Rights Reserved.
 40
HDFS Spark
Map Reduce
Spark

Streaming
Storm
Real Time Scoring

Lambda Architecture With Kamanja
Decisioning Layer
Batch Layer
Query
Master
Data
Batch
Processing
Real-time Analytics
Action
Queue
Serving Layer
Speed
Views
Batch
Views
Merged
Views
Kafka
MQ
Files
AVRO/
Flume
Continuous Decisioning
Cassandra
HBase
Druid
PMML, Java,
Scala, Python,
Deep Learning
Kafka
MQ
All
New
Data
Speed
Layer
Speed
Processing
Decisioning
Data
Continuous Feedback
Model
Data
Elephant DB
Impala
© 2016 LigaData, Inc. All Rights Reserved.
 41
Kamanja Technology Stack
Compute
Fabric
Cloud, EC2
Internal Cloud
Security
Kerberos
Real Time
Streaming
Kafka,
MQ
Spark*
LigaData
Data Store
HBase,
Cassandra,
InfluxDB
HDFS
(Create
adaptors to
integrate
others)
Resource
Management
Zookeeper,
Yarn*
High Level Languages /
Abstractions
PMML Producers, MLlib
Real Time Computing
Kamanja
PMML, Java, Scala
Deep Learning Tools
Deep Learning Tools
By Google, 600 DL proj
Speech
Google Photos
Translation
Gmail
Search
Rajat Monga, Tech Lead & Manager for TensorFlow
Deep Learning Tools
https://www.tensorflow.org/versions/0.6.0/get_started/index.html
Python code to
make up data
in two dimensions
and then fit it
Deep Learning Tools
www.Kamanja.org
•  Big Picture of 2016 Technology
•  Neural Net Basics
•  Deep Network Configurations for Practical Applications
–  Auto-Encoder (i.e. data compression or Principal Components
Analysis)
–  Convolutional (shift invariance in time or space for voice, image or IoT)
–  Real Time Scoring and Lambda Architecture
–  Deep Net libraries and tools (Theano, Tourch, TensorFlow, ...
Kamanja)
–  Reinforcement Learning, Q-Learning (i.e. beat people at Atari games,
IoT)
–  Continuous Space Word Models (i.e. word2vec)
Deep Learning - Outline
Reinforcement Learning (RL)
•  Different than supervised and unsupervised learning
•  Q) Can the network figure out hot to take one or more
actions NOW, to achieve a reward or payout (potentially
far-off, i.e. T steps in the FUTURE?
•  Need to solve the credit assignment problem
–  There is no teacher and very little labeled data
–  Need to learn the best POLICY that will achieve the best outcome
–  Assume no knowledge of the process model or reward function
•  Next guess =
–  Linear combination of ((current guess) and
(the new reward info just collected)), weighted by the learning rate
http://www.humphreysheil.com/blog/gorila-google-reinforcement-learning-architecture
http://robotics.ai.uiuc.edu/~scandido/?Developing_Reinforcement_Learning_from_the_Bellman_Equation
Deep Reinforcement Learning (RL),
Q-Learning
http://www.iclr.cc/lib/exe/fetch.php?media=iclr2015:silver-iclr2015.pdf David Silver, Google DeepMind
https://en.wikipedia.org/wiki/Reinforcement_learning
https://en.wikipedia.org/wiki/Q-learning
Think in terms of IoT….
Device agent measures, infers user’s action
Maximizes future reward, recommends to user or system
Deep Reinforcement Learning, Q-Learning

(Think about IoT possibilities)
http://www.iclr.cc/lib/exe/fetch.php?media=iclr2015:silver-iclr2015.pdf
David Silver, Google DeepMind
Use
last 4
screen
shots
Deep Reinforcement Learning, Q-Learning
http://www.iclr.cc/lib/exe/fetch.php?media=iclr2015:silver-iclr2015.pdf David Silver, Google DeepMind
Use 4
screen
shots
Use 4 screen shots
IoT challenge: How to replace game
score with IoT score?
Shift right fast
shift right
stay
shift left
shift left fast
Deep Reinforcement Learning, Q-Learning
http://www.iclr.cc/lib/exe/fetch.php?media=iclr2015:silver-iclr2015.pdf David Silver, Google DeepMind
Games w/ best Q-learning
Video Pinball
Breakout
Star Gunner
Crazy Climber
Gopher
•  Big Picture of 2016 Technology
•  Neural Net Basics
•  Deep Network Configurations for Practical Applications
–  Auto-Encoder (i.e. data compression or Principal Components
Analysis)
–  Convolutional (shift invariance in time or space for voice, image or IoT)
–  Real Time Scoring
–  Deep Net libraries and tools (Theano, Tourch, TensorFlow, ...
Kamanja)
–  Reinforcement Learning, Q-Learning (i.e. beat people at Atari games,
IoT)
–  Continuous Space Word Models (i.e. word2vec)
Deep Learning - Outline
Continuous Space Word Models (word2vec)
•  Before (a predictive “Bag of Words” model):
–  One row per document, paragraph or web page
–  Binary word space: 10k to 200k columns, one per word or phrase
0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 1 …. “This word space model is
….”
–  The “Bag of words model” relates input record to a target category
Continuous Space Word Models (word2vec)
•  Before (a predictive “Bag of Words” model):
–  One row per document, paragraph or web page
–  Binary word space: 10k to 200k columns, one per word or phrase
0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 1 …. “This word space model is ….”
–  The “Bag of words model” relates input record to a target category
•  New:
–  One row per word (word2vec), possibly per sentence (sent2vec)
–  Continuous word space: 100 to 300 columns, continuous values
.01 .05 .02 .00 .00 .68 .01 .01 .35 ... .00 à “King”
.00 .00 .05 .01 .49 .52 .00 .11 .84 ... .01 à “Queen”
–  The deep net training resulted in an Emergent Property:
•  Numeric geometry location relates to concept space
•  “King” – “man” + “woman” = “Queen” (math to change gender relation)
•  “USA” – “Washington DC” + “England” = “London” (math for capital
relation)
Continuous Space Word Models (word2vec)

How to SCALE to larger vocabularies?
http://www.slideshare.net/hustwj/cikm-keynotenov2014?qid=f92c9e86-feea-41ac-a099-d086efa6fac1&v=default&b=&from_search=2
Training Continuous Space Word Models
•  How to Train These Models?
–  Raw data: “This example sentence shows the word2vec model
training.”
Training Continuous Space Word Models
•  How to Train These Models?
–  Raw data: “This example sentence shows the word2vec model
training.”
–  Training data (with target values underscored, and other words as
input)
“This example sentence shows word2vec” (prune “the”)
“example sentence shows word2vec model”
“sentence shows word2vec model training”
–  The context of the 2 to 5 prior and following words predict the
middle word
–  Deep Net model architecture, data compression to 300 continuous
nodes
•  50k binary word input vector à ... à 300 à ... à 50k word target
vector
Training Continuous Space Word Models
•  Use Pre-Trained Models https://code.google.com/p/word2vec/
–  Trained on 100 billion words from Google News
–  300 dim vectors for 3 million words and phrases
–  https://code.google.com/p/word2vec/
•  Questions on re-use:
–  What if I want to train to add client terms or docs?
–  What about stability (keeping past training) vs. placticity (learning
new content)
Training Continuous Space Word Models
http://www.slideshare.net/hustwj/cikm-keynotenov2014?qid=f92c9e86-feea-41ac-a099-d086efa6fac1&v=default&b=&from_search=2
Applying Continuous Space Word Models
http://static.googleusercontent.com/media/research.google.com/en//people/jeff/BayLearn2015.pdf
State of the art in machine translation
Sequence to Sequence Learning with neural Networks, NIPS 2014
Language translation
Document summary
Generate text captions for pictures
.01
.05
.89
.00
.05
.62
.00
.34
“Greg’s Guts” on Deep Learning
•  Some claim the need for preprocessing and knowledge
representation has ended
–  For most of the signal processing applications à yes, simplify
–  I am VERY READY TO COMPETE in other applications, continuing
•  expressing explicit domain knowledge – using lookup data for context
•  optimizing business value calculations
•  Deep Learning gets big advantages from big data
–  Why? Better populating high dimensional space combination
subsets
–  Unsupervised feature extraction reduces need for large labeled data
•  However, “regular sized data” gets a big boost as well
–  The “ratio of free parameters” (i.e. neurons) to training set records
–  For regressions or regular nets, want 5-10 times as many records
–  Regularization and weight drop out reduces this pressure
–  Especially when only training “the next auto encoding layer”
Deep Learning Summary – ITS EXCITING!
•  Discussed Deep Learning architectures
–  Auto Encoder, convolutional, reinforcement learning, continuous word
•  Real Time speed up
–  Train model, reduce complexity, retrain
–  Simplify preprocessing with lookup tables
–  Use cloud computing, do not be limited to device computing
–  Lambda architecture like Kamanja, to combine real time and batch
•  Applications
–  Fraud detection
–  Signal Data: IoT, Speech, Images
–  Control System models (like Atari game playing, IoT)
–  Language Models
https://www.quora.com/Why-is-deep-learning-in-such-demand-now
© 2016 LigaData, Inc. All Rights Reserved.
Using Deep Learning to
do Real-Time Scoring in
Practical Applications
SFbayACM Data Science Meetup Monday 1/25/2016
By Greg Makowski
www.Linkedin.com/in/GregMakowski
greg@LigaDATA.com
Community @ http://Kamanja.org
Try out

More Related Content

What's hot

Deep Learning and Reinforcement Learning
Deep Learning and Reinforcement LearningDeep Learning and Reinforcement Learning
Deep Learning and Reinforcement Learning
Renārs Liepiņš

Squeezing Deep Learning Into Mobile Phones
Squeezing Deep Learning Into Mobile PhonesSqueezing Deep Learning Into Mobile Phones
Squeezing Deep Learning Into Mobile Phones
Anirudh Koul

Deep Learning Cases: Text and Image Processing
Deep Learning Cases: Text and Image ProcessingDeep Learning Cases: Text and Image Processing
Deep Learning Cases: Text and Image Processing
Grigory Sapunov

Deep Learning And Business Models (VNITC 2015-09-13)
Deep Learning And Business Models (VNITC 2015-09-13)Deep Learning And Business Models (VNITC 2015-09-13)
Deep Learning And Business Models (VNITC 2015-09-13)
Ha Phuong

Neural Networks and Deep Learning
Neural Networks and Deep LearningNeural Networks and Deep Learning
Neural Networks and Deep Learning
Asim Jalis

An introduction to Machine Learning (and a little bit of Deep Learning)
An introduction to Machine Learning (and a little bit of Deep Learning)An introduction to Machine Learning (and a little bit of Deep Learning)
An introduction to Machine Learning (and a little bit of Deep Learning)
Thomas da Silva Paula

Deep Learning Primer: A First-Principles Approach
Deep Learning Primer: A First-Principles ApproachDeep Learning Primer: A First-Principles Approach
Deep Learning Primer: A First-Principles Approach
Maurizio Calo Caligaris

ODSC West
ODSC WestODSC West
ODSC West
Intel Nervana

(BDT311) Deep Learning: Going Beyond Machine Learning
(BDT311) Deep Learning: Going Beyond Machine Learning(BDT311) Deep Learning: Going Beyond Machine Learning
(BDT311) Deep Learning: Going Beyond Machine Learning
Amazon Web Services

Language translation with Deep Learning (RNN) with TensorFlow
Language translation with Deep Learning (RNN) with TensorFlowLanguage translation with Deep Learning (RNN) with TensorFlow
Language translation with Deep Learning (RNN) with TensorFlow
S N

Deep Learning as a Cat/Dog Detector
Deep Learning as a Cat/Dog DetectorDeep Learning as a Cat/Dog Detector
Deep Learning as a Cat/Dog Detector
Roelof Pieters

Tutorial on Deep Learning
Tutorial on Deep LearningTutorial on Deep Learning
Tutorial on Deep Learning
inside-BigData.com

Smart Data Conference: DL4J and DataVec
Smart Data Conference: DL4J and DataVecSmart Data Conference: DL4J and DataVec
Smart Data Conference: DL4J and DataVec
Josh Patterson

Applying your Convolutional Neural Networks
Applying your Convolutional Neural NetworksApplying your Convolutional Neural Networks
Applying your Convolutional Neural Networks
Databricks

Distributed Deep Learning on AWS with Apache MXNet
Distributed Deep Learning on AWS with Apache MXNetDistributed Deep Learning on AWS with Apache MXNet
Distributed Deep Learning on AWS with Apache MXNet
Amazon Web Services

Machine Learning, Deep Learning and Data Analysis Introduction
Machine Learning, Deep Learning and Data Analysis IntroductionMachine Learning, Deep Learning and Data Analysis Introduction
Machine Learning, Deep Learning and Data Analysis Introduction
Te-Yen Liu

H2O Deep Learning at Next.ML
H2O Deep Learning at Next.MLH2O Deep Learning at Next.ML
H2O Deep Learning at Next.ML
Sri Ambati

Machine Learning and Deep Learning with R
Machine Learning and Deep Learning with RMachine Learning and Deep Learning with R
Machine Learning and Deep Learning with R
Poo Kuan Hoong

Promises of Deep Learning
Promises of Deep LearningPromises of Deep Learning
Promises of Deep Learning
David Khosid

Deep learning at nmc devin jones
Deep learning at nmc devin jones Deep learning at nmc devin jones
Deep learning at nmc devin jones
Ido Shilon


What's hot (20)

Deep Learning and Reinforcement Learning
Deep Learning and Reinforcement LearningDeep Learning and Reinforcement Learning
Deep Learning and Reinforcement Learning

Squeezing Deep Learning Into Mobile Phones
Squeezing Deep Learning Into Mobile PhonesSqueezing Deep Learning Into Mobile Phones
Squeezing Deep Learning Into Mobile Phones

Deep Learning Cases: Text and Image Processing
Deep Learning Cases: Text and Image ProcessingDeep Learning Cases: Text and Image Processing
Deep Learning Cases: Text and Image Processing

Deep Learning And Business Models (VNITC 2015-09-13)
Deep Learning And Business Models (VNITC 2015-09-13)Deep Learning And Business Models (VNITC 2015-09-13)
Deep Learning And Business Models (VNITC 2015-09-13)

Neural Networks and Deep Learning
Neural Networks and Deep LearningNeural Networks and Deep Learning
Neural Networks and Deep Learning

An introduction to Machine Learning (and a little bit of Deep Learning)
An introduction to Machine Learning (and a little bit of Deep Learning)An introduction to Machine Learning (and a little bit of Deep Learning)
An introduction to Machine Learning (and a little bit of Deep Learning)

Deep Learning Primer: A First-Principles Approach
Deep Learning Primer: A First-Principles ApproachDeep Learning Primer: A First-Principles Approach
Deep Learning Primer: A First-Principles Approach

ODSC West
ODSC WestODSC West
ODSC West

(BDT311) Deep Learning: Going Beyond Machine Learning
(BDT311) Deep Learning: Going Beyond Machine Learning(BDT311) Deep Learning: Going Beyond Machine Learning
(BDT311) Deep Learning: Going Beyond Machine Learning

Language translation with Deep Learning (RNN) with TensorFlow
Language translation with Deep Learning (RNN) with TensorFlowLanguage translation with Deep Learning (RNN) with TensorFlow
Language translation with Deep Learning (RNN) with TensorFlow

Deep Learning as a Cat/Dog Detector
Deep Learning as a Cat/Dog DetectorDeep Learning as a Cat/Dog Detector
Deep Learning as a Cat/Dog Detector

Tutorial on Deep Learning
Tutorial on Deep LearningTutorial on Deep Learning
Tutorial on Deep Learning

Smart Data Conference: DL4J and DataVec
Smart Data Conference: DL4J and DataVecSmart Data Conference: DL4J and DataVec
Smart Data Conference: DL4J and DataVec

Applying your Convolutional Neural Networks
Applying your Convolutional Neural NetworksApplying your Convolutional Neural Networks
Applying your Convolutional Neural Networks

Distributed Deep Learning on AWS with Apache MXNet
Distributed Deep Learning on AWS with Apache MXNetDistributed Deep Learning on AWS with Apache MXNet
Distributed Deep Learning on AWS with Apache MXNet

Machine Learning, Deep Learning and Data Analysis Introduction
Machine Learning, Deep Learning and Data Analysis IntroductionMachine Learning, Deep Learning and Data Analysis Introduction
Machine Learning, Deep Learning and Data Analysis Introduction

H2O Deep Learning at Next.ML
H2O Deep Learning at Next.MLH2O Deep Learning at Next.ML
H2O Deep Learning at Next.ML

Machine Learning and Deep Learning with R
Machine Learning and Deep Learning with RMachine Learning and Deep Learning with R
Machine Learning and Deep Learning with R

Promises of Deep Learning
Promises of Deep LearningPromises of Deep Learning
Promises of Deep Learning

Deep learning at nmc devin jones
Deep learning at nmc devin jones Deep learning at nmc devin jones
Deep learning at nmc devin jones


Similar to Using Deep Learning to do Real-Time Scoring in Practical Applications

Separating Hype from Reality in Deep Learning with Sameer Farooqui
 Separating Hype from Reality in Deep Learning with Sameer Farooqui Separating Hype from Reality in Deep Learning with Sameer Farooqui
Separating Hype from Reality in Deep Learning with Sameer Farooqui
Databricks

Deep Dive on Deep Learning (June 2018)
Deep Dive on Deep Learning (June 2018)Deep Dive on Deep Learning (June 2018)
Deep Dive on Deep Learning (June 2018)
Julien SIMON

Natural Language Processing with CNTK and Apache Spark with Ali Zaidi
Natural Language Processing with CNTK and Apache Spark with Ali ZaidiNatural Language Processing with CNTK and Apache Spark with Ali Zaidi
Natural Language Processing with CNTK and Apache Spark with Ali Zaidi
Databricks

Deep Learning on Qubole Data Platform
Deep Learning on Qubole Data PlatformDeep Learning on Qubole Data Platform
Deep Learning on Qubole Data Platform
Shivaji Dutta

The deep learning tour - Q1 2017
The deep learning tour - Q1 2017 The deep learning tour - Q1 2017
The deep learning tour - Q1 2017
Eran Shlomo

AI and Deep Learning
AI and Deep Learning AI and Deep Learning
AI and Deep Learning
Subrat Panda, PhD

Embrace Sparsity At Web Scale: Apache Spark MLlib Algorithms Optimization For...
Embrace Sparsity At Web Scale: Apache Spark MLlib Algorithms Optimization For...Embrace Sparsity At Web Scale: Apache Spark MLlib Algorithms Optimization For...
Embrace Sparsity At Web Scale: Apache Spark MLlib Algorithms Optimization For...
Jen Aman

Deep Recurrent Neural Networks for Sequence Learning in Spark by Yves Mabiala
Deep Recurrent Neural Networks for Sequence Learning in Spark by Yves MabialaDeep Recurrent Neural Networks for Sequence Learning in Spark by Yves Mabiala
Deep Recurrent Neural Networks for Sequence Learning in Spark by Yves Mabiala
Spark Summit

Deep learning: the future of recommendations
Deep learning: the future of recommendationsDeep learning: the future of recommendations
Deep learning: the future of recommendations
Balázs Hidasi

Machine Learning in Action
Machine Learning in ActionMachine Learning in Action
Machine Learning in Action
Amazon Web Services

Amazon Deep Learning
Amazon Deep LearningAmazon Deep Learning
Amazon Deep Learning
Amanda Mackay (she/her)

A Platform for Accelerating Machine Learning Applications
 A Platform for Accelerating Machine Learning Applications A Platform for Accelerating Machine Learning Applications
A Platform for Accelerating Machine Learning Applications
NVIDIA Taiwan

Learn to Build an App to Find Similar Images using Deep Learning- Piotr Teterwak
Learn to Build an App to Find Similar Images using Deep Learning- Piotr TeterwakLearn to Build an App to Find Similar Images using Deep Learning- Piotr Teterwak
Learn to Build an App to Find Similar Images using Deep Learning- Piotr Teterwak
PyData

Explore big data at speed of thought with Spark 2.0 and Snappydata
Explore big data at speed of thought with Spark 2.0 and SnappydataExplore big data at speed of thought with Spark 2.0 and Snappydata
Explore big data at speed of thought with Spark 2.0 and Snappydata
Data Con LA

Azure 機器學習 - 使用Python, R, Spark, CNTK 深度學習
Azure 機器學習 - 使用Python, R, Spark, CNTK 深度學習 Azure 機器學習 - 使用Python, R, Spark, CNTK 深度學習
Azure 機器學習 - 使用Python, R, Spark, CNTK 深度學習
Herman Wu

Machine learning for IoT - unpacking the blackbox
Machine learning for IoT - unpacking the blackboxMachine learning for IoT - unpacking the blackbox
Machine learning for IoT - unpacking the blackbox
Ivo Andreev

C* Summit 2013: Real-time Analytics using Cassandra, Spark and Shark by Evan ...
C* Summit 2013: Real-time Analytics using Cassandra, Spark and Shark by Evan ...C* Summit 2013: Real-time Analytics using Cassandra, Spark and Shark by Evan ...
C* Summit 2013: Real-time Analytics using Cassandra, Spark and Shark by Evan ...
DataStax Academy

Discovering Your AI Super Powers - Tips and Tricks to Jumpstart your AI Projects
Discovering Your AI Super Powers - Tips and Tricks to Jumpstart your AI ProjectsDiscovering Your AI Super Powers - Tips and Tricks to Jumpstart your AI Projects
Discovering Your AI Super Powers - Tips and Tricks to Jumpstart your AI Projects
Wee Hyong Tok

Scaling PyData Up and Out
Scaling PyData Up and OutScaling PyData Up and Out
Scaling PyData Up and Out
Travis Oliphant

MXNet Workshop
MXNet WorkshopMXNet Workshop
MXNet Workshop
Amazon Web Services


Similar to Using Deep Learning to do Real-Time Scoring in Practical Applications (20)

Separating Hype from Reality in Deep Learning with Sameer Farooqui
 Separating Hype from Reality in Deep Learning with Sameer Farooqui Separating Hype from Reality in Deep Learning with Sameer Farooqui
Separating Hype from Reality in Deep Learning with Sameer Farooqui

Deep Dive on Deep Learning (June 2018)
Deep Dive on Deep Learning (June 2018)Deep Dive on Deep Learning (June 2018)
Deep Dive on Deep Learning (June 2018)

Natural Language Processing with CNTK and Apache Spark with Ali Zaidi
Natural Language Processing with CNTK and Apache Spark with Ali ZaidiNatural Language Processing with CNTK and Apache Spark with Ali Zaidi
Natural Language Processing with CNTK and Apache Spark with Ali Zaidi

Deep Learning on Qubole Data Platform
Deep Learning on Qubole Data PlatformDeep Learning on Qubole Data Platform
Deep Learning on Qubole Data Platform

The deep learning tour - Q1 2017
The deep learning tour - Q1 2017 The deep learning tour - Q1 2017
The deep learning tour - Q1 2017

AI and Deep Learning
AI and Deep Learning AI and Deep Learning
AI and Deep Learning

Embrace Sparsity At Web Scale: Apache Spark MLlib Algorithms Optimization For...
Embrace Sparsity At Web Scale: Apache Spark MLlib Algorithms Optimization For...Embrace Sparsity At Web Scale: Apache Spark MLlib Algorithms Optimization For...
Embrace Sparsity At Web Scale: Apache Spark MLlib Algorithms Optimization For...

Deep Recurrent Neural Networks for Sequence Learning in Spark by Yves Mabiala
Deep Recurrent Neural Networks for Sequence Learning in Spark by Yves MabialaDeep Recurrent Neural Networks for Sequence Learning in Spark by Yves Mabiala
Deep Recurrent Neural Networks for Sequence Learning in Spark by Yves Mabiala

Deep learning: the future of recommendations
Deep learning: the future of recommendationsDeep learning: the future of recommendations
Deep learning: the future of recommendations

Machine Learning in Action
Machine Learning in ActionMachine Learning in Action
Machine Learning in Action

Amazon Deep Learning
Amazon Deep LearningAmazon Deep Learning
Amazon Deep Learning

A Platform for Accelerating Machine Learning Applications
 A Platform for Accelerating Machine Learning Applications A Platform for Accelerating Machine Learning Applications
A Platform for Accelerating Machine Learning Applications

Learn to Build an App to Find Similar Images using Deep Learning- Piotr Teterwak
Learn to Build an App to Find Similar Images using Deep Learning- Piotr TeterwakLearn to Build an App to Find Similar Images using Deep Learning- Piotr Teterwak
Learn to Build an App to Find Similar Images using Deep Learning- Piotr Teterwak

Explore big data at speed of thought with Spark 2.0 and Snappydata
Explore big data at speed of thought with Spark 2.0 and SnappydataExplore big data at speed of thought with Spark 2.0 and Snappydata
Explore big data at speed of thought with Spark 2.0 and Snappydata

Azure 機器學習 - 使用Python, R, Spark, CNTK 深度學習
Azure 機器學習 - 使用Python, R, Spark, CNTK 深度學習 Azure 機器學習 - 使用Python, R, Spark, CNTK 深度學習
Azure 機器學習 - 使用Python, R, Spark, CNTK 深度學習

Machine learning for IoT - unpacking the blackbox
Machine learning for IoT - unpacking the blackboxMachine learning for IoT - unpacking the blackbox
Machine learning for IoT - unpacking the blackbox

C* Summit 2013: Real-time Analytics using Cassandra, Spark and Shark by Evan ...
C* Summit 2013: Real-time Analytics using Cassandra, Spark and Shark by Evan ...C* Summit 2013: Real-time Analytics using Cassandra, Spark and Shark by Evan ...
C* Summit 2013: Real-time Analytics using Cassandra, Spark and Shark by Evan ...

Discovering Your AI Super Powers - Tips and Tricks to Jumpstart your AI Projects
Discovering Your AI Super Powers - Tips and Tricks to Jumpstart your AI ProjectsDiscovering Your AI Super Powers - Tips and Tricks to Jumpstart your AI Projects
Discovering Your AI Super Powers - Tips and Tricks to Jumpstart your AI Projects

Scaling PyData Up and Out
Scaling PyData Up and OutScaling PyData Up and Out
Scaling PyData Up and Out

MXNet Workshop
MXNet WorkshopMXNet Workshop
MXNet Workshop


More from Greg Makowski

Understanding Hallucinations in LLMs - 2023 09 29.pptx
Understanding Hallucinations in LLMs - 2023 09 29.pptxUnderstanding Hallucinations in LLMs - 2023 09 29.pptx
Understanding Hallucinations in LLMs - 2023 09 29.pptx
Greg Makowski

Future of AI - 2023 07 25.pptx
Future of AI - 2023 07 25.pptxFuture of AI - 2023 07 25.pptx
Future of AI - 2023 07 25.pptx
Greg Makowski

A Successful Hiring Process for Data Scientists
A Successful Hiring Process for Data ScientistsA Successful Hiring Process for Data Scientists
A Successful Hiring Process for Data Scientists
Greg Makowski

Kdd 2019: Standardizing Data Science to Help Hiring
Kdd 2019:  Standardizing Data Science to Help HiringKdd 2019:  Standardizing Data Science to Help Hiring
Kdd 2019: Standardizing Data Science to Help Hiring
Greg Makowski

Tales from an ip worker in consulting and software
Tales from an ip worker in consulting and softwareTales from an ip worker in consulting and software
Tales from an ip worker in consulting and software
Greg Makowski

Predictive Model and Record Description with Segmented Sensitivity Analysis (...
Predictive Model and Record Description with Segmented Sensitivity Analysis (...Predictive Model and Record Description with Segmented Sensitivity Analysis (...
Predictive Model and Record Description with Segmented Sensitivity Analysis (...
Greg Makowski

Production model lifecycle management 2016 09
Production model lifecycle management 2016 09Production model lifecycle management 2016 09
Production model lifecycle management 2016 09
Greg Makowski

SFbayACM ACM Data Science Camp 2015 10 24
SFbayACM ACM Data Science Camp 2015 10 24SFbayACM ACM Data Science Camp 2015 10 24
SFbayACM ACM Data Science Camp 2015 10 24
Greg Makowski

How to Create 80% of a Big Data Pilot Project
How to Create 80% of a Big Data Pilot ProjectHow to Create 80% of a Big Data Pilot Project
How to Create 80% of a Big Data Pilot Project
Greg Makowski

Powering Real­time Decision Engines in Finance and Healthcare using Open Sour...
Powering Real­time Decision Engines in Finance and Healthcare using Open Sour...Powering Real­time Decision Engines in Finance and Healthcare using Open Sour...
Powering Real­time Decision Engines in Finance and Healthcare using Open Sour...
Greg Makowski

Kamanja: Driving Business Value through Real-Time Decisioning Solutions
Kamanja: Driving Business Value through Real-Time Decisioning SolutionsKamanja: Driving Business Value through Real-Time Decisioning Solutions
Kamanja: Driving Business Value through Real-Time Decisioning Solutions
Greg Makowski

Heuristic design of experiments w meta gradient search
Heuristic design of experiments w meta gradient searchHeuristic design of experiments w meta gradient search
Heuristic design of experiments w meta gradient search
Greg Makowski

Three case studies deploying cluster analysis
Three case studies deploying cluster analysisThree case studies deploying cluster analysis
Three case studies deploying cluster analysis
Greg Makowski

Linked In Slides 2009 02 24 B
Linked In Slides 2009 02 24 BLinked In Slides 2009 02 24 B
Linked In Slides 2009 02 24 B
Greg Makowski

The 360º Leader (Section 2 of 6)
The 360º Leader (Section 2 of 6)The 360º Leader (Section 2 of 6)
The 360º Leader (Section 2 of 6)
Greg Makowski

The 360º Leader (Section 1 of 6)
The 360º Leader (Section 1 of 6)The 360º Leader (Section 1 of 6)
The 360º Leader (Section 1 of 6)
Greg Makowski


More from Greg Makowski (16)

Understanding Hallucinations in LLMs - 2023 09 29.pptx
Understanding Hallucinations in LLMs - 2023 09 29.pptxUnderstanding Hallucinations in LLMs - 2023 09 29.pptx
Understanding Hallucinations in LLMs - 2023 09 29.pptx

Future of AI - 2023 07 25.pptx
Future of AI - 2023 07 25.pptxFuture of AI - 2023 07 25.pptx
Future of AI - 2023 07 25.pptx

A Successful Hiring Process for Data Scientists
A Successful Hiring Process for Data ScientistsA Successful Hiring Process for Data Scientists
A Successful Hiring Process for Data Scientists

Kdd 2019: Standardizing Data Science to Help Hiring
Kdd 2019:  Standardizing Data Science to Help HiringKdd 2019:  Standardizing Data Science to Help Hiring
Kdd 2019: Standardizing Data Science to Help Hiring

Tales from an ip worker in consulting and software
Tales from an ip worker in consulting and softwareTales from an ip worker in consulting and software
Tales from an ip worker in consulting and software

Predictive Model and Record Description with Segmented Sensitivity Analysis (...
Predictive Model and Record Description with Segmented Sensitivity Analysis (...Predictive Model and Record Description with Segmented Sensitivity Analysis (...
Predictive Model and Record Description with Segmented Sensitivity Analysis (...

Production model lifecycle management 2016 09
Production model lifecycle management 2016 09Production model lifecycle management 2016 09
Production model lifecycle management 2016 09

SFbayACM ACM Data Science Camp 2015 10 24
SFbayACM ACM Data Science Camp 2015 10 24SFbayACM ACM Data Science Camp 2015 10 24
SFbayACM ACM Data Science Camp 2015 10 24

How to Create 80% of a Big Data Pilot Project
How to Create 80% of a Big Data Pilot ProjectHow to Create 80% of a Big Data Pilot Project
How to Create 80% of a Big Data Pilot Project

Powering Real­time Decision Engines in Finance and Healthcare using Open Sour...
Powering Real­time Decision Engines in Finance and Healthcare using Open Sour...Powering Real­time Decision Engines in Finance and Healthcare using Open Sour...
Powering Real­time Decision Engines in Finance and Healthcare using Open Sour...

Kamanja: Driving Business Value through Real-Time Decisioning Solutions
Kamanja: Driving Business Value through Real-Time Decisioning SolutionsKamanja: Driving Business Value through Real-Time Decisioning Solutions
Kamanja: Driving Business Value through Real-Time Decisioning Solutions

Heuristic design of experiments w meta gradient search
Heuristic design of experiments w meta gradient searchHeuristic design of experiments w meta gradient search
Heuristic design of experiments w meta gradient search

Three case studies deploying cluster analysis
Three case studies deploying cluster analysisThree case studies deploying cluster analysis
Three case studies deploying cluster analysis

Linked In Slides 2009 02 24 B
Linked In Slides 2009 02 24 BLinked In Slides 2009 02 24 B
Linked In Slides 2009 02 24 B

The 360º Leader (Section 2 of 6)
The 360º Leader (Section 2 of 6)The 360º Leader (Section 2 of 6)
The 360º Leader (Section 2 of 6)

The 360º Leader (Section 1 of 6)
The 360º Leader (Section 1 of 6)The 360º Leader (Section 1 of 6)
The 360º Leader (Section 1 of 6)


Recently uploaded

ThaiPy meetup - Indexes and Django
ThaiPy meetup - Indexes and DjangoThaiPy meetup - Indexes and Django
ThaiPy meetup - Indexes and Django
akshesh doshi

Busty Girls Call Mumbai 9930245274 Unlimited Short Providing Girls Service Av...
Busty Girls Call Mumbai 9930245274 Unlimited Short Providing Girls Service Av...Busty Girls Call Mumbai 9930245274 Unlimited Short Providing Girls Service Av...
Busty Girls Call Mumbai 9930245274 Unlimited Short Providing Girls Service Av...
revolutionary575

High Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 ...
High Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 ...High Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 ...
High Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 ...
singhlata50dh

Top Chinese Government-backed APT Groups
Top Chinese Government-backed APT GroupsTop Chinese Government-backed APT Groups
Top Chinese Government-backed APT Groups
SOCRadar

Girls Call Mysore 000XX00000 Provide Best And Top Girl Service And No1 in City
Girls Call Mysore 000XX00000 Provide Best And Top Girl Service And No1 in CityGirls Call Mysore 000XX00000 Provide Best And Top Girl Service And No1 in City
Girls Call Mysore 000XX00000 Provide Best And Top Girl Service And No1 in City
neshakor5152

AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.
AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.
AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.
Srinivas Dukka

ERP Software Solutions Provider in Coimbatore
ERP Software Solutions Provider in CoimbatoreERP Software Solutions Provider in Coimbatore
ERP Software Solutions Provider in Coimbatore
Nextskill Technologies

VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
jealousviolet

Attendance Tracking From Paper To Digital
Attendance Tracking From Paper To DigitalAttendance Tracking From Paper To Digital
Attendance Tracking From Paper To Digital
Task Tracker

welcome to presentation on Google Apps
welcome to   presentation on Google Appswelcome to   presentation on Google Apps
welcome to presentation on Google Apps
AsifKarimJim

Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...
Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...
Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...
902basic

Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...
Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...
Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...
ashiklo9823

TEQnation 2024: Sustainable Software: May the Green Code Be with You
TEQnation 2024: Sustainable Software: May the Green Code Be with YouTEQnation 2024: Sustainable Software: May the Green Code Be with You
TEQnation 2024: Sustainable Software: May the Green Code Be with You
marcofolio

Girls Call Jogeshwari 9967584737 Provide Best And Top Girl Service And No1 in...
Girls Call Jogeshwari 9967584737 Provide Best And Top Girl Service And No1 in...Girls Call Jogeshwari 9967584737 Provide Best And Top Girl Service And No1 in...
Girls Call Jogeshwari 9967584737 Provide Best And Top Girl Service And No1 in...
simran hot girls

Mobile App Development Company in Noida - Drona Infotech.
Mobile App Development Company in Noida - Drona Infotech.Mobile App Development Company in Noida - Drona Infotech.
Mobile App Development Company in Noida - Drona Infotech.
Mobile App Development Company in Noida - Drona Infotech

Software development... for all? (keynote at ICSOFT'2024)
Software development... for all? (keynote at ICSOFT'2024)Software development... for all? (keynote at ICSOFT'2024)
Software development... for all? (keynote at ICSOFT'2024)
miso_uam

Comprehensive Vulnerability Assessments Process _ Aardwolf Security.docx
Comprehensive Vulnerability Assessments Process _ Aardwolf Security.docxComprehensive Vulnerability Assessments Process _ Aardwolf Security.docx
Comprehensive Vulnerability Assessments Process _ Aardwolf Security.docx
Aardwolf Security

IoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdf
IoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdfIoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdf
IoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdf
mohitd6

Maximizing Efficiency and Profitability: Optimizing Data Systems, Enhancing C...
Maximizing Efficiency and Profitability: Optimizing Data Systems, Enhancing C...Maximizing Efficiency and Profitability: Optimizing Data Systems, Enhancing C...
Maximizing Efficiency and Profitability: Optimizing Data Systems, Enhancing C...
OnePlan Solutions

NYGGS 360: A Complete ERP for Construction Innovation
NYGGS 360: A Complete ERP for Construction InnovationNYGGS 360: A Complete ERP for Construction Innovation
NYGGS 360: A Complete ERP for Construction Innovation
NYGGS Construction ERP Software


Recently uploaded (20)

ThaiPy meetup - Indexes and Django
ThaiPy meetup - Indexes and DjangoThaiPy meetup - Indexes and Django
ThaiPy meetup - Indexes and Django

Busty Girls Call Mumbai 9930245274 Unlimited Short Providing Girls Service Av...
Busty Girls Call Mumbai 9930245274 Unlimited Short Providing Girls Service Av...Busty Girls Call Mumbai 9930245274 Unlimited Short Providing Girls Service Av...
Busty Girls Call Mumbai 9930245274 Unlimited Short Providing Girls Service Av...

High Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 ...
High Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 ...High Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 ...
High Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 ...

Top Chinese Government-backed APT Groups
Top Chinese Government-backed APT GroupsTop Chinese Government-backed APT Groups
Top Chinese Government-backed APT Groups

Girls Call Mysore 000XX00000 Provide Best And Top Girl Service And No1 in City
Girls Call Mysore 000XX00000 Provide Best And Top Girl Service And No1 in CityGirls Call Mysore 000XX00000 Provide Best And Top Girl Service And No1 in City
Girls Call Mysore 000XX00000 Provide Best And Top Girl Service And No1 in City

AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.
AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.
AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.

ERP Software Solutions Provider in Coimbatore
ERP Software Solutions Provider in CoimbatoreERP Software Solutions Provider in Coimbatore
ERP Software Solutions Provider in Coimbatore

VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...

Attendance Tracking From Paper To Digital
Attendance Tracking From Paper To DigitalAttendance Tracking From Paper To Digital
Attendance Tracking From Paper To Digital

welcome to presentation on Google Apps
welcome to   presentation on Google Appswelcome to   presentation on Google Apps
welcome to presentation on Google Apps

Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...
Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...
Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...

Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...
Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...
Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...

TEQnation 2024: Sustainable Software: May the Green Code Be with You
TEQnation 2024: Sustainable Software: May the Green Code Be with YouTEQnation 2024: Sustainable Software: May the Green Code Be with You
TEQnation 2024: Sustainable Software: May the Green Code Be with You

Girls Call Jogeshwari 9967584737 Provide Best And Top Girl Service And No1 in...
Girls Call Jogeshwari 9967584737 Provide Best And Top Girl Service And No1 in...Girls Call Jogeshwari 9967584737 Provide Best And Top Girl Service And No1 in...
Girls Call Jogeshwari 9967584737 Provide Best And Top Girl Service And No1 in...

Mobile App Development Company in Noida - Drona Infotech.
Mobile App Development Company in Noida - Drona Infotech.Mobile App Development Company in Noida - Drona Infotech.
Mobile App Development Company in Noida - Drona Infotech.

Software development... for all? (keynote at ICSOFT'2024)
Software development... for all? (keynote at ICSOFT'2024)Software development... for all? (keynote at ICSOFT'2024)
Software development... for all? (keynote at ICSOFT'2024)

Comprehensive Vulnerability Assessments Process _ Aardwolf Security.docx
Comprehensive Vulnerability Assessments Process _ Aardwolf Security.docxComprehensive Vulnerability Assessments Process _ Aardwolf Security.docx
Comprehensive Vulnerability Assessments Process _ Aardwolf Security.docx

IoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdf
IoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdfIoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdf
IoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdf

Maximizing Efficiency and Profitability: Optimizing Data Systems, Enhancing C...
Maximizing Efficiency and Profitability: Optimizing Data Systems, Enhancing C...Maximizing Efficiency and Profitability: Optimizing Data Systems, Enhancing C...
Maximizing Efficiency and Profitability: Optimizing Data Systems, Enhancing C...

NYGGS 360: A Complete ERP for Construction Innovation
NYGGS 360: A Complete ERP for Construction InnovationNYGGS 360: A Complete ERP for Construction Innovation
NYGGS 360: A Complete ERP for Construction Innovation


Using Deep Learning to do Real-Time Scoring in Practical Applications

  • 1. © 2016 LigaData, Inc. All Rights Reserved. Using Deep Learning to do Real-Time Scoring in Practical Applications SFbayACM Data Science SIG, Monday, 1/25/2016 By Greg Makowski www.Linkedin.com/in/GregMakowski greg@LigaDATA.com Community @ http://Kamanja.org Try out
  • 2. •  Big Picture of 2016 Technology •  Neural Net Basics •  Deep Network Configurations for Practical Applications –  Auto-Encoder (i.e. data compression or Principal Components Analysis) –  Convolutional (shift invariance in time or space for voice, image or IoT) –  Real Time Scoring and Lambda Architecture –  Deep Net libraries and tools (Theano, Tourch, TensorFlow, ... Kamanja) –  Reinforcement Learning, Q-Learning (i.e. beat people at Atari games, IoT) –  Continuous Space Word Models (i.e. word2vec) Deep Learning - Outline
  • 4. Is Deep Learning Hype? Is this just a “buzzword of the day or year?” Is this improvement at the normal pace?
  • 5. Is Deep Learning Hype? Is this just a “buzzword of the day or year?” Is this improvement at the normal pace? NO ! Not only a buzzword This is a leap in the rate of improvement! So What? Show me…
  • 6. http://whatsnext.nuance.com/in-the-labs/what-is-deep-machine-learning/ Deep Learning Caused about an 18% / Year Reduction in Error in Speech Recognition (Nuance) not only did DNNs drive error rates down at once, … they promise a lot of poten8al for the years to come. It is no overstatement to say that DNNs were the single largest contributor to innovation across many of our products in recent years.
  • 7. http://whatsnext.nuance.com/in-the-labs/what-is-deep-machine-learning/ 2008, 09, 10, 11, 12, 13, 14, 15 Deep Learning Caused about an 18% / Year Reduction in Error in Speech Recognition (Nuance) What if Moore’s Law changed from 2X to 4x over the last 7 years, because of a new technology advance! not only did DNNs drive error rates down at once, … they promise a lot of poten8al for the years to come. It is no overstatement to say that DNNs were the single largest contributor to innovation across many of our products in recent years.
  • 8. Neural Net training is 10+ times faster on GPU’s
 The gaming market is pushing for faster GPU speeds https://jonpeddie.com/publications/ whitepapers/an-analysis-of-the-gpu- market https://developer.nvidia.com/cudnn
  • 9. •  Big Picture of 2016 Technology •  Neural Net Basics •  Deep Network Configurations for Practical Applications –  Auto-Encoder (i.e. data compression or Principal Components Analysis) –  Convolutional (shift invariance in time or space for voice, image or IoT) –  Real Time Scoring and Lambda Architecture –  Deep Net libraries and tools (Theano, Tourch, TensorFlow, ... Kamanja) –  Reinforcement Learning, Q-Learning (i.e. beat people at Atari games, IoT) –  Continuous Space Word Models (i.e. word2vec) Deep Learning - Outline
  • 10. Advantages of a Net over Regression 10 field 1 field 2 $ c $ $ $ $ $ $ $ $ $ $ $ $ $ c c c c c c c c c c c c c c c c c c c c c c c c A Regression Solution “Linear” Fit one Line $ c Target values for a data point with source field values graphed by “field 1” and “field 2” Showing ONE target field, with values of $ or c https://en.wikipedia.org/wiki/Regression_analysis
  • 11. Advantages of a Net ! over Regression! 11 field 1 field 2 $ c $ $ $ $ $ $ $ $ $ $ $ $ $ c c c c c c c c c c c c c c c c c c c c c c c c A Neural Net Solution “Non-Linear” Several regions which are not adjacent Hidden nodes can be line or circle https://en.wikipedia.org/wiki/Artificial_neural_network
  • 12. ! A Comparison of a Neural Net! and Regression! A Logistic regression formula: Y = f( a0 + a1*X1 + a2*X2 + a3*X3) a* are coefficients Backpropagation, cast in a similar form: H1 = f(w0 + w1*I1 + w2*I2 + w3*I3) H2 = f(w4 + w5*I1 + w6*I2 + w7*I3) : Hn = f(w8 + w9*I1 + w10*I2 + w11*I3) O1 = f(w12 + w13*H1 + .... + w15*Hn) On = .... w* are weights, AKA coefficients I1..In are input nodes or input variables. H1..Hn are hidden nodes, which extract features of the data. O1..On are the outputs, which group disjoint categories. Look at ratio of training records v.s. free parameters (complexity, regularization) a0 a1 a2 a3 X1 X2 X3 Y Input 1 I2 I3 Bias H1 Hidden 2 Output w1 w2 w3 Dot product is Cosine similarity, used broadly Tensors are matrices of N dimensions
  • 13. Think of Separating Land vs. Water 13 1 line, Regression (more errors) 5 Hidden Nodes in a Neural Network Different algorithms use different Basis Functions: •  One line •  Many horizontal & vertical lines •  Many diagonal lines •  Circles Decision Tree 12 splits (more elements, Less computation) Q) What is too detailed? “Memorizing high tide boundary” and applying it at all times
  • 14. •  Big Picture of 2016 Technology •  Neural Net Basics •  Deep Network Configurations for Practical Applications –  Auto-Encoder (i.e. data compression or Principal Components Analysis) –  Convolutional (shift invariance in time or space for voice, image or IoT) –  Real Time Scoring and Lambda Architecture –  Deep Net libraries and tools (Theano, Tourch, TensorFlow, ... Kamanja) –  Reinforcement Learning, Q-Learning (i.e. beat people at Atari games, IoT) –  Continuous Space Word Models (i.e. word2vec) Deep Learning - Outline http://deeplearning.net/ http://www.kdnuggets.com/ http://www.analyticbridge.com/
  • 15. Leading up to an Auto Encoder
 •  Supervised Learning –  Regression (one layer, one line, one dot-product) •  50 inputs à 1 output –  Possible nets: •  256 à 120 à 1 •  256 à 120 à 5 (trees, regression, SVM & most algs are limited to 1 output) •  256 ! 120 ! 60 ! 1 (can try 2 hidden layers, 3 sets of weights) •  256 à 180 à 120 à 60 à 1 (start getting into training stability problems, with 1990’s training processes) •  Unsupervised Learning –  Clustering (traditional unsupervised): •  60 inputs (no output target); produce 1-2 new (cluster ID & distance)
  • 16. Auto Encoder (like data compression)
 Relate input to output, through compressed middle At each step of training Only train the black connections 256 256 180 Output (same as input values) Input …256 120 180 … 256 180 … … … Step 1, Train 1st Hidden Layer (Tensor) Step 2, Train 2nd Hidden Layer (Tensor) Called “Auto Encoder” because input values = target values Unsupervised, there are no additional target values “Data Compression” because Compress 256 numbers into 180 numbers
  • 17. Auto Encoder (like data compression)
 Relate input to output, through compressed middle •  Supervised Learning –  Regression, Tree or Net: 50 inputs à 1 output –  Possible nets: •  256 à 120 à 1 •  256 à 120 à 5 (trees, regressions, SVD and most are limited to 1 output) •  256 à 120 à 60 à 1 •  256 à 180 à 120 à 60 à 1 •  Unsupervised Learning –  Clustering (traditional unsupervised): •  60 inputs (no target); produce 1-2 new (cluster ID & distance) –  Unsupervised training of a net, assign (target record == input record) AUTO- ENCODING –  Train net in stages, •  256 à 180 à 256 à 120 à à 120 à à 120 à •  Add supervised layer to forecast 10 target categories à 10 Because of symmetry, Only need to update mirrored weights once (start getting long training times to stabilize, or may not finish, The BREAKTHROUGH provided by DEEP LEARNING) 4 hidden layers w/ unsupervised training 1 layer at end w/ supervised training https://en.wikipedia.org/wiki/Deep_learning
  • 18. Auto Encoder (like data compression)
 With Supervised Layers on Top Unsupervised output Like cluster output, Only large values are a match (not distance) Train Supervised Layers on Top Regular Back Propagation Using unsupervised nodes as input 256 180 120 120 : Target specific to the problem Fraud risk * $ Cat, dog, human, other 256 180 120 120 : 50 1, 2, 10 or…
  • 19. Auto Encoder
 How it can be generally used to solve problems •  Add supervised layer to forecast 10 target categories –  4 hidden layers trained with unuspervised training, –  1 new layer, trained with supervised learning à 10 •  Outlier detection •  The “activation” at each of the 120 output nodes indicates the “match” to that cluster or compressed feature •  When scoring new records, can detect outliers with a process like If ( max_output_match < 0.333) then suspected outlier •  How is it like PCA? –  Individual hidden nodes in the same layer are “different” or “orthogonal”
  • 20. Fraud Detection Example using
 Deep Learning – auto encoders •  Unsupervised Learning of Normal Behavior(Outlier Detection) –  May want to preprocess transaction data - in the context of the person’s past normal behavior •  0..1, where 1 is the most SURPRISING for that person to act •  0..1, where 1 is the most RISKY of fraud •  General, descriptive attributes that can be used for interactions •  Filter out from the training data – the most surprising & risky •  Want to the net to learn “normal” records –  Train 5-10 layers deep, end up with 50 to 100+ nodes at end –  Score records on membership in final nodes •  Transactions that are far from all final nodes are candidates for outliers •  Validate with existing surprising & risky. Add application post-processing •  Supervised Learning –  Add two layers on top, train to predict normal vs. surprising/risky labeled data (if it is available)
  • 21. •  Big Picture of 2016 Technology •  Neural Net Basics •  Deep Network Configurations for Practical Applications –  Auto-Encoder (i.e. data compression or Principal Components Analysis) –  Convolutional (shift invariance in time or space for voice, image or IoT) –  Real Time Scoring and Lambda Architecture –  Deep Net libraries and tools (Theano, Tourch, TensorFlow, ... Kamanja) –  Reinforcement Learning, Q-Learning (i.e. beat people at Atari games, IoT) –  Continuous Space Word Models (i.e. word2vec) Deep Learning - Outline
  • 22. Internet of Things (IoT) is heavily signal data http://www.datasciencecentral.com/profiles/blogs/the-internet-of-things-data-science-and-big-data
  • 23. Convolutional Neural Net (CNN)
 Enables detecting shift invariant patterns In Speech and Image applications, patterns vary by size, can be shifted right or left Challenge: finding a bounding box for a pattern is almost as hard as detecting the pat. Neural Nets can be explicitly trained to provide a FFT (Fast Fourier Transform) to convert data from time domain to the frequency domain – but typically an explicit FFT is used Internet of Things Signal Data
  • 24. Convolutional Neural Net (CNN)
 Enables detecting shift invariant patterns In Speech and Image applications, patterns vary by size, can be shifted right or left Challenge: finding a bounding box for a pattern is almost as hard as detecting the pat. Solution: use a siding convolution to detect the pattern CNN can use very long observational windows, up to 400 ms, long context
  • 25. Convolution – Shift Horizontal •  SAME 25 WEIGHTS FEED INTO EACH OUTPUT •  Backpropaga8on weight update is averaged •  Otherwise NO convolu8on and HUGE complexity! Max pooling Layer output = 1.2
  • 27. Convolution – Shift Horizontal & Vertical Max pooling Layer output = 0.8
  • 28. Convolution – 3 Weight Patterns, Shifted 2D Hidden Layer 1 Output Sections Per Convolution 3(10x3) – detection layer Hidden Layer 1 Weights Per Conv. Pattern Input pixels, audio, video or IoT signal (14 x 7). Convolutions can be over 3+ dimensions (video frames, time invariance) Max pooling layer output = 0.8 Max pooling layer output = 1.0 Max pooling layer output = 0.9
  • 29. Convolution Neural Net (CNN)
 Same Low Level Features can support different output http://stats.stackexchange.com/questions/146413/why-convolutional-neural-networks-belong-to-deep-learning Previous Slides Showed Training this Hidden 1 Layer Same Training process for later hidden layers, one at a time Think of fraud detection higher level node patterns
  • 30. Convolution Neural Net:
 from LeNet-5 Gradient-Based Learning Applied to Document Recognition Proceedings of the IEEE, Nov 1998 Yann LeCun, Leon Bottou, Yoshua Bengio and Patrick Haffner Director Facebook, AI Research http://yann.lecun.com/Can do some size invariance, but it adds to the layers
  • 32. Convolution Neural Net (CNN) •  How is a CNN trained differently than a typical back propagation (BP) network? –  Parts of the training which is the same: •  Present input record •  Forward pass through the network •  Back propagate error (i.e. per epoch) –  Different parts of training: •  Some connections are CONSTRAINED to the same value –  The connections for the same pattern, sliding over all input space •  Error updates are averaged and applied equally to the one set of weight values •  End up with the same pattern detector feeding many nodes at the next level http://www.cs.toronto.edu/~rgrosse/icml09-cdbn.pdf Convolutional Deep Belief Networks for Scalable Unsupervised Learning of Hierarchical Representations, 2009
  • 33. The Mammalian Visual Cortex is Hierarchical
 (The Brain is a Deep Neural Net - Yann LeCun) http://www.pamitc.org/cvpr15/files/lecun-20150610-cvpr-keynote.pdf 0 1 2 3 4 5 6 7 8 9 1011
  • 34. Convolution Neural Net (CNN)
 Facebook example https://gigaom.com/2014/03/18/facebook-shows-off-its-deep-learning-skills-with-deepface/
  • 35. Convolution Neural Net (CNN)
 Yahoo + Stanford example – find a face in a pic, even upside down http://www.dailymail.co.uk/sciencetech/article-2958597/Facial-recognition-breakthrough-Deep-Dense-software-spots-faces-images-partially-hidden-UPSIDE-DOWN.html
  • 36. Convolutional Neural Nets (CNN)
 Robotic Grasp Detection (IoT) http://pjreddie.com/media/files/papers/grasp_detection_1.pdf
  • 37. •  Big Picture of 2016 Technology •  Neural Net Basics •  Deep Network Configurations for Practical Applications –  Auto-Encoder (i.e. data compression or Principal Components Analysis) –  Convolutional (shift invariance in time or space for voice, image or IoT) –  Real Time Scoring and Lambda Architecture –  Deep Net libraries and tools (Theano, Tourch, TensorFlow, ... Kamanja) –  Reinforcement Learning, Q-Learning (i.e. beat people at Atari games, IoT) –  Continuous Space Word Models (i.e. word2vec) Deep Learning - Outline
  • 38. Real Time Scoring
 Neural Net Optimizations •  Auto-Encoding nets –  Can grow to millions of connections, and start to get computational –  Can reduce connections by 5% to 25+% with pruning & retraining •  Train with increased regularization settings •  Drop connections with near zero weights, then retrain •  Drop nodes with fan in connections which don’t get used much later, such as in your predictive problem •  Perform sensitivity analysis – delete possible input fields •  Convolutional Neural Nets –  With large enough data, can even skip the FFT preprocessing step –  Can use wider than 10ms audio sampling rates for speed up •  Implement other preprocessing as lookup tables (i.e. Bayesian Priors) •  Use cloud computing, do not limit to device computing •  Large models don’t fit à use model or data parallelism to train
  • 39. © 2016 LigaData, Inc. All Rights Reserved. 39 Real Time Scoring – Enterprise App Architecture uses
 Lambda Architecture – for both Batch and Real Time •  First architecture to really define how batch and stream processing can work together •  Founded on the concepts of immutability and re-computation, with human fault tolerance •  Pre-computes the results of batch & real-time processes as a set of views, & query layer merges the views https://en.wikipedia.org/wiki/Lambda_architecture Speed Layer Batch Layer Query Master Data Batch Processing Speed Processing Real-time AnalyticsSpeed Views Batch Views Merged ViewsNew Data B New Data A
  • 40. © 2016 LigaData, Inc. All Rights Reserved. 40 HDFS Spark Map Reduce Spark
 Streaming Storm Real Time Scoring
 Lambda Architecture With Kamanja Decisioning Layer Batch Layer Query Master Data Batch Processing Real-time Analytics Action Queue Serving Layer Speed Views Batch Views Merged Views Kafka MQ Files AVRO/ Flume Continuous Decisioning Cassandra HBase Druid PMML, Java, Scala, Python, Deep Learning Kafka MQ All New Data Speed Layer Speed Processing Decisioning Data Continuous Feedback Model Data Elephant DB Impala
  • 41. © 2016 LigaData, Inc. All Rights Reserved. 41 Kamanja Technology Stack Compute Fabric Cloud, EC2 Internal Cloud Security Kerberos Real Time Streaming Kafka, MQ Spark* LigaData Data Store HBase, Cassandra, InfluxDB HDFS (Create adaptors to integrate others) Resource Management Zookeeper, Yarn* High Level Languages / Abstractions PMML Producers, MLlib Real Time Computing Kamanja PMML, Java, Scala
  • 43. Deep Learning Tools By Google, 600 DL proj Speech Google Photos Translation Gmail Search Rajat Monga, Tech Lead & Manager for TensorFlow
  • 46. •  Big Picture of 2016 Technology •  Neural Net Basics •  Deep Network Configurations for Practical Applications –  Auto-Encoder (i.e. data compression or Principal Components Analysis) –  Convolutional (shift invariance in time or space for voice, image or IoT) –  Real Time Scoring and Lambda Architecture –  Deep Net libraries and tools (Theano, Tourch, TensorFlow, ... Kamanja) –  Reinforcement Learning, Q-Learning (i.e. beat people at Atari games, IoT) –  Continuous Space Word Models (i.e. word2vec) Deep Learning - Outline
  • 47. Reinforcement Learning (RL) •  Different than supervised and unsupervised learning •  Q) Can the network figure out hot to take one or more actions NOW, to achieve a reward or payout (potentially far-off, i.e. T steps in the FUTURE? •  Need to solve the credit assignment problem –  There is no teacher and very little labeled data –  Need to learn the best POLICY that will achieve the best outcome –  Assume no knowledge of the process model or reward function •  Next guess = –  Linear combination of ((current guess) and (the new reward info just collected)), weighted by the learning rate http://www.humphreysheil.com/blog/gorila-google-reinforcement-learning-architecture http://robotics.ai.uiuc.edu/~scandido/?Developing_Reinforcement_Learning_from_the_Bellman_Equation
  • 48. Deep Reinforcement Learning (RL), Q-Learning http://www.iclr.cc/lib/exe/fetch.php?media=iclr2015:silver-iclr2015.pdf David Silver, Google DeepMind https://en.wikipedia.org/wiki/Reinforcement_learning https://en.wikipedia.org/wiki/Q-learning Think in terms of IoT…. Device agent measures, infers user’s action Maximizes future reward, recommends to user or system
  • 49. Deep Reinforcement Learning, Q-Learning
 (Think about IoT possibilities) http://www.iclr.cc/lib/exe/fetch.php?media=iclr2015:silver-iclr2015.pdf David Silver, Google DeepMind Use last 4 screen shots
  • 50. Deep Reinforcement Learning, Q-Learning http://www.iclr.cc/lib/exe/fetch.php?media=iclr2015:silver-iclr2015.pdf David Silver, Google DeepMind Use 4 screen shots Use 4 screen shots IoT challenge: How to replace game score with IoT score? Shift right fast shift right stay shift left shift left fast
  • 51. Deep Reinforcement Learning, Q-Learning http://www.iclr.cc/lib/exe/fetch.php?media=iclr2015:silver-iclr2015.pdf David Silver, Google DeepMind Games w/ best Q-learning Video Pinball Breakout Star Gunner Crazy Climber Gopher
  • 52. •  Big Picture of 2016 Technology •  Neural Net Basics •  Deep Network Configurations for Practical Applications –  Auto-Encoder (i.e. data compression or Principal Components Analysis) –  Convolutional (shift invariance in time or space for voice, image or IoT) –  Real Time Scoring –  Deep Net libraries and tools (Theano, Tourch, TensorFlow, ... Kamanja) –  Reinforcement Learning, Q-Learning (i.e. beat people at Atari games, IoT) –  Continuous Space Word Models (i.e. word2vec) Deep Learning - Outline
  • 53. Continuous Space Word Models (word2vec) •  Before (a predictive “Bag of Words” model): –  One row per document, paragraph or web page –  Binary word space: 10k to 200k columns, one per word or phrase 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 1 …. “This word space model is ….” –  The “Bag of words model” relates input record to a target category
  • 54. Continuous Space Word Models (word2vec) •  Before (a predictive “Bag of Words” model): –  One row per document, paragraph or web page –  Binary word space: 10k to 200k columns, one per word or phrase 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 1 …. “This word space model is ….” –  The “Bag of words model” relates input record to a target category •  New: –  One row per word (word2vec), possibly per sentence (sent2vec) –  Continuous word space: 100 to 300 columns, continuous values .01 .05 .02 .00 .00 .68 .01 .01 .35 ... .00 à “King” .00 .00 .05 .01 .49 .52 .00 .11 .84 ... .01 à “Queen” –  The deep net training resulted in an Emergent Property: •  Numeric geometry location relates to concept space •  “King” – “man” + “woman” = “Queen” (math to change gender relation) •  “USA” – “Washington DC” + “England” = “London” (math for capital relation)
  • 55. Continuous Space Word Models (word2vec)
 How to SCALE to larger vocabularies? http://www.slideshare.net/hustwj/cikm-keynotenov2014?qid=f92c9e86-feea-41ac-a099-d086efa6fac1&v=default&b=&from_search=2
  • 56. Training Continuous Space Word Models •  How to Train These Models? –  Raw data: “This example sentence shows the word2vec model training.”
  • 57. Training Continuous Space Word Models •  How to Train These Models? –  Raw data: “This example sentence shows the word2vec model training.” –  Training data (with target values underscored, and other words as input) “This example sentence shows word2vec” (prune “the”) “example sentence shows word2vec model” “sentence shows word2vec model training” –  The context of the 2 to 5 prior and following words predict the middle word –  Deep Net model architecture, data compression to 300 continuous nodes •  50k binary word input vector à ... à 300 à ... à 50k word target vector
  • 58. Training Continuous Space Word Models •  Use Pre-Trained Models https://code.google.com/p/word2vec/ –  Trained on 100 billion words from Google News –  300 dim vectors for 3 million words and phrases –  https://code.google.com/p/word2vec/ •  Questions on re-use: –  What if I want to train to add client terms or docs? –  What about stability (keeping past training) vs. placticity (learning new content)
  • 59. Training Continuous Space Word Models http://www.slideshare.net/hustwj/cikm-keynotenov2014?qid=f92c9e86-feea-41ac-a099-d086efa6fac1&v=default&b=&from_search=2
  • 60. Applying Continuous Space Word Models http://static.googleusercontent.com/media/research.google.com/en//people/jeff/BayLearn2015.pdf State of the art in machine translation Sequence to Sequence Learning with neural Networks, NIPS 2014 Language translation Document summary Generate text captions for pictures .01 .05 .89 .00 .05 .62 .00 .34
  • 61. “Greg’s Guts” on Deep Learning •  Some claim the need for preprocessing and knowledge representation has ended –  For most of the signal processing applications à yes, simplify –  I am VERY READY TO COMPETE in other applications, continuing •  expressing explicit domain knowledge – using lookup data for context •  optimizing business value calculations •  Deep Learning gets big advantages from big data –  Why? Better populating high dimensional space combination subsets –  Unsupervised feature extraction reduces need for large labeled data •  However, “regular sized data” gets a big boost as well –  The “ratio of free parameters” (i.e. neurons) to training set records –  For regressions or regular nets, want 5-10 times as many records –  Regularization and weight drop out reduces this pressure –  Especially when only training “the next auto encoding layer”
  • 62. Deep Learning Summary – ITS EXCITING! •  Discussed Deep Learning architectures –  Auto Encoder, convolutional, reinforcement learning, continuous word •  Real Time speed up –  Train model, reduce complexity, retrain –  Simplify preprocessing with lookup tables –  Use cloud computing, do not be limited to device computing –  Lambda architecture like Kamanja, to combine real time and batch •  Applications –  Fraud detection –  Signal Data: IoT, Speech, Images –  Control System models (like Atari game playing, IoT) –  Language Models https://www.quora.com/Why-is-deep-learning-in-such-demand-now
  • 63. © 2016 LigaData, Inc. All Rights Reserved. Using Deep Learning to do Real-Time Scoring in Practical Applications SFbayACM Data Science Meetup Monday 1/25/2016 By Greg Makowski www.Linkedin.com/in/GregMakowski greg@LigaDATA.com Community @ http://Kamanja.org Try out
