This document discusses different types of computer networks including LANs, WLANs, and WANs. It describes the hardware and software requirements for each network type. LANs are used for intranets and business networks within an organization. WLANs allow for wireless connectivity using Wi-Fi standards. WANs connect LANs across broad geographic areas using the internet, VPNs, and other wide-reaching networks. Common network hardware includes PCs, servers, switches, routers and cabling. Software like FTP, HTTP, and VPN protocols are used to transfer and secure files between networked devices.

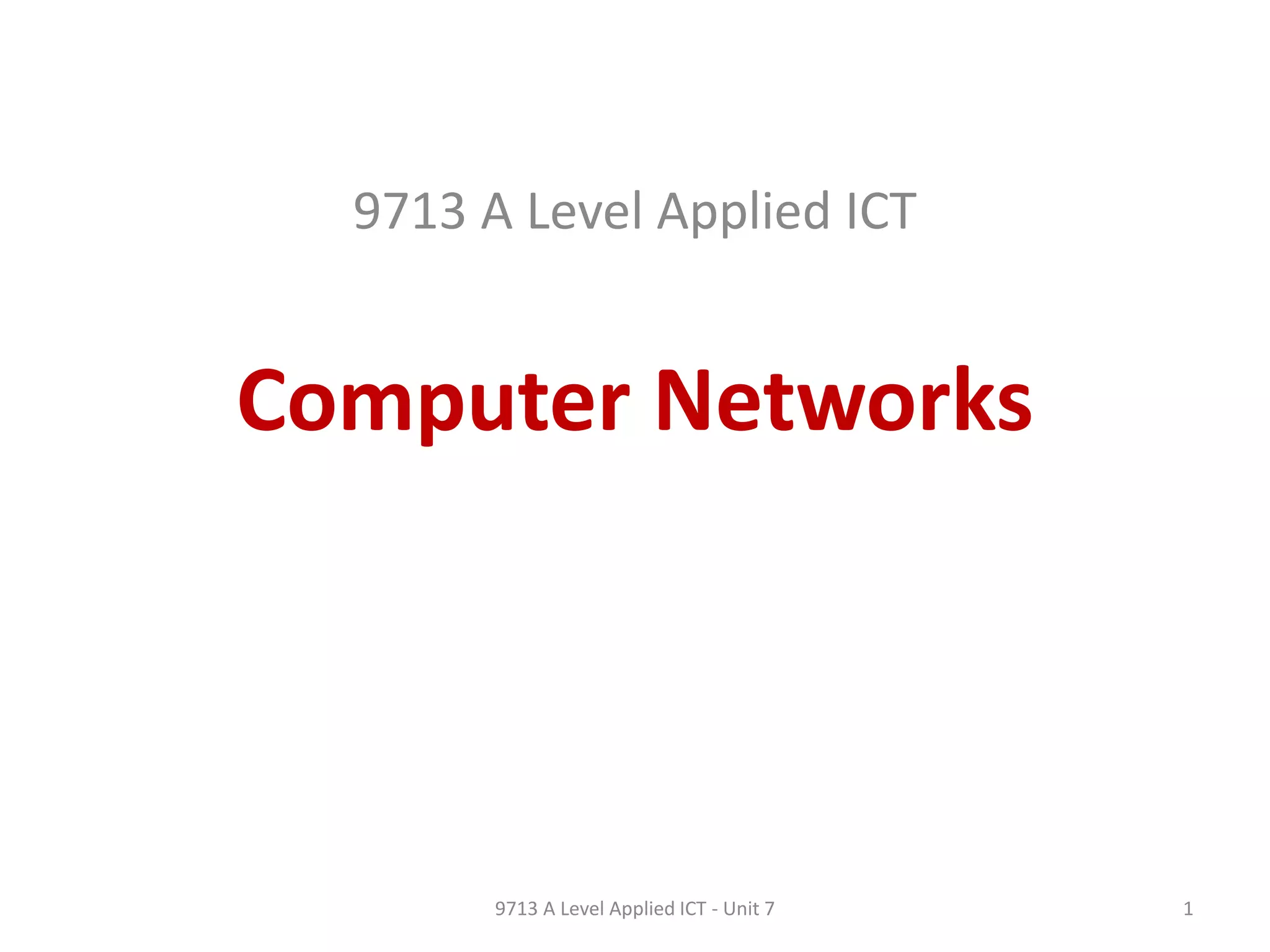

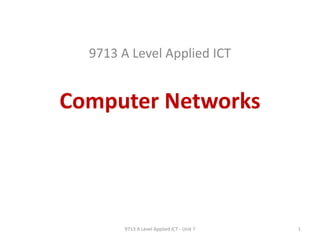

1. Computer Networks
9713 A Level Applied ICT
19713 A Level Applied ICT - Unit 7

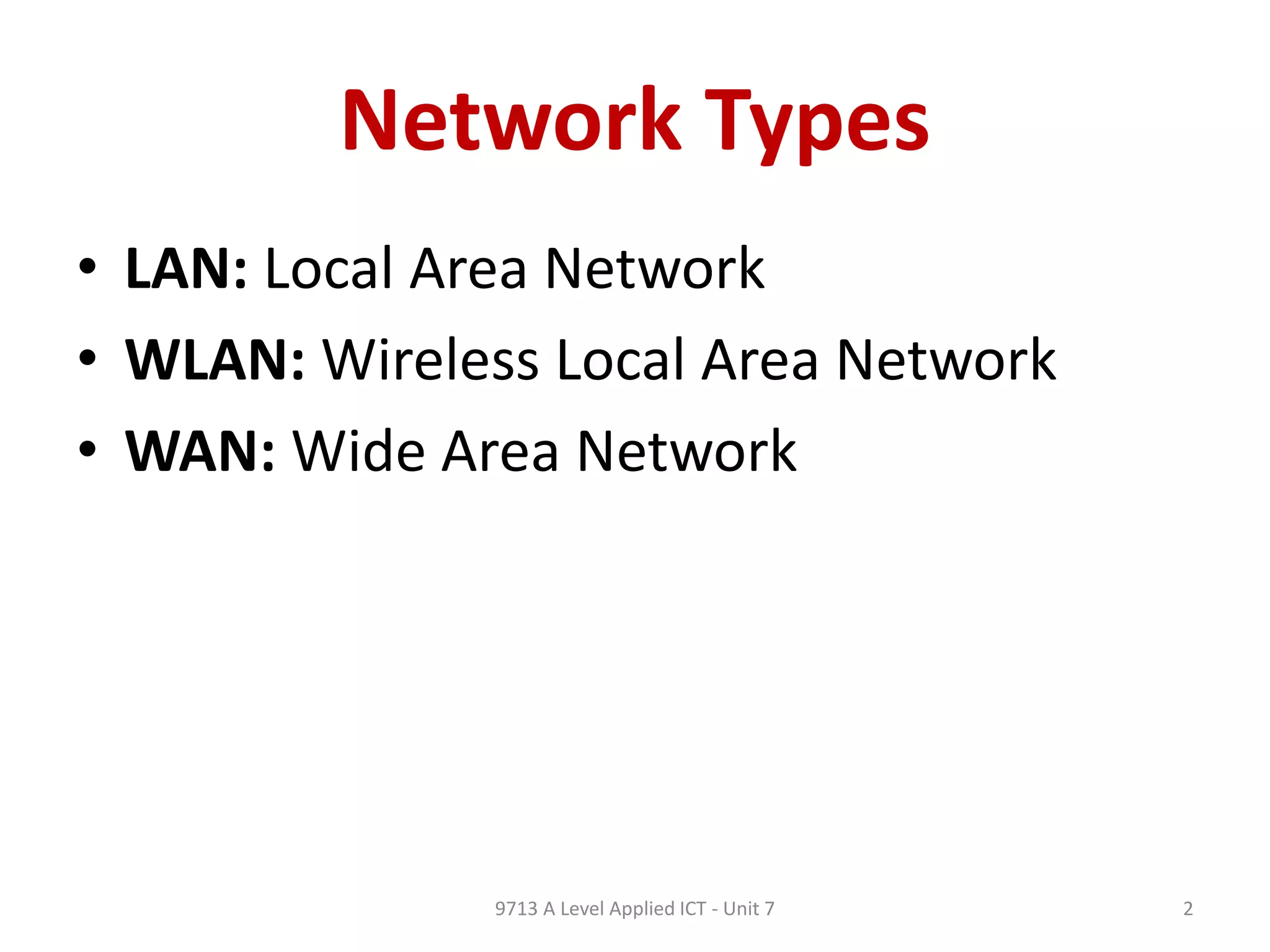

2. Network Types
• LAN: Local Area Network
• WLAN: Wireless Local Area Network
• WAN: Wide Area Network
29713 A Level Applied ICT - Unit 7

3. LAN
• Intranet
• Local email
• Business network
Hardware requirements
• PC
• Hub
• Switch
• Router
• Dedicated cabling
• Server
• Network card
Software requirements
• FTP
• HTTP
• Telnet
• SSH
• Router software
39713 A Level Applied ICT - Unit 7

4. WLAN
4
• Wi-Fi (IEEE 802.11 standards – b, g, n)
• Infrared
• Spread spectrum transmission (walkie-talkie)
Used for:
• Email
• Business network
9713 A Level Applied ICT - Unit 7

5. WAN
• Internet
• Extranets
• Email
• Virtual private network
(VPN)
• Video conferencing
• Business network
• Telephone call centre
• Booking system
• Online shopping
• Online banking
Hardware requirements
• PC
• Modem
• Hub
• Switch
• Router
• Server
• Proxy server
• VPN
59713 A Level Applied ICT - Unit 7

6. Network
Hub
• Used to connect computers to server/computer
• Not a very efficient network device as it sends data to all linked devices
• Hubs may amplify received signal
• Hubs work at MAC level (MAC - Media Access Control address of NIC)
Switch
• An advancement on a hub
• It directs the data stream only to the addressed device
• It prevents congestion on a segment of network
• Switches use a list of device addresses
• Redirects ‘ack’ packet (Acknowledgement packet) directly to sending
computer
• Switches also work at MAC level
9713 AS Applied ICT - Unit 5 6
Hardware devices

7. Network
Router
• Gateway device
• Links LANs to make a WAN
• Includes a firewall
• Directs packets according to their IP address
• Stores list of connected devices
• Redirects packets to correct switch/hub
• Translates protocols (between networks) - bridge
9713 AS Applied ICT - Unit 5 7
Hardware devices

8. Network
Cabling can be twisted pair, coaxial or fibre
optics
Servers:
• Link computers/store files/applications
• Can be for storage, web, proxy, email, etc.
Network interface card (NIC):
• Allows the processor to connect to a server
• Allocated IP address of the computer
9713 AS Applied ICT - Unit 5 8
Hardware devices

9. FTP – File Transfer Protocol
Network protocol used to transfer files from one computer to another TCP-
based network (as the Internet)
HTTP – HyperText Transfer Protocol
Foundation protocol of data communication for the World Wide Web
Telnet
• Used to gain access to another users computer/remote access to server
• Used to transfer/access data
• Requires a password login id
• Lacks security
• Uses TCP/IP protocol (as a lower level)
Secure Shell (SSH)
Network protocol for secure data communication via a secure channel
9713 AS Applied ICT - Unit 5 9
Network
Protocols (Software)

10. • Ring
• Bus
• Star
• Tree
10
Network Topology
9713 A Level Applied ICT - Unit 6

11. • Physical security
–Locked room
–Security guard
• Software security
11
Network security
9713 A Level Applied ICT - Unit 6

12. Network security
Software security:
• Firewall
• Digital certification
• Encryption
• Anti virus software
• User ID
• Password
• Anti spam
• Anti pop up software
• Anti spyware software
• Authentication
techniques
• Wired equivalent
privacy (WEP)
129713 A Level Applied ICT - Unit 6

13. Electronic conferencing
Types:
• Video conferencing
• Phone conferencing
• Instant messaging
Used in:
• Business conferences
• Linking schools
• Research meetings
139713 A Level Applied ICT - Unit 6

14. Electronic conferencing
Software requirements
• Conference software
• VOIP software
• Instant messaging
Hardware requirements
• PC
• Phone
• Webcam
• Microphone
• Speakers
149713 A Level Applied ICT - Unit 6
