This document discusses the internal structure of the Earth and types of relief on its surface. It describes how the lithosphere is made up of tectonic plates that move slowly over time, causing collisions that form mountains and separations that create mid-ocean ridges. The relief of the Earth is formed through both internal geological forces like folding and faulting, as well as external agents like erosion. The three main types of relief are continental, coastal, and ocean, each with distinct landforms like mountains, valleys, and ocean trenches.

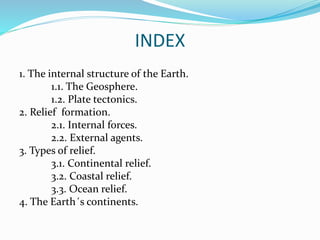

2. INDEX
1. The internal structure of the Earth.
1.1. The Geosphere.
1.2. Plate tectonics.
2. Relief formation.
2.1. Internal forces.
2.2. External agents.
3. Types of relief.
3.1. Continental relief.
3.2. Coastal relief.
3.3. Ocean relief.
4. The Earth´s continents.

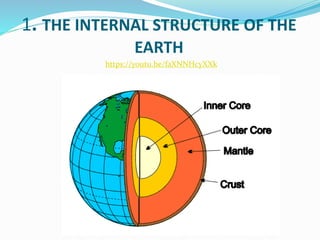

3. 1. THE INTERNAL STRUCTURE OF THE
EARTH
https://youtu.be/faXNNHcyXXk

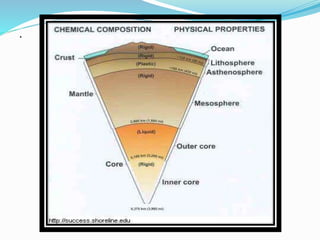

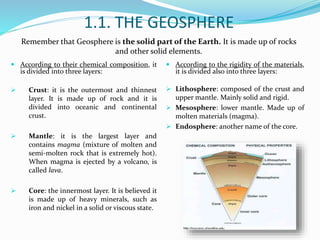

4. 1.1. THE GEOSPHERE
 According to their chemical composition, it
is divided into three layers:
 Crust: it is the outermost and thinnest
layer. It is made up of rock and it is
divided into oceanic and continental
crust.
 Mantle: it is the largest layer and
contains magma (mixture of molten and
semi-molten rock that is extremely hot).
When magma is ejected by a volcano, is
called lava.
 Core: the innermost layer. It is believed it
is made up of heavy minerals, such as
iron and nickel in a solid or viscous state.
 According to the rigidity of the materials,
it is divided also into three layers:
 Lithosphere: composed of the crust and
upper mantle. Mainly solid and rigid.
 Mesosphere: lower mantle. Made up of
molten materials (magma).
 Endosphere: another name of the core.
Remember that Geosphere is the solid part of the Earth. It is made up of rocks
and other solid elements.

5. .

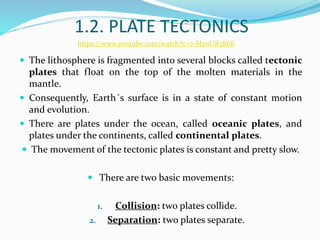

6. 1.2. PLATE TECTONICS
 The lithosphere is fragmented into several blocks called tectonic
plates that float on the top of the molten materials in the
mantle.
 Consequently, Earth´s surface is in a state of constant motion
and evolution.
 There are plates under the ocean, called oceanic plates, and
plates under the continents, called continental plates.
 The movement of the tectonic plates is constant and pretty slow.
 There are two basic movements:
1. Collision: two plates collide.
2. Separation: two plates separate.
https://www.youtube.com/watch?v=7-MzoUR3R6E

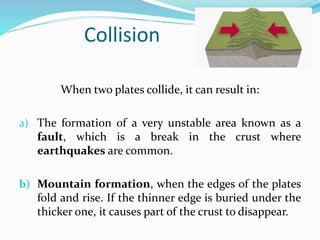

7. Collision
When two plates collide, it can result in:
a) The formation of a very unstable area known as a
fault, which is a break in the crust where
earthquakes are common.
b) Mountain formation, when the edges of the plates
fold and rise. If the thinner edge is buried under the
thicker one, it causes part of the crust to disappear.

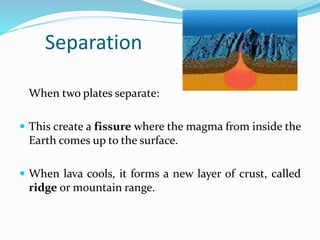

8. Separation
When two plates separate:
 This create a fissure where the magma from inside the
Earth comes up to the surface.
 When lava cools, it forms a new layer of crust, called
ridge or mountain range.

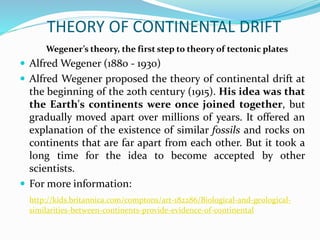

9. THEORY OF CONTINENTAL DRIFT
Wegener’s theory, the first step to theory of tectonic plates
 Alfred Wegener (1880 - 1930)
 Alfred Wegener proposed the theory of continental drift at
the beginning of the 20th century (1915). His idea was that
the Earth's continents were once joined together, but
gradually moved apart over millions of years. It offered an
explanation of the existence of similar fossils and rocks on
continents that are far apart from each other. But it took a
long time for the idea to become accepted by other
scientists.
 For more information:
http://kids.britannica.com/comptons/art-182286/Biological-and-geological-
similarities-between-continents-provide-evidence-of-continental

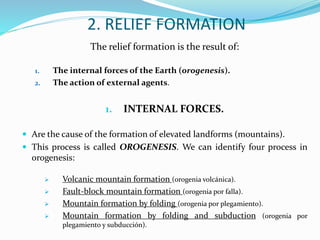

10. 2. RELIEF FORMATION
The relief formation is the result of:
1. The internal forces of the Earth (orogenesis).
2. The action of external agents.
1. INTERNAL FORCES.
 Are the cause of the formation of elevated landforms (mountains).
 This process is called OROGENESIS. We can identify four process in
orogenesis:
 Volcanic mountain formation (orogenia volcánica).
 Fault-block mountain formation (orogenia por falla).
 Mountain formation by folding (orogenia por plegamiento).
 Mountain formation by folding and subduction (orogenia por
plegamiento y subducción).

11. Volcanic mountain formation
- Occurs when two tectonic plates
separate, creating a ridge.
- Magma erupts from the volcano.
- This lava cools and solidifies, forming
mountain ranges and volcanic cones.
Fault blocks
- Occur when forces act on blocks of
hard materials which cannot fold.
- These forces produce earthquakes,
which break up the blocks.
- This forms a relief made of raised and
lowered blocks.

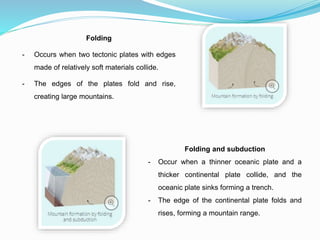

12. Folding
- Occurs when two tectonic plates with edges
made of relatively soft materials collide.
- The edges of the plates fold and rise,
creating large mountains.
Folding and subduction
- Occur when a thinner oceanic plate and a
thicker continental plate collide, and the
oceanic plate sinks forming a trench.
- The edge of the continental plate folds and
rises, forming a mountain range.

13.  Elevated landforms are modified by the action of external agents:
water, wind and living beings.
 External agents shape the Earth’s relief through the interaction of three
geological processes:
 Erosion is the disintegration of landforms by the external agents
(fluvial erosion, coastal erosion, wind erosion…).
 Transportation is the movement of the eroded materials.
 Deposition is when the transported materials are deposited in areas of
low relief.
2. THE ACTION OF EXTERNAL AGENTS

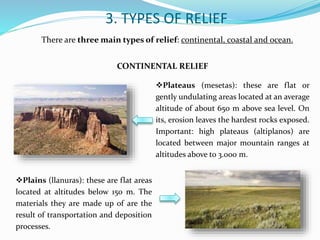

14. 3. TYPES OF RELIEF
There are three main types of relief: continental, coastal and ocean.
CONTINENTAL RELIEF
Plateaus (mesetas): these are flat or
gently undulating areas located at an average
altitude of about 650 m above sea level. On
its, erosion leaves the hardest rocks exposed.
Important: high plateaus (altiplanos) are
located between major mountain ranges at
altitudes above to 3.000 m.
Plains (llanuras): these are flat areas
located at altitudes below 150 m. The
materials they are made up of are the
result of transportation and deposition
processes.

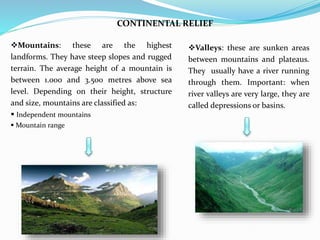

15. CONTINENTAL RELIEF
Valleys: these are sunken areas
between mountains and plateaus.
They usually have a river running
through them. Important: when
river valleys are very large, they are
called depressions or basins.
Mountains: these are the highest
landforms. They have steep slopes and rugged
terrain. The average height of a mountain is
between 1.000 and 3.500 metres above sea
level. Depending on their height, structure
and size, mountains are classified as:
 Independent mountains
 Mountain range

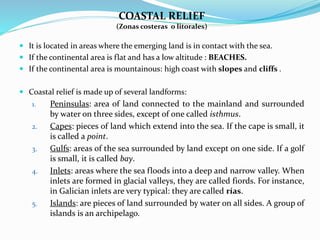

16. COASTAL RELIEF
(Zonas costeras o litorales)
 It is located in areas where the emerging land is in contact with the sea.
 If the continental area is flat and has a low altitude : BEACHES.
 If the continental area is mountainous: high coast with slopes and cliffs .
 Coastal relief is made up of several landforms:
1. Peninsulas: area of land connected to the mainland and surrounded
by water on three sides, except of one called isthmus.
2. Capes: pieces of land which extend into the sea. If the cape is small, it
is called a point.
3. Gulfs: areas of the sea surrounded by land except on one side. If a golf
is small, it is called bay.
4. Inlets: areas where the sea floods into a deep and narrow valley. When
inlets are formed in glacial valleys, they are called fiords. For instance,
in Galician inlets are very typical: they are called rías.
5. Islands: are pieces of land surrounded by water on all sides. A group of
islands is an archipelago.

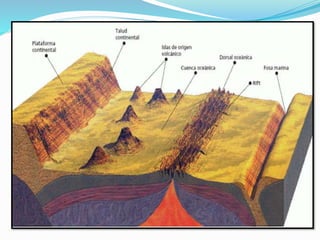

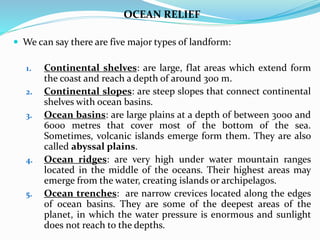

18. OCEAN RELIEF
 We can say there are five major types of landform:
1. Continental shelves: are large, flat areas which extend form
the coast and reach a depth of around 300 m.
2. Continental slopes: are steep slopes that connect continental
shelves with ocean basins.
3. Ocean basins: are large plains at a depth of between 3000 and
6000 metres that cover most of the bottom of the sea.
Sometimes, volcanic islands emerge form them. They are also
called abyssal plains.
4. Ocean ridges: are very high under water mountain ranges
located in the middle of the oceans. Their highest areas may
emerge from the water, creating islands or archipelagos.
5. Ocean trenches: are narrow crevices located along the edges
of ocean basins. They are some of the deepest areas of the
planet, in which the water pressure is enormous and sunlight
does not reach to the depths.

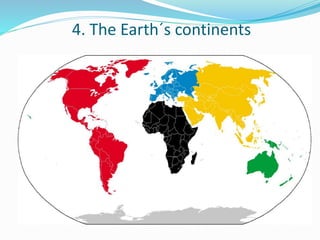

20. 4. The Earth´s continents

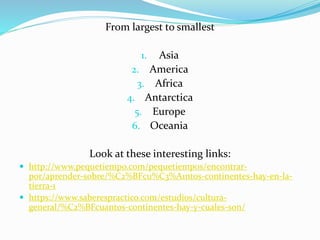

21. From largest to smallest
1. Asia
2. America
3. Africa
4. Antarctica
5. Europe
6. Oceania
Look at these interesting links:
 http://www.pequetiempo.com/pequetiempos/encontrar-
por/aprender-sobre/%C2%BFcu%C3%A1ntos-continentes-hay-en-la-
tierra-1
 https://www.saberespractico.com/estudios/cultura-
general/%C2%BFcuantos-continentes-hay-y-cuales-son/
