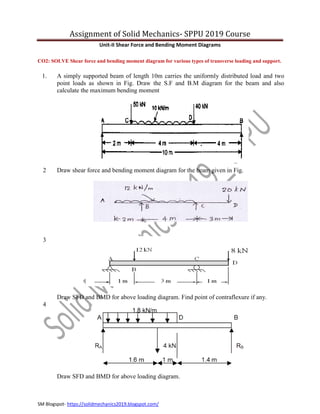

1. Assignment of Solid Mechanics- SPPU 2019 Course
Unit-II Shear Force and Bending Moment Diagrams
SM Blogspot- https://solidmechanics2019.blogspot.com/
CO2: SOLVE Shear force and bending moment diagram for various types of transverse loading and support.
1. A simply supported beam of length 10m carries the uniformly distributed load and two
point loads as shown in Fig. Draw the S.F and B.M diagram for the beam and also
calculate the maximum bending moment
2 Draw shear force and bending moment diagram for the beam given in Fig.
3
Draw SFD and BMD for above loading diagram. Find point of contraflexure if any.
4
Draw SFD and BMD for above loading diagram.

2. Assignment of Solid Mechanics- SPPU 2019 Course
Unit-II Shear Force and Bending Moment Diagrams
SM Blogspot- https://solidmechanics2019.blogspot.com/
5
Draw SFD and BMD for the beam shown. Also find point of contraflexure if any.
6
Draw SFD and BMD for the beam shown. Also find point of contraflexure if any.
7
Draw SFD and BMD for the beam shown. Also find point of contraflexure if any
8 A simply supported beam ABC with supports at A and B, 6 meters apart and with an
overhang BC 2 meters long carries a uniformly distributed load of 1.5kN/m over the
entire length. Draw S.F. and B.M. diagrams. Also find point of contraflexure.
9
Draw SFD and BMD for the cantilever beam as shown above.

3. Assignment of Solid Mechanics- SPPU 2019 Course
Unit-II Shear Force and Bending Moment Diagrams
SM Blogspot- https://solidmechanics2019.blogspot.com/
Compiled by
Prof.G.L.Allampallewar Prof.V.M.Mhaske
Marathwada Mitra Mandals Institute of technology,
Pune
Amrutvahini Engineering College Sangamner,
Ahmednagar
10
A cantilever beam is fixed to the wall at A. The beam is subjected to distributed and point
loads. Draw the shear force and bending moment diagrams along the beam.
11
For a simply supported beam as shown above, draw SFD and BMD.
