Grid-eMotion™ Flash charging system
Berlin – EV Infrastructure Conference – 21.+22. Nov 2022
Christian Ebert, Solution Manager Transportation, Hitachi Energy Germany, Mannheim

2. © Hitachi Energy 2021. All rights reserved.
Our heritage: Hitachi Energy
2
1891
1883
1932
World’s largest self-
cooling transformer
2017
World first flash-
charging e-bus system
put into commercial
operation (Geneva)
Led development
of first SCADA
system
1970
1988
2020
2012
HVDC breaker
solving a 100-year-
old puzzle
2004
Pioneered
implementation of
IEC 61850, open
communications
standard
1893
First 3-phase
transmission
system, Sweden
1954
First commercial
HVDC link
Pioneering
FACTS
2011
First digital
substation sold
1968
Pioneered gas-
insulated substations
(GIS)
2010
World's most powerful
and longest UHVDC link
First utility communication
network with Quantum-
Safe cybersecurity
2019
1997
HVDC Light™ delivers
many environmental
benefits
First eco-efficient
GIS and First HVDC
offshore wind
connection
2015

3. © Hitachi Energy 2021. All rights reserved.

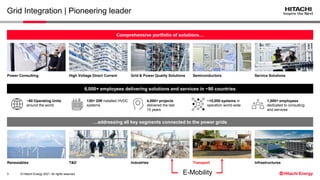

Grid Integration | Pioneering leader
3
Comprehensive portfolio of solutions…
Power Consulting High Voltage Direct Current Grid & Power Quality Solutions Semiconductors Service Solutions
6,000+ employees delivering solutions and services in ~90 countries
~60 Operating Units
around the world
~15,000 systems in
operation world-wide
1,000+ employees
dedicated to consulting
and services
130+ GW installed HVDC
systems
4,000+ projects
delivered the last
15 years
…addressing all key segments connected to the power grids
Renewables T&D Industries Transport Infrastructures
E-Mobility

4. © Hitachi Energy 2021. All rights reserved.

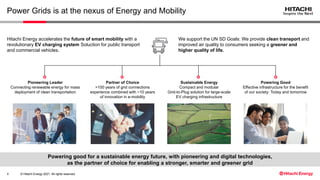

Powering good for a sustainable energy future, with pioneering and digital technologies,
as the partner of choice for enabling a stronger, smarter and greener grid
Power Grids is at the nexus of Energy and Mobility
4
Hitachi Energy accelerates the future of smart mobility with a
revolutionary EV charging system Soluction for public transport
and commercial vehicles.
We support the UN SD Goals: We provide clean transport and
improved air quality to consumers seeking a greener and
higher quality of life.
Pioneering Leader
Connecting renewable energy for mass
deployment of clean transportation
Sustainable Energy
Compact and modular
Grid-to-Plug solution for large-scale
EV charging infrastructure
Partner of Choice
>100 years of grid connections
experience combined with ~10 years
of innovation in e-mobility
Powering Good
Effective infrastructure for the benefit
of our society: Today and tomorrow

5. © Hitachi Energy 2021. All rights reserved.
Seamless integration from grid to plug
Full grid-to-plug charging infrastructure
5
Both loads and power sources are changing
Connect safely, charge smartly
New energy sources
• High variability
• Low predictability
• Local production
Grid limitations
Peak loads
Generation Load
New loads
• Distributed/Centralised
• Variable
• Scheduled
Space constraints

6. © Hitachi Energy 2021. All rights reserved.

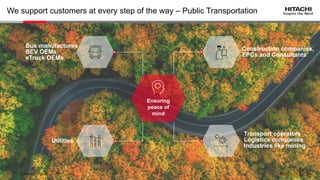

We support customers at every step of the way – Public Transportation
11
Ensuring
peace of
mind
Transport operators
Logistics companies
Industries like mining
Construction companies,
EPCs and Consultants
Bus manufactures
BEV OEMs
eTruck OEMs
Utilities

7. © Hitachi Energy 2021. All rights reserved.

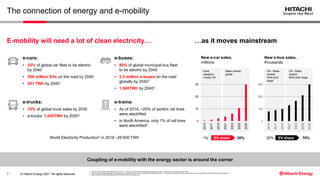

The connection of energy and e-mobility
CN - Mass
market,
RoW pilot
stage
CN - Mass
market,
RoW pilot stage
Early
adopters
mostly CN
Mass market,
global
0
10
20
30
2015
2017
2019
2021
2023
2025
2030
0
100
200
300
2015
2017
2019
2021
2023
2025
2030
e-cars:
• 33% of global car fleet to be electric
by 2040
• 559 million EVs on the road by 2040
• 551 TWh by 20401
e-buses:
• 80% of global municipal bus fleet
to be electric by 2040
• 2.3 million e-buses on the road
globally by 20401
• 1,500TWh by 20402
e-trucks:
• 15% of global truck sales by 2030
• e-trucks: 1,000TWh by 20503
e-trains:
• As of 2014, ~25% of world’s rail lines
were electrified
• In North America, only 1% of rail lines
were electrified4
World Electricity Production5 in 2018 26’000 TWh
New e-bus sales,
thousands
New e-car sales,
millions
1% 30%
EV share 20% 70%
EV share
Coupling of e-mobility with the energy sector is around the corner
E-mobility will need a lot of clean electricity… …as it moves mainstream
7
1 – Electric Vehicle Outlook 2018, Bloomberg NEF, 2018 2 - https://www.bloomberg.com/professional/blog/eBuses-surge-even-faster-evs-conventional-vehicles-fade/
3 - https://www.mckinseyenergyinsights.com/insights/new-reality-electric-trucks-and-their-implications-on-energy-demand/ 4 - https://www.sci.de/fileadmin/user_upload/presse/pdf_downloads/Press_Release_Railway_Electrification.pdf
5 - https://yearbook.enerdata.net/electricity/world-electricity-production-statistics.html

8. © Hitachi Energy 2021. All rights reserved.

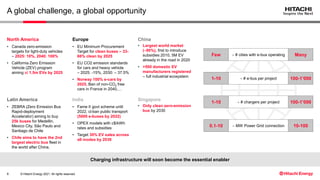

A global challenge, a global opportunity
 # e-bus per project
1-10 100-1’000
 # chargers per project
1-10 100-1’000
 # cities with e-bus operating Many
Few
 MW Power Grid connection 10-100
0.1-10
North America
• Canada zero-emission
targets for light-duty vehicles
– 2025: 10%, 2040: 100%
• California Zero Emission
Vehicle (ZEV) program
aiming at 1.5m EVs by 2025
Europe
• EU Minimum Procurement
Target for clean buses – 33-
66% clean by 2025
• EU CO2 emission standards
for cars and heavy vehicle
– 2025: -15%, 2030: – 37.5%
• Norway 100% e-cars by
2025, Ban of non-CO2 free
cars in France in 2040,…
China
• Largest world market
(90%), first to introduce
subsidies 2010, 5M EV
already in the road in 2020
• >500 domestic EV
manufacturers registered
– full industrial ecosystem
Latin America
• ZEBRA (Zero Emission Bus
Rapid-deployment
Accelerator) aiming to buy
25k buses for Medellin,
Mexico City, São Paulo and
Santiago de Chile
• Chile aims to have the 2nd
largest electric bus fleet in
the world after China.
India
• Fame II govt scheme until
2022, cl-ban public transport
(5000 e-buses by 2022)
• OPEX models with c$/kWh
rates and subsidies
• Target 30% EV sales across
all modes by 2030
Singapore
• Only clean zero-emission
bus by 2030
Charging infrastructure will soon become the essential enabler
8

9. © Hitachi Energy 2021. All rights reserved.

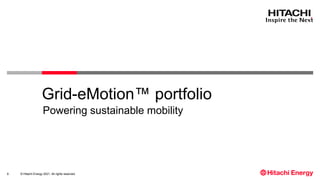

Grid-eMotion™ portfolio
Powering sustainable mobility
9

10. © Hitachi Energy 2021. All rights reserved.

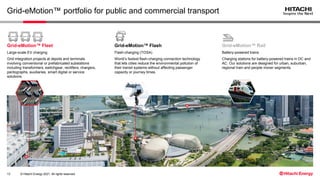

Grid-eMotion™ portfolio for public and commercial transport
12
Grid-eMotion™ Fleet
Large-scale EV charging
Grid integration projects at depots and terminals
involving conventional or prefabricated substations
including transformers, switchgear, rectifiers, chargers,
pantographs, auxiliaries, smart digital or service
solutions.
Grid-eMotion™ Flash
Flash-charging (TOSA)
World’s fastest flash-charging connection technology
that lets cities reduce the environmental pollution of
their transit systems without affecting passenger
capacity or journey times.
Grid-eMotion™ Rail
Battery-powered trains
Charging stations for battery-powered trains in DC and
AC. Our solutions are designed for urban, suburban,
regional train and people mover segments.

11. © Hitachi Energy 2021. All rights reserved.
Charging strategies for different e-bus fleet operations
13
Flash-charging at some stops
Overnight charging at depot
Opportunity charging at terminals
• Significant footprint required
• HV or MV substation needed
• Large batteries
• Long downtime to recharge
• Usually small e-buses
• Usually charging via plug
• Interoperable with all bus OEMs
• Space needed at terminals
• Typically 12m or 18 e-buses
• Available on PantoUp
• Available on PantoDown
(OppCharge)
• Interoperable with few bus OEMs
• Light and spread infrastructure
• Light batteries
• No downtime to recharge
• High frequency/capacity lines
• Best suited to big e-buses and
Bus Rapid Transit (BRT)
S S S S S S … S T
S
D T S S S S S S S … S T
S
Grid-eMotion™
Fleet
D Depot T Terminal
Grid-eMotion™
Flash
0
20
40
60
80
100
%
S
D T T
S S
0
20
40
60
80
100
%
0
20
40
60
80
100
%
D
D T S S S S S S S … S T
S
D T S
50kW-150kW (plug) 150kW-600kW (pantograph)
Overnight Opportunity and Flash-charging
D T T
S Stops

12. © Hitachi Energy 2021. All rights reserved.
Hitachi Energy can support all along the way
Operate
Build
Grid-eMotion™
Fleet
Large-scale
Grid-eMotion™
Flash
Flash charging
Charging solutions
Consulting & Engineering
Power Consulting Maintainance & Support
Expansions Semiconductors
Plan
PV
Storage
Software
Service
12

13. © Hitachi Energy 2021. All rights reserved.
Why flash-charging?
No down time to recharge
13

14. © Hitachi Energy 2021. All rights reserved.
Operating your eBus fleet with flash charging
Range is not the constraint but time
Buses present a particular challenge as
operators want the vehicles on the road
transporting passengers, rather than
transporting batteries or waiting at charging
stations.
The energy will have to be taken on
somewhere, the question is where is the most
economically efficient place to do so?
Timetable
High-power in-route charging at selected bus stops and short layover time at
terminal provide same driving hours and commercial speed as a diesel fleet
High-passenger capacity (up to 4,000 passengers/h)
Smaller battery and having all technology mounted on the roof means more
space and weight available free to carry passengers.
Long-life battery
Due to in-route charging principle, the high-power/low-energy battery pack is
used in its optimal operating range
Grid compatible
Connection fee and energy cost minimized through embedded peak
shaving functionality
Light infrastructure at depot
Either free parking after fast (4-5 min) high-power charging upon arrival or
low-power (50 kW) mutualized charging
14

15. © Hitachi Energy 2021. All rights reserved.

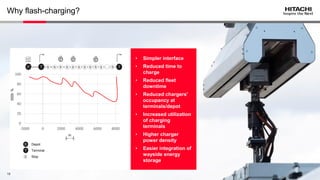

Why flash-charging?
m
0
20
40
60
80
100
-2000 0 2000 4000 6000 8000
%
S S
S S S
S …
S S
D T T
S S S
Terminal
Stop
Depot
T
D
S
• Simpler interface
• Reduced time to
charge
• Reduced fleet
downtime
• Reduced chargers'
occupancy at
terminals/depot
• Increased utilization
of charging
terminals
• Higher charger
power density
• Easier integration of
wayside energy
storage
15

16. © Hitachi Energy 2021. All rights reserved.
Best conditions for Flash charging
Short stopping time
High frequency lines where a lot of people need to
be transported e.g. BRT
High energy consumption
Typical for
Flash charging
• High capacity buses
• High auxiliary consumption for
cooling or heating
• Long or uphill routes
16

17. © Hitachi Energy 2021. All rights reserved.
Grid-eMotion™ Plan
Web-based software tool for optimising the design of
the e-bus system based on
• Energy consumption for both traction and auxiliary
• Battery life data
• Route data
• Traffic simulation
The tool provides an optimised system design
• Optimal battery dimensioning
• Optimal selection and placement of chargers
• Detailed information on energy consumption
• Speed and line profile, traction, auxiliary, charging
power and energy profiles
link
Route Timetable
Grid data Vehicle
Battery
Charger
Expandable library
What-if analysis
Traffic simulation
17

18. © Hitachi Energy 2021. All rights reserved.

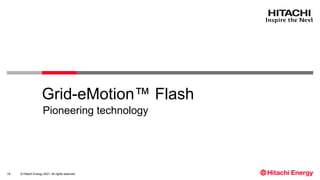

Grid-eMotion™ Flash
Pioneering technology
18

19. © Hitachi Energy 2021. All rights reserved.
Flash-charging using the drivetrain to charge the e-bus
What
• The flash-charging
concept uses a
stabilised voltage
source to provide a
simpler interface to
the vehicle
• The drivetrain
automatically
switches from
delivering power to
the wheels (DC/AC)
to charging the
batteries (DC/DC).
• There is no need to
wait while
communication is
established, the
charging process
starts right away
The concept to reduce time to start charging down to 1 s Smart robotic pantograph
Off-board
Charger
AC
DC
Drivetrain by-passed
Battery
AC
DC
Additional charger
Controlled
rectifier Battery
DC
AC
Controlled
rectifier Battery
DC
AC
AC
DC
DC
Grid-eMotion™ Fleet
with OppCharge
Grid-eMotion™ Flash
with extra DC-DC
Grid-eMotion™ Flash
with automatic switching
~35s
1s
1s
Drivetrain as charger
DC
DC
19

20. © Hitachi Energy 2021. All rights reserved.

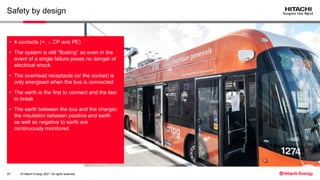

Safety by design
• 4 contacts (+, -, CP and PE)
• The system is still “floating” so even in the
event of a single failure poses no danger of
electrical shock
• The overhead receptacle (or the socket) is
only energised when the bus is connected
• The earth is the first to connect and the last
to break
• The earth between the bus and the charger,
the insulation between positive and earth
as well as negative to earth are
continuously monitored
20

21. © Hitachi Energy 2021. All rights reserved.
Flash-charging stations in DC
Container
Hitachi Energys’ offering
Charging solutions up to 1MW based on flash-
charging technology developed for bus rapid
transit (BRT) high capacity lines
• Full containerised
• Grid connection
• Network management, SCADA, EAM
• Earthing system
• Charging poles
• Grid compliance (harmonics, insulation
coordination, RAMS, EMC)
• Installation and site commissioning
• End-user approval
• Smart robotic pantograph (ETS)
• Less than 1s to connect (suitable for
charging at stops)
• 1000A permanently
Flash-charging stations Flash-charging station with ESS
At bus terminal or stops with MV
• MV connection
• Converter stations up to 1MW
• Up to 1000 VDC connection
Optional at bus stops with LV
• LV connection
• Wayside Energy Storage System
Container
LVAC
Transformer Way-side
Charger
Energy
storage
MVAC
Controlled
rectifier
Transformer
<1000VDC
<1000VDC
21

22. © Hitachi Energy 2021. All rights reserved.
Light infrastructure at depot
22

23. © Hitachi Energy 2021. All rights reserved.
More than charging
Digital portfolio for EV Fleets
23

24. © Hitachi Energy 2021. All rights reserved.

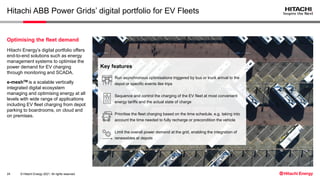

Hitachi ABB Power Grids’ digital portfolio for EV Fleets
24
Hitachi Energy’s digital portfolio offers
end-to-end solutions such as energy
management systems to optimise the
power demand for EV charging
through monitoring and SCADA.
e-meshTM is a scalable vertically
integrated digital ecosystem
managing and optimising energy at all
levels with wide range of applications
including EV fleet charging from depot
parking to boardrooms, on cloud and
on premises.
Optimising the fleet demand
Run asynchronous optimisations triggered by bus or truck arrival to the
depot or specific events like trips
Sequence and control the charging of the EV fleet at most convenient
energy tariffs and the actual state of charge
Prioritise the fleet charging based on the time schedule, e.g. taking into
account the time needed to fully recharge or precondition the vehicle
Limit the overall power demand at the grid, enabling the integration of
renewables at depots
Key features

25. © Hitachi Energy 2021. All rights reserved.

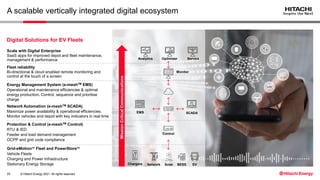

A scalable vertically integrated digital ecosystem
25
Digital Solutions for EV Fleets
Grid-eMotion™ Fleet and PowerStore™
Vehicle Fleets
Charging and Power Infrastructure
Stationary Energy Storage
Protection & Control (e-meshTM Control)
RTU & IED
Feeder and load demand management
OCPP and grid code compliance
Energy Management System (e-meshTM EMS)
Operational and maintenance efficiencies & optimal
energy production. Control, sequence and prioritise
charge
Network Automation (e-meshTM SCADA)
Maximize power availability & operational efficiencies.
Monitor vehicles and depot with key indicators in real time
Fleet reliability
Bi-directional & cloud enabled remote monitoring and
control at the touch of a screen
Scale with Digital Enterprise
SaaS apps for improved depot and fleet maintenance,
management & performance
Monitor
SCADA
EMS
Control
Analytics Optimiser Service
BESS
Solar
Network
Chargers EV
Mission
Critical
Communications

26. © Hitachi Energy 2021. All rights reserved.

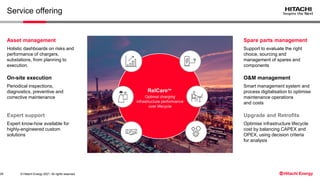

Service offering
26
RelCare™
Optimal charging
infrastructure performance
over lifecycle
Asset management
Holistic dashboards on risks and
performance of chargers,
substations, from planning to
execution.
Spare parts management
Support to evaluate the right
choice, sourcing and
management of spares and
components
On-site execution
Periodical inspections,
diagnostics, preventive and
corrective maintenance
O&M management
Smart management system and
process digitalisation to optimise
maintenance operations
and costs
Expert support
Expert know-how available for
highly-engineered custom
solutions
Upgrade and Retrofits
Optimise infrastructure lifecycle
cost by balancing CAPEX and
OPEX, using decision criteria
for analysis

27. © Hitachi Energy 2021. All rights reserved.

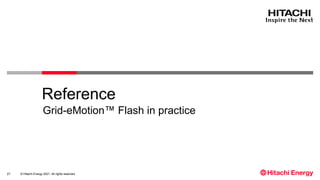

Reference
Grid-eMotion™ Flash in practice
27

28. © Hitachi Energy 2021. All rights reserved.

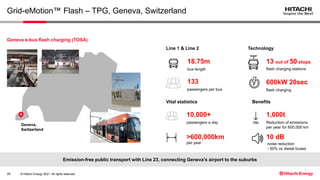

Grid-eMotion™ Flash – TPG, Geneva, Switzerland
Geneva e-bus flash charging (TOSA)
Emission-free public transport with Line 23, connecting Geneva’s airport to the suburbs
Geneva,
Switzerland
18.75m
bus length
133
passengers per bus
10,000+
passengers a day
>600,000km
per year
13 out of 50 stops
flash charging stations
600kW 20sec
flash charging
Line 1 & Line 2 Technology
Vital statistics Benefits
1,000t
Reduction of emissions
per year for 600,000 km
10 dB
noise reduction
- 50% vs diesel buses
28

29. © Hitachi Energy 2021. All rights reserved.

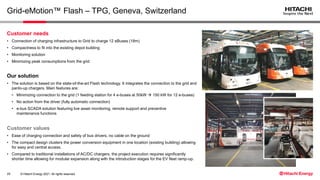

Grid-eMotion™ Flash – TPG, Geneva, Switzerland
Customer values
• Ease of charging connection and safety of bus drivers, no cable on the ground
• The compact design clusters the power conversion equipment in one location (existing building) allowing
for easy and central access.
• Compared to traditional installations of AC/DC chargers, the project execution requires significantly
shorter time allowing for modular expansion along with the introduction stages for the EV fleet ramp-up.
Customer needs
• Connection of charging infrastructure to Grid to charge 12 eBuses (18m)
• Compactness to fit into the existing depot building
• Monitoring solution
• Minimizing peak consumptions from the grid
Our solution
• The solution is based on the state-of-the-art Flash technology. It integrates the connection to the grid and
panto-up chargers. Main features are:
• Minimizing connection to the grid (1 feeding station for 4 e-buses at 50kW → 150 kW for 12 e-buses)
• No action from the driver (fully automatic connection)
• e-bus SCADA solution featuring live asset monitoring, remote support and preventive
maintenance functions
29

30. © Hitachi Energy 2021. All rights reserved.

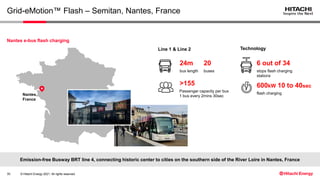

Grid-eMotion™ Flash – Semitan, Nantes, France
Nantes e-bus flash charging
Emission-free Busway BRT line 4, connecting historic center to cities on the southern side of the River Loire in Nantes, France
Line 1 & Line 2 Technology
6 out of 34
stops flash charging
stations
600kW 10 to 40sec
flash charging
Nantes,
France
20
24m
bus length
>155
Passenger capacity per bus
1 bus every 2mins 30sec
buses
30

31. © Hitachi Energy 2021. All rights reserved.

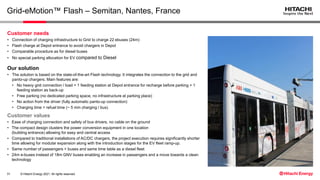

Grid-eMotion™ Flash – Semitan, Nantes, France
Customer values
• Ease of charging connection and safety of bus drivers, no cable on the ground
• The compact design clusters the power conversion equipment in one location
(building entrance) allowing for easy and central access
• Compared to traditional installations of AC/DC chargers, the project execution requires significantly shorter
time allowing for modular expansion along with the introduction stages for the EV fleet ramp-up.
• Same number of passengers + buses and same time table as a diesel fleet
• 24m e-buses instead of 18m GNV buses enabling an increase in passengers and a move towards a clean
technology
Customer needs
• Connection of charging infrastructure to Grid to charge 22 ebuses (24m)
• Flash charge at Depot entrance to avoid chargers in Depot
• Comparable procedure as for diesel buses
• No special parking allocation for EV compared to Diesel
Our solution
• The solution is based on the state-of-the-art Flash technology. It integrates the connection to the grid and
panto-up chargers. Main features are:
• No heavy grid connection / load > 1 feeding station at Depot entrance for recharge before parking + 1
feeding station as back-up
• Free parking (no dedicated parking space, no infrastructure at parking place)
• No action from the driver (fully automatic panto-up connection)
• Charging time = refuel time (~ 5 min charging / bus)
31

32. © Hitachi Energy 2021. All rights reserved.

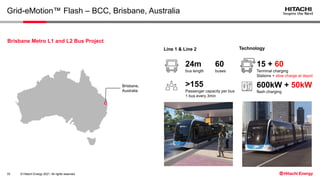

Grid-eMotion™ Flash – BCC, Brisbane, Australia
Brisbane Metro L1 and L2 Bus Project
Brisbane,
Australia
Line 1 & Line 2 Technology
24m
bus length
>155
Passenger capacity per bus
1 bus every 3min
60
buses
15 + 60
Terminal charging
Stations + slow charge at depot
600kW + 50kW
flash charging
32

33. © Hitachi Energy 2021. All rights reserved.

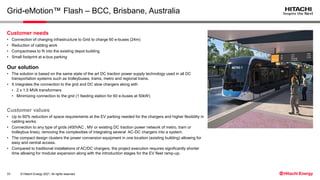

Grid-eMotion™ Flash – BCC, Brisbane, Australia
Customer needs
• Connection of charging infrastructure to Grid to charge 60 e-buses (24m)
• Reduction of cabling work
• Compactness to fit into the existing depot building
• Small footprint at e-bus parking
Our solution
• The solution is based on the same state of the art DC traction power supply technology used in all DC
transportation systems such as trolleybuses, trams, metro and regional trains.
• It integrates the connection to the grid and DC slow chargers along with
• 2 x 1.5 MVA transformers
• Minimizing connection to the grid (1 feeding station for 60 e-buses at 50kW)
Customer values
• Up to 60% reduction of space requirements at the EV parking needed for the chargers and higher flexibility in
cabling works.
• Connection to any type of grids (400VAC , MV or existing DC traction power network of metro, tram or
trolleybus lines), removing the complexities of integrating several AC-DC chargers into a system.
• The compact design clusters the power conversion equipment in one location (existing building) allowing for
easy and central access.
• Compared to traditional installations of AC/DC chargers, the project execution requires significantly shorter
time allowing for modular expansion along with the introduction stages for the EV fleet ramp-up.
33

34. © Hitachi Energy 2021. All rights reserved.
Strong partnerships established
Full projects in execution
OEM partner for
projects delivered in
Geneva and Nantes
Supplier for Brisbane
(in execution)
Pilot projects in execution
Pilot project in China with
King Long for design and
assembly of e-bus
Partnering with Ashok
Leyland for an e-Bus Pilot
at IIT Madras, India
Memorandums of understanding
MoU with Skywell and bus operator Daewoo
to provide e-bus solutions
in Pakistan
MoU with Yinlong Energy to help cities speed
up their transition to emission-free electric bus
transportation focussed on Middle East
Several OEM partnerships closed… more to come
34

35. © Hitachi Energy 2021. All rights reserved.
Conclusion
Your ideal partner
Social innovation is about
solutions to scale-up
sustainable infrastructure for
everyone.
Effective scale-up however
requires expert system design
combined with proven
advanced technologies.
That’s what Grid-eMotion
solutions deliver.
André Burdet
Head of Product Management & Marketing,
Hitachi ABB Power Grids
“ “
35
Intelligent charging
Hitachi Energys’ Grid-eMotion™ Fleet
charging solution for e-buses offers the
perfect opportunity for public tr ansport
operators to rapidly upgrade their bus fleets
to a new sustainable mobility.
Comprehensive support
We support OEMs and operators
throughout their e-bus journey from initial
concept to project delivery and
through-life service.

36. © Hitachi Energy 2021. All rights reserved.
Overview of Grid-eMotion™ Flash charging solution (TOSA)
Contacts
36
Bruce Warner
Global Segment Manager for Transportation
PGGI
bruce.warner@hitachi-powergrids.com
Christian Ebert
Global Solution Manager for Transportation
Corporate
luigi.lonoce@hitachi-powergrids.com
Luigi Lonoce
Global Segment Manager for Transportation
PGGI
luigi.lonoce@hitachi-powergrids.com
