ABB is a global leader in power and automation technologies with over 145,000 employees worldwide. The document discusses ABB's electric vehicle charging infrastructure and solutions. It provides details on ABB's DC fast charger installations in over 30 countries, a project to build a nationwide EV charging network in Estonia, and a plan for a nationwide fast charging network in the Netherlands. The document also outlines ABB's product offerings to match different customer needs, including solutions for large and small networks.

1. EV Charging infrastructure
Intelligent charging solutions
February 25st , 2014 / Tālivaldis Podiņš, ABB SIA

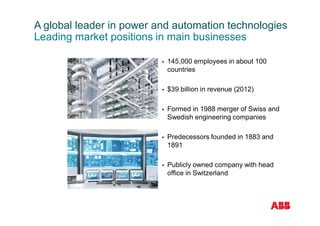

2. A global leader in power and automation technologies
Leading market positions in main businesses
§ 145,000 employees in about 100
countries
§ $39 billion in revenue (2012)
§ Formed in 1988 merger of Swiss and
Swedish engineering companies
§ Predecessors founded in 1883 and
1891
§ Publicly owned company with head
office in Switzerland

3. © ABB Group
February 20, 2014 | Slide 12
ABB DC fast charge installations
Proven technology in the field since May 2010
§ Actual:
Germany, Norway, The Netherlands, UK,
Ireland, Finland, Denmark, Sweden,
Switzerland, Austria, France, Czech,
Estonia, Turkey, Hungary, Italy, Hong Kong,
China, USA, Taiwan, Slovenia, South Africa,
Belgium, Slovakia, Bulgaria, Poland, China,
Canada, Chile, Singapore, Northern Ireland
§ Total around 1.000 DC fast chargers
installed / over 1.300 sold.

4. © ABB Group
February 20, 2014 | Slide 14

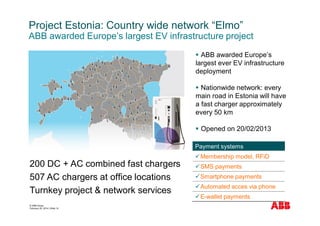

Project Estonia: Country wide network “Elmo”
ABB awarded Europe’s largest EV infrastructure project
§ ABB awarded Europe’s
largest ever EV infrastructure
deployment
§ Nationwide network: every
main road in Estonia will have
a fast charger approximately
every 50 km
§ Opened on 20/02/2013
200 DC + AC combined fast chargers
507 AC chargers at office locations
Turnkey project & network services
Payment systems
üMembership model, RFiD
üSMS payments
üSmartphone payments
üAutomated acces via phone
üE-wallet payments

5. © ABB Group
February 20, 2014 | Slide 20
Fastned: Nationwide fast charging network
201 fast charging stations in the Netherlands
§ Always a charger within 50km.
§ Each station equipped with 2-4 multi-standard
fast chargers and solar canopies.
§ Serving EVs from all major car brands,
including CCS, CHAdeMO and Type-2
standards.
§ ABB’s open standard cloud connectivity
platform enables user-friendly payment and
access for all drivers.
§ Connectivity features include smart software
upgradability enabling upgrades to the network
as technology evolves.
§ ABB’s remote servicing tools ensure best in
class uptime and user satisfaction.

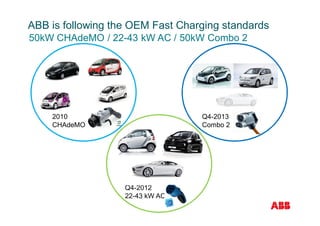

6. Q4-2012
22-43 kW AC
ABB is following the OEM Fast Charging standards
50kW CHAdeMO / 22-43 kW AC / 50kW Combo 2
2010
CHAdeMO
Q4-2013
Combo 2

7. © ABB Group
February 20, 2014 | Slide 61

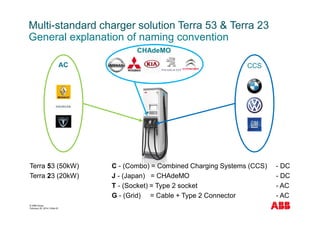

Multi-standard charger solution Terra 53 & Terra 23
Terra 53 (50kW) C - (Combo) = Combined Charging Systems (CCS) - DC
Terra 23 (20kW) J - (Japan) = CHAdeMO - DC
T - (Socket) = Type 2 socket - AC
G - (Grid) = Cable + Type 2 Connector - AC
General explanation of naming convention
CHAdeMO
CCSAC

8. © ABB Group
February 20, 2014 | Slide 62

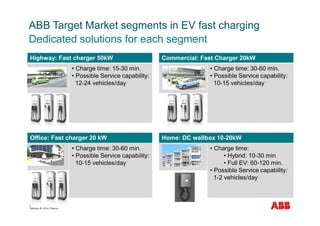

Highway: Fast charger 50kW Commercial: Fast Charger 20kW
• Charge time: 15-30 min.
• Possible Service capability:
12-24 vehicles/day
• Charge time: 30-60 min.
• Possible Service capability:
10-15 vehicles/day
Office: Fast charger 20 kW Home: DC wallbox 10-20kW
• Charge time: 30-60 min.
• Possible Service capability:
10-15 vehicles/day
• Charge time:
• Hybrid: 10-30 min
• Full EV: 60-120 min.
• Possible Service capability:
1-2 vehicles/day
ABB Target Market segments in EV fast charging
Dedicated solutions for each segment

9. © ABB Group
February 20, 2014 | Slide 77

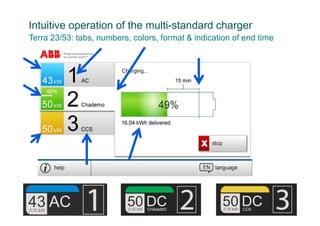

Terra 23/53: tabs, numbers, colors, format & indication of end time
Intuitive operation of the multi-standard charger

10. © ABB Group
February 20, 2014 | Slide 93

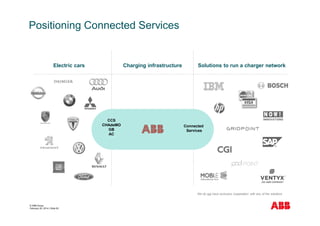

Positioning Connected Services
Electric cars Charging infrastructure Solutions to run a charger network
We do not have exclusive cooperation with any of the solutions
Connected
Services
CCS
CHAdeMO
GB
AC

11. © ABB Group
February 20, 2014 | Slide 95

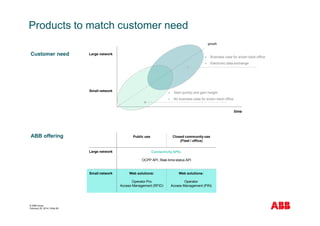

Products to match customer need
Large network
Small network
time
Customer need
ABB offering
§ Business case for a/own back-office
§ Electronic data exchange
Large network
Small network
Public use Closed community use
(Fleet / office)
Connectivity APIs:
OCPP API, Real-time status API
Web solutions:
Operator Pro
Access Management (RFID)
Web solutions:
Operator
Access Management (PIN)
growth
§ Start quickly and gain insight
§ No business case for a/own back-office

12. © ABB Group
February 20, 2014 | Slide 97

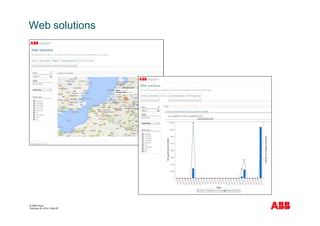

Web solutions

13. © ABB Group
February 20, 2014 | Slide 98
Products to match customer need
Large network
Small network
time
Customer need
ABB offering
§ Business case for a/own back-office
§ Electronic data exchange
Large network
Small network
Public use Closed community use
(Fleet / office)
Connectivity APIs:
OCPP API, Real-time status API
Web solutions:
Operator Pro
Access Management (RFID)
Web solutions:
Operator
Access Management (PIN)
growth
§ Start quickly and gain insight
§ No business case for a/own back-office

14. © ABB Group
February 20, 2014 | Slide 99

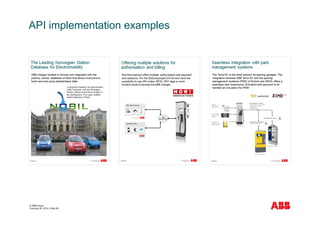

API implementation examples

15. ABB’s Service organization concept optimizes uptime
for the charger network
Owner/operator
Driver care
Manage contact with
driver
Handling driver calls
(also non-charger
related)
Site operator
ABB’s Local
Service
1st Line support
Manage delivery & SLA
1st line helpdesk
Remote diagnostics
Warranty case handling
Local parts logistics
PG EVCI
2nd Line support
2nd line support helpdesk
Provide 1st line
diagnostic tooling
Software updates
Training & certification
Connectivity
infrastructure
Helios Suite
Event call handling
Remote condition monitoring

16. © ABB Group
February 20, 2014 | Slide 131

17. © ABB Group
February 20, 2014 | Slide 134
Contact information
Tālivaldis Podiņš
Business Development
ABB SIA
Tīraines 3a
Rīga, LV-1058,
Latvia
M: +371 29224818
E: talivaldis.podins@lv.abb.com
I: http://www.abb.com/evcharging
