UNDERSTANDING POWER QUALITY AND ITS
IMPORTANCE
www.messungelectricalengineering.com

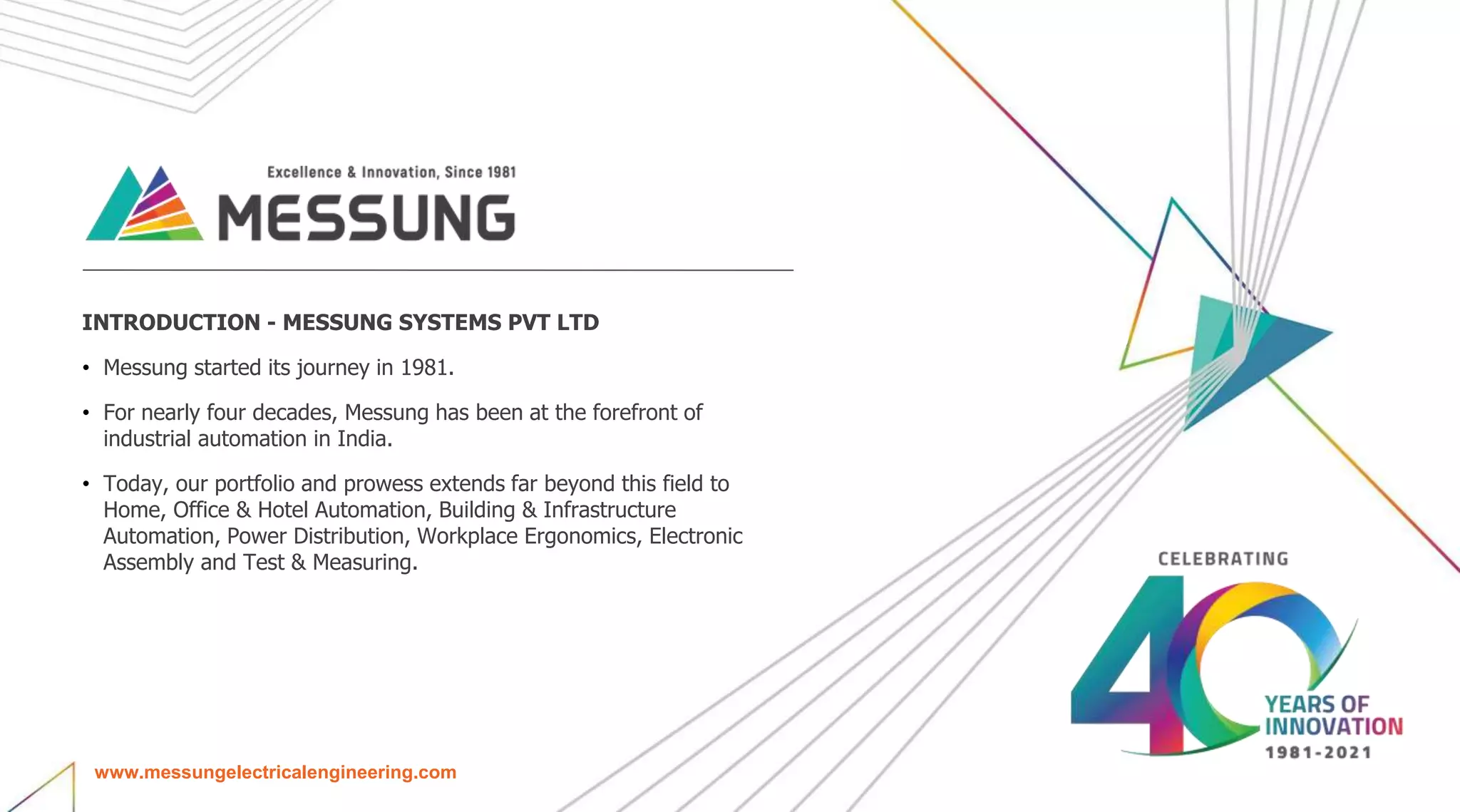

INTRODUCTION - MESSUNG SYSTEMS PVT LTD
• Messung started its journey in 1981.
• For nearly four decades, Messung has been at the forefront of
industrial automation in India.
• Today, our portfolio and prowess extends far beyond this field to
Home, Office & Hotel Automation, Building & Infrastructure
Automation, Power Distribution, Workplace Ergonomics, Electronic
Assembly and Test & Measuring.
www.messungelectricalengineering.com
www.messungelectricalengineering.com

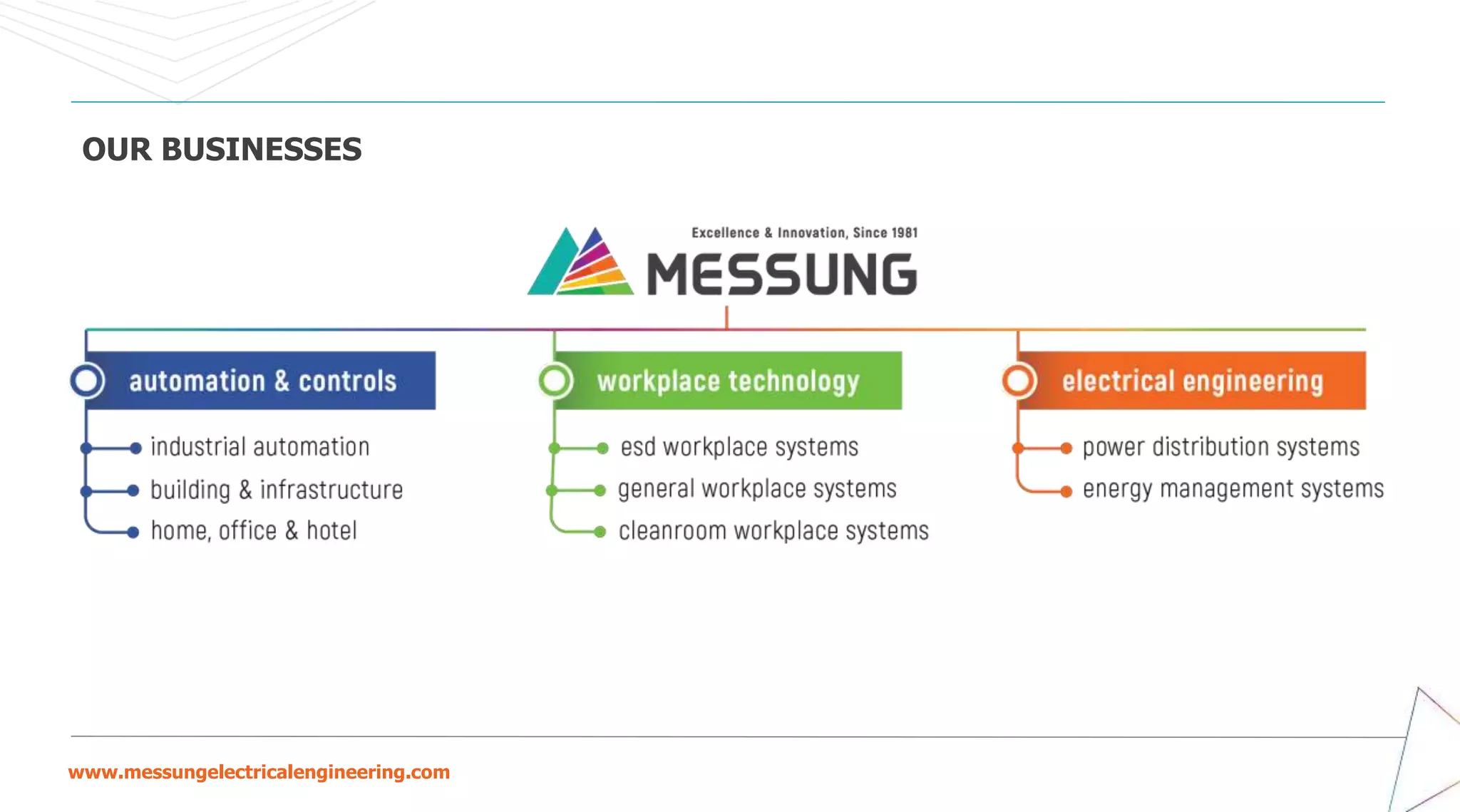

OUR BUSINESSES
www.messungelectricalengineering.com

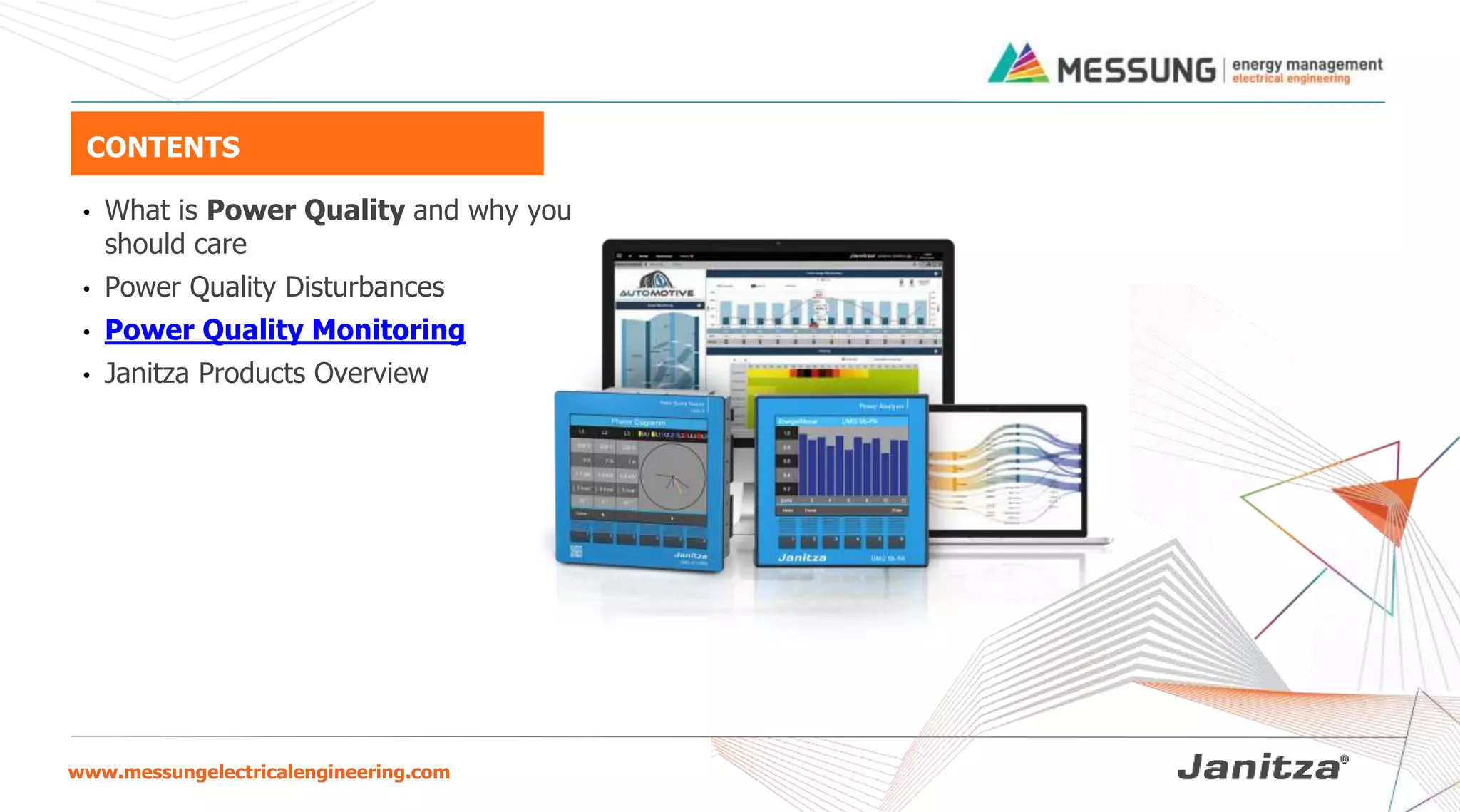

• What is Power Quality and why you
should care
• Power Quality Disturbances
• Power Quality Monitoring
• Janitza Products Overview
CONTENTS
www.messungelectricalengineering.com

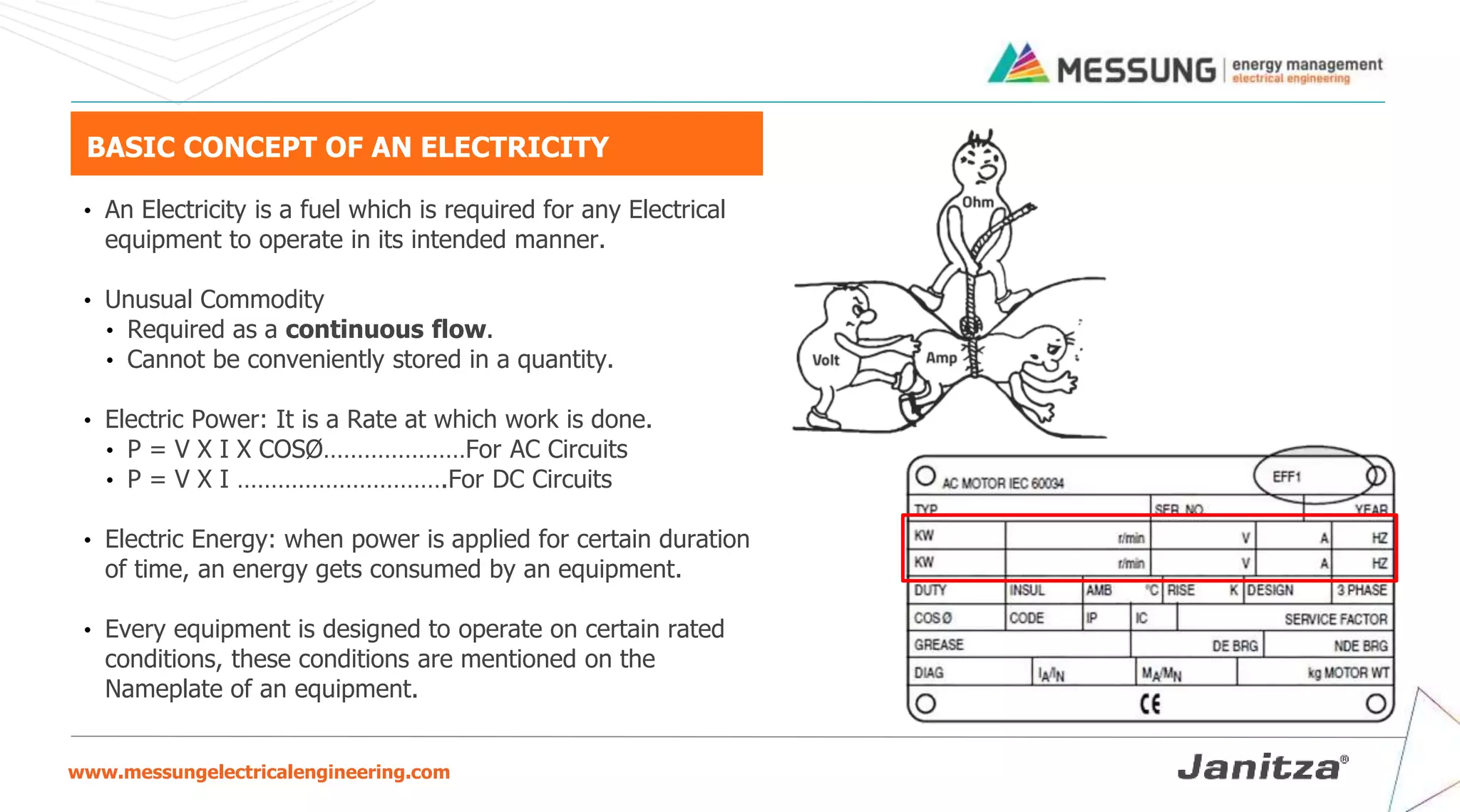

BASIC CONCEPT OF AN ELECTRICITY
• An Electricity is a fuel which is required for any Electrical
equipment to operate in its intended manner.
• Unusual Commodity
• Required as a continuous flow.
• Cannot be conveniently stored in a quantity.
• Electric Power: It is a Rate at which work is done.
• P = V X I X COSØ…………………For AC Circuits
• P = V X I ………………………….For DC Circuits
• Electric Energy: when power is applied for certain duration
of time, an energy gets consumed by an equipment.
• Every equipment is designed to operate on certain rated
conditions, these conditions are mentioned on the
Nameplate of an equipment.
www.messungelectricalengineering.com

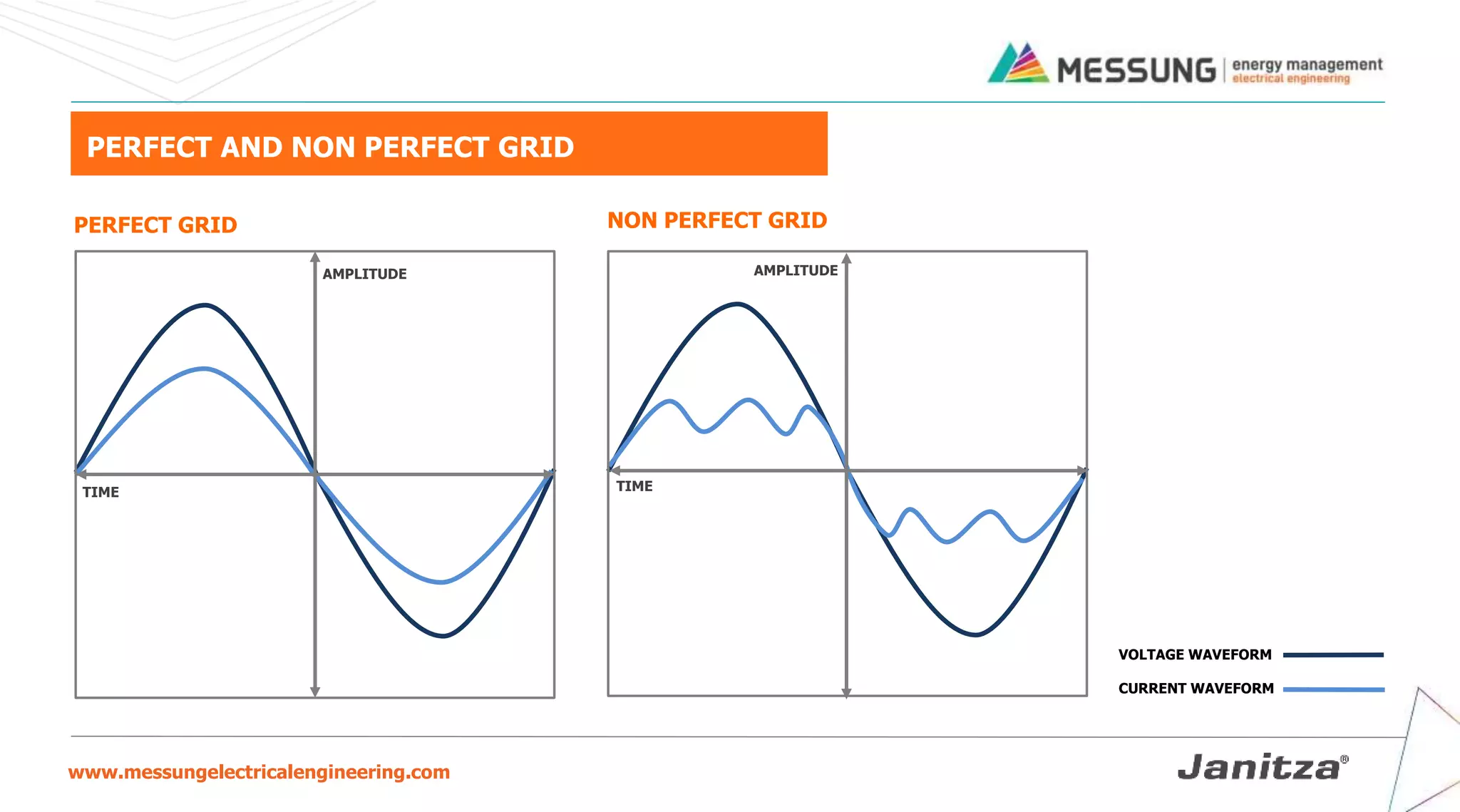

PERFECT AND NON PERFECT GRID
PERFECT GRID
TIME
AMPLITUDE
VOLTAGE WAVEFORM
CURRENT WAVEFORM
3
NON PERFECT GRID
AMPLITUDE
TIME
www.messungelectricalengineering.com

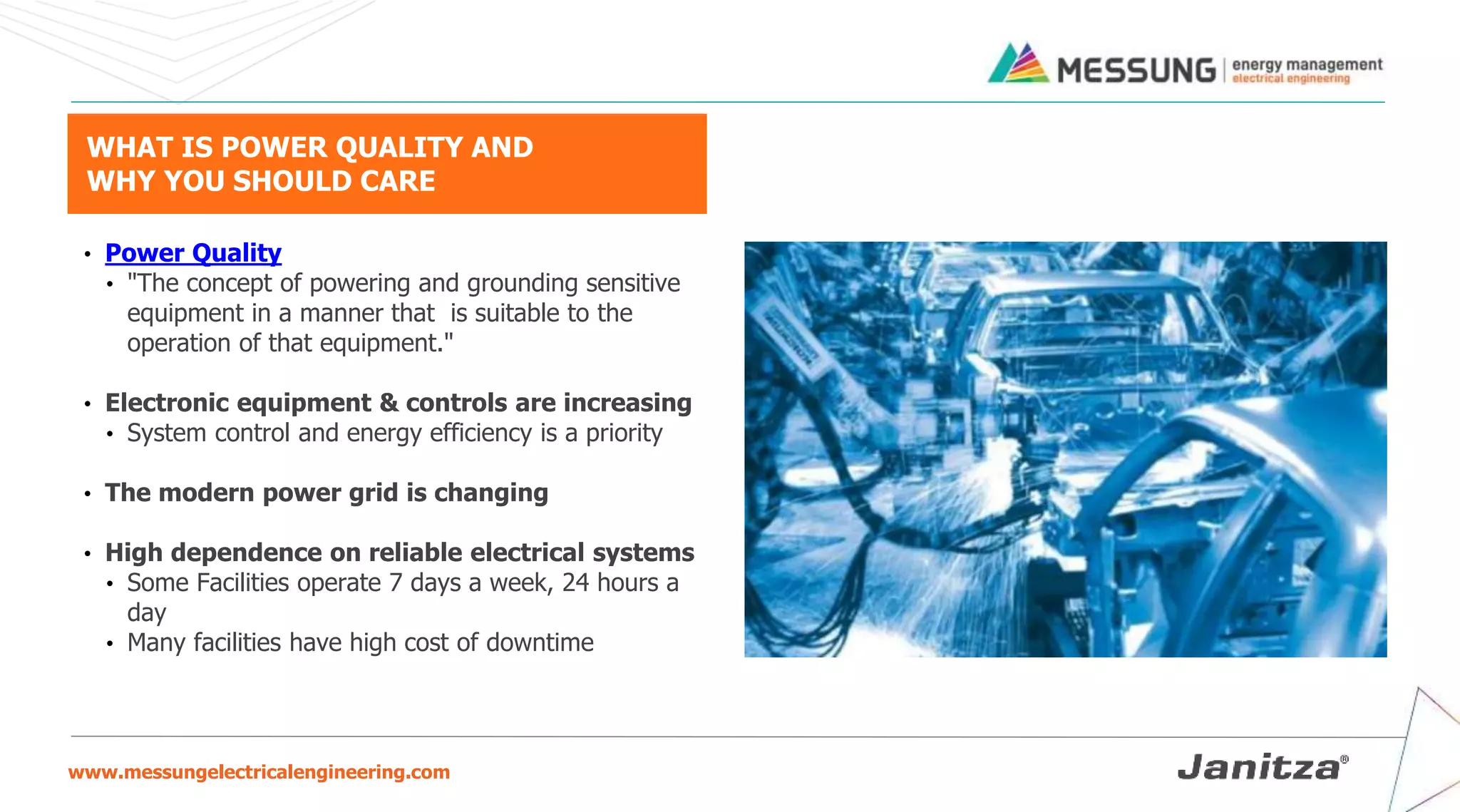

WHAT IS POWER QUALITY AND
WHY YOU SHOULD CARE
• Power Quality
• "The concept of powering and grounding sensitive
equipment in a manner that is suitable to the
operation of that equipment."
• Electronic equipment & controls are increasing
• System control and energy efficiency is a priority
• The modern power grid is changing
• High dependence on reliable electrical systems
• Some Facilities operate 7 days a week, 24 hours a
day
• Many facilities have high cost of downtime
www.messungelectricalengineering.com

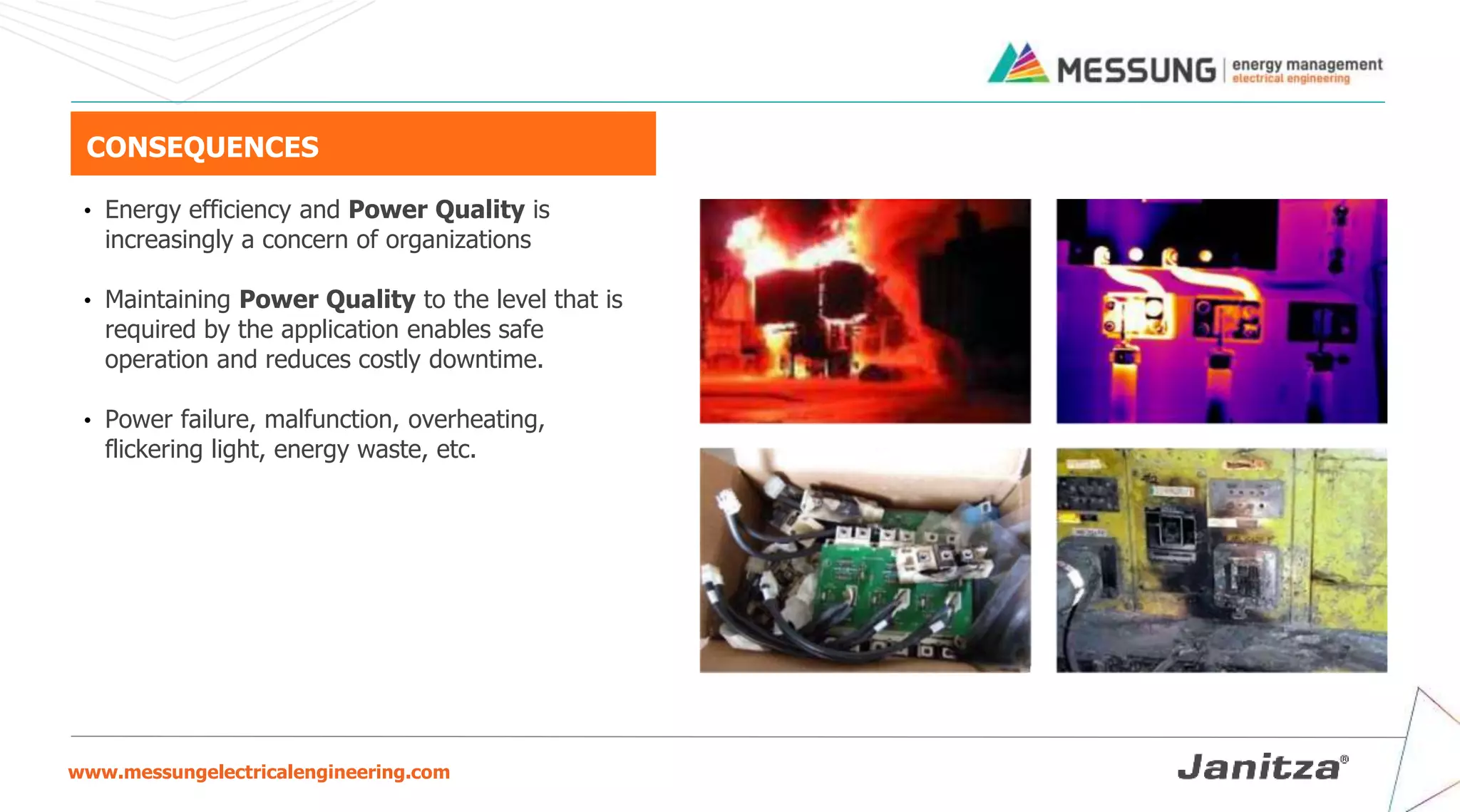

CONSEQUENCES
• Energy efficiency and Power Quality is
increasingly a concern of organizations
• Maintaining Power Quality to the level that is
required by the application enables safe
operation and reduces costly downtime.
• Power failure, malfunction, overheating,
flickering light, energy waste, etc.
www.messungelectricalengineering.com

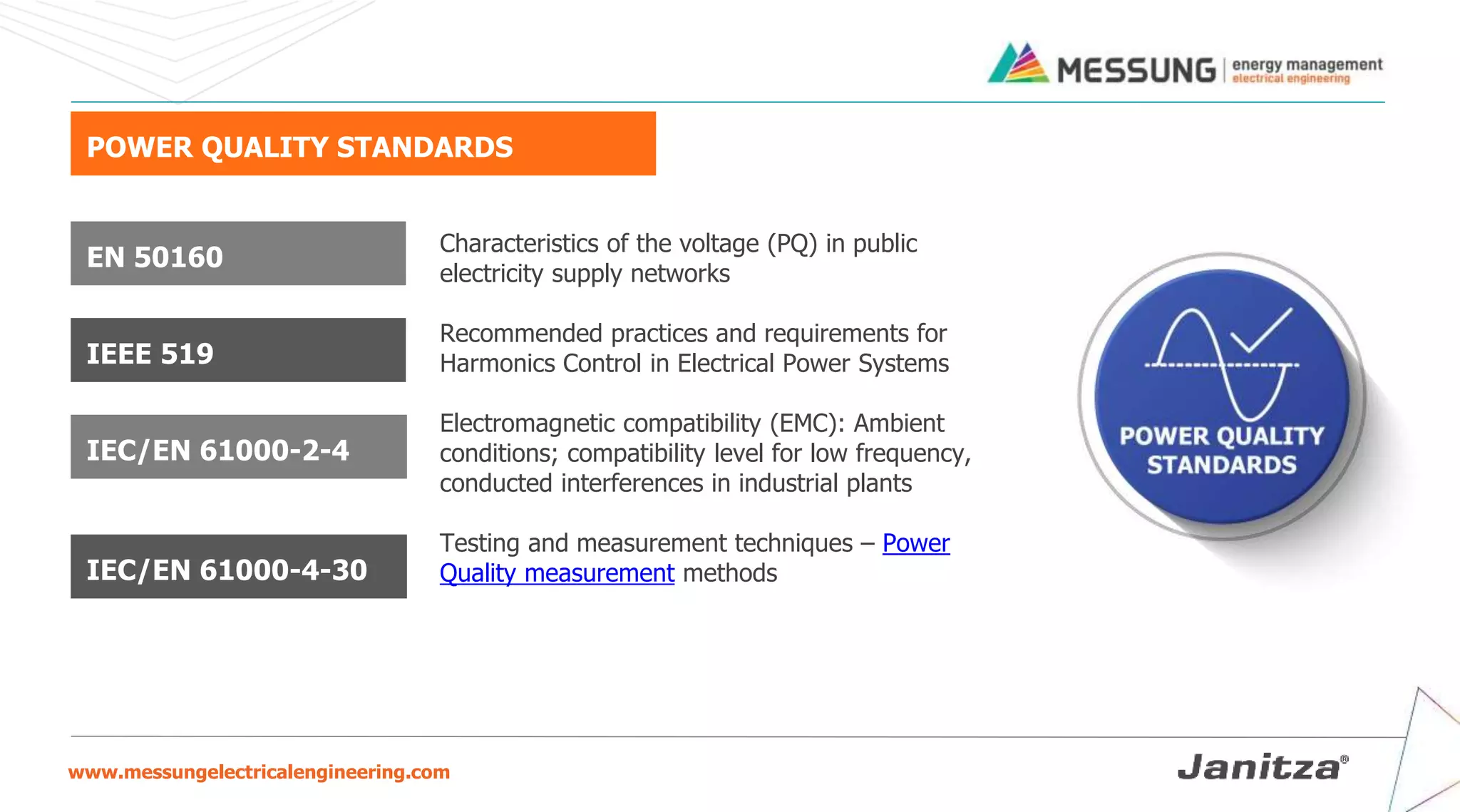

POWER QUALITY STANDARDS
Characteristics of the voltage (PQ) in public
electricity supply networks
Recommended practices and requirements for
Harmonics Control in Electrical Power Systems
Electromagnetic compatibility (EMC): Ambient
conditions; compatibility level for low frequency,
conducted interferences in industrial plants
Testing and measurement techniques – Power
Quality measurement methods
EN 50160
IEEE 519
IEC/EN 61000-2-4
IEC/EN 61000-4-30
www.messungelectricalengineering.com

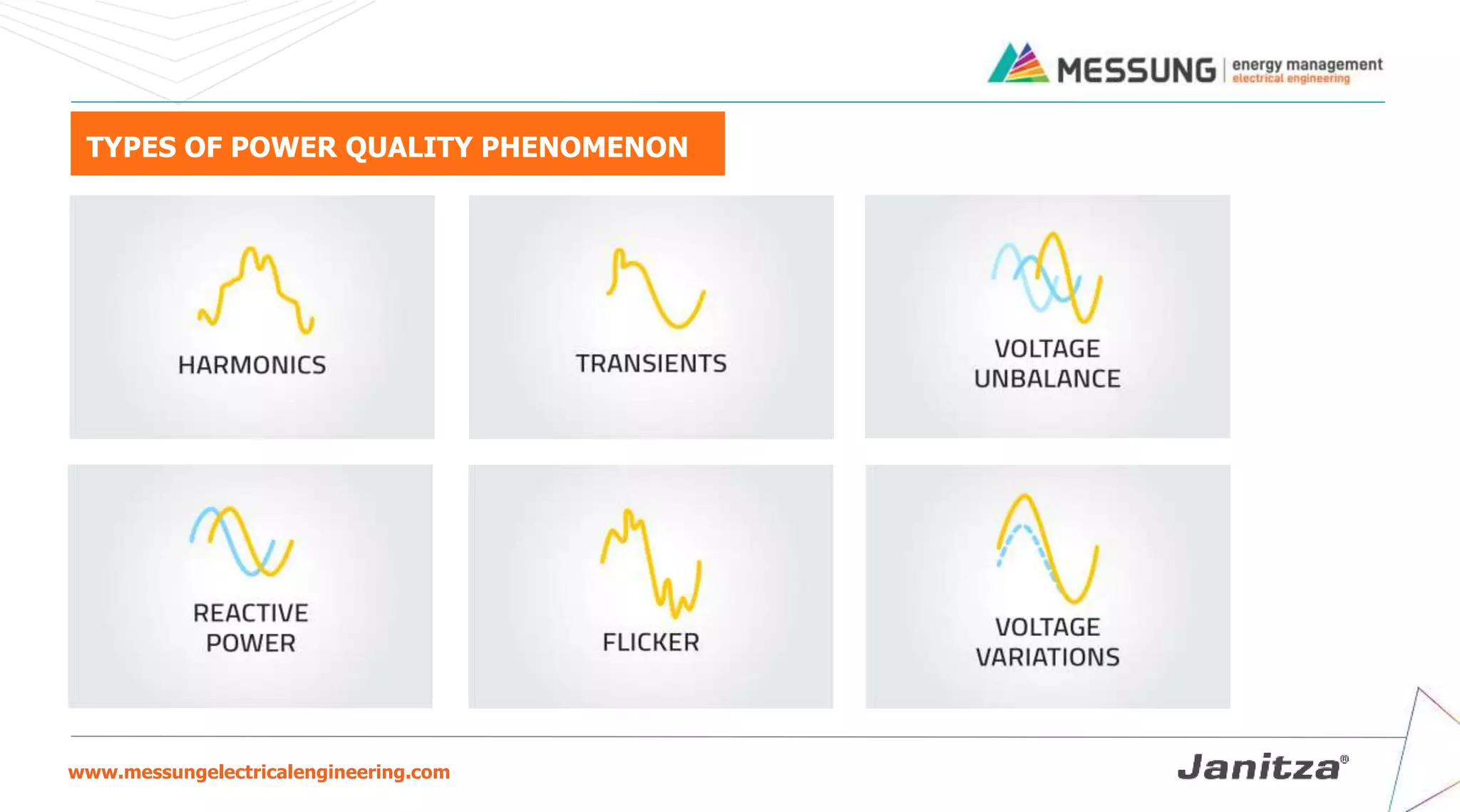

TYPES OF POWER QUALITY PHENOMENON
www.messungelectricalengineering.com

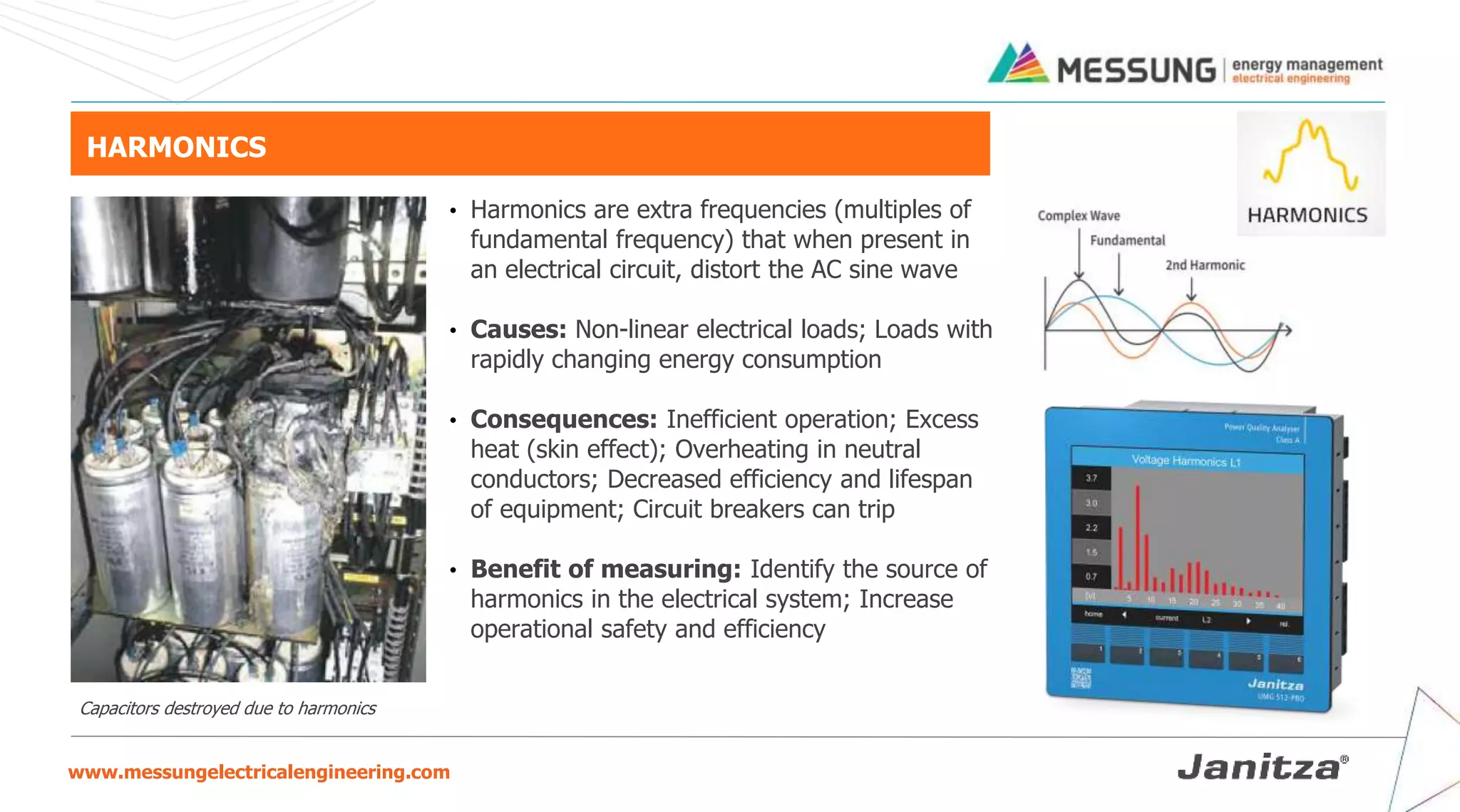

HARMONICS
• Harmonics are extra frequencies (multiples of
fundamental frequency) that when present in
an electrical circuit, distort the AC sine wave
• Causes: Non-linear electrical loads; Loads with
rapidly changing energy consumption
• Consequences: Inefficient operation; Excess
heat (skin effect); Overheating in neutral
conductors; Decreased efficiency and lifespan
of equipment; Circuit breakers can trip
• Benefit of measuring: Identify the source of
harmonics in the electrical system; Increase
operational safety and efficiency
Capacitors destroyed due to harmonics
www.messungelectricalengineering.com

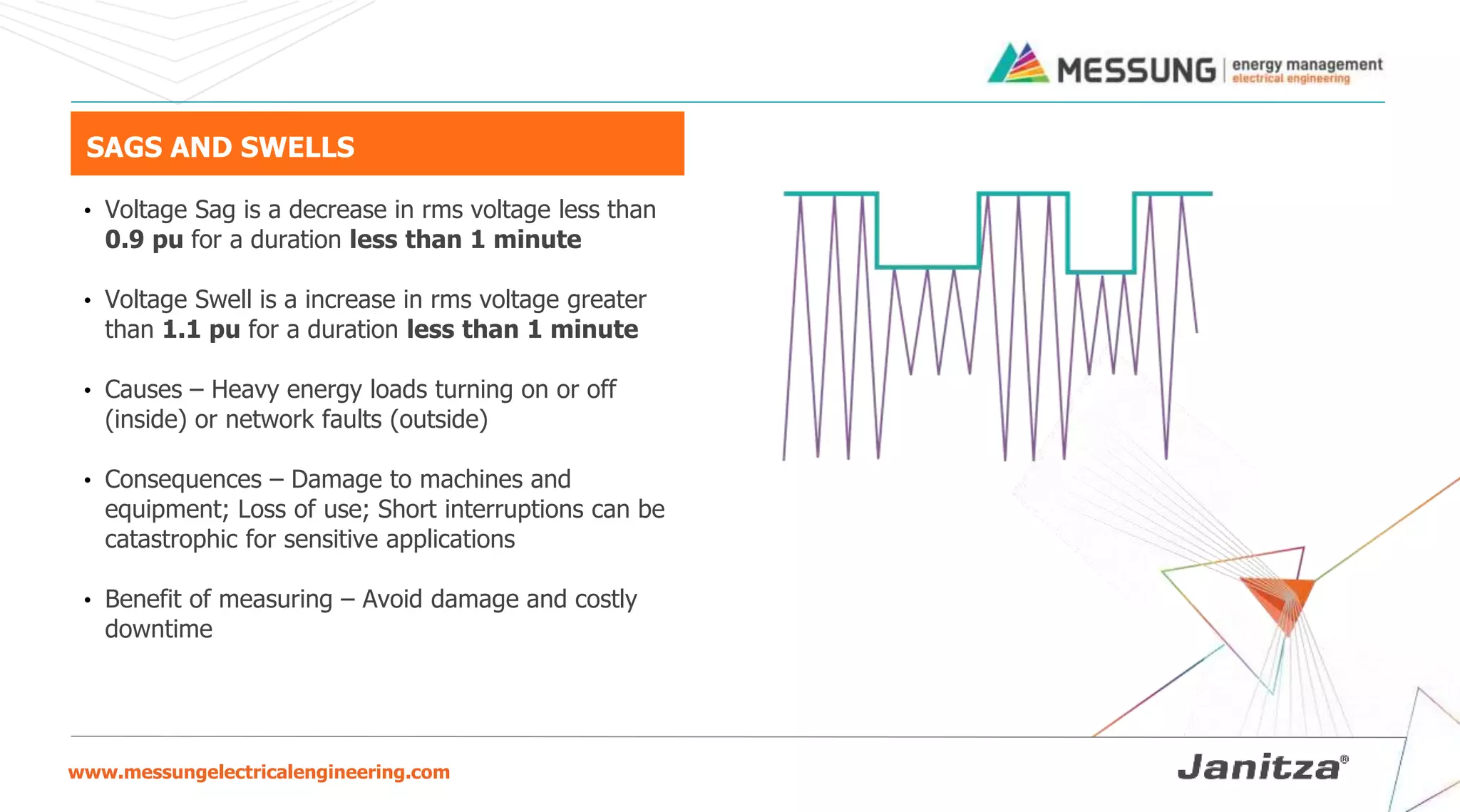

SAGS AND SWELLS
• Voltage Sag is a decrease in rms voltage less than
0.9 pu for a duration less than 1 minute
• Voltage Swell is a increase in rms voltage greater
than 1.1 pu for a duration less than 1 minute
• Causes – Heavy energy loads turning on or off
(inside) or network faults (outside)
• Consequences – Damage to machines and
equipment; Loss of use; Short interruptions can be
catastrophic for sensitive applications
• Benefit of measuring – Avoid damage and costly
downtime
www.messungelectricalengineering.com

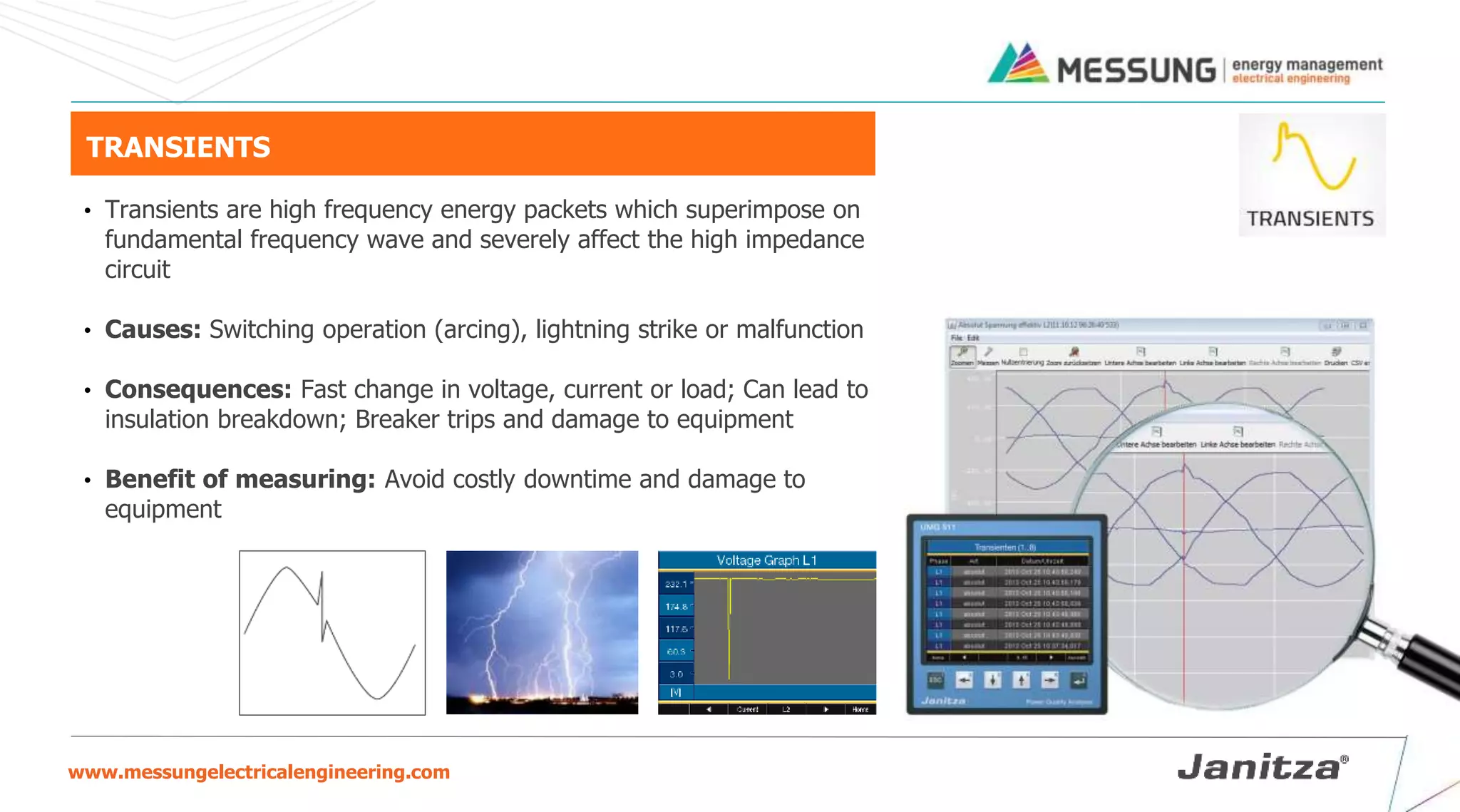

TRANSIENTS
• Transients are high frequency energy packets which superimpose on
fundamental frequency wave and severely affect the high impedance
circuit
• Causes: Switching operation (arcing), lightning strike or malfunction
• Consequences: Fast change in voltage, current or load; Can lead to
insulation breakdown; Breaker trips and damage to equipment
• Benefit of measuring: Avoid costly downtime and damage to
equipment
www.messungelectricalengineering.com

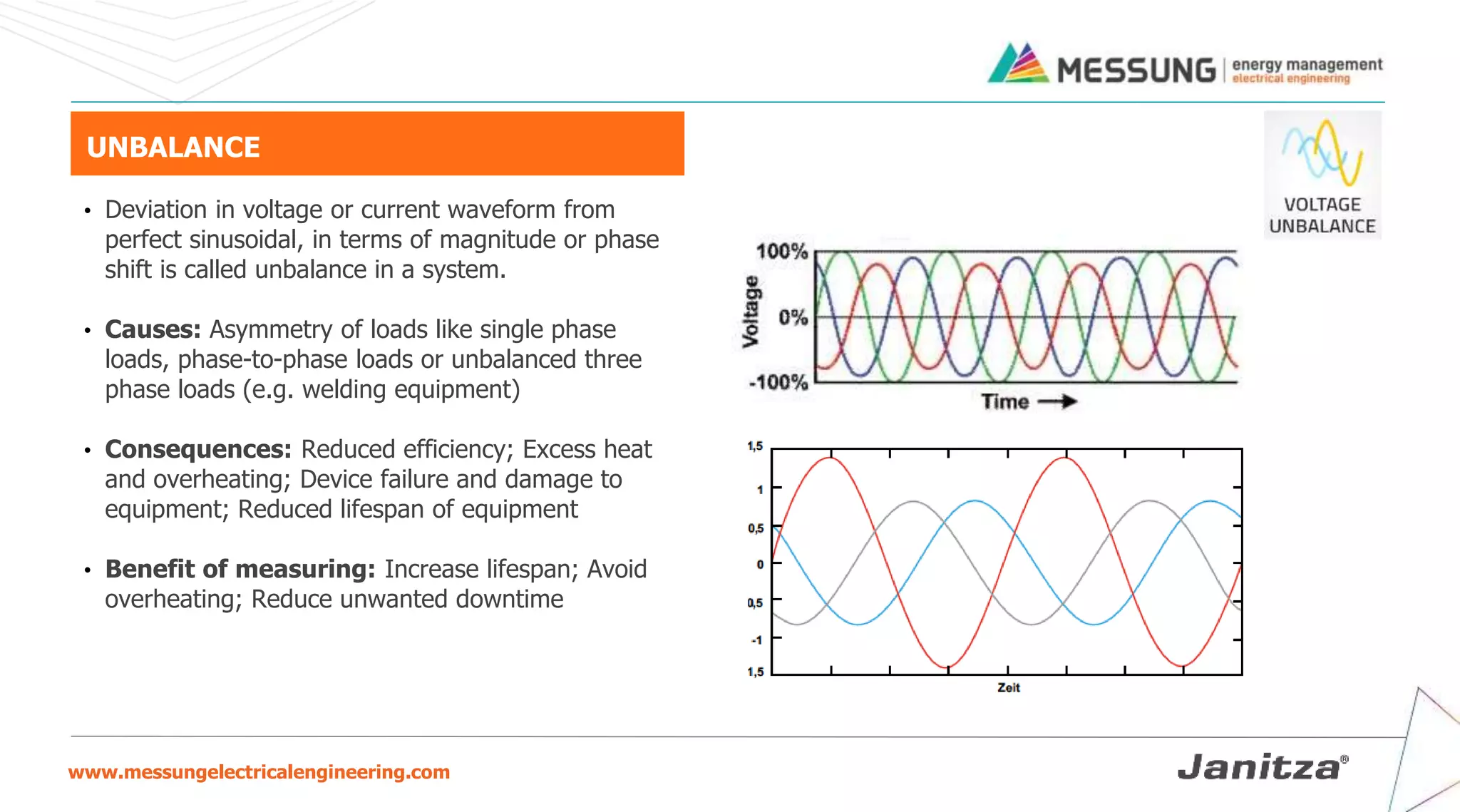

UNBALANCE
• Deviation in voltage or current waveform from
perfect sinusoidal, in terms of magnitude or phase
shift is called unbalance in a system.
• Causes: Asymmetry of loads like single phase
loads, phase-to-phase loads or unbalanced three
phase loads (e.g. welding equipment)
• Consequences: Reduced efficiency; Excess heat
and overheating; Device failure and damage to
equipment; Reduced lifespan of equipment
• Benefit of measuring: Increase lifespan; Avoid
overheating; Reduce unwanted downtime
www.messungelectricalengineering.com

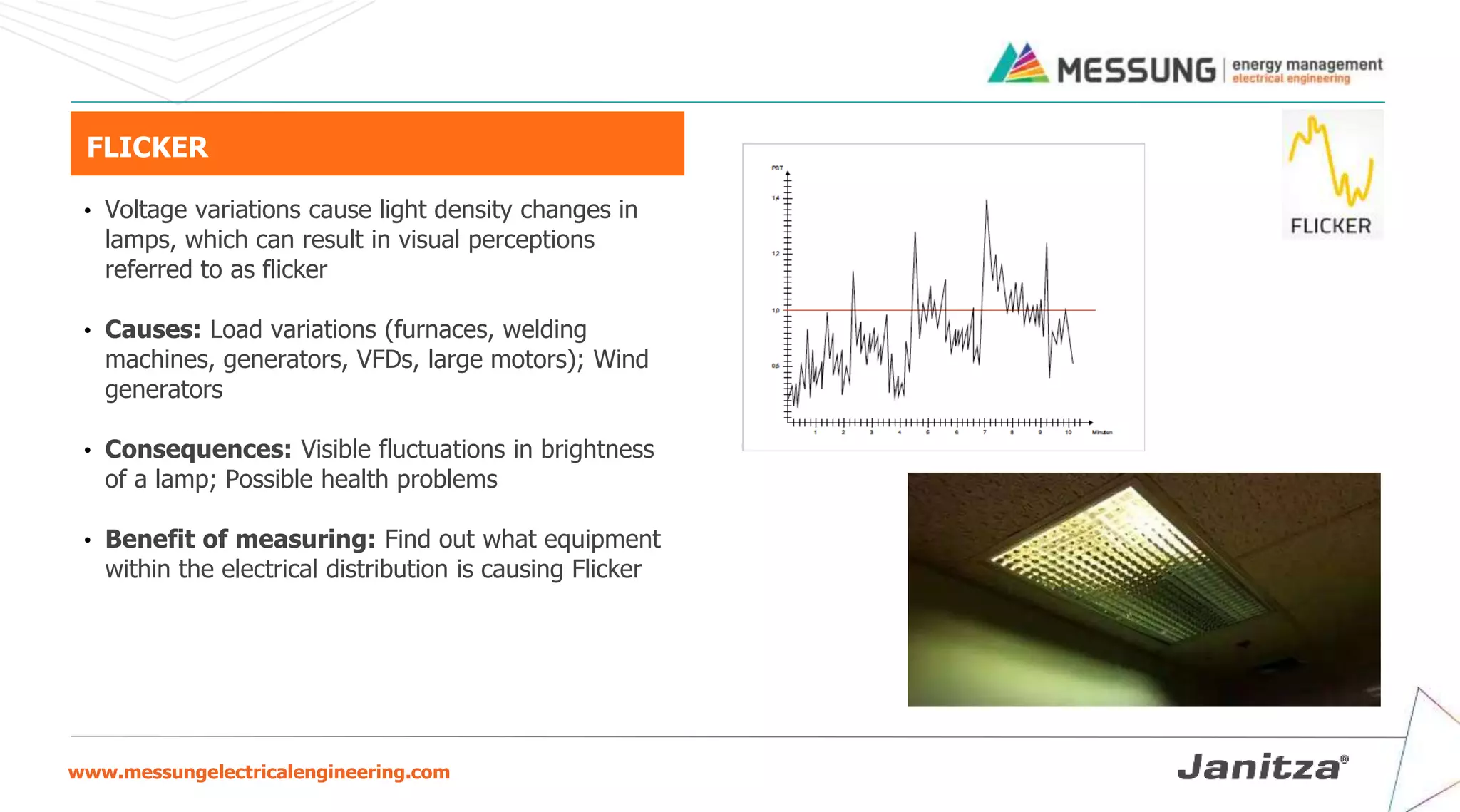

FLICKER
• Voltage variations cause light density changes in
lamps, which can result in visual perceptions
referred to as flicker
• Causes: Load variations (furnaces, welding
machines, generators, VFDs, large motors); Wind
generators
• Consequences: Visible fluctuations in brightness
of a lamp; Possible health problems
• Benefit of measuring: Find out what equipment
within the electrical distribution is causing Flicker
www.messungelectricalengineering.com

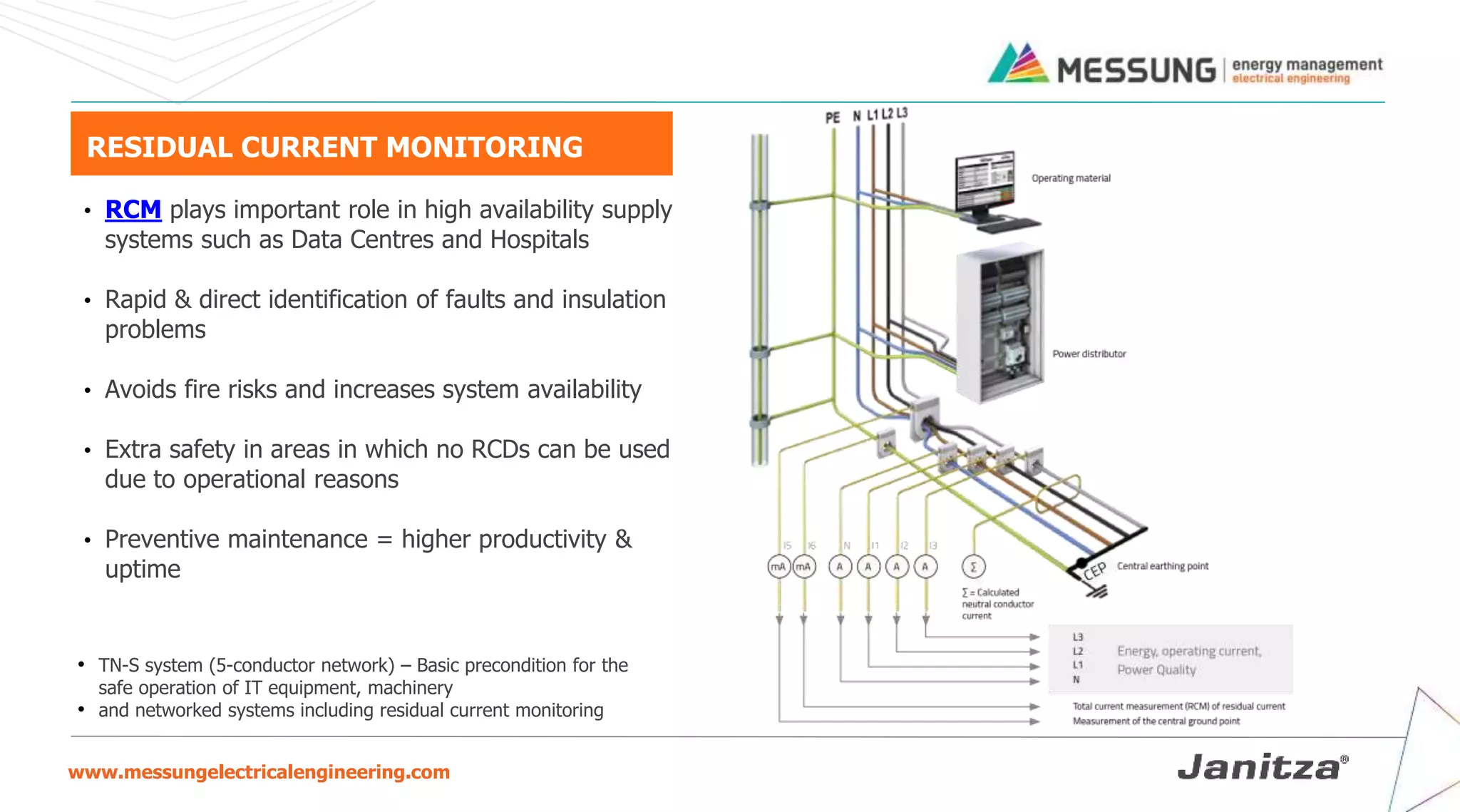

RESIDUAL CURRENT MONITORING
• TN-S system (5-conductor network) – Basic precondition for the
safe operation of IT equipment, machinery
• and networked systems including residual current monitoring
• RCM plays important role in high availability supply
systems such as Data Centres and Hospitals
• Rapid & direct identification of faults and insulation
problems
• Avoids fire risks and increases system availability
• Extra safety in areas in which no RCDs can be used
due to operational reasons
• Preventive maintenance = higher productivity &
uptime
www.messungelectricalengineering.com

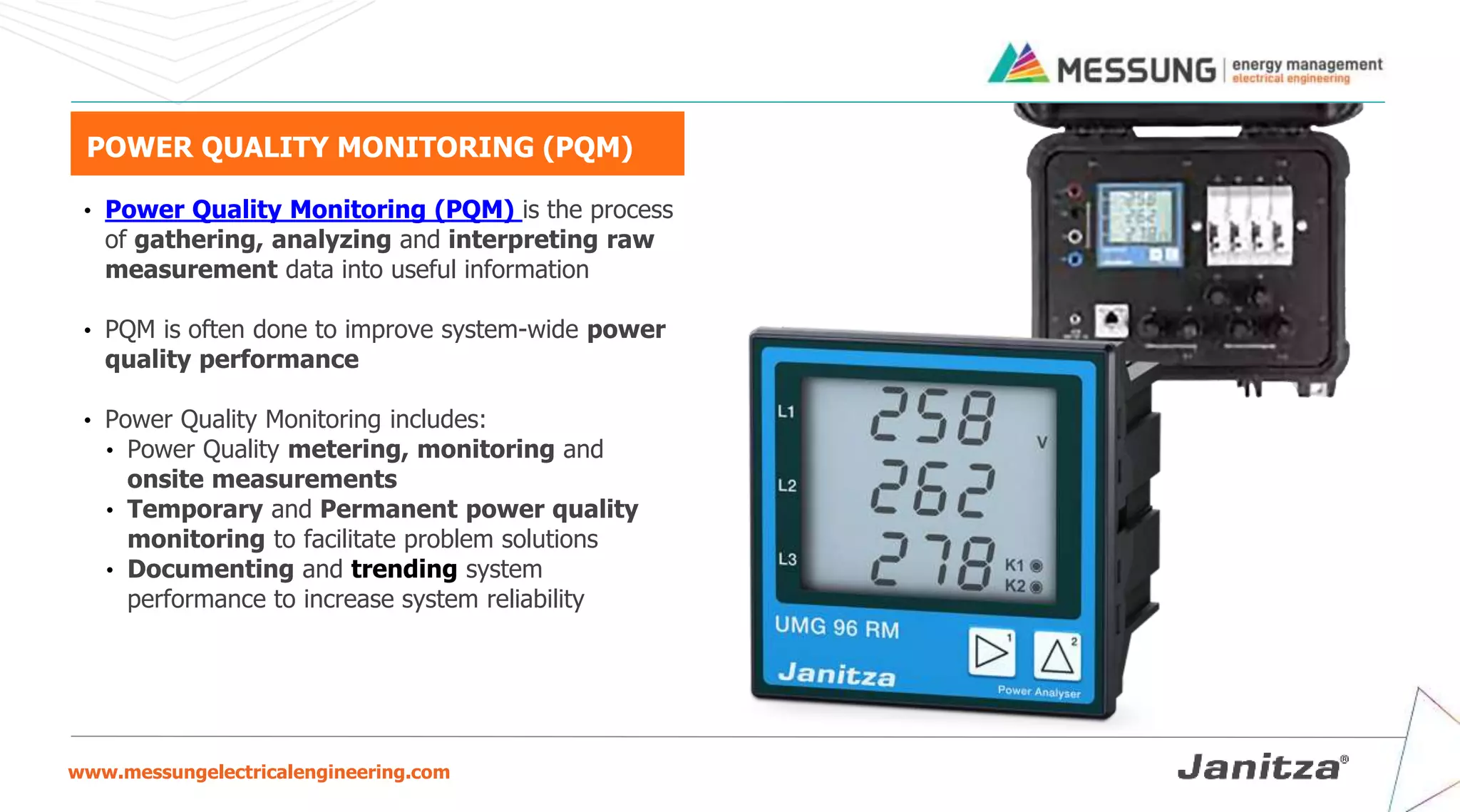

POWER QUALITY MONITORING (PQM)
• Power Quality Monitoring (PQM) is the process
of gathering, analyzing and interpreting raw
measurement data into useful information
• PQM is often done to improve system-wide power
quality performance
• Power Quality Monitoring includes:
• Power Quality metering, monitoring and
onsite measurements
• Temporary and Permanent power quality
monitoring to facilitate problem solutions
• Documenting and trending system
performance to increase system reliability
www.messungelectricalengineering.com

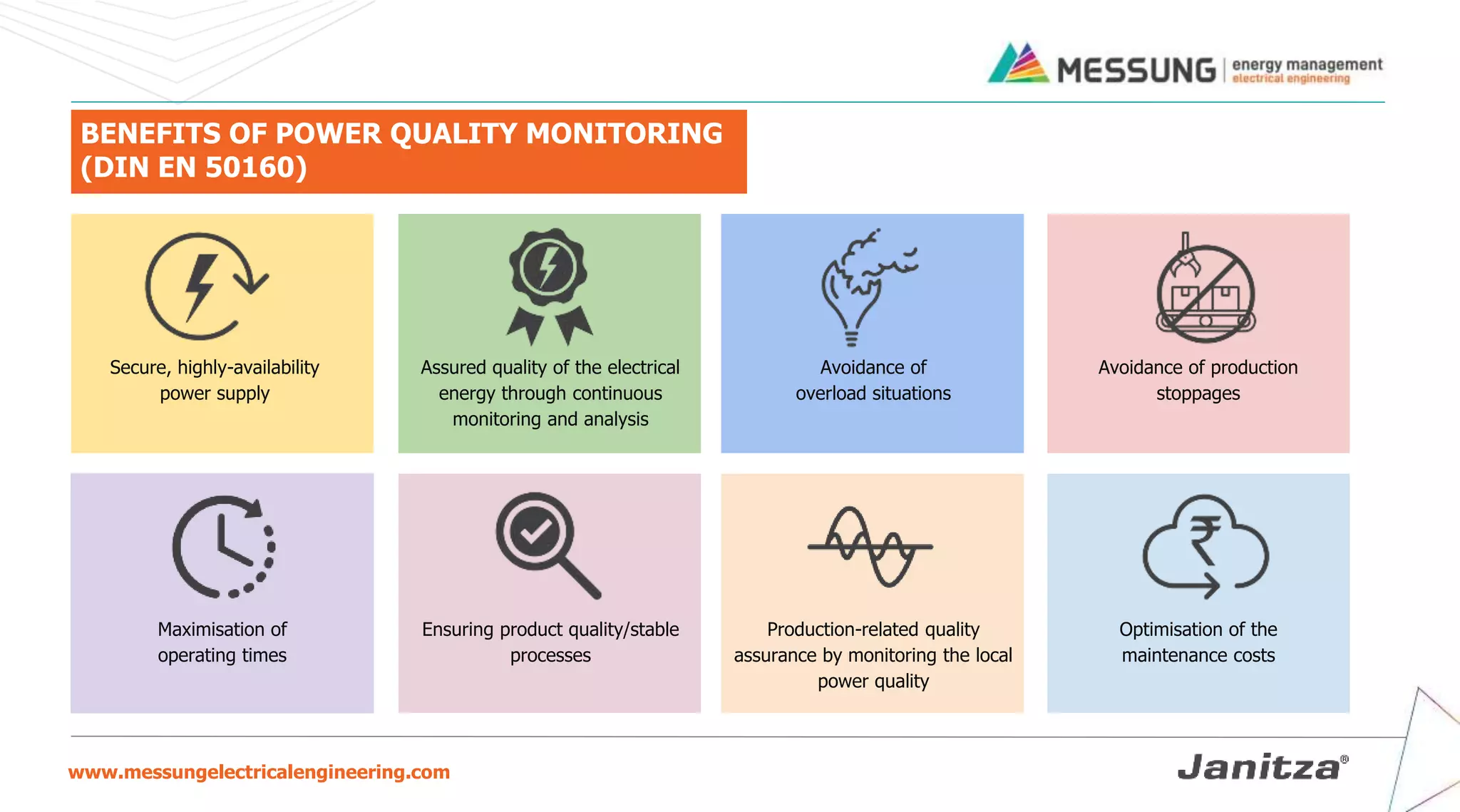

BENEFITS OF POWER QUALITY MONITORING
(DIN EN 50160)
Secure, highly-availability
power supply
Assured quality of the electrical
energy through continuous
monitoring and analysis
Avoidance of
overload situations
Avoidance of production
stoppages
Ensuring product quality/stable
processes
Maximisation of
operating times
Production-related quality
assurance by monitoring the local
power quality
Optimisation of the
maintenance costs
www.messungelectricalengineering.com
ONE SYSTEM THREE BENEFITS
Energy Management
ISO 5001
• Reduces energy costs
• Improves energy
efficiency
Power Quality
EN50160
• Reduces downtime
• Optimizes
maintenance
Residual Current
Monitoring
• Identifies insulation
faults faster
• Improves supply
reliability
www.messungelectricalengineering.com

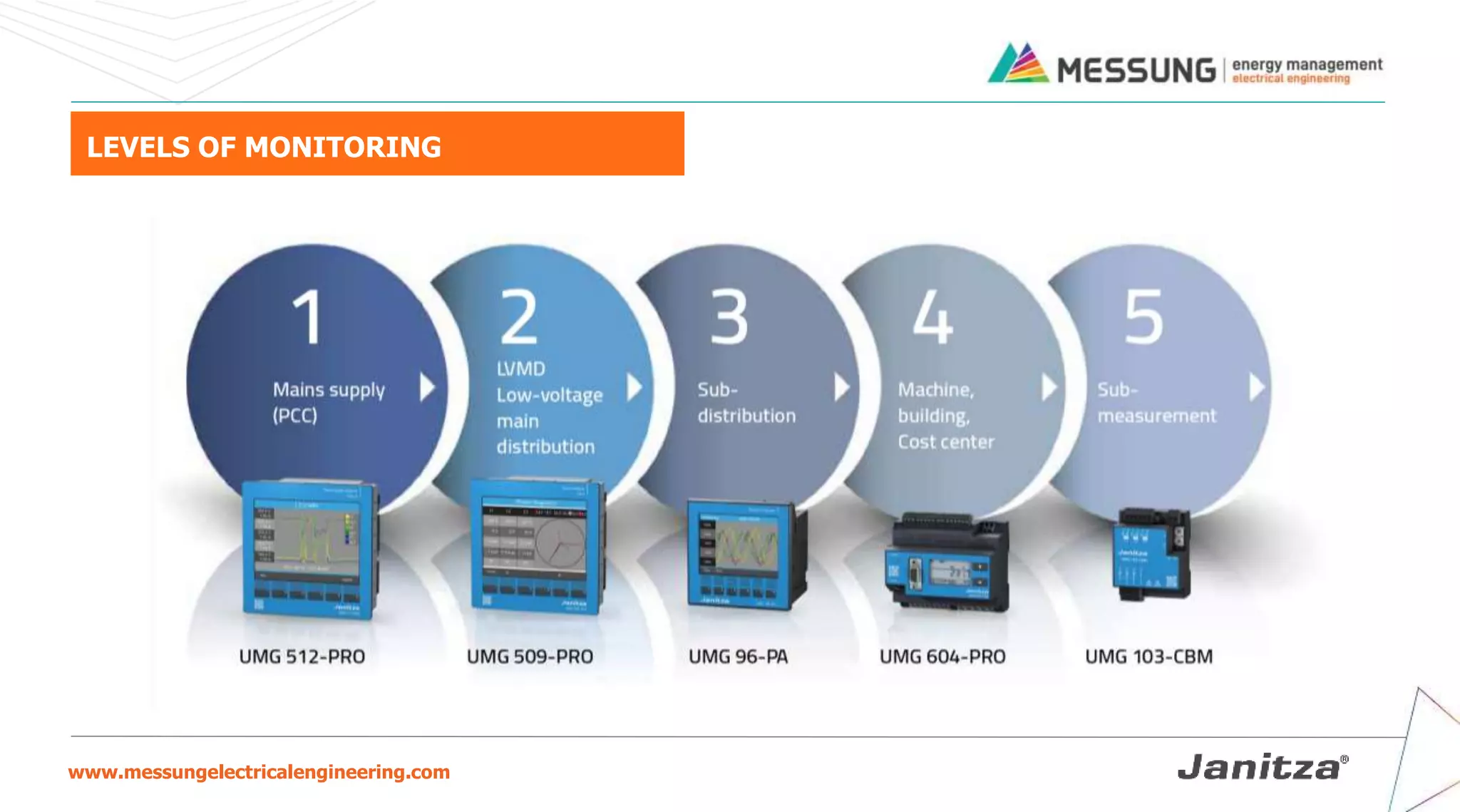

LEVELS OF MONITORING
www.messungelectricalengineering.com

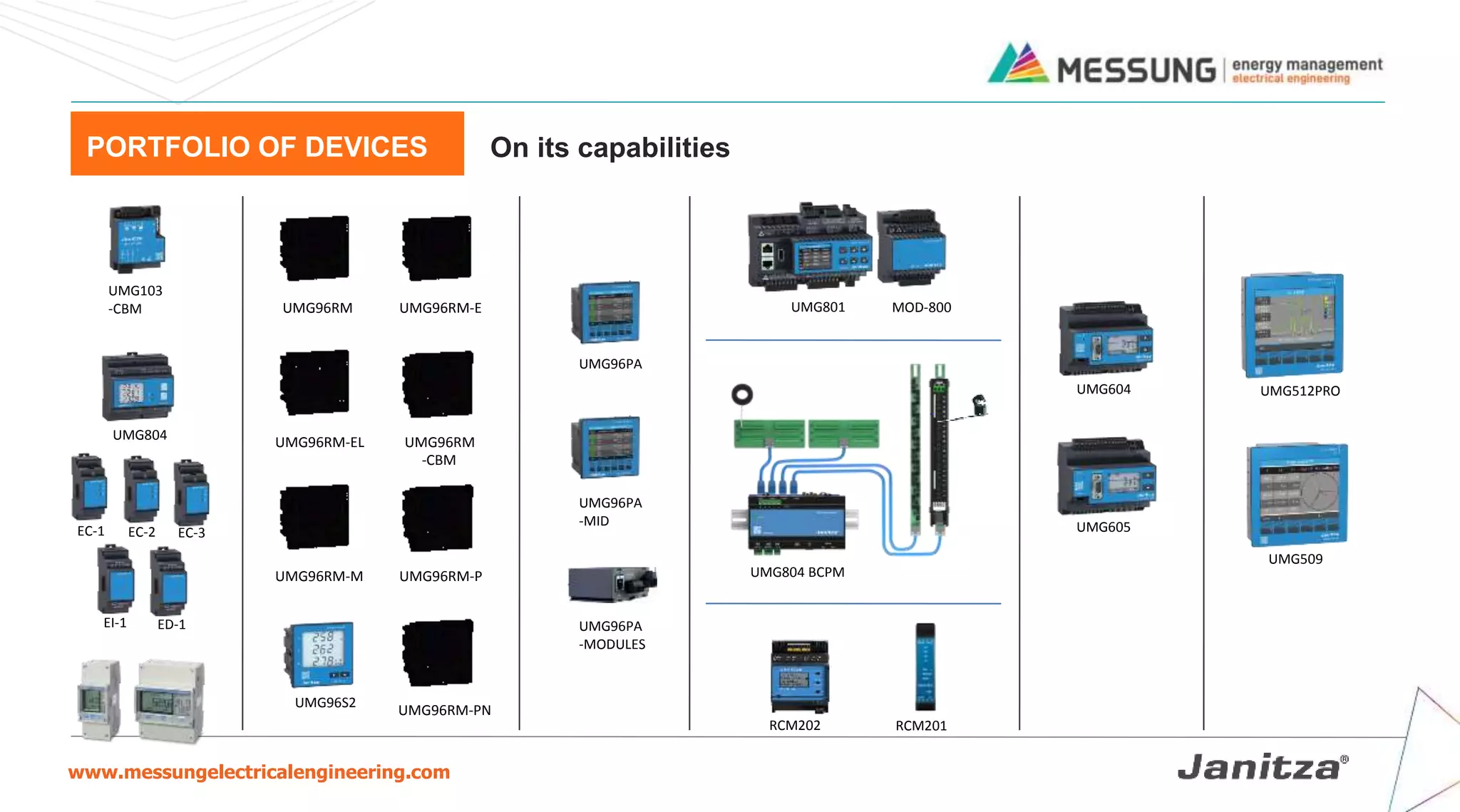

PORTFOLIO OF DEVICES On its capabilities
UMG96PA
UMG605
UMG512PRO
UMG509
UMG96PA
-MID
UMG96PA
-MODULES
UMG103
-CBM UMG801 MOD-800
UMG804
EC-1 EC-2 EC-3
EI-1 ED-1
UMG96S2
UMG604
UMG804 BCPM
RCM202 RCM201
UMG96RM UMG96RM-E
UMG96RM-P
UMG96RM
-CBM
UMG96RM-PN
UMG96RM-EL
UMG96RM-M
www.messungelectricalengineering.com
www.messungelectricalengineering.com

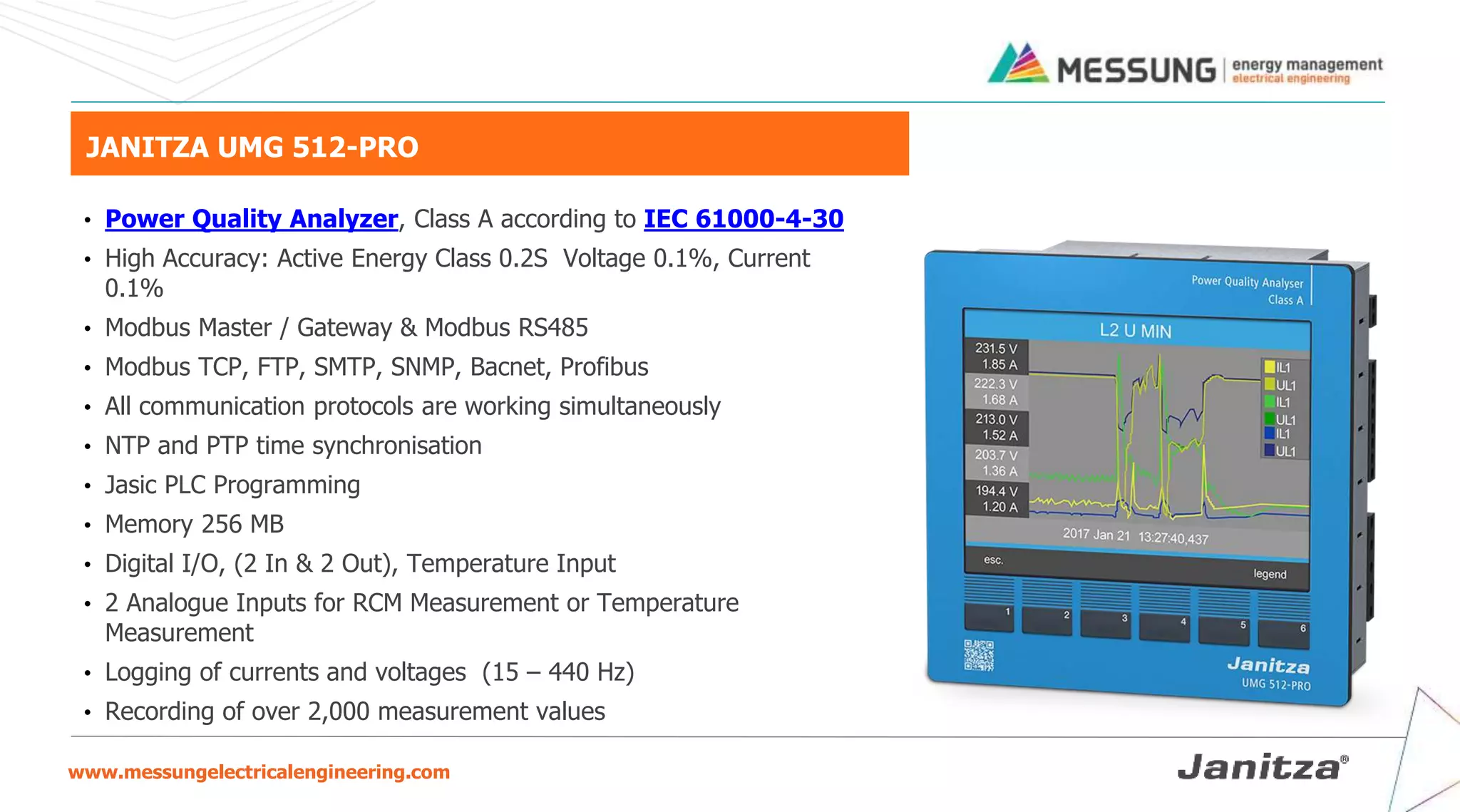

JANITZA UMG 512-PRO
• Power Quality Analyzer, Class A according to IEC 61000-4-30
• High Accuracy: Active Energy Class 0.2S Voltage 0.1%, Current
0.1%
• Modbus Master / Gateway & Modbus RS485
• Modbus TCP, FTP, SMTP, SNMP, Bacnet, Profibus
• All communication protocols are working simultaneously
• NTP and PTP time synchronisation
• Jasic PLC Programming
• Memory 256 MB
• Digital I/O, (2 In & 2 Out), Temperature Input
• 2 Analogue Inputs for RCM Measurement or Temperature
Measurement
• Logging of currents and voltages (15 – 440 Hz)
• Recording of over 2,000 measurement values
www.messungelectricalengineering.com
JANITZA SOFTWARE
GridVis software
Visualisation software for energy
management systems and for power
quality monitoring.
www.messungelectricalengineering.com

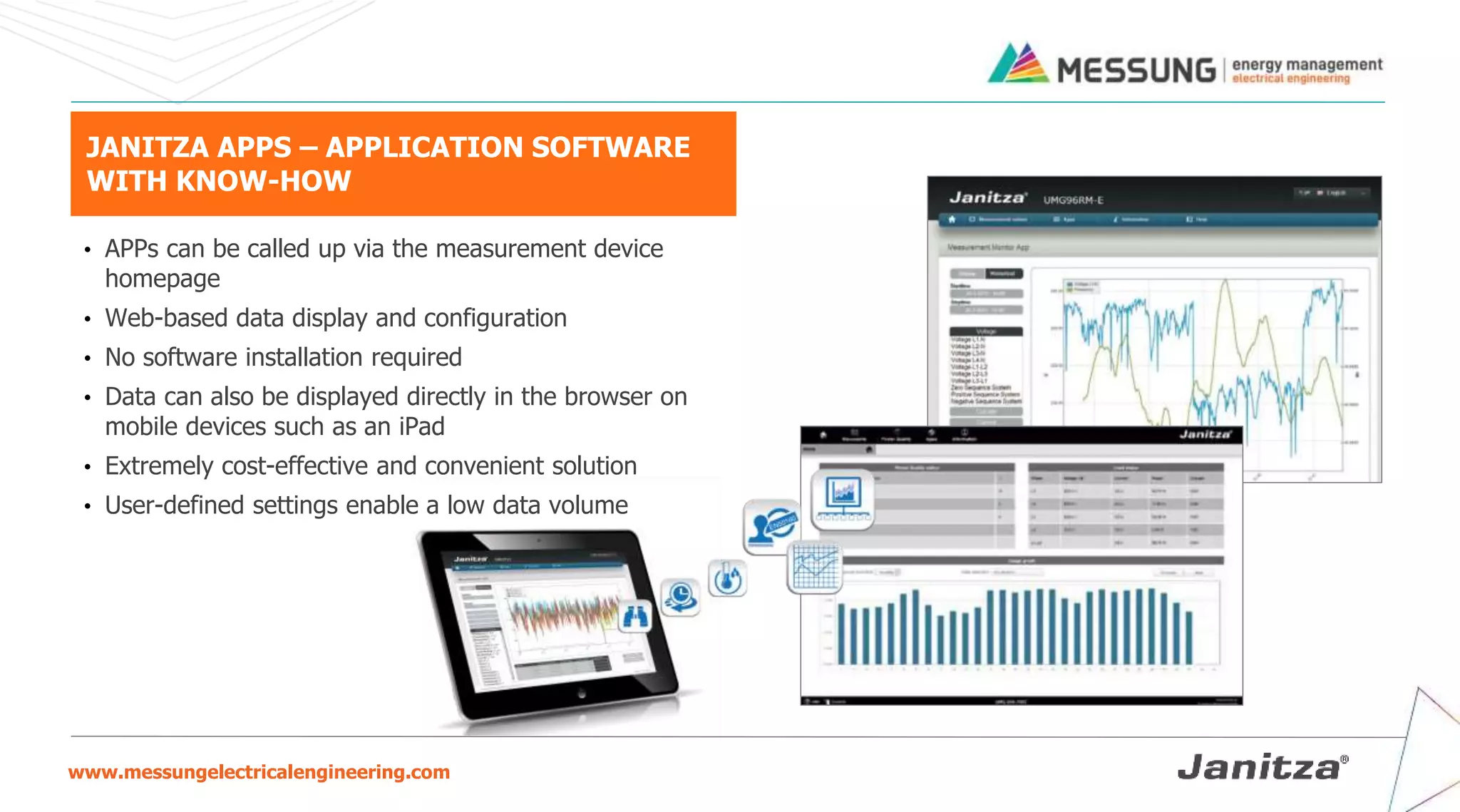

JANITZA APPS – APPLICATION SOFTWARE
WITH KNOW-HOW
• APPs can be called up via the measurement device
homepage
• Web-based data display and configuration
• No software installation required
• Data can also be displayed directly in the browser on
mobile devices such as an iPad
• Extremely cost-effective and convenient solution
• User-defined settings enable a low data volume
www.messungelectricalengineering.com

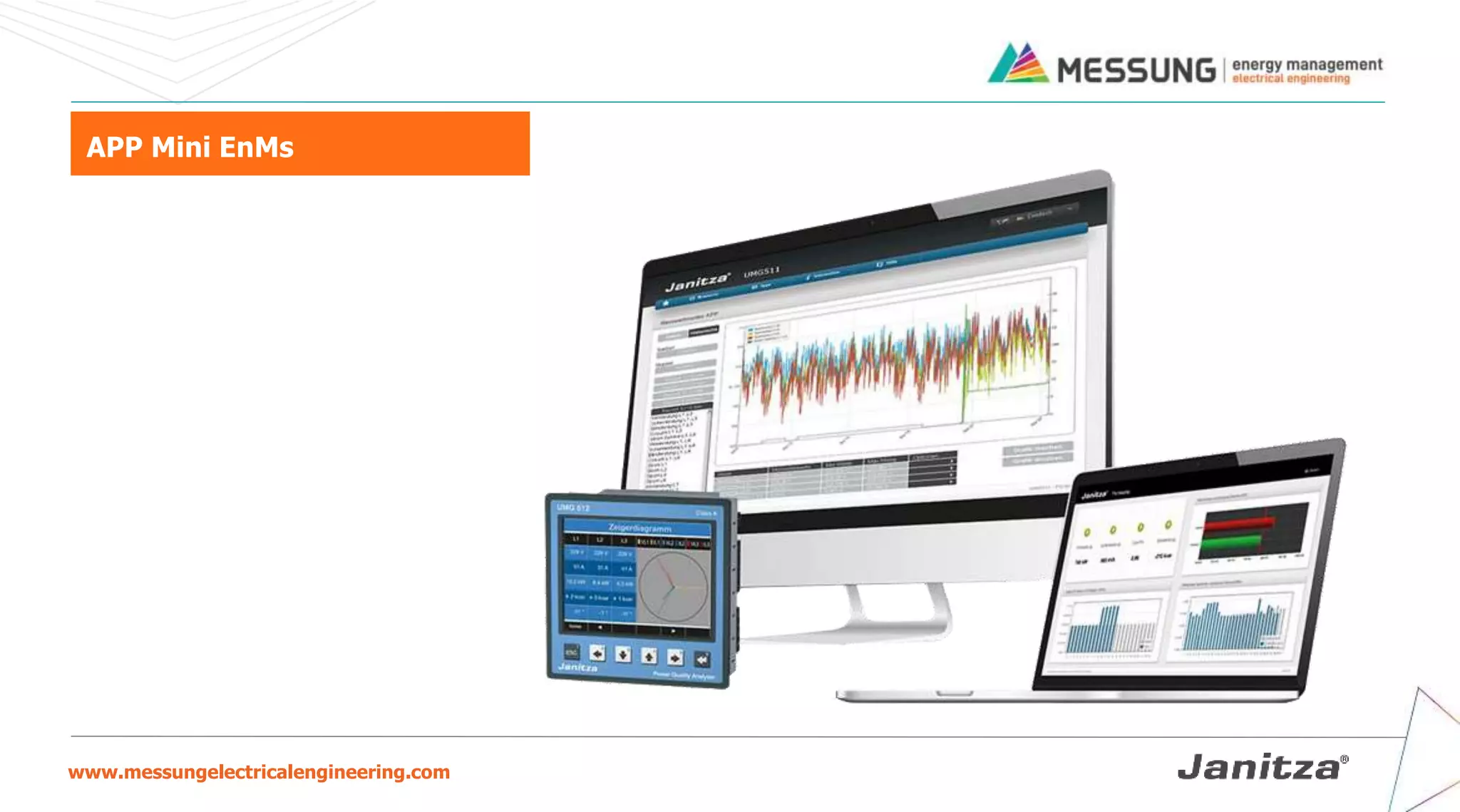

APP Mini EnMs
www.messungelectricalengineering.com
Contact us
MESSUNG SYSTEMS PVT. LTD.
501, 502 & 503 Lunkad Sky Vista, Viman Nagar, Pune, India - 411 014.
+91 20 6649 2800 | info@messung.com
THANK YOU

More Related Content

What's hot

UST Power Quality Basics
UST Power Quality BasicsUST Power Quality Basics
UST Power Quality Basics
Ronald Ladouceur

Jose_resume 1
Jose_resume 1Jose_resume 1
Power quality
Power  qualityPower  quality
Power quality
Sowmya Reddy

POWER QUALITY IMPROVEMENT
POWER QUALITY IMPROVEMENTPOWER QUALITY IMPROVEMENT
POWER QUALITY IMPROVEMENT
Uday Wankar

AEMC Webinar: Why Monitor Electrical Energy and How
AEMC Webinar: Why Monitor Electrical Energy and HowAEMC Webinar: Why Monitor Electrical Energy and How
AEMC Webinar: Why Monitor Electrical Energy and How
Transcat

Power Quality
Power QualityPower Quality
Power Quality
Elshemy Mohamed

A Review of power quality problems, standards and solutions
A Review of power quality problems, standards and solutionsA Review of power quality problems, standards and solutions
A Review of power quality problems, standards and solutions
IRJET Journal

Power quality 1
Power quality 1Power quality 1
Power quality 1
Md Irshad Ahmad

Power quality analysis (2)
Power quality analysis (2)Power quality analysis (2)
Power quality analysis (2)
Network Techlab India Pvt. Ltd.

Web based power quality monitoring system
Web based power quality monitoring systemWeb based power quality monitoring system
Web based power quality monitoring system
Vikram Purohit

Overview of power quality problems ppt
Overview of power quality problems pptOverview of power quality problems ppt
Overview of power quality problems ppt
Mitesh Karmur

costing of domestic and industrial wiring
costing of domestic and industrial wiringcosting of domestic and industrial wiring
costing of domestic and industrial wiring
RanjitKumar Parmar

Photovoltaic Training Course - Module 3.3 - Control system data management
Photovoltaic Training Course - Module 3.3 - Control system data managementPhotovoltaic Training Course - Module 3.3 - Control system data management
Photovoltaic Training Course - Module 3.3 - Control system data management
Leonardo ENERGY

Electrical Systems: Designing electrical rooms
Electrical Systems: Designing electrical roomsElectrical Systems: Designing electrical rooms
Electrical Systems: Designing electrical rooms
ConsultingSpecifyingEngineer

Photovoltaic Training Course - Module 3.2 - control system components and inf...
Photovoltaic Training Course - Module 3.2 - control system components and inf...Photovoltaic Training Course - Module 3.2 - control system components and inf...
Photovoltaic Training Course - Module 3.2 - control system components and inf...
Leonardo ENERGY

POWER QUALITY AUDIT -PM ELECTRONICS
POWER QUALITY AUDIT -PM ELECTRONICSPOWER QUALITY AUDIT -PM ELECTRONICS
POWER QUALITY AUDIT -PM ELECTRONICS
PM ELECTRONICS

Automation and adaptive control in welding
Automation and adaptive control in weldingAutomation and adaptive control in welding
Automation and adaptive control in welding
Lucky Lucky

Photovoltaic Training Course - Module 2.3 - Electrical installation
Photovoltaic Training Course - Module 2.3 - Electrical installationPhotovoltaic Training Course - Module 2.3 - Electrical installation
Photovoltaic Training Course - Module 2.3 - Electrical installation
Leonardo ENERGY

Uninterruptible Power Supply (UPS)
Uninterruptible Power Supply (UPS)Uninterruptible Power Supply (UPS)
Uninterruptible Power Supply (UPS)
Panduit


What's hot (19)

UST Power Quality Basics
UST Power Quality BasicsUST Power Quality Basics
UST Power Quality Basics

Jose_resume 1
Jose_resume 1Jose_resume 1
Jose_resume 1

Power quality
Power  qualityPower  quality
Power quality

POWER QUALITY IMPROVEMENT
POWER QUALITY IMPROVEMENTPOWER QUALITY IMPROVEMENT
POWER QUALITY IMPROVEMENT

AEMC Webinar: Why Monitor Electrical Energy and How
AEMC Webinar: Why Monitor Electrical Energy and HowAEMC Webinar: Why Monitor Electrical Energy and How
AEMC Webinar: Why Monitor Electrical Energy and How

Power Quality
Power QualityPower Quality
Power Quality

A Review of power quality problems, standards and solutions
A Review of power quality problems, standards and solutionsA Review of power quality problems, standards and solutions
A Review of power quality problems, standards and solutions

Power quality 1
Power quality 1Power quality 1
Power quality 1

Power quality analysis (2)
Power quality analysis (2)Power quality analysis (2)
Power quality analysis (2)

Web based power quality monitoring system
Web based power quality monitoring systemWeb based power quality monitoring system
Web based power quality monitoring system

Overview of power quality problems ppt
Overview of power quality problems pptOverview of power quality problems ppt
Overview of power quality problems ppt

costing of domestic and industrial wiring
costing of domestic and industrial wiringcosting of domestic and industrial wiring
costing of domestic and industrial wiring

Photovoltaic Training Course - Module 3.3 - Control system data management
Photovoltaic Training Course - Module 3.3 - Control system data managementPhotovoltaic Training Course - Module 3.3 - Control system data management
Photovoltaic Training Course - Module 3.3 - Control system data management

Electrical Systems: Designing electrical rooms
Electrical Systems: Designing electrical roomsElectrical Systems: Designing electrical rooms
Electrical Systems: Designing electrical rooms

Photovoltaic Training Course - Module 3.2 - control system components and inf...
Photovoltaic Training Course - Module 3.2 - control system components and inf...Photovoltaic Training Course - Module 3.2 - control system components and inf...
Photovoltaic Training Course - Module 3.2 - control system components and inf...

POWER QUALITY AUDIT -PM ELECTRONICS
POWER QUALITY AUDIT -PM ELECTRONICSPOWER QUALITY AUDIT -PM ELECTRONICS
POWER QUALITY AUDIT -PM ELECTRONICS

Automation and adaptive control in welding
Automation and adaptive control in weldingAutomation and adaptive control in welding
Automation and adaptive control in welding

Photovoltaic Training Course - Module 2.3 - Electrical installation
Photovoltaic Training Course - Module 2.3 - Electrical installationPhotovoltaic Training Course - Module 2.3 - Electrical installation
Photovoltaic Training Course - Module 2.3 - Electrical installation

Uninterruptible Power Supply (UPS)
Uninterruptible Power Supply (UPS)Uninterruptible Power Supply (UPS)
Uninterruptible Power Supply (UPS)


Similar to Understanding power quality and its importantce

calidad de energia
calidad de energiacalidad de energia
calidad de energia
Cesar Chilet

Power quality management
Power quality managementPower quality management
Power quality management
Messung Electrical Engineering

OM PRAKASH.pptx
OM PRAKASH.pptxOM PRAKASH.pptx
OM PRAKASH.pptx
OmPrakash781786

63-pq.ppt
63-pq.ppt63-pq.ppt
63-pq.ppt
ssuser10f1ca

63-pq.ppt
63-pq.ppt63-pq.ppt
Power quality
Power qualityPower quality
Power quality
Biswajit Pratihari

Power Presentation West Palm
Power Presentation West PalmPower Presentation West Palm
Power Presentation West Palm
wbbates

Powerqualityppt kuldeep
Powerqualityppt kuldeepPowerqualityppt kuldeep
Powerqualityppt kuldeep
Kuldeep Singh

Power quality disturbances
Power quality disturbancesPower quality disturbances
Power quality disturbances
ManasKumarPatro

1660034363151685.pptx
1660034363151685.pptx1660034363151685.pptx
1660034363151685.pptx
Pradip khatri

Ab04404170177
Ab04404170177Ab04404170177
Ab04404170177
IJERA Editor

Unit V part-2 windfarm grid issues.pptx
Unit V part-2 windfarm grid issues.pptxUnit V part-2 windfarm grid issues.pptx
Unit V part-2 windfarm grid issues.pptx
sundeepsiddula

power_ quality
power_ qualitypower_ quality
power_ quality
Sowmya Reddy

Piezo Electric Effect
Piezo Electric EffectPiezo Electric Effect
Piezo Electric Effect
SarmadAli70

220KV SUB STATION.pptx
220KV SUB STATION.pptx220KV SUB STATION.pptx
220KV SUB STATION.pptx
Akshit Jain

15ee81 module1[www.vtuloop.com].pdf
15ee81 module1[www.vtuloop.com].pdf15ee81 module1[www.vtuloop.com].pdf
15ee81 module1[www.vtuloop.com].pdf
JoshKwedjartey1

Legend Power - Effects of Voltage Optimziation
Legend Power - Effects of Voltage OptimziationLegend Power - Effects of Voltage Optimziation
Legend Power - Effects of Voltage Optimziation
Dave Orton

Phase 4
Phase 4Phase 4
Phase 4
Alem Mezgebo

Fluke clamp meter selection guide
Fluke clamp meter selection guideFluke clamp meter selection guide
Fluke clamp meter selection guide
CoasttoCoastCape

Power quality ppt
Power quality pptPower quality ppt
Power quality ppt
Kaustubh Nande


Similar to Understanding power quality and its importantce (20)

calidad de energia
calidad de energiacalidad de energia
calidad de energia

Power quality management
Power quality managementPower quality management
Power quality management

OM PRAKASH.pptx
OM PRAKASH.pptxOM PRAKASH.pptx
OM PRAKASH.pptx

63-pq.ppt
63-pq.ppt63-pq.ppt
63-pq.ppt

63-pq.ppt
63-pq.ppt63-pq.ppt
63-pq.ppt

Power quality
Power qualityPower quality
Power quality

Power Presentation West Palm
Power Presentation West PalmPower Presentation West Palm
Power Presentation West Palm

Powerqualityppt kuldeep
Powerqualityppt kuldeepPowerqualityppt kuldeep
Powerqualityppt kuldeep

Power quality disturbances
Power quality disturbancesPower quality disturbances
Power quality disturbances

1660034363151685.pptx
1660034363151685.pptx1660034363151685.pptx
1660034363151685.pptx

Ab04404170177
Ab04404170177Ab04404170177
Ab04404170177

Unit V part-2 windfarm grid issues.pptx
Unit V part-2 windfarm grid issues.pptxUnit V part-2 windfarm grid issues.pptx
Unit V part-2 windfarm grid issues.pptx

power_ quality
power_ qualitypower_ quality
power_ quality

Piezo Electric Effect
Piezo Electric EffectPiezo Electric Effect
Piezo Electric Effect

220KV SUB STATION.pptx
220KV SUB STATION.pptx220KV SUB STATION.pptx
220KV SUB STATION.pptx

15ee81 module1[www.vtuloop.com].pdf
15ee81 module1[www.vtuloop.com].pdf15ee81 module1[www.vtuloop.com].pdf
15ee81 module1[www.vtuloop.com].pdf

Legend Power - Effects of Voltage Optimziation
Legend Power - Effects of Voltage OptimziationLegend Power - Effects of Voltage Optimziation
Legend Power - Effects of Voltage Optimziation

Phase 4
Phase 4Phase 4
Phase 4

Fluke clamp meter selection guide
Fluke clamp meter selection guideFluke clamp meter selection guide
Fluke clamp meter selection guide

Power quality ppt
Power quality pptPower quality ppt
Power quality ppt


More from Messung Electrical Engineering

VISUALISATION SOFTWARE AND OTHER UTILITIES FOR ENERGY MANAGEMENT
VISUALISATION SOFTWARE AND OTHER UTILITIES FOR ENERGY MANAGEMENTVISUALISATION SOFTWARE AND OTHER UTILITIES FOR ENERGY MANAGEMENT
VISUALISATION SOFTWARE AND OTHER UTILITIES FOR ENERGY MANAGEMENT
Messung Electrical Engineering

Residual current monitorning (rcm) prevent electrical fire & hazards
Residual current monitorning (rcm) prevent electrical fire & hazardsResidual current monitorning (rcm) prevent electrical fire & hazards
Residual current monitorning (rcm) prevent electrical fire & hazards
Messung Electrical Engineering

WHAT ARE POWER QUALITY METERS (PQM) AND THEIR IMPORTANCE
WHAT ARE POWER QUALITY METERS (PQM) AND THEIR IMPORTANCEWHAT ARE POWER QUALITY METERS (PQM) AND THEIR IMPORTANCE
WHAT ARE POWER QUALITY METERS (PQM) AND THEIR IMPORTANCE
Messung Electrical Engineering

GAIN CONTROL OVER ENERGY CONSUMPTION WITH JANITZA'S UMG 96-PA SERIES
GAIN CONTROL OVER ENERGY CONSUMPTION WITH JANITZA'S UMG 96-PA SERIESGAIN CONTROL OVER ENERGY CONSUMPTION WITH JANITZA'S UMG 96-PA SERIES
GAIN CONTROL OVER ENERGY CONSUMPTION WITH JANITZA'S UMG 96-PA SERIES
Messung Electrical Engineering

GAIN CONTROL OVER ENERGY CONSUMPTION WITH JANITZA'S UMG 96-PA SERIES
GAIN CONTROL OVER ENERGY CONSUMPTION WITH JANITZA'S UMG 96-PA SERIESGAIN CONTROL OVER ENERGY CONSUMPTION WITH JANITZA'S UMG 96-PA SERIES
GAIN CONTROL OVER ENERGY CONSUMPTION WITH JANITZA'S UMG 96-PA SERIES
Messung Electrical Engineering

GAIN CONTROL OVER ENERGY CONSUMPTION WITH JANITZA'S UMG 96-PA SERIES
GAIN CONTROL OVER ENERGY CONSUMPTION WITH JANITZA'S UMG 96-PA SERIESGAIN CONTROL OVER ENERGY CONSUMPTION WITH JANITZA'S UMG 96-PA SERIES
GAIN CONTROL OVER ENERGY CONSUMPTION WITH JANITZA'S UMG 96-PA SERIES
Messung Electrical Engineering

Benefits of using iec 61439 standard in electrical busbar systems
Benefits of using iec 61439 standard in electrical busbar systemsBenefits of using iec 61439 standard in electrical busbar systems
Benefits of using iec 61439 standard in electrical busbar systems
Messung Electrical Engineering

Benefits of using iec 61439 standard in electrical busbar systems
Benefits of using iec 61439 standard in electrical busbar systemsBenefits of using iec 61439 standard in electrical busbar systems
Benefits of using iec 61439 standard in electrical busbar systems
Messung Electrical Engineering


More from Messung Electrical Engineering (8)

VISUALISATION SOFTWARE AND OTHER UTILITIES FOR ENERGY MANAGEMENT
VISUALISATION SOFTWARE AND OTHER UTILITIES FOR ENERGY MANAGEMENTVISUALISATION SOFTWARE AND OTHER UTILITIES FOR ENERGY MANAGEMENT
VISUALISATION SOFTWARE AND OTHER UTILITIES FOR ENERGY MANAGEMENT

Residual current monitorning (rcm) prevent electrical fire & hazards
Residual current monitorning (rcm) prevent electrical fire & hazardsResidual current monitorning (rcm) prevent electrical fire & hazards
Residual current monitorning (rcm) prevent electrical fire & hazards

WHAT ARE POWER QUALITY METERS (PQM) AND THEIR IMPORTANCE
WHAT ARE POWER QUALITY METERS (PQM) AND THEIR IMPORTANCEWHAT ARE POWER QUALITY METERS (PQM) AND THEIR IMPORTANCE
WHAT ARE POWER QUALITY METERS (PQM) AND THEIR IMPORTANCE

GAIN CONTROL OVER ENERGY CONSUMPTION WITH JANITZA'S UMG 96-PA SERIES
GAIN CONTROL OVER ENERGY CONSUMPTION WITH JANITZA'S UMG 96-PA SERIESGAIN CONTROL OVER ENERGY CONSUMPTION WITH JANITZA'S UMG 96-PA SERIES
GAIN CONTROL OVER ENERGY CONSUMPTION WITH JANITZA'S UMG 96-PA SERIES

GAIN CONTROL OVER ENERGY CONSUMPTION WITH JANITZA'S UMG 96-PA SERIES
GAIN CONTROL OVER ENERGY CONSUMPTION WITH JANITZA'S UMG 96-PA SERIESGAIN CONTROL OVER ENERGY CONSUMPTION WITH JANITZA'S UMG 96-PA SERIES
GAIN CONTROL OVER ENERGY CONSUMPTION WITH JANITZA'S UMG 96-PA SERIES

GAIN CONTROL OVER ENERGY CONSUMPTION WITH JANITZA'S UMG 96-PA SERIES
GAIN CONTROL OVER ENERGY CONSUMPTION WITH JANITZA'S UMG 96-PA SERIESGAIN CONTROL OVER ENERGY CONSUMPTION WITH JANITZA'S UMG 96-PA SERIES
GAIN CONTROL OVER ENERGY CONSUMPTION WITH JANITZA'S UMG 96-PA SERIES

Benefits of using iec 61439 standard in electrical busbar systems
Benefits of using iec 61439 standard in electrical busbar systemsBenefits of using iec 61439 standard in electrical busbar systems
Benefits of using iec 61439 standard in electrical busbar systems

Benefits of using iec 61439 standard in electrical busbar systems
Benefits of using iec 61439 standard in electrical busbar systemsBenefits of using iec 61439 standard in electrical busbar systems
Benefits of using iec 61439 standard in electrical busbar systems


Recently uploaded

Satta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan ChartSatta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results

Satta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan ChartSatta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results

Satta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan ChartSatta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results

deft. 2024 pricing guide for onboarding
deft.  2024 pricing guide for onboardingdeft.  2024 pricing guide for onboarding
deft. 2024 pricing guide for onboarding
hello960827

High-Quality IPTV Monthly Subscription for $15
High-Quality IPTV Monthly Subscription for $15High-Quality IPTV Monthly Subscription for $15
High-Quality IPTV Monthly Subscription for $15
advik4387

1 Circular 003_2023 ISO 27001_2022 Transition Arrangments v3.pdf
1 Circular 003_2023 ISO 27001_2022 Transition Arrangments v3.pdf1 Circular 003_2023 ISO 27001_2022 Transition Arrangments v3.pdf
1 Circular 003_2023 ISO 27001_2022 Transition Arrangments v3.pdf
ISONIKELtd

Satta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan ChartSatta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results

Efficient PHP Development Solutions for Dynamic Web Applications
Efficient PHP Development Solutions for Dynamic Web ApplicationsEfficient PHP Development Solutions for Dynamic Web Applications
Efficient PHP Development Solutions for Dynamic Web Applications
Harwinder Singh

Satta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan ChartSatta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results

State of D2C in India: A Logistics Update
State of D2C in India: A Logistics UpdateState of D2C in India: A Logistics Update
State of D2C in India: A Logistics Update
RedSeer

Satta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan ChartSatta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results

欧洲杯赌球-欧洲杯赌球买球官方官网-欧洲杯赌球比赛投注官网|【​网址​🎉ac55.net🎉​】
欧洲杯赌球-欧洲杯赌球买球官方官网-欧洲杯赌球比赛投注官网|【​网址​🎉ac55.net🎉​】欧洲杯赌球-欧洲杯赌球买球官方官网-欧洲杯赌球比赛投注官网|【​网址​🎉ac55.net🎉​】
欧洲杯赌球-欧洲杯赌球买球官方官网-欧洲杯赌球比赛投注官网|【​网址​🎉ac55.net🎉​】
valvereliz227

Cover Story - China's Investment Leader - Dr. Alyce SU
Cover Story - China's Investment Leader - Dr. Alyce SUCover Story - China's Investment Leader - Dr. Alyce SU
Cover Story - China's Investment Leader - Dr. Alyce SU
msthrill

8328958814KALYAN MATKA | MATKA RESULT | KALYAN
8328958814KALYAN MATKA | MATKA RESULT | KALYAN8328958814KALYAN MATKA | MATKA RESULT | KALYAN
8328958814KALYAN MATKA | MATKA RESULT | KALYAN
➑➌➋➑➒➎➑➑➊➍

Prescriptive analytics BA4206 Anna University PPT
Prescriptive analytics BA4206 Anna University PPTPrescriptive analytics BA4206 Anna University PPT
Prescriptive analytics BA4206 Anna University PPT
Freelance

Discover the Beauty and Functionality of The Expert Remodeling Service
Discover the Beauty and Functionality of The Expert Remodeling ServiceDiscover the Beauty and Functionality of The Expert Remodeling Service
Discover the Beauty and Functionality of The Expert Remodeling Service
obriengroupinc04

Presentation by Herman Kienhuis (Curiosity VC) on Investing in AI for ABS Alu...
Presentation by Herman Kienhuis (Curiosity VC) on Investing in AI for ABS Alu...Presentation by Herman Kienhuis (Curiosity VC) on Investing in AI for ABS Alu...
Presentation by Herman Kienhuis (Curiosity VC) on Investing in AI for ABS Alu...
Herman Kienhuis

Satta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan ChartSatta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results

Science Around Us Module 2 Matter Around Us
Science Around Us Module 2 Matter Around UsScience Around Us Module 2 Matter Around Us
Science Around Us Module 2 Matter Around Us
PennapaKeavsiri

Adani Group's Active Interest In Increasing Its Presence in the Cement Manufa...
Adani Group's Active Interest In Increasing Its Presence in the Cement Manufa...Adani Group's Active Interest In Increasing Its Presence in the Cement Manufa...
Adani Group's Active Interest In Increasing Its Presence in the Cement Manufa...
Adani case


Recently uploaded (20)

Satta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan ChartSatta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan Chart

Satta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan ChartSatta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan Chart

Satta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan ChartSatta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan Chart

deft. 2024 pricing guide for onboarding
deft.  2024 pricing guide for onboardingdeft.  2024 pricing guide for onboarding
deft. 2024 pricing guide for onboarding

High-Quality IPTV Monthly Subscription for $15
High-Quality IPTV Monthly Subscription for $15High-Quality IPTV Monthly Subscription for $15
High-Quality IPTV Monthly Subscription for $15

1 Circular 003_2023 ISO 27001_2022 Transition Arrangments v3.pdf
1 Circular 003_2023 ISO 27001_2022 Transition Arrangments v3.pdf1 Circular 003_2023 ISO 27001_2022 Transition Arrangments v3.pdf
1 Circular 003_2023 ISO 27001_2022 Transition Arrangments v3.pdf

Satta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan ChartSatta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan Chart

Efficient PHP Development Solutions for Dynamic Web Applications
Efficient PHP Development Solutions for Dynamic Web ApplicationsEfficient PHP Development Solutions for Dynamic Web Applications
Efficient PHP Development Solutions for Dynamic Web Applications

Satta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan ChartSatta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan Chart

State of D2C in India: A Logistics Update
State of D2C in India: A Logistics UpdateState of D2C in India: A Logistics Update
State of D2C in India: A Logistics Update

Satta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan ChartSatta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan Chart

欧洲杯赌球-欧洲杯赌球买球官方官网-欧洲杯赌球比赛投注官网|【​网址​🎉ac55.net🎉​】
欧洲杯赌球-欧洲杯赌球买球官方官网-欧洲杯赌球比赛投注官网|【​网址​🎉ac55.net🎉​】欧洲杯赌球-欧洲杯赌球买球官方官网-欧洲杯赌球比赛投注官网|【​网址​🎉ac55.net🎉​】
欧洲杯赌球-欧洲杯赌球买球官方官网-欧洲杯赌球比赛投注官网|【​网址​🎉ac55.net🎉​】

Cover Story - China's Investment Leader - Dr. Alyce SU
Cover Story - China's Investment Leader - Dr. Alyce SUCover Story - China's Investment Leader - Dr. Alyce SU
Cover Story - China's Investment Leader - Dr. Alyce SU

8328958814KALYAN MATKA | MATKA RESULT | KALYAN
8328958814KALYAN MATKA | MATKA RESULT | KALYAN8328958814KALYAN MATKA | MATKA RESULT | KALYAN
8328958814KALYAN MATKA | MATKA RESULT | KALYAN

Prescriptive analytics BA4206 Anna University PPT
Prescriptive analytics BA4206 Anna University PPTPrescriptive analytics BA4206 Anna University PPT
Prescriptive analytics BA4206 Anna University PPT

Discover the Beauty and Functionality of The Expert Remodeling Service
Discover the Beauty and Functionality of The Expert Remodeling ServiceDiscover the Beauty and Functionality of The Expert Remodeling Service
Discover the Beauty and Functionality of The Expert Remodeling Service

Presentation by Herman Kienhuis (Curiosity VC) on Investing in AI for ABS Alu...
Presentation by Herman Kienhuis (Curiosity VC) on Investing in AI for ABS Alu...Presentation by Herman Kienhuis (Curiosity VC) on Investing in AI for ABS Alu...
Presentation by Herman Kienhuis (Curiosity VC) on Investing in AI for ABS Alu...

Satta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan ChartSatta Matka Dpboss Kalyan Matka Results Kalyan Chart
Satta Matka Dpboss Kalyan Matka Results Kalyan Chart

Science Around Us Module 2 Matter Around Us
Science Around Us Module 2 Matter Around UsScience Around Us Module 2 Matter Around Us
Science Around Us Module 2 Matter Around Us

Adani Group's Active Interest In Increasing Its Presence in the Cement Manufa...
Adani Group's Active Interest In Increasing Its Presence in the Cement Manufa...Adani Group's Active Interest In Increasing Its Presence in the Cement Manufa...
Adani Group's Active Interest In Increasing Its Presence in the Cement Manufa...


Understanding power quality and its importantce

  • 1.
  • 2. UNDERSTANDING POWER QUALITY AND ITS IMPORTANCE www.messungelectricalengineering.com
  • 3. INTRODUCTION - MESSUNG SYSTEMS PVT LTD • Messung started its journey in 1981. • For nearly four decades, Messung has been at the forefront of industrial automation in India. • Today, our portfolio and prowess extends far beyond this field to Home, Office & Hotel Automation, Building & Infrastructure Automation, Power Distribution, Workplace Ergonomics, Electronic Assembly and Test & Measuring. www.messungelectricalengineering.com
  • 5. www.messungelectricalengineering.com • What is Power Quality and why you should care • Power Quality Disturbances • Power Quality Monitoring • Janitza Products Overview CONTENTS
  • 6. www.messungelectricalengineering.com BASIC CONCEPT OF AN ELECTRICITY • An Electricity is a fuel which is required for any Electrical equipment to operate in its intended manner. • Unusual Commodity • Required as a continuous flow. • Cannot be conveniently stored in a quantity. • Electric Power: It is a Rate at which work is done. • P = V X I X COSØ…………………For AC Circuits • P = V X I ………………………….For DC Circuits • Electric Energy: when power is applied for certain duration of time, an energy gets consumed by an equipment. • Every equipment is designed to operate on certain rated conditions, these conditions are mentioned on the Nameplate of an equipment.
  • 7. www.messungelectricalengineering.com PERFECT AND NON PERFECT GRID PERFECT GRID TIME AMPLITUDE VOLTAGE WAVEFORM CURRENT WAVEFORM 3 NON PERFECT GRID AMPLITUDE TIME
  • 8. www.messungelectricalengineering.com WHAT IS POWER QUALITY AND WHY YOU SHOULD CARE • Power Quality • "The concept of powering and grounding sensitive equipment in a manner that is suitable to the operation of that equipment." • Electronic equipment & controls are increasing • System control and energy efficiency is a priority • The modern power grid is changing • High dependence on reliable electrical systems • Some Facilities operate 7 days a week, 24 hours a day • Many facilities have high cost of downtime
  • 9. www.messungelectricalengineering.com CONSEQUENCES • Energy efficiency and Power Quality is increasingly a concern of organizations • Maintaining Power Quality to the level that is required by the application enables safe operation and reduces costly downtime. • Power failure, malfunction, overheating, flickering light, energy waste, etc.
  • 10. www.messungelectricalengineering.com POWER QUALITY STANDARDS Characteristics of the voltage (PQ) in public electricity supply networks Recommended practices and requirements for Harmonics Control in Electrical Power Systems Electromagnetic compatibility (EMC): Ambient conditions; compatibility level for low frequency, conducted interferences in industrial plants Testing and measurement techniques – Power Quality measurement methods EN 50160 IEEE 519 IEC/EN 61000-2-4 IEC/EN 61000-4-30
  • 12. www.messungelectricalengineering.com HARMONICS • Harmonics are extra frequencies (multiples of fundamental frequency) that when present in an electrical circuit, distort the AC sine wave • Causes: Non-linear electrical loads; Loads with rapidly changing energy consumption • Consequences: Inefficient operation; Excess heat (skin effect); Overheating in neutral conductors; Decreased efficiency and lifespan of equipment; Circuit breakers can trip • Benefit of measuring: Identify the source of harmonics in the electrical system; Increase operational safety and efficiency Capacitors destroyed due to harmonics
  • 13. www.messungelectricalengineering.com SAGS AND SWELLS • Voltage Sag is a decrease in rms voltage less than 0.9 pu for a duration less than 1 minute • Voltage Swell is a increase in rms voltage greater than 1.1 pu for a duration less than 1 minute • Causes – Heavy energy loads turning on or off (inside) or network faults (outside) • Consequences – Damage to machines and equipment; Loss of use; Short interruptions can be catastrophic for sensitive applications • Benefit of measuring – Avoid damage and costly downtime
  • 14. www.messungelectricalengineering.com TRANSIENTS • Transients are high frequency energy packets which superimpose on fundamental frequency wave and severely affect the high impedance circuit • Causes: Switching operation (arcing), lightning strike or malfunction • Consequences: Fast change in voltage, current or load; Can lead to insulation breakdown; Breaker trips and damage to equipment • Benefit of measuring: Avoid costly downtime and damage to equipment
  • 15. www.messungelectricalengineering.com UNBALANCE • Deviation in voltage or current waveform from perfect sinusoidal, in terms of magnitude or phase shift is called unbalance in a system. • Causes: Asymmetry of loads like single phase loads, phase-to-phase loads or unbalanced three phase loads (e.g. welding equipment) • Consequences: Reduced efficiency; Excess heat and overheating; Device failure and damage to equipment; Reduced lifespan of equipment • Benefit of measuring: Increase lifespan; Avoid overheating; Reduce unwanted downtime
  • 16. www.messungelectricalengineering.com FLICKER • Voltage variations cause light density changes in lamps, which can result in visual perceptions referred to as flicker • Causes: Load variations (furnaces, welding machines, generators, VFDs, large motors); Wind generators • Consequences: Visible fluctuations in brightness of a lamp; Possible health problems • Benefit of measuring: Find out what equipment within the electrical distribution is causing Flicker
  • 17. www.messungelectricalengineering.com RESIDUAL CURRENT MONITORING • TN-S system (5-conductor network) – Basic precondition for the safe operation of IT equipment, machinery • and networked systems including residual current monitoring • RCM plays important role in high availability supply systems such as Data Centres and Hospitals • Rapid & direct identification of faults and insulation problems • Avoids fire risks and increases system availability • Extra safety in areas in which no RCDs can be used due to operational reasons • Preventive maintenance = higher productivity & uptime
  • 18. www.messungelectricalengineering.com POWER QUALITY MONITORING (PQM) • Power Quality Monitoring (PQM) is the process of gathering, analyzing and interpreting raw measurement data into useful information • PQM is often done to improve system-wide power quality performance • Power Quality Monitoring includes: • Power Quality metering, monitoring and onsite measurements • Temporary and Permanent power quality monitoring to facilitate problem solutions • Documenting and trending system performance to increase system reliability
  • 19. www.messungelectricalengineering.com BENEFITS OF POWER QUALITY MONITORING (DIN EN 50160) Secure, highly-availability power supply Assured quality of the electrical energy through continuous monitoring and analysis Avoidance of overload situations Avoidance of production stoppages Ensuring product quality/stable processes Maximisation of operating times Production-related quality assurance by monitoring the local power quality Optimisation of the maintenance costs
  • 20. www.messungelectricalengineering.com ONE SYSTEM THREE BENEFITS Energy Management ISO 5001 • Reduces energy costs • Improves energy efficiency Power Quality EN50160 • Reduces downtime • Optimizes maintenance Residual Current Monitoring • Identifies insulation faults faster • Improves supply reliability
  • 22. www.messungelectricalengineering.com PORTFOLIO OF DEVICES On its capabilities UMG96PA UMG605 UMG512PRO UMG509 UMG96PA -MID UMG96PA -MODULES UMG103 -CBM UMG801 MOD-800 UMG804 EC-1 EC-2 EC-3 EI-1 ED-1 UMG96S2 UMG604 UMG804 BCPM RCM202 RCM201 UMG96RM UMG96RM-E UMG96RM-P UMG96RM -CBM UMG96RM-PN UMG96RM-EL UMG96RM-M
  • 24. www.messungelectricalengineering.com JANITZA UMG 512-PRO • Power Quality Analyzer, Class A according to IEC 61000-4-30 • High Accuracy: Active Energy Class 0.2S Voltage 0.1%, Current 0.1% • Modbus Master / Gateway & Modbus RS485 • Modbus TCP, FTP, SMTP, SNMP, Bacnet, Profibus • All communication protocols are working simultaneously • NTP and PTP time synchronisation • Jasic PLC Programming • Memory 256 MB • Digital I/O, (2 In & 2 Out), Temperature Input • 2 Analogue Inputs for RCM Measurement or Temperature Measurement • Logging of currents and voltages (15 – 440 Hz) • Recording of over 2,000 measurement values
  • 25. www.messungelectricalengineering.com JANITZA SOFTWARE GridVis software Visualisation software for energy management systems and for power quality monitoring.
  • 26. www.messungelectricalengineering.com JANITZA APPS – APPLICATION SOFTWARE WITH KNOW-HOW • APPs can be called up via the measurement device homepage • Web-based data display and configuration • No software installation required • Data can also be displayed directly in the browser on mobile devices such as an iPad • Extremely cost-effective and convenient solution • User-defined settings enable a low data volume
  • 28. www.messungelectricalengineering.com Contact us MESSUNG SYSTEMS PVT. LTD. 501, 502 & 503 Lunkad Sky Vista, Viman Nagar, Pune, India - 411 014. +91 20 6649 2800 | info@messung.com THANK YOU
