Gridvis software is designed for energy management and power quality monitoring, offering tools such as web dashboards, data analysis, and alarming features. It includes numerous widgets for visualizing data and can integrate third-party devices for comprehensive monitoring and reporting. The platform also supports automated data collection and allows remote access to real-time data via web browsers.

2. UNDERSTANDING
SUPERVISORY SYSTEMS
www.messungelectricalengineering.com

3. www.messungelectricalengineering.com
• Features of GridVis Software
• Demonstration of Gridvis Software
• GriVis Editions
CONTENTS

4. www.messungelectricalengineering.com
JANITZA SOFTWARE
GridVis software
Visualization software for energy
management systems and for power
quality monitoring.

5. www.messungelectricalengineering.com

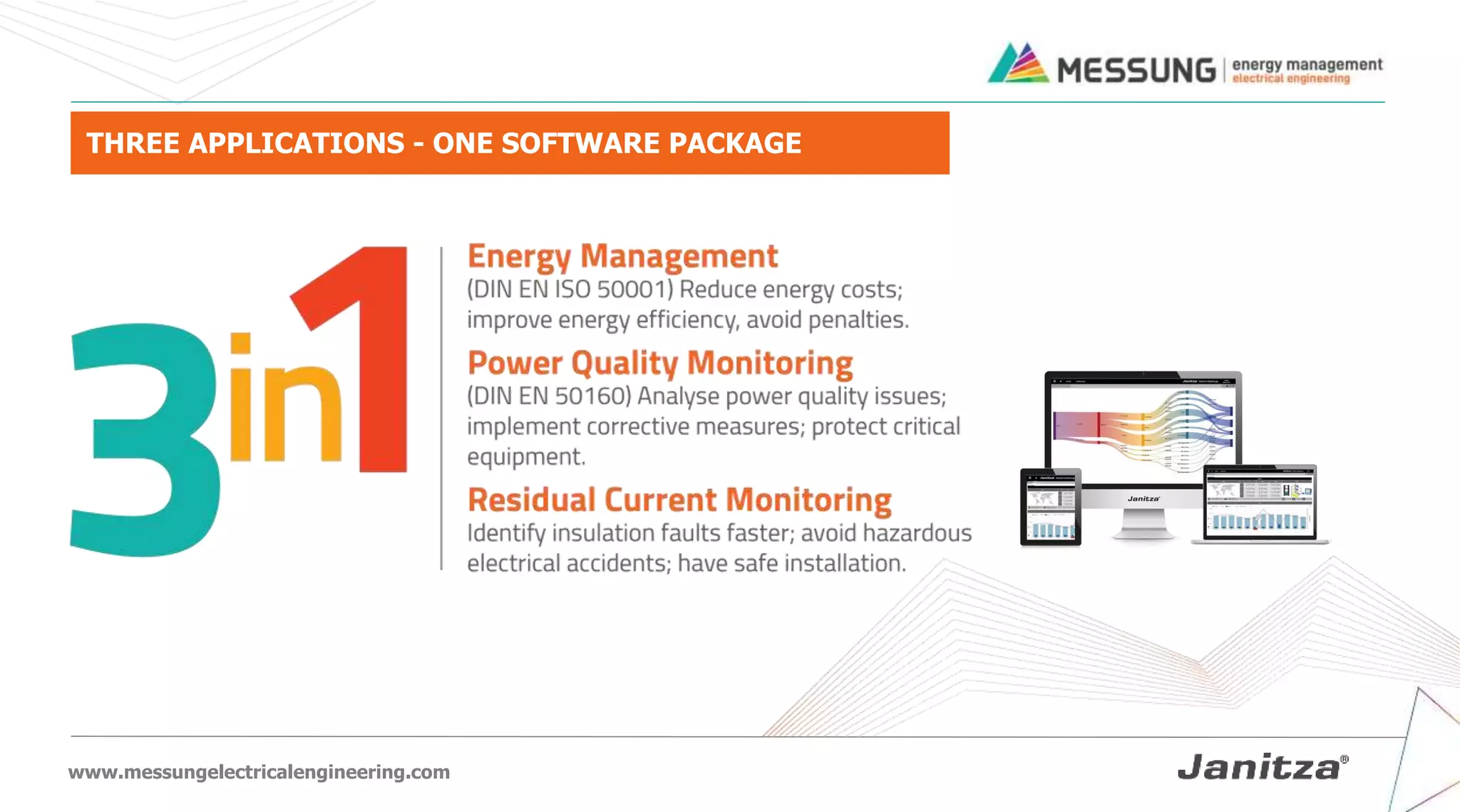

THREE APPLICATIONS - ONE SOFTWARE PACKAGE

6. REPORTS
WEB
DASHBOARDS
ANALYSIS
WEB ALARMING
AUTO DATA
COLLECTION
OTHER DEVICES
CONNECTIVITY
DATABASE

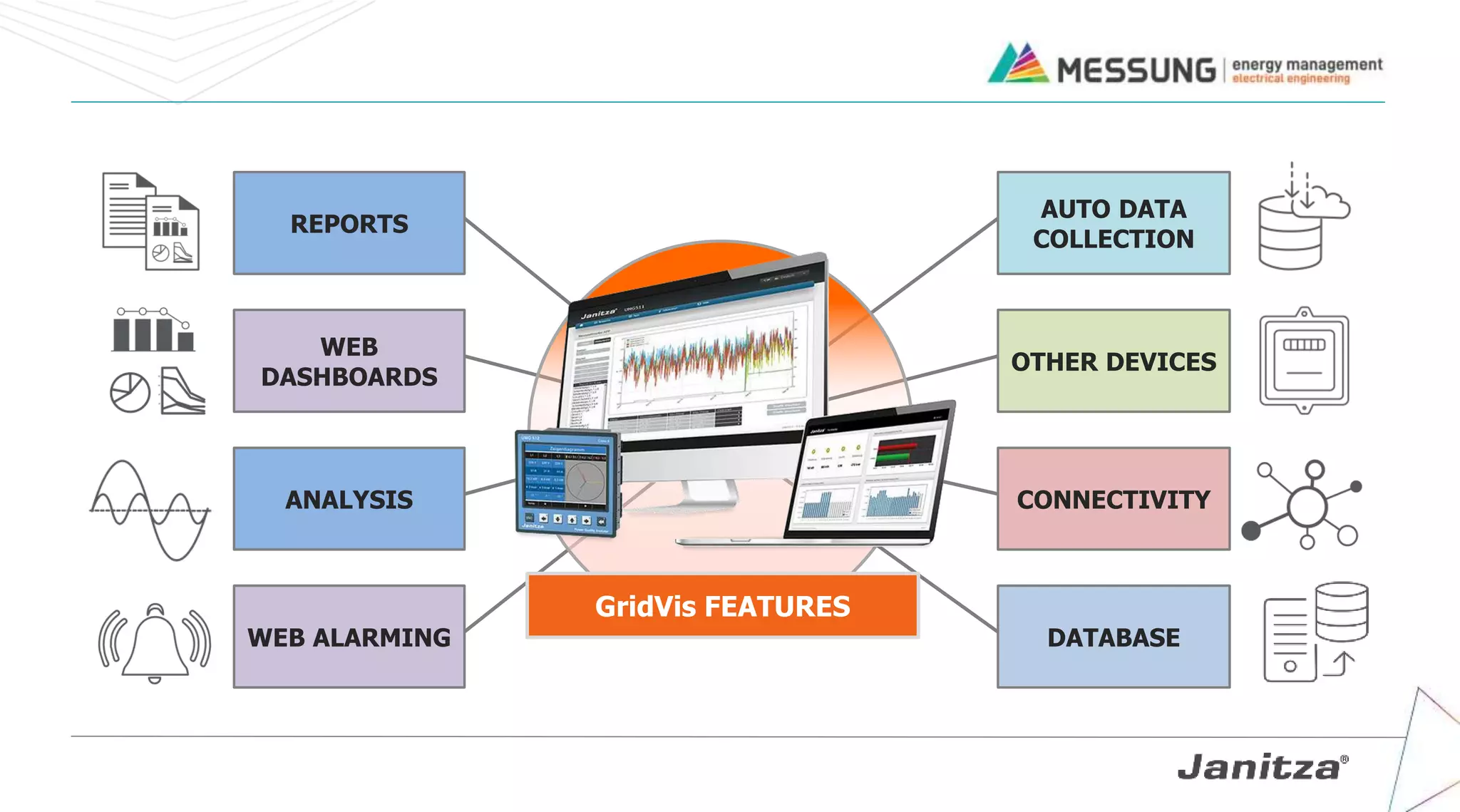

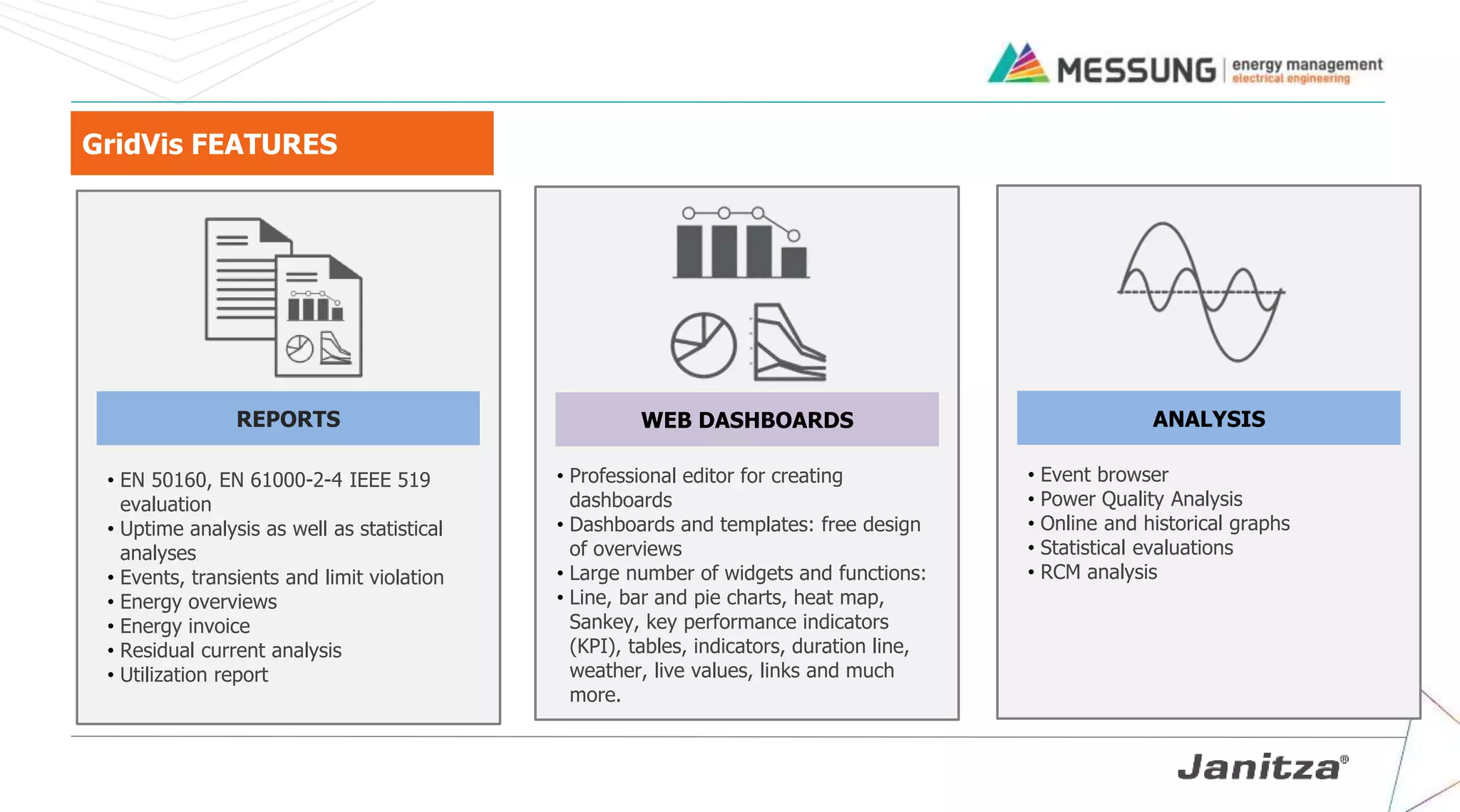

GridVis FEATURES

7. GridVis FEATURES
WEB DASHBOARDS
• Professional editor for creating
dashboards
• Dashboards and templates: free design
of overviews
• Large number of widgets and functions:
• Line, bar and pie charts, heat map,
Sankey, key performance indicators
(KPI), tables, indicators, duration line,
weather, live values, links and much
more.
• EN 50160, EN 61000-2-4 IEEE 519
evaluation
• Uptime analysis as well as statistical
analyses
• Events, transients and limit violation
• Energy overviews
• Energy invoice
• Residual current analysis
• Utilization report
REPORTS ANALYSIS
• Event browser
• Power Quality Analysis
• Online and historical graphs
• Statistical evaluations
• RCM analysis

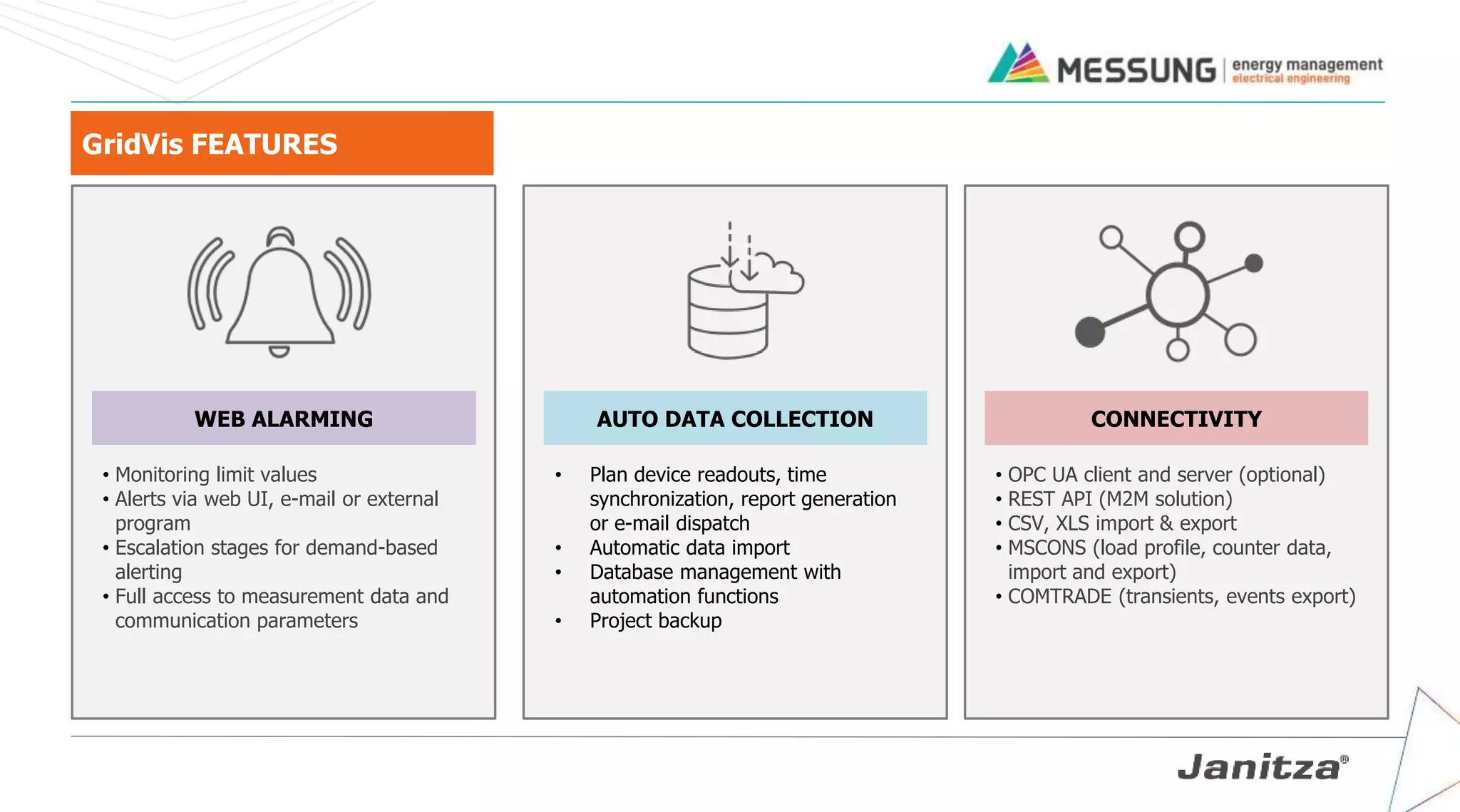

8. GridVis FEATURES
WEB ALARMING
• Monitoring limit values
• Alerts via web UI, e-mail or external
program
• Escalation stages for demand-based
alerting
• Full access to measurement data and
communication parameters
CONNECTIVITY
• OPC UA client and server (optional)
• REST API (M2M solution)
• CSV, XLS import & export
• MSCONS (load profile, counter data,
import and export)
• COMTRADE (transients, events export)
AUTO DATA COLLECTION
• Plan device readouts, time
synchronization, report generation
or e-mail dispatch
• Automatic data import
• Database management with
automation functions
• Project backup

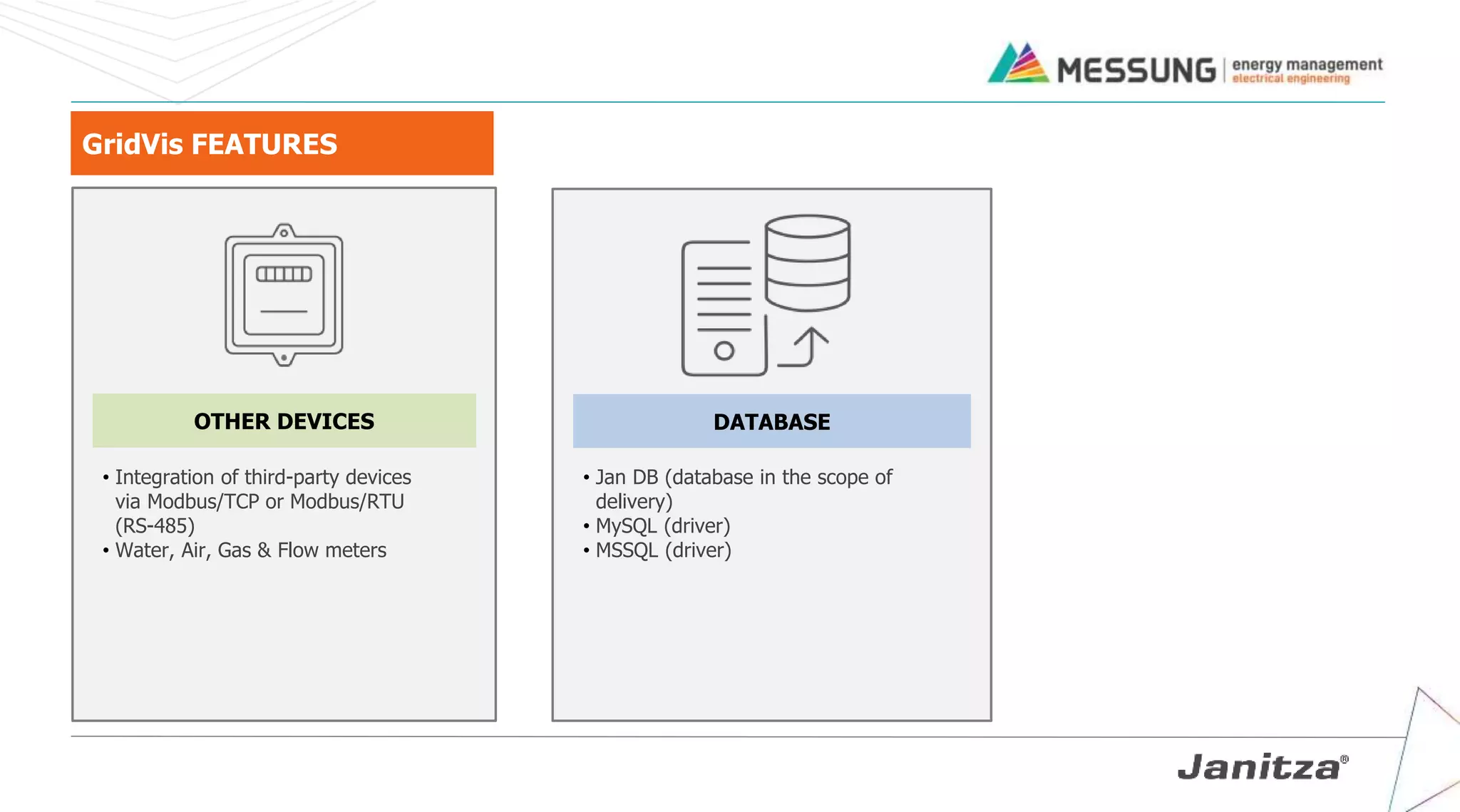

9. OTHER DEVICES
• Integration of third-party devices
via Modbus/TCP or Modbus/RTU
(RS-485)
• Water, Air, Gas & Flow meters
DATABASE
• Jan DB (database in the scope of
delivery)
• MySQL (driver)
• MSSQL (driver)
GridVis FEATURES

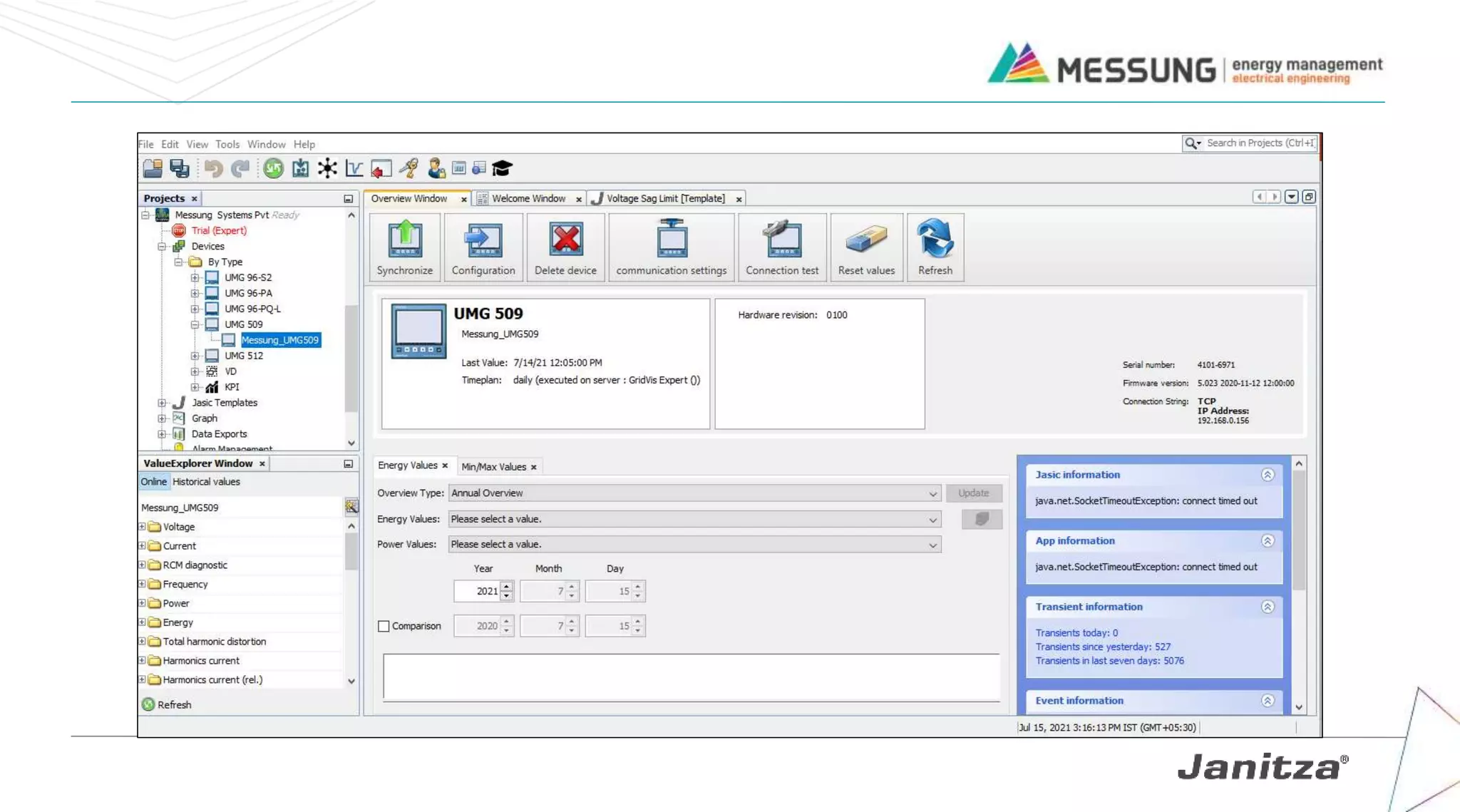

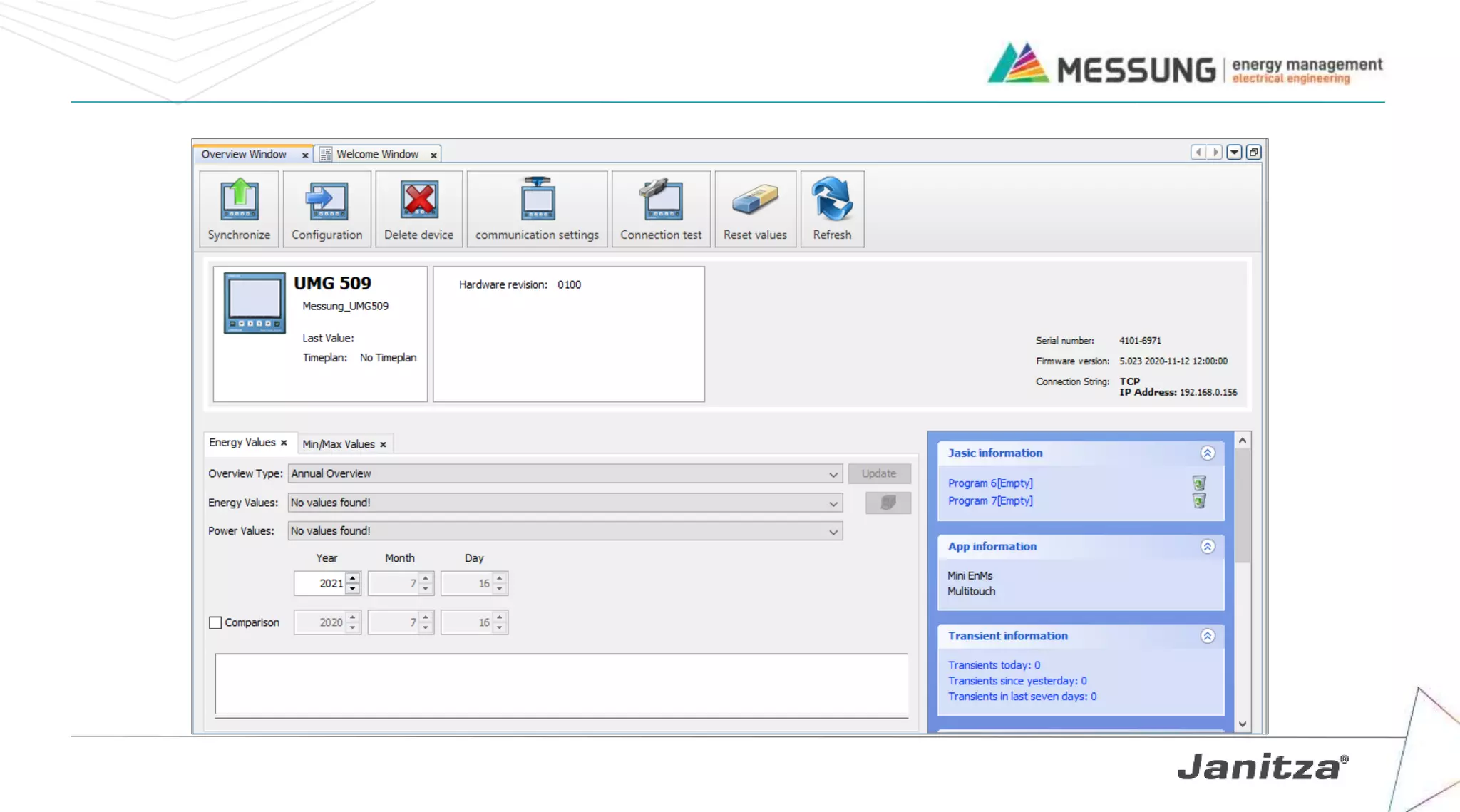

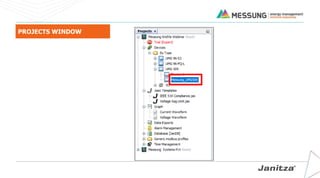

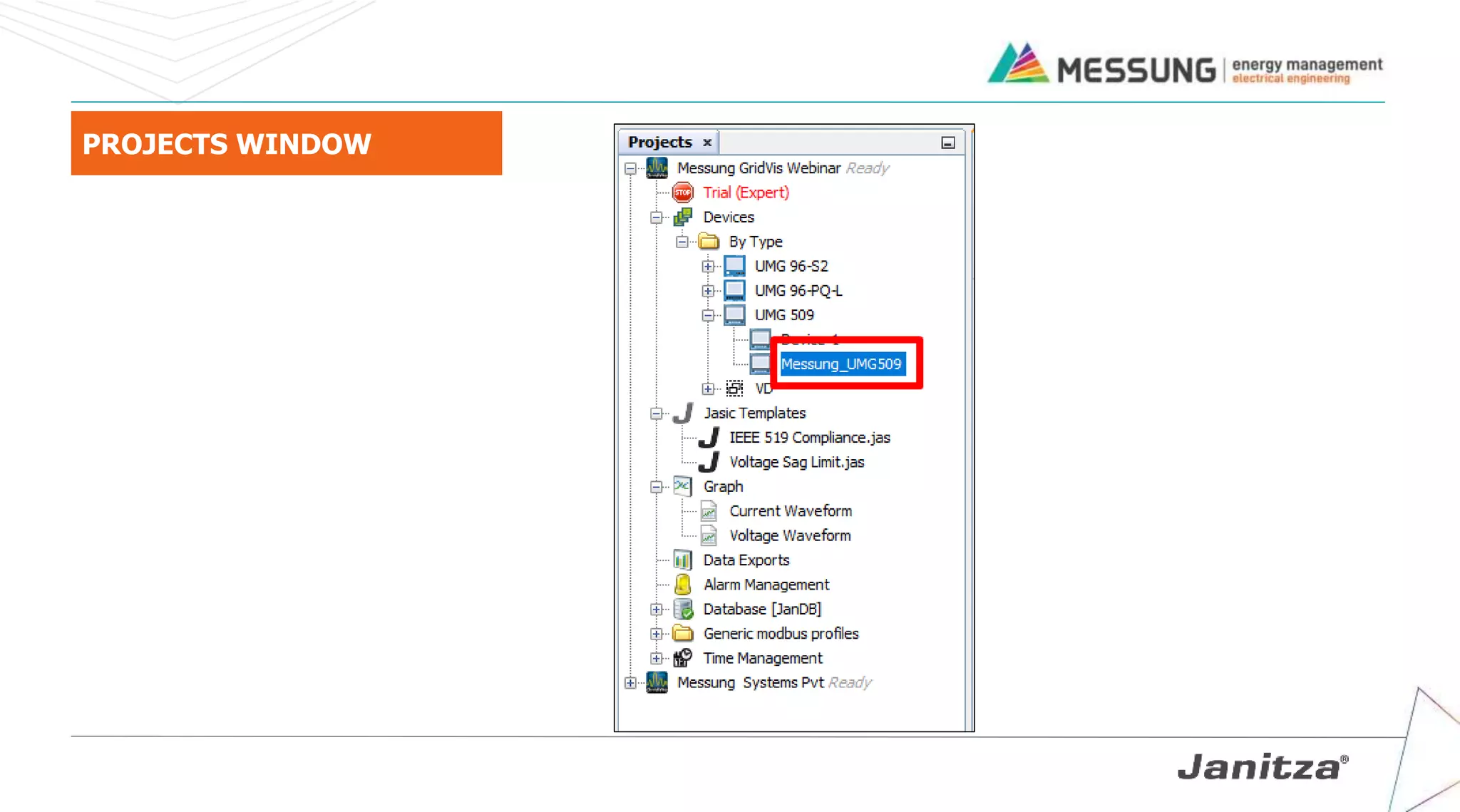

11. PROJECTS WINDOW

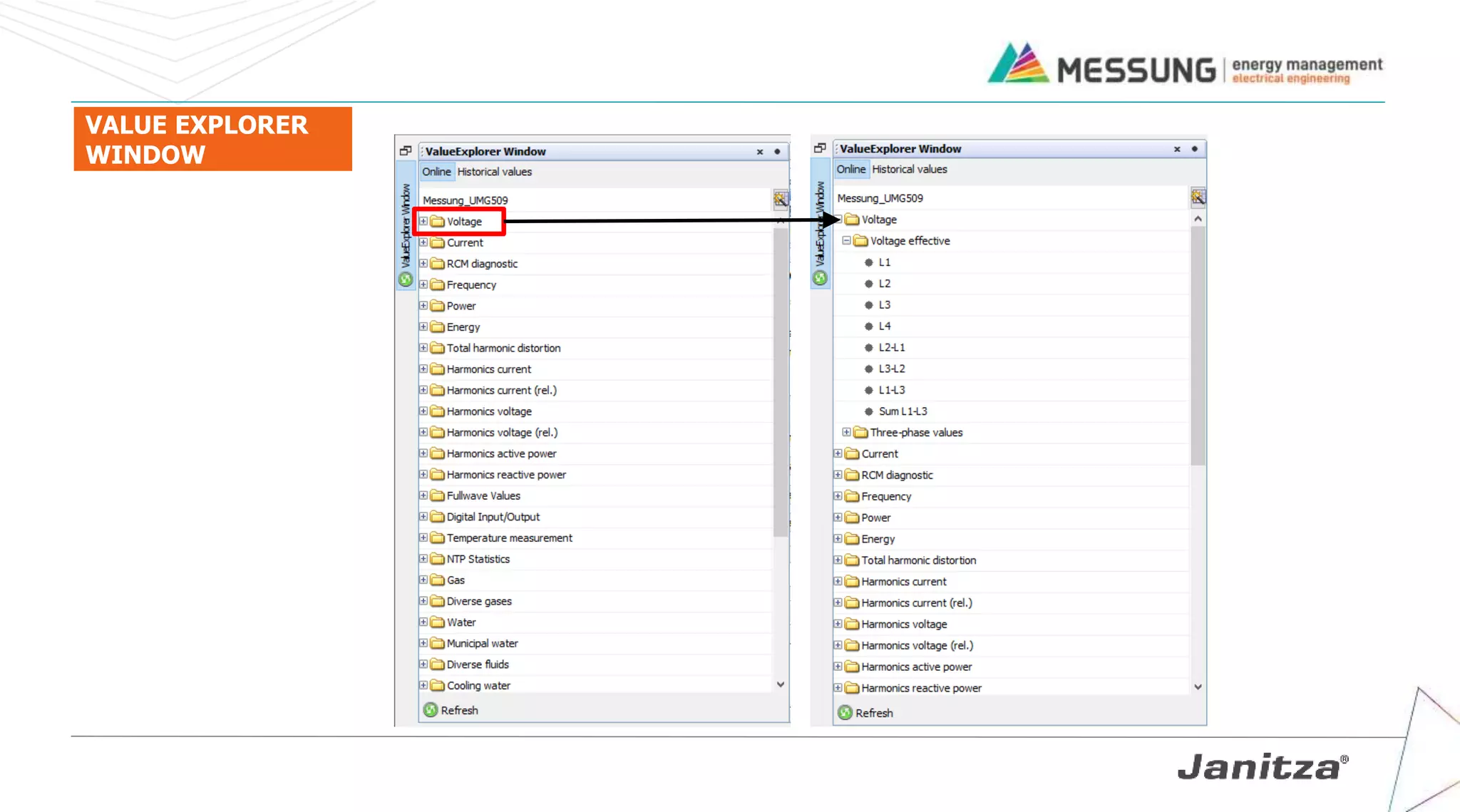

13. VALUE EXPLORER
WINDOW

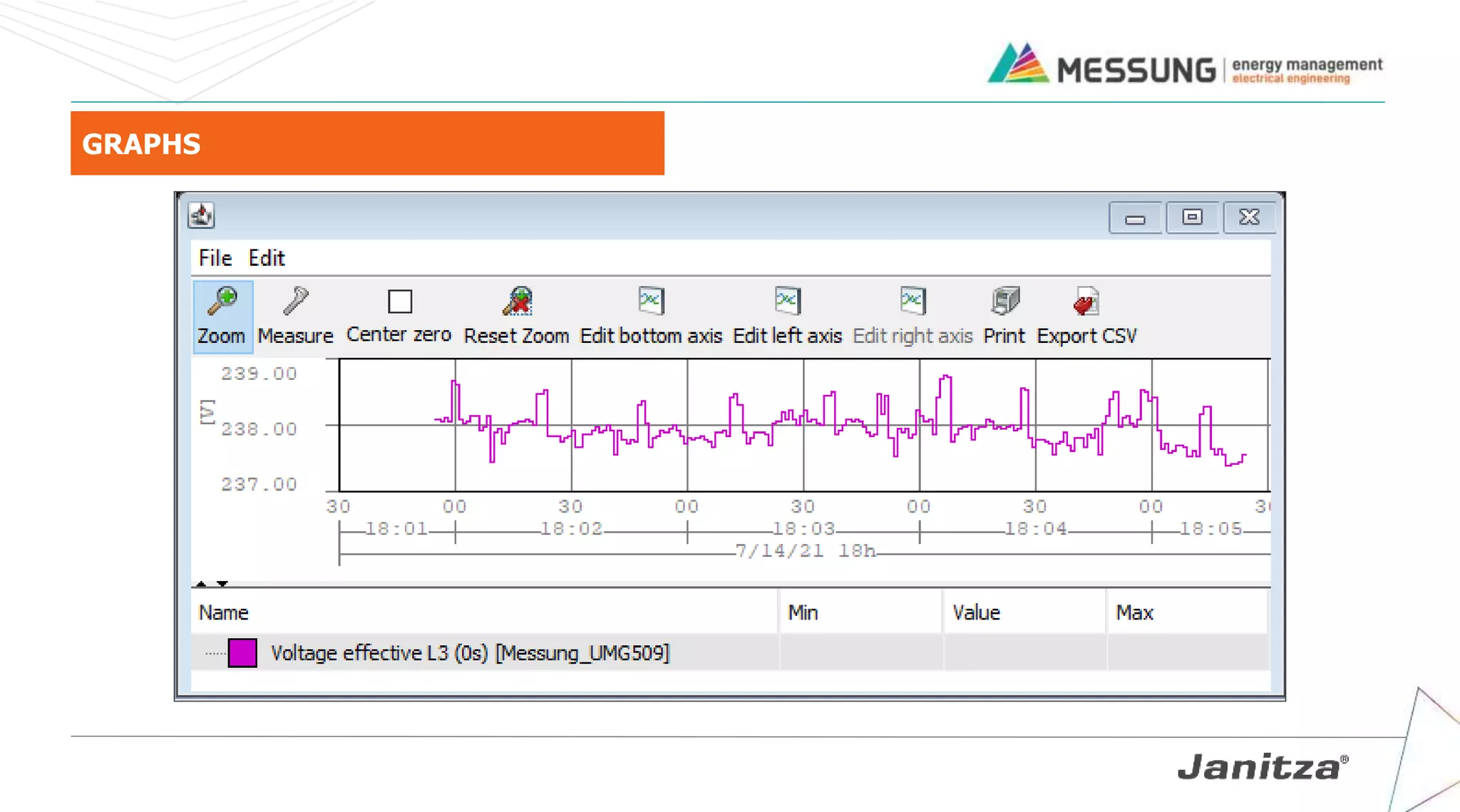

14. GRAPHS

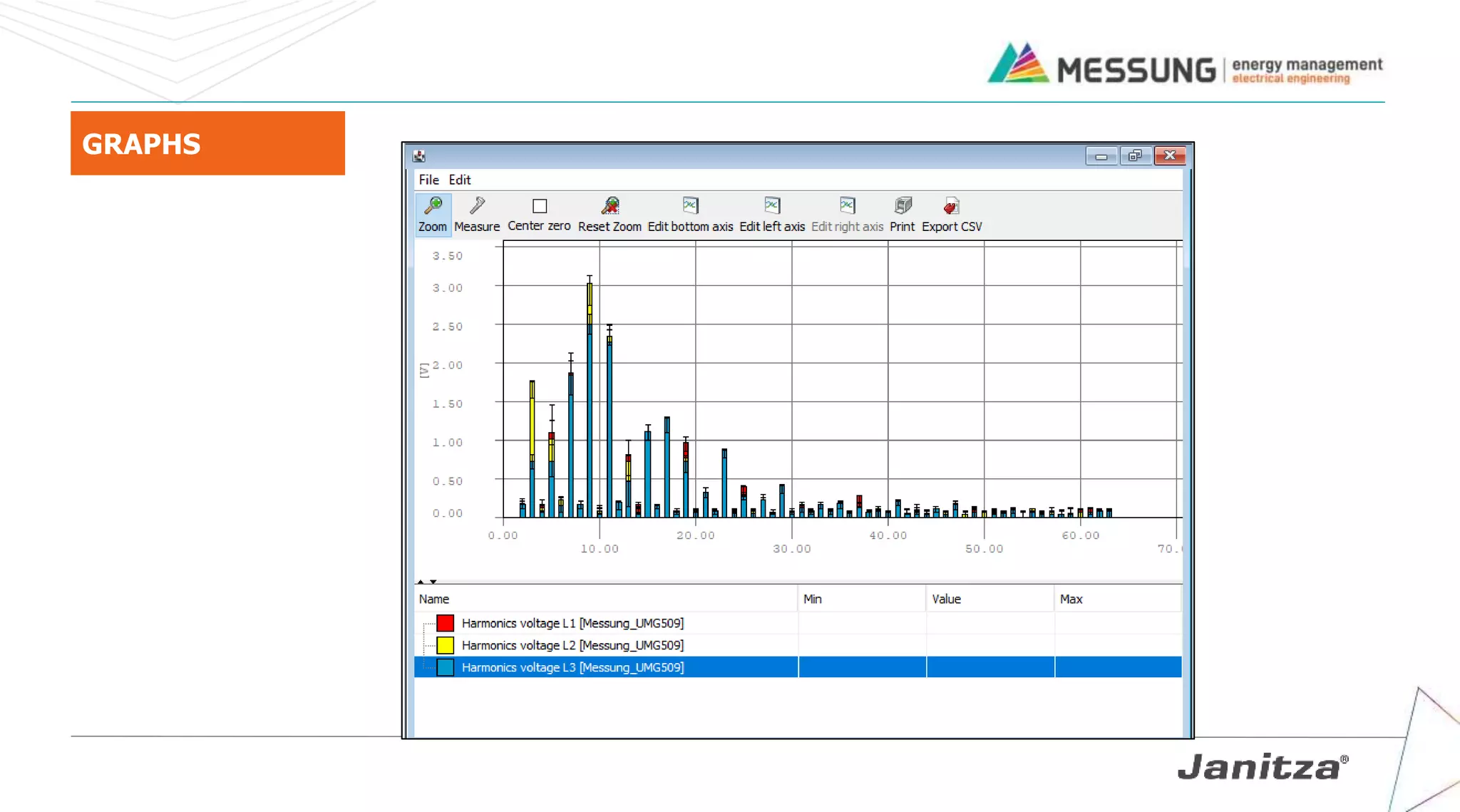

15. GRAPHS

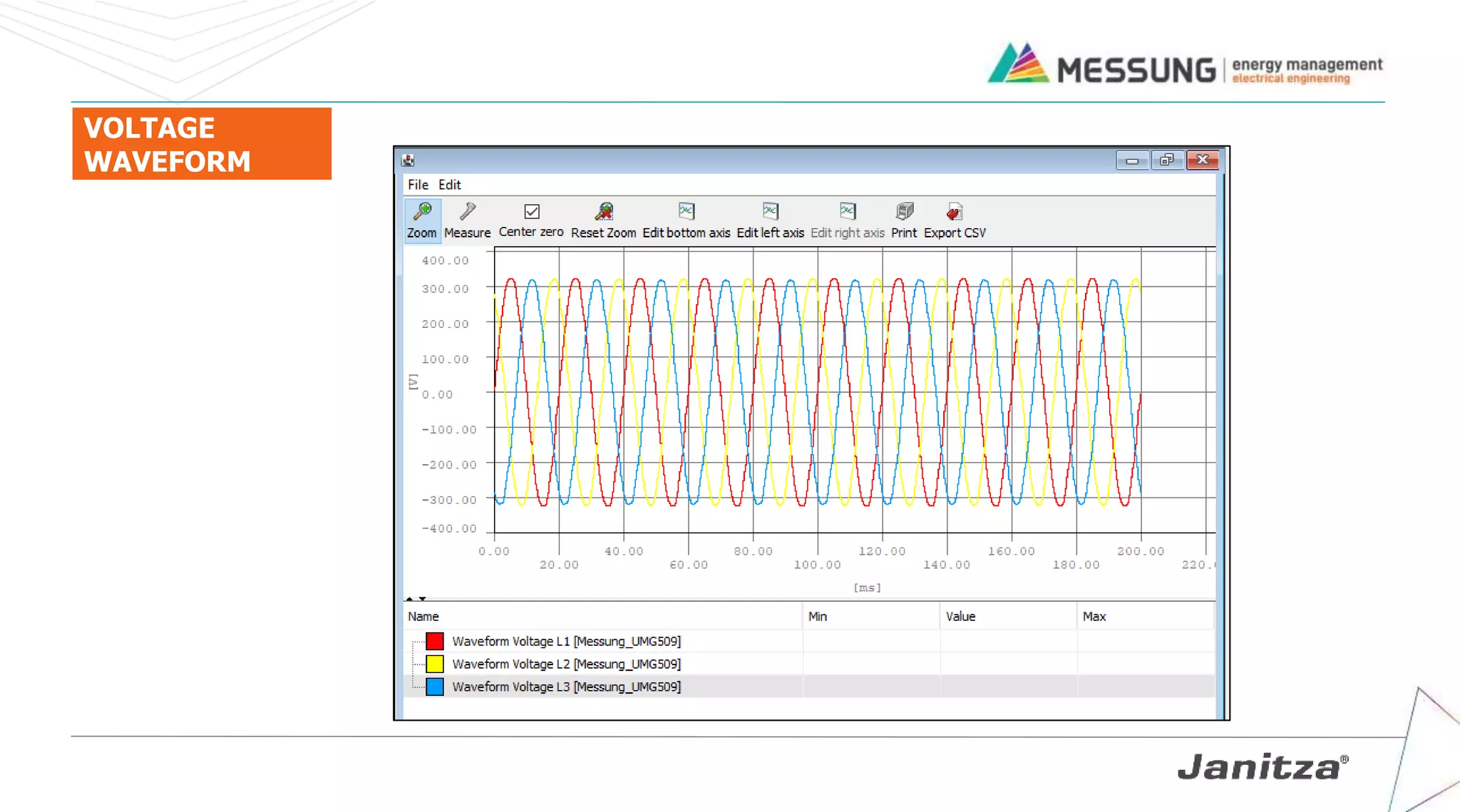

16. VOLTAGE
WAVEFORM

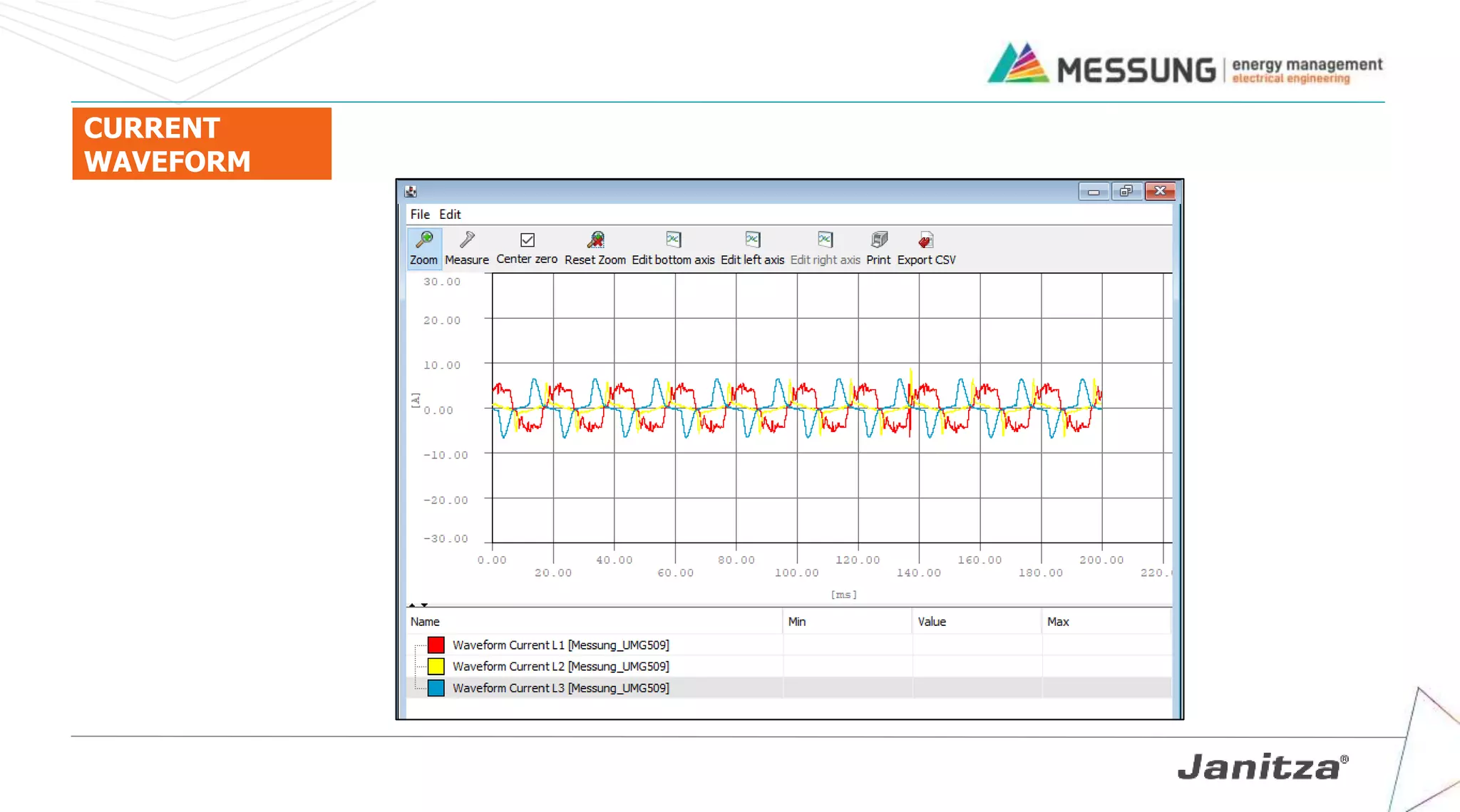

17. CURRENT
WAVEFORM

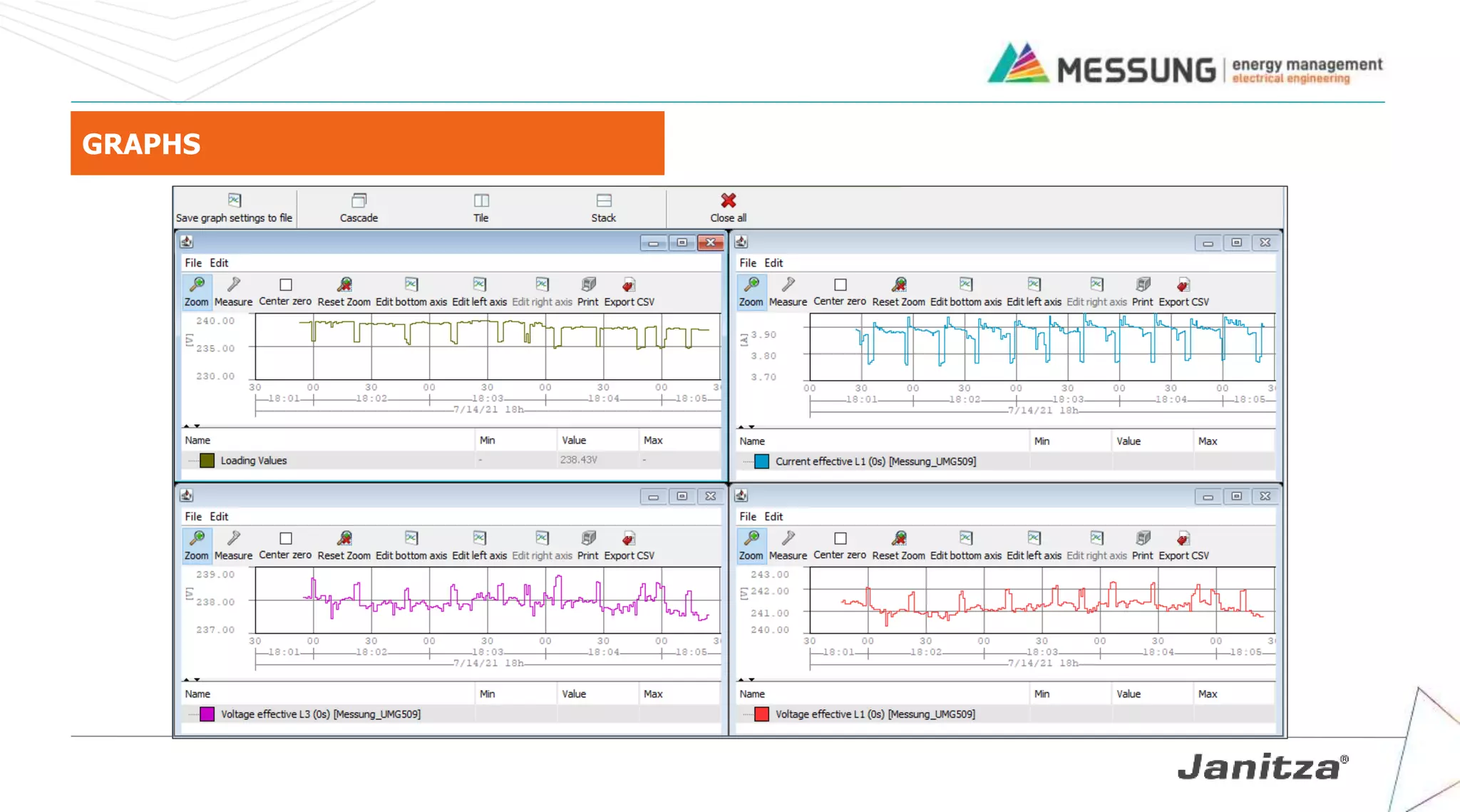

18. GRAPHS

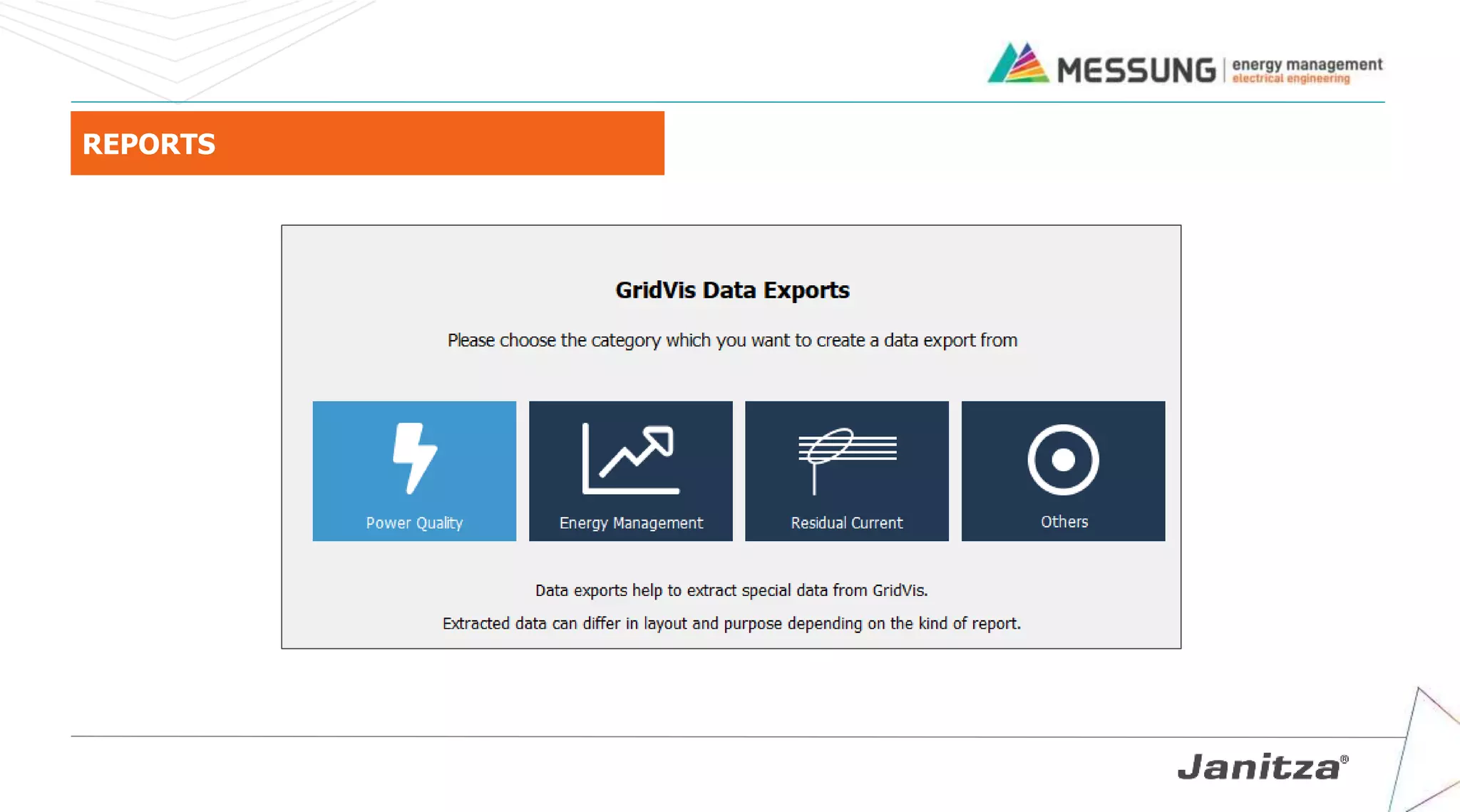

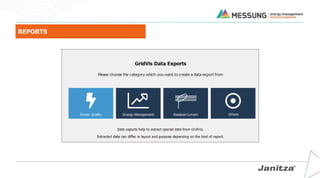

19. REPORTS

20. Main
Transformer
Dept. 1:
Workshop
Dept. 2:
Manufacturing
Dept. 3:
HVAC
Dept. 4:
Compressor
∑
Virtual
Device
415 V Bus

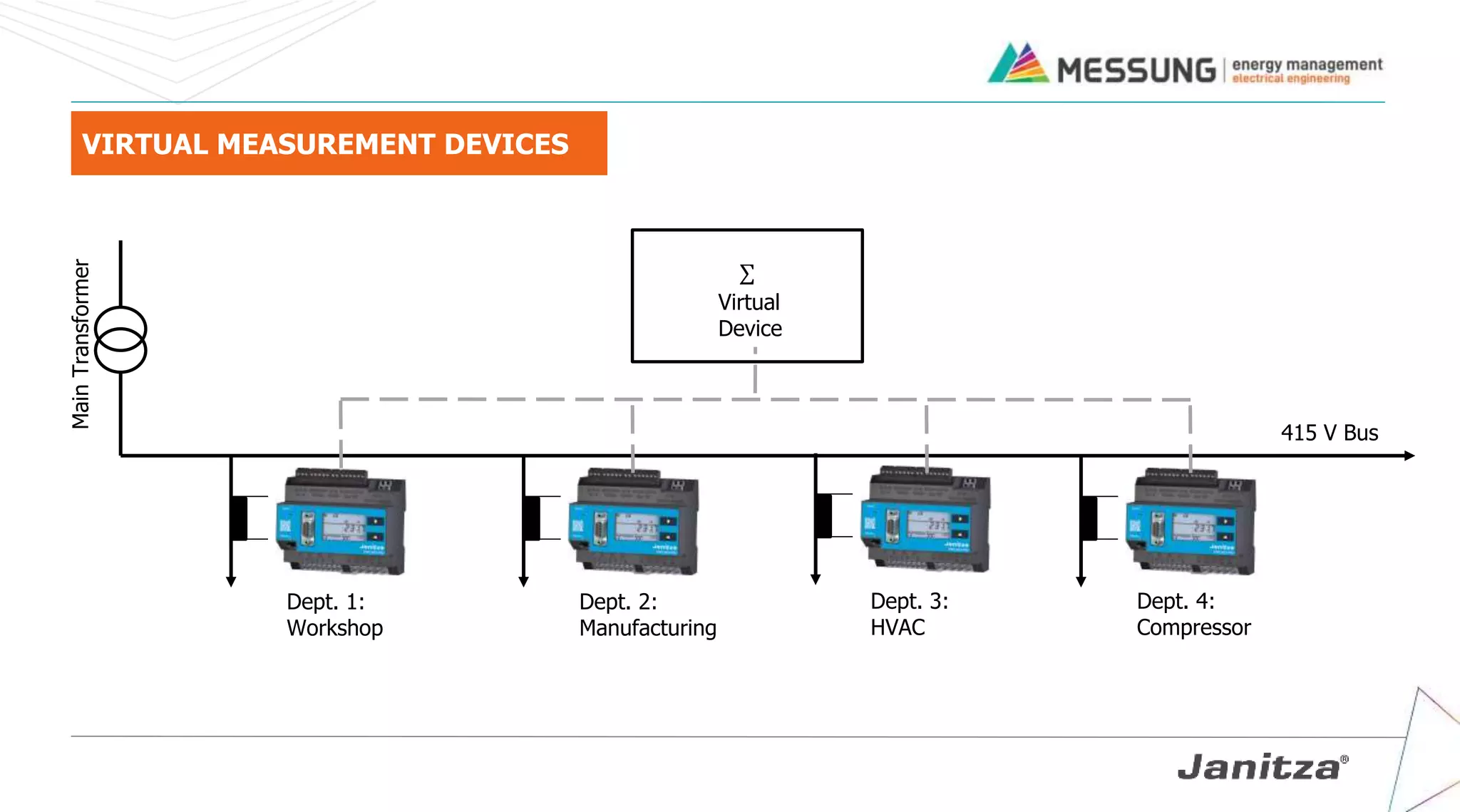

VIRTUAL MEASUREMENT DEVICES

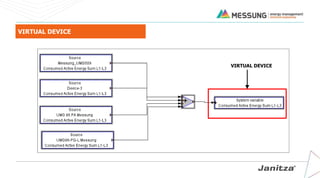

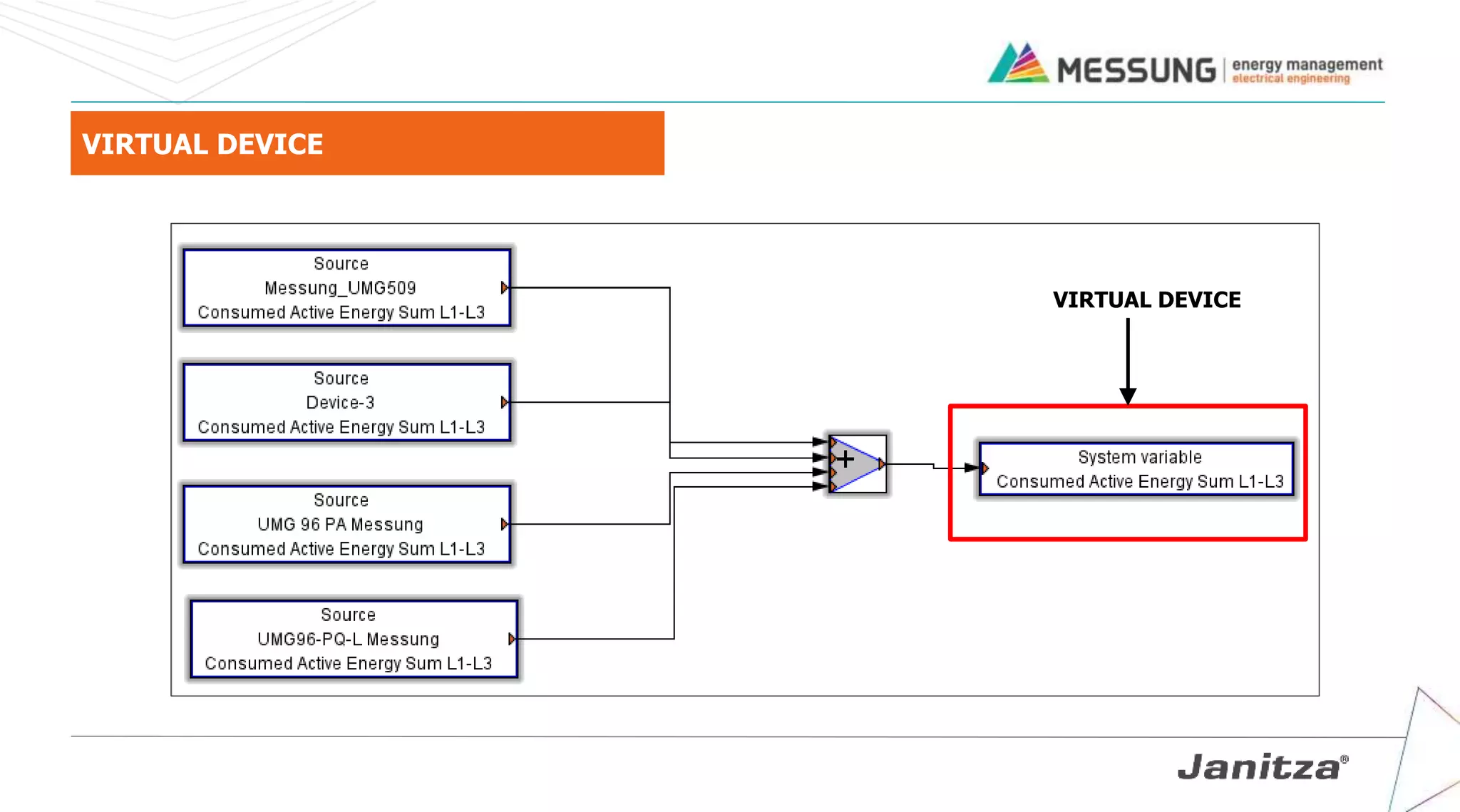

21. VIRTUAL DEVICE
VIRTUAL DEVICE

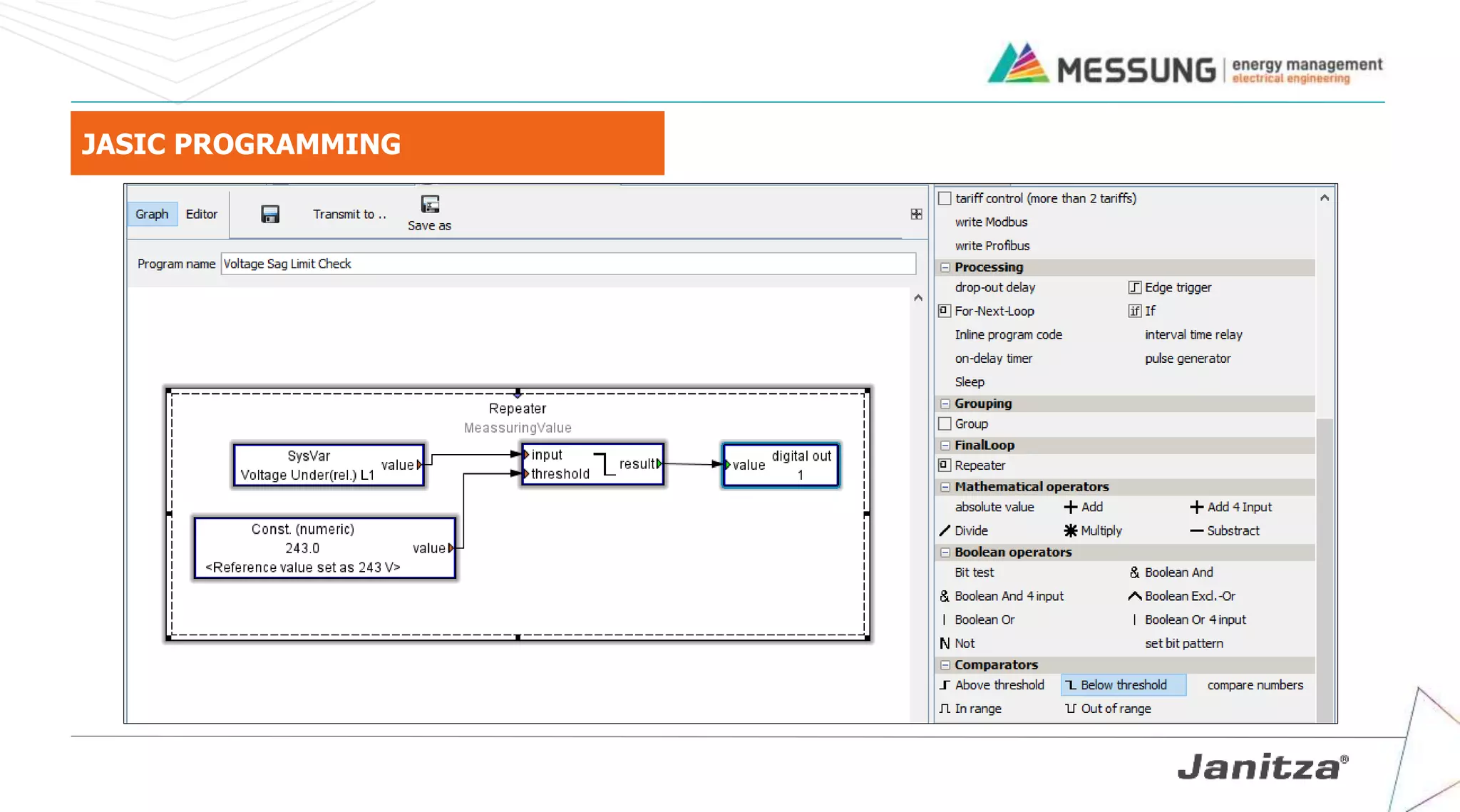

22. JASIC PROGRAMMING

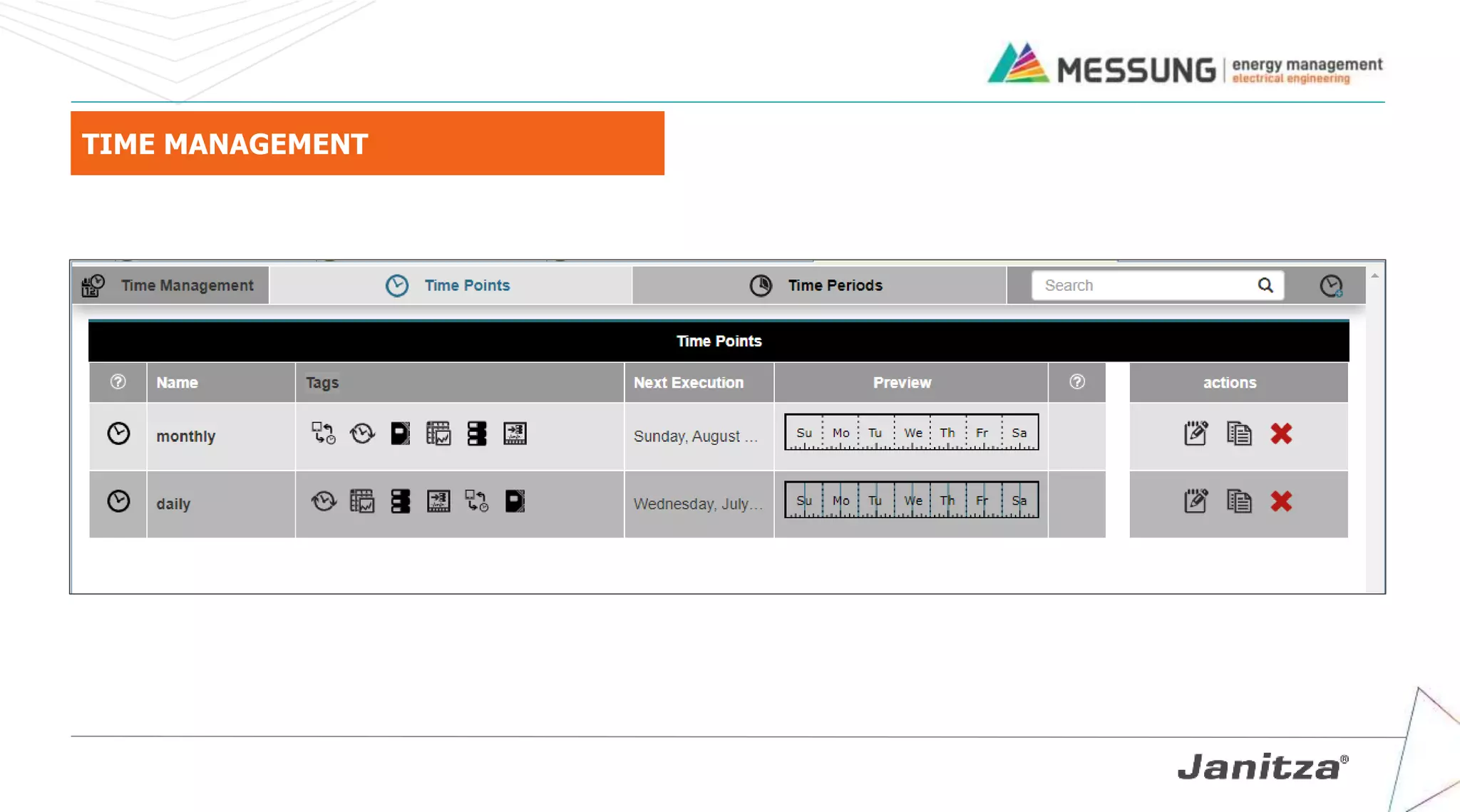

23. TIME MANAGEMENT

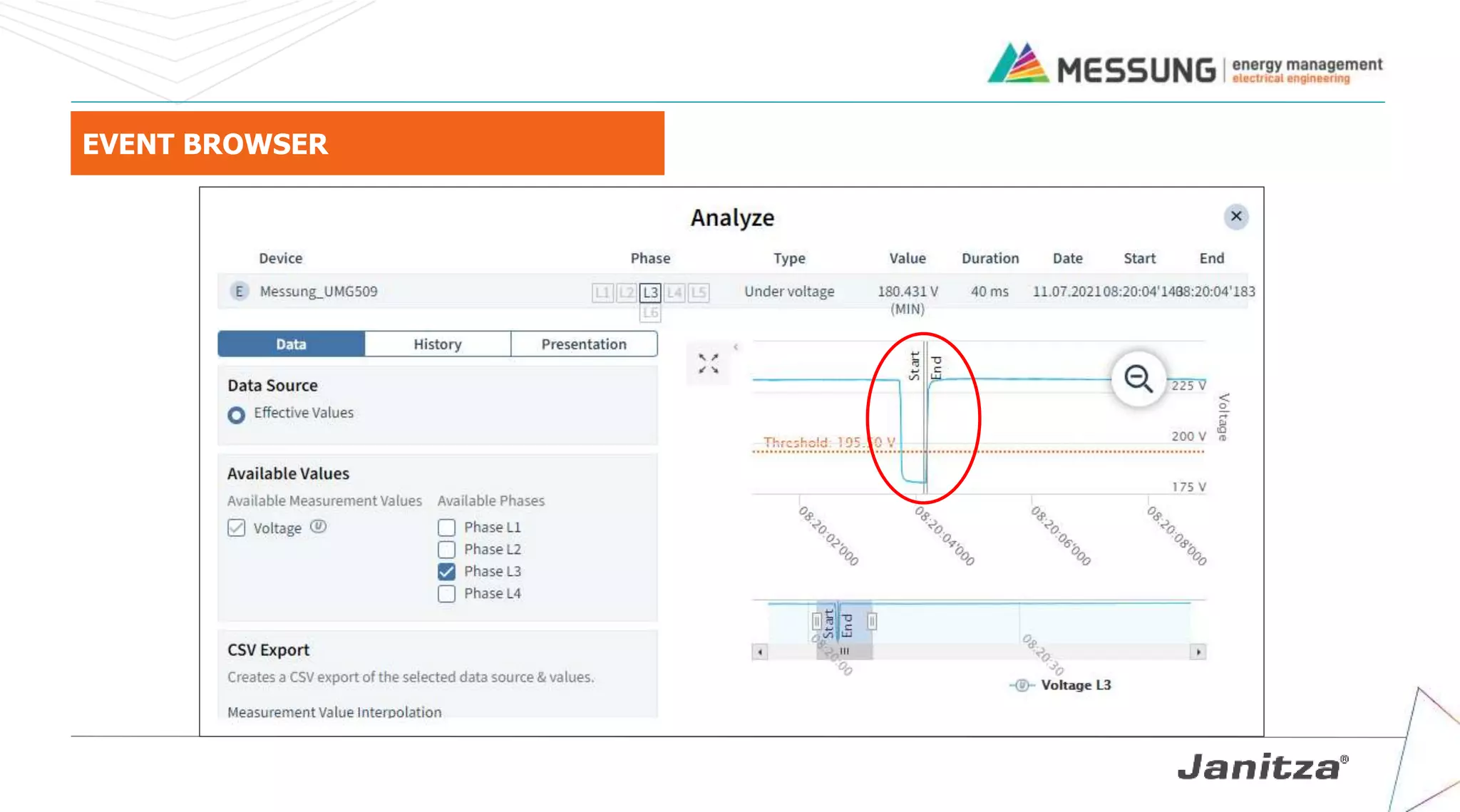

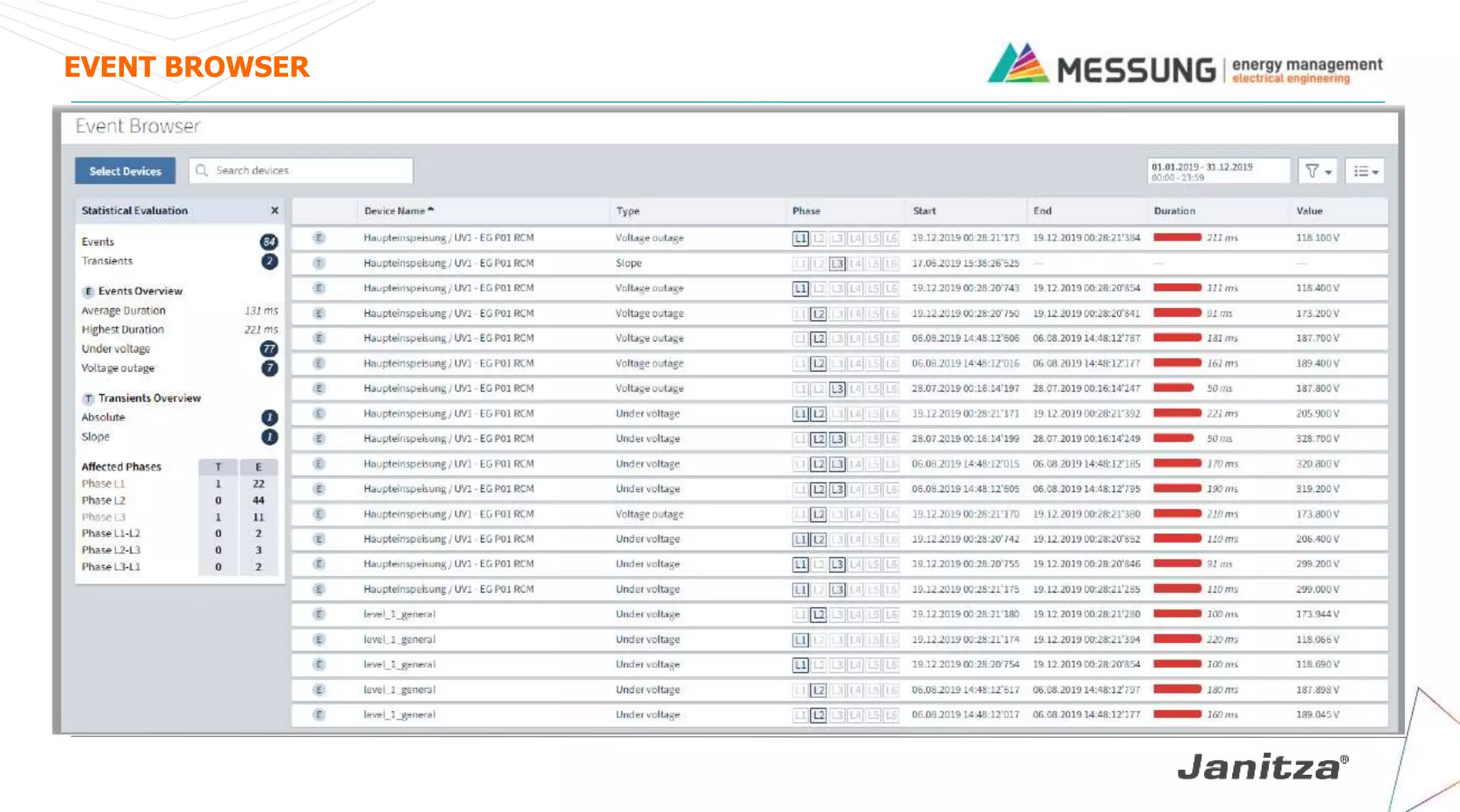

24. EVENT BROWSER

25. EVENT BROWSER

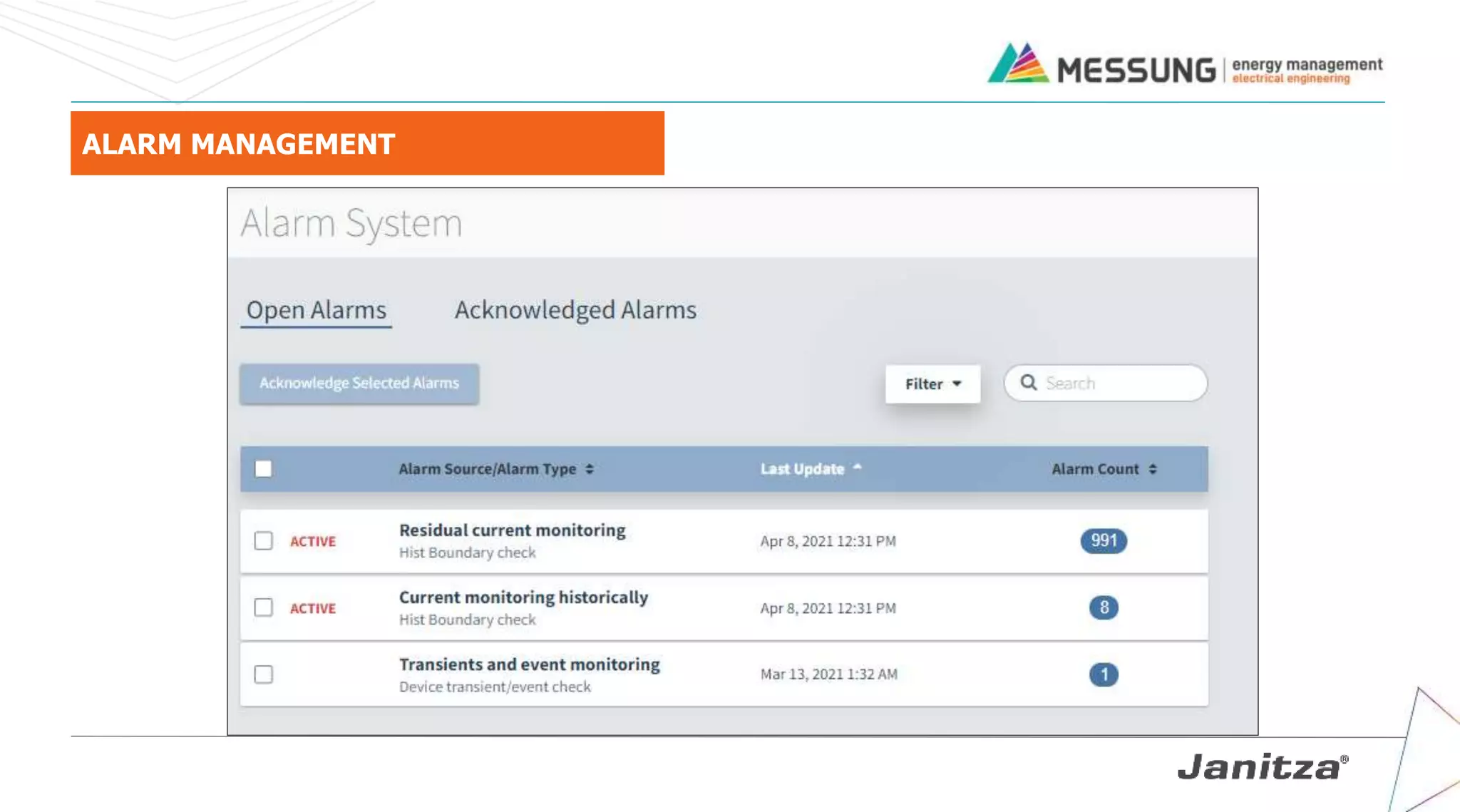

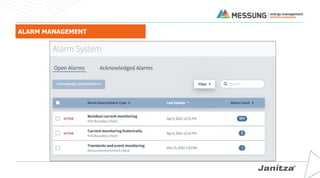

26. ALARM MANAGEMENT

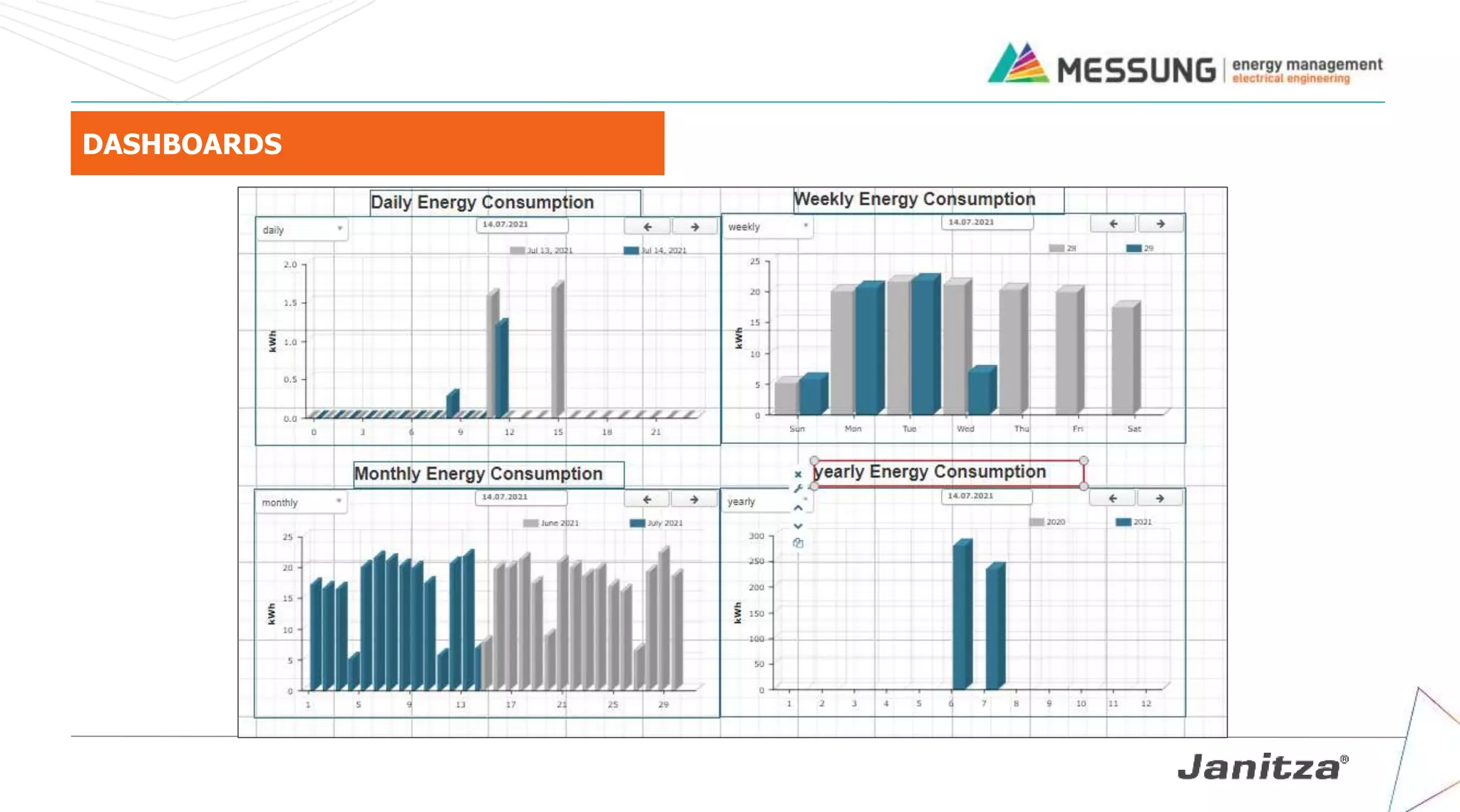

27. DASHBOARDS

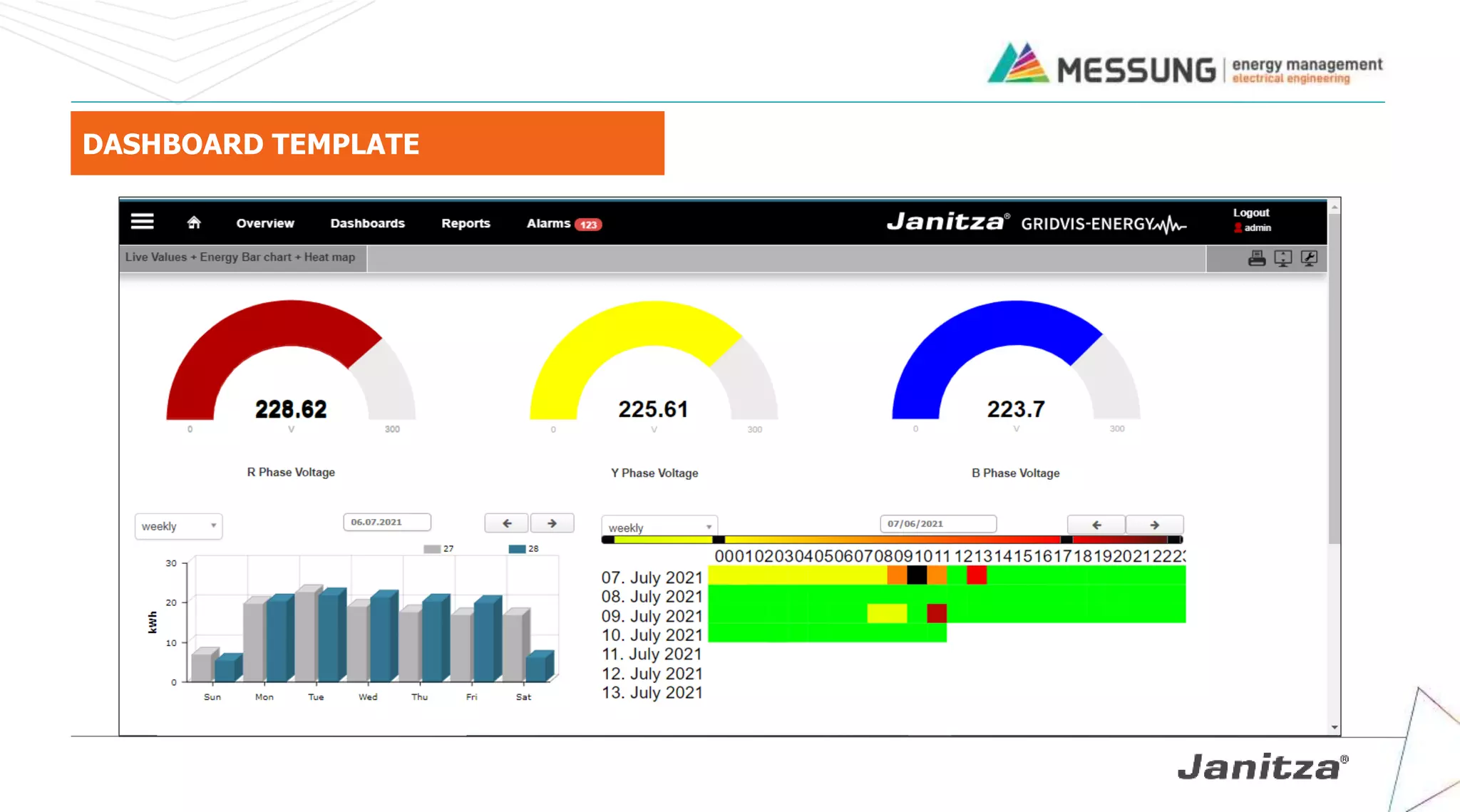

28. DASHBOARD TEMPLATE

29. DASHBOARD TEMPLATE

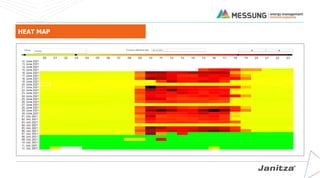

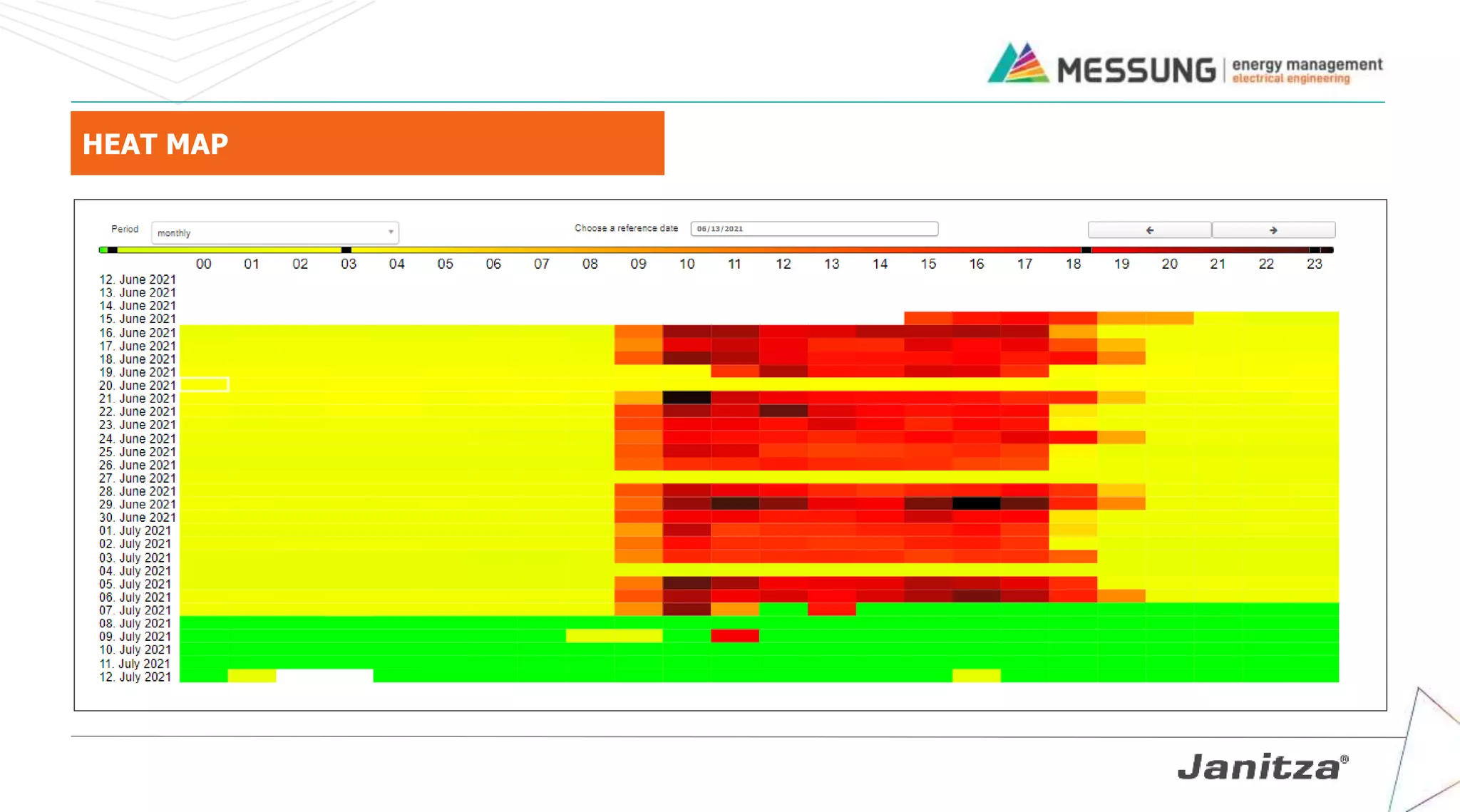

30. HEAT MAP

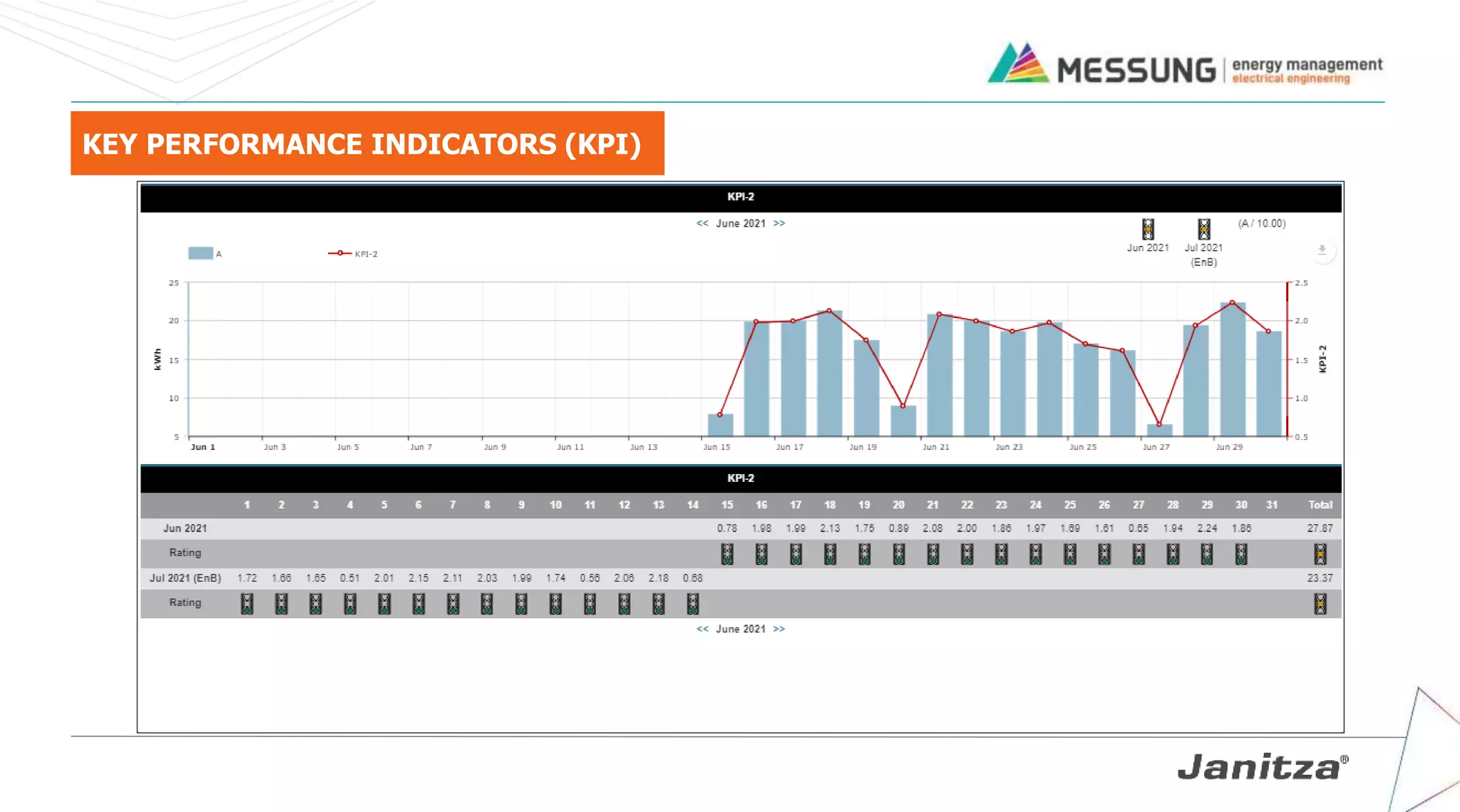

31. KEY PERFORMANCE INDICATORS (KPI)

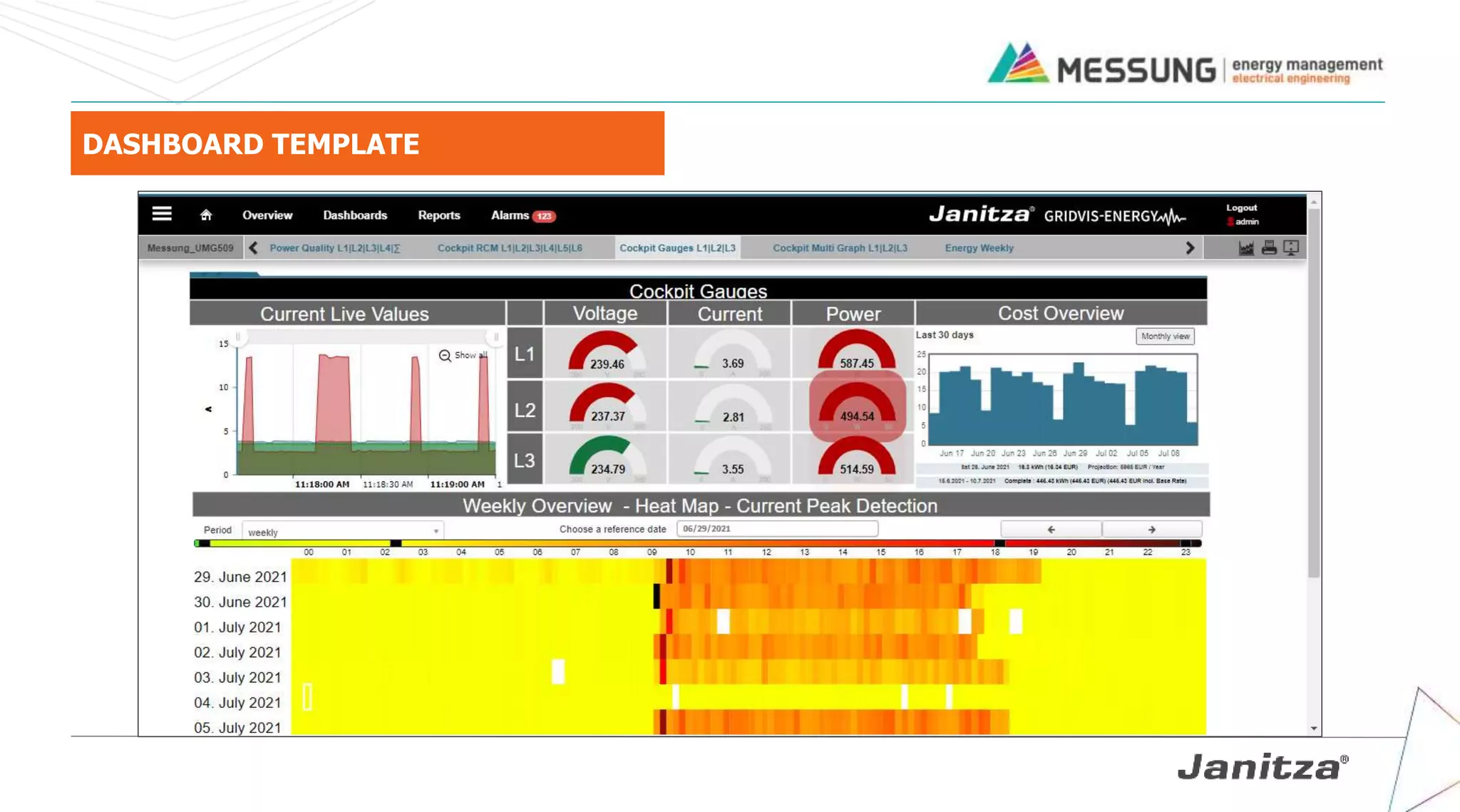

32. www.messungelectricalengineering.com

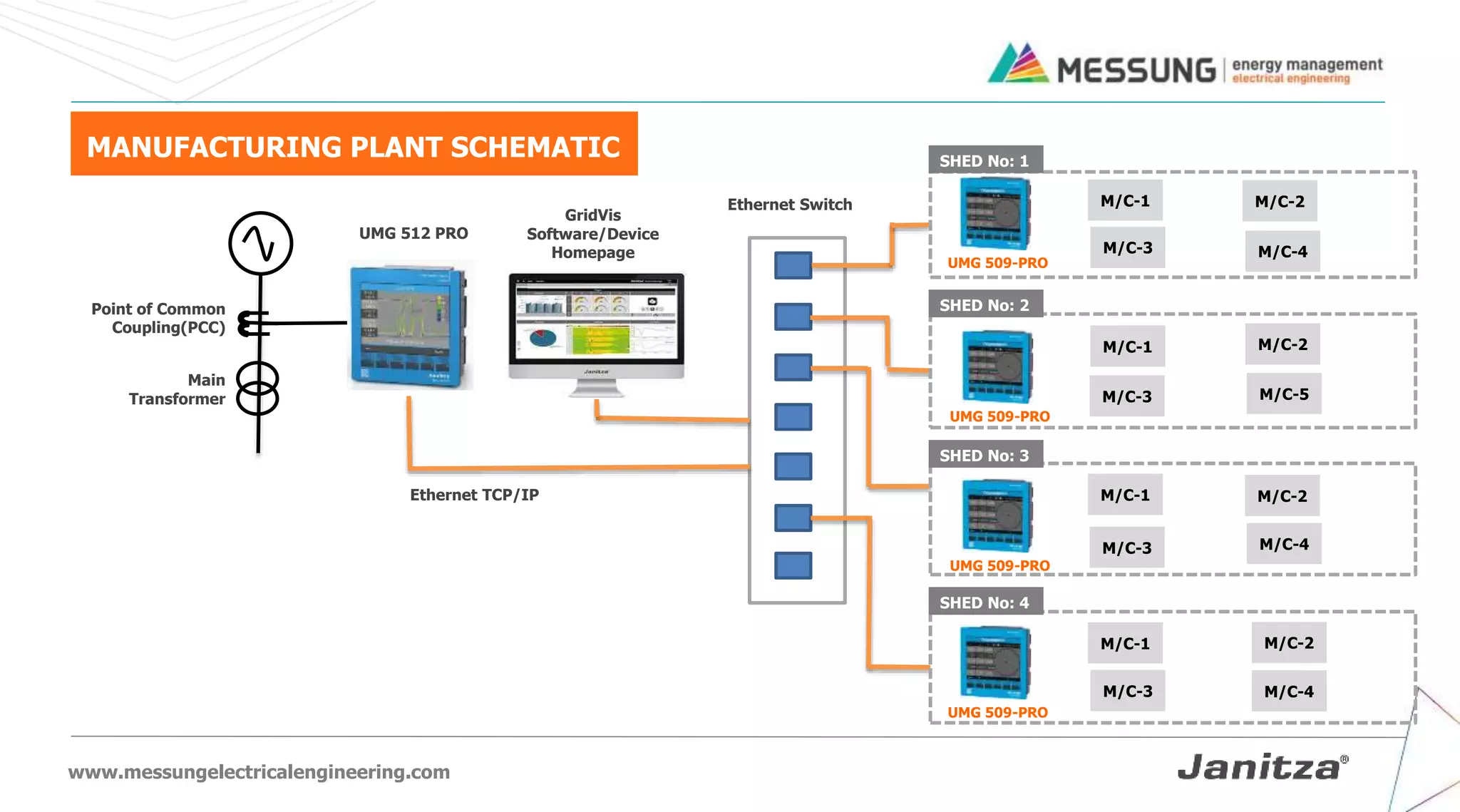

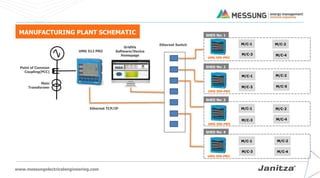

MANUFACTURING PLANT SCHEMATIC
Point of Common
Coupling(PCC)
Main
Transformer
M/C-1 M/C-2
M/C-4
M/C-3
M/C-1 M/C-2
M/C-5
M/C-3
M/C-1 M/C-2
M/C-3 M/C-4
M/C-1 M/C-2
M/C-3 M/C-4
UMG 512 PRO
GridVis
Software/Device
Homepage
Ethernet Switch
SHED No: 1
SHED No: 2
SHED No: 3
SHED No: 4
Ethernet TCP/IP
UMG 509-PRO
UMG 509-PRO
UMG 509-PRO
UMG 509-PRO

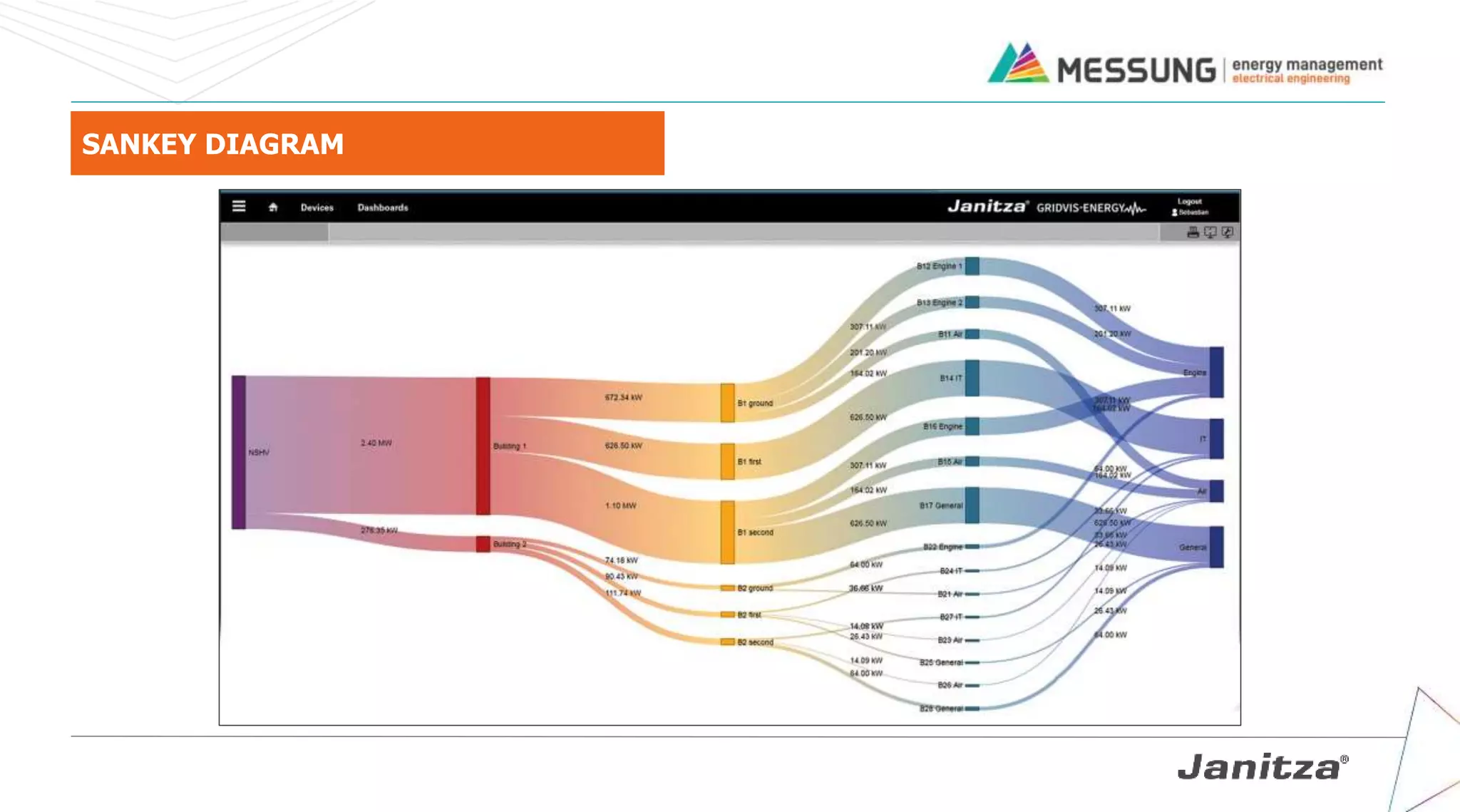

33. SANKEY DIAGRAM

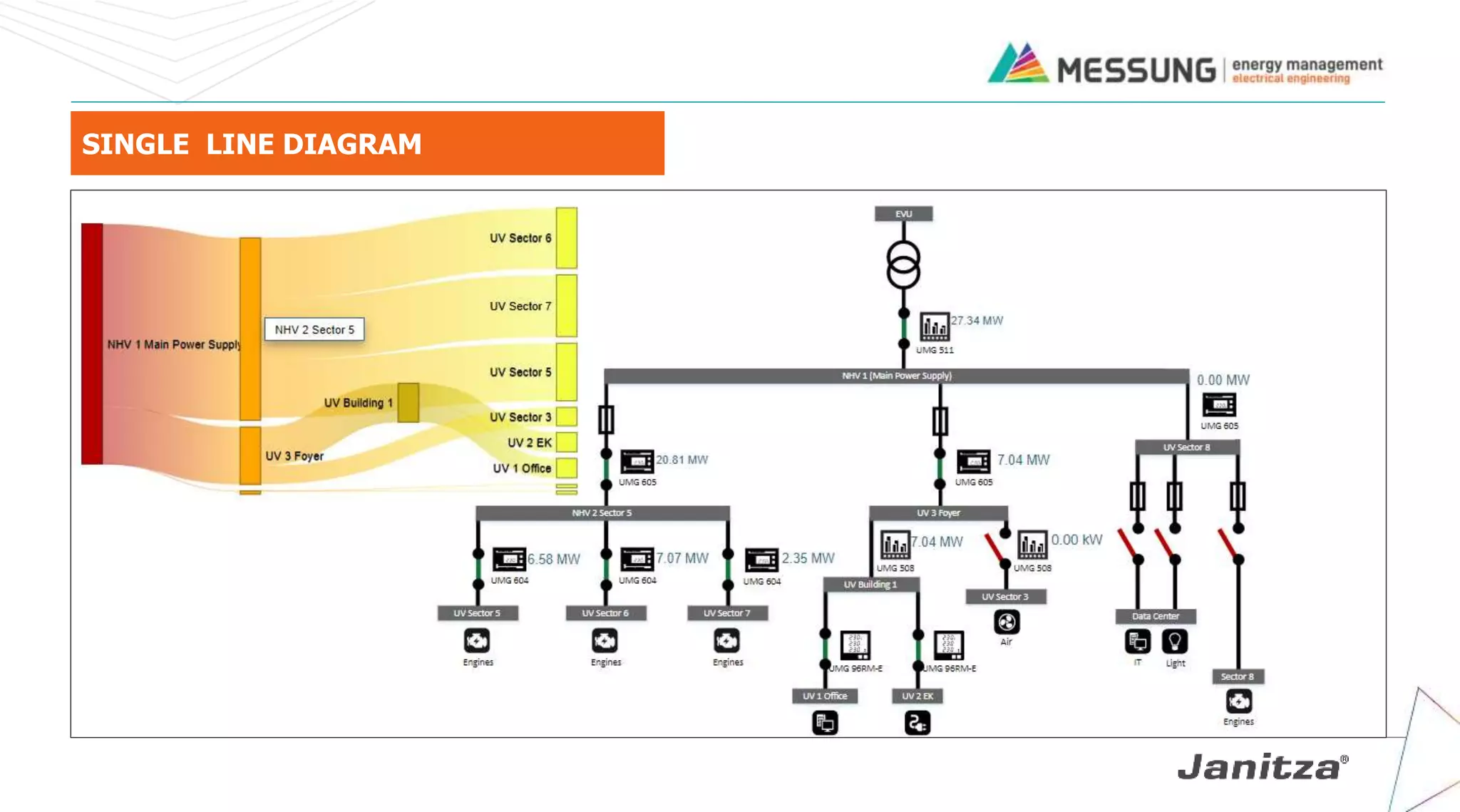

34. SINGLE LINE DIAGRAM

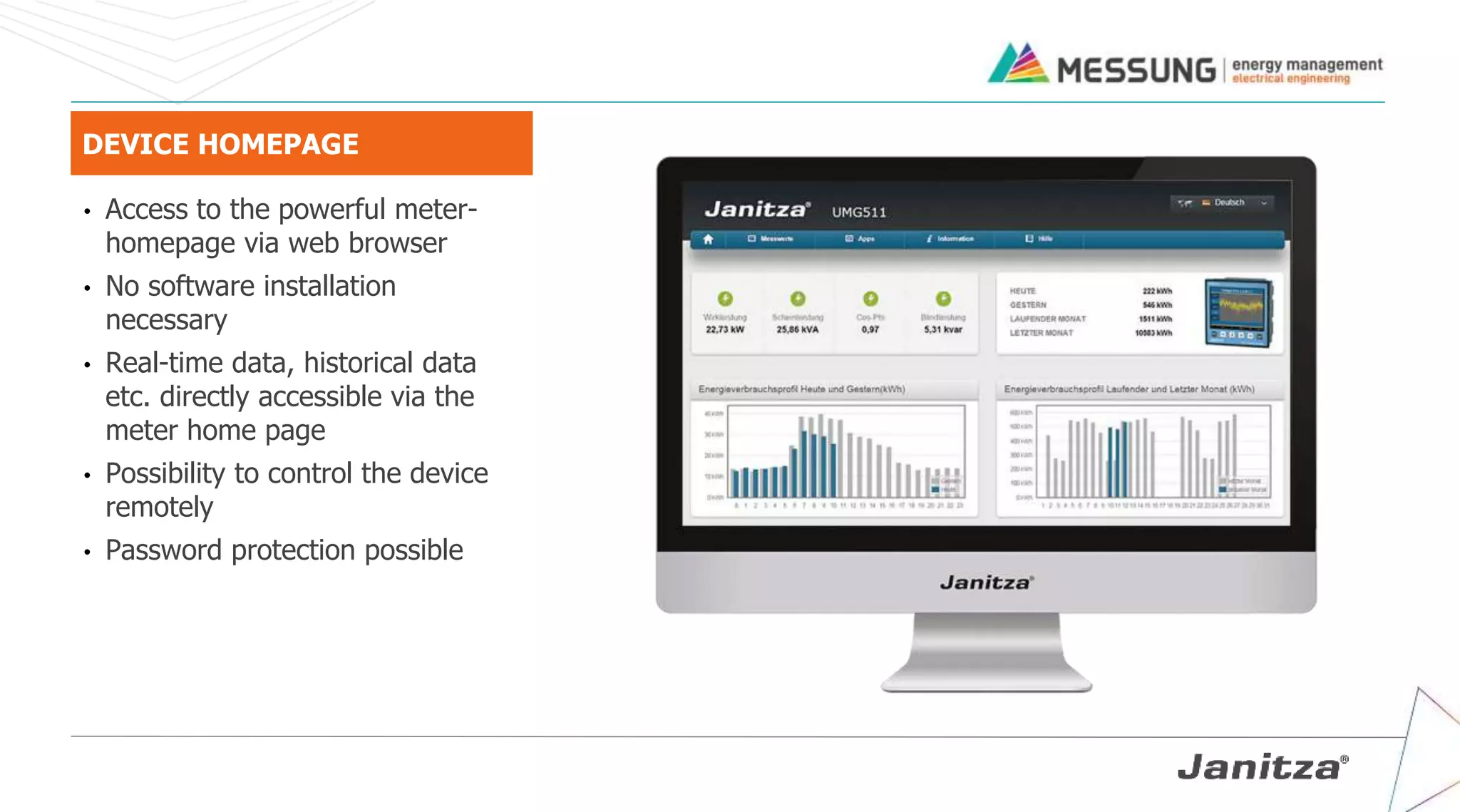

35. DEVICE HOMEPAGE
• Access to the powerful meter-
homepage via web browser
• No software installation
necessary
• Real-time data, historical data
etc. directly accessible via the
meter home page
• Possibility to control the device
remotely
• Password protection possible

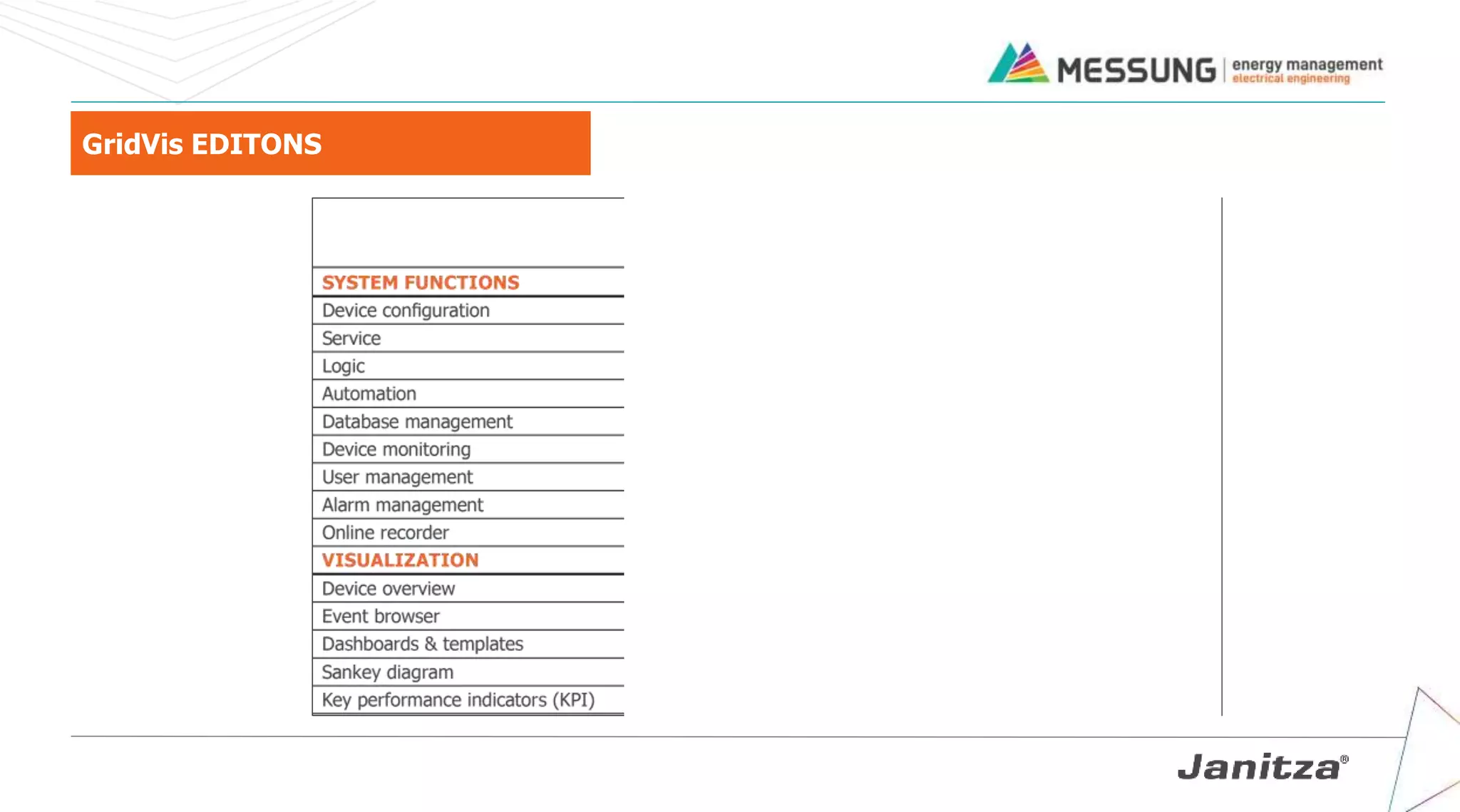

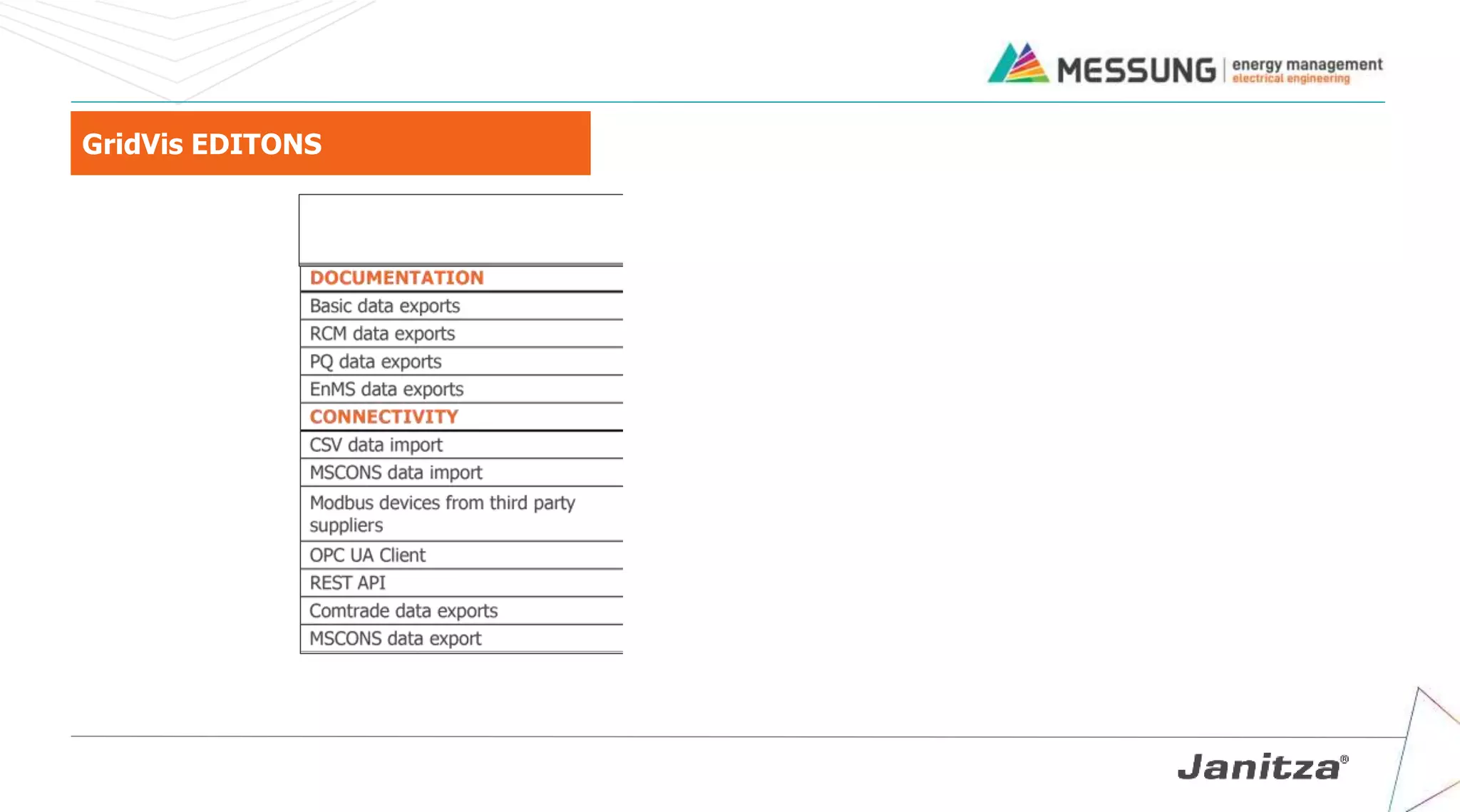

36. GridVis EDITONS

37. GridVis EDITONS

38. APPs - Extension with know-how

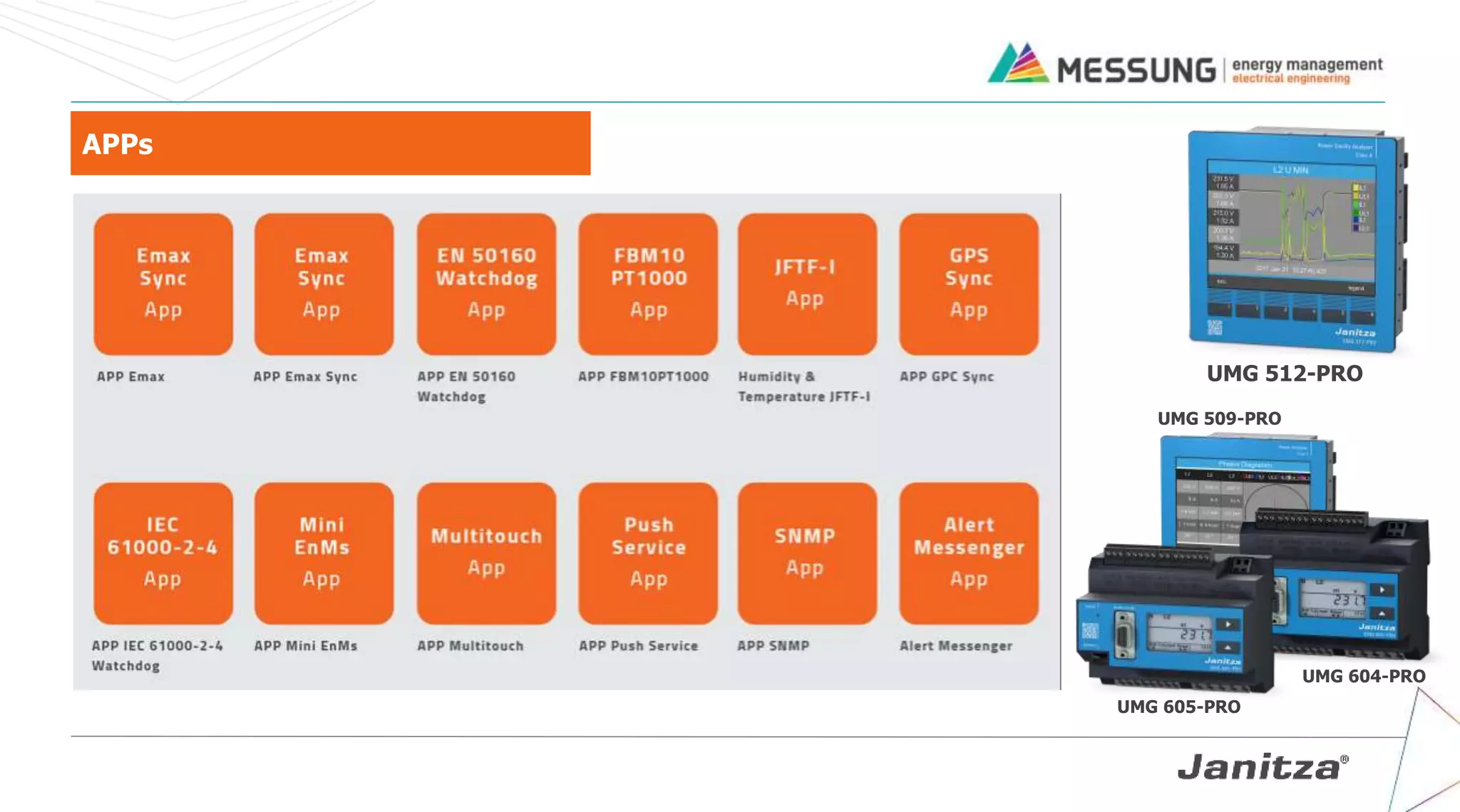

39. APPs
UMG 512-PRO
UMG 509-PRO
UMG 604-PRO
UMG 605-PRO

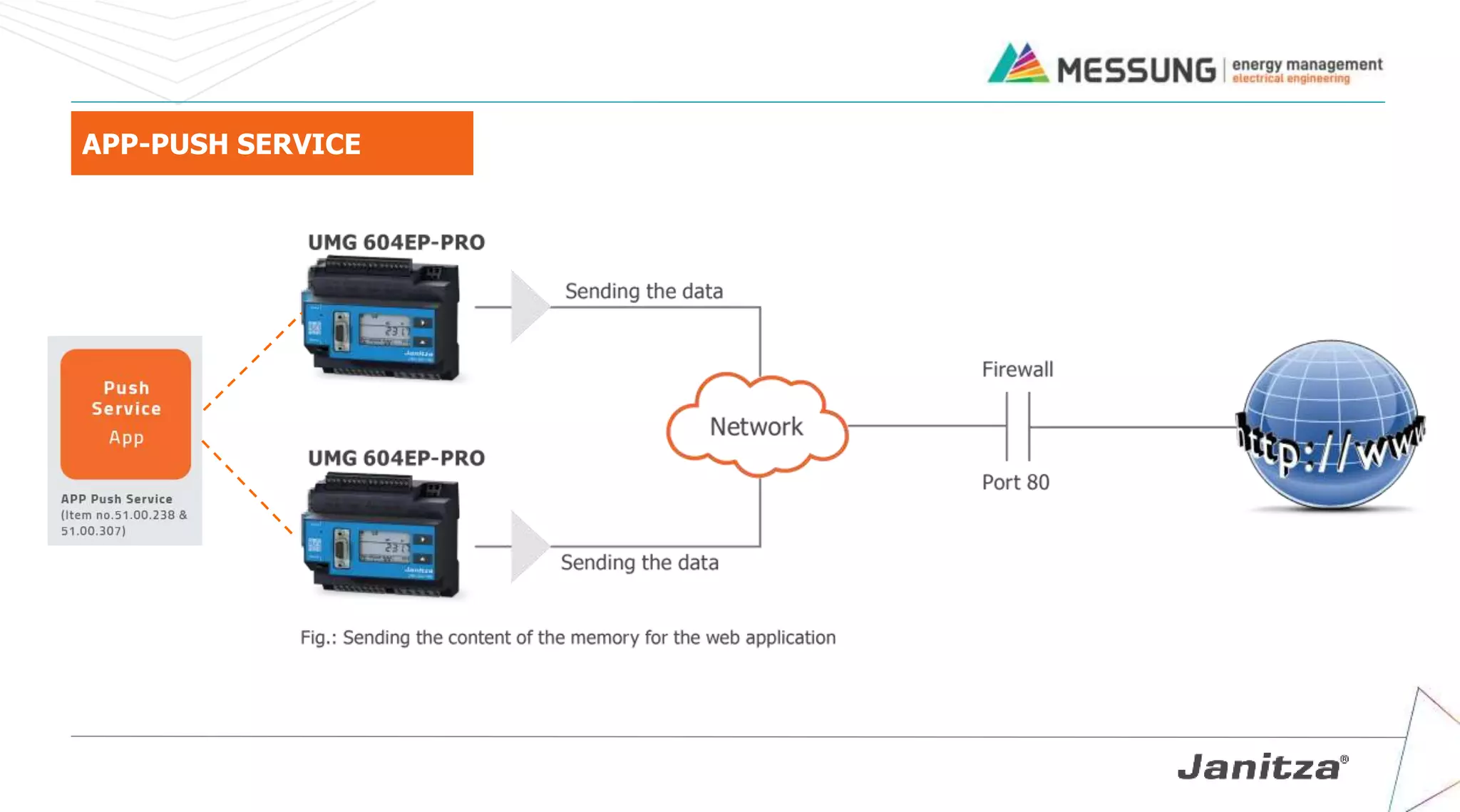

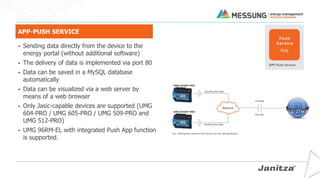

40. APP-PUSH SERVICE
• Sending data directly from the device to the
energy portal (without additional software)
• The delivery of data is implemented via port 80
• Data can be saved in a MySQL database
automatically
• Data can be visualized via a web server by
means of a web browser
• Only Jasic-capable devices are supported (UMG
604-PRO / UMG 605-PRO / UMG 509-PRO and
UMG 512-PRO)
• UMG 96RM-EL with integrated Push App function
is supported.

41. APP-PUSH SERVICE
