1. GAIN CONTROL OVER ENERGY CONSUMPTION
WITH JANITZA'S UMG 96-PA SERIES
www.messungelectricalengineering.com

2. www.messungelectricalengineering.com
Every day, enterprises face the challenges of energy
costs and efficiency optimisation.
For ecological as well as economic reasons, industries
need to implement an energy management system
(EMS) according to the ISO 50001 standard.
Only a comprehensive energy data acquisition system
will provide the transparency needed.
Robust energy management that covers the full
spectrum of buildings, production facilities and
machines can help.
Massive cost savings are possible only with complete,
transparent acquisition and processing of all energy
consumption data from the whole enterprise.
Then, businesses can make informed energy
management decisions to best drive down costs.

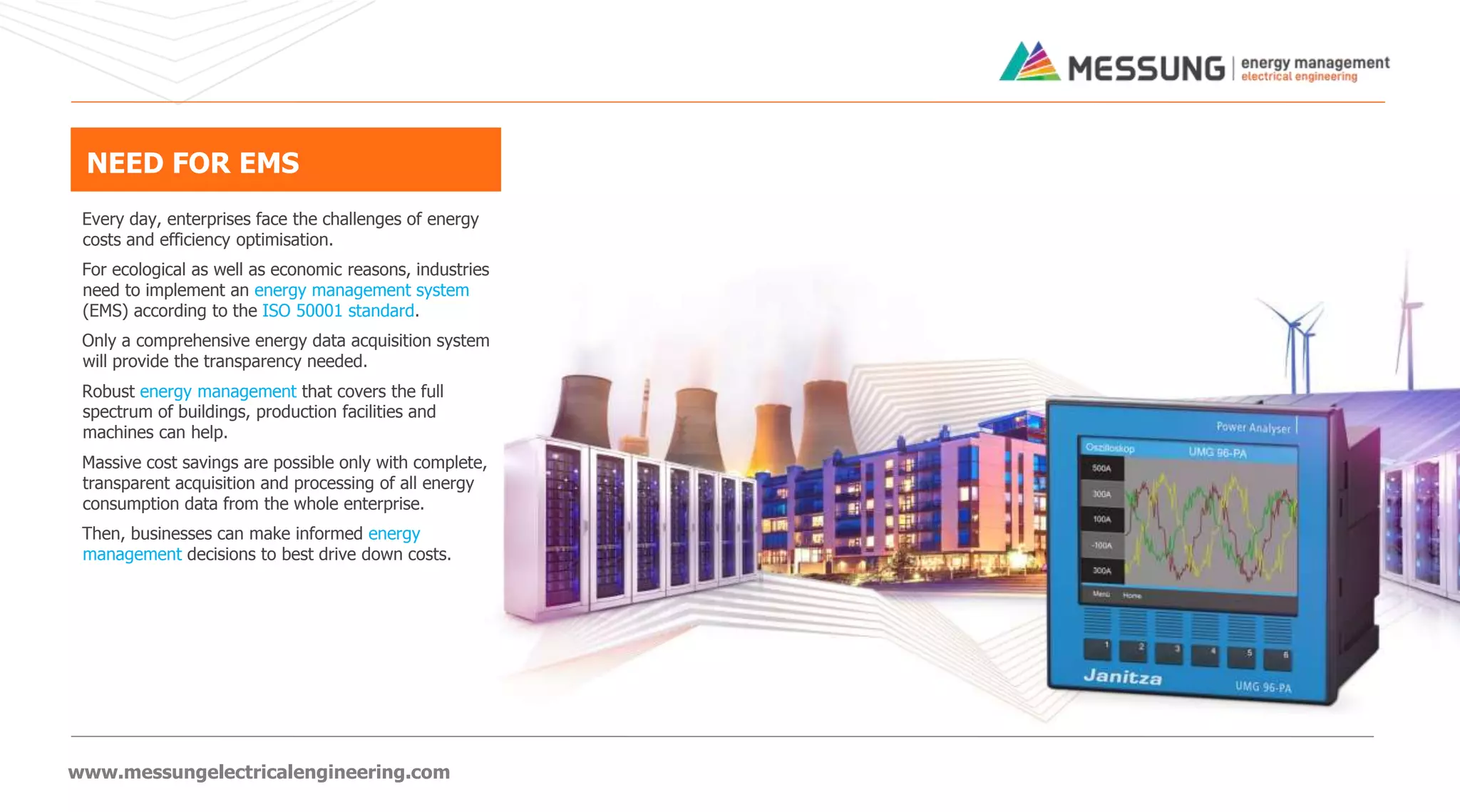

NEED FOR EMS

3. www.messungelectricalengineering.com
Janitza's power quality analysers and energy supervision software provide transparency into how your assets
are performing in real time so you can prioritise and manage initiatives that reduce energy consumption &
emissions, ensure maximum uptime.
Janitza's energy management products can help utility managers and engineers to:
GAIN BETTER INSIGHT With visibility of your energy usage patterns, from building to
equipment level
MINIMISE ENERGY COSTS With timely alerts about energy 'waste'
MANAGE KPIS measure & track performance against pre-determined benchmarks
BOOST RESOURCE PRODUCTIVITY Quickly identify inefficiencies and irregularities to avoid downtime
IMPROVE DECISION MAKING Prioritise investments based on real data, make smarter decisions
HOW ENERGY MEASUREMENT &
ANALYSIS HELPS

4. www.messungelectricalengineering.com
The UMG 96-PA series is ideally suited for collecting and monitoring
electrical measured values.
Enables not only energy management, but also power quality and
residual current monitoring in a single device.
Residual currents can be detected at an early stage and equipment
damage and production downtimes avoided.
With the internal measured value memory, data are retained even if
communication is interrupted.
The UMG 96-PA-MID version also allows companies to record energy
data relevant for billing.
Delivered in the practical size of 96 x 96 mm for easy integration of
the devices in switch cabinets.
JANITZA UMG 96-PA SERIES

5. www.messungelectricalengineering.com
The modularly expandable energy measurement device, UMG 96-PA
combines four functions in one device and can be modularly expanded by
two analogue inputs - selectively as 0-20 mA analogue inputs (e.g. DC
measurement) or as measuring inputs with detection of cable breaks and
additional temperature measurement.
FEATURES & FUNCTIONS OF UMG 96-PA

6. www.messungelectricalengineering.com
The main features of UMG 96-PA include:
FEATURES & FUNCTIONS OF UMG 96-PA
• Continuous energy monitoring
• Identification of potential
savings
• Reduction of energy costs
• Fulfilment of control &
regulatory requirements
• Certified and tamper-proof MID
measurement
• Legally secure accounting &
energy acquisition
• Fulfilment of legal requirements
• Secure, highly available power supply
• Avoidance of production stoppages
• Maximisation of operating times/preventative
maintenance
• Prevention of product quality defects
• Detection of harmonics current up to the 40th order

7. www.messungelectricalengineering.com
The main features of UMG 96-PA include:
FEATURES & FUNCTIONS OF UMG 96-PA
• Continuous residual current
monitoring
• Support for fire protection
and personnel protection
• Effort reduction with the
DGUV V3 tests
• Increased system availability
• Easy installation due to front panel
size, 96 x 96 mm
• Colour graphic display and intuitive
user guidance
• Overvoltage category 600 V CAT III
• For use in TN and TT systems

8. www.messungelectricalengineering.com

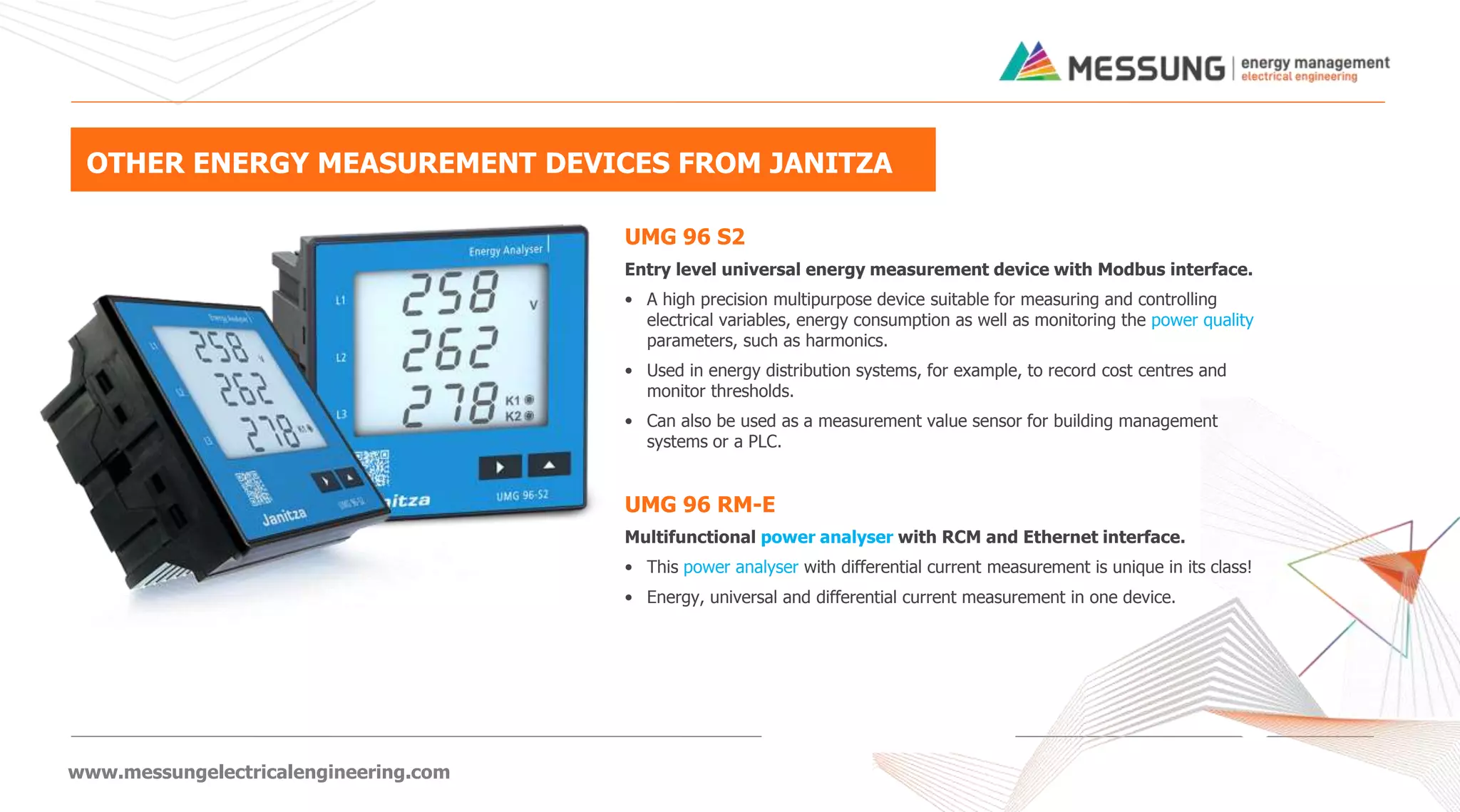

OTHER ENERGY MEASUREMENT DEVICES FROM JANITZA
UMG 96 S2
Entry level universal energy measurement device with Modbus interface.
• A high precision multipurpose device suitable for measuring and controlling
electrical variables, energy consumption as well as monitoring the power quality
parameters, such as harmonics.
• Used in energy distribution systems, for example, to record cost centres and
monitor thresholds.
• Can also be used as a measurement value sensor for building management
systems or a PLC.
UMG 96 RM-E
Multifunctional power analyser with RCM and Ethernet interface.
• This power analyser with differential current measurement is unique in its class!
• Energy, universal and differential current measurement in one device.

9. www.messungelectricalengineering.com
OTHER ENERGY MEASUREMENT DEVICES FROM JANITZA
UMG 96 RM P
Multifunctional power analyser with Profibus interface.
• The newest generation device.
• Suitable for measuring, recording and monitoring electrical parameters (True-RMS).
• For low and medium voltage networks (1 and 3-phase systems with a neutral conductor).
UMG 96 RM PN
Multifunctional power analyser with Profinet interface.
• Has 2 Ethernet interfaces that conform to PROFINET and integrated switch to set up line
topologies.
• Additional RS485 interface, and RCM to safeguard system availability.
UMG 96 RM EL
Multifunctional power analyser with Ethernet interface.
• Records work values securely and precisely for individual consumers.
• Has an extensive selection of tariffs of up to 14 items depending on the device type.

10. www.messungelectricalengineering.com

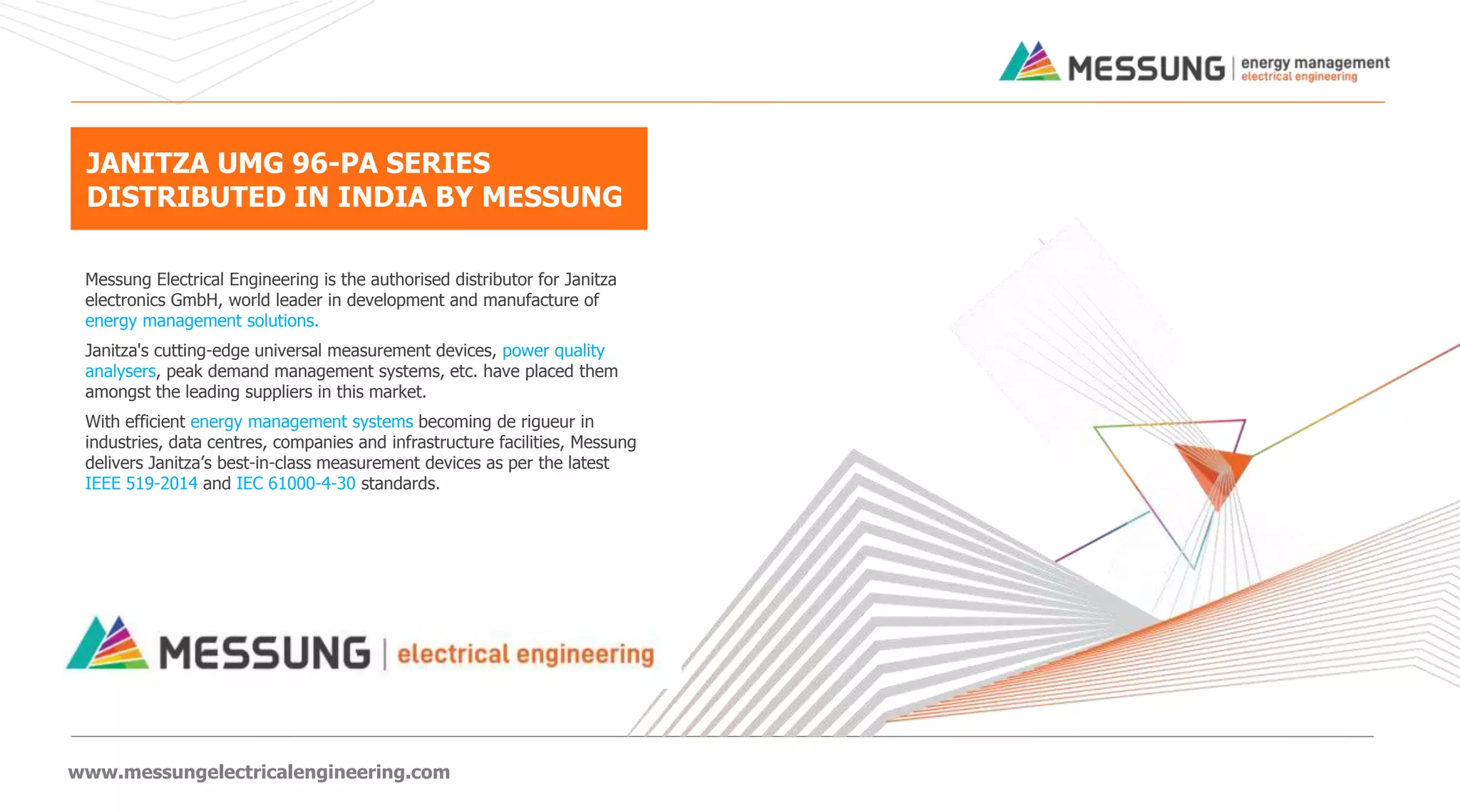

Messung Electrical Engineering is the authorised distributor for Janitza
electronics GmbH, world leader in development and manufacture of
energy management solutions.
Janitza's cutting-edge universal measurement devices, power quality
analysers, peak demand management systems, etc. have placed them
amongst the leading suppliers in this market.
With efficient energy management systems becoming de rigueur in
industries, data centres, companies and infrastructure facilities, Messung
delivers Janitza’s best-in-class measurement devices as per the latest
IEEE 519-2014 and IEC 61000-4-30 standards.
JANITZA UMG 96-PA SERIES
DISTRIBUTED IN INDIA BY MESSUNG

11. www.messungelectricalengineering.com
Extensive domain knowledge and proven problem-solving approach.
Messung customises energy management solutions for efficient
power quality monitoring, power measurement and analysing.
Enables customers to:
• meet mandatory requirements
• optimise energy utilisation
• maintain supply stability
• protect assets
• reduce costs
MESSUNG EXPERTISE

12. www.messungelectricalengineering.com
Contact us
MESSUNG SYSTEMS PVT. LTD.
501, 502 & 503 Lunkad Sky Vista, Viman Nagar, Pune, India - 411 014.
+91 20 6649 2800 | info@messung.com
THANK YOU
