Ultrasound vascular mapping uses ultrasound to examine arteries and veins in the arms before dialysis access placement. It assesses vessel diameter, wall characteristics, blood flow, compressibility, and identifies the best vessels. The mapping examines arteries for internal diameter and wall appearance, uses Doppler to evaluate blood flow, and may check for calcification. It also assesses superficial arm veins for caliber, depth, wall appearance, distensibility, course, patency, and presence of collaterals to identify the best vessel options for dialysis access. A vein mapping worksheet is used to report the ultrasound findings.

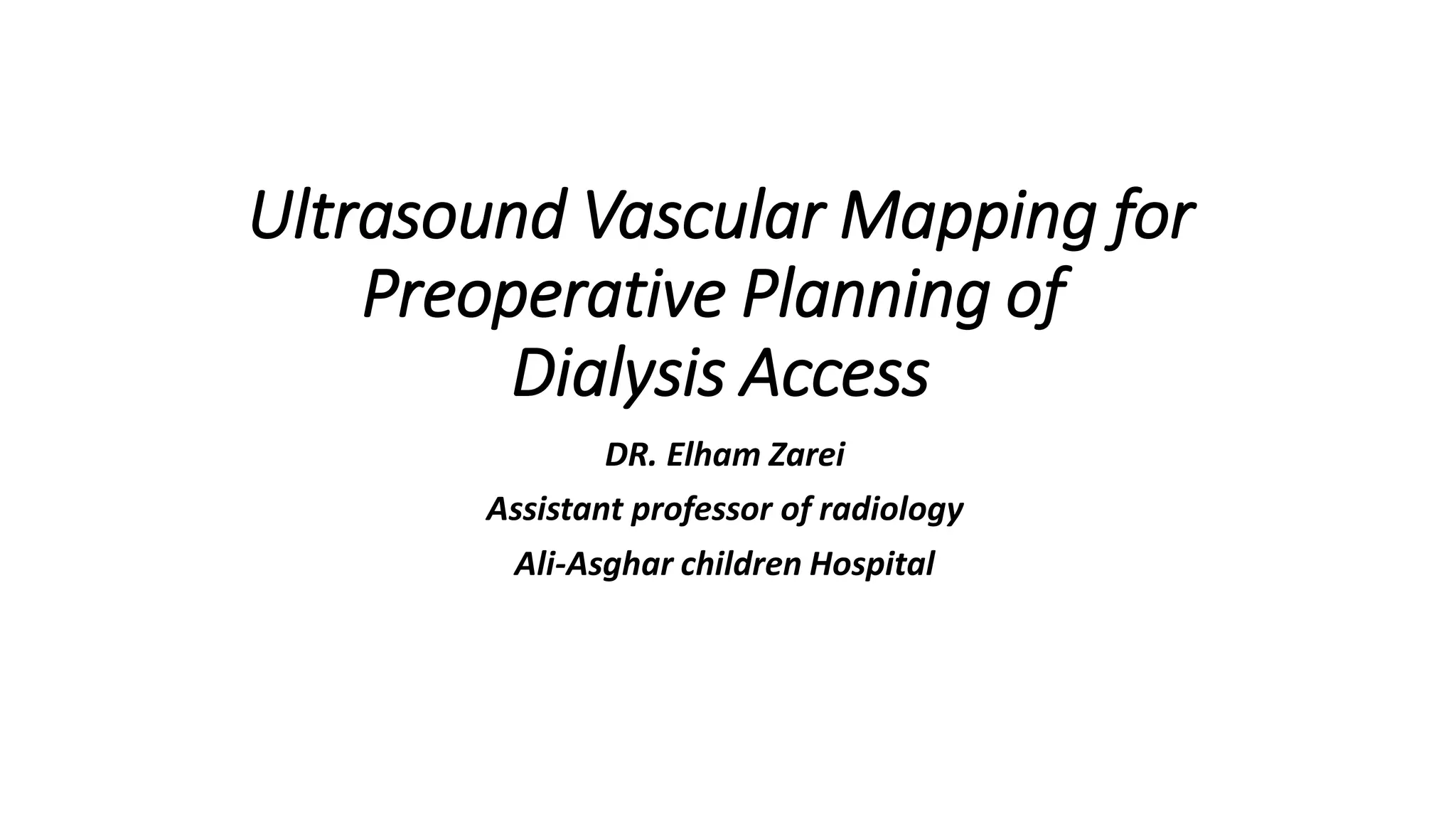

1. Ultrasound Vascular Mapping for
Preoperative Planning of
Dialysis Access
DR. Elham Zarei
Assistant professor of radiology
Ali-Asghar children Hospital

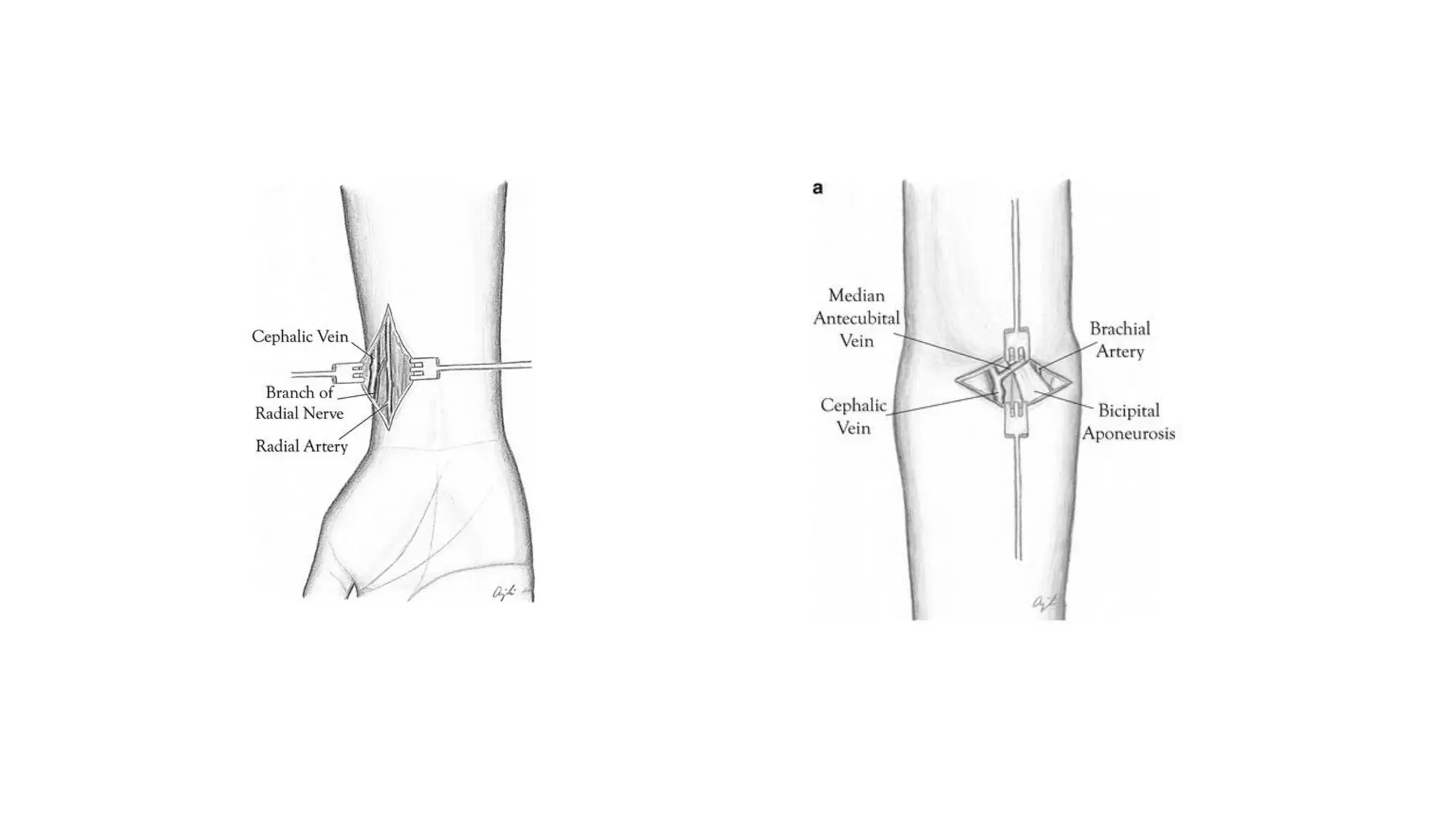

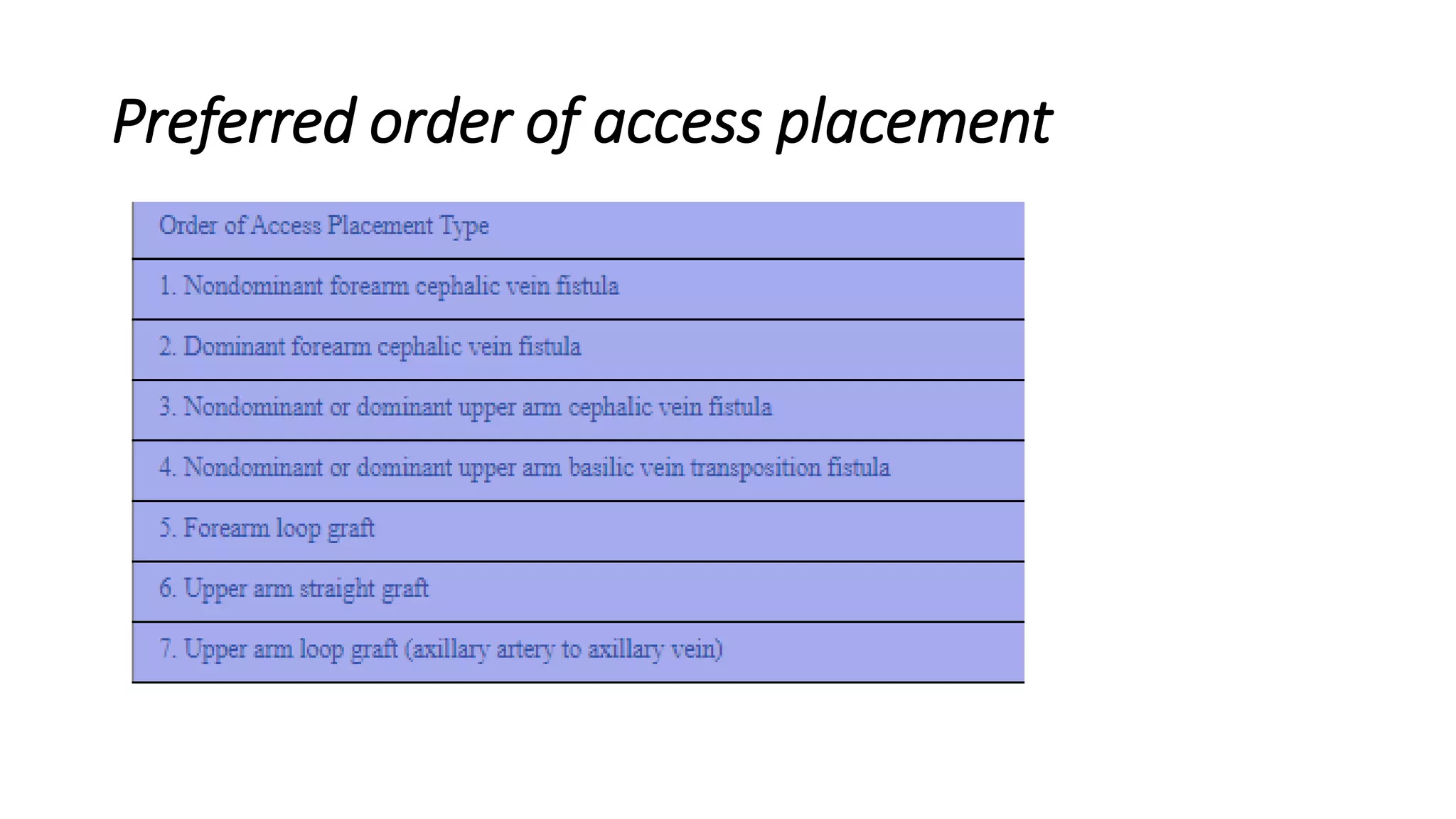

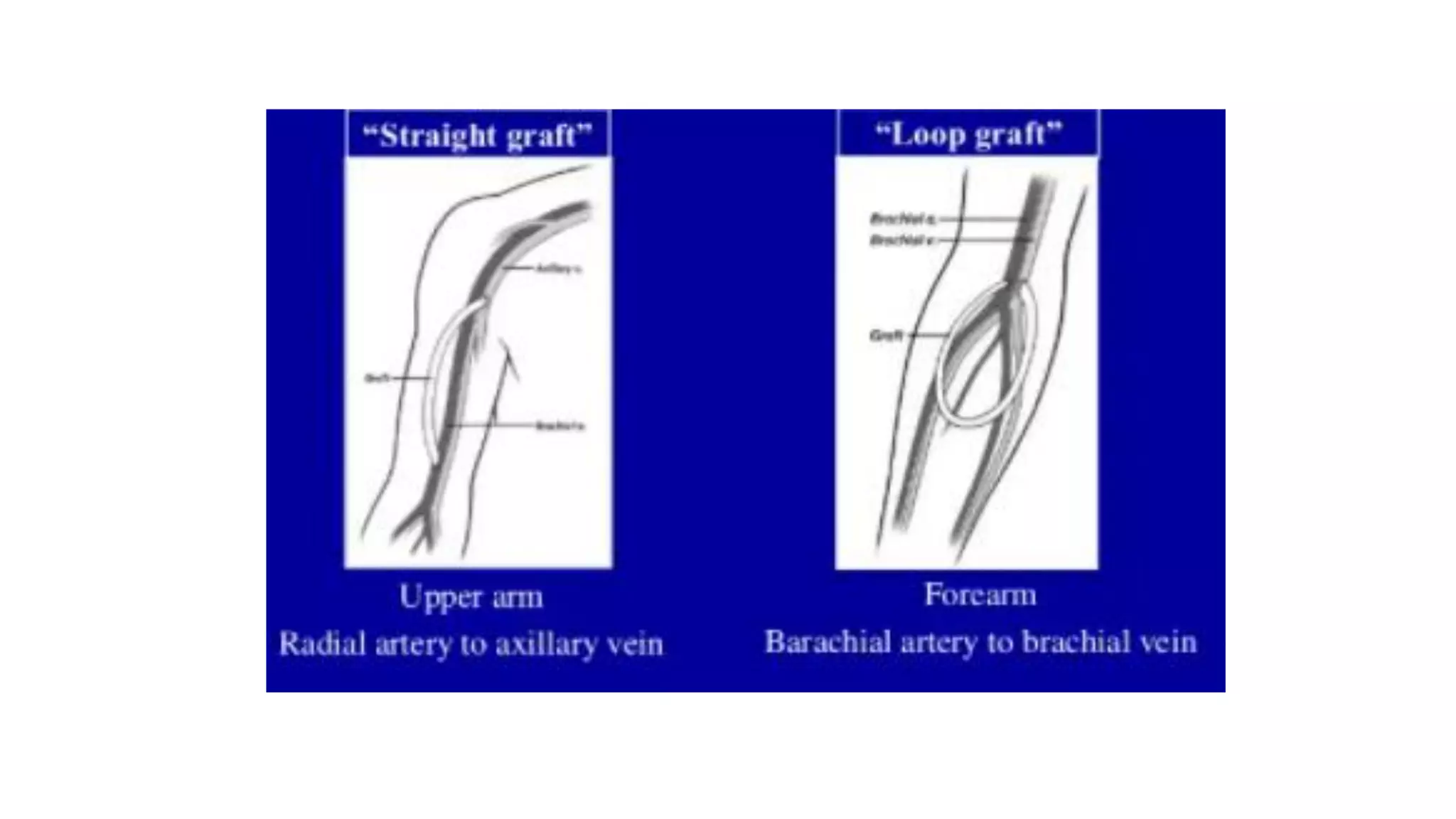

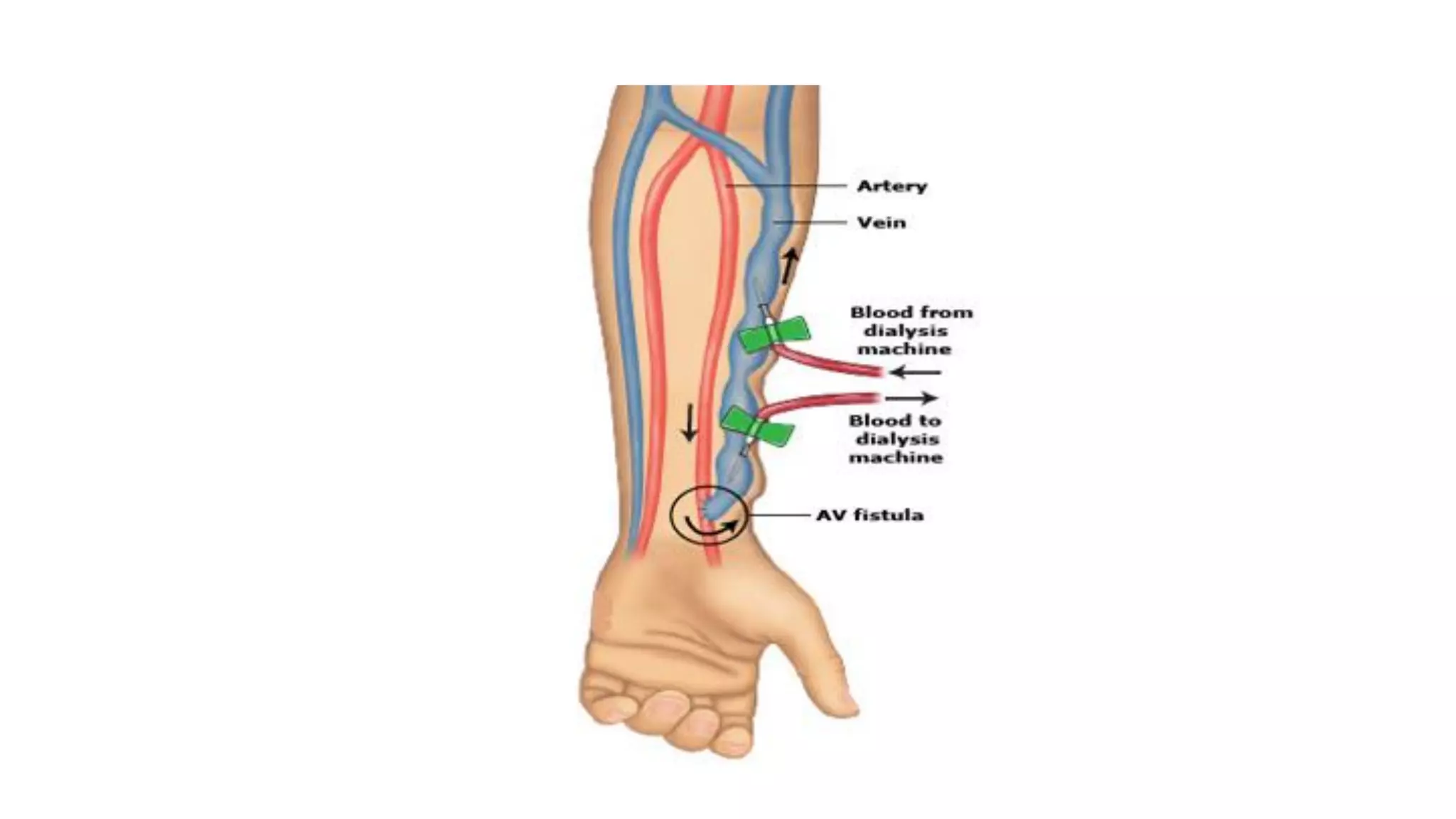

3. Preferred order of access placement

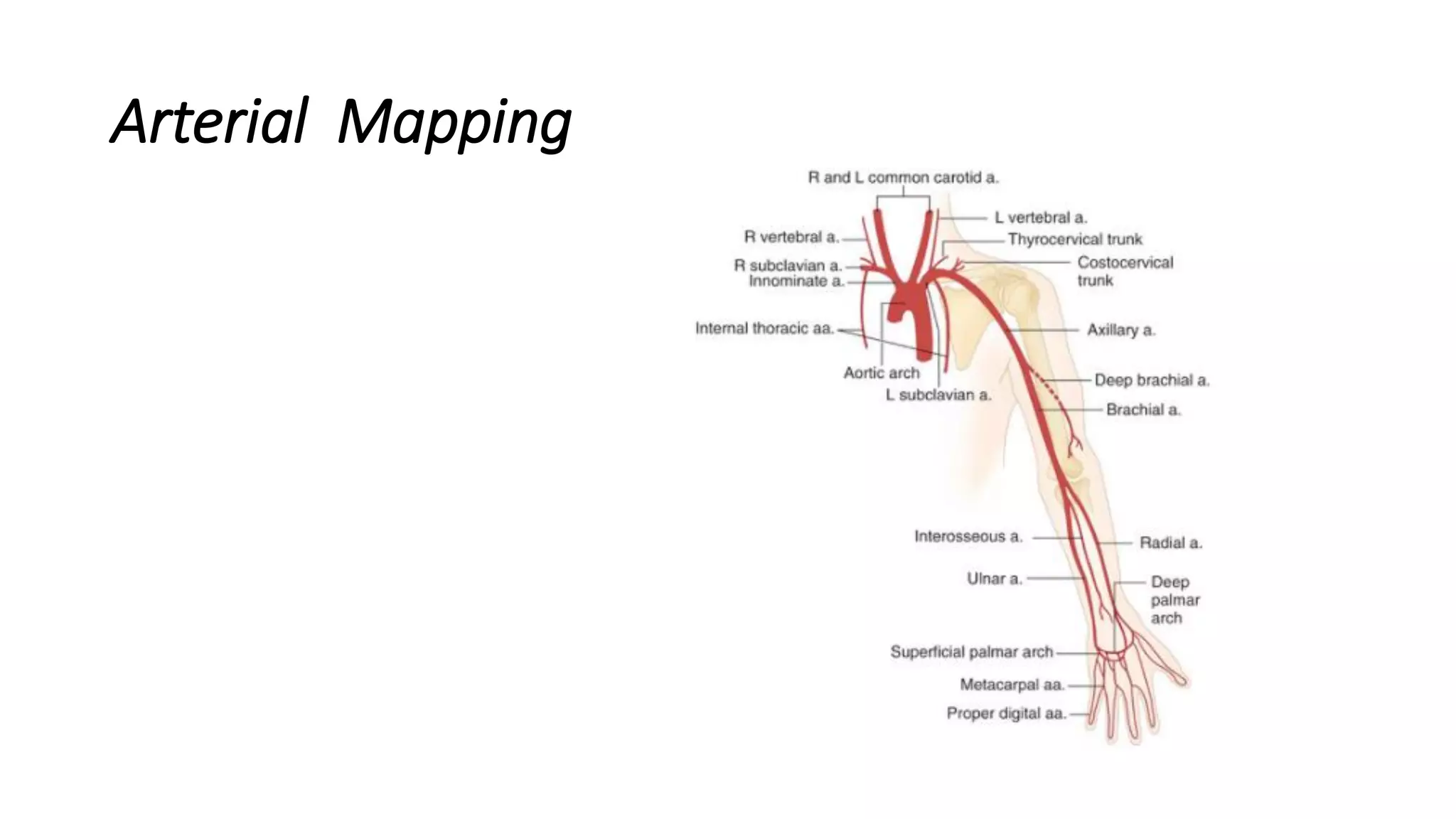

8. Arterial Mapping

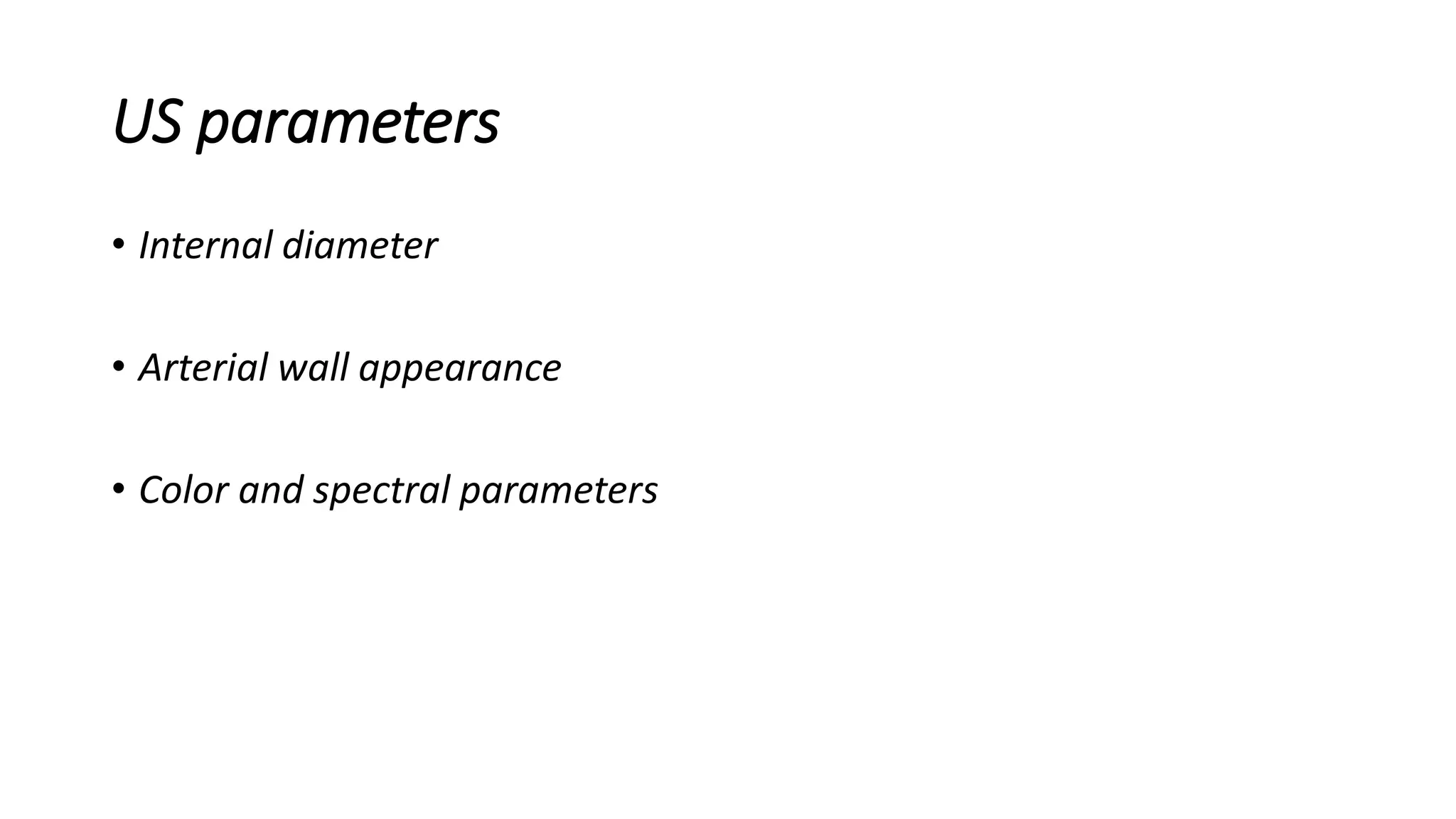

9. US parameters

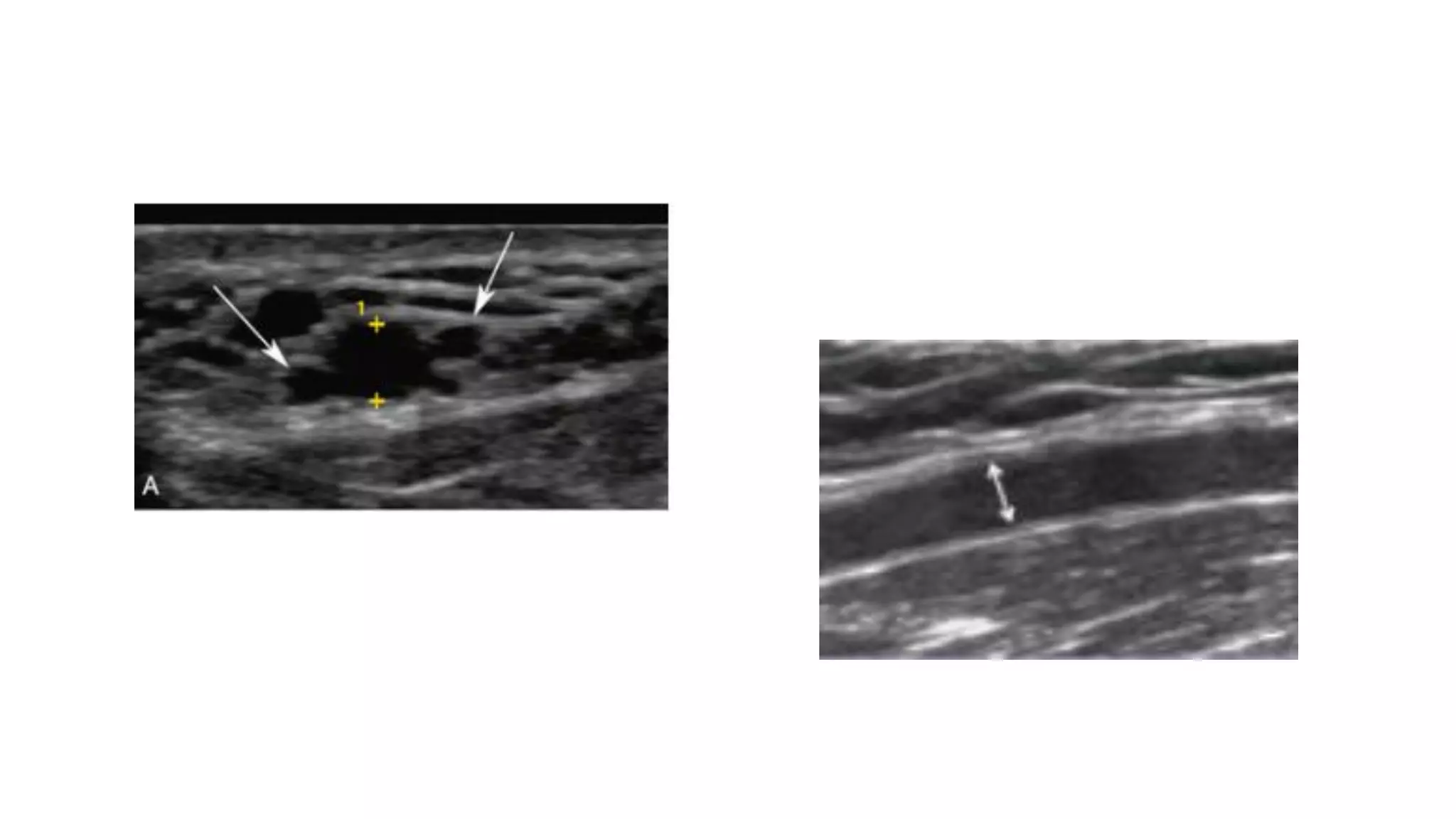

• Internal diameter

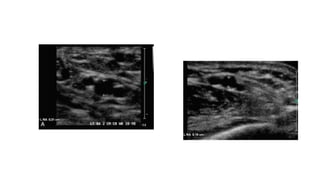

• Arterial wall appearance

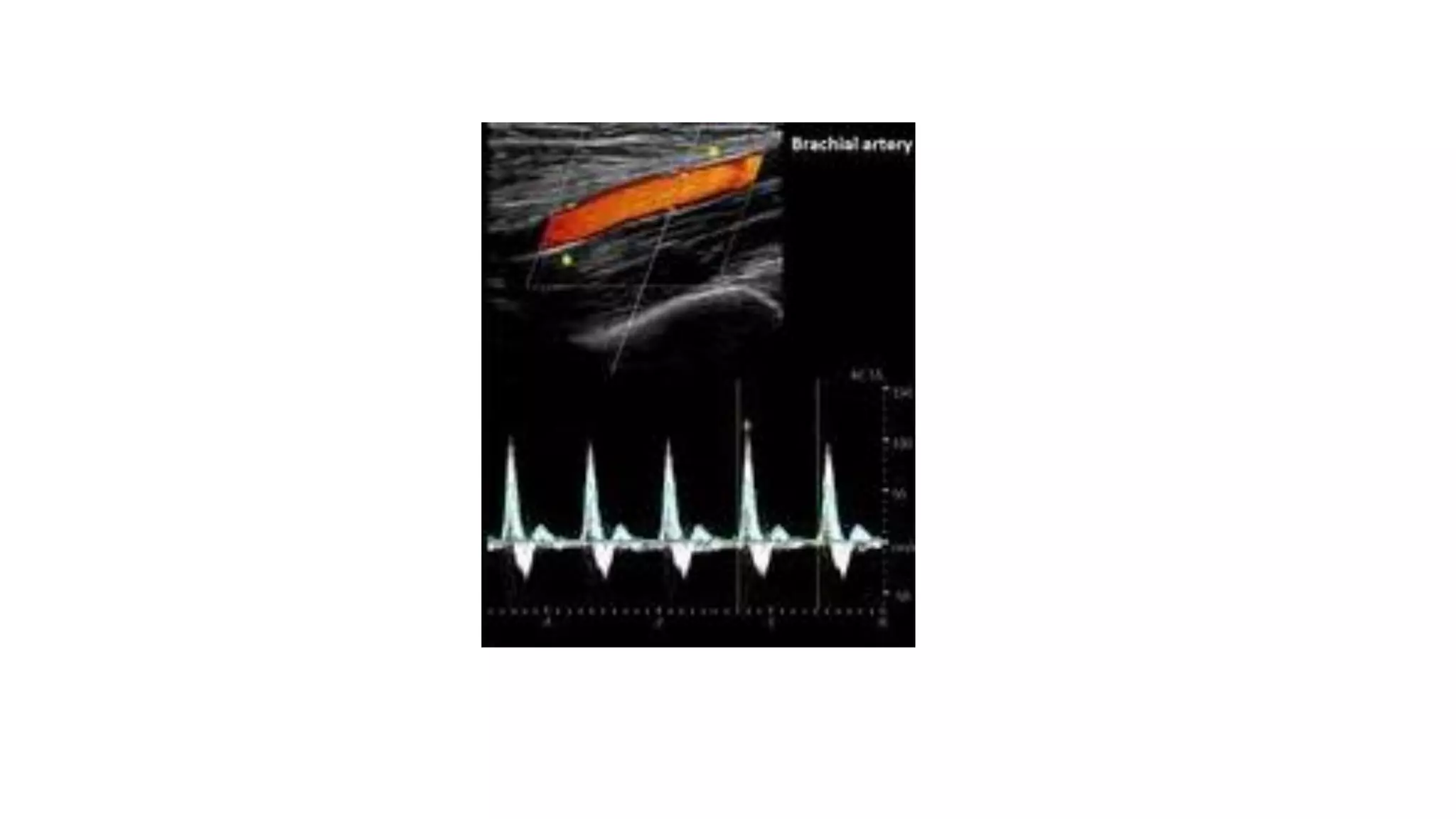

• Color and spectral parameters

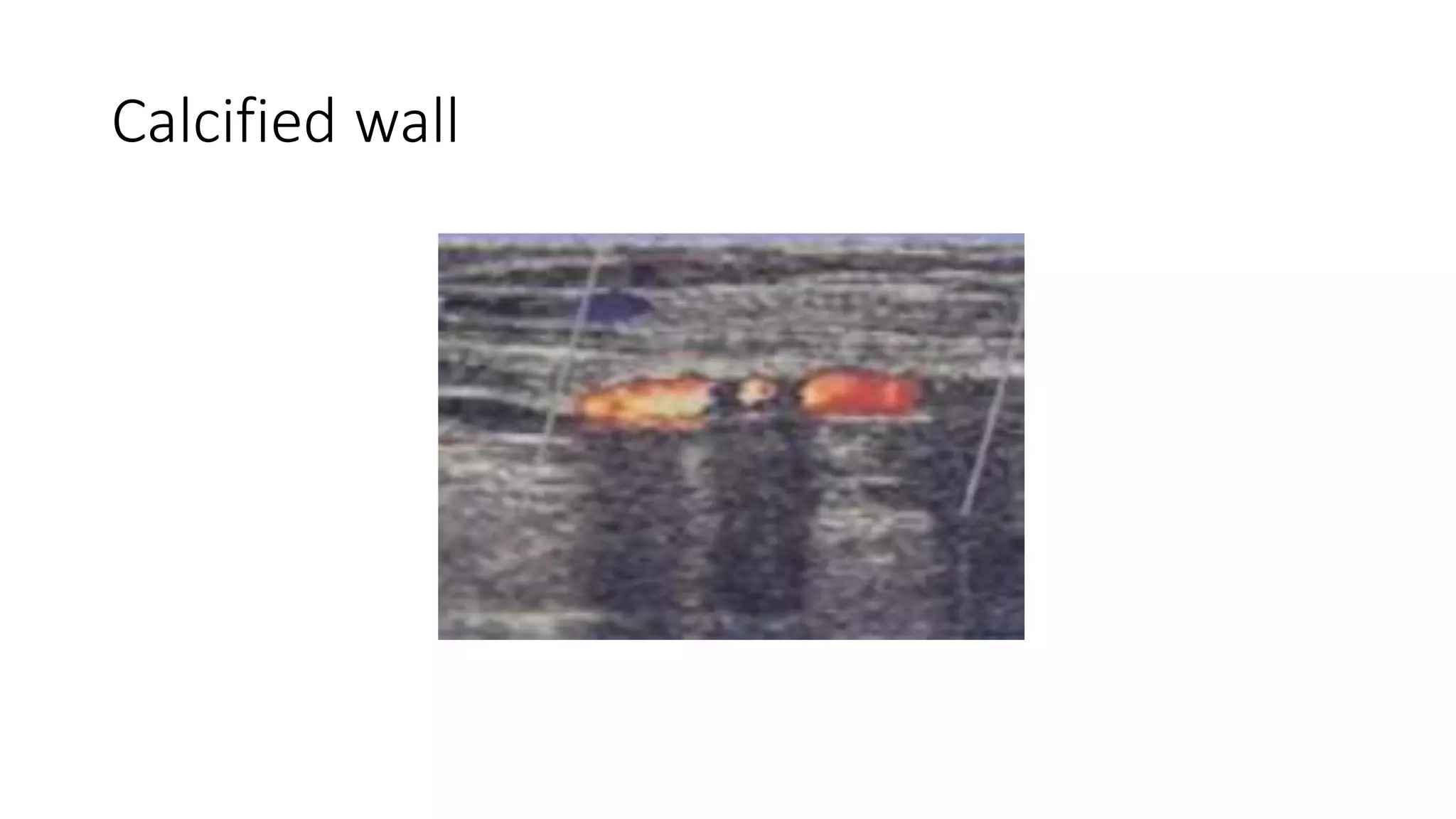

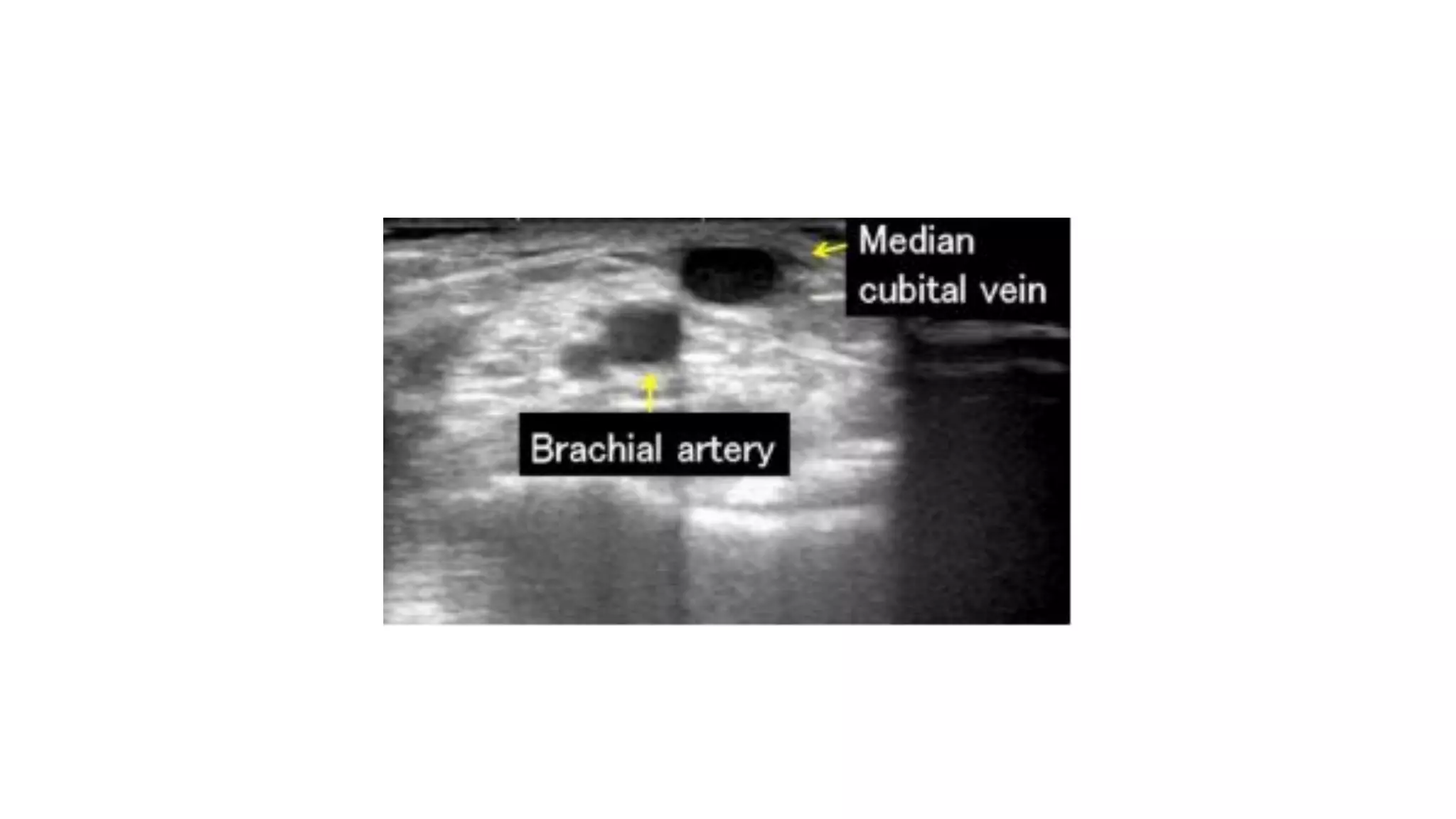

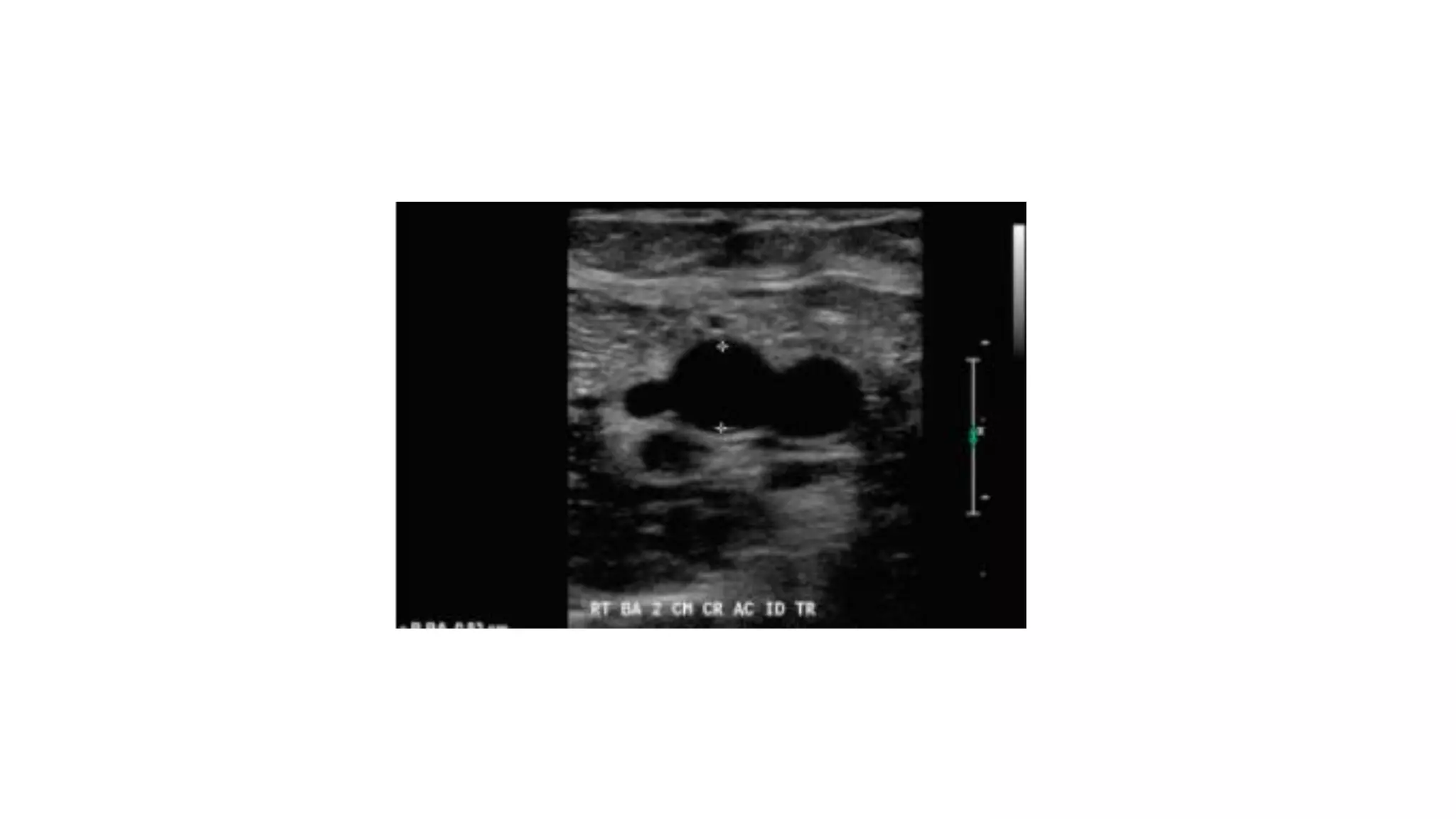

13. Calcified wall

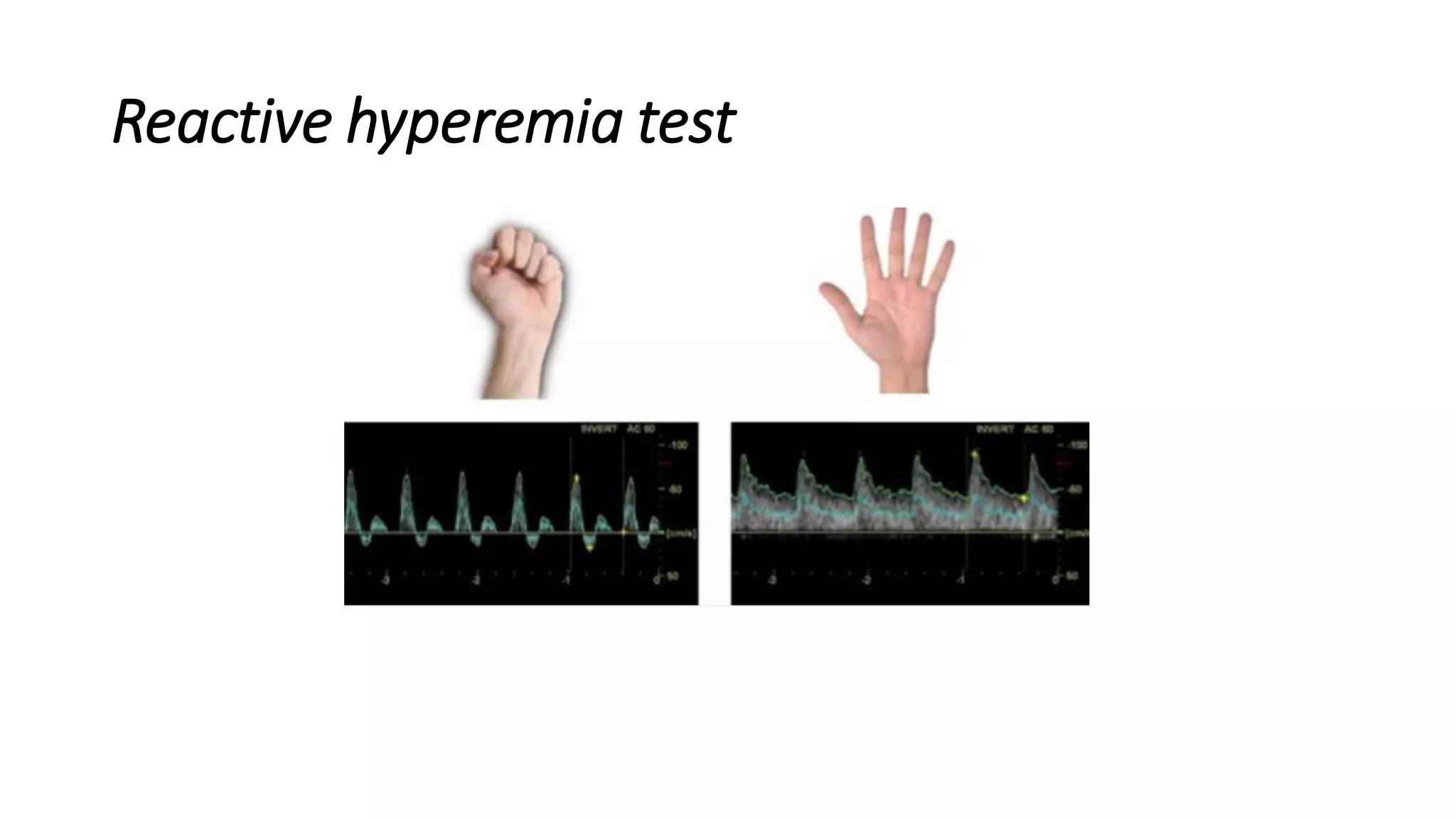

16. Reactive hyperemia test

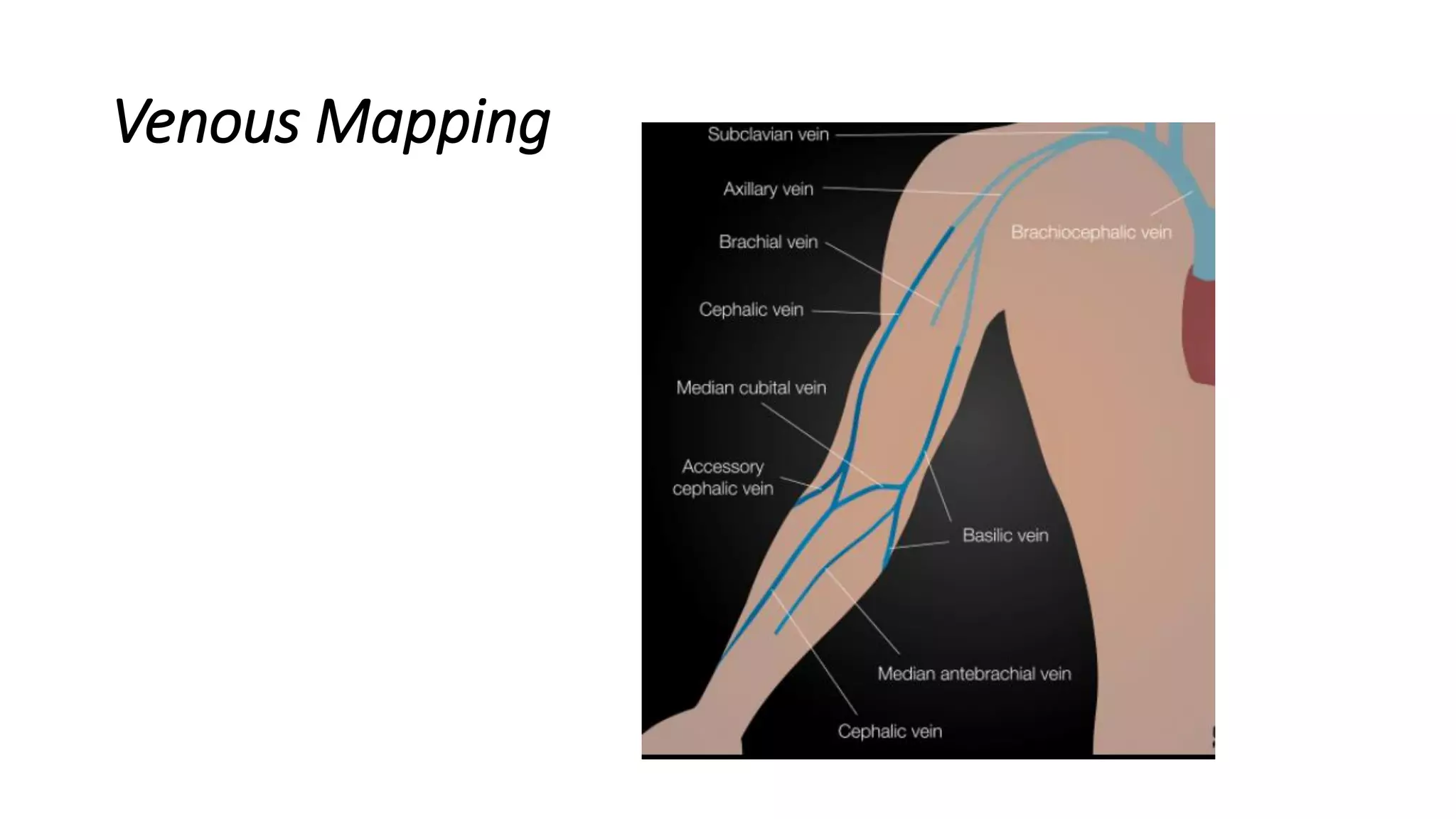

17. Venous Mapping

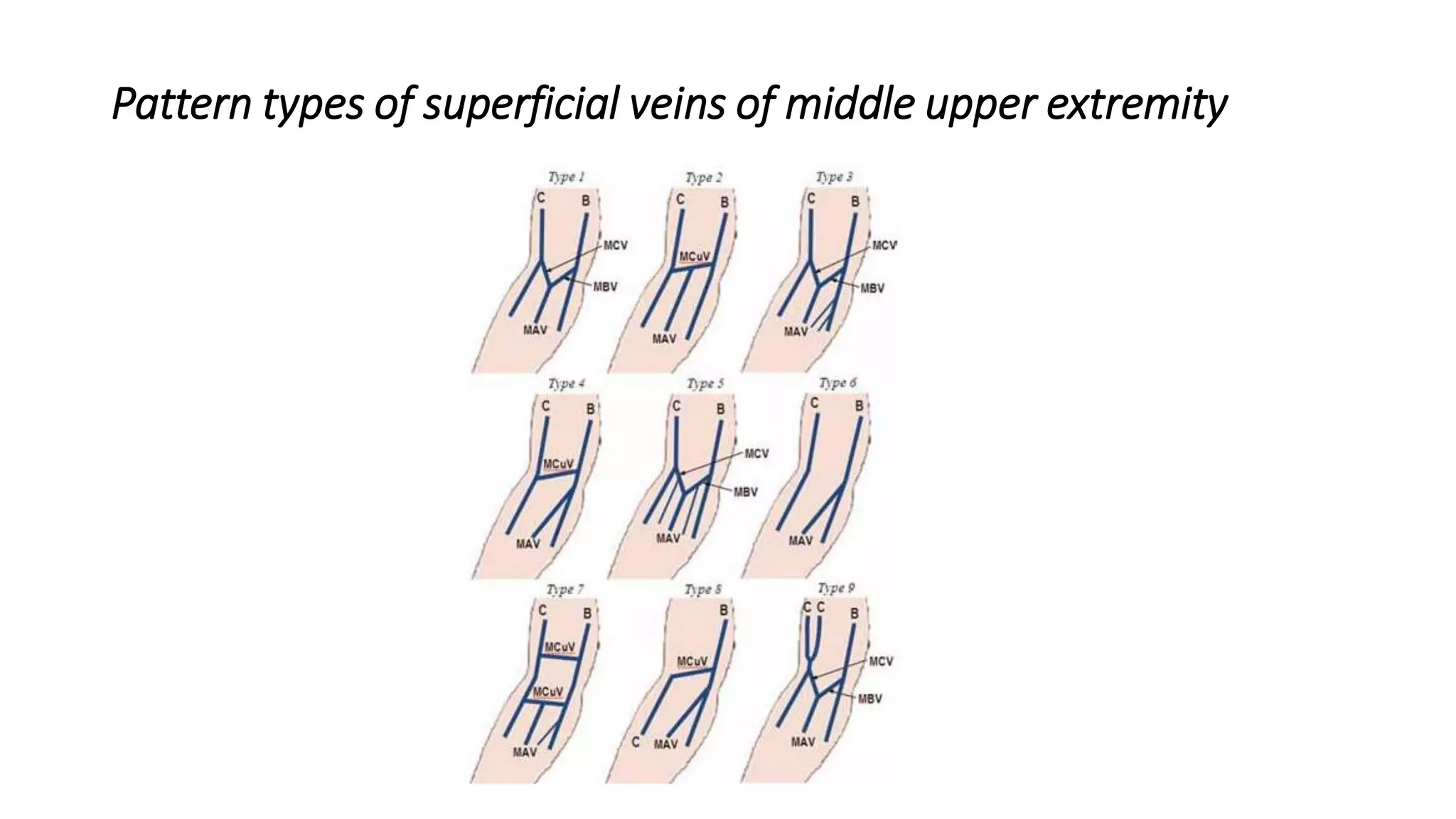

18. Pattern types of superficial veins of middle upper extremity

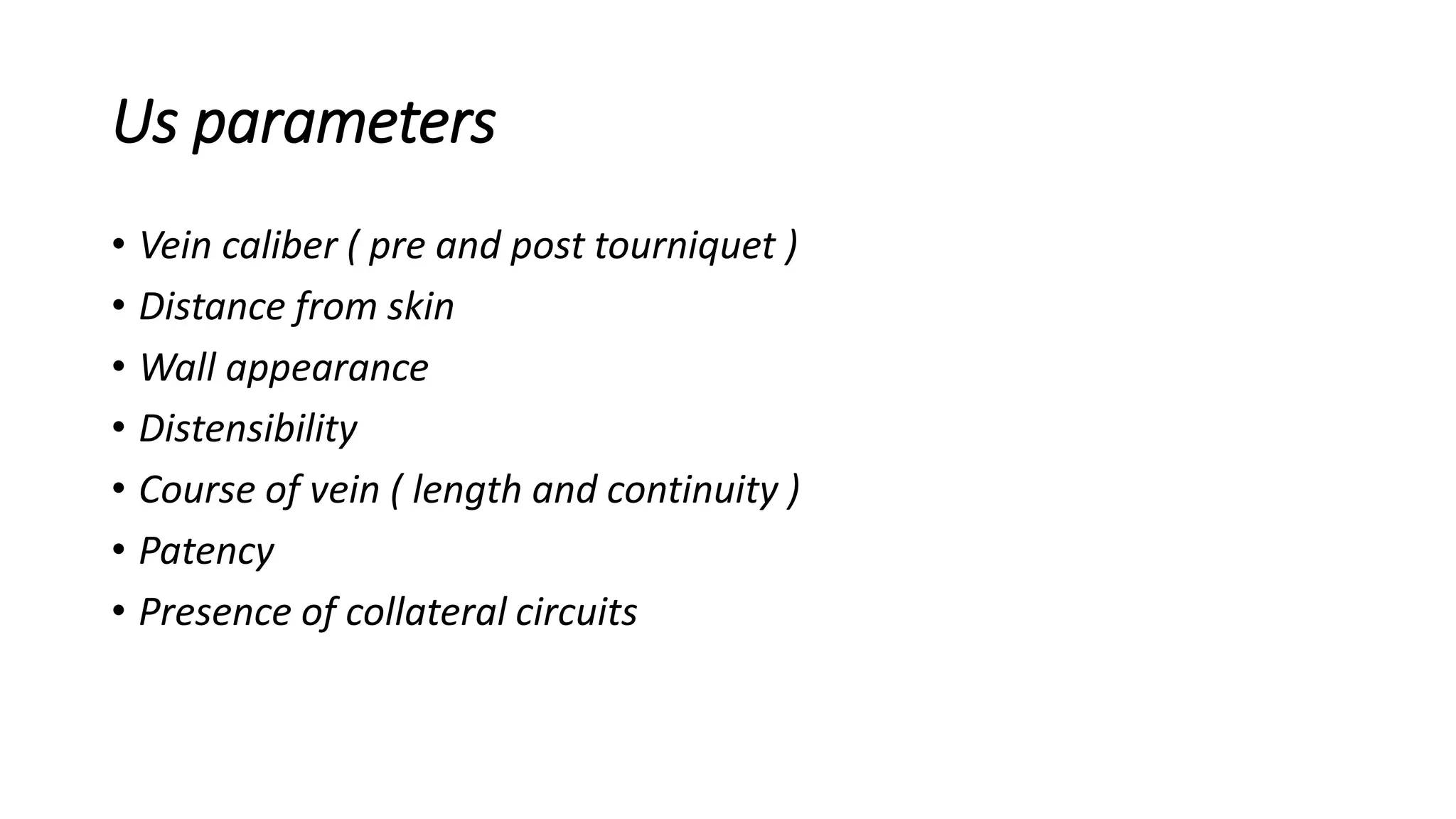

19. Us parameters

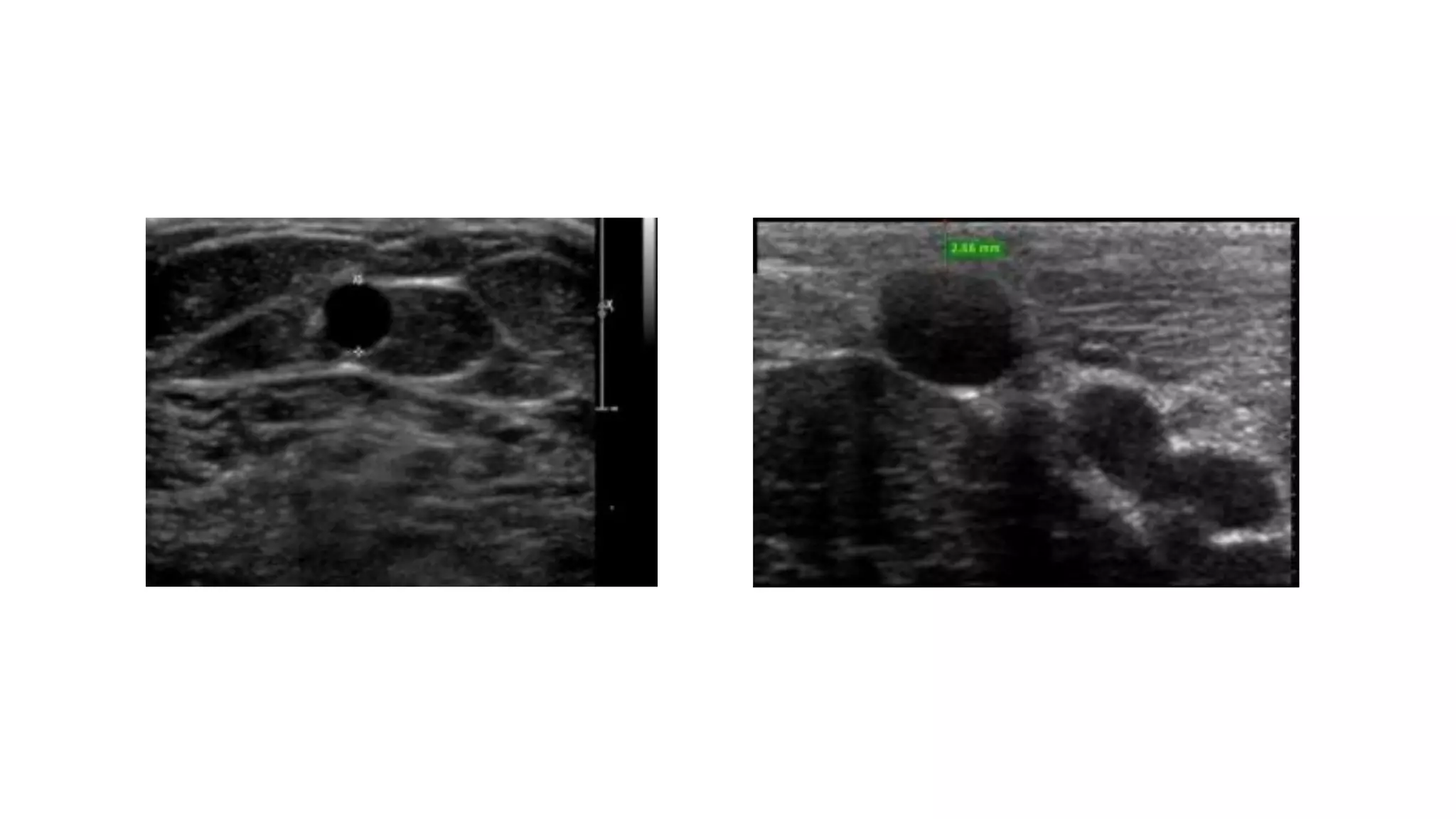

• Vein caliber ( pre and post tourniquet )
• Distance from skin
• Wall appearance
• Distensibility
• Course of vein ( length and continuity )
• Patency
• Presence of collateral circuits

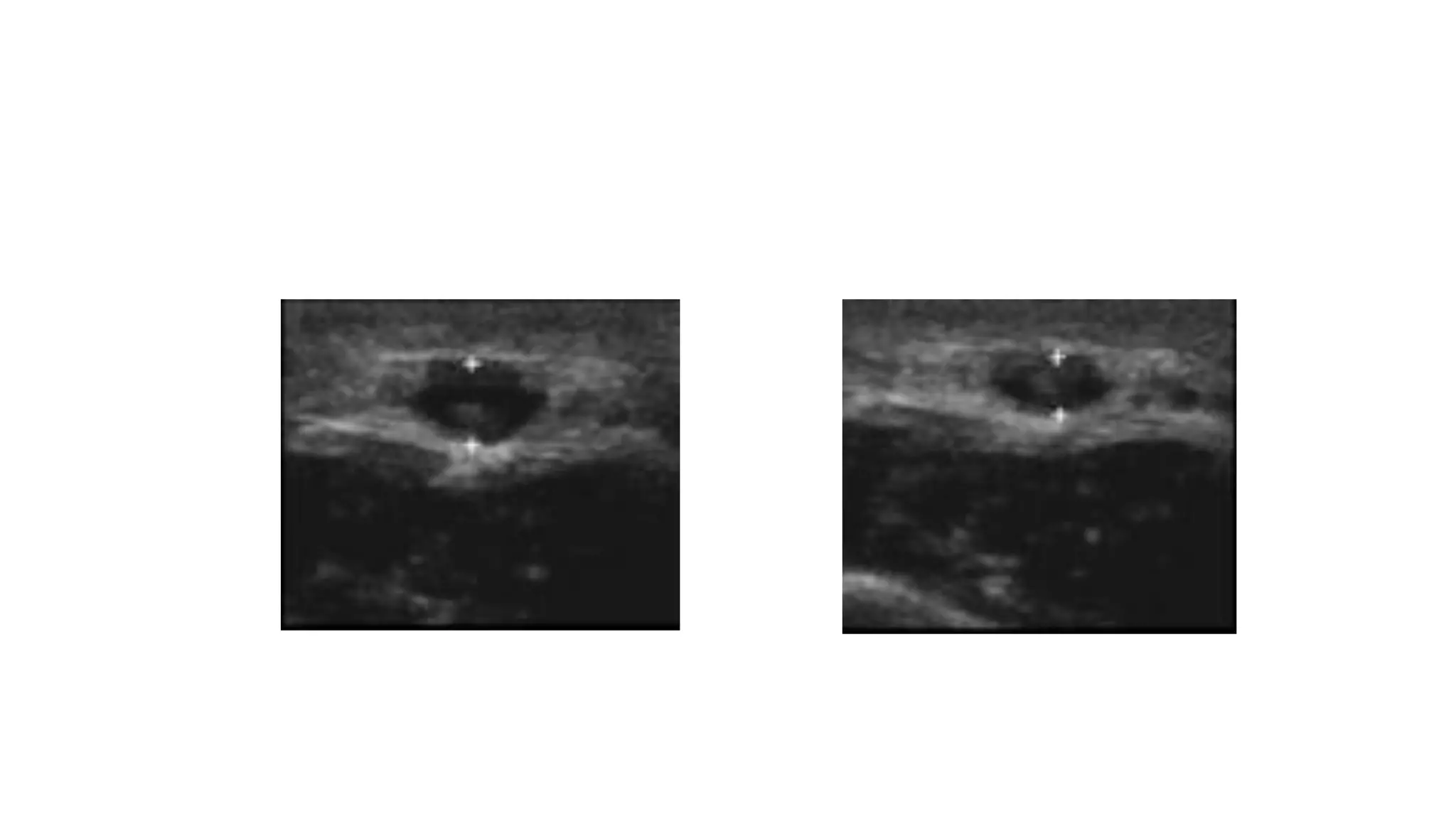

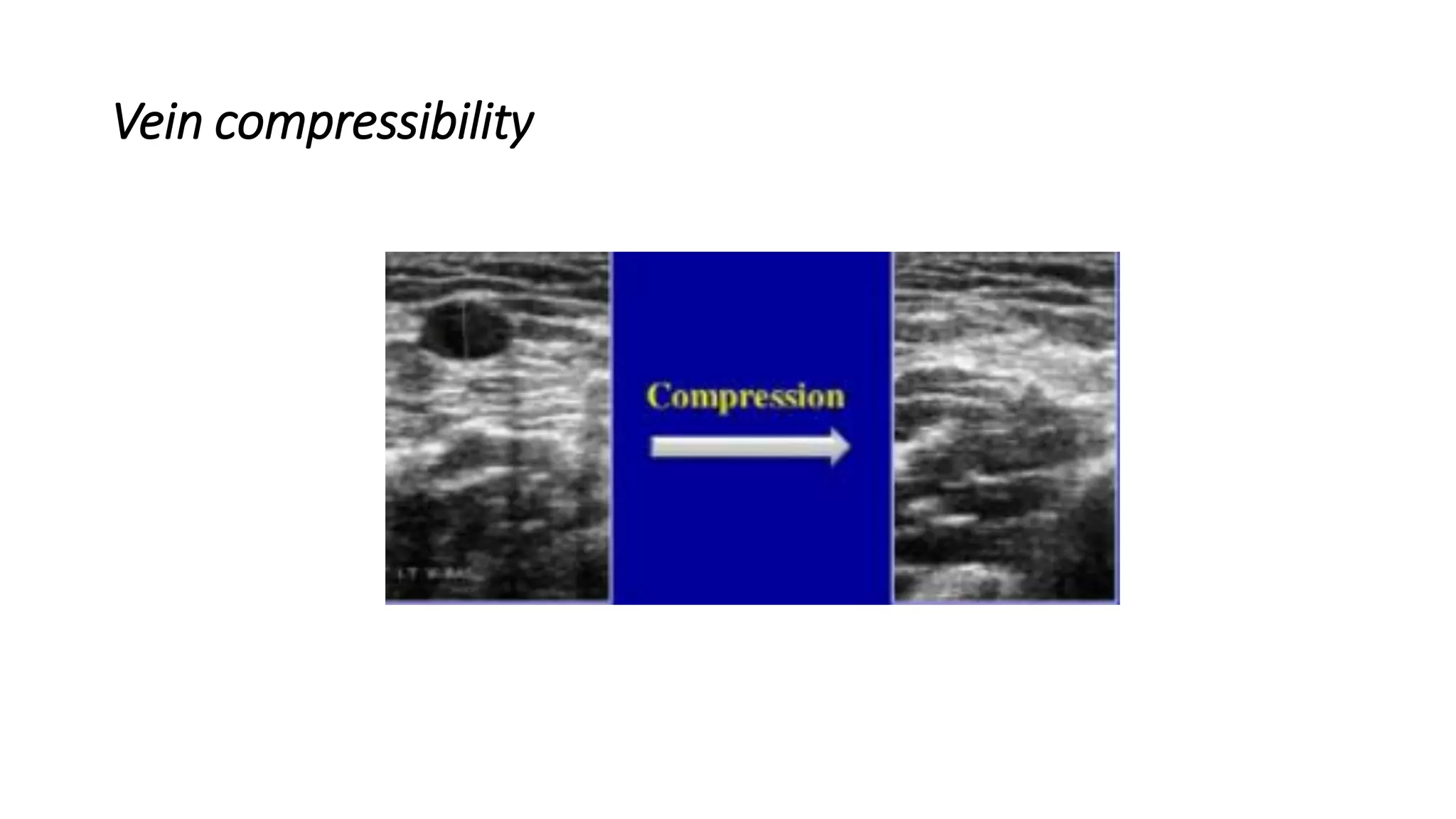

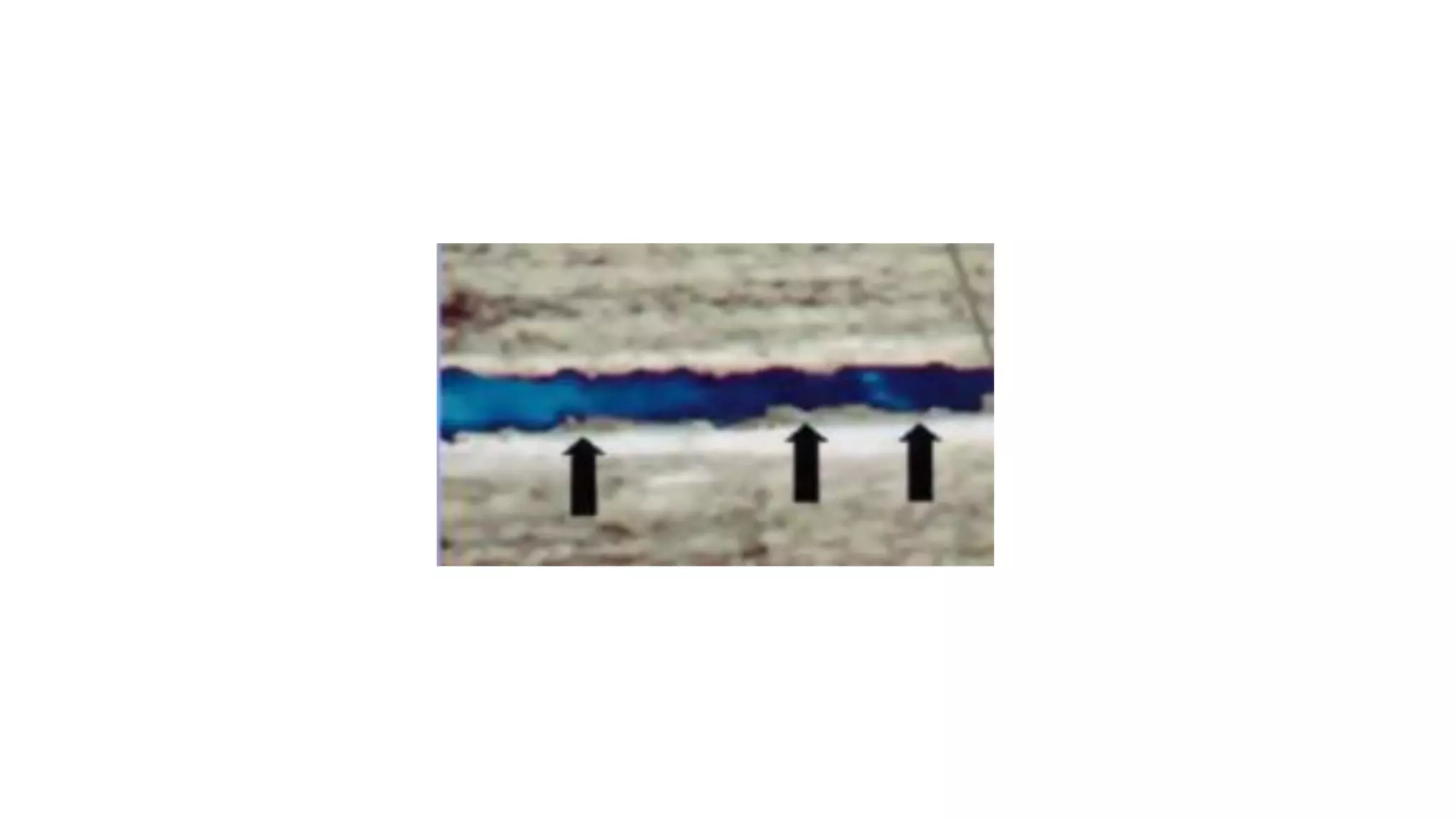

21. Vein compressibility

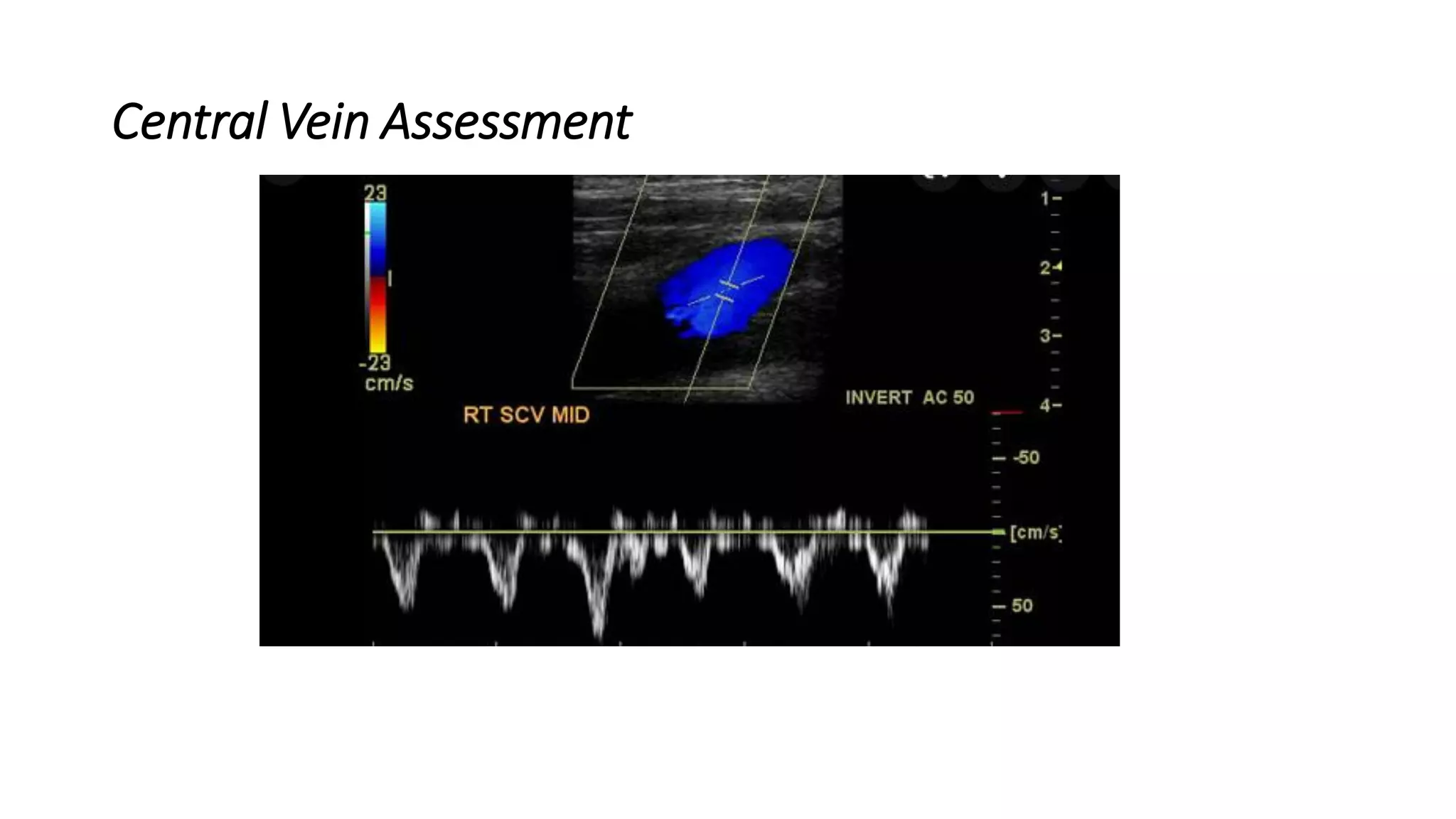

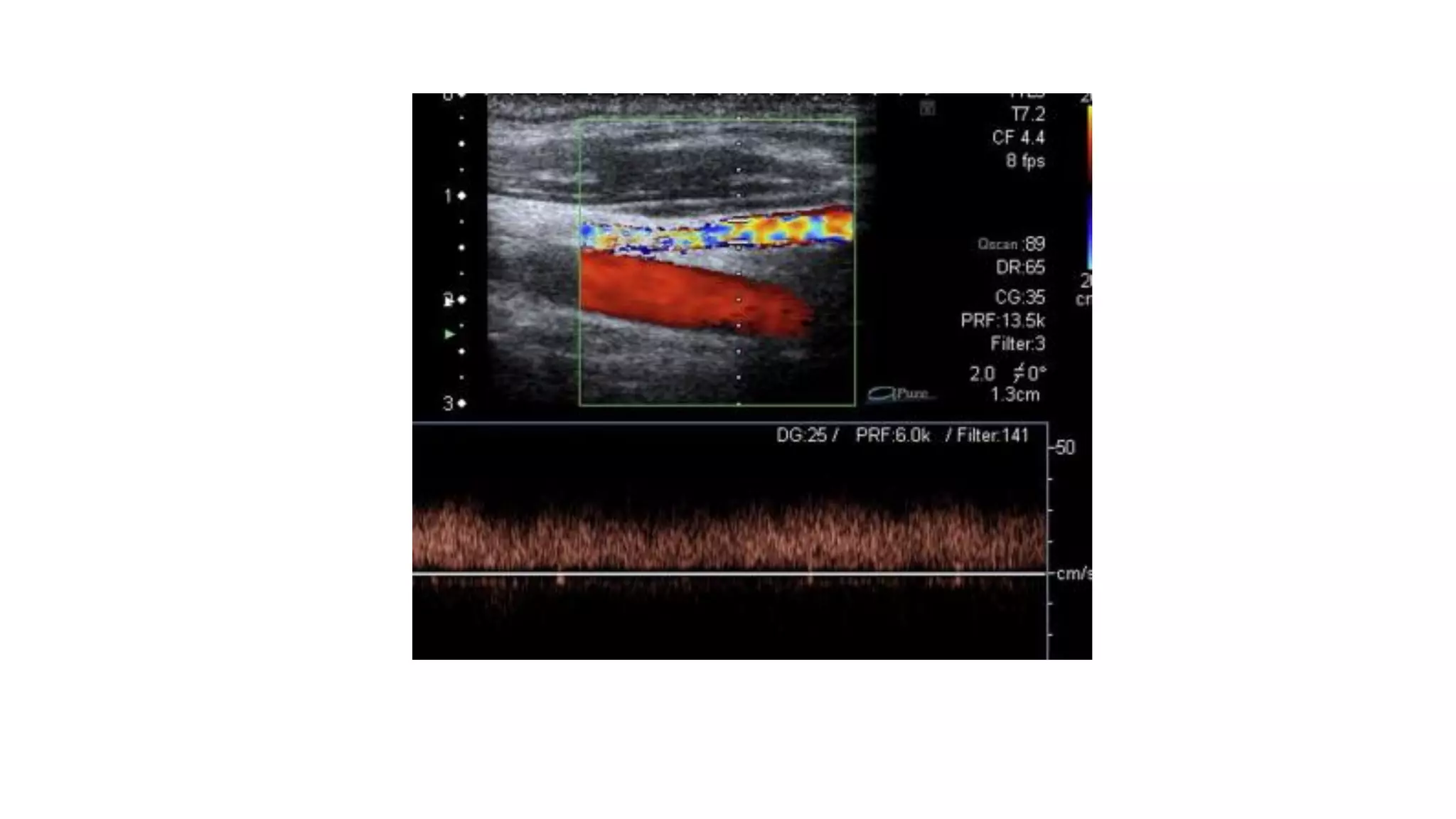

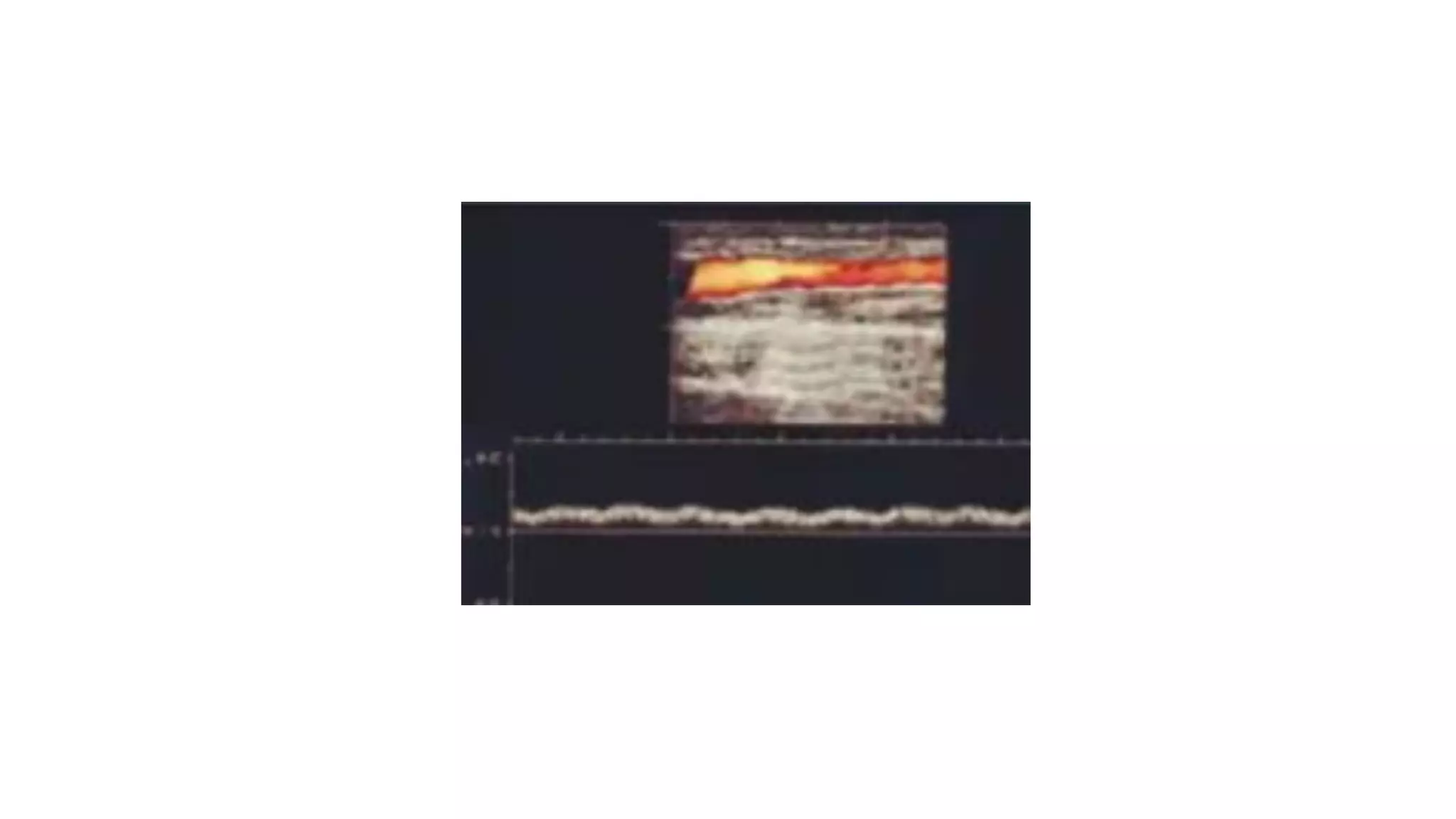

25. Central Vein Assessment

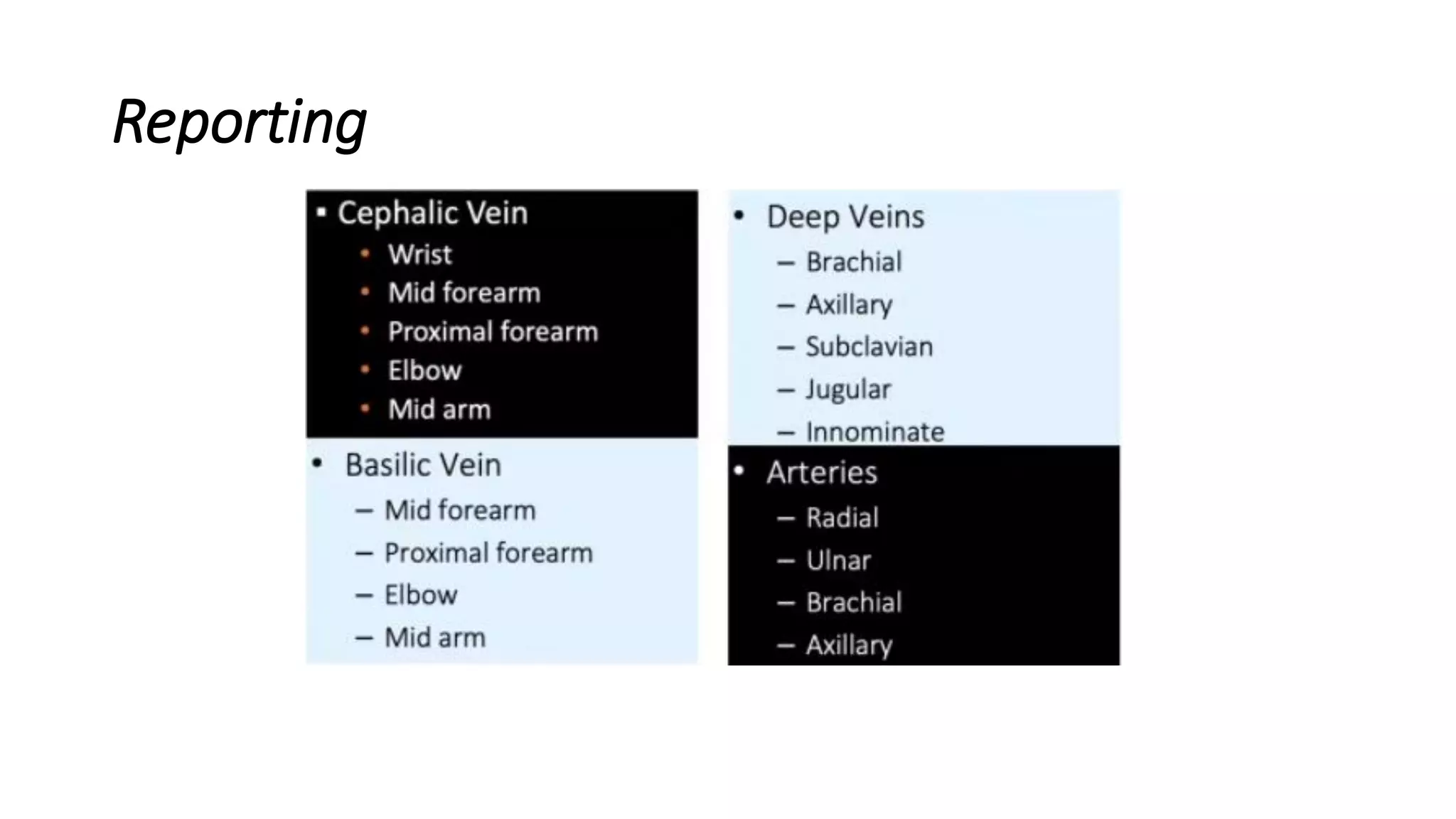

28. Reporting

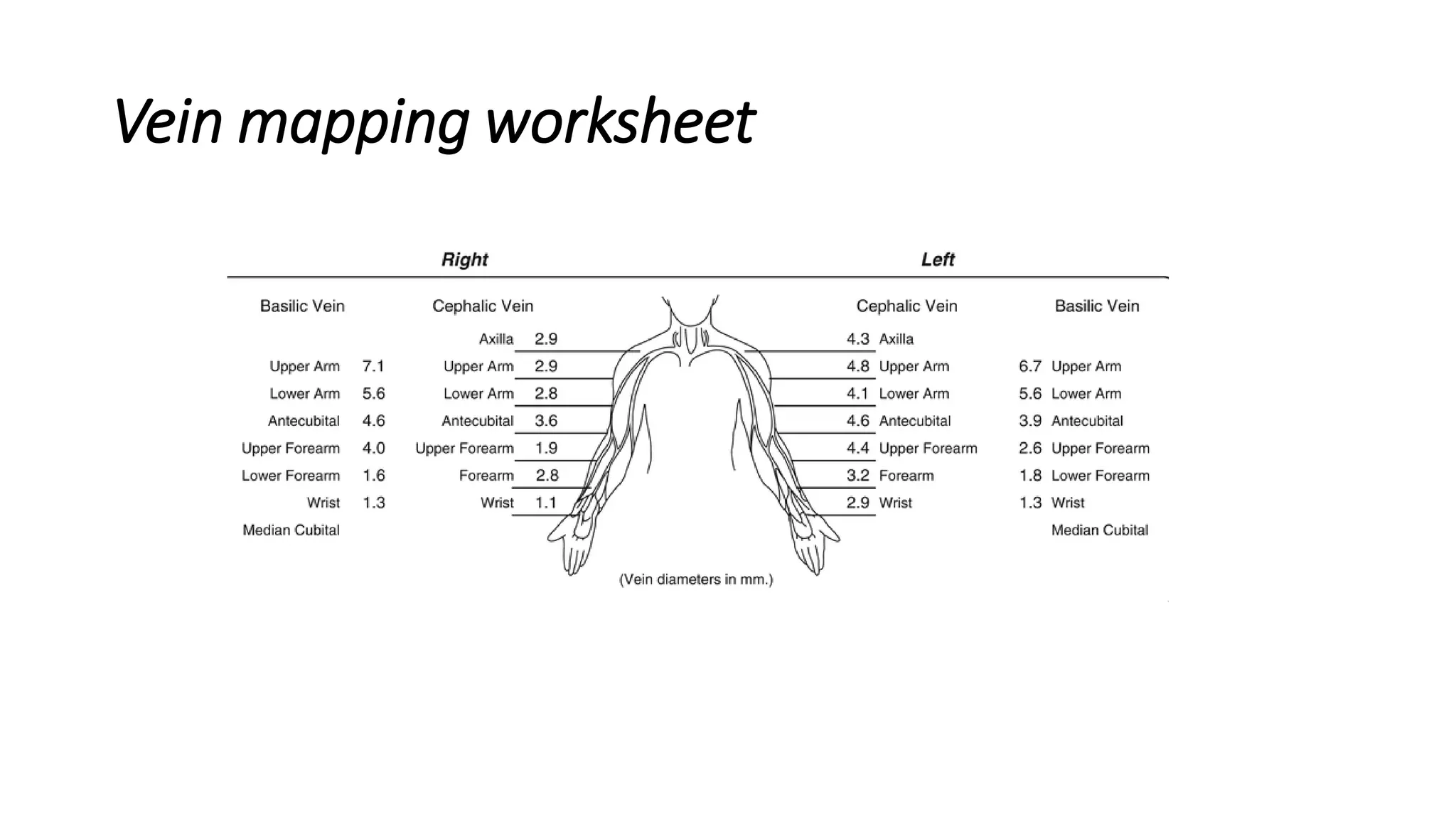

29. Vein mapping worksheet

30. Thank You For Your Attention
