A twin screw extruder is a machine with two parallel screws that mix, melt, and shape materials efficiently, classified into co-rotating and counter-rotating types for various applications. The extruder operates through stages including feeding, melting, mixing, molding, and cooling, and is widely used in industries like plastics, food processing, pharmaceuticals, and rubber compounding. Advantages include enhanced mixing, versatility, scalable operations, precise control, and energy efficiency, making twin screw extruders essential in modern manufacturing.

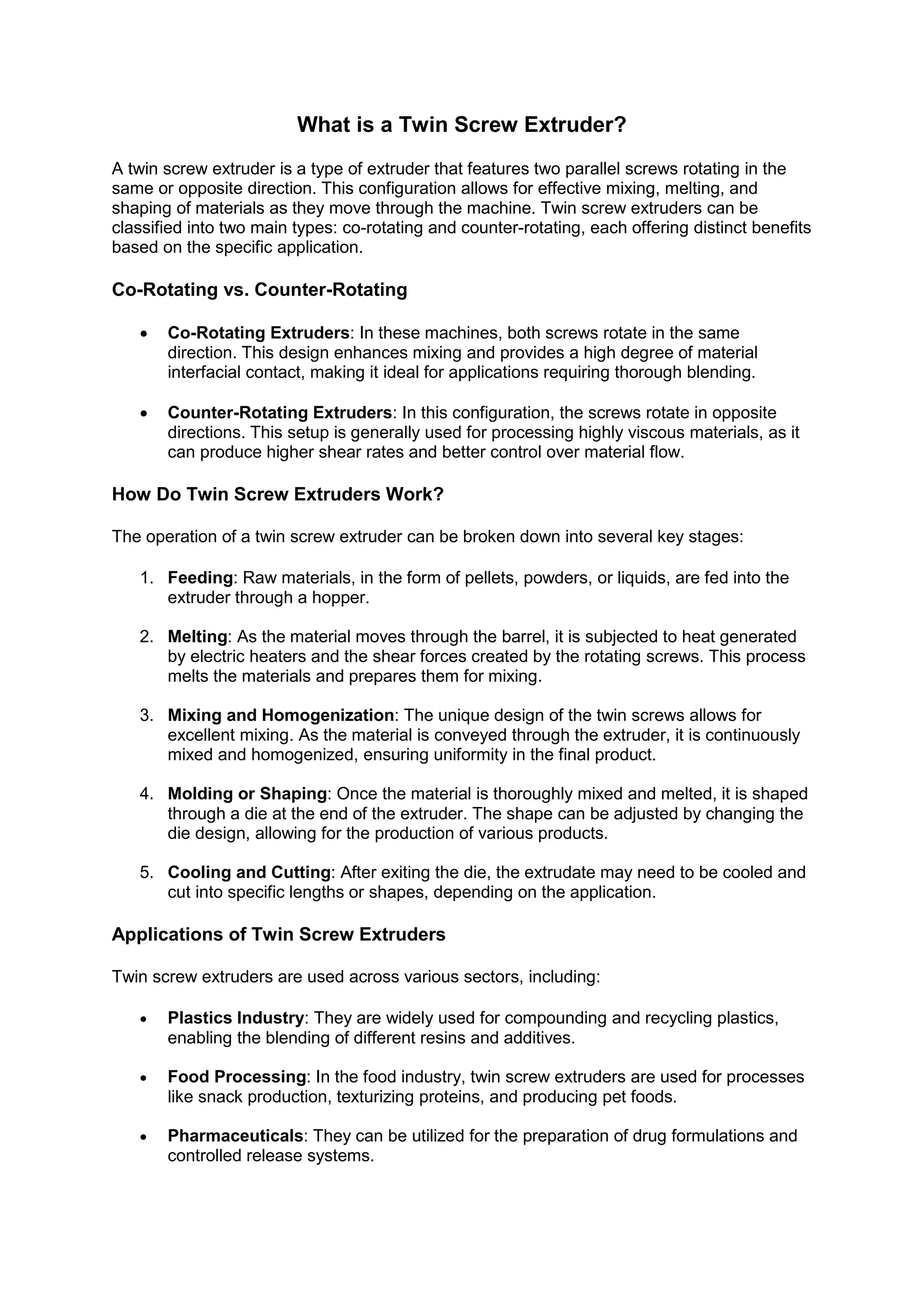

1. What is a Twin Screw Extruder?
A twin screw extruder is a type of extruder that features two parallel screws rotating in the
same or opposite direction. This configuration allows for effective mixing, melting, and
shaping of materials as they move through the machine. Twin screw extruders can be
classified into two main types: co-rotating and counter-rotating, each offering distinct benefits
based on the specific application.
Co-Rotating vs. Counter-Rotating
 Co-Rotating Extruders: In these machines, both screws rotate in the same
direction. This design enhances mixing and provides a high degree of material
interfacial contact, making it ideal for applications requiring thorough blending.
 Counter-Rotating Extruders: In this configuration, the screws rotate in opposite
directions. This setup is generally used for processing highly viscous materials, as it
can produce higher shear rates and better control over material flow.
How Do Twin Screw Extruders Work?
The operation of a twin screw extruder can be broken down into several key stages:
1. Feeding: Raw materials, in the form of pellets, powders, or liquids, are fed into the
extruder through a hopper.
2. Melting: As the material moves through the barrel, it is subjected to heat generated
by electric heaters and the shear forces created by the rotating screws. This process
melts the materials and prepares them for mixing.
3. Mixing and Homogenization: The unique design of the twin screws allows for
excellent mixing. As the material is conveyed through the extruder, it is continuously
mixed and homogenized, ensuring uniformity in the final product.
4. Molding or Shaping: Once the material is thoroughly mixed and melted, it is shaped
through a die at the end of the extruder. The shape can be adjusted by changing the
die design, allowing for the production of various products.
5. Cooling and Cutting: After exiting the die, the extrudate may need to be cooled and
cut into specific lengths or shapes, depending on the application.
Applications of Twin Screw Extruders
Twin screw extruders are used across various sectors, including:
 Plastics Industry: They are widely used for compounding and recycling plastics,
enabling the blending of different resins and additives.
 Food Processing: In the food industry, twin screw extruders are used for processes
like snack production, texturizing proteins, and producing pet foods.
 Pharmaceuticals: They can be utilized for the preparation of drug formulations and
controlled release systems.

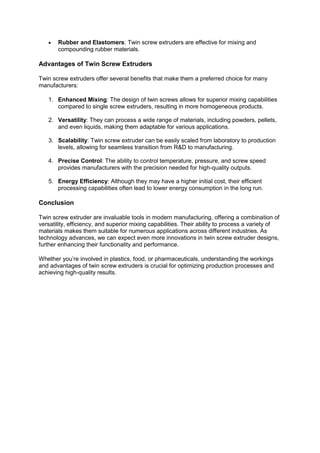

2.  Rubber and Elastomers: Twin screw extruders are effective for mixing and
compounding rubber materials.
Advantages of Twin Screw Extruders
Twin screw extruders offer several benefits that make them a preferred choice for many
manufacturers:
1. Enhanced Mixing: The design of twin screws allows for superior mixing capabilities
compared to single screw extruders, resulting in more homogeneous products.
2. Versatility: They can process a wide range of materials, including powders, pellets,
and even liquids, making them adaptable for various applications.
3. Scalability: Twin screw extruder can be easily scaled from laboratory to production
levels, allowing for seamless transition from R&D to manufacturing.
4. Precise Control: The ability to control temperature, pressure, and screw speed
provides manufacturers with the precision needed for high-quality outputs.
5. Energy Efficiency: Although they may have a higher initial cost, their efficient
processing capabilities often lead to lower energy consumption in the long run.
Conclusion
Twin screw extruder are invaluable tools in modern manufacturing, offering a combination of
versatility, efficiency, and superior mixing capabilities. Their ability to process a variety of
materials makes them suitable for numerous applications across different industries. As
technology advances, we can expect even more innovations in twin screw extruder designs,
further enhancing their functionality and performance.
Whether you’re involved in plastics, food, or pharmaceuticals, understanding the workings
and advantages of twin screw extruders is crucial for optimizing production processes and
achieving high-quality results.
