1. Overview of New YSI Laboratory Products
Trulab, MultiLab, Ion Selective Electrodes (ISEs)
August 12, 2014
Chris Cushman, Assistant Product Manager ccushman@ysi.com
Laura St. Pierre,
Senior Product Manager
lstpierre@ysi.com

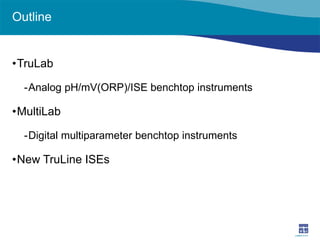

2. Outline
•
TruLab
-
Analog pH/mV(ORP)/ISE benchtop instruments
•
MultiLab
-
Digital multiparameter benchtop instruments
•
New TruLine ISEs

3. TruLab: Analog pH/mV(ORP)/ISE Benchtop Instruments with new suite of pH electrodes

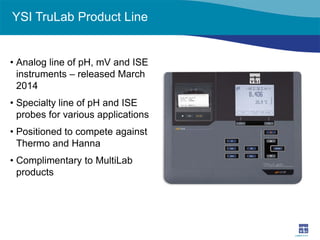

4. YSI TruLab Product Line
•
Analog line of pH, mV and ISE instruments – released March 2014
•
Specialty line of pH and ISE probes for various applications
•
Positioned to compete against Thermo and Hanna
•
Complimentary to MultiLab products

5. YSI TruLab Instruments

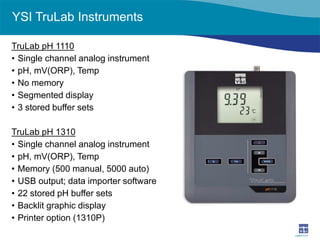

TruLab pH 1110
•
Single channel analog instrument
•
pH, mV(ORP), Temp
•
No memory
•
Segmented display
•
3 stored buffer sets
TruLab pH 1310
•
Single channel analog instrument
•
pH, mV(ORP), Temp
•
Memory (500 manual, 5000 auto)
•
USB output; data importer software
•
22 stored pH buffer sets
•
Backlit graphic display
•
Printer option (1310P)

6. YSI TruLab Instruments

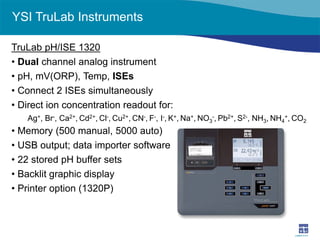

TruLab pH/ISE 1320
•
Dual channel analog instrument
•
pH, mV(ORP), Temp, ISEs
•
Connect 2 ISEs simultaneously
•
Direct ion concentration readout for:
Ag+, Br-, Ca2+, Cd2+, Cl-, Cu2+, CN-, F-, I-, K+, Na+, NO3-, Pb2+, S2-, NH3, NH4+, CO2
•
Memory (500 manual, 5000 auto)
•
USB output; data importer software
•
22 stored pH buffer sets
•
Backlit graphic display
•
Printer option (1320P)

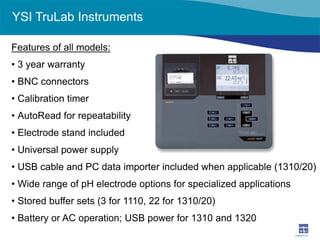

7. YSI TruLab Instruments
Features of all models:
•
3 year warranty
•
BNC connectors
•
Calibration timer
•
AutoRead for repeatability
•
Electrode stand included
•
Universal power supply
•
USB cable and PC data importer included when applicable (1310/20)
•
Wide range of pH electrode options for specialized applications
•
Stored buffer sets (3 for 1110, 22 for 1310/20)
•
Battery or AC operation; USB power for 1310 and 1320

8. TruLine, IoLine, and ScienceLine Electrodes

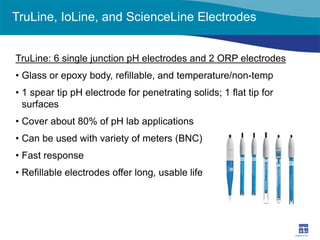

TruLine: 6 single junction pH electrodes and 2 ORP electrodes
•
Glass or epoxy body, refillable, and temperature/non-temp
•
1 spear tip pH electrode for penetrating solids; 1 flat tip for surfaces
•
Cover about 80% of pH lab applications
•
Can be used with variety of meters (BNC)
•
Fast response
•
Refillable electrodes offer long, usable life

9. TruLine, IoLine, and ScienceLine Electrodes

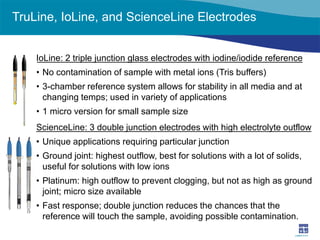

IoLine: 2 triple junction glass electrodes with iodine/iodide reference
•
No contamination of sample with metal ions (Tris buffers)
•
3-chamber reference system allows for stability in all media and at changing temps; used in variety of applications
•
1 micro version for small sample size
ScienceLine: 3 double junction electrodes with high electrolyte outflow
•
Unique applications requiring particular junction
•
Ground joint: highest outflow, best for solutions with a lot of solids, useful for solutions with low ions
•
Platinum: high outflow to prevent clogging, but not as high as ground joint; micro size available
•
Fast response; double junction reduces the chances that the reference will touch the sample, avoiding possible contamination.

10. TruLine, IoLine, and ScienceLine Electrodes
Product line features:
•
German engineered/manufactured
•
Variety of electrode designs to meet a large range of applications
•
1 meter cable
•
Longevity and fast response
•
Competitive pricing
•
Temperature included with all IoLine and ScienceLine, optional for TruLine
Measurement reminder:
•
Refilling opening must be OPEN during calibration
and measurement

11. MultiLab: Digital Multiparameter Benchtop Instruments

12. •
4 instruments:
-
4010-1(P), single channel
-
4010-2, dual channel
-
4010-3, triple channel
•
All instruments include:
-
3-year warranty!
-
MultiLab importer PC software
-
universal power supply
-
USB cable
-
electrode stand
•
All instruments work with BOD Analyst Pro
YSI MultiLab Product Line

13. YSI MultiLab Instruments

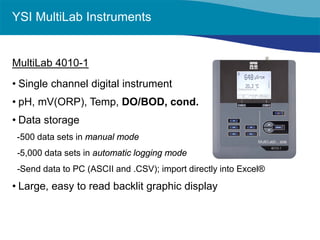

MultiLab 4010-1
•
Single channel digital instrument
•
pH, mV(ORP), Temp, DO/BOD, cond.
•
Data storage
-500 data sets in manual mode
-5,000 data sets in automatic logging mode
-Send data to PC (ASCII and .CSV); import directly into Excel®
•
Large, easy to read backlit graphic display

14. YSI MultiLab Instruments

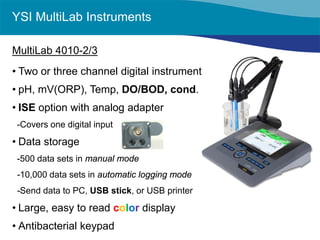

MultiLab 4010-2/3
•
Two or three channel digital instrument
•
pH, mV(ORP), Temp, DO/BOD, cond.
•
ISE option with analog adapter
-Covers one digital input
•
Data storage
-500 data sets in manual mode
-10,000 data sets in automatic logging mode
-Send data to PC, USB stick, or USB printer
•
Large, easy to read color display
•
Antibacterial keypad

15. •

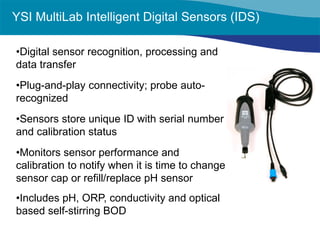

Digital sensor recognition, processing and data transfer
•
Plug-and-play connectivity; probe auto- recognized
•
Sensors store unique ID with serial number and calibration status
•
Monitors sensor performance and calibration to notify when it is time to change sensor cap or refill/replace pH sensor
•
Includes pH, ORP, conductivity and optical based self-stirring BOD
YSI MultiLab Intelligent Digital Sensors (IDS)

16. Ion Selective Electrodes: YSI TruLine ISEs

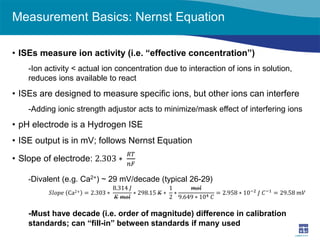

17. Measurement Basics: Nernst Equation
•
ISEs measure ion activity (i.e. “effective concentration”)
-Ion activity < actual ion concentration due to interaction of ions in solution, reduces ions available to react
•
ISEs are designed to measure specific ions, but other ions can interfere
-Adding ionic strength adjustor acts to minimize/mask effect of interfering ions
•
pH electrode is a Hydrogen ISE
•
ISE output is in mV; follows Nernst Equation
•
Slope of electrode: 2.303∗ 푅푅푅푅 푛푛푛푛
-Divalent (e.g. Ca2+) ~ 29 mV/decade (typical 26-29)
-Must have decade (i.e. order of magnitude) difference in calibration standards; can “fill-in” between standards if many used
푆푆푆푆푆푆푆푆푆푆 Ca2+=2.303∗ 8.314 퐽퐽 퐾퐾 푚푚푚∗298.15 퐾퐾∗ 12∗ 푚푚푚9.649∗104 퐶퐶 =2.958∗10−2 퐽퐽 퐶퐶−1=29.58 푚푚푚푚

18. ISE Electrode Types

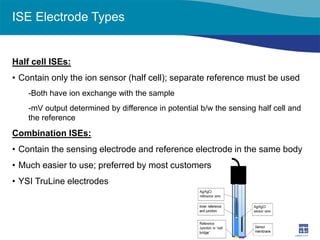

Half cell ISEs:
•
Contain only the ion sensor (half cell); separate reference must be used
-Both have ion exchange with the sample
-mV output determined by difference in potential b/w the sensing half cell and the reference
Combination ISEs:
•
Contain the sensing electrode and reference electrode in the same body
•
Much easier to use; preferred by most customers
•
YSI TruLine electrodes

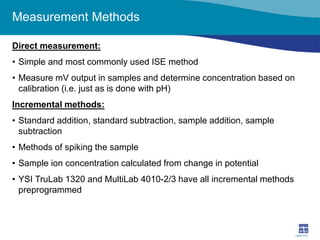

19. Measurement Methods
Direct measurement:
•
Simple and most commonly used ISE method
•
Measure mV output in samples and determine concentration based on calibration (i.e. just as is done with pH)
Incremental methods:
•
Standard addition, standard subtraction, sample addition, sample subtraction
•
Methods of spiking the sample
•
Sample ion concentration calculated from change in potential
•
YSI TruLab 1320 and MultiLab 4010-2/3 have all incremental methods preprogrammed

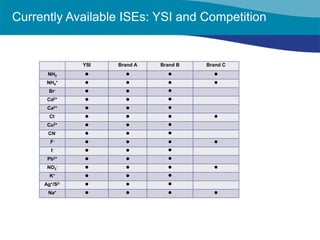

20. Currently Available ISEs: YSI and Competition
YSI
Brand A
Brand B
Brand C
NH3




NH4+




Br-



Cd2+



Ca2+



Cl-




Cu2+



CN-



F-




I-



Pb2+



NO3-




K+



Ag+/S2-



Na+





21. •
16 parameters
•
All electrodes are refillable and include double-junction reference
•
4 sensor technologies
-Gas sensing, polymer/PVC membrane, solid state, glass sensor
•
Included with electrode purchase:
-Unfilled electrode
-1 replacement sensor module for polymer/PVC type electrodes due to shorter shelf life
-Reference fill solution, ionic strength adjustor (ISA), and small bottle of standard
•
9-12 months warranty depending on ISE
•
Made in the U.S.A.
YSI TruLine ISE Electrodes

22. •

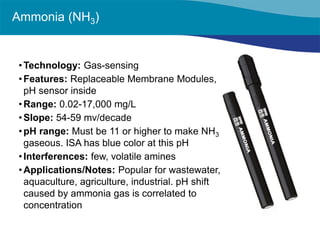

Technology: Gas-sensing
•
Features: Replaceable Membrane Modules, pH sensor inside
•
Range: 0.02-17,000 mg/L
•
Slope: 54-59 mv/decade
•
pH range: Must be 11 or higher to make NH3 gaseous. ISA has blue color at this pH
•
Interferences: few, volatile amines
•
Applications/Notes: Popular for wastewater, aquaculture, agriculture, industrial. pH shift caused by ammonia gas is correlated to concentration
Ammonia (NH3)

23. •Technology: Polymer/PVC Membrane
•Features: Refillable, Replaceable Sensor Modules
•Range: 0.02-1,800 mg/L
•Slope: 54-59 mv/decade
•pH range: 4-10
•Interferences: few, Na+, K+
•Applications/Notes: Popular for wastewater, environmental, industrial, food/beverage

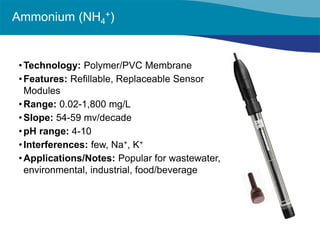

Ammonium (NH4+)

24. •Technology: Solid State
•Features: Refillable, non-replaceable sensor
•Range: 0.4-79,900 mg/L
•Slope: 54-59 mv/decade
•pH range: <12
•Interferences: I-, Cl-, CN-, NH3-
•Applications/Notes: Pool & spa, industrial

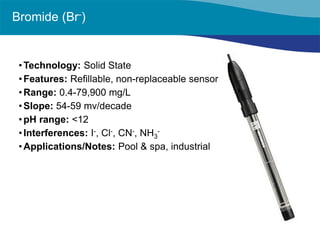

Bromide (Br-)

25. •
Technology: Solid State
•
Features: Refillable, non-replaceable sensor
•
Range: 0.1-11,200 mg/L
•
Slope: 26-29 mv/decade
•
pH range: 2-8
•
Interferences: Hg2+, Ag+, Cu2+, Pb2+
•
Applications/Notes: Industrial, environmental

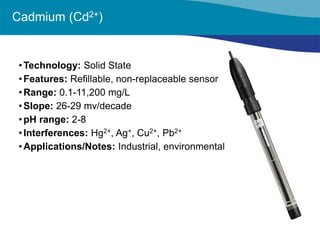

Cadmium (Cd2+)

26. •

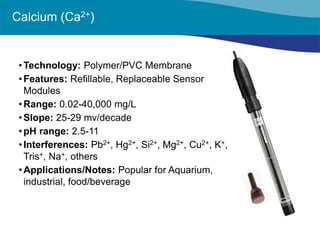

Technology: Polymer/PVC Membrane
•
Features: Refillable, Replaceable Sensor Modules
•
Range: 0.02-40,000 mg/L
•
Slope: 25-29 mv/decade
•
pH range: 2.5-11
•
Interferences: Pb2+, Hg2+, Si2+, Mg2+, Cu2+, K+, Tris+, Na+, others
•
Applications/Notes: Popular for Aquarium, industrial, food/beverage
Calcium (Ca2+)

27. •
Technology: Solid State
•
Features: Refillable, non-replaceable sensor
•
Range: 1.8-35,500 mg/L
•
Slope: 54-59 mv/decade
•
pH range: 2-12
•
Interferences: CN-, Br-, I-, OH-, S2-, NH3
•
Applications/Notes: Very popular for industrial, wastewater, drinking water, food/beverage, environmental. This sensor is slightly photosensitive – store in dark place when not in use.
Chloride (Cl-)

28. •

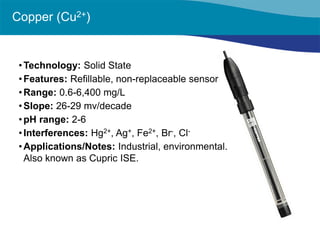

Technology: Solid State
•
Features: Refillable, non-replaceable sensor
•
Range: 0.6-6,400 mg/L
•
Slope: 26-29 mv/decade
•
pH range: 2-6
•
Interferences: Hg2+, Ag+, Fe2+, Br-, Cl-
•
Applications/Notes: Industrial, environmental. Also known as Cupric ISE.
Copper (Cu2+)

29. •

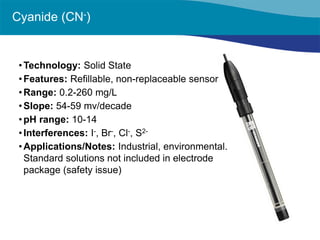

Technology: Solid State
•
Features: Refillable, non-replaceable sensor
•
Range: 0.2-260 mg/L
•
Slope: 54-59 mv/decade
•
pH range: 10-14
•
Interferences: I-, Br-, Cl-, S2-
•
Applications/Notes: Industrial, environmental. Standard solutions not included in electrode package (safety issue)
Cyanide (CN-)

30. •

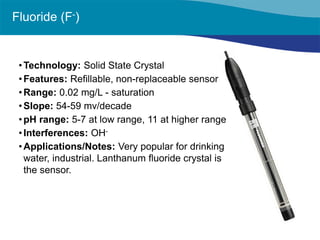

Technology: Solid State Crystal
•
Features: Refillable, non-replaceable sensor
•
Range: 0.02 mg/L - saturation
•
Slope: 54-59 mv/decade
•
pH range: 5-7 at low range, 11 at higher range
•
Interferences: OH-
•
Applications/Notes: Very popular for drinking water, industrial. Lanthanum fluoride crystal is the sensor.
Fluoride (F-)

31. •
Technology: Solid State
•
Features: Refillable, non-replaceable sensor
•
Range: 0.006-127,000 mg/L
•
Slope: 54-59 mv/decade
•
pH range: <14
•
Interferences: CN-, Cl-, S2O32-, S2-, NH3
•
Applications/Notes: Drinking water, industrial, food/beverage
Iodide (I-)

32. •
Technology: Solid State
•
Features: Refillable, non-replaceable sensor
•
Range: 0.02-20,700 mg/L
•
Slope: 26-30 mv/decade
•
pH range: 4-7
•
Interferences: Hg2+, Ag+, Cu2+, Fe2+, Cd2+
•
Applications/Notes: Industrial, environmental

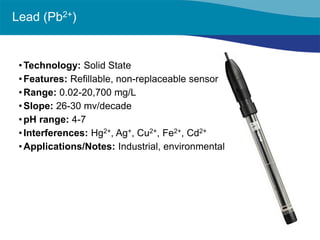

Lead (Pb2+)

33. •

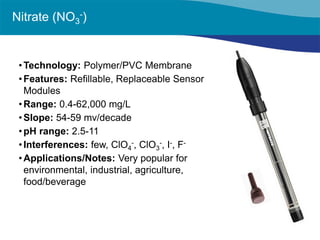

Technology: Polymer/PVC Membrane
•
Features: Refillable, Replaceable Sensor Modules
•
Range: 0.4-62,000 mg/L
•
Slope: 54-59 mv/decade
•
pH range: 2.5-11
•
Interferences: few, ClO4-, ClO3-, I-, F-
•
Applications/Notes: Very popular for environmental, industrial, agriculture, food/beverage
Nitrate (NO3-)

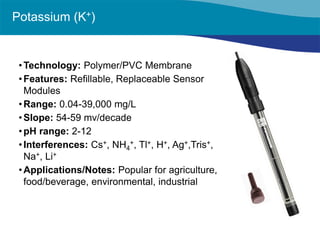

34. •
Technology: Polymer/PVC Membrane
•
Features: Refillable, Replaceable Sensor Modules
•
Range: 0.04-39,000 mg/L
•
Slope: 54-59 mv/decade
•
pH range: 2-12
•
Interferences: Cs+, NH4+, Tl+, H+, Ag+,Tris+, Na+, Li+
•
Applications/Notes: Popular for agriculture, food/beverage, environmental, industrial
Potassium (K+)

35. •
Technology: Solid State
•
Features: Refillable, non-replaceable sensor
•
Range: 0.01-107,900 mg/L (Silver) 0.003-32,100 mg/L (Sulfide)
•
Slope: 54-59 mv/decade (Silver) 26-29 mv/decade (Sulfide)
•
pH range: 2-12
•
Interferences: Hg2+
•
Applications/Notes: Industrial, environmental, food/beverage. Sulfide does not come with standard solution (stability)

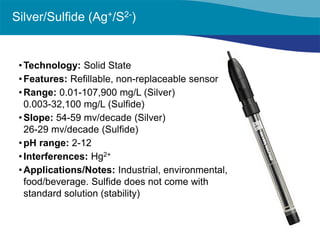

Silver/Sulfide (Ag+/S2-)

36. •

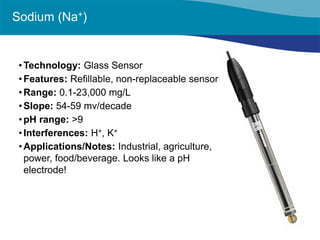

Technology: Glass Sensor
•
Features: Refillable, non-replaceable sensor
•
Range: 0.1-23,000 mg/L
•
Slope: 54-59 mv/decade
•
pH range: >9
•
Interferences: H+, K+
•
Applications/Notes: Industrial, agriculture, power, food/beverage. Looks like a pH electrode!
Sodium (Na+)

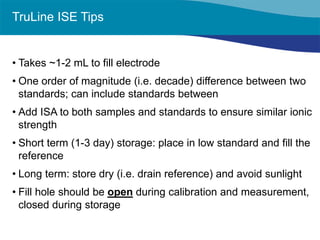

37. TruLine ISE Tips
•
Takes ~1-2 mL to fill electrode
•
One order of magnitude (i.e. decade) difference between two standards; can include standards between
•
Add ISA to both samples and standards to ensure similar ionic strength
•
Short term (1-3 day) storage: place in low standard and fill the reference
•
Long term: store dry (i.e. drain reference) and avoid sunlight
•
Fill hole should be open during calibration and measurement, closed during storage

38. Thank you for attending 1-937-767-7241 ccushman@ysi.com lstpierre@ysi.com
