1. Allot Communications Solutions
Allot and Optenet
Parental Control
Solution Brief
vbvbv
© Allot Communications. All rights reserved. May 2012

2. Solution Brief:
Allot and Optenet Parental Control
Table of Contents
Introduction ............................................................................................................................................... 3
Motivation.................................................................................................................................................. 3
The Allot-Optenet Parental Control Solution – Overview .......................................................................... 3
Scope ................................................................................................................................................... 3
Capabilities .......................................................................................................................................... 4
Functional Architectural........................................................................................................................ 6
Allot Service Gateway ..................................................................................................................... 6
Optenet MIDAS™ ............................................................................................................................ 6
Optenet GIANT™ ............................................................................................................................ 7
Monitoring and Provisioning Mechanisms ............................................................................................ 7
Benefits ..................................................................................................................................................... 8
Summary................................................................................................................................................... 8
About Allot................................................................................................................................................. 8
About Optenet ........................................................................................................................................... 8
© 2012 Allot Communications. All rights reserved.
2

3. Solution Brief:
Allot and Optenet Parental Control

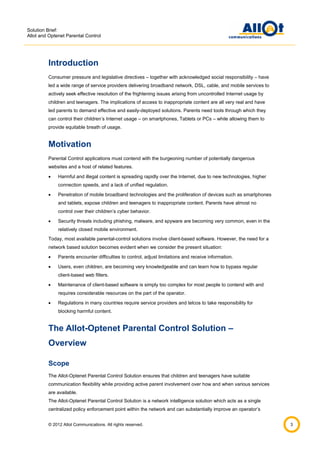

Introduction
Consumer pressure and legislative directives – together with acknowledged social responsibility – have
led a wide range of service providers delivering broadband network, DSL, cable, and mobile services to
actively seek effective resolution of the frightening issues arising from uncontrolled Internet usage by
children and teenagers. The implications of access to inappropriate content are all very real and have
led parents to demand effective and easily-deployed solutions. Parents need tools through which they
can control their children’s Internet usage – on smartphones, Tablets or PCs – while allowing them to
provide equitable breath of usage.
Motivation
Parental Control applications must contend with the burgeoning number of potentially dangerous
websites and a host of related features.

Harmful and illegal content is spreading rapidly over the Internet, due to new technologies, higher
connection speeds, and a lack of unified regulation.

Penetration of mobile broadband technologies and the proliferation of devices such as smartphones
and tablets, expose children and teenagers to inappropriate content. Parents have almost no
control over their children’s cyber behavior.

Security threats including phishing, malware, and spyware are becoming very common, even in the
relatively closed mobile environment.
Today, most available parental-control solutions involve client-based software. However, the need for a
network based solution becomes evident when we consider the present situation:

Parents encounter difficulties to control, adjust limitations and receive information.

Users, even children, are becoming very knowledgeable and can learn how to bypass regular
client-based web filters.

Maintenance of client-based software is simply too complex for most people to contend with and
requires considerable resources on the part of the operator.

Regulations in many countries require service providers and telcos to take responsibility for
blocking harmful content.
The Allot-Optenet Parental Control Solution –
Overview
Scope
The Allot-Optenet Parental Control Solution ensures that children and teenagers have suitable
communication flexibility while providing active parent involvement over how and when various services
are available.
The Allot-Optenet Parental Control Solution is a network intelligence solution which acts as a single
centralized policy enforcement point within the network and can substantially improve an operator’s
© 2012 Allot Communications. All rights reserved.
3

4. Solution Brief:
Allot and Optenet Parental Control

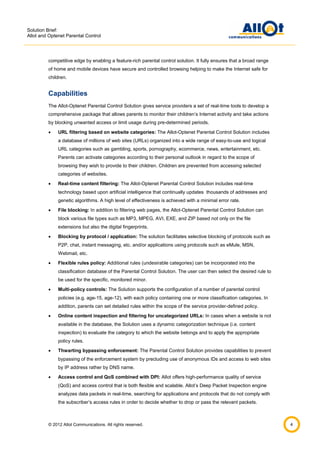

competitive edge by enabling a feature-rich parental control solution. It fully ensures that a broad range
of home and mobile devices have secure and controlled browsing helping to make the Internet safe for
children.
Capabilities
The Allot-Optenet Parental Control Solution gives service providers a set of real-time tools to develop a
comprehensive package that allows parents to monitor their children’s Internet activity and take actions
by blocking unwanted access or limit usage during pre-determined periods.

URL filtering based on website categories: The Allot-Optenet Parental Control Solution includes
a database of millions of web sites (URLs) organized into a wide range of easy-to-use and logical
URL categories such as gambling, sports, pornography, ecommerce, news, entertainment, etc.
Parents can activate categories according to their personal outlook in regard to the scope of
browsing they wish to provide to their children. Children are prevented from accessing selected
categories of websites.

Real-time content filtering: The Allot-Optenet Parental Control Solution includes real-time
technology based upon artificial intelligence that continually updates thousands of addresses and
genetic algorithms. A high level of effectiveness is achieved with a minimal error rate.

File blocking: In addition to filtering web pages, the Allot-Optenet Parental Control Solution can
block various file types such as MP3, MPEG, AVI, EXE, and ZIP based not only on the file
extensions but also the digital fingerprints.

Blocking by protocol / application: The solution facilitates selective blocking of protocols such as
P2P, chat, instant messaging, etc. and/or applications using protocols such as eMule, MSN,
Webmail, etc.

Flexible rules policy: Additional rules (undesirable categories) can be incorporated into the
classification database of the Parental Control Solution. The user can then select the desired rule to
be used for the specific, monitored minor.

Multi-policy controls: The Solution supports the configuration of a number of parental control
policies (e.g. age-15, age-12), with each policy containing one or more classification categories. In
addition, parents can set detailed rules within the scope of the service provider-defined policy.

Online content inspection and filtering for uncategorized URLs: In cases when a website is not
available in the database, the Solution uses a dynamic categorization technique (i.e. content
inspection) to evaluate the category to which the website belongs and to apply the appropriate
policy rules.

Thwarting bypassing enforcement: The Parental Control Solution provides capabilities to prevent
bypassing of the enforcement system by precluding use of anonymous IDs and access to web sites
by IP address rather by DNS name.

Access control and QoS combined with DPI: Allot offers high-performance quality of service
(QoS) and access control that is both flexible and scalable. Allot’s Deep Packet Inspection engine
analyzes data packets in real-time, searching for applications and protocols that do not comply with
the subscriber’s access rules in order to decide whether to drop or pass the relevant packets.
© 2012 Allot Communications. All rights reserved.
4

5. Solution Brief:
Allot and Optenet Parental Control

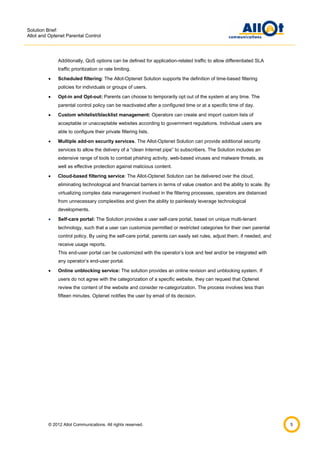

Additionally, QoS options can be defined for application-related traffic to allow differentiated SLA
traffic prioritization or rate limiting.

Scheduled filtering: The Allot-Optenet Solution supports the definition of time-based filtering
policies for individuals or groups of users.

Opt-in and Opt-out: Parents can choose to temporarily opt out of the system at any time. The
parental control policy can be reactivated after a configured time or at a specific time of day.

Custom whitelist/blacklist management: Operators can create and import custom lists of
acceptable or unacceptable websites according to government regulations. Individual users are
able to configure their private filtering lists.

Multiple add-on security services. The Allot-Optenet Solution can provide additional security
services to allow the delivery of a “clean Internet pipe” to subscribers. The Solution includes an
extensive range of tools to combat phishing activity, web-based viruses and malware threats, as
well as effective protection against malicious content.

Cloud-based filtering service: The Allot-Optenet Solution can be delivered over the cloud,
eliminating technological and financial barriers in terms of value creation and the ability to scale. By
virtualizing complex data management involved in the filtering processes, operators are distanced
from unnecessary complexities and given the ability to painlessly leverage technological
developments.

Self-care portal: The Solution provides a user self-care portal, based on unique multi-tenant
technology, such that a user can customize permitted or restricted categories for their own parental
control policy. By using the self-care portal, parents can easily set rules, adjust them, if needed, and
receive usage reports.
This end-user portal can be customized with the operator’s look and feel and/or be integrated with
any operator’s end-user portal.

Online unblocking service: The solution provides an online revision and unblocking system. If
users do not agree with the categorization of a specific website, they can request that Optenet
review the content of the website and consider re-categorization. The process involves less than
fifteen minutes. Optenet notifies the user by email of its decision.
© 2012 Allot Communications. All rights reserved.
5

6. Solution Brief:
Allot and Optenet Parental Control

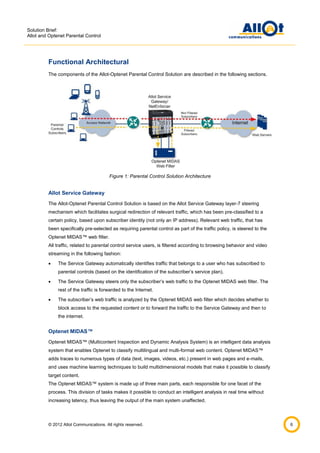

Functional Architectural
The components of the Allot-Optenet Parental Control Solution are described in the following sections.
Figure 1: Parental Control Solution Architecture
Allot Service Gateway
The Allot-Optenet Parental Control Solution is based on the Allot Service Gateway layer-7 steering
mechanism which facilitates surgical redirection of relevant traffic, which has been pre-classified to a
certain policy, based upon subscriber identity (not only an IP address). Relevant web traffic, that has
been specifically pre-selected as requiring parental control as part of the traffic policy, is steered to the
Optenet MIDAS™ web filter.
All traffic, related to parental control service users, is filtered according to browsing behavior and video
streaming in the following fashion:

The Service Gateway automatically identifies traffic that belongs to a user who has subscribed to
parental controls (based on the identification of the subscriber’s service plan).

The Service Gateway steers only the subscriber’s web traffic to the Optenet MIDAS web filter. The
rest of the traffic is forwarded to the Internet.

The subscriber’s web traffic is analyzed by the Optenet MIDAS web filter which decides whether to
block access to the requested content or to forward the traffic to the Service Gateway and then to
the internet.
Optenet MIDAS™
Optenet MIDAS™ (Multicontent Inspection and Dynamic Analysis System) is an intelligent data analysis
system that enables Optenet to classify multilingual and multi-format web content. Optenet MIDAS™
adds traces to numerous types of data (text, images, videos, etc.) present in web pages and e-mails,
and uses machine learning techniques to build multidimensional models that make it possible to classify
target content.
The Optenet MIDAS™ system is made up of three main parts, each responsible for one facet of the
process. This division of tasks makes it possible to conduct an intelligent analysis in real time without
increasing latency, thus leaving the output of the main system unaffected.
© 2012 Allot Communications. All rights reserved.
6

7. Solution Brief:
Allot and Optenet Parental Control


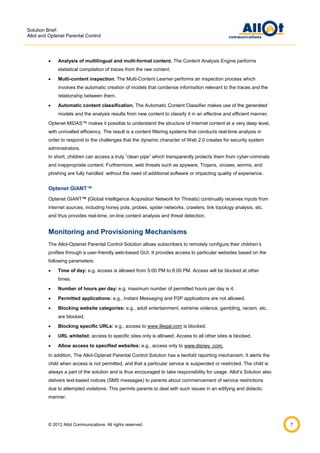

Analysis of multilingual and multi-format content. The Content Analysis Engine performs
statistical compilation of traces from the raw content.

Multi-content inspection. The Multi-Content Learner performs an inspection process which
involves the automatic creation of models that condense information relevant to the traces and the
relationship between them.

Automatic content classification. The Automatic Content Classifier makes use of the generated
models and the analysis results from new content to classify it in an effective and efficient manner.
Optenet MIDAS™ makes it possible to understand the structure of Internet content at a very deep level,
with unrivalled efficiency. The result is a content filtering systems that conducts real-time analysis in
order to respond to the challenges that the dynamic character of Web 2.0 creates for security system
administrators.
In short, children can access a truly “clean pipe” which transparently protects them from cyber-criminals
and inappropriate content. Furthermore, web threats such as spyware, Trojans, viruses, worms, and
phishing are fully handled without the need of additional software or impacting quality of experience.
Optenet GIANT™
Optenet GIANT™ (Global Intelligence Acquisition Network for Threats) continually receives inputs from
internet sources, including honey pots, probes, spider networks, crawlers, link topology analysis, etc.
and thus provides real-time, on-line content analysis and threat detection.
Monitoring and Provisioning Mechanisms
The Allot-Optenet Parental Control Solution allows subscribers to remotely configure their children’s
profiles through a user-friendly web-based GUI. It provides access to particular websites based on the
following parameters:

Time of day: e.g. access is allowed from 5:00 PM to 8:00 PM. Access will be blocked at other
times.

Number of hours per day: e.g. maximum number of permitted hours per day is 4.

Permitted applications: e.g., Instant Messaging and P2P applications are not allowed.

Blocking website categories: e.g., adult entertainment, extreme violence, gambling, racism, etc.
are blocked.

Blocking specific URLs: e.g., access to www.illegal.com is blocked.

URL whitelist: access to specific sites only is allowed. Access to all other sites is blocked.

Allow access to specified websites: e.g., access only to www.disney .com.
In addition, The Allot-Optenet Parental Control Solution has a twofold reporting mechanism. It alerts the
child when access is not permitted, and that a particular service is suspended or restricted. The child is
always a part of the solution and is thus encouraged to take responsibility for usage. Allot’s Solution also
delivers text-based notices (SMS messages) to parents about commencement of service restrictions
due to attempted violations. This permits parents to deal with such issues in an edifying and didactic
manner.
© 2012 Allot Communications. All rights reserved.
7

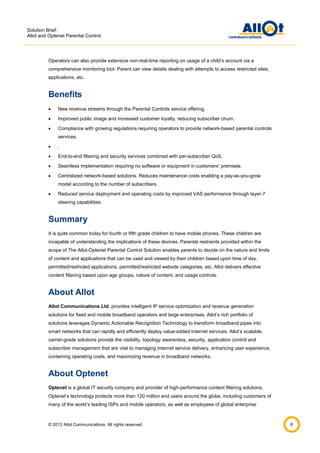

8. Solution Brief:
Allot and Optenet Parental Control
Operators can also provide extensive non-real-time reporting on usage of a child’s account via a
comprehensive monitoring tool. Parent can view details dealing with attempts to access restricted sites,
applications, etc.
Benefits

New revenue streams through the Parental Controls service offering.

Improved public image and increased customer loyalty, reducing subscriber churn.

Compliance with growing regulations requiring operators to provide network-based parental controls
services.

.

End-to-end filtering and security services combined with per-subscriber QoS.

Seamless implementation requiring no software or equipment in customers’ premises.

Centralized network-based solutions. Reduces maintenance costs enabling a pay-as-you-grow
model according to the number of subscribers.

Reduced service deployment and operating costs by improved VAS performance through layer-7
steering capabilities.
Summary
It is quite common today for fourth or fifth grade children to have mobile phones. These children are
incapable of understanding the implications of these devices. Parental restraints provided within the
scope of The Allot-Optenet Parental Control Solution enables parents to decide on the nature and limits
of content and applications that can be used and viewed by their children based upon time of day,
permitted/restricted applications, permitted/restricted website categories, etc. Allot delivers effective
content filtering based upon age groups, nature of content, and usage controls.
About Allot
Allot Communications Ltd. provides intelligent IP service optimization and revenue generation
solutions for fixed and mobile broadband operators and large enterprises. Allot’s rich portfolio of
solutions leverages Dynamic Actionable Recognition Technology to transform broadband pipes into
smart networks that can rapidly and efficiently deploy value-added Internet services. Allot’s scalable,
carrier-grade solutions provide the visibility, topology awareness, security, application control and
subscriber management that are vital to managing Internet service delivery, enhancing user experience,
containing operating costs, and maximizing revenue in broadband networks.
About Optenet
Optenet is a global IT security company and provider of high-performance content filtering solutions.
Optenet’s technology protects more than 120 million end users around the globe, including customers of
many of the world’s leading ISPs and mobile operators, as well as employees of global enterprise
© 2012 Allot Communications. All rights reserved.
8

9. Solution Brief:
Allot and Optenet Parental Control
organizations. With over a decade of security expertise, Optenet leads the industry with the most
advanced technology for dynamic content protection providing the highest rate of accuracy with
unparalleled protection against Web 2.0 threats. As a socially conscious organization, Optenet is
committed to eliminating illegal content on the Internet, protecting children, and supporting government
agencies and non-profit organizations that share the same goal.
© 2012 Allot Communications. All rights reserved.
9

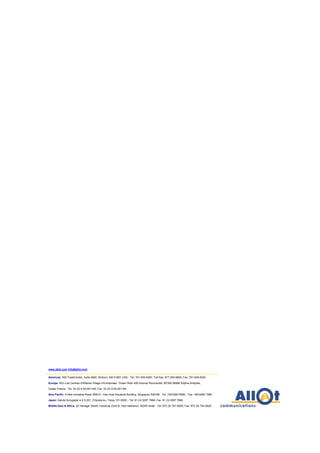

10. www.allot.com info@allot.com
Americas: 300 TradeCenter, Suite 4680, Woburn, MA 01801 USA - Tel: 781-939-9300; Toll free: 877-255-6826; Fax: 781-939-9393
Europe: NCI–Les Centres d'Affaires Village d'Entreprises, 'Green Side' 400 Avenue Roumanille, BP309 06906 Sophia Antipolis,
Cedex France - Tel: 33 (0) 4-93-001160; Fax: 33 (0) 4-93-001165
Asia Pacific: 6 New Industrial Road, #08-01, Hoe Huat Industrial Building, Singapore 536199 · Tel: +65-6283 8990 · Fax: +65-6282 7280
Japan: Kanda Surugadai 4-2-3-301, Chiyoda-ku, Tokyo 101-0062 - Tel: 81 (3) 5297 7668; Fax: 81 (3) 5297 7669
Middle East & Africa: 22 Hanagar Street, Industrial Zone B, Hod Hasharon, 45240 Israel - Tel: 972 (9) 761-9200; Fax: 972 (9) 744-3626
