This document summarizes a GPS-based tracking and monitoring system called Track Right Range (TRR) developed by TECLEVER. TRR tracks objects using a combination of hardware (GPS, RFID, processing devices) and software to acquire field data, process it, consolidate it in the cloud, and send it to customers. It provides fleet management solutions using GPRS/GPS to track vehicles with web and mobile interfaces. The system includes geo-fencing, reports, administration controls, and integrates with customer IT systems. TRR devices can track location, fuel levels, speeds and other parameters and allow for vehicle immobilization.

1. GPS Based System
Overview

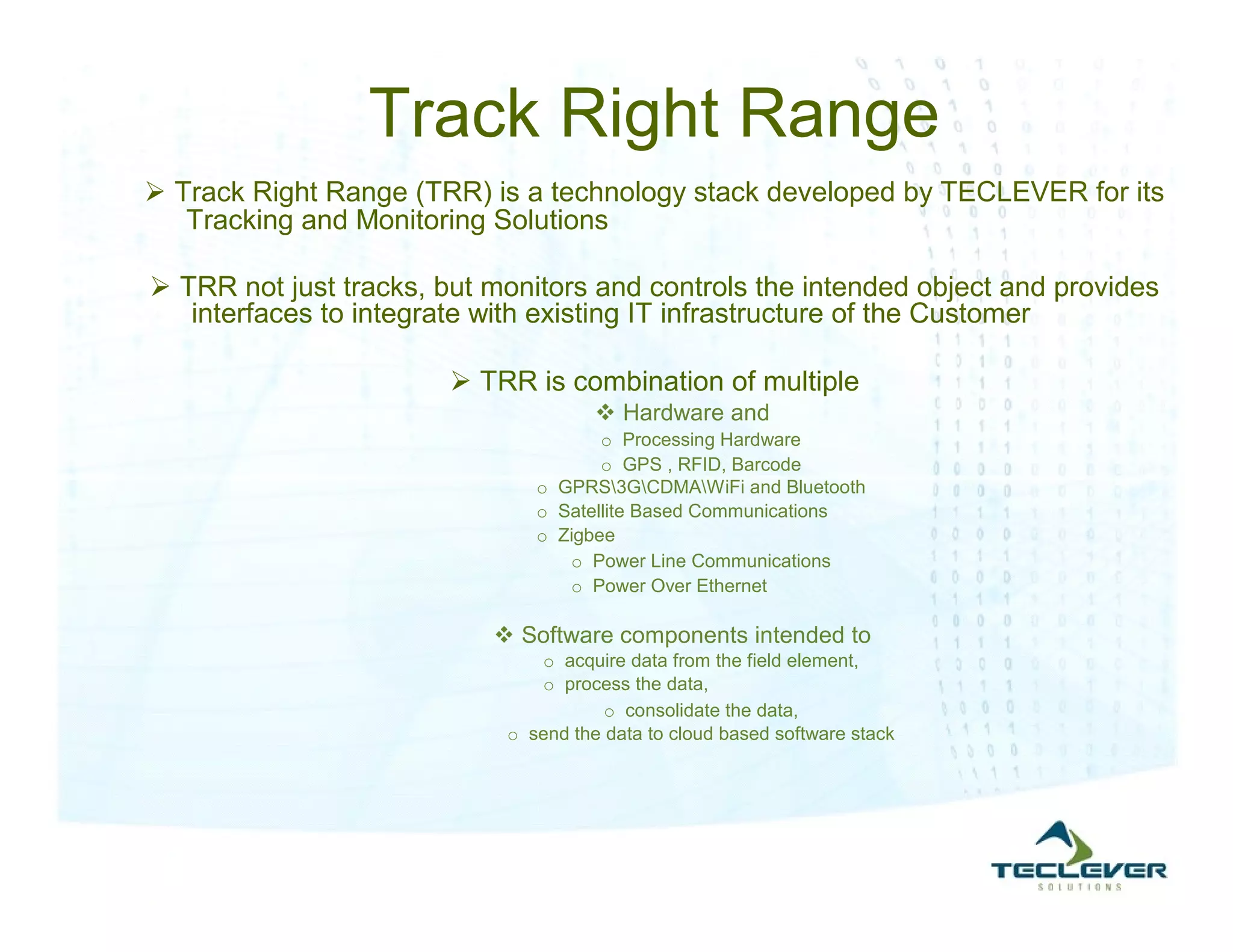

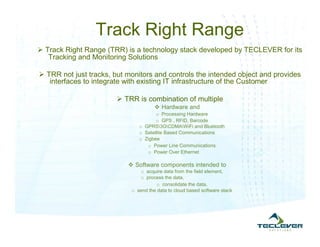

2. Track Right Range
 Track Right Range (TRR) is a technology stack developed by TECLEVER for its
Tracking and Monitoring Solutions
 TRR not just tracks, but monitors and controls the intended object and provides
interfaces to integrate with existing IT infrastructure of the Customer
 TRR is combination of multiple
 Hardware and
o Processing Hardware
o GPS , RFID, Barcode
o GPRS3GCDMAWiFi and Bluetooth
o Satellite Based Communications
o Zigbee
o Power Line Communications
o Power Over Ethernet
 Software components intended to
o acquire data from the field element,
o process the data,
o consolidate the data,
o send the data to cloud based software stack

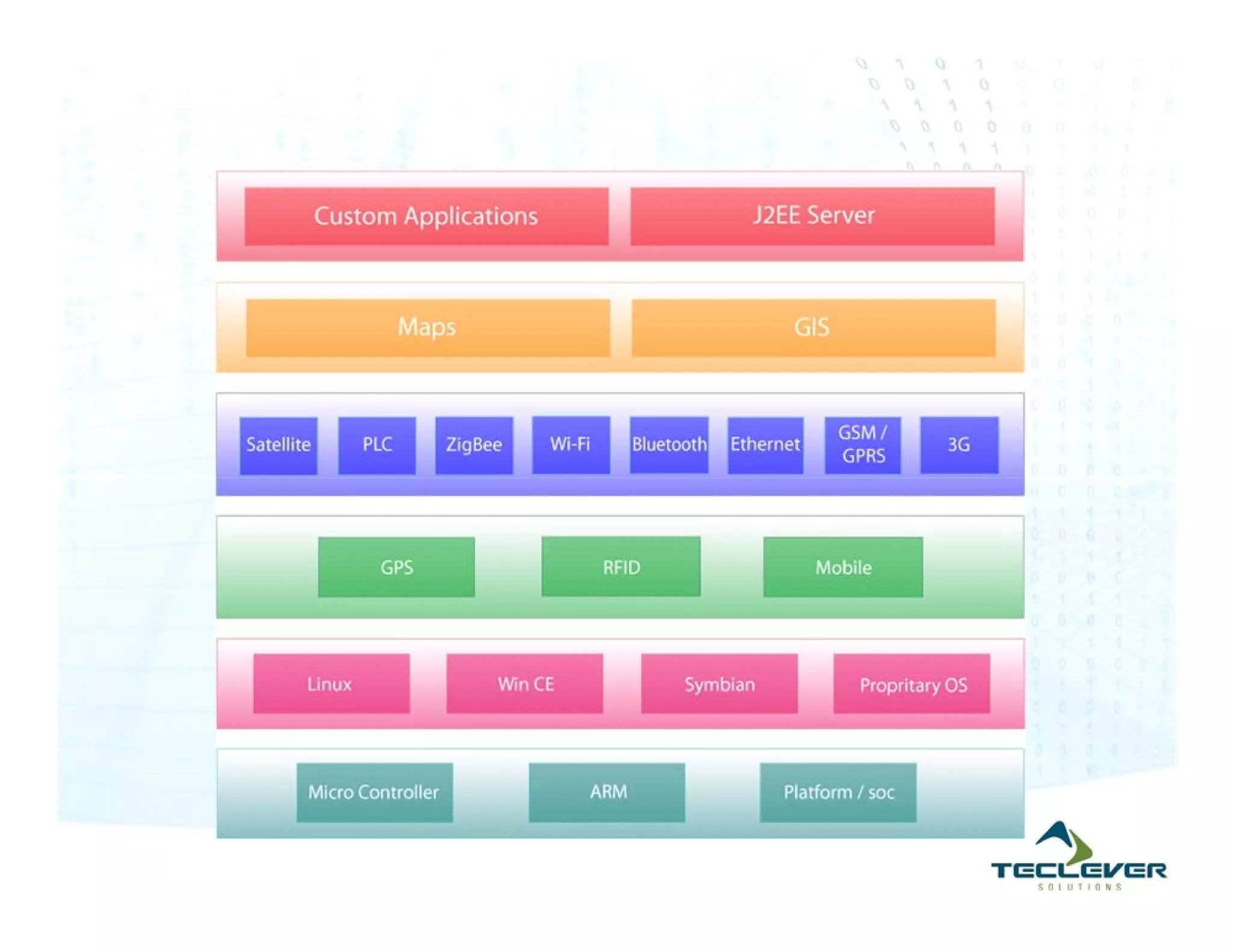

3. TRR Building Blocks

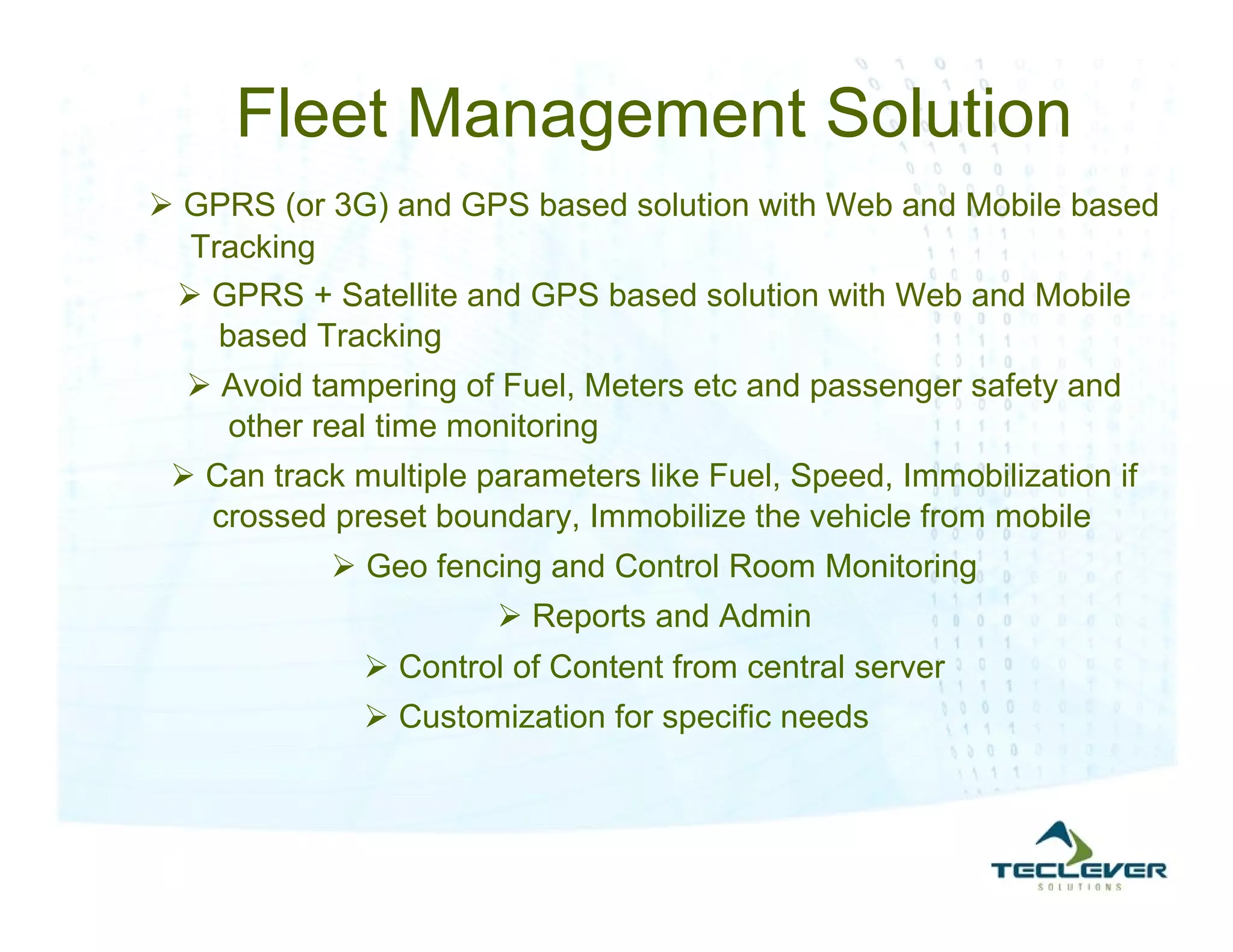

4. Fleet Management Solution
 GPRS (or 3G) and GPS based solution with Web and Mobile based
Tracking
 GPRS + Satellite and GPS based solution with Web and Mobile
based Tracking
 Avoid tampering of Fuel, Meters etc and passenger safety and
other real time monitoring
 Can track multiple parameters like Fuel, Speed, Immobilization if
crossed preset boundary, Immobilize the vehicle from mobile
 Geo fencing and Control Room Monitoring
 Reports and Admin
 Control of Content from central server
 Customization for specific needs

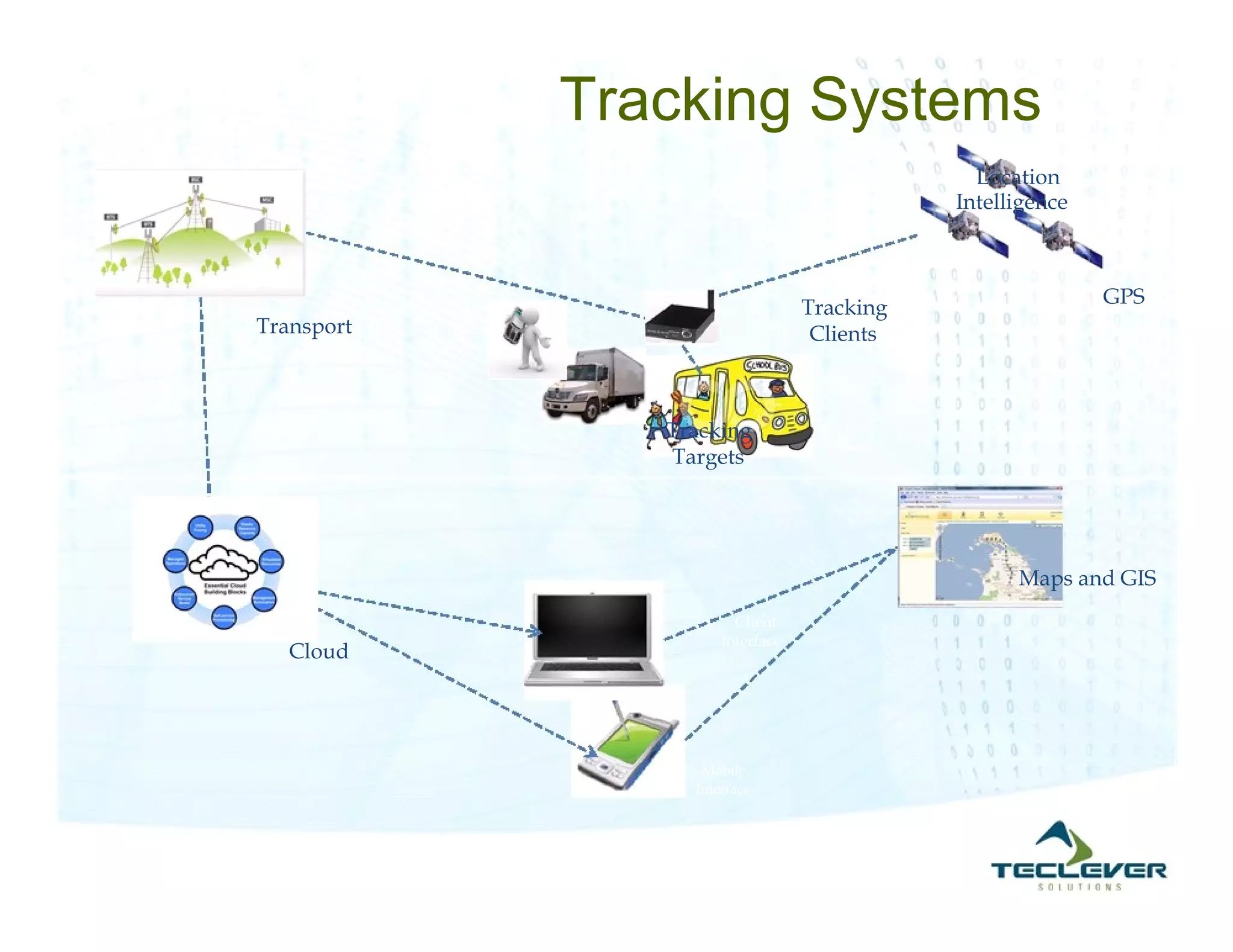

5. Tracking Systems
Location
Intelligence
GPS
Tracking
Transport Clients
Tracking
Targets
Maps and GIS
Client
Interface
Cloud
Mobile
Interface

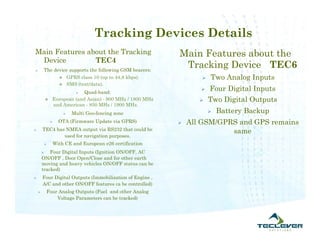

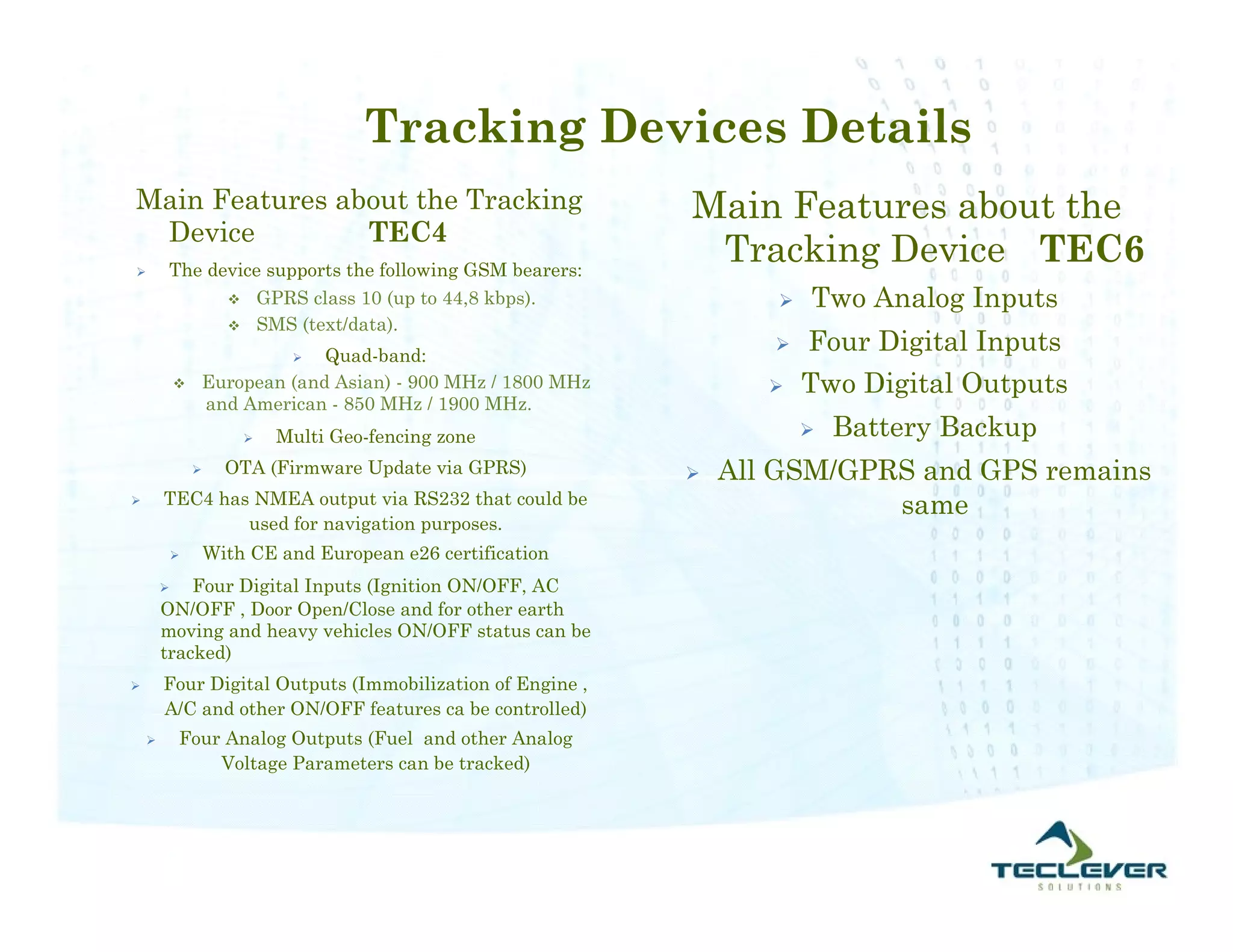

6. Tracking Devices Details
Main Features about the Tracking Main Features about the
Device TEC4
 The device supports the following GSM bearers:
Tracking Device TEC6
 GPRS class 10 (up to 44,8 kbps).  Two Analog Inputs
 SMS (text/data).
Quad-band:

 Four Digital Inputs
 European (and Asian) - 900 MHz / 1800 MHz  Two Digital Outputs
and American - 850 MHz / 1900 MHz.
 Multi Geo-fencing zone  Battery Backup
 OTA (Firmware Update via GPRS)  All GSM/GPRS and GPS remains
 TEC4 has NMEA output via RS232 that could be same
used for navigation purposes.
 With CE and European e26 certification
 Four Digital Inputs (Ignition ON/OFF, AC
ON/OFF , Door Open/Close and for other earth
moving and heavy vehicles ON/OFF status can be
tracked)
 Four Digital Outputs (Immobilization of Engine ,
A/C and other ON/OFF features ca be controlled)
 Four Analog Outputs (Fuel and other Analog
Voltage Parameters can be tracked)

7. S

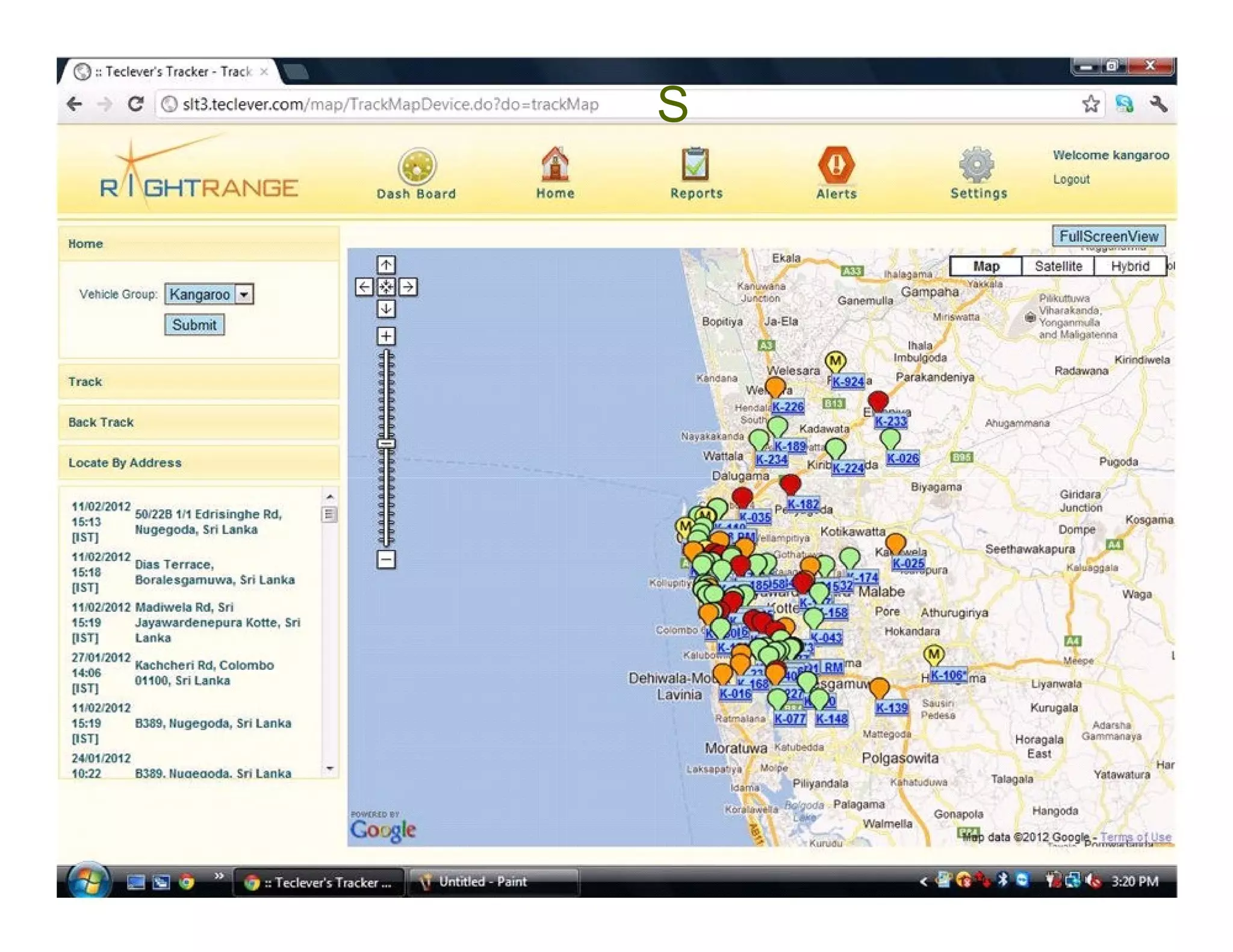

8. S

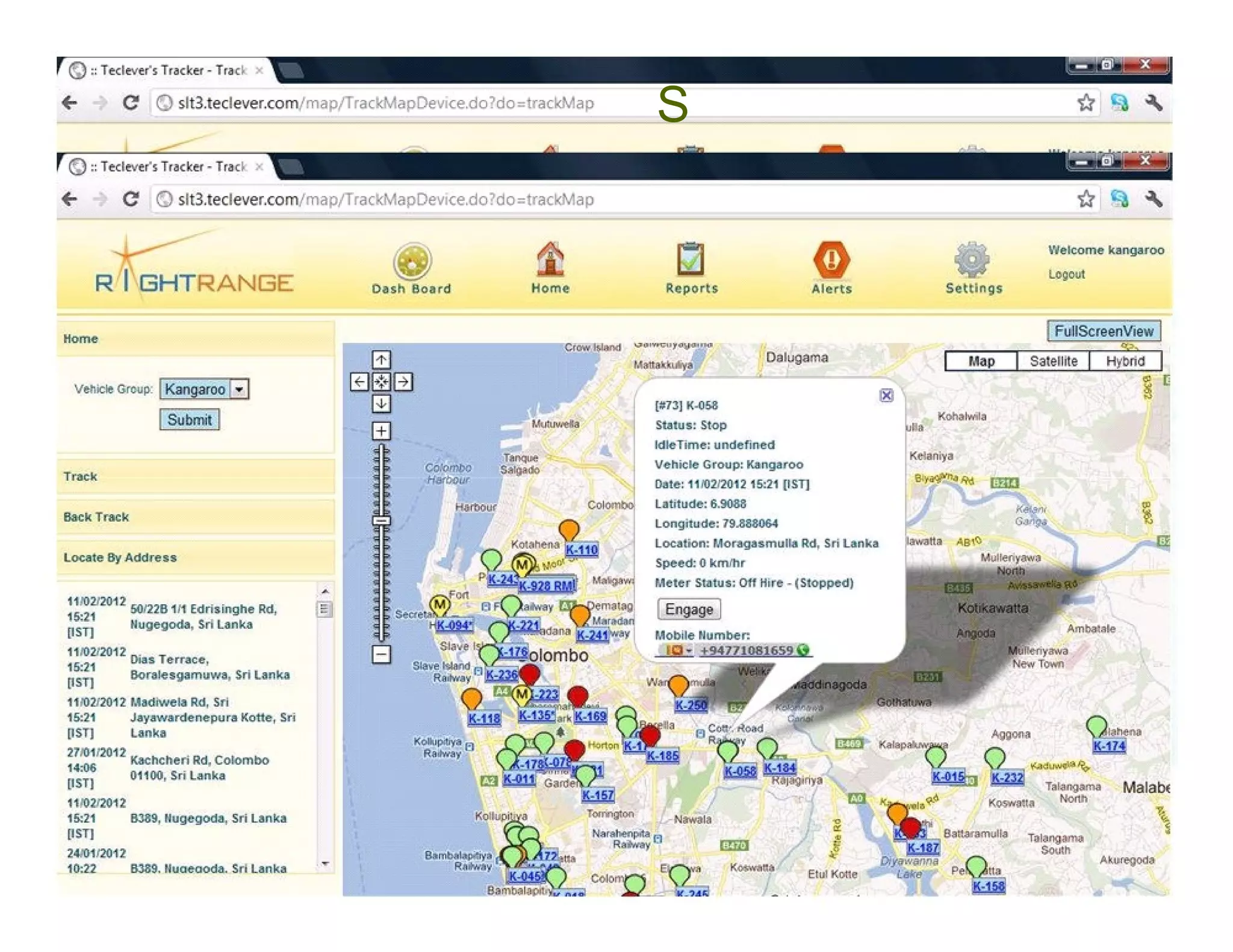

9. S

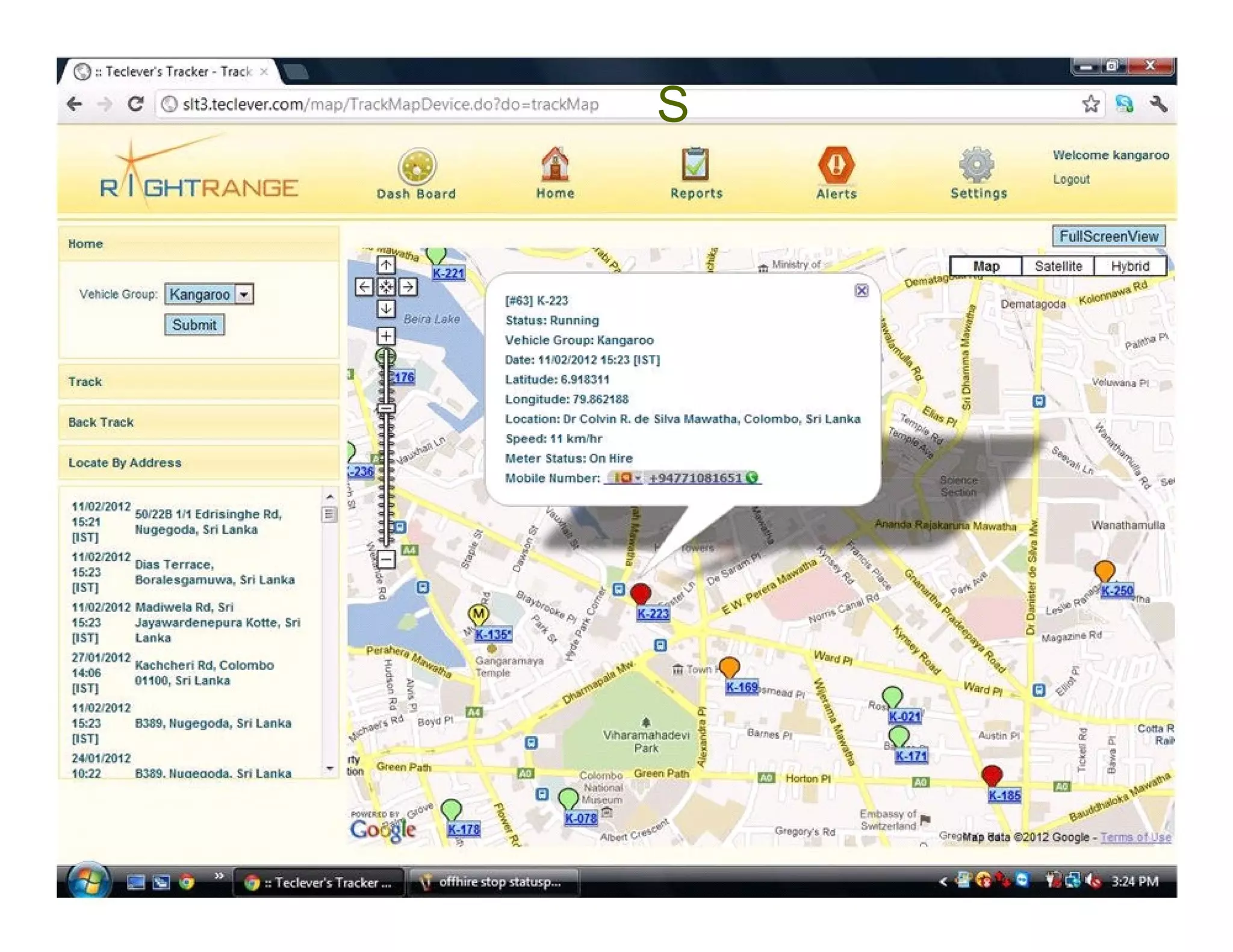

10. S

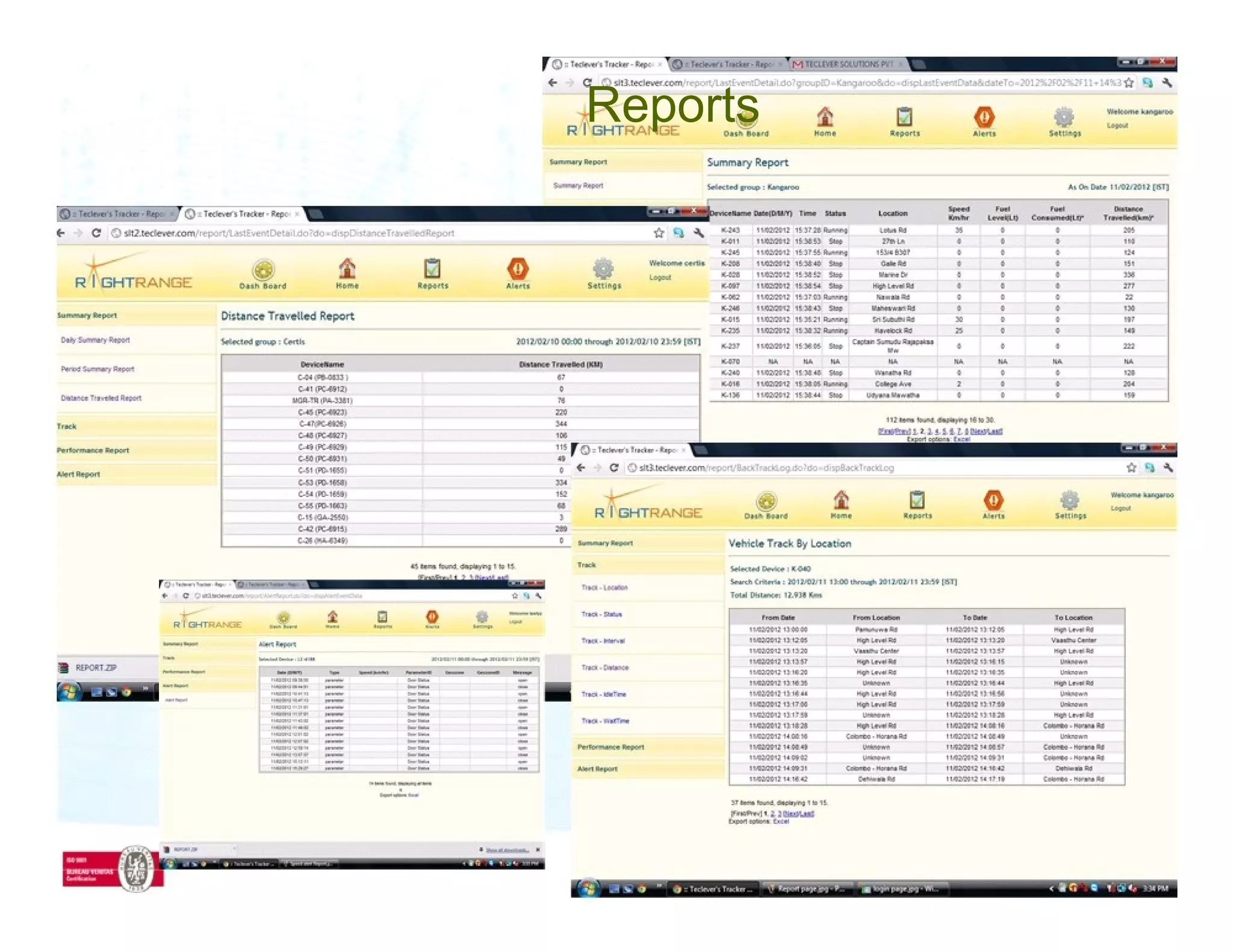

11. Reports

12. S

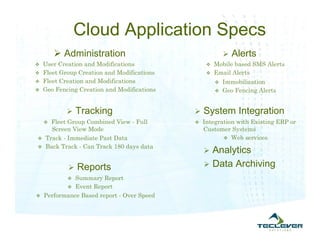

13. Cloud Application Specs
 Administration  Alerts
 User Creation and Modifications  Mobile based SMS Alerts
 Fleet Group Creation and Modifications  Email Alerts
 Fleet Creation and Modifications  Immobilization
 Geo Fencing Creation and Modifications  Geo Fencing Alerts
 Tracking  System Integration
Fleet Group Combined View - Full
  Integration with Existing ERP or
Screen View Mode Customer Systems
 Track - Immediate Past Data  Web services
 Back Track - Can Track 180 days data
 Analytics
 Reports  Data Archiving
Summary Report
 Event Report
 Performance Based report - Over Speed
