This document discusses the relevance of device management standards in smart micro grids. It outlines how the TR-069 protocol standard, used for large-scale IP service rollouts since 2005, could be transferred to grid control. TR-069 enables one million devices per server, high performance with thousands of transactions per second using off-the-shelf technology. It provides a stable standardization of data models that has been consistent for years and allows for application lifecycle management and business data security.

1. Die Relevanz von Device Management Standards
im Smart Micro Grid.
BICCTalk - 4.12.2012

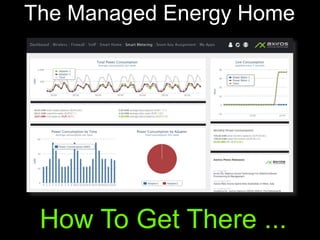

2. The Managed Energy Home
How To Get There ...

3. ... And Offer The Differentiating
More

4. A Multitude Of Services
On The Horizon
￭ Horizontal And Vertical
￭ 3rd Party Apps And Core Offerings
￭ Multitude Of Uplinks, Fixed & Mobile

5. Tons Of Devices In Scope
How To Get Them In, Managed ?
IP & Non IP

6. Sure Thing (?)
￭ Plug and Play / Zero Touch Setup
￭ (Near)Real Time Monitoring / Alerting
￭ High Performance Data Collection
￭ Business Data Security
￭ Real Time Access On Any Uplink / NAT
￭ Automated Software Update Campaigns
On up to Millions of Devices...

7. OPEX In IP Services

8. Rule Nr 1: Don’t...

9. Profit:
From Other
Industries’ Learning
Curve

10. Inventory Activation Assurance
...
NMS (Vendor 1) NMS (Vendor 2)
Switches / Routers
BRAS / DHCP / DNS
Traffic Mgmt / DPIs (...)
NMS (Vendor 3)
AAAFulfillment
Content
Softswitch
IMS,Video,...
OSS
NMS & Service
Platforms
Access
Premise
OLTs
ONTs Home Routers
Non IP
IP Devices
DSLAMs
Service Delivery Devices:
Full Direct Access / All The
Time
Standard in Telco: On Device Service Management
Business Routers
High Level Integration
(Only Service Information)
High Performance On Device Service Provisioning, Diagnostics, Proactive Monitoring, ...

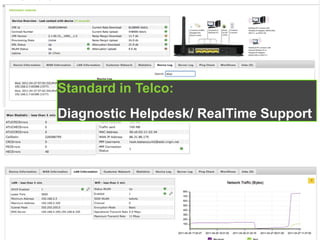

11. Standard in Telco:
Diagnostic Helpdesk/ RealTime Support

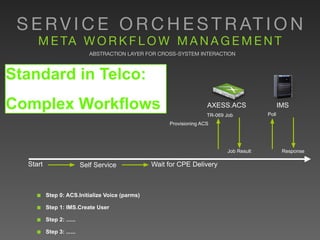

12. ABSTRACTION LAYER FOR CROSS-SYSTEM INTERACTION
S E R V I C E O R C H E S T R AT I O N
M E TA W O R K F L O W M A N A G E M E N T
Start Self Service Wait for CPE Delivery
AXESS.ACS IMS
￭ Step 0: ACS.Initialize Voice (parms)
￭ Step 1: IMS.Create User
￭ Step 2: ......
￭ Step 3: ......
Provisioning ACS
TR-069 Job
Job Result
Poll
Response
Standard in Telco:
Complex Workflows

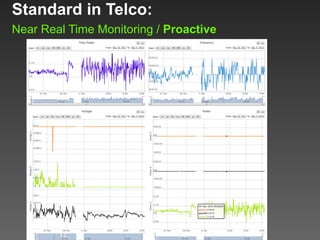

13. Standard in Telco:
Near Real Time Monitoring / Proactive

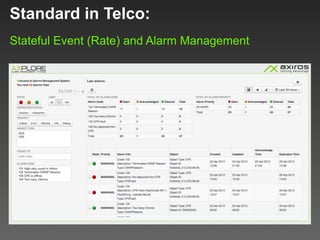

14. Standard in Telco:
Stateful Event (Rate) and Alarm Management

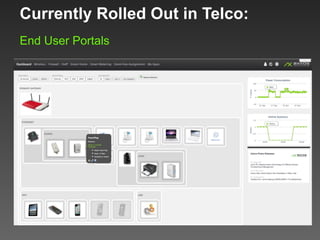

15. Currently Rolled Out in Telco:
End User Portals

16. ￭ A Field Proven Generic Device
Management Protocol Standard
TR-069 Is
￭ In Use For Large Scale IP Service
Rollouts - Since 2005
￭ Default: Transferred Via HTTP(s),
Async

17. flexibility
erformance

18. ￭ One Million Devices / Server
￭ Thousands Of Transactions / Sec
￭ Off The Shelf Technology
￭ Consolidated Standardization of Data Models, Stable
For Years Now.
￭ Application Life Cycle Management
￭ Business Data Security
Why Not Transfer The Work Done To
Grid Control?!

19. THANK YOU FOR YOUR ATTENTION!
