The document discusses the concept of 'exactly-once' semantics in Apache Kafka, detailing its importance in messaging systems and the challenges of achieving it. It describes Kafka's existing message delivery semantics, particularly 'at most once' and 'at least once,' and introduces how Kafka version 0.11 and above implements exactly-once capabilities through idempotent producers and transactional writes. The document outlines the structural changes necessary for idempotent delivery and the configurations required to ensure safe message processing.

1. Kafka
(Exactly-once)”
1

2. 2

3. e
• ) notm l tm
• 2.6 6/-u y
• .54 6 4 22 . 0 P 1 B
• . A . EC CC 0 B A FC
• 3.2 6 C 1 B
• ( h SO u
• ) a d rs
• M
• R h( u gi
• M / C B
L
LTI
erhwenkuo@gmail.com
3

4. Agenda
• Why exactly-once?
• An overview of messaging semantics
• Why are duplicates introduced?
• What is exactly-once semantics?
• Exactly-once semantics in Kafka
4

5. Kafka Exactly-once
5

6. An overview of messaging semantics
Kafka message delivery semantics
• At most once: offsets are committed as soon as the message is received. If
the processing goes wrong, the message will be lost (it won’t be read again).
• At least once: offsets are committed after the message is processed. If the
processing goes wrong, the message will be read again. This can result in
duplicate processing of messages. Make sure your processing is idempotent
(i.e. processing again the message won’t impact your systems)
• Exactly once: Very difficult to achieve / need strong engineering. (Kafka start
to provide “exactly once” from v.0.11
6

7. • Stream processing is becoming the
norm; it’s more natural.
• Apache Kafka is the most popular
streaming platform.
• Mission critical applications require
stronger guarantees.
Why exactly-once?
7

8. Apache Kafka’s existing semantics
At Least Once
8

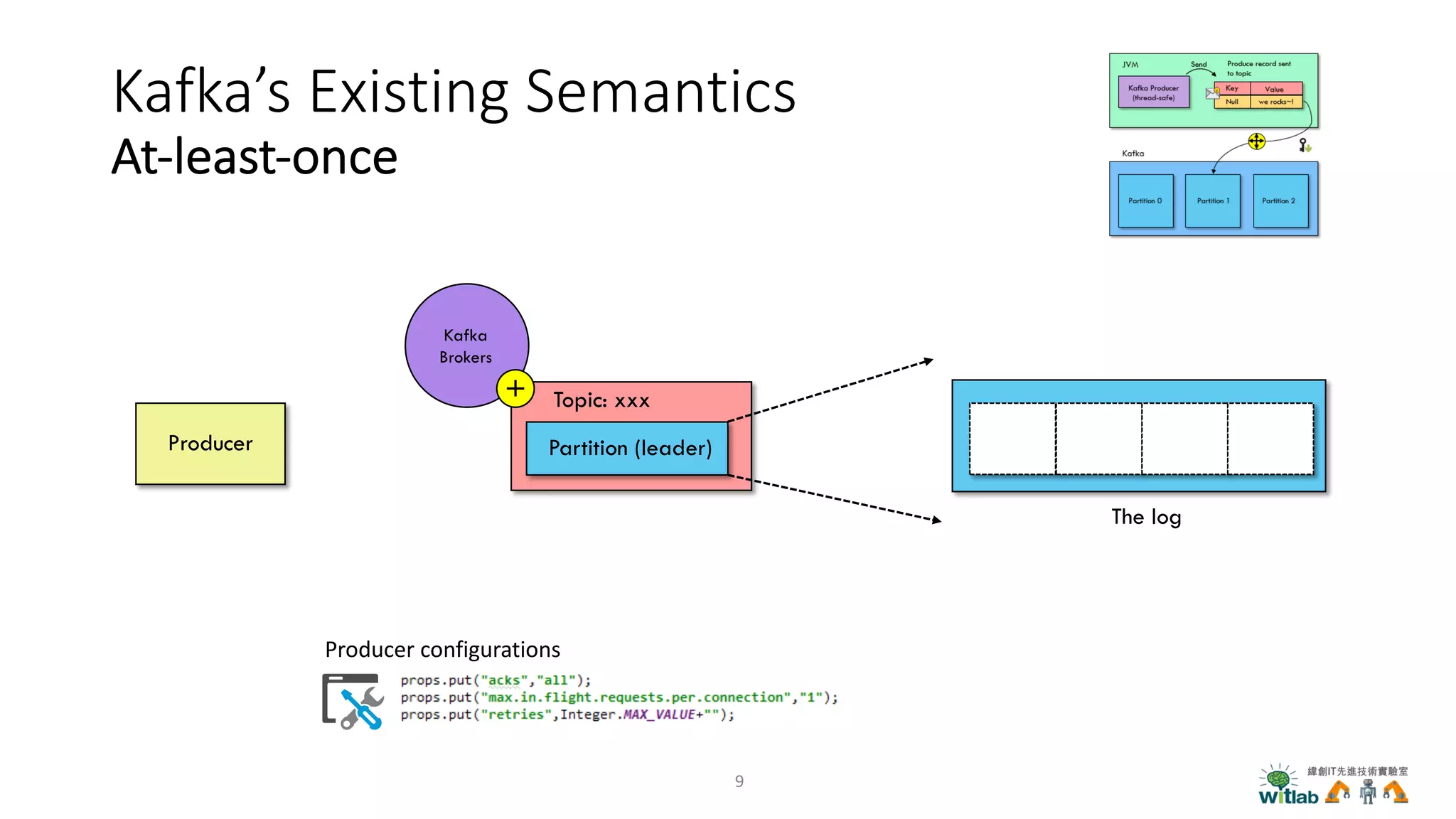

9. Kafka’s Existing Semantics
At-least-once
Producer Partition (leader)
Topic: xxx
Kafka
Brokers
The log
9
Producer configurations

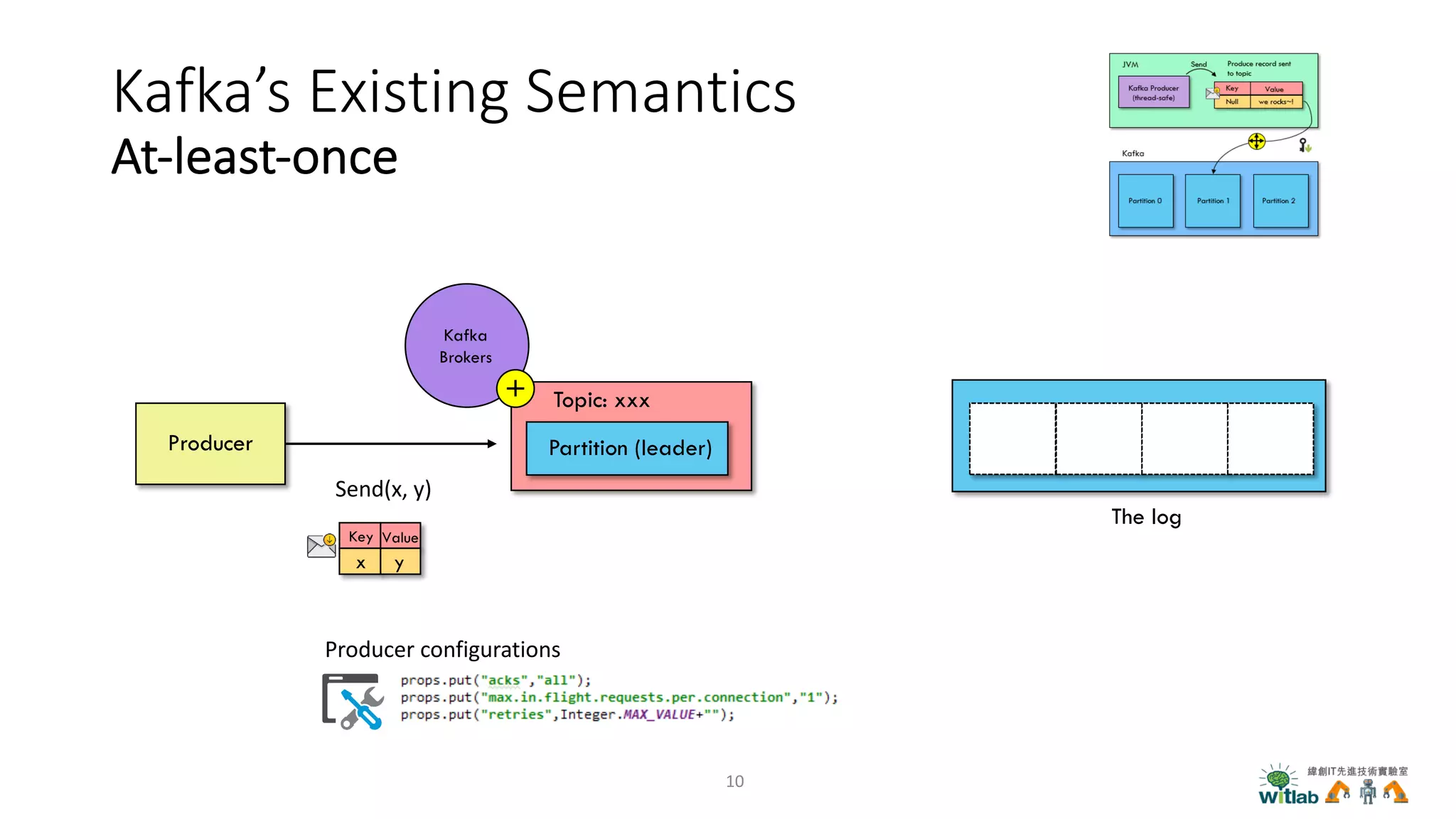

10. Kafka’s Existing Semantics
At-least-once
Key Value
x yx y
Producer Partition (leader)
Topic: xxx
Kafka
Brokers
The log
Send(x, y)
10
Producer configurations

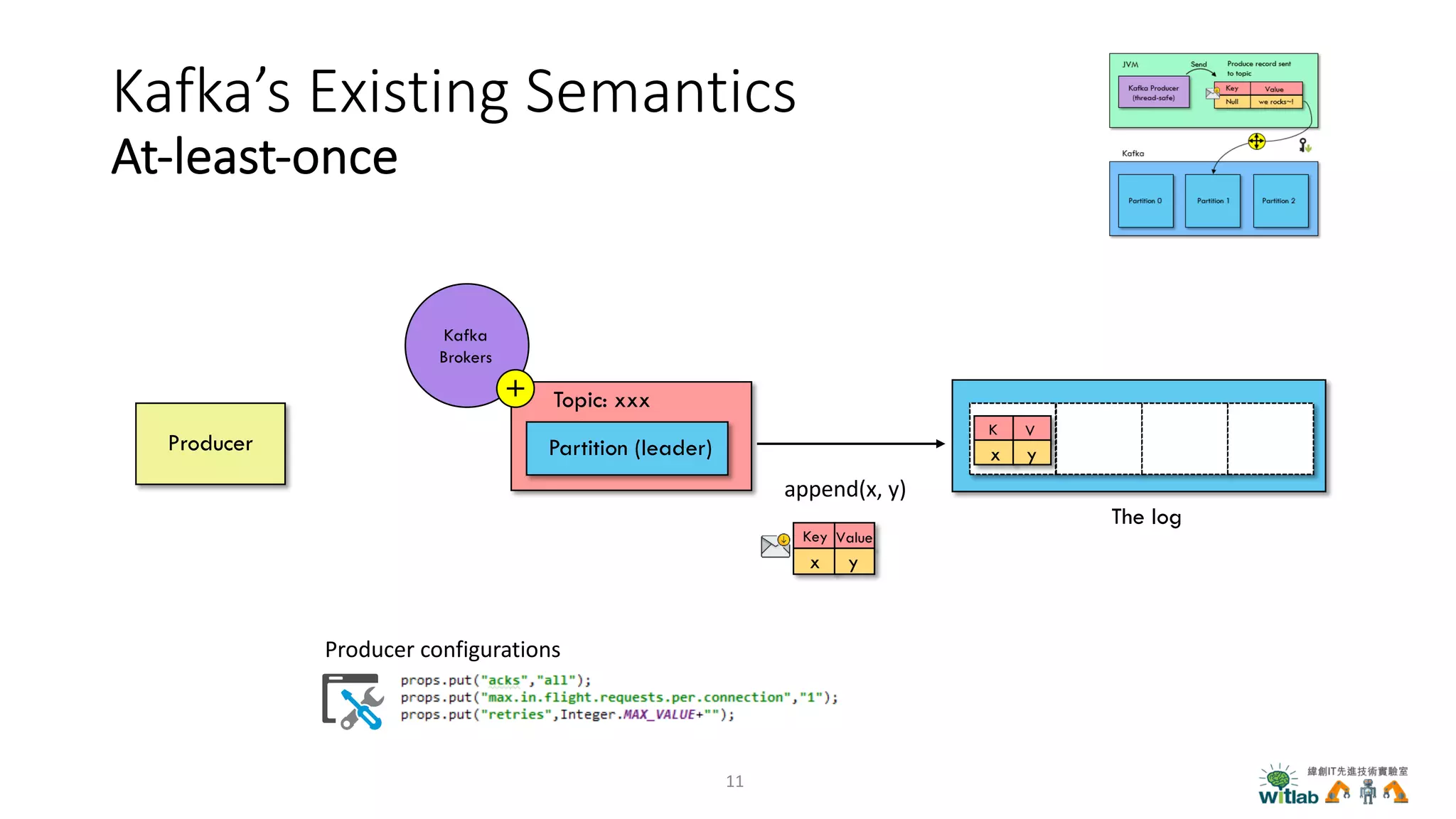

11. Kafka’s Existing Semantics
At-least-once
Producer Partition (leader)
Topic: xxx
Kafka
Brokers
The log
append(x, y)
Key Value
x yx y
K V
x yx y
11
Producer configurations

12. Kafka’s Existing Semantics
At-least-once
Producer Partition (leader)
Topic: xxx
Kafka
Brokers
The log
ack
K V
x yx y
12
Producer configurations

13. Kafka’s Existing Semantics
At-least-once
Producer Partition (leader)
Topic: xxx
Kafka
Brokers
The log
K V
x yx y
Key Value
x ya b
Send(a, b)
13
Producer configurations

14. Kafka’s Existing Semantics
At-least-once
Producer Partition (leader)
Topic: xxx
Kafka
Brokers
The log
append(x, y)
K V
x yx y
Key Value
x ya b
K V
x ya b
14
Producer configurations

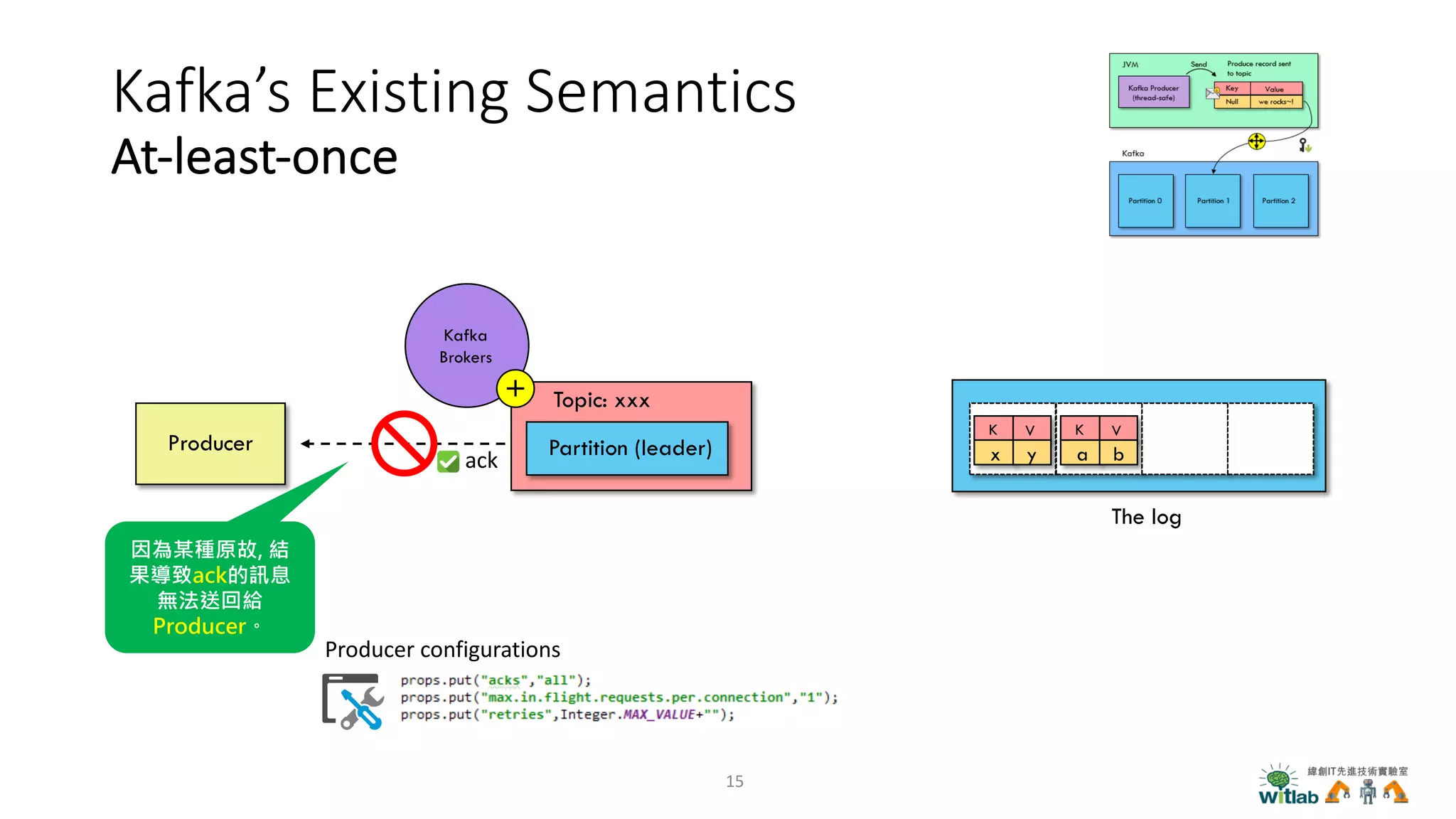

15. Kafka’s Existing Semantics
At-least-once
Producer Partition (leader)
Topic: xxx
Kafka
Brokers
The log
K V
x yx yack
K V
x ya b
,
15
Producer configurations

16. Kafka’s Existing Semantics
At-least-once
Producer Partition (leader)
Topic: xxx
Kafka
Brokers
The log
K V
x yx yack
K V
x ya b
16
Producer configurations

17. Kafka’s Existing Semantics
At-least-once
Producer Partition (leader)
Topic: xxx
Kafka
Brokers
The log
K V
x yx y
K V
x ya b
Key Value
x ya b
Send(a, b)
,
17
Producer configurations

18. Kafka’s Existing Semantics
At-least-once
Producer Partition (leader)
Topic: xxx
Kafka
Brokers
The log
append(x, y)
K V
x yx y
Key Value
x ya b
K V
x ya b
K V
x ya b
18
Producer configurations

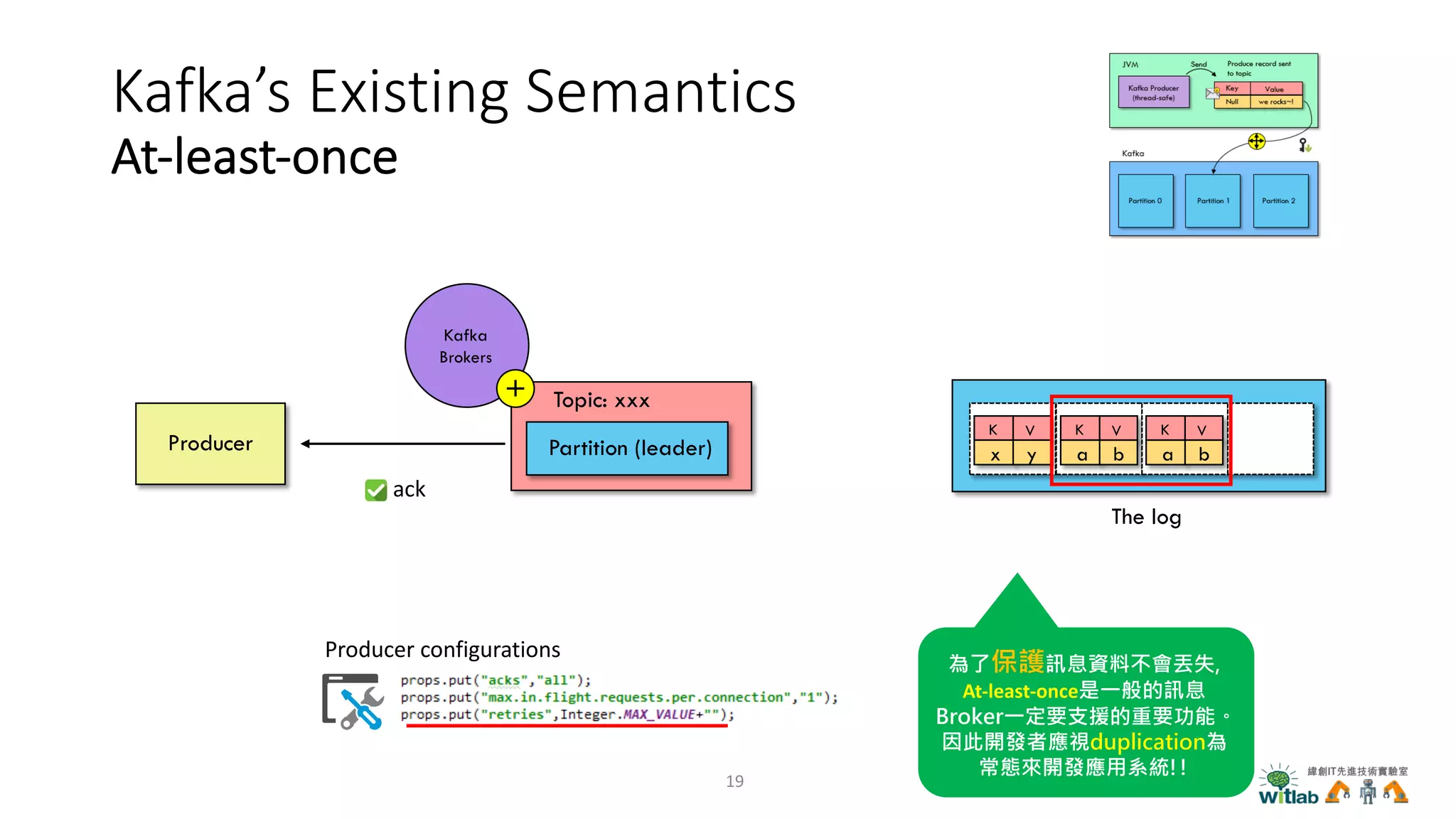

19. Kafka’s Existing Semantics
At-least-once
Producer Partition (leader)
Topic: xxx
Kafka
Brokers
The log
ack
K V
x yx y
K V
x ya b
K V
x ya b
B
At-least-once
!, ,
19
Producer configurations

20. Various failures must be handled correctly
• Broker can fail
• Producer-to-Broker RPC can fail
• Network between Producer & Broker can fail
• Producer client can fail
• Producer client can become zombie
Why are duplicates introduced?
20

21. Semantic Weaknesses
At-least-once
• Producer retries are not safe
• Processed data is not written atomically with corresponding offsets
• No protection from evil zombies
21
Producer

22. How did Kafka add exactly once
semantics?
version >= 0.11
22

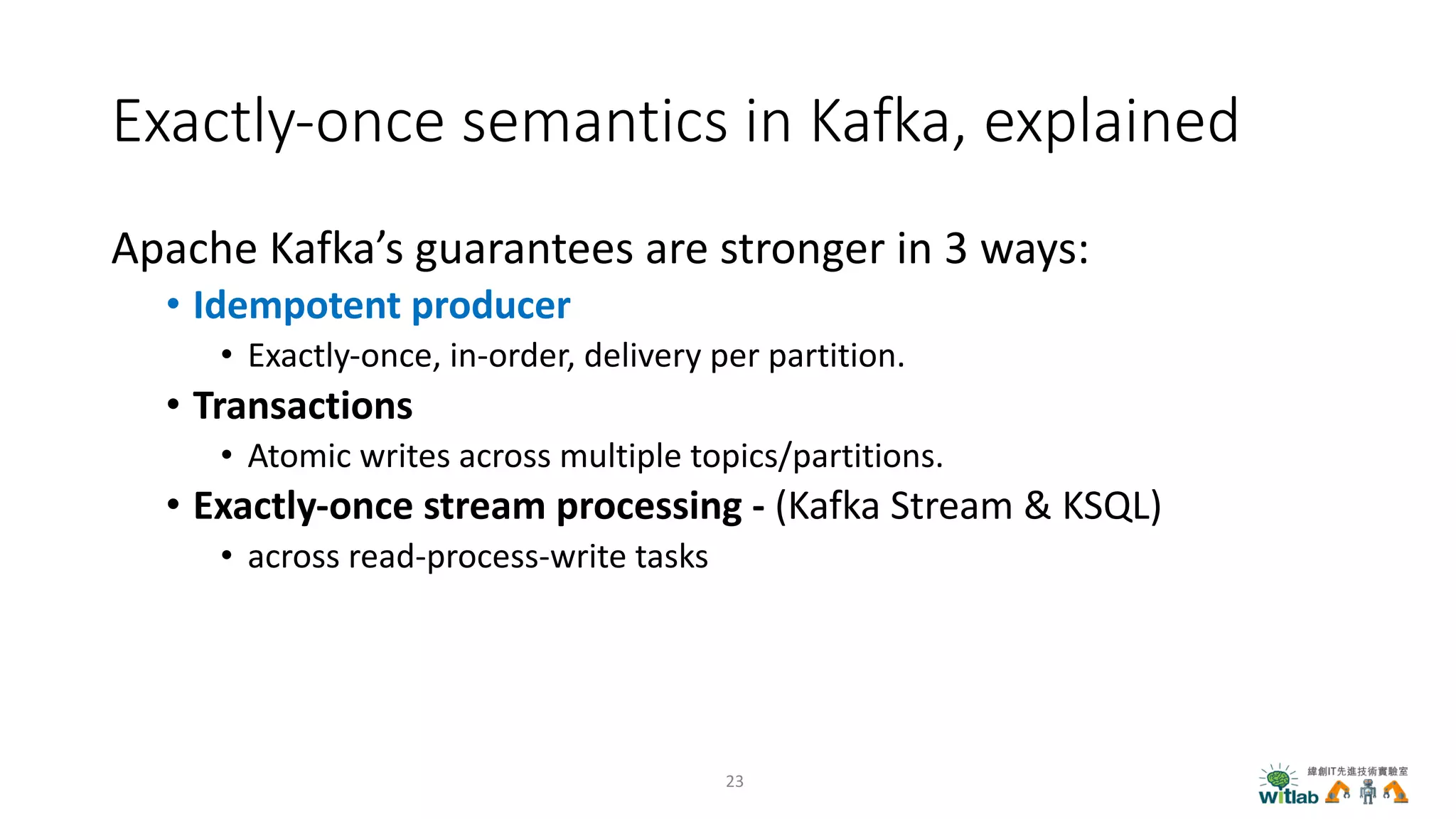

23. Exactly-once semantics in Kafka, explained
Apache Kafka’s guarantees are stronger in 3 ways:
• Idempotent producer
• Exactly-once, in-order, delivery per partition.
• Transactions
• Atomic writes across multiple topics/partitions.
• Exactly-once stream processing - (Kafka Stream & KSQL)
• across read-process-write tasks
23

24. Exactly-once, in-order, delivery
per partition
Idempotent Producer
24

25. Idempotent Producer Semantics
• Idempotent is the second name to exactly once. To stop processing a
message multiple times, message must be persisted to Kafka topic
only once.
• A single successful producer.send( ) will result in exactly one copy of
the message in the log in all circumstances
• Idempotent delivery ensures that messages are delivered exactly
once to a particular topic partition during the lifetime of a single
producer.
25

26. How idempotent producer works?
Key Design Principle
Idempotent producer
• Exactly-once, in-order, delivery per partition.
• Avoid data duplication
• Works transparently -- only one config change.
• Resilient to broker failures, producer retries, etc.
26

27. How idempotent producer works?
Message Binary Format Change
Idempotent producer
• Change Log Message Binary Format
• Add “ProducerId”
• Add “Sequence” number offset
Message Format
key
value
timestamp
headers
producerid
sequence
27

28. The idempotent producer
pid = 100pid = 100
seq = 0
Producer Partition (leader)
Topic: xxx
Kafka
Brokers
,
The log
28
Producer configurations

29. The idempotent producer
pid = 100pid = 100
seq = 0
Producer Partition (leader)
Topic: xxx
Kafka
Brokers
The log
Send(x, y)
key value
x yx y
pid seq
x y100 0
29

30. The idempotent producer
pid = 100
seq = 0
Producer Partition (leader)
Topic: xxx
Kafka
Brokers
The log
key value
x yx y
pid seq
x y100 0
pid = 100
append(x, y)
key value
x yx y
pid seq
x y100 0
30

31. The idempotent producer
pid = 100
seq = 0
Producer Partition (leader)
Topic: xxx
Kafka
Brokers
The log
pid = 100
seq = 0
key value
x yx y
pid seq
x y100 0ack
31

32. The idempotent producer
pid = 100
seq = 1
Producer Partition (leader)
Topic: xxx
Kafka
Brokers
The log
pid = 100
seq = 0
key value
x yx y
pid seq
x y100 0Send(a, b)
key value
x ya b
pid seq
x y100 1
32
pid = 100
seq = 0

33. The idempotent producer
pid = 100
seq = 1
Producer Partition (leader)
Topic: xxx
Kafka
Brokers
The log
pid = 100
seq = 1
key value
x yx y
pid seq
x y100 0
key value
x ya b
pid seq
x y100 1
key value
x ya b
pid seq
x y100 1
append(a, b)
33

34. The idempotent producer
pid = 100
seq = 1
Producer Partition (leader)
Topic: xxx
Kafka
Brokers
The log
pid = 100
seq = 1
key value
x yx y
pid seq
x y100 0
key value
x ya b
pid seq
x y100 1
ack
,
34

35. The idempotent producer
pid = 100
seq = 1
Producer Partition (leader)
Topic: xxx
Kafka
Brokers
The log
pid = 100
seq = 1
key value
x yx y
pid seq
x y100 0Send(a, b)
key value
x ya b
pid seq
x y100 1
key value
x ya b
pid seq
x y100 1
,
35

36. The idempotent producer
Broker found duplicate (pid + seq)!
pid = 100
seq = 1
Producer Partition (leader)
Topic: xxx
Kafka
Brokers
The log
pid = 100
seq = 1
key value
x yx y
pid seq
x y100 0
ack - duplicate
key value
x ya b
pid seq
x y100 1
+ , -
B
,
+
36

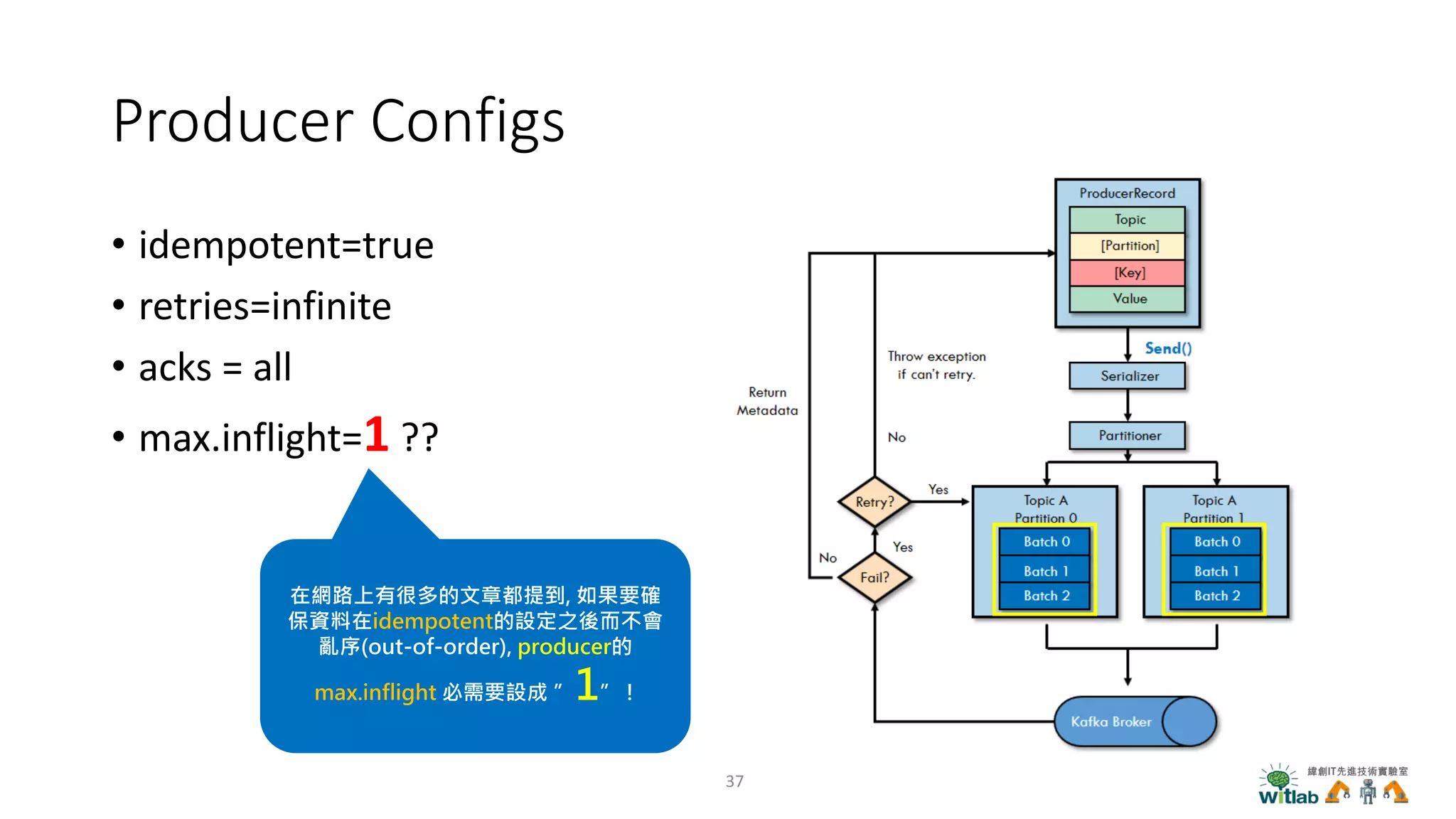

37. Producer Configs
• idempotent=true
• retries=infinite
• acks = all
• max.inflight=1 ??
-() 1 )
1 1 1 () ! 1( )
- .- ,
37

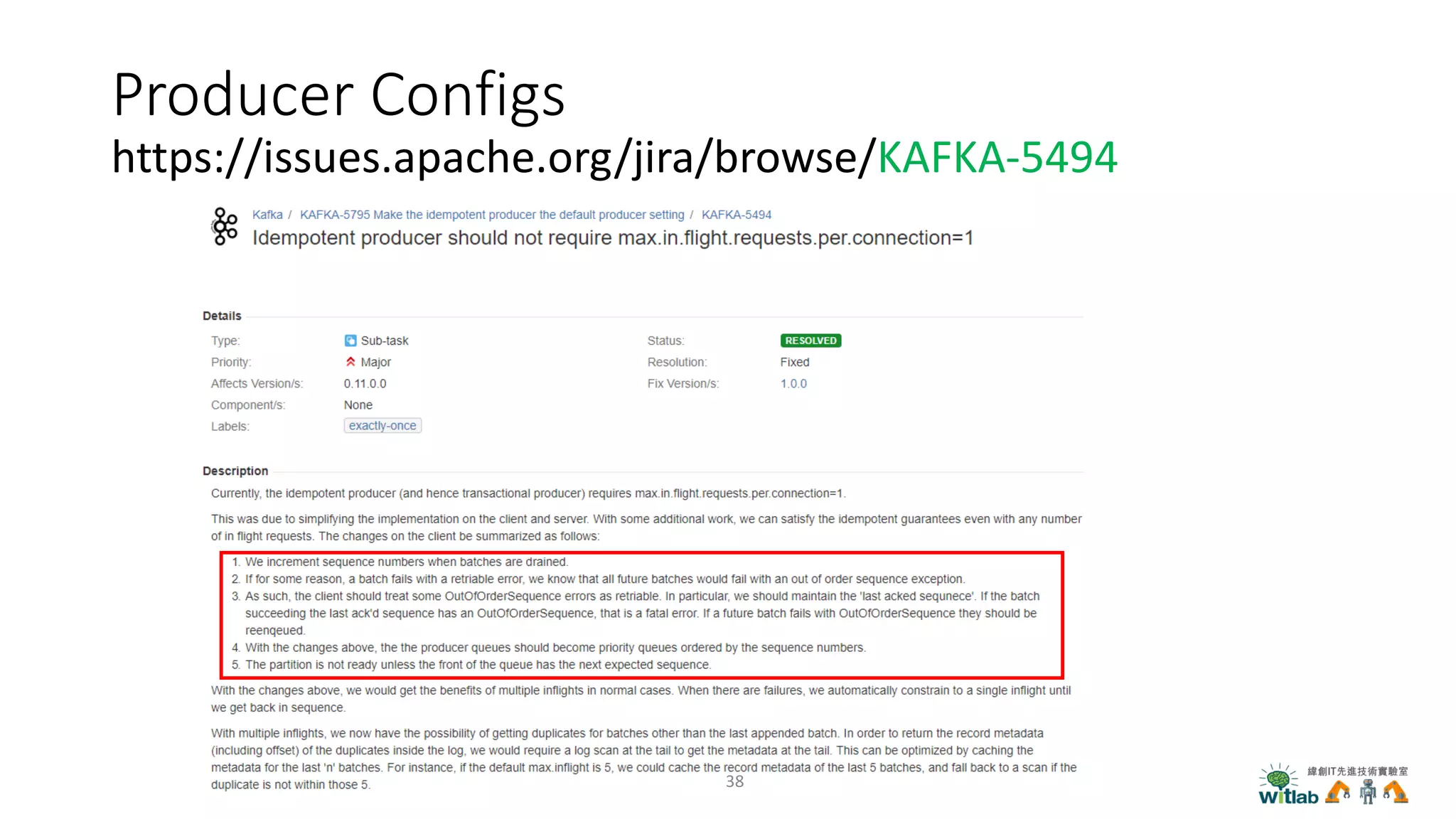

38. Producer Configs
https://issues.apache.org/jira/browse/KAFKA-5494
38

39. Producer Configs (Revised)
• idempotent=true
• retries=infinite
• acks = all
• max.inflight=3 (or whatever)
, E
) 0 1)
. -. )
K
39

40. 40
