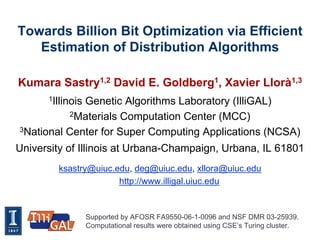

1. Towards Billion Bit Optimization via Efficient
Estimation of Distribution Algorithms
Kumara Sastry1,2 David E. Goldberg1, Xavier Llorà1,3
1Illinois
Genetic Algorithms Laboratory (IlliGAL)
2Materials Computation Center (MCC)
3National Center for Super Computing Applications (NCSA)
University of Illinois at Urbana-Champaign, Urbana, IL 61801
ksastry@uiuc.edu, deg@uiuc.edu, xllora@uiuc.edu
http://www.illigal.uiuc.edu
Supported by AFOSR FA9550-06-1-0096 and NSF DMR 03-25939.
Computational results were obtained using CSE’s Turing cluster.

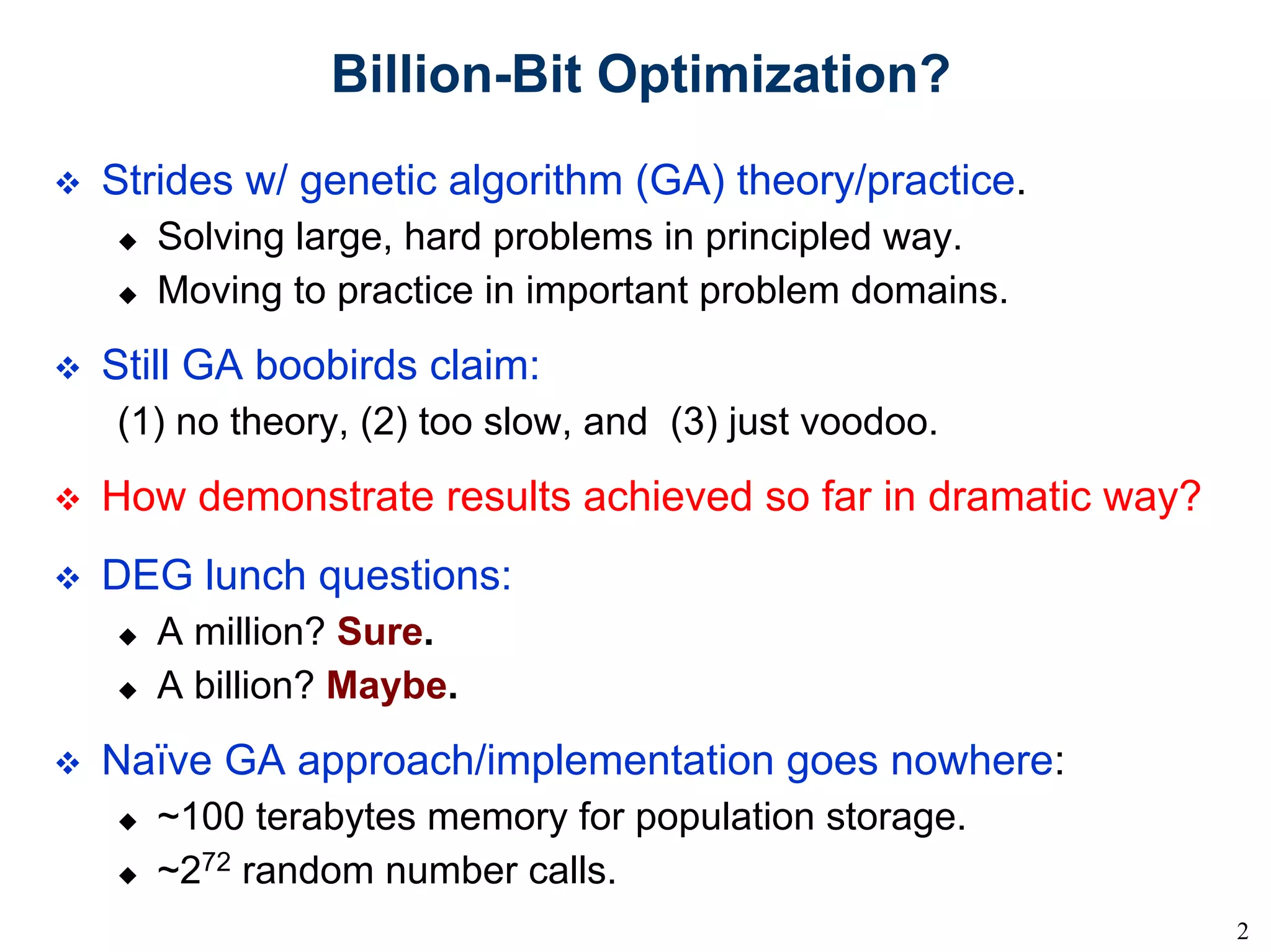

2. Billion-Bit Optimization?
Strides w/ genetic algorithm (GA) theory/practice.
Solving large, hard problems in principled way.
Moving to practice in important problem domains.
Still GA boobirds claim:
(1) no theory, (2) too slow, and (3) just voodoo.
How demonstrate results achieved so far in dramatic way?
DEG lunch questions:
A million? Sure.
A billion? Maybe.
Naïve GA approach/implementation goes nowhere:
~100 terabytes memory for population storage.
~272 random number calls.
2

3. Roadmap
Motivation
Robust, scalable, and efficient GA designs
Toward billion-variable optimization
Theory Keys
Implementation Keys
Efficiency Keys
Results
Why this matters in practice?
Challenges to using this in real-world.
Summary and Conclusions
3

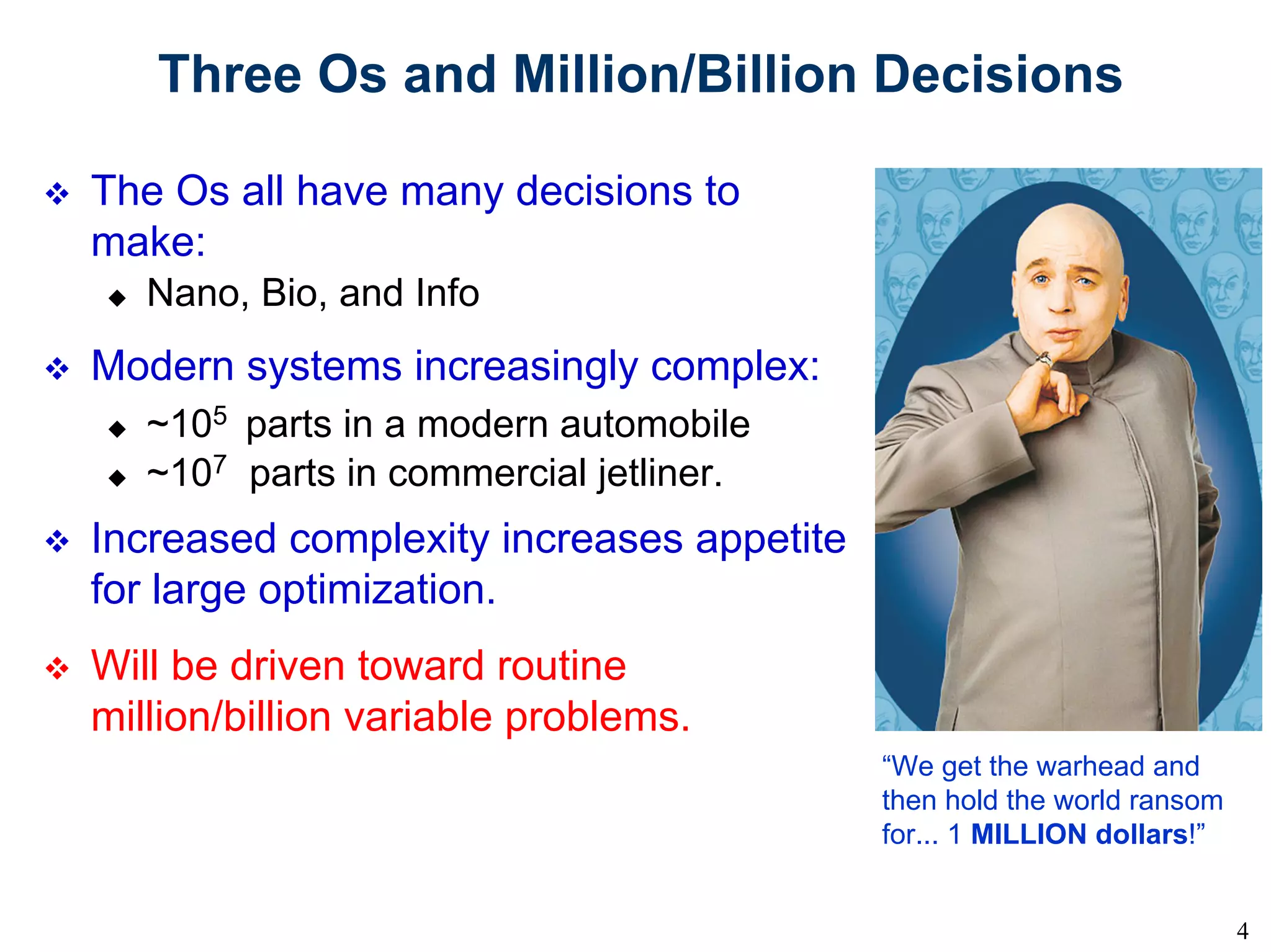

4. Three Os and Million/Billion Decisions
The Os all have many decisions to
make:
Nano, Bio, and Info
Modern systems increasingly complex:
~105 parts in a modern automobile
~107 parts in commercial jetliner.
Increased complexity increases appetite
for large optimization.
Will be driven toward routine
million/billion variable problems.
“We get the warhead and
then hold the world ransom
for... 1 MILLION dollars!”
4

5. Competent and Efficient GAs
Robust, scalable and efficient GA designs available.
Competence: Solve hard problems quickly, reliably, and
accurately (Intractable to tractable).
Efficiency: Develop speedup procedures (tractability to
practicality).
Principled design: [Goldberg, 2002]
Relax rigor, emphasize scalability/quality.
Use problem decomposition.
Use facetwise models, and patchquilt integration using
dimensional analysis.
Test algorithms on adversarial problems
5

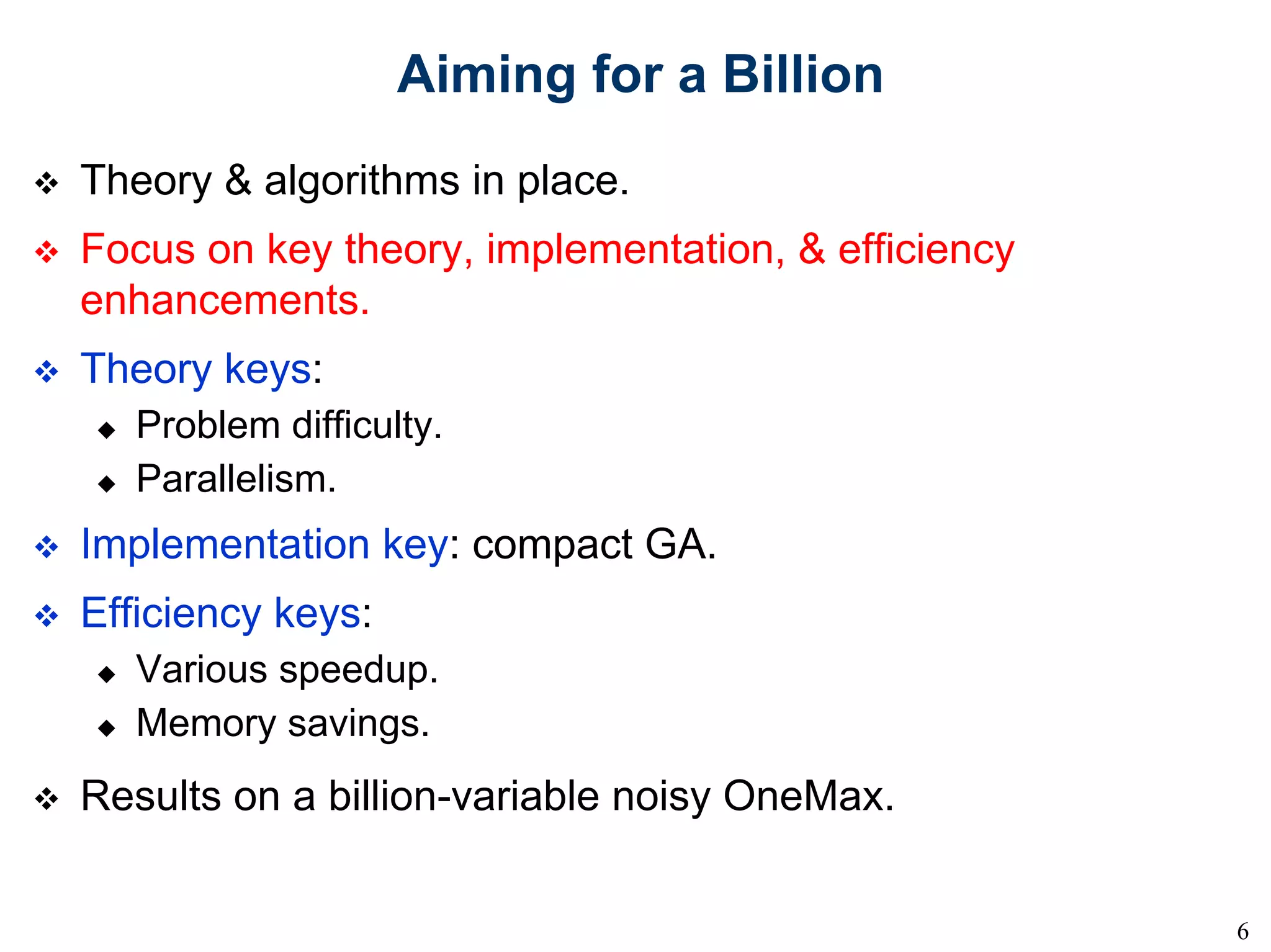

6. Aiming for a Billion
Theory & algorithms in place.
Focus on key theory, implementation, & efficiency
enhancements.
Theory keys:
Problem difficulty.
Parallelism.
Implementation key: compact GA.
Efficiency keys:
Various speedup.
Memory savings.
Results on a billion-variable noisy OneMax.
6

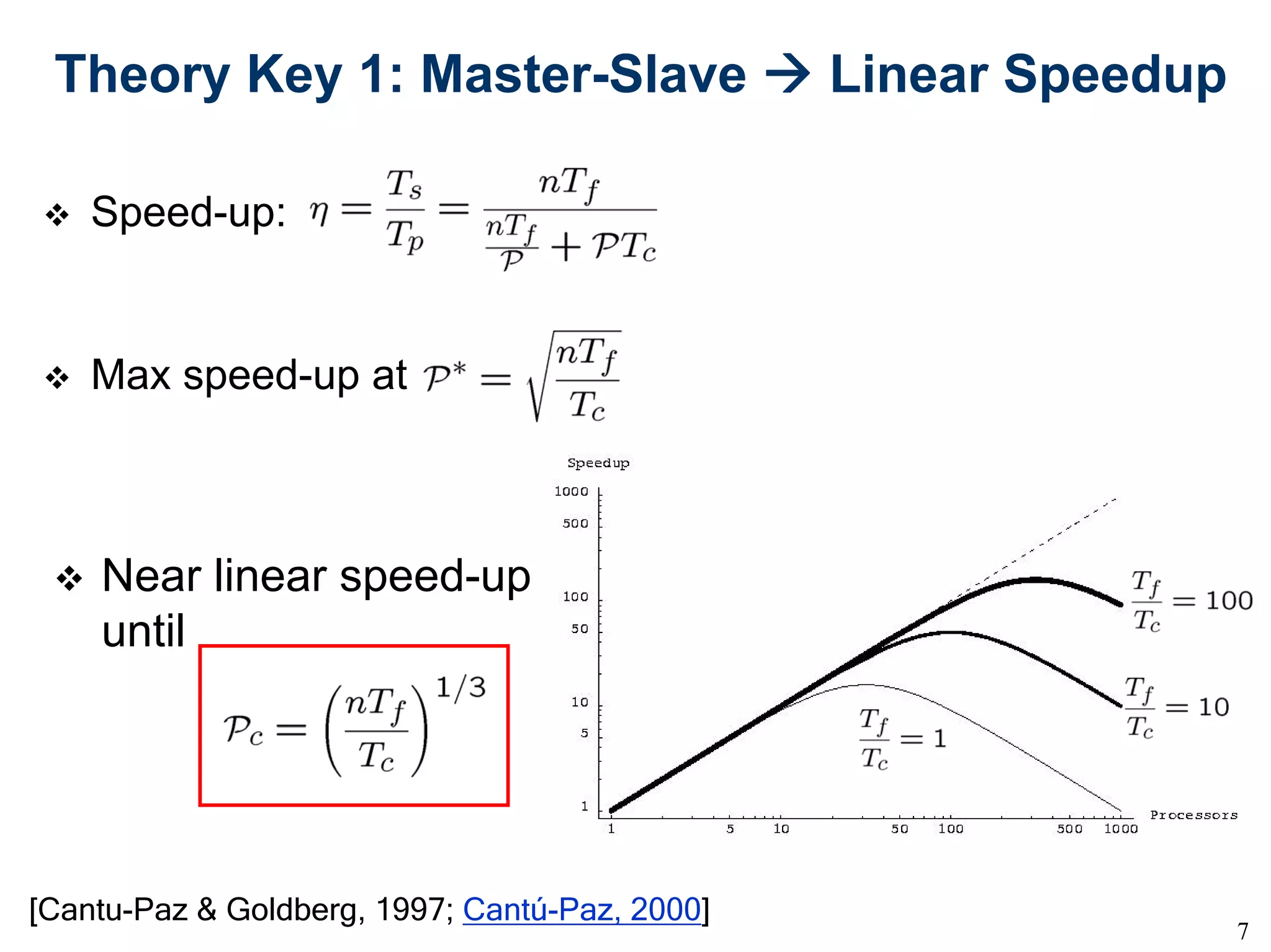

7. Theory Key 1: Master-Slave Linear Speedup
Speed-up:
Max speed-up at
Near linear speed-up
until
[Cantu-Paz & Goldberg, 1997; Cantú-Paz, 2000]
7

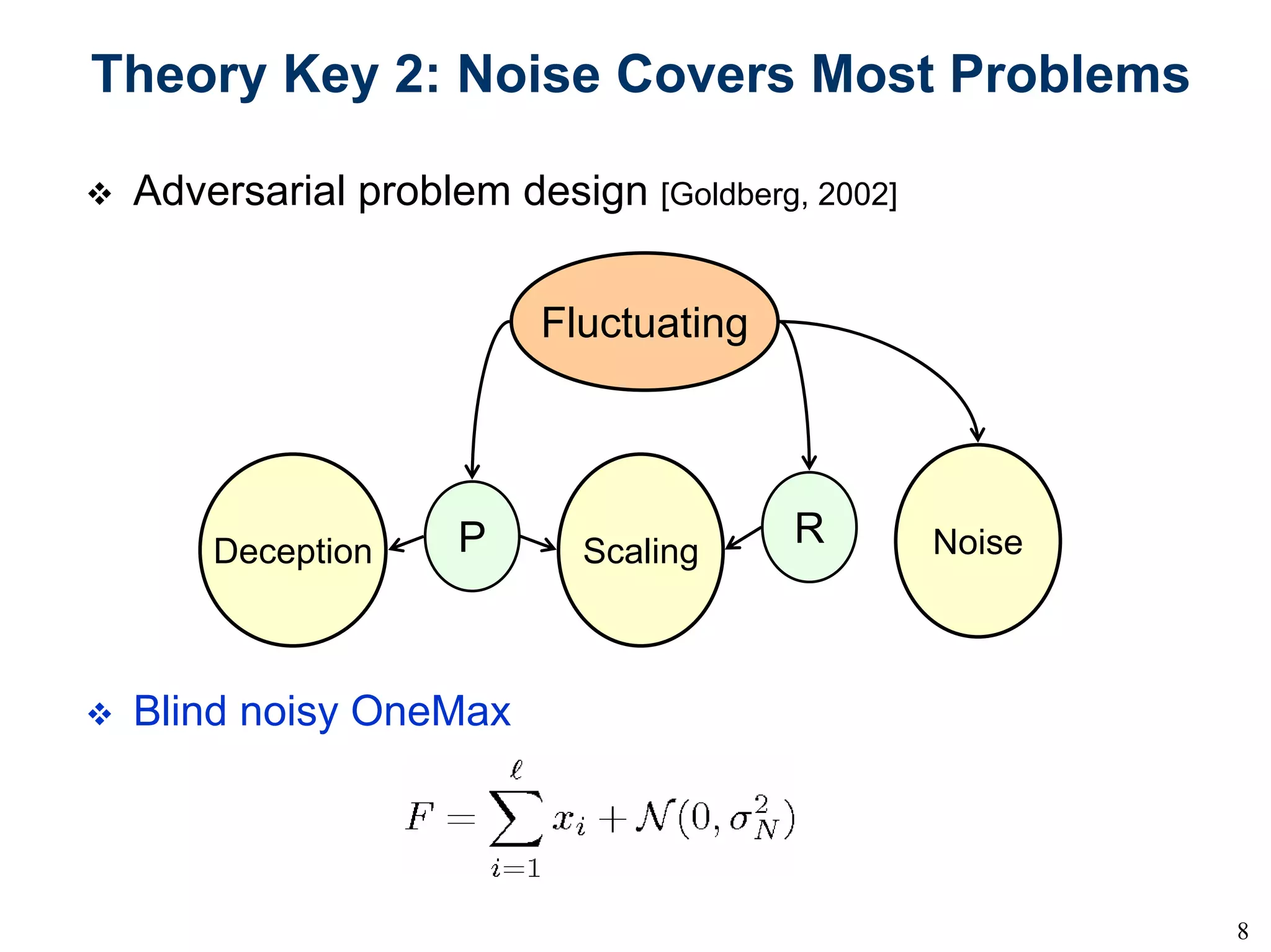

8. Theory Key 2: Noise Covers Most Problems
Adversarial problem design [Goldberg, 2002]
Fluctuating
R
P Noise
Deception Scaling
Blind noisy OneMax
8

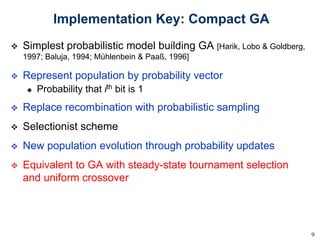

9. Implementation Key: Compact GA
Simplest probabilistic model building GA [Harik, Lobo & Goldberg,
1997; Baluja, 1994; Mühlenbein & Paaß, 1996]
Represent population by probability vector
Probability that ith bit is 1
Replace recombination with probabilistic sampling
Selectionist scheme
New population evolution through probability updates
Equivalent to GA with steady-state tournament selection
and uniform crossover
9

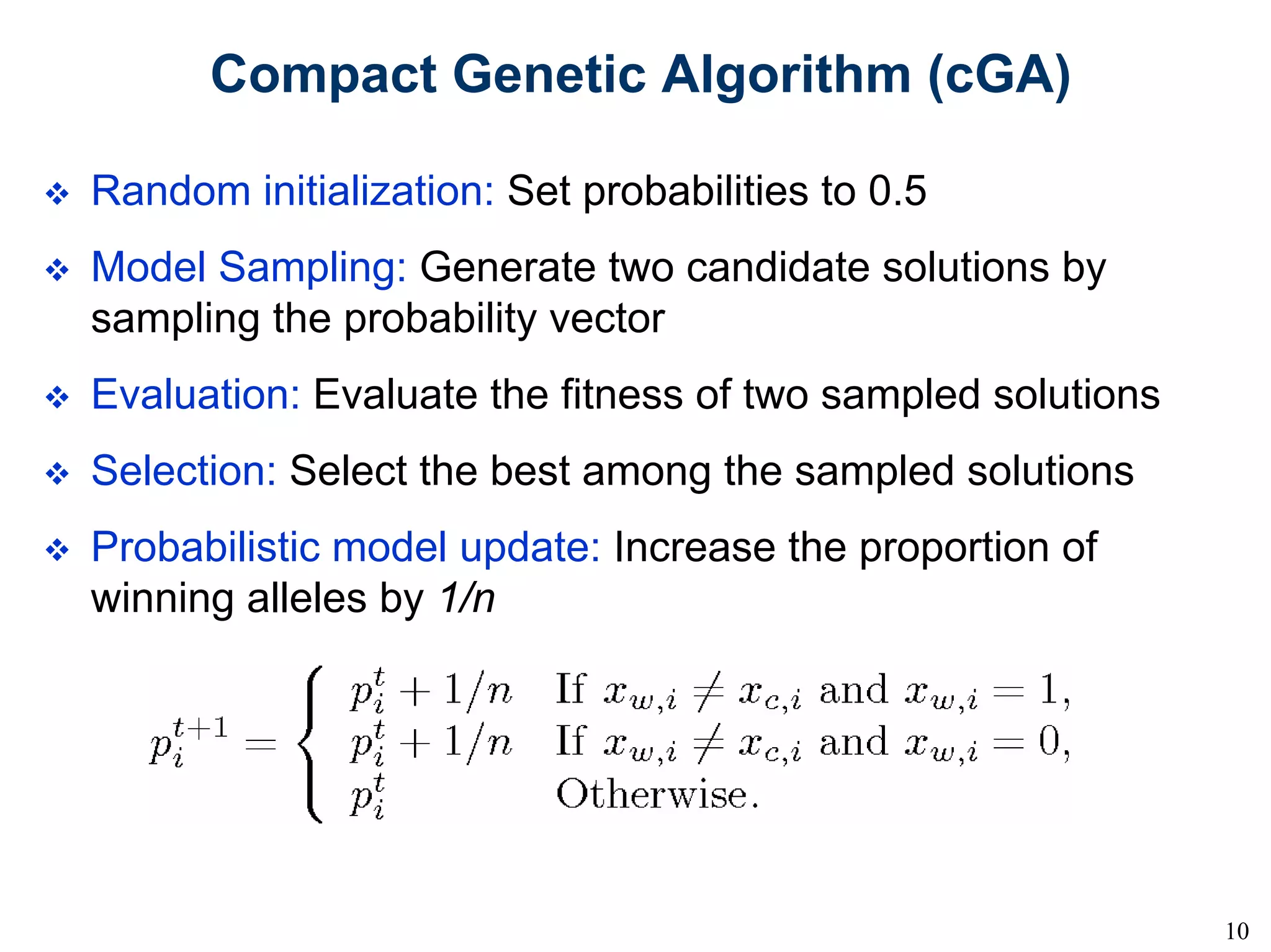

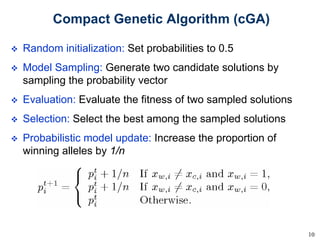

10. Compact Genetic Algorithm (cGA)
Random initialization: Set probabilities to 0.5
Model Sampling: Generate two candidate solutions by
sampling the probability vector
Evaluation: Evaluate the fitness of two sampled solutions
Selection: Select the best among the sampled solutions
Probabilistic model update: Increase the proportion of
winning alleles by 1/n
10

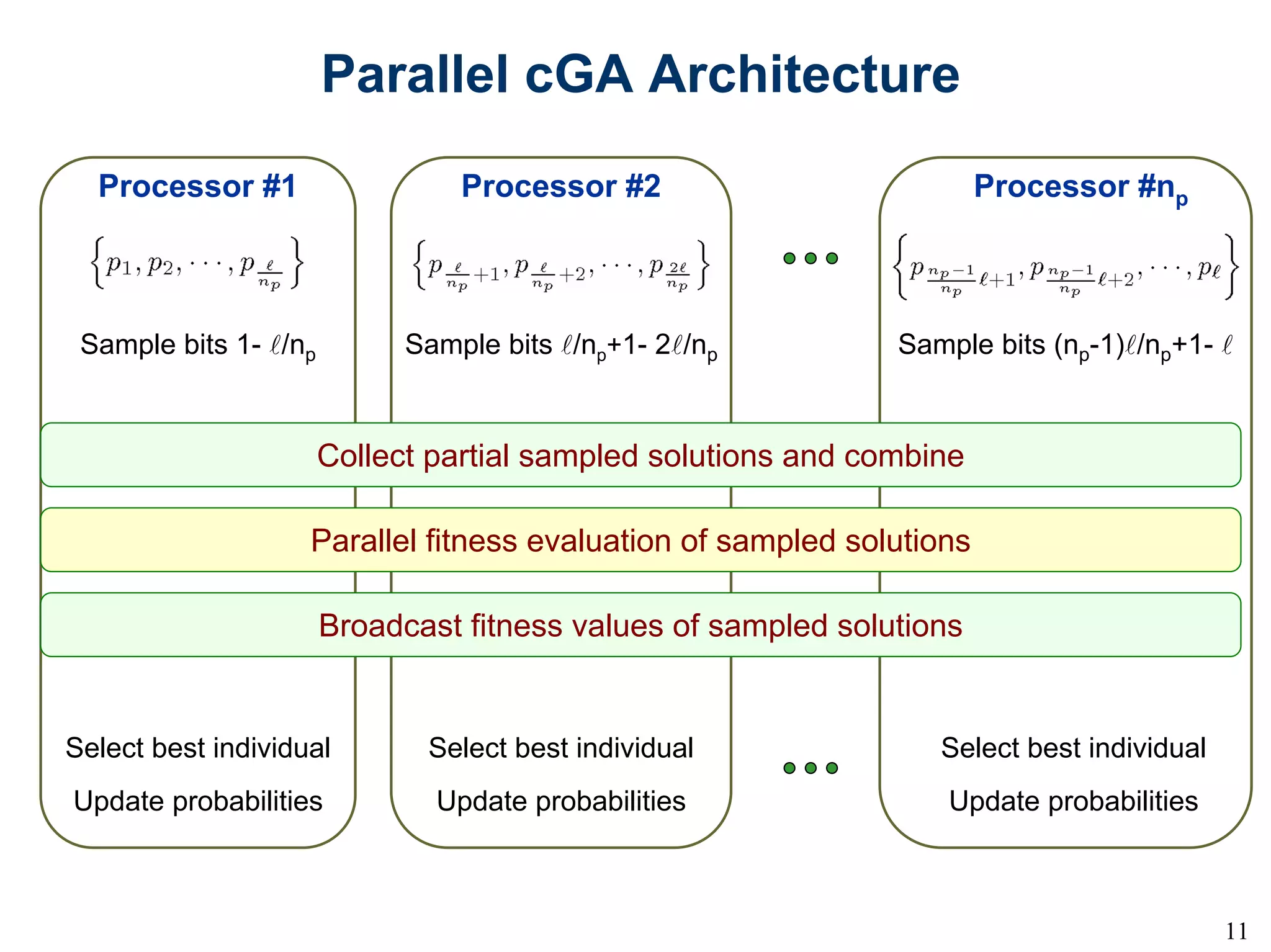

11. Parallel cGA Architecture
Processor #1 Processor #2 Processor #np
Sample bits 1- l/np Sample bits l/np+1- 2l/np Sample bits (np-1)l/np+1- l
Collect partial sampled solutions and combine
Parallel fitness evaluation of sampled solutions
Broadcast fitness values of sampled solutions
Select best individual Select best individual Select best individual
Update probabilities Update probabilities Update probabilities
11

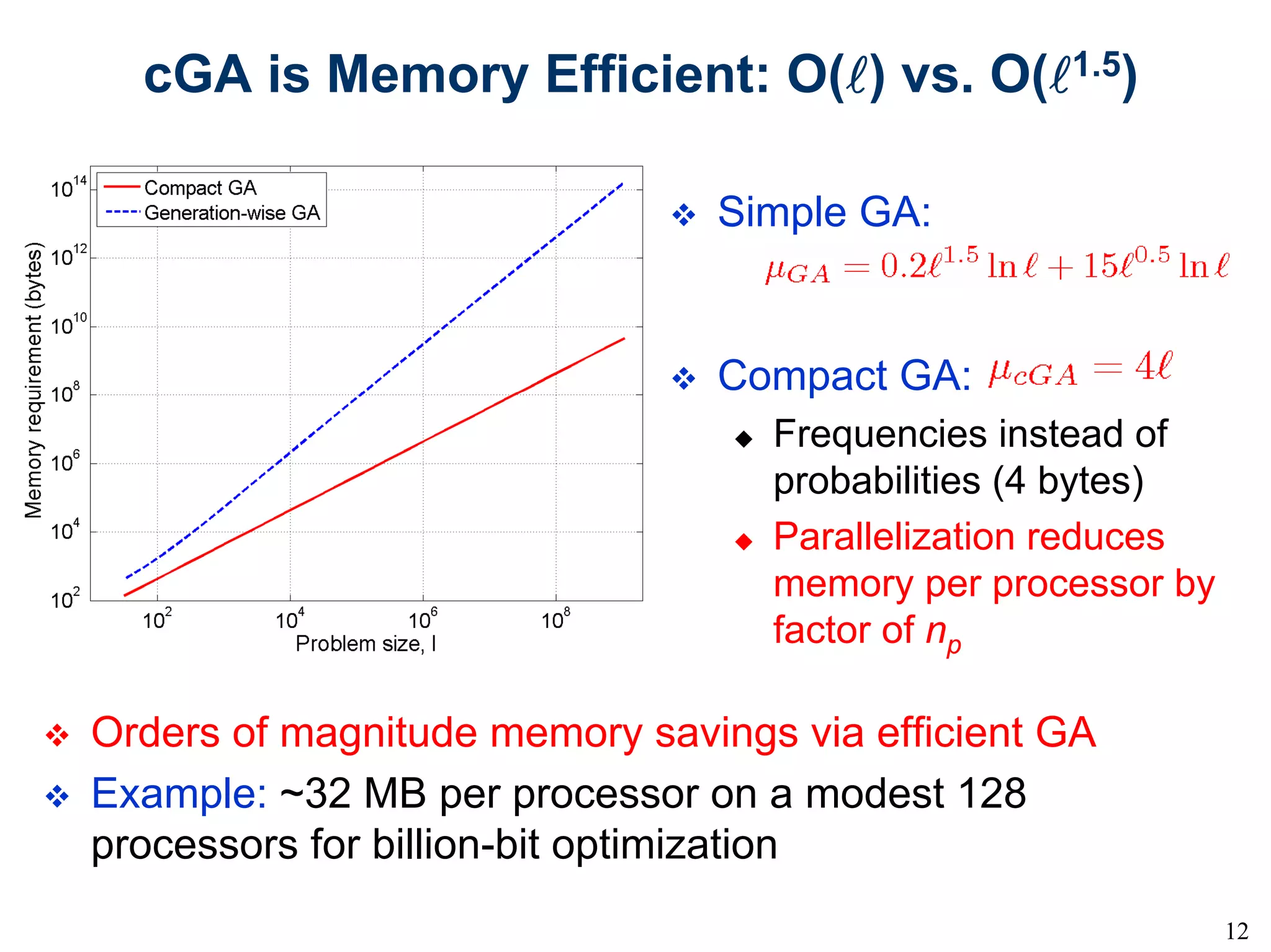

12. cGA is Memory Efficient: O(l) vs. O(l1.5)
Simple GA:
Compact GA:
Frequencies instead of
probabilities (4 bytes)
Parallelization reduces
memory per processor by
factor of np
Orders of magnitude memory savings via efficient GA
Example: ~32 MB per processor on a modest 128
processors for billion-bit optimization
12

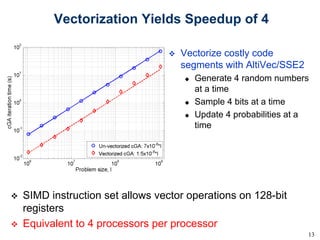

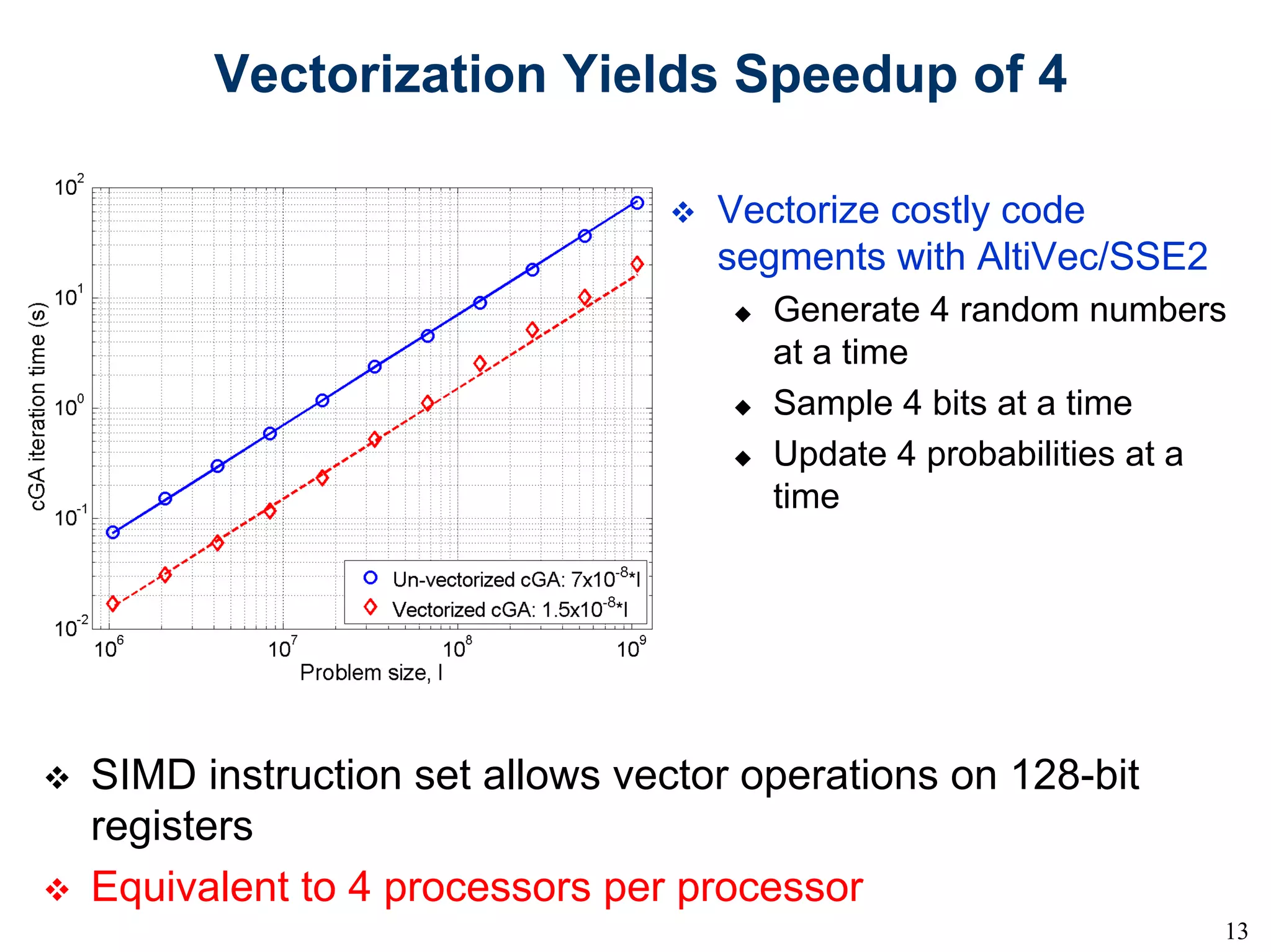

13. Vectorization Yields Speedup of 4
Vectorize costly code
segments with AltiVec/SSE2
Generate 4 random numbers
at a time
Sample 4 bits at a time
Update 4 probabilities at a
time
SIMD instruction set allows vector operations on 128-bit
registers
Equivalent to 4 processors per processor
13

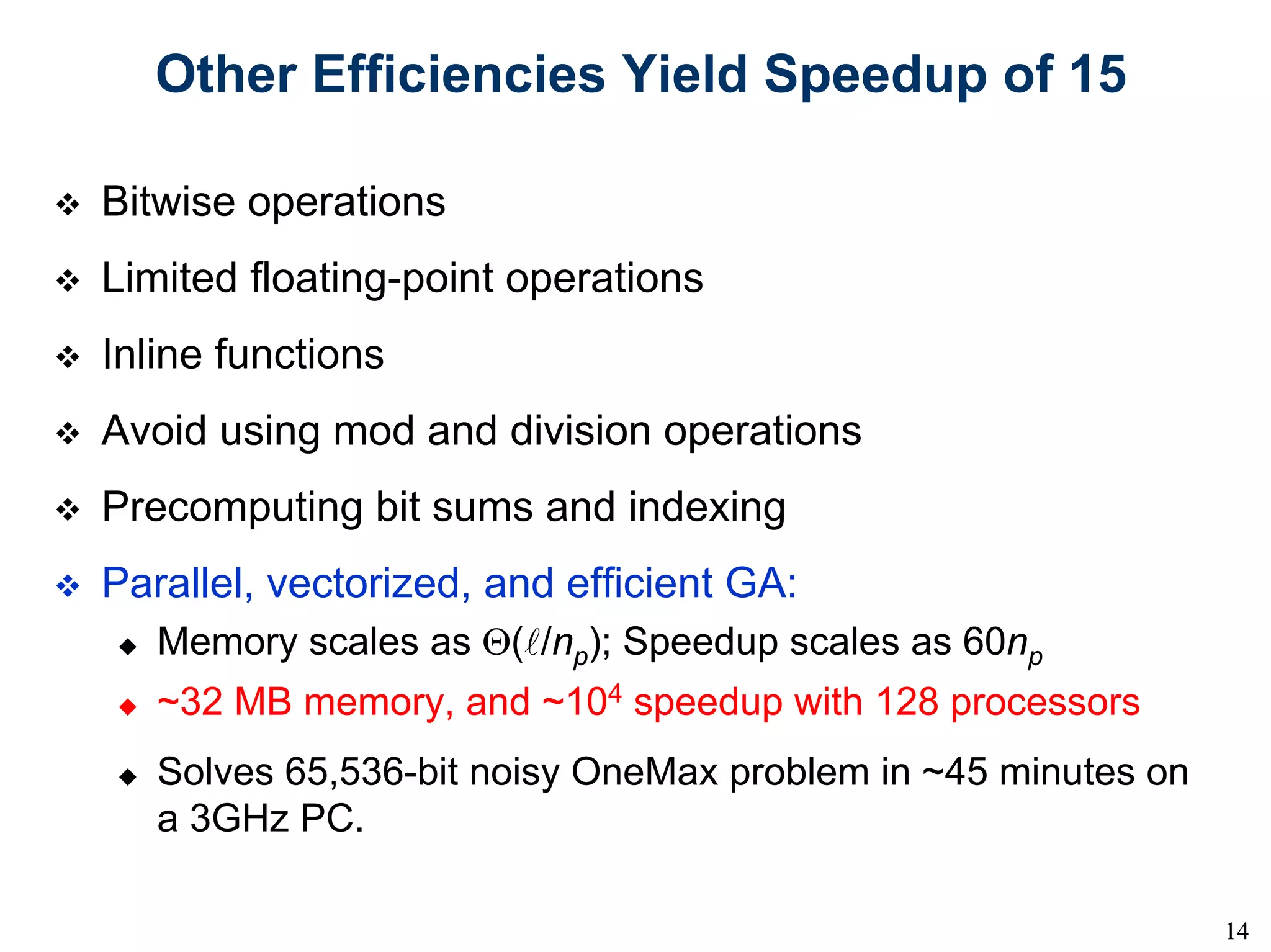

14. Other Efficiencies Yield Speedup of 15
Bitwise operations
Limited floating-point operations
Inline functions
Avoid using mod and division operations
Precomputing bit sums and indexing
Parallel, vectorized, and efficient GA:
Memory scales as Θ(l/np); Speedup scales as 60np
~32 MB memory, and ~104 speedup with 128 processors
Solves 65,536-bit noisy OneMax problem in ~45 minutes on
a 3GHz PC.
14

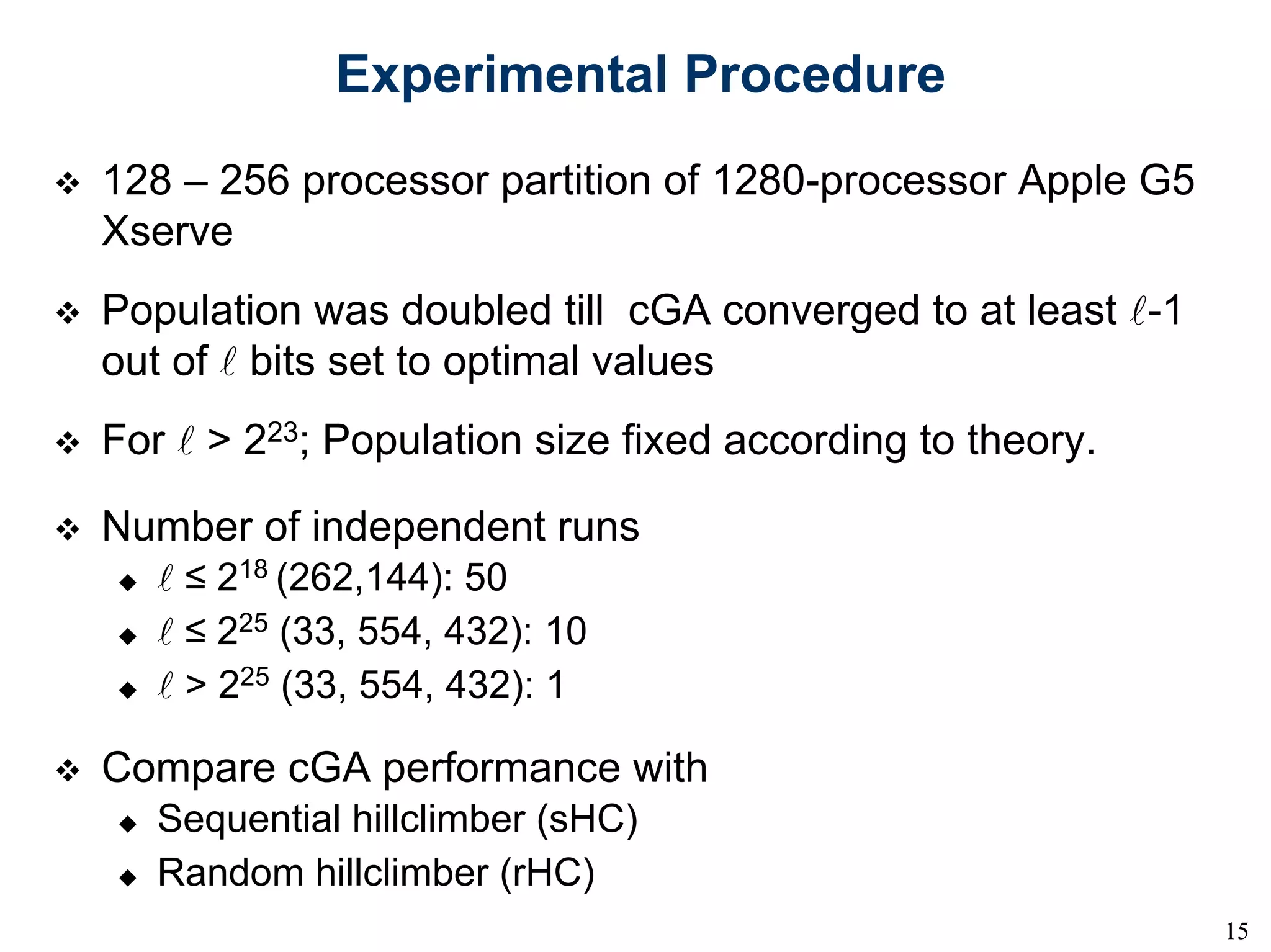

15. Experimental Procedure
128 – 256 processor partition of 1280-processor Apple G5
Xserve
Population was doubled till cGA converged to at least l-1
out of l bits set to optimal values
For l > 223; Population size fixed according to theory.
Number of independent runs
l ≤ 218 (262,144): 50
l ≤ 225 (33, 554, 432): 10
l > 225 (33, 554, 432): 1
Compare cGA performance with
Sequential hillclimber (sHC)
Random hillclimber (rHC)
15

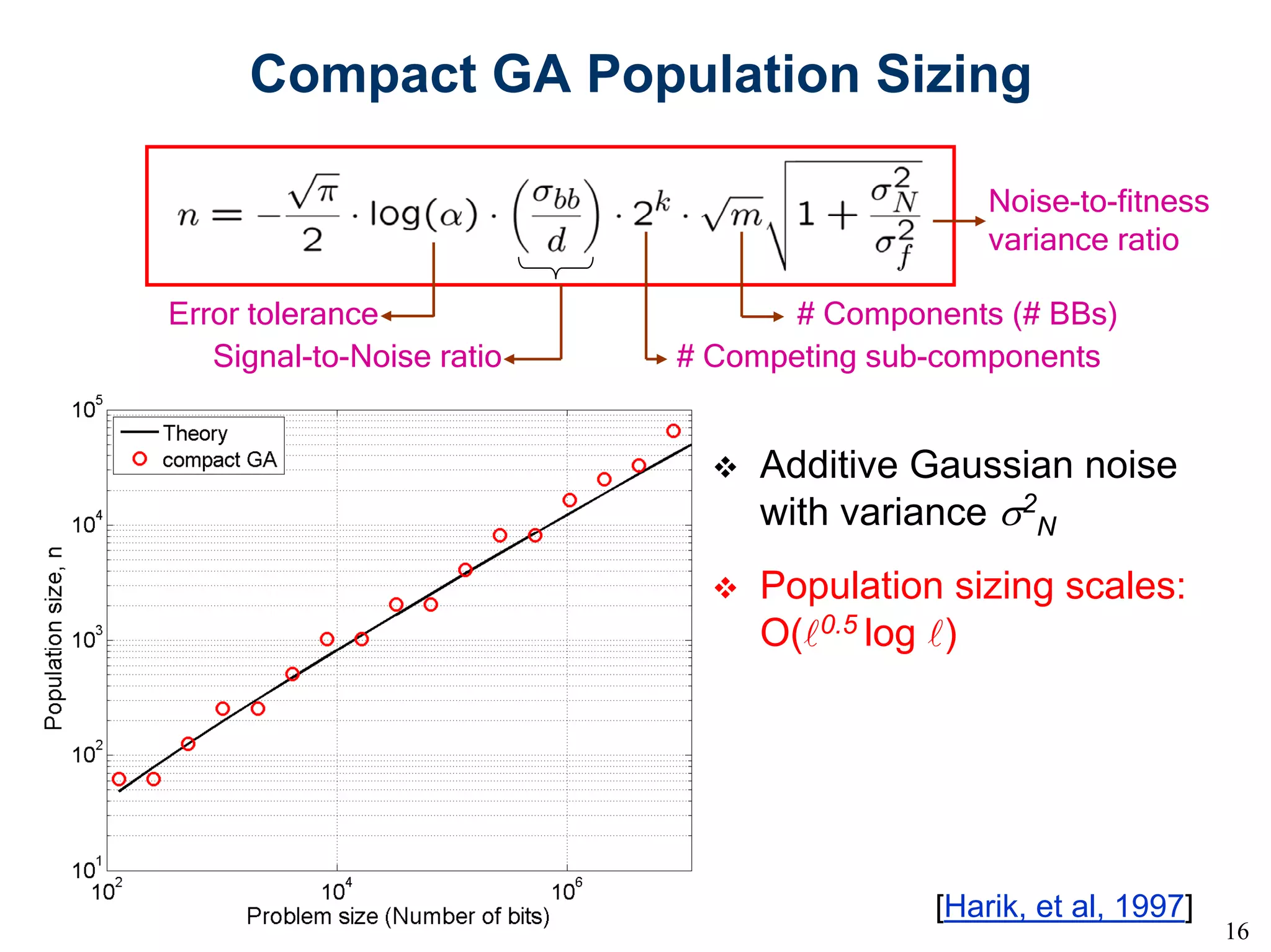

16. Compact GA Population Sizing
Noise-to-fitness
variance ratio
Error tolerance # Components (# BBs)
Signal-to-Noise ratio # Competing sub-components
Additive Gaussian noise
with variance σ2N
Population sizing scales:
O(l0.5 log l)
[Harik, et al, 1997]
16

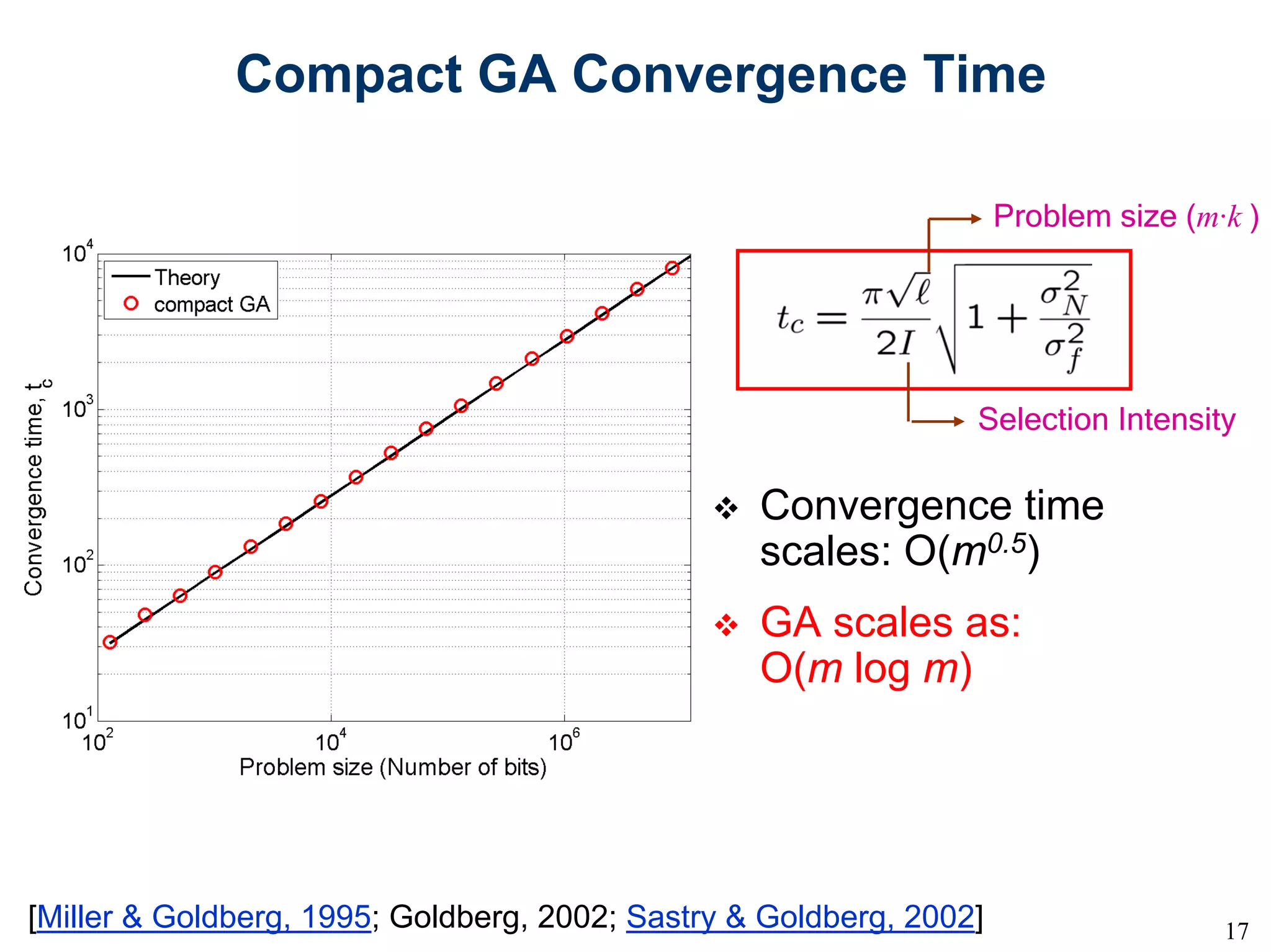

17. Compact GA Convergence Time
Problem size (m·k )
Selection Intensity
Convergence time
scales: O(m0.5)
GA scales as:
O(m log m)
[Miller & Goldberg, 1995; Goldberg, 2002; Sastry & Goldberg, 2002] 17

18. Scalability on OneMax
18

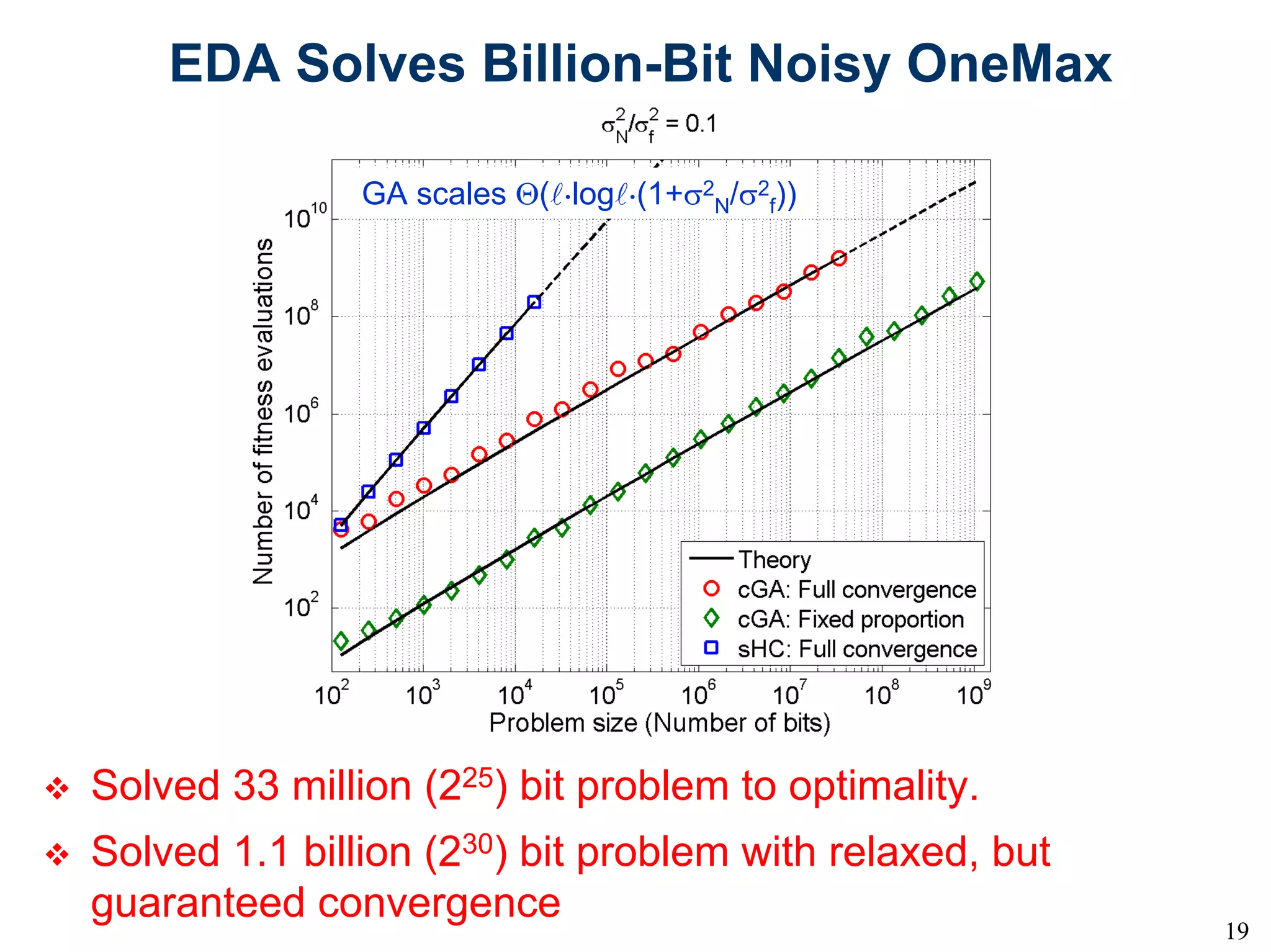

19. EDA Solves Billion-Bit Noisy OneMax
GA scales Θ(l·logl·(1+σ2N/σ2f))
Solved 33 million (225) bit problem to optimality.
Solved 1.1 billion (230) bit problem with relaxed, but
guaranteed convergence
19

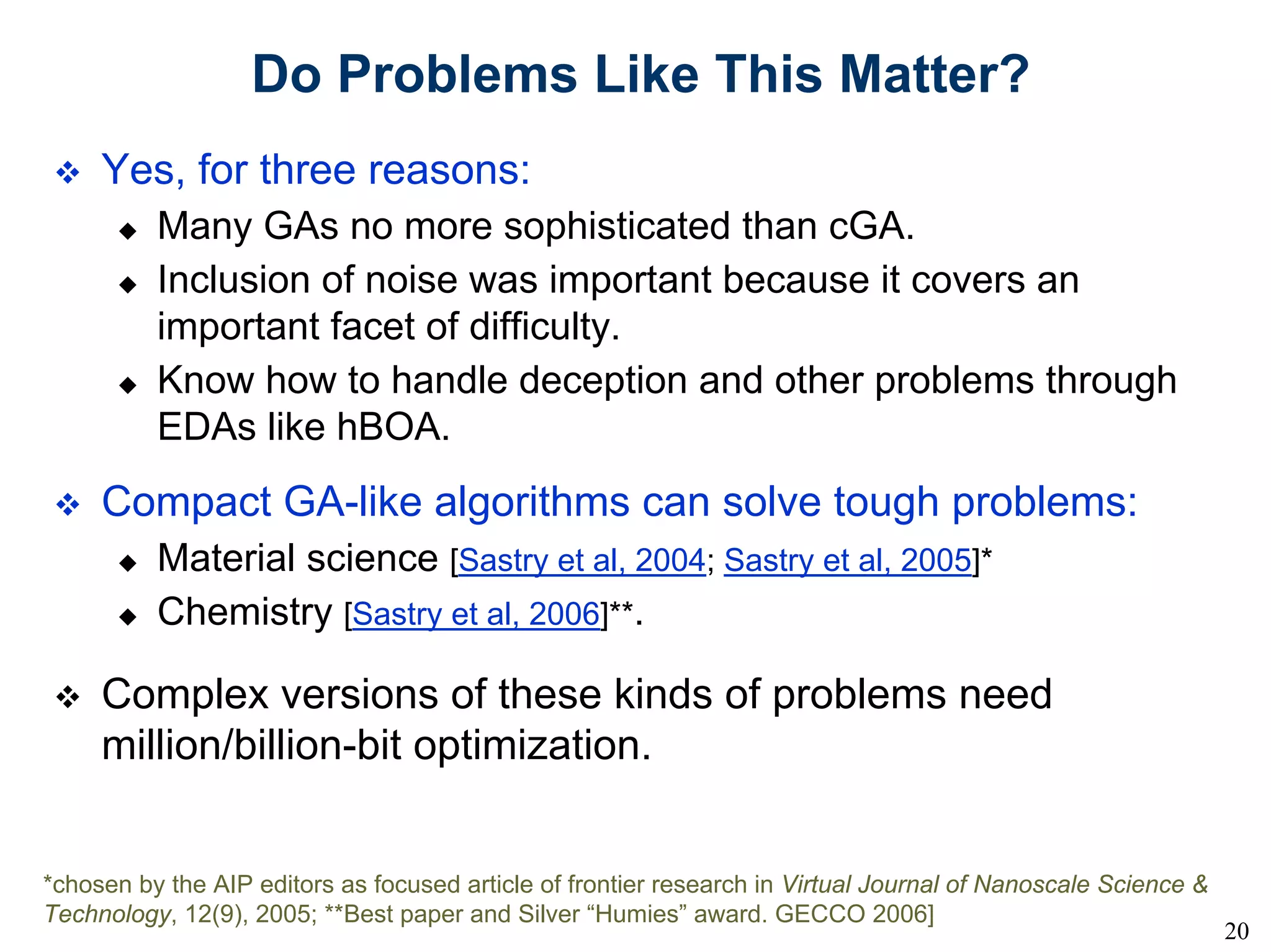

20. Do Problems Like This Matter?
Yes, for three reasons:
Many GAs no more sophisticated than cGA.
Inclusion of noise was important because it covers an
important facet of difficulty.
Know how to handle deception and other problems through
EDAs like hBOA.
Compact GA-like algorithms can solve tough problems:
Material science [Sastry et al, 2004; Sastry et al, 2005]*
Chemistry [Sastry et al, 2006]**.
Complex versions of these kinds of problems need
million/billion-bit optimization.
*chosen by the AIP editors as focused article of frontier research in Virtual Journal of Nanoscale Science &
Technology, 12(9), 2005; **Best paper and Silver “Humies” award. GECCO 2006]
20

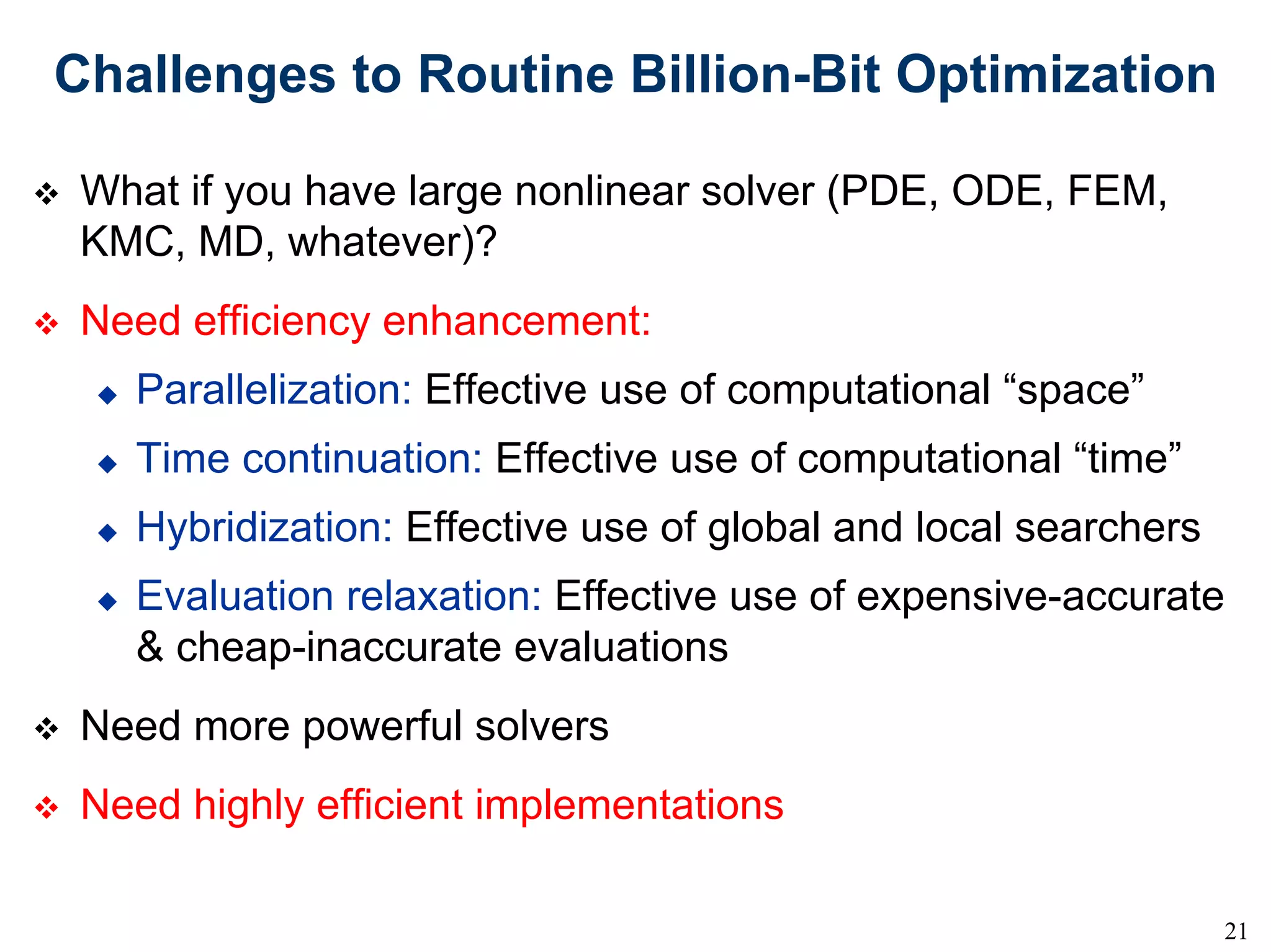

21. Challenges to Routine Billion-Bit Optimization
What if you have large nonlinear solver (PDE, ODE, FEM,
KMC, MD, whatever)?
Need efficiency enhancement:
Parallelization: Effective use of computational “space”
Time continuation: Effective use of computational “time”
Hybridization: Effective use of global and local searchers
Evaluation relaxation: Effective use of expensive-accurate
& cheap-inaccurate evaluations
Need more powerful solvers
Need highly efficient implementations
21

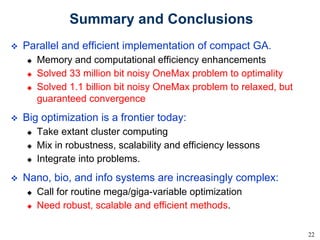

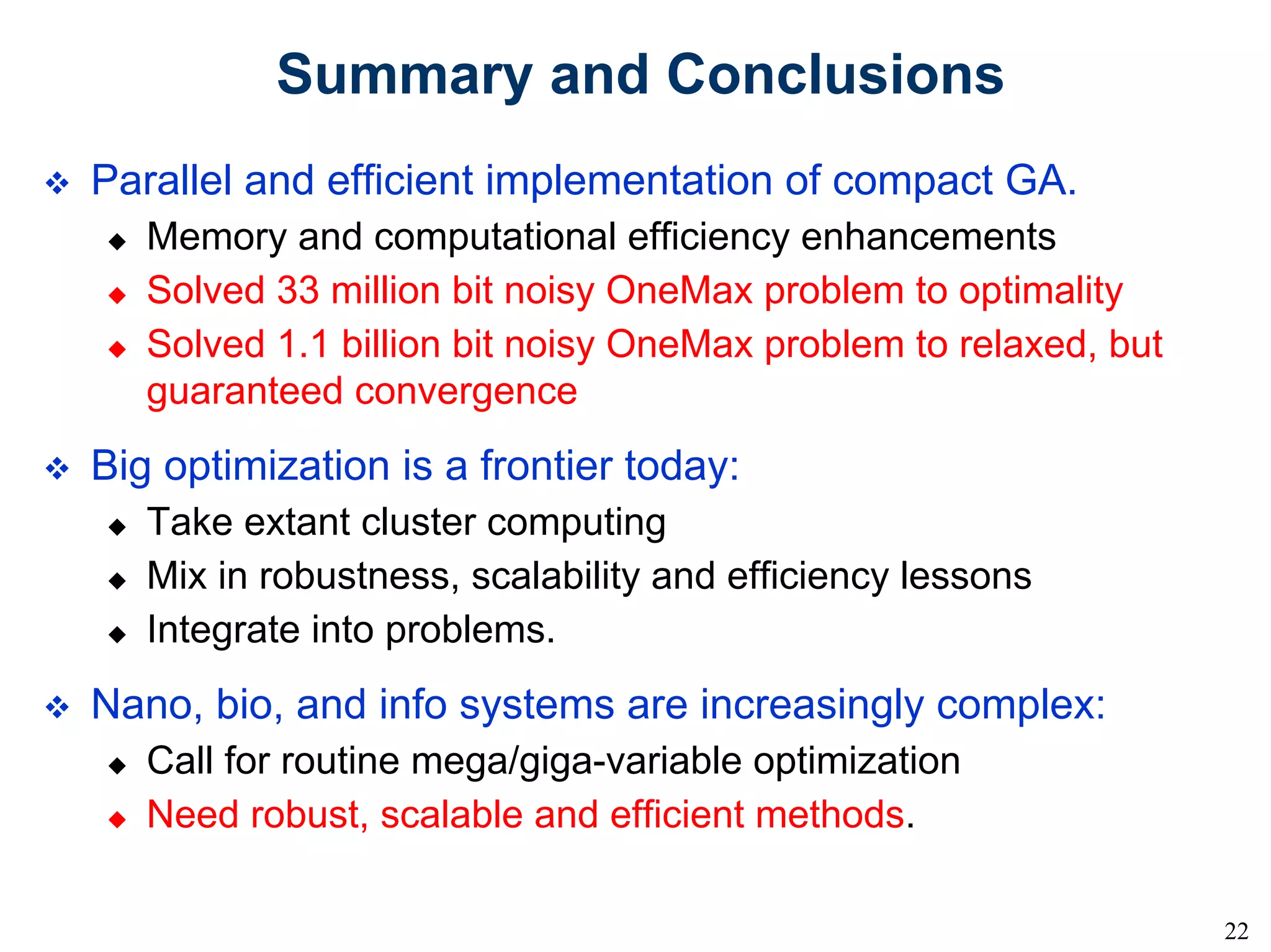

22. Summary and Conclusions
Parallel and efficient implementation of compact GA.
Memory and computational efficiency enhancements
Solved 33 million bit noisy OneMax problem to optimality
Solved 1.1 billion bit noisy OneMax problem to relaxed, but
guaranteed convergence
Big optimization is a frontier today:
Take extant cluster computing
Mix in robustness, scalability and efficiency lessons
Integrate into problems.
Nano, bio, and info systems are increasingly complex:
Call for routine mega/giga-variable optimization
Need robust, scalable and efficient methods.
22
