This paper presents a population-sizing model for the entropy-based model building in genetic algorithms. Specifically, the population size required for building an accurate model is investigated. The effect of the selection pressure on population sizing is also incorporated. The proposed model indicates that the population size required for building an accurate model scales as Θ(m log m), where m is the number of substructures and proportional to the problem size. Experiments are conducted to verify the derivations, and the results agree with the proposed model.

1. Population Sizing for Entropy-based Model
Building in Genetic Algorithms
T.-L. Yu1, K. Sastry2, D. E. Goldberg2, & M. Pelikan3
1Department of Electrical Engineering
National Taiwan University, Taiwan
2Illinois
Genetic Algorithms Laboratory
University of Illinois at Urbana-Champaign, IL, USA
3Missouri Estimation of Distribution Algorithms Laboratory
University of Missouri at St. Louis, MO, USA
Supported by AFOSR FA9550-06-1-0096, NSF DMR 03-25939, and CAREER ECS-0547013.

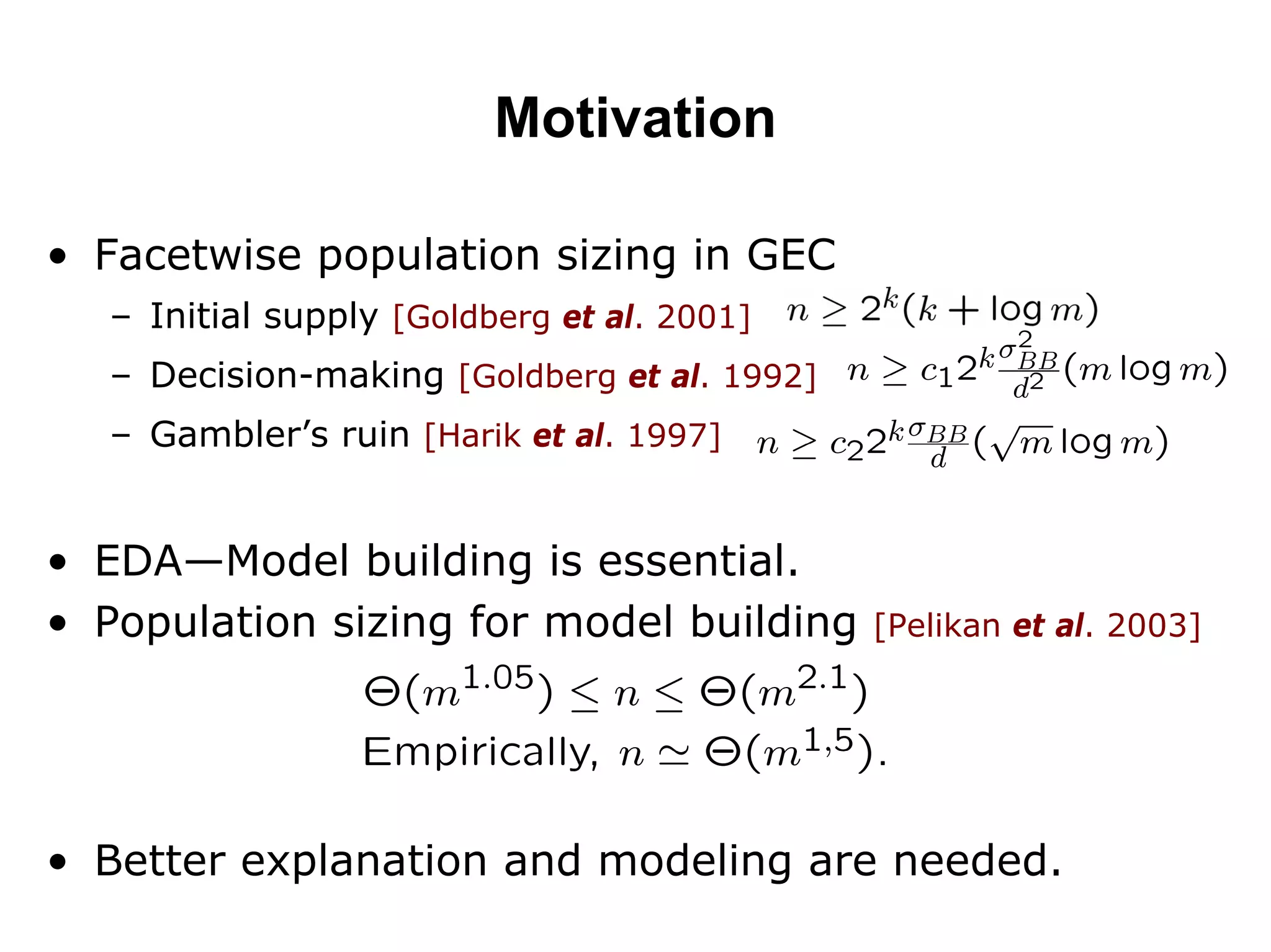

2. Motivation
• Facetwise population sizing in GEC
– Initial supply [Goldberg et al. 2001]
– Decision-making [Goldberg et al. 1992]
– Gambler’s ruin [Harik et al. 1997]
• EDA—Model building is essential.
• Population sizing for model building [Pelikan et al. 2003]
• Better explanation and modeling are needed.

3. Roadmap
• Entropy-based model building
• Mutual information
• The effect of selection
• Distribution of mutual information under limited
sampling
• Building an accurate model
• The effect of selection pressure
• Conclusion

4. Entropy-based model building &
Mutual information
• Entropy: measurement of uncertainty.
• Loss of entropy Gain in certainty Mutual
information
• Bivariate: MIMIC, BMDA
• Multivariate: eCGA, BOA, EBNA, DSMGA
• Most multivariate model building start from
bivariate dependency detection.

5. Mutual information
• Definition
• Some facts:
–
–

6. Base: Bipolar Royal Road
• Additively separable bipolar Royal road
u
0 k
• Given the minimal signal , the most difficult
for model building.
• Analytical simplicity, no gene-wise bias.

7. The effect of selection
• 00******** and 11******** increase:
• 10******** and 01******** decrease:
• Define
–
–
•

8. Growth of schemata and M.I.
•
•
• Growth in mutual information

9. Limited sampling
• In GAs, finite population limited sampling
• Define two random variables:
– :Signal of mutual information between two
independent genes under n random samples.
– :Signal of mutual information between two
dependent genes under n random samples.
• Ideally:

10. Distribution of mutual information
[Hutter and Zaffalon, 2004]
•
•

11. Empirical verification

12. Building an accurate model
• Define
• Decision error
• Building an accurate model
• Finally

13. Verification of O(22k)
DSMGA, m=10

14. Verification of O(mlogm)
eCGA DSMGA

15. Effect of selection pressure
• Quantitative, order statistics
• Qualitative, consider truncation selection
• Higher s
– More growth of Hopt
– Fewer number of effective samples

16. Empirical results on selection pressure
Future work: Empirically, larger k larger s*

17. Summary and Conclusions
• Refine the required population sizing for model
building
– From
– To
• Correct to
• Preliminarily incorporate selection pressure into
population-sizing model.
– Qualitatively show the existence of s*
