The document discusses the role of NAG in high-performance computing (HPC) for finance, highlighting its numerical libraries and consulting services that support quantitative analysts. It emphasizes the importance of reliable algorithms for tasks like Monte Carlo simulations, calibrations, and risk management, while also exploring the advantages of using accelerators like NVIDIA and Intel Xeon Phi. NAG aims to collaborate with financial institutions to improve model building and computation efficiency amidst growing computational demands in the finance sector.

1. Experts in numerical algorithms
and HPC services
NAG for HPC Finance
John Holden
john.holden@nag.co.uk
14th July 2015
The good, bad and ugly of
accelerators in finance
and an alternative a
complementary path

2. 2
 NAG Introduction
 NAG for HPC Finance
 Why Quants Love NAG
 Accelerators
 NVIDIA
 Intel Xeon-Phi
 Algorithmic Differentiation
 Summary

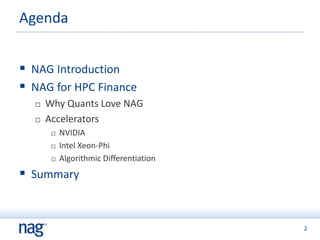

Agenda

3. 3

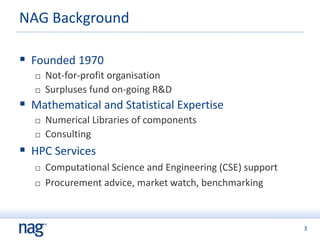

 Founded 1970
 Not-for-profit organisation
 Surpluses fund on-going R&D
 Mathematical and Statistical Expertise
 Numerical Libraries of components
 Consulting
 HPC Services
 Computational Science and Engineering (CSE) support
 Procurement advice, market watch, benchmarking
NAG Background

4. 4
HPC Services
 Government, Academic
and Commercial
 Full CSE service
 Code porting, tuning,
scaling, rewriting…
 Training
 1-20 FTEs per annum
 Procurement
advice/benchmarking
ARM

5. 5
Financial Services
 Many clients in FSI
 Most Tier 1 Banks have
licences
 > 60% have global
licences
 Typically the NAG
Library is embedded in
the banks own “quant”
libraries (C++, . NET,
Java, Python,…)

6. 6
 NAG Introduction
 NAG for HPC Finance
 Why Quants Love NAG
 Accelerators
 NVIDIA
 Intel Xeon-Phi
 Algorithmic Differentiation
 Summary
Agenda

7. 7

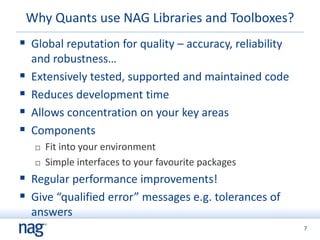

Why Quants use NAG Libraries and Toolboxes?
 Global reputation for quality – accuracy, reliability
and robustness…
 Extensively tested, supported and maintained code
 Reduces development time
 Allows concentration on your key areas
 Components
 Fit into your environment
 Simple interfaces to your favourite packages
 Regular performance improvements!
 Give “qualified error” messages e.g. tolerances of
answers

8. 8

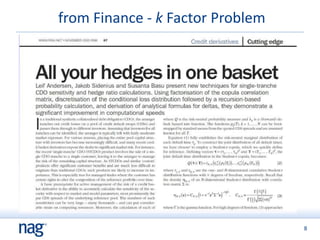

from Finance - k Factor Problem

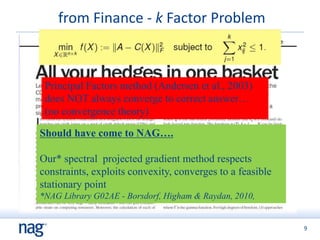

9. 9
from Finance - k Factor Problem
Principal Factors method (Andersen et al., 2003)
does NOT always converge to correct answer…
(no convergence theory)
Should have come to NAG….
Our* spectral projected gradient method respects
constraints, exploits convexity, converges to a feasible
stationary point
*NAG Library G02AE - Borsdorf, Higham & Raydan, 2010,

10. 10
NAG Library and Toolbox Contents
 Root Finding
 Summation of Series
 Quadrature
 Ordinary Differential
Equations
 Partial Differential Equations
 Numerical Differentiation
 Integral Equations
 Mesh Generation
 Interpolation
 Curve and Surface Fitting
 Optimization
 Approximations of Special
Functions
 Dense Linear Algebra
 Sparse Linear Algebra
 Correlation & Regression
Analysis
 Multivariate Methods
 Analysis of Variance
 Random Number Generators
 Univariate Estimation
 Nonparametric Statistics
 Smoothing in Statistics
 Contingency Table Analysis
 Survival Analysis
 Time Series Analysis
 Operations Research

11. 11

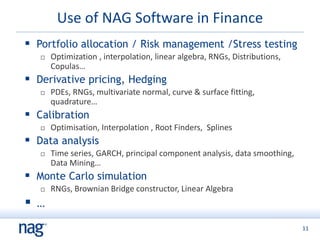

Use of NAG Software in Finance
 Portfolio allocation / Risk management /Stress testing
 Optimization , interpolation, linear algebra, RNGs, Distributions,
Copulas…
 Derivative pricing, Hedging
 PDEs, RNGs, multivariate normal, curve & surface fitting,
quadrature…
 Calibration
 Optimisation, Interpolation , Root Finders, Splines
 Data analysis
 Time series, GARCH, principal component analysis, data smoothing,
Data Mining…
 Monte Carlo simulation
 RNGs, Brownian Bridge constructor, Linear Algebra
 …

12. 12
Why Quantitative Analysts Love NAG?
 General Problem
 To build asset models and risk engines in a timely manner
that are
 Robust
 Stable
 Quick
 Solution
 Use robust, well tested, fast numerical components
 This allows the “expensive” experts to concentrate on the
modelling and interpretation
 avoiding distraction with low level numerical components

13. 13

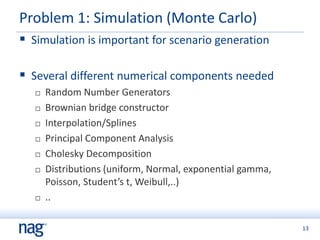

Problem 1: Simulation (Monte Carlo)
 Simulation is important for scenario generation
 Several different numerical components needed
 Random Number Generators
 Brownian bridge constructor
 Interpolation/Splines
 Principal Component Analysis
 Cholesky Decomposition
 Distributions (uniform, Normal, exponential gamma,
Poisson, Student’s t, Weibull,..)
 ..

14. 14

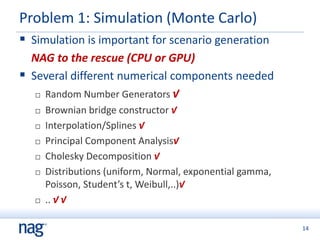

Problem 1: Simulation (Monte Carlo)
 Simulation is important for scenario generation
NAG to the rescue (CPU or GPU)
 Several different numerical components needed
 Random Number Generators √
 Brownian bridge constructor √
 Interpolation/Splines √
 Principal Component Analysis√
 Cholesky Decomposition √
 Distributions (uniform, Normal, exponential gamma,
Poisson, Student’s t, Weibull,..)√
 .. √ √

15. 15
Problem 2: Calibration
 Financial institutions all need to calibrate their
models
 Several different numerical components needed
 Optimisation functions (e.g. constrained non-linear
optimisers)
 Interpolation functions (used intelligently*)
 Spline functions
 ..
*interpolator must be used carefully –must know the properties to pick appropriate method

16. 16

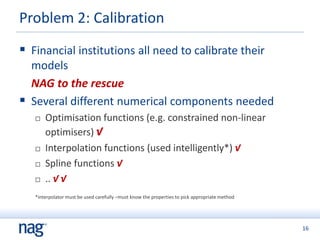

Problem 2: Calibration
 Financial institutions all need to calibrate their
models
NAG to the rescue
 Several different numerical components needed
 Optimisation functions (e.g. constrained non-linear
optimisers) √
 Interpolation functions (used intelligently*) √
 Spline functions √
 .. √ √
*interpolator must be used carefully –must know the properties to pick appropriate method

17. 17

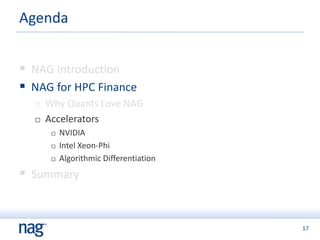

 NAG Introduction
 NAG for HPC Finance
 Why Quants Love NAG
 Accelerators
 NVIDIA
 Intel Xeon-Phi
 Algorithmic Differentiation
 Summary
Agenda

18. 18

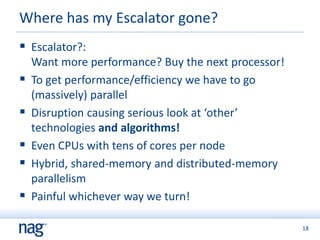

 Escalator?:
Want more performance? Buy the next processor!
 To get performance/efficiency we have to go
(massively) parallel
 Disruption causing serious look at ‘other’
technologies and algorithms!
 Even CPUs with tens of cores per node
 Hybrid, shared-memory and distributed-memory
parallelism
 Painful whichever way we turn!
Where has my Escalator gone?

19. 19
 Loose definition: hardware on which to run your
software better than on your (general purpose) CPU
 Generally NOT an easy win
 Significant learning curve and effort
 Offload disadvantages
 …
Accelerators

20. 20
 ClearSpeed
 Similar to GPU
 Lacked a good software eco-system
 IBM Cell
 Lacked a good software eco-system
 GPGPU
 NVIDIA invested in the software eco-system (AMD not!)
 Intel Phi
 Early days – an encouraging start
 Expecting a lot more with Knights Landing!
Accelerators

21. 21

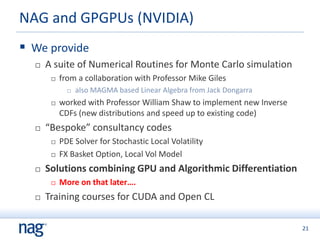

 We provide
 A suite of Numerical Routines for Monte Carlo simulation
 from a collaboration with Professor Mike Giles
 also MAGMA based Linear Algebra from Jack Dongarra
 worked with Professor William Shaw to implement new Inverse
CDFs (new distributions and speed up to existing code)
 “Bespoke” consultancy codes
 PDE Solver for Stochastic Local Volatility
 FX Basket Option, Local Vol Model
 Solutions combining GPU and Algorithmic Differentiation
 More on that later….
 Training courses for CUDA and Open CL
NAG and GPGPUs (NVIDIA)

22. 22

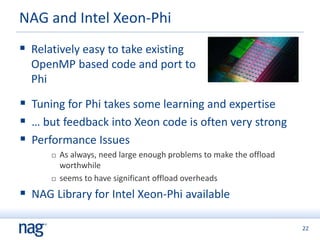

 Relatively easy to take existing
OpenMP based code and port to
Phi
NAG and Intel Xeon-Phi
 Tuning for Phi takes some learning and expertise
 … but feedback into Xeon code is often very strong
 Performance Issues
 As always, need large enough problems to make the offload
worthwhile
 seems to have significant offload overheads
 NAG Library for Intel Xeon-Phi available

23. 23
0
50
100
150
200
250
300
350
400
450
0 5000 10000 15000 20000 25000 30000
Time(s)
Problem Size (n)

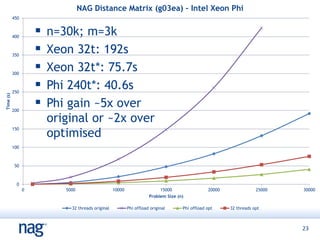

NAG Distance Matrix (g03ea) – Intel Xeon Phi
32 threads original Phi offload original Phi offload opt 32 threads opt
 n=30k; m=3k
 Xeon 32t: 192s
 Xeon 32t*: 75.7s
 Phi 240t*: 40.6s
 Phi gain ~5x over
original or ~2x over
optimised

24. 24
0.00
0.20
0.40
0.60
0.80
1.00
1.20
1.40
1.60
100 10,000 1,000,000 100,000,000
Time(s)
Size of problem (n, log scale)

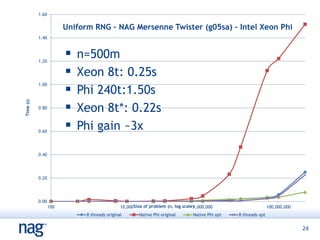

Uniform RNG – NAG Mersenne Twister (g05sa) – Intel Xeon Phi
8 threads original Native Phi original Native Phi opt 8 threads opt
 n=500m
 Xeon 8t: 0.25s
 Phi 240t:1.50s
 Xeon 8t*: 0.22s
 Phi gain ~3x

25. 25
NAG & AD: Algorithmic Differentiation in a nutshell
Computers can only add, subtract, multiply and divide
numbers.
 A computer program implementing a model is many
of these basic operations strung together
 Elementary to compute the derivatives of these
 Chain rule + basic derivatives = program derivative
 Classes, templates and operator overloading can do
this efficiently and non-intrusively

26. 26

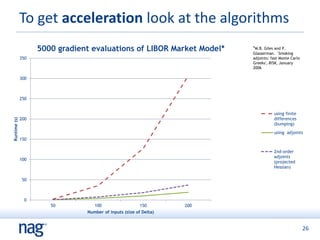

To get acceleration look at the algorithms
0
50
100
150
200
250
300
350
50 100 150 200
Runtime(s)
Number of inputs (size of Delta)
5000 gradient evaluations of LIBOR Market Model*
using finite
differences
(bumping)
using adjoints
2nd-order
adjoints
(projected
Hessian)
*M.B. Giles and P.
Glasserman. `Smoking
adjoints: fast Monte Carlo
Greeks', RISK, January
2006

27. 27
Computing derivatives in finance is important…
 Calculating a product’s sensitivities to a range of risk
factors (a.k.a. Greeks) creates huge computational
demand on risk and price models
 Traditional approach “bumping” - finite differences
 Which is Computationally very expensive.. more hardware!
The alternatives to finite differences are
 Write derivative code by hand
 Efficient, but difficult to write & highly error prone (need to
develop original and adjoint models)
 Algorithmic Differentiation
 flexible and just develop the original model - obvious choice

28. 28
NAG and AAD
 Adjoint Algorithmic Differentiation (AAD) reduces
Runtime
 With RWTH Aachen University (Prof. Uwe Naumann
et al.) NAG are delivering Algorithmic Differentiation
(AD) tools and services to the finance community for C
/C++/CUDA codes.
 Our example codes include
 LIBOR Market Model
 PDE based Local Volatility model
 GPU accelerated Local Vol Basket Option pricer
 Our solutions deliver for accelerators

29. 29

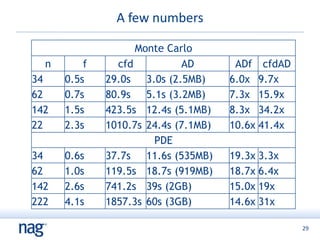

A few numbers
Monte Carlo
n f cfd AD ADf cfdAD
34 0.5s 29.0s 3.0s (2.5MB) 6.0x 9.7x
62 0.7s 80.9s 5.1s (3.2MB) 7.3x 15.9x
142 1.5s 423.5s 12.4s (5.1MB) 8.3x 34.2x
22 2.3s 1010.7s 24.4s (7.1MB) 10.6x 41.4x
PDE
34 0.6s 37.7s 11.6s (535MB) 19.3x 3.3x
62 1.0s 119.5s 18.7s (919MB) 18.7x 6.4x
142 2.6s 741.2s 39s (2GB) 15.0x 19x
222 4.1s 1857.3s 60s (3GB) 14.6x 31x

30. 30

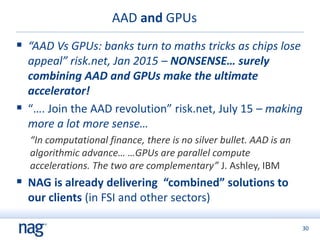

AAD and GPUs
 “AAD Vs GPUs: banks turn to maths tricks as chips lose
appeal” risk.net, Jan 2015 – NONSENSE… surely
combining AAD and GPUs make the ultimate
accelerator!
 “…. Join the AAD revolution” risk.net, July 15 – making
more a lot more sense…
“In computational finance, there is no silver bullet. AAD is an
algorithmic advance… …GPUs are parallel compute
accelerations. The two are complementary” J. Ashley, IBM
 NAG is already delivering “combined” solutions to
our clients (in FSI and other sectors)

31. 31
 NAG Introduction
 NAG for HPC Finance
 Why Quants Love NAG
 Accelerators
 NVIDIA
 Intel Xeon-Phi
 Algorithmic Differentiation
 Summary
Agenda

32. 32

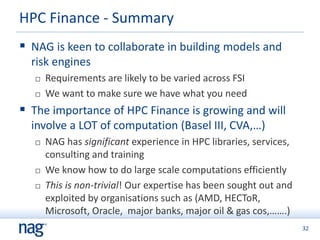

 NAG is keen to collaborate in building models and
risk engines
 Requirements are likely to be varied across FSI
 We want to make sure we have what you need
 The importance of HPC Finance is growing and will
involve a LOT of computation (Basel III, CVA,…)
 NAG has significant experience in HPC libraries, services,
consulting and training
 We know how to do large scale computations efficiently
 This is non-trivial! Our expertise has been sought out and
exploited by organisations such as (AMD, HECToR,
Microsoft, Oracle, major banks, major oil & gas cos,…….)
HPC Finance - Summary

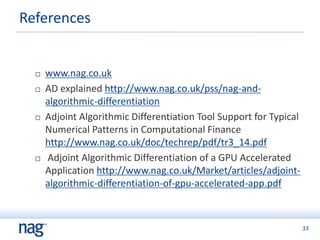

33. 33
 www.nag.co.uk
 AD explained http://www.nag.co.uk/pss/nag-and-
algorithmic-differentiation
 Adjoint Algorithmic Differentiation Tool Support for Typical
Numerical Patterns in Computational Finance
http://www.nag.co.uk/doc/techrep/pdf/tr3_14.pdf
 Adjoint Algorithmic Differentiation of a GPU Accelerated
Application http://www.nag.co.uk/Market/articles/adjoint-
algorithmic-differentiation-of-gpu-accelerated-app.pdf
References
