The document provides an overview of various tools offered by the Tool Fox Group, highlighting cutting, crimping, stripping, and universal tools, all designed for ergonomic use and efficient application. It lists specific models with their capabilities, features, and intended use cases, such as the Cutfox series for cutting cables, the Wirefox for stripping, and the Crimpfox for crimping connectors. Additionally, it mentions accessory kits and tool sets designed for organization and ease of use in various electrical tasks.

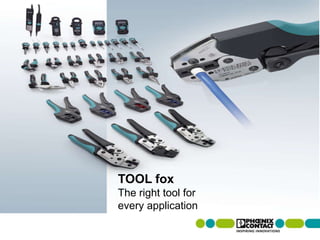

1. TOOL fox
The right tool for
every application

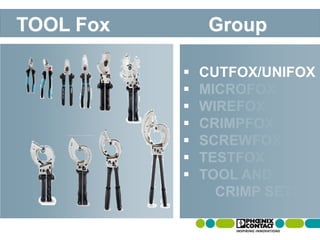

2. TOOL Fox Group
 CUTFOX/UNIFOX







3. 1400mm²
(55.1181 in)
CUTFOX – Cutting Tools

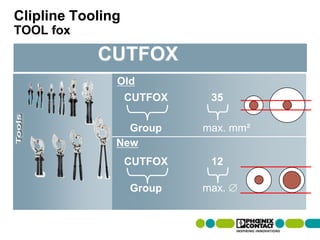

4. Clipline Tooling
TOOL fox
CUTFOX
CUTFOX 35
CUTFOX 12
Old
Group max. mm²
New
Group max.

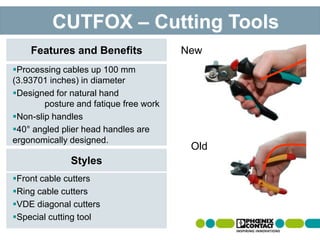

5. Processing cables up 100 mm
(3.93701 inches) in diameter
Designed for natural hand
posture and fatique free work
Non-slip handles
40° angled plier head handles are
ergonomically designed.
Features and Benefits
CUTFOX – Cutting Tools
Front cable cutters
Ring cable cutters
VDE diagonal cutters
Special cutting tool
Styles
New
Old

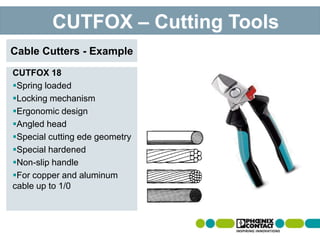

6. CUTFOX 18
Spring loaded
Locking mechanism
Ergonomic design
Angled head
Special cutting ede geometry
Special hardened
Non-slip handle
For copper and aluminum
cable up to 1/0
Cable Cutters - Example
CUTFOX – Cutting Tools

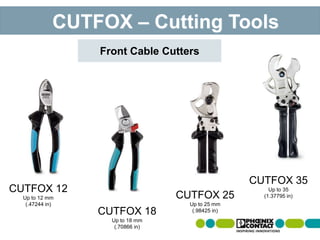

7. Front Cable Cutters
CUTFOX 12
Up to 12 mm
(.47244 in)
CUTFOX 18
Up to 18 mm
(.70866 in)
CUTFOX 25
Up to 25 mm
(.98425 in)
CUTFOX 35
Up to 35
(1.37795 in)
CUTFOX – Cutting Tools

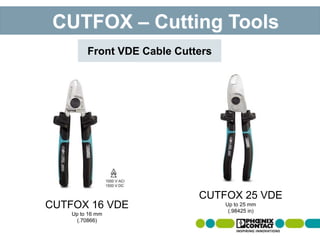

8. Front VDE Cable Cutters
CUTFOX 16 VDE
Up to 16 mm
(.70866)
CUTFOX 25 VDE
Up to 25 mm
(.98425 in)
CUTFOX – Cutting Tools

9. Ring Cable Cutters
CUTFOX 45
Up to 45 mm
(1.77165 in)
CUTFOX 100
Up to 100 mm
(3.93701 in)CUTFOX 52
Up to 52 mm
(2.04724 in)
CUTFOX 62
Up to 62 mm
(2.44094 in)
CUTFOX – Cutting Tools

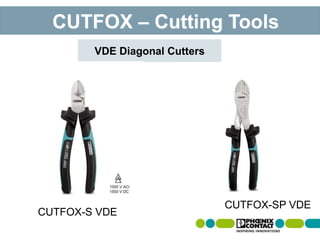

10. VDE Diagonal Cutters
CUTFOX-S VDE
CUTFOX-SP VDE
CUTFOX – Cutting Tools

11. Special Cutting Tools
CUTFOX-FBS
CUTFOX-FB
CUTFOX – Cutting Tools

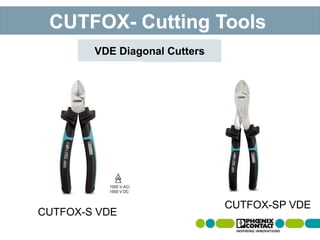

12. CUTFOX- Cutting Tools
VDE Diagonal Cutters
CUTFOX-S VDE
CUTFOX-SP VDE

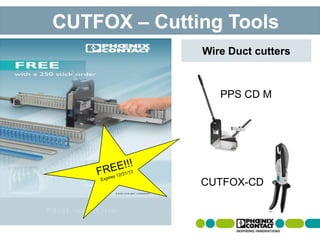

13. Wire Duct cutters
PPS CD M
CUTFOX-CD
CUTFOX – Cutting Tools

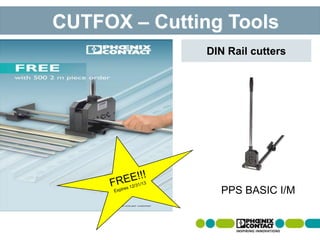

14. DIN Rail cutters
PPS BASIC I/M
CUTFOX – Cutting Tools

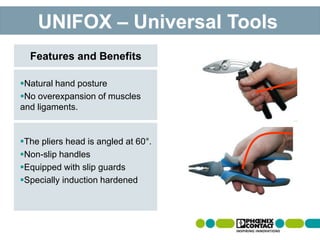

15. The pliers head is angled at 60°.
Non-slip handles
Equipped with slip guards
Specially induction hardened
Natural hand posture
No overexpansion of muscles
and ligaments.
Features and Benefits
UNIFOX – Universal Tools

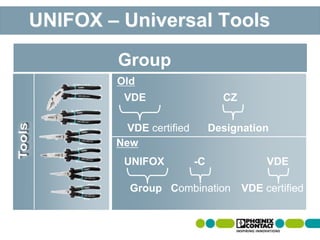

16. VDE CZ
UNIFOX -C VDE
Old
VDE certified Designation
New
Group Combination VDE certified
Group
UNIFOX – Universal Tools

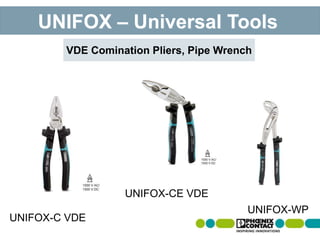

17. UNIFOX – Universal Tools
VDE Comination Pliers, Pipe Wrench
UNIFOX-C VDE
UNIFOX-CE VDE
UNIFOX-WP

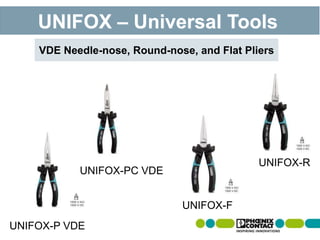

18. UNIFOX – Universal Tools
VDE Needle-nose, Round-nose, and Flat Pliers
UNIFOX-P VDE
UNIFOX-F
UNIFOX-R
UNIFOX-PC VDE

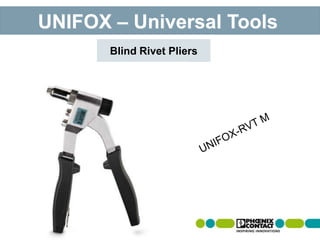

19. UNIFOX – Universal Tools
Blind Rivet Pliers

20. TOOL Fox Group

 MICROFOX






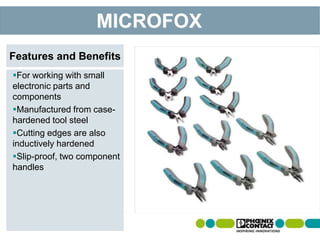

21. For working with small
electronic parts and
components
Manufactured from case-
hardened tool steel
Cutting edges are also
inductively hardened
Slip-proof, two component
handles
MICROFOX
Features and Benefits

22. MICROFOX-R
MICROFOX-PC
Electronic Pliers
MICROFOX-P
MICROFOX
MICROFOX-F

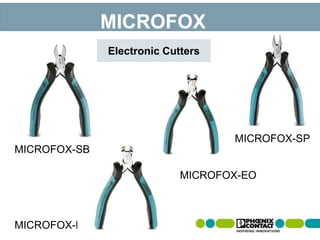

23. MICROFOX-E
MICROFOX-EO
MICROFOX-SP
MICROFOX-SB
Electronic Cutters
MICROFOX

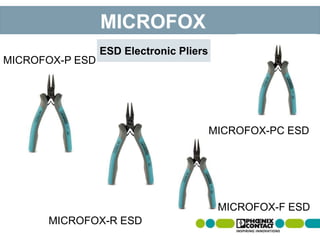

24. MICROFOX-R ESD
ESD Electronic Pliers
MICROFOX
MICROFOX-F ESD
MICROFOX-PC ESD
MICROFOX-P ESD

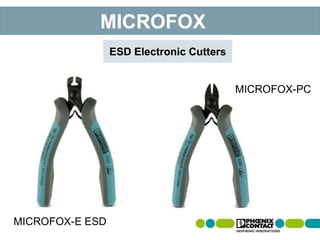

25. MICROFOX-E ESD
ESD Electronic Cutters
MICROFOX
MICROFOX-PC

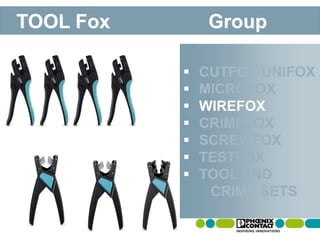

26. 

 WIREFOX




TOOL Fox Group

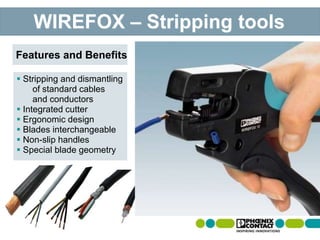

27.  Stripping and dismantling
of standard cables
and conductors
 Integrated cutter
 Ergonomic design
 Blades interchangeable
 Non-slip handles
 Special blade geometry
Features and Benefits
WIREFOX – Stripping tools

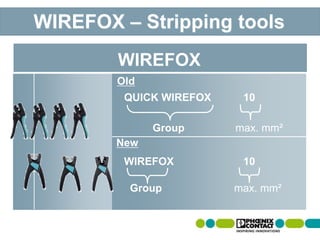

28. QUICK WIREFOX 10
WIREFOX 10
Old
Group max. mm²
New
Group max. mm²
WIREFOX
WIREFOX – Stripping tools

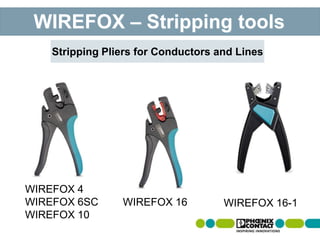

29. WIREFOX 16
Stripping Pliers for Conductors and Lines
WIREFOX – Stripping tools
WIREFOX 4
WIREFOX 6SC
WIREFOX 10
WIREFOX 16-1

30. WIREFOX – Stripping tools
Video for the
WIREFOX 4
WIREFOX 6SC
WIREFOX 10

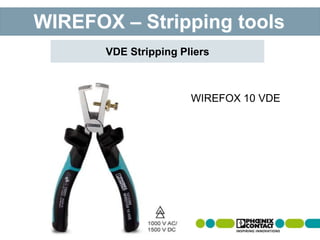

31. WIREFOX 10 VDEWIREFOX – Stripping tools
VDE Stripping Pliers
WIREFOX 10 VDE

32. WIREFOX 10 VDEWIREFOX – Stripping tools

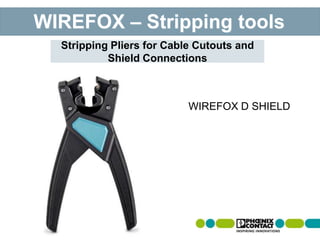

WIREFOX D SHIELD
Stripping Pliers for Cable Cutouts and
Shield Connections

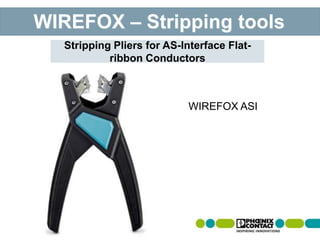

33. WIREFOX 10 VDEWIREFOX – Stripping tools
WIREFOX ASI
Stripping Pliers for AS-Interface Flat-
ribbon Conductors

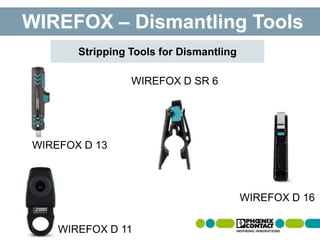

34. WIREFOX 10 VDEWIREFOX – Dismantling Tools
WIREFOX D 11
WIREFOX D SR 6
Stripping Tools for Dismantling
WIREFOX D 13
WIREFOX D 16

35. WIREFOX 10 VDEWIREFOX – Dismantling Tools
Stripping Tool for Dismantling
Wirefox D40 Features
• Large capacity
• Cable diameters 4.5 – 40 mm
(1.7717 – 1.57480 inches)
• Easy to use
• Ergonomic
• Tough & Durable

36. WIREFOX 10 VDEWIREFOX – Dismantling Tools

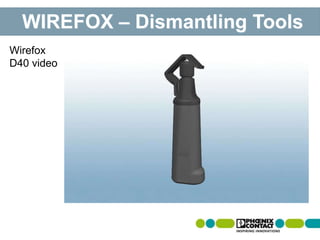

Wirefox
D40 video

37. 



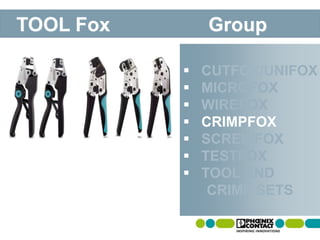

 CRIMPFOX



TOOL Fox Group

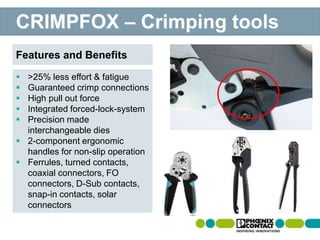

38. Features and Benefits
CRIMPFOX – Crimping tools
 >25% less effort & fatigue
 Guaranteed crimp connections
 High pull out force
 Integrated forced-lock-system
 Precision made
interchangeable dies
 2-component ergonomic
handles for non-slip operation
 Ferrules, turned contacts,
coaxial connectors, FO
connectors, D-Sub contacts,
snap-in contacts, solar
connectors

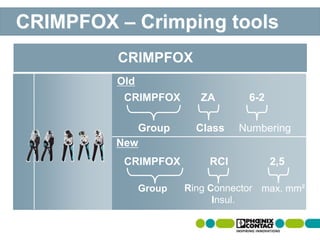

39. CRIMPFOX ZA 6-2
CRIMPFOX RCI 2,5
Old
Group Class
New
Group max. mm²
Numbering
Ring Connector
Insul.
CRIMPFOX
CRIMPFOX – Crimping tools

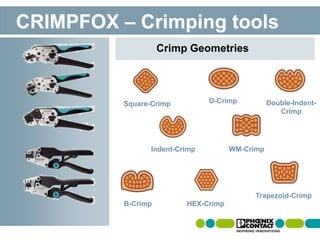

40. B-Crimp
O-Crimp
Indent-Crimp
Double-Indent-
Crimp
Trapezoid-Crimp
Square-Crimp
WM-Crimp
HEX-Crimp
Crimp Geometries
CRIMPFOX – Crimping tools

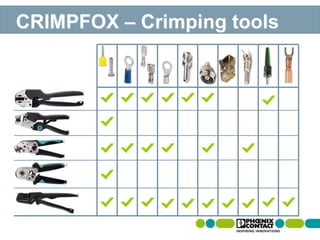

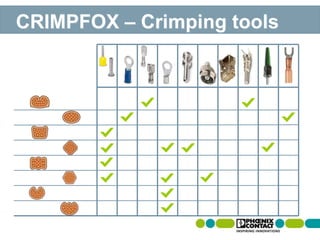

41. CRIMPFOX – Crimping tools

42. CRIMPFOX – Crimping tools

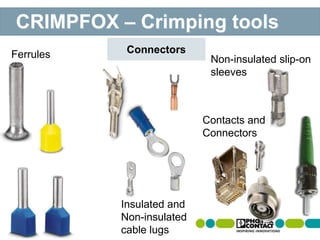

43. ConnectorsFerrules
Insulated and
Non-insulated
cable lugs
Non-insulated slip-on
sleeves
Contacts and
Connectors
CRIMPFOX – Crimping tools

44. 




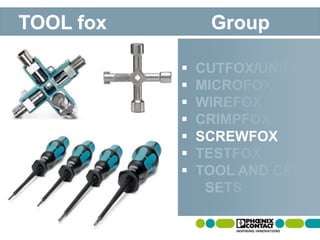

 SCREWFOX


TOOL fox Group

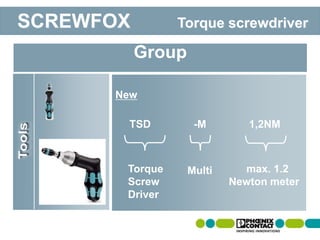

45. New
Torque
Screw
Driver
Multi max. 1.2
Newton meter
TSD -M 1,2NM
Group
SCREWFOX Torque screwdriver

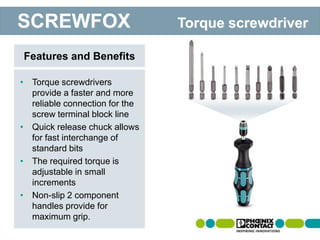

46. • Torque screwdrivers
provide a faster and more
reliable connection for the
screw terminal block line
• Quick release chuck allows
for fast interchange of
standard bits
• The required torque is
adjustable in small
increments
• Non-slip 2 component
handles provide for
maximum grip.
Features and Benefits
SCREWFOX Torque screwdriver

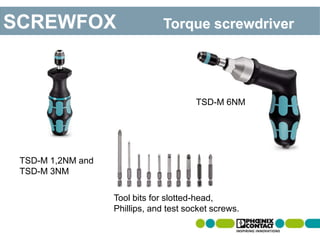

47. TSD-M 1,2NM and
TSD-M 3NM
Tool bits for slotted-head,
Phillips, and test socket screws.
TSD-M 6NM
SCREWFOX Torque screwdriver

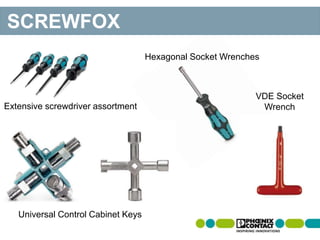

48. Extensive screwdriver assortment
Universal Control Cabinet Keys
Hexagonal Socket Wrenches
VDE Socket
Wrench
SCREWFOX

49. 





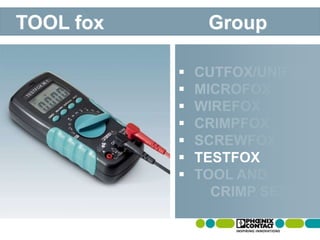

 TESTFOX

TOOL fox Group

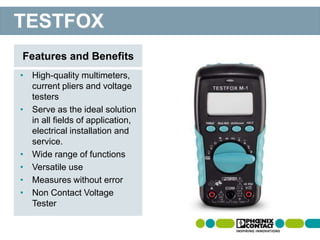

50. • High-quality multimeters,
current pliers and voltage
testers
• Serve as the ideal solution
in all fields of application,
electrical installation and
service.
• Wide range of functions
• Versatile use
• Measures without error
• Non Contact Voltage
Tester
Features and Benefits
TESTFOX

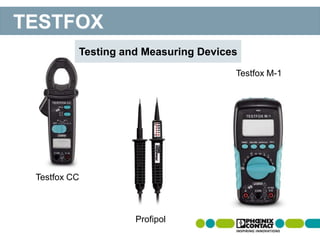

51. Testfox CC
Profipol
Testfox M-1
TESTFOX
Testing and Measuring Devices

52. Hand Tool Limited Lifetime
Warranty
• In addition to the one year
warranty
• Covers all non-wearable
parts
• Proof of purchase required
• Return to place of
purchase
TOOL fox Hand Tools

53. TOOL fox Hand Tools
Free tool trolley with
a $2,500 hand tool
order!

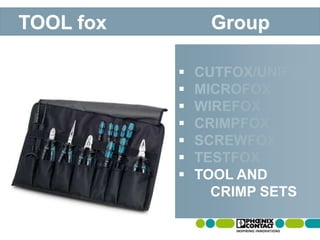

54. 





 TOOL AND
CRIMP SETS
TOOL fox Group

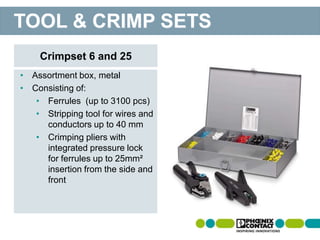

55. • Assortment box, metal
• Consisting of:
• Ferrules (up to 3100 pcs)
• Stripping tool for wires and
conductors up to 40 mm
• Crimping pliers with
integrated pressure lock
for ferrules up to 25mm²
insertion from the side and
front
Crimpset 6 and 25
TOOL & CRIMP SETS

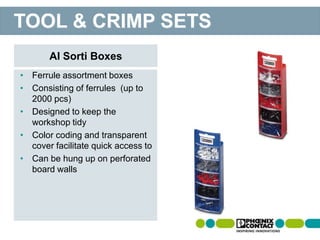

56. • Ferrule assortment boxes
• Consisting of ferrules (up to
2000 pcs)
• Designed to keep the
workshop tidy
• Color coding and transparent
cover facilitate quick access to
• Can be hung up on perforated
board walls
AI Sorti Boxes
TOOL & CRIMP SETS

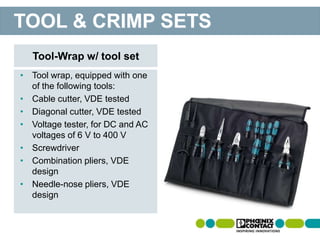

57. • Tool wrap, equipped with one
of the following tools:
• Cable cutter, VDE tested
• Diagonal cutter, VDE tested
• Voltage tester, for DC and AC
voltages of 6 V to 400 V
• Screwdriver
• Combination pliers, VDE
design
• Needle-nose pliers, VDE
design
Tool-Wrap w/ tool set
TOOL & CRIMP SETS

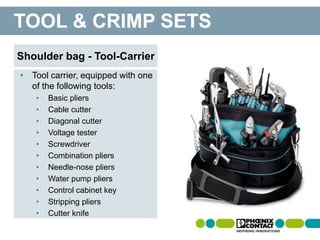

58. • Tool carrier, equipped with one
of the following tools:
• Basic pliers
• Cable cutter
• Diagonal cutter
• Voltage tester
• Screwdriver
• Combination pliers
• Needle-nose pliers
• Water pump pliers
• Control cabinet key
• Stripping pliers
• Cutter knife
Shoulder bag - Tool-Carrier
TOOL & CRIMP SETS

59. • Tool bag, with laptop and
document
compartment, equipped with
one of the following tools:
• Ferrule assortment box
• Crimping pliers set
• Cable cutter
• Diagonal cutter
• Voltage tester
• Screwdriver
• Combination pliers
• Needle-nose pliers
• Water pump pliers
• Control cabinet key
• Stripping tool
• Cutter knife
Tool-Bag w/ Laptop
compartment
TOOL & CRIMP SETS

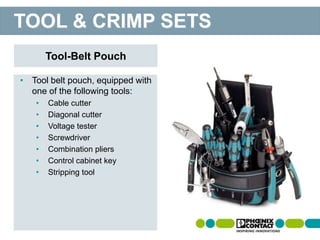

60. Tool-Belt Pouch
TOOL & CRIMP SETS
• Tool belt pouch, equipped with
one of the following tools:
• Cable cutter
• Diagonal cutter
• Voltage tester
• Screwdriver
• Combination pliers
• Control cabinet key
• Stripping tool

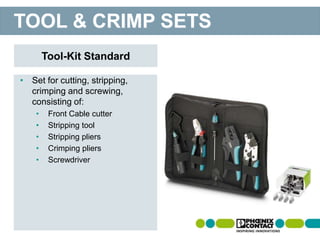

61. Tool-Kit Standard
TOOL & CRIMP SETS
• Set for cutting, stripping,
crimping and screwing,
consisting of:
• Front Cable cutter
• Stripping tool
• Stripping pliers
• Crimping pliers
• Screwdriver

62. For a free brochure,
please visit our website at
www.phoenixcontact.com/
handtools
TOOL fox
The right tool for
every application

63. Or to find a distributor or sales representative near
you, please visit our website at
www.phoenixcontact.com or call 1-800-888-7388
