- 1. Maria Schierscher Product MarketingLead Specialist Industrial Components:Marking & Installation MICROFOX Electronic cutters and pliers
- 2. MICROFOX-E MICROFOX-EO MICROFOX-SP MICROFOX-SB MICROFOX Cutters andPliers Electronic Cutters MICROFOX-SP-1

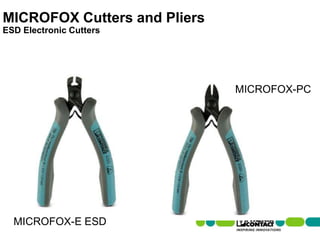

- 3. MICROFOX-E ESD MICROFOX-PC MICROFOX Cuttersand Pliers ESD Electronic Cutters
- 4. MICROFOX-R MICROFOX-PC MICROFOX-P MICROFOX-F MICROFOX Cutters andPliers Electronic Pliers
- 5. MICROFOX-R ESD MICROFOX-F ESD MICROFOX-PCESD MICROFOX-P ESD MICROFOX Cutters and Pliers ESD Electronic Pliers
- 6. MICROFOX Cutters andPliers Features: Ideal for working with small electronic parts and components Manufactured from case-hardened tool steel Cutting edges are also inductively hardened Slip-proof, two component handles

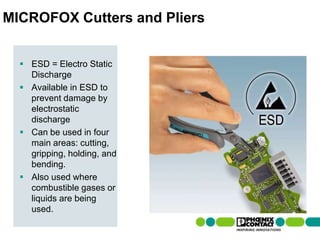

- 7. MICROFOX Cutters andPliers ESD = Electro Static Discharge Available in ESD to prevent damage by electrostatic discharge Can be used in four main areas: cutting, gripping, holding, and bending. Also used where combustible gases or liquids are being used.
- 8. MICROFOX Cutters andPliers Part number Description List Price Inventory 1212480 MICROFOX-S ESD - diagonal cutter $48.00 Stock 1212481 MICROFOX-R ESD – round-nose pliers $42.11 Stock 1212482 MICROFOX-P ESD – needle-nose pliers $42.11 Stock 1212483 MICROFOX-PC ESD - 45° angled, needle-nose pliers $48.76 Stock 1212484 MICROFOX-F ESD – flat-nose, smooth grip pliers $42.11 Stock 1212485 MICROFOX-E ESD – front cutter w/o chamfer $51.97 Stock 1212487 MICROFOX-SP-1 – diagonal cutter w/o chamfer $19.26 Stock 1212488 MICROFOX-SP – diagonal cutter, tapered head, angled 21° $47.23 Stock 1212489 MICROFOX-SB – diagonal cutter, round head, w/o chamfer $45.31 Stock 1212490 MICROFOX-R – round nose pliers $39.61 Stock 1212491 MICROFOX-P – needle nose pliers $39.61 Stock 1212492 MICROFOX-PC - 45° angled, needle-nose pliers $42.33 Stock 1212493 MICROFOX-F – flat-nose, smooth grip pliers $39.61 Stock 1212494 MICROFOX-E – front cutter w/o chamfer $45.15 Stock 1212495 MICROFOX-EO - 20° cutter w/o chamfer $48.51 Stock
- 9. MICROFOX Cutters andPliers Our cutters are without a chamfer.... What is a chamfer? a beveled edge connecting two surfaces. When equipping PC boards, where the components are soldered, cuts made with chamfer can cause problems as solder beads can form at the end of the wire. Side views of a bevel (above) and a chamfer (below).
- 10. MICROFOX Sales Tools Tool fox brochure-52005411, pg 13 *note corrections Microfox Tool Kits TOOL fox The right tool for every application *Corrections: • Microfox-SP (1212488) is described as needle nose pliers. They are cutters. • Microfox-EO (1212495) is described as flat-nose pliers. They are cutters. • Microfox-SP-1(1212487) is not listed.
