Tonometry is used to measure intraocular pressure. There are two main types - indentation and applanation tonometers. The Schiotz indentation tonometer, introduced in 1905, made tonometry a routine clinical test. It measures indentation of the eye to determine pressure. Applanation tonometers flatten a portion of the cornea and relate this to intraocular pressure. The Maklakoff applanation tonometer from 1885 was an early prototype. The Goldmann applanation tonometer, introduced in 1954, is now the gold standard and measures the force needed to flatten a standard corneal area. Recent advances include non-contact tonometry using air puffs and improved accuracy and portability of applanation devices.
Describes the basic of applanation tonometry, the factors affecting it and also how to perform the ideal tonometry. The slide are borrowed but it gives complete idea of mastering Applanation tonometry.
If the original owner of the slides has an objection i shall take down the ppt with due apologies.
Describes the basic of applanation tonometry, the factors affecting it and also how to perform the ideal tonometry. The slide are borrowed but it gives complete idea of mastering Applanation tonometry.
If the original owner of the slides has an objection i shall take down the ppt with due apologies.
A scan biometry | How to Use A-scan? Types of A-Scan Biometry?Naeem Ahmad
A-SCAN BIOMETRY | What is A-Scan Biometry? How To Use It?
A-scan is the short form of amplitude scan.
This eye ultrasound gives details about the length of the eye.
A-Scan is an essential diagnostic tool used in ophthalmology.
The measurement of the eye’s axial length through an A-scan is necessary for placing an intraocular lens (IOL, artificial lens) during cataract surgery.
The total refractive power of the emmetropic eye is approximately 60D. Of this power, the cornea provides roughly 40D, and the crystalline lens 20 diopters.
When a cataract is removed, the lens is replaced by an artificial lens implant. By measuring both the length of the eye (A-scan Biometry) and the power of the cornea (keratometry).
It may also be used to assess vision abnormalities and other diseases involving the eye such as tumors.
A-scan techniques are based on the principles of ultrasonography. Sound travels in a wave pattern. For a sound to be heard by the human ear, the frequency must be between 20 and 20,000 Hz (20 kHz).
For an eye examination through A-scan, an ultrasound of frequency of around 10 MHz is used.
This seminar made by me with my practical and theoretical knowledge so i would like to share my seminar to others for making diagnosis of glaucoma and early management for human being. i hope it will give helps for others.
A scan biometry | How to Use A-scan? Types of A-Scan Biometry?Naeem Ahmad
A-SCAN BIOMETRY | What is A-Scan Biometry? How To Use It?
A-scan is the short form of amplitude scan.
This eye ultrasound gives details about the length of the eye.
A-Scan is an essential diagnostic tool used in ophthalmology.
The measurement of the eye’s axial length through an A-scan is necessary for placing an intraocular lens (IOL, artificial lens) during cataract surgery.
The total refractive power of the emmetropic eye is approximately 60D. Of this power, the cornea provides roughly 40D, and the crystalline lens 20 diopters.
When a cataract is removed, the lens is replaced by an artificial lens implant. By measuring both the length of the eye (A-scan Biometry) and the power of the cornea (keratometry).
It may also be used to assess vision abnormalities and other diseases involving the eye such as tumors.
A-scan techniques are based on the principles of ultrasonography. Sound travels in a wave pattern. For a sound to be heard by the human ear, the frequency must be between 20 and 20,000 Hz (20 kHz).
For an eye examination through A-scan, an ultrasound of frequency of around 10 MHz is used.
This seminar made by me with my practical and theoretical knowledge so i would like to share my seminar to others for making diagnosis of glaucoma and early management for human being. i hope it will give helps for others.
A detailed review of all the types of tonometer and the technique with the principle is included. Will be very useful for both teachers and students of optometry & ophthalmology
TONOMETRY IN OPTOMETRY & OPHTHALMOLOGY .PPTXANUJA DHAKAL
My presentation delves into the fascinating realm of tonometry—a pivotal diagnostic tool in ophthalmology. "Eyes Under Pressure" aims to shed light on the significance of measuring intraocular pressure and its critical role in detecting and managing ocular conditions, particularly glaucoma.We will explore the various tonometry techniques, from the classic applanation methods to emerging technologies, providing a comprehensive understanding of how these tests unveil the subtle dynamics within the eye. The presentation will highlight the importance of early detection through tonometry, emphasizing its impact on preventing vision loss and preserving ocular health.
Intraocular pressure
Intraocular pressure (IOP) is the fluid pressure inside the eye. . IOP is an important aspect in the evaluation of patients at risk of glaucoma.
Tonometry is the method eye care professionals use to determine this. Most tonometers are calibrated to measure pressure in millimeters of mercury (mmHg).
Physiology
• Intraocular pressure is determined by the production and drainage of aqueous humour by the ciliary body and its drainage via the trabecular meshwork and uveoscleral outflow. The reason for this is because the vitreous humour in the posterior segment has a relatively fixed volume and thus does not affect intraocular pressure regulation.
• The intraocular pressure (IOP) of the eye is determined by the balance between the amount of aqueous humor - that the eye makes and the ease with which it leaves the eye.
The Goldmann equation states:
Po = (F/C) + Pv
Po is the IOP in millimeters of mercury (mmHg),
F is the rate of aqueous formation,
C is the facility of outflow,
Pv is the episcleral venous pressure.
Measurements
Intraocular pressure is measured with a tonometer as part of a comprehensive eye examination.
Types of Tonometry
1. Applanation tonometry
Applanation tonometry is based on the Imbert-Fick principle, which states that;
‘’The pressure inside an ideal dry, thin-walled sphere equals the force necessary to flatten its surface divided by the area of flattening’’
P = F/A
where P = pressure, F = force and A = area
In applanation tonometry, the cornea is flattened and the IOP is determined by varying the applanating force or the area flattened.
Goldmann and Perkins applanation tonometry
Equipment
• Tonometer, either Goldmann (used on slit lamps) or Perkins (hand-held)
• Applanation prism
• Local anaesthetic drops
• Fluorescein strips
• Clean cotton wool or gauze swabs.
Method
• The Goldmann applanation tonometer measures the force necessary to flatten an area of the cornea of 3.06mm diameter. At this diameter, the resistance of the cornea to flattening is counterbalanced by the capillary attraction of the tear film meniscus for the tonometer head.
• The IOP (in mm Hg) equals the flattening force (in grams) multiplied by 10. Fluorescein dye is placed in the patient’s eye to highlight the tear film. A split-image prism is used such that the image of the tear meniscus is divided into a superior and inferior arc. The intraocular pressure is taken when these arcs are aligned such that their inner margins just touch.
• Applanation tonometry measurements are affected by the central corneal thickness (CCT). When Goldmann designed his tonometer, he estimated an average corneal thickness of 520 microns to cancel the opposing forces of surface tension and corneal rigidity to allow indentation. It is now known that a wide variation exists in corneal thickness among individuals. Thicker CCT may give an artificially high IOP measurement, whereas thinner CCT can give an arti
CHAPTER 1 SEMESTER V PREVENTIVE-PEDIATRICS.pdfSachin Sharma
This content provides an overview of preventive pediatrics. It defines preventive pediatrics as preventing disease and promoting children's physical, mental, and social well-being to achieve positive health. It discusses antenatal, postnatal, and social preventive pediatrics. It also covers various child health programs like immunization, breastfeeding, ICDS, and the roles of organizations like WHO, UNICEF, and nurses in preventive pediatrics.
We understand the unique challenges pickleball players face and are committed to helping you stay healthy and active. In this presentation, we’ll explore the three most common pickleball injuries and provide strategies for prevention and treatment.
Antibiotic Stewardship by Anushri Srivastava.pptxAnushriSrivastav
Stewardship is the act of taking good care of something.
Antimicrobial stewardship is a coordinated program that promotes the appropriate use of antimicrobials (including antibiotics), improves patient outcomes, reduces microbial resistance, and decreases the spread of infections caused by multidrug-resistant organisms.
WHO launched the Global Antimicrobial Resistance and Use Surveillance System (GLASS) in 2015 to fill knowledge gaps and inform strategies at all levels.
ACCORDING TO apic.org,
Antimicrobial stewardship is a coordinated program that promotes the appropriate use of antimicrobials (including antibiotics), improves patient outcomes, reduces microbial resistance, and decreases the spread of infections caused by multidrug-resistant organisms.
ACCORDING TO pewtrusts.org,
Antibiotic stewardship refers to efforts in doctors’ offices, hospitals, long term care facilities, and other health care settings to ensure that antibiotics are used only when necessary and appropriate
According to WHO,
Antimicrobial stewardship is a systematic approach to educate and support health care professionals to follow evidence-based guidelines for prescribing and administering antimicrobials
In 1996, John McGowan and Dale Gerding first applied the term antimicrobial stewardship, where they suggested a causal association between antimicrobial agent use and resistance. They also focused on the urgency of large-scale controlled trials of antimicrobial-use regulation employing sophisticated epidemiologic methods, molecular typing, and precise resistance mechanism analysis.
Antimicrobial Stewardship(AMS) refers to the optimal selection, dosing, and duration of antimicrobial treatment resulting in the best clinical outcome with minimal side effects to the patients and minimal impact on subsequent resistance.
According to the 2019 report, in the US, more than 2.8 million antibiotic-resistant infections occur each year, and more than 35000 people die. In addition to this, it also mentioned that 223,900 cases of Clostridoides difficile occurred in 2017, of which 12800 people died. The report did not include viruses or parasites
VISION
Being proactive
Supporting optimal animal and human health
Exploring ways to reduce overall use of antimicrobials
Using the drugs that prevent and treat disease by killing microscopic organisms in a responsible way
GOAL
to prevent the generation and spread of antimicrobial resistance (AMR). Doing so will preserve the effectiveness of these drugs in animals and humans for years to come.
being to preserve human and animal health and the effectiveness of antimicrobial medications.
to implement a multidisciplinary approach in assembling a stewardship team to include an infectious disease physician, a clinical pharmacist with infectious diseases training, infection preventionist, and a close collaboration with the staff in the clinical microbiology laboratory
to prevent antimicrobial overuse, misuse and abuse.
to minimize the developme
Medical Technology Tackles New Health Care Demand - Research Report - March 2...pchutichetpong
M Capital Group (“MCG”) predicts that with, against, despite, and even without the global pandemic, the medical technology (MedTech) industry shows signs of continuous healthy growth, driven by smaller, faster, and cheaper devices, growing demand for home-based applications, technological innovation, strategic acquisitions, investments, and SPAC listings. MCG predicts that this should reflects itself in annual growth of over 6%, well beyond 2028.
According to Chris Mouchabhani, Managing Partner at M Capital Group, “Despite all economic scenarios that one may consider, beyond overall economic shocks, medical technology should remain one of the most promising and robust sectors over the short to medium term and well beyond 2028.”
There is a movement towards home-based care for the elderly, next generation scanning and MRI devices, wearable technology, artificial intelligence incorporation, and online connectivity. Experts also see a focus on predictive, preventive, personalized, participatory, and precision medicine, with rising levels of integration of home care and technological innovation.
The average cost of treatment has been rising across the board, creating additional financial burdens to governments, healthcare providers and insurance companies. According to MCG, cost-per-inpatient-stay in the United States alone rose on average annually by over 13% between 2014 to 2021, leading MedTech to focus research efforts on optimized medical equipment at lower price points, whilst emphasizing portability and ease of use. Namely, 46% of the 1,008 medical technology companies in the 2021 MedTech Innovator (“MTI”) database are focusing on prevention, wellness, detection, or diagnosis, signaling a clear push for preventive care to also tackle costs.
In addition, there has also been a lasting impact on consumer and medical demand for home care, supported by the pandemic. Lockdowns, closure of care facilities, and healthcare systems subjected to capacity pressure, accelerated demand away from traditional inpatient care. Now, outpatient care solutions are driving industry production, with nearly 70% of recent diagnostics start-up companies producing products in areas such as ambulatory clinics, at-home care, and self-administered diagnostics.
R3 Stem Cells and Kidney Repair A New Horizon in Nephrology.pptxR3 Stem Cell
R3 Stem Cells and Kidney Repair: A New Horizon in Nephrology" explores groundbreaking advancements in the use of R3 stem cells for kidney disease treatment. This insightful piece delves into the potential of these cells to regenerate damaged kidney tissue, offering new hope for patients and reshaping the future of nephrology.
Defecation
Normal defecation begins with movement in the left colon, moving stool toward the anus. When stool reaches the rectum, the distention causes relaxation of the internal sphincter and an awareness of the need to defecate. At the time of defecation, the external sphincter relaxes, and abdominal muscles contract, increasing intrarectal pressure and forcing the stool out
The Valsalva maneuver exerts pressure to expel faeces through a voluntary contraction of the abdominal muscles while maintaining forced expiration against a closed airway. Patients with cardiovascular disease, glaucoma, increased intracranial pressure, or a new surgical wound are at greater risk for cardiac dysrhythmias and elevated blood pressure with the Valsalva maneuver and need to avoid straining to pass the stool.
Normal defecation is painless, resulting in passage of soft, formed stool
CONSTIPATION
Constipation is a symptom, not a disease. Improper diet, reduced fluid intake, lack of exercise, and certain medications can cause constipation. For example, patients receiving opiates for pain after surgery often require a stool softener or laxative to prevent constipation. The signs of constipation include infrequent bowel movements (less than every 3 days), difficulty passing stools, excessive straining, inability to defecate at will, and hard feaces
IMPACTION
Fecal impaction results from unrelieved constipation. It is a collection of hardened feces wedged in the rectum that a person cannot expel. In cases of severe impaction the mass extends up into the sigmoid colon.
DIARRHEA
Diarrhea is an increase in the number of stools and the passage of liquid, unformed feces. It is associated with disorders affecting digestion, absorption, and secretion in the GI tract. Intestinal contents pass through the small and large intestine too quickly to allow for the usual absorption of fluid and nutrients. Irritation within the colon results in increased mucus secretion. As a result, feces become watery, and the patient is unable to control the urge to defecate. Normally an anal bag is safe and effective in long-term treatment of patients with fecal incontinence at home, in hospice, or in the hospital. Fecal incontinence is expensive and a potentially dangerous condition in terms of contamination and risk of skin ulceration
HEMORRHOIDS
Hemorrhoids are dilated, engorged veins in the lining of the rectum. They are either external or internal.
FLATULENCE
As gas accumulates in the lumen of the intestines, the bowel wall stretches and distends (flatulence). It is a common cause of abdominal fullness, pain, and cramping. Normally intestinal gas escapes through the mouth (belching) or the anus (passing of flatus)
FECAL INCONTINENCE
Fecal incontinence is the inability to control passage of feces and gas from the anus. Incontinence harms a patient’s body image
PREPARATION AND GIVING OF LAXATIVESACCORDING TO POTTER AND PERRY,
An enema is the instillation of a solution into the rectum and sig
Welcome to Secret Tantric, London’s finest VIP Massage agency. Since we first opened our doors, we have provided the ultimate erotic massage experience to innumerable clients, each one searching for the very best sensual massage in London. We come by this reputation honestly with a dynamic team of the city’s most beautiful masseuses.
The dimensions of healthcare quality refer to various attributes or aspects that define the standard of healthcare services. These dimensions are used to evaluate, measure, and improve the quality of care provided to patients. A comprehensive understanding of these dimensions ensures that healthcare systems can address various aspects of patient care effectively and holistically. Dimensions of Healthcare Quality and Performance of care include the following; Appropriateness, Availability, Competence, Continuity, Effectiveness, Efficiency, Efficacy, Prevention, Respect and Care, Safety as well as Timeliness.
3. HISTORY
1826: William Bowman used digital tonometry
as a routine examination test.
1863: Albrecht von Grafe designed the first instrument to
attempt to measure intraocular pressure.

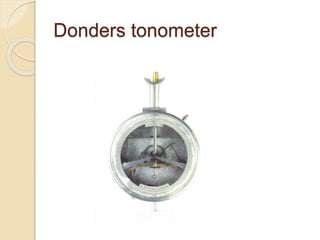

Further instruments followed, notably by Donders in 1865
and Preistly-Smith in 1880.
All were of the indentation type and rested on the sclera
1885: Maklakov designed an applanation tonometer. Used
for a number of years in Russia and Eastern Europe.
1905: Hjalmar Schiotz produced his indentation tonometer.
This made tonometry a simple and routine clinical test.
6. Ideal tonometer
Should give accurate and reasonable
IOP measurement
Convenient to use
Simple to calibrate
Stable from day to day
Easier to standardise
Free of maintenance problems
7. All clinical tonometers measure the
IOP by relating a deformation of the
globe to the force responsible for the
deformation.
The two basic types of tonometers
differ according to the shape of the
deformation: indentation and
applanation (flattening).
8. INDENTATION TONOMETER
The shape of the deformation with this
type of tonometer is a truncated
cone.
These instruments displace a
relatively large intraocular volume. As
a result, conversion tables based on
empirical data from in vitro and in vivo
studies must be used to estimate the
IOP.
Prototype- Schiotz tonometer
9.
10. APPLANATION
TONOMETERS
The shape of the deformation with
these tonometers is a simple
flattening, and because the shape is
constant, its relationship to the IOP
can, in most cases, be derived from
mathematical calculations.
The applanation tonometers are
further differentiated on the basis of
the variable that is measured.
11. VARIABLE FORCE
This type of tonometer measures the
force that is required to applanate
(flatten) a standard area of the corneal
surface.
Prototype- Goldmann applanation
tonometer, which was introduced in
1954.
12. VARIABLE AREA
Other applanation tonometers
measure the area of the cornea that is
flattened by a known force (weight).

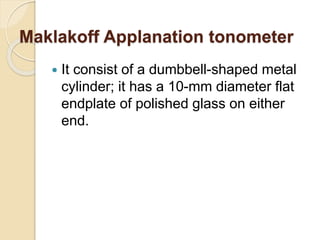

Prototype- Maklakoff tonometer
Goldmanntype tonometers have
relatively minimal displacement of
intraocular volume, whereas that with
Maklakoff-type tonometers is
sufficiently large to require the use of
conversion tables.
13. Applanation Tonometer with
variable area
TONOMETER DESCRIPTION/USE
Maklakoff-Kalfa Prototype
Applanometer Ceramic endplates
Tonomat Disposable endplates
Halberg tonometer
Transparent endplate for direct reading:
multiple weights
Barraquer tonometer
Plastic tonometer for use in operating
room
Ocular tension indicator Uses Goldmann biprism and standard
weight, for screening (measures above
or below 21 mm Hg)
Glaucotest Screening tonometer with multiple
endplates for selecting different “cutoff”
pressures

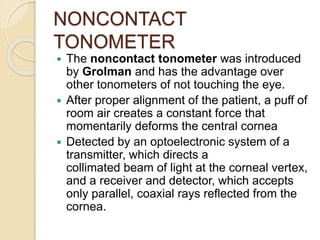

14. NON-CONTACT TONOMETER
A third type of tonometer uses a puff
of air to deform the cornea and
measures the time or force of the air
puff that is required to create a
standard amount of corneal
deformation.
The prototype was introduced by
Grolman in 1972.
15. Schiotz Indentation Tonometry
It consists of a footplate that rests on
the cornea and a weighted plunger
that moves freely (except for the effect
of friction) within a shaft in the
footplate with the degree to which it
indents the cornea indicated by the
movement of a needle on a scale.
A 5.5-g weight is permanently fixed to
the plunger, which can be increased to
7.5,10, or 15 g by adding additional
weights.
16. Parts of schiotz tonometer
Scale
needle
Weight 5.5g
plunge
rholder
Foot
plate
lever
3mm diameter
ROC 15mm
Tonometer weight = 11g
Additional
weights
7.5,10,15g
17.
18.
19. Schiotz tonometry -
characteristics
The extent to which cornea is indented by
plunger is measured as the distance from
the foot plate curve to the plunger base and
a lever system moves a needle on
calibrated scale.
The indicated scale reading and the plunger
weight are converted to an IOP
measurement.
More the plunger indents the cornea,
higher the scale reading and lower the
IOP
Each scale unit represents 0.05 mm
protrusion of the plunger.
20. PRINCIPLE
The weight of tonometer on the eye increases the
actual IOP (Po) to a higher level (Pt).
The change in pressure from Po to Pt is an
expression of the resistance of the eye (scleral
rigidity) to the displacement of fluid.
IOP with Tonometer in position Pt =
Actual IOP Po + Scleral Rigidity E
(P (t) = P(o) + E)
Determination of Po from a scale reading Pt
requires conversion which is done according to
Friedenwald conversion tables.
21. Friedenwald formula
Friedenwald generated formula for linear
relationship between the log function of IOP and the
ocular distension.
Pt = log Po + C ΔV
This formula has ‘C’ a numerical constant, the
coefficient of ocular rigidity which is an
expression of distensibility of eye. Its average value
is 0.025
ΔV is the change in volume
22. Friedenwald developed a set of
conversion tables, referred to as the
1948 and 1955 tables for IOP.
Subsequent studies indicated that the
1948 tables agree more closely with
measurements by Goldmann
applanation tonometry.
24. TECHNIQUE
Patient should be anasthetised with 4%lignocaine or
0.5% proparacaine
With the patient in supine position, looking up at a
fixation target examiner separates the lids and lowers
the tonometer plate to rest on the anesthetized cornea
so that plunger is free to move vertically .
The examiner observes a fine movement of the indicator
needle on the scale in response to the ocular pulsations.
The average between the extremes of these is taken.
The 5.5 gm weight is initially used.
If scale reading is 4 or less, additional weight is added
to plunger.
Conversion table is used to derive IOP in mm Hg from
scale reading and plunger weight.
25.
26. Cause of error
Because conversion tables were based
on an “average” coefficient of ocular
rigidity (C), eyes that deviate significantly
from this C value give false IOP
measurements.
Another variable that affects accuracy is
expulsion of intraocular blood during
indentation tonometry .
A relatively steep or thick cornea causes
an increased displacement of fluid during
indentation tonometry, which leads to a
falsely high IOP reading
27. CALIBRATION
The instrument should be calibrated
before each use by placing it on a
polished metal sphere and checking to
be sure that the scale reading is zero.
If the reading is not zero, the
instrument must be repaired.
28. STERILIZATION
The tonometer is disassembled between each
use and the barrel is cleaned with 2 pipe
cleaners, the first soaked in isopropyl alcohol
70 % or methylated spirit and the second
dry.
The foot plate is cleaned with alcohol swab.
All surfaces must be dried before
reassembling.
The instrument can be sterilized with ultraviolet
radiation, steam, ethylene oxide.
As with other tonometer tips, the Schiotz can
be damaged by some disinfecting solutions
29. Differential tonometry
It is done to get rid of ocular rigidity factor.
A reading is taken with one weight on the Plunger and then a
second reading' in taken with a different weight.
Making a diagnosis of glaucoma in a pt. with myopia presents
unusual difficulties. The low ocular rigidity in these eyes result
in Schiotz readings within normal limits.
5.5g 10g Ocular
rigidity
IOP
18 mm Hg 15 mm Hg lower >18
18 mm Hg 21 mm Hg higher <18
18 mm Hg 18 mm Hg equal 18
30. Advantages of schiotz tonometer
Simple technique
Elegant design
Portable
No need for SlitLamp or power supply
Reasonably priced
Anodized scale mount which is highly
resistant to sterilizing water.
Schiotz tonometer is still most widely
tonometer.
31. LIMITATIONS
◦ Instrumental errors
Standardisation - testing labs for certification
Mechanical obstruction to plunger etc.
◦ Muscular contractions
Of extra ocular muscles increase IOP
Accomodation decreases IOP
Variations in volume of globe
◦ Microphthalmos
◦ High Myopia
◦ Buphthalmos
◦ It can be recorded in supine position
only
33. Maklakoff Applanation tonometer
It consist of a dumbbell-shaped metal
cylinder; it has a 10-mm diameter flat
endplate of polished glass on either
end.
35. A set of four such instruments were available,
weighing 5, 7.5, 10, and 15 g. A dye
suspension of Argyrol, glycerin, and water
was applied to either endplate and, with the
patient in a supine position and the cornea
anesthetized, the instrument rested vertically
on the cornea for 1 second.
The resultant circular white imprint on the
endplate corresponded to the area of cornea
that was flattened. The diameter of the white
area is measured with a transparent plastic
measuring scale to 0.1 mm, and the IOP is
read from a conversion table in the column
corresponding to the weight used.
36. The Perkins applanation tonometer
uses the same biprism as the Goldmann
applanation tonometer.
The light source is powered by a battery
and the force is varied manually.
A counter balance makes it possible to
use the instrument in either the vertical
or horizontal position.
Being portable it is practical when
measuring IOP in infants / children, bed
ridden patients and for use in operating
rooms.
Other Applanation Tonometers
with Variable Force
Perkins Tonometer
38. •It is similar to the Perkins tonometer, but
uses a different biprism and has an electric
motor that varies the force
•Both require training to use
Draeger applanation
tonometer
39. The original Mackay-Marg tonometer
had a plate diameter of 1.5 mm
surrounded by a rubber sleeve.
The force required to keep the plate flush
with the sleeve was electronically
monitored and recorded on a paper strip.
This instrument is useful for measuring
IOP in eyes with scarred, irregular, or
edematous corneas because the end
point does not depend on the evaluation
of a light reflex sensitive to optical
irregularity
41. At 1.5 mm of corneal area applanation, tracing
reaches a peak and the force applied = IOP + force
required to deform the cornea.
At 3 mm flattening, force required to deform cornea
is transferred from plunger to surrounding sleeve,
creating a dip in tracing corresponding to IOP.
Flattening of >3 mm of area gives artificial elevation
of IOP.
42. The most commonly used Mackay-Marg-
type tonometer today is the Tono-Pen, a
handheld instrument with a strain gauge
that creates an electrical signal as the
footplate flattens the cornea(microstrain
gauge technology).
It averages 4 to 10 readings to give a
final digital readout. It also provides the
percentage of variability between the
lowest and highest acceptable readings
from 5% to 20%.
Tonopen
44. Pneumotonometer
Here a central sensing device measures the IOP, while
the force required to bend the cornea is transferred to a
surrounding structure. The sensor, is air pressure.
It has a sensing device that consists of a gas chamber
covered by a polymeric silicone diaphragm.
A transducer converts the gas pressure in the chamber
into an electrical signal that is recorded on a paper strip.
As the sensing nozzle touches the cornea and when the
area of contact equals that of the central chamber, an
initial inflection is recorded, which represents the IOP
and the force required to bend the cornea. With further
enlargement of the corneal contact, the bending force is
transferred to the face of the nozzle, which is
interpreted as the actual IOP.
46. NONCONTACT
TONOMETER
The noncontact tonometer was introduced
by Grolman and has the advantage over
other tonometers of not touching the eye.
After proper alignment of the patient, a puff of
room air creates a constant force that
momentarily deforms the central cornea
Detected by an optoelectronic system of a
transmitter, which directs a
collimated beam of light at the corneal vertex,
and a receiver and detector, which accepts
only parallel, coaxial rays reflected from the
cornea.
47. At the moment that the central cornea is
flattened, the greatest number of reflected light
rays are received, which is recorded as the
peak intensity of light detected. The time from
an internal reference point to the moment of
maximum light detection is converted to IOP.
The time interval for an average noncontact
tonometer measurement is 1 to 3 milliseconds
(1/500th of the cardiac cycle) and is random
with respect to the phase of the cardiac cycle
so that the ocular pulse becomes a
significant variable. For this reason, it is
recommended that a minimum of three
readings within 3 mm Hg be taken and
averaged as the IOP.
50. Miscellaneous tonometers
Rebound Tonometer
In a new handheld tonometer, the Icare tonometer,
IOP is determined by measuring the force produced by
a small plastic probe as it rebounds from the cornea.
The device uses an induction coil to magnetise the
probe and fire it against the cornea.
As the probe bounces against the cornea and back into
the device it creates an induction current from which the
intraocular pressure is calculated.
As a screening tool in children. The ability to evaluate
IOP without the use of topical anesthesia potentially
provides the opportunity to monitor IOP at home.
The rebound tonometer has been shown to have similar
accuracy to the Tono-Pen, and it is comparable with
Goldmann tonometry for IOPs over a reasonable range
in adults.
52. The Ocuton tonometer
The Ocuton™ tonometer
Hand-held tonometer
Works on the applanation principle
Probe is so light that it is barely felt
Needs no anesthetic in most patients.
Used for home tonometry
Useful to get some idea of the relative diurnal variation in IOP if
the patient or relative can learn to use it.
53. Trans palpebral tonometry
Used in situations where other, more accurate,
devices are not practical, such as in young children,
demented patients and severely developmentally-
challenged patients.
It adds variables such as the thickness of the
eyelids, orbicularis muscle tone and potential Intra
palpebral scarring.
54. Transpalpebral tonometry does not
involve contact with the cornea and
does not require sterilization of the
device or topical anesthetic during
routine use.
Only moderate correlation with those
provided by applanation tonometry
Home tonometer: Proview
Phosphene Tonometer(Bausch &
Lomb) is based on phosphene
perception after eyelid indentation
55. Diaton tonometer (BiCOM, Inc)
Measuring intraocular
pressure through the
Eyelid
The Diaton tonometer
calculates pressure by
measuring the response
of a free falling rod
The principle is based on
Newton's second law, as
it rebounds against the
tarsal plate of the eyelid.
The patient is positioned
so that the tip of the
device and lid are
overlying sclera.
56. Ocular Response
Analyser(ORA)
Provides IOP measurement free from
influence of corneal biochemical
properties
It measures corneal hysteresis &
corneal resistance factor & thus
overcomes the demerits of GAT to
some extend
57. Ocular Response Analyzer
It directs the air jet against the cornea and measures not one
but two pressures at which applanation occurs
1) when the air jet flattens the cornea as the cornea is bent
inward and 2) as the air jet lessens in force and the cornea
recovers.
58. Ocular response analyser
The first is the resting intraocular pressure.
The difference between the first and the second
applanation pressure is called corneal hysteresis
Corneal hysteresis is a measure of the viscous
dampening and, hence, the biomechanical
properties of the cornea.
The biomechanical properties of the cornea are
related to corneal thickness and include elastic and
viscous dampening attributes.
59. IOP correlate well with Goldmann tonometry but,
on average, measure a few millimeters higher.
Further , while IOP varies over the 24-hour day,
hysteresis seems to be stable.
Congdon et al found that a ‘low’ hysteresis
reading with the ORA correlates with
progression of glaucoma, whereas thin central
corneal thickness correlates with glaucoma
damage.
It has practical value in the management of
glaucoma.
60. Pascal’s Dynamic Contour
Tonometry
Dynamic contour tonometry (DCT) is a novel
method which uses principle of contour
matching instead of applanation.
Principle : By surrounding and matching the
contour of a sphere (or a portion thereof ), the
pressure on the outside equals the
pressure on the inside.
This is designed to reduce the influence of
biomechanical properties of the cornea on
measurement.
These include corneal thickness, rigidity,
curvature, and elastic properties.
It is less influenced by corneal thickness but
more influenced by corneal curvature than the
Goldmann tonometer
62. The contour matched tip has a concave surface of
radius 10.5 mm, which approximates to the shape
of a normal cornea when the pressure on both
sides is equal.
The probe is placed adjacent to the central cornea.
The integrated piezoresistive pressure sensor
automatically begins to acquire data, measuring
IOP 100 times per second.
A complete measurement cycle requires about 8
seconds of contact time.
The device also measures the variation in pressure
that occurs with the cardiac cycle. (Ocular pulse
Amplitude)
63. The concept developed from a previous contact
lens tonometer called the ‘Smart Lens”.
It superior in accuracy to Goldmann tonometry and
pneumotonometry .
IOP is not affected by corneal thickness.
IOP is not altered by corneal refractive surgery that
thins the cornea.
64. The DCT shows the magnitude of the difference
between maximum and minimum IOP as the ocular
pulse amplitude.
OPA may be indicative of the status of ocular blood
flow and be differentially affected in different types
of glaucoma.
Ocular pulse amplitude is
increased over normals in
most forms of glaucoma and
may be related to the level
of IOP.
65. IOP Monitoring Devices
There is need for an IOP telemetry
device without artificially altering the
pressure. Several prototypes—based on
a contact lens, an implantable device, or
a scleral band device have been
developed. Such a lens will help us
monitor and manage individuals who are
susceptible to wide IOP fluctuations, who
have poor adherence to medical therapy,
who perhaps are “poor responders” to
medical therapy, and who have wide IOP
fluctuations in the postoperative period
66. Continuous IOP monitoring devices:
Contact lenses like ‘Sensimed
Triggerfish’ & the ‘Smart’ contact
lenses measure IOP by detecting
changes in the corneoscleral
curvature induced by IOP changes
67. Comparison of Tonometers
The most precise method for evaluating the accuracy of a tonometer
is to compare it with manometric measurements of the cannulated
anterior chamber. Its use in largescale human studies has been
limited.
The alternative is to compare the tonometer in question against the
instrument that previous studies have shown to be the most
accurate.
In eyes with regular corneas, the Goldmann applanation tonometer
is generally accepted as the standard against which other
tonometers must be compared.
Even with this instrument, however, inherent variability must be
taken into account. When two readings were taken on the same eye
with Goldmann tonometers in a short time frame, at least 30% of the
paired readings differed by 2 and 3 mm Hg or more. In another
study, intraobserver variation was 1.5 ± 1.96 mm Hg and
interobserver variation was 1.79 ± 2.41 mm Hg, which could be
reduced by 9% and 11%, respectively, by using the median value of
three consecutive measurements
68. Clinically, the most widely used methods
for measuring IOP are by Goldmann
applanation tonometry and with use of
the Tono-Pen; the noncontact tonometer,
Perkins tonometer, pneumotonometry,
and the Schiötz tonometer.
In general, the Schiötz tonometer reads
lower than the Goldmann. The Perkins
applanation tonometer compared
favorably against the Goldmann
tonometer.
69. The Tono-Pen resembles manometric
readings in human autopsy eyes.
Most studies agree that the Tono-Pen
underestimates Goldmann IOP in the
higher range and overestimates in the
lower range
70. In multiple comparative studies,
readings taken with the
pneumotonometer correlated closely
with those obtained by using
Goldmann tonometers, although the
pneumotonometer readings tended to
be higher.
Post-LASIK IOP measurements
obtained by pneumotonometry were
more reliable than those taken by
Goldmann applanation.
71. Tonometry for Special Clinical
Circumstances
The pneumatic tonometer has been
shown to be useful in eyes with
diseased or irregular corneas.
In eyes after penetrating keratoplasty,
the Tono-Pen significantly
overestimated Goldmann readings
Tonometry on Irregular
Corneas

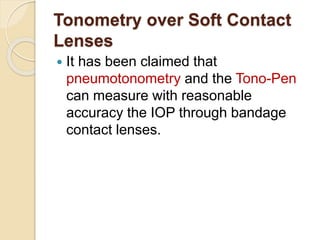

72. Tonometry over Soft Contact
Lenses
It has been claimed that
pneumotonometry and the Tono-Pen
can measure with reasonable
accuracy the IOP through bandage
contact lenses.
73. Tonometry with Gas-Filled
Eyes
Intraocular gas significantly affects
scleral rigidity. In a study with irregular
corneas after vitrectomy and air-gas-
fluid exchange, readings with the
Tono-Pen and pneumotonometer were
highly correlated.
A manometric study with human
autopsy eyes indicated that both
instruments significantly
underestimated the IOP at pressures
greater than 30 mm Hg
74. Tonometry with Flat Anterior
Chamber
In human autopsy eyes with flat
anterior chambers, IOP readings from
the Goldmann applanation tonometer,
pneumotonometer, and Tono-Pen did
not correlate well with manometrically
determined pressures
75. Tonometry in Eyes with
Keratoprostheses
In patients at high risk for corneal
transplant rejection, implantation of a
keratoprosthesis is now a viable option
for vision rehabilitation. However, given
that most keratoprostheses have a rigid,
clear surface, it is impossible to measure
IOP by using applanation or indentation
instruments.
In such eyes, tactile assessment
appears to be the most widely used
method to estimate IOP
