To Microservices and Beyond!
SV Microservices/Cloud Native Meetup
May 13, 2015
1
Matt Stine (@mstine)
Principal Engineer and Senior Product Manager

© Copyright 2015 Pivotal. All rights reserved. 2

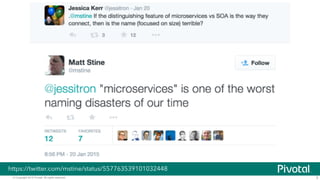

IT SEEMS THERE’S SOME HYPE…
M!CR0S3RV!C3$!!!!!

https://twitter.com/mstine/status/557763539101032448

© Copyright 2015 Pivotal. All rights reserved.

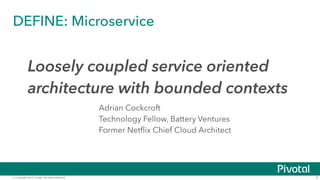

DEFINE: Microservice
4
Loosely coupled service oriented
architecture with bounded contexts
Adrian Cockcroft
Technology Fellow, Battery Ventures
Former Netflix Chief Cloud Architect

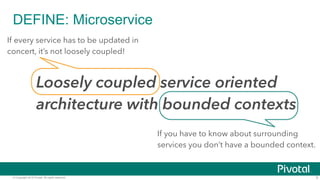

DEFINE: Microservice
5
Loosely coupled service oriented
architecture with bounded contexts
If every service has to be updated in
concert, it’s not loosely coupled!
If you have to know about surrounding
services you don’t have a bounded context.

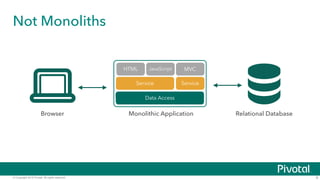

Not Monoliths
6
Relational Database
Data Access
Service
HTML JavaScript MVC
Service
Monolithic ApplicationBrowser

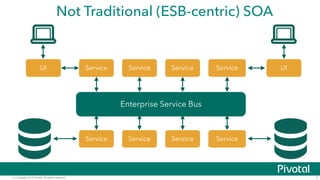

Not Traditional (ESB-centric) SOA
Enterprise Service Bus
Service Service Service Service
Service Service Service Service
UI UI

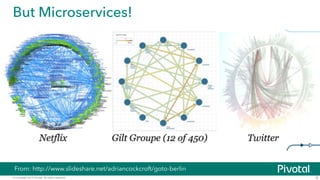

But Microservices!
From: http://www.slideshare.net/adriancockcroft/goto-berlin

But why?

Issues We’ll Confront
• Microservices are not an inherently superior architecture.
• We’re still building big systems from smaller things.
• Just like Docker won’t save the world, neither will
microservices. They’re not free.
• You absolutely cannot forget about data.
• Let’s begin!

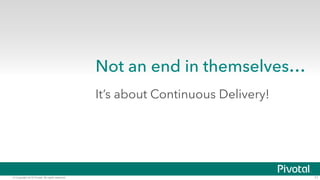

Not an end in themselves…
It’s about Continuous Delivery!

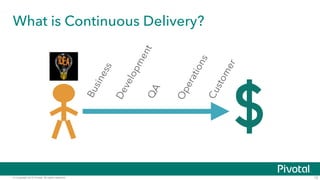

What is Continuous Delivery?
12
$
Business
DevelopmentQA
Operations
Customer

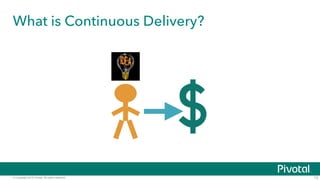

What is Continuous Delivery?
13
$

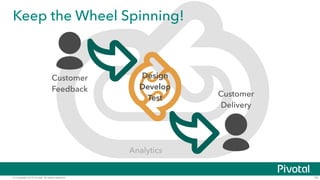

Keep the Wheel Spinning!
Design
Develop
Test
Customer
Feedback
Customer
Delivery
Analytics

Prod
Release

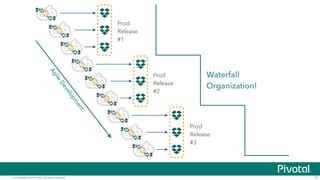

#1
Prod
Release
#2
Prod
Release
#3
AgileDevelopm
ent
Waterfall
Organization!

Silo Delivery
16
Project
Mgmt
UX Dev QA DBA
Sys
Admin
Net
Admin
Storage
Admin
Adapted from: http://www.slideshare.net/adriancockcroft/goto-berlin
MONOLITHIC DELIVERY

Continuous Delivery
17
Product
Mgr
UX Dev QA DBA
Sys
Admin
Net
Admin
Storage
Admin
BUSINESS CAPABILITY TEAMS
USING MICROSERVICES
PLATFORM OPERATIONS
TEAM

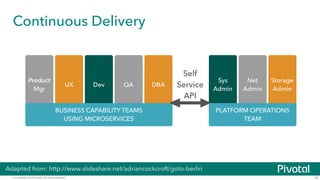

Continuous Delivery
18
Product
Mgr
UX Dev QA DBA
Sys
Admin
Net
Admin
Storage
Admin
BUSINESS CAPABILITY TEAMS
USING MICROSERVICES
PLATFORM OPERATIONS
TEAM
Self
Service
API

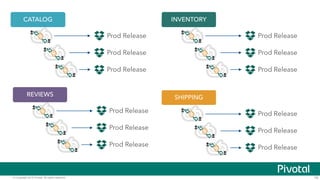

INVENTORY
Prod Release
Prod Release
Prod Release
CATALOG
Prod Release
Prod Release
Prod Release
REVIEWS
Prod Release
Prod Release
Prod Release
SHIPPING
Prod Release
Prod Release
Prod Release

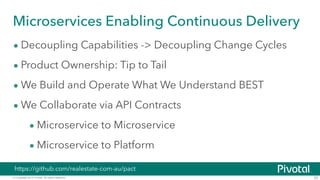

Microservices Enabling Continuous Delivery
• Decoupling Capabilities -> Decoupling Change Cycles
• Product Ownership: Tip to Tail
• We Build and Operate What We Understand BEST
• We Collaborate via API Contracts
• Microservice to Microservice
• Microservice to Platform
https://github.com/realestate-com-au/pact

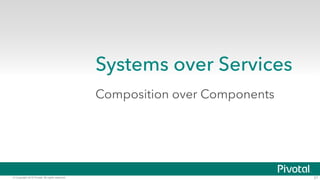

Systems over Services
Composition over Components

Microframeworks for Microservices
22
Spring Boot
http://projects.spring.io/spring-boot
Dropwizard
http://dropwizard.io
http://12factor.net

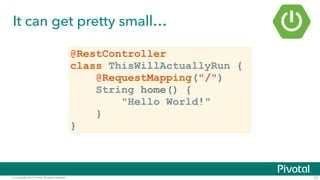

It can get pretty small…
23
@RestController
class ThisWillActuallyRun {
@RequestMapping("/")
String home() {
"Hello World!"
}
}

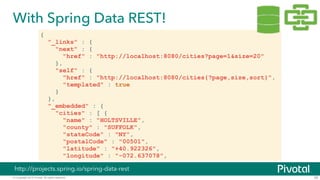

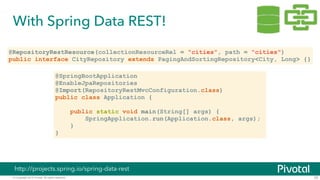

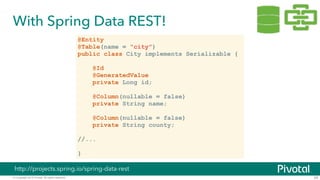

With Spring Data REST!
24
http://projects.spring.io/spring-data-rest
@Entity
@Table(name = "city")
public class City implements Serializable {
!
@Id
@GeneratedValue
private Long id;
!
@Column(nullable = false)
private String name;
!
@Column(nullable = false)
private String county;
!
//...
!
}

25
@RepositoryRestResource(collectionResourceRel = "cities", path = "cities")
public interface CityRepository extends PagingAndSortingRepository<City, Long> {}
@SpringBootApplication
@EnableJpaRepositories
@Import(RepositoryRestMvcConfiguration.class)
public class Application {
!
public static void main(String[] args) {
SpringApplication.run(Application.class, args);
}
}

26
{
"_links" : {
"next" : {
"href" : "http://localhost:8080/cities?page=1&size=20"
},
"self" : {
"href" : "http://localhost:8080/cities{?page,size,sort}",
"templated" : true
}
},
"_embedded" : {
"cities" : [ {
"name" : "HOLTSVILLE",
"county" : "SUFFOLK",
"stateCode" : "NY",
"postalCode" : "00501",
"latitude" : "+40.922326",
"longitude" : "-072.637078",

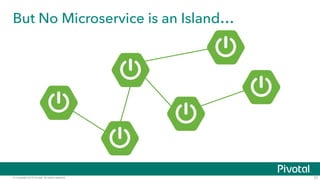

But No Microservice is an Island…
27

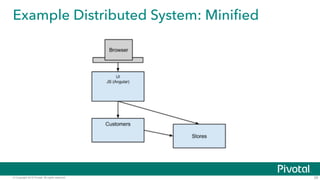

Example Distributed System: Minified
28

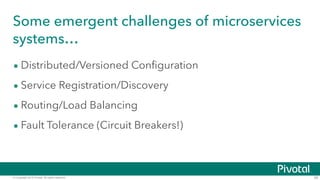

Some emergent challenges of microservices
systems…
• Distributed/Versioned Configuration
• Service Registration/Discovery
• Routing/Load Balancing
• Fault Tolerance (Circuit Breakers!)

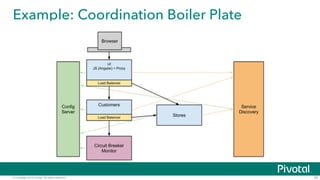

Example: Coordination Boiler Plate
30

• Eureka
• Hystrix + Turbine
• Ribbon
• Feign
• Zuul
http://netflix.github.io

http://projects.spring.io/spring-cloud
@SpringCloudOSS

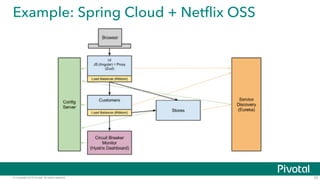

Example: Spring Cloud + Netflix OSS
33

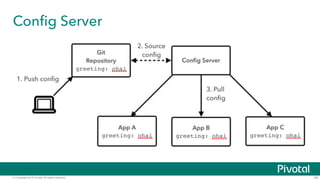

Config Server

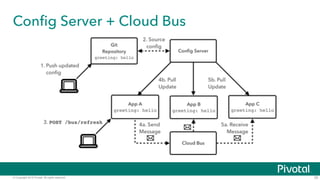

Config Server + Cloud Bus

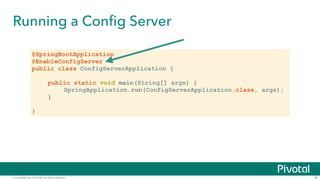

Running a Config Server
36
@EnableConfigServer
public class ConfigServerApplication {
!
SpringApplication.run(ConfigServerApplication.class, args);
}
!
}

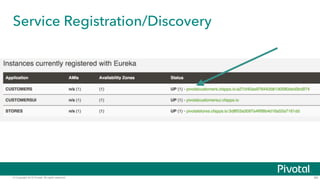

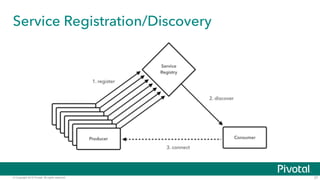

Service Registration/Discovery

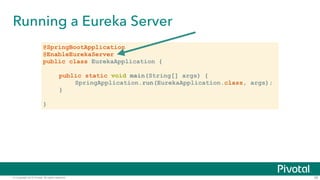

Running a Eureka Server
38
@EnableEurekaServer
public class EurekaApplication {
!
SpringApplication.run(EurekaApplication.class, args);
}
!
}

39
@EnableCircuitBreaker
@EnableDiscoveryClient
public class CustomerApp extends RepositoryRestMvcConfiguration {
@Override
protected void configureRepositoryRestConfiguration(RepositoryRestConfiguration
config) {
config.exposeIdsFor(Customer.class);
}
!
SpringApplication.run(CustomerApp.class, args);
}
!
}

40

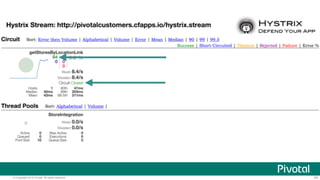

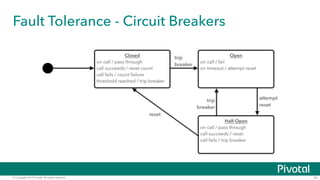

Fault Tolerance - Circuit Breakers
41

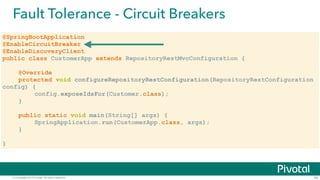

Fault Tolerance - Circuit Breakers
42
@EnableCircuitBreaker
@EnableDiscoveryClient
public class CustomerApp extends RepositoryRestMvcConfiguration {
@Override
protected void configureRepositoryRestConfiguration(RepositoryRestConfiguration
config) {
config.exposeIdsFor(Customer.class);
}
!
SpringApplication.run(CustomerApp.class, args);
}
!
}

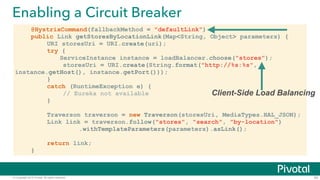

Enabling a Circuit Breaker
43
@HystrixCommand(fallbackMethod = "defaultLink")
public Link getStoresByLocationLink(Map<String, Object> parameters) {
URI storesUri = URI.create(uri);
try {
ServiceInstance instance = loadBalancer.choose("stores");
storesUri = URI.create(String.format("http://%s:%s",
instance.getHost(), instance.getPort()));
}
catch (RuntimeException e) {
// Eureka not available
}
!
Traverson traverson = new Traverson(storesUri, MediaTypes.HAL_JSON);
Link link = traverson.follow("stores", "search", "by-location")
.withTemplateParameters(parameters).asLink();
!
return link;
}
Client-Side Load Balancing

{
"id" : 3,
"firstname" : "Matt",
"lastname" : "Stine",
"address" : {
"street" : "9195 East Mineral Circle",
"zipCode" : "80112",
"city" : "Centennial",
"location" : {
"latitude" : 39.5738106,
"longitude" : -104.8816934
}
},
"_links" : {
"self" : {
"href" : "http://pivotalcustomers.cfapps.io/customers/3"
},
"stores-nearby" : {
"href" : "http://pivotalstores.cfapps.io/stores/search/
findByAddressLocationNear?location=39.5738106,-104.8816934&distance=50"
}
}
}

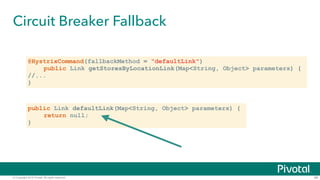

Circuit Breaker Fallback
46
public Link defaultLink(Map<String, Object> parameters) {
return null;
}
@HystrixCommand(fallbackMethod = "defaultLink")
public Link getStoresByLocationLink(Map<String, Object> parameters) {
//...
}

{

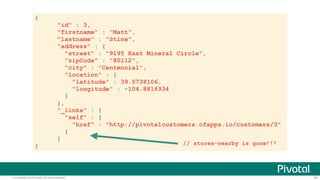

"id" : 3,
"firstname" : "Matt",
"lastname" : "Stine",
"address" : {
"street" : "9195 East Mineral Circle",
"zipCode" : "80112",
"city" : "Centennial",
"location" : {
"latitude" : 39.5738106,
"longitude" : -104.8816934
}
},
"_links" : {
"self" : {
"href" : "http://pivotalcustomers.cfapps.io/customers/3"
}
}
} // stores-nearby is gone!!!

Operationalized
Architecture

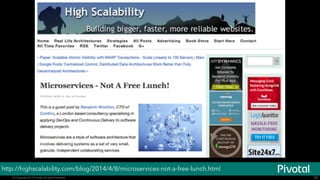

You have to pay for your lunch!

© Copyright 2015 Pivotal. All rights reserved.© Copyright 2015 Pivotal. All rights reserved. 50
http://highscalability.com/blog/2014/4/8/microservices-not-a-free-lunch.html

Paying for your lunch…
• Significant Operations Overhead
• Substantial DevOps Skills Required
• Implicit Interfaces
• Duplication of Effort
• Distributed System Complexity
• Asynchronicity is Difficult!
• Testability Challenges

You must be this tall
to use
Microservices…
52
http://martinfowler.com/bliki/MicroservicePrerequisites.html
https://www.flickr.com/photos/gusset/3723961589
• RAPID PROVISIONING
• BASIC MONITORING
• RAPID APPLICATION DEPLOYMENT
• DEVOPS CULTURE

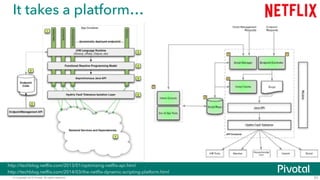

It takes a platform…
53
http://techblog.netflix.com/2013/01/optimizing-netflix-api.html
http://techblog.netflix.com/2014/03/the-netflix-dynamic-scripting-platform.html

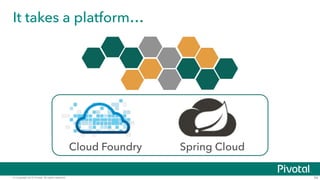

It takes a platform…
54
Cloud Foundry Spring Cloud

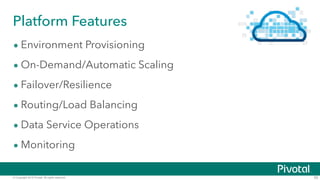

Platform Features
• Environment Provisioning
• On-Demand/Automatic Scaling
• Failover/Resilience
• Routing/Load Balancing
• Data Service Operations
• Monitoring

Environment Provisioning/App Deployment
56
Router
Cloud Controller
Service Broker
Node(s)
DEA
DEA
DEA
DEA
Blobstore DB
Runtime
1. Upload bits/metadata
2. Create/bind services
3. Stage via Buildpack
4. Deploy via Container
push app
+ app MD
SC
+ =
http://docs.cloudfoundry.org/devguide/deploy-apps/

Environment Provisioning/App Deployment
57
Router
Cloud Controller
DEA
Blobstore DB
Runtime
Detect Compile Upload
No
System
Buildpacks
+ =
Yes
http://docs.cloudfoundry.org/buildpacks/

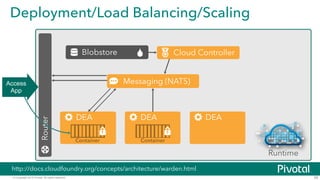

Deployment/Load Balancing/Scaling
58
Blobstore
Router
Cloud Controller
DEA
Messaging (NATS)
DEA DEA
Runtime
Access
App
http://docs.cloudfoundry.org/concepts/architecture/warden.html
Container Container

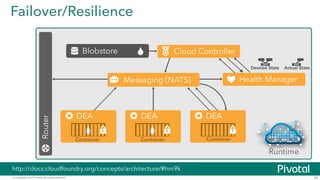

Failover/Resilience
59
Blobstore
Router
Cloud Controller
DEA
Messaging (NATS)
DEA DEA
Runtime
Health Manager
Actual StateDesired State
http://docs.cloudfoundry.org/concepts/architecture/#hm9k
Container Container Container

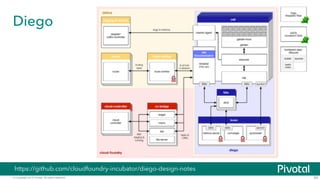

Diego
https://github.com/cloudfoundry-incubator/diego-design-notes

http://lattice.cf/

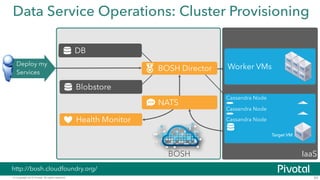

Data Service Operations: Cluster Provisioning
62
Blobstore
BOSH
Health Monitor
DB
Deploy my
Services
IaaS
Worker VMsBOSH Director
NATS
Cassandra Node
Target VM
Cassandra Node
Target VM
Cassandra Node
Target VM
http://bosh.cloudfoundry.org/

DB
Router
Data Service Operations: Application Binding
63
Service
credentials
reserve resources
obtain connection data
CLI Cloud
Controller
Service
Broker
Data
Service
Runtime
create service (HTTP)
bind service (HTTP)
create service (HTTP)
bind service (HTTP)
http://docs.cloudfoundry.org/services/api.html

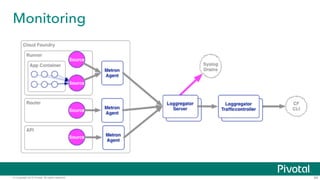

Monitoring
64

It’s All About the Data
What about the BIG QUESTIONS?

This won’t work…
66

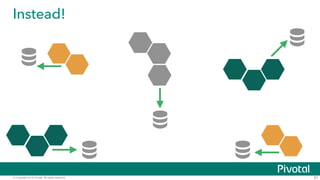

Instead!

Bounded Contexts
68
Movie Movie
Actor
Genre
Media
Type
Media
Type
Kiosk
Location
Media
Product
Catalog
Inventory

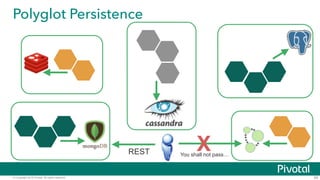

Polyglot Persistence
69
REST XYou shall not pass…

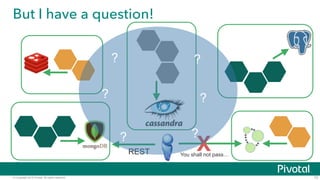

But I have a question!
70
REST XYou shall not pass…
?
?
? ?
?
?

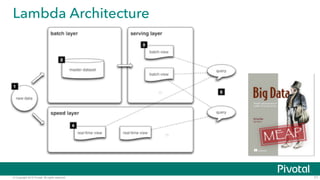

Lambda Architecture
71

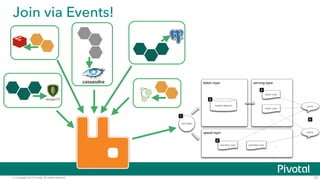

Join via Events!
72

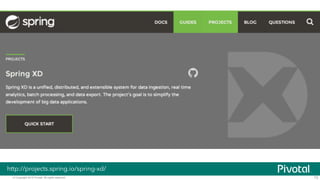

http://projects.spring.io/spring-xd/

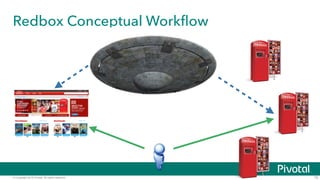

Redbox Conceptual Workflow
75

SpringBox Microservices
76
Catalog Service
Inventory Service
Kiosk
Kiosk
Kiosk
Reservation
Service
https://github.com/cf-platform-eng/springbox-datacloud

…and if you have a question:
77
Kiosk
Kiosk
Kiosk
Speed Layer
Batch Layer
Serving Layer
Event
Ingest
https://github.com/cf-platform-eng/springbox-datacloud

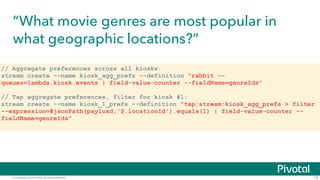

“What movie genres are most popular in what geographic locations?”

“What movie genres are most popular in
what geographic locations?”
78
// Aggregate preferences across all kiosks:
stream create --name kiosk_agg_prefs --definition "rabbit --
queues=lambda.kiosk.events | field-value-counter --fieldName=genreIds"
!
// Tap aggregate preferences, filter for kiosk #1:
stream create --name kiosk_1_prefs --definition "tap:stream:kiosk_agg_prefs > filter
--expression=#jsonPath(payload,'$.locationId').equals(1) | field-value-counter --
fieldName=genreIds"

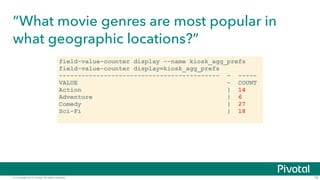

“What movie genres are most popular in
what geographic locations?”
79
field-value-counter display --name kiosk_agg_prefs
field-value-counter display=kiosk_agg_prefs
------------------------------------------- - -----
VALUE - COUNT
Action | 14
Adventure | 6
Comedy | 27
Sci-Fi | 18

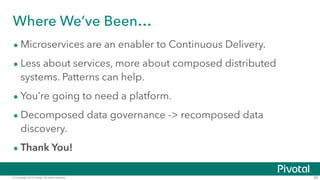

Where We’ve Been…
• Microservices are an enabler to Continuous Delivery.
• Less about services, more about composed distributed
systems. Patterns can help.
• You’re going to need a platform.
• Decomposed data governance -> recomposed data
discovery.
• Thank You!

I wrote a little cloud book…
Available to you
compliments of Pivotal!
!
!
Get the FREE e-book
at http://bit.ly/cloud-native-book!

To Microservices and Beyond

More Related Content

What's hot

Viewers also liked

Similar to To Microservices and Beyond

More from Matt Stine

Recently uploaded

To Microservices and Beyond
