The Diego project was originally conceived as a rewrite of the Droplet Execution Agent (DEA) component of the Cloud Foundry elastic runtime, the component responsible for scheduling, starting, stopping, and scaling applications in Linux containers. Since Diego’s inception, this development effort has been guided by core principles such as simplicity, loose coupling, high cohesion, separation of concerns, and seeking the right abstractions. These guiding principles have resulted in an extremely modular platform that provides a welcome home for your microservices. Microservices are loosely coupled, independently deployable applications whose individual scopes are guided by the concept of bounded contexts. Martin Fowler has described well the operational maturity required to employ microservices architectures, memorably stating “you must be this tall to ride the microservices ride,” with the capability to do rapid deployment and basic monitoring. Diego’s opinionated automation and health checking provide a great platform for operating microservices. At the same time, this platform has clean abstractions that support useful extension points. In this presentation we'll explore the Diego architecture, highlight Diego’s role as the new core of the Cloud Foundry elastic runtime, and illustrated how Diego is being used as a component in other platforms such as Lattice and Spring XD. We'll also look at how Diego's abstractions provided an easy road to adding alternative backends for other platforms like core Windows/.NET support to Cloud Foundry. Finally, we'll discover how Diego's abstractions are providing the Spring Cloud project with a clear road to providing tighter integration between the Netflix OSS stack of services and Cloud Foundry, with a goal of enabling support for polyglot cloud-native application architectures.

1. CLOUD FOUNDRY DIEGO
MODULAR AND EXTENSIBLE SUBSTRUCTURE FOR MICROSERVICES
1

2. ME
Matt Stine @mstine
Principal Software Engineer
Pivotal
mstine@pivotal.io
2

3. I WROTE A LITTLE
CLOUD BOOK...
FREE - Compliments of Pivotal
http://bit.ly/cloud-native-book
3

4. MICROSERVICES?
4

5. Loosely coupled service oriented
architecture with bounded
contexts...
— Adrian Cockcroft
5

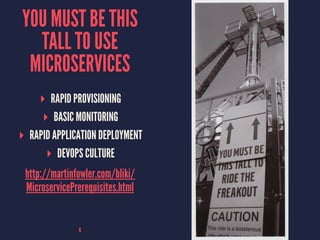

6. YOU MUST BE THIS
TALL TO USE
MICROSERVICES
▸ RAPID PROVISIONING
▸ BASIC MONITORING
▸ RAPID APPLICATION DEPLOYMENT
▸ DEVOPS CULTURE
http://martinfowler.com/bliki/
MicroservicePrerequisites.html
6

7. A SYMBIOTIC RELATIONSHIP
7

8. PLATFORM FEATURES
▸ Environment Provisioning
▸ On-Demand Scaling
▸ Failover/Resilience
▸ Routing/Load Balancing
▸ Data Service Operations (BOSH)
▸ Monitoring
8

9. But we need MOAR features...
9

10. HARD
TO ADD NEW FEATURES
HARDTO MAINTAIN EXISTING FEATURES10

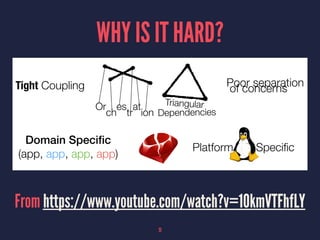

11. WHY IS IT HARD?
From https://www.youtube.com/watch?v=1OkmVTFhfLY
11

12. ENTER THE
REWRITE12

13. WHAT?
From https://www.youtube.com/watch?v=1OkmVTFhfLY
13

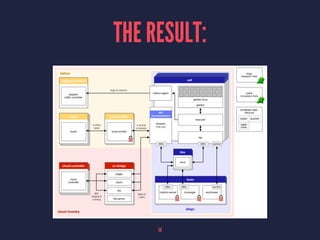

14. THE RESULT:
14

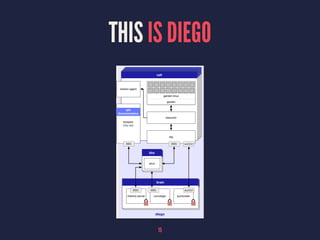

15. THIS IS DIEGO
15

16. MEET THE RECEPTOR
16

17. TASKS
ONE-OFF WORK
LRPS
LONG-RUNNING PROCESSES17

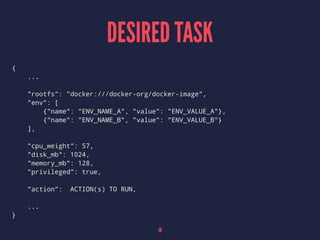

18. DESIRED TASK
{
...
"rootfs": "docker:///docker-org/docker-image",
"env": [
{"name": "ENV_NAME_A", "value": "ENV_VALUE_A"},
{"name": "ENV_NAME_B", "value": "ENV_VALUE_B"}
],
"cpu_weight": 57,
"disk_mb": 1024,
"memory_mb": 128,
"privileged": true,
"action": ACTION(s) TO RUN,
...
}
18

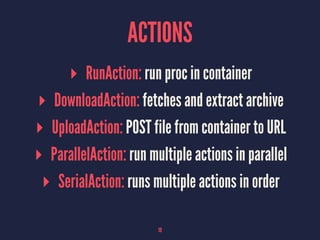

19. ACTIONS
▸ RunAction: run proc in container
▸ DownloadAction: fetches and extract archive
▸ UploadAction: POST file from container to URL
▸ ParallelAction: run multiple actions in parallel
▸ SerialAction: runs multiple actions in order
19

20. MOAR ACTIONS
▸ EmitProgressAction: wraps action and logs progress
▸ TimeoutAction: wrap action and fail if timed out
▸ TryAction: wrap action and ignore errors
20

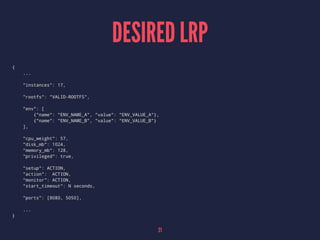

21. DESIRED LRP
{
...
"instances": 17,
"rootfs": "VALID-ROOTFS",
"env": [
{"name": "ENV_NAME_A", "value": "ENV_VALUE_A"},
{"name": "ENV_NAME_B", "value": "ENV_VALUE_B"}
],
"cpu_weight": 57,
"disk_mb": 1024,
"memory_mb": 128,
"privileged": true,
"setup": ACTION,
"action": ACTION,
"monitor": ACTION,
"start_timeout": N seconds,
"ports": [8080, 5050],
...
}
21

22. MEET THE BBS
22

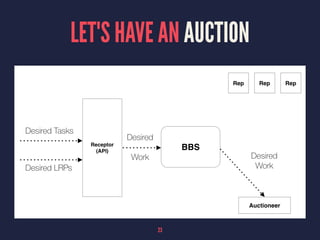

23. LET'S HAVE AN AUCTION
23

24. LET'S HAVE AN AUCTION
24

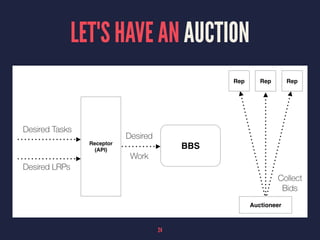

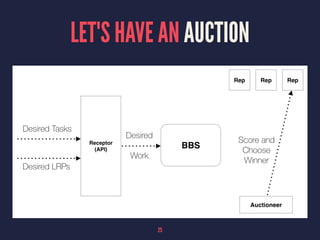

25. LET'S HAVE AN AUCTION
25

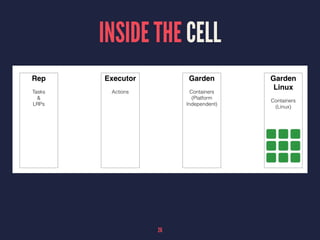

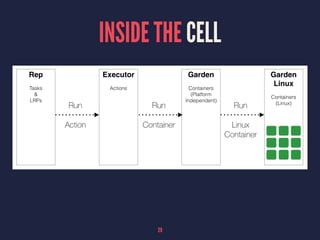

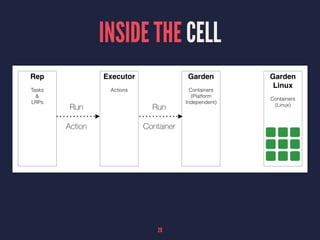

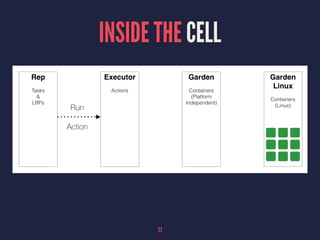

26. INSIDE THE CELL
26

27. INSIDE THE CELL
27

28. INSIDE THE CELL
28

29. INSIDE THE CELL
29

30. SPECIFICITY GRADIENT
30

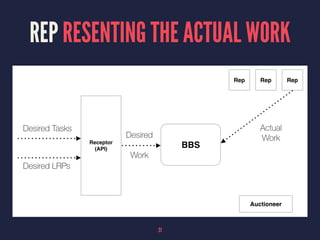

31. REP RESENTING THE ACTUAL WORK
31

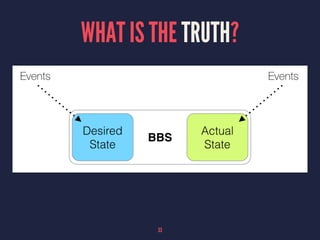

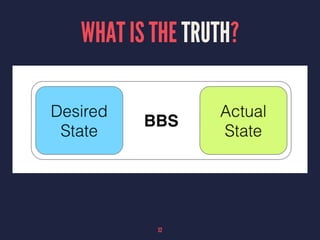

32. WHAT IS THE TRUTH?
32

33. WHAT IS THE TRUTH?
33

34. WHAT IS THE TRUTH?
34

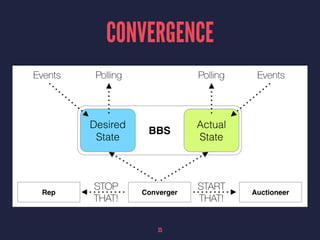

35. CONVERGENCE
35

36. PLAY WITH DIEGO?
36

37. DEPLOYING CLOUD FOUNDRY IS HARD
37

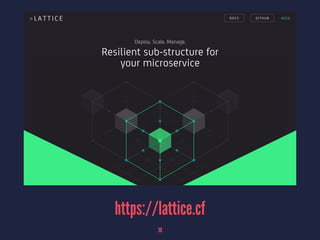

38. https://lattice.cf
38

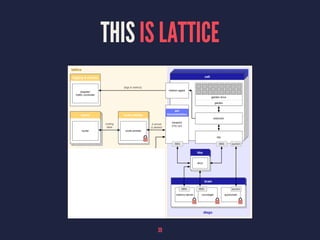

39. THIS IS LATTICE
39

40. LATTICE + DIEGO
▸ Adds CF GoRouter (dynamic HTTP routing)
▸ Adds Doppler (log/metrics aggregation)
▸ LOCAL: vagrant up
▸ CLOUD: terraform apply (AWS, Google, DigitalOcean)
40

41. DEMO41

42. WHAT
ELSE?42

43. MICROSERVICES
43

44. NO MICROSERVICE
IS AN ISLAND
44

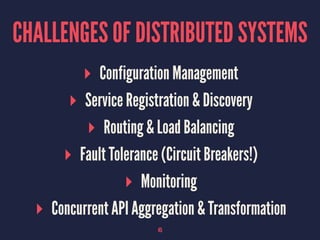

45. CHALLENGES OF DISTRIBUTED SYSTEMS
▸ Configuration Management
▸ Service Registration & Discovery
▸ Routing & Load Balancing
▸ Fault Tolerance (Circuit Breakers!)
▸ Monitoring
▸ Concurrent API Aggregation & Transformation
45

46. 46

47. SPRING CLOUDDISTRIBUTED SYSTEM PATTERNS FTW!
47

48. SPRING CLOUD LATTICE
▸ https://github.com/spring-cloud/spring-cloud-
lattice
▸ https://spring.io/guides/gs/spring-cloud-and-
lattice
48

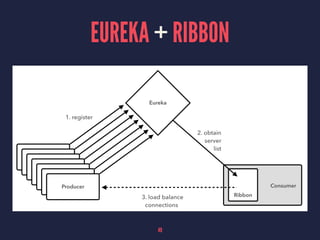

49. EUREKA + RIBBON
49

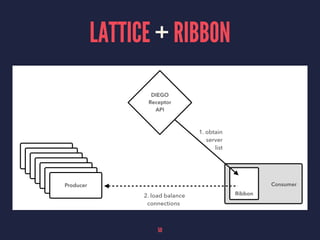

50. LATTICE + RIBBON
50

51. DEMO51

52. DATAMICROSERVICES?52

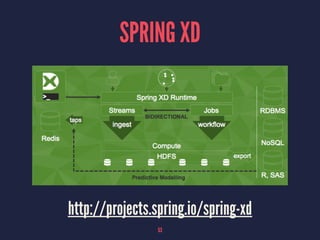

53. SPRING XD
http://projects.spring.io/spring-xd
53

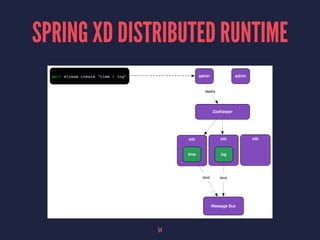

54. SPRING XD DISTRIBUTED RUNTIME
54

55. SPRING XD
SPI MODEL
55

56. SPRING XD
+ LATTICE
56

57. DEMO57

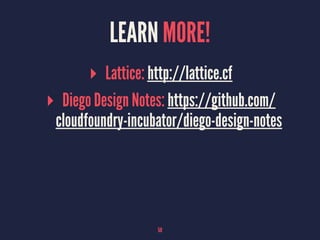

58. LEARN MORE!
▸ Lattice: http://lattice.cf
▸ Diego Design Notes: https://github.com/
cloudfoundry-incubator/diego-design-notes
58

59. THANK
YOU!59
