This document summarizes the new features in recent releases of Spring Data MongoDB. Spring Data MongoDB 3.0 included major upgrades to the MongoDB Java driver from version 2.x to 4.x, which changed dependencies and configuration. Version 3.0 also added the ability to perform updates via the aggregation pipeline and made changes to the reactive GridFS implementation. Spring Data MongoDB 3.1 focuses on closing gaps to the imperative implementation, including adding reactive support for SpEL queries, auditing, and metrics collection. It also improves the experience of building native images with GraalVM.

1. September, 2020
What’s new in Spring Data
MongoDB
Copyright © 2020 VMware, Inc. or its affiliates.

2. Before We Start
Staying focused is hard :)
📨 📲 ☕
Documentation
Samples
...
🎬
🎥 🎧

3. Cover w/ Image
Agenda
● Newman Release (May 2020)
● 2020.0 (expected end Oct 2020)
codename Ockham
org.springframework.data
spring-data-releasetrain
Neumann-SR3
CUR
org.springframework.data
spring-data-bom
2020.0.0-M2
PRE
org.springframework.data
spring-data-mongodb
3.1.0-M2
PRE

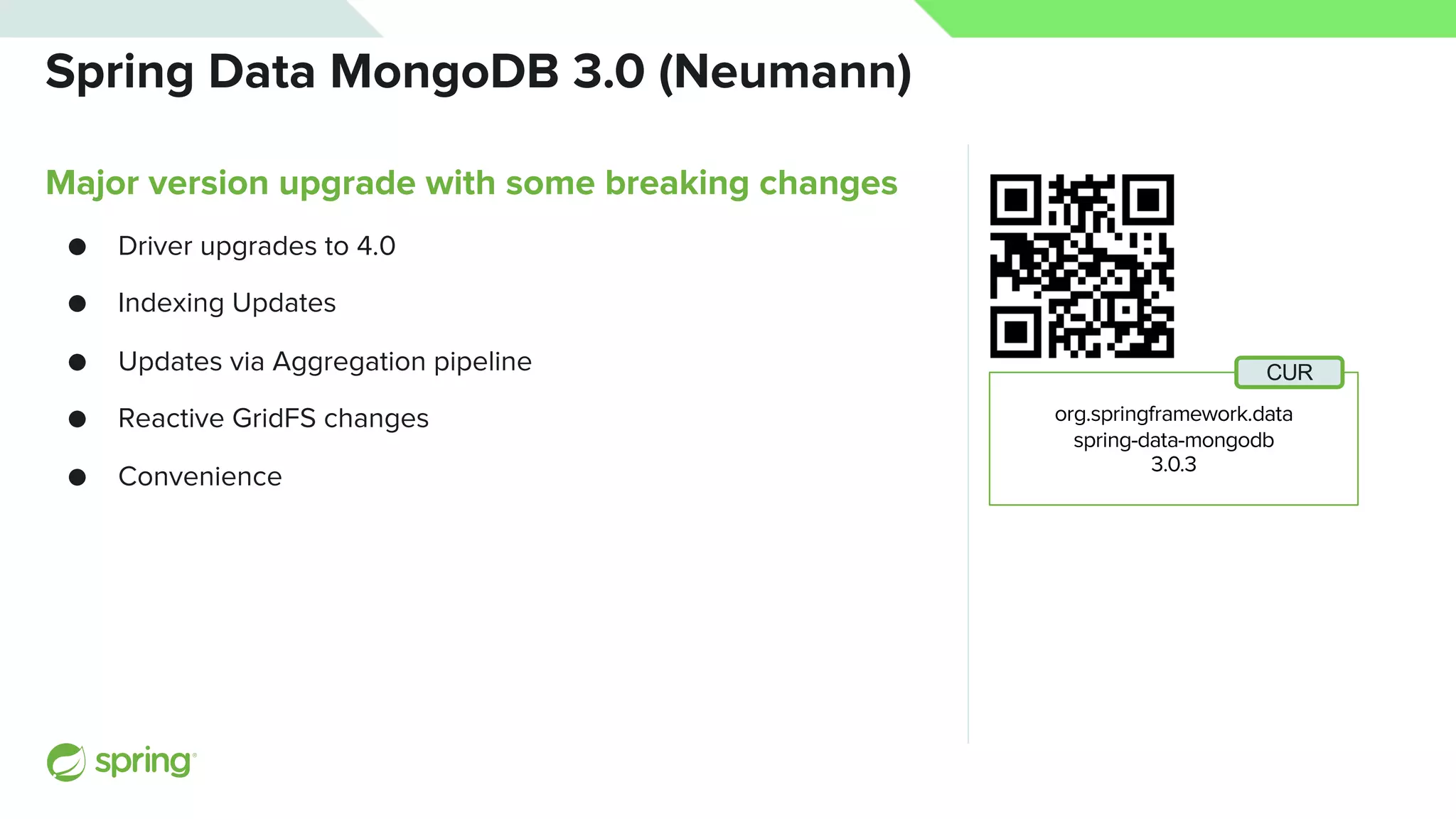

4. Spring Data MongoDB 3.0 (Neumann)
Major version upgrade with some breaking changes
● Driver upgrades to 4.0
● Indexing Updates
● Updates via Aggregation pipeline
● Reactive GridFS changes
● Convenience
org.springframework.data
spring-data-mongodb
3.0.3
CUR

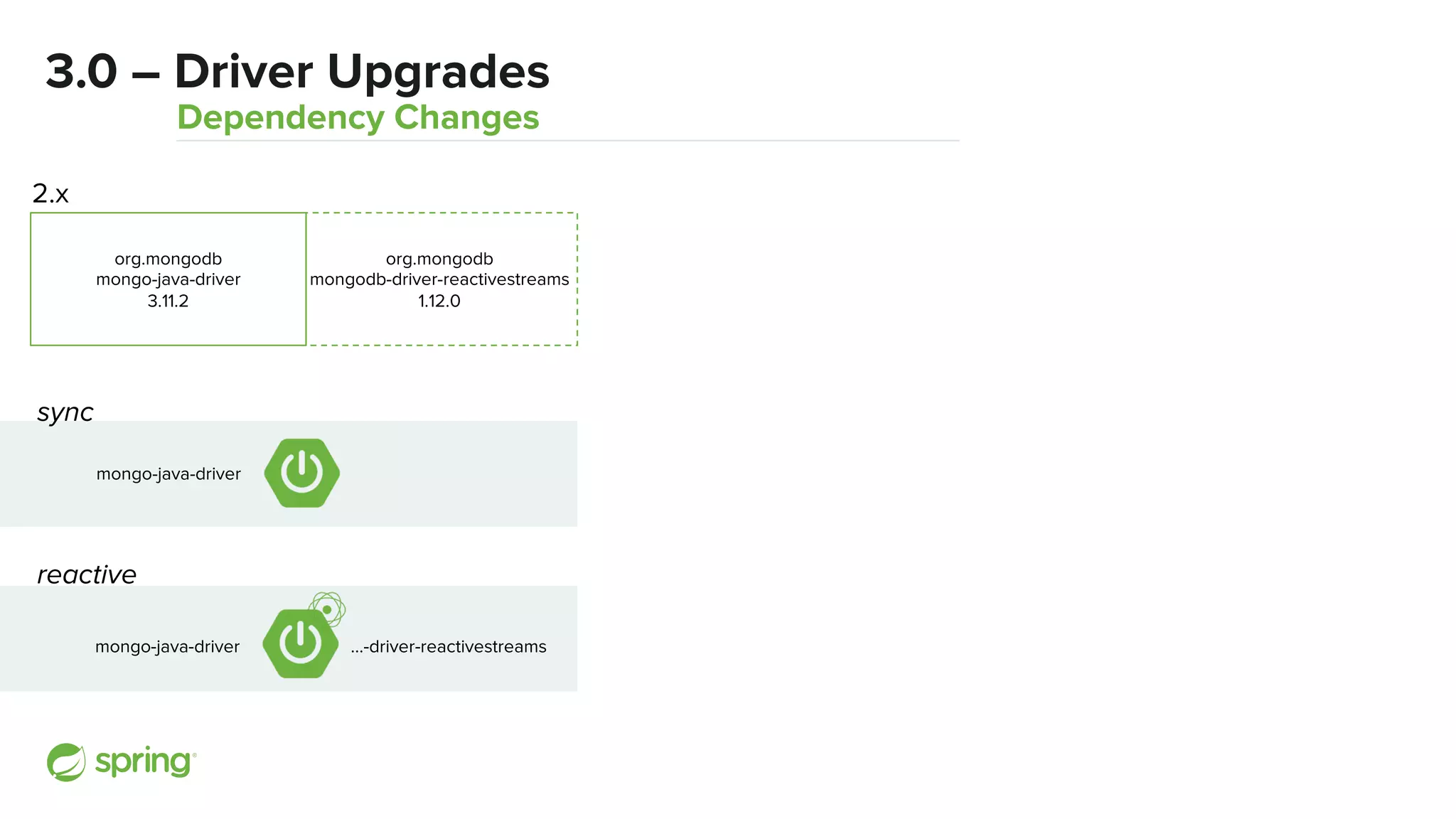

5. org.mongodb
mongodb-driver-reactivestreams
1.12.0
3.0 – Driver Upgrades
Dependency Changes
org.mongodb
mongo-java-driver
3.11.2
2.x
mongo-java-driver
sync
mongo-java-driver ...-driver-reactivestreams
reactive

6. org.mongodb
mongodb-driver-reactivestreams
4.0.5
org.mongodb
mongodb-driver-reactivestreams
1.12.0
3.0 – Driver Upgrades
Dependency Changes
org.mongodb
mongo-java-driver
3.11.2
org.mongodb
mongodb-driver-sync
4.0.5
org.mongodb
mongodb-driver-core
4.0.5
mongo-java-driver
mongo-java-driver ...-driver-reactivestreams
2.x 3.0
sync
reactive
mongodb-driver-core
mongodb-driver-sync
sync
mongodb-driver-reactivestreams
mongodb-driver-core
reactive

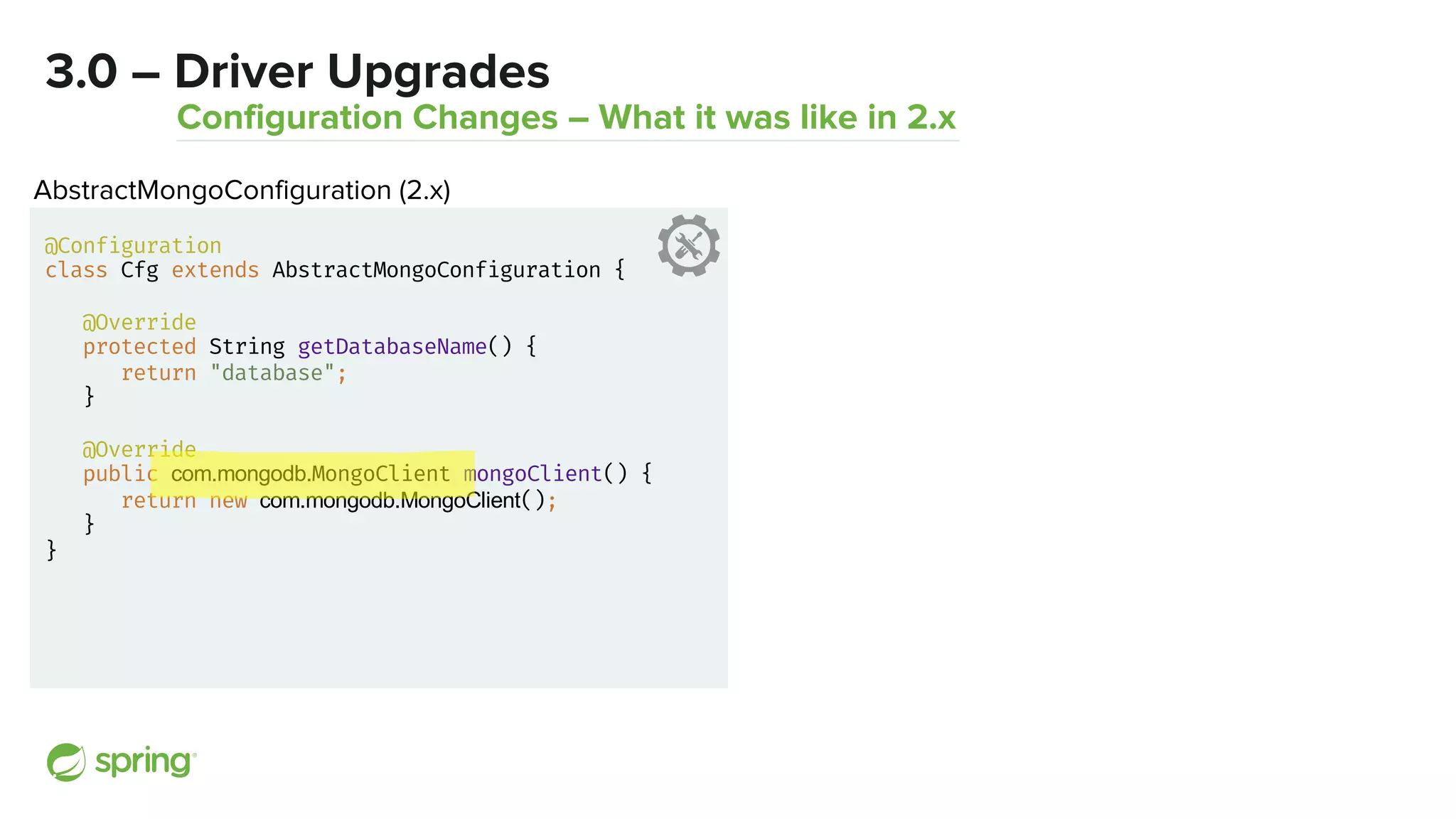

7. 3.0 – Driver Upgrades
Configuration Changes – What it was like in 2.x
AbstractMongoConfiguration (2.x)
@Configuration
class Cfg extends AbstractMongoConfiguration {
@Override
protected String getDatabaseName() {
return "database";
}
@Override
public com.mongodb.MongoClient mongoClient() {
return new com.mongodb.MongoClient();
}
}

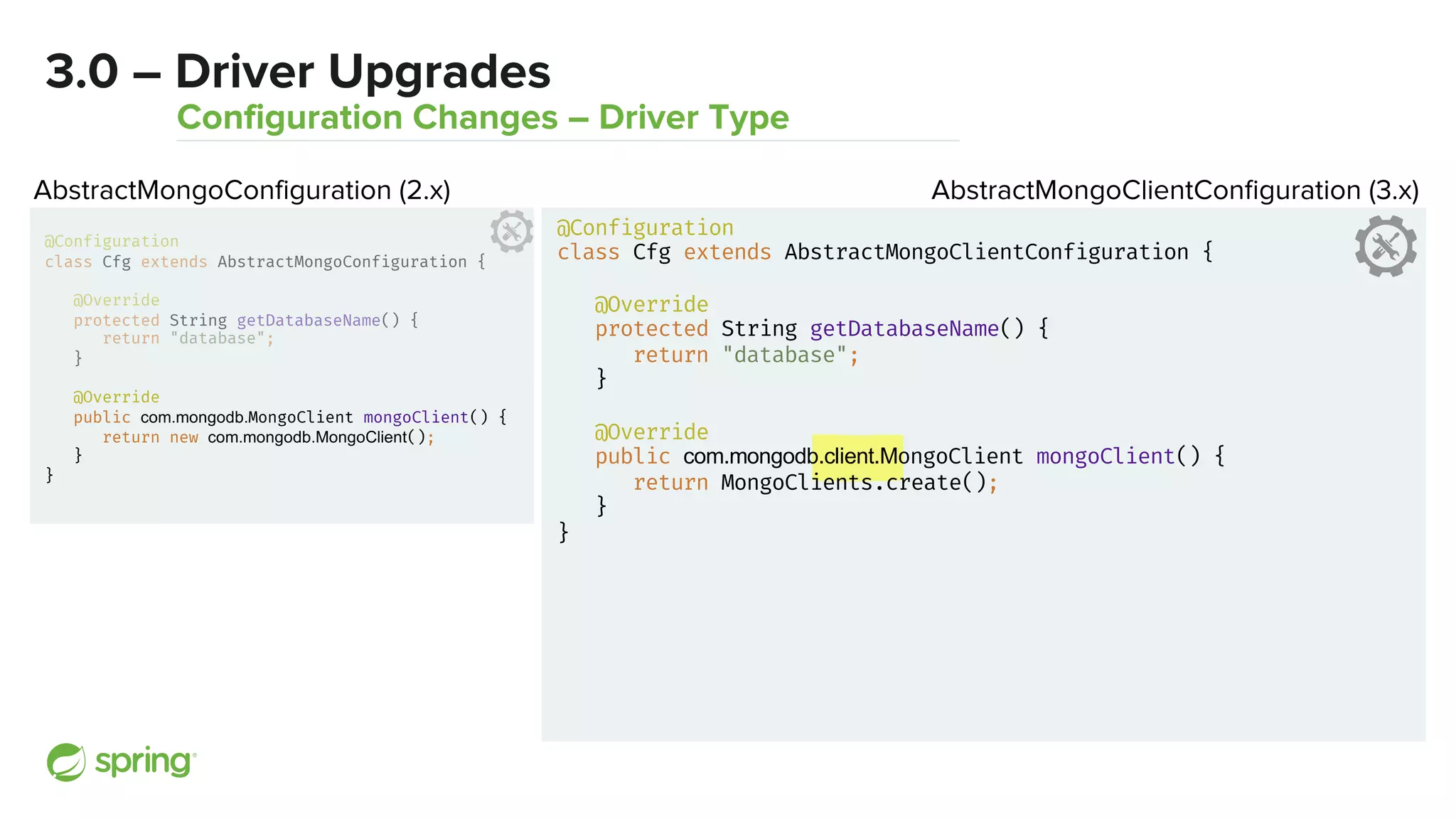

8. 3.0 – Driver Upgrades
Configuration Changes – Driver Type
AbstractMongoClientConfiguration (3.x)
@Configuration
class Cfg extends AbstractMongoConfiguration {
@Override
protected String getDatabaseName() {
return "database";
}
@Override
public com.mongodb.MongoClient mongoClient() {
return new com.mongodb.MongoClient();
}
}
@Configuration
class Cfg extends AbstractMongoClientConfiguration {
@Override
protected String getDatabaseName() {
return "database";
}
@Override
public com.mongodb.client.MongoClient mongoClient() {
return MongoClients.create();
}
}
AbstractMongoConfiguration (2.x)

9. @Configuration
class Cfg extends AbstractMongoConfiguration {
@Override
protected String getDatabaseName() {
return "database";
}
@Override
public com.mongodb.MongoClient mongoClient() {
return new com.mongodb.MongoClient();
}
}
AbstractMongoConfiguration (2.x)

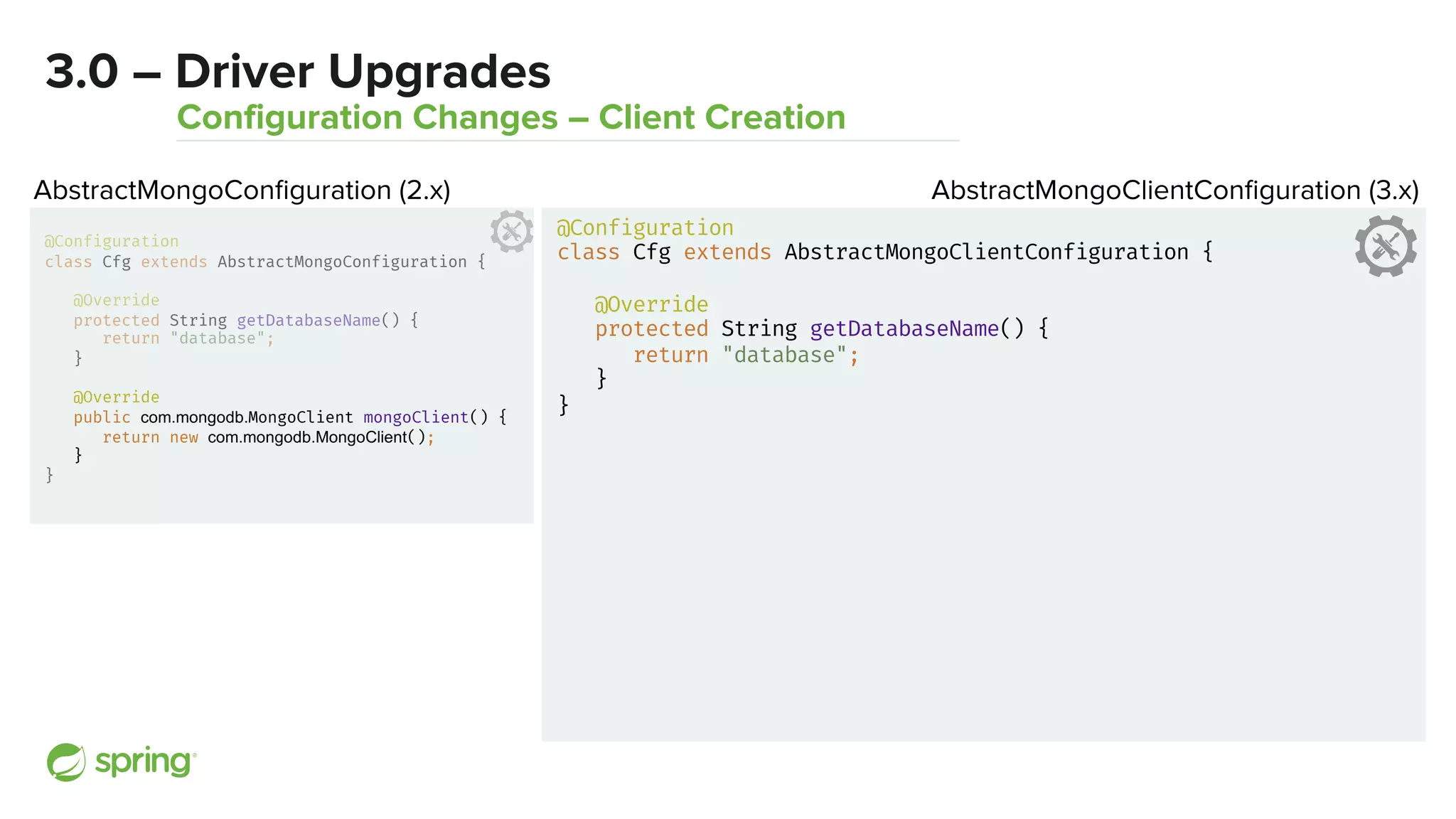

3.0 – Driver Upgrades
Configuration Changes – Client Creation
AbstractMongoClientConfiguration (3.x)
@Configuration
class Cfg extends AbstractMongoClientConfiguration {
@Override
protected String getDatabaseName() {
return "database";
}
}

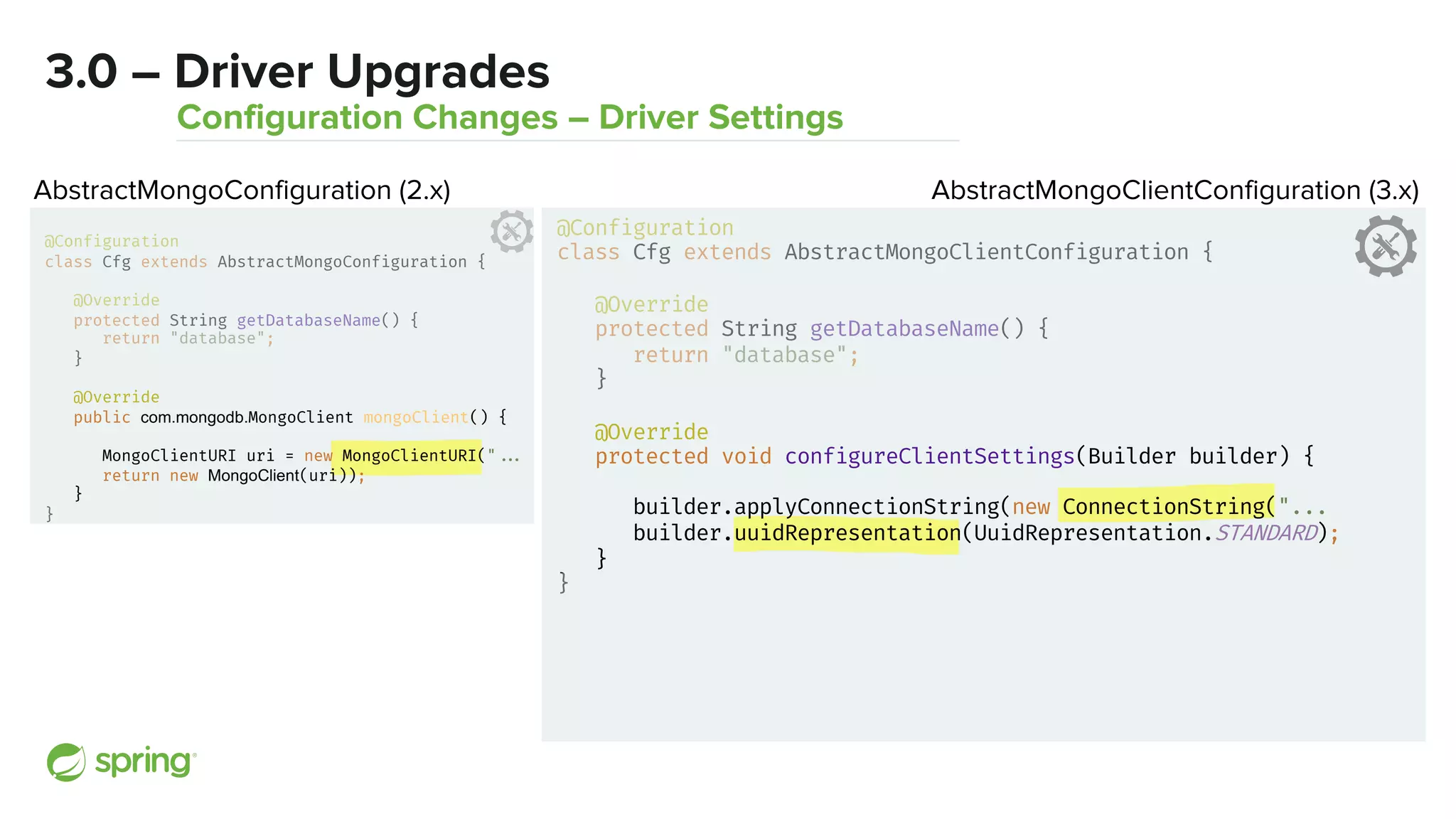

10. 3.0 – Driver Upgrades
Configuration Changes – Driver Settings
AbstractMongoClientConfiguration (3.x)
@Configuration
class Cfg extends AbstractMongoConfiguration {
@Override
protected String getDatabaseName() {
return "database";
}
@Override
public com.mongodb.MongoClient mongoClient() {
MongoClientURI uri = new MongoClientURI("!!...
return new MongoClient(uri));
}
}
@Configuration
class Cfg extends AbstractMongoClientConfiguration {
@Override
protected String getDatabaseName() {
return "database";
}
@Override
protected void configureClientSettings(Builder builder) {
builder.applyConnectionString(new ConnectionString("...
builder.uuidRepresentation(UuidRepresentation.STANDARD);
}
}
AbstractMongoConfiguration (2.x)

11. AbstractMongoClientConfiguration (3.x)
@Configuration
class Cfg extends AbstractMongoClientConfiguration {
@Override
protected String getDatabaseName() {
return "database";
}
@Override
protected void configureClientSettings(Builder builder) {
builder.applyConnectionString(new ConnectionString("!!..."));
builder.uuidRepresentation(UuidRepresentation.STANDARD);
}
@Override
protected boolean autoIndexCreation() {
return true;
}
}

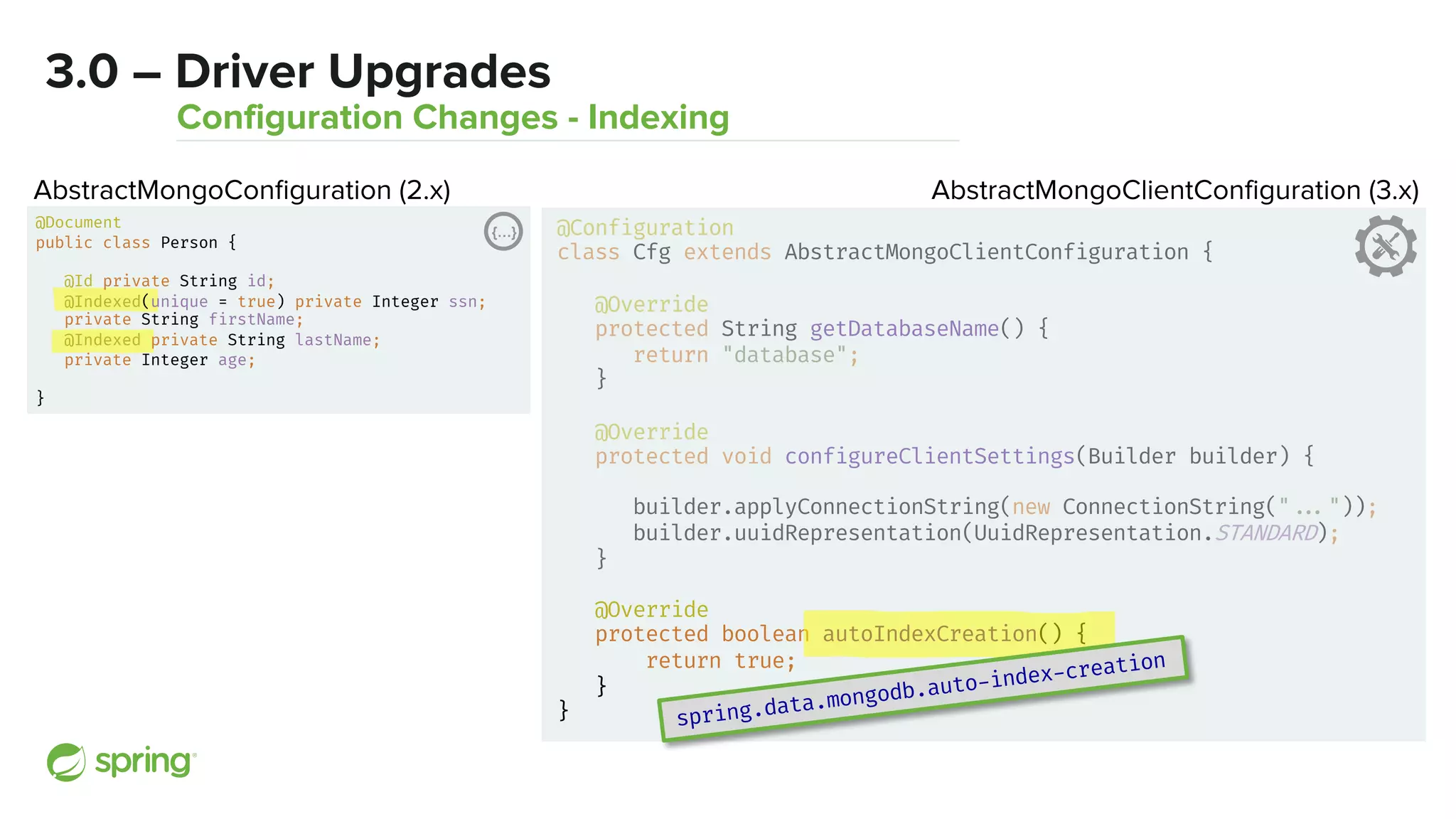

3.0 – Driver Upgrades
Configuration Changes - Indexing
AbstractMongoConfiguration (2.x)
@Document
public class Person {
@Id private String id;
@Indexed(unique = true) private Integer ssn;
private String firstName;
@Indexed private String lastName;
private Integer age;
}
{…}
spring.data.mongodb.auto-index-creation

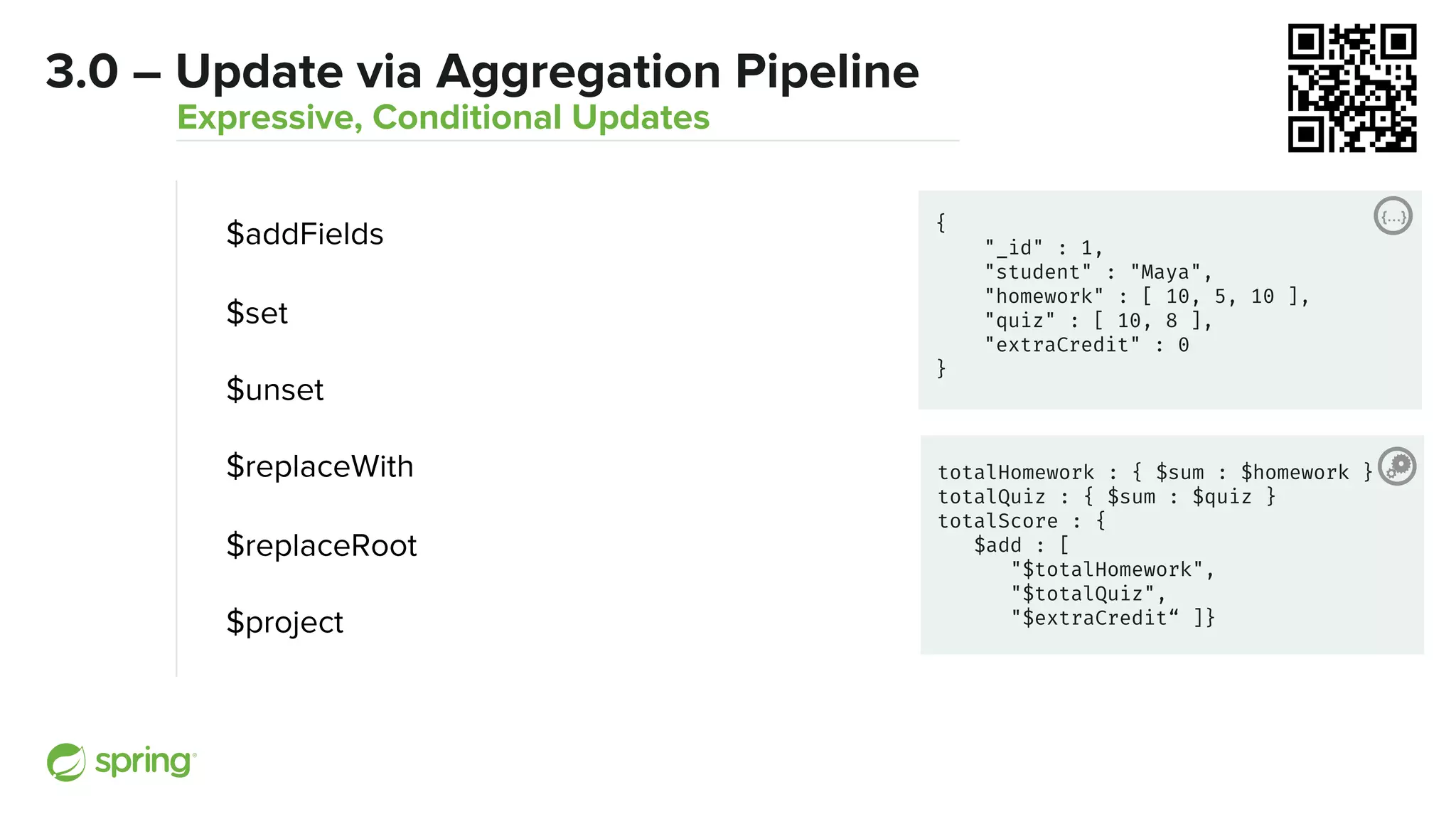

12. 3.0 – Update via Aggregation Pipeline
{…}
{
"_id" : 1,
"student" : "Maya",
"homework" : [ 10, 5, 10 ],
"quiz" : [ 10, 8 ],
"extraCredit" : 0
}
totalHomework : { $sum : $homework }
totalQuiz : { $sum : $quiz }
totalScore : {
$add : [
"$totalHomework",
"$totalQuiz",
"$extraCredit“ ]}
Expressive, Conditional Updates
$addFields
$set
$unset
$replaceWith
$replaceRoot
$project

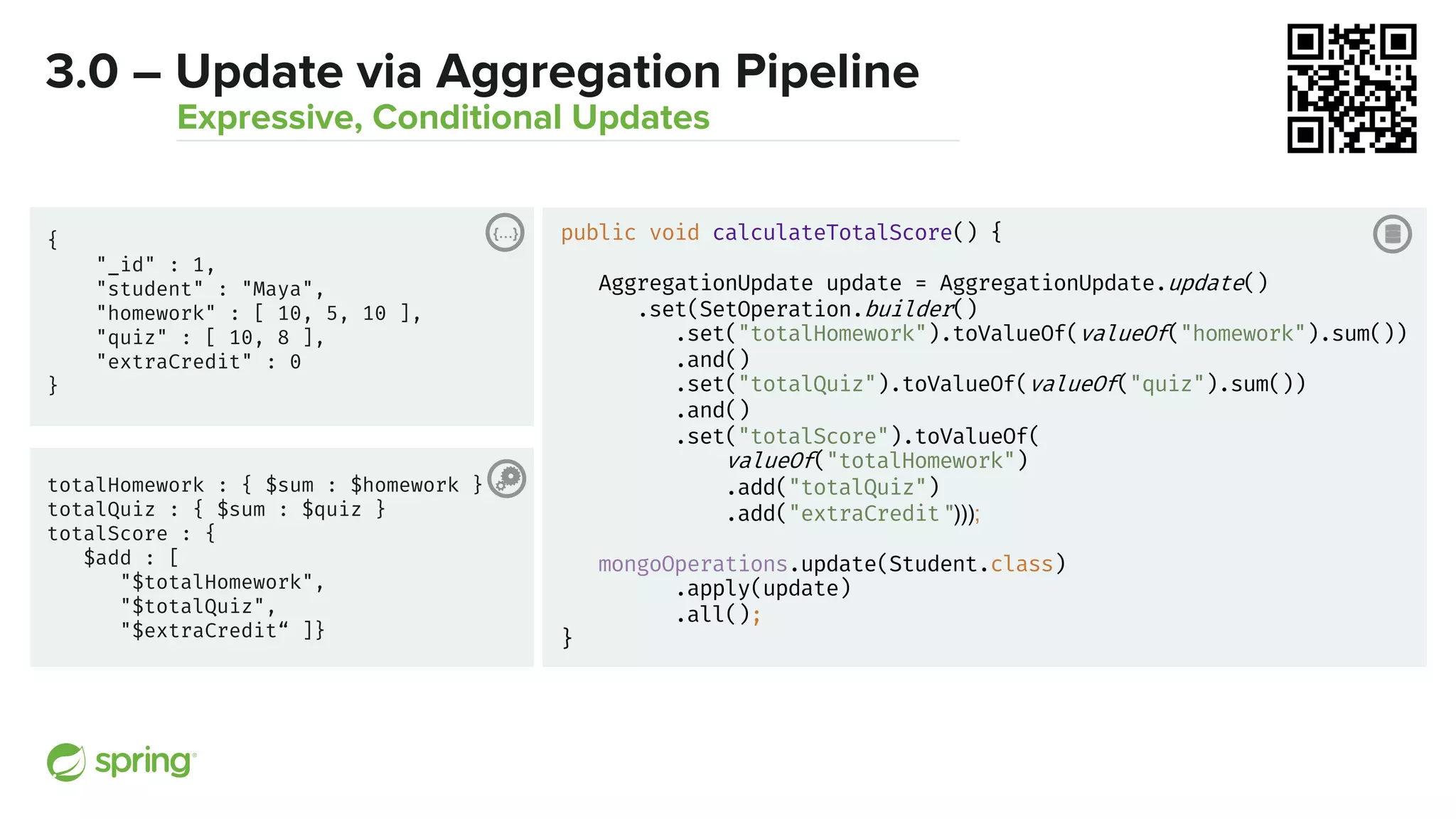

13. 3.0 – Update via Aggregation Pipeline
{…}
{
"_id" : 1,
"student" : "Maya",
"homework" : [ 10, 5, 10 ],
"quiz" : [ 10, 8 ],
"extraCredit" : 0
}
totalHomework : { $sum : $homework }
totalQuiz : { $sum : $quiz }
totalScore : {
$add : [
"$totalHomework",
"$totalQuiz",
"$extraCredit“ ]}
public void calculateTotalScore() {
AggregationUpdate update = AggregationUpdate.update()
.set(SetOperation.builder()
.set("totalHomework").toValueOf(valueOf("homework").sum())
.and()
.set("totalQuiz").toValueOf(valueOf("quiz").sum())
.and()
.set("totalScore").toValueOf(
valueOf("totalHomework")
.add("totalQuiz")
.add("extraCredit ")));
mongoOperations.update(Student.class)
.apply(update)
.all();
}
Expressive, Conditional Updates

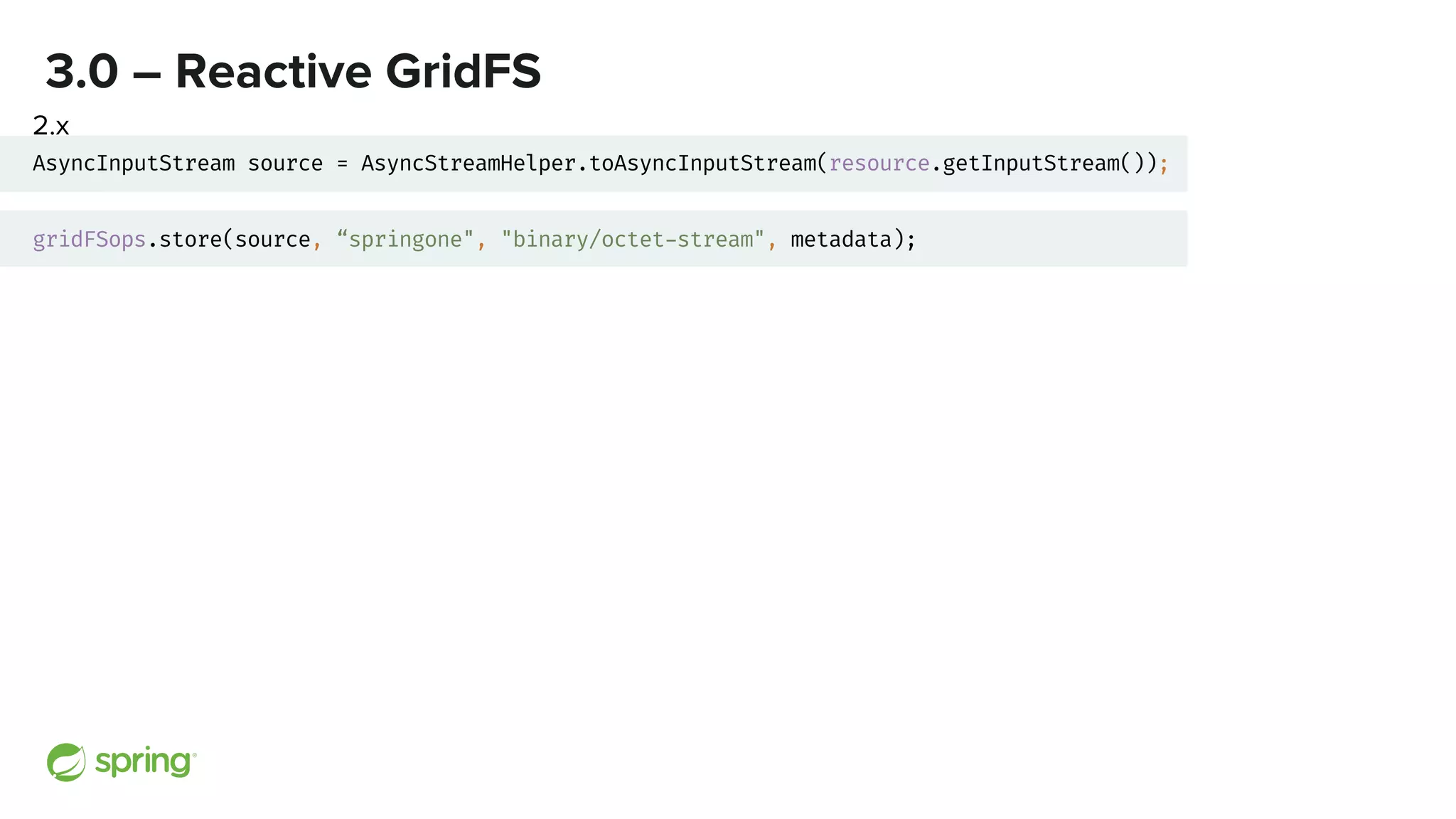

14. 3.0 – Reactive GridFS
AsyncInputStream source = AsyncStreamHelper.toAsyncInputStream(resource.getInputStream());
gridFSops.store(source, “springone", "binary/octet-stream", metadata);
2.x

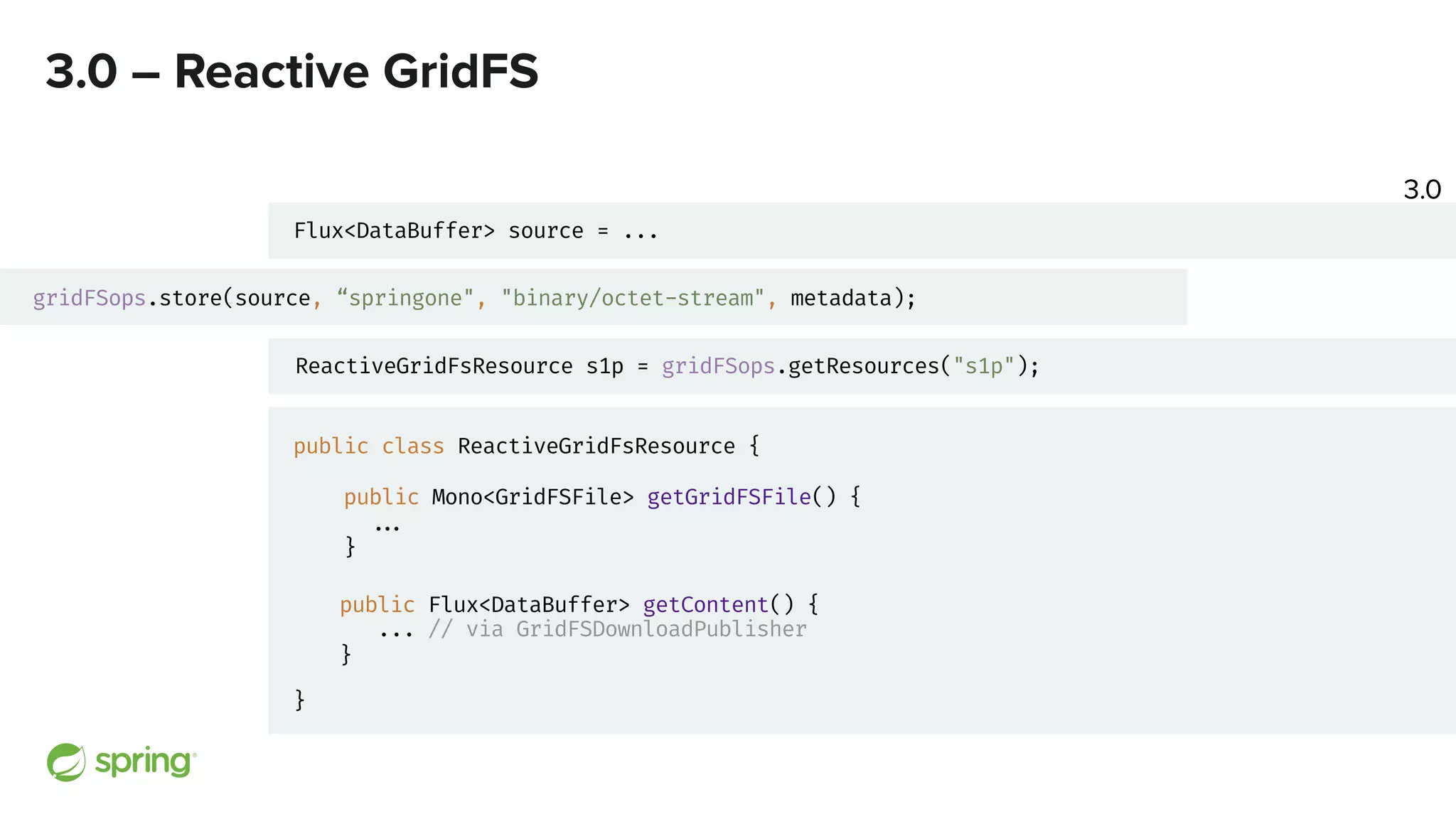

15. 3.0 – Reactive GridFS
Flux<DataBuffer> source = ...
gridFSops.store(source, “springone", "binary/octet-stream", metadata);
public class ReactiveGridFsResource {
public Mono<GridFSFile> getGridFSFile() {
!!...
}
}
public Flux<DataBuffer> getContent() {
... // via GridFSDownloadPublisher
}
ReactiveGridFsResource s1p = gridFSops.getResources("s1p");
3.0

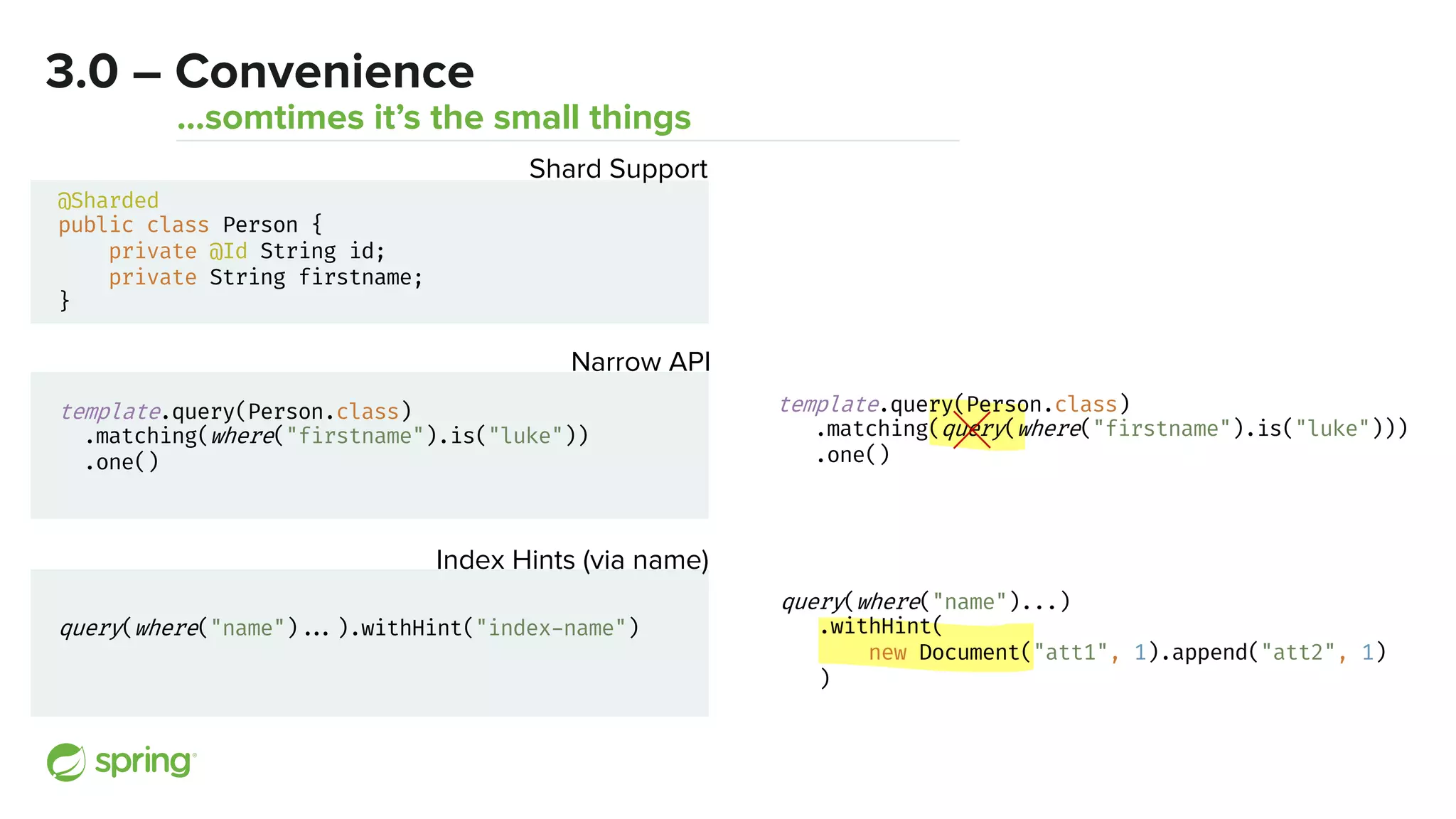

16. 3.0 – Convenience
...somtimes it’s the small things
query(where("name")...)
.withHint(
new Document("att1", 1).append("att2", 1)
)
@Sharded
public class Person {
private @Id String id;
private String firstname;
}
Shard Support
template.query(Person.class)
.matching(where("firstname").is("luke"))
.one()
Narrow API
query(where("name")!!...).withHint("index-name")
Index Hints (via name)
template.query(Person.class)
.matching(query(where("firstname").is("luke")))
.one()

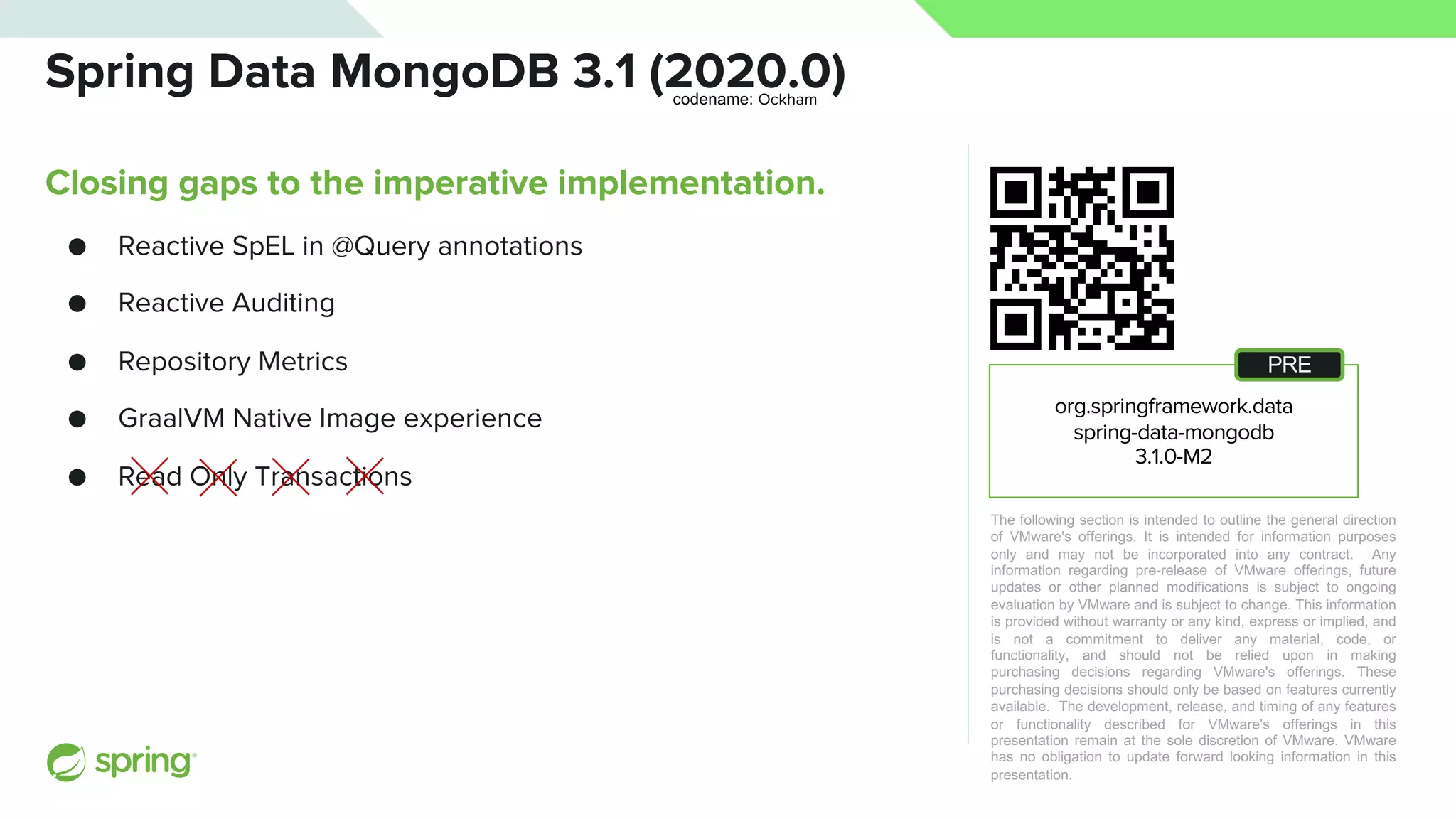

17. Spring Data MongoDB 3.1 (2020.0)
Closing gaps to the imperative implementation.
● Reactive SpEL in @Query annotations
● Reactive Auditing
● Repository Metrics
● GraalVM Native Image experience
● Read Only Transactions
codename: Ockham
The following section is intended to outline the general direction
of VMware's offerings. It is intended for information purposes
only and may not be incorporated into any contract. Any
information regarding pre-release of VMware offerings, future
updates or other planned modifications is subject to ongoing
evaluation by VMware and is subject to change. This information
is provided without warranty or any kind, express or implied, and
is not a commitment to deliver any material, code, or
functionality, and should not be relied upon in making
purchasing decisions regarding VMware's offerings. These
purchasing decisions should only be based on features currently
available. The development, release, and timing of any features
or functionality described for VMware's offerings in this
presentation remain at the sole discretion of VMware. VMware
has no obligation to update forward looking information in this
presentation.
org.springframework.data
spring-data-mongodb
3.1.0-M2
PRE

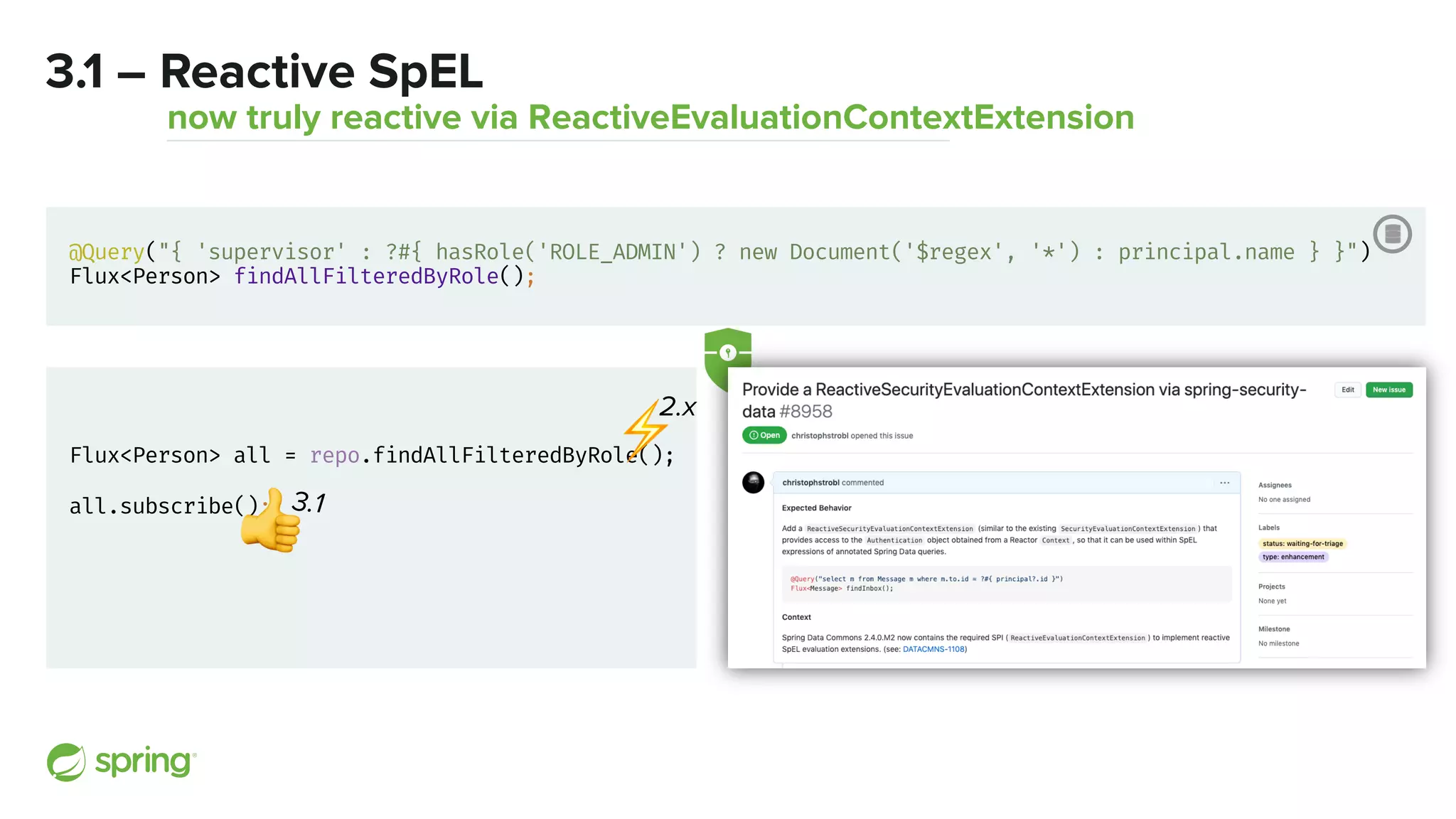

18. @Query("{ 'supervisor' : ?#{ hasRole('ROLE_ADMIN') ? new Document('$regex', '*') : principal.name } }")
Flux<Person> findAllFilteredByRole();
3.1 – Reactive SpEL
now truly reactive via ReactiveEvaluationContextExtension
Flux<Person> all = repo.findAllFilteredByRole();
all.subscribe();
2.x
⚡
3.1
👍

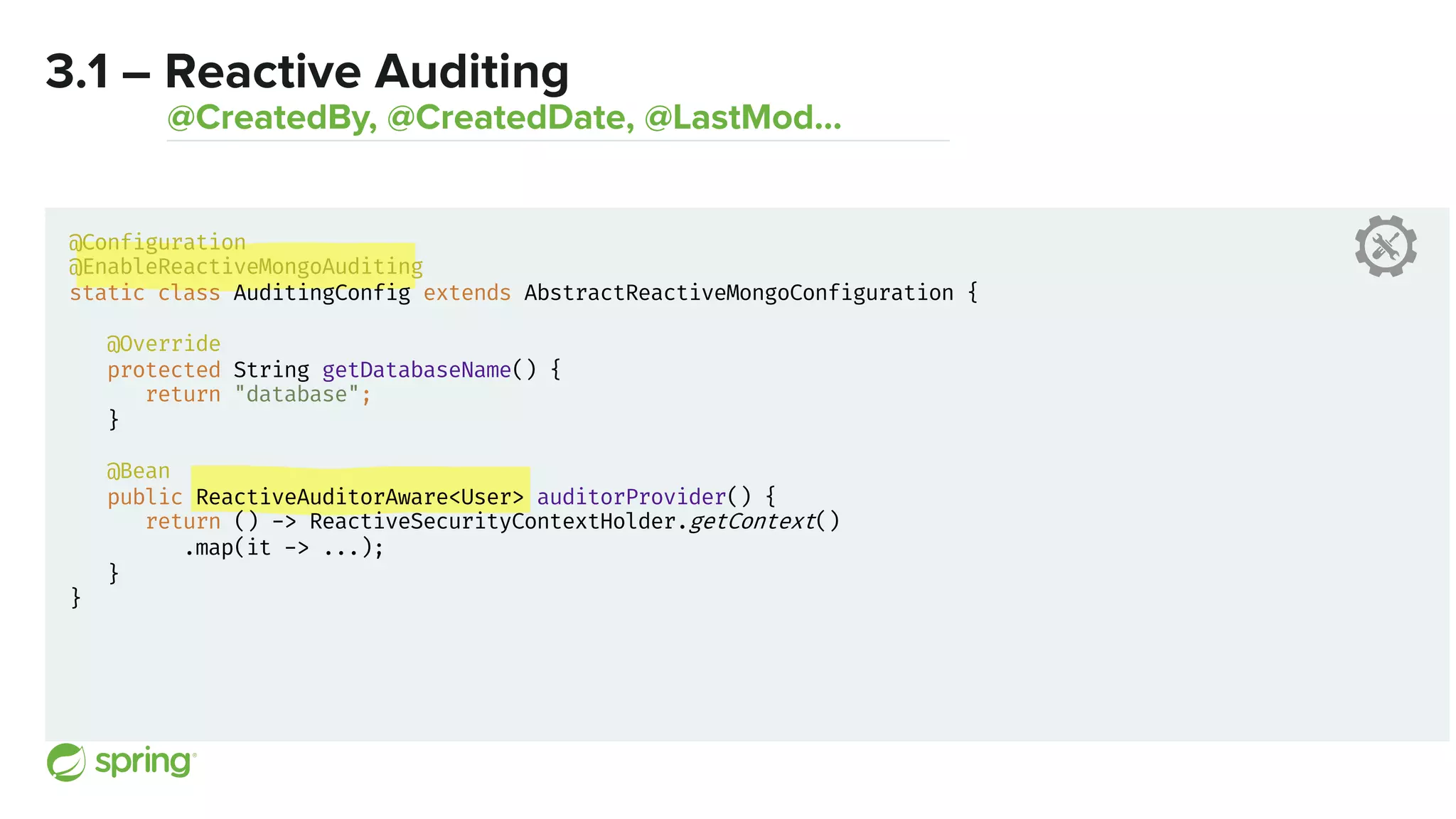

19. 3.1 – Reactive Auditing
@CreatedBy, @CreatedDate, @LastMod...
@Configuration
@EnableReactiveMongoAuditing
static class AuditingConfig extends AbstractReactiveMongoConfiguration {
@Override
protected String getDatabaseName() {
return "database";
}
@Bean
public ReactiveAuditorAware<User> auditorProvider() {
return () -> ReactiveSecurityContextHolder.getContext()
.map(it -> ...);
}
}

20. repo.save(fiona).subscribe();

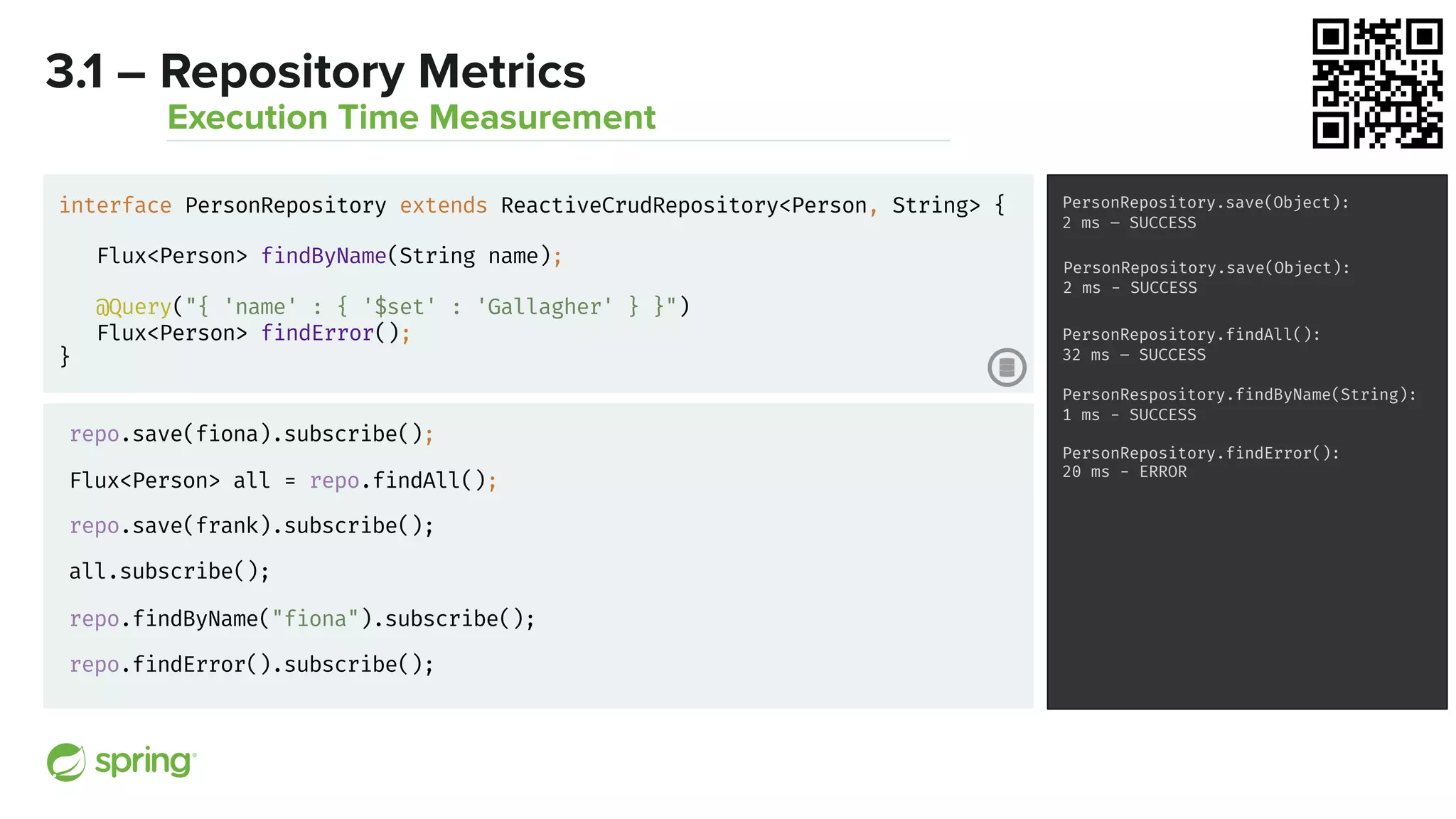

3.1 – Repository Metrics
Execution Time Measurement
PersonRepository.save(Object):
2 ms – SUCCESS
Flux<Person> all = repo.findAll();
repo.save(frank).subscribe();
all.subscribe();
interface PersonRepository extends ReactiveCrudRepository<Person, String> {
Flux<Person> findByName(String name);
@Query("{ 'name' : { '$set' : 'Gallagher' } }")
Flux<Person> findError();
}
PersonRepository.save(Object):
2 ms - SUCCESS
PersonRepository.findAll():
32 ms – SUCCESS
repo.findByName("fiona").subscribe();
repo.findError().subscribe();
PersonRespository.findByName(String):
1 ms - SUCCESS
PersonRepository.findError():
20 ms - ERROR

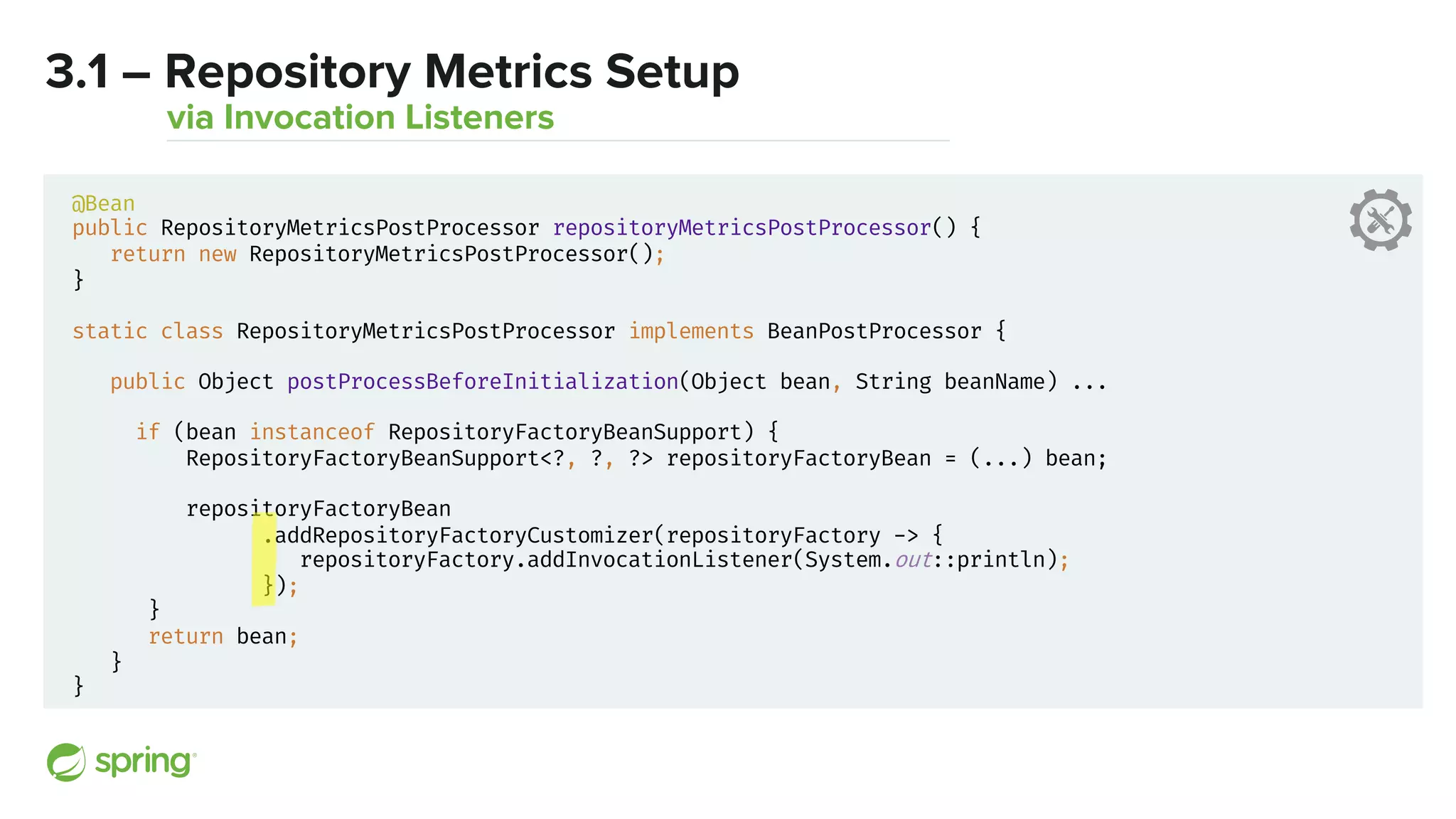

21. 3.1 – Repository Metrics Setup
via Invocation Listeners
@Bean
public RepositoryMetricsPostProcessor repositoryMetricsPostProcessor() {
return new RepositoryMetricsPostProcessor();
}
static class RepositoryMetricsPostProcessor implements BeanPostProcessor {
public Object postProcessBeforeInitialization(Object bean, String beanName) ...
if (bean instanceof RepositoryFactoryBeanSupport) {
RepositoryFactoryBeanSupport<?, ?, ?> repositoryFactoryBean = (...) bean;
repositoryFactoryBean
.addRepositoryFactoryCustomizer(repositoryFactory -> {
repositoryFactory.addInvocationListener(System.out::println);
});
}
return bean;
}
}

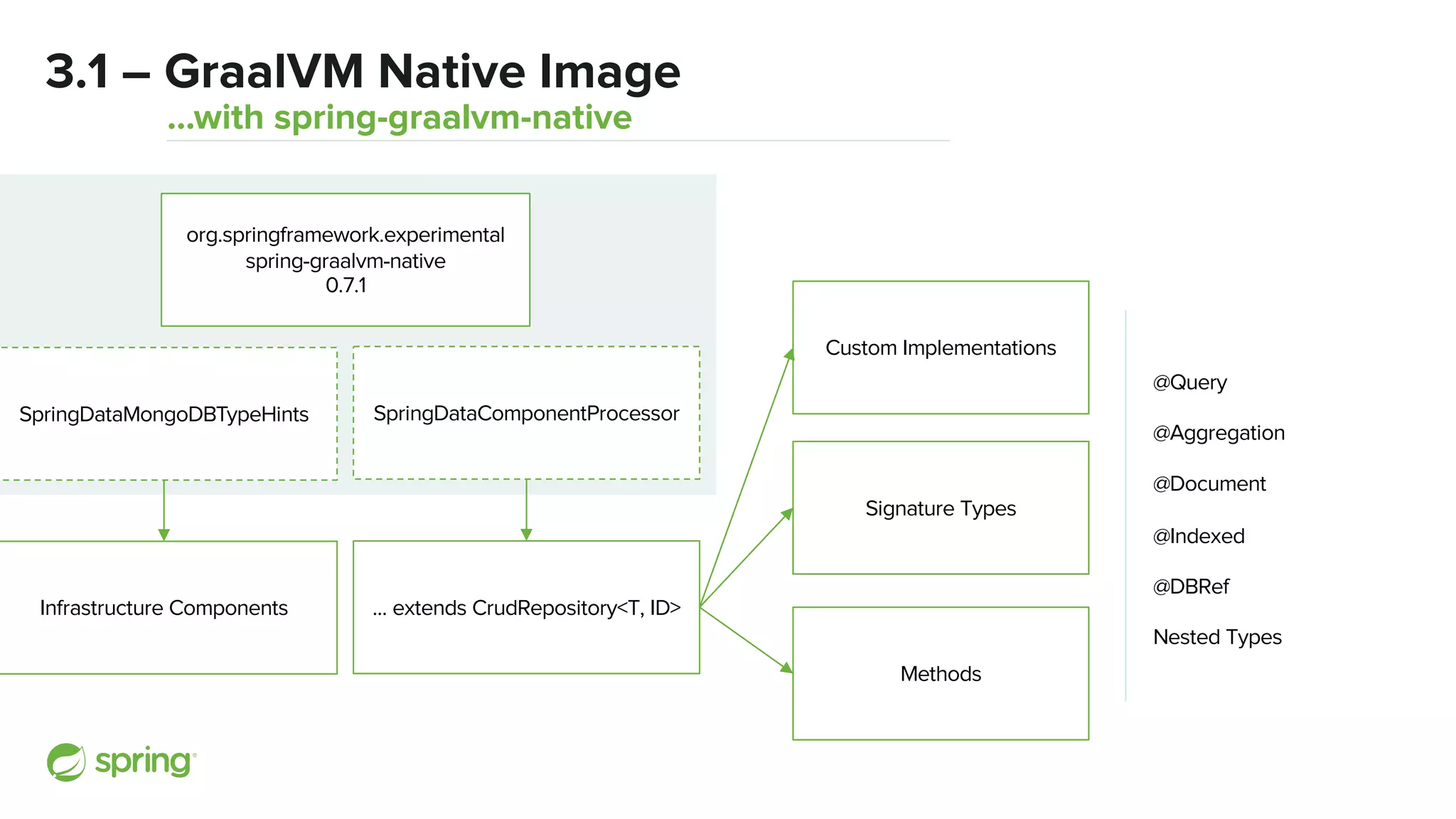

22. 3.1 – GraalVM Native Image
...with spring-graalvm-native
SpringDataComponentProcessor
org.springframework.experimental
spring-graalvm-native
0.7.1
SpringDataMongoDBTypeHints
@Query
@Aggregation
@Document
@Indexed
@DBRef
Nested Types
Infrastructure Components ... extends CrudRepository<T, ID>
Signature Types
Methods
Custom Implementations

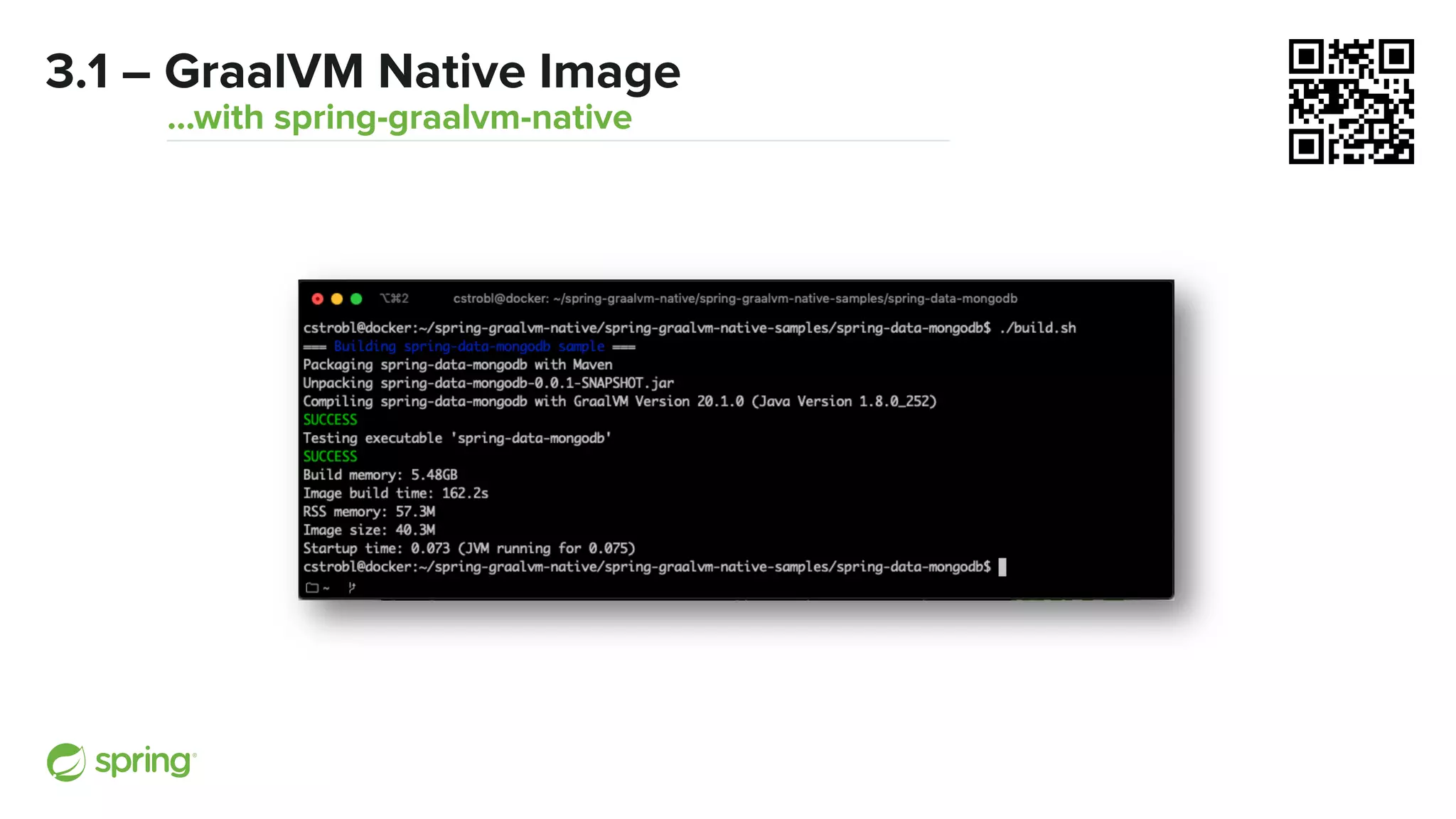

23. 3.1 – GraalVM Native Image
...with spring-graalvm-native

24. © 2020 Spring. A VMware-backed project.
Thank you
Contact us @SpringData
