Oracle TimesTen is an in-memory relational database management system that provides instant responsiveness, very high throughput, and compatibility with Oracle Database. It is deployed in the middle tier close to applications to deliver real-time performance for services like telecommunications, financial services, CRM, and analytics. TimesTen uses memory-optimized techniques to achieve microsecond response times and supports high availability features like replication and caching of Oracle Database tables.

1. Oracle TimesTen In-Memory Database Rex Wang VP Product Marketing

2. Oracle TimesTen In-Memory Database Memory-Optimized RDBMS for Real-Time Enterprises Delivers instant responsiveness and very high throughput Deployed in the middle tier, close to the application Operates standalone or as a read/write cache for Oracle Database Application Application Application Telco Services Financial Services CRM, Portal, SaaS, Customer-facing Applications Real-Time BAM & BI

3. Proven in Real-Time Deployments Thousands of Companies Use Oracle TimesTen IMS, VoIP, IPTV Billing Systems Network Management Mobile Networks Telecommunications Order Matching Risk Management Real-time Analytics Financial Services Call Centers & CRM Software as a Service BI/BAM Customer-Facing Applications

4. Lightning Fast Response Oracle TimesTen In-Memory Database 7.0, 4-CPU, 3 GHz x86 Xeon, 32-bit Linux Microseconds millionths of a second 30 11 Millionths of a second Average Response Time TimesTen In-Memory Database

5. Oracle TimesTen In-Memory Database In-memory RDBMS Entire database in memory Standard access ODBC/JDBC, SQL 92 Compatible with Oracle Database Exceptional performance Instantaneous response time High throughput Persistence and durability Database persists to disk Transactions with ACID properties Real-time services On-line, non-blocking operations Real-time database change notification Embeddable Near-zero administration TimesTen Libraries Application TimesTen Libraries Application Checkpoint files Network Client- Server In-Memory Database Direct-linked TimesTen Libraries Application TimesTen Client lib Application Transaction Logs

6. Option: Replication Real-time transactional replication Between TimesTen databases Database or tables High performance Asynchronous replication Synchronous replication Robust and reliable Auto recovery, master catch-up Conflict detection and resolution Flexible configuration Active-standby, Active-active, N-way Configure using SQL Online upgrade – no downtime Network Replication TimesTen to TimesTen In-Memory Database TimesTen Libraries Application TimesTen Libraries Application TimesTen Libraries Application In-Memory Database TimesTen Libraries Application TimesTen Libraries Application TimesTen Libraries Application

7. Option: Cache Connect to Oracle Cache tables from Oracle database User configured cache groups Cache individual tables and related tables Cache all or subset of rows and columns Read-only and updatable Access cached tables like regular database tables Dynamic caching on-demand Automatic data synchronization TimesTen to Oracle Oracle to TimesTen Checkpoints Tx Logs Network Client- Server Cache Tables Cache Agent Direct-linked Application TimesTen Libraries TimesTen Client lib Application

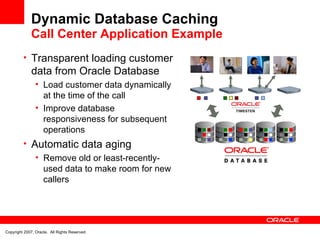

8. Dynamic Database Caching Call Center Application Example Transparent loading customer data from Oracle Database Load customer data dynamically at the time of the call Improve database responsiveness for subsequent operations Automatic data aging Remove old or least-recently-used data to make room for new callers

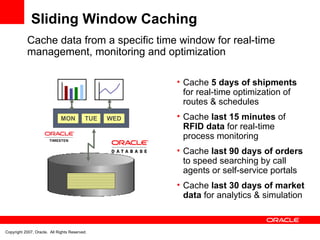

9. Sliding Window Caching Cache data from a specific time window for real-time management, monitoring and optimization Cache 5 days of shipments for real-time optimization of routes & schedules Cache last 15 minutes of RFID data for real-time process monitoring Cache last 90 days of orders to speed searching by call agents or self-service portals Cache last 30 days of market data for analytics & simulation WED TUE MON

10. Comprehensive High Availability for Multi-Tier Enterprise Architectures TimesTen Replication delivers continuous availability in the Applications tier Oracle 10 g RAC delivers high availability and enterprise scalability in the Database tier TimesTen provides high availability across tiers to insulate applications from network or DB outages

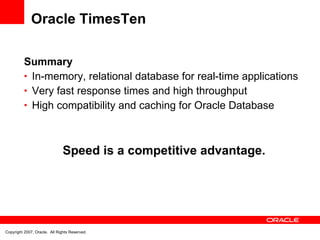

11. Oracle TimesTen Summary In-memory, relational database for real-time applications Very fast response times and high throughput High compatibility and caching for Oracle Database Speed is a competitive advantage.

12. For More Information http://search.oracle.com http://www.oracle.com/database/timesten.html TimesTen or
