The document provides an overview of Oracle's TimesTen in-memory database, detailing its features, performance advantages, and its applications in improving response times for businesses. It discusses how TimesTen is designed for real-time analytics and includes support for various programming interfaces. Additionally, the document covers integration with existing Oracle databases and offers insights into the development environment within Oracle's Mexico Development Center.

1. 1 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

2. Cómo Construimos Oracle TimesTen
Ricardo Gonzalez
2
Senior Product Manager
Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

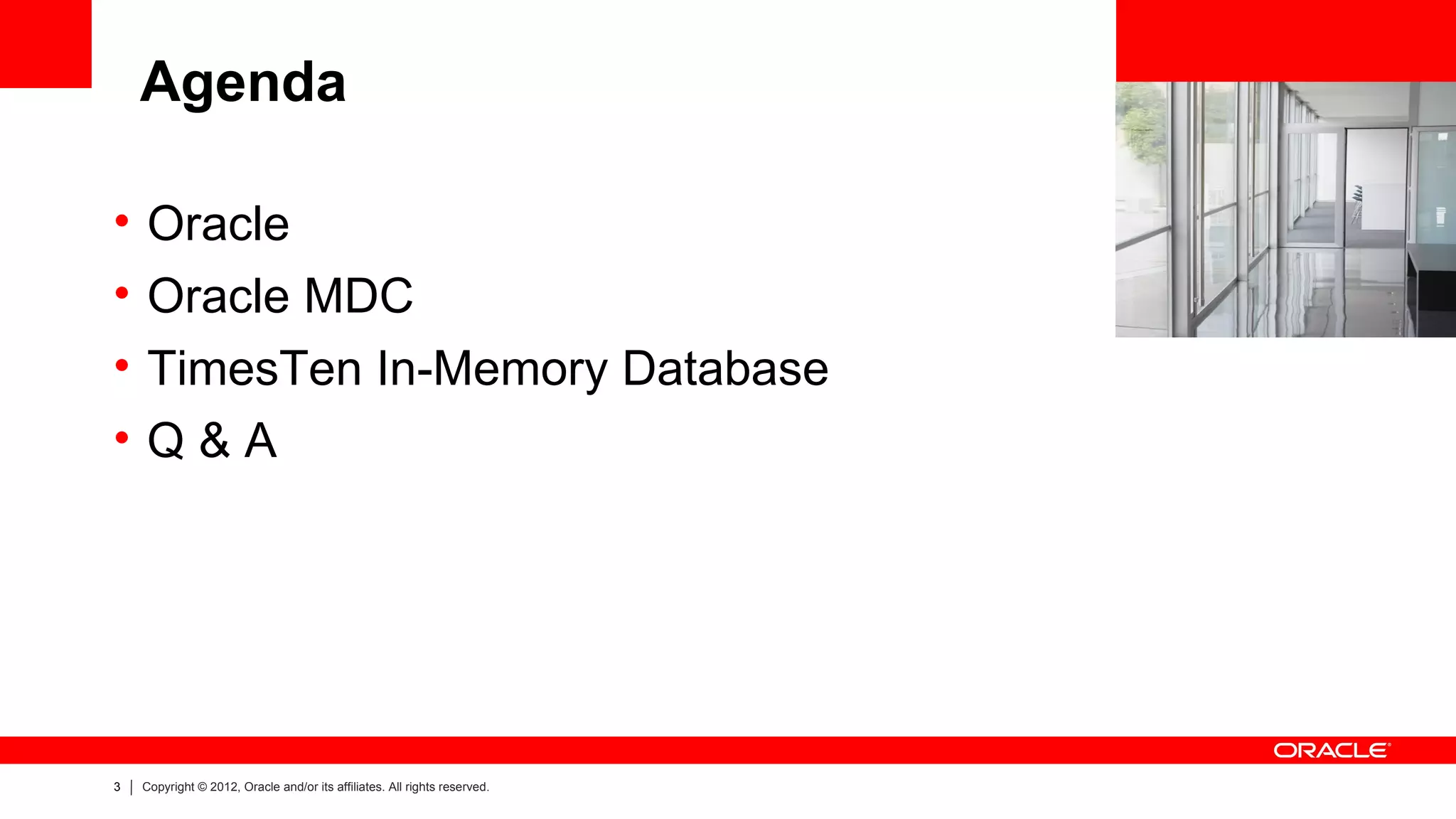

3. Agenda
• Oracle <Insert Picture Here>
• Oracle MDC
• TimesTen In-Memory Database
• Q&A
3 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

4. 4 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

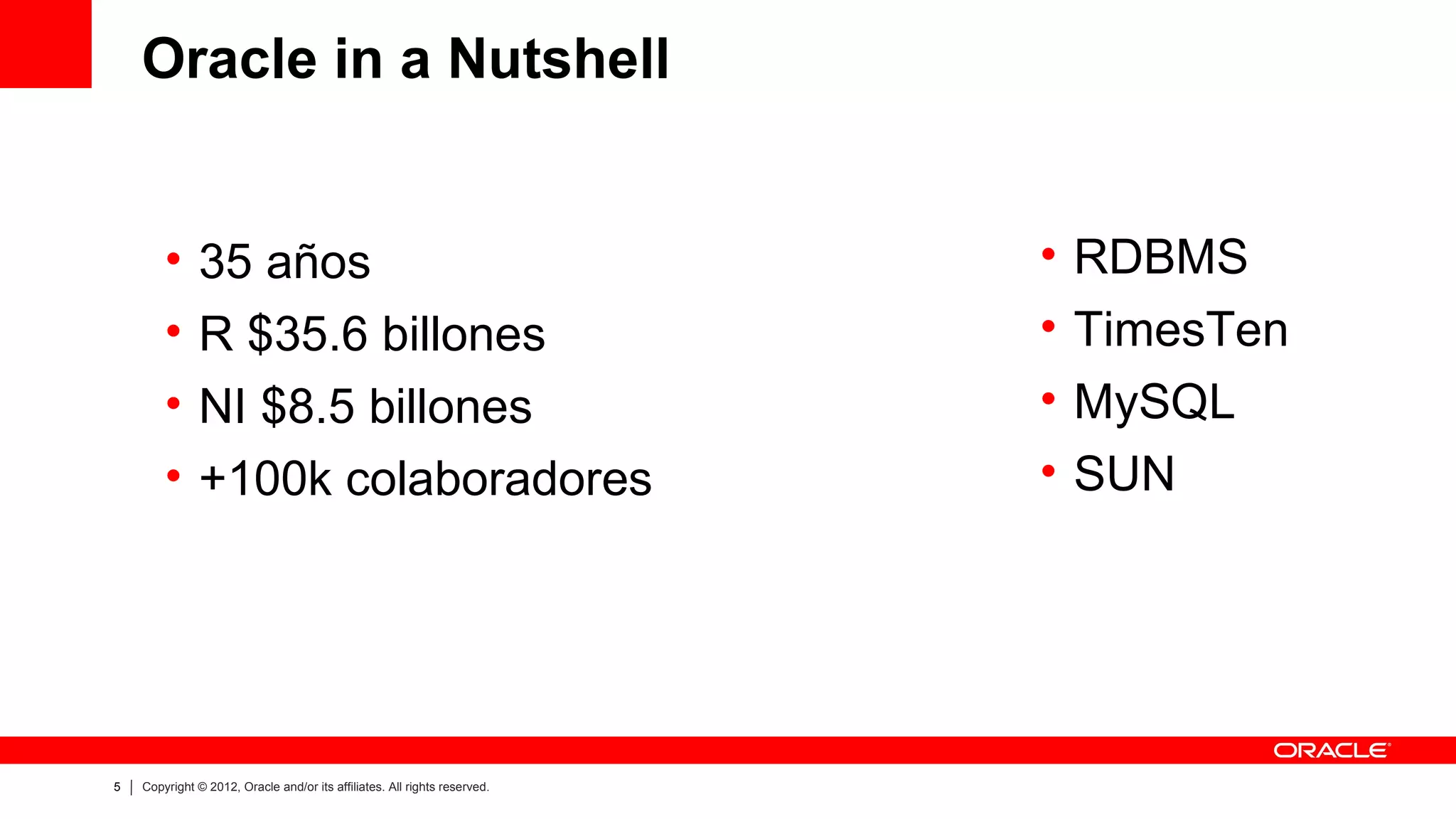

5. Oracle in a Nutshell
• 35 años • RDBMS
• R $35.6 billones • TimesTen
• NI $8.5 billones • MySQL
• +100k colaboradores • SUN
5 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

6. 6 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

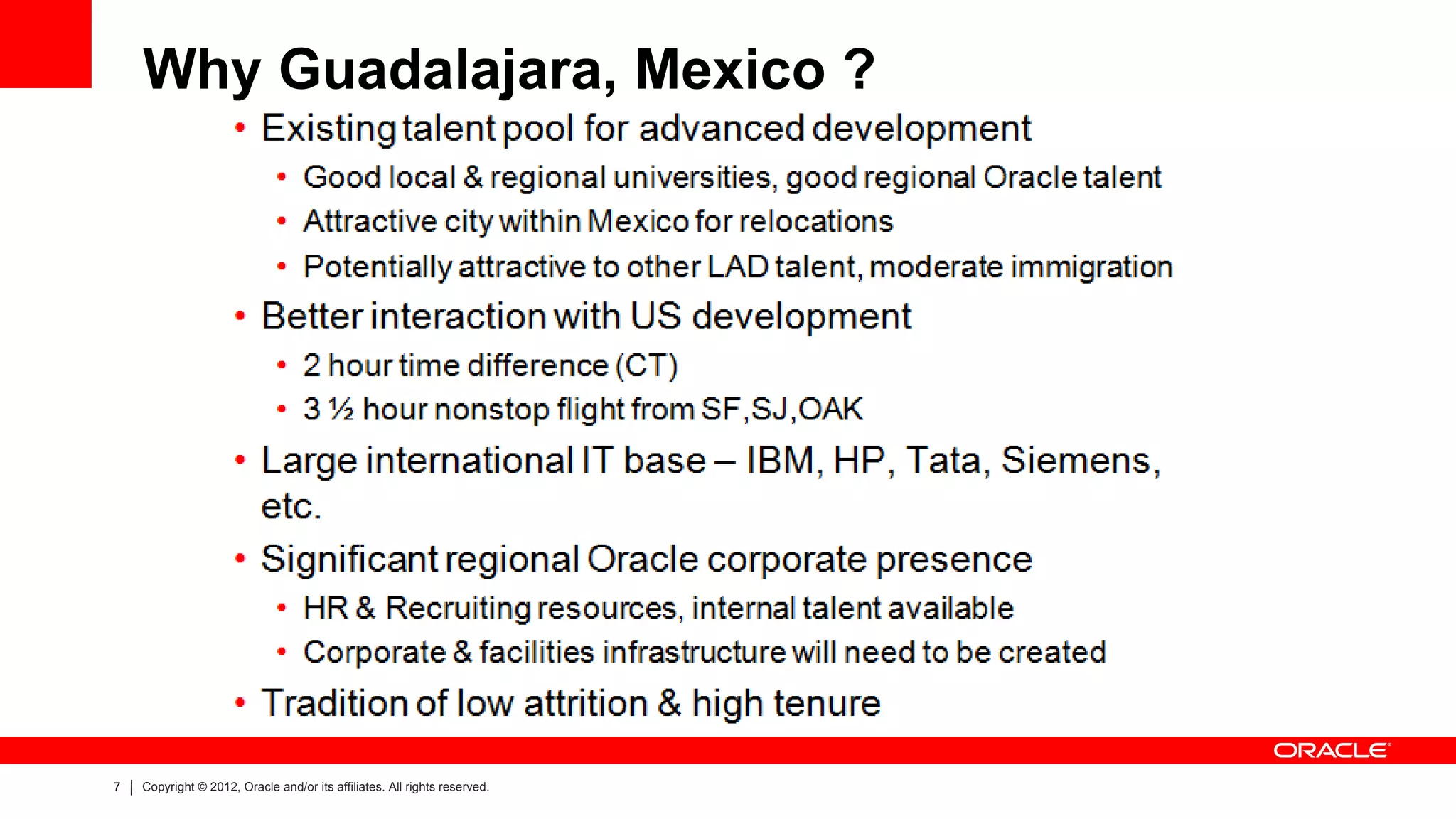

7. Why Guadalajara, Mexico ?
7 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

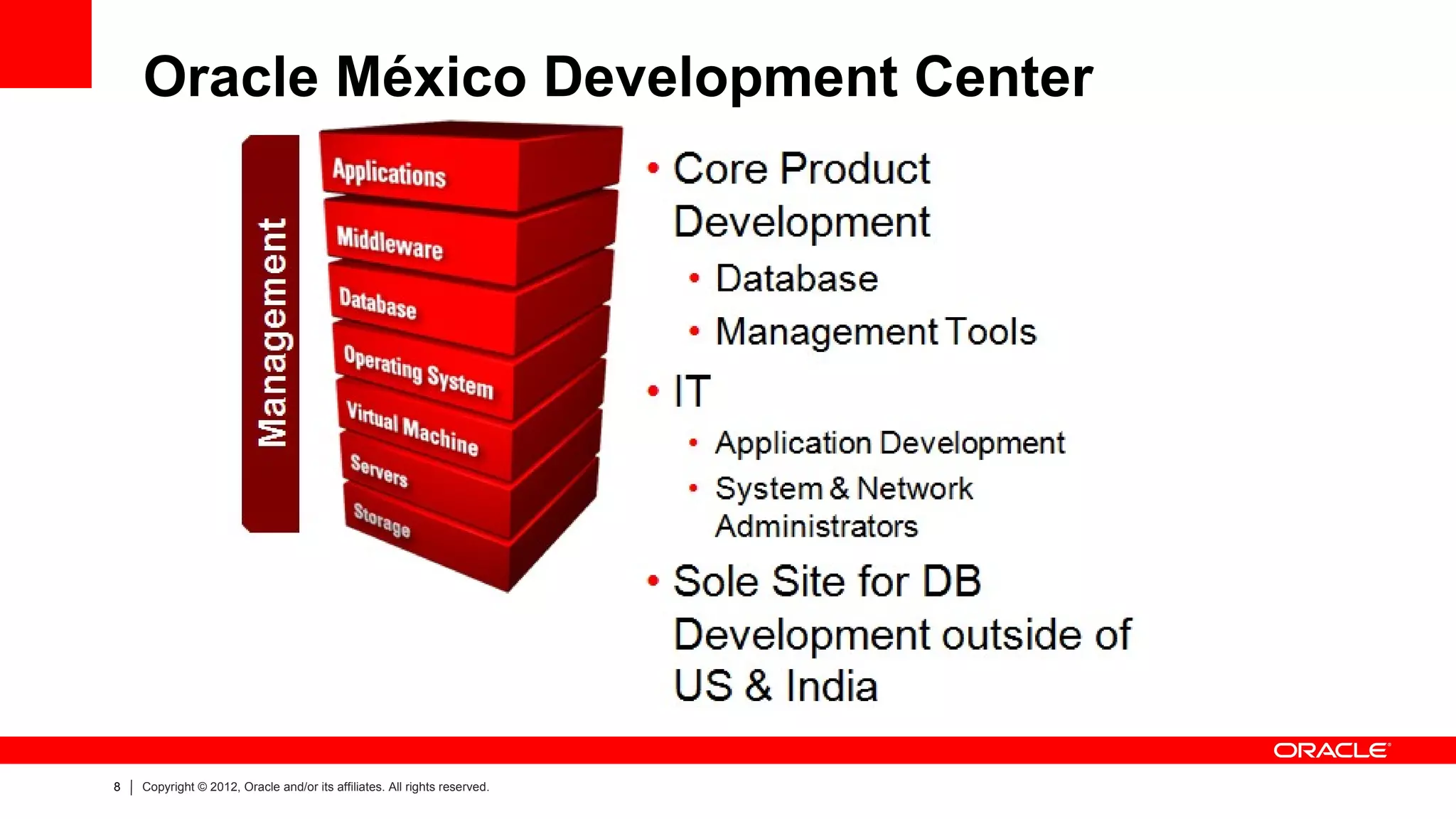

8. Oracle México Development Center
8 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

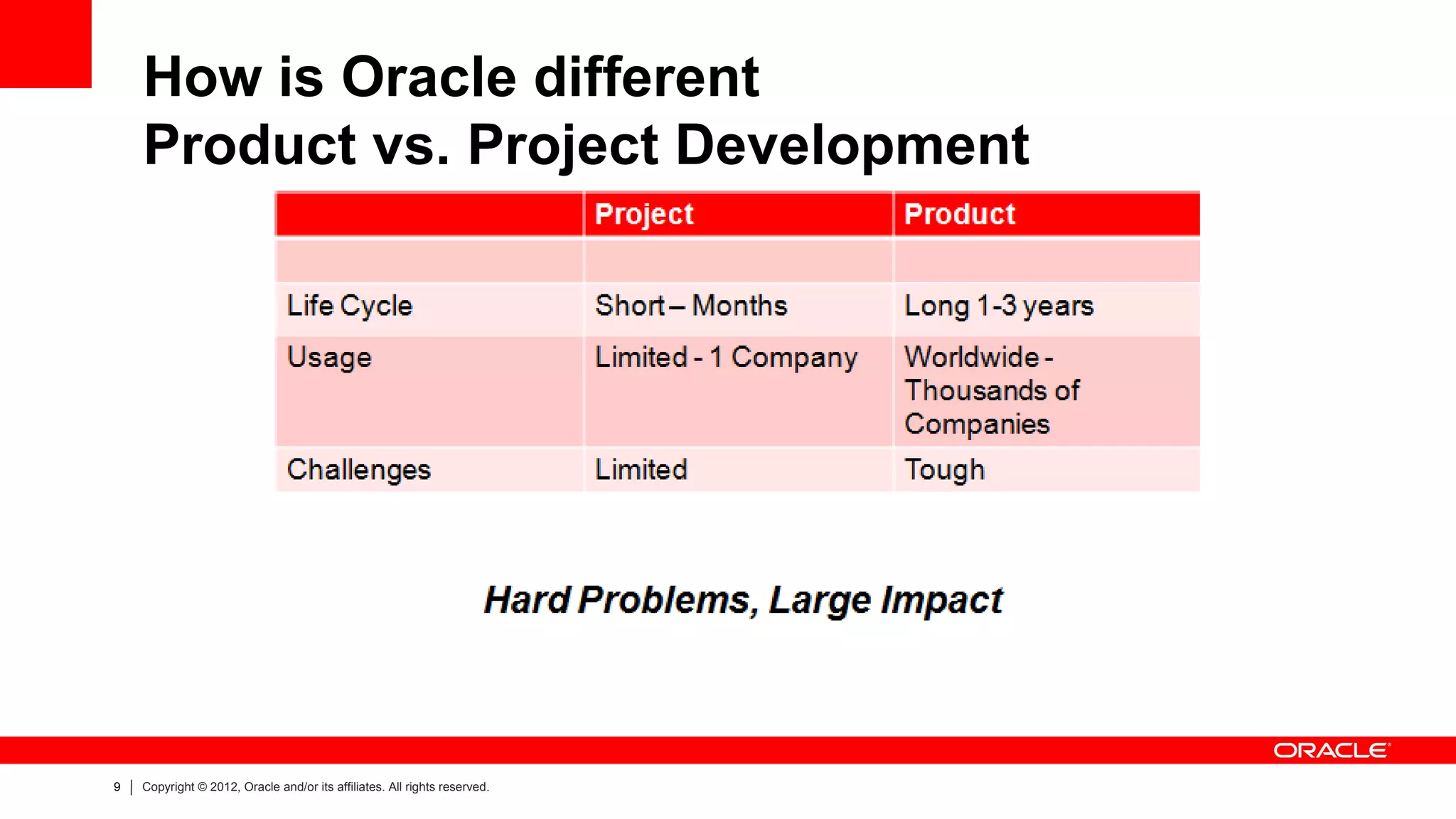

9. How is Oracle different
Product vs. Project Development
9 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

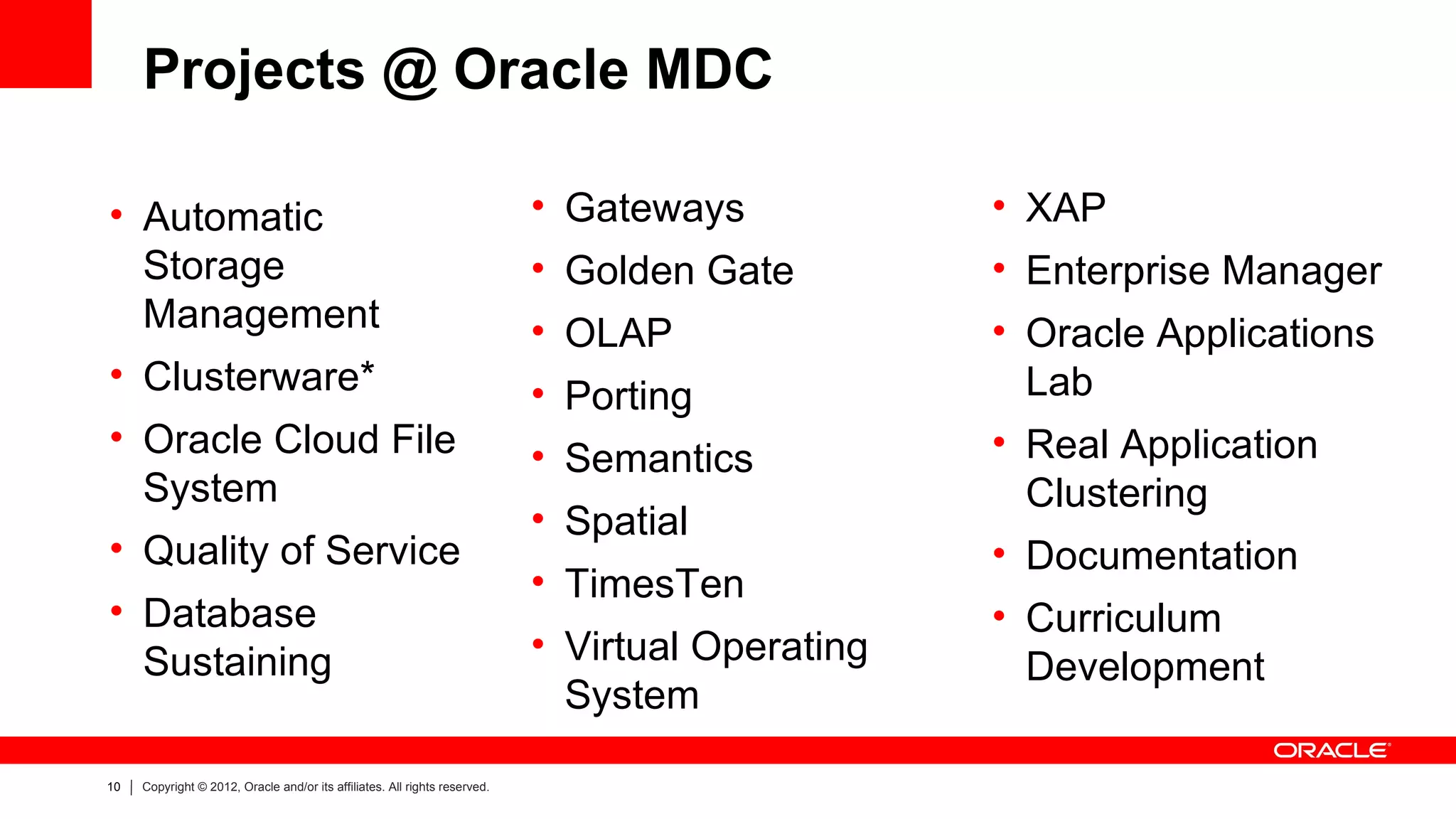

10. Projects @ Oracle MDC
• Automatic • Gateways • XAP
Storage • Golden Gate • Enterprise Manager
Management • OLAP • Oracle Applications
• Clusterware* • Porting Lab
• Oracle Cloud File • Semantics • Real Application
System Clustering
• Spatial
• Quality of Service • Documentation
• TimesTen
• Database • Curriculum
Sustaining • Virtual Operating
Development
System
10 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

11. TimesTen In-Memory Database
11 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

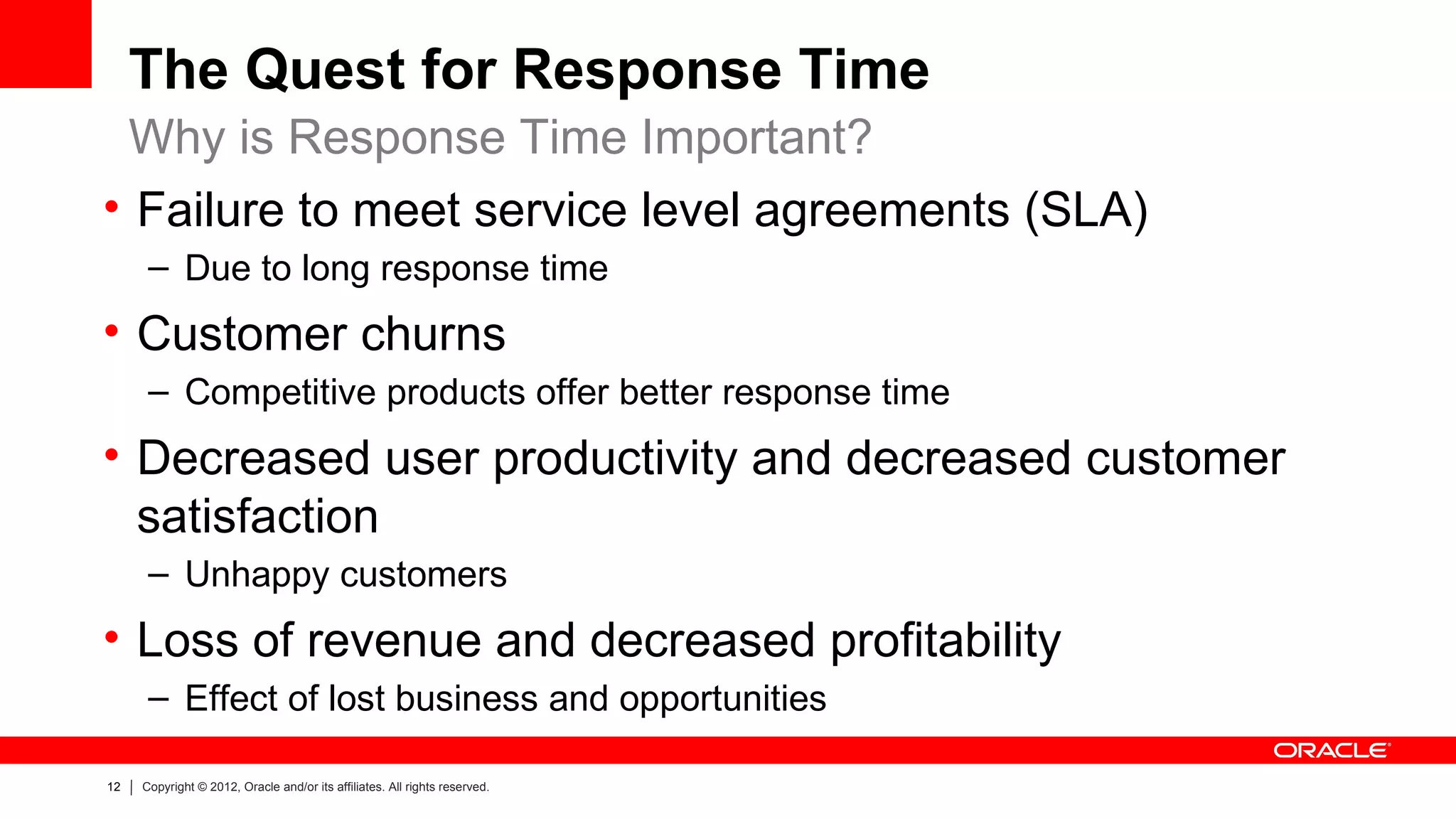

12. The Quest for Response Time
Why is Response Time Important?
• Failure to meet service level agreements (SLA)
– Due to long response time
• Customer churns
– Competitive products offer better response time
• Decreased user productivity and decreased customer
satisfaction
– Unhappy customers
• Loss of revenue and decreased profitability
– Effect of lost business and opportunities
12 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

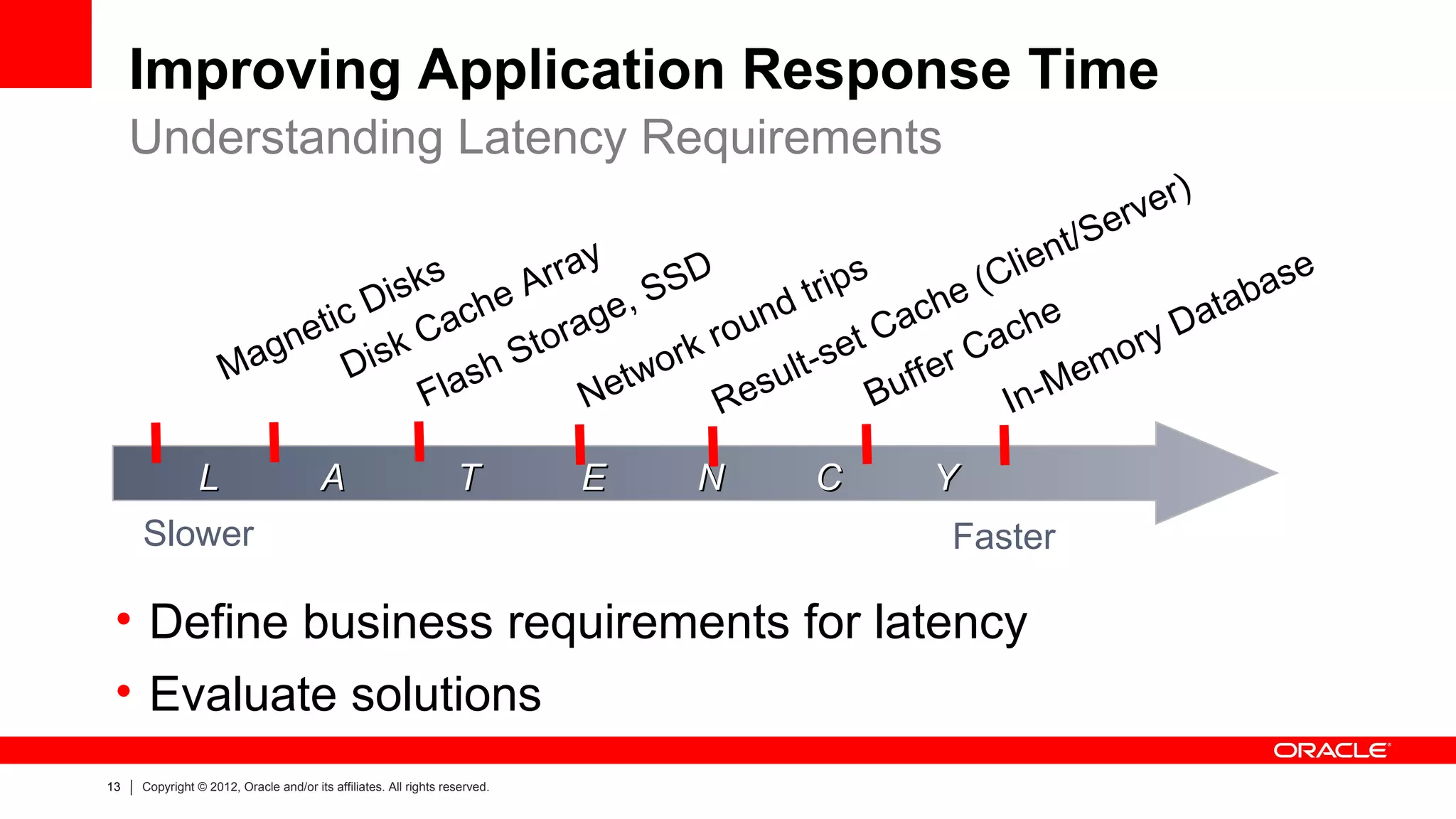

13. Improving Application Response Time
Understanding Latency Requirements
er)
/S erv
t
s ray D s lien e
D isk he Ar e, SS trip e (C ta bas
tic ac ag und ach he Da
e
agn Disk
C
S to
r
rk r
o tC ac ry
M sh two lt -se ffer C emo
Fla Ne R esu Bu I n-M
L A T E N C Y
Slower Faster
• Define business requirements for latency
• Evaluate solutions
13 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

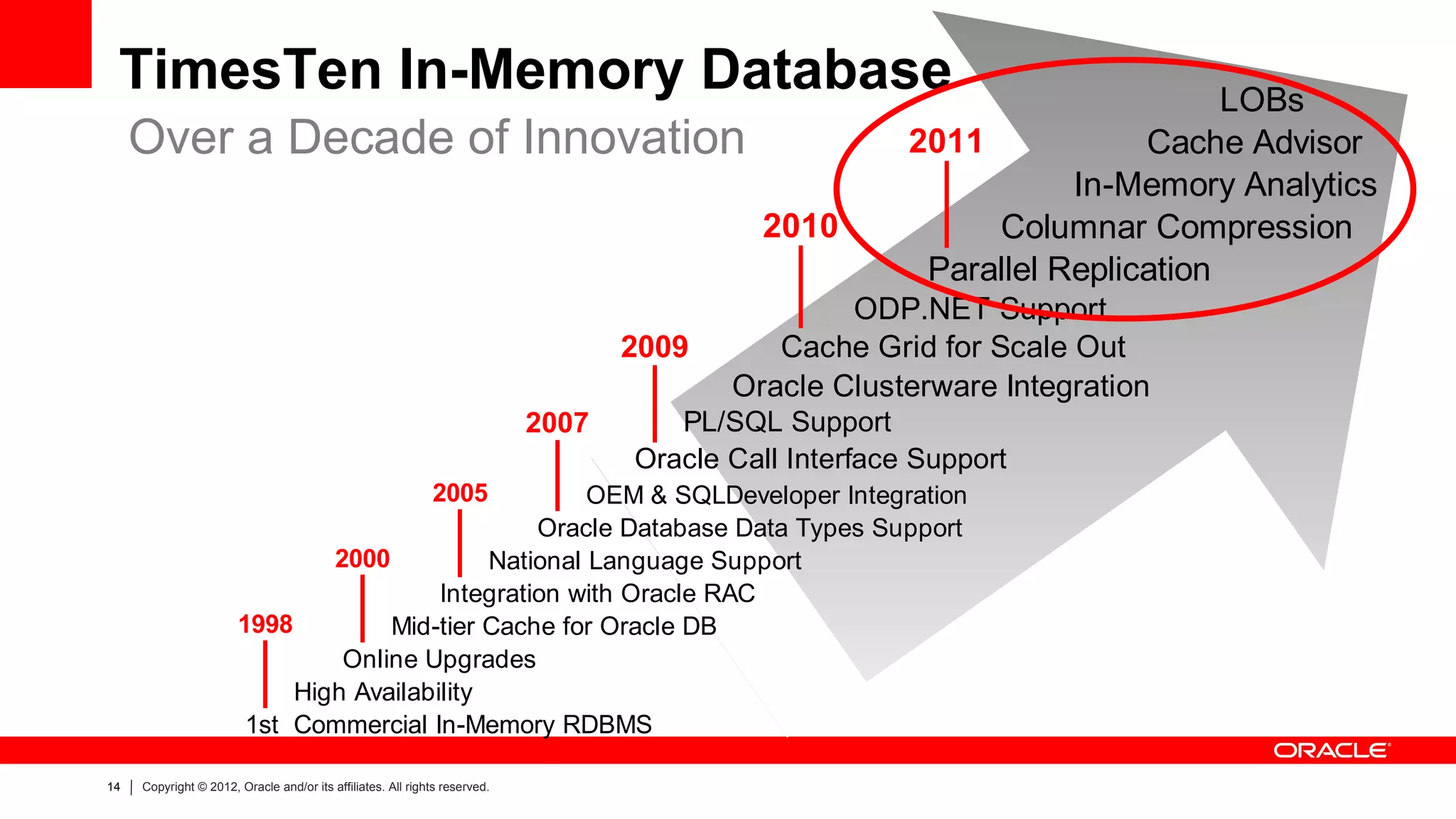

14. TimesTen In-Memory Database LOBs
Over a Decade of Innovation 2011 Cache Advisor
In-Memory Analytics
2010 Columnar Compression
Parallel Replication
ODP.NET Support
2009 Cache Grid for Scale Out
Oracle Clusterware Integration
2007 PL/SQL Support
Oracle Call Interface Support
2005
OEM & SQLDeveloper Integration
Oracle Database Data Types Support
2000 National Language Support
Integration with Oracle RAC
1998 Mid-tier Cache for Oracle DB
Online Upgrades
High Availability
1st Commercial In-Memory RDBMS
14 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

15. Enabling The Real-Time World
Authorization, Market Data, eCommerce,
Real-Time Analytics - Personalization,
Online Charging, Market Events, Interactive Dashboard
Location-Based Order Matching, Real-Time Ad
Data Mart, Scorecard Serving
Services Trading Picture 10 Picture 11
Real-Time Applications
Instantly Responsive / Highly Scalable / Always-On
Picture 11
Large Capacity
Picture 6
Mainstream 64-bit Fast
Processors Networks RAM
Key Enabling Technology
15 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

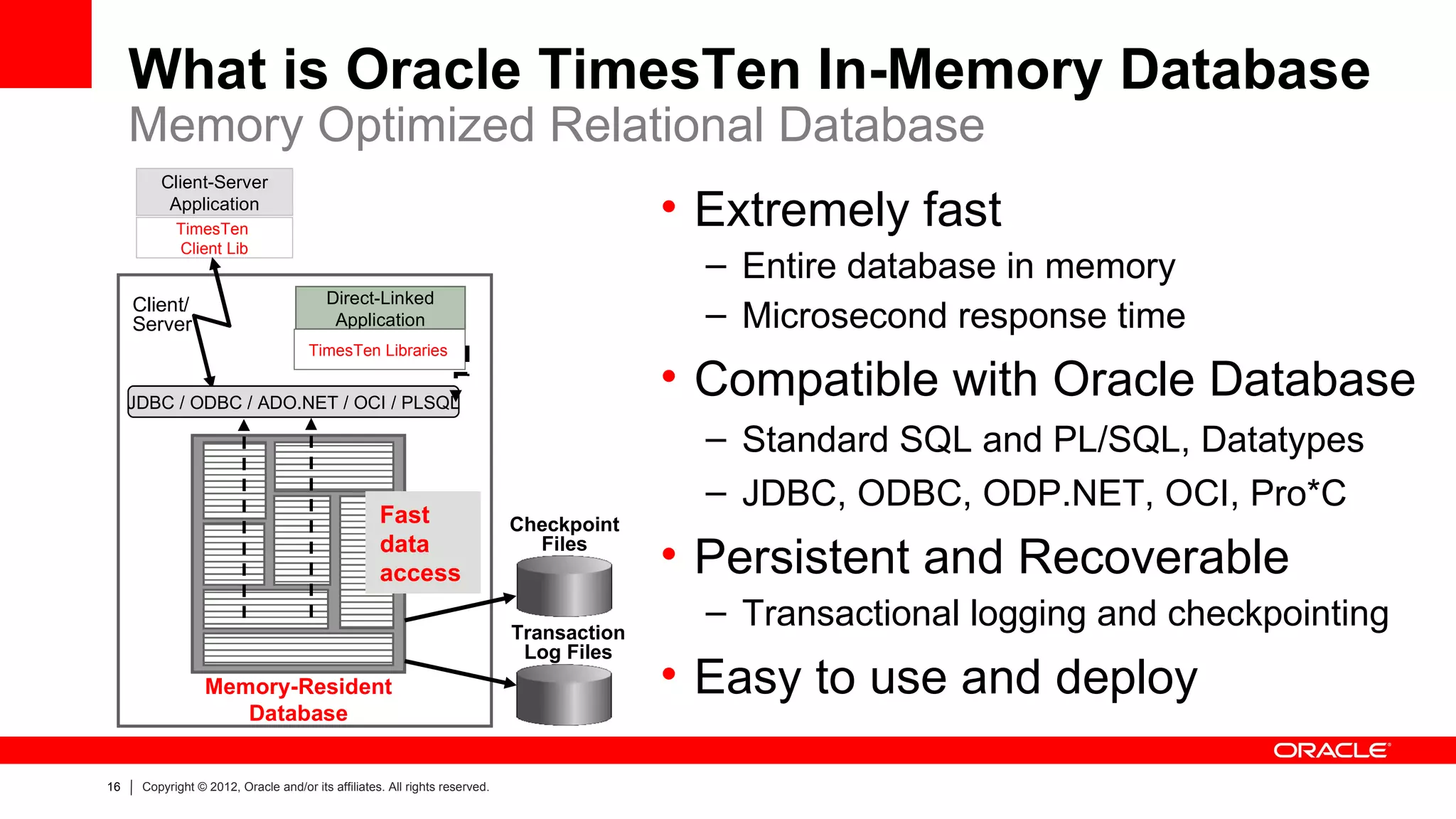

16. What is Oracle TimesTen In-Memory Database
Memory Optimized Relational Database
Client-Server
Application
TimesTen
• Extremely fast
Client Lib
– Entire database in memory
Direct-Linked
Client/
Server Application – Microsecond response time
TimesTen Libraries
JDBC / ODBC / ADO.NET / OCI / PLSQL
• Compatible with Oracle Database
– Standard SQL and PL/SQL, Datatypes
– JDBC, ODBC, ODP.NET, OCI, Pro*C
Fast Checkpoint
data
access
Files
• Persistent and Recoverable
Transaction
– Transactional logging and checkpointing
Log Files
Memory-Resident • Easy to use and deploy
Database
16 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

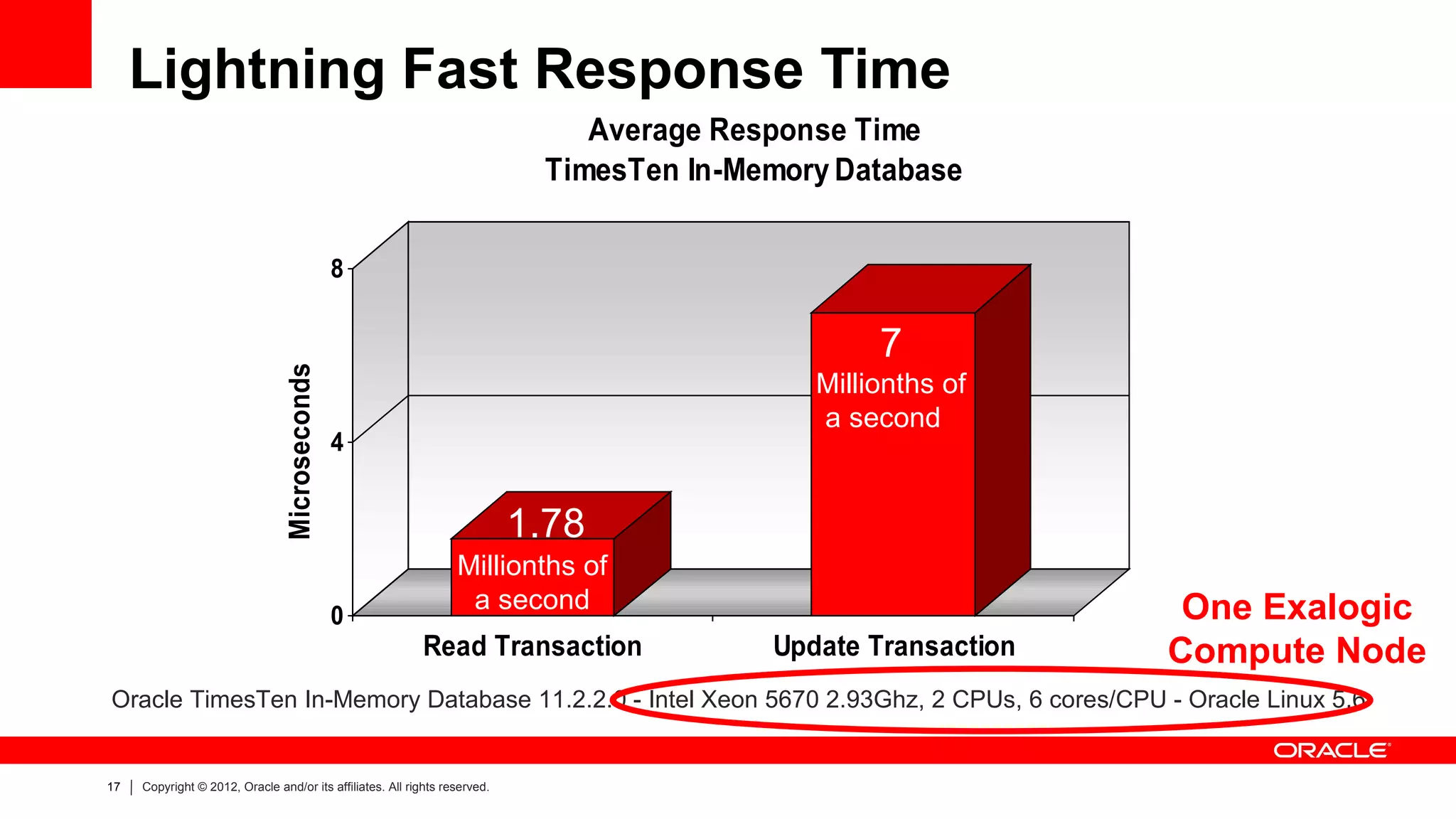

17. Lightning Fast Response Time
Average Response Time
TimesTen In-Memory Database
8
7
Microseconds
Millionths of
a second
4
1.78
Millionths of
a second One Exalogic
0
Read Transaction Update Transaction Compute Node
Oracle TimesTen In-Memory Database 11.2.2.0 - Intel Xeon 5670 2.93Ghz, 2 CPUs, 6 cores/CPU - Oracle Linux 5.6
17 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

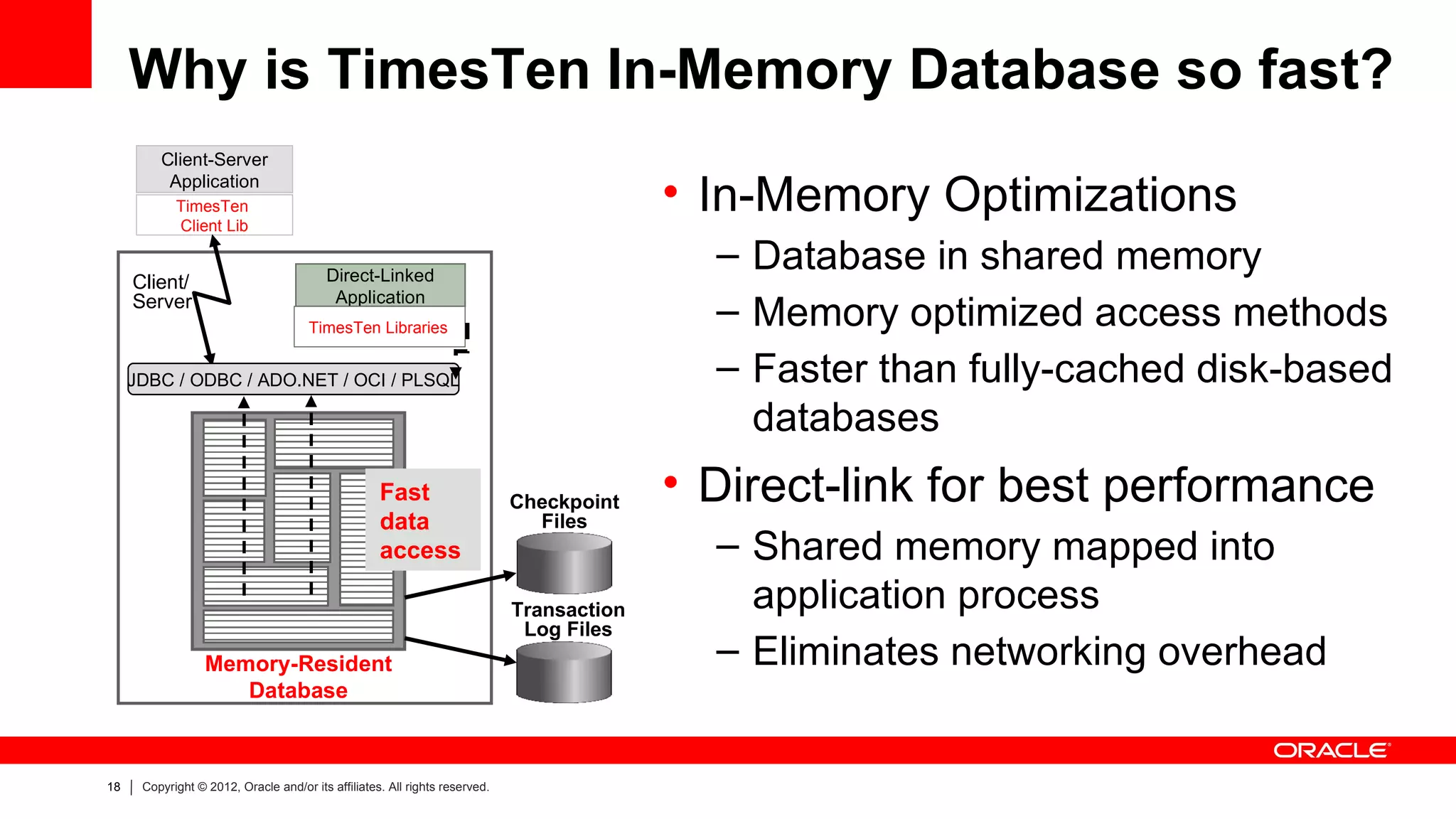

18. Why is TimesTen In-Memory Database so fast?
Client-Server
Application
TimesTen
Client Lib
• In-Memory Optimizations
Direct-Linked
– Database in shared memory
Client/
Application
Server
TimesTen Libraries
– Memory optimized access methods
JDBC / ODBC / ADO.NET / OCI / PLSQL – Faster than fully-cached disk-based
databases
Fast Checkpoint • Direct-link for best performance
data Files
access – Shared memory mapped into
Transaction application process
Log Files
Memory-Resident – Eliminates networking overhead
Database
18 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

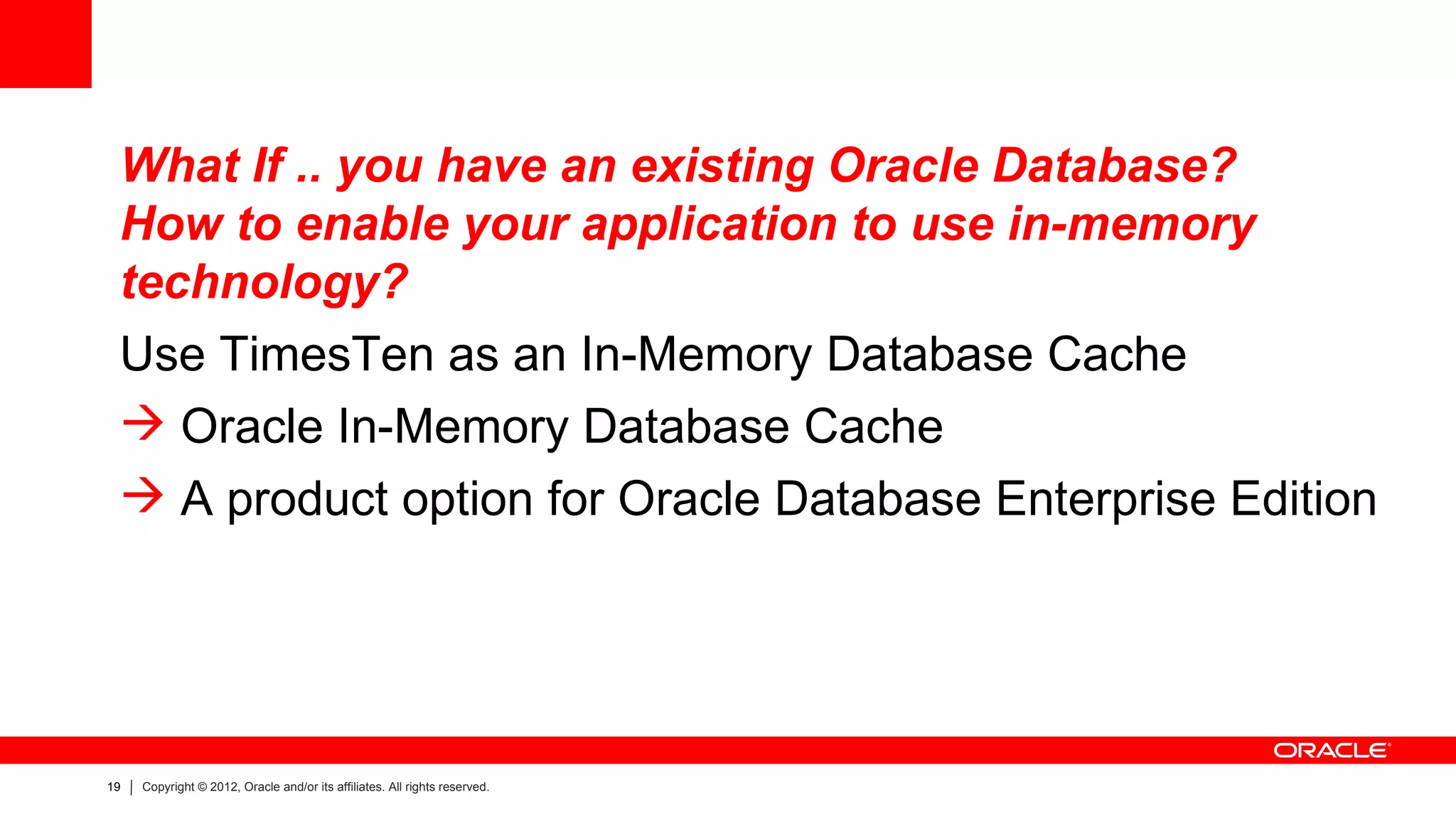

19. What If .. you have an existing Oracle Database?
How to enable your application to use in-memory
technology?
Use TimesTen as an In-Memory Database Cache
 Oracle In-Memory Database Cache
 A product option for Oracle Database Enterprise Edition
19 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

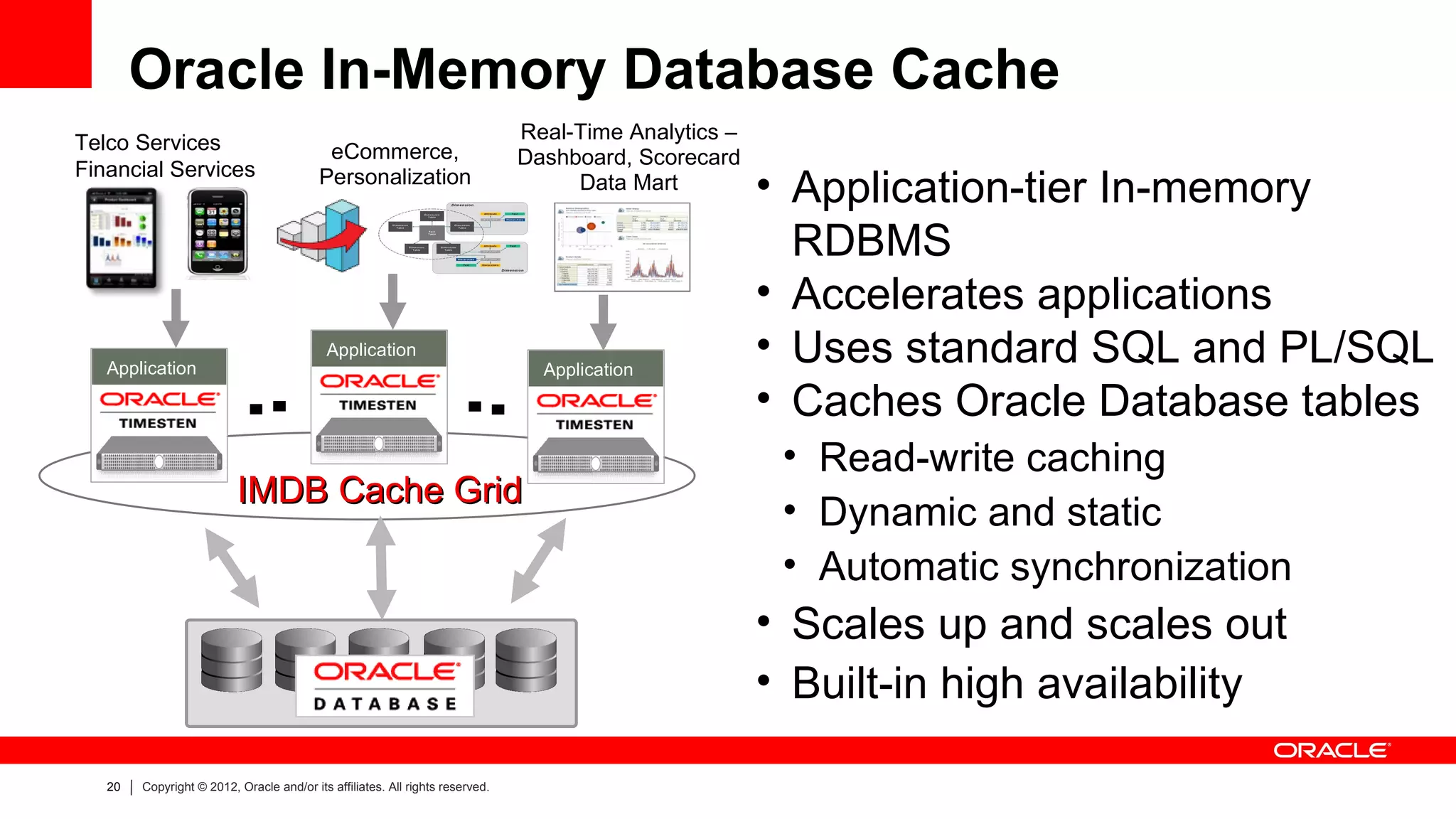

20. Oracle In-Memory Database Cache
Telco Services Real-Time Analytics –
eCommerce, Dashboard, Scorecard
Financial Services Personalization Data Mart • Application-tier In-memory
RDBMS
• Accelerates applications
Application
Application
Application
• Uses standard SQL and PL/SQL
• Caches Oracle Database tables
• Read-write caching
IMDB Cache Grid
• Dynamic and static
• Automatic synchronization
• Scales up and scales out
• Built-in high availability
20 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

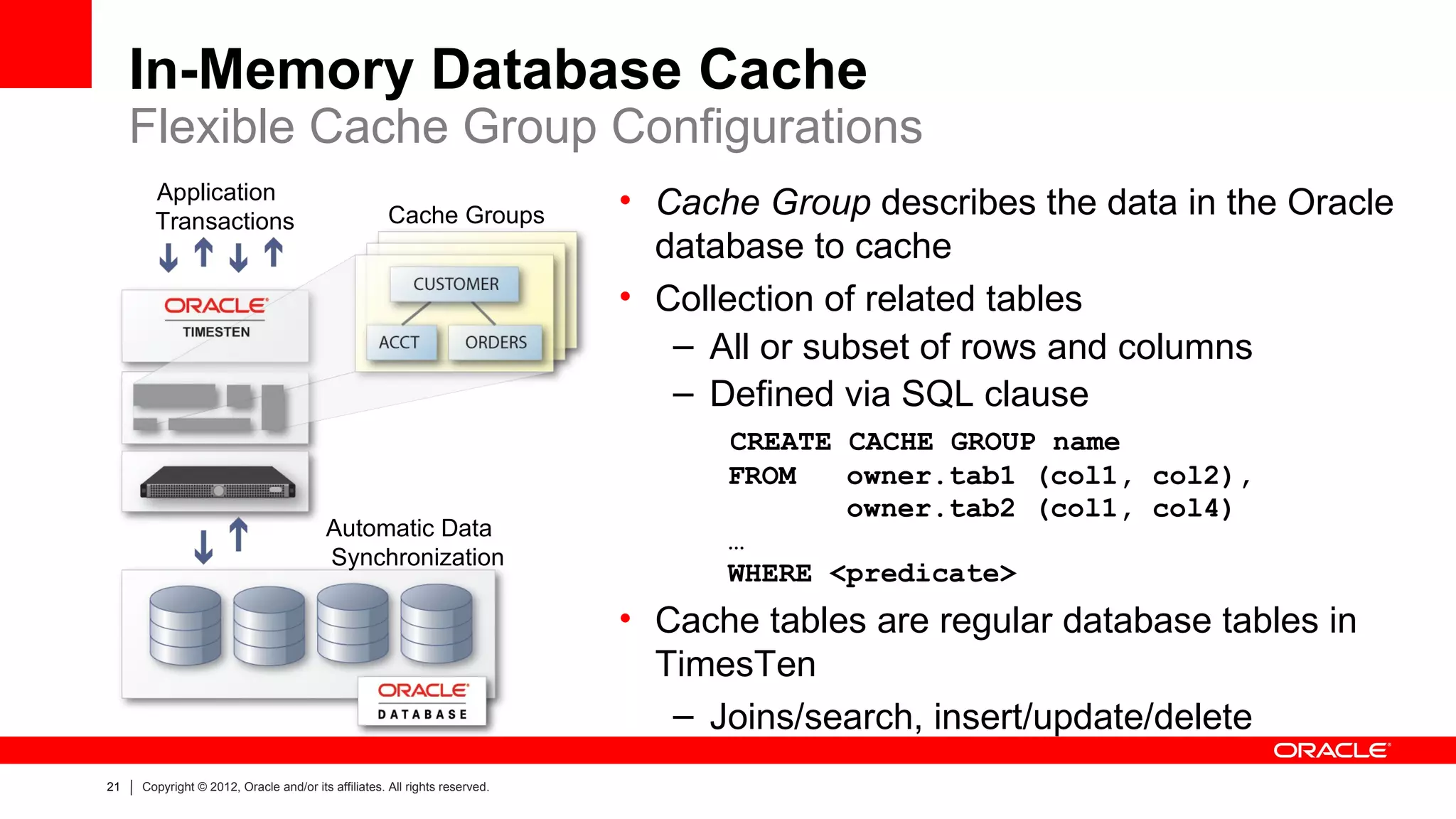

21. In-Memory Database Cache
Flexible Cache Group Configurations
Application
Transactions Cache Groups • Cache Group describes the data in the Oracle
database to cache
• Collection of related tables
– All or subset of rows and columns
– Defined via SQL clause
CREATE CACHE GROUP name
FROM owner.tab1 (col1, col2),
owner.tab2 (col1, col4)
Automatic Data
…
Synchronization
WHERE <predicate>
• Cache tables are regular database tables in
TimesTen
– Joins/search, insert/update/delete
21 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

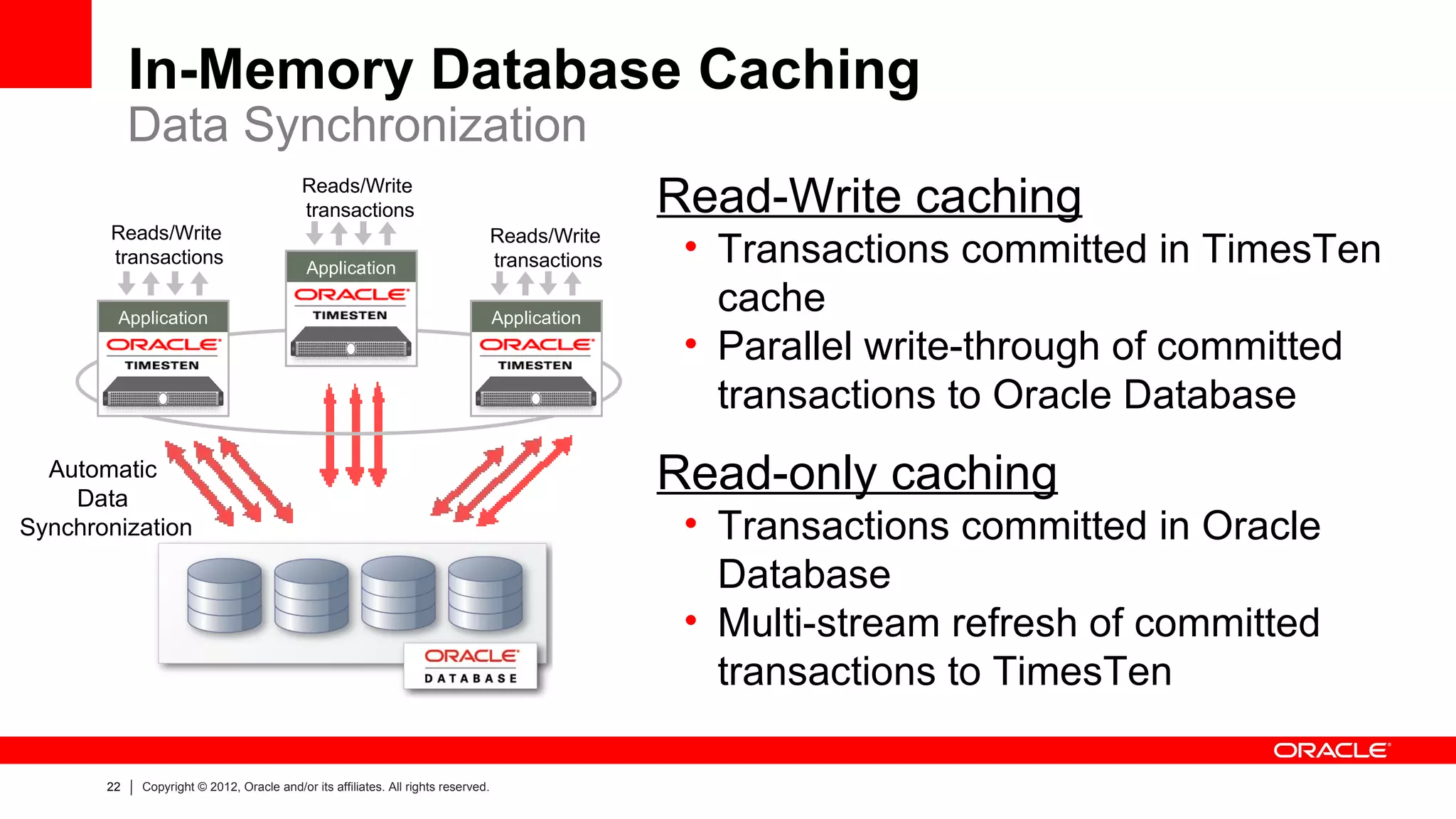

22. In-Memory Database Caching
Data Synchronization
Reads/Write
transactions Read-Write caching
Reads/Write
transactions Application
Reads/Write
transactions • Transactions committed in TimesTen
Application Application
cache
• Parallel write-through of committed
transactions to Oracle Database
Automatic
Data
Read-only caching
Synchronization • Transactions committed in Oracle
Database
• Multi-stream refresh of committed
transactions to TimesTen
22 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

23. In-Memory Database Cache Grid
Incremental Scalability
• Location transparency
Application Application
• Usage-driven, adaptive
Application Application
redistribution of cached data
• Online addition/removal of
cache nodes
• Scale out with growth
• Parallel searches
• Transactional consistency
23 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

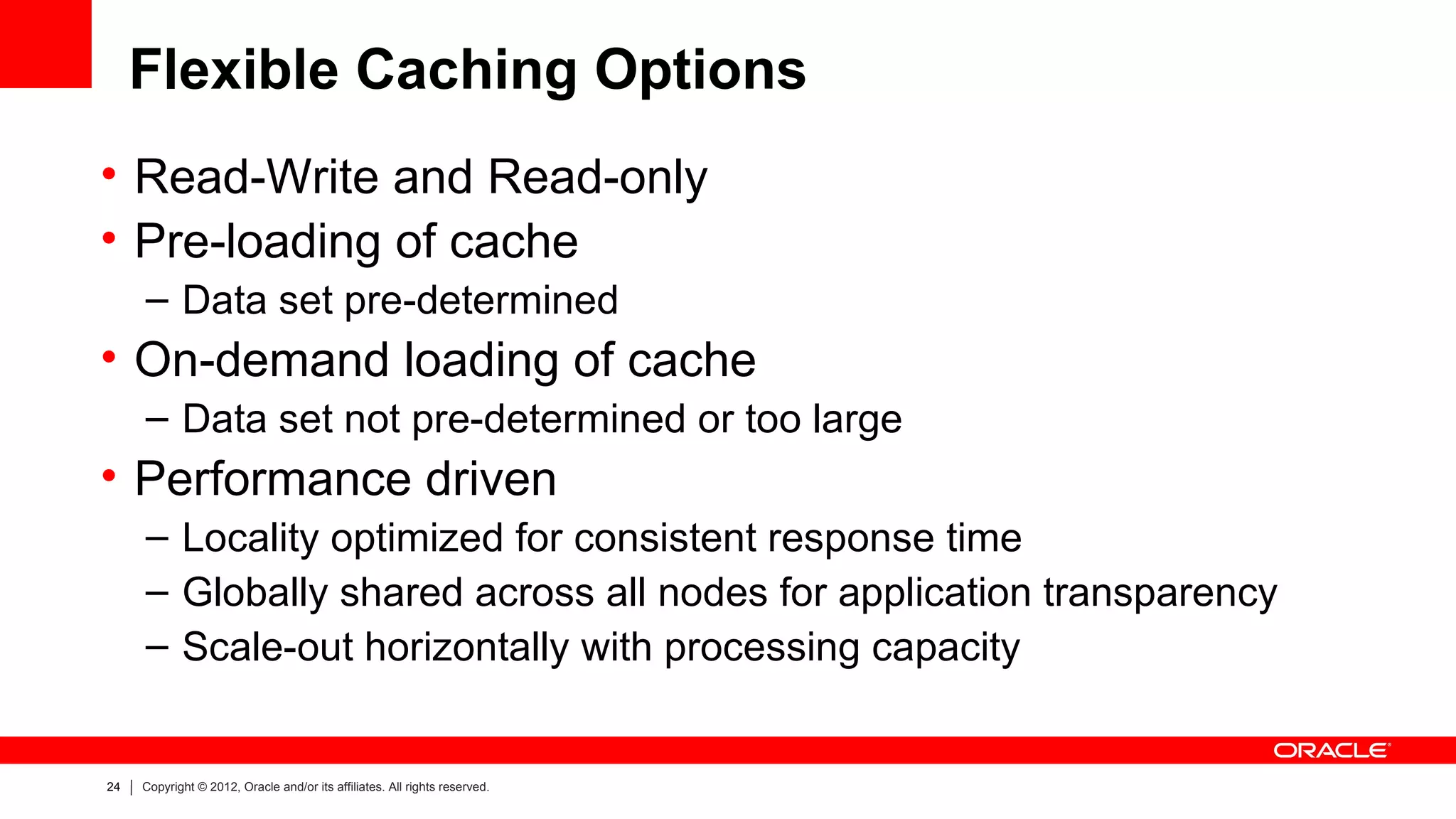

24. Flexible Caching Options
• Read-Write and Read-only
• Pre-loading of cache
– Data set pre-determined
• On-demand loading of cache
– Data set not pre-determined or too large
• Performance driven
– Locality optimized for consistent response time
– Globally shared across all nodes for application transparency
– Scale-out horizontally with processing capacity
24 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

25. What does TimesTen offer for high availability?
TimesTen Replication provides real-time replication of
transaction data between TimesTen databases
25 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

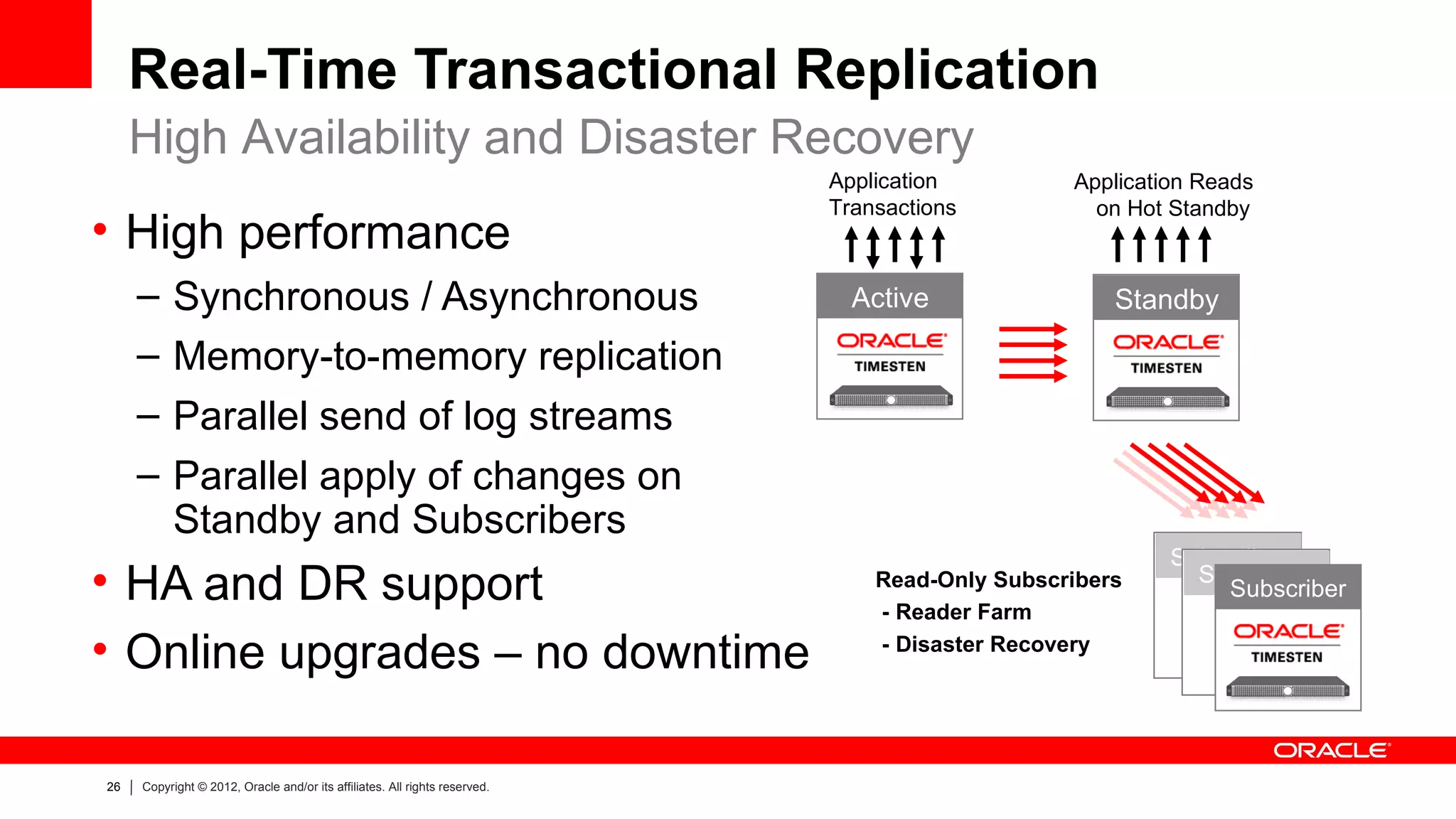

26. Real-Time Transactional Replication
High Availability and Disaster Recovery
Application Application Reads
Transactions on Hot Standby
• High performance
– Synchronous / Asynchronous Active Standby
– Memory-to-memory replication
– Parallel send of log streams
– Parallel apply of changes on
Standby and Subscribers
Subscriber
• HA and DR support Read-Only Subscribers
- Reader Farm
Subscriber
Subscriber
• Online upgrades – no downtime - Disaster Recovery
26 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

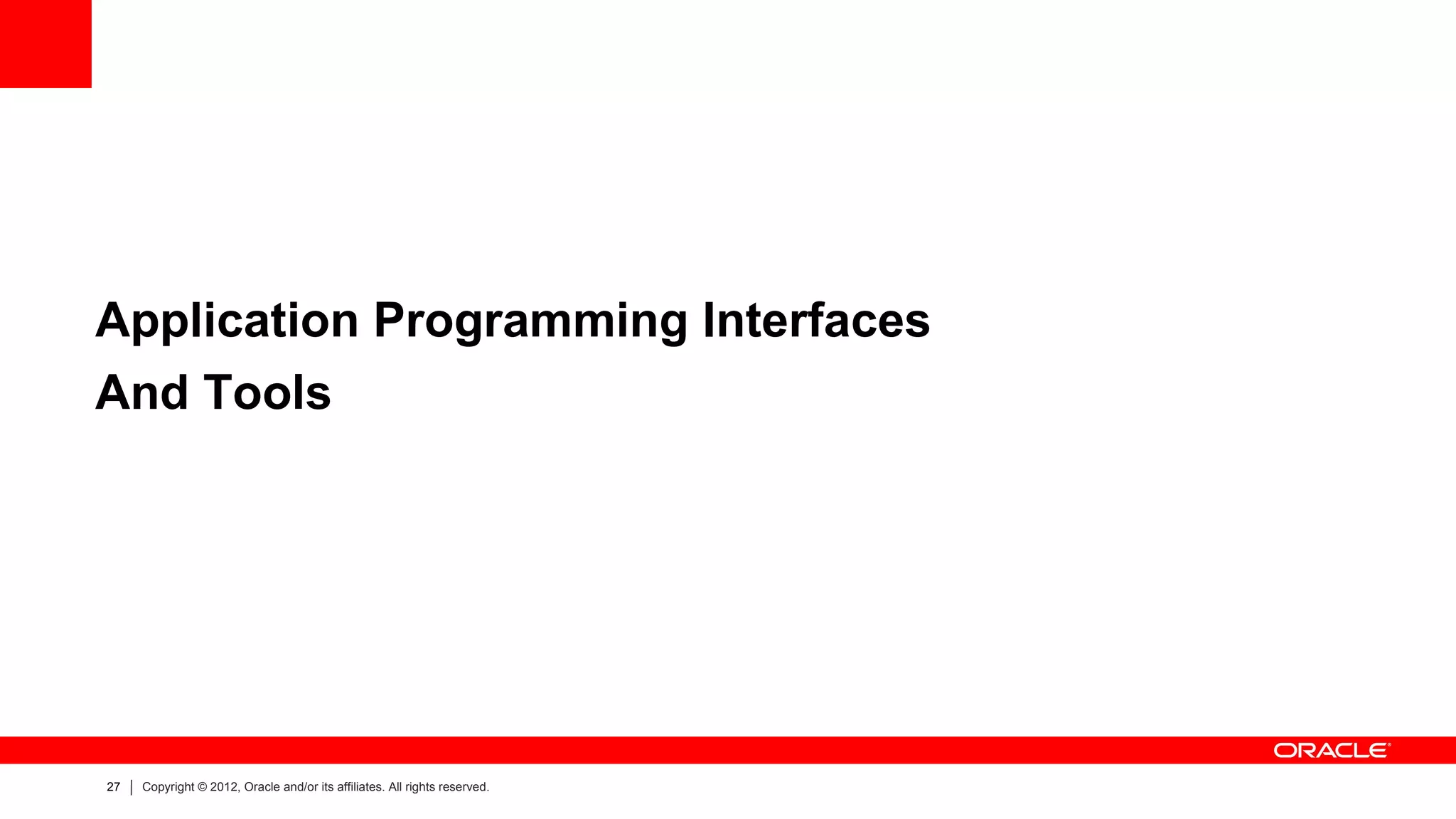

27. Application Programming Interfaces
And Tools
27 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

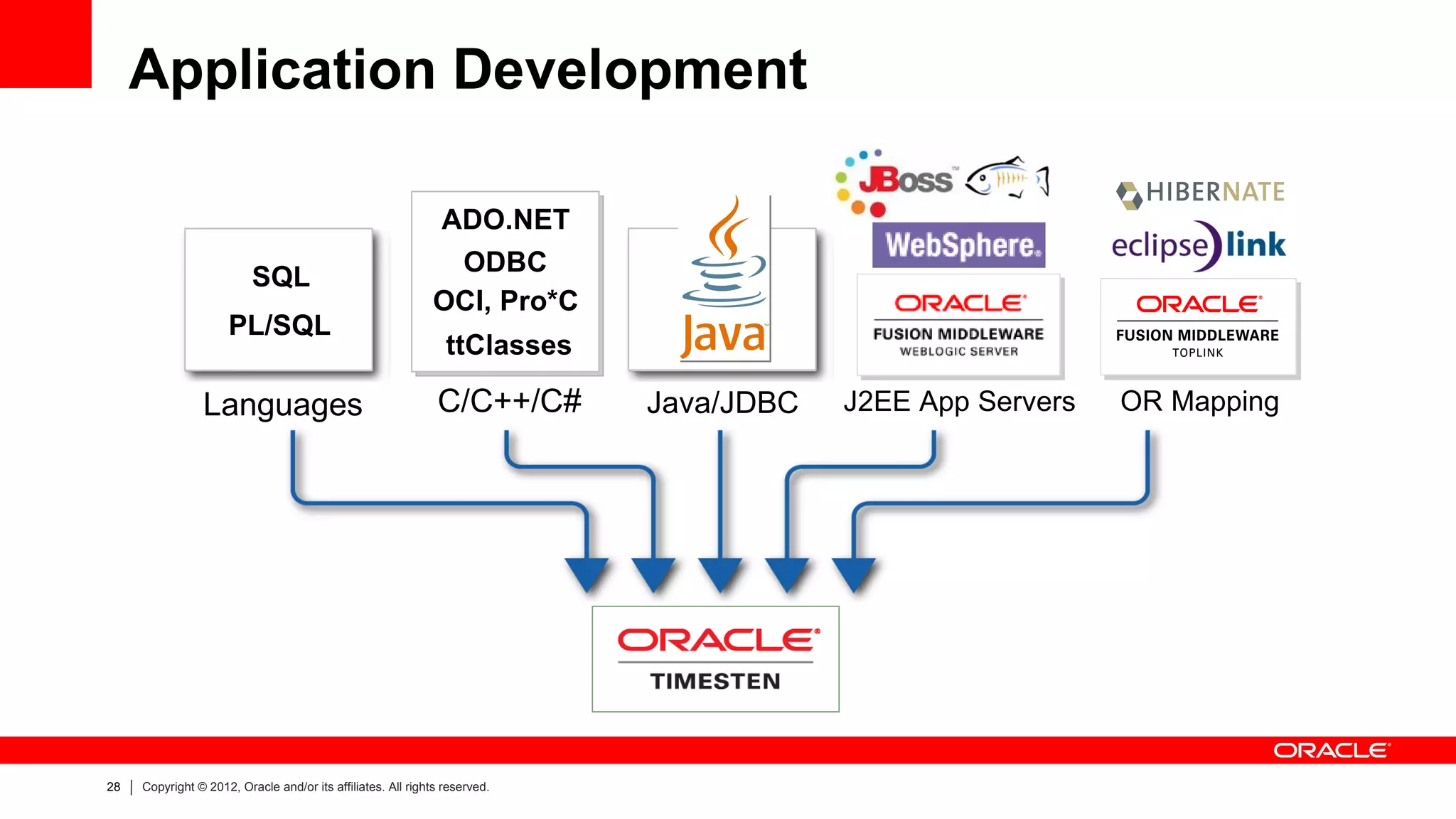

28. Application Development
ADO.NET
ODBC
SQL
OCI, Pro*C
PL/SQL
ttClasses
Languages C/C++/C# Java/JDBC J2EE App Servers OR Mapping
28 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

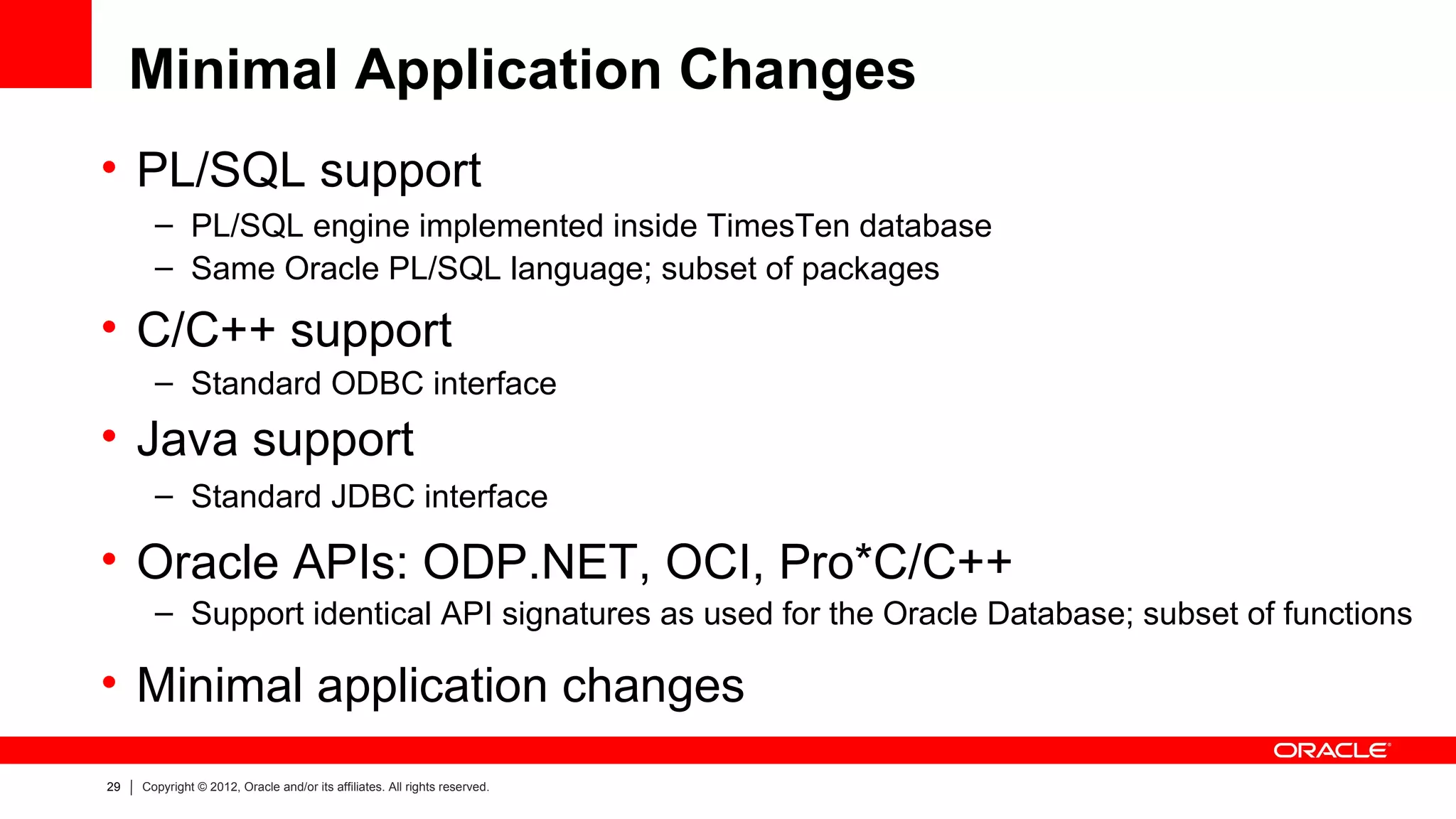

29. Minimal Application Changes
• PL/SQL support
– PL/SQL engine implemented inside TimesTen database
– Same Oracle PL/SQL language; subset of packages
• C/C++ support
– Standard ODBC interface
• Java support
– Standard JDBC interface
• Oracle APIs: ODP.NET, OCI, Pro*C/C++
– Support identical API signatures as used for the Oracle Database; subset of functions
• Minimal application changes
29 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

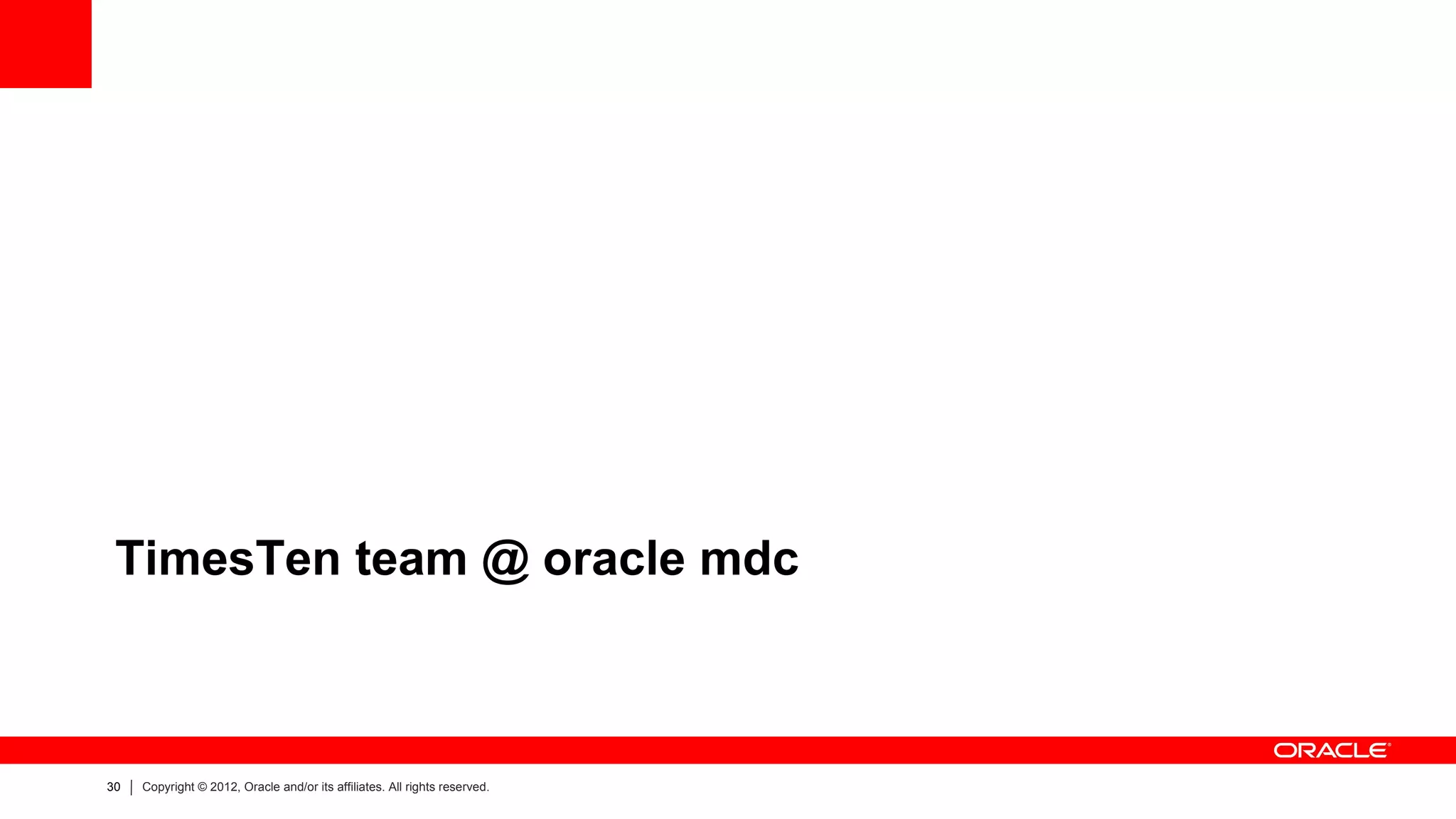

30. TimesTen team @ oracle mdc
30 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

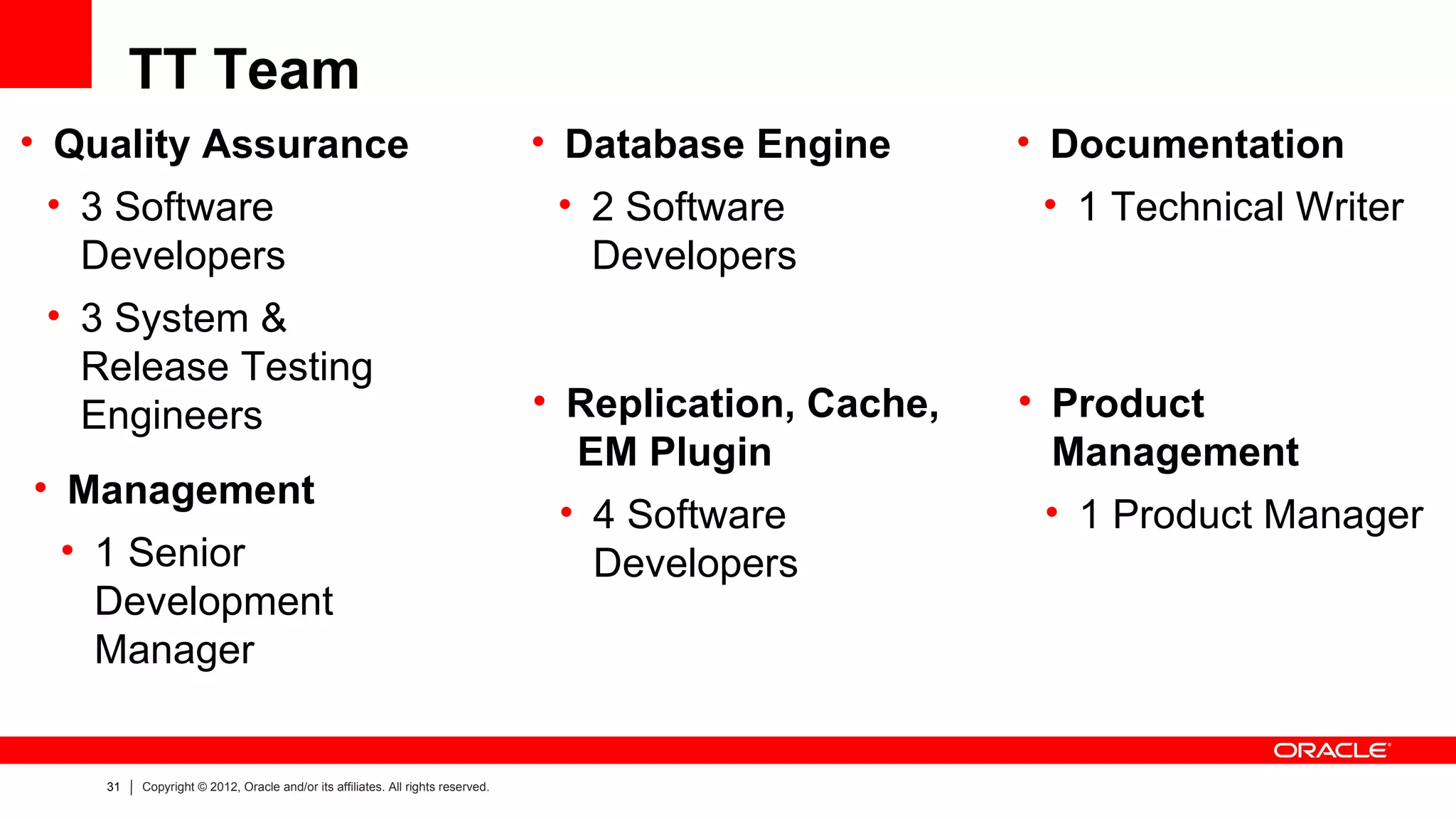

31. TT Team
• Quality Assurance • Database Engine • Documentation
• 3 Software • 2 Software • 1 Technical Writer
Developers Developers
• 3 System &
Release Testing
Engineers • Replication, Cache, • Product
EM Plugin Management
• Management
• 4 Software • 1 Product Manager
• 1 Senior Developers
Development
Manager
31 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

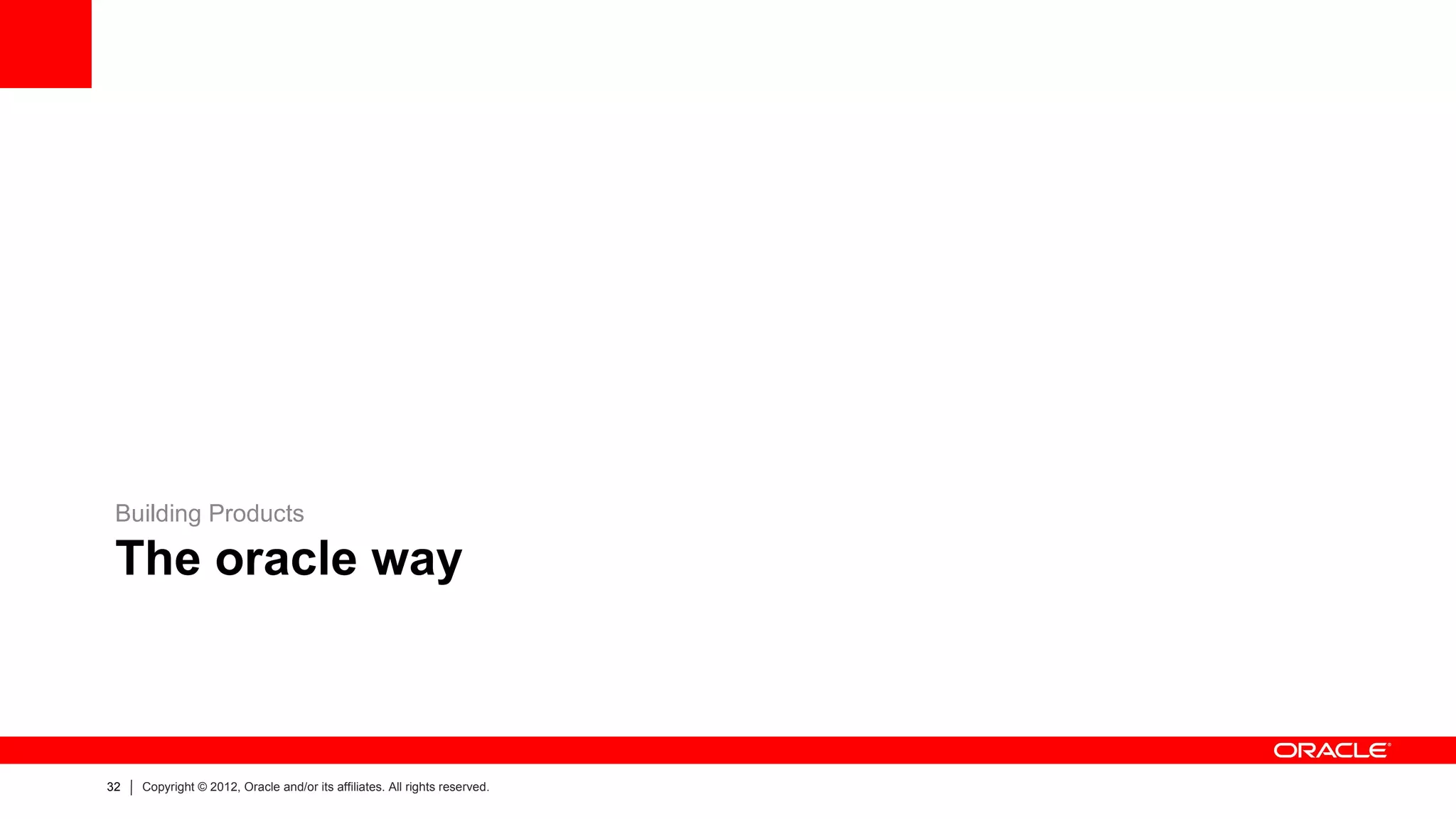

32. Building Products
The oracle way
32 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

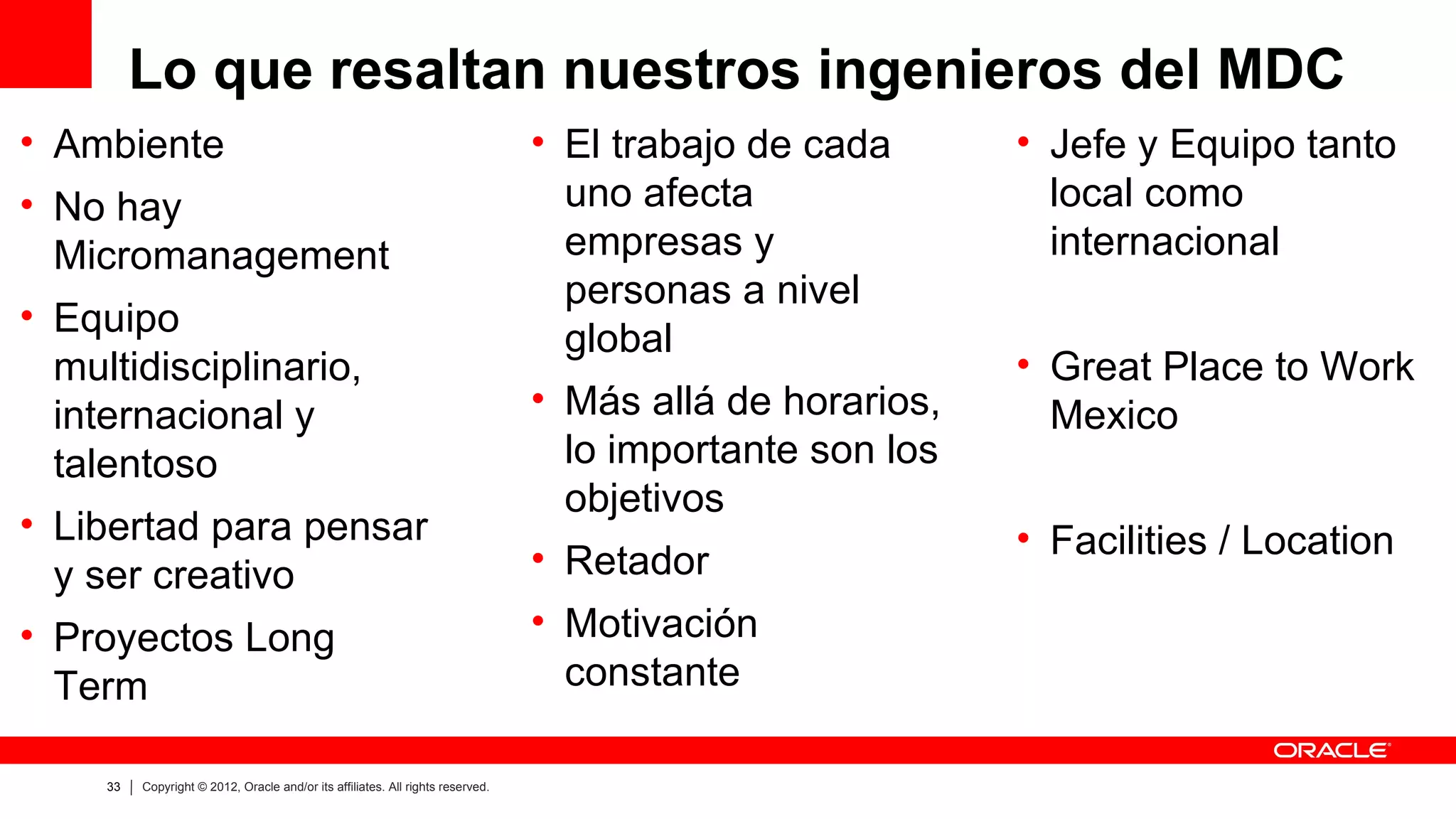

33. Lo que resaltan nuestros ingenieros del MDC
• Ambiente • El trabajo de cada • Jefe y Equipo tanto
• No hay uno afecta local como
Micromanagement empresas y internacional
personas a nivel
• Equipo
global
multidisciplinario, • Great Place to Work
internacional y • Más allá de horarios, Mexico
talentoso lo importante son los
objetivos
• Libertad para pensar • Facilities / Location
y ser creativo • Retador
• Proyectos Long • Motivación
Term constante
33 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

34. 34 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

35. 35 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

36. 36 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

37. 37 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

38. 38 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

39. For More Information
http://www.oracle.com/technetwork/database/timesten
• Technology white papers
• Quick Start Guide and tutorials
• Discussion Forum
• And more..
Ricardo Gonzalez
Senior Product Manager
ricardo.a.gonzalez@oracle.com
39 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

40. Q&A
40 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

41. 41 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

42. 42 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.
