This slideshow was used to present my senior thesis to faculty and visiting industry.

1. FLORIDA HOSPITAL REFERENCE LAB
A SPECIAL THESIS USING BUILDING INFORMATION MODELING AND PAPERLESS DELIVERY
ZACK CREACH

2. PURPOSE
 Create three comprehensive models using Autodesk
Revit 2009 to be linked together and used to create
an estimate
 Understanding
 Passion
 Challenge
 Approach all aspects without use of physical paper
 Adobe .PDF, Microsoft .XLS, Autodesk .RVT
 Delivered via website
EFFICIENCY

3. THESIS SCHEDULE

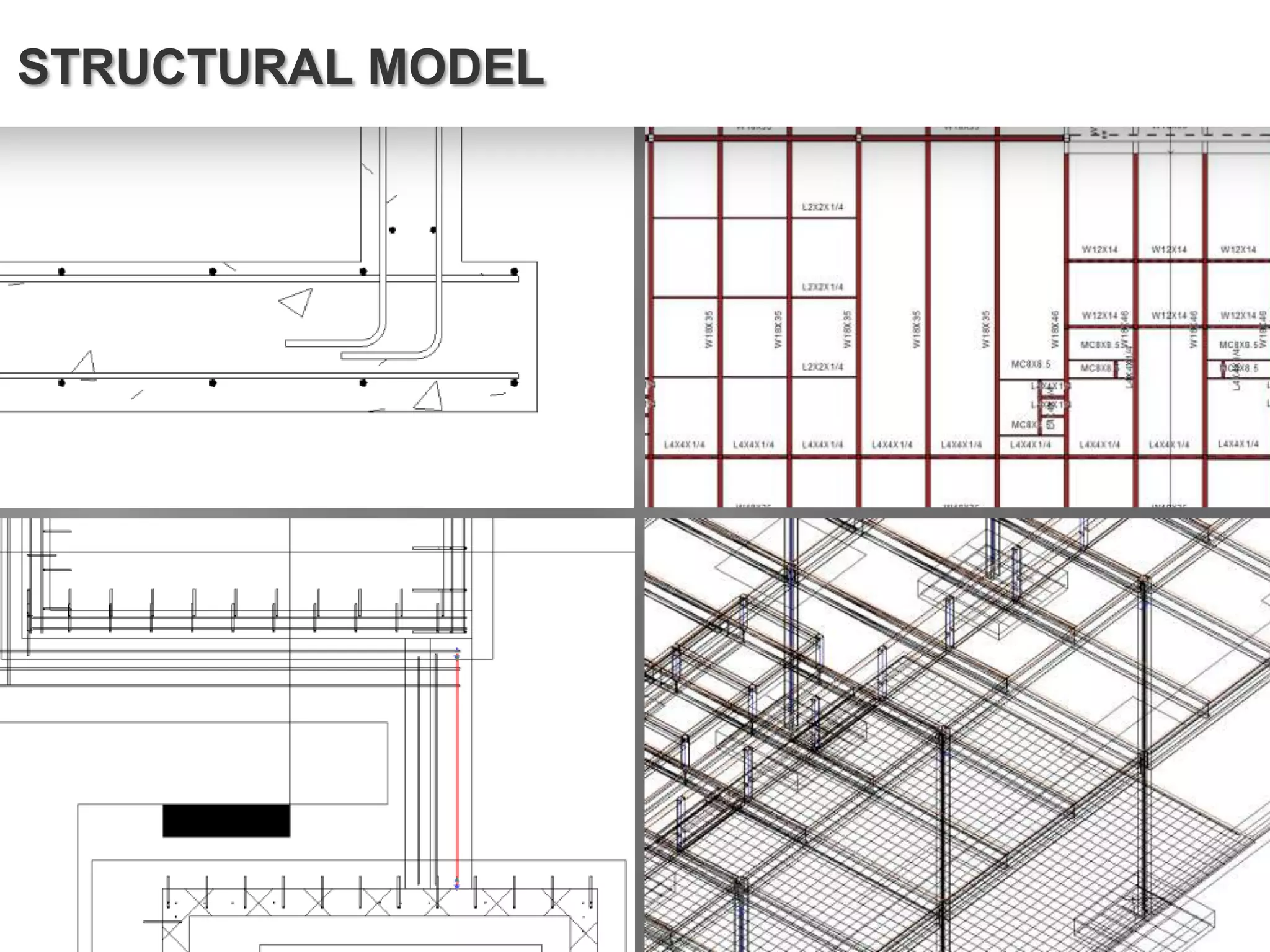

4. STRUCTURAL MODEL

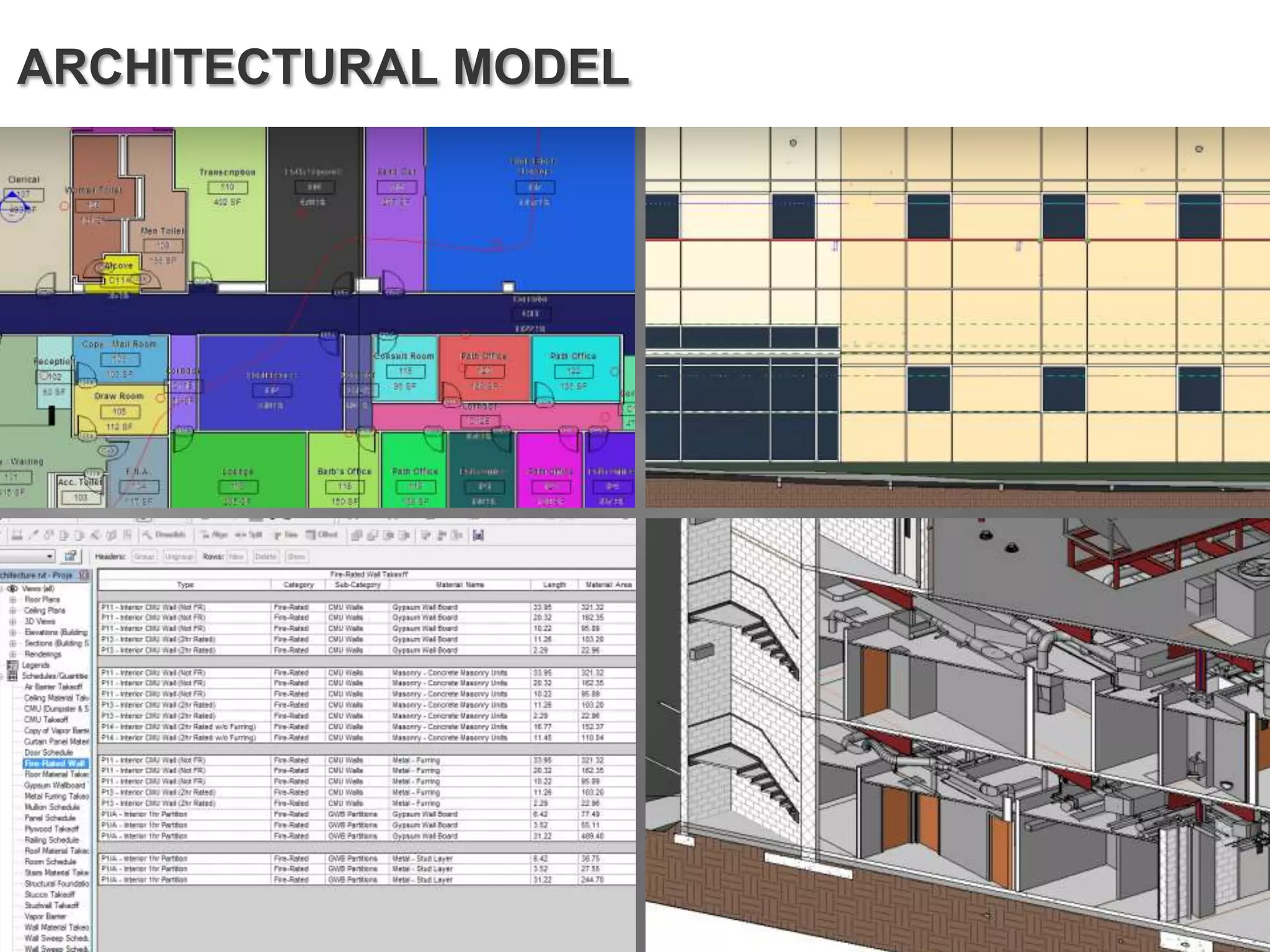

5. ARCHITECTURAL MODEL

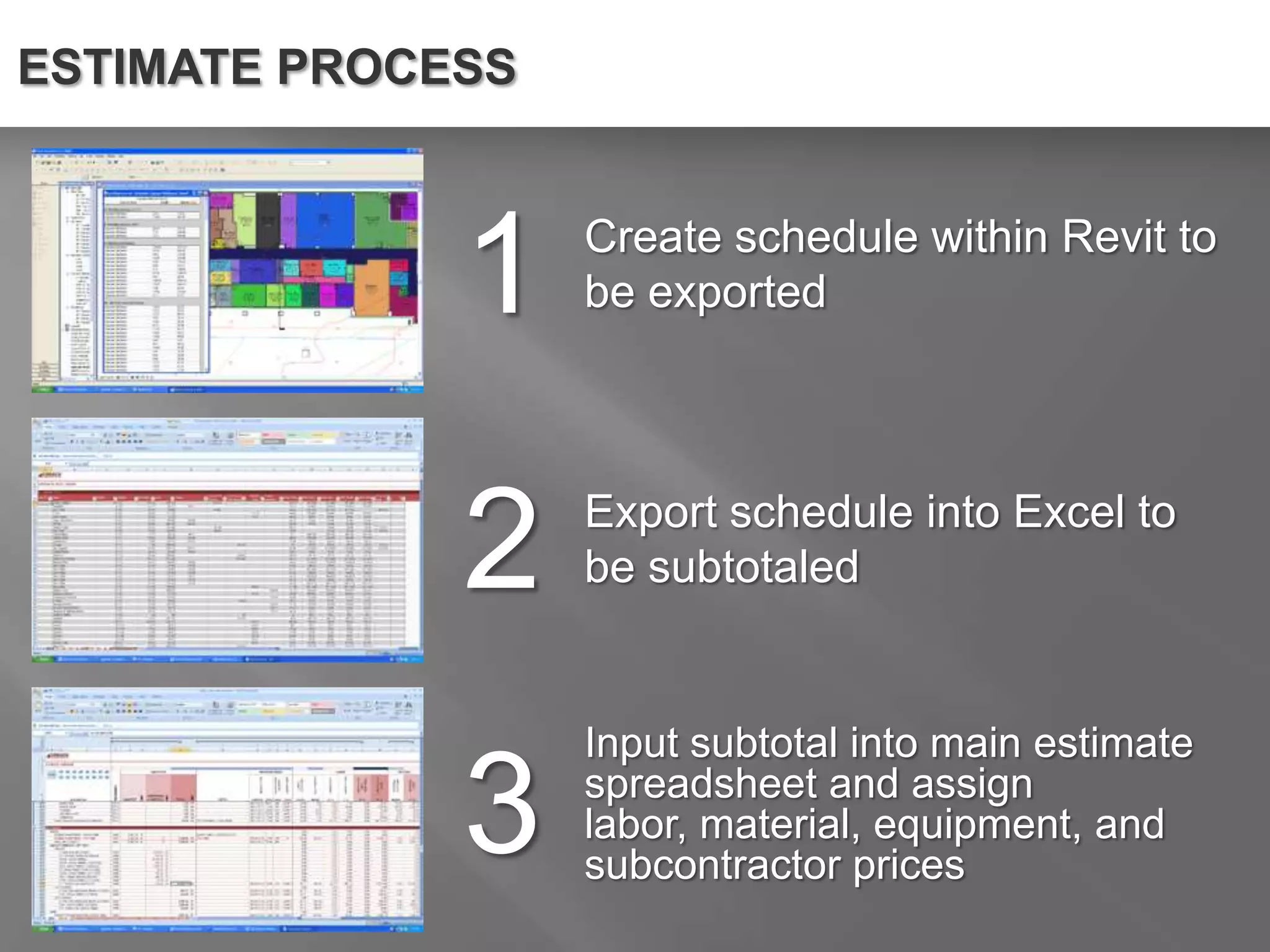

6. ESTIMATE PROCESS
1 Create schedule within Revit to
be exported
2 Export schedule into Excel to
be subtotaled
Input subtotal into main estimate
3 spreadsheet and assign
labor, material, equipment, and
subcontractor prices

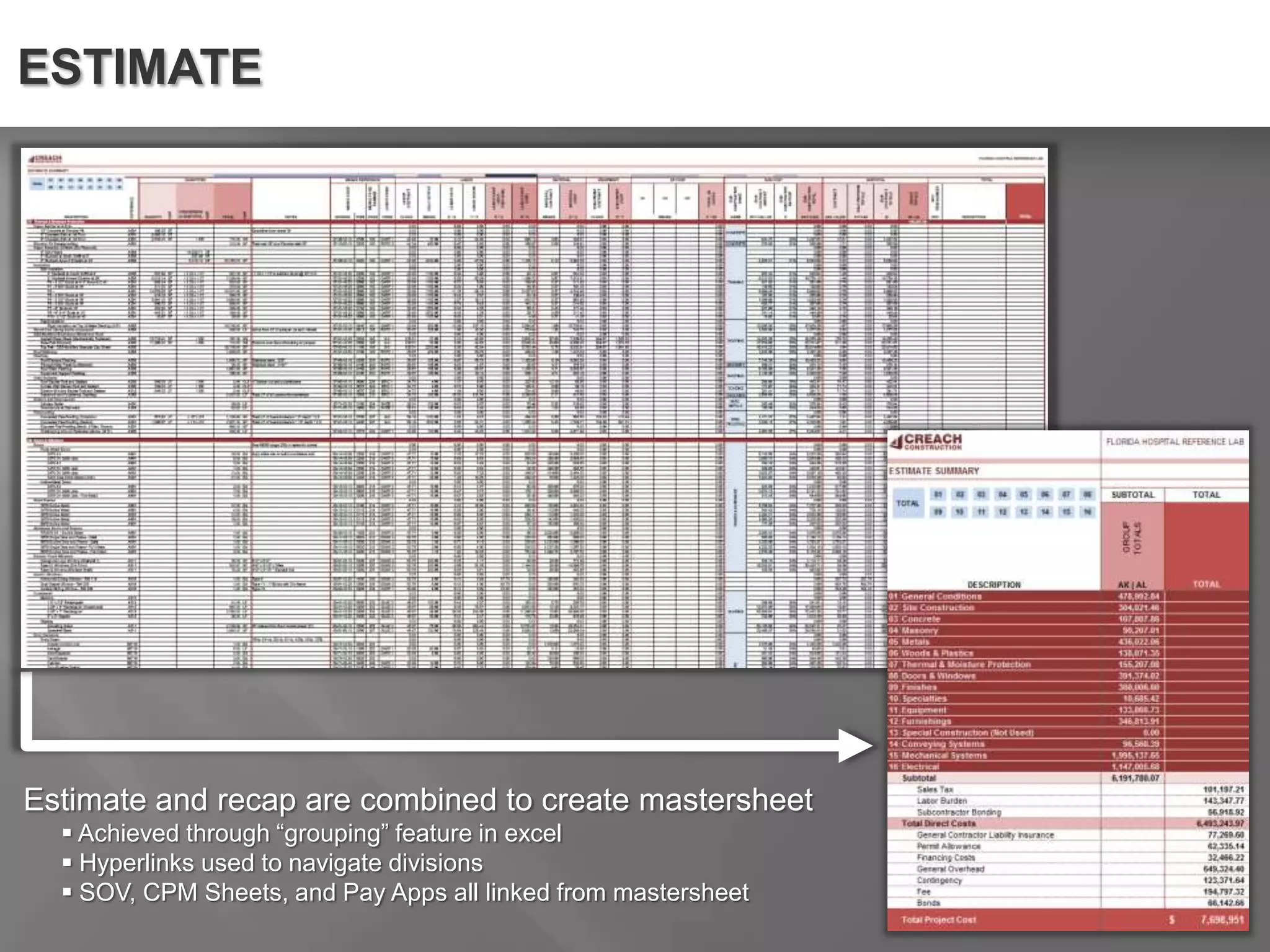

7. ESTIMATE
Estimate and recap are combined to create mastersheet
 Achieved through “grouping” feature in excel
 Hyperlinks used to navigate divisions
 SOV, CPM Sheets, and Pay Apps all linked from mastersheet

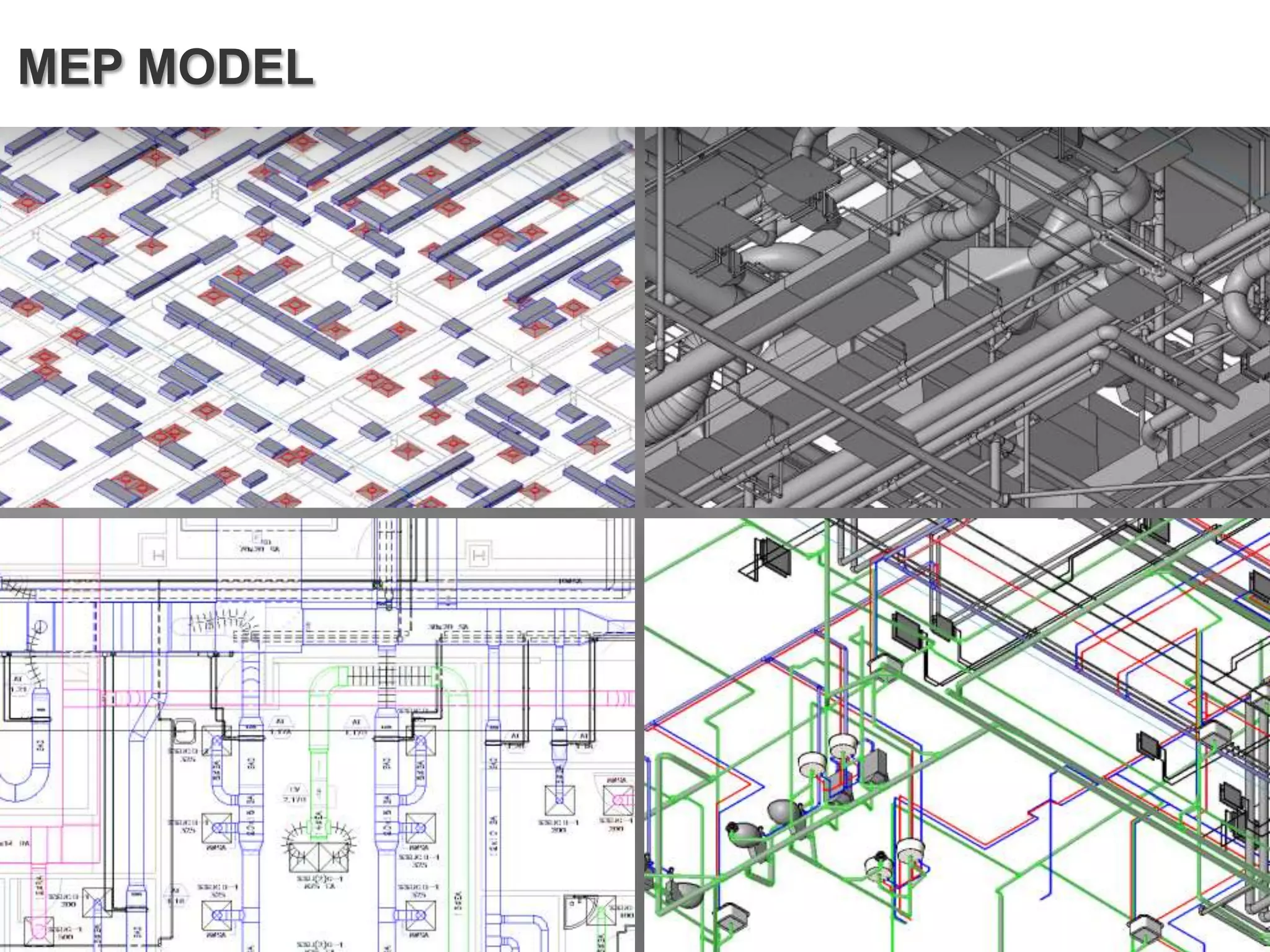

8. MEP MODEL

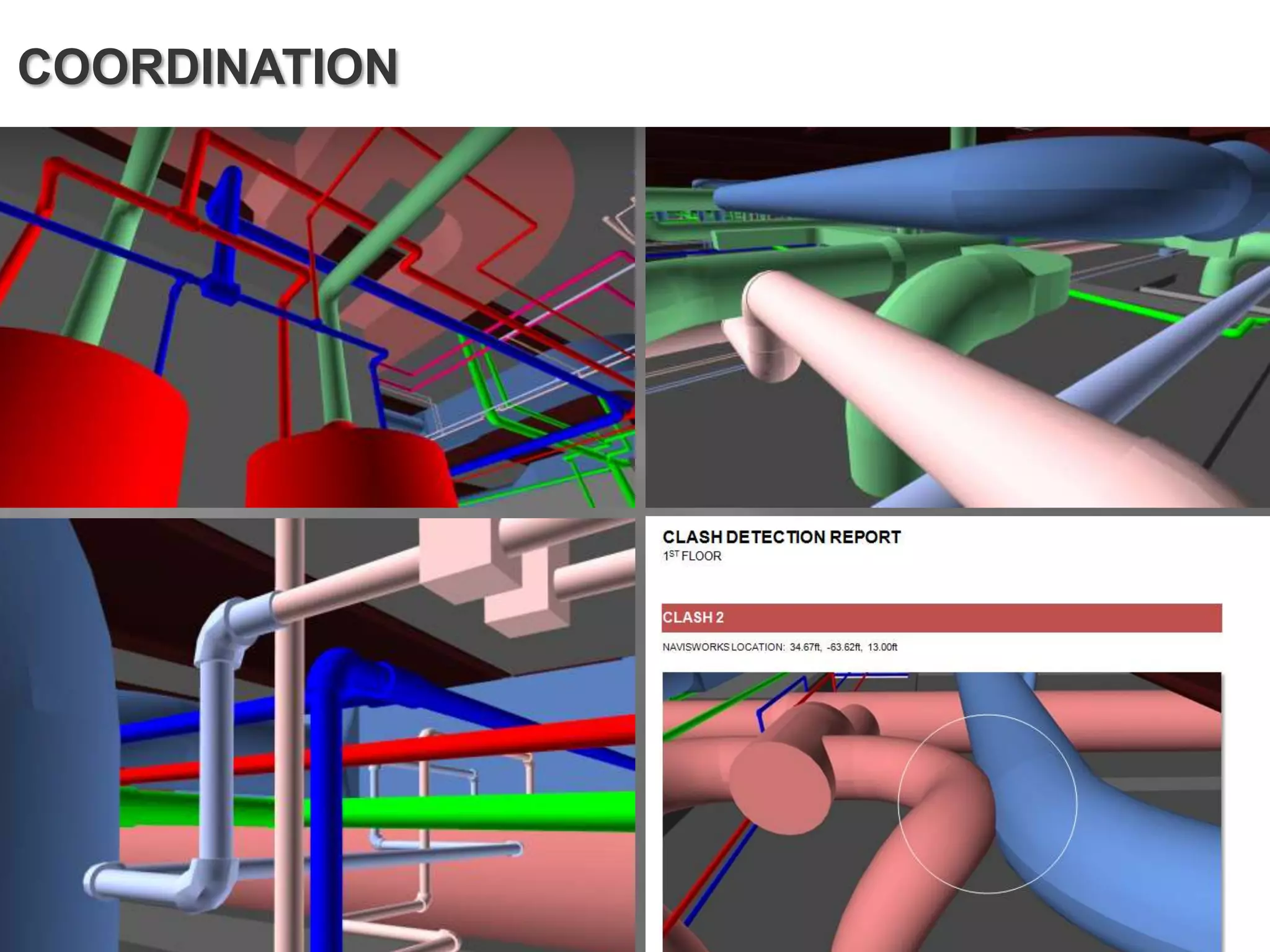

9. COORDINATION

10. RENDERING
SOUTHEAST ANGLE COMPARISON
ACTUAL RENDERING

11. RENDERING

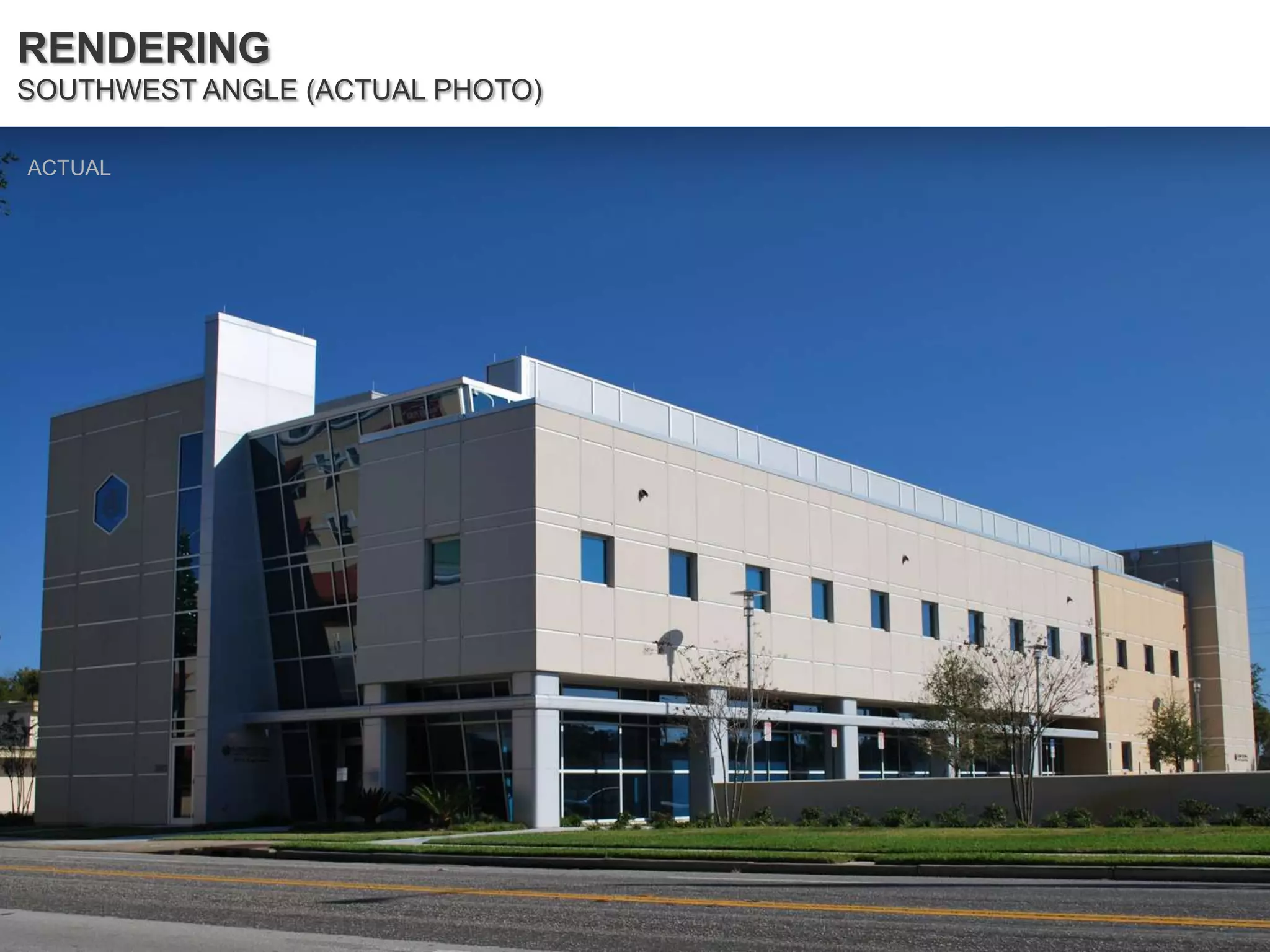

SOUTHWEST ANGLE (ACTUAL PHOTO)
ACTUAL

12. RENDERING
SOUTHWEST ANGLE (RENDERING)
RENDERING

13. RENDERING

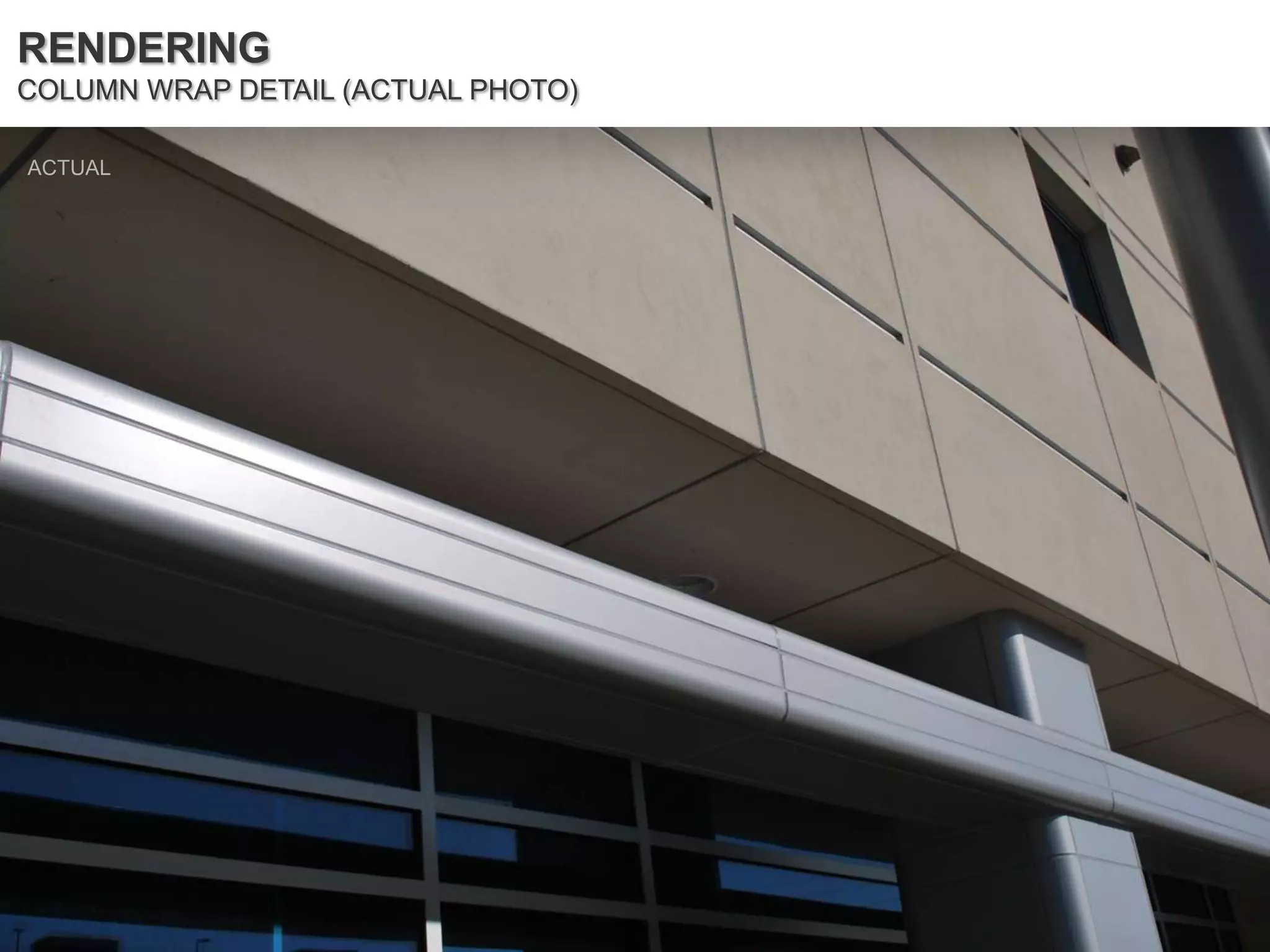

COLUMN WRAP DETAIL (ACTUAL PHOTO)
ACTUAL

14. RENDERING
COLUMN WRAP DETAIL (RENDERING)
RENDERING

15. RENDERING

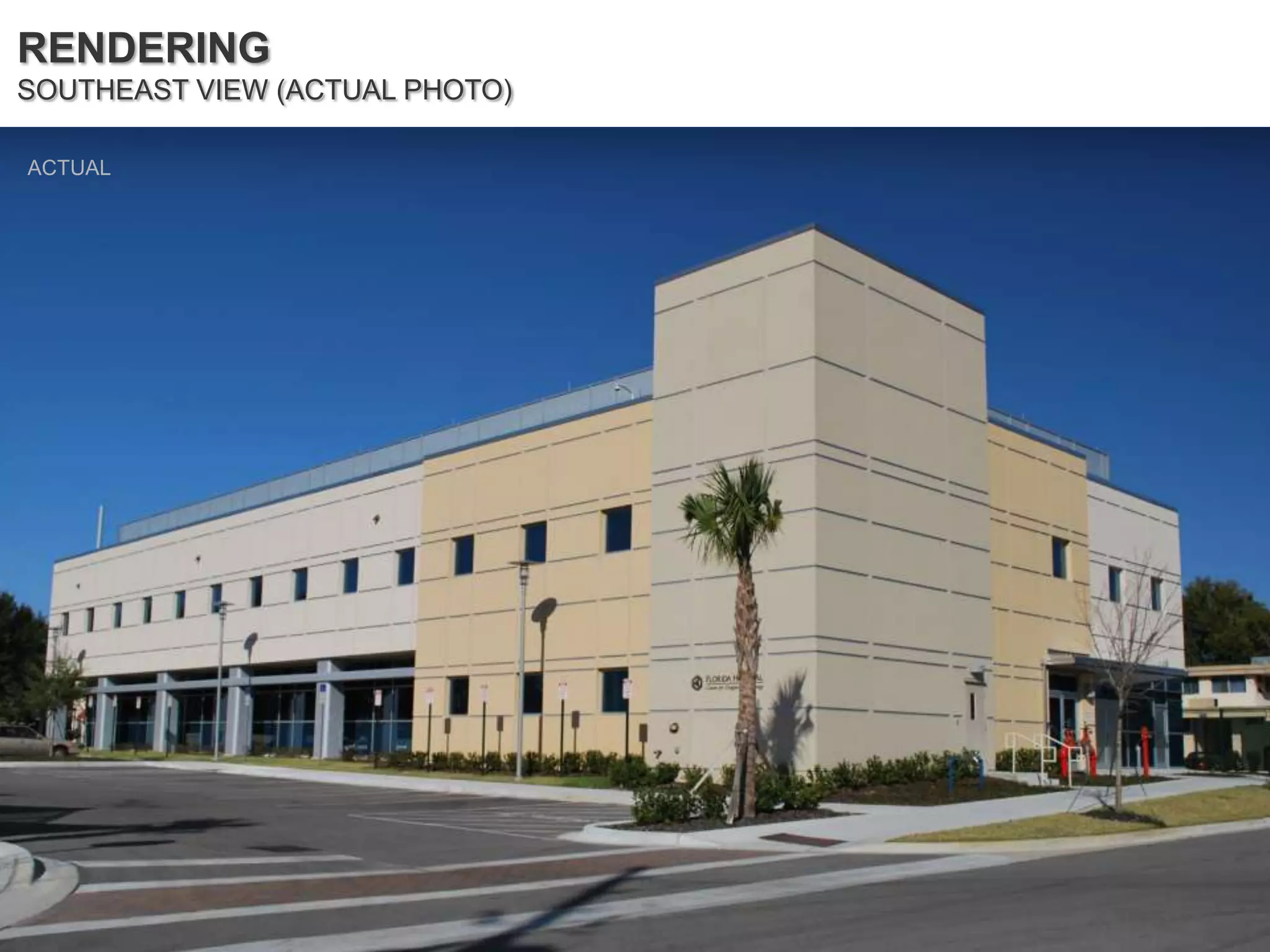

SOUTHEAST VIEW (ACTUAL PHOTO)
ACTUAL

16. RENDERING
SOUTHEAST VIEW (RENDERING)
RENDERING

17. REFLECTION
What did I learn?
 Time Management
 Draw the „Line‟
 Pre-Task Planning
 MEP Systems
What would I change?
 Smaller/Green Project
 Sitework in Revit?
 Additional Software
