The document discusses the integration of enterprise data into GIS systems, focusing on various database management systems (DBMS) and types of data such as CCTV and sewer management. It highlights the challenges associated with cross-database joins, data inconsistencies, and the need for effective blending of enterprise data into GIS features for improved usability. The author outlines processes using FME Server to create junction tables and publish blended geodatabases, enhancing access to comprehensive data through GIS platforms.

2. About Me
GIS Analyst, Central San
Carl Von Stetten

3. The sojourn continues…

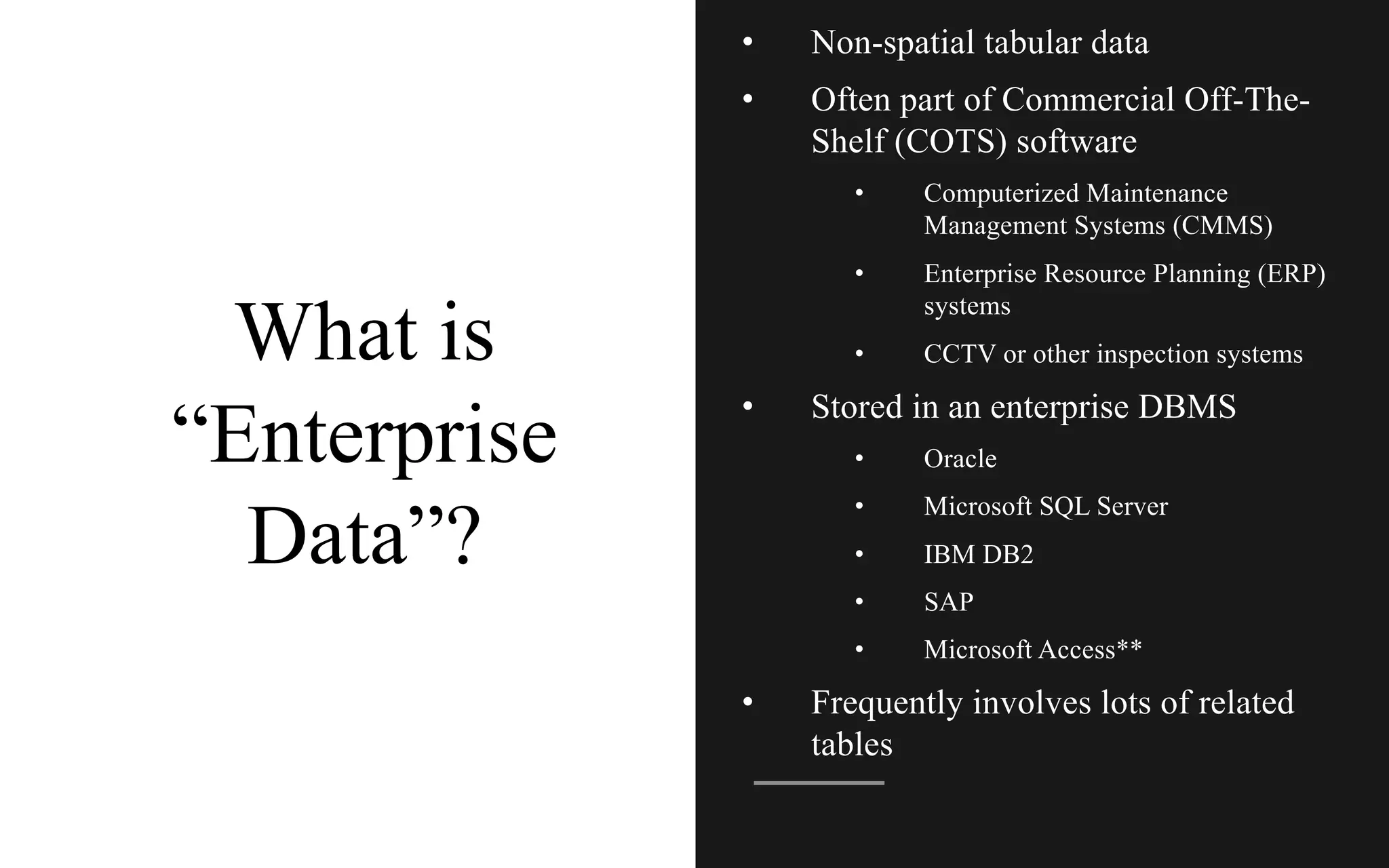

4. What is
“Enterprise
Data”?
• Non-spatial tabular data
• Often part of Commercial Off-The-
Shelf (COTS) software
• Computerized Maintenance
Management Systems (CMMS)
• Enterprise Resource Planning (ERP)
systems
• CCTV or other inspection systems
• Stored in an enterprise DBMS
• Oracle
• Microsoft SQL Server
• IBM DB2
• SAP
• Microsoft Access**
• Frequently involves lots of related
tables

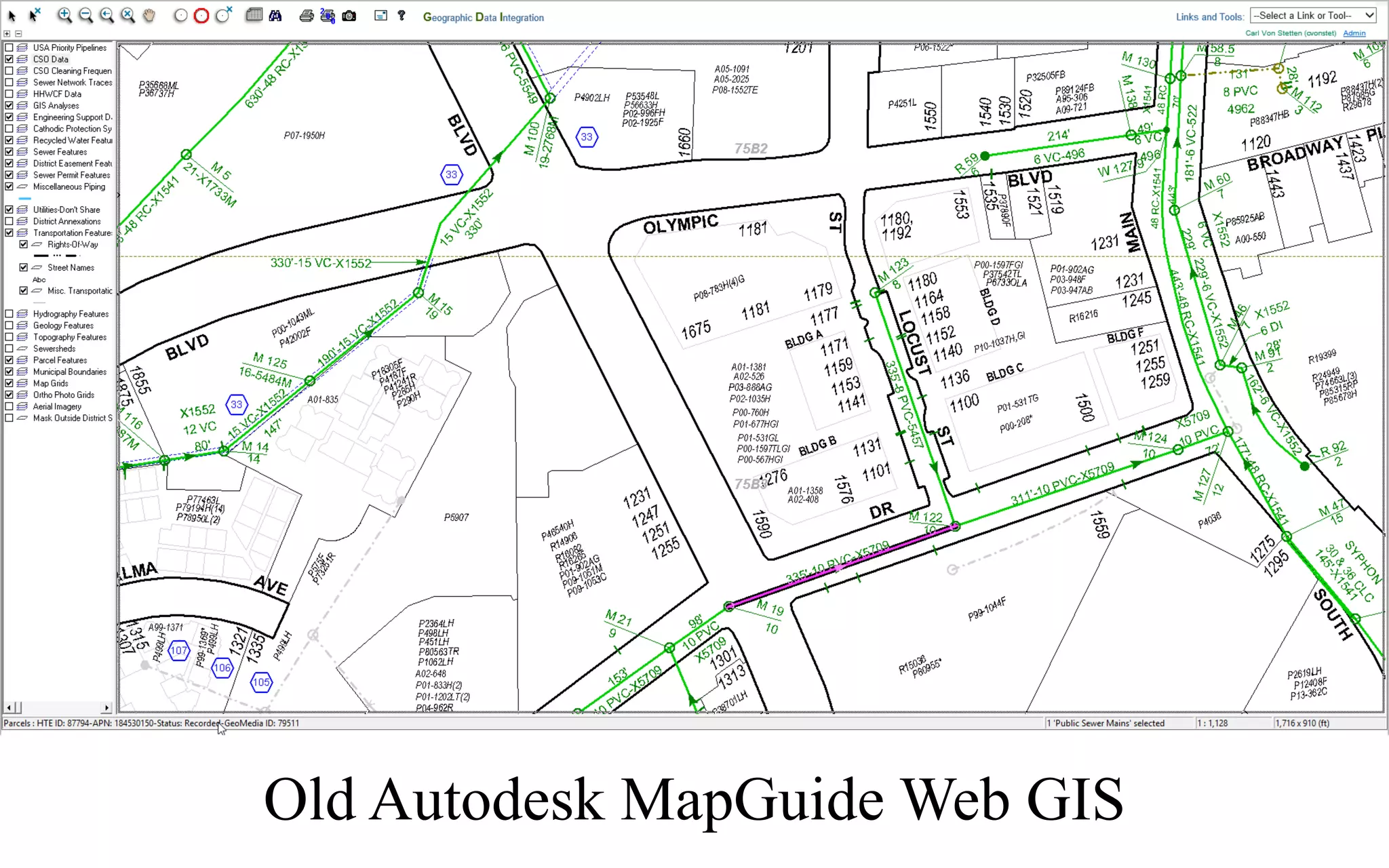

6. Old Autodesk MapGuide Web GIS

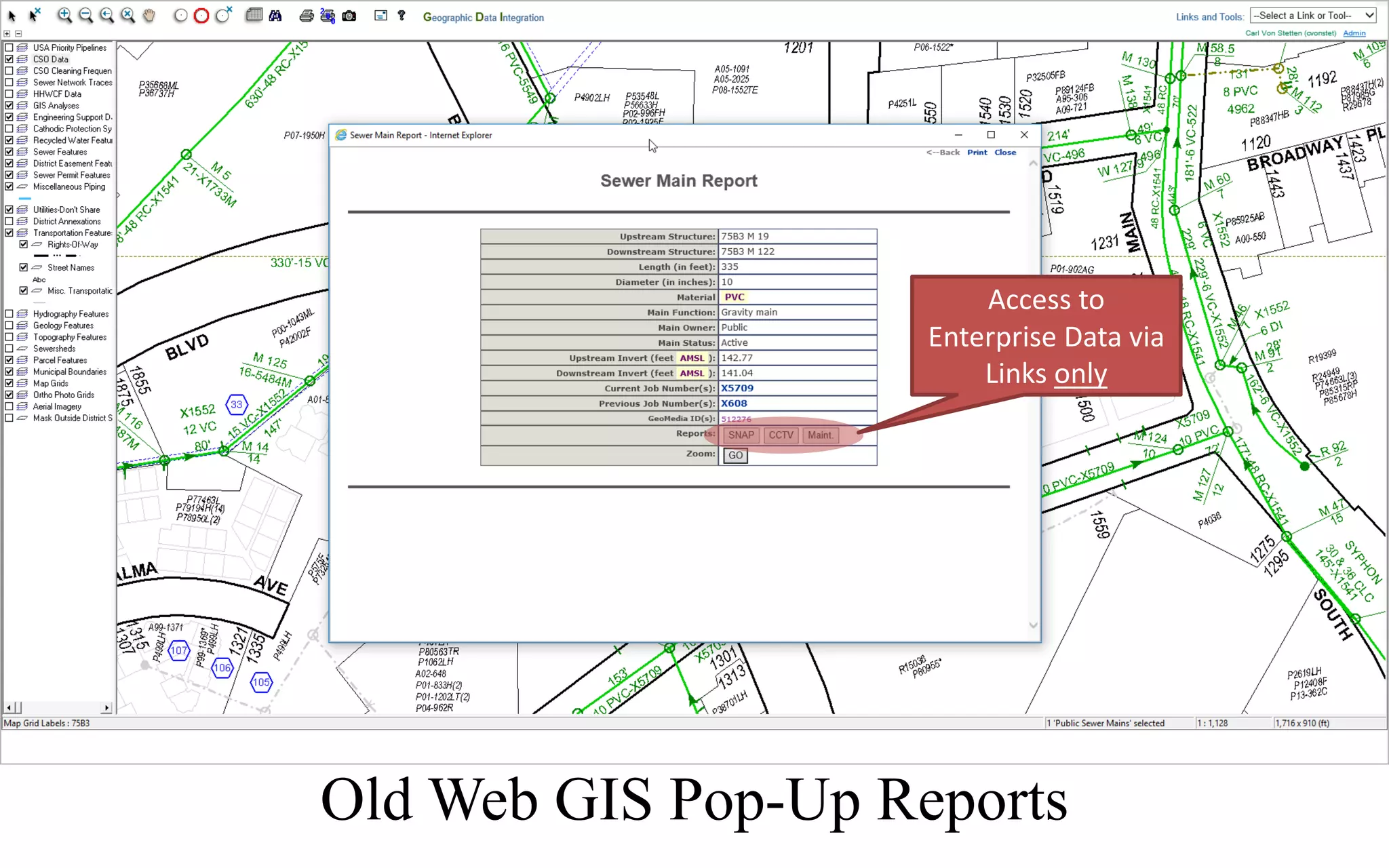

7. Old Web GIS Pop-Up Reports
Access to
Enterprise Data via
Links only

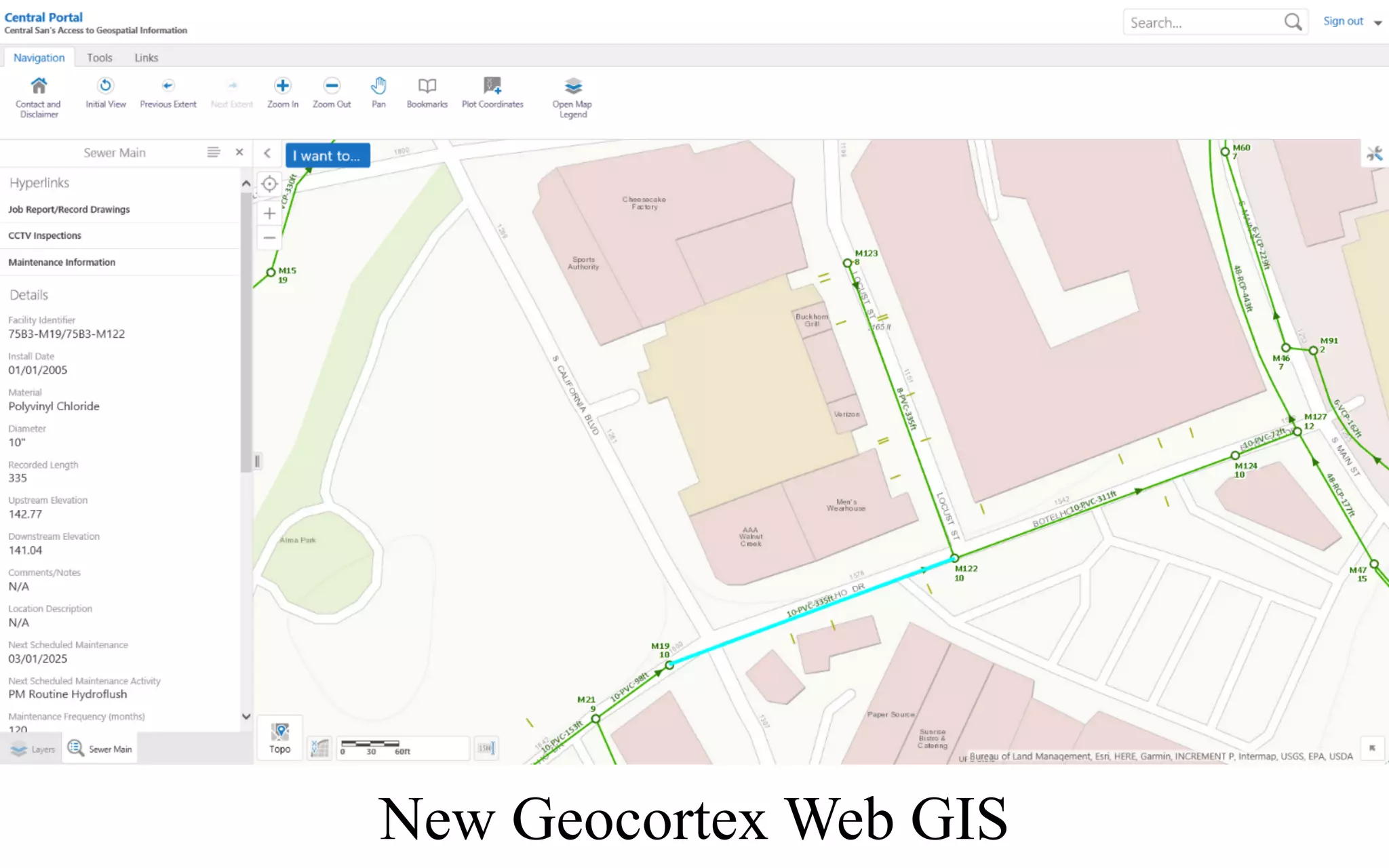

8. New Geocortex Web GIS

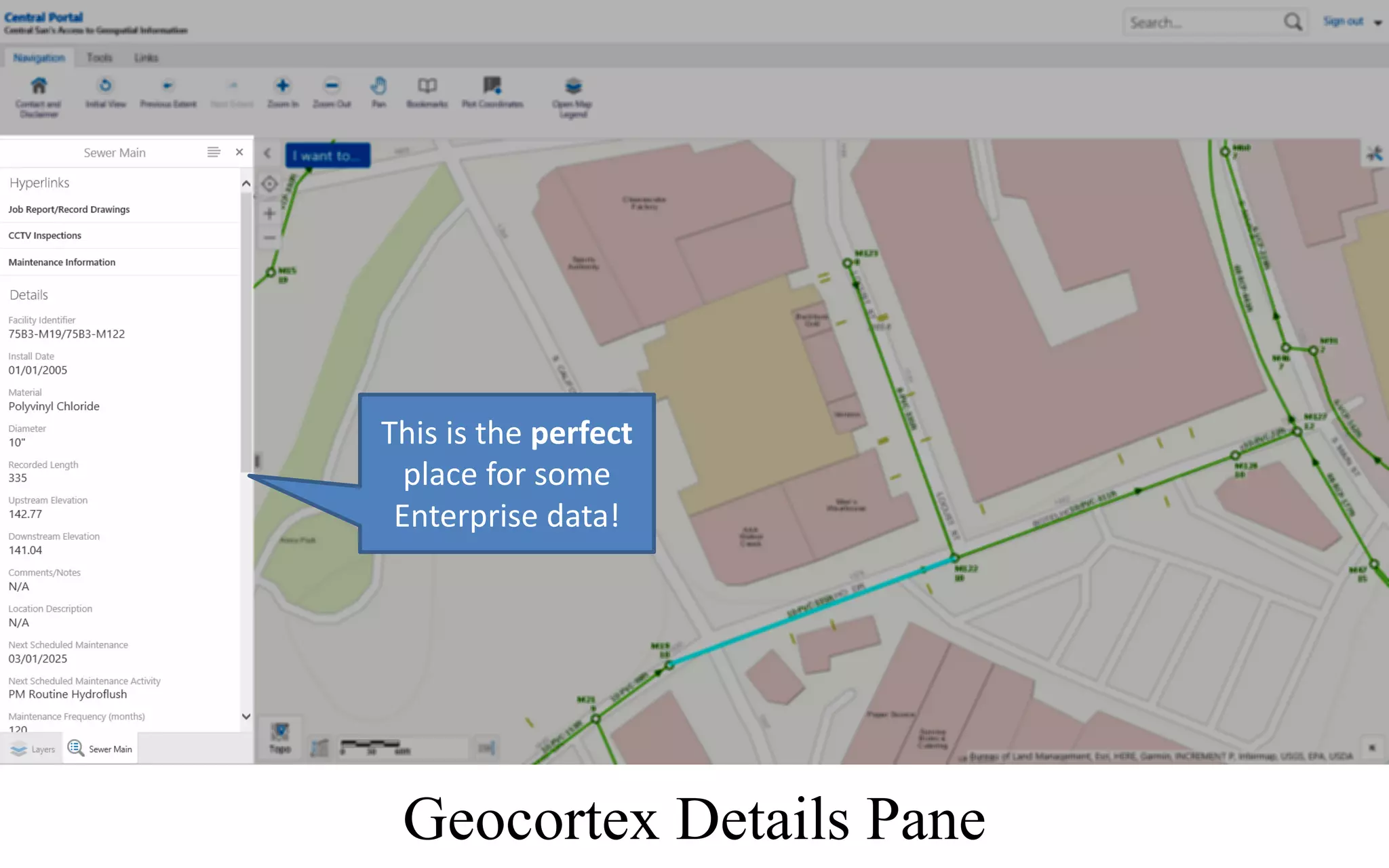

9. Geocortex Details Pane
This is the perfect
place for some
Enterprise data!

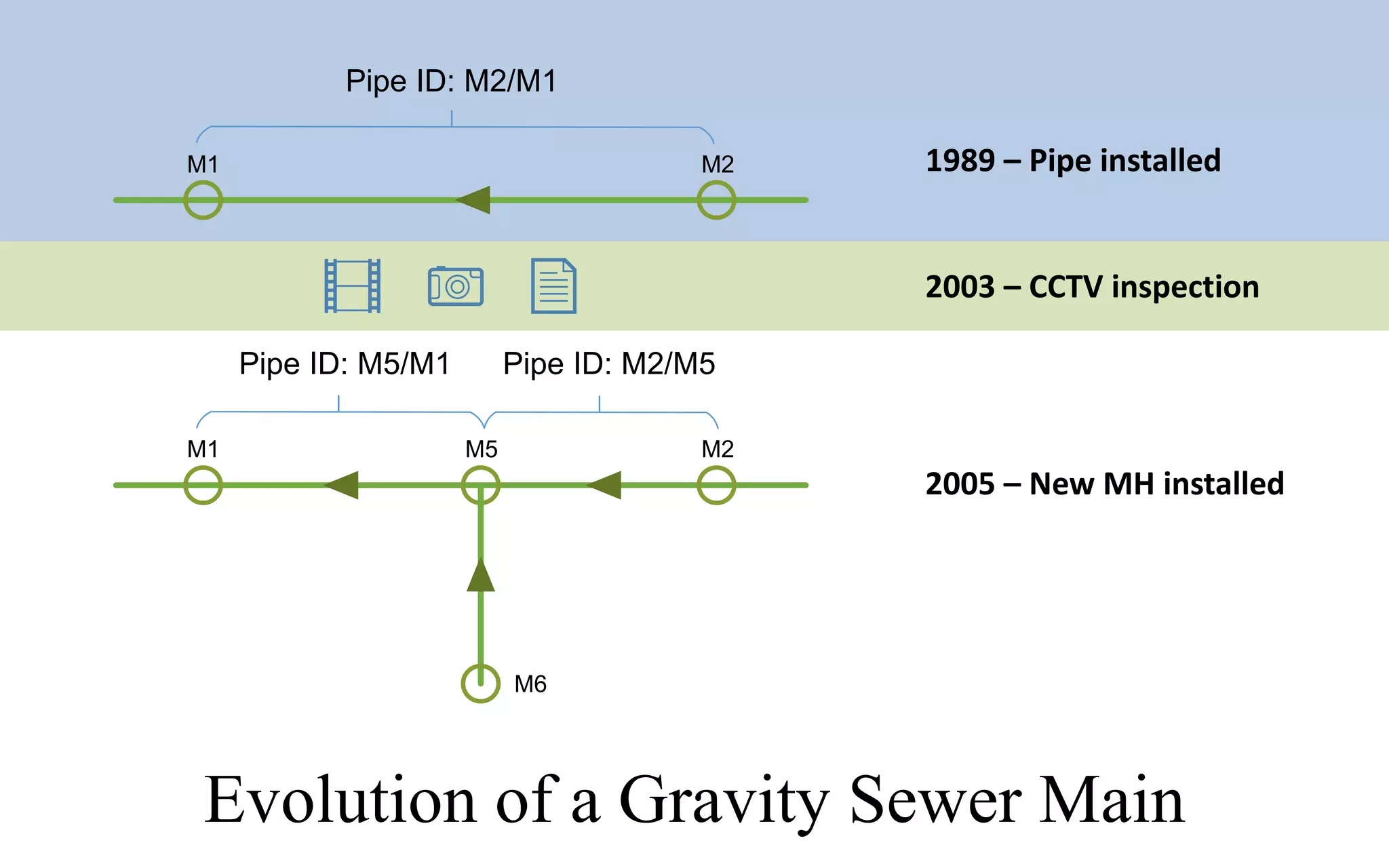

12. Evolution of a Gravity Sewer Main
1989 – Pipe installedM1 M2
Pipe ID: M2/M1
2003 – CCTV inspection
M1 M2M5
M6
Pipe ID: M5/M1 Pipe ID: M2/M5
2005 – New MH installed

13. CCTV Pipes vs. GIS Pipes
M1 M4PR2 PR3
M4/PR3PR3/PR2PR2/M1
GIS Pipes
M1 M4PR2 PR3
M4/M1
“Nonstop MH to MH” CCTV Inspection
M1 M4PR2 PR3
“Perfect Match” CCTV Inspection
M4/PR3PR3/PR2PR2/M1
M1 M4PR2 PR3
“Reverse” CCTV Inspection
PR3/M4PR2/PR3M1/PR2

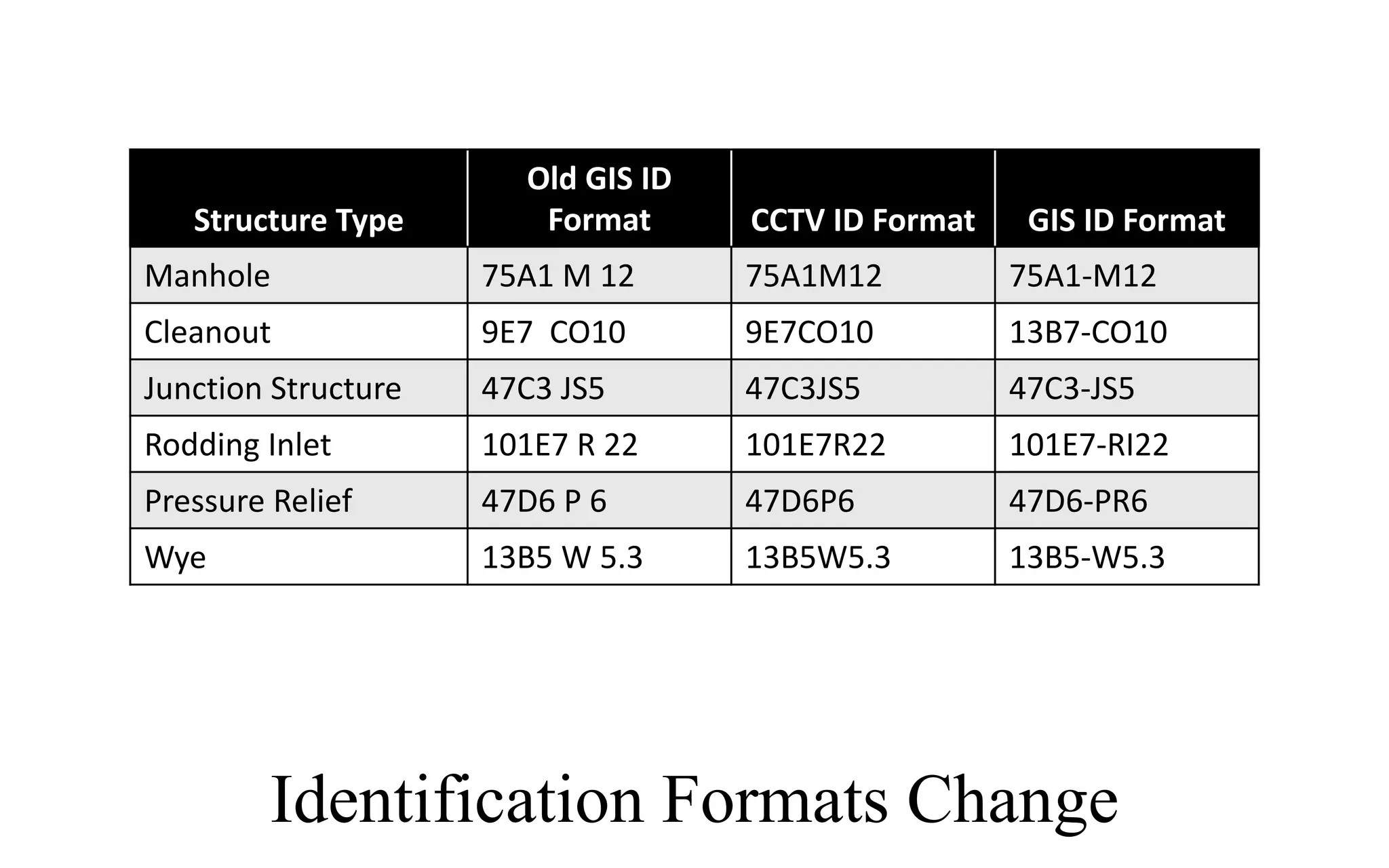

14. Identification Formats Change
Structure Type
Old GIS ID
Format CCTV ID Format GIS ID Format
Manhole 75A1 M 12 75A1M12 75A1-M12
Cleanout 9E7 CO10 9E7CO10 13B7-CO10
Junction Structure 47C3 JS5 47C3JS5 47C3-JS5
Rodding Inlet 101E7 R 22 101E7R22 101E7-RI22
Pressure Relief 47D6 P 6 47D6P6 47D6-PR6
Wye 13B5 W 5.3 13B5W5.3 13B5-W5.3

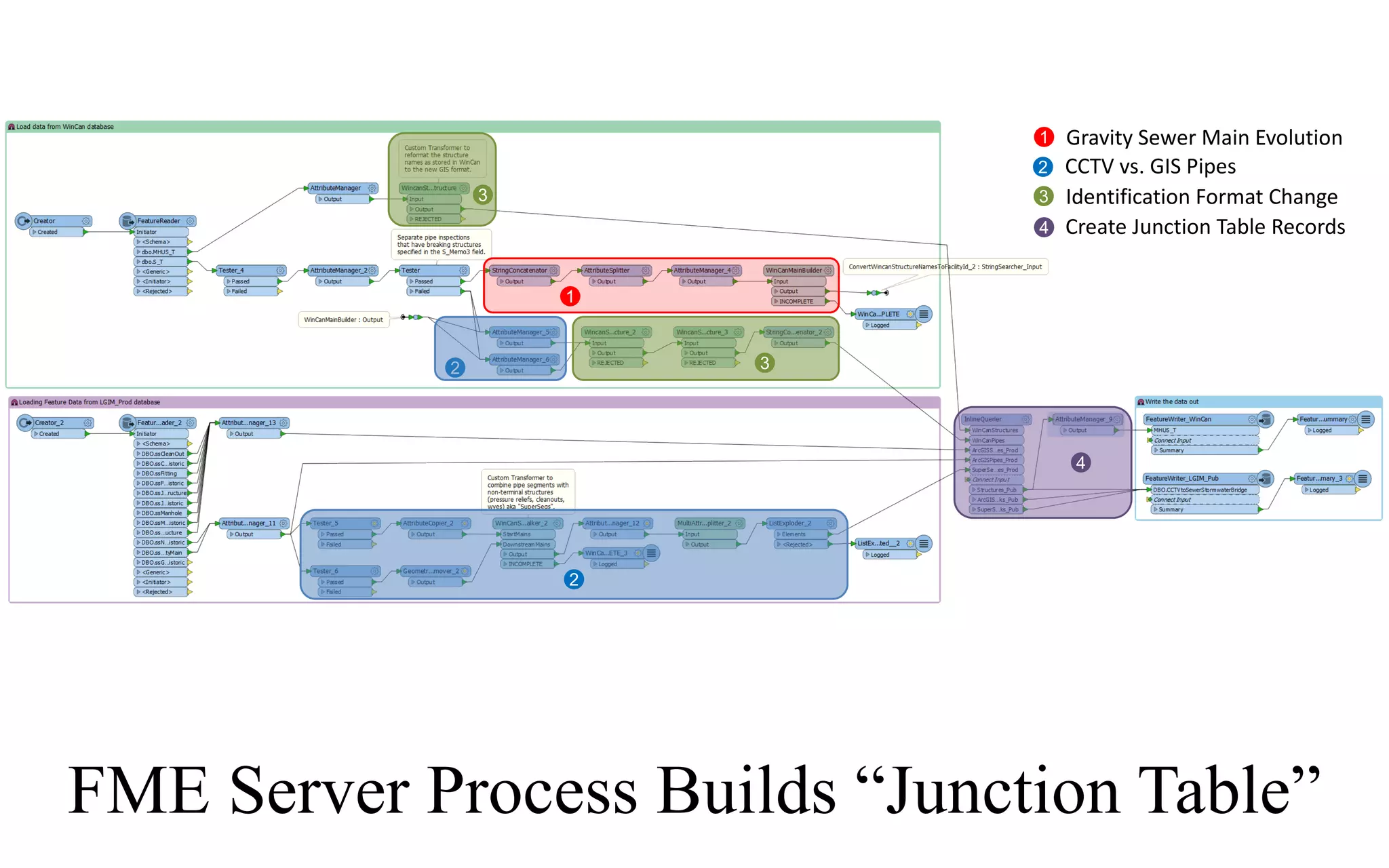

16. 1
1 Gravity Sewer Main Evolution
FME Server Process Builds “Junction Table”
2
2
2 CCTV vs. GIS Pipes
4 Create Junction Table Records
4
3
3
Identification Format Change3

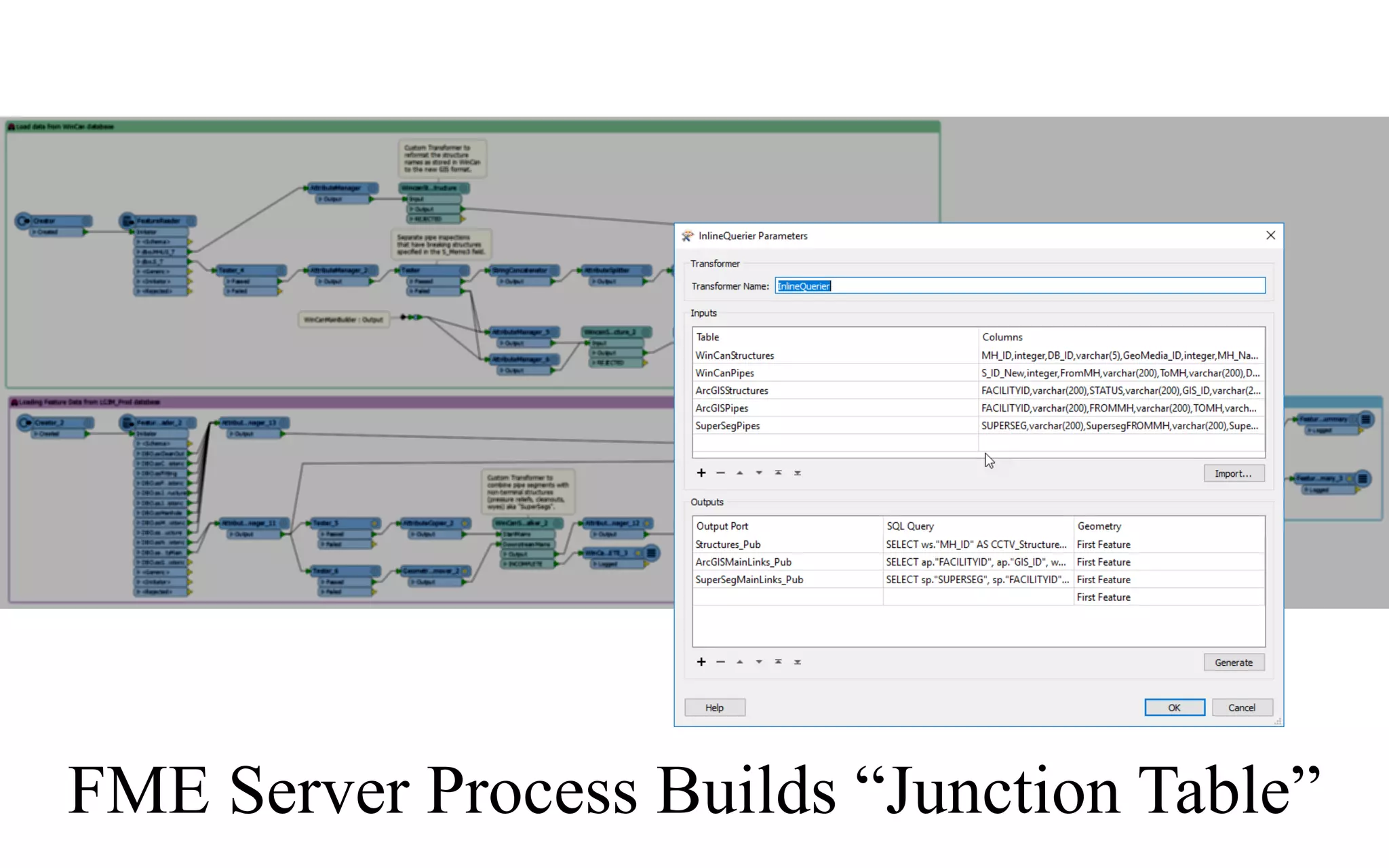

17. FME Server Process Builds “Junction Table”

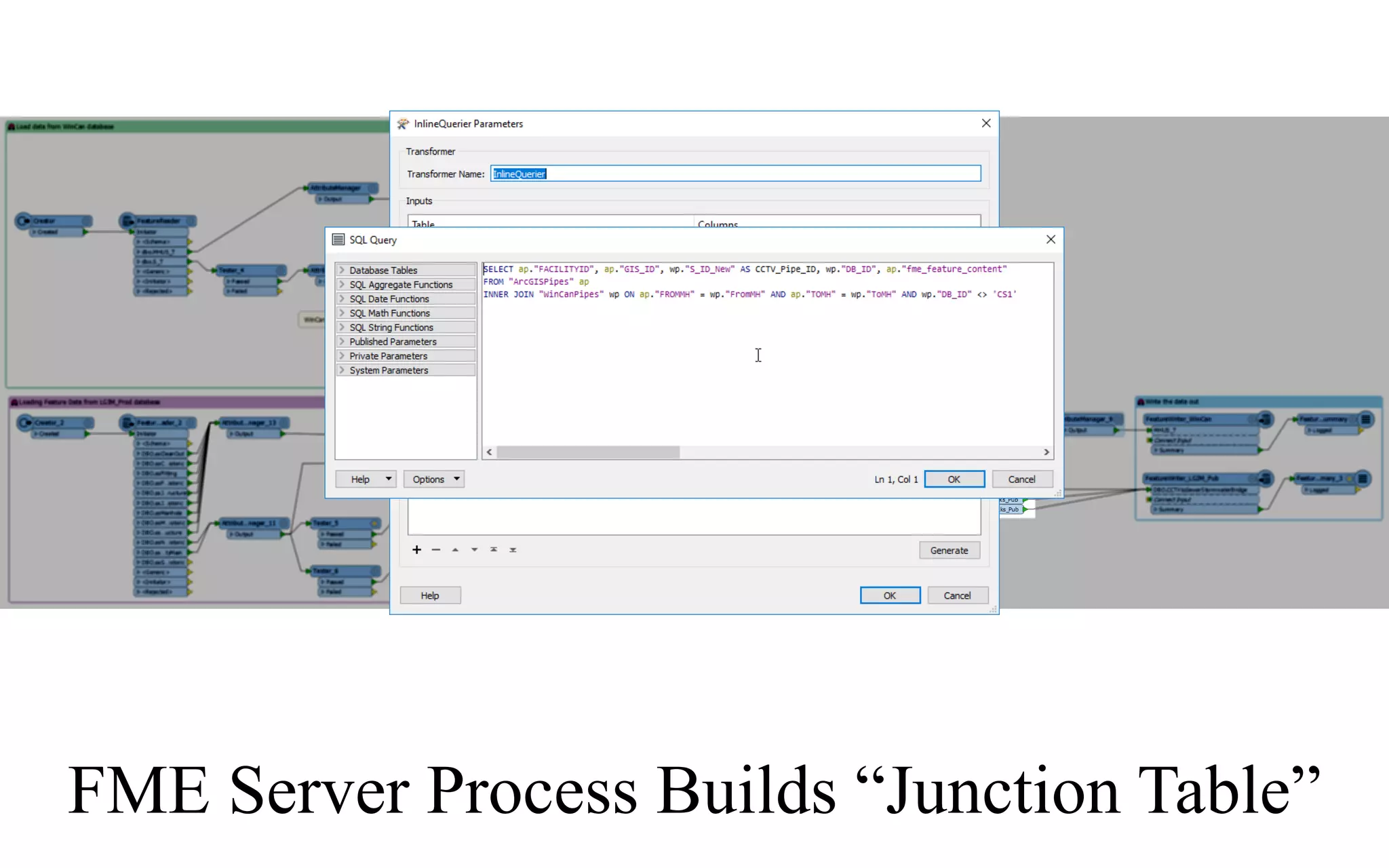

18. FME Server Process Builds “Junction Table”

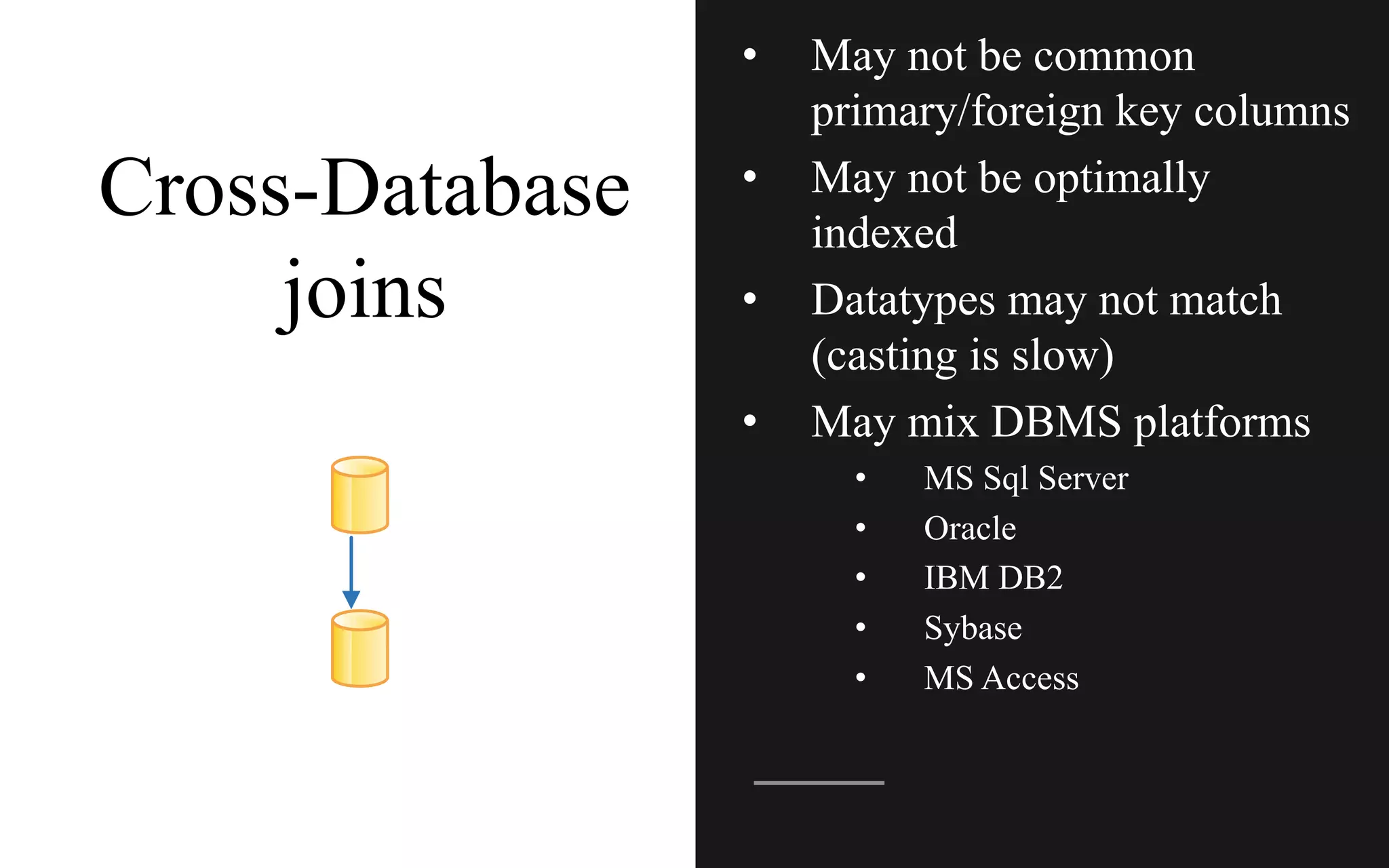

20. Cross-Database
joins
• May not be common
primary/foreign key columns
• May not be optimally
indexed
• Datatypes may not match
(casting is slow)
• May mix DBMS platforms
• MS Sql Server
• Oracle
• IBM DB2
• Sybase
• MS Access

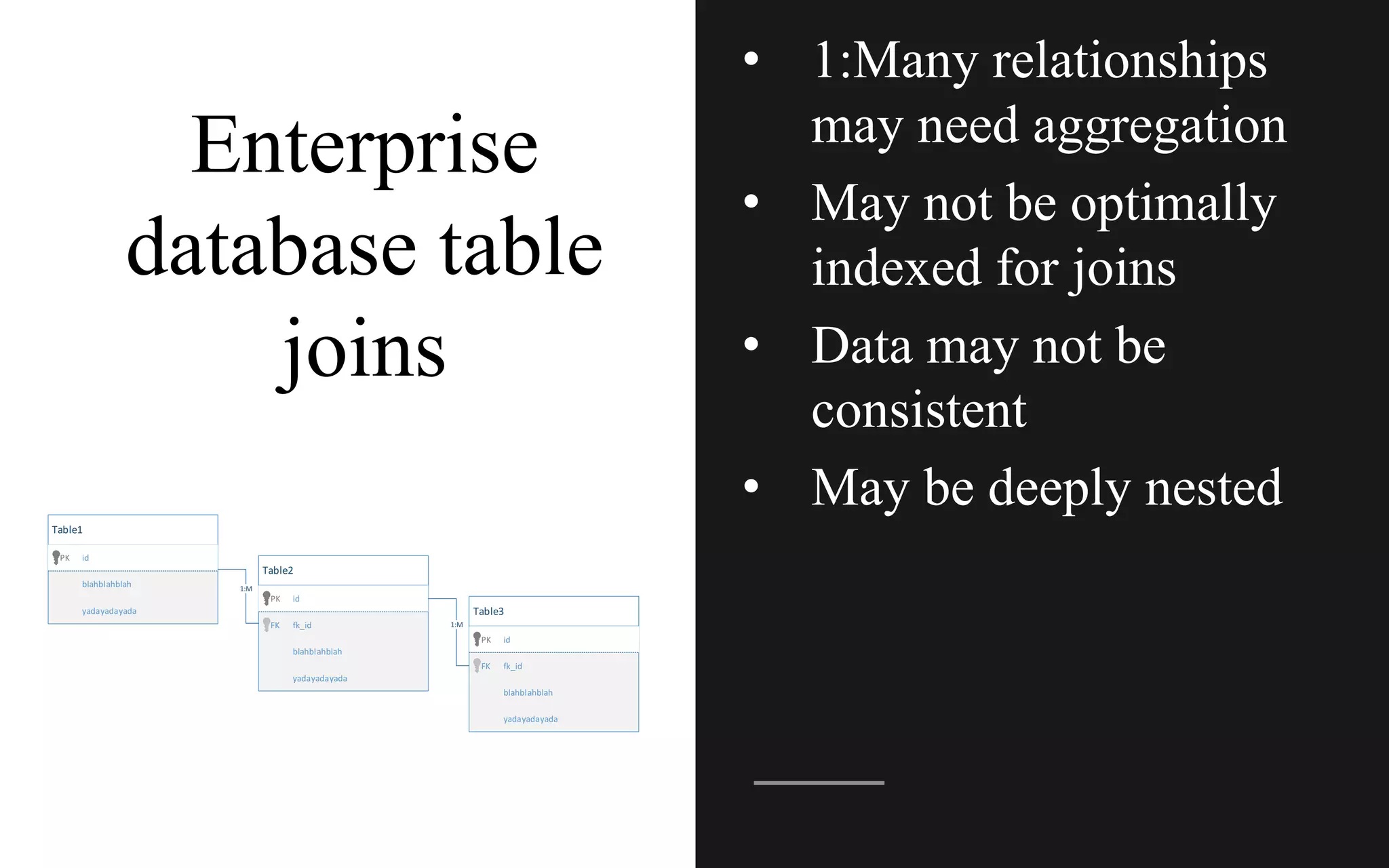

21. Enterprise
database table
joins
• 1:Many relationships
may need aggregation
• May not be optimally
indexed for joins
• Data may not be
consistent
• May be deeply nested
Table1
idPK
blahblahblah
yadayadayada
Table2
idPK
blahblahblah
yadayadayada
fk_idFK
1:M
Table3
idPK
blahblahblah
yadayadayada
fk_idFK
1:M

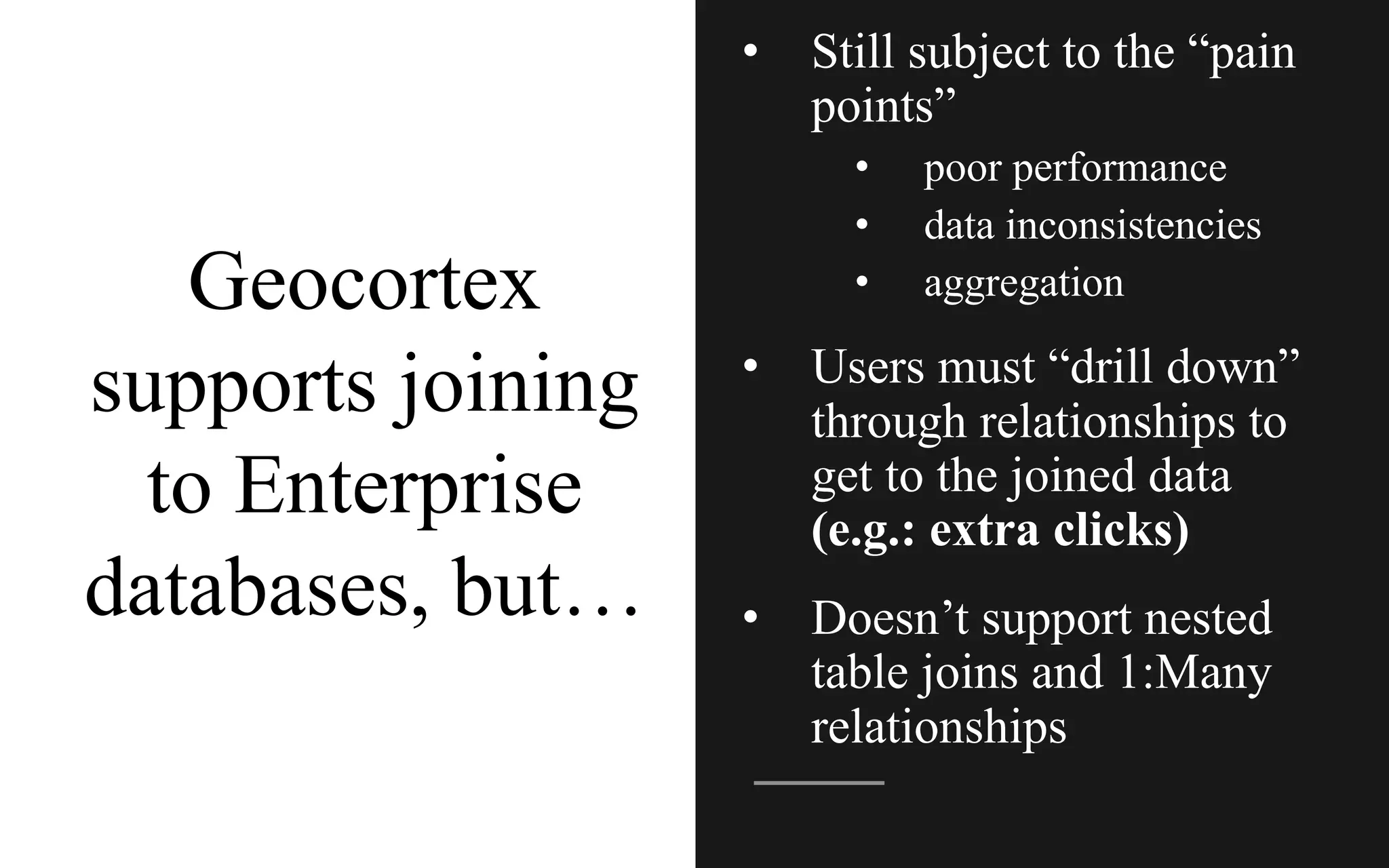

22. Geocortex
supports joining
to Enterprise
databases, but…
• Still subject to the “pain
points”
• poor performance
• data inconsistencies
• aggregation
• Users must “drill down”
through relationships to
get to the joined data
(e.g.: extra clicks)
• Doesn’t support nested
table joins and 1:Many
relationships

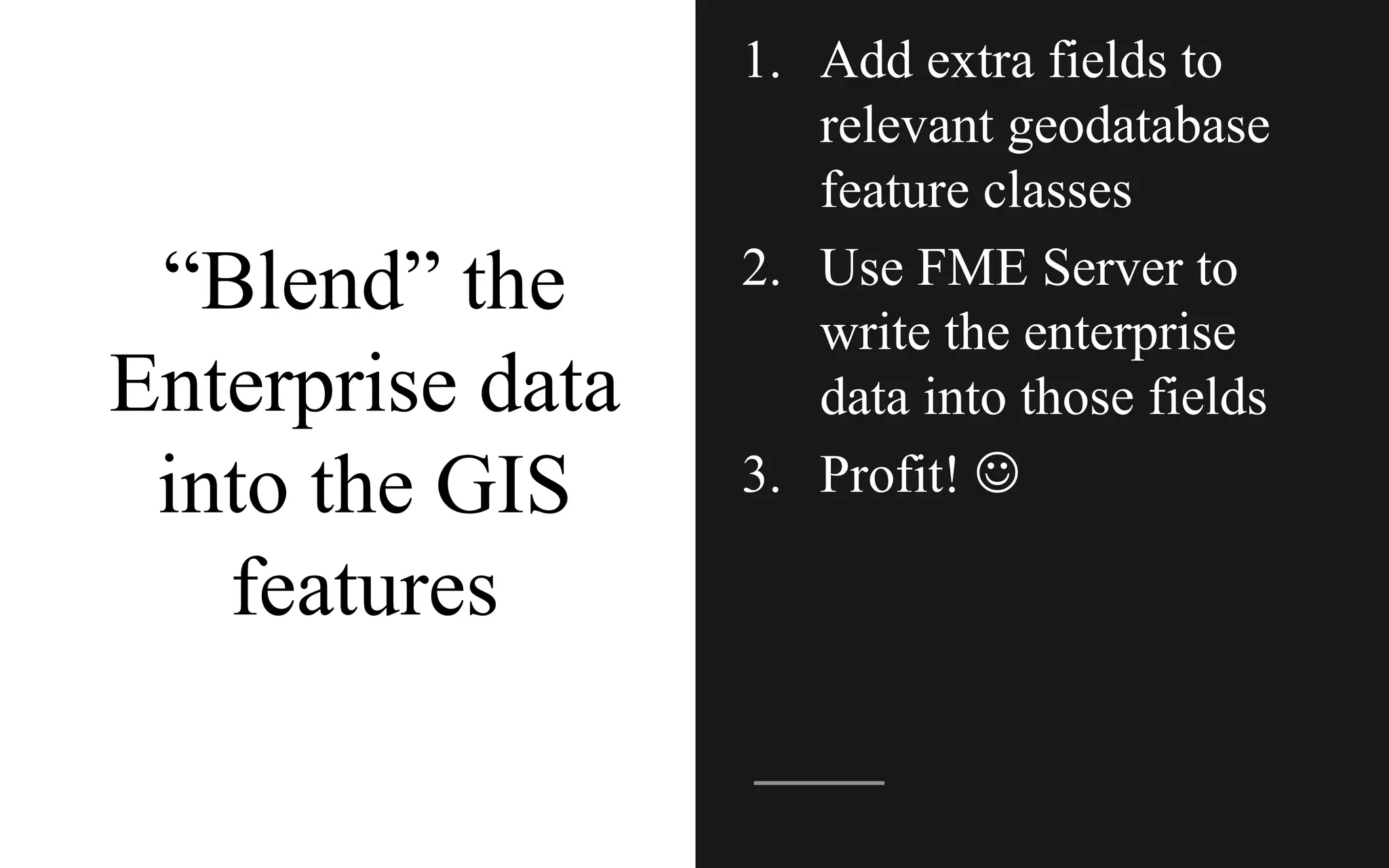

24. “Blend” the
Enterprise data
into the GIS
features
1. Add extra fields to
relevant geodatabase
feature classes
2. Use FME Server to
write the enterprise
data into those fields
3. Profit! J

27. “Blend” the
Enterprise and
GIS data into a
non-versioned
“Publish”
geodatabase
1. Duplicate the geodatabase
schema to new “Publish”
geodatabase
2. Add extra fields to relevant
geodatabase feature classes
3. Use FME Server to
truncate/repopulate the
geodatabase with the
“blended” data
4. Profit! J

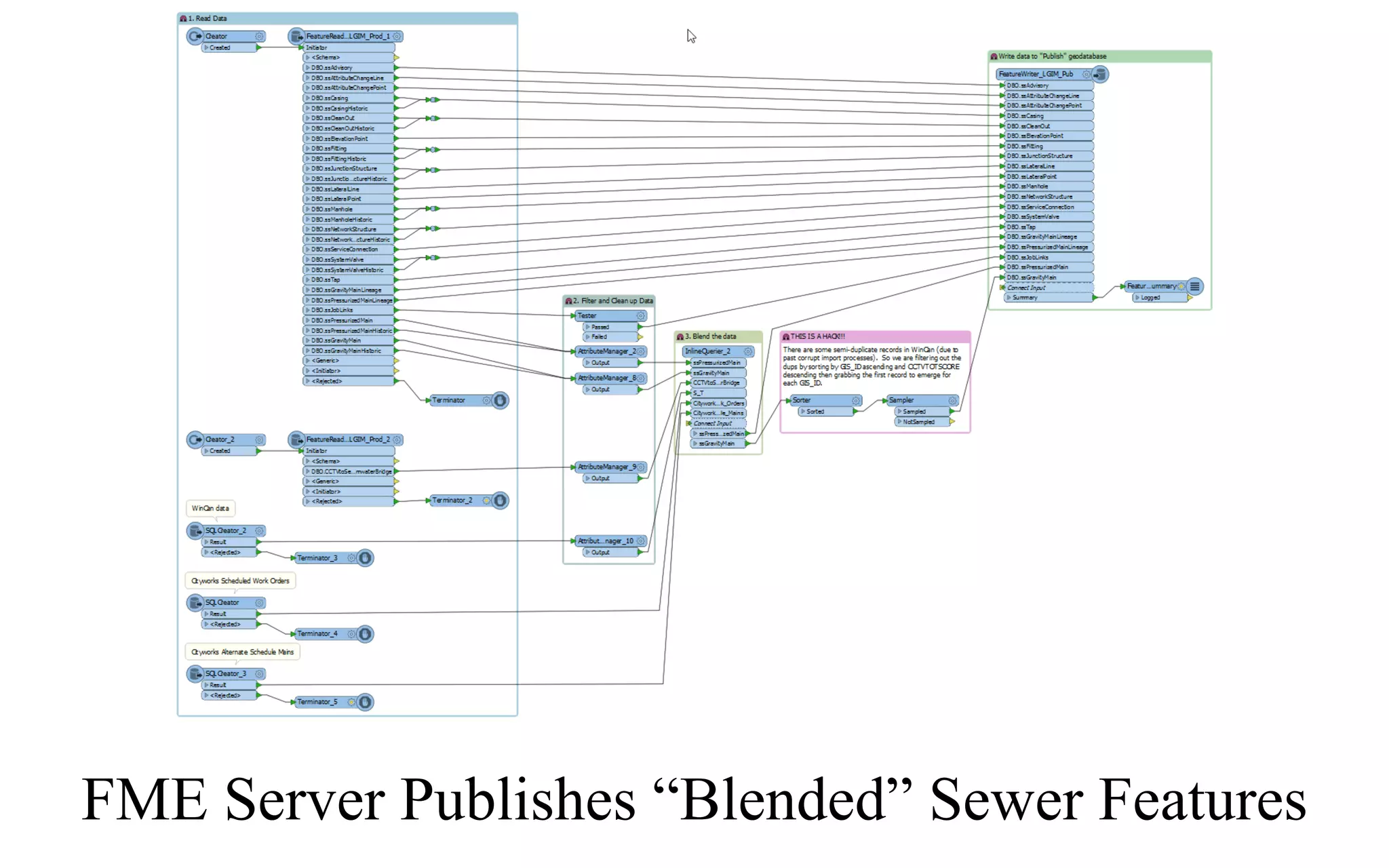

28. FME Server Publishes “Blended” Sewer Features

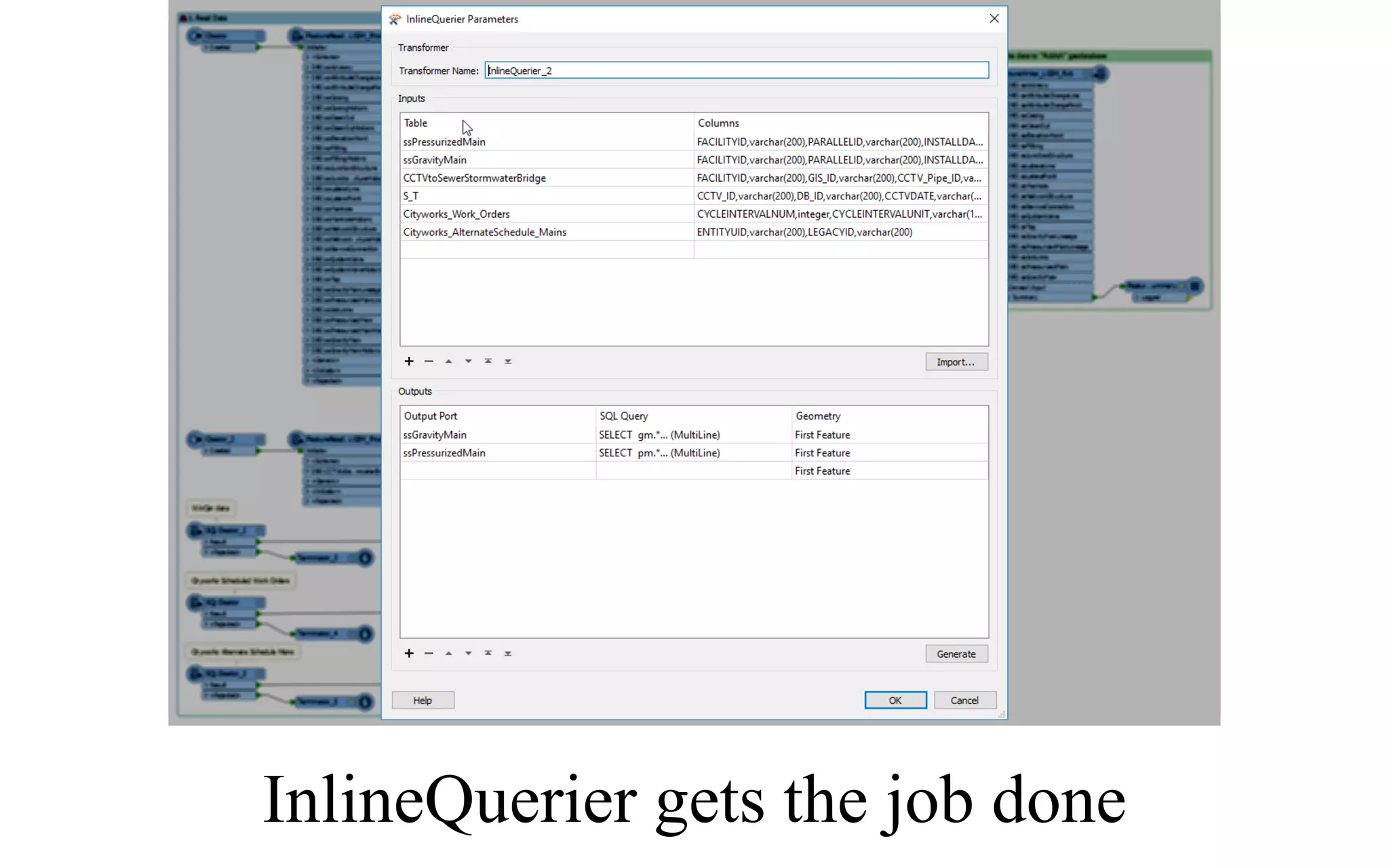

29. InlineQuerier gets the job done

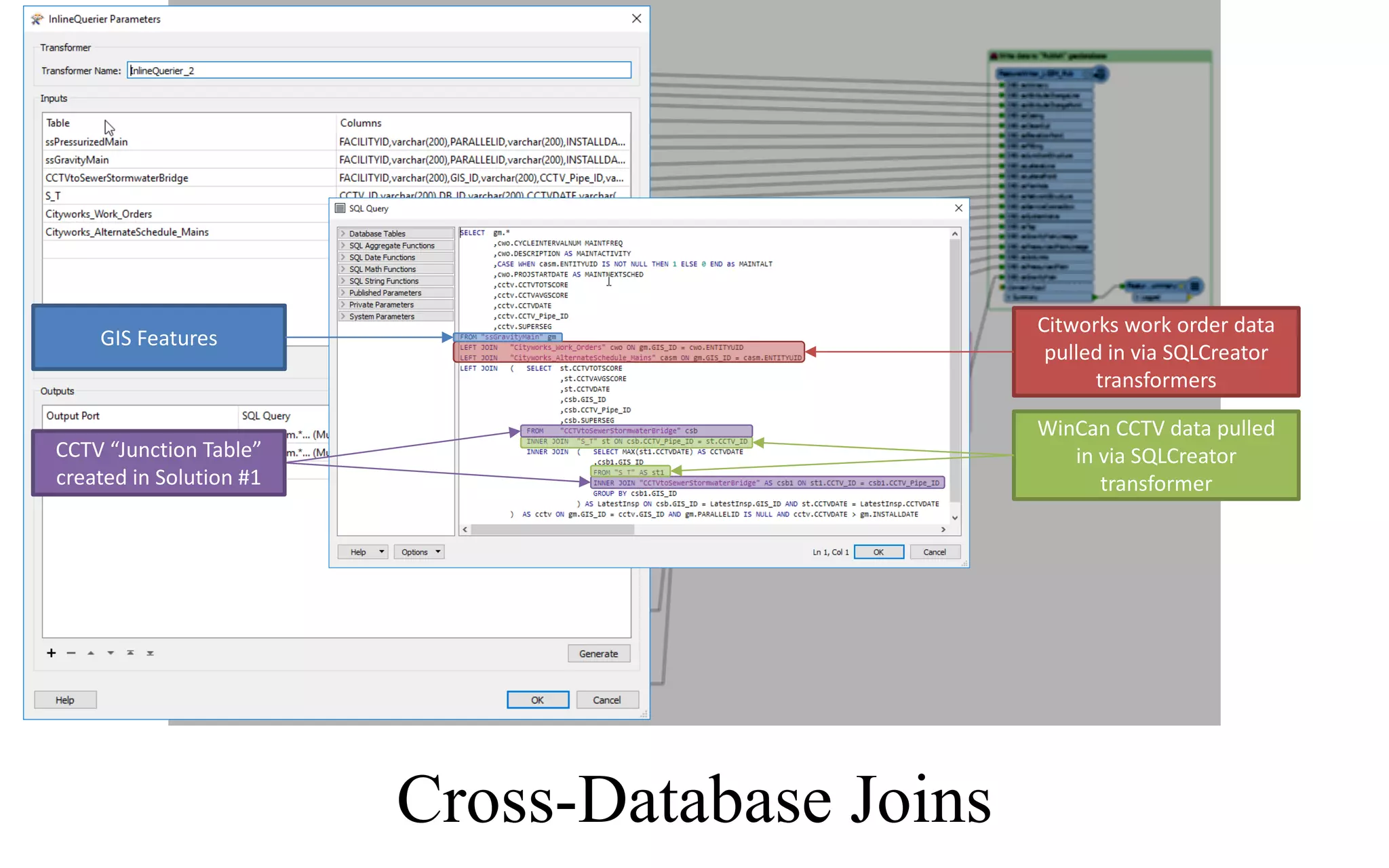

30. Cross-Database Joins
Citworks work order data
pulled in via SQLCreator
transformers
GIS Features
WinCan CCTV data pulled
in via SQLCreator
transformer
CCTV “Junction Table”
created in Solution #1

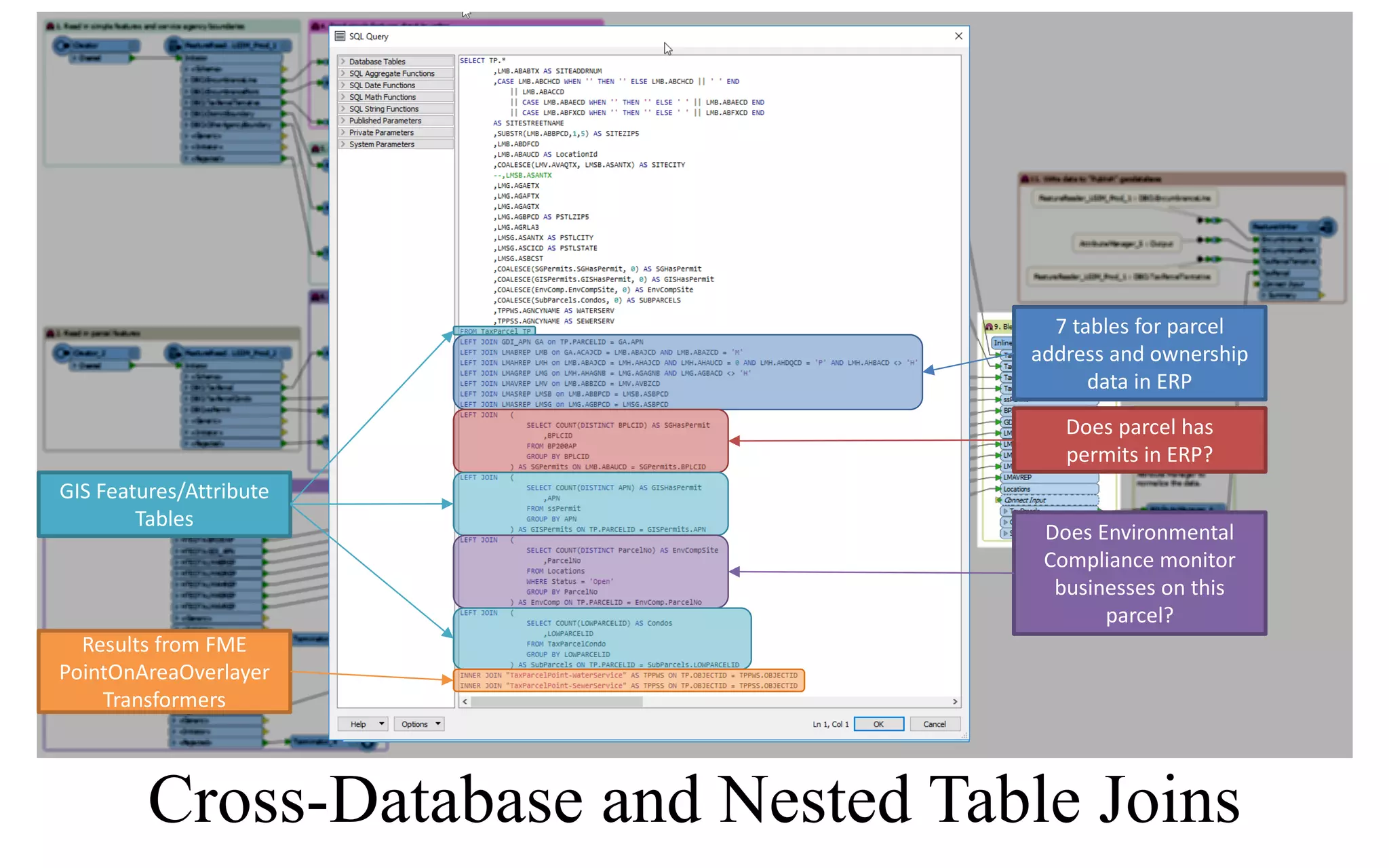

31. 7 tables for parcel
address and ownership
data in ERP
Does parcel has
permits in ERP?
Does Environmental
Compliance monitor
businesses on this
parcel?
GIS Features/Attribute
Tables
Results from FME
PointOnAreaOverlayer
Transformers
Cross-Database and Nested Table Joins

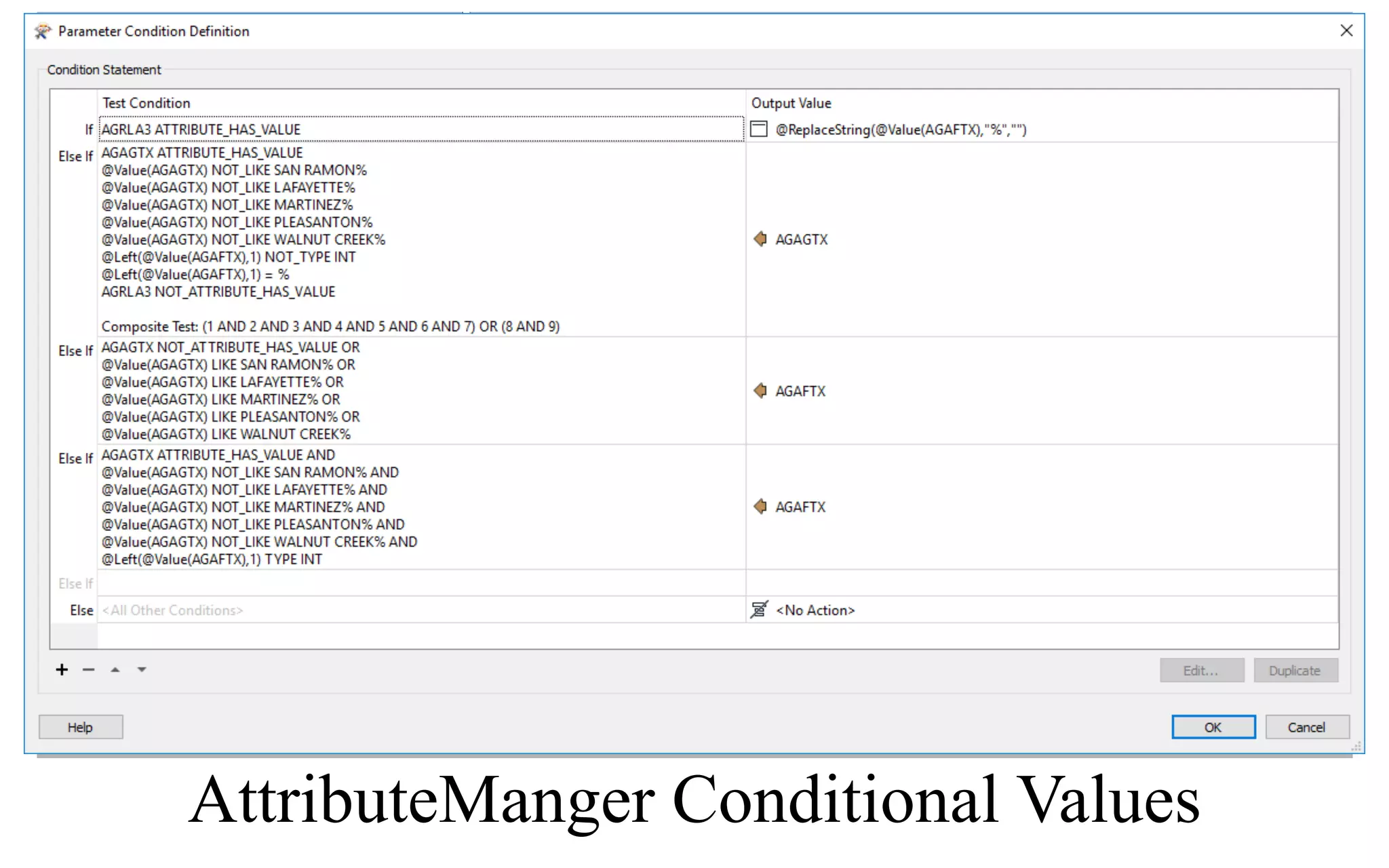

32. AttributeManger Conditional Values

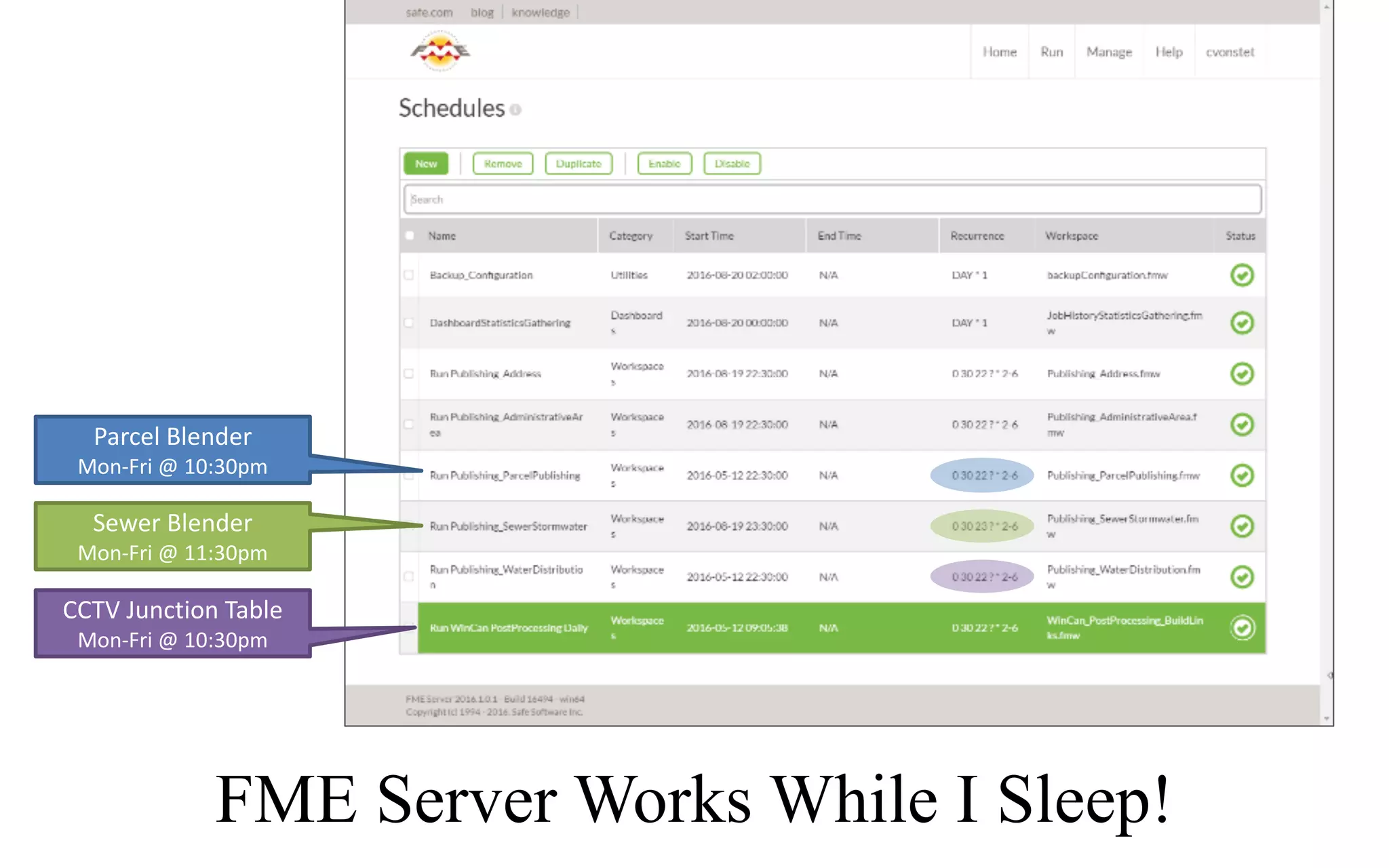

33. FME Server Works While I Sleep!
Parcel Blender
Mon-Fri @ 10:30pm
Sewer Blender
Mon-Fri @ 11:30pm
CCTV Junction Table
Mon-Fri @ 10:30pm

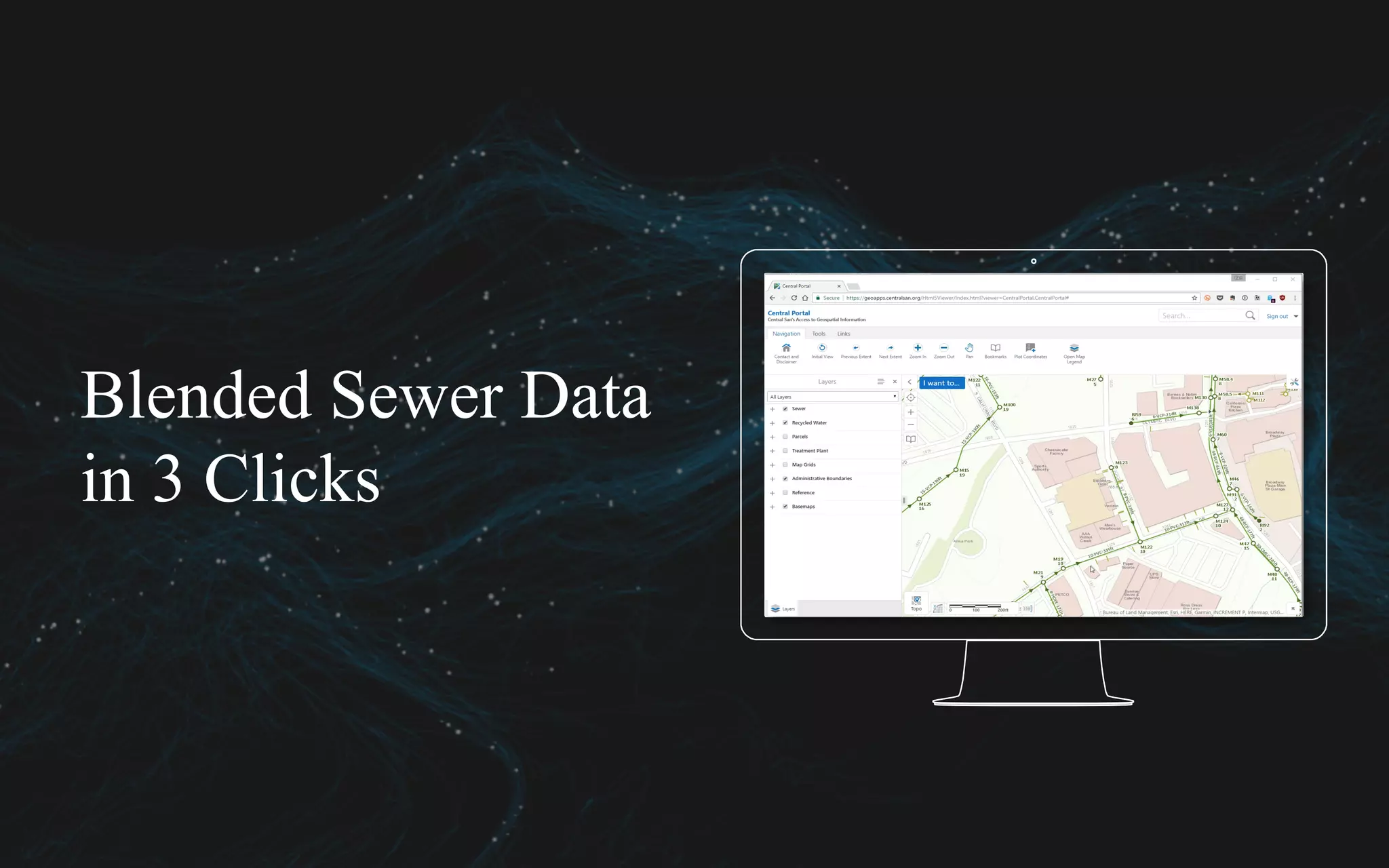

34. Blended Sewer Data
in 3 Clicks
Place your screenshot here

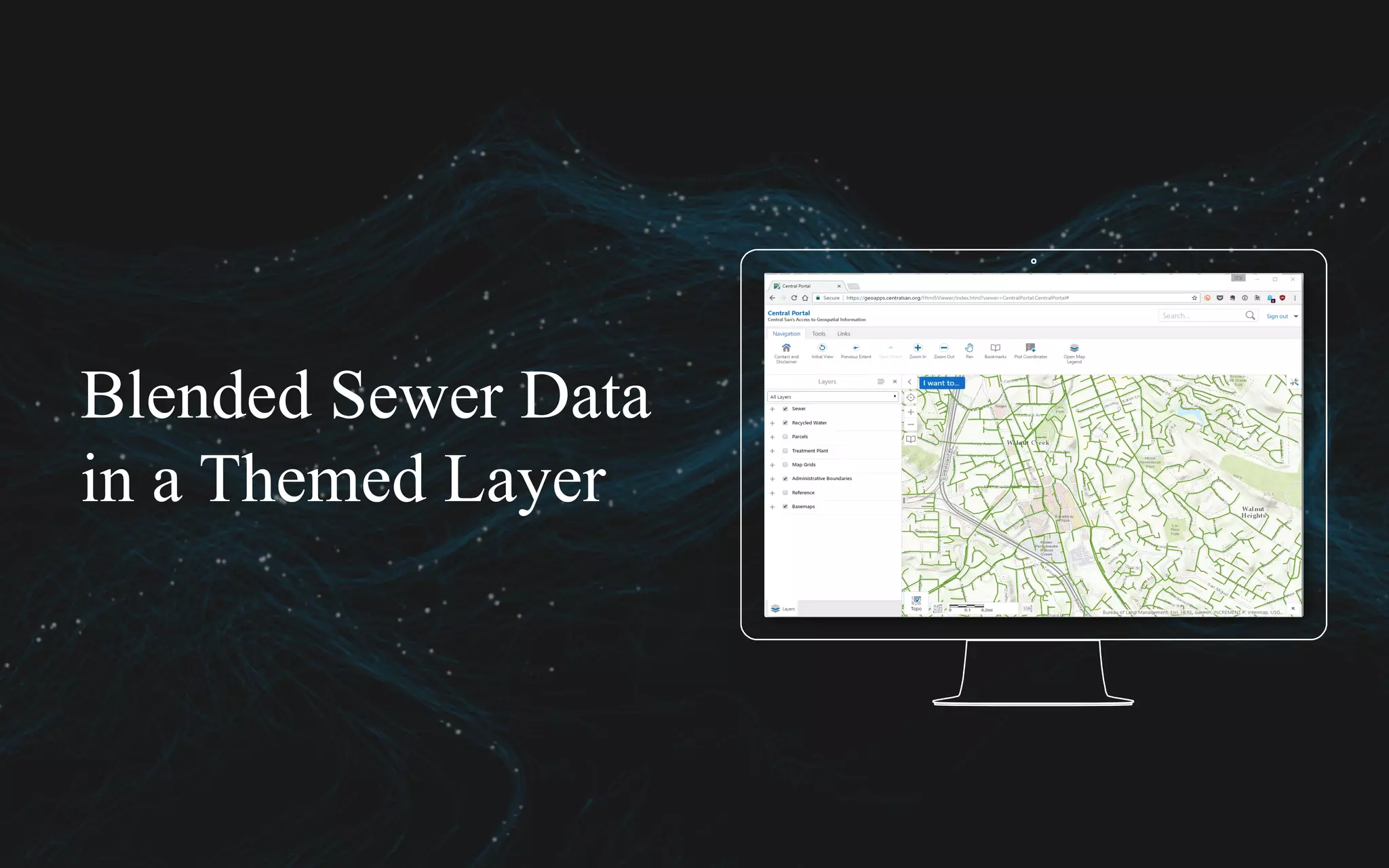

35. Blended Sewer Data
in a Themed Layer
Place your screenshot here

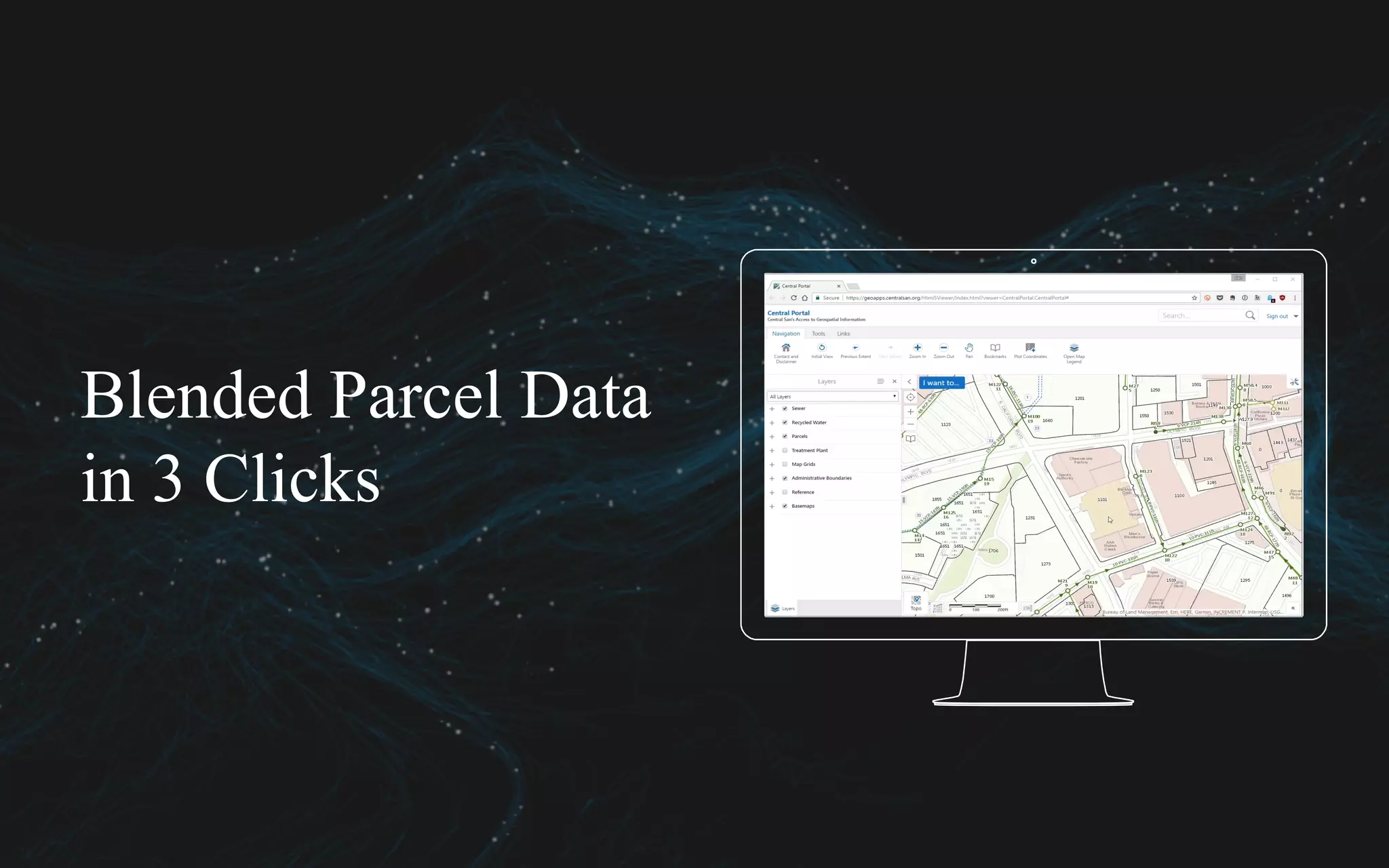

36. Blended Parcel Data
in 3 Clicks
Place your screenshot here
