Hubble Space Telescope
The Universe
Sarah Jones
Hubble Space Telescope

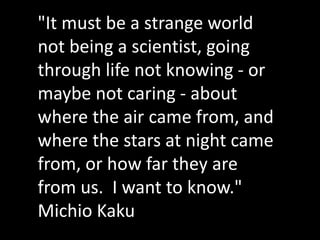

"It must be a strange world
not being a scientist, going
through life not knowing - or
maybe not caring - about
where the air came from, and
where the stars at night came
from, or how far they are
from us. I want to know."
Michio Kaku
Hubble Space Telescope
Hubble Space Telescope

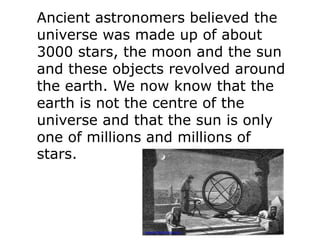

Ancient astronomers believed the
universe was made up of about
3000 stars, the moon and the sun
and these objects revolved around
the earth. We now know that the
earth is not the centre of the
universe and that the sun is only
one of millions and millions of
stars.
www.kidsastronomy.com
Claudius Ptolemy’s earth-centered model of the universe
mucholderthen.tumblr.com

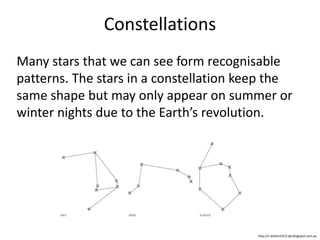

Constellations
Many stars that we can see form recognisable
patterns. The stars in a constellation keep the
same shape but may only appear on summer or
winter nights due to the Earth’s revolution.
http://s-wilson1013-dp.blogspot.com.au
commons.wikimedia.org
www.physics.unlv.edu

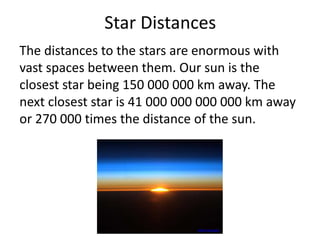

Star Distances
The distances to the stars are enormous with
vast spaces between them. Our sun is the
closest star being 150 000 000 km away. The
next closest star is 41 000 000 000 000 km away
or 270 000 times the distance of the sun.
www.nasa.gov

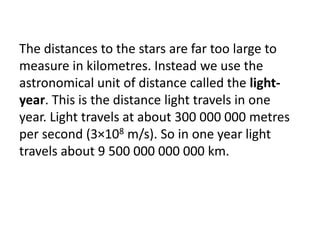

The distances to the stars are far too large to
measure in kilometres. Instead we use the
astronomical unit of distance called the light-
year. This is the distance light travels in one
year. Light travels at about 300 000 000 metres
per second (3×108 m/s). So in one year light
travels about 9 500 000 000 000 km.
• A parsec (pc) is another commonly used
astronomical unit of length – it is equivalent of
3.26 light-years.
• The parsec is based on the phenomenon
known as parallax.
www.atnf.csiro.au

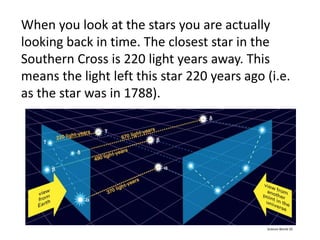

When you look at the stars you are actually
looking back in time. The closest star in the
Southern Cross is 220 light years away. This
means the light left this star 220 years ago (i.e.
as the star was in 1788).
Science World 10

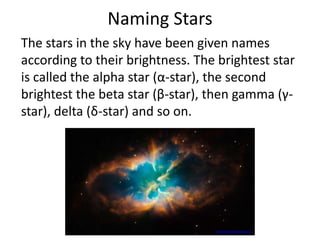

Naming Stars
The stars in the sky have been given names
according to their brightness. The brightest star
is called the alpha star (α-star), the second
brightest the beta star (β-star), then gamma (γ-
star), delta (δ-star) and so on.
commons.wikimedia.org

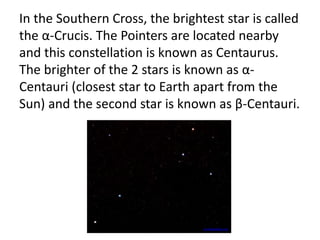

In the Southern Cross, the brightest star is called
the α-Crucis. The Pointers are located nearby
and this constellation is known as Centaurus.
The brighter of the 2 stars is known as α-
Centauri (closest star to Earth apart from the
Sun) and the second star is known as β-Centauri.
en.wikipedia.org

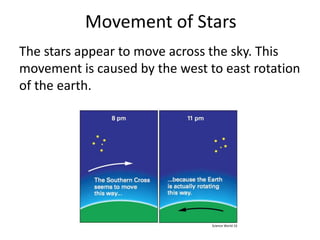

Movement of Stars
The stars appear to move across the sky. This
movement is caused by the west to east rotation
of the earth.
Science World 10

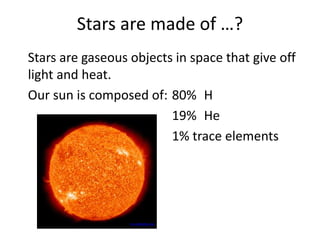

Stars are made of …?
Stars are gaseous objects in space that give off
light and heat.
Our sun is composed of: 80% H
19% He
1% trace elements
en.wikipedia.org

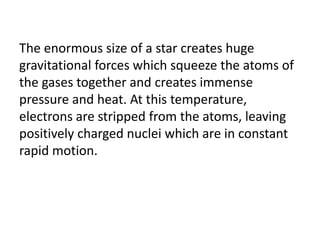

The enormous size of a star creates huge
gravitational forces which squeeze the atoms of
the gases together and creates immense
pressure and heat. At this temperature,
electrons are stripped from the atoms, leaving
positively charged nuclei which are in constant
rapid motion.
NASA/SDO/GoddardSpaceFlightCenter

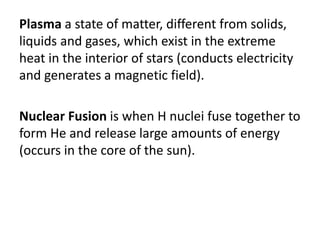

Plasma a state of matter, different from solids,
liquids and gases, which exist in the extreme
heat in the interior of stars (conducts electricity
and generates a magnetic field).
Nuclear Fusion is when H nuclei fuse together to
form He and release large amounts of energy
(occurs in the core of the sun).

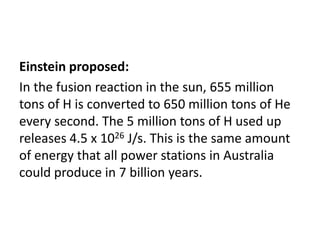

Einstein proposed:
In the fusion reaction in the sun, 655 million
tons of H is converted to 650 million tons of He
every second. The 5 million tons of H used up
releases 4.5 x 1026 J/s. This is the same amount
of energy that all power stations in Australia
could produce in 7 billion years.
Structure of the Sun
Science World 10

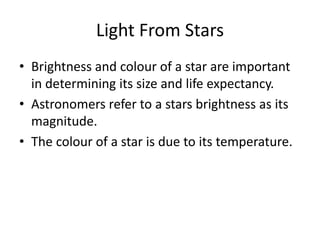

Light From Stars
• Brightness and colour of a star are important
in determining its size and life expectancy.
• Astronomers refer to a stars brightness as its
magnitude.
• The colour of a star is due to its temperature.

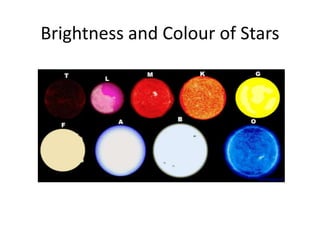

Brightness and Colour of Stars
scienceblogs.com

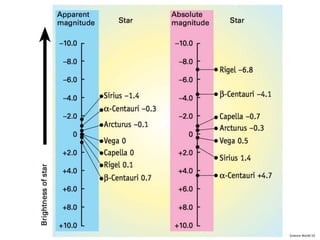

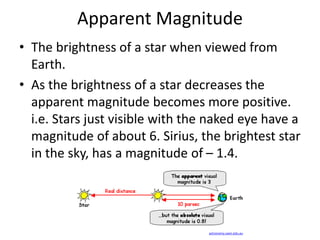

Apparent Magnitude
• The brightness of a star when viewed from
Earth.
• As the brightness of a star decreases the
apparent magnitude becomes more positive.
i.e. Stars just visible with the naked eye have a
magnitude of about 6. Sirius, the brightest star
in the sky, has a magnitude of – 1.4.
astronomy.swin.edu.au

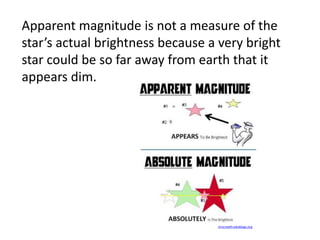

Apparent magnitude is not a measure of the
star’s actual brightness because a very bright
star could be so far away from earth that it
appears dim.
mrscreath.edublogs.org

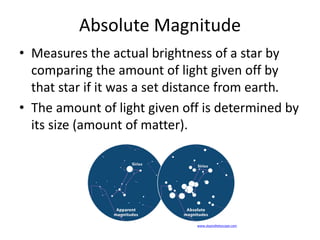

Absolute Magnitude
• Measures the actual brightness of a star by
comparing the amount of light given off by
that star if it was a set distance from earth.
• The amount of light given off is determined by
its size (amount of matter).
www.skyandtelescope.com
Science World 10

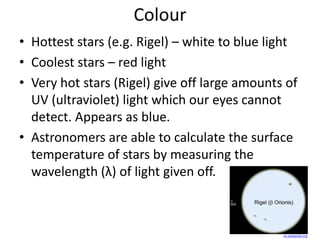

Colour
• Hottest stars (e.g. Rigel) – white to blue light
• Coolest stars – red light
• Very hot stars (Rigel) give off large amounts of
UV (ultraviolet) light which our eyes cannot
detect. Appears as blue.
• Astronomers are able to calculate the surface
temperature of stars by measuring the
wavelength (λ) of light given off.
en.wikipedia.org

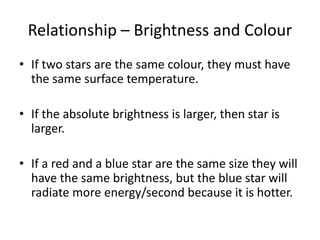

Relationship – Brightness and Colour
• If two stars are the same colour, they must have
the same surface temperature.
• If the absolute brightness is larger, then star is
larger.
• If a red and a blue star are the same size they will
have the same brightness, but the blue star will
radiate more energy/second because it is hotter.

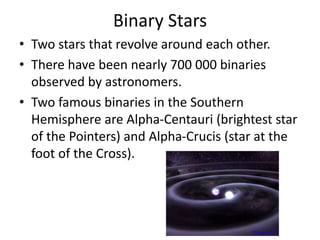

Binary Stars
• Two stars that revolve around each other.
• There have been nearly 700 000 binaries
observed by astronomers.
• Two famous binaries in the Southern
Hemisphere are Alpha-Centauri (brightest star
of the Pointers) and Alpha-Crucis (star at the
foot of the Cross).
www.space.com

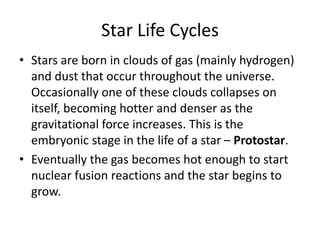

Star Life Cycles
• Stars are born in clouds of gas (mainly hydrogen)
and dust that occur throughout the universe.
Occasionally one of these clouds collapses on
itself, becoming hotter and denser as the
gravitational force increases. This is the
embryonic stage in the life of a star – Protostar.
• Eventually the gas becomes hot enough to start
nuclear fusion reactions and the star begins to
grow.
Nebula – massive cloud of gas and dust.
en.wikipedia.org

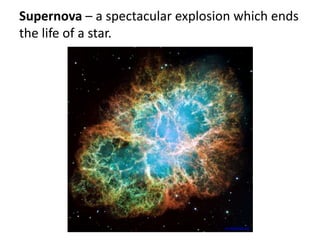

Supernova – a spectacular explosion which ends
the life of a star.
en.wikipedia.org

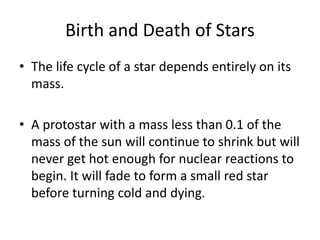

Birth and Death of Stars
• The life cycle of a star depends entirely on its
mass.
• A protostar with a mass less than 0.1 of the
mass of the sun will continue to shrink but will
never get hot enough for nuclear reactions to
begin. It will fade to form a small red star
before turning cold and dying.

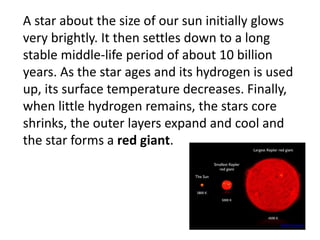

A star about the size of our sun initially glows
very brightly. It then settles down to a long
stable middle-life period of about 10 billion
years. As the star ages and its hydrogen is used
up, its surface temperature decreases. Finally,
when little hydrogen remains, the stars core
shrinks, the outer layers expand and cool and
the star forms a red giant.
kepler.nasa.gov

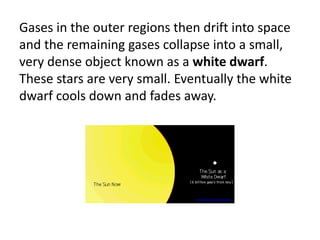

Gases in the outer regions then drift into space
and the remaining gases collapse into a small,
very dense object known as a white dwarf.
These stars are very small. Eventually the white
dwarf cools down and fades away.
ircamera.as.arizona.edu

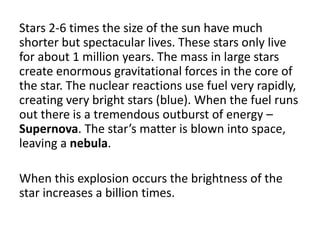

Stars 2-6 times the size of the sun have much
shorter but spectacular lives. These stars only live
for about 1 million years. The mass in large stars
create enormous gravitational forces in the core of
the star. The nuclear reactions use fuel very rapidly,
creating very bright stars (blue). When the fuel runs
out there is a tremendous outburst of energy –
Supernova. The star’s matter is blown into space,
leaving a nebula.
When this explosion occurs the brightness of the
star increases a billion times.
Science World 10

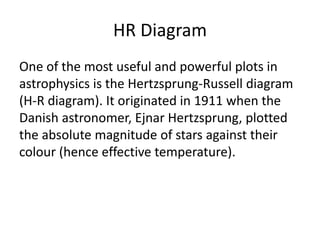

HR Diagram
One of the most useful and powerful plots in
astrophysics is the Hertzsprung-Russell diagram
(H-R diagram). It originated in 1911 when the
Danish astronomer, Ejnar Hertzsprung, plotted
the absolute magnitude of stars against their
colour (hence effective temperature).
en.wikipedia.org

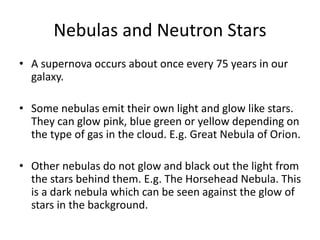

Nebulas and Neutron Stars
• A supernova occurs about once every 75 years in our
galaxy.
• Some nebulas emit their own light and glow like stars.
They can glow pink, blue green or yellow depending on
the type of gas in the cloud. E.g. Great Nebula of Orion.
• Other nebulas do not glow and black out the light from
the stars behind them. E.g. The Horsehead Nebula. This
is a dark nebula which can be seen against the glow of
stars in the background.

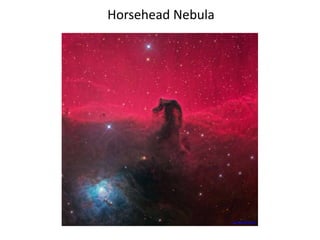

Horsehead Nebula
en.wikipedia.org
A Neutron star is an incredibly dense star less
than 20km in diameter formed during a
supernova explosion. The remainder of the
star’s core is pulled inwards by immense
gravitational forces. They are so small that they
do not glow very brightly but send out pulsating
radio signals. They can be called pulsars.
www.dailygalaxy.com

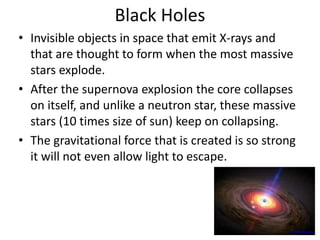

Black Holes
• Invisible objects in space that emit X-rays and
that are thought to form when the most massive
stars explode.
• After the supernova explosion the core collapses
on itself, and unlike a neutron star, these massive
stars (10 times size of sun) keep on collapsing.
• The gravitational force that is created is so strong
it will not even allow light to escape.
www.nasa.gov

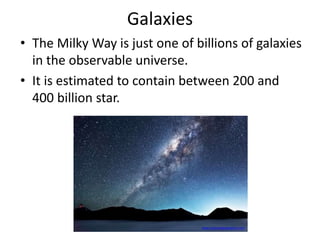

Galaxies
• The Milky Way is just one of billions of galaxies
in the observable universe.
• It is estimated to contain between 200 and
400 billion star.
news.nationalgeographic.com

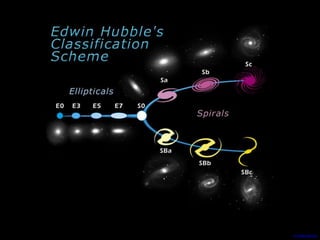

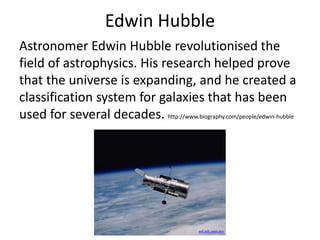

Edwin Hubble
Astronomer Edwin Hubble revolutionised the
field of astrophysics. His research helped prove
that the universe is expanding, and he created a
classification system for galaxies that has been
used for several decades. http://www.biography.com/people/edwin-hubble
asd.gsfc.nasa.gov
Spiral Galaxy
en.wikipedia.org
Barred Spiral Galaxy
www.cosmotography.com
Elliptical Galaxy
science.nationalgeographic.com
Irregular Galaxy
abyss.uoregon.edu
en.wikipedia.org

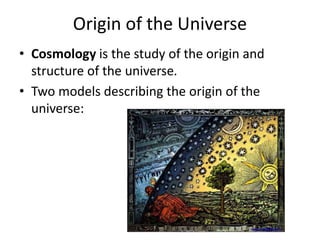

Origin of the Universe
• Cosmology is the study of the origin and
structure of the universe.
• Two models describing the origin of the
universe:
www.crystalinks.com

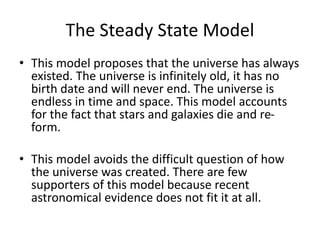

The Steady State Model
• This model proposes that the universe has always
existed. The universe is infinitely old, it has no
birth date and will never end. The universe is
endless in time and space. This model accounts
for the fact that stars and galaxies die and re-
form.
• This model avoids the difficult question of how
the universe was created. There are few
supporters of this model because recent
astronomical evidence does not fit it at all.

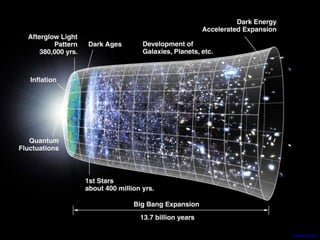

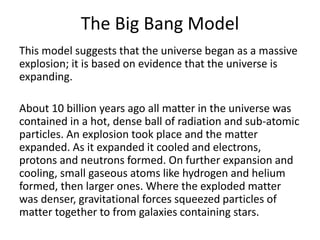

The Big Bang Model
This model suggests that the universe began as a massive
explosion; it is based on evidence that the universe is
expanding.
About 10 billion years ago all matter in the universe was
contained in a hot, dense ball of radiation and sub-atomic
particles. An explosion took place and the matter
expanded. As it expanded it cooled and electrons,
protons and neutrons formed. On further expansion and
cooling, small gaseous atoms like hydrogen and helium
formed, then larger ones. Where the exploded matter
was denser, gravitational forces squeezed particles of
matter together to from galaxies containing stars.
www.jpl.nasa.gov

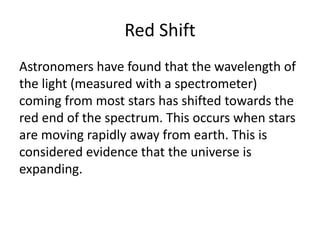

Red Shift

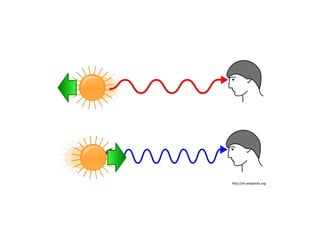

Astronomers have found that the wavelength of
the light (measured with a spectrometer)
coming from most stars has shifted towards the
red end of the spectrum. This occurs when stars
are moving rapidly away from earth. This is
considered evidence that the universe is
expanding.
http://en.wikipedia.org
Cosmic microwave background radiation

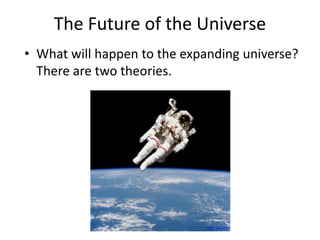

The Future of the Universe
• What will happen to the expanding universe?
There are two theories.
www.nasa.gov

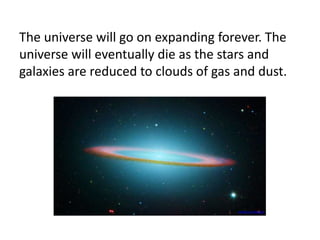

The universe will go on expanding forever. The
universe will eventually die as the stars and
galaxies are reduced to clouds of gas and dust.
www.jpl.nasa.gov

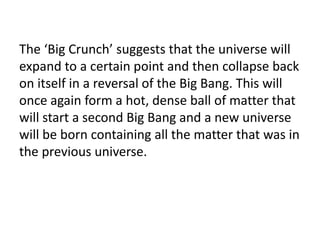

The ‘Big Crunch’ suggests that the universe will
expand to a certain point and then collapse back
on itself in a reversal of the Big Bang. This will
once again form a hot, dense ball of matter that
will start a second Big Bang and a new universe
will be born containing all the matter that was in
the previous universe.
The Universe

More Related Content

What's hot

Origin of universe
Origin of universe Origin of universe
Origin of universe
P.K. Mani

Solar system power point
Solar system power pointSolar system power point
Solar system power point
kcothery

Space powerpoint
Space powerpointSpace powerpoint
Space powerpoint
Klaudia Bystrowska

Space science powerpoint
Space science powerpointSpace science powerpoint
Space science powerpoint
Laura Smith

Introduction to the Solar System
Introduction to the Solar SystemIntroduction to the Solar System
Introduction to the Solar System
Jamie Trevino

astronomy introduction
astronomy introductionastronomy introduction
astronomy introduction
rioromeo

Big Bang Theory
Big Bang TheoryBig Bang Theory
Big Bang Theory
Vishnu Raayan

Star Powerpoint
Star PowerpointStar Powerpoint
Star Powerpoint
winga1sm

The Sun
The SunThe Sun
The Sun
Ryan Parpa

Rotation and revolution powerpoint
Rotation and revolution powerpointRotation and revolution powerpoint
Rotation and revolution powerpoint
Jaydian Thompson

Solar system
Solar systemSolar system
Solar system
Ar-Ar Mendoza

E1 - Introduction to the Universe
E1 - Introduction to the UniverseE1 - Introduction to the Universe
E1 - Introduction to the Universe
simonandisa

Solar System Ppt
Solar System PptSolar System Ppt
Solar System Ppt
AnnieFourman

The planet earth
The planet earthThe planet earth
The planet earth
sihellyay

Lightyear
LightyearLightyear
Lightyear
niks1rock

Asteroids Powerpoint
Asteroids PowerpointAsteroids Powerpoint
Asteroids Powerpoint
guest47fc90

Comets
CometsComets
The Earth, Rotation and Revolution
The Earth, Rotation and RevolutionThe Earth, Rotation and Revolution
The Earth, Rotation and Revolution
María Jesús Campos Fernández

Basic Facts about the Planet Earth
Basic Facts  about the Planet Earth Basic Facts  about the Planet Earth
Basic Facts about the Planet Earth
Liwayway Memije-Cruz

Best ppt on solar system
Best ppt on solar systemBest ppt on solar system
Best ppt on solar system
Make Megenius


What's hot (20)

Origin of universe
Origin of universe Origin of universe
Origin of universe

Solar system power point
Solar system power pointSolar system power point
Solar system power point

Space powerpoint
Space powerpointSpace powerpoint
Space powerpoint

Space science powerpoint
Space science powerpointSpace science powerpoint
Space science powerpoint

Introduction to the Solar System
Introduction to the Solar SystemIntroduction to the Solar System
Introduction to the Solar System

astronomy introduction
astronomy introductionastronomy introduction
astronomy introduction

Big Bang Theory
Big Bang TheoryBig Bang Theory
Big Bang Theory

Star Powerpoint
Star PowerpointStar Powerpoint
Star Powerpoint

The Sun
The SunThe Sun
The Sun

Rotation and revolution powerpoint
Rotation and revolution powerpointRotation and revolution powerpoint
Rotation and revolution powerpoint

Solar system
Solar systemSolar system
Solar system

E1 - Introduction to the Universe
E1 - Introduction to the UniverseE1 - Introduction to the Universe
E1 - Introduction to the Universe

Solar System Ppt
Solar System PptSolar System Ppt
Solar System Ppt

The planet earth
The planet earthThe planet earth
The planet earth

Lightyear
LightyearLightyear
Lightyear

Asteroids Powerpoint
Asteroids PowerpointAsteroids Powerpoint
Asteroids Powerpoint

Comets
CometsComets
Comets

The Earth, Rotation and Revolution
The Earth, Rotation and RevolutionThe Earth, Rotation and Revolution
The Earth, Rotation and Revolution

Basic Facts about the Planet Earth
Basic Facts  about the Planet Earth Basic Facts  about the Planet Earth
Basic Facts about the Planet Earth

Best ppt on solar system
Best ppt on solar systemBest ppt on solar system
Best ppt on solar system


Viewers also liked

Stars, Galaxies, and the Universe
Stars, Galaxies, and the UniverseStars, Galaxies, and the Universe
Stars, Galaxies, and the Universe
mlong24

THE UNIVERSE
THE UNIVERSETHE UNIVERSE
THE UNIVERSE
belmariablanco

Space and beyond the universe
Space and beyond the universeSpace and beyond the universe
Space and beyond the universe
Bibi Bibi

The universe
The universeThe universe
The universe
Shirley Valera

The universe slide share
The universe slide shareThe universe slide share
The universe slide share
lilycastle

Solar system
Solar systemSolar system
Solar system
lilycastle

Theories explaining the origin of the universe.
Theories explaining the origin of the universe.Theories explaining the origin of the universe.
Theories explaining the origin of the universe.
Iris Veda David

The origin of the universe
The origin of the universeThe origin of the universe
The origin of the universe
Hamalgo

Theories Of The Universe
Theories Of The UniverseTheories Of The Universe
Theories Of The Universe
Greg

The Big Bang Theory
The Big Bang TheoryThe Big Bang Theory
The Big Bang Theory
rose_aries15

What’s Your CQ (Curiosity Quotient) and Why Does it Matter?
What’s Your CQ (Curiosity Quotient) and Why Does it Matter?What’s Your CQ (Curiosity Quotient) and Why Does it Matter?
What’s Your CQ (Curiosity Quotient) and Why Does it Matter?
Angela Maiers

ASTRONOMY (THE UNIVERSE)
ASTRONOMY (THE UNIVERSE)ASTRONOMY (THE UNIVERSE)
ASTRONOMY (THE UNIVERSE)
John Lester

The Human Body
The Human BodyThe Human Body
The Human Body
Sarah Jones

Where it All Began: The History of Music Festivals
Where it All Began: The History of Music FestivalsWhere it All Began: The History of Music Festivals
Where it All Began: The History of Music Festivals
Universe

Solar System And Beyond
Solar System And BeyondSolar System And Beyond
Solar System And Beyond
neni

Theories Of Our Universe
Theories Of Our UniverseTheories Of Our Universe
Theories Of Our Universe
Taylor K

Origin of the universe
Origin of the universeOrigin of the universe
Origin of the universe
DavidSPZGZ

Kontemporaryong panitikan
Kontemporaryong panitikanKontemporaryong panitikan
Kontemporaryong panitikan
RMI Volunteer teacher

Astronomical instruments
Astronomical instrumentsAstronomical instruments
Astronomical instruments
Yenyen H

THE UNIVERSE
THE UNIVERSETHE UNIVERSE
THE UNIVERSE
Anas Asif


Viewers also liked (20)

Stars, Galaxies, and the Universe
Stars, Galaxies, and the UniverseStars, Galaxies, and the Universe
Stars, Galaxies, and the Universe

THE UNIVERSE
THE UNIVERSETHE UNIVERSE
THE UNIVERSE

Space and beyond the universe
Space and beyond the universeSpace and beyond the universe
Space and beyond the universe

The universe
The universeThe universe
The universe

The universe slide share
The universe slide shareThe universe slide share
The universe slide share

Solar system
Solar systemSolar system
Solar system

Theories explaining the origin of the universe.
Theories explaining the origin of the universe.Theories explaining the origin of the universe.
Theories explaining the origin of the universe.

The origin of the universe
The origin of the universeThe origin of the universe
The origin of the universe

Theories Of The Universe
Theories Of The UniverseTheories Of The Universe
Theories Of The Universe

The Big Bang Theory
The Big Bang TheoryThe Big Bang Theory
The Big Bang Theory

What’s Your CQ (Curiosity Quotient) and Why Does it Matter?
What’s Your CQ (Curiosity Quotient) and Why Does it Matter?What’s Your CQ (Curiosity Quotient) and Why Does it Matter?
What’s Your CQ (Curiosity Quotient) and Why Does it Matter?

ASTRONOMY (THE UNIVERSE)
ASTRONOMY (THE UNIVERSE)ASTRONOMY (THE UNIVERSE)
ASTRONOMY (THE UNIVERSE)

The Human Body
The Human BodyThe Human Body
The Human Body

Where it All Began: The History of Music Festivals
Where it All Began: The History of Music FestivalsWhere it All Began: The History of Music Festivals
Where it All Began: The History of Music Festivals

Solar System And Beyond
Solar System And BeyondSolar System And Beyond
Solar System And Beyond

Theories Of Our Universe
Theories Of Our UniverseTheories Of Our Universe
Theories Of Our Universe

Origin of the universe
Origin of the universeOrigin of the universe
Origin of the universe

Kontemporaryong panitikan
Kontemporaryong panitikanKontemporaryong panitikan
Kontemporaryong panitikan

Astronomical instruments
Astronomical instrumentsAstronomical instruments
Astronomical instruments

THE UNIVERSE
THE UNIVERSETHE UNIVERSE
THE UNIVERSE


Similar to The Universe

Week 1 astronomy handout
Week 1 astronomy handoutWeek 1 astronomy handout
Week 1 astronomy handout
mark whiting

Stars
StarsStars
THE STARS
THE STARSTHE STARS
THE STARS
belmariablanco

Out Of This World
Out Of This WorldOut Of This World
Out Of This World
Sells Middle School

Zaina - The Life Of A Star
Zaina - The Life Of A StarZaina - The Life Of A Star
Zaina - The Life Of A Star
christophersperdue

The Universe and the Stars
The Universe and the StarsThe Universe and the Stars
The Universe and the Stars
labmouse7

Star Formation.pdf
Star Formation.pdfStar Formation.pdf
Star Formation.pdf
JendeeDelector

the Life Cycle of the Stars powerpoint presentation
the Life Cycle of the Stars powerpoint presentationthe Life Cycle of the Stars powerpoint presentation
the Life Cycle of the Stars powerpoint presentation
ronnajanemanuel2

57484884858u4995946Stellar-Evolution.docx
57484884858u4995946Stellar-Evolution.docx57484884858u4995946Stellar-Evolution.docx
57484884858u4995946Stellar-Evolution.docx
ankitkachila0703

The amazing universe
The amazing universeThe amazing universe
The amazing universe
govindjoshi12

Stars and Galaxies
Stars and GalaxiesStars and Galaxies
Stars and Galaxies
duncanpatti

Beyond Earth
Beyond EarthBeyond Earth
Beyond Earth
kalarikids

05 Stellar Evolution Mc Neely
05 Stellar Evolution Mc Neely05 Stellar Evolution Mc Neely
05 Stellar Evolution Mc Neely
Bremen High School

Galaxies
GalaxiesGalaxies
Galaxies
Nezsh James

Solar System
Solar SystemSolar System
ICSE Class VIII Physics The Universe - TopperLearning
ICSE Class VIII Physics The Universe - TopperLearningICSE Class VIII Physics The Universe - TopperLearning
ICSE Class VIII Physics The Universe - TopperLearning
Alok Singh

Star Formations and Life Cycles
Star Formations and Life CyclesStar Formations and Life Cycles
Star Formations and Life Cycles
coebridges

Stars and their classifications
Stars and their classificationsStars and their classifications
Stars and their classifications
AsifKareem12

Form 3 PMR Science Chapter 9 Stars and Galaxies
Form 3 PMR Science Chapter 9 Stars and GalaxiesForm 3 PMR Science Chapter 9 Stars and Galaxies
Form 3 PMR Science Chapter 9 Stars and Galaxies
Sook Yen Wong

Essay On Astronomy
Essay On AstronomyEssay On Astronomy
Essay On Astronomy
Paper Writing Service College


Similar to The Universe (20)

Week 1 astronomy handout
Week 1 astronomy handoutWeek 1 astronomy handout
Week 1 astronomy handout

Stars
StarsStars
Stars

THE STARS
THE STARSTHE STARS
THE STARS

Out Of This World
Out Of This WorldOut Of This World
Out Of This World

Zaina - The Life Of A Star
Zaina - The Life Of A StarZaina - The Life Of A Star
Zaina - The Life Of A Star

The Universe and the Stars
The Universe and the StarsThe Universe and the Stars
The Universe and the Stars

Star Formation.pdf
Star Formation.pdfStar Formation.pdf
Star Formation.pdf

the Life Cycle of the Stars powerpoint presentation
the Life Cycle of the Stars powerpoint presentationthe Life Cycle of the Stars powerpoint presentation
the Life Cycle of the Stars powerpoint presentation

57484884858u4995946Stellar-Evolution.docx
57484884858u4995946Stellar-Evolution.docx57484884858u4995946Stellar-Evolution.docx
57484884858u4995946Stellar-Evolution.docx

The amazing universe
The amazing universeThe amazing universe
The amazing universe

Stars and Galaxies
Stars and GalaxiesStars and Galaxies
Stars and Galaxies

Beyond Earth
Beyond EarthBeyond Earth
Beyond Earth

05 Stellar Evolution Mc Neely
05 Stellar Evolution Mc Neely05 Stellar Evolution Mc Neely
05 Stellar Evolution Mc Neely

Galaxies
GalaxiesGalaxies
Galaxies

Solar System
Solar SystemSolar System
Solar System

ICSE Class VIII Physics The Universe - TopperLearning
ICSE Class VIII Physics The Universe - TopperLearningICSE Class VIII Physics The Universe - TopperLearning
ICSE Class VIII Physics The Universe - TopperLearning

Star Formations and Life Cycles
Star Formations and Life CyclesStar Formations and Life Cycles
Star Formations and Life Cycles

Stars and their classifications
Stars and their classificationsStars and their classifications
Stars and their classifications

Form 3 PMR Science Chapter 9 Stars and Galaxies
Form 3 PMR Science Chapter 9 Stars and GalaxiesForm 3 PMR Science Chapter 9 Stars and Galaxies
Form 3 PMR Science Chapter 9 Stars and Galaxies

Essay On Astronomy
Essay On AstronomyEssay On Astronomy
Essay On Astronomy


More from Sarah Jones

Yuko Nishikawa
Yuko NishikawaYuko Nishikawa
Yuko Nishikawa
Sarah Jones

Sarah More
Sarah MoreSarah More
Sarah More
Sarah Jones

Fabian Oefner
Fabian OefnerFabian Oefner
Fabian Oefner
Sarah Jones

Matt W. Moore
Matt W. MooreMatt W. Moore
Matt W. Moore
Sarah Jones

Katherine Duclos
Katherine DuclosKatherine Duclos
Katherine Duclos
Sarah Jones

Shepard Fairey
Shepard FaireyShepard Fairey
Shepard Fairey
Sarah Jones

Banksy
BanksyBanksy
Banksy
Sarah Jones

Space Exploration
Space ExplorationSpace Exploration
Space Exploration
Sarah Jones

United Nations Sustainable Development Goals
United Nations Sustainable Development GoalsUnited Nations Sustainable Development Goals
United Nations Sustainable Development Goals
Sarah Jones

Kumkum Fernando
Kumkum FernandoKumkum Fernando
Kumkum Fernando
Sarah Jones

Innovative Projects
Innovative ProjectsInnovative Projects
Innovative Projects
Sarah Jones

Hannah Eddy
Hannah EddyHannah Eddy
Hannah Eddy
Sarah Jones

Nathalie Miebach
Nathalie MiebachNathalie Miebach
Nathalie Miebach
Sarah Jones

Escher Inspired Staircases
Escher Inspired StaircasesEscher Inspired Staircases
Escher Inspired Staircases
Sarah Jones

Year 7 STEAM Introduction
Year 7 STEAM IntroductionYear 7 STEAM Introduction
Year 7 STEAM Introduction
Sarah Jones

Year 8 STEAM Introduction
Year 8 STEAM IntroductionYear 8 STEAM Introduction
Year 8 STEAM Introduction
Sarah Jones

Creating a Logo
Creating a LogoCreating a Logo
Creating a Logo
Sarah Jones

Designing a Mars Habitat
Designing a Mars HabitatDesigning a Mars Habitat
Designing a Mars Habitat
Sarah Jones

Eco-Cities
Eco-CitiesEco-Cities
Eco-Cities
Sarah Jones

Google Earth Inspired Art
Google Earth Inspired ArtGoogle Earth Inspired Art
Google Earth Inspired Art
Sarah Jones


More from Sarah Jones (20)

Yuko Nishikawa
Yuko NishikawaYuko Nishikawa
Yuko Nishikawa

Sarah More
Sarah MoreSarah More
Sarah More

Fabian Oefner
Fabian OefnerFabian Oefner
Fabian Oefner

Matt W. Moore
Matt W. MooreMatt W. Moore
Matt W. Moore

Katherine Duclos
Katherine DuclosKatherine Duclos
Katherine Duclos

Shepard Fairey
Shepard FaireyShepard Fairey
Shepard Fairey

Banksy
BanksyBanksy
Banksy

Space Exploration
Space ExplorationSpace Exploration
Space Exploration

United Nations Sustainable Development Goals
United Nations Sustainable Development GoalsUnited Nations Sustainable Development Goals
United Nations Sustainable Development Goals

Kumkum Fernando
Kumkum FernandoKumkum Fernando
Kumkum Fernando

Innovative Projects
Innovative ProjectsInnovative Projects
Innovative Projects

Hannah Eddy
Hannah EddyHannah Eddy
Hannah Eddy

Nathalie Miebach
Nathalie MiebachNathalie Miebach
Nathalie Miebach

Escher Inspired Staircases
Escher Inspired StaircasesEscher Inspired Staircases
Escher Inspired Staircases

Year 7 STEAM Introduction
Year 7 STEAM IntroductionYear 7 STEAM Introduction
Year 7 STEAM Introduction

Year 8 STEAM Introduction
Year 8 STEAM IntroductionYear 8 STEAM Introduction
Year 8 STEAM Introduction

Creating a Logo
Creating a LogoCreating a Logo
Creating a Logo

Designing a Mars Habitat
Designing a Mars HabitatDesigning a Mars Habitat
Designing a Mars Habitat

Eco-Cities
Eco-CitiesEco-Cities
Eco-Cities

Google Earth Inspired Art
Google Earth Inspired ArtGoogle Earth Inspired Art
Google Earth Inspired Art


Recently uploaded

How to Manage Your Lost Opportunities in Odoo 17 CRM
How to Manage Your Lost Opportunities in Odoo 17 CRMHow to Manage Your Lost Opportunities in Odoo 17 CRM
How to Manage Your Lost Opportunities in Odoo 17 CRM
Celine George

Pride Month Slides 2024 David Douglas School District
Pride Month Slides 2024 David Douglas School DistrictPride Month Slides 2024 David Douglas School District
Pride Month Slides 2024 David Douglas School District
David Douglas School District

A Survey of Techniques for Maximizing LLM Performance.pptx
A Survey of Techniques for Maximizing LLM Performance.pptxA Survey of Techniques for Maximizing LLM Performance.pptx
A Survey of Techniques for Maximizing LLM Performance.pptx
thanhdowork

Main Java[All of the Base Concepts}.docx
Main Java[All of the Base Concepts}.docxMain Java[All of the Base Concepts}.docx
Main Java[All of the Base Concepts}.docx
adhitya5119

Group Presentation 2 Economics.Ariana Buscigliopptx
Group Presentation 2 Economics.Ariana BuscigliopptxGroup Presentation 2 Economics.Ariana Buscigliopptx
Group Presentation 2 Economics.Ariana Buscigliopptx
ArianaBusciglio

S1-Introduction-Biopesticides in ICM.pptx
S1-Introduction-Biopesticides in ICM.pptxS1-Introduction-Biopesticides in ICM.pptx
S1-Introduction-Biopesticides in ICM.pptx
tarandeep35

CACJapan - GROUP Presentation 1- Wk 4.pdf
CACJapan - GROUP Presentation 1- Wk 4.pdfCACJapan - GROUP Presentation 1- Wk 4.pdf
CACJapan - GROUP Presentation 1- Wk 4.pdf
camakaiclarkmusic

Lapbook sobre os Regimes Totalitários.pdf
Lapbook sobre os Regimes Totalitários.pdfLapbook sobre os Regimes Totalitários.pdf
Lapbook sobre os Regimes Totalitários.pdf
Jean Carlos Nunes Paixão

Top five deadliest dog breeds in America
Top five deadliest dog breeds in AmericaTop five deadliest dog breeds in America
Top five deadliest dog breeds in America
Bisnar Chase Personal Injury Attorneys

MATATAG CURRICULUM: ASSESSING THE READINESS OF ELEM. PUBLIC SCHOOL TEACHERS I...
MATATAG CURRICULUM: ASSESSING THE READINESS OF ELEM. PUBLIC SCHOOL TEACHERS I...MATATAG CURRICULUM: ASSESSING THE READINESS OF ELEM. PUBLIC SCHOOL TEACHERS I...
MATATAG CURRICULUM: ASSESSING THE READINESS OF ELEM. PUBLIC SCHOOL TEACHERS I...
NelTorrente

The basics of sentences session 6pptx.pptx
The basics of sentences session 6pptx.pptxThe basics of sentences session 6pptx.pptx
The basics of sentences session 6pptx.pptx
heathfieldcps1

Biological Screening of Herbal Drugs in detailed.
Biological Screening of Herbal Drugs in detailed.Biological Screening of Herbal Drugs in detailed.
Biological Screening of Herbal Drugs in detailed.
Ashokrao Mane college of Pharmacy Peth-Vadgaon

The basics of sentences session 5pptx.pptx
The basics of sentences session 5pptx.pptxThe basics of sentences session 5pptx.pptx
The basics of sentences session 5pptx.pptx
heathfieldcps1

How to Add Chatter in the odoo 17 ERP Module
How to Add Chatter in the odoo 17 ERP ModuleHow to Add Chatter in the odoo 17 ERP Module
How to Add Chatter in the odoo 17 ERP Module
Celine George

Film vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movieFilm vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movie
Nicholas Montgomery

Advantages and Disadvantages of CMS from an SEO Perspective
Advantages and Disadvantages of CMS from an SEO PerspectiveAdvantages and Disadvantages of CMS from an SEO Perspective
Advantages and Disadvantages of CMS from an SEO Perspective
Krisztián Száraz

RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3
RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3
RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3
IreneSebastianRueco1

A Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdfA Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdf
Jean Carlos Nunes Paixão

The Diamonds of 2023-2024 in the IGRA collection
The Diamonds of 2023-2024 in the IGRA collectionThe Diamonds of 2023-2024 in the IGRA collection
The Diamonds of 2023-2024 in the IGRA collection
Israel Genealogy Research Association

South African Journal of Science: Writing with integrity workshop (2024)
South African Journal of Science: Writing with integrity workshop (2024)South African Journal of Science: Writing with integrity workshop (2024)
South African Journal of Science: Writing with integrity workshop (2024)
Academy of Science of South Africa


Recently uploaded (20)

How to Manage Your Lost Opportunities in Odoo 17 CRM
How to Manage Your Lost Opportunities in Odoo 17 CRMHow to Manage Your Lost Opportunities in Odoo 17 CRM
How to Manage Your Lost Opportunities in Odoo 17 CRM

Pride Month Slides 2024 David Douglas School District
Pride Month Slides 2024 David Douglas School DistrictPride Month Slides 2024 David Douglas School District
Pride Month Slides 2024 David Douglas School District

A Survey of Techniques for Maximizing LLM Performance.pptx
A Survey of Techniques for Maximizing LLM Performance.pptxA Survey of Techniques for Maximizing LLM Performance.pptx
A Survey of Techniques for Maximizing LLM Performance.pptx

Main Java[All of the Base Concepts}.docx
Main Java[All of the Base Concepts}.docxMain Java[All of the Base Concepts}.docx
Main Java[All of the Base Concepts}.docx

Group Presentation 2 Economics.Ariana Buscigliopptx
Group Presentation 2 Economics.Ariana BuscigliopptxGroup Presentation 2 Economics.Ariana Buscigliopptx
Group Presentation 2 Economics.Ariana Buscigliopptx

S1-Introduction-Biopesticides in ICM.pptx
S1-Introduction-Biopesticides in ICM.pptxS1-Introduction-Biopesticides in ICM.pptx
S1-Introduction-Biopesticides in ICM.pptx

CACJapan - GROUP Presentation 1- Wk 4.pdf
CACJapan - GROUP Presentation 1- Wk 4.pdfCACJapan - GROUP Presentation 1- Wk 4.pdf
CACJapan - GROUP Presentation 1- Wk 4.pdf

Lapbook sobre os Regimes Totalitários.pdf
Lapbook sobre os Regimes Totalitários.pdfLapbook sobre os Regimes Totalitários.pdf
Lapbook sobre os Regimes Totalitários.pdf

Top five deadliest dog breeds in America
Top five deadliest dog breeds in AmericaTop five deadliest dog breeds in America
Top five deadliest dog breeds in America

MATATAG CURRICULUM: ASSESSING THE READINESS OF ELEM. PUBLIC SCHOOL TEACHERS I...
MATATAG CURRICULUM: ASSESSING THE READINESS OF ELEM. PUBLIC SCHOOL TEACHERS I...MATATAG CURRICULUM: ASSESSING THE READINESS OF ELEM. PUBLIC SCHOOL TEACHERS I...
MATATAG CURRICULUM: ASSESSING THE READINESS OF ELEM. PUBLIC SCHOOL TEACHERS I...

The basics of sentences session 6pptx.pptx
The basics of sentences session 6pptx.pptxThe basics of sentences session 6pptx.pptx
The basics of sentences session 6pptx.pptx

Biological Screening of Herbal Drugs in detailed.
Biological Screening of Herbal Drugs in detailed.Biological Screening of Herbal Drugs in detailed.
Biological Screening of Herbal Drugs in detailed.

The basics of sentences session 5pptx.pptx
The basics of sentences session 5pptx.pptxThe basics of sentences session 5pptx.pptx
The basics of sentences session 5pptx.pptx

How to Add Chatter in the odoo 17 ERP Module
How to Add Chatter in the odoo 17 ERP ModuleHow to Add Chatter in the odoo 17 ERP Module
How to Add Chatter in the odoo 17 ERP Module

Film vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movieFilm vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movie

Advantages and Disadvantages of CMS from an SEO Perspective
Advantages and Disadvantages of CMS from an SEO PerspectiveAdvantages and Disadvantages of CMS from an SEO Perspective
Advantages and Disadvantages of CMS from an SEO Perspective

RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3
RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3
RPMS TEMPLATE FOR SCHOOL YEAR 2023-2024 FOR TEACHER 1 TO TEACHER 3

A Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdfA Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdf

The Diamonds of 2023-2024 in the IGRA collection
The Diamonds of 2023-2024 in the IGRA collectionThe Diamonds of 2023-2024 in the IGRA collection
The Diamonds of 2023-2024 in the IGRA collection

South African Journal of Science: Writing with integrity workshop (2024)
South African Journal of Science: Writing with integrity workshop (2024)South African Journal of Science: Writing with integrity workshop (2024)
South African Journal of Science: Writing with integrity workshop (2024)


The Universe

  • 1. Hubble Space Telescope The Universe Sarah Jones
  • 3. "It must be a strange world not being a scientist, going through life not knowing - or maybe not caring - about where the air came from, and where the stars at night came from, or how far they are from us. I want to know." Michio Kaku
  • 6. Ancient astronomers believed the universe was made up of about 3000 stars, the moon and the sun and these objects revolved around the earth. We now know that the earth is not the centre of the universe and that the sun is only one of millions and millions of stars. www.kidsastronomy.com
  • 7. Claudius Ptolemy’s earth-centered model of the universe mucholderthen.tumblr.com
  • 8. Constellations Many stars that we can see form recognisable patterns. The stars in a constellation keep the same shape but may only appear on summer or winter nights due to the Earth’s revolution. http://s-wilson1013-dp.blogspot.com.au
  • 11. Star Distances The distances to the stars are enormous with vast spaces between them. Our sun is the closest star being 150 000 000 km away. The next closest star is 41 000 000 000 000 km away or 270 000 times the distance of the sun. www.nasa.gov
  • 12. The distances to the stars are far too large to measure in kilometres. Instead we use the astronomical unit of distance called the light- year. This is the distance light travels in one year. Light travels at about 300 000 000 metres per second (3×108 m/s). So in one year light travels about 9 500 000 000 000 km.
  • 13. • A parsec (pc) is another commonly used astronomical unit of length – it is equivalent of 3.26 light-years. • The parsec is based on the phenomenon known as parallax. www.atnf.csiro.au
  • 14. When you look at the stars you are actually looking back in time. The closest star in the Southern Cross is 220 light years away. This means the light left this star 220 years ago (i.e. as the star was in 1788). Science World 10
  • 15. Naming Stars The stars in the sky have been given names according to their brightness. The brightest star is called the alpha star (α-star), the second brightest the beta star (β-star), then gamma (γ- star), delta (δ-star) and so on. commons.wikimedia.org
  • 16. In the Southern Cross, the brightest star is called the α-Crucis. The Pointers are located nearby and this constellation is known as Centaurus. The brighter of the 2 stars is known as α- Centauri (closest star to Earth apart from the Sun) and the second star is known as β-Centauri. en.wikipedia.org
  • 17. Movement of Stars The stars appear to move across the sky. This movement is caused by the west to east rotation of the earth. Science World 10
  • 18. Stars are made of …? Stars are gaseous objects in space that give off light and heat. Our sun is composed of: 80% H 19% He 1% trace elements en.wikipedia.org
  • 19. The enormous size of a star creates huge gravitational forces which squeeze the atoms of the gases together and creates immense pressure and heat. At this temperature, electrons are stripped from the atoms, leaving positively charged nuclei which are in constant rapid motion.
  • 21. Plasma a state of matter, different from solids, liquids and gases, which exist in the extreme heat in the interior of stars (conducts electricity and generates a magnetic field). Nuclear Fusion is when H nuclei fuse together to form He and release large amounts of energy (occurs in the core of the sun).
  • 22. Einstein proposed: In the fusion reaction in the sun, 655 million tons of H is converted to 650 million tons of He every second. The 5 million tons of H used up releases 4.5 x 1026 J/s. This is the same amount of energy that all power stations in Australia could produce in 7 billion years.
  • 23. Structure of the Sun Science World 10
  • 24. Light From Stars • Brightness and colour of a star are important in determining its size and life expectancy. • Astronomers refer to a stars brightness as its magnitude. • The colour of a star is due to its temperature.
  • 25. Brightness and Colour of Stars scienceblogs.com
  • 26. Apparent Magnitude • The brightness of a star when viewed from Earth. • As the brightness of a star decreases the apparent magnitude becomes more positive. i.e. Stars just visible with the naked eye have a magnitude of about 6. Sirius, the brightest star in the sky, has a magnitude of – 1.4. astronomy.swin.edu.au
  • 27. Apparent magnitude is not a measure of the star’s actual brightness because a very bright star could be so far away from earth that it appears dim. mrscreath.edublogs.org
  • 28. Absolute Magnitude • Measures the actual brightness of a star by comparing the amount of light given off by that star if it was a set distance from earth. • The amount of light given off is determined by its size (amount of matter). www.skyandtelescope.com
  • 30. Colour • Hottest stars (e.g. Rigel) – white to blue light • Coolest stars – red light • Very hot stars (Rigel) give off large amounts of UV (ultraviolet) light which our eyes cannot detect. Appears as blue. • Astronomers are able to calculate the surface temperature of stars by measuring the wavelength (λ) of light given off. en.wikipedia.org
  • 31. Relationship – Brightness and Colour • If two stars are the same colour, they must have the same surface temperature. • If the absolute brightness is larger, then star is larger. • If a red and a blue star are the same size they will have the same brightness, but the blue star will radiate more energy/second because it is hotter.
  • 32. Binary Stars • Two stars that revolve around each other. • There have been nearly 700 000 binaries observed by astronomers. • Two famous binaries in the Southern Hemisphere are Alpha-Centauri (brightest star of the Pointers) and Alpha-Crucis (star at the foot of the Cross). www.space.com
  • 33. Star Life Cycles • Stars are born in clouds of gas (mainly hydrogen) and dust that occur throughout the universe. Occasionally one of these clouds collapses on itself, becoming hotter and denser as the gravitational force increases. This is the embryonic stage in the life of a star – Protostar. • Eventually the gas becomes hot enough to start nuclear fusion reactions and the star begins to grow.
  • 34. Nebula – massive cloud of gas and dust. en.wikipedia.org
  • 35. Supernova – a spectacular explosion which ends the life of a star. en.wikipedia.org
  • 36. Birth and Death of Stars • The life cycle of a star depends entirely on its mass. • A protostar with a mass less than 0.1 of the mass of the sun will continue to shrink but will never get hot enough for nuclear reactions to begin. It will fade to form a small red star before turning cold and dying.
  • 37. A star about the size of our sun initially glows very brightly. It then settles down to a long stable middle-life period of about 10 billion years. As the star ages and its hydrogen is used up, its surface temperature decreases. Finally, when little hydrogen remains, the stars core shrinks, the outer layers expand and cool and the star forms a red giant. kepler.nasa.gov
  • 38. Gases in the outer regions then drift into space and the remaining gases collapse into a small, very dense object known as a white dwarf. These stars are very small. Eventually the white dwarf cools down and fades away. ircamera.as.arizona.edu
  • 39. Stars 2-6 times the size of the sun have much shorter but spectacular lives. These stars only live for about 1 million years. The mass in large stars create enormous gravitational forces in the core of the star. The nuclear reactions use fuel very rapidly, creating very bright stars (blue). When the fuel runs out there is a tremendous outburst of energy – Supernova. The star’s matter is blown into space, leaving a nebula. When this explosion occurs the brightness of the star increases a billion times.
  • 41. HR Diagram One of the most useful and powerful plots in astrophysics is the Hertzsprung-Russell diagram (H-R diagram). It originated in 1911 when the Danish astronomer, Ejnar Hertzsprung, plotted the absolute magnitude of stars against their colour (hence effective temperature).
  • 43. Nebulas and Neutron Stars • A supernova occurs about once every 75 years in our galaxy. • Some nebulas emit their own light and glow like stars. They can glow pink, blue green or yellow depending on the type of gas in the cloud. E.g. Great Nebula of Orion. • Other nebulas do not glow and black out the light from the stars behind them. E.g. The Horsehead Nebula. This is a dark nebula which can be seen against the glow of stars in the background.
  • 45. A Neutron star is an incredibly dense star less than 20km in diameter formed during a supernova explosion. The remainder of the star’s core is pulled inwards by immense gravitational forces. They are so small that they do not glow very brightly but send out pulsating radio signals. They can be called pulsars. www.dailygalaxy.com
  • 46. Black Holes • Invisible objects in space that emit X-rays and that are thought to form when the most massive stars explode. • After the supernova explosion the core collapses on itself, and unlike a neutron star, these massive stars (10 times size of sun) keep on collapsing. • The gravitational force that is created is so strong it will not even allow light to escape. www.nasa.gov
  • 47. Galaxies • The Milky Way is just one of billions of galaxies in the observable universe. • It is estimated to contain between 200 and 400 billion star. news.nationalgeographic.com
  • 48. Edwin Hubble Astronomer Edwin Hubble revolutionised the field of astrophysics. His research helped prove that the universe is expanding, and he created a classification system for galaxies that has been used for several decades. http://www.biography.com/people/edwin-hubble asd.gsfc.nasa.gov
  • 54. Origin of the Universe • Cosmology is the study of the origin and structure of the universe. • Two models describing the origin of the universe: www.crystalinks.com
  • 55. The Steady State Model • This model proposes that the universe has always existed. The universe is infinitely old, it has no birth date and will never end. The universe is endless in time and space. This model accounts for the fact that stars and galaxies die and re- form. • This model avoids the difficult question of how the universe was created. There are few supporters of this model because recent astronomical evidence does not fit it at all.
  • 56. The Big Bang Model This model suggests that the universe began as a massive explosion; it is based on evidence that the universe is expanding. About 10 billion years ago all matter in the universe was contained in a hot, dense ball of radiation and sub-atomic particles. An explosion took place and the matter expanded. As it expanded it cooled and electrons, protons and neutrons formed. On further expansion and cooling, small gaseous atoms like hydrogen and helium formed, then larger ones. Where the exploded matter was denser, gravitational forces squeezed particles of matter together to from galaxies containing stars.
  • 58. Red Shift Astronomers have found that the wavelength of the light (measured with a spectrometer) coming from most stars has shifted towards the red end of the spectrum. This occurs when stars are moving rapidly away from earth. This is considered evidence that the universe is expanding.
  • 61. The Future of the Universe • What will happen to the expanding universe? There are two theories. www.nasa.gov
  • 62. The universe will go on expanding forever. The universe will eventually die as the stars and galaxies are reduced to clouds of gas and dust. www.jpl.nasa.gov
  • 63. The ‘Big Crunch’ suggests that the universe will expand to a certain point and then collapse back on itself in a reversal of the Big Bang. This will once again form a hot, dense ball of matter that will start a second Big Bang and a new universe will be born containing all the matter that was in the previous universe.
