The missing key: Azure AD for developers

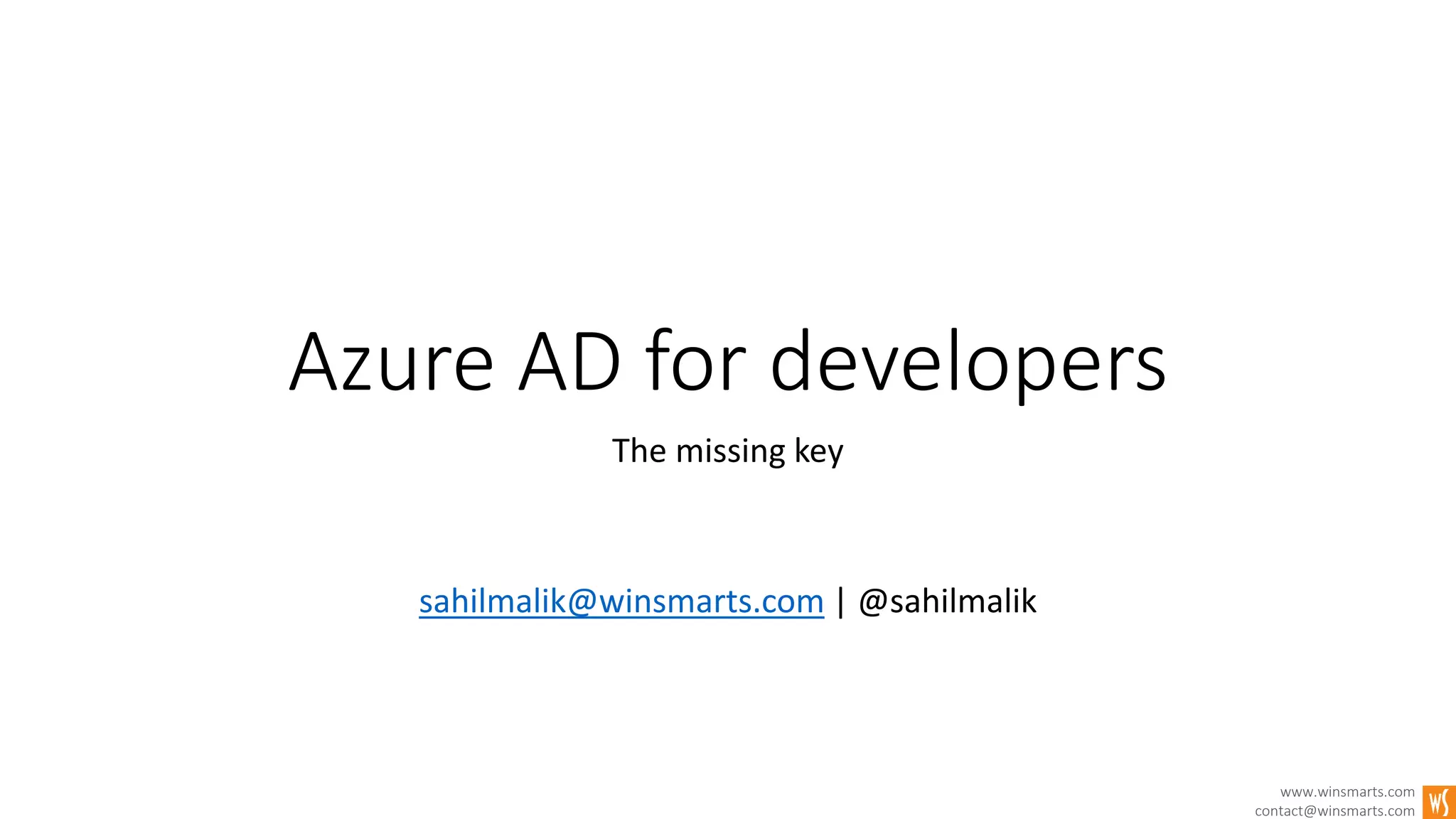

- 1. www.winsmarts.com contact@winsmarts.com Azure AD fordevelopers The missing key sahilmalik@winsmarts.com | @sahilmalik

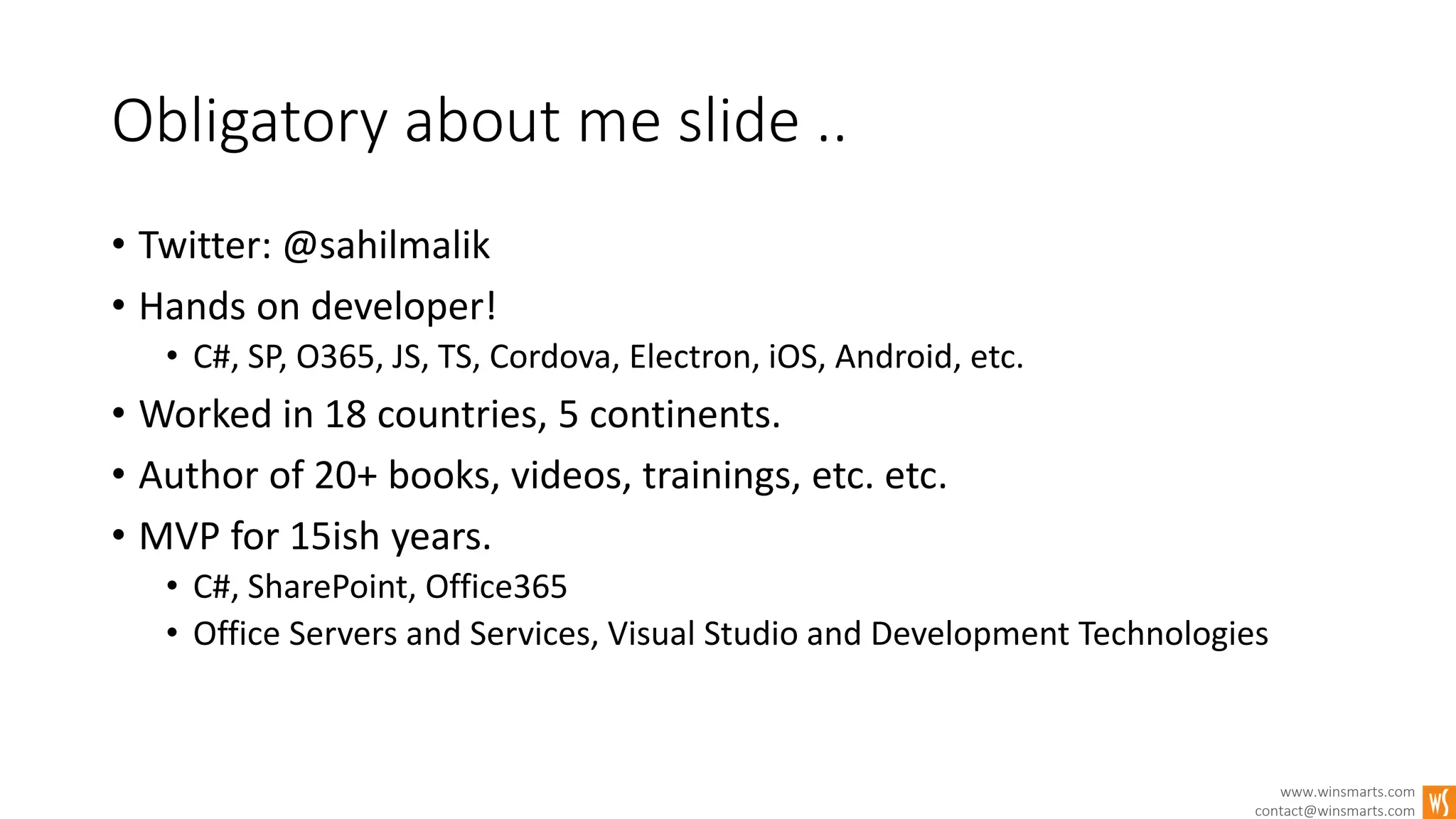

- 2. www.winsmarts.com contact@winsmarts.com Obligatory about meslide .. • Twitter: @sahilmalik • Hands on developer! • C#, SP, O365, JS, TS, Cordova, Electron, iOS, Android, etc. • Worked in 18 countries, 5 continents. • Author of 20+ books, videos, trainings, etc. etc. • MVP for 15ish years. • C#, SharePoint, Office365 • Office Servers and Services, Visual Studio and Development Technologies

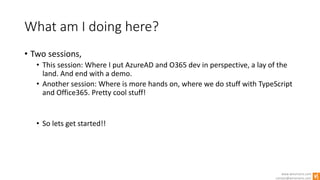

- 3. www.winsmarts.com contact@winsmarts.com What am Idoing here? • Two sessions, • This session: Where I put AzureAD and O365 dev in perspective, a lay of the land. And end with a demo. • Another session: Where is more hands on, where we do stuff with TypeScript and Office365. Pretty cool stuff! • So lets get started!!

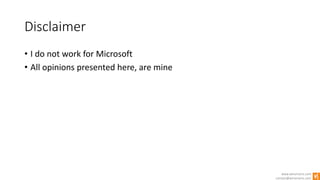

- 4. www.winsmarts.com contact@winsmarts.com Disclaimer • I donot work for Microsoft • All opinions presented here, are mine

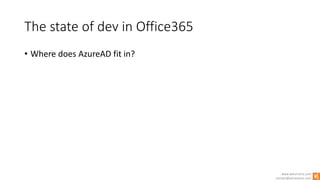

- 5. www.winsmarts.com contact@winsmarts.com The state ofdev in Office365 • Where does AzureAD fit in?

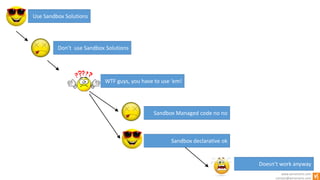

- 6. www.winsmarts.com contact@winsmarts.com Use Sandbox Solutions Don’tuse Sandbox Solutions WTF guys, you have to use ‘em! Sandbox Managed code no no Sandbox declarative ok Doesn’t work anyway

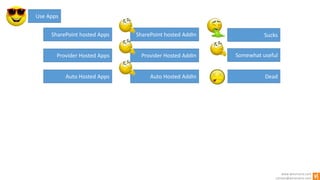

- 7. www.winsmarts.com contact@winsmarts.com SharePoint hosted Apps ProviderHosted Apps Auto Hosted Apps Use Apps SharePoint hosted AddIn Provider Hosted AddIn Auto Hosted AddIn Dead Sucks Somewhat useful

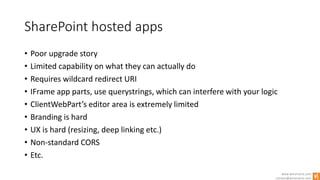

- 8. www.winsmarts.com contact@winsmarts.com SharePoint hosted apps •Poor upgrade story • Limited capability on what they can actually do • Requires wildcard redirect URI • IFrame app parts, use querystrings, which can interfere with your logic • ClientWebPart’s editor area is extremely limited • Branding is hard • UX is hard (resizing, deep linking etc.) • Non-standard CORS • Etc.

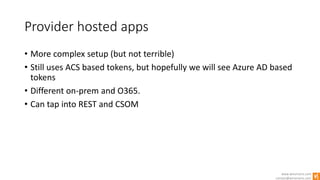

- 9. www.winsmarts.com contact@winsmarts.com Provider hosted apps •More complex setup (but not terrible) • Still uses ACS based tokens, but hopefully we will see Azure AD based tokens • Different on-prem and O365. • Can tap into REST and CSOM
- 10.
- 11.

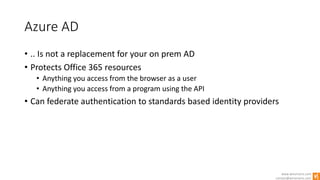

- 12. www.winsmarts.com contact@winsmarts.com Azure AD • ..Is not a replacement for your on prem AD • Protects Office 365 resources • Anything you access from the browser as a user • Anything you access from a program using the API • Can federate authentication to standards based identity providers

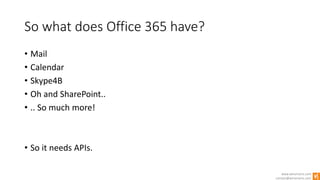

- 13. www.winsmarts.com contact@winsmarts.com So what doesOffice 365 have? • Mail • Calendar • Skype4B • Oh and SharePoint.. • .. So much more! • So it needs APIs.

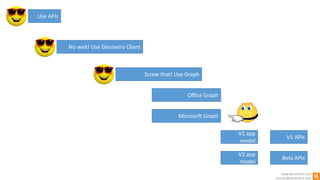

- 14. www.winsmarts.com contact@winsmarts.com Use APIs No wait!Use Discovery Client Screw that! Use Graph Office Graph Microsoft Graph V1 app model V2 app model V1 APIs Beta APIs

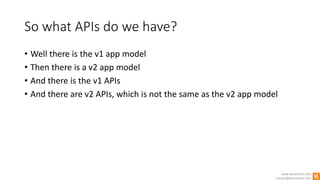

- 15. www.winsmarts.com contact@winsmarts.com So what APIsdo we have? • Well there is the v1 app model • Then there is a v2 app model • And there is the v1 APIs • And there are v2 APIs, which is not the same as the v2 app model
- 16.

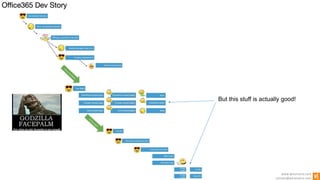

- 17. www.winsmarts.com contact@winsmarts.com But this stuffis actually good!
- 18.

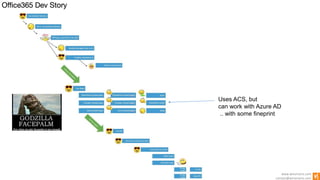

- 19. www.winsmarts.com contact@winsmarts.com Uses ACS, but canwork with Azure AD .. with some fineprint

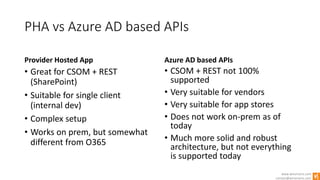

- 20. www.winsmarts.com contact@winsmarts.com PHA vs AzureAD based APIs Provider Hosted App • Great for CSOM + REST (SharePoint) • Suitable for single client (internal dev) • Complex setup • Works on prem, but somewhat different from O365 Azure AD based APIs • CSOM + REST not 100% supported • Very suitable for vendors • Very suitable for app stores • Does not work on-prem as of today • Much more solid and robust architecture, but not everything is supported today
- 21. www.winsmarts.com contact@winsmarts.com APIs (v1 andv2) … these slides are green

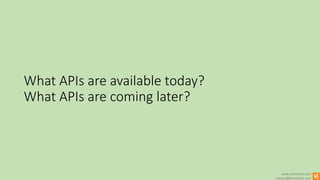

- 22. www.winsmarts.com contact@winsmarts.com What APIs areavailable today? What APIs are coming later?
- 23. www.winsmarts.com contact@winsmarts.com V1 • User • OneDrive •Outlook mail and calendar • Personal Contact • Groups • Directory • Webhooks Beta • Users (more) • People • Tasks • OneNote • Data extensions • WebHooks (more) • Excel • OneDrive (more) • Outlook mail and calendar (more) • Personal contact (more) • Groups (more) • Organizational contacts • Directory (more)

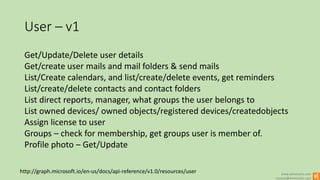

- 24. www.winsmarts.com contact@winsmarts.com User – v1 Get/Update/Deleteuser details Get/create user mails and mail folders & send mails List/Create calendars, and list/create/delete events, get reminders List/create/delete contacts and contact folders List direct reports, manager, what groups the user belongs to List owned devices/ owned objects/registered devices/createdobjects Assign license to user Groups – check for membership, get groups user is member of. Profile photo – Get/Update http://graph.microsoft.io/en-us/docs/api-reference/v1.0/resources/user

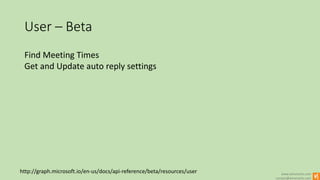

- 25. www.winsmarts.com contact@winsmarts.com User – Beta FindMeeting Times Get and Update auto reply settings http://graph.microsoft.io/en-us/docs/api-reference/beta/resources/user

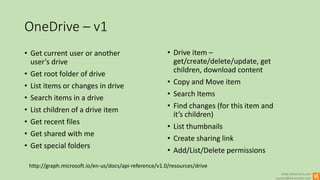

- 26. www.winsmarts.com contact@winsmarts.com OneDrive – v1 •Get current user or another user’s drive • Get root folder of drive • List items or changes in drive • Search items in a drive • List children of a drive item • Get recent files • Get shared with me • Get special folders http://graph.microsoft.io/en-us/docs/api-reference/v1.0/resources/drive • Drive item – get/create/delete/update, get children, download content • Copy and Move item • Search Items • Find changes (for this item and it’s children) • List thumbnails • Create sharing link • Add/List/Delete permissions
- 27.
- 28. www.winsmarts.com contact@winsmarts.com Outlook Mail –v1 http://graph.microsoft.io/en-us/docs/api-reference/v1.0/resources/message • Get/Update/Delete/Copy a mail • List/Create attachments • Forward/Reply/ReplyAll • Send • Get/Create/List mail folders • Create/List messages in a mail folder • Update/Delete/Copy/Move a mail folder • Get attachments of • Event • Mail • Post • Delete attachment • Get contents of an attachment

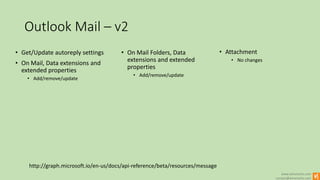

- 29. www.winsmarts.com contact@winsmarts.com Outlook Mail –v2 http://graph.microsoft.io/en-us/docs/api-reference/beta/resources/message • Get/Update autoreply settings • On Mail, Data extensions and extended properties • Add/remove/update • On Mail Folders, Data extensions and extended properties • Add/remove/update • Attachment • No changes

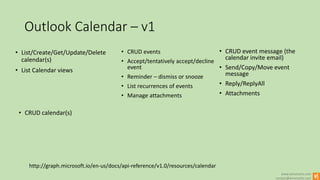

- 30. www.winsmarts.com contact@winsmarts.com Outlook Calendar –v1 http://graph.microsoft.io/en-us/docs/api-reference/v1.0/resources/calendar • List/Create/Get/Update/Delete calendar(s) • List Calendar views • CRUD events • Accept/tentatively accept/decline event • Reminder – dismiss or snooze • List recurrences of events • Manage attachments • CRUD event message (the calendar invite email) • Send/Copy/Move event message • Reply/ReplyAll • Attachments • CRUD calendar(s)

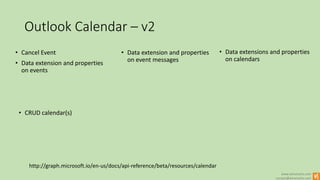

- 31. www.winsmarts.com contact@winsmarts.com Outlook Calendar –v2 http://graph.microsoft.io/en-us/docs/api-reference/beta/resources/calendar • Cancel Event • Data extension and properties on events • Data extension and properties on event messages • Data extensions and properties on calendars • CRUD calendar(s)

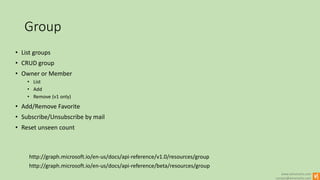

- 32. www.winsmarts.com contact@winsmarts.com Group http://graph.microsoft.io/en-us/docs/api-reference/beta/resources/group • List groups •CRUD group • Owner or Member • List • Add • Remove (v1 only) • Add/Remove Favorite • Subscribe/Unsubscribe by mail • Reset unseen count http://graph.microsoft.io/en-us/docs/api-reference/v1.0/resources/group

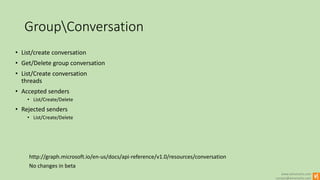

- 33. www.winsmarts.com contact@winsmarts.com GroupConversation No changes inbeta • List/create conversation • Get/Delete group conversation • List/Create conversation threads • Accepted senders • List/Create/Delete • Rejected senders • List/Create/Delete http://graph.microsoft.io/en-us/docs/api-reference/v1.0/resources/conversation

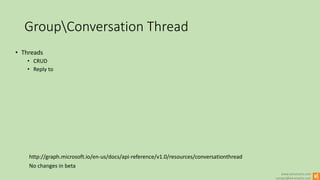

- 34. www.winsmarts.com contact@winsmarts.com GroupConversation Thread No changesin beta • Threads • CRUD • Reply to http://graph.microsoft.io/en-us/docs/api-reference/v1.0/resources/conversationthread

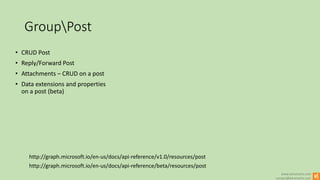

- 35. www.winsmarts.com contact@winsmarts.com GroupPost http://graph.microsoft.io/en-us/docs/api-reference/beta/resources/post • CRUD Post •Reply/Forward Post • Attachments – CRUD on a post • Data extensions and properties on a post (beta) http://graph.microsoft.io/en-us/docs/api-reference/v1.0/resources/post

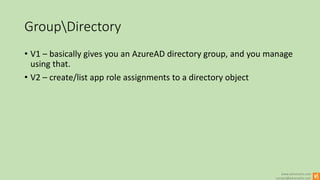

- 36. www.winsmarts.com contact@winsmarts.com GroupDirectory • V1 –basically gives you an AzureAD directory group, and you manage using that. • V2 – create/list app role assignments to a directory object
- 37. www.winsmarts.com contact@winsmarts.com Group v2 stuffonly • Get plan(s) for the group – only one plan can be associated with a group today. • Manage notes

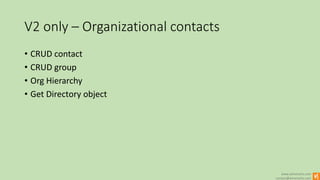

- 38. www.winsmarts.com contact@winsmarts.com V2 only –Organizational contacts • CRUD contact • CRUD group • Org Hierarchy • Get Directory object
- 39. www.winsmarts.com contact@winsmarts.com V2 only –OneNote • CRUD • Notes • Notebooks • Sections • Section Groups • Pages • Resources on a page

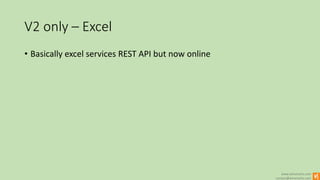

- 40. www.winsmarts.com contact@winsmarts.com V2 only –Excel • Basically excel services REST API but now online

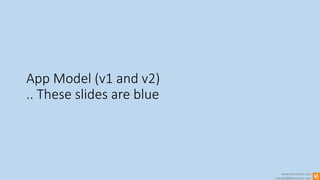

- 41. www.winsmarts.com contact@winsmarts.com App Model (v1and v2) .. These slides are blue
- 42. www.winsmarts.com contact@winsmarts.com Main differences betweenv1 and v2 • Accept both Azure AD and Microsoft account (live ID) identities • Office 365 Authentication Scopes, not resources. Your app can request additional scopes. • New registration portal. • Not everything works as of now in v2 app model.

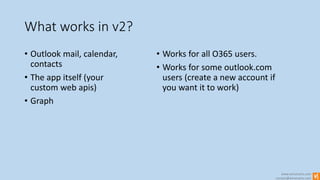

- 43. www.winsmarts.com contact@winsmarts.com What works inv2? • Outlook mail, calendar, contacts • The app itself (your custom web apis) • Graph • Works for all O365 users. • Works for some outlook.com users (create a new account if you want it to work)

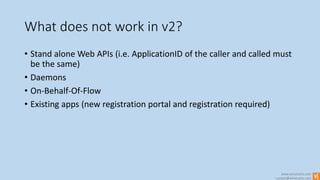

- 44. www.winsmarts.com contact@winsmarts.com What does notwork in v2? • Stand alone Web APIs (i.e. ApplicationID of the caller and called must be the same) • Daemons • On-Behalf-Of-Flow • Existing apps (new registration portal and registration required)

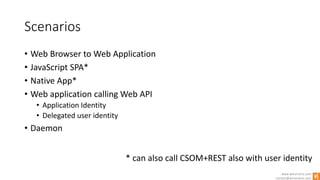

- 45. www.winsmarts.com contact@winsmarts.com Scenarios • Web Browserto Web Application • JavaScript SPA* • Native App* • Web application calling Web API • Application Identity • Delegated user identity • Daemon * can also call CSOM+REST also with user identity
- 46.
