The Future of Sharding
The document discusses different approaches to scaling databases, including sharding and partitioning. It provides examples of sharding data across multiple tables based on a hashed key. It also demonstrates range partitioning a single table into multiple sub-tables based on time intervals, using PostgreSQL's native partitioning. The document inserts sample data and runs queries to showcase these different scaling techniques.
More Related Content
The Future of Sharding
- 2.

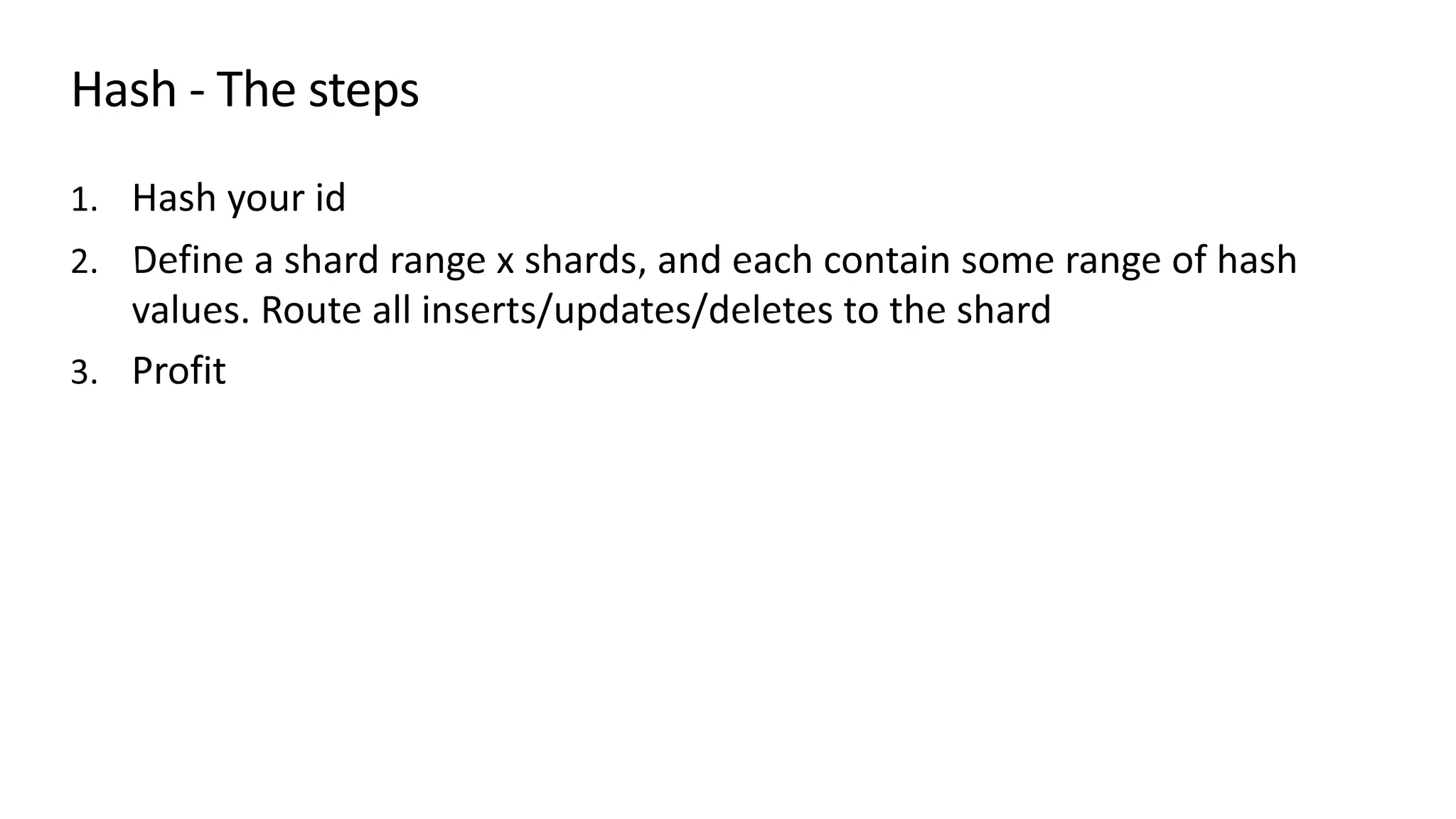

- 7. Hash based Rangebased
- 14. Overly excited engineers žI saw this tech talk from a google engineer ž Instagram did it early and look at them now Management 1 year latter ž You’re not google ž We didn’t ship any features during that time and we’re no more scalable
- 15. 10 years ago,all this was true 1 in a million good possible outcomes
- 18.
- 22. CREATE TABLE visits_01… (on node 1) CREATE TABLE visits_02 … (on node 2) CREATE TABLE visits_03 … (on node 1) CREATE TABLE visits_04 … (on node 2)
- 23. Account page occurred_atvisitor_id 1 https://www.craigkerstiens.com 6/5/2018 12:34:00 ab49e5-bc34-46d12 2 http://www.facebook.com 6/5/2018 13:10:00 ce52062-bc38-43d52
- 24. Hashed Account page occurred_at visitor_id 46154https://www.craigkerstiens.com 6/5/2018 12:34:00 ab49e5-bc34-46d12 27193 http://www.facebook.com 6/5/2018 13:10:00 ce52062-bc38-43d52

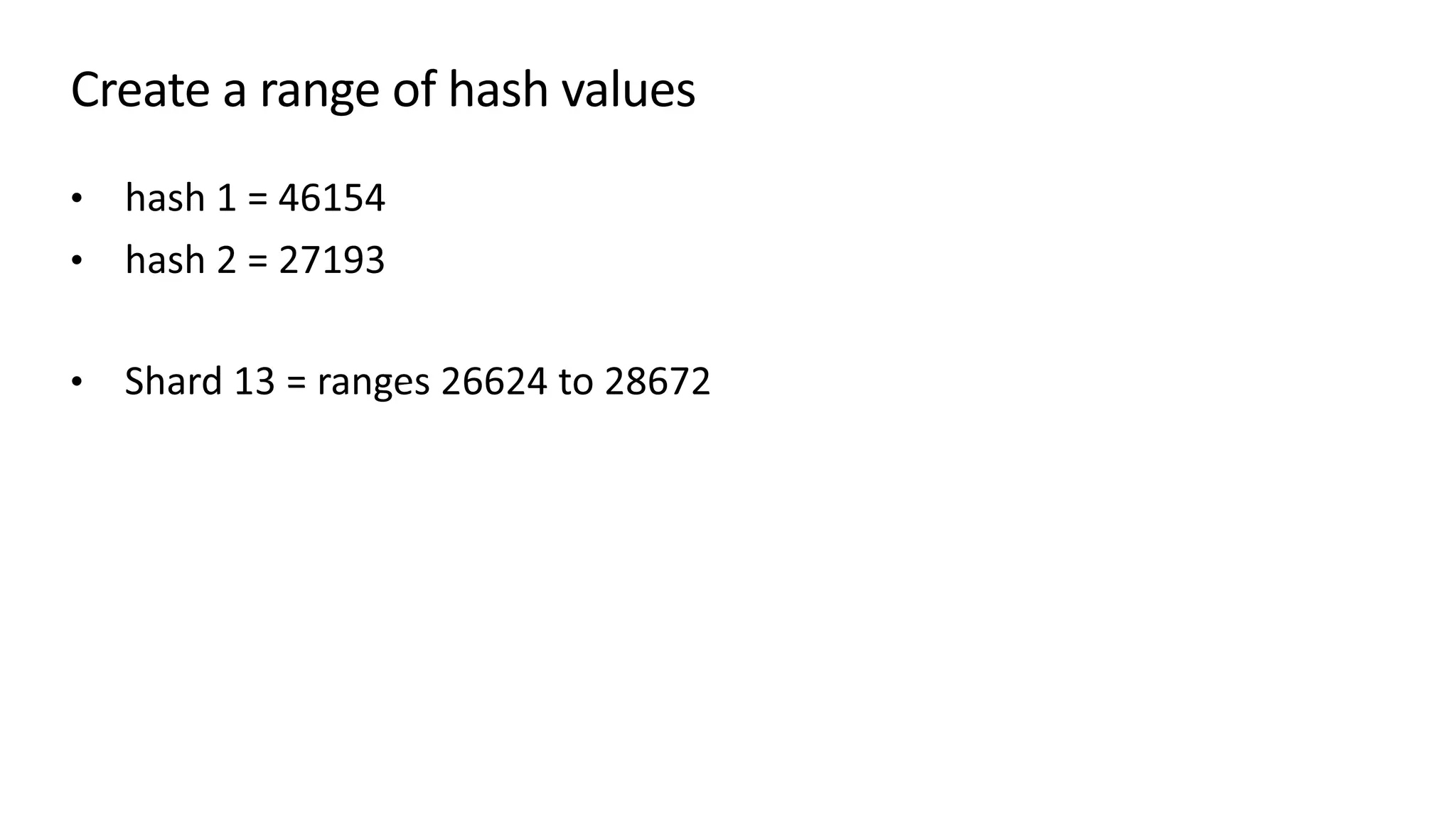

- 25. Hash ranges Tabledata 0-2047 visits_01 2048-4095 visits_02 … … 26624 to 28672 visits_13 … 63488-65536 visits_32

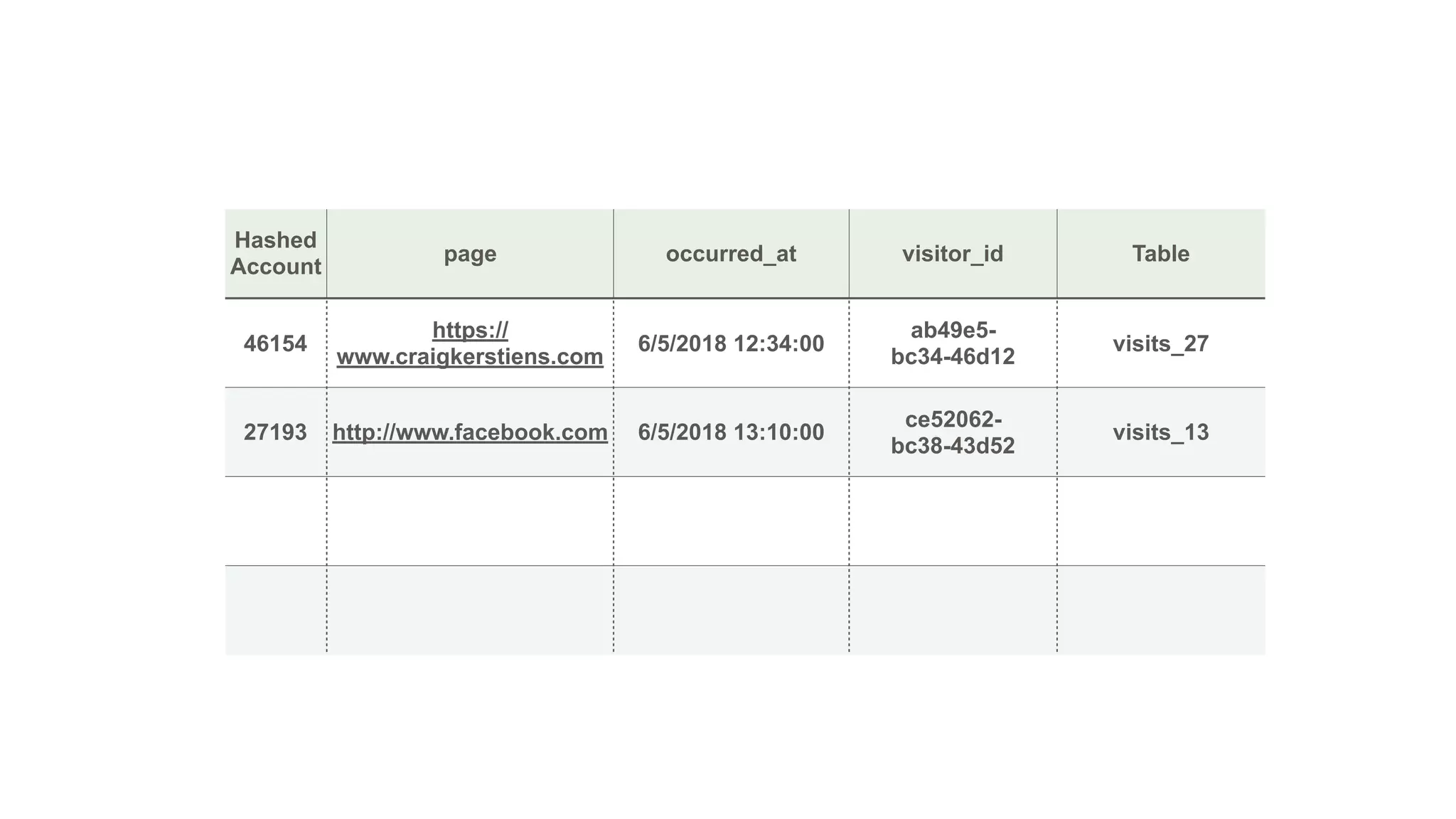

- 26. Hashed Account page occurred_at visitor_idTable 46154 https:// www.craigkerstiens.com 6/5/2018 12:34:00 ab49e5- bc34-46d12 visits_27 27193 http://www.facebook.com 6/5/2018 13:10:00 ce52062- bc38-43d52 visits_13

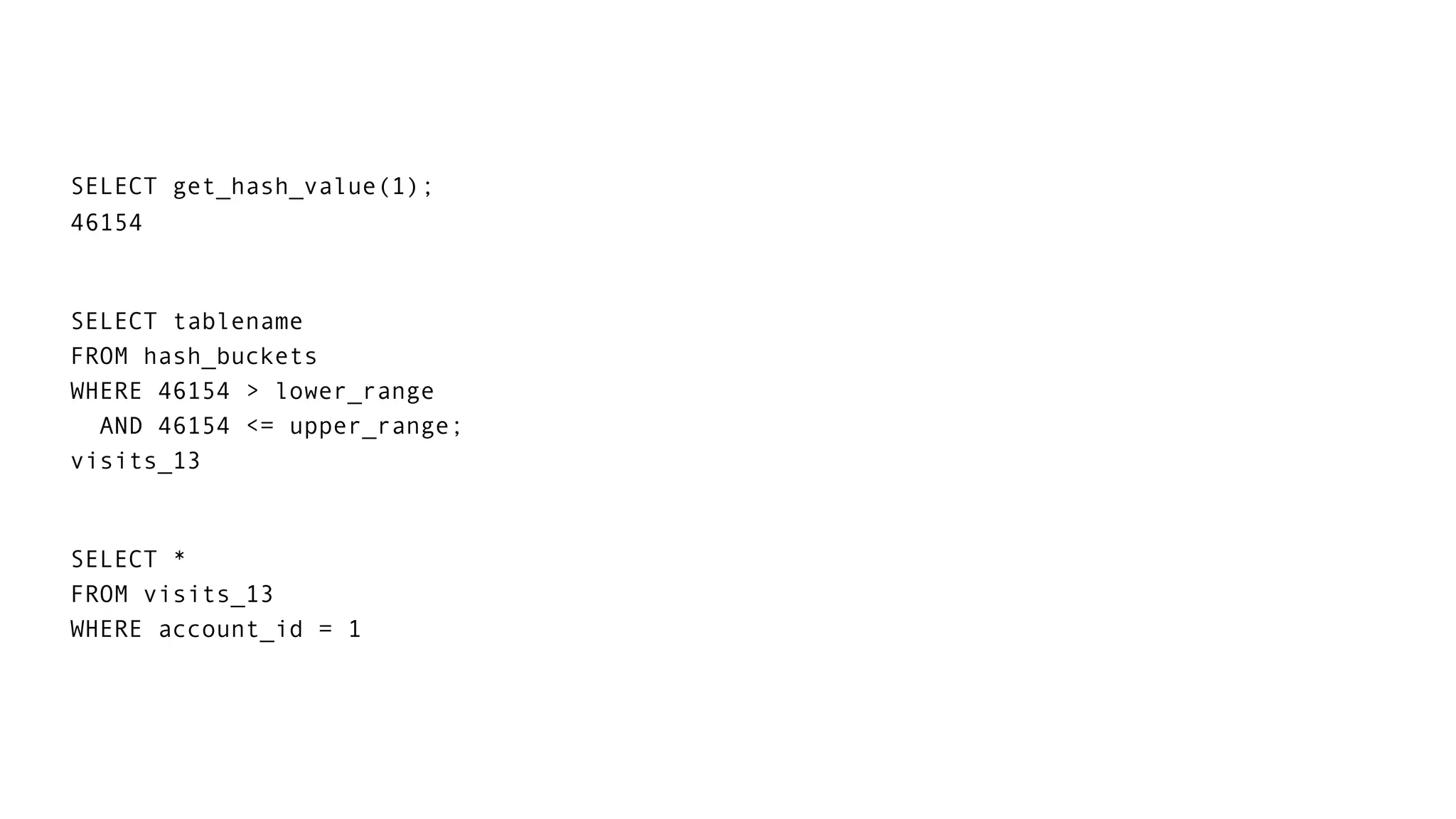

- 27. SELECT * FROM visits WHEREaccount_id = 1;
- 32. Postgres-XC Developed by NTTand Enterprise DB
- 33. We evolved fromXC to XL, and many other forks • Focuses on staying as close as possible to Postgres core experience • Global transaction manager involved in every transaction • Transactions require multiple network round trips • Data is sharded, each node has own caching • Scale-out read performance on single core at time
- 40. ž APPLICATION SELECT FROM WHERE AND count(*) ads JOINcampaigns ON ads.company_id = campaigns.company_id ads.designer_name = ‘Isaac’ campaigns.company_id = ‘Elly Co’ ; METADATA COORDINATOR NODE W1 W2 W3 … Wn SELECT … FROM ads_1001, campaigns_2001 …

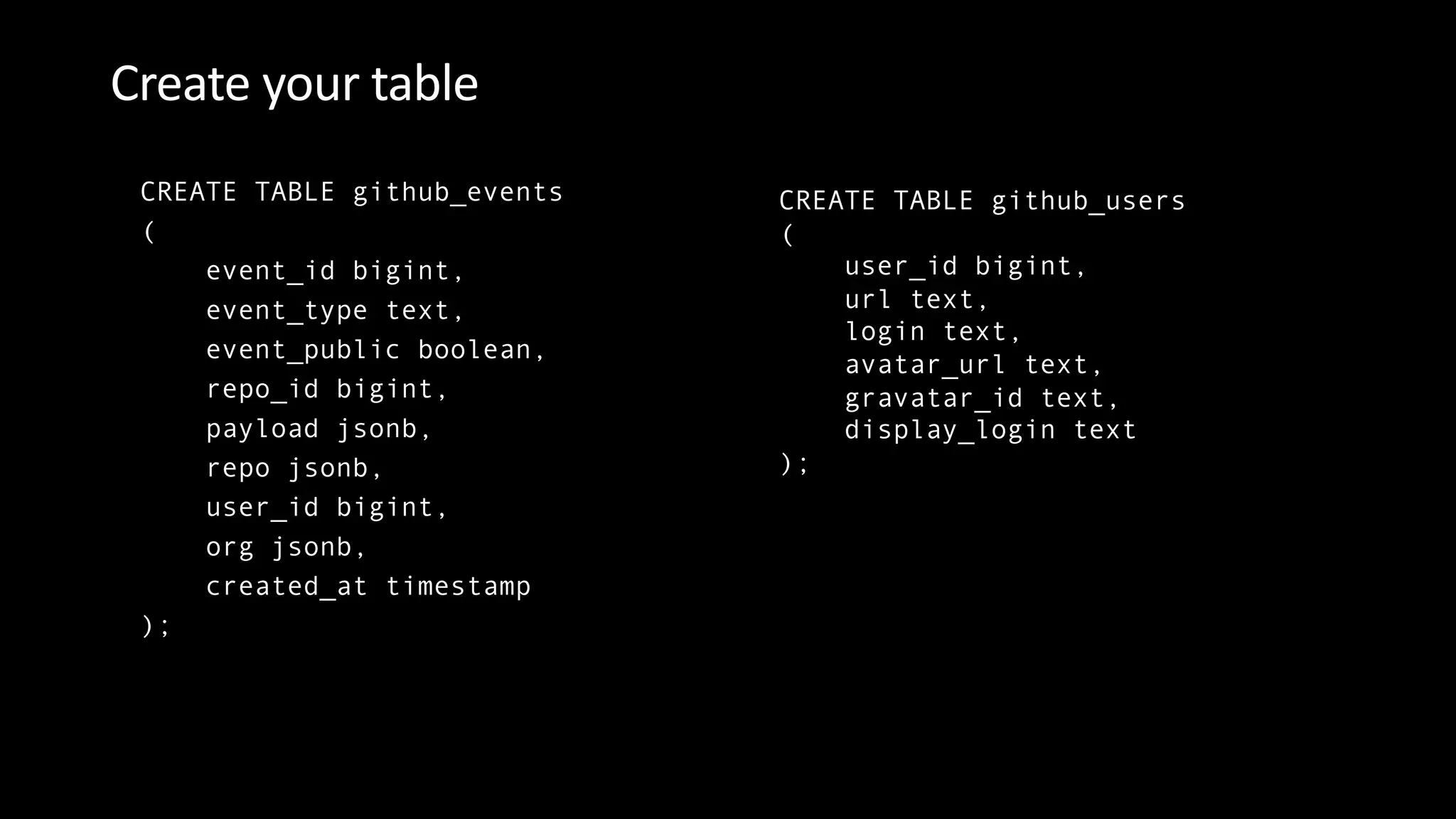

- 41. CREATE TABLE github_events ( event_idbigint, event_type text, event_public boolean, repo_id bigint, payload jsonb, repo jsonb, user_id bigint, org jsonb, created_at timestamp ); Create a table CREATE TABLE github_users ( user_id bigint, url text, login text, avatar_url text, gravatar_id text, display_login text ); Create your table
- 42. Distribute your tables SELECTcreate_distributed_table('github_events', 'user_id'); SELECT create_distributed_table('github_users', 'user_id');
- 43. # dt List ofrelations Schema | Name | Type | Owner --------+----------------------+-------+------- public | github_events_102011 | table | citus public | github_events_102015 | table | citus public | github_events_102019 | table | citus public | github_events_102023 | table | citus public | github_events_102027 | table | citus public | github_events_102031 | table | citus public | github_events_102035 | table | citus public | github_events_102039 | table | citus public | github_users_102043 | table | citus public | github_users_102047 | table | citus public | github_users_102051 | table | citus public | github_users_102055 | table | citus public | github_users_102059 | table | citus public | github_users_102063 | table | citus public | github_users_102067 | table | citus public | github_users_102071 | table | citus (16 rows) # dt List of relations Schema | Name | Type | Owner --------+----------------------+-------+------- public | github_events_102009 | table | citus public | github_events_102013 | table | citus public | github_events_102017 | table | citus public | github_events_102021 | table | citus public | github_events_102025 | table | citus public | github_events_102029 | table | citus public | github_events_102033 | table | citus public | github_events_102037 | table | citus public | github_users_102041 | table | citus public | github_users_102045 | table | citus public | github_users_102049 | table | citus public | github_users_102053 | table | citus public | github_users_102057 | table | citus public | github_users_102061 | table | citus public | github_users_102065 | table | citus public | github_users_102069 | table | citus (16 rows)
- 45. SELECT count(*) fromgithub_events; count -------- 126245 (1 row) Time: 177.491 ms Querying our data

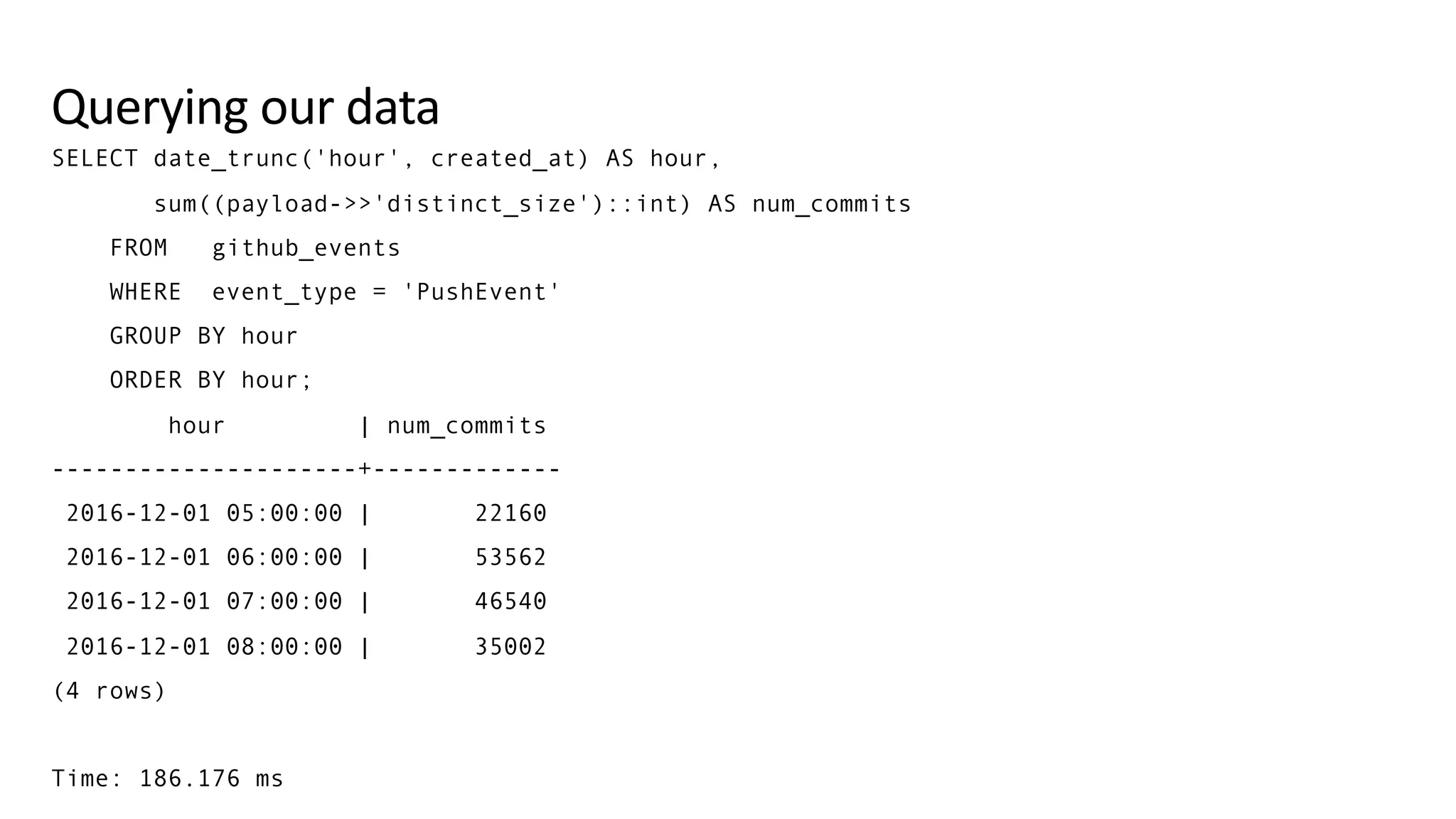

- 46. SELECT date_trunc('hour', created_at)AS hour, sum((payload->>'distinct_size')::int) AS num_commits FROM github_events WHERE event_type = 'PushEvent' GROUP BY hour ORDER BY hour; hour | num_commits ---------------------+------------- 2016-12-01 05:00:00 | 22160 2016-12-01 06:00:00 | 53562 2016-12-01 07:00:00 | 46540 2016-12-01 08:00:00 | 35002 (4 rows) Time: 186.176 ms Querying our data

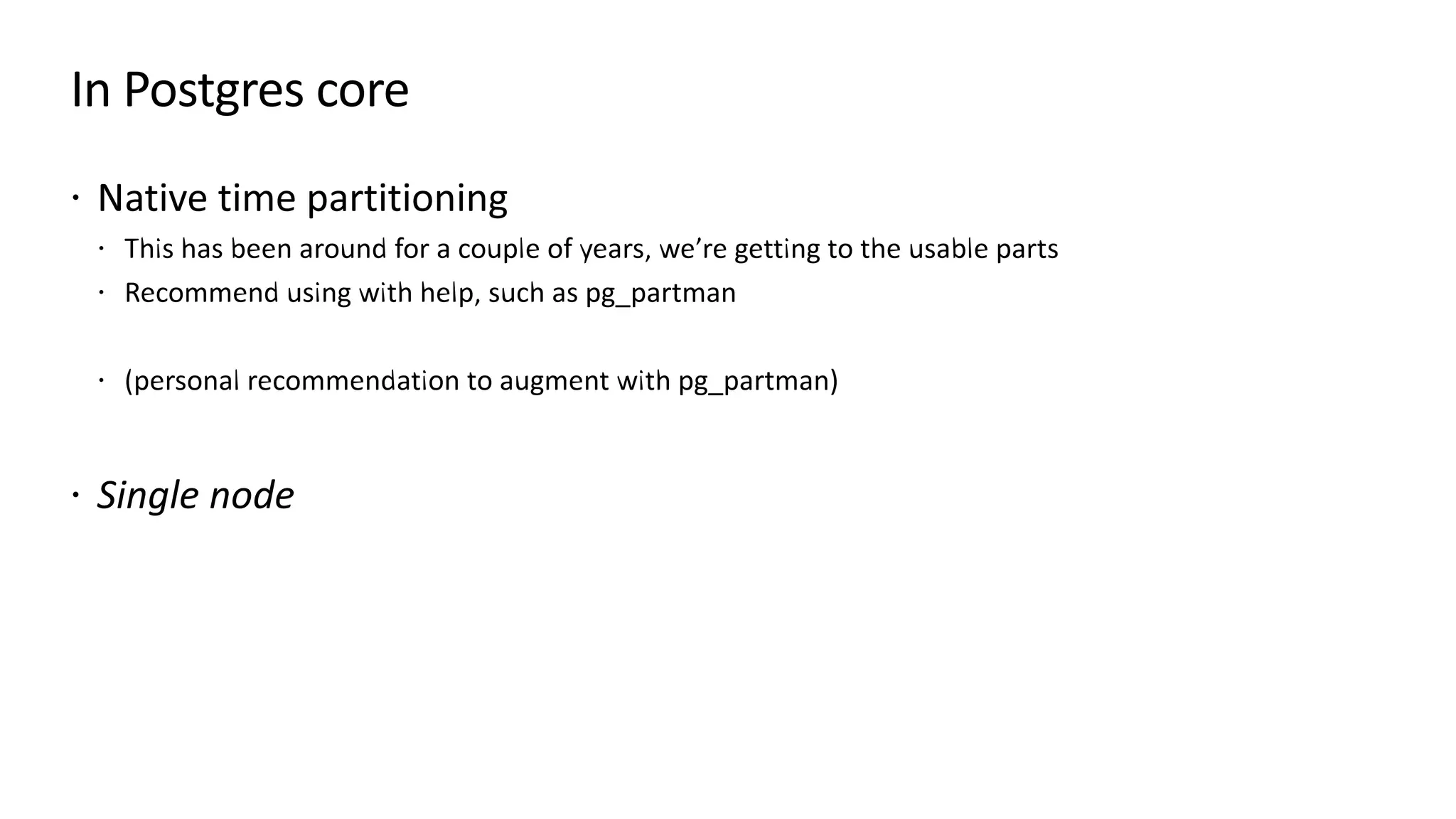

- 49. CREATE SCHEMA github; CREATETABLE github.events ( event_id bigint, event_type text, event_public boolean, repo_id bigint, payload jsonb, repo jsonb, actor jsonb, org jsonb, created_at timestamp ) PARTITION BY RANGE (created_at);
- 50. SELECT partman.create_parent('github.events', 'created_at', 'native', 'hourly'); UPDATEpartman.part_config SET infinite_time_partitions = true;
- 51. List of relations Schema| Name | Type | Owner --------+-------------------------+----------+---------- public | events | table | citus public | events_event_id_seq | sequence | citus public | events_p2018_10_23_0900 | table | citus public | events_p2018_10_23_0905 | table | citus public | events_p2018_10_23_0910 | table | citus public | events_p2018_10_23_0915 | table | citus public | events_p2018_10_23_0920 | table | citus public | events_p2018_10_23_0925 | table | citus public | events_p2018_10_23_0930 | table | citus public | events_p2018_10_23_0935 | table | citus
- 64.
