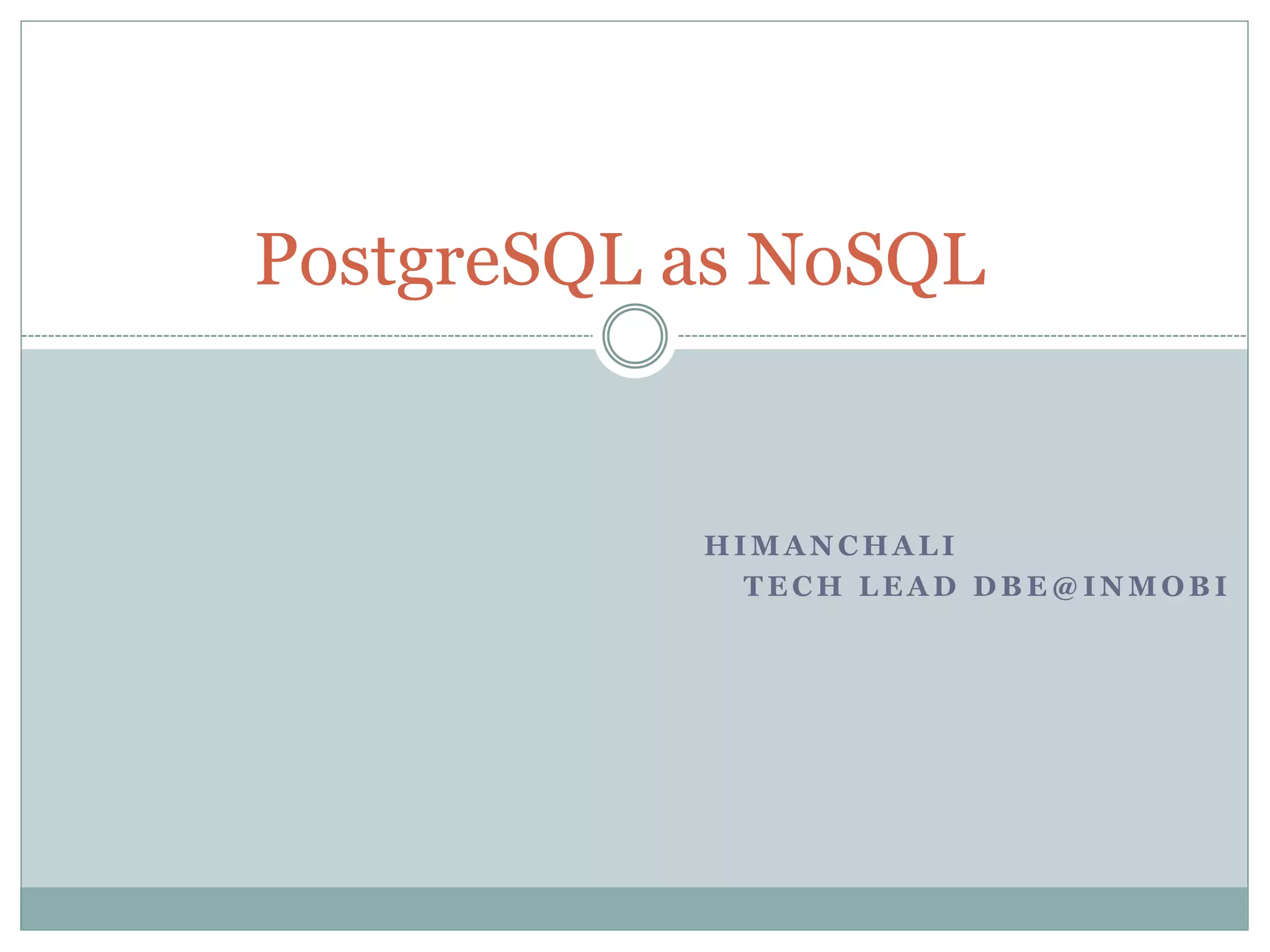

H I M A N C H A L I
T E C H L E A D D B E @ I N M O B I
PostgreSQL as NoSQL

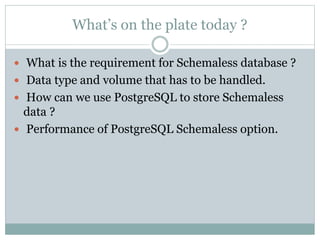

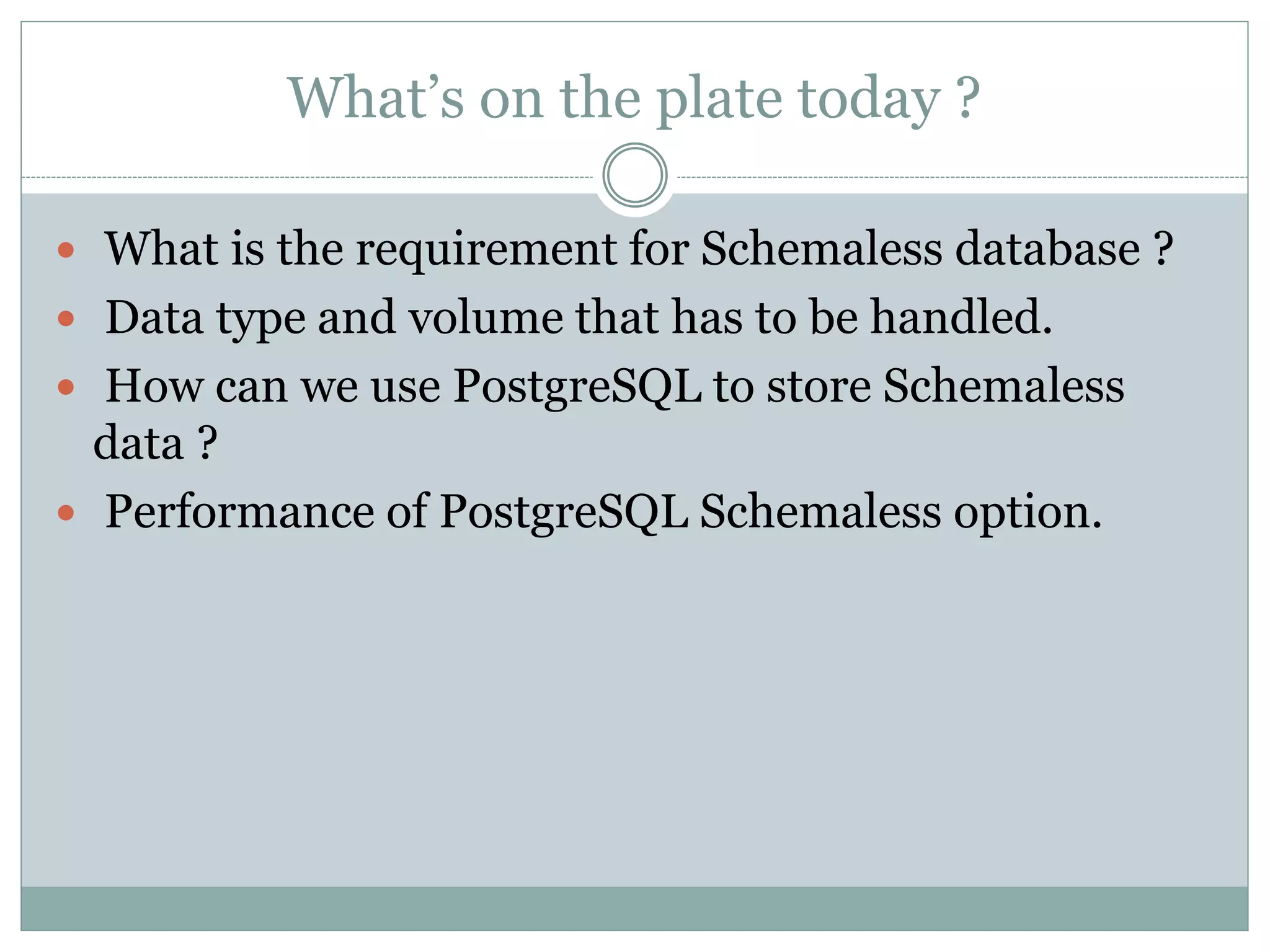

What’s on the plate today ?
 What is the requirement for Schemaless database ?
 Data type and volume that has to be handled.
 How can we use PostgreSQL to store Schemaless
data ?
 Performance of PostgreSQL Schemaless option.

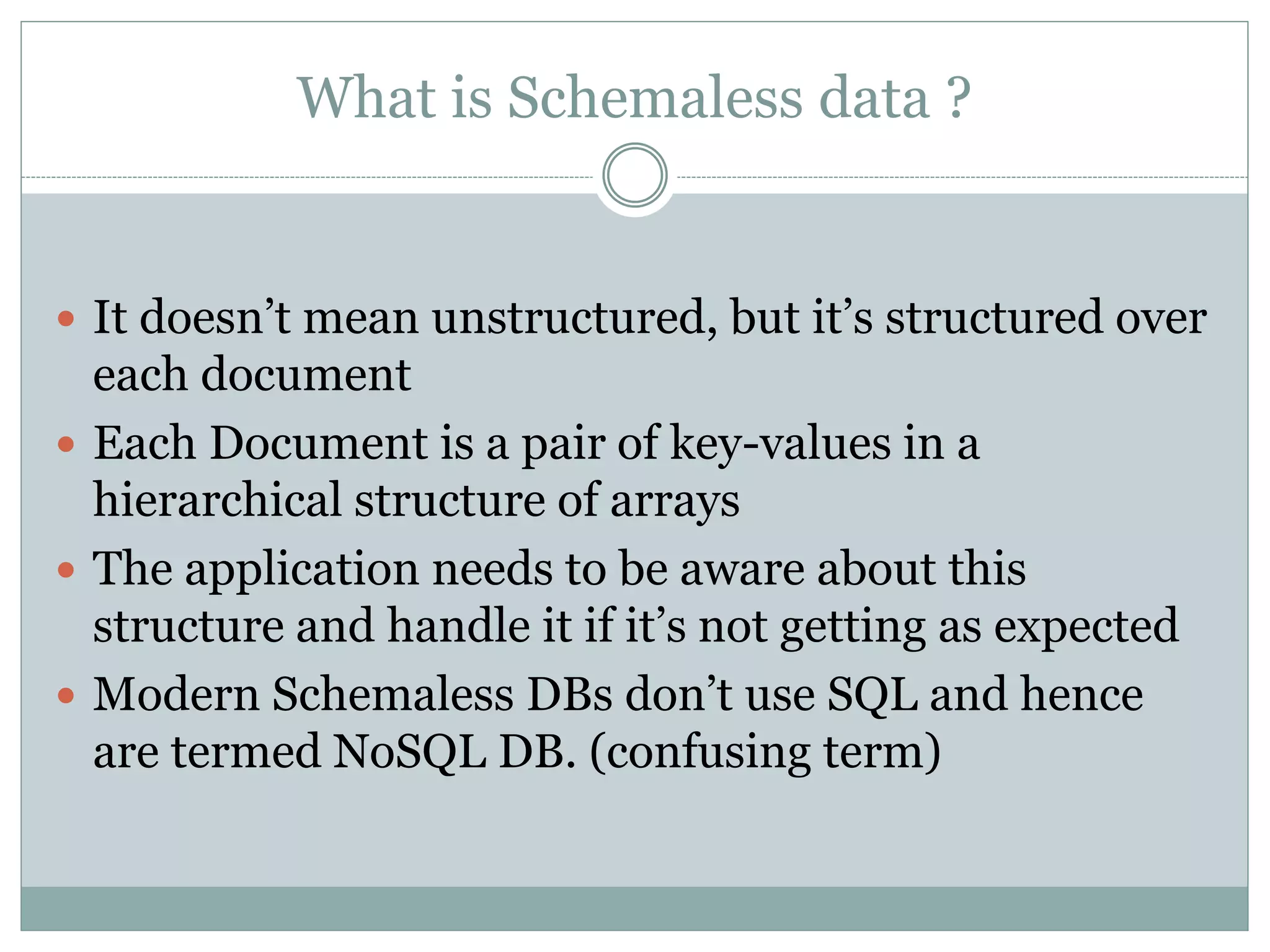

What is Schemaless data ?
 It doesn’t mean unstructured, but it’s structured over
each document
 Each Document is a pair of key-values in a
hierarchical structure of arrays
 The application needs to be aware about this
structure and handle it if it’s not getting as expected
 Modern Schemaless DBs don’t use SQL and hence
are termed NoSQL DB. (confusing term)

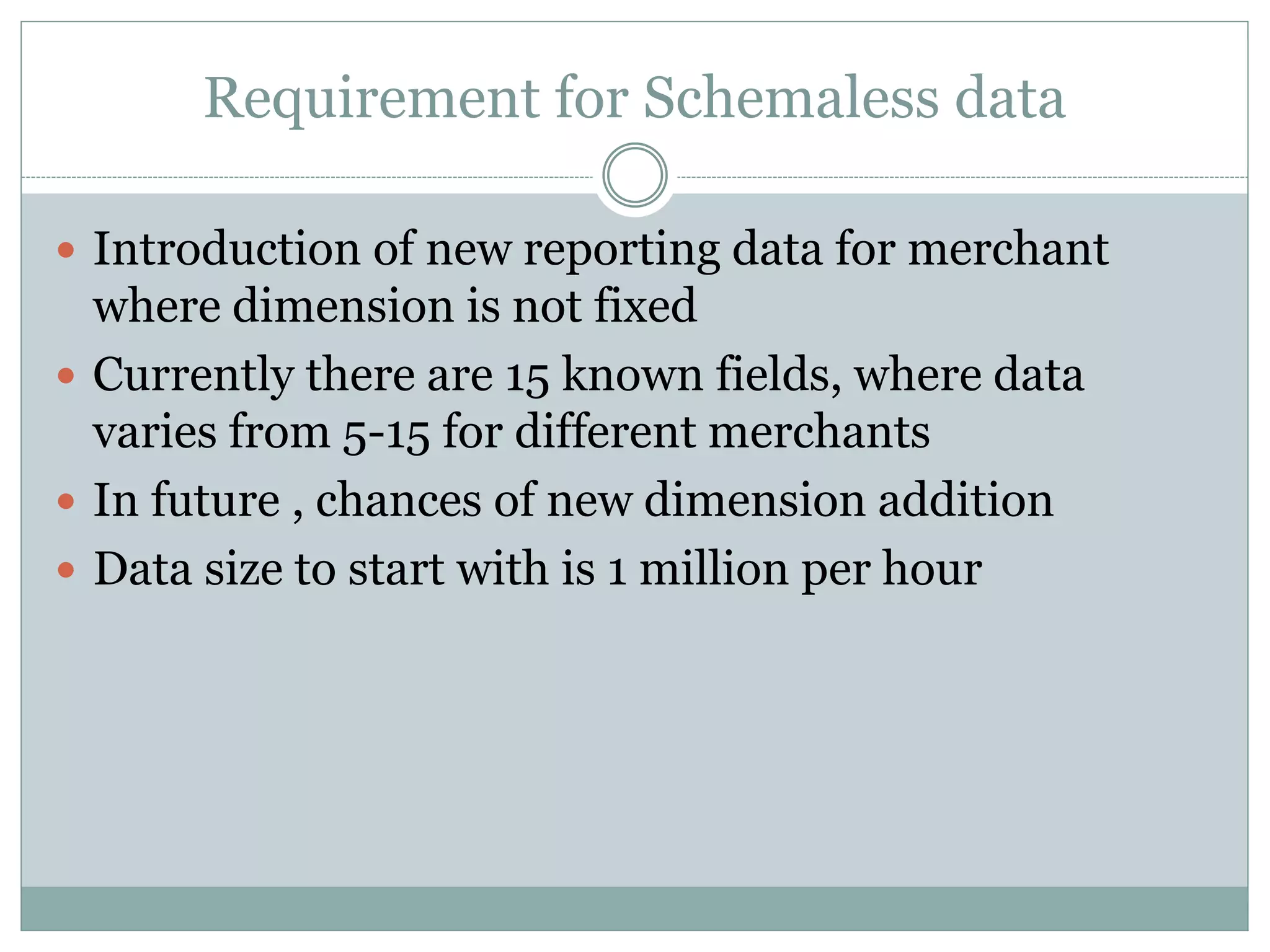

Requirement for Schemaless data
 Introduction of new reporting data for merchant
where dimension is not fixed
 Currently there are 15 known fields, where data
varies from 5-15 for different merchants
 In future , chances of new dimension addition
 Data size to start with is 1 million per hour

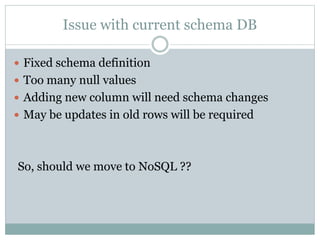

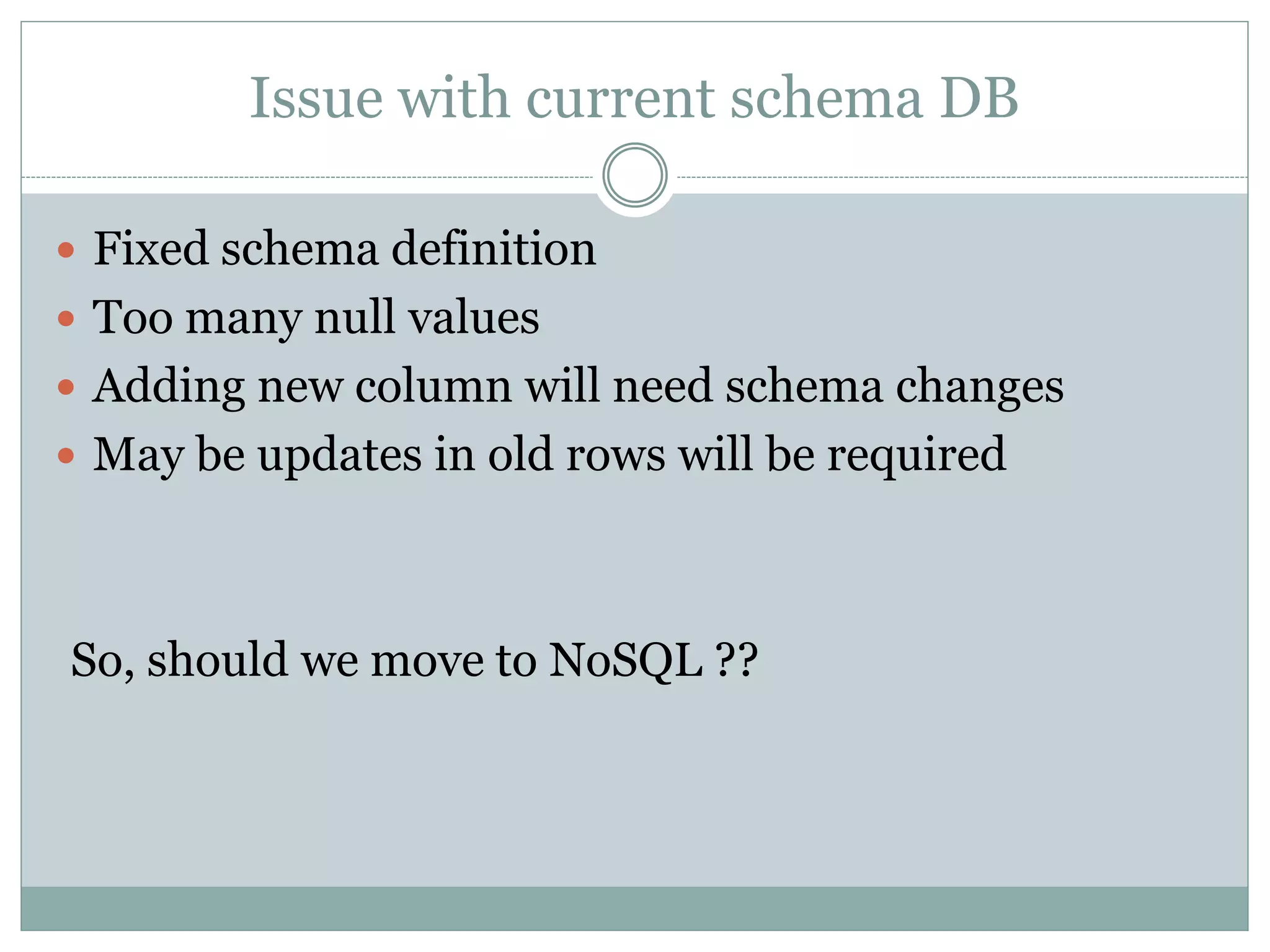

Issue with current schema DB
 Fixed schema definition
 Too many null values
 Adding new column will need schema changes
 May be updates in old rows will be required
So, should we move to NoSQL ??

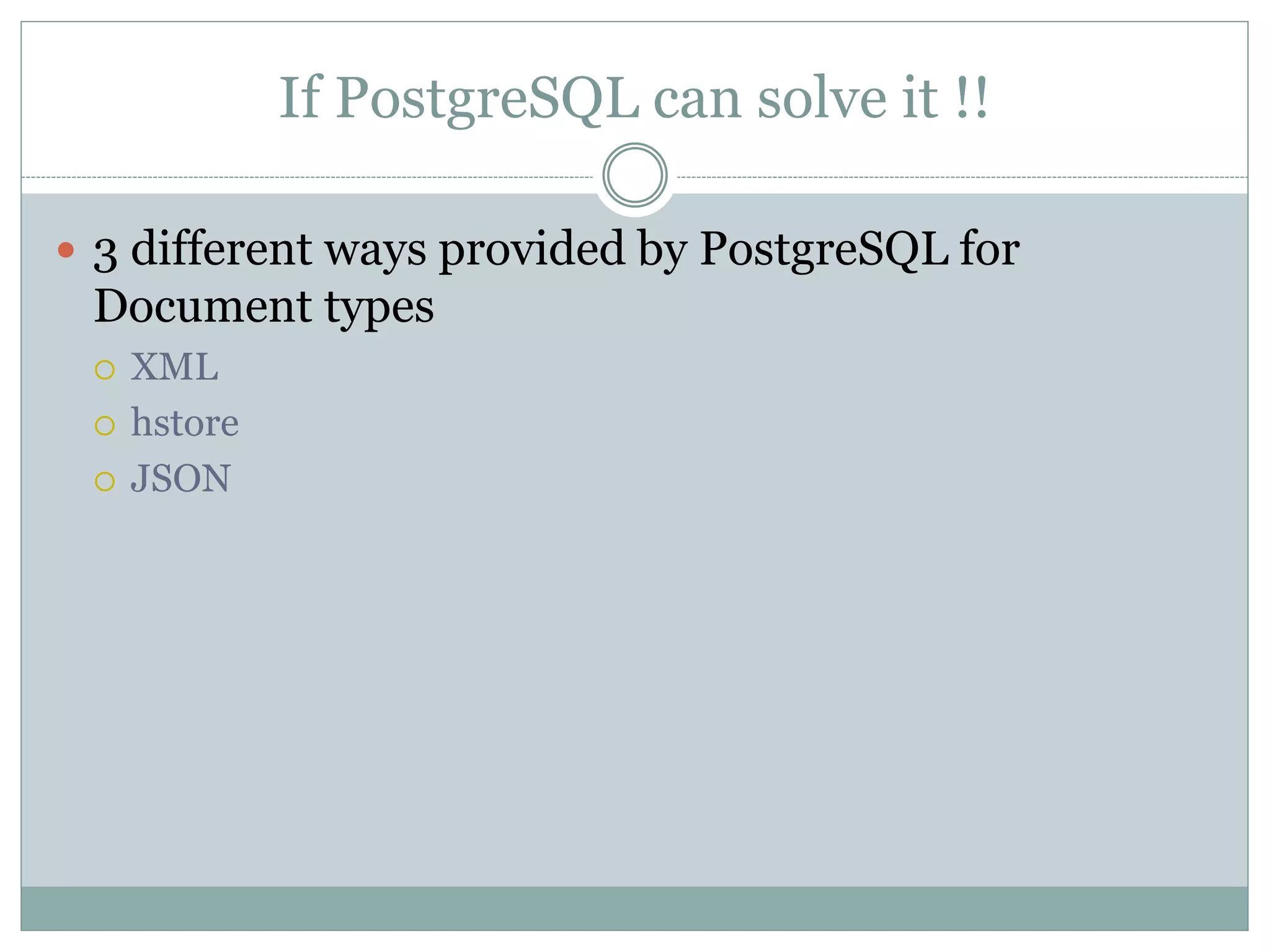

If PostgreSQL can solve it !!
 3 different ways provided by PostgreSQL for
Document types
 XML
 hstore
 JSON

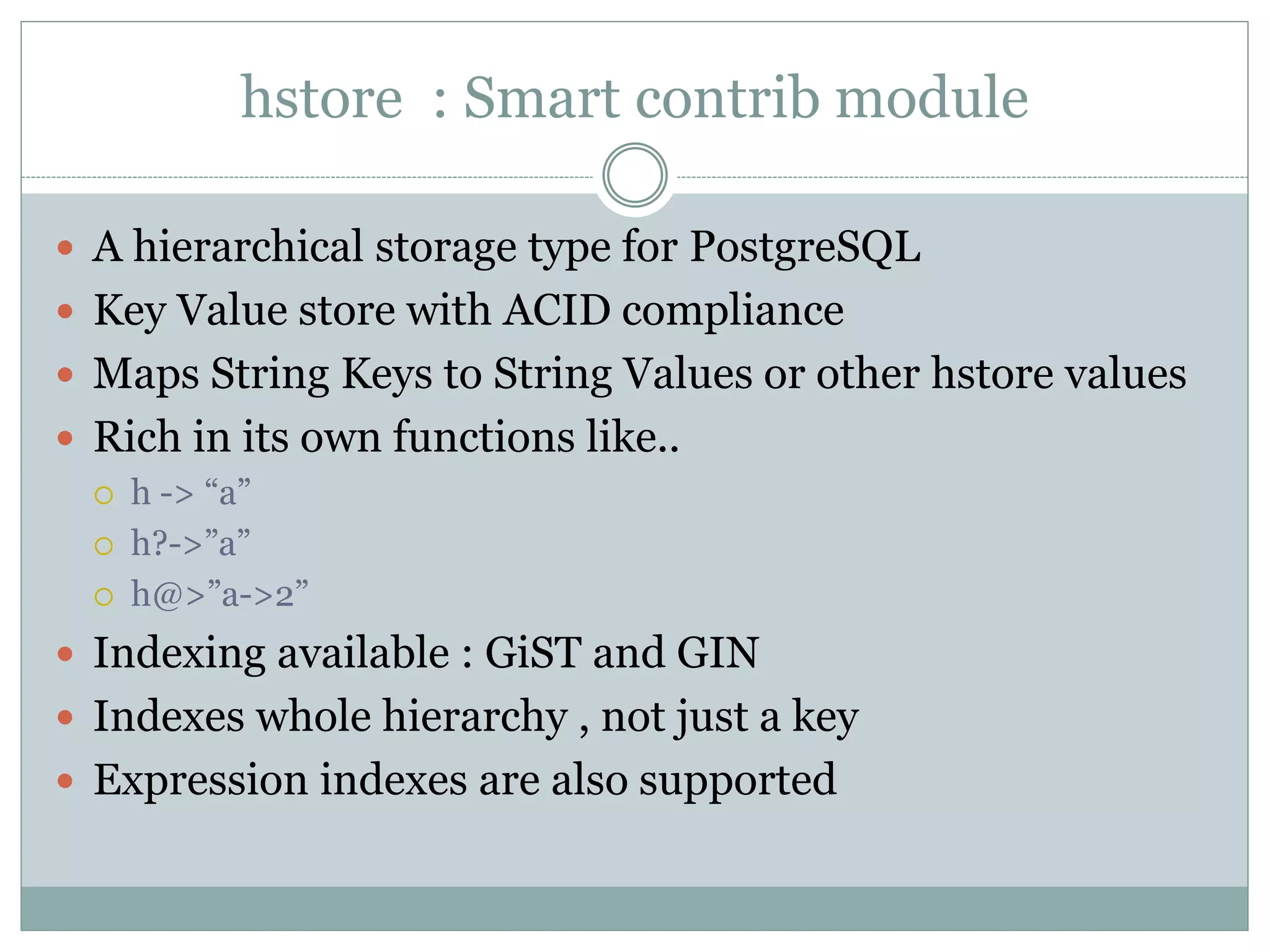

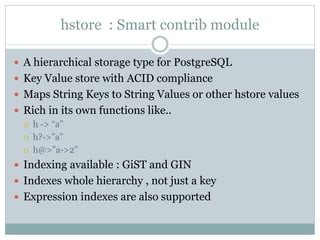

hstore : Smart contrib module
 A hierarchical storage type for PostgreSQL
 Key Value store with ACID compliance
 Maps String Keys to String Values or other hstore values
 Rich in its own functions like..
 h -> “a”
 h?->”a”
 h@>”a->2”
 Indexing available : GiST and GIN
 Indexes whole hierarchy , not just a key
 Expression indexes are also supported

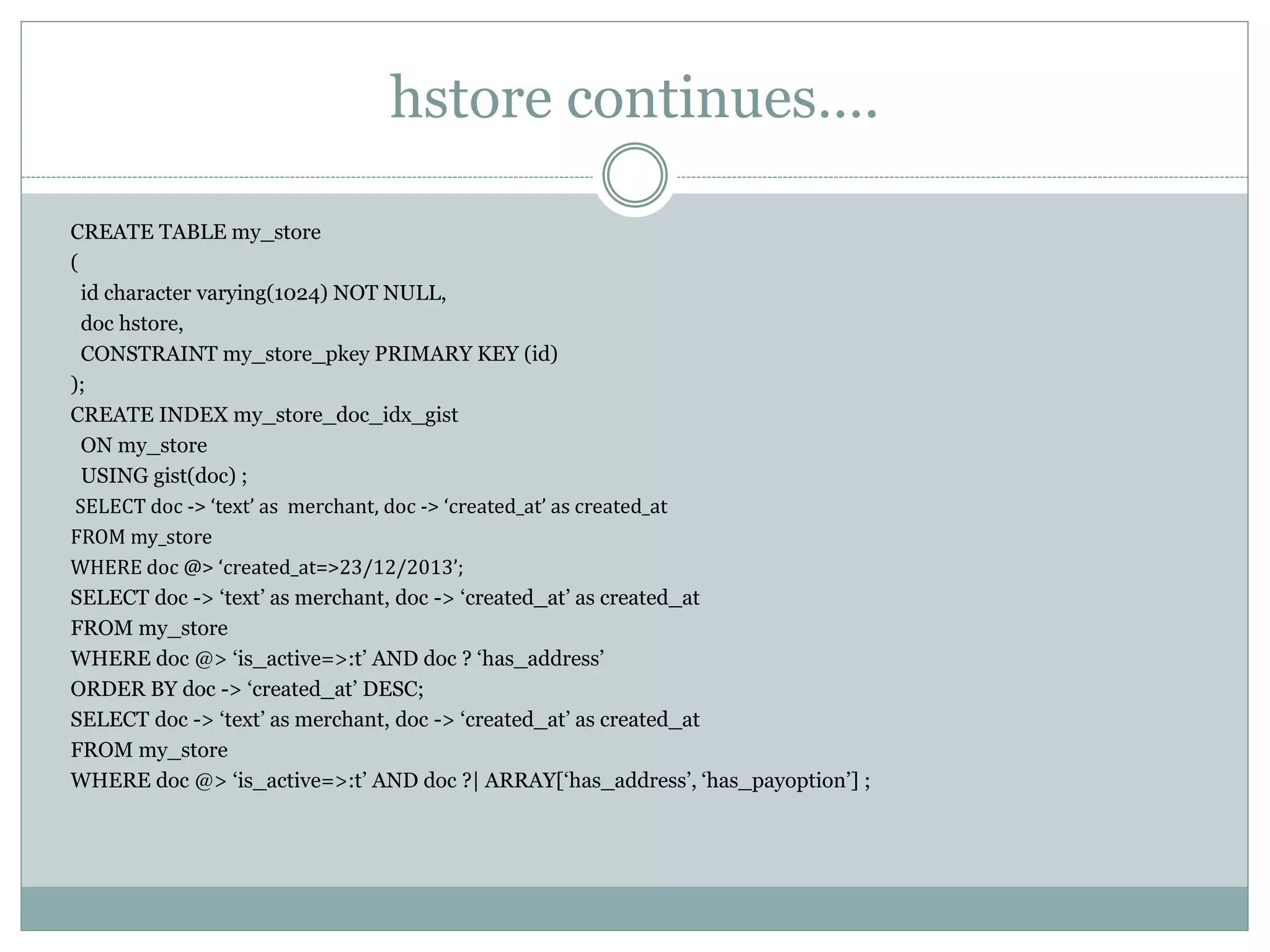

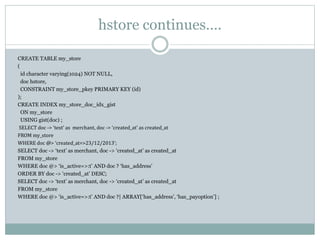

hstore continues….
CREATE TABLE my_store
(
id character varying(1024) NOT NULL,
doc hstore,
CONSTRAINT my_store_pkey PRIMARY KEY (id)
);
CREATE INDEX my_store_doc_idx_gist
ON my_store
USING gist(doc) ;
SELECT doc -> ‘text’ as merchant, doc -> ‘created_at’ as created_at
FROM my_store
WHERE doc @> ‘created_at=>23/12/2013’;
SELECT doc -> ‘text’ as merchant, doc -> ‘created_at’ as created_at
FROM my_store
WHERE doc @> ‘is_active=>:t’ AND doc ? ‘has_address’
ORDER BY doc -> ‘created_at’ DESC;
SELECT doc -> ‘text’ as merchant, doc -> ‘created_at’ as created_at
FROM my_store
WHERE doc @> ‘is_active=>:t’ AND doc ?| ARRAY[‘has_address’, ‘has_payoption’] ;

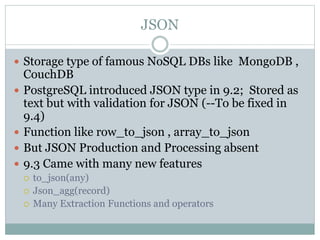

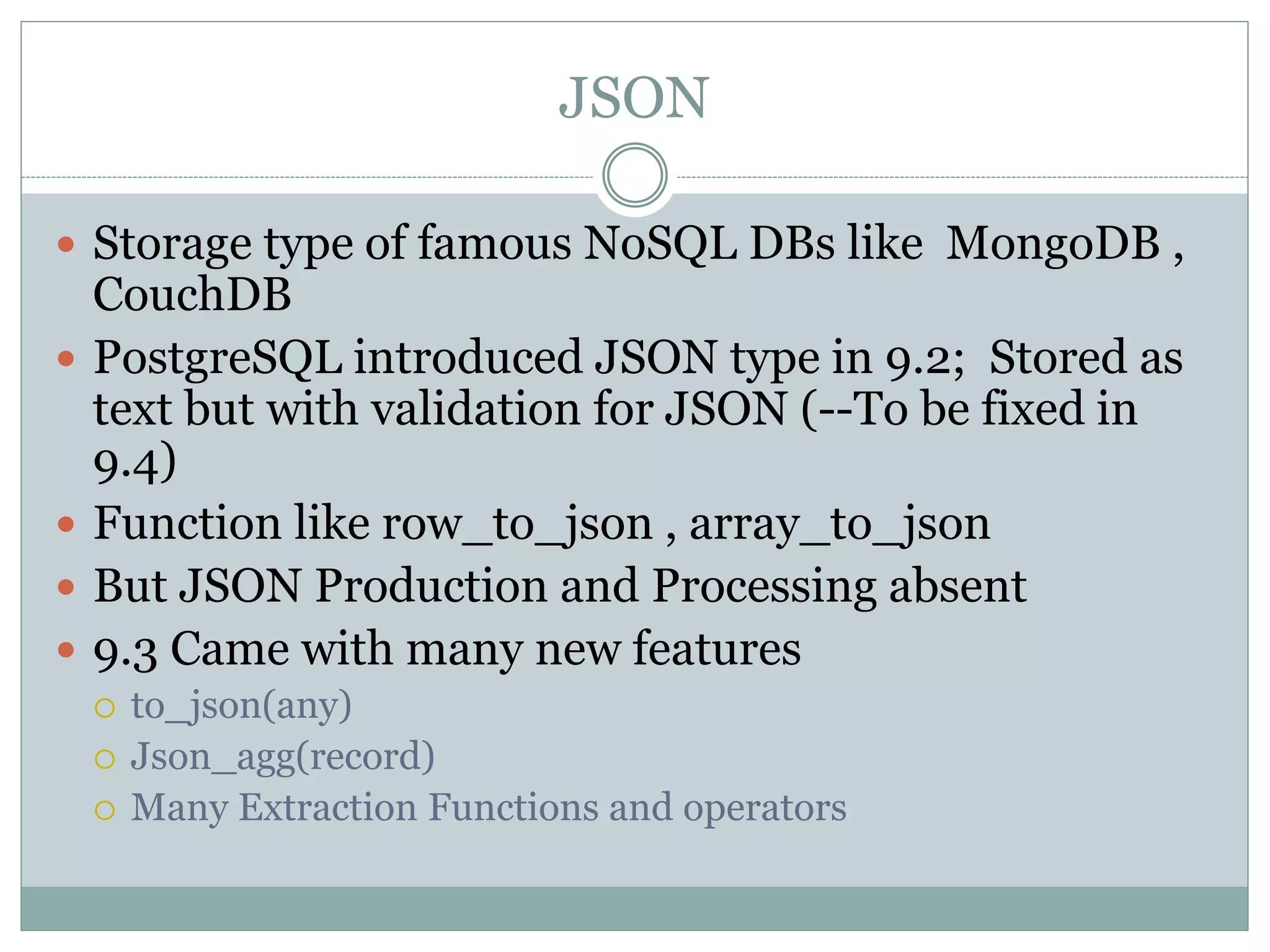

JSON
 Storage type of famous NoSQL DBs like MongoDB ,
CouchDB
 PostgreSQL introduced JSON type in 9.2; Stored as
text but with validation for JSON (--To be fixed in
9.4)
 Function like row_to_json , array_to_json
 But JSON Production and Processing absent
 9.3 Came with many new features
 to_json(any)
 Json_agg(record)
 Many Extraction Functions and operators

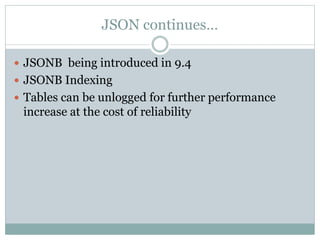

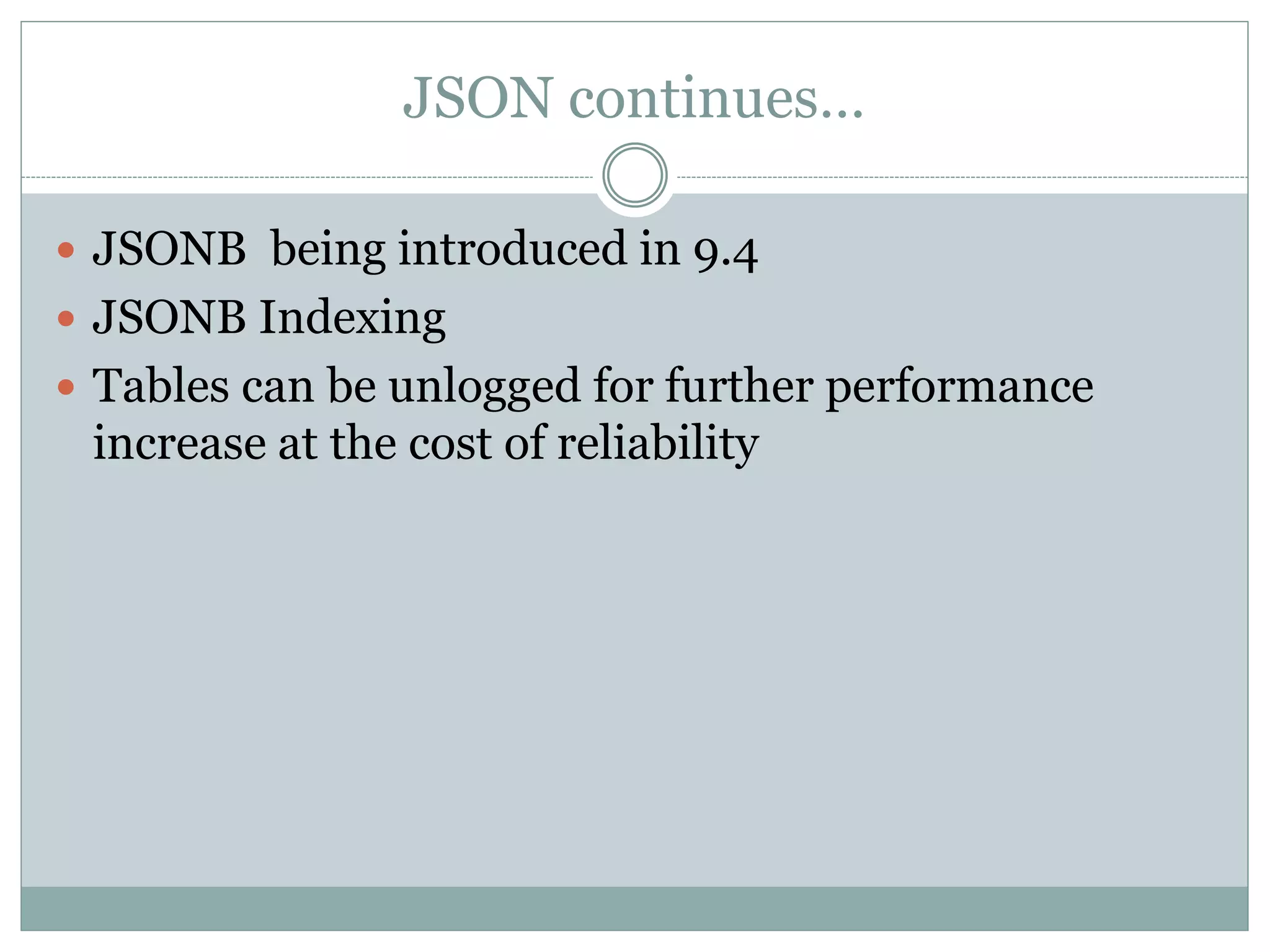

JSON continues…
 JSONB being introduced in 9.4
 JSONB Indexing
 Tables can be unlogged for further performance
increase at the cost of reliability

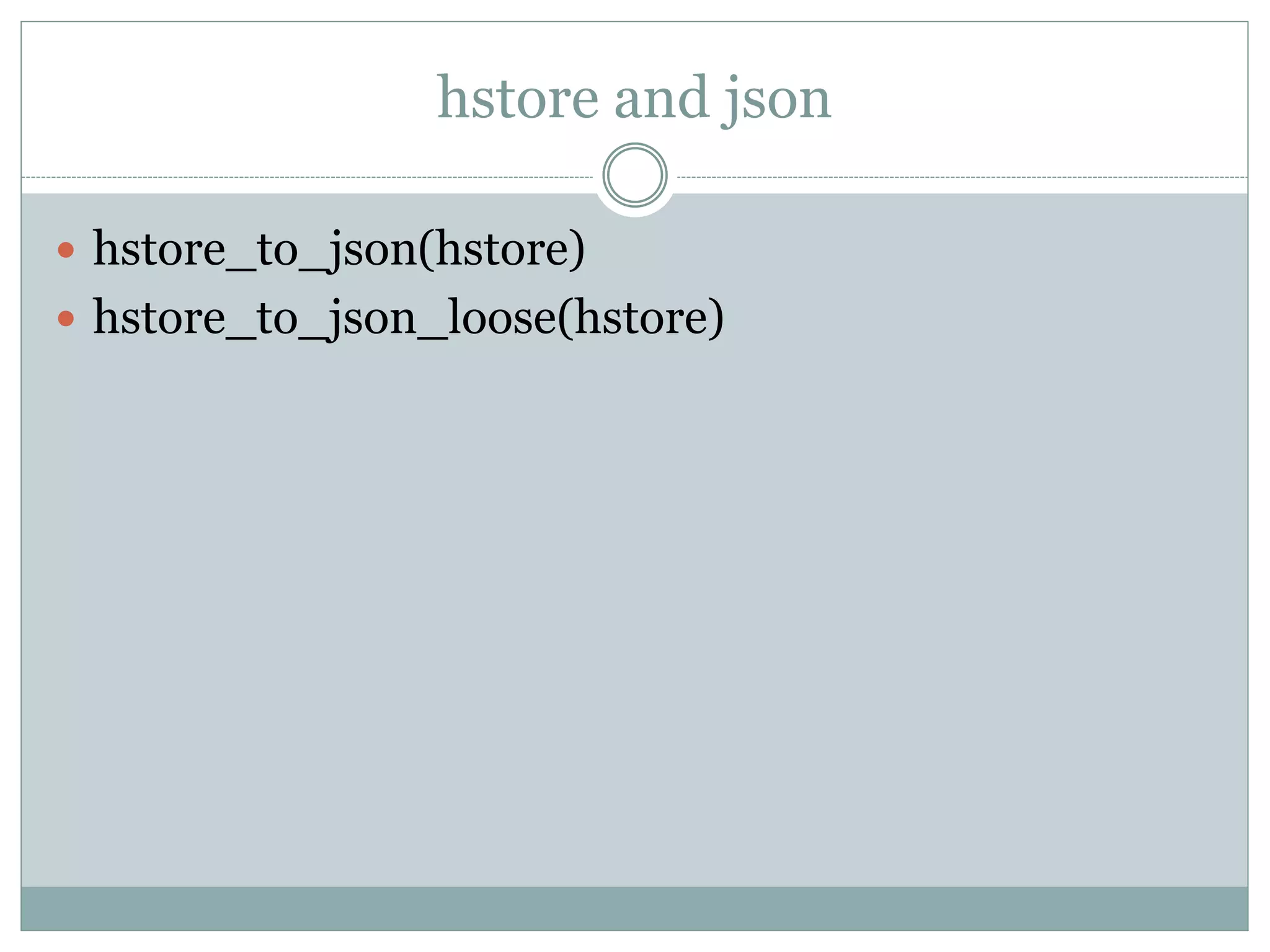

hstore and json
 hstore_to_json(hstore)
 hstore_to_json_loose(hstore)

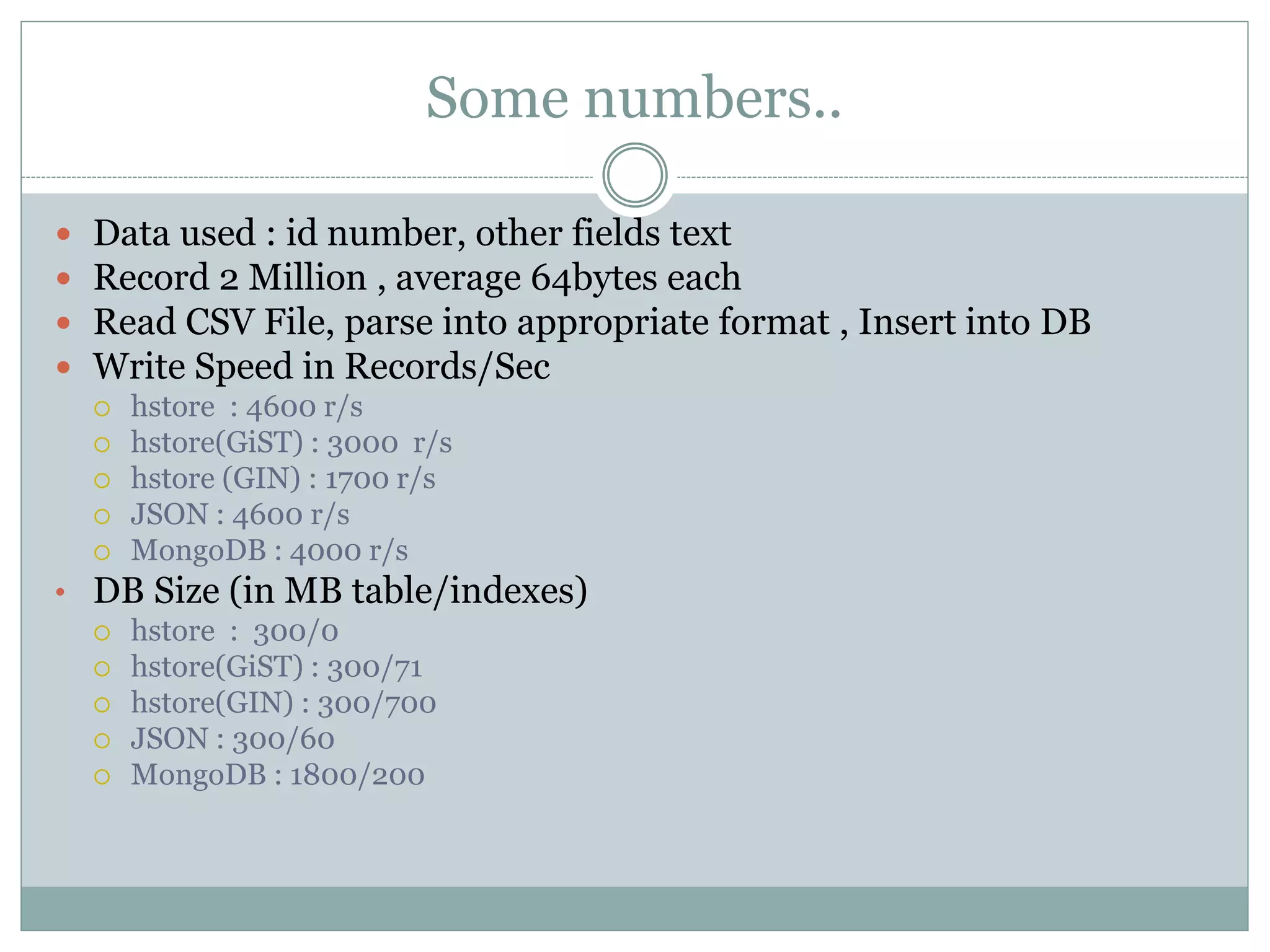

Some numbers..
 Data used : id number, other fields text
 Record 2 Million , average 64bytes each
 Read CSV File, parse into appropriate format , Insert into DB
 Write Speed in Records/Sec
 hstore : 4600 r/s
 hstore(GiST) : 3000 r/s
 hstore (GIN) : 1700 r/s
 JSON : 4600 r/s
 MongoDB : 4000 r/s
• DB Size (in MB table/indexes)
 hstore : 300/0
 hstore(GiST) : 300/71
 hstore(GIN) : 300/700
 JSON : 300/60
 MongoDB : 1800/200

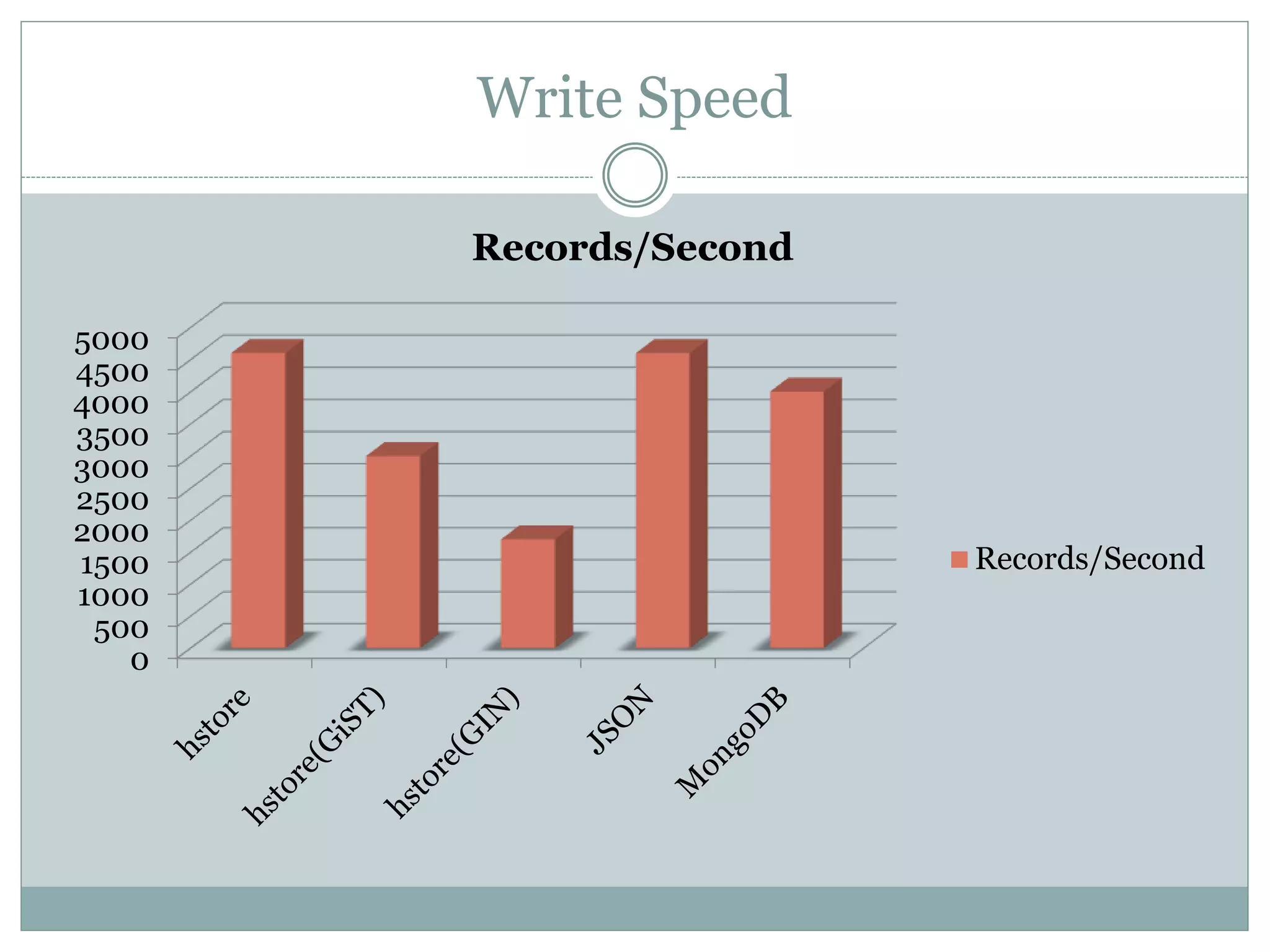

Write Speed
0
500
1000
1500
2000
2500
3000
3500
4000
4500
5000
Records/Second
Records/Second

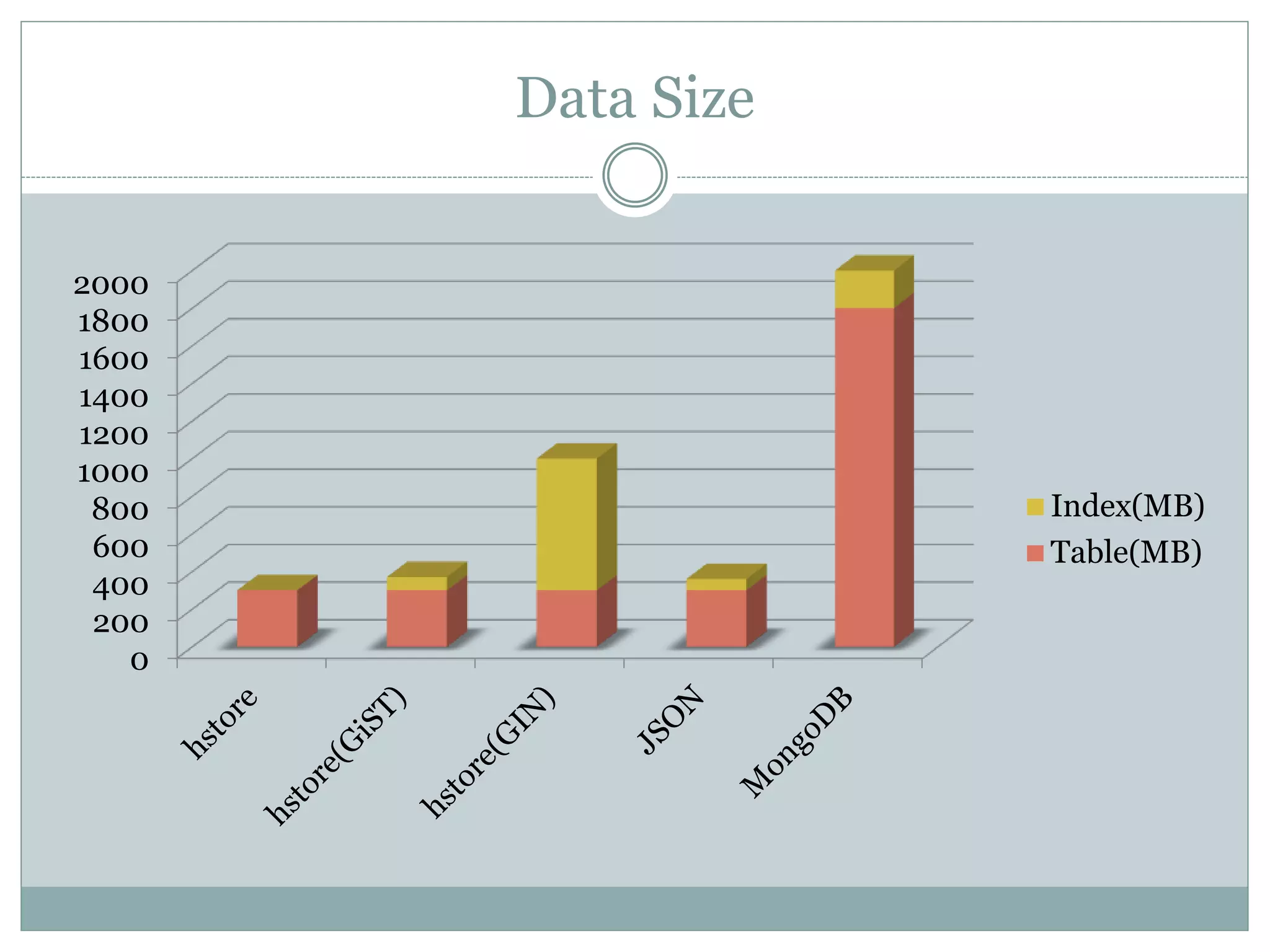

Data Size
0
200
400
600
800
1000
1200
1400
1600
1800
2000
Index(MB)
Table(MB)

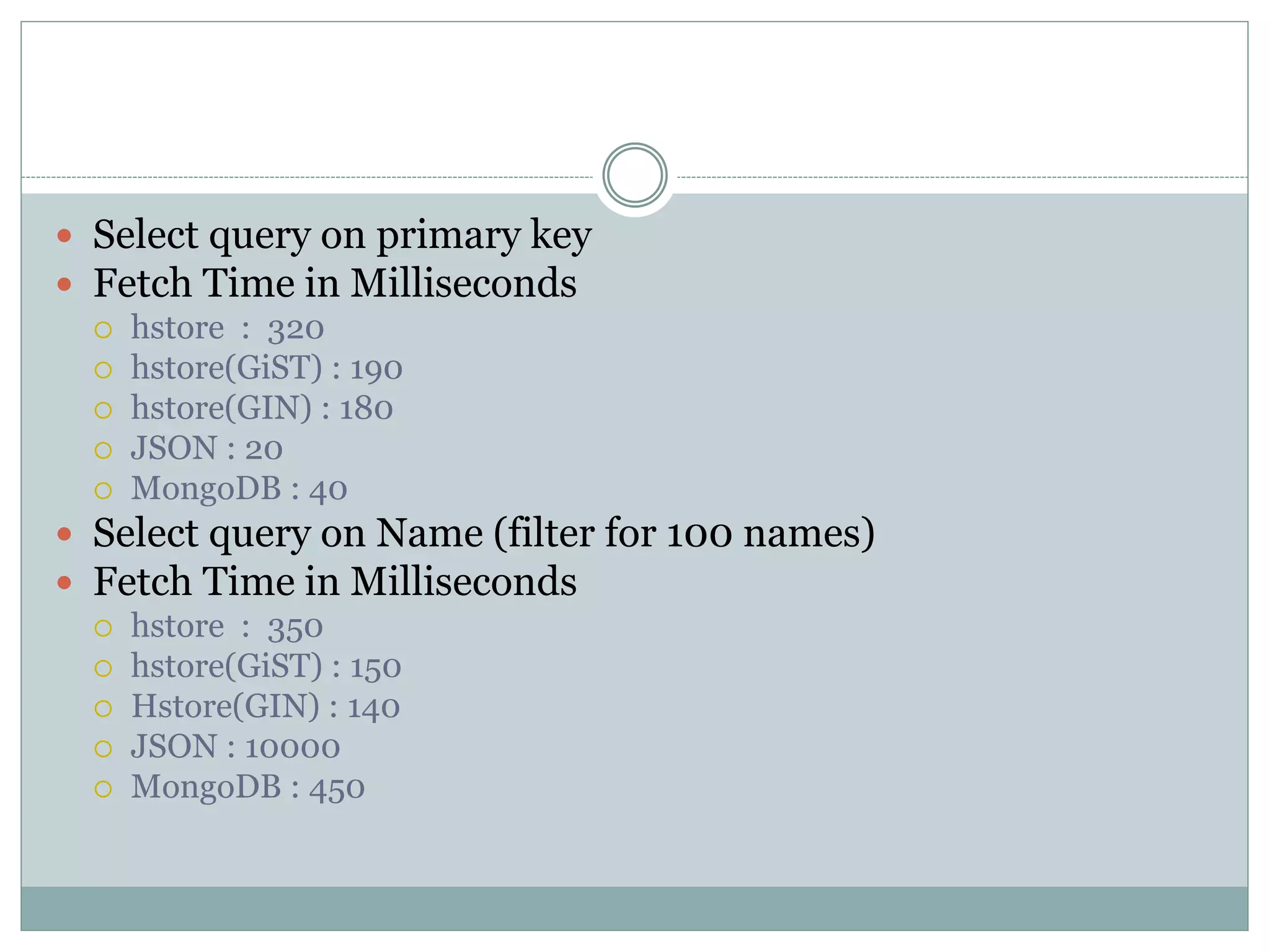

 Select query on primary key
 Fetch Time in Milliseconds
 hstore : 320
 hstore(GiST) : 190
 hstore(GIN) : 180
 JSON : 20
 MongoDB : 40
 Select query on Name (filter for 100 names)
 Fetch Time in Milliseconds
 hstore : 350
 hstore(GiST) : 150
 Hstore(GIN) : 140
 JSON : 10000
 MongoDB : 450

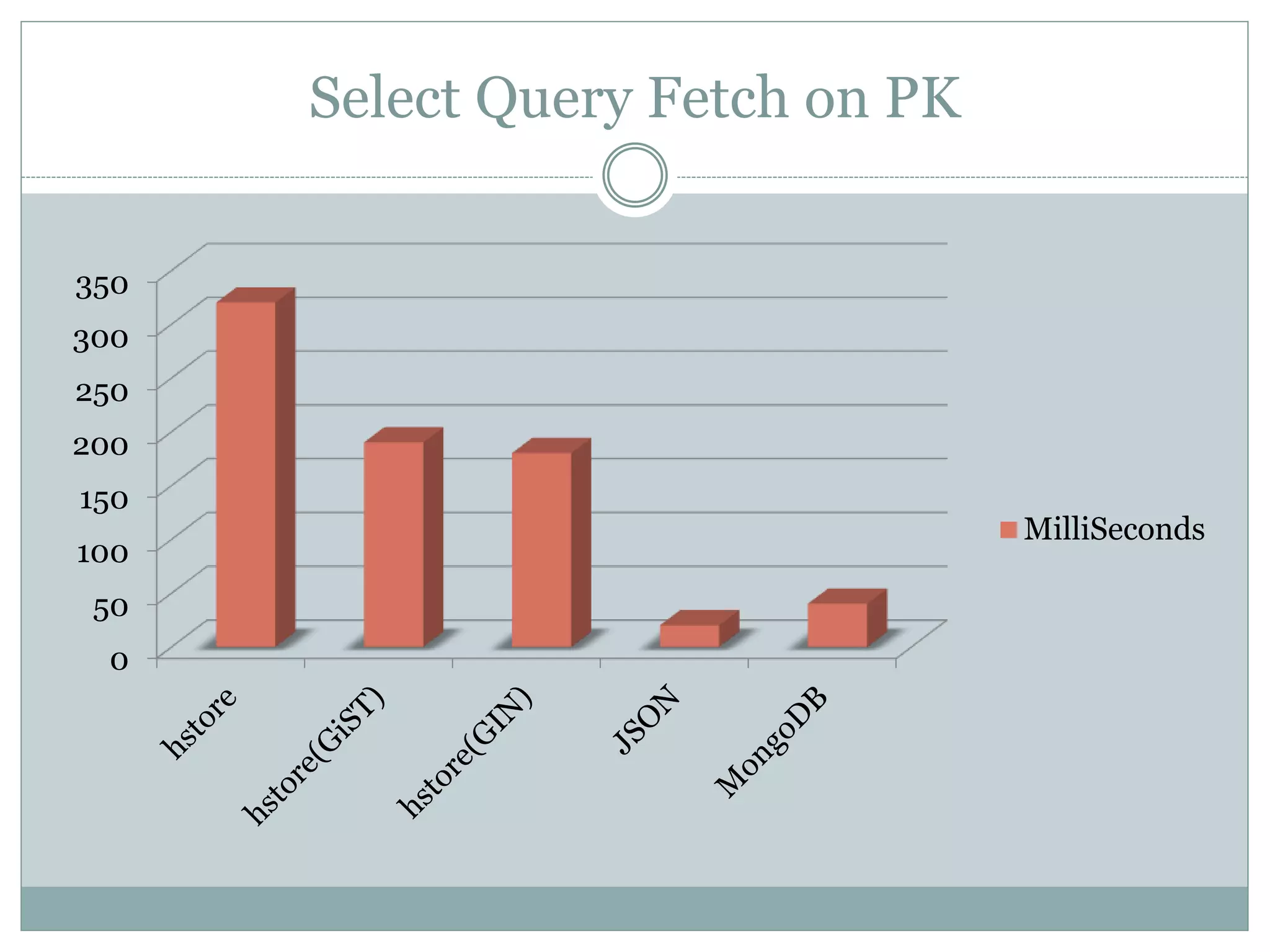

Select Query Fetch on PK
0
50
100
150
200
250
300
350
MilliSeconds

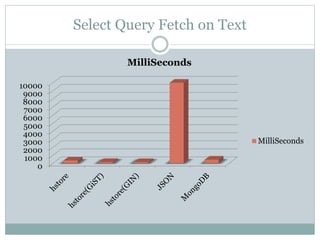

Select Query Fetch on Text
0
1000
2000
3000
4000
5000
6000
7000
8000
9000
10000
MilliSeconds
MilliSeconds

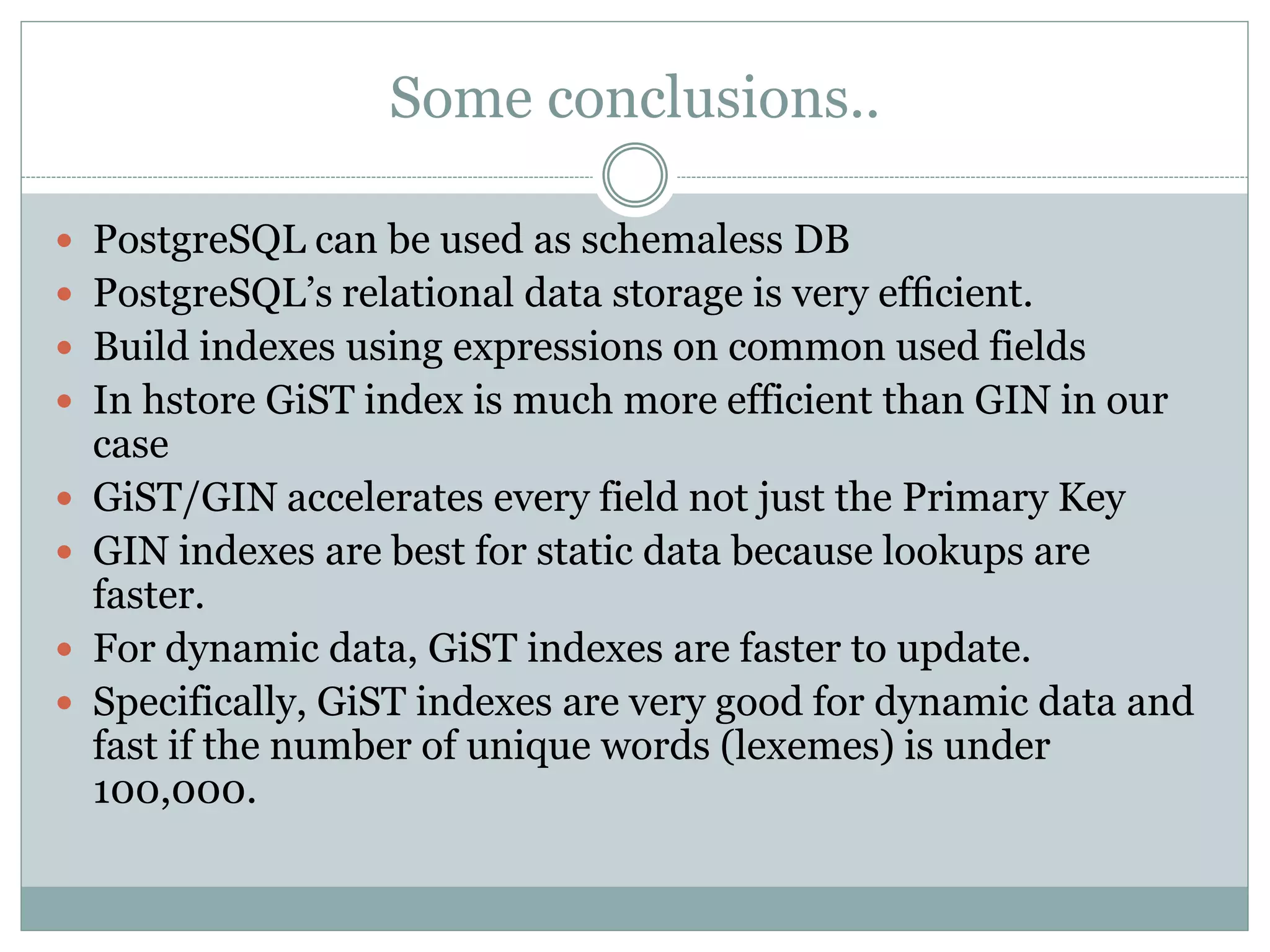

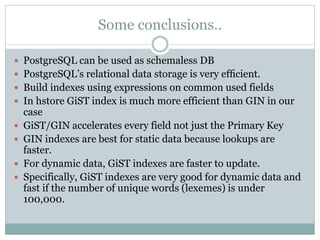

Some conclusions..
 PostgreSQL can be used as schemaless DB
 PostgreSQL’s relational data storage is very efficient.
 Build indexes using expressions on common used fields
 In hstore GiST index is much more efficient than GIN in our
case
 GiST/GIN accelerates every field not just the Primary Key
 GIN indexes are best for static data because lookups are
faster.
 For dynamic data, GiST indexes are faster to update.
 Specifically, GiST indexes are very good for dynamic data and
fast if the number of unique words (lexemes) is under
100,000.

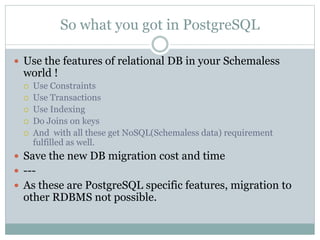

So what you got in PostgreSQL
 Use the features of relational DB in your Schemaless
world !
 Use Constraints
 Use Transactions
 Use Indexing
 Do Joins on keys
 And with all these get NoSQL(Schemaless data) requirement
fulfilled as well.
 Save the new DB migration cost and time
 ---
 As these are PostgreSQL specific features, migration to
other RDBMS not possible.

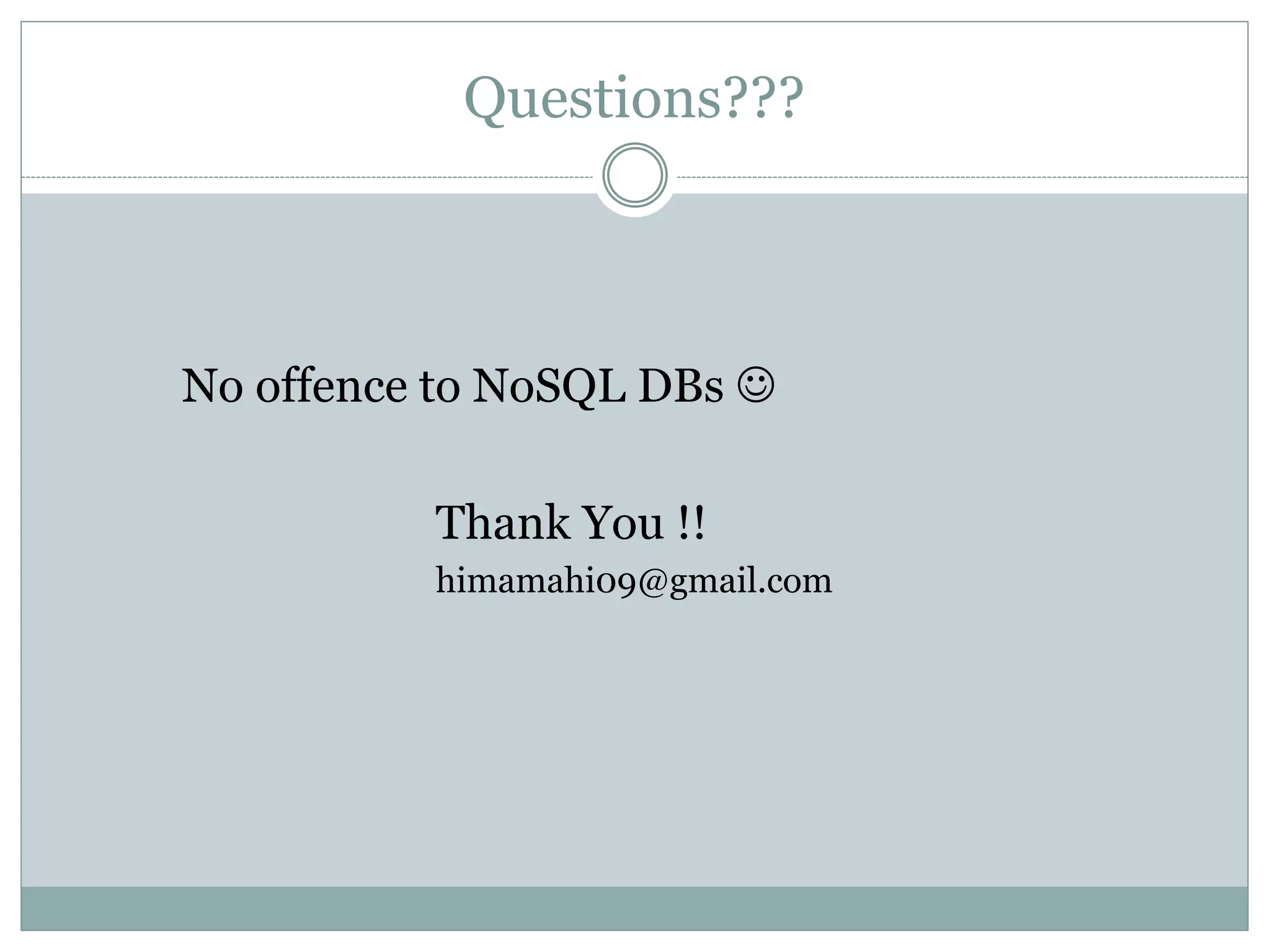

Questions???
No offence to NoSQL DBs 
Thank You !!
