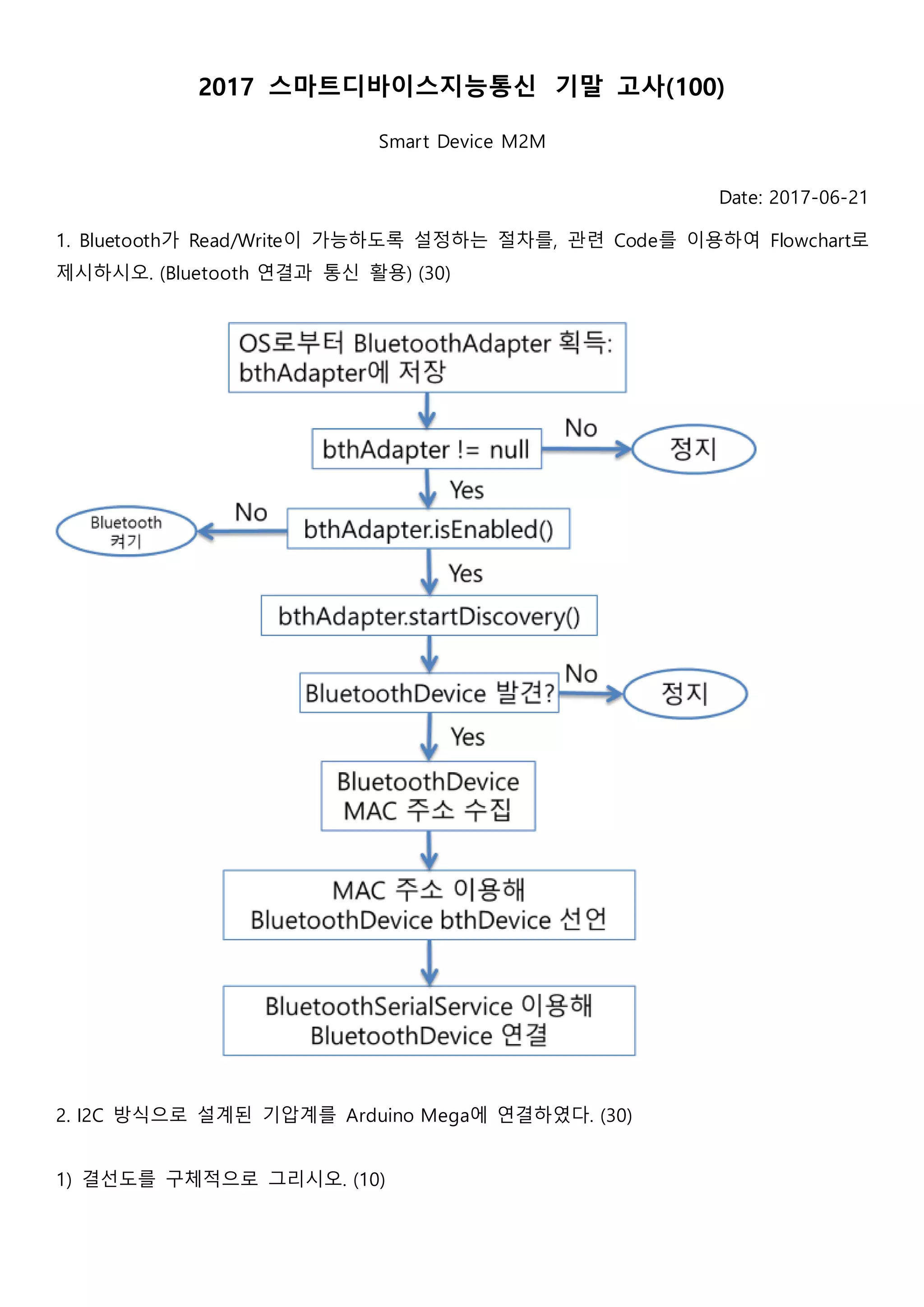

1. 2017 스마트디바이스지능통신 기말 고사(100)
Smart Device M2M
Date: 2017-06-21
1. Bluetooth가 Read/Write이 가능하도록 설정하는 절차를, 관련 Code를 이용하여 Flowchart로
제시하시오. (Bluetooth 연결과 통신 활용) (30)
2. I2C 방식으로 설계된 기압계를 Arduino Mega에 연결하였다. (30)
1) 결선도를 구체적으로 그리시오. (10)
2. SCL: Serial Clock
SDA: Serial Data
2) 아래 밑줄친 Code를 자세히 설명하시오. (20)
CBMP085 sensor; 기압계 정보를 담고 있는 CBMP085 class 를 sensor 로 선언
void setup() {
Wire.begin(); I2C 를 지원하는 Wire class를 초기화
sensor.Calibration(); } sensor 정보를 정확히 획득하기 위해 초기 보정 작업 실행
void loop() {
long pres = sensor.GetPressure(); 여러 sensor 정보중 기압을 측정하여 pres에 저장
delay(1000); }
3. SensorManager를 이용해 Smartphone으로 온도 정보를 얻으려 한다. (40)
1) Sensor 정보를 Event Listener로 획득하는 이유를 제시하라. (10)
Android에서 OS Message를 획득하는 방법은 BroadcastReceiver와 EventListener 두 가지가 있
다. EventListener는 빈번하게 발생하는 정보, 특정한 App만 필요로 하는 정보에 특화되어 있
으므로, 빈번하게 발생하여 특정 App만 필요한 Sensor 정보를 수신하는 목적으로
EventListener가 적절하다.
2) 아래 Code의 빈곳(#1, #2)을 채우라. (20)
public class MainActivity extends
AppCompatActivity {
public SensorManager sensorMx;
public Sensor sensorTemp;
public SensorEventLx sensorLx;
…
protected void onCreate(Bundle savedInstanceState) {
[#1: sensorMx, sensorTemp, sensorLx 초기화]
[#2: sensorLx 등록]
…
}
3. [#1: sensorMx, sensorTemp, sensorLx 초기화]
sensorMx = (SensorManager) getSystemService(SENSOR_SERVICE);
sensorTemp = sensorMx.getDefaultSensor(Sensor.TYPE_AMBIENT_TEMPERATURE);
sensorLx = new SensorEventLx();
[#2: sensorLx 등록]
sensorMx.registerListener(sensorLx, sensorTemp, SensorManager.SENSOR_DELAY_NORMAL);
3) SensorEventListener를 상속받은 SensorEventLx의 세부 Code를 제시하라. (10)
public class SensorEventLx implements SensorEventListener {
public float temp;
public void onSensorChanged(SensorEvent event) {
if (event.sensor.getType() == Sensor.TYPE_AMBIENT_TEMPERATURE)
temp = event.values[0];
… 나머지는 생략 가능
}
