Teleste ACE8
Intelligent 1.2 GHz node for fiber deep solutions
March 2020

2. Teleste Proprietary. All rights reserved. Company confidential
Teleste ACE8 – The first DOCSIS® 3.1 node in the market
The ACE8 optical node platform is a small
and cost-efficient node with intelligent
features. Besides cutting edge technology,
the node offers flexibility and usability for
acing fiber deep networks.
2

3. Teleste Proprietary. All rights reserved. Company confidential
Why ACE8 – Cutting edge technology and evolving
Since its introduction in 2014, the
node has been sold by large
numbers across Europe. The
platform has been constantly
upgraded over the years.
Today ACE8 offers exceptional
performance and economical
advantages over its competitors.
3
1st gen The latest gen
2014 2020

4. Teleste Proprietary. All rights reserved. Company confidential
Why ACE8 – Single output intelligent 1x1 node
Platform features include:
• Full spectrum DOCSIS® 3.1 compliant upstream and downstream
• Latest GaN technology with high output power
• Field upgradeable diplex filters
• Electrical level and slope controls & auto-alignment -> no plug-ins
• Electrically activated output splitting
• 27...65 VAC, 45...90 VAC, 100...130 VAC, and 205...255 VAC PSU options
• Wide selection of upstream transmitters
• Sophisticated remote management via DOCSIS or CATVisor/HMS
• Rigorous remote management via RIS modules
• Efficient ESD and Surge protection
4

5. Teleste Proprietary. All rights reserved. Company confidential
Feature Old School Nodes Teleste ACE8 Benefit
Downstream alignment Manual only Automatic and manual
Instant plug and play
Non-cable TV expert can finish installation worksUpstream alignment Manual only Automatic and manual
Plug-ins Several Not needed No logistic hassle or possibilities for human errors
Diplexers Fixed Replaceable Split frequencies can be changed afterwards
Ingress filters No Inbuilt Locating and isolating ingress sources
Management Only local Local and remote Remote diagnostics
Spectrum analyser No Optional Remote ingress and CPD analysis
Intelligent ALC No ALC with fully user
programmable pilots
Automatic adjustments
Temperature compensation
Spectrum analyzer No Downstream spectrum
analyser
Remote diagnostics
Key parameters – Intelligent features
5

6. Teleste Proprietary. All rights reserved. Company confidential
Teleste ACE8 - Intelligence in compact size
• Auto alignment: Network elements can be optimally aligned at touch of a
button.
• Automated on-going alignment keeps the network optimally aligned.
• Automatic ingress block: Ingress noise can automatically be blocked which
prevents entire segments from getting affected. Management system is
alerted and location of noise is shown on the map.
• Local and remote signal monitoring for upstream and downstream signals
• Network management: Network elements can be monitored and
configured via central management system. All adjustment are electrically
controlled in the nodes/amps. Network element settings are automatically
backed-up.
6

7. Teleste Proprietary. All rights reserved. Company confidential
Teleste ACE8 – Specifications
ACE8
Power consumption 22 W – 1.5 W (Power Save)
Housing (h x w x d) (6.7 (7.9) in x 9.1 in x 3.5 in), 5.1 lbs
Class of enclosure IP67, (IP54 if ventilation hole not closed)
EMC compatibility EN 50083-2
ESD, Surge 4 kV, 6 kV (EN 60728-3)
Feature Old School Nodes Teleste ACE8 Benefit
QAM level @1 GHz 46 dBmV 54 dBmV Serves 4 times bigger MDU
Downstream Up to 1 GHz Up to 1.2 GHz
Full spectrum DOCSIS 3.1 capable
Upstream Up to 85 MHz Up to 204 MHz
Hybrid technology GaAs Next gen GAN Higher RF performance
7

8. Teleste Proprietary. All rights reserved. Company confidential
Why ACE8 – Superior performance and features
• Despite its compact size the node
offers intelligent features and
premium performance
• The amplifier stages are based on
the latest GaN solution that
makes the usable gain range
especially wide and results in
enhanced noise perseverance
• Meets the latest network
requirements for DOCSIS 3.1 up to
1.2 GHz
8

9. Teleste Proprietary. All rights reserved. Company confidential
Why ACE8 – Monitoring and control
• All the adjustments are electrical
and controlled locally and/or
remotely
• Intelligent management features
reduce need for onsite manual
maintenance
• Automatic alignment feature can
perform several tasks during the
installation or at a later stage of
the ACE8 life cycle by just
pressing a single button
• Automatic and manual ingress
control
9

10. Teleste Proprietary. All rights reserved. Company confidential
Why ACE8 – Economical
 PSU with power factor
correction and clever design
guarantee low power
consumption
• Automatic features reduce the
time-consuming and
inefficient network operations
• Regular seasonal maintenance
visits are not needed
• Plug-in attenuators or
equalisers are not needed
• True plug-and-play installation
10

11. Teleste Proprietary. All rights reserved. Company confidential

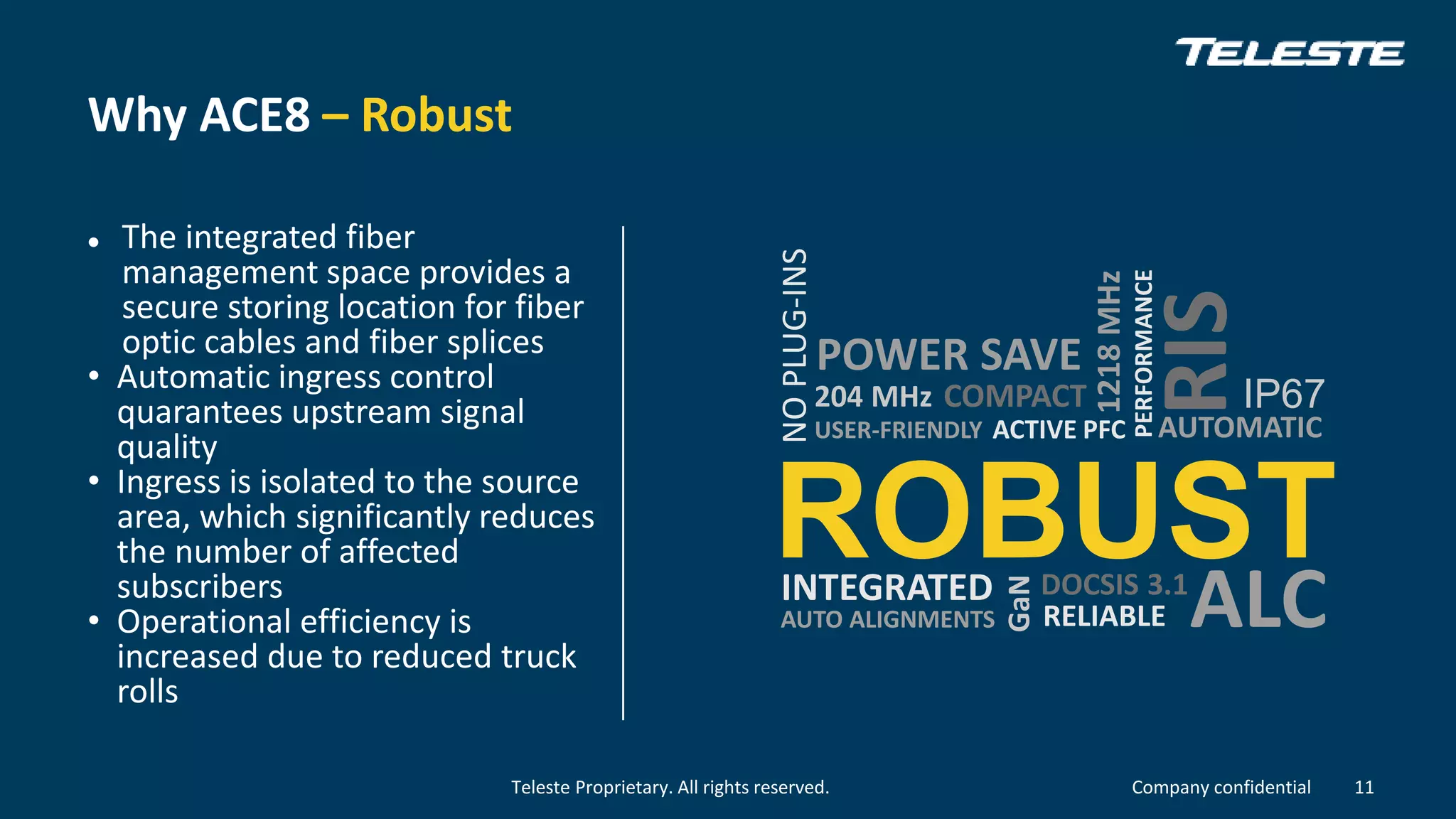

Why ACE8 – Robust
 The integrated fiber
management space provides a
secure storing location for fiber
optic cables and fiber splices
• Automatic ingress control
quarantees upstream signal
quality
• Ingress is isolated to the source
area, which significantly reduces
the number of affected
subscribers
• Operational efficiency is
increased due to reduced truck
rolls
11
ROBUST
AUTOMATIC
INTEGRATED
PERFORMANCE
COMPACT
USER-FRIENDLY
GaN
ACTIVE PFC
RIS
ALC
204 MHz
DOCSIS 3.1
RELIABLEAUTO ALIGNMENTS
IP67
NOPLUG-INS
POWER SAVE
1218MHz

12. Teleste Proprietary. All rights reserved. Company confidential
Protecting fibers against damage
12

13. Teleste Proprietary. All rights reserved. Company confidential

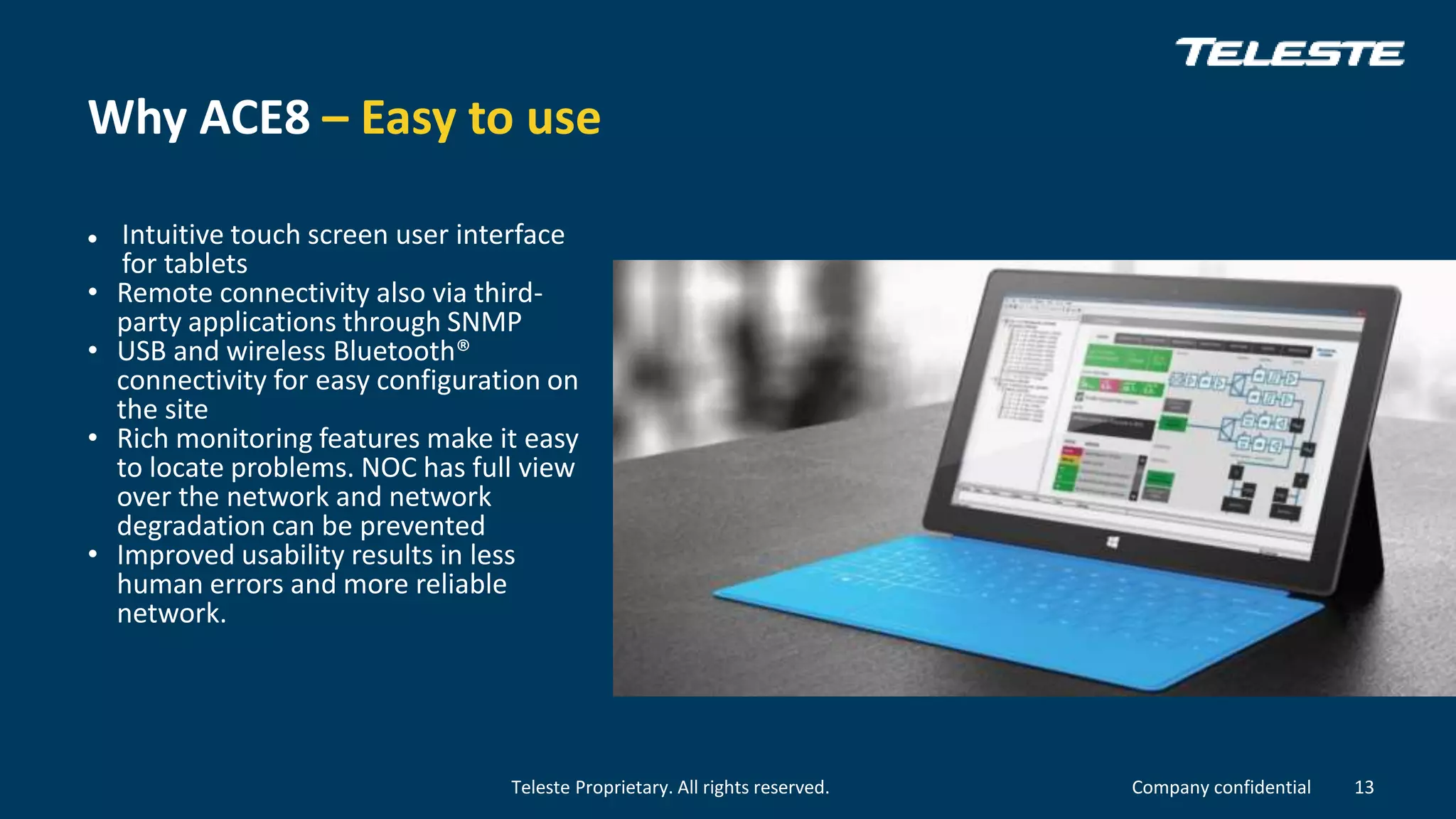

Why ACE8 – Easy to use
 Intuitive touch screen user interface
for tablets
• Remote connectivity also via third-
party applications through SNMP
• USB and wireless Bluetooth®
connectivity for easy configuration on
the site
• Rich monitoring features make it easy
to locate problems. NOC has full view
over the network and network
degradation can be prevented
• Improved usability results in less
human errors and more reliable
network.
13

14. Teleste Proprietary. All rights reserved. Company restricted
Deployments – 1.2 GHz & intelligent devices
Massive installed base of 1.2 GHz & intelligent device
• 410K+ HFC devices (1.2 GHz)
• 85K+ are with 200 MHz Upstream
• 320K+ Intelligent Devices
• 330K+ With remote control/monitoring
• 142K HMS transponders
• 90K DOCSIS transponders
• 102K One-way control
• Software is field proven and robust
• Extensive hardware and software R&D invested
• Network availability and OpEx savings are field proven
14

15. Teleste Proprietary. All rights reserved. Company confidential
Use cases
Greenfield and brownfield projects
• Network segmentations
• Network renovations
• Fiber deep deployments
• Multi-dwelling units
15

16. Teleste Proprietary. All rights reserved. Company confidential
Power Save Mode 33%
Installation 18%
Diplex Filter Change 19%
Ingress Control 15%
Repair/Maintenance 15%
Operational Savings: Split – 5 Year Case Study
16

17. Teleste Proprietary. All rights reserved. Company confidential

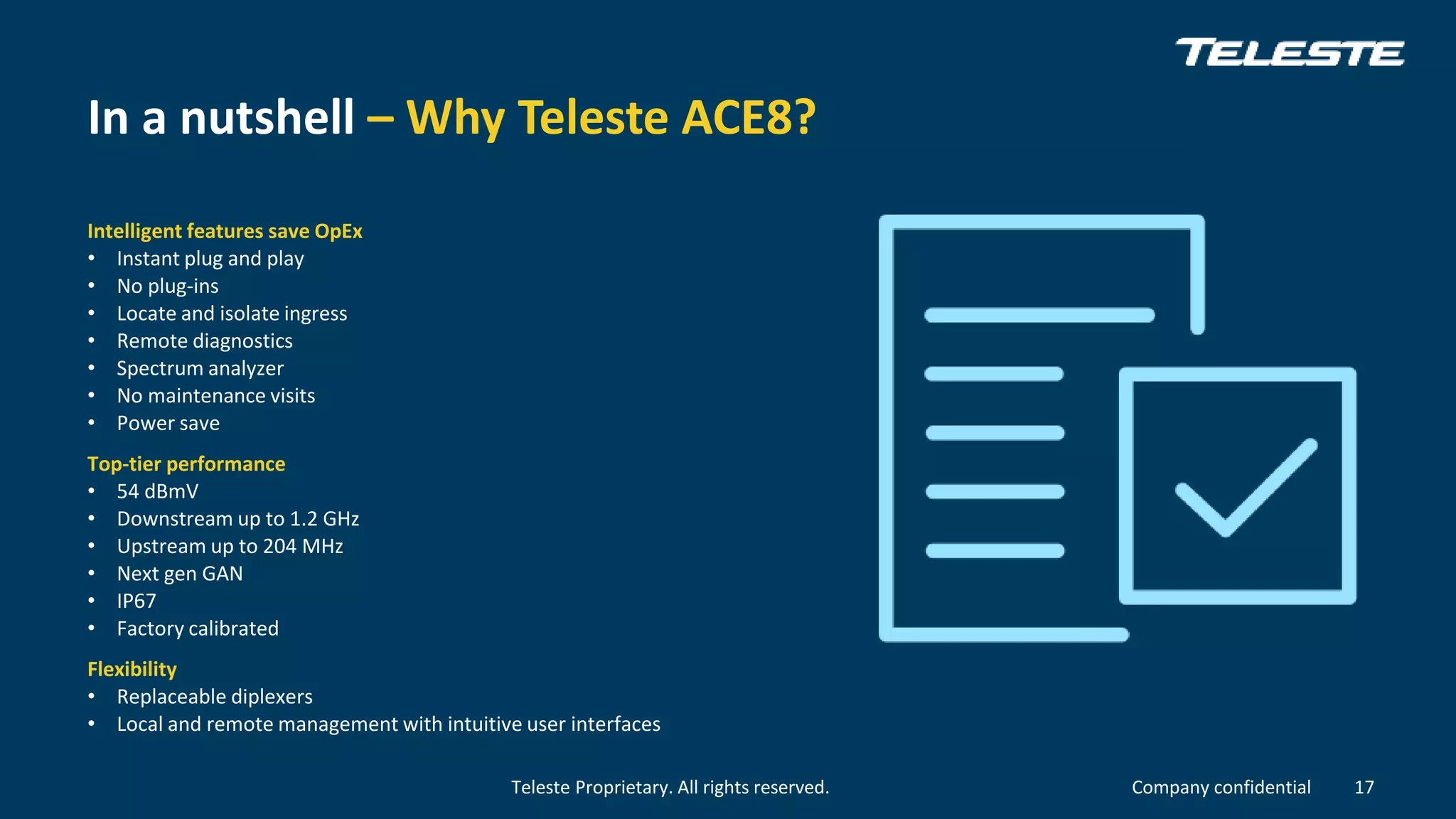

In a nutshell – Why Teleste ACE8?
Intelligent features save OpEx
• Instant plug and play
• No plug-ins
• Locate and isolate ingress
• Remote diagnostics
• Spectrum analyzer
• No maintenance visits
• Power save
Top-tier performance
• 54 dBmV
• Downstream up to 1.2 GHz
• Upstream up to 204 MHz
• Next gen GAN
• IP67
• Factory calibrated
Flexibility
• Replaceable diplexers
• Local and remote management with intuitive user interfaces
17
