- 1. Marketing Presentation Speaker Name Designation Date:00/00/0000 Marketing Presentation Speaker Name Designation Date: 00/00/0000 Evolution of Campus Switching Muninder Singh Sambi Sr. Director – Product Management Date: 28/05/2015
- 2. Evolving Campus Demands TheApplication Landscape Is Changing New Uses for Wired Ports, Greater Demand For Bandwidth Workspace Flexibility and Mobile Users/Devices Security Of Large Companies are Targeted by Malicious Traffic Mobility More Mobile Data Traffic by 2015 Application Assurance of Mobile Traffic Will Be Video Evolving Campus & Branch Requirements MOBILITY • Trusted Devices • 802.11ac • Onboarding INTERNET OF THINGS IOT for Carpeted Space Light as a Service Flexible WORKSPACE Less space per Employee SCALABILITY • High density 10G/40G in Campus • Network Virtualization • RF Optimization

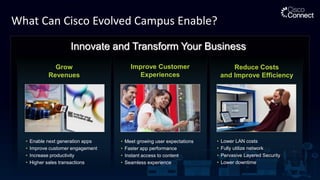

- 3. What Can CiscoEvolved Campus Enable? Innovate and Transform Your Business • Enable next generation apps • Improve customer engagement • Increase productivity • Higher sales transactions Grow Revenues • Meet growing user expectations • Faster app performance • Instant access to content • Seamless experience Improve Customer Experiences • Lower LAN costs • Fully utilize network • Pervasive Layered Security • Lower downtime Reduce Costs and Improve Efficiency

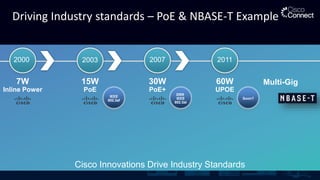

- 4. Driving Industry standards– PoE & NBASE-T Example Cisco Innovations Drive Industry Standards 2000 7W Inline Power 2003 15W PoE 2007 30W PoE+ 2011 60W UPOE IEEE 802.3af 2009 IEEE 802.3at Soon? Multi-Gig

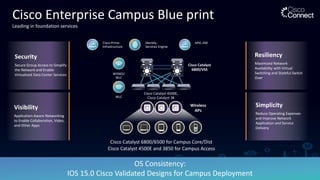

- 5. Cisco Enterprise CampusBlue print Leading in foundation services OS Consistency: IOS 15.0 Cisco Validated Designs for Campus Deployment Cisco Catalyst 6800/6500 for Campus Core/Dist Cisco Catalyst 4500E and 3850 for Campus Access Security Secure Group Access to Simplify the Network and Enable Virtualized Data Center Services Simplicity Reduce Operating Expenses and Improve Network Application and Service Delivery Resiliency Maximized Network Availability with Virtual Switching and Stateful Switch Over Visibility Application-Aware Networking to Enable Collaboration, Video, and Other Apps Wireless APs Cisco Catalyst 6800/VSS Cisco Catalyst 4500E, Cisco Catalyst 3K WISM2/ WLC WLC Identity Services Engine Cisco Prime Infrastructure APIC-EM

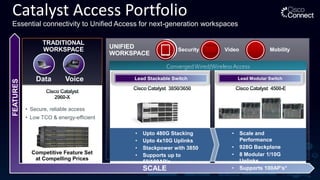

- 6. Catalyst Access Portfolio Essentialconnectivity to Unified Access for next-generation workspaces TRADITIONAL WORKSPACE • Secure, reliable access • Low TCO & energy-efficient Competitive Feature Set at Compelling Prices Data Voice UNIFIED WORKSPACE Security Video Mobility ConvergedWired/WirelessAccess • Upto 480G Stacking • Upto 4x10G Uplinks • Stackpower with 3850 • Supports up to 50/100AP’s • Scale and Performance • 928G Backplane • 8 Modular 1/10G Uplinks • Supports 100AP’s* Lead Modular Switch Lead Stackable Switch SCALE FEATURES

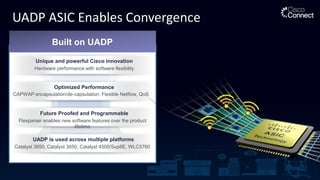

- 7. UADP ASIC EnablesConvergence Built on UADP Unique and powerful Cisco innovation Hardware performance with software flexibility Optimized Performance CAPWAP encapsulation/de-capsulation, Flexible Netflow, QoS Future Proofed and Programmable Flexparser enables new software features over the product lifetime UADP is used across multiple platforms Catalyst 3850, Catalyst 3650, Catalyst 4500/Sup8E, WLC5760

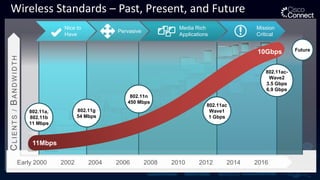

- 8. C L I E N T S / B A N D W I D T H Early 2000 20022004 2006 2008 2010 2012 2014 2016 Wireless Standards – Past, Present, and Future 802.11n 450 Mbps 802.11ac- Wave2 3.5 Gbps 6.9 Gbps Future 802.11ac Wave1 1 Gbps 802.11g 54 Mbps 802.11a, 802.11b 11 Mbps 10Gbps 11Mbps Pervasive Nice to Have Media Rich Applications Mission Critical
- 9.

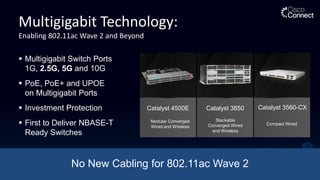

- 10. Multigigabit Technology: Enabling 802.11acWave 2 and Beyond Multigigabit Switch Ports 1G, 2.5G, 5G and 10G PoE, PoE+ and UPOE on Multigigabit Ports Investment Protection First to Deliver NBASE-T Ready Switches Catalyst 3850 Catalyst 3560-CX Catalyst 4500E Modular Converged Wired and Wireless Stackable Converged Wired and Wireless Compact Wired No New Cabling for 802.11ac Wave 2
- 11. Cisco Multigigabit Ethernet KeyCapabilities Maintain Switch to AP Reach at Higher Speeds Adaptive Rate Technology (FE, 1G, 2.5G, 5G, and 10G) Future proofed for higher speeds Infrastructure Investment Protection Supports 100m distance with Cat5e cabling up to 5G speeds for Brownfield Supports Cat6a cabling for Greenfield deployments for higher speeds POE/POE+/UPOE Cisco Innovation over 10GT Standard to support high end point power needs Standards Compliant – NBASE-T Alliance 1G and 10G BaseT IEEE standards, intermediate speeds “work in progress”

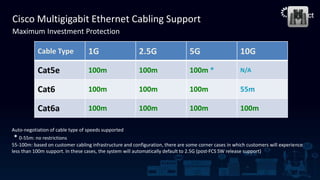

- 12. Auto-negotiation of cabletype of speeds supported * 0-55m: no restrictions 55-100m: based on customer cabling infrastructure and configuration, there are some corner cases in which customers will experience less than 100m support. In these cases, the system will automatically default to 2.5G (post-FCS SW release support) Cisco Multigigabit Ethernet Cabling Support Maximum Investment Protection Cable Type 1G 2.5G 5G 10G Cat5e 100m 100m 100m * N/A Cat6 100m 100m 100m 55m Cat6a 100m 100m 100m 100m
- 13. Industry’s First 40Guplink User access switch All 3850 Uplinks Are Supported on mGig switches 2x40Gig, QSFP 8x10Gig, SFP/SFP+ Compatibility 80G Non Blocking 80G Non Blocking Only work on mGig and 10G Fiber (24-port) Switches Performance Only work on mGig and 10G Fiber (24-port) Switches
- 14. The New Catalyst3850 10G Fiber Switches # 10G Ports 12 16 24 32 48 Total Capacity 160G 160G 320G 320G 640G Network Modules Supported C3850-NM-4-10G Slot Used C3850-NM-4-10G C3850-NM-8-10G C3850-NM-2-40G Slot Used 4x40G fixed (No FRU Network Module) Key Features Stacks with C3850 family – Stackwise and StackPower Availability June 2015 September 2015

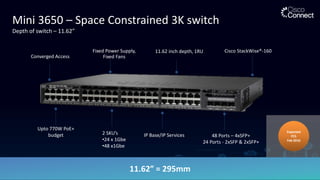

- 15. Mini 3650 –Space Constrained 3K switch Depth of switch – 11.62” 2 SKU’s •24 x 1Gbe •48 x1Gbe 48 Ports – 4xSFP+ 24 Ports - 2xSFP & 2xSFP+ Fixed Power Supply, Fixed Fans 11.62 inch depth, 1RU Cisco StackWise®-160 Converged Access Upto 770W PoE+ budget IP Base/IP Services Expected FCS Feb 2016 11.62” = 295mm

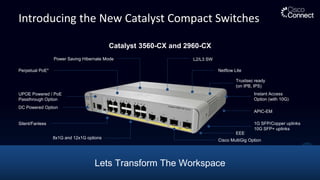

- 16. Introducing the NewCatalyst Compact Switches Lets Transform The Workspace Instant Access Option (with 10G) APIC-EM Trustsec ready (on IPB, IPS) Netflow Lite L2/L3 SW Power Saving Hibernate Mode Perpetual PoE* UPOE Powered / PoE Passthrough Option DC Powered Option Silent/Fanless 1G SFP/Copper uplinks 10G SFP+ uplinks EEE Cisco MultiGig Option 8x1G and 12x1G options Catalyst 3560-CX and 2960-CX
- 17. Collapsed Access Architecturesare driven by compact switches outside the wiring closet STAR TOPOLOGY Aggregation Desktop Switches Fiber Aggregation Desktop Switches Fiber Loops 1 2 RING TOPOLOGY Reduced Cost with Collapsed Access • Increased space utilization by eliminating wiring closets on each floor • Lower maintenance cost (management, cooling, etc.) • Reduced cabling infrastructure • ~20%* lower cost for fiber vs. copper • Reduced maintenance costs (management, cooling, etc) for Desktop Switches Deliver .. • Gigabit Connectivity and PoE • Simple Installation, mounting flexibility • Silent efficient operation (*) WIK Consult. Cost Comparison of the FTTO concept vs a structured cabling system with floor distributionunits

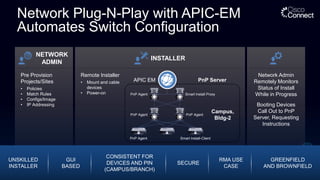

- 18. Network Admin Remotely Monitors Statusof Install While in Progress Booting Devices Call Out to PnP Server, Requesting Instructions Pre Provision Projects/Sites • Policies • Match Rules • Configs/Image • IP Addressing NETWORK ADMIN PnP Server Campus, Bldg-2 Smart Install-Client PnP Agent PnP Agent PnP Agent PnP Agent Smart Install Proxy APIC EM Remote Installer • Mount and cable devices • Power-on INSTALLER UNSKILLED INSTALLER GUI BASED CONSISTENT FOR DEVICES AND PIN (CAMPUS/BRANCH) SECURE GREENFIELD AND BROWNFIELD RMA USE CASE Network Plug-N-Play with APIC-EM Automates Switch Configuration

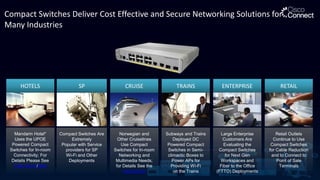

- 19. Compact Switches DeliverCost Effective and Secure Networking Solutions for Many Industries Mandarin Hotel* Uses the UPOE Powered Compact Switches for In-room Connectivity; For Details Please See Case Study/Blog HOTELS Retail Outlets Continue to Use Compact Switches for Cable Reduction and to Connect to Point of Sale Terminals RETAIL Compact Switches Are Extremely Popular with Service providers for SP Wi-Fi and Other Deployments SP Norwegian and Other Cruiselines Use Compact Switches for In-room Networking and Multimedia Needs; for Details See the Case Study CRUISE Subways and Trains Deployed DC Powered Compact Switches in Semi- climactic Boxes to Power APs for Providing Wi-Fi on the Trains TRAINS Large Enterprise Customers Are Evaluating the Compact Switches for Next Gen Workspaces and Fiber to the Office (FTTO) Deployments ENTERPRISE
- 20. Catalyst Backbone portfolio •Single touch point for entire campus network • POE/POE+ and stacking • Cat6K features at the access with feature consistency • Up to 80x10G ports in 4.5RU • Built-in sup with extensible slots • Catalyst 6500 DNA • Optimized for 10G density, price, and rich services • 7 slots 10RU • Up to 880G/slot capable • Tremendous investment protection • Optimized for 10/40/100G • Built for scalability and performance 6807-XL 6880-X 6800IA

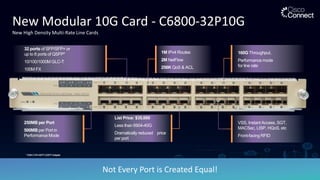

- 21. New Modular 10GCard - C6800-32P10G New High Density Multi-Rate Line Cards * with new CVR-4SFP-QSFP Adapter Cable 32 ports of SFP/SFP+ or up to 8 ports of QSFP* 10/100/1000M GLC-T 100M FX 250MB per Port 500MB per Port in Performance Mode VSS, Instant Access, SGT, MACSec, LISP, HQoS, etc Front-facing RFID 160G Throughput, Performance mode for line rate 1M IPv4 Routes 2M NetFlow 256K QoS & ACL Not Every Port is Created Equal! List Price: $35,000 Less than 6904-40G Dramatically reduced price per port * WithCVR-4SFP-QSFPAdapter

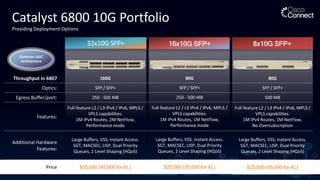

- 22. Throughput in 6807160G Optics: SFP / SFP+ Egress Buffer/port: 250 - 500 MB Features: Full-feature L2 / L3 IPv4 / IPv6, MPLS / VPLS capabilities. 1M IPv4 Routes, 2M NetFlow, Performance mode Additional Hardware Features: Large Buffers, VSS, Instant Access. SGT, MACSEC, LISP, Dual Priority Queues, 2 Level Shaping (HQoS) Price $35,000 (45,000 for XL) 80G SFP / SFP+ 250 - 500 MB Full-feature L2 / L3 IPv4 / IPv6, MPLS / VPLS capabilities. 1M IPv4 Routes, 1M NetFlow, Performance mode Large Buffers, VSS, Instant Access. SGT, MACSEC, LISP, Dual Priority Queues, 2 Level Shaping (HQoS) $25,000 (35,000 for XL) 80G SFP / SFP+ 500 MB Full-feature L2 / L3 IPv4 / IPv6, MPLS / VPLS capabilities. 1M IPv4 Routes, 1M NetFlow, No Oversubscription Large Buffers, VSS, Instant Access. SGT, MACSEC, LISP, Dual Priority Queues, 2 Level Shaping (HQoS) $25,000 (35,000 for XL) 32x10G SFP+ 16x10G SFP+ 8x10G SFP+ Catalyst 6800 10G Portfolio Providing Deployment Options Common ASIC Architecture
- 23. All Catalyst 6800Features in a Smaller Fixed Form Factor Depth: 21.8” Height: 2RU 40 ports of SFP/SFP+ up to 12 ports of QSFP 10/100/1000M GLC-T 100M FX 256K IPv4 Route 1.5M NetFlow 64K QoS / ACL 2 x 40G QSFP Uplinks Breakout to 4 x SFP+ 750W / 1100W RedundantAC/DC Front-to-BackAirflow VSS, Instant Access, MPLS, LISP, SGT, MACSec, HQoS, etc High-ScaleControlPlane with X86 CPU Higher ScaleforIA NTE: $50,000 Target for Less Dramatically reduced price per port Introducing the New Catalyst 6840-X Target August 2015

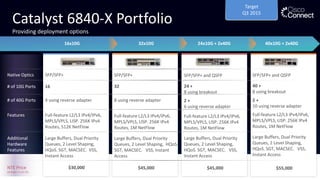

- 24. 15.2(1)SY Q4CY2014 15.2(1)SY Q4CY2014 32x10G 24x10G +2x40G 40x10G + 2x40G 16x10G Native Optics SFP/SFP+ # of 10G Ports 16 # of 40G Ports 4 using reverse adapter Features Full-feature L2/L3 IPv4/IPv6, MPLS/VPLS, LISP. 256K IPv4 Routes, 512K NetFlow Additional Hardware Features Large Buffers, Dual Priority Queues, 2 Level Shaping, HQoS. SGT, MACSEC. VSS, Instant Access NTE Price (includes 2 x AC PS) $30,000 SFP/SFP+ 32 8 using reverse adapter Full-feature L2/L3 IPv4/IPv6, MPLS/VPLS, LISP. 256K IPv4 Routes, 1M NetFlow Large Buffers, Dual Priority Queues, 2 Level Shaping, HQoS. SGT, MACSEC. VSS, Instant Access $45,000 SFP/SFP+ and QSFP 24 + 8 using breakout 2 + 6 using reverse adapter Full-feature L2/L3 IPv4/IPv6, MPLS/VPLS, LISP. 256K IPv4 Routes, 1M NetFlow Large Buffers, Dual Priority Queues, 2 Level Shaping, HQoS. SGT, MACSEC. VSS, Instant Access $45,000 SFP/SFP+ and QSFP 40 + 8 using breakout 2 + 10 using reverse adapter Full-feature L2/L3 IPv4/IPv6, MPLS/VPLS, LISP. 256K IPv4 Routes, 1M NetFlow Large Buffers, Dual Priority Queues, 2 Level Shaping, HQoS. SGT, MACSEC. VSS, Instant Access $55,000 Catalyst 6840-X Portfolio Providing deployment options Target Q3 2015

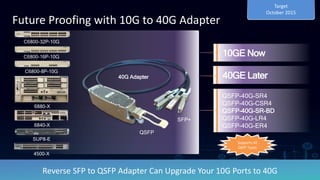

- 25. 10GE Now 40GE Later QSFP-40G-SR4 QSFP-40G-CSR4 QSFP-40G-SR-BD QSFP-40G-LR4 QSFP-40G-ER4 FutureProofing with 10G to 40G Adapter C6800-8P-10G 6880-X SUP8-E 4500-X C6800-16P-10G C6800-32P-10G Reverse SFP to QSFP Adapter Can Upgrade Your 10G Ports to 40G 40G Adapter QSFP Target October 2015 SFP+ 6840-X Supports All QSFP Types

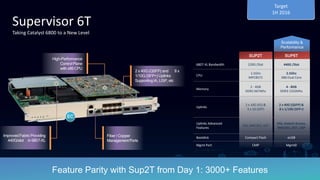

- 26. Scalability & Performance Supervisor 6T TakingCatalyst 6800 to a New Level Feature Parity with Sup2T from Day 1: 3000+ Features EC SUP2T SUP6T 6807-XL Bandwidth 220G /Slot 440G /Slot CPU 1.5Ghz MPC8572 2.5Ghz X86 Dual Core Memory 2 - 4GB DDR2 667Mhz 4 - 8GB DDR3 1333Mhz Uplinks 2 x 10G (X2) & 3 x 1G (SFP) 2 x 40G (QSFP) & 8 x 1/10G (SFP+) Uplinks Advanced Features VSS, MACSEC, SGT VSS, Instant Access, MACSEC, SGT, LISP Bootdisk Compact Flash eUSB Mgmt Port CMP Mgmt0 High-Performance ControlPlane with x86 CPU 2 x 40G (QSFP) and 8 x 1/10G (SFP+) Uplinks SupportingIA, LISP, etc Fiber / Copper ManagementPorts Improved Fabric Providing 440G/slot in 6807-XL Target 1H 2016

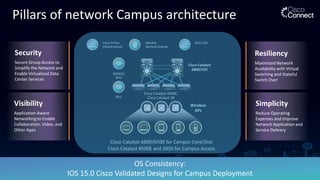

- 27. Pillars of networkCampus architecture OS Consistency: IOS 15.0 Cisco Validated Designs for Campus Deployment Cisco Catalyst 6800/6500 for Campus Core/Dist Cisco Catalyst 4500E and 3850 for Campus Access Security Secure Group Access to Simplify the Network and Enable Virtualized Data Center Services Simplicity Reduce Operating Expenses and Improve Network Application and Service Delivery Resiliency Maximized Network Availability with Virtual Switching and Stateful Switch Over Visibility Application-Aware Networking to Enable Collaboration, Video, and Other Apps Wireless APs Cisco Catalyst 6800/VSS Cisco Catalyst 4500E, Cisco Catalyst 3K WISM2/ WLC WLC Identity Services Engine Cisco Prime Infrastructure APIC-EM
- 28. Network as aSensor Lancope StealthWatch and ISE Bring Security Analytics Voice Data Suppliers Guest Network Infrastructure 174.45.21.12 192.168.10.123 10.237.22.232 192.168.254.187 Employee 1 Finance Department Personal iPAD 2 San Jose Branch Contractor 2 LOB X Android Richardson, Floor 3 Partner A LOB Y Managed MAC Air New York Guest Windows Tablet RTP Lobby 1st Floor Lancope Visibility Cisco ISE DHCP/DNS RADIUS SNMP Profiling Attribute Sources NMAP HTTP NetFlow Profiler Feed Service • Automatic updates • New device support NETWORK / USER CONTEXT How What Who Where When
- 29. Network as anEnforcer Working with network to restrict access Voice Data Suppliers Guest Network Infrastructure Employee 1 Finance Department Personal iPAD 2 San Jose Branch Contractor 2 LOB X Android Richardson, Floor 3 Partner A LOB Y MAC Air New York Guest Windows Tablet RTP Lobby 1st Floor Lancope Visibility Cisco ISE Quarantine

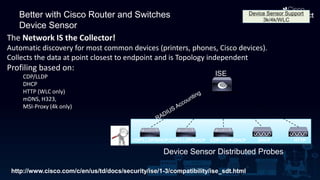

- 30. Better with CiscoRouter and Switches Device Sensor The Network IS the Collector! Automatic discovery for most common devices (printers, phones, Cisco devices). Collects the data at point closest to endpoint and is Topology independent Profiling based on: CDP/LLDP DHCP HTTP (WLC only) mDNS, H323, MSI-Proxy (4k only) Device Sensor Distributed Probes ISE Device Sensor Support 3k/4k/WLC CDP/LLDP/DHCP DHCP HTTP CDP/LLDP/DHCP/CDP/LLDP/DHCP http://www.cisco.com/c/en/us/td/docs/security/ise/1-3/compatibility/ise_sdt.html

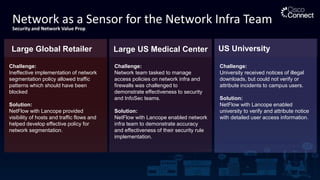

- 31. Network as aSensor for the Network Infra Team Security and Network Value Prop Large Global Retailer Large US Medical Center US University Challenge: Ineffective implementation of network segmentation policy allowed traffic patterns which should have been blocked Solution: NetFlow with Lancope provided visibility of hosts and traffic flows and helped develop effective policy for network segmentation. Challenge: Network team tasked to manage access policies on network infra and firewalls was challenged to demonstrate effectiveness to security and InfoSec teams. Solution: NetFlow with Lancope enabled network infra team to demonstrate accuracy and effectiveness of their security rule implementation. Challenge: University received notices of illegal downloads, but could not verify or attribute incidents to campus users. Solution: NetFlow with Lancope enabled university to verify and attribute notice with detailed user access information.

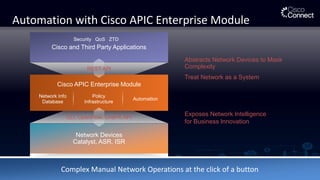

- 32. Cisco and ThirdParty Applications Automation with Cisco APIC Enterprise Module Abstracts Network Devices to Mask Complexity Treat Network as a System Exposes Network Intelligence for Business Innovation Network Devices Catalyst, ASR, ISR CLI, OpenFlow, OnePK API Security QoS ZTD Cisco APIC Enterprise Module Network Info Database Policy Infrastructure Automation REST API Complex Manual Network Operations at the click of a button

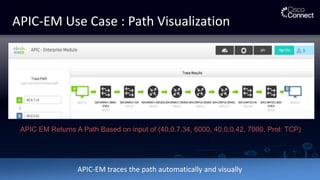

- 33. Problem Statement: • Todayusers manually query each network device to determine what paths it has to its nearest neighbors to get from point A to point B • Time consuming and error prone APIC-EM Use Case : Path Visualization APIC EM Returns A Path Based on input of (40.0.7.34, 6000, 40.0.0.42, 7000, Prot: TCP) APIC-EM traces the path automatically and visually

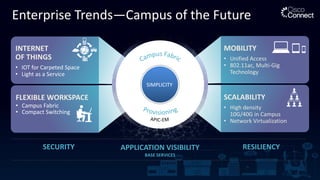

- 34. Enterprise Trends—Campus ofthe Future INTERNET OF THINGS • IOT for Carpeted Space • Light as a Service FLEXIBLE WORKSPACE • Campus Fabric • Compact Switching MOBILITY • Unified Access • 802.11ac, Multi-Gig Technology SCALABILITY • High density 10G/40G in Campus • Network Virtualization Enterprise Trends APPLICATION VISIBILITY BASE SERVICES SECURITY RESILIENCY SIMPLICITY
