Коротко о главном:
 Минутка истории. Edge-Core, Accton.
 Оборудование для м .
 WEB SMART “ ”.
 Stack .
 10G .
 .

3. www.romsat.ua
Edge-Core – успешный проект Accton
Enterprise Network
Worldwide, Since 2004
SMB/e & SOHO Network
Worldwide, Since 1997
Брэнд
Manufacturing
China, Since 2005
Производство
• Компания Edge-Core основана 1 января 2004 года
• Главный офис находится в «городе ветров» Синьчжу(新竹市) Тайвань
• Штат компании: 150 сотрудников
• Отдел разработки: 50+ профессионалов
• Высококвалифицированные инженеры технической поддержки
• Производственная база предоставлена Accton
• Регулярные консультации у Cisco и других лидеров рынка по
оптимизации бизнеса

4. www.romsat.ua
Accton Group
 Основана в 1988 году
 Офис – Научно-индустриальный парк города
Синьчжу, Тайвань
 Офис в Santa Clara, солнечной Калифорнии с
соседями Intel, Nvidia, Sun Microsystems
 Штат более 4000 сотрудников по всему миру
 Более 40 миллионов коммутаторов в год
 В состав компании входят:

5. www.romsat.ua
Корпоративные
решения
Корпоративные
беспроводные решения
Решения для
датацентров
Решения для
операторов связи
Направления работы компании

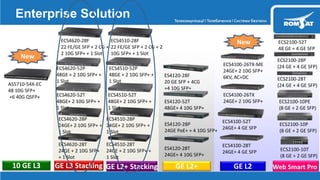

6. GE L2GE L3 Stacking10 GE L3 GE L2+ Stacking
AS5710-54X-EC
48 10G SFP+
+6 40G QSFP+
Enterprise Solution
ECS4510-28F
22 FE/GE SFP + 2 CG + 2
10G SFP+ + 1 Slot
ECS4510-28T
24GE + 2 10G SFP+ +
1 Slot
ECS4510-52T
48GE+ 2 10G SFP+ +
1 Slot
ECS4510-52P
48GE + 2 10G SFP+ +
1 Slot
ECS4620-28F
22 FE/GE SFP + 2 CG +
2 10G SFP+ + 1 Slot
ECS4620-28T
24GE + 2 10G SFP+
+ 1 Slot
ECS4620-52T
48GE+ 2 10G SFP+ +
1 Slot
ECS4620-52P
48GE + 2 10G SFP+ +
1 Slot
ECS4620-28P
24GE+ 2 10G SFP+ +
1 Slot
GE L2+
ES4120-28T
24GE+ 4 10G SFP+
ES4120-52T
48GE+ 4 10G SFP+
ES4120-28F
20 GE SFP + 4CG
+4 10G SFP+
ECS4510-28P
24GE+ 2 10G SFP+ +
1 Slot
New
ES4120-28P
24GE PoE+ + 4 10G SFP+
ECS4100-28T
24GE+ 4 GE SFP
ECS4100-52T
24GE+ 4 GE SFP
ECS4100-26TX
24GE+ 2 10G SFP+
ECS4100-26TX-ME
24GE+ 2 10G SFP+
6KV, AC+DC
New
ECS2100-10T
(8 GE + 2 GE SFP)
ECS2100-10P
(8 GE + 2 GE SFP)
ECS2100-10PE
(8 GE + 2 GE SFP)
ECS2100-28T
(24 GE + 4 GE SFP)
ECS2100-28P
(24 GE + 4 GE SFP)
Web Smart Pro
ECS2100-52T
48 GE + 4 GE SFP

7. ECS2100 Series
WEB SMART “ ”

8. • ECS2100 Series is our new series combination with web-smart and
L2 managed switch.
• ECS2100 takes web-smart cost-effective advantage and provides
the plentiful of management methods like L2 Managed switches
with console port.
• With powerful software & hardware features, ECS2100 is designed
for SMB & Enterprise market and provides complete solution from
1G to 10G, including both non-PoE and PoE options.
ECS2100 Target Market
Office Shopping MailHOTEL
Hospital Campus

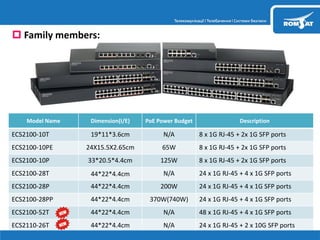

9. Model Name Dimension(I/E) PoE Power Budget Description
ECS2100-10T 19*11*3.6cm N/A 8 x 1G RJ-45 + 2x 1G SFP ports
ECS2100-10PE 24X15.5X2.65cm 65W 8 x 1G RJ-45 + 2x 1G SFP ports
ECS2100-10P 33*20.5*4.4cm 125W 8 x 1G RJ-45 + 2x 1G SFP ports
ECS2100-28T 44*22*4.4cm N/A 24 x 1G RJ-45 + 4 x 1G SFP ports
ECS2100-28P 44*22*4.4cm 200W 24 x 1G RJ-45 + 4 x 1G SFP ports
ECS2100-28PP 44*22*4.4cm 370W(740W) 24 x 1G RJ-45 + 4 x 1G SFP ports
ECS2100-52T 44*22*4.4cm N/A 48 x 1G RJ-45 + 4 x 1G SFP ports
ECS2110-26T 44*22*4.4cm N/A 24 x 1G RJ-45 + 2 x 10G SFP ports
 Family members:

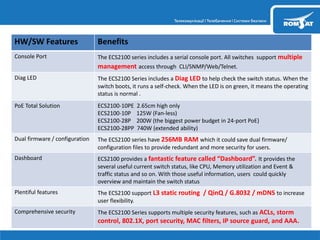

10. HW/SW Features Benefits
Console Port The ECS2100 series includes a serial console port. All switches support multiple
management access through CLI/SNMP/Web/Telnet.
Diag LED The ECS2100 Series includes a Diag LED to help check the switch status. When the
switch boots, it runs a self-check. When the LED is on green, it means the operating
status is normal .
PoE Total Solution ECS2100-10PE 2.65cm high only
ECS2100-10P 125W (Fan-less)
ECS2100-28P 200W (the biggest power budget in 24-port PoE)
ECS2100-28PP 740W (extended ability)
Dual firmware / configuration The ECS2100 series have 256MB RAM which it could save dual firmware/
configuration files to provide redundant and more security for users.
Dashboard ECS2100 provides a fantastic feature called “Dashboard”. It provides the
several useful current switch status, like CPU, Memory utilization and Event &
traffic status and so on. With those useful information, users could quickly
overview and maintain the switch status
Plentiful features The ECS2100 support L3 static routing / QinQ / G.8032 / mDNS to increase
user flexibility.
Comprehensive security The ECS2100 Series supports multiple security features, such as ACLs, storm
control, 802.1X, port security, MAC filters, IP source guard, and AAA.

11. Network
Application

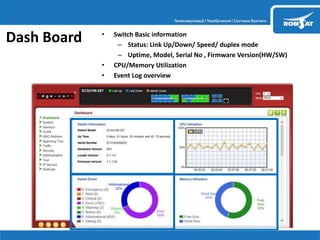

12. Dash Board • Switch Basic information
– Status: Link Up/Down/ Speed/ duplex mode
– Uptime, Model, Serial No , Firmware Version(HW/SW)
• CPU/Memory Utilization
• Event Log overview

13. Feature List & Comparison

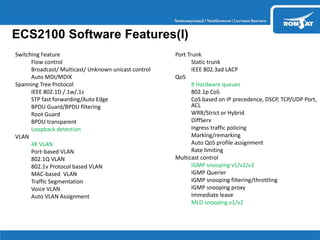

14.  Switching Feature
 Flow control
 Broadcast/ Multicast/ Unknown unicast control
 Auto MDI/MDIX
 Spanning Tree Protocol
 IEEE 802.1D /.1w/.1s
 STP fast forwarding/Auto Edge
 BPDU Guard/BPDU filtering
 Root Guard
 BPDU transparent
 Loopback detection
 VLAN
 4K VLAN
 Port-based VLAN
 802.1Q VLAN
 802.1v Protocol based VLAN
 MAC-based VLAN
 Traffic Segmentation
 Voice VLAN
 Auto VLAN Assignment
 Port Trunk
 Static trunk
 IEEE 802.3ad LACP
 QoS
 8 Hardware queues
 802.1p CoS
 CoS based on IP precedence, DSCP, TCP/UDP Port,
ACL
 WRR/Strict or Hybrid
 DiffServ
 Ingress traffic policing
 Marking/remarking
 Auto QoS profile assignment
 Rate limiting
 Multicast control
 IGMP snooping v1/v2/v3
 IGMP Querier
 IGMP snooping filtering/throttling
 IGMP snooping proxy
 Immediate leave
 MLD snooping v1/v2
ECS2100 Software Features(I)

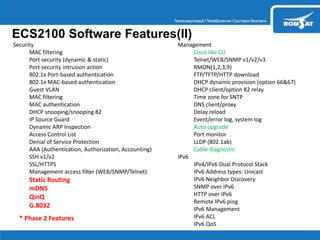

15.  Security
 MAC filtering
 Port security (dynamic & static)
 Port security intrusion action
 802.1x Port-based authentication
 802.1x MAC-based authentication
 Guest VLAN
 MAC filtering
 MAC authentication
 DHCP snooping/snooping 82
 IP Source Guard
 Dynamic ARP Inspection
 Access Control List
 Denial of Service Protection
 AAA (Authentication, Authorization, Accounting)
 SSH v1/v2
 SSL/HTTPS
 Management access filter (WEB/SNMP/Telnet)
 Static Routing
 mDNS
 QinQ
 G.8032
* Phase 2 Features
 Management
 Cisco like CLI
 Telnet/WEB/SNMP v1/v2/v3
 RMON(1,2,3,9)
 FTP/TFTP/HTTP download
 DHCP dynamic provision (option 66&67)
 DHCP client/option 82 relay
 Time zone for SNTP
 DNS client/proxy
 Delay reload
 Event/error log, system log
 Auto upgrade
 Port monitor
 LLDP (802.1ab)
 Cable diagnostic
 IPv6
 IPv4/IPv6 Dual Protocol Stack
 IPv6 Address types: Unicast
 IPv6 Neighbor Discovery
 SNMP over IPv6
 HTTP over IPv6
 Remote IPv6 ping
 IPv6 Management
 IPv6 ACL
 IPv6 QoS
ECS2100 Software Features(II)

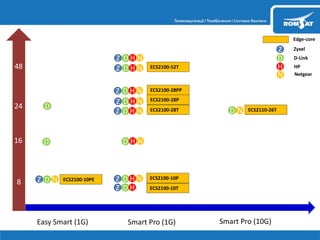

16. ECS2100-10PE
Edge-core
Zyxel
Easy Smart (1G) Smart Pro (1G) Smart Pro (10G)
8
16
24
48
Z
D D-Link
HP
Netgear
H
N
Z D H N
Z D H
Z D N
D
ECS2100-10P
ECS2100-10T
H N
Z D H N
ECS2100-28P
ECS2100-28T
ECS2100-28PP
Z D H N
Z D H N
ECS2100-52TZ D H N
ECS2110-26TD N
Z D H N
D
D

17. Feature Comparison with Zyxel
Edge-core (ECS2100 Series) Zyxel (GS1200 & GS1920 Series)
ECS2100-10T support internal power GS1900-8 is external power only
Only 24/52 port is internal power.
ECS2100-10P support 125W (Fan-less) GS1900-HP support 77W (Fan-less) only
ECS2100-28P support 200W GS1900-24HP support 170W only
ECS2100-28PP support ( 370W) and have a ability
extend to 740W
GS1920-24HP support 370W. No extended ability.
Support Multi management
(CLI/ Web/ SNMP / Telnet)
No CLI
Plentiful Software feature
(Dashboard/Static routing/ Cable Diagnostic /mDNS/
QinQ/G.8032
No
Dual Firmware / Configuration Dual Firmware / Configuration
PoE Timer New Scheduled PoE

18. Feature Comparison with HP
EC (ECS2100 Series) JG921-JG928A (1920 Series)
ECS2100-10P support 125W (Fan-less) JG921A support 65W (Fan-less)
ECS2100-28P support 200W JG925A support 180W only
Support Multi management
(CLI/ Web/ SNMP / Telnet)
Support Multi management
(Limited CLI/ Web/ SNMP / Web)
ECS2100-28PP support ( 370W) and have a ability
extend to 740W
JG926A support 370W. No extended ability.
Operating temp 0-50oC (10P 40oC) Operating temp 0-40oC
Plentiful Software feature
(Dashboard/Static routing(56 entries) / Cable
Diagnostic /mDNS/ QinQ/G.8032
Static routing(32 entries)
Dual Firmware / Configuration Dual Firmware
PoE Timer No

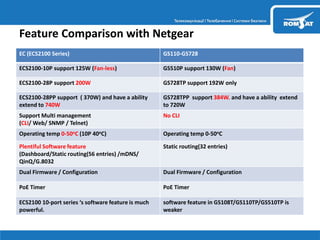

19. Feature Comparison with Netgear
EC (ECS2100 Series) GS110-GS728
ECS2100-10P support 125W (Fan-less) GS510P support 130W (Fan)
ECS2100-28P support 200W GS728TP support 192W only
ECS2100-28PP support ( 370W) and have a ability
extend to 740W
GS728TPP support 384W. and have a ability extend
to 720W
Support Multi management
(CLI/ Web/ SNMP / Telnet)
No CLI
Operating temp 0-50oC (10P 40oC) Operating temp 0-50oC
Plentiful Software feature
(Dashboard/Static routing(56 entries) /mDNS/
QinQ/G.8032
Static routing(32 entries)
Dual Firmware / Configuration Dual Firmware / Configuration
PoE Timer PoE Timer
ECS2100 10-port series ‘s software feature is much
powerful.
software feature in GS108T/GS110TP/GS510TP is
weaker

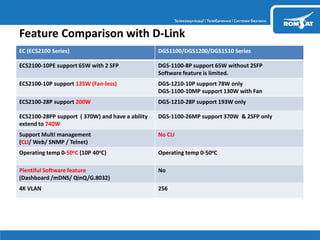

20. Feature Comparison with D-Link
EC (ECS2100 Series) DGS1100/DGS1200/DGS1510 Series
ECS2100-10PE support 65W with 2 SFP DGS-1100-8P support 65W without 2SFP
Software feature is limited.
ECS2100-10P support 125W (Fan-less) DGS-1210-10P support 78W only
DGS-1100-10MP support 130W with Fan
ECS2100-28P support 200W DGS-1210-28P support 193W only
ECS2100-28PP support ( 370W) and have a ability
extend to 740W
DGS-1100-26MP support 370W & 2SFP only
Support Multi management
(CLI/ Web/ SNMP / Telnet)
No CLI
Operating temp 0-50oC (10P 40oC) Operating temp 0-50oC
Plentiful Software feature
(Dashboard /mDNS/ QinQ/G.8032)
No
4K VLAN 256

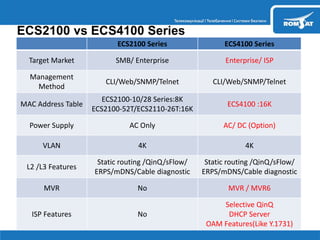

21. ECS2100 vs ECS4100 Series
ECS2100 Series ECS4100 Series
Target Market SMB/ Enterprise Enterprise/ ISP
Management
Method
CLI/Web/SNMP/Telnet CLI/Web/SNMP/Telnet
MAC Address Table
ECS2100-10/28 Series:8K
ECS2100-52T/ECS2110-26T:16K
ECS4100 :16K
Power Supply AC Only AC/ DC (Option)
VLAN 4K 4K
L2 /L3 Features
Static routing /QinQ/sFlow/
ERPS/mDNS/Cable diagnostic
Static routing /QinQ/sFlow/
ERPS/mDNS/Cable diagnostic
MVR No MVR / MVR6
ISP Features No
Selective QinQ
DHCP Server
OAM Features(Like Y.1731)

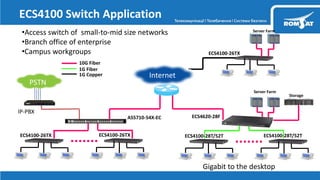

22. ECS4100 Switch Application
ECS4100-26TX
Server Farm
ECS4620-28F
Storage
PSTN
IP-PBX
AS5710-54X-EC
Gigabit to the desktop
ECS4100-28T/52T ECS4100-28T/52T
Server Farm
Internet
•Access switch of small-to-mid size networks
•Branch office of enterprise
•Campus workgroups
ECS4100-26TX ECS4100-26TX
1G Fiber
10G Fiber
1G Copper

23. Case Study- 3,000 units of Edge-Core Networks’ ECS2100-10P will
deploy at 400 Railway stations in India for RailTel Project
RailTel Corporation a "Mini Ratna (Category-I)" PSU is one of the
largest neutral telecom infrastructure providers in the country
owning a Pan-India optic fiber network on exclusive Right of Way
(ROW) along Railway track
RailTel has taken a lead in providing fast Wi-Fi for the use of passengers at (400)Railway
stations. Railwire Wi-Fi will be available to any user who has a working mobile
connection on a smartphone.

24. Gigabit L2+/L3 Stackable Switch

25. GE L2GE L3 Stacking10 GE L3 GE L2+ Stacking
AS5710-54X-EC
48 10G SFP+
+6 40G QSFP+
Enterprise Solution
ECS4510-28F
22 FE/GE SFP + 2 CG + 2
10G SFP+ + 1 Slot
ECS4510-28T
24GE + 2 10G SFP+ +
1 Slot
ECS4510-52T
48GE+ 2 10G SFP+ +
1 Slot
ECS4510-52P
48GE + 2 10G SFP+ +
1 Slot
ECS4620-28F
22 FE/GE SFP + 2 CG +
2 10G SFP+ + 1 Slot
ECS4620-28T
24GE + 2 10G SFP+
+ 1 Slot
ECS4620-52T
48GE+ 2 10G SFP+ +
1 Slot
ECS4620-52P
48GE + 2 10G SFP+ +
1 Slot
ECS4620-28P
24GE+ 2 10G SFP+ +
1 Slot
GE L2+
ES4120-28T
24GE+ 4 10G SFP+
ES4120-52T
48GE+ 4 10G SFP+
ES4120-28F
20 GE SFP + 4CG
+4 10G SFP+
ECS4510-28P
24GE+ 2 10G SFP+ +
1 Slot
New
ES4120-28P
24GE PoE+ + 4 10G SFP+
ECS4100-28T
24GE+ 4 GE SFP
ECS4100-52T
24GE+ 4 GE SFP
ECS4100-26TX
24GE+ 2 10G SFP+
ECS4100-26TX-ME
24GE+ 2 10G SFP+
6KV, AC+DC
New
ECS2100-10T
(8 GE + 2 GE SFP)
ECS2100-10P
(8 GE + 2 GE SFP)
ECS2100-10PE
(8 GE + 2 GE SFP)
ECS2100-28T
(24 GE + 4 GE SFP)
ECS2100-28P
(24 GE + 4 GE SFP)
Web Smart Pro
ECS2100-52T
48 GE + 4 GE SFP

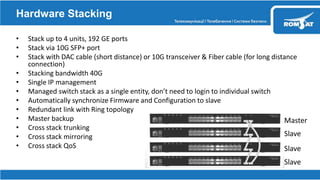

26. Hardware Stacking
• Stack up to 4 units, 192 GE ports
• Stack via 10G SFP+ port
• Stack with DAC cable (short distance) or 10G transceiver & Fiber cable (for long distance
connection)
• Stacking bandwidth 40G
• Single IP management
• Managed switch stack as a single entity, don’t need to login to individual switch
• Automatically synchronize Firmware and Configuration to slave
• Redundant link with Ring topology
• Master backup
• Cross stack trunking
• Cross stack mirroring
• Cross stack QoS
Master
Slave
Slave
Slave

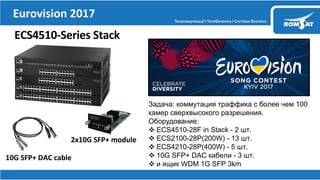

27. Eurovision 2017
ECS4510-Series Stack
10G SFP+ DAC cable
: 100
.
Оборудование:
 ECS4510-28F in Stack - 2 .
 ECS2100-28P(200W) - 13 .
 ECS4210-28P(400W) - 5 .
 10G SFP+ DAC - 3 .
 WDM 1G SFP 3km
2x10G SFP+ module

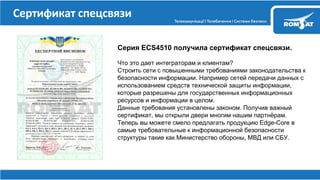

28. Серия ECS4510 получила сертификат спецсвязи.
?
.
,
.
.
, .
Edge-Core
, .

29. 10 Gigabit

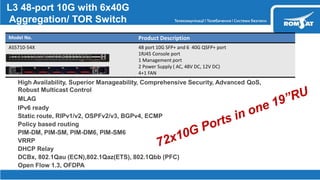

30. Model No. Product Description
AS5710-54X 48 port 10G SFP+ and 6 40G QSFP+ port
1RJ45 Console port
1 Management port
2 Power Supply ( AC, 48V DC, 12V DC)
4+1 FAN
L3 48-port 10G with 6x40G
Aggregation/ TOR Switch
 High Availability, Superior Manageability, Comprehensive Security, Advanced QoS,
Robust Multicast Control
 MLAG
 IPv6 ready
 Static route, RIPv1/v2, OSPFv2/v3, BGPv4, ECMP
 Policy based routing
 PIM-DM, PIM-SM, PIM-DM6, PIM-SM6
 VRRP
 DHCP Relay
 DCBx, 802.1Qau (ECN),802.1Qaz(ETS), 802.1Qbb (PFC)
 Open Flow 1.3, OFDPA
72x10G Ports in one 19”RU

31. ?
 Edge-Core .
 .
 . .
 .
 .
 .
