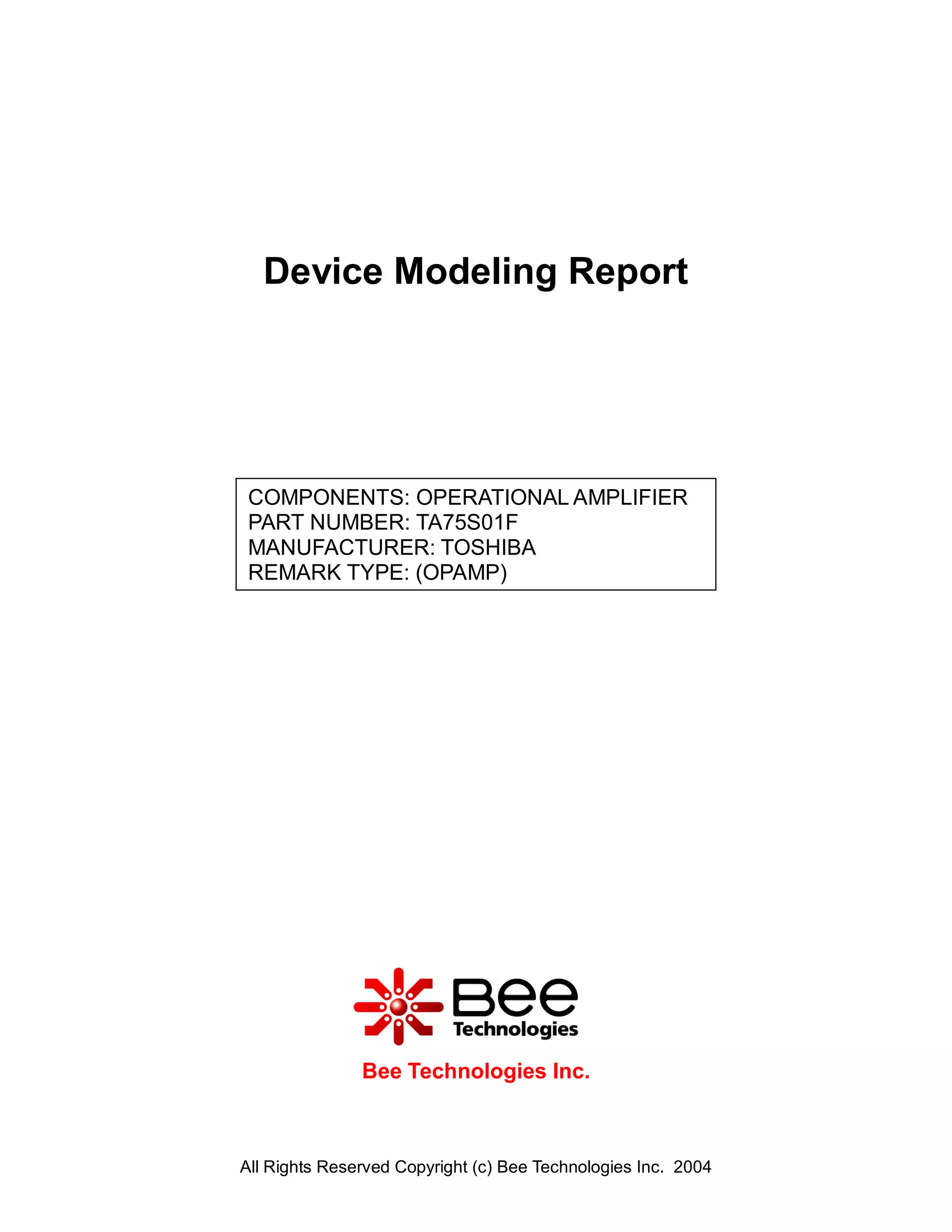

1. Device Modeling Report
COMPONENTS: OPERATIONAL AMPLIFIER
PART NUMBER: TA75S01F
MANUFACTURER: TOSHIBA
REMARK TYPE: (OPAMP)
Bee Technologies Inc.
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

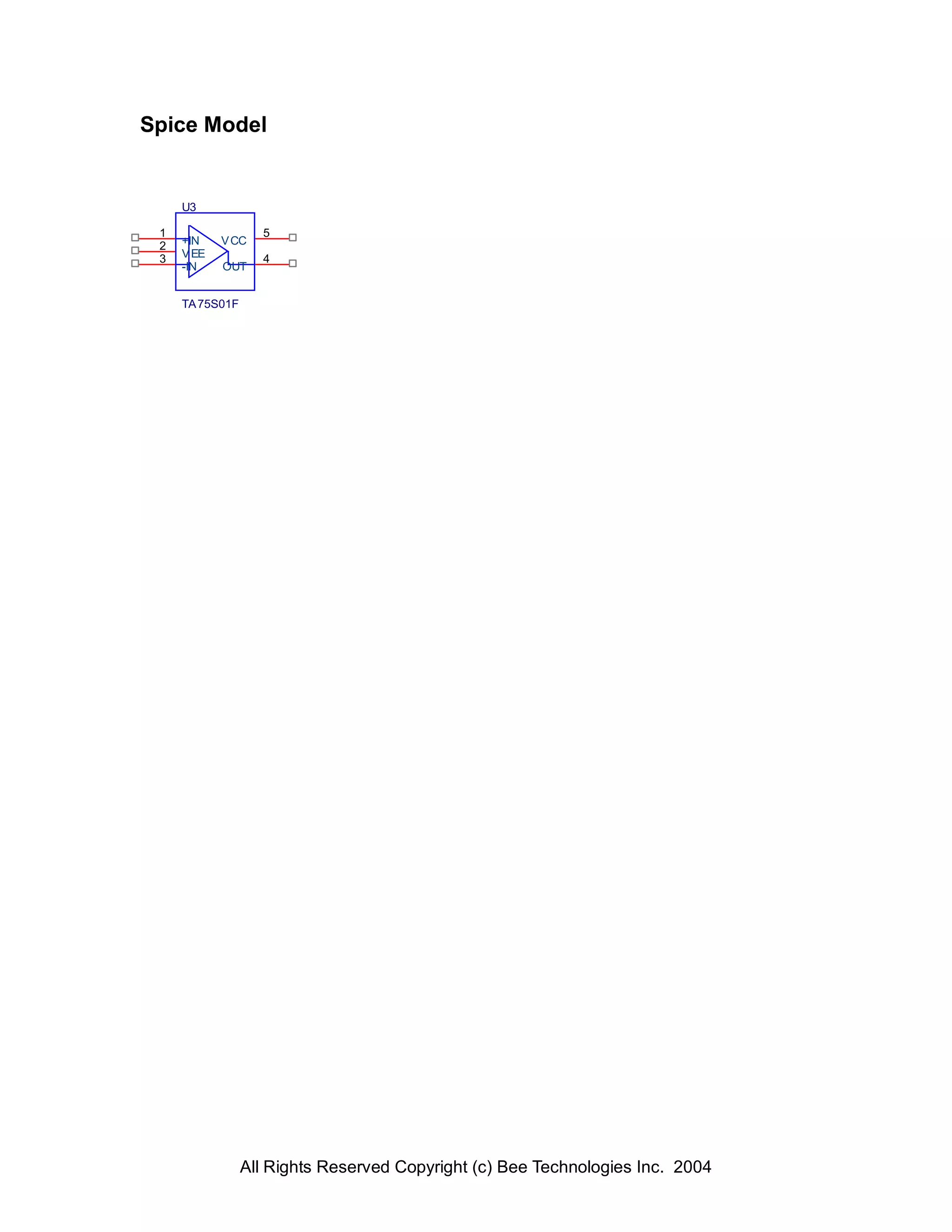

2. Spice Model
U3
1 5
2 +IN V CC
3 V EE 4
-IN OUT
TA 75S01F
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

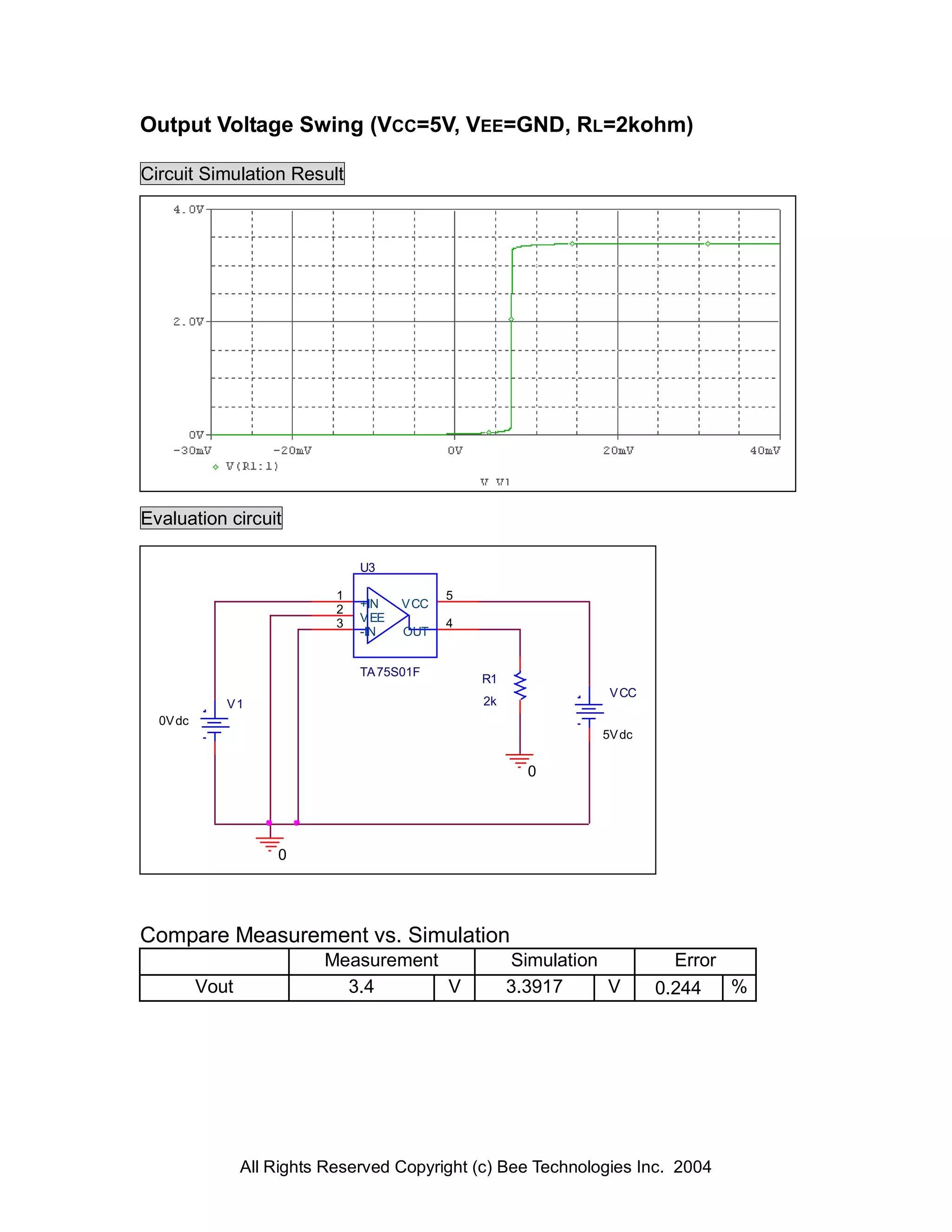

3. Output Voltage Swing (VCC=5V, VEE=GND, RL=2kohm)
Circuit Simulation Result
Evaluation circuit
U3
1 5
2 +IN V CC
3 V EE 4
-IN OUT
TA 75S01F
R1
V CC
V1 2k
0V dc
5V dc
0
0
Compare Measurement vs. Simulation
Measurement Simulation Error
Vout 3.4 V 3.3917 V 0.244 %
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

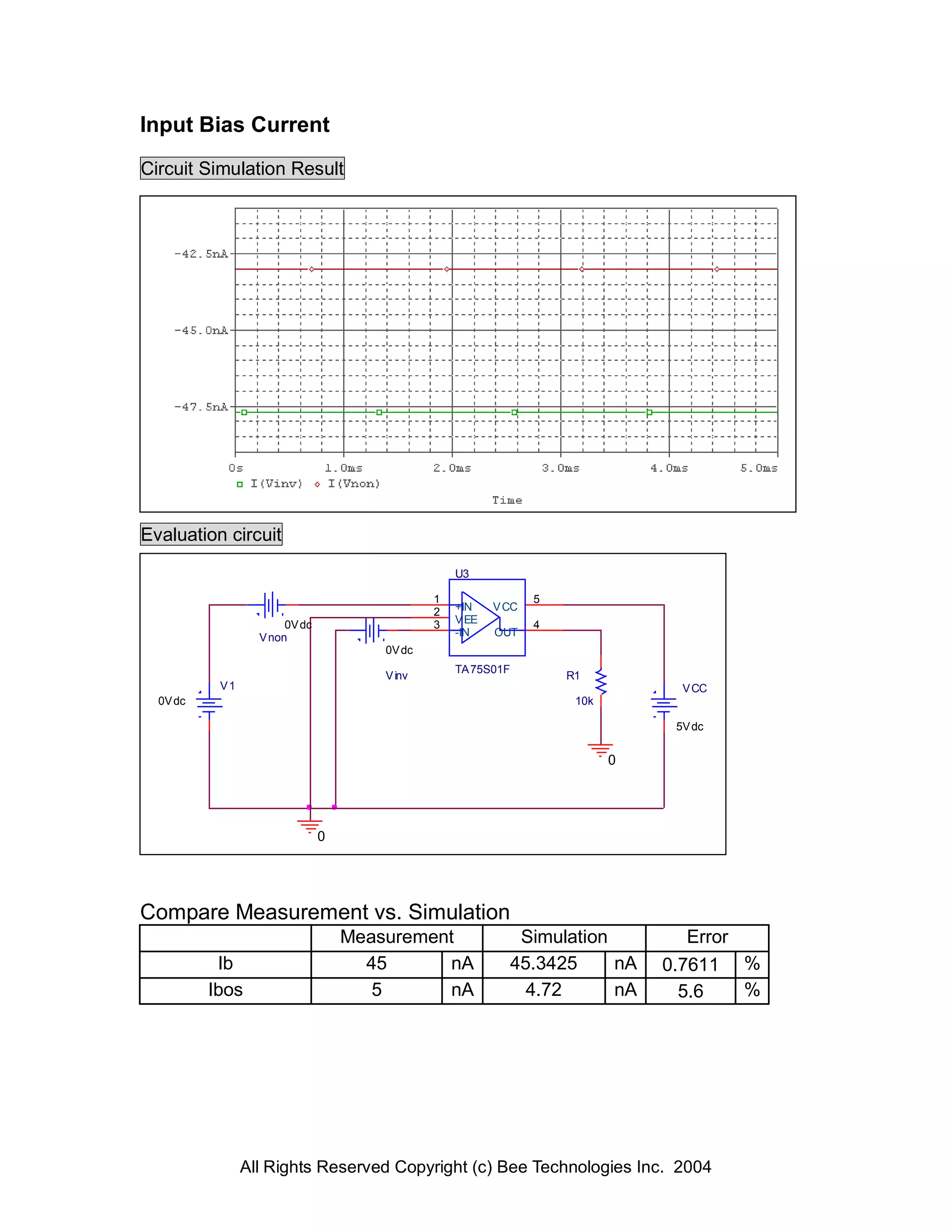

4. Input Bias Current
Circuit Simulation Result
Evaluation circuit
U3
1 5
2 +IN V CC
0V dc 3 V EE 4
V non -IN OUT
0V dc
TA 75S01F
V inv R1
V1 V CC
0V dc 10k
5V dc
0
0
Compare Measurement vs. Simulation
Measurement Simulation Error
Ib 45 nA 45.3425 nA 0.7611 %
Ibos 5 nA 4.72 nA 5.6 %
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

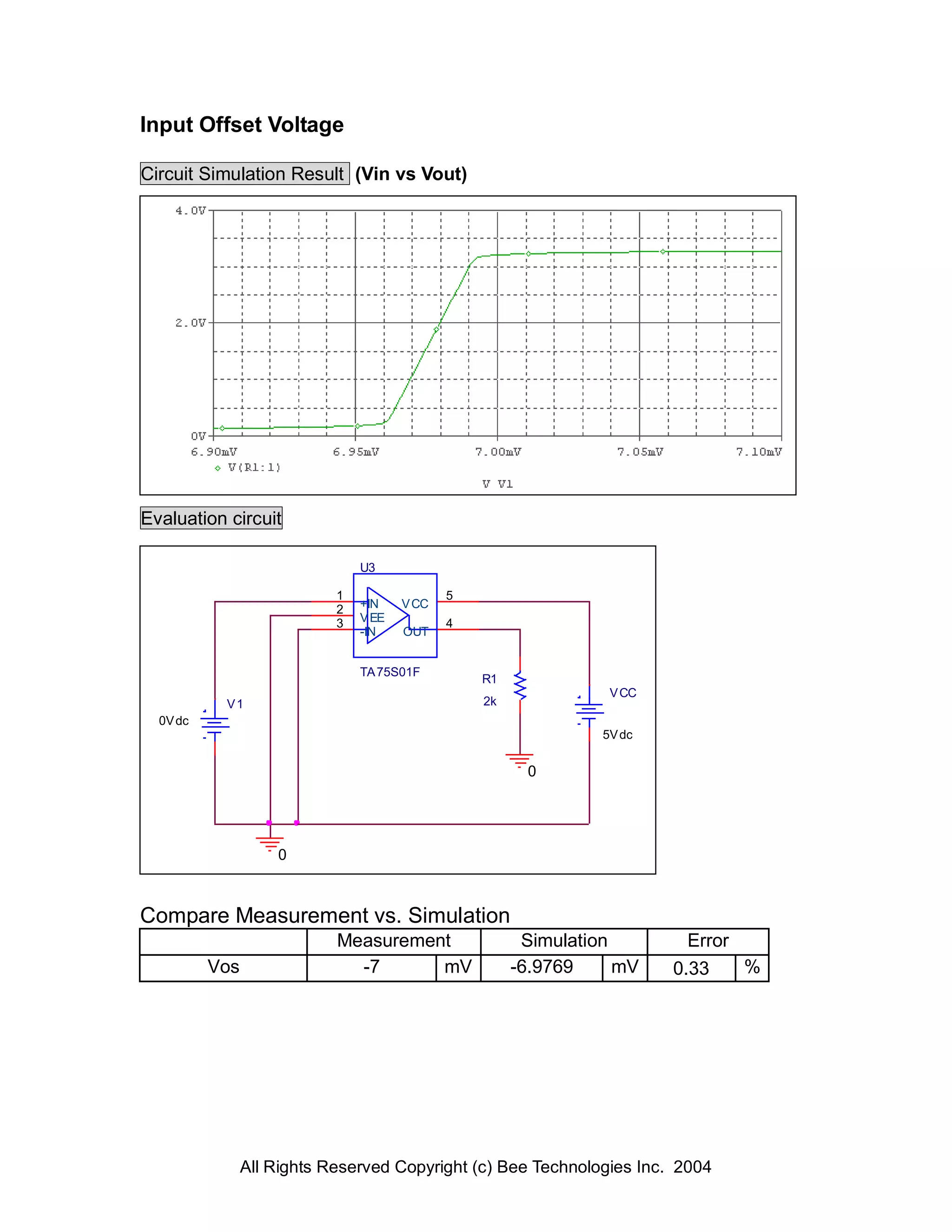

5. Input Offset Voltage
Circuit Simulation Result (Vin vs Vout)
Evaluation circuit
U3
1 5
2 +IN V CC
3 V EE 4
-IN OUT
TA 75S01F
R1
V CC
V1 2k
0V dc
5V dc
0
0
Compare Measurement vs. Simulation
Measurement Simulation Error
Vos -7 mV -6.9769 mV 0.33 %
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

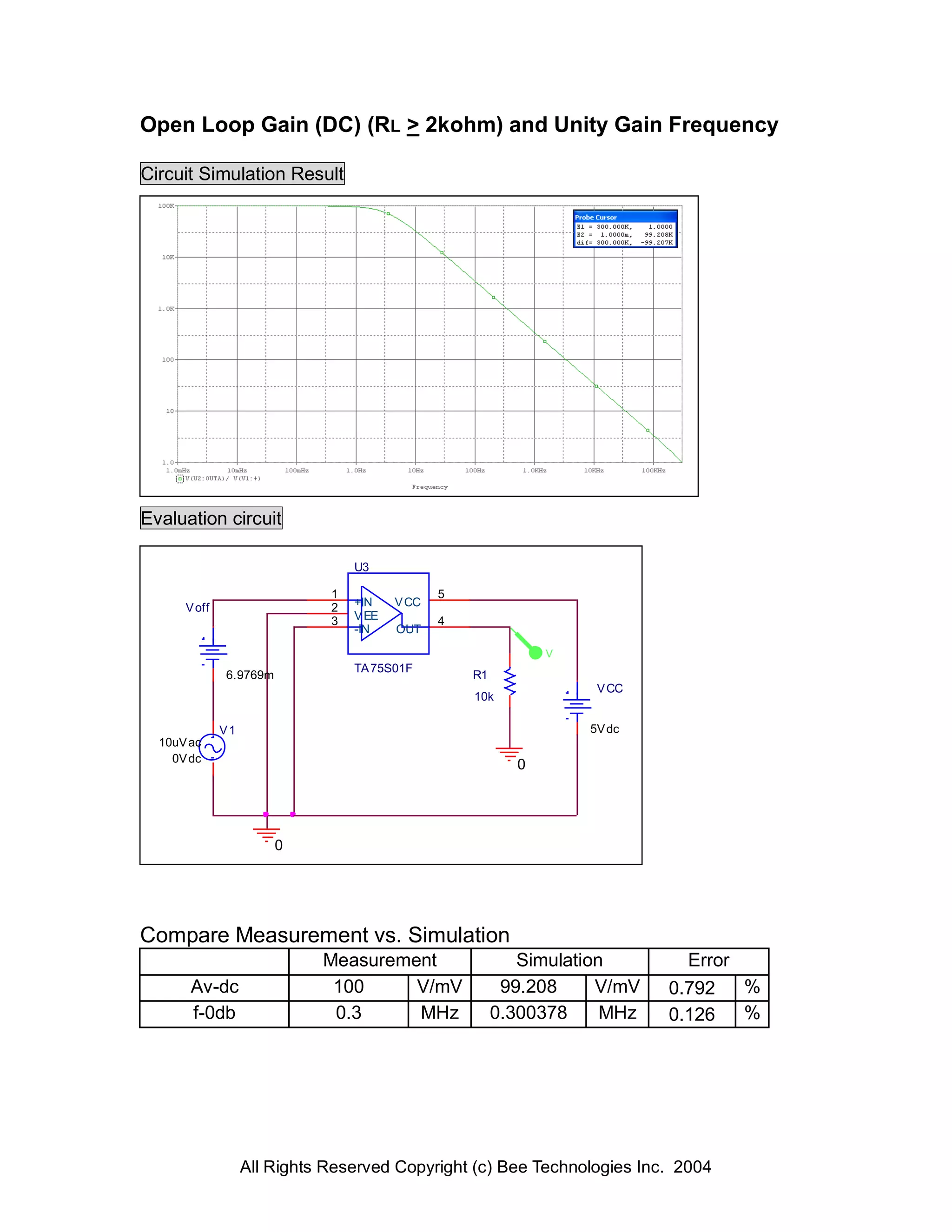

6. Open Loop Gain (DC) (RL > 2kohm) and Unity Gain Frequency
Circuit Simulation Result
Evaluation circuit
U3
1 5
V off 2 +IN V CC
3 V EE 4
-IN OUT
V
TA 75S01F
6.9769m R1
V CC
10k
V1 5V dc
10uV ac
0V dc
0
0
Compare Measurement vs. Simulation
Measurement Simulation Error
Av-dc 100 V/mV 99.208 V/mV 0.792 %
f-0db 0.3 MHz 0.300378 MHz 0.126 %
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

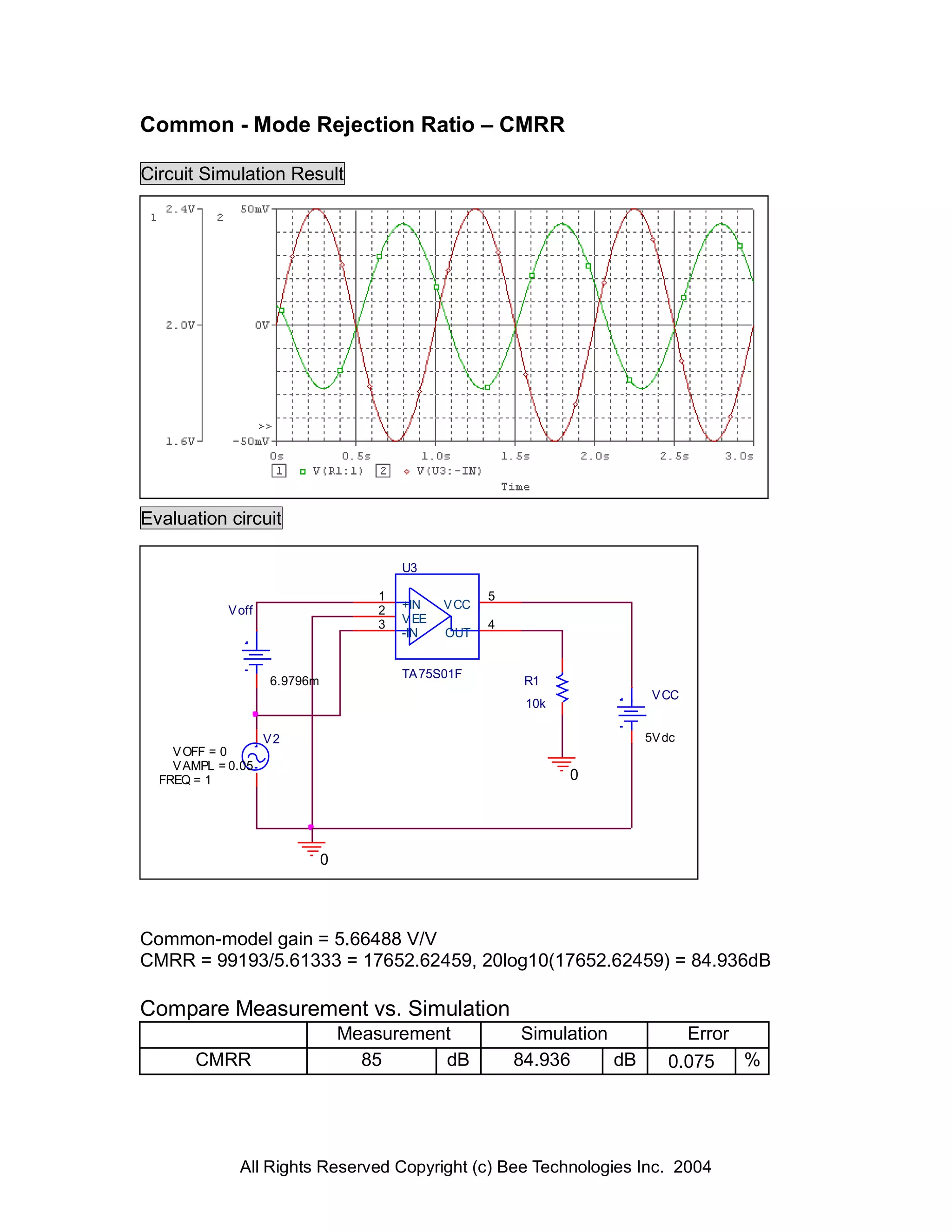

7. Common - Mode Rejection Ratio – CMRR
Circuit Simulation Result
Evaluation circuit
U3
1 5
V off 2 +IN V CC
3 V EE 4
-IN OUT
TA 75S01F
6.9796m R1
V CC
10k
V2 5V dc
V OFF = 0
V AMPL = 0.05
FREQ = 1 0
0
Common-model gain = 5.66488 V/V
CMRR = 99193/5.61333 = 17652.62459, 20log10(17652.62459) = 84.936dB
Compare Measurement vs. Simulation
Measurement Simulation Error
CMRR 85 dB 84.936 dB 0.075 %
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

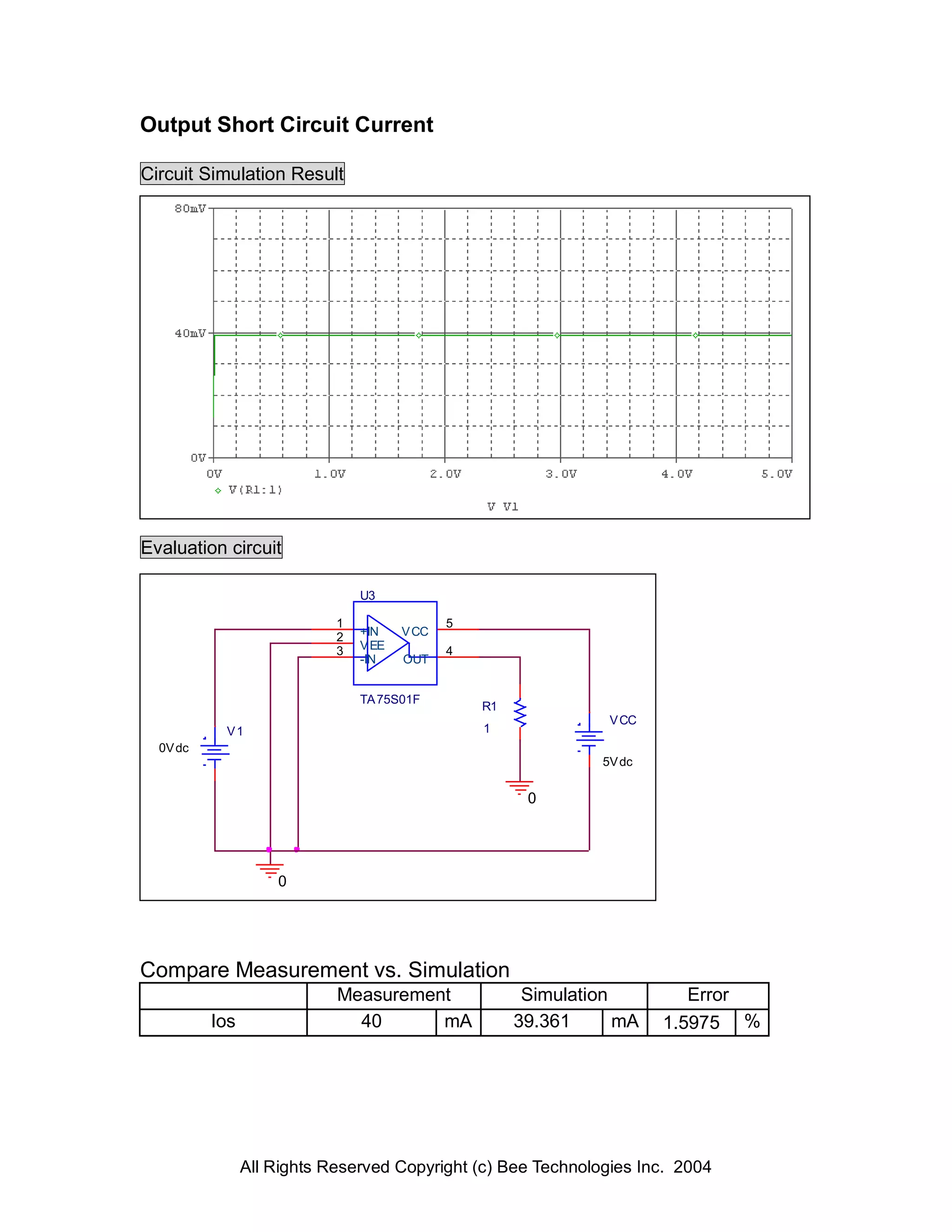

8. Output Short Circuit Current
Circuit Simulation Result
Evaluation circuit
U3
1 5
2 +IN V CC
3 V EE 4
-IN OUT
TA 75S01F
R1
V CC
V1 1
0V dc
5V dc
0
0
Compare Measurement vs. Simulation
Measurement Simulation Error
Ios 40 mA 39.361 mA 1.5975 %
