Update 33 models(General Diode ) in SPICE PARK(JUN2024)
- 1. 1 株式会社ビー・テクノロジー www.beetech.info スパイス・パーク 2 0 24 年6 一 六月 S P I C E P A R K All Rights Reserved Copyright (C) Bee Technologies Inc.

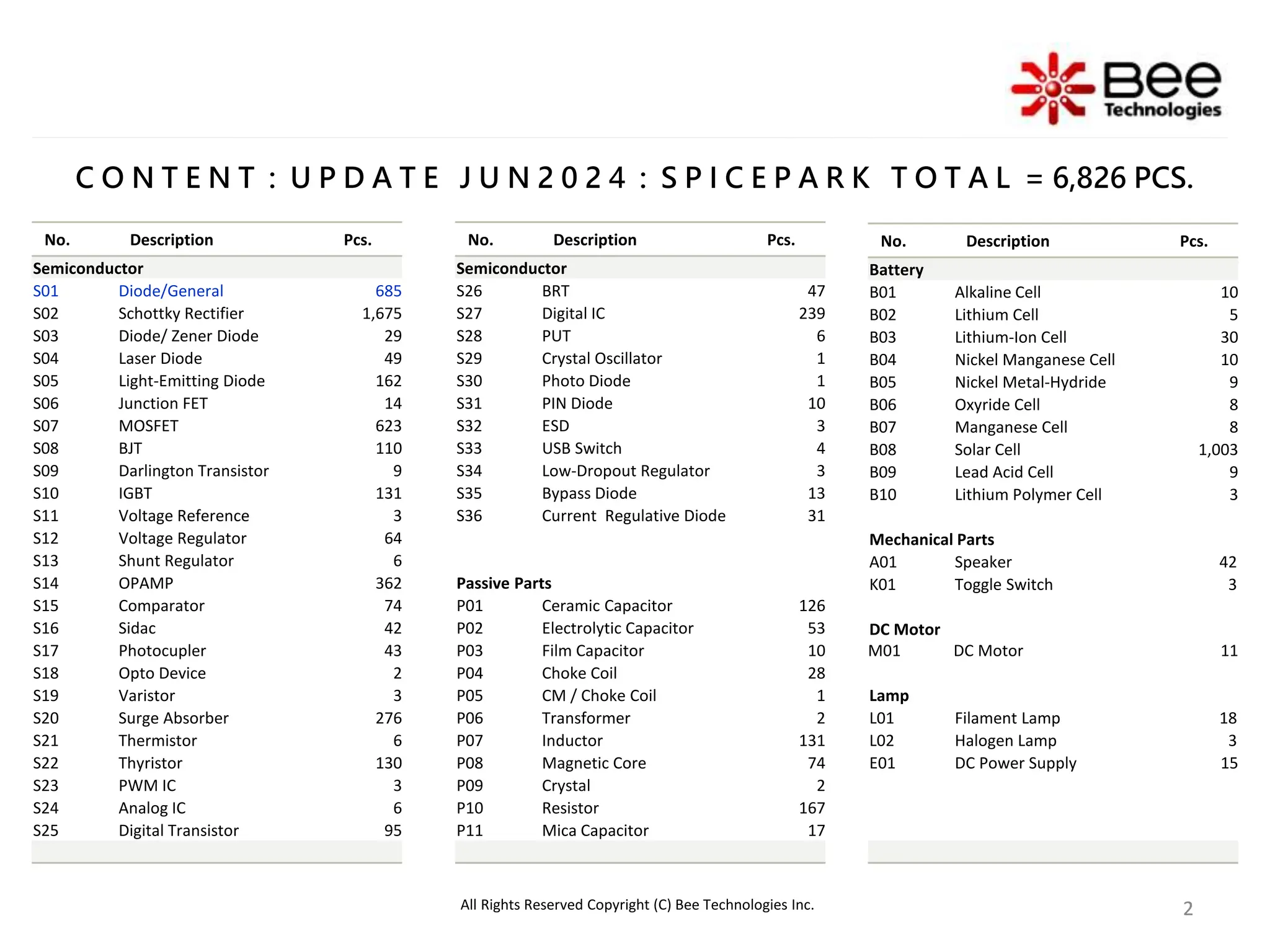

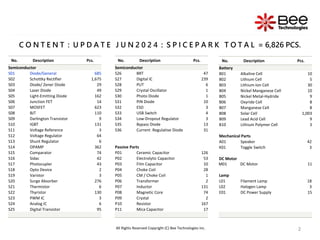

- 2. 2 2 2 C O NT E N T : U P D A T E J U N 2 0 2 4 : S P I C E P A R K T O T A L = 6,826 PCS. All Rights Reserved Copyright (C) Bee Technologies Inc. No. Description Pcs. Semiconductor S01 Diode/General 685 S02 Schottky Rectifier 1,675 S03 Diode/ Zener Diode 29 S04 Laser Diode 49 S05 Light-Emitting Diode 162 S06 Junction FET 14 S07 MOSFET 623 S08 BJT 110 S09 Darlington Transistor 9 S10 IGBT 131 S11 Voltage Reference 3 S12 Voltage Regulator 64 S13 Shunt Regulator 6 S14 OPAMP 362 S15 Comparator 74 S16 Sidac 42 S17 Photocupler 43 S18 Opto Device 2 S19 Varistor 3 S20 Surge Absorber 276 S21 Thermistor 6 S22 Thyristor 130 S23 PWM IC 3 S24 Analog IC 6 S25 Digital Transistor 95 No. Description Pcs. Semiconductor S26 BRT 47 S27 Digital IC 239 S28 PUT 6 S29 Crystal Oscillator 1 S30 Photo Diode 1 S31 PIN Diode 10 S32 ESD 3 S33 USB Switch 4 S34 Low-Dropout Regulator 3 S35 Bypass Diode 13 S36 Current Regulative Diode 31 Passive Parts P01 Ceramic Capacitor 126 P02 Electrolytic Capacitor 53 P03 Film Capacitor 10 P04 Choke Coil 28 P05 CM / Choke Coil 1 P06 Transformer 2 P07 Inductor 131 P08 Magnetic Core 74 P09 Crystal 2 P10 Resistor 167 P11 Mica Capacitor 17 No. Description Pcs. Battery B01 Alkaline Cell 10 B02 Lithium Cell 5 B03 Lithium-Ion Cell 30 B04 Nickel Manganese Cell 10 B05 Nickel Metal-Hydride 9 B06 Oxyride Cell 8 B07 Manganese Cell 8 B08 Solar Cell 1,003 B09 Lead Acid Cell 9 B10 Lithium Polymer Cell 3 Mechanical Parts A01 Speaker 42 K01 Toggle Switch 3 DC Motor M01 DC Motor 11 Lamp L01 Filament Lamp 18 L02 Halogen Lamp 3 E01 DC Power Supply 15

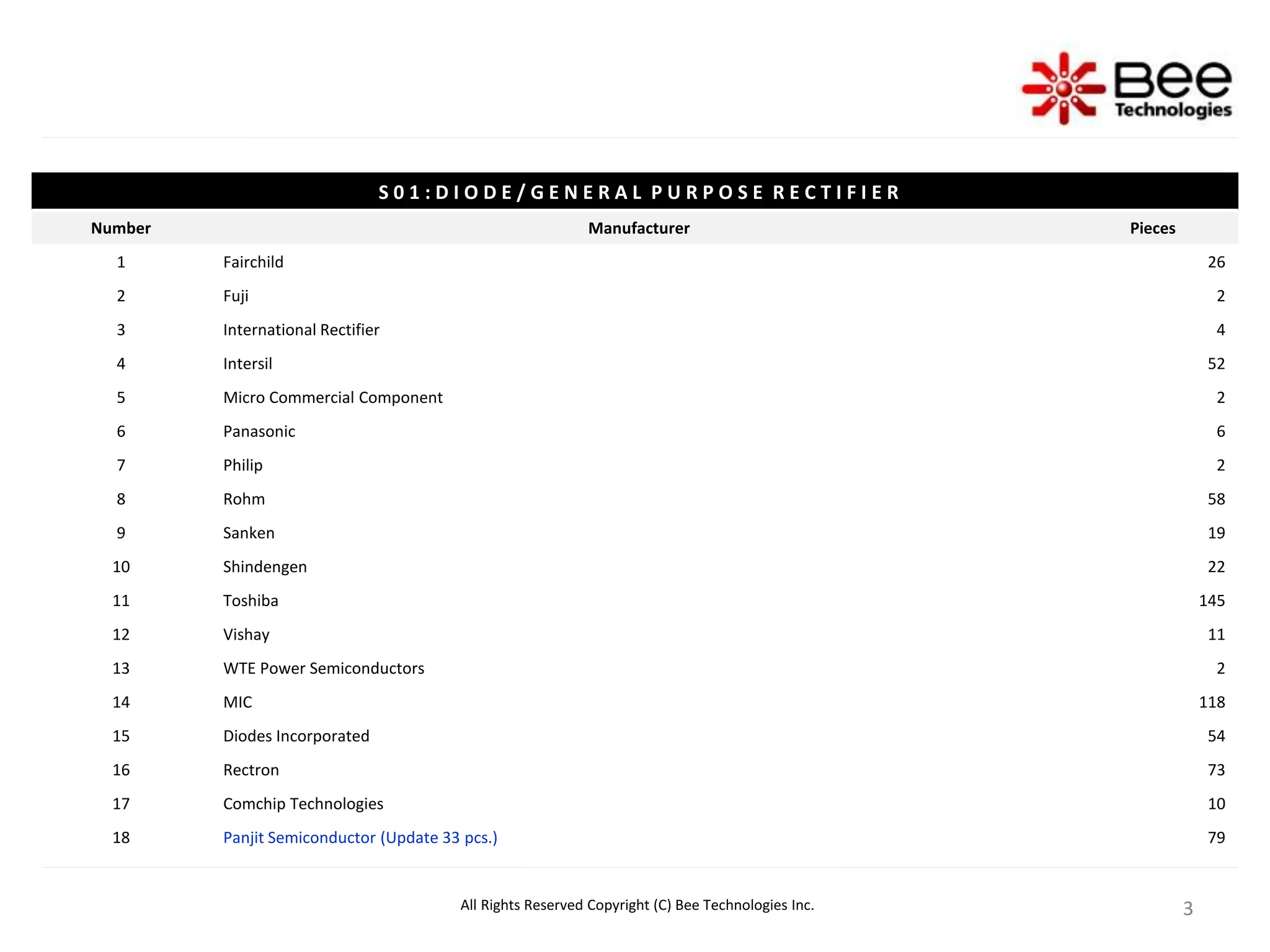

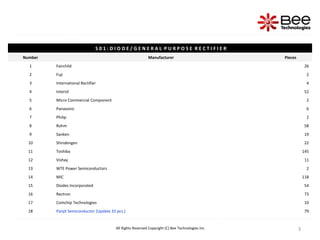

- 3. 3 3 All Rights ReservedCopyright (C) Bee Technologies Inc. S 0 1 : D I O D E / G E N E R A L P U R P O S E R E C T I F I E R Number Manufacturer Pieces 1 Fairchild 26 2 Fuji 2 3 International Rectifier 4 4 Intersil 52 5 Micro Commercial Component 2 6 Panasonic 6 7 Philip 2 8 Rohm 58 9 Sanken 19 10 Shindengen 22 11 Toshiba 145 12 Vishay 11 13 WTE Power Semiconductors 2 14 MIC 118 15 Diodes Incorporated 54 16 Rectron 73 17 Comchip Technologies 10 18 Panjit Semiconductor (Update 33 pcs.) 79
- 4. 4 4 All Rights ReservedCopyright (C) Bee Technologies Inc. S 0 1 : D I O D E / G E N E R A L P U R P O S E R E C T I F I E R Number Manufacturer Pieces Total 685

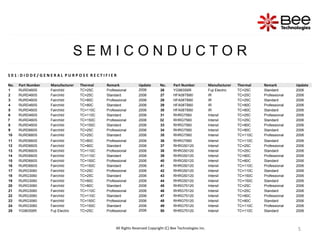

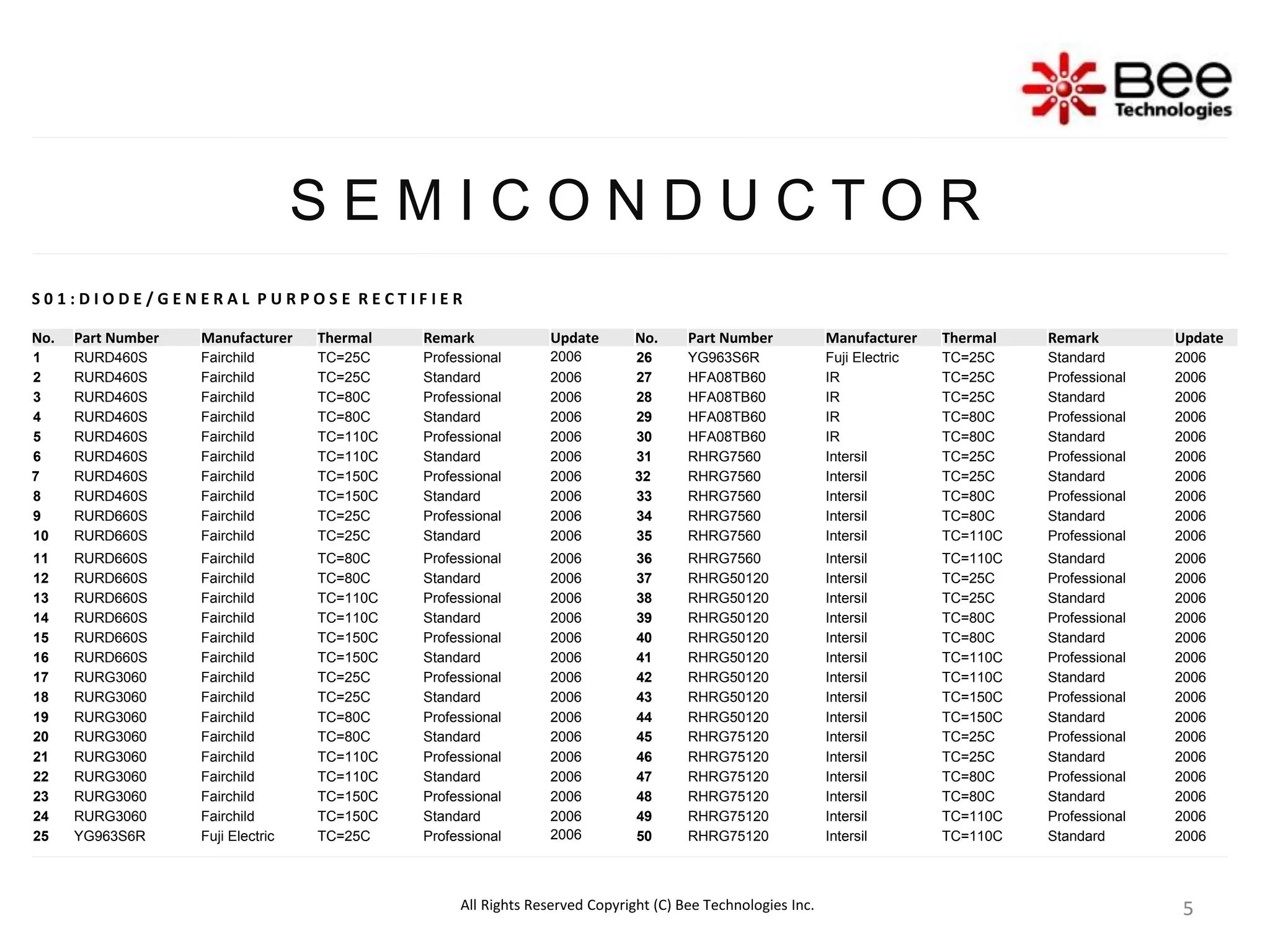

- 5. 5 5 All Rights ReservedCopyright (C) Bee Technologies Inc. S E M I C O N D U C T O R S 0 1 : D I O D E / G E N E R A L P U R P O S E R E C T I F I E R No. Part Number Manufacturer Thermal Remark Update No. Part Number Manufacturer Thermal Remark Update 1 RURD460S Fairchild TC=25C Professional 2006 26 YG963S6R Fuji Electric TC=25C Standard 2006 2 RURD460S Fairchild TC=25C Standard 2006 27 HFA08TB60 IR TC=25C Professional 2006 3 RURD460S Fairchild TC=80C Professional 2006 28 HFA08TB60 IR TC=25C Standard 2006 4 RURD460S Fairchild TC=80C Standard 2006 29 HFA08TB60 IR TC=80C Professional 2006 5 RURD460S Fairchild TC=110C Professional 2006 30 HFA08TB60 IR TC=80C Standard 2006 6 RURD460S Fairchild TC=110C Standard 2006 31 RHRG7560 Intersil TC=25C Professional 2006 7 RURD460S Fairchild TC=150C Professional 2006 32 RHRG7560 Intersil TC=25C Standard 2006 8 RURD460S Fairchild TC=150C Standard 2006 33 RHRG7560 Intersil TC=80C Professional 2006 9 RURD660S Fairchild TC=25C Professional 2006 34 RHRG7560 Intersil TC=80C Standard 2006 10 RURD660S Fairchild TC=25C Standard 2006 35 RHRG7560 Intersil TC=110C Professional 2006 11 RURD660S Fairchild TC=80C Professional 2006 36 RHRG7560 Intersil TC=110C Standard 2006 12 RURD660S Fairchild TC=80C Standard 2006 37 RHRG50120 Intersil TC=25C Professional 2006 13 RURD660S Fairchild TC=110C Professional 2006 38 RHRG50120 Intersil TC=25C Standard 2006 14 RURD660S Fairchild TC=110C Standard 2006 39 RHRG50120 Intersil TC=80C Professional 2006 15 RURD660S Fairchild TC=150C Professional 2006 40 RHRG50120 Intersil TC=80C Standard 2006 16 RURD660S Fairchild TC=150C Standard 2006 41 RHRG50120 Intersil TC=110C Professional 2006 17 RURG3060 Fairchild TC=25C Professional 2006 42 RHRG50120 Intersil TC=110C Standard 2006 18 RURG3060 Fairchild TC=25C Standard 2006 43 RHRG50120 Intersil TC=150C Professional 2006 19 RURG3060 Fairchild TC=80C Professional 2006 44 RHRG50120 Intersil TC=150C Standard 2006 20 RURG3060 Fairchild TC=80C Standard 2006 45 RHRG75120 Intersil TC=25C Professional 2006 21 RURG3060 Fairchild TC=110C Professional 2006 46 RHRG75120 Intersil TC=25C Standard 2006 22 RURG3060 Fairchild TC=110C Standard 2006 47 RHRG75120 Intersil TC=80C Professional 2006 23 RURG3060 Fairchild TC=150C Professional 2006 48 RHRG75120 Intersil TC=80C Standard 2006 24 RURG3060 Fairchild TC=150C Standard 2006 49 RHRG75120 Intersil TC=110C Professional 2006 25 YG963S6R Fuji Electric TC=25C Professional 2006 50 RHRG75120 Intersil TC=110C Standard 2006

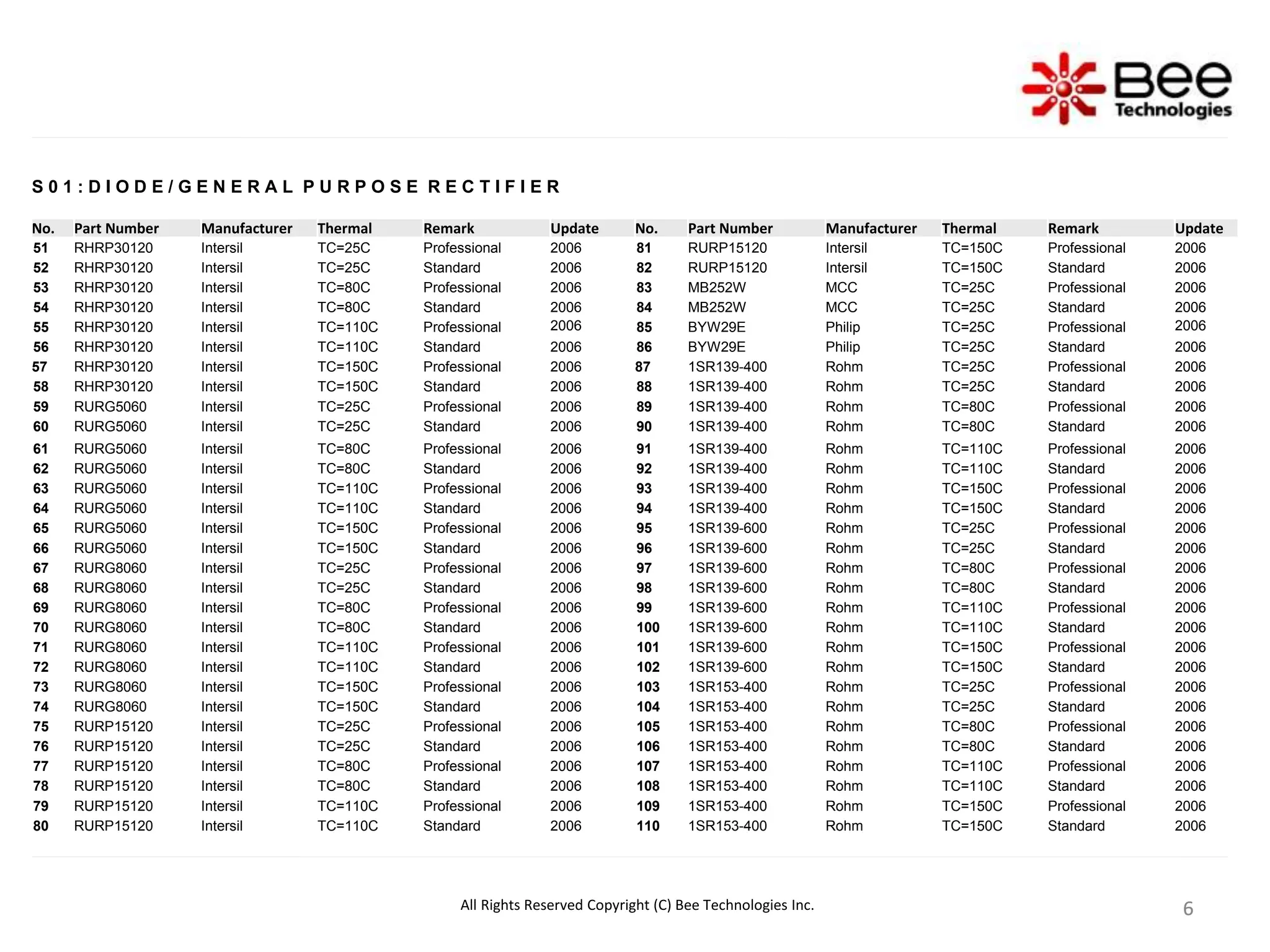

- 6. 6 6 6 S 0 1: D I O D E / G E N E R A L P U R P O S E R E C T I F I E R No. Part Number Manufacturer Thermal Remark Update No. Part Number Manufacturer Thermal Remark Update 51 RHRP30120 Intersil TC=25C Professional 2006 81 RURP15120 Intersil TC=150C Professional 2006 52 RHRP30120 Intersil TC=25C Standard 2006 82 RURP15120 Intersil TC=150C Standard 2006 53 RHRP30120 Intersil TC=80C Professional 2006 83 MB252W MCC TC=25C Professional 2006 54 RHRP30120 Intersil TC=80C Standard 2006 84 MB252W MCC TC=25C Standard 2006 55 RHRP30120 Intersil TC=110C Professional 2006 85 BYW29E Philip TC=25C Professional 2006 56 RHRP30120 Intersil TC=110C Standard 2006 86 BYW29E Philip TC=25C Standard 2006 57 RHRP30120 Intersil TC=150C Professional 2006 87 1SR139-400 Rohm TC=25C Professional 2006 58 RHRP30120 Intersil TC=150C Standard 2006 88 1SR139-400 Rohm TC=25C Standard 2006 59 RURG5060 Intersil TC=25C Professional 2006 89 1SR139-400 Rohm TC=80C Professional 2006 60 RURG5060 Intersil TC=25C Standard 2006 90 1SR139-400 Rohm TC=80C Standard 2006 61 RURG5060 Intersil TC=80C Professional 2006 91 1SR139-400 Rohm TC=110C Professional 2006 62 RURG5060 Intersil TC=80C Standard 2006 92 1SR139-400 Rohm TC=110C Standard 2006 63 RURG5060 Intersil TC=110C Professional 2006 93 1SR139-400 Rohm TC=150C Professional 2006 64 RURG5060 Intersil TC=110C Standard 2006 94 1SR139-400 Rohm TC=150C Standard 2006 65 RURG5060 Intersil TC=150C Professional 2006 95 1SR139-600 Rohm TC=25C Professional 2006 66 RURG5060 Intersil TC=150C Standard 2006 96 1SR139-600 Rohm TC=25C Standard 2006 67 RURG8060 Intersil TC=25C Professional 2006 97 1SR139-600 Rohm TC=80C Professional 2006 68 RURG8060 Intersil TC=25C Standard 2006 98 1SR139-600 Rohm TC=80C Standard 2006 69 RURG8060 Intersil TC=80C Professional 2006 99 1SR139-600 Rohm TC=110C Professional 2006 70 RURG8060 Intersil TC=80C Standard 2006 100 1SR139-600 Rohm TC=110C Standard 2006 71 RURG8060 Intersil TC=110C Professional 2006 101 1SR139-600 Rohm TC=150C Professional 2006 72 RURG8060 Intersil TC=110C Standard 2006 102 1SR139-600 Rohm TC=150C Standard 2006 73 RURG8060 Intersil TC=150C Professional 2006 103 1SR153-400 Rohm TC=25C Professional 2006 74 RURG8060 Intersil TC=150C Standard 2006 104 1SR153-400 Rohm TC=25C Standard 2006 75 RURP15120 Intersil TC=25C Professional 2006 105 1SR153-400 Rohm TC=80C Professional 2006 76 RURP15120 Intersil TC=25C Standard 2006 106 1SR153-400 Rohm TC=80C Standard 2006 77 RURP15120 Intersil TC=80C Professional 2006 107 1SR153-400 Rohm TC=110C Professional 2006 78 RURP15120 Intersil TC=80C Standard 2006 108 1SR153-400 Rohm TC=110C Standard 2006 79 RURP15120 Intersil TC=110C Professional 2006 109 1SR153-400 Rohm TC=150C Professional 2006 80 RURP15120 Intersil TC=110C Standard 2006 110 1SR153-400 Rohm TC=150C Standard 2006 All Rights Reserved Copyright (C) Bee Technologies Inc.

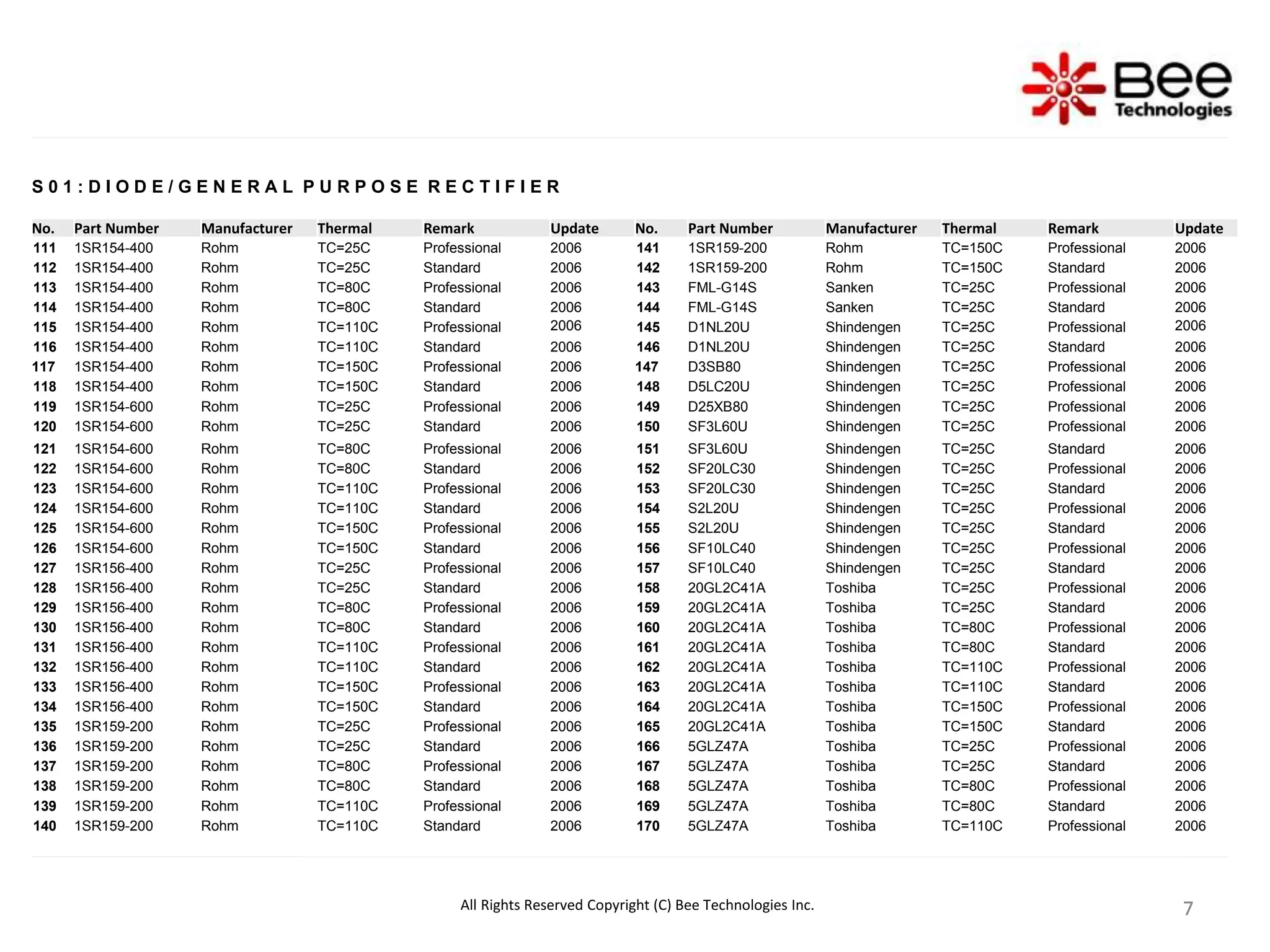

- 7. 7 7 7 S 0 1: D I O D E / G E N E R A L P U R P O S E R E C T I F I E R No. Part Number Manufacturer Thermal Remark Update No. Part Number Manufacturer Thermal Remark Update 111 1SR154-400 Rohm TC=25C Professional 2006 141 1SR159-200 Rohm TC=150C Professional 2006 112 1SR154-400 Rohm TC=25C Standard 2006 142 1SR159-200 Rohm TC=150C Standard 2006 113 1SR154-400 Rohm TC=80C Professional 2006 143 FML-G14S Sanken TC=25C Professional 2006 114 1SR154-400 Rohm TC=80C Standard 2006 144 FML-G14S Sanken TC=25C Standard 2006 115 1SR154-400 Rohm TC=110C Professional 2006 145 D1NL20U Shindengen TC=25C Professional 2006 116 1SR154-400 Rohm TC=110C Standard 2006 146 D1NL20U Shindengen TC=25C Standard 2006 117 1SR154-400 Rohm TC=150C Professional 2006 147 D3SB80 Shindengen TC=25C Professional 2006 118 1SR154-400 Rohm TC=150C Standard 2006 148 D5LC20U Shindengen TC=25C Professional 2006 119 1SR154-600 Rohm TC=25C Professional 2006 149 D25XB80 Shindengen TC=25C Professional 2006 120 1SR154-600 Rohm TC=25C Standard 2006 150 SF3L60U Shindengen TC=25C Professional 2006 121 1SR154-600 Rohm TC=80C Professional 2006 151 SF3L60U Shindengen TC=25C Standard 2006 122 1SR154-600 Rohm TC=80C Standard 2006 152 SF20LC30 Shindengen TC=25C Professional 2006 123 1SR154-600 Rohm TC=110C Professional 2006 153 SF20LC30 Shindengen TC=25C Standard 2006 124 1SR154-600 Rohm TC=110C Standard 2006 154 S2L20U Shindengen TC=25C Professional 2006 125 1SR154-600 Rohm TC=150C Professional 2006 155 S2L20U Shindengen TC=25C Standard 2006 126 1SR154-600 Rohm TC=150C Standard 2006 156 SF10LC40 Shindengen TC=25C Professional 2006 127 1SR156-400 Rohm TC=25C Professional 2006 157 SF10LC40 Shindengen TC=25C Standard 2006 128 1SR156-400 Rohm TC=25C Standard 2006 158 20GL2C41A Toshiba TC=25C Professional 2006 129 1SR156-400 Rohm TC=80C Professional 2006 159 20GL2C41A Toshiba TC=25C Standard 2006 130 1SR156-400 Rohm TC=80C Standard 2006 160 20GL2C41A Toshiba TC=80C Professional 2006 131 1SR156-400 Rohm TC=110C Professional 2006 161 20GL2C41A Toshiba TC=80C Standard 2006 132 1SR156-400 Rohm TC=110C Standard 2006 162 20GL2C41A Toshiba TC=110C Professional 2006 133 1SR156-400 Rohm TC=150C Professional 2006 163 20GL2C41A Toshiba TC=110C Standard 2006 134 1SR156-400 Rohm TC=150C Standard 2006 164 20GL2C41A Toshiba TC=150C Professional 2006 135 1SR159-200 Rohm TC=25C Professional 2006 165 20GL2C41A Toshiba TC=150C Standard 2006 136 1SR159-200 Rohm TC=25C Standard 2006 166 5GLZ47A Toshiba TC=25C Professional 2006 137 1SR159-200 Rohm TC=80C Professional 2006 167 5GLZ47A Toshiba TC=25C Standard 2006 138 1SR159-200 Rohm TC=80C Standard 2006 168 5GLZ47A Toshiba TC=80C Professional 2006 139 1SR159-200 Rohm TC=110C Professional 2006 169 5GLZ47A Toshiba TC=80C Standard 2006 140 1SR159-200 Rohm TC=110C Standard 2006 170 5GLZ47A Toshiba TC=110C Professional 2006 All Rights Reserved Copyright (C) Bee Technologies Inc.

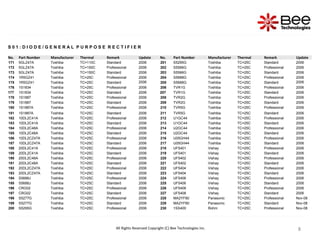

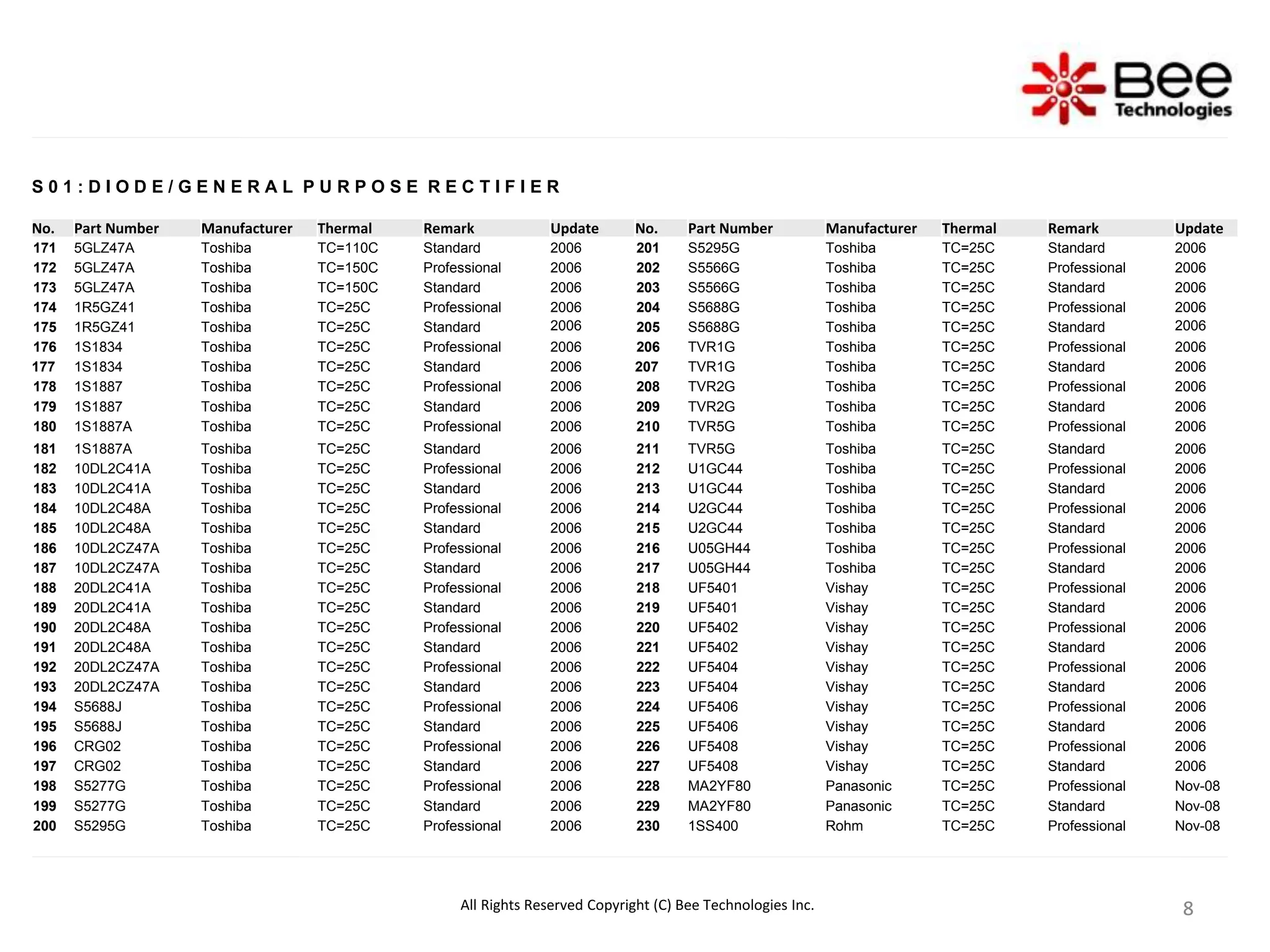

- 8. 8 8 8 S 0 1: D I O D E / G E N E R A L P U R P O S E R E C T I F I E R No. Part Number Manufacturer Thermal Remark Update No. Part Number Manufacturer Thermal Remark Update 171 5GLZ47A Toshiba TC=110C Standard 2006 201 S5295G Toshiba TC=25C Standard 2006 172 5GLZ47A Toshiba TC=150C Professional 2006 202 S5566G Toshiba TC=25C Professional 2006 173 5GLZ47A Toshiba TC=150C Standard 2006 203 S5566G Toshiba TC=25C Standard 2006 174 1R5GZ41 Toshiba TC=25C Professional 2006 204 S5688G Toshiba TC=25C Professional 2006 175 1R5GZ41 Toshiba TC=25C Standard 2006 205 S5688G Toshiba TC=25C Standard 2006 176 1S1834 Toshiba TC=25C Professional 2006 206 TVR1G Toshiba TC=25C Professional 2006 177 1S1834 Toshiba TC=25C Standard 2006 207 TVR1G Toshiba TC=25C Standard 2006 178 1S1887 Toshiba TC=25C Professional 2006 208 TVR2G Toshiba TC=25C Professional 2006 179 1S1887 Toshiba TC=25C Standard 2006 209 TVR2G Toshiba TC=25C Standard 2006 180 1S1887A Toshiba TC=25C Professional 2006 210 TVR5G Toshiba TC=25C Professional 2006 181 1S1887A Toshiba TC=25C Standard 2006 211 TVR5G Toshiba TC=25C Standard 2006 182 10DL2C41A Toshiba TC=25C Professional 2006 212 U1GC44 Toshiba TC=25C Professional 2006 183 10DL2C41A Toshiba TC=25C Standard 2006 213 U1GC44 Toshiba TC=25C Standard 2006 184 10DL2C48A Toshiba TC=25C Professional 2006 214 U2GC44 Toshiba TC=25C Professional 2006 185 10DL2C48A Toshiba TC=25C Standard 2006 215 U2GC44 Toshiba TC=25C Standard 2006 186 10DL2CZ47A Toshiba TC=25C Professional 2006 216 U05GH44 Toshiba TC=25C Professional 2006 187 10DL2CZ47A Toshiba TC=25C Standard 2006 217 U05GH44 Toshiba TC=25C Standard 2006 188 20DL2C41A Toshiba TC=25C Professional 2006 218 UF5401 Vishay TC=25C Professional 2006 189 20DL2C41A Toshiba TC=25C Standard 2006 219 UF5401 Vishay TC=25C Standard 2006 190 20DL2C48A Toshiba TC=25C Professional 2006 220 UF5402 Vishay TC=25C Professional 2006 191 20DL2C48A Toshiba TC=25C Standard 2006 221 UF5402 Vishay TC=25C Standard 2006 192 20DL2CZ47A Toshiba TC=25C Professional 2006 222 UF5404 Vishay TC=25C Professional 2006 193 20DL2CZ47A Toshiba TC=25C Standard 2006 223 UF5404 Vishay TC=25C Standard 2006 194 S5688J Toshiba TC=25C Professional 2006 224 UF5406 Vishay TC=25C Professional 2006 195 S5688J Toshiba TC=25C Standard 2006 225 UF5406 Vishay TC=25C Standard 2006 196 CRG02 Toshiba TC=25C Professional 2006 226 UF5408 Vishay TC=25C Professional 2006 197 CRG02 Toshiba TC=25C Standard 2006 227 UF5408 Vishay TC=25C Standard 2006 198 S5277G Toshiba TC=25C Professional 2006 228 MA2YF80 Panasonic TC=25C Professional Nov-08 199 S5277G Toshiba TC=25C Standard 2006 229 MA2YF80 Panasonic TC=25C Standard Nov-08 200 S5295G Toshiba TC=25C Professional 2006 230 1SS400 Rohm TC=25C Professional Nov-08 All Rights Reserved Copyright (C) Bee Technologies Inc.

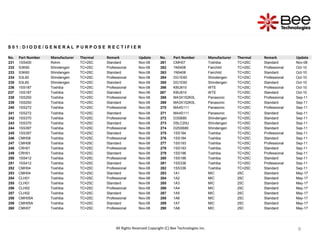

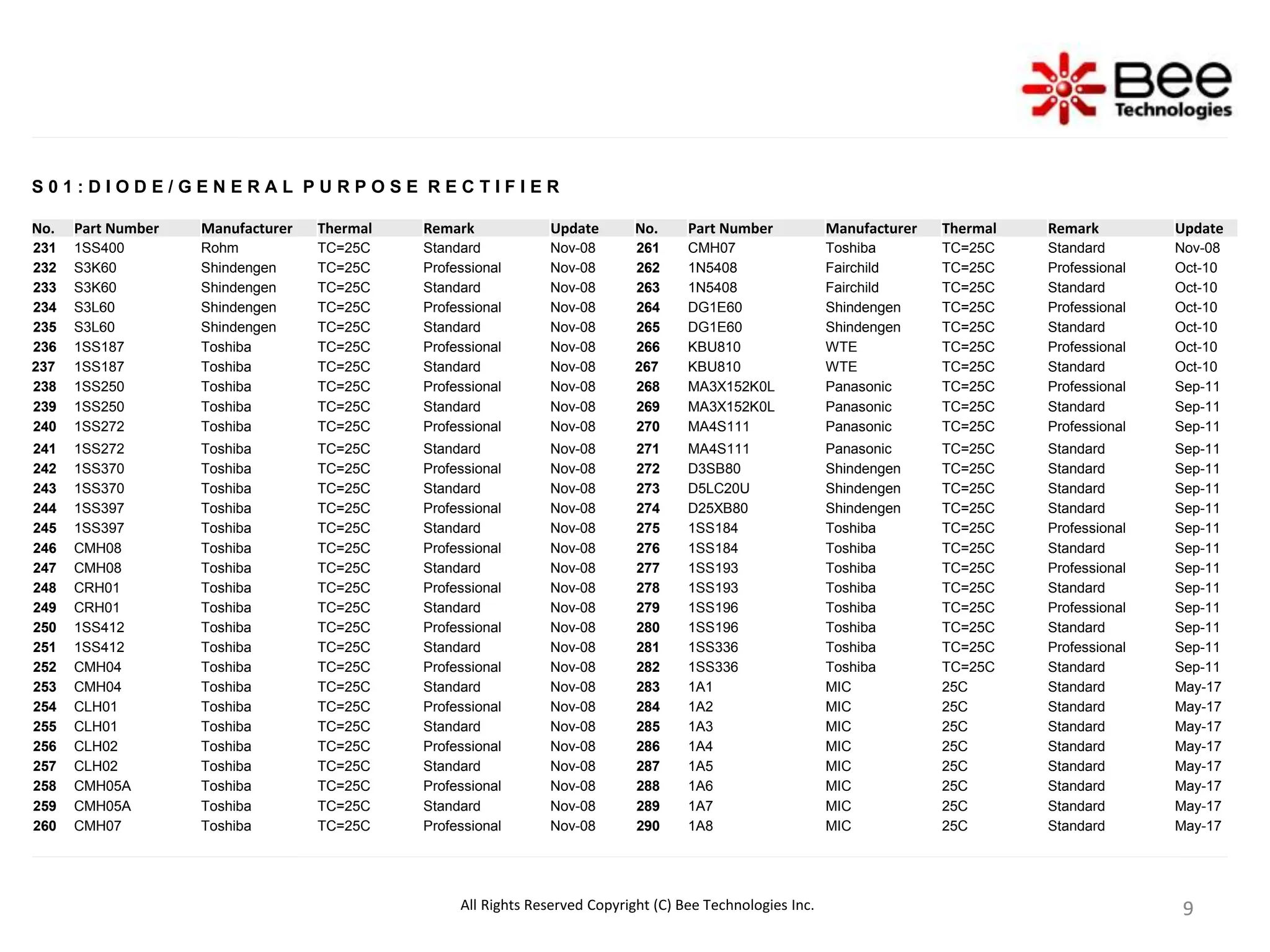

- 9. 9 9 9 S 0 1: D I O D E / G E N E R A L P U R P O S E R E C T I F I E R No. Part Number Manufacturer Thermal Remark Update No. Part Number Manufacturer Thermal Remark Update 231 1SS400 Rohm TC=25C Standard Nov-08 261 CMH07 Toshiba TC=25C Standard Nov-08 232 S3K60 Shindengen TC=25C Professional Nov-08 262 1N5408 Fairchild TC=25C Professional Oct-10 233 S3K60 Shindengen TC=25C Standard Nov-08 263 1N5408 Fairchild TC=25C Standard Oct-10 234 S3L60 Shindengen TC=25C Professional Nov-08 264 DG1E60 Shindengen TC=25C Professional Oct-10 235 S3L60 Shindengen TC=25C Standard Nov-08 265 DG1E60 Shindengen TC=25C Standard Oct-10 236 1SS187 Toshiba TC=25C Professional Nov-08 266 KBU810 WTE TC=25C Professional Oct-10 237 1SS187 Toshiba TC=25C Standard Nov-08 267 KBU810 WTE TC=25C Standard Oct-10 238 1SS250 Toshiba TC=25C Professional Nov-08 268 MA3X152K0L Panasonic TC=25C Professional Sep-11 239 1SS250 Toshiba TC=25C Standard Nov-08 269 MA3X152K0L Panasonic TC=25C Standard Sep-11 240 1SS272 Toshiba TC=25C Professional Nov-08 270 MA4S111 Panasonic TC=25C Professional Sep-11 241 1SS272 Toshiba TC=25C Standard Nov-08 271 MA4S111 Panasonic TC=25C Standard Sep-11 242 1SS370 Toshiba TC=25C Professional Nov-08 272 D3SB80 Shindengen TC=25C Standard Sep-11 243 1SS370 Toshiba TC=25C Standard Nov-08 273 D5LC20U Shindengen TC=25C Standard Sep-11 244 1SS397 Toshiba TC=25C Professional Nov-08 274 D25XB80 Shindengen TC=25C Standard Sep-11 245 1SS397 Toshiba TC=25C Standard Nov-08 275 1SS184 Toshiba TC=25C Professional Sep-11 246 CMH08 Toshiba TC=25C Professional Nov-08 276 1SS184 Toshiba TC=25C Standard Sep-11 247 CMH08 Toshiba TC=25C Standard Nov-08 277 1SS193 Toshiba TC=25C Professional Sep-11 248 CRH01 Toshiba TC=25C Professional Nov-08 278 1SS193 Toshiba TC=25C Standard Sep-11 249 CRH01 Toshiba TC=25C Standard Nov-08 279 1SS196 Toshiba TC=25C Professional Sep-11 250 1SS412 Toshiba TC=25C Professional Nov-08 280 1SS196 Toshiba TC=25C Standard Sep-11 251 1SS412 Toshiba TC=25C Standard Nov-08 281 1SS336 Toshiba TC=25C Professional Sep-11 252 CMH04 Toshiba TC=25C Professional Nov-08 282 1SS336 Toshiba TC=25C Standard Sep-11 253 CMH04 Toshiba TC=25C Standard Nov-08 283 1A1 MIC 25C Standard May-17 254 CLH01 Toshiba TC=25C Professional Nov-08 284 1A2 MIC 25C Standard May-17 255 CLH01 Toshiba TC=25C Standard Nov-08 285 1A3 MIC 25C Standard May-17 256 CLH02 Toshiba TC=25C Professional Nov-08 286 1A4 MIC 25C Standard May-17 257 CLH02 Toshiba TC=25C Standard Nov-08 287 1A5 MIC 25C Standard May-17 258 CMH05A Toshiba TC=25C Professional Nov-08 288 1A6 MIC 25C Standard May-17 259 CMH05A Toshiba TC=25C Standard Nov-08 289 1A7 MIC 25C Standard May-17 260 CMH07 Toshiba TC=25C Professional Nov-08 290 1A8 MIC 25C Standard May-17 All Rights Reserved Copyright (C) Bee Technologies Inc.

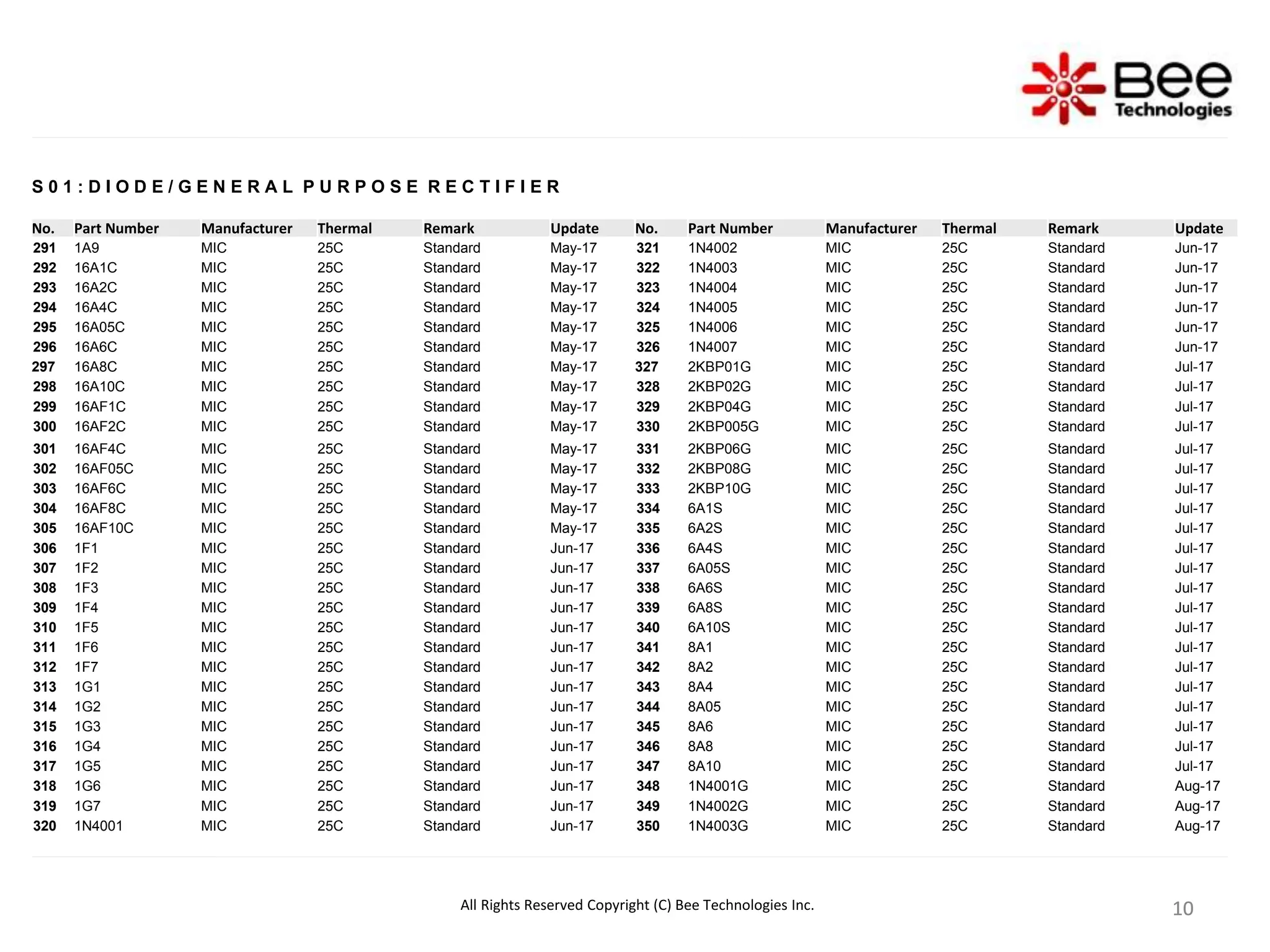

- 10. 10 10 10 S 0 1: D I O D E / G E N E R A L P U R P O S E R E C T I F I E R No. Part Number Manufacturer Thermal Remark Update No. Part Number Manufacturer Thermal Remark Update 291 1A9 MIC 25C Standard May-17 321 1N4002 MIC 25C Standard Jun-17 292 16A1C MIC 25C Standard May-17 322 1N4003 MIC 25C Standard Jun-17 293 16A2C MIC 25C Standard May-17 323 1N4004 MIC 25C Standard Jun-17 294 16A4C MIC 25C Standard May-17 324 1N4005 MIC 25C Standard Jun-17 295 16A05C MIC 25C Standard May-17 325 1N4006 MIC 25C Standard Jun-17 296 16A6C MIC 25C Standard May-17 326 1N4007 MIC 25C Standard Jun-17 297 16A8C MIC 25C Standard May-17 327 2KBP01G MIC 25C Standard Jul-17 298 16A10C MIC 25C Standard May-17 328 2KBP02G MIC 25C Standard Jul-17 299 16AF1C MIC 25C Standard May-17 329 2KBP04G MIC 25C Standard Jul-17 300 16AF2C MIC 25C Standard May-17 330 2KBP005G MIC 25C Standard Jul-17 301 16AF4C MIC 25C Standard May-17 331 2KBP06G MIC 25C Standard Jul-17 302 16AF05C MIC 25C Standard May-17 332 2KBP08G MIC 25C Standard Jul-17 303 16AF6C MIC 25C Standard May-17 333 2KBP10G MIC 25C Standard Jul-17 304 16AF8C MIC 25C Standard May-17 334 6A1S MIC 25C Standard Jul-17 305 16AF10C MIC 25C Standard May-17 335 6A2S MIC 25C Standard Jul-17 306 1F1 MIC 25C Standard Jun-17 336 6A4S MIC 25C Standard Jul-17 307 1F2 MIC 25C Standard Jun-17 337 6A05S MIC 25C Standard Jul-17 308 1F3 MIC 25C Standard Jun-17 338 6A6S MIC 25C Standard Jul-17 309 1F4 MIC 25C Standard Jun-17 339 6A8S MIC 25C Standard Jul-17 310 1F5 MIC 25C Standard Jun-17 340 6A10S MIC 25C Standard Jul-17 311 1F6 MIC 25C Standard Jun-17 341 8A1 MIC 25C Standard Jul-17 312 1F7 MIC 25C Standard Jun-17 342 8A2 MIC 25C Standard Jul-17 313 1G1 MIC 25C Standard Jun-17 343 8A4 MIC 25C Standard Jul-17 314 1G2 MIC 25C Standard Jun-17 344 8A05 MIC 25C Standard Jul-17 315 1G3 MIC 25C Standard Jun-17 345 8A6 MIC 25C Standard Jul-17 316 1G4 MIC 25C Standard Jun-17 346 8A8 MIC 25C Standard Jul-17 317 1G5 MIC 25C Standard Jun-17 347 8A10 MIC 25C Standard Jul-17 318 1G6 MIC 25C Standard Jun-17 348 1N4001G MIC 25C Standard Aug-17 319 1G7 MIC 25C Standard Jun-17 349 1N4002G MIC 25C Standard Aug-17 320 1N4001 MIC 25C Standard Jun-17 350 1N4003G MIC 25C Standard Aug-17 All Rights Reserved Copyright (C) Bee Technologies Inc.

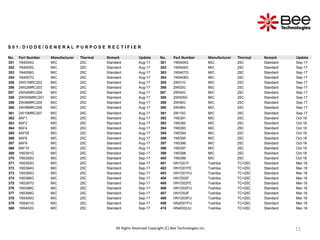

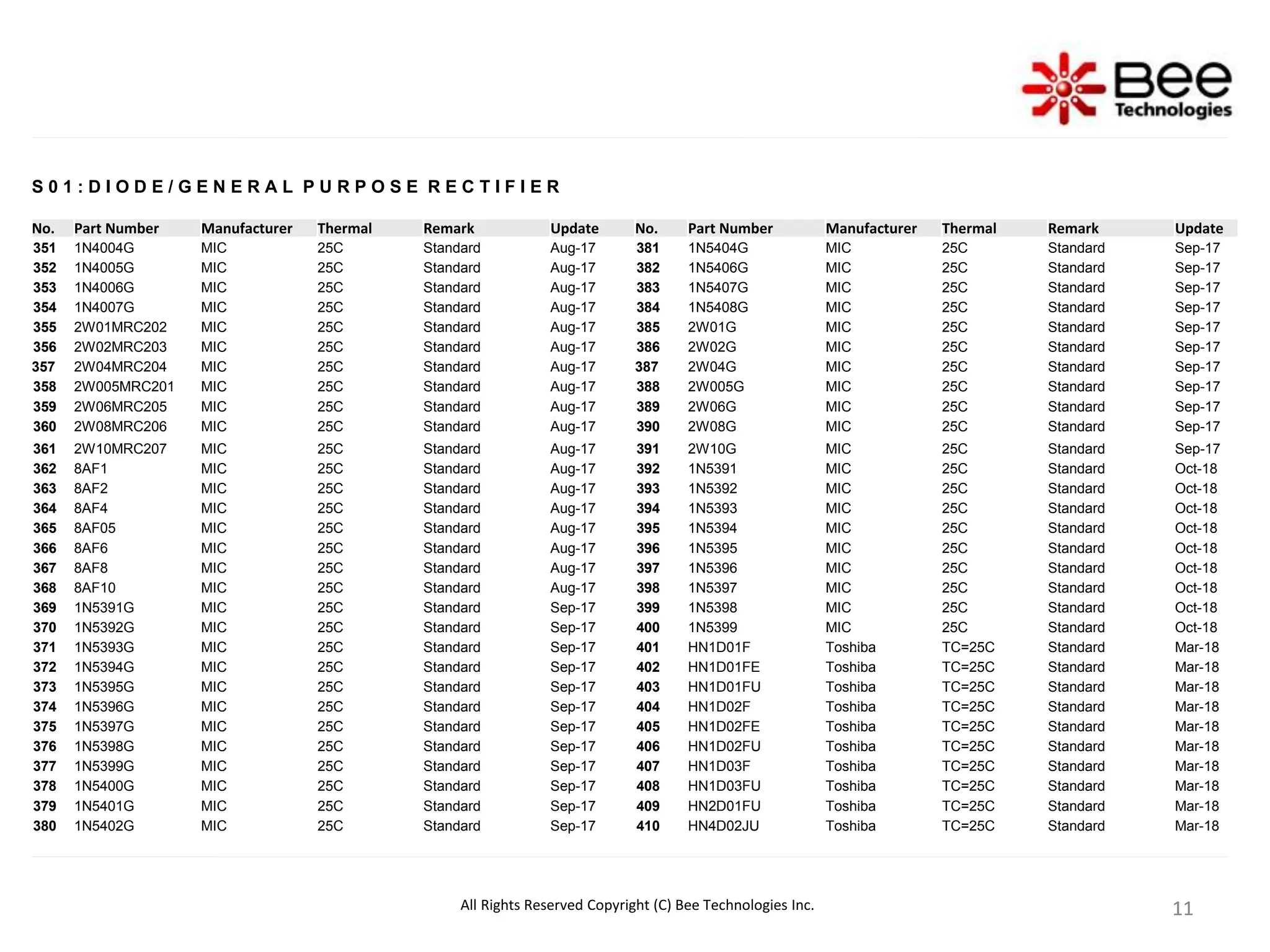

- 11. 11 11 11 S 0 1: D I O D E / G E N E R A L P U R P O S E R E C T I F I E R No. Part Number Manufacturer Thermal Remark Update No. Part Number Manufacturer Thermal Remark Update 351 1N4004G MIC 25C Standard Aug-17 381 1N5404G MIC 25C Standard Sep-17 352 1N4005G MIC 25C Standard Aug-17 382 1N5406G MIC 25C Standard Sep-17 353 1N4006G MIC 25C Standard Aug-17 383 1N5407G MIC 25C Standard Sep-17 354 1N4007G MIC 25C Standard Aug-17 384 1N5408G MIC 25C Standard Sep-17 355 2W01MRC202 MIC 25C Standard Aug-17 385 2W01G MIC 25C Standard Sep-17 356 2W02MRC203 MIC 25C Standard Aug-17 386 2W02G MIC 25C Standard Sep-17 357 2W04MRC204 MIC 25C Standard Aug-17 387 2W04G MIC 25C Standard Sep-17 358 2W005MRC201 MIC 25C Standard Aug-17 388 2W005G MIC 25C Standard Sep-17 359 2W06MRC205 MIC 25C Standard Aug-17 389 2W06G MIC 25C Standard Sep-17 360 2W08MRC206 MIC 25C Standard Aug-17 390 2W08G MIC 25C Standard Sep-17 361 2W10MRC207 MIC 25C Standard Aug-17 391 2W10G MIC 25C Standard Sep-17 362 8AF1 MIC 25C Standard Aug-17 392 1N5391 MIC 25C Standard Oct-18 363 8AF2 MIC 25C Standard Aug-17 393 1N5392 MIC 25C Standard Oct-18 364 8AF4 MIC 25C Standard Aug-17 394 1N5393 MIC 25C Standard Oct-18 365 8AF05 MIC 25C Standard Aug-17 395 1N5394 MIC 25C Standard Oct-18 366 8AF6 MIC 25C Standard Aug-17 396 1N5395 MIC 25C Standard Oct-18 367 8AF8 MIC 25C Standard Aug-17 397 1N5396 MIC 25C Standard Oct-18 368 8AF10 MIC 25C Standard Aug-17 398 1N5397 MIC 25C Standard Oct-18 369 1N5391G MIC 25C Standard Sep-17 399 1N5398 MIC 25C Standard Oct-18 370 1N5392G MIC 25C Standard Sep-17 400 1N5399 MIC 25C Standard Oct-18 371 1N5393G MIC 25C Standard Sep-17 401 HN1D01F Toshiba TC=25C Standard Mar-18 372 1N5394G MIC 25C Standard Sep-17 402 HN1D01FE Toshiba TC=25C Standard Mar-18 373 1N5395G MIC 25C Standard Sep-17 403 HN1D01FU Toshiba TC=25C Standard Mar-18 374 1N5396G MIC 25C Standard Sep-17 404 HN1D02F Toshiba TC=25C Standard Mar-18 375 1N5397G MIC 25C Standard Sep-17 405 HN1D02FE Toshiba TC=25C Standard Mar-18 376 1N5398G MIC 25C Standard Sep-17 406 HN1D02FU Toshiba TC=25C Standard Mar-18 377 1N5399G MIC 25C Standard Sep-17 407 HN1D03F Toshiba TC=25C Standard Mar-18 378 1N5400G MIC 25C Standard Sep-17 408 HN1D03FU Toshiba TC=25C Standard Mar-18 379 1N5401G MIC 25C Standard Sep-17 409 HN2D01FU Toshiba TC=25C Standard Mar-18 380 1N5402G MIC 25C Standard Sep-17 410 HN4D02JU Toshiba TC=25C Standard Mar-18 All Rights Reserved Copyright (C) Bee Technologies Inc.

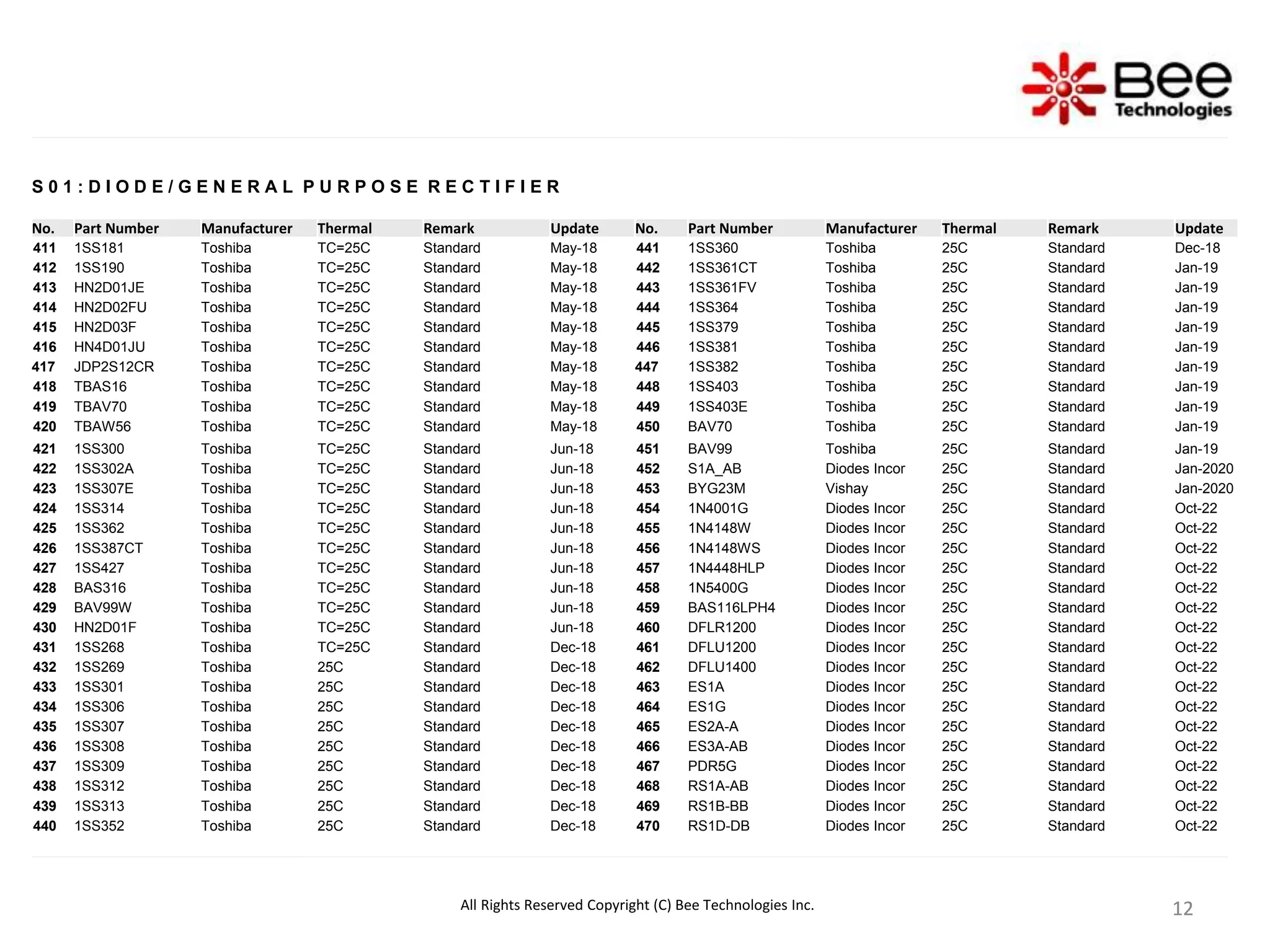

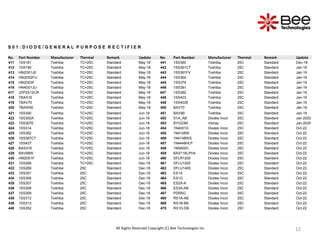

- 12. 12 12 12 S 0 1: D I O D E / G E N E R A L P U R P O S E R E C T I F I E R No. Part Number Manufacturer Thermal Remark Update No. Part Number Manufacturer Thermal Remark Update 411 1SS181 Toshiba TC=25C Standard May-18 441 1SS360 Toshiba 25C Standard Dec-18 412 1SS190 Toshiba TC=25C Standard May-18 442 1SS361CT Toshiba 25C Standard Jan-19 413 HN2D01JE Toshiba TC=25C Standard May-18 443 1SS361FV Toshiba 25C Standard Jan-19 414 HN2D02FU Toshiba TC=25C Standard May-18 444 1SS364 Toshiba 25C Standard Jan-19 415 HN2D03F Toshiba TC=25C Standard May-18 445 1SS379 Toshiba 25C Standard Jan-19 416 HN4D01JU Toshiba TC=25C Standard May-18 446 1SS381 Toshiba 25C Standard Jan-19 417 JDP2S12CR Toshiba TC=25C Standard May-18 447 1SS382 Toshiba 25C Standard Jan-19 418 TBAS16 Toshiba TC=25C Standard May-18 448 1SS403 Toshiba 25C Standard Jan-19 419 TBAV70 Toshiba TC=25C Standard May-18 449 1SS403E Toshiba 25C Standard Jan-19 420 TBAW56 Toshiba TC=25C Standard May-18 450 BAV70 Toshiba 25C Standard Jan-19 421 1SS300 Toshiba TC=25C Standard Jun-18 451 BAV99 Toshiba 25C Standard Jan-19 422 1SS302A Toshiba TC=25C Standard Jun-18 452 S1A_AB Diodes Incor 25C Standard Jan-2020 423 1SS307E Toshiba TC=25C Standard Jun-18 453 BYG23M Vishay 25C Standard Jan-2020 424 1SS314 Toshiba TC=25C Standard Jun-18 454 1N4001G Diodes Incor 25C Standard Oct-22 425 1SS362 Toshiba TC=25C Standard Jun-18 455 1N4148W Diodes Incor 25C Standard Oct-22 426 1SS387CT Toshiba TC=25C Standard Jun-18 456 1N4148WS Diodes Incor 25C Standard Oct-22 427 1SS427 Toshiba TC=25C Standard Jun-18 457 1N4448HLP Diodes Incor 25C Standard Oct-22 428 BAS316 Toshiba TC=25C Standard Jun-18 458 1N5400G Diodes Incor 25C Standard Oct-22 429 BAV99W Toshiba TC=25C Standard Jun-18 459 BAS116LPH4 Diodes Incor 25C Standard Oct-22 430 HN2D01F Toshiba TC=25C Standard Jun-18 460 DFLR1200 Diodes Incor 25C Standard Oct-22 431 1SS268 Toshiba TC=25C Standard Dec-18 461 DFLU1200 Diodes Incor 25C Standard Oct-22 432 1SS269 Toshiba 25C Standard Dec-18 462 DFLU1400 Diodes Incor 25C Standard Oct-22 433 1SS301 Toshiba 25C Standard Dec-18 463 ES1A Diodes Incor 25C Standard Oct-22 434 1SS306 Toshiba 25C Standard Dec-18 464 ES1G Diodes Incor 25C Standard Oct-22 435 1SS307 Toshiba 25C Standard Dec-18 465 ES2A-A Diodes Incor 25C Standard Oct-22 436 1SS308 Toshiba 25C Standard Dec-18 466 ES3A-AB Diodes Incor 25C Standard Oct-22 437 1SS309 Toshiba 25C Standard Dec-18 467 PDR5G Diodes Incor 25C Standard Oct-22 438 1SS312 Toshiba 25C Standard Dec-18 468 RS1A-AB Diodes Incor 25C Standard Oct-22 439 1SS313 Toshiba 25C Standard Dec-18 469 RS1B-BB Diodes Incor 25C Standard Oct-22 440 1SS352 Toshiba 25C Standard Dec-18 470 RS1D-DB Diodes Incor 25C Standard Oct-22 All Rights Reserved Copyright (C) Bee Technologies Inc.

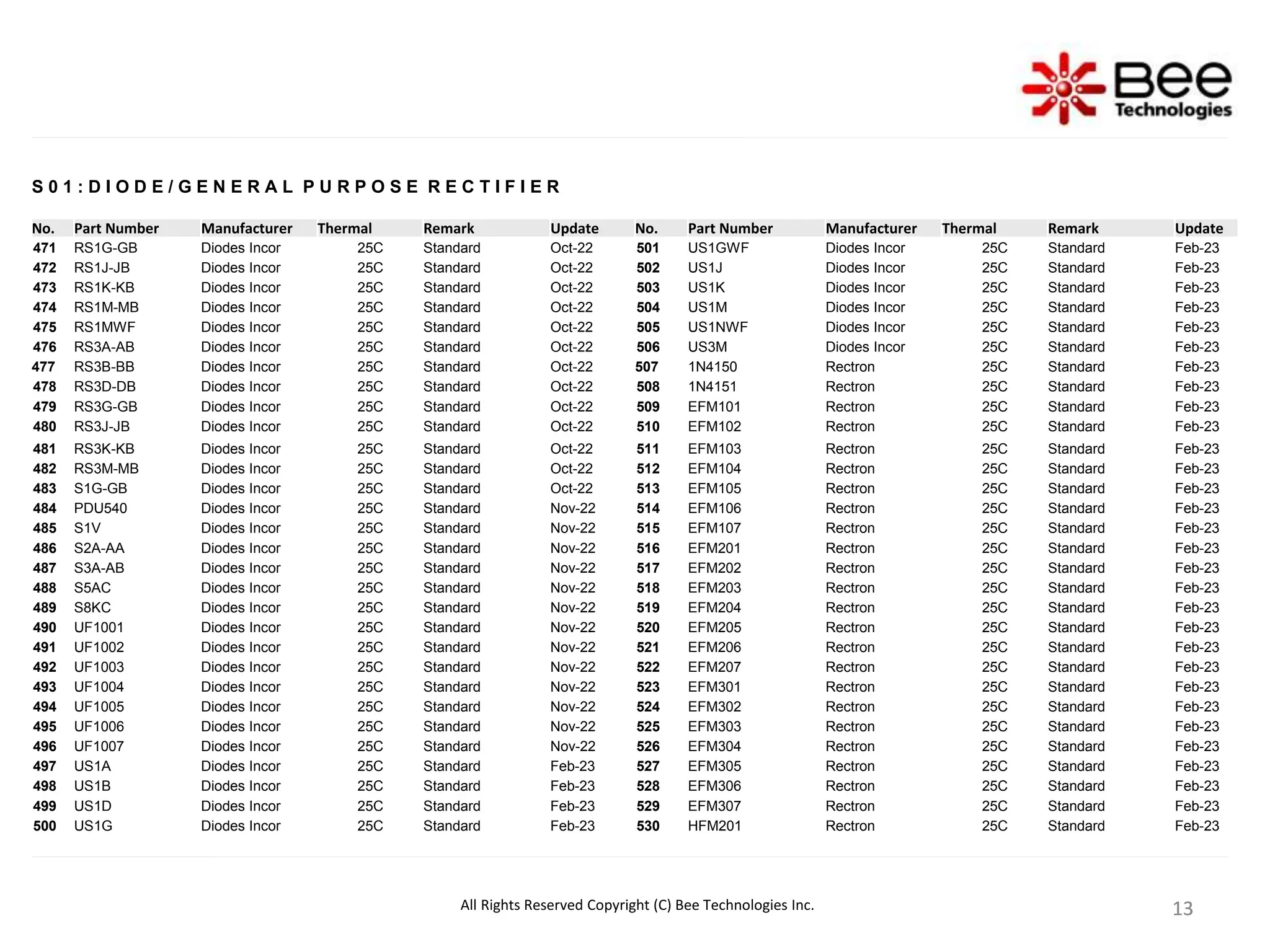

- 13. 13 13 13 S 0 1: D I O D E / G E N E R A L P U R P O S E R E C T I F I E R No. Part Number Manufacturer Thermal Remark Update No. Part Number Manufacturer Thermal Remark Update 471 RS1G-GB Diodes Incor 25C Standard Oct-22 501 US1GWF Diodes Incor 25C Standard Feb-23 472 RS1J-JB Diodes Incor 25C Standard Oct-22 502 US1J Diodes Incor 25C Standard Feb-23 473 RS1K-KB Diodes Incor 25C Standard Oct-22 503 US1K Diodes Incor 25C Standard Feb-23 474 RS1M-MB Diodes Incor 25C Standard Oct-22 504 US1M Diodes Incor 25C Standard Feb-23 475 RS1MWF Diodes Incor 25C Standard Oct-22 505 US1NWF Diodes Incor 25C Standard Feb-23 476 RS3A-AB Diodes Incor 25C Standard Oct-22 506 US3M Diodes Incor 25C Standard Feb-23 477 RS3B-BB Diodes Incor 25C Standard Oct-22 507 1N4150 Rectron 25C Standard Feb-23 478 RS3D-DB Diodes Incor 25C Standard Oct-22 508 1N4151 Rectron 25C Standard Feb-23 479 RS3G-GB Diodes Incor 25C Standard Oct-22 509 EFM101 Rectron 25C Standard Feb-23 480 RS3J-JB Diodes Incor 25C Standard Oct-22 510 EFM102 Rectron 25C Standard Feb-23 481 RS3K-KB Diodes Incor 25C Standard Oct-22 511 EFM103 Rectron 25C Standard Feb-23 482 RS3M-MB Diodes Incor 25C Standard Oct-22 512 EFM104 Rectron 25C Standard Feb-23 483 S1G-GB Diodes Incor 25C Standard Oct-22 513 EFM105 Rectron 25C Standard Feb-23 484 PDU540 Diodes Incor 25C Standard Nov-22 514 EFM106 Rectron 25C Standard Feb-23 485 S1V Diodes Incor 25C Standard Nov-22 515 EFM107 Rectron 25C Standard Feb-23 486 S2A-AA Diodes Incor 25C Standard Nov-22 516 EFM201 Rectron 25C Standard Feb-23 487 S3A-AB Diodes Incor 25C Standard Nov-22 517 EFM202 Rectron 25C Standard Feb-23 488 S5AC Diodes Incor 25C Standard Nov-22 518 EFM203 Rectron 25C Standard Feb-23 489 S8KC Diodes Incor 25C Standard Nov-22 519 EFM204 Rectron 25C Standard Feb-23 490 UF1001 Diodes Incor 25C Standard Nov-22 520 EFM205 Rectron 25C Standard Feb-23 491 UF1002 Diodes Incor 25C Standard Nov-22 521 EFM206 Rectron 25C Standard Feb-23 492 UF1003 Diodes Incor 25C Standard Nov-22 522 EFM207 Rectron 25C Standard Feb-23 493 UF1004 Diodes Incor 25C Standard Nov-22 523 EFM301 Rectron 25C Standard Feb-23 494 UF1005 Diodes Incor 25C Standard Nov-22 524 EFM302 Rectron 25C Standard Feb-23 495 UF1006 Diodes Incor 25C Standard Nov-22 525 EFM303 Rectron 25C Standard Feb-23 496 UF1007 Diodes Incor 25C Standard Nov-22 526 EFM304 Rectron 25C Standard Feb-23 497 US1A Diodes Incor 25C Standard Feb-23 527 EFM305 Rectron 25C Standard Feb-23 498 US1B Diodes Incor 25C Standard Feb-23 528 EFM306 Rectron 25C Standard Feb-23 499 US1D Diodes Incor 25C Standard Feb-23 529 EFM307 Rectron 25C Standard Feb-23 500 US1G Diodes Incor 25C Standard Feb-23 530 HFM201 Rectron 25C Standard Feb-23 All Rights Reserved Copyright (C) Bee Technologies Inc.

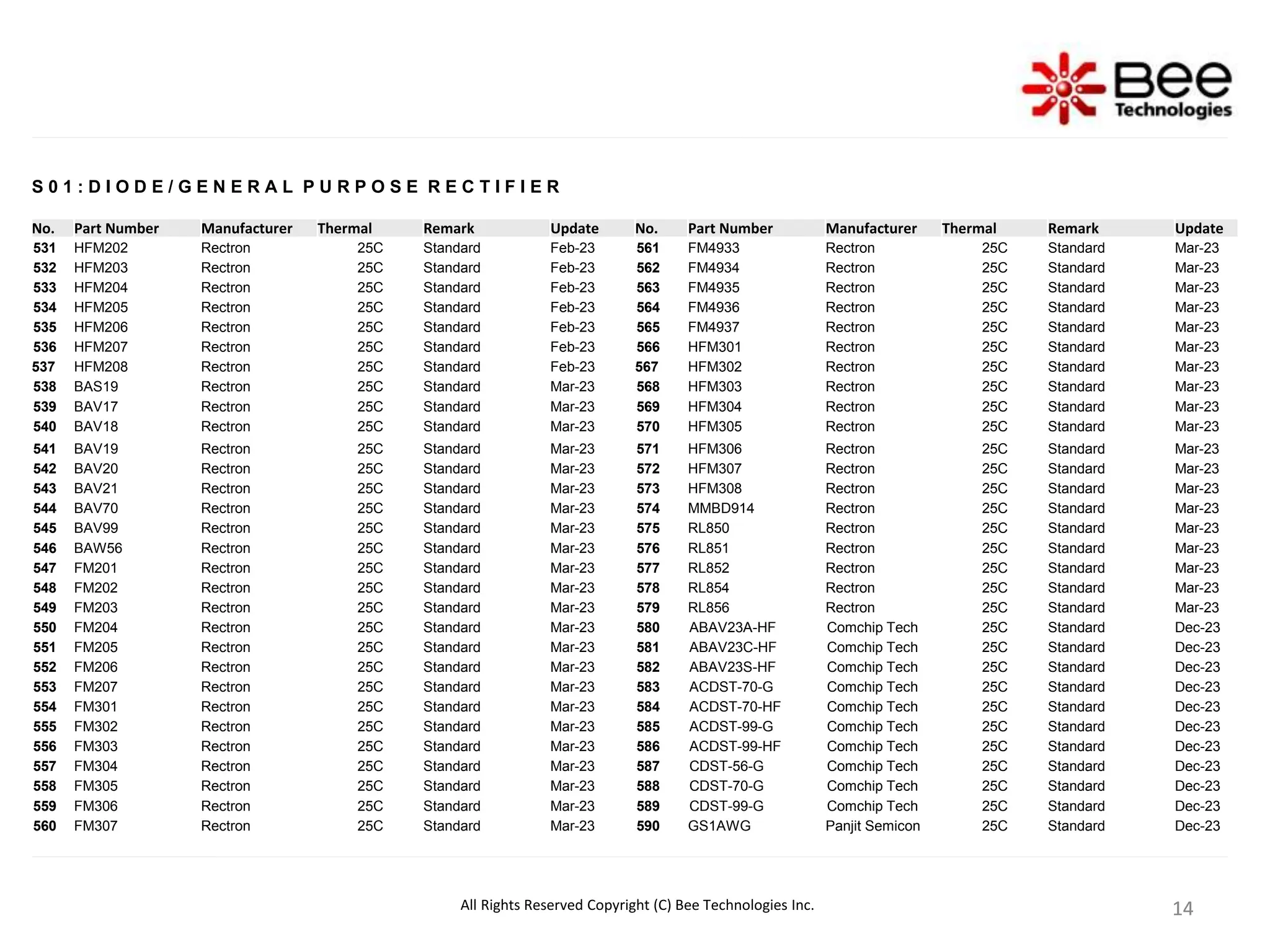

- 14. 14 14 14 S 0 1: D I O D E / G E N E R A L P U R P O S E R E C T I F I E R No. Part Number Manufacturer Thermal Remark Update No. Part Number Manufacturer Thermal Remark Update 531 HFM202 Rectron 25C Standard Feb-23 561 FM4933 Rectron 25C Standard Mar-23 532 HFM203 Rectron 25C Standard Feb-23 562 FM4934 Rectron 25C Standard Mar-23 533 HFM204 Rectron 25C Standard Feb-23 563 FM4935 Rectron 25C Standard Mar-23 534 HFM205 Rectron 25C Standard Feb-23 564 FM4936 Rectron 25C Standard Mar-23 535 HFM206 Rectron 25C Standard Feb-23 565 FM4937 Rectron 25C Standard Mar-23 536 HFM207 Rectron 25C Standard Feb-23 566 HFM301 Rectron 25C Standard Mar-23 537 HFM208 Rectron 25C Standard Feb-23 567 HFM302 Rectron 25C Standard Mar-23 538 BAS19 Rectron 25C Standard Mar-23 568 HFM303 Rectron 25C Standard Mar-23 539 BAV17 Rectron 25C Standard Mar-23 569 HFM304 Rectron 25C Standard Mar-23 540 BAV18 Rectron 25C Standard Mar-23 570 HFM305 Rectron 25C Standard Mar-23 541 BAV19 Rectron 25C Standard Mar-23 571 HFM306 Rectron 25C Standard Mar-23 542 BAV20 Rectron 25C Standard Mar-23 572 HFM307 Rectron 25C Standard Mar-23 543 BAV21 Rectron 25C Standard Mar-23 573 HFM308 Rectron 25C Standard Mar-23 544 BAV70 Rectron 25C Standard Mar-23 574 MMBD914 Rectron 25C Standard Mar-23 545 BAV99 Rectron 25C Standard Mar-23 575 RL850 Rectron 25C Standard Mar-23 546 BAW56 Rectron 25C Standard Mar-23 576 RL851 Rectron 25C Standard Mar-23 547 FM201 Rectron 25C Standard Mar-23 577 RL852 Rectron 25C Standard Mar-23 548 FM202 Rectron 25C Standard Mar-23 578 RL854 Rectron 25C Standard Mar-23 549 FM203 Rectron 25C Standard Mar-23 579 RL856 Rectron 25C Standard Mar-23 550 FM204 Rectron 25C Standard Mar-23 580 ABAV23A-HF Comchip Tech 25C Standard Dec-23 551 FM205 Rectron 25C Standard Mar-23 581 ABAV23C-HF Comchip Tech 25C Standard Dec-23 552 FM206 Rectron 25C Standard Mar-23 582 ABAV23S-HF Comchip Tech 25C Standard Dec-23 553 FM207 Rectron 25C Standard Mar-23 583 ACDST-70-G Comchip Tech 25C Standard Dec-23 554 FM301 Rectron 25C Standard Mar-23 584 ACDST-70-HF Comchip Tech 25C Standard Dec-23 555 FM302 Rectron 25C Standard Mar-23 585 ACDST-99-G Comchip Tech 25C Standard Dec-23 556 FM303 Rectron 25C Standard Mar-23 586 ACDST-99-HF Comchip Tech 25C Standard Dec-23 557 FM304 Rectron 25C Standard Mar-23 587 CDST-56-G Comchip Tech 25C Standard Dec-23 558 FM305 Rectron 25C Standard Mar-23 588 CDST-70-G Comchip Tech 25C Standard Dec-23 559 FM306 Rectron 25C Standard Mar-23 589 CDST-99-G Comchip Tech 25C Standard Dec-23 560 FM307 Rectron 25C Standard Mar-23 590 GS1AWG Panjit Semicon 25C Standard Dec-23 All Rights Reserved Copyright (C) Bee Technologies Inc.

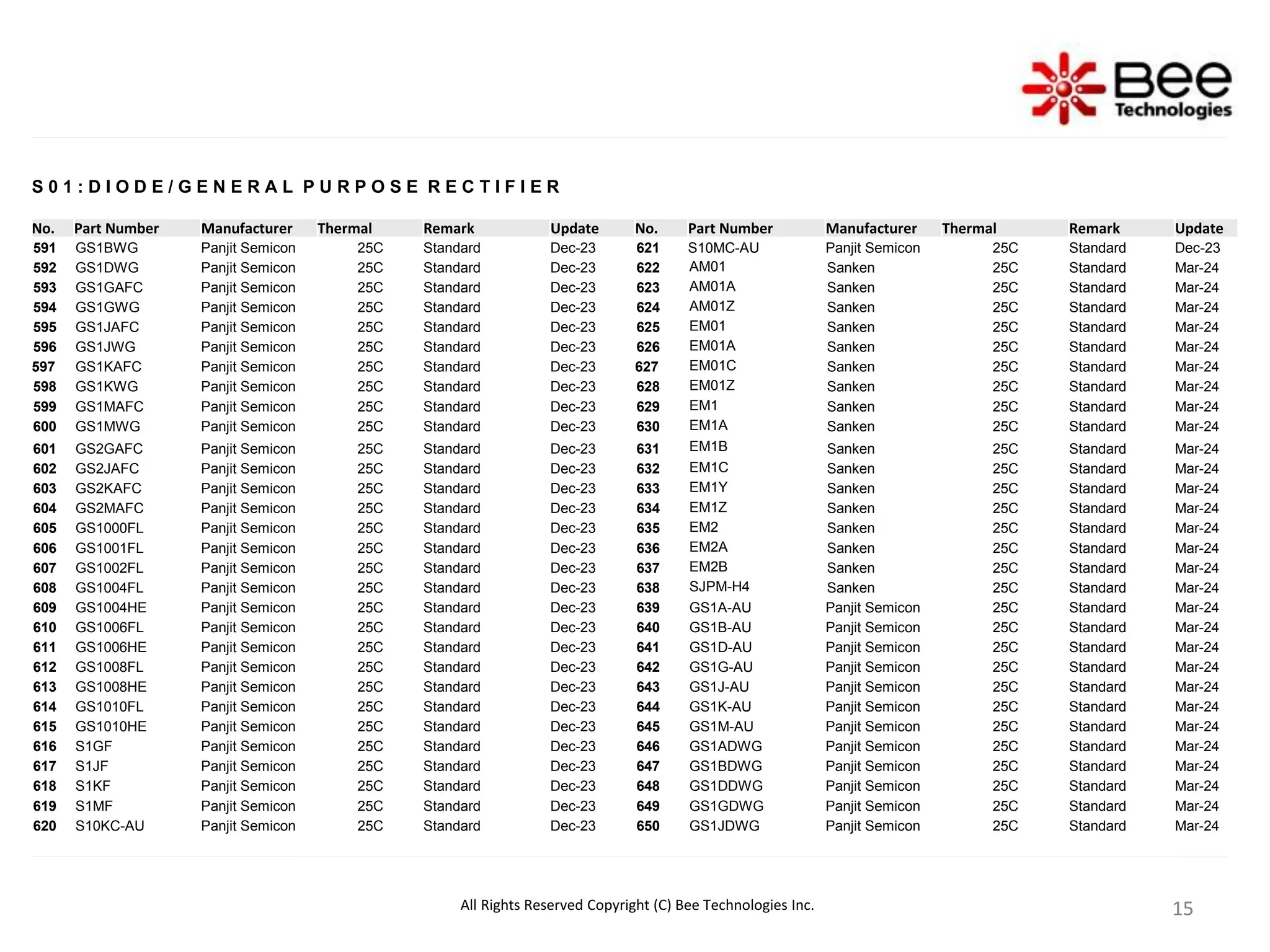

- 15. 15 15 15 S 0 1: D I O D E / G E N E R A L P U R P O S E R E C T I F I E R No. Part Number Manufacturer Thermal Remark Update No. Part Number Manufacturer Thermal Remark Update 591 GS1BWG Panjit Semicon 25C Standard Dec-23 621 S10MC-AU Panjit Semicon 25C Standard Dec-23 592 GS1DWG Panjit Semicon 25C Standard Dec-23 622 AM01 Sanken 25C Standard Mar-24 593 GS1GAFC Panjit Semicon 25C Standard Dec-23 623 AM01A Sanken 25C Standard Mar-24 594 GS1GWG Panjit Semicon 25C Standard Dec-23 624 AM01Z Sanken 25C Standard Mar-24 595 GS1JAFC Panjit Semicon 25C Standard Dec-23 625 EM01 Sanken 25C Standard Mar-24 596 GS1JWG Panjit Semicon 25C Standard Dec-23 626 EM01A Sanken 25C Standard Mar-24 597 GS1KAFC Panjit Semicon 25C Standard Dec-23 627 EM01C Sanken 25C Standard Mar-24 598 GS1KWG Panjit Semicon 25C Standard Dec-23 628 EM01Z Sanken 25C Standard Mar-24 599 GS1MAFC Panjit Semicon 25C Standard Dec-23 629 EM1 Sanken 25C Standard Mar-24 600 GS1MWG Panjit Semicon 25C Standard Dec-23 630 EM1A Sanken 25C Standard Mar-24 601 GS2GAFC Panjit Semicon 25C Standard Dec-23 631 EM1B Sanken 25C Standard Mar-24 602 GS2JAFC Panjit Semicon 25C Standard Dec-23 632 EM1C Sanken 25C Standard Mar-24 603 GS2KAFC Panjit Semicon 25C Standard Dec-23 633 EM1Y Sanken 25C Standard Mar-24 604 GS2MAFC Panjit Semicon 25C Standard Dec-23 634 EM1Z Sanken 25C Standard Mar-24 605 GS1000FL Panjit Semicon 25C Standard Dec-23 635 EM2 Sanken 25C Standard Mar-24 606 GS1001FL Panjit Semicon 25C Standard Dec-23 636 EM2A Sanken 25C Standard Mar-24 607 GS1002FL Panjit Semicon 25C Standard Dec-23 637 EM2B Sanken 25C Standard Mar-24 608 GS1004FL Panjit Semicon 25C Standard Dec-23 638 SJPM-H4 Sanken 25C Standard Mar-24 609 GS1004HE Panjit Semicon 25C Standard Dec-23 639 GS1A-AU Panjit Semicon 25C Standard Mar-24 610 GS1006FL Panjit Semicon 25C Standard Dec-23 640 GS1B-AU Panjit Semicon 25C Standard Mar-24 611 GS1006HE Panjit Semicon 25C Standard Dec-23 641 GS1D-AU Panjit Semicon 25C Standard Mar-24 612 GS1008FL Panjit Semicon 25C Standard Dec-23 642 GS1G-AU Panjit Semicon 25C Standard Mar-24 613 GS1008HE Panjit Semicon 25C Standard Dec-23 643 GS1J-AU Panjit Semicon 25C Standard Mar-24 614 GS1010FL Panjit Semicon 25C Standard Dec-23 644 GS1K-AU Panjit Semicon 25C Standard Mar-24 615 GS1010HE Panjit Semicon 25C Standard Dec-23 645 GS1M-AU Panjit Semicon 25C Standard Mar-24 616 S1GF Panjit Semicon 25C Standard Dec-23 646 GS1ADWG Panjit Semicon 25C Standard Mar-24 617 S1JF Panjit Semicon 25C Standard Dec-23 647 GS1BDWG Panjit Semicon 25C Standard Mar-24 618 S1KF Panjit Semicon 25C Standard Dec-23 648 GS1DDWG Panjit Semicon 25C Standard Mar-24 619 S1MF Panjit Semicon 25C Standard Dec-23 649 GS1GDWG Panjit Semicon 25C Standard Mar-24 620 S10KC-AU Panjit Semicon 25C Standard Dec-23 650 GS1JDWG Panjit Semicon 25C Standard Mar-24 All Rights Reserved Copyright (C) Bee Technologies Inc.

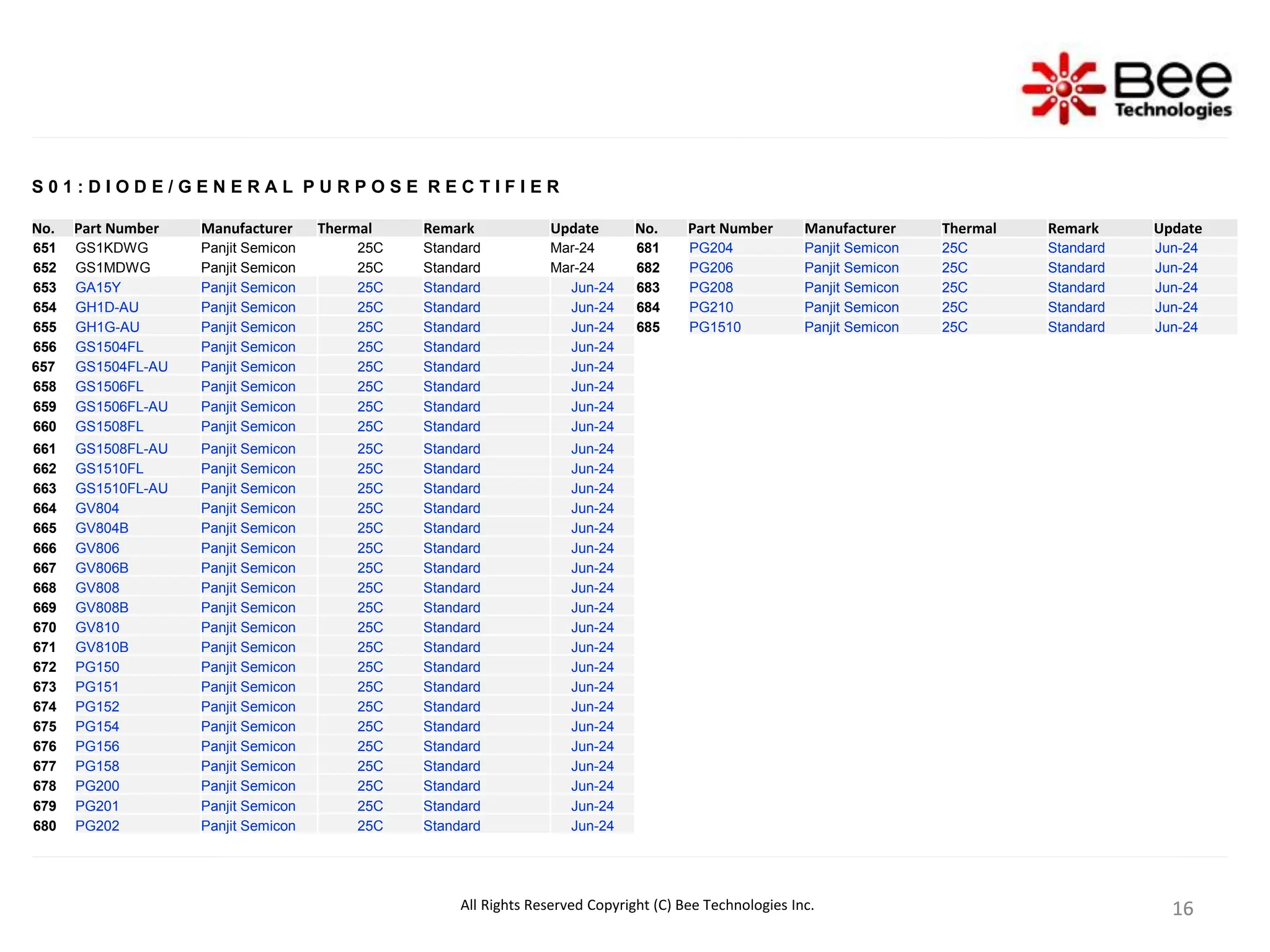

- 16. 16 16 16 S 0 1: D I O D E / G E N E R A L P U R P O S E R E C T I F I E R No. Part Number Manufacturer Thermal Remark Update No. Part Number Manufacturer Thermal Remark Update 651 GS1KDWG Panjit Semicon 25C Standard Mar-24 681 PG204 Panjit Semicon 25C Standard Jun-24 652 GS1MDWG Panjit Semicon 25C Standard Mar-24 682 PG206 Panjit Semicon 25C Standard Jun-24 653 GA15Y Panjit Semicon 25C Standard Jun-24 683 PG208 Panjit Semicon 25C Standard Jun-24 654 GH1D-AU Panjit Semicon 25C Standard Jun-24 684 PG210 Panjit Semicon 25C Standard Jun-24 655 GH1G-AU Panjit Semicon 25C Standard Jun-24 685 PG1510 Panjit Semicon 25C Standard Jun-24 656 GS1504FL Panjit Semicon 25C Standard Jun-24 657 GS1504FL-AU Panjit Semicon 25C Standard Jun-24 658 GS1506FL Panjit Semicon 25C Standard Jun-24 659 GS1506FL-AU Panjit Semicon 25C Standard Jun-24 660 GS1508FL Panjit Semicon 25C Standard Jun-24 661 GS1508FL-AU Panjit Semicon 25C Standard Jun-24 662 GS1510FL Panjit Semicon 25C Standard Jun-24 663 GS1510FL-AU Panjit Semicon 25C Standard Jun-24 664 GV804 Panjit Semicon 25C Standard Jun-24 665 GV804B Panjit Semicon 25C Standard Jun-24 666 GV806 Panjit Semicon 25C Standard Jun-24 667 GV806B Panjit Semicon 25C Standard Jun-24 668 GV808 Panjit Semicon 25C Standard Jun-24 669 GV808B Panjit Semicon 25C Standard Jun-24 670 GV810 Panjit Semicon 25C Standard Jun-24 671 GV810B Panjit Semicon 25C Standard Jun-24 672 PG150 Panjit Semicon 25C Standard Jun-24 673 PG151 Panjit Semicon 25C Standard Jun-24 674 PG152 Panjit Semicon 25C Standard Jun-24 675 PG154 Panjit Semicon 25C Standard Jun-24 676 PG156 Panjit Semicon 25C Standard Jun-24 677 PG158 Panjit Semicon 25C Standard Jun-24 678 PG200 Panjit Semicon 25C Standard Jun-24 679 PG201 Panjit Semicon 25C Standard Jun-24 680 PG202 Panjit Semicon 25C Standard Jun-24 All Rights Reserved Copyright (C) Bee Technologies Inc.

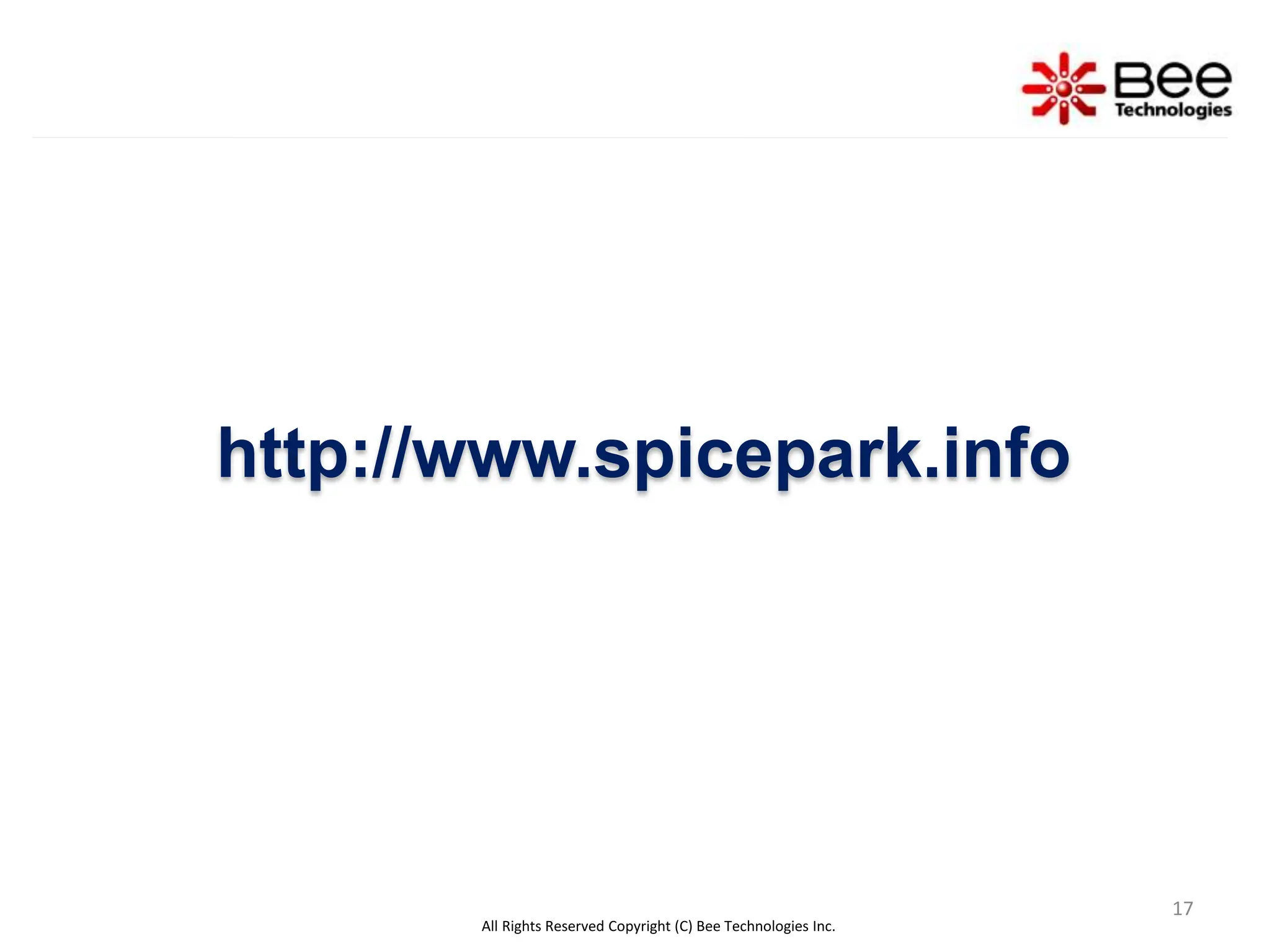

- 17. 17 All Rights ReservedCopyright (C) Bee Technologies Inc. http://www.spicepark.info
