This document discusses continuous integration and automated deployments for Symfony projects. It covers setting up dependencies with Composer, building projects with Phing, implementing continuous integration with Jenkins CI, and deploying projects using Capifony. While many aspects are covered in detail, such as build targets, plugins, and rollback procedures, it notes that the full implementation is not yet available online and will be released to GitHub in 1-2 months.

1. Continuous Integration and Automated
Deployments for Symfony-based projects
Symfony 2 under control
PHP Minsk User Group

2. INTRODUCTION
2

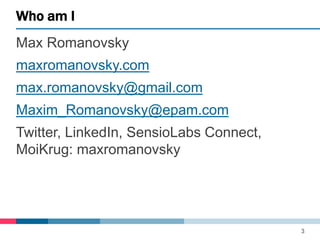

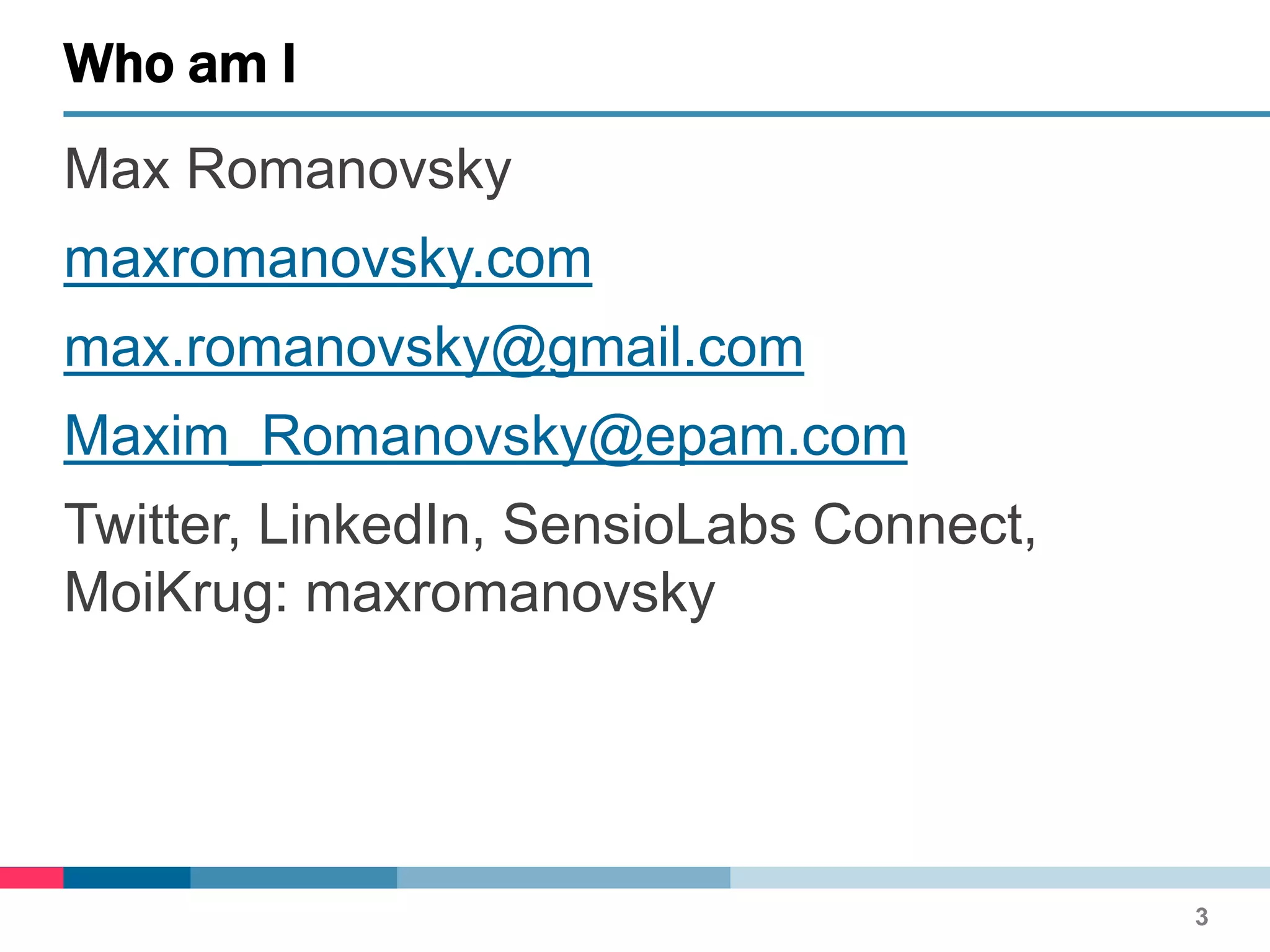

3. Max Romanovsky
maxromanovsky.com
max.romanovsky@gmail.com
Maxim_Romanovsky@epam.com
Twitter, LinkedIn, SensioLabs Connect,
MoiKrug: maxromanovsky
Who am I
3

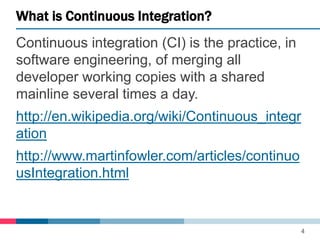

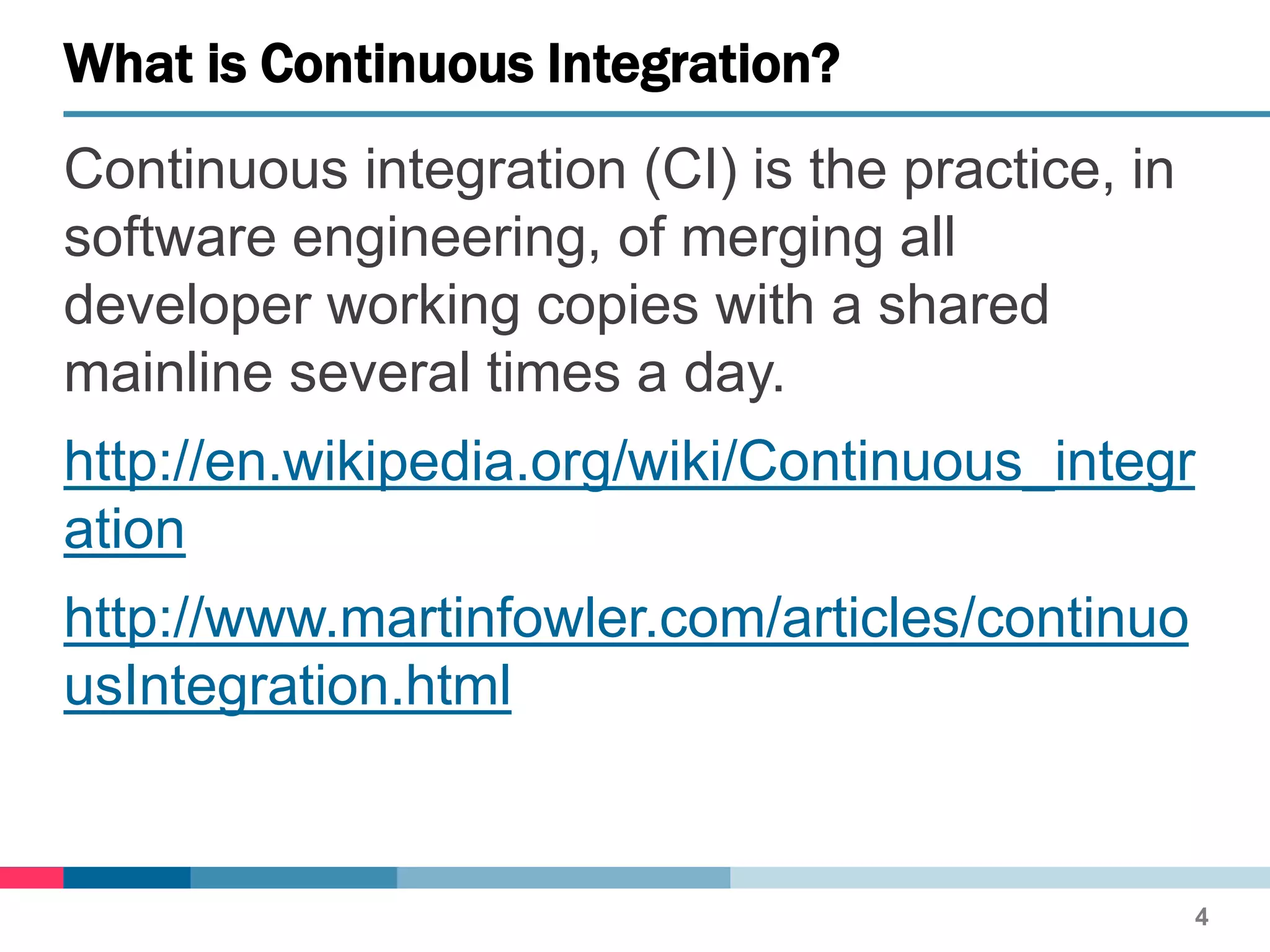

4. Continuous integration (CI) is the practice, in
software engineering, of merging all
developer working copies with a shared
mainline several times a day.
http://en.wikipedia.org/wiki/Continuous_integr
ation
http://www.martinfowler.com/articles/continuo
usIntegration.html
What is Continuous Integration?
4

5. • Improve quality of application
• Understand current situation on project
• Automate your checklists & verifications
• Notify different people on different events
– Build broken? – Developers
– New build deployed to QA? – QA engineers
– New build deployed to UAT/Production? –
Customers
How could it help you?
5

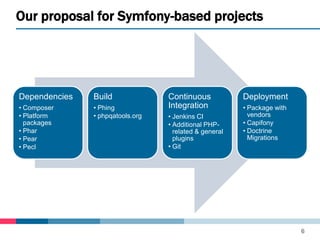

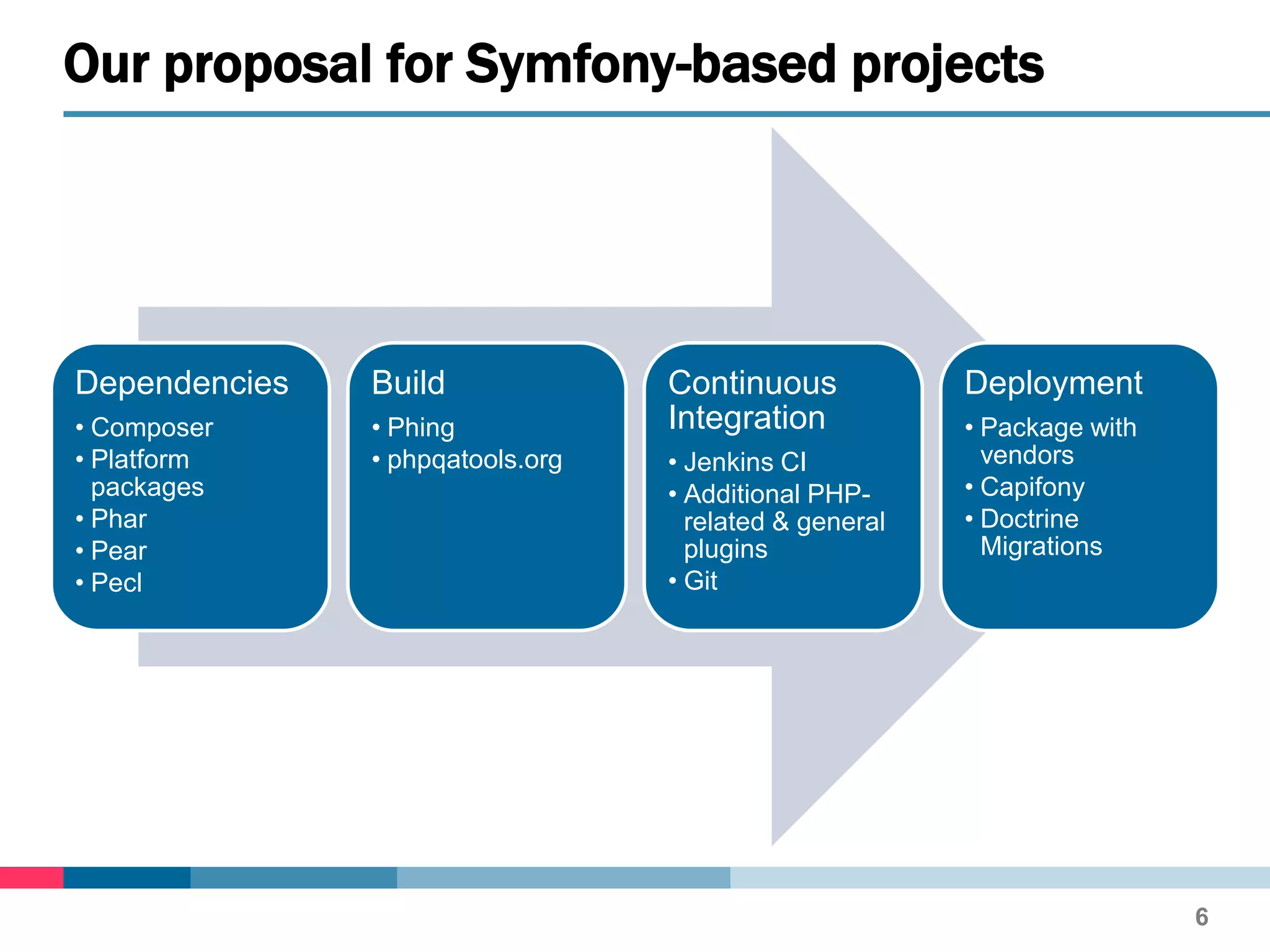

6. Dependencies
• Composer
• Platform
packages
• Phar
• Pear
• Pecl
Build
• Phing
• phpqatools.org
Continuous
Integration
• Jenkins CI
• Additional PHP-
related & general
plugins
• Git
Deployment
• Package with
vendors
• Capifony
• Doctrine
Migrations
Our proposal for Symfony-based projects
6

7. DEPENDENCIES
7

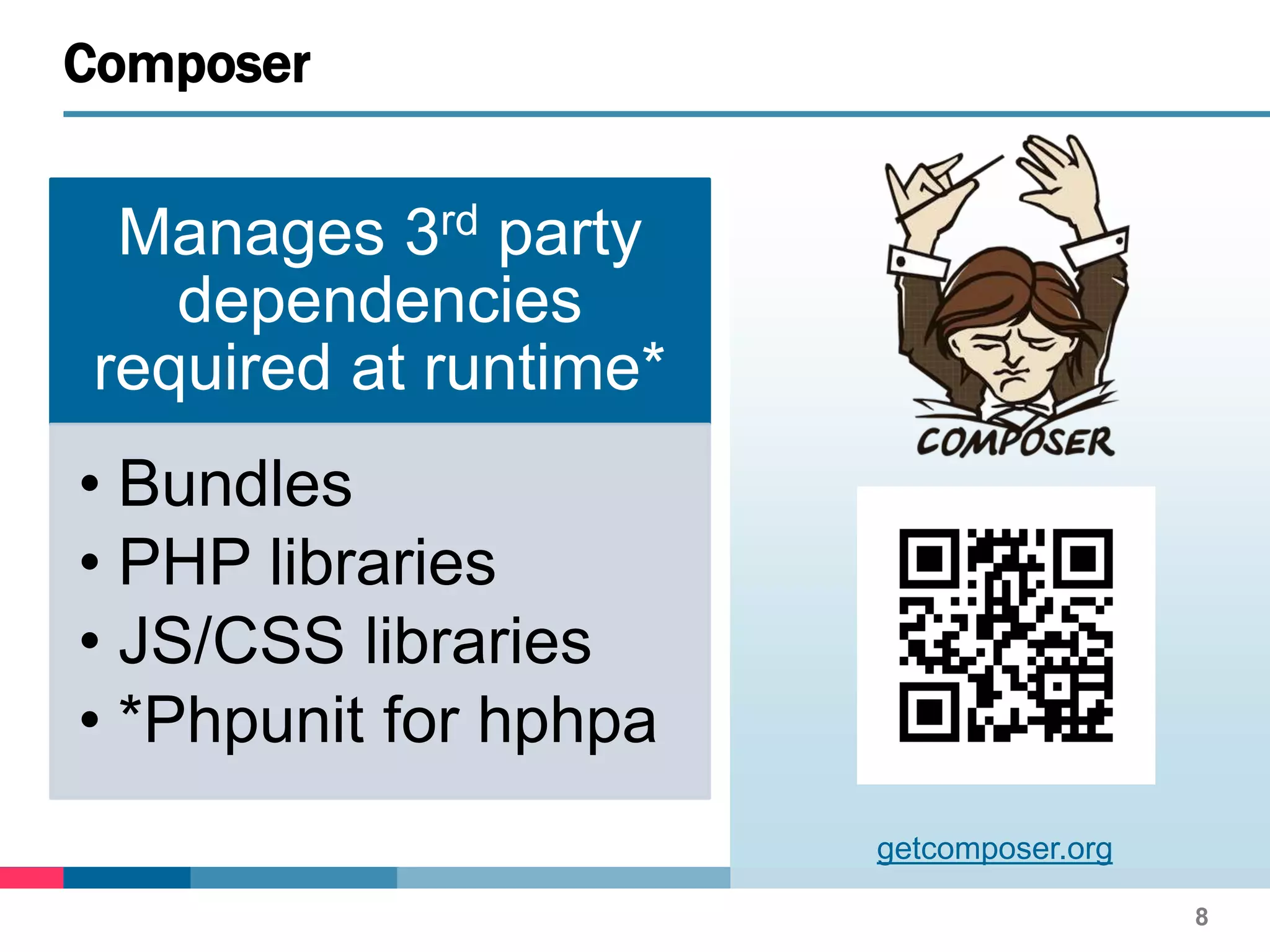

8. Manages 3rd party
dependencies
required at runtime*
• Bundles
• PHP libraries
• JS/CSS libraries
• *Phpunit for hphpa
8
Composer
getcomposer.org

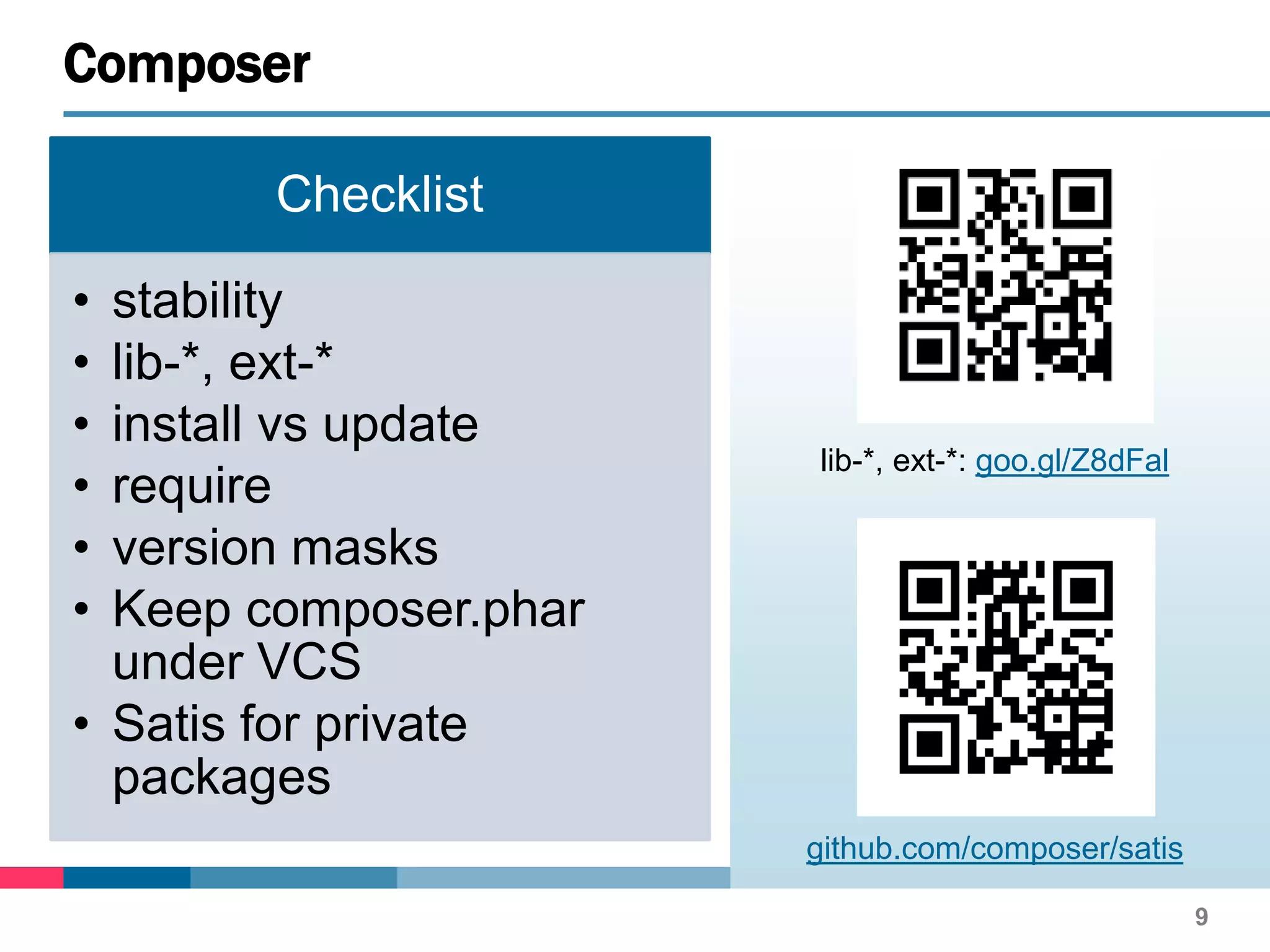

9. Checklist
• stability
• lib-*, ext-*
• install vs update
• require
• version masks
• Keep composer.phar
under VCS
• Satis for private
packages
9
Composer
github.com/composer/satis
lib-*, ext-*: goo.gl/Z8dFal

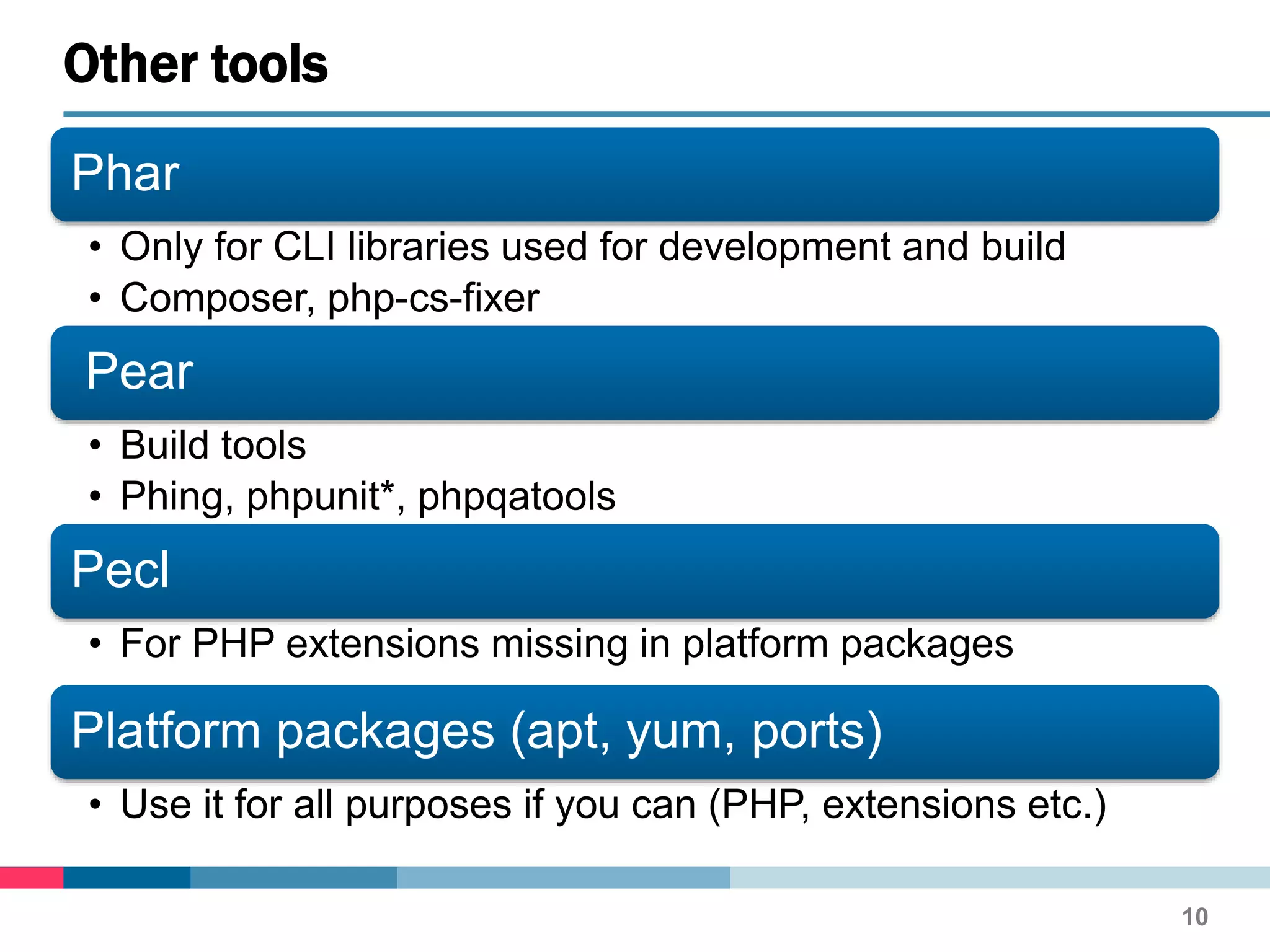

10. Phar
• Only for CLI libraries used for development and build
• Composer, php-cs-fixer
Pear
• Build tools
• Phing, phpunit*, phpqatools
Pecl
• For PHP extensions missing in platform packages
Platform packages (apt, yum, ports)
• Use it for all purposes if you can (PHP, extensions etc.)
Other tools
10

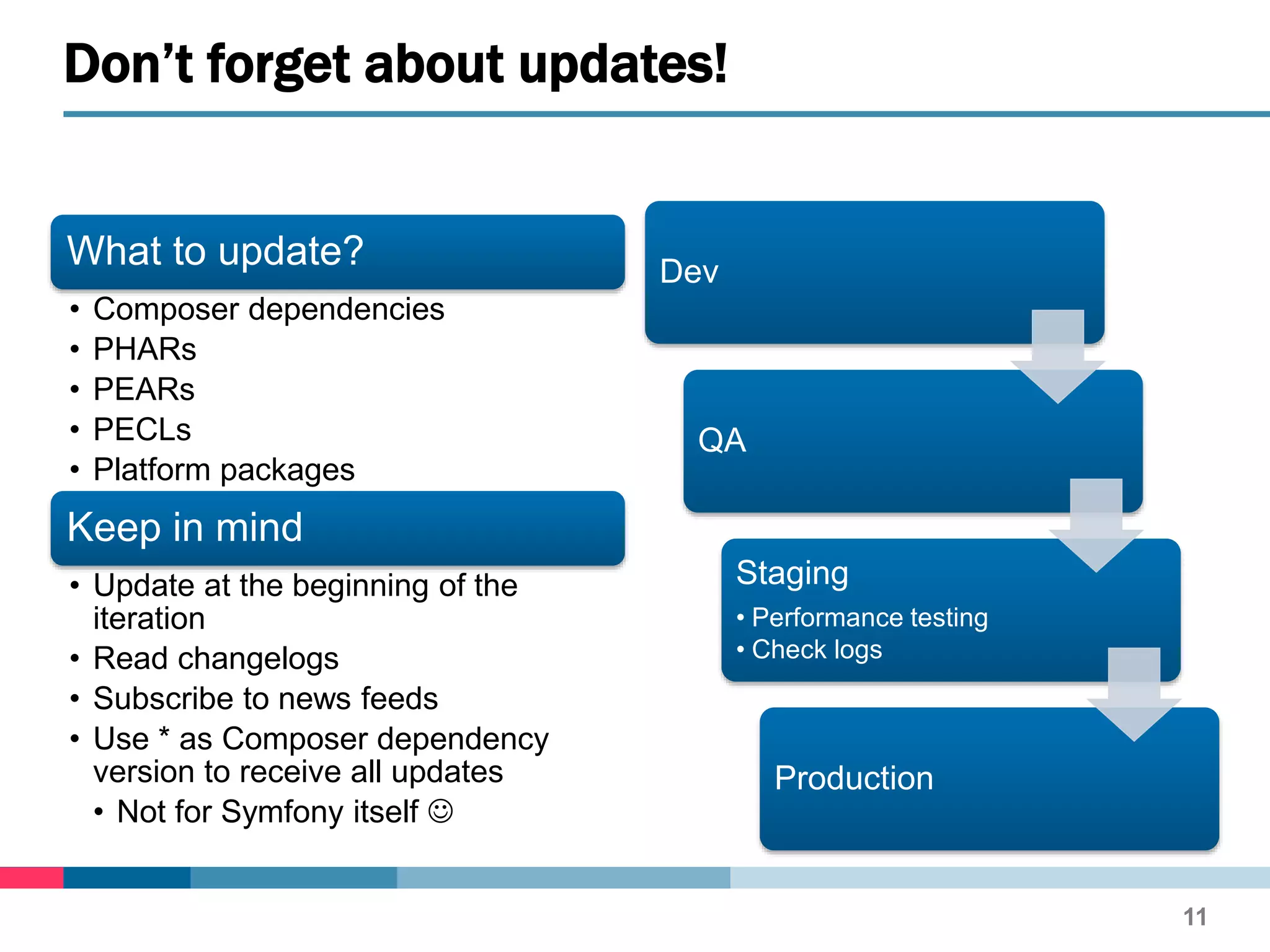

11. What to update?
• Composer dependencies
• PHARs
• PEARs
• PECLs
• Platform packages
Keep in mind
• Update at the beginning of the
iteration
• Read changelogs
• Subscribe to news feeds
• Use * as Composer dependency
version to receive all updates
• Not for Symfony itself 
Dev
QA
Staging
• Performance testing
• Check logs
Production
11
Don’t forget about updates!

12. BUILD
12

13. Ant
• From Java world
• XML declarative config
• Can run tasks in parallel
• No PHP-specific tasks
• Could be extended (Java)
• IDE support
Phing
• Written in PHP
• Ant config syntax
• All tasks by default are running
in the single PHP process
• Could be extended (PHP)
• IDE support
Pake
• Written in PHP
• Not so popular
• PHP-based config
• github.com/indeyets/pake/wiki
Build tools
13

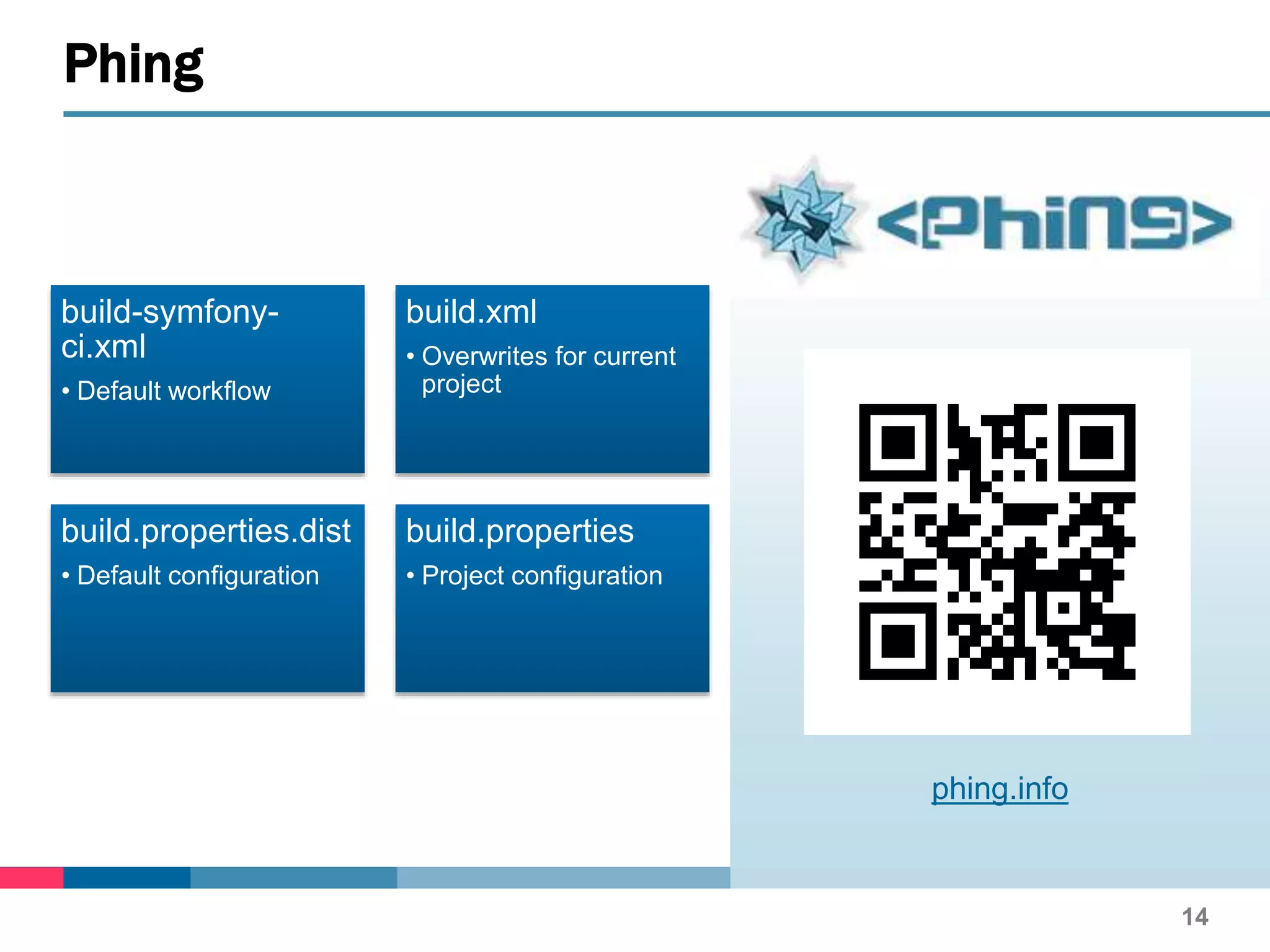

14. build-symfony-
ci.xml
• Default workflow
build.xml
• Overwrites for current
project
build.properties.dist
• Default configuration
build.properties
• Project configuration
14
Phing
phing.info

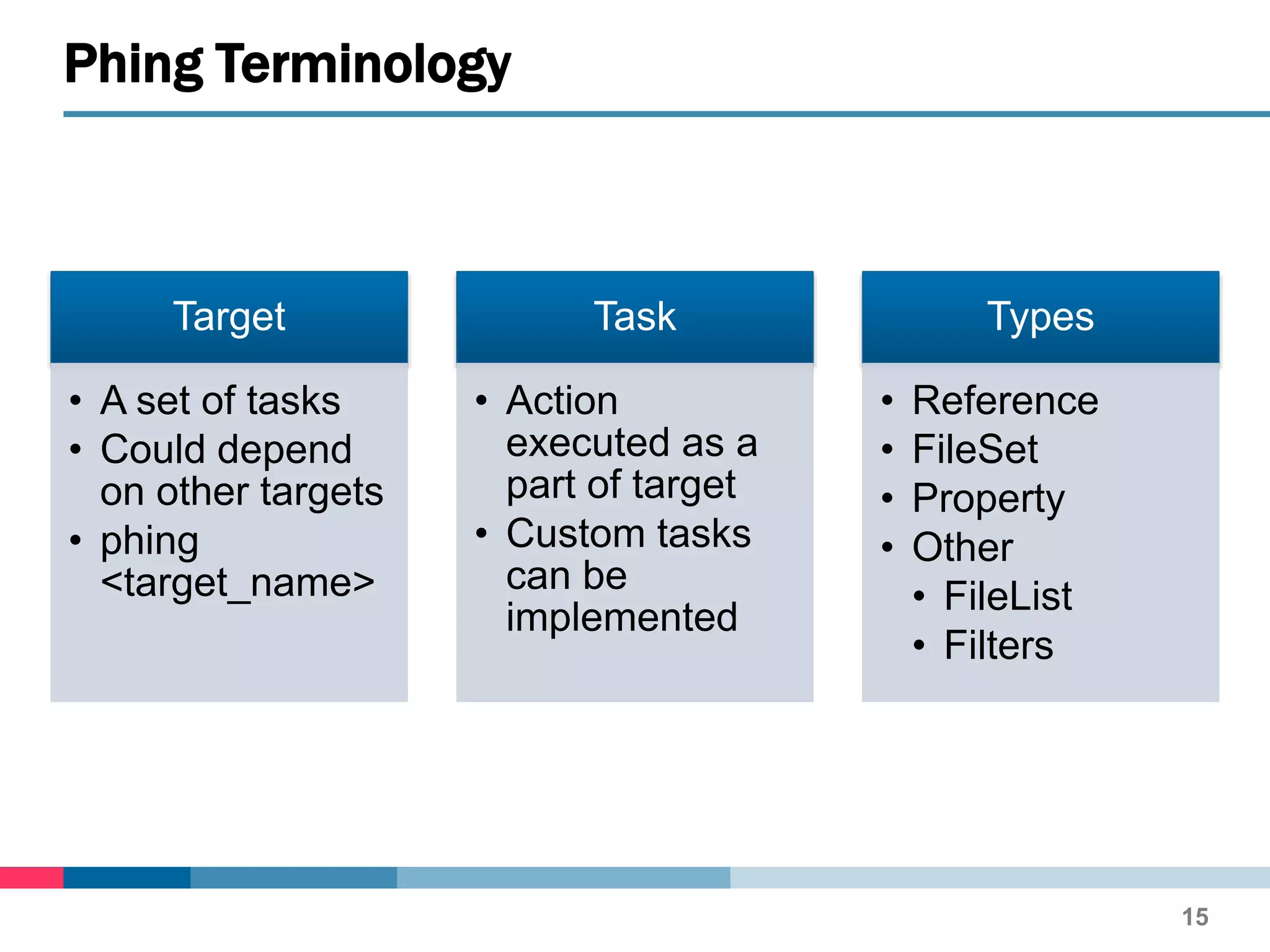

15. Target
• A set of tasks
• Could depend
on other targets
• phing
<target_name>
Task
• Action
executed as a
part of target
• Custom tasks
can be
implemented
Types
• Reference
• FileSet
• Property
• Other
• FileList
• Filters
Phing Terminology
15

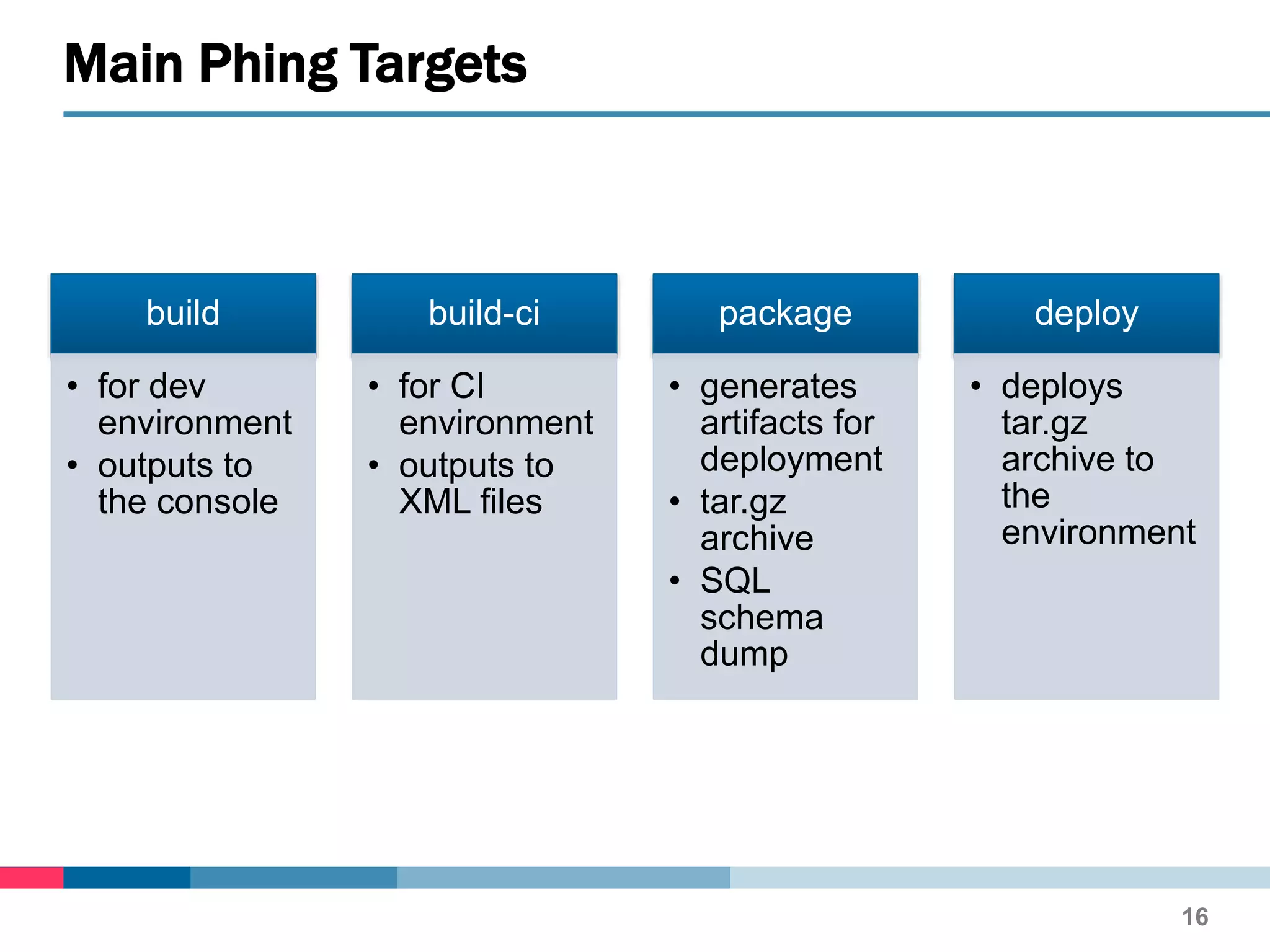

16. build
• for dev
environment
• outputs to
the console
build-ci
• for CI
environment
• outputs to
XML files
package
• generates
artifacts for
deployment
• tar.gz
archive
• SQL
schema
dump
deploy
• deploys
tar.gz
archive to
the
environment
Main Phing Targets
16

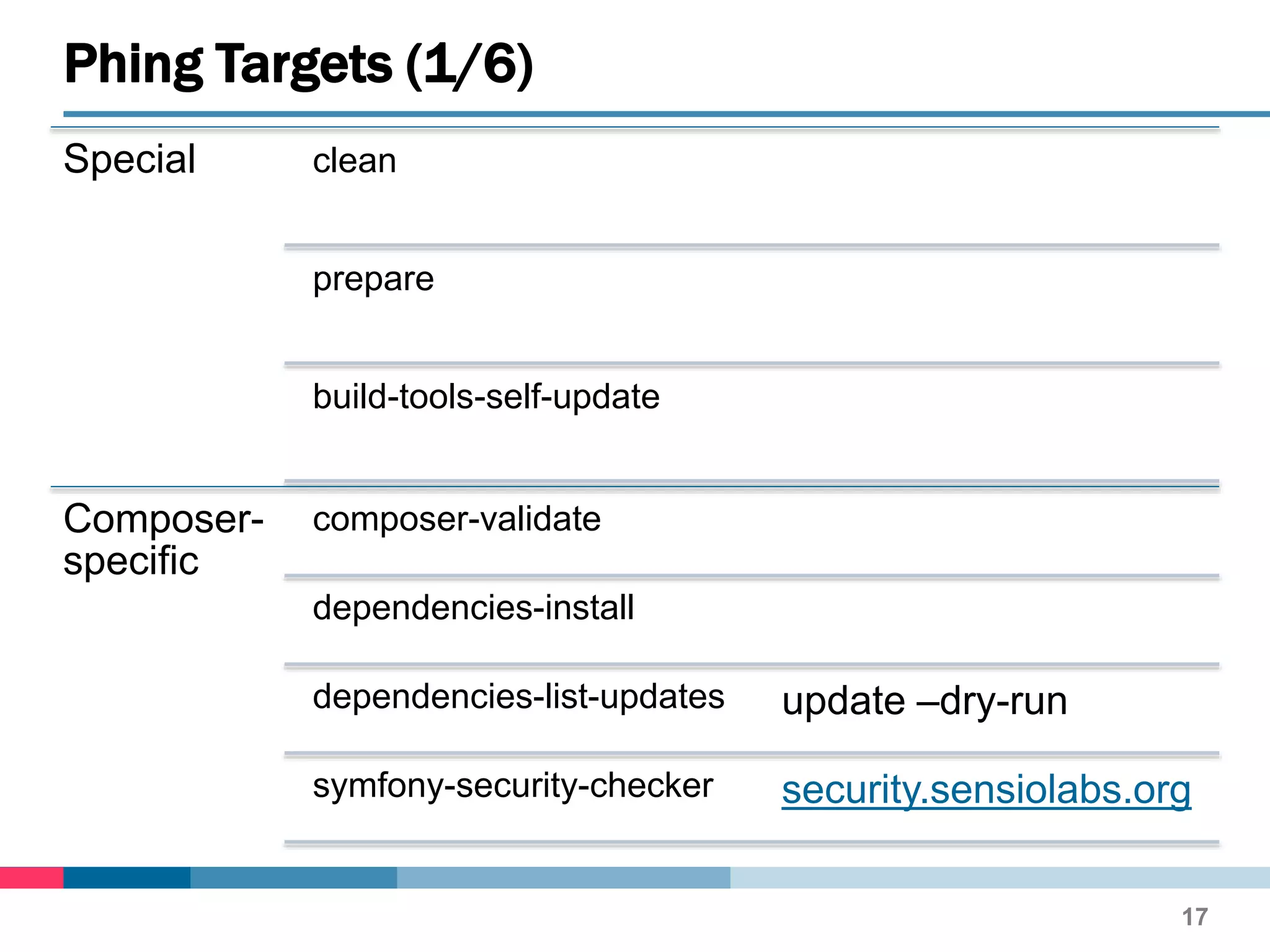

17. Special clean
prepare
build-tools-self-update
Composer-
specific
composer-validate
dependencies-install
dependencies-list-updates update –dry-run
symfony-security-checker security.sensiolabs.org
Phing Targets (1/6)
17

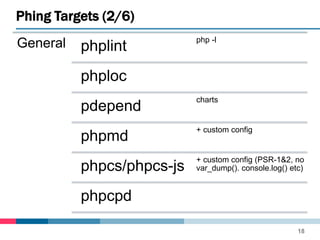

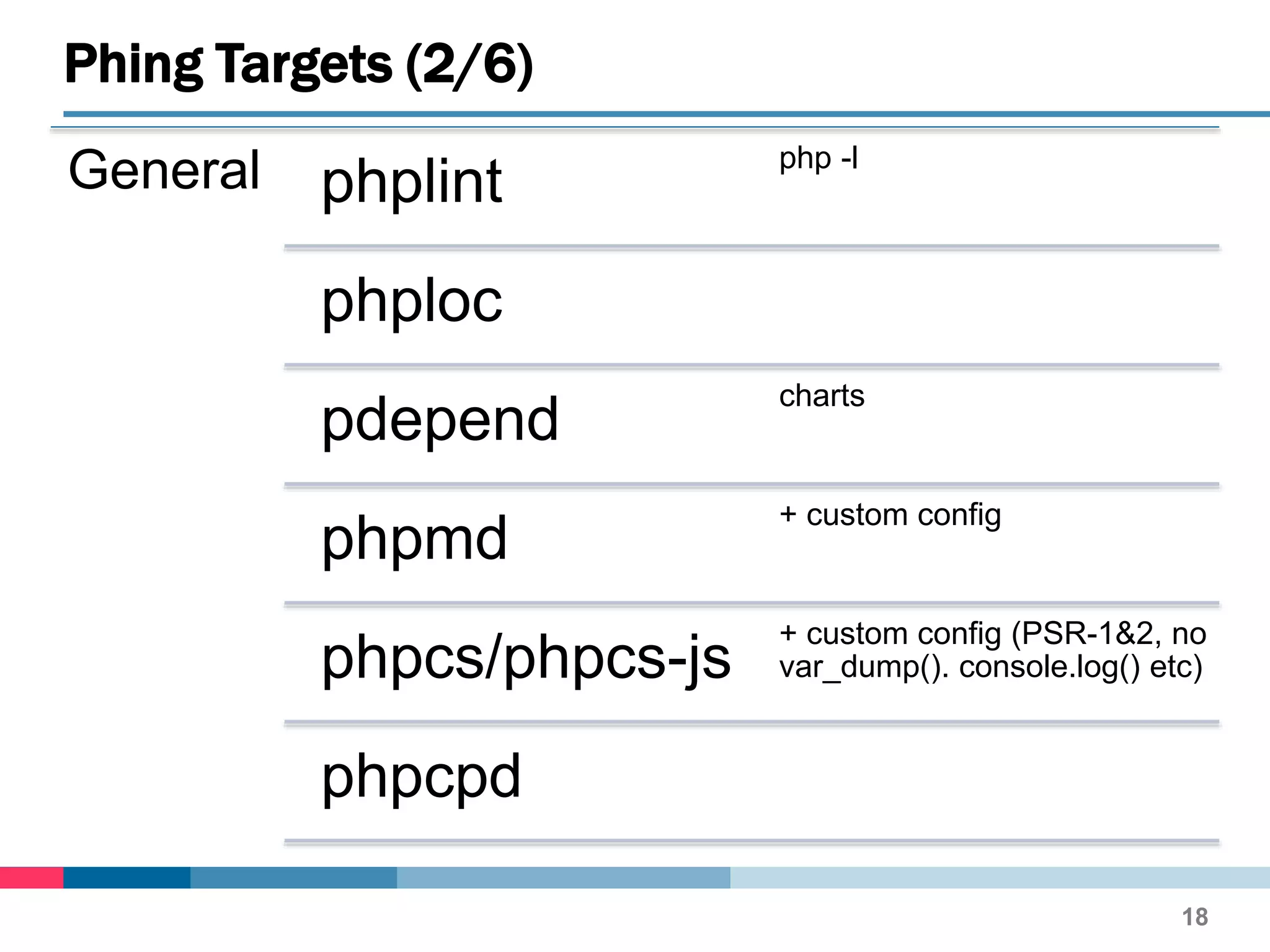

18. General phplint
php -l
phploc
pdepend
charts
phpmd
+ custom config
phpcs/phpcs-js
+ custom config (PSR-1&2, no
var_dump(). console.log() etc)
phpcpd
Phing Targets (2/6)
18

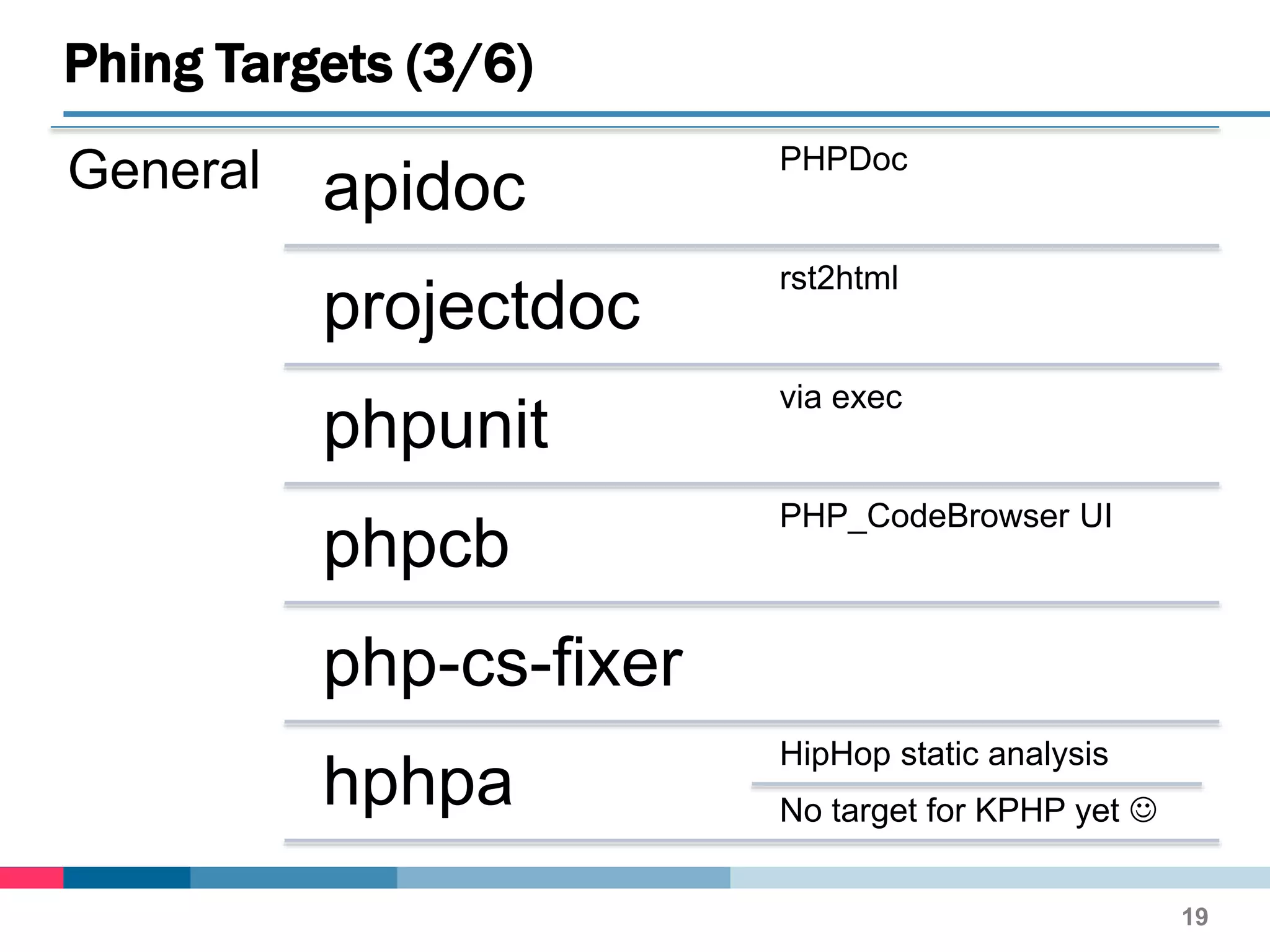

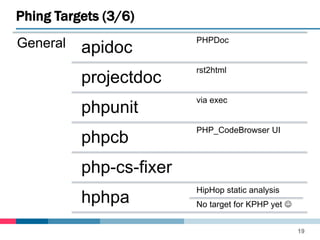

19. General apidoc
PHPDoc
projectdoc
rst2html
phpunit
via exec
phpcb
PHP_CodeBrowser UI
php-cs-fixer
hphpa
HipHop static analysis
No target for KPHP yet 
Phing Targets (3/6)
19

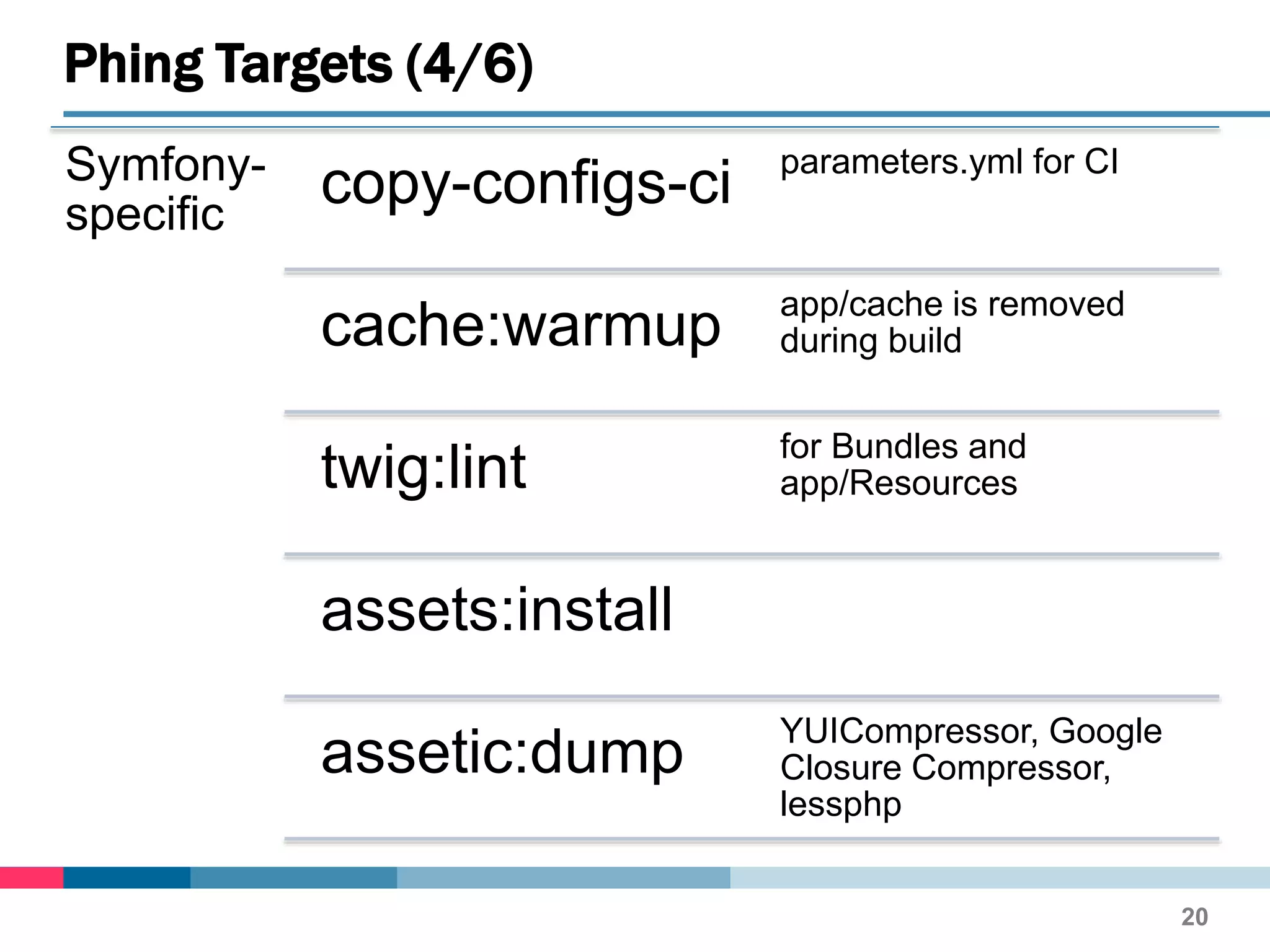

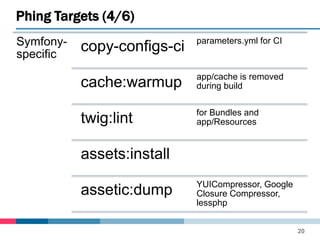

20. Symfony-
specific
copy-configs-ci parameters.yml for CI
cache:warmup app/cache is removed
during build
twig:lint for Bundles and
app/Resources
assets:install
assetic:dump YUICompressor, Google
Closure Compressor,
lessphp
Phing Targets (4/6)
20

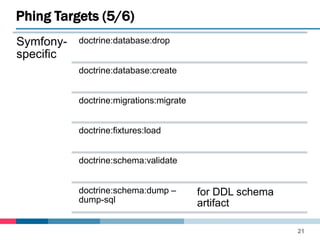

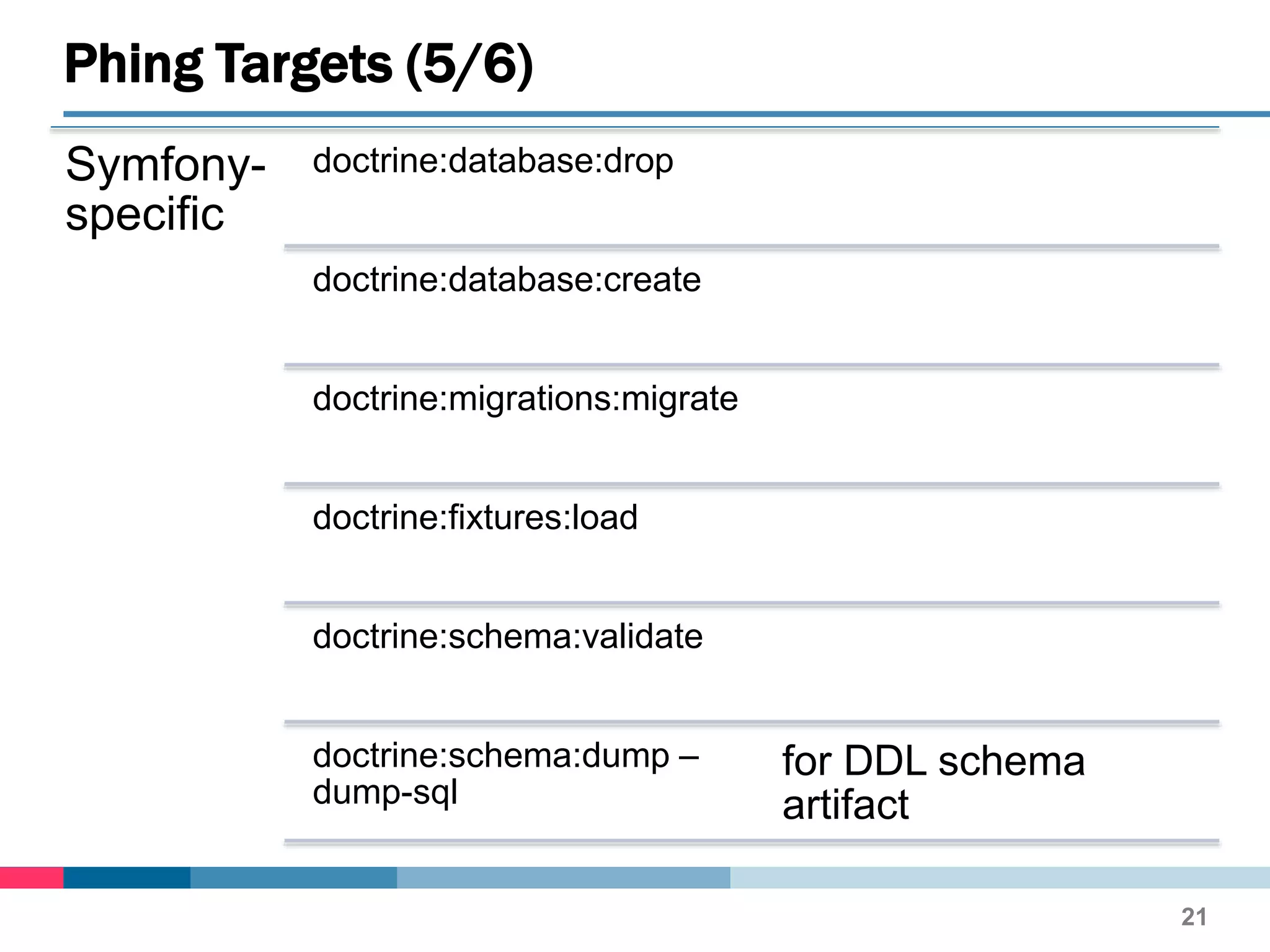

21. Symfony-
specific
doctrine:database:drop
doctrine:database:create
doctrine:migrations:migrate
doctrine:fixtures:load
doctrine:schema:validate
doctrine:schema:dump –
dump-sql
for DDL schema
artifact
Phing Targets (5/6)
21

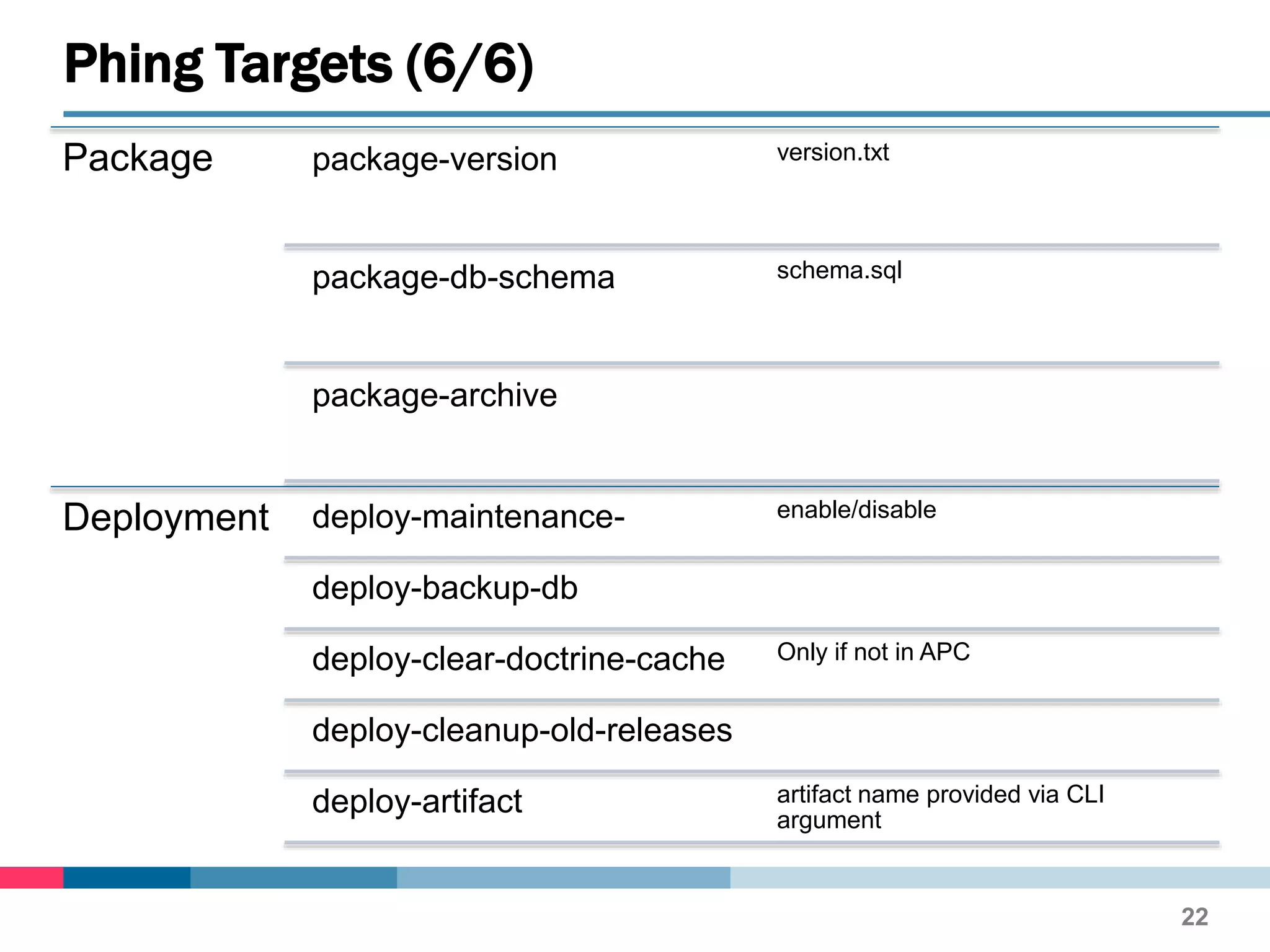

22. Package package-version version.txt
package-db-schema schema.sql
package-archive
Deployment deploy-maintenance- enable/disable
deploy-backup-db
deploy-clear-doctrine-cache Only if not in APC
deploy-cleanup-old-releases
deploy-artifact artifact name provided via CLI
argument
Phing Targets (6/6)
22

23. CONTINUOUS
INTEGRATION
23

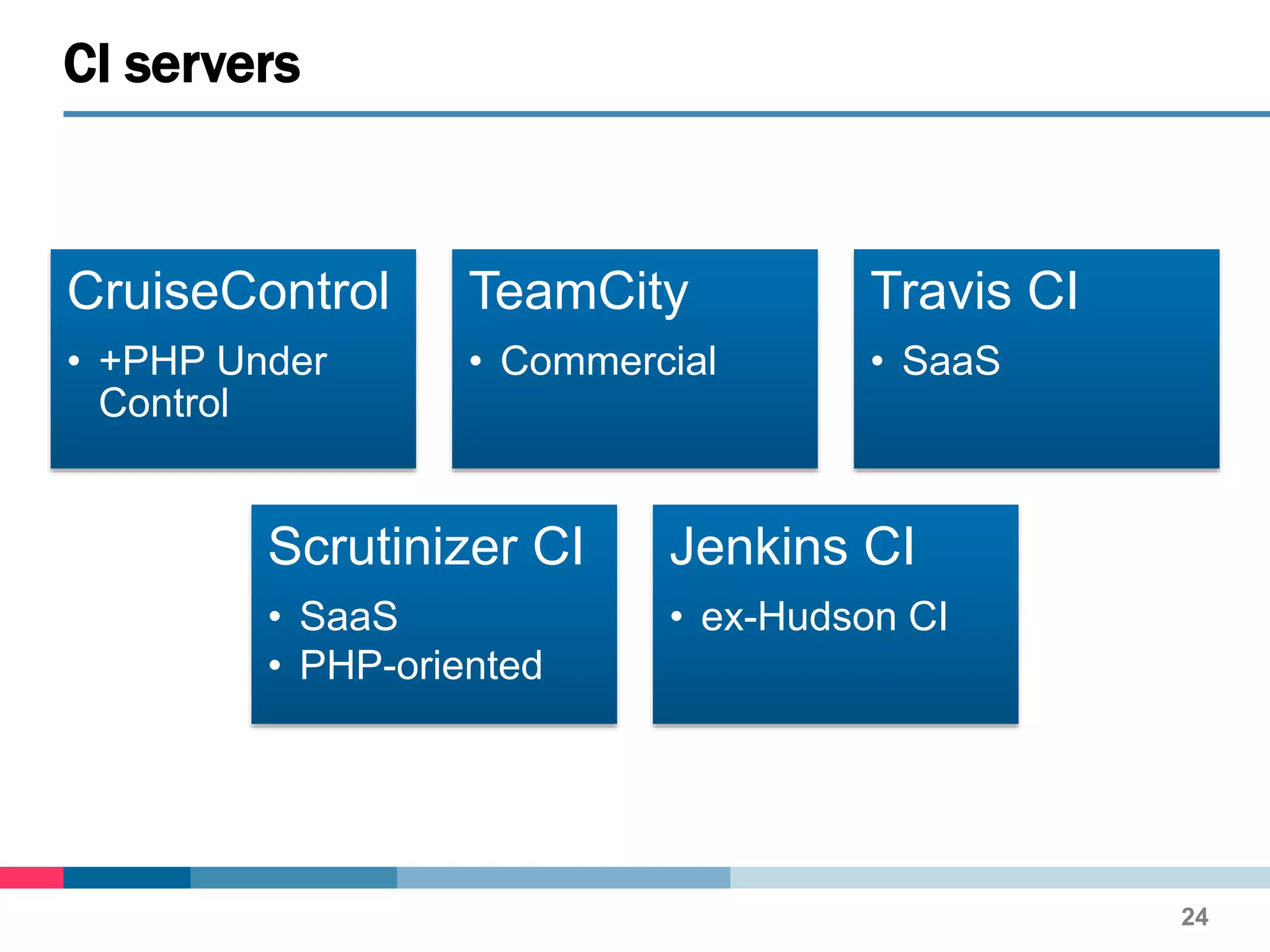

24. CruiseControl
• +PHP Under
Control
TeamCity
• Commercial
Travis CI
• SaaS
Scrutinizer CI
• SaaS
• PHP-oriented
Jenkins CI
• ex-Hudson CI
CI servers
24

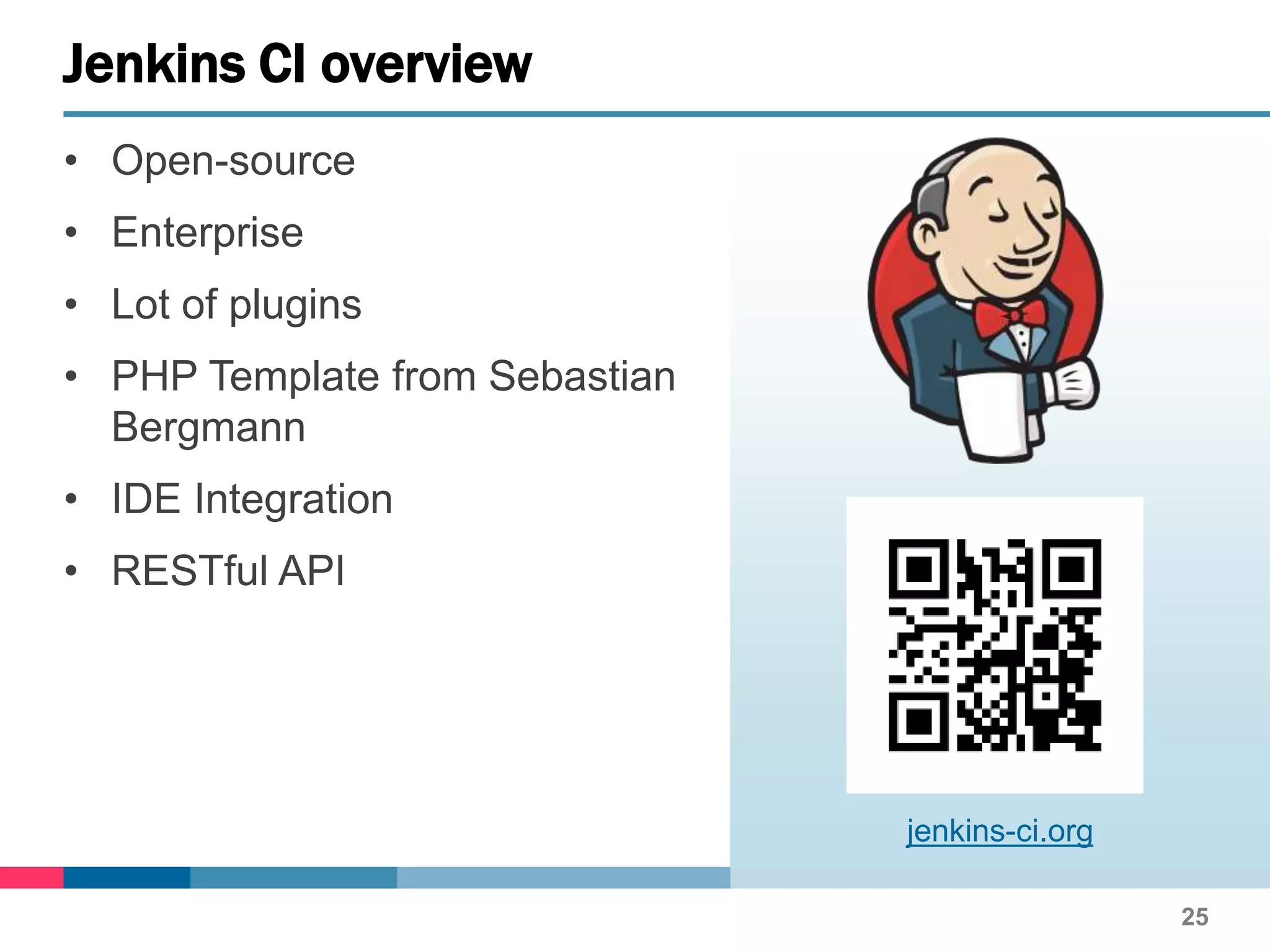

25. • Open-source
• Enterprise
• Lot of plugins
• PHP Template from Sebastian
Bergmann
• IDE Integration
• RESTful API
25
Jenkins CI overview
jenkins-ci.org

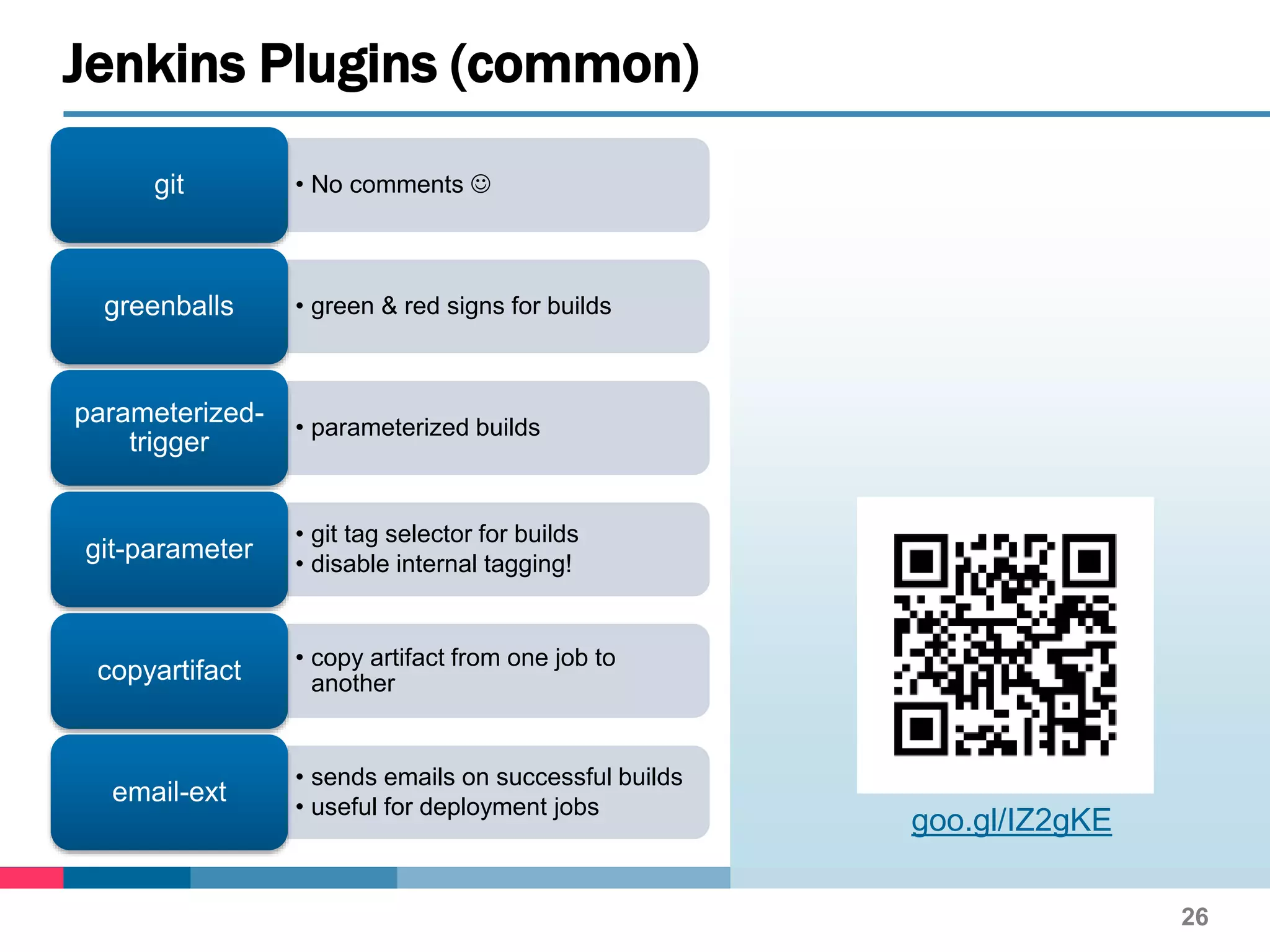

26. • No comments git
• green & red signs for buildsgreenballs
• parameterized builds
parameterized-
trigger
• git tag selector for builds
• disable internal tagging!
git-parameter
• copy artifact from one job to
anothercopyartifact
• sends emails on successful builds
• useful for deployment jobs
email-ext
26
Jenkins Plugins (common)
goo.gl/IZ2gKE

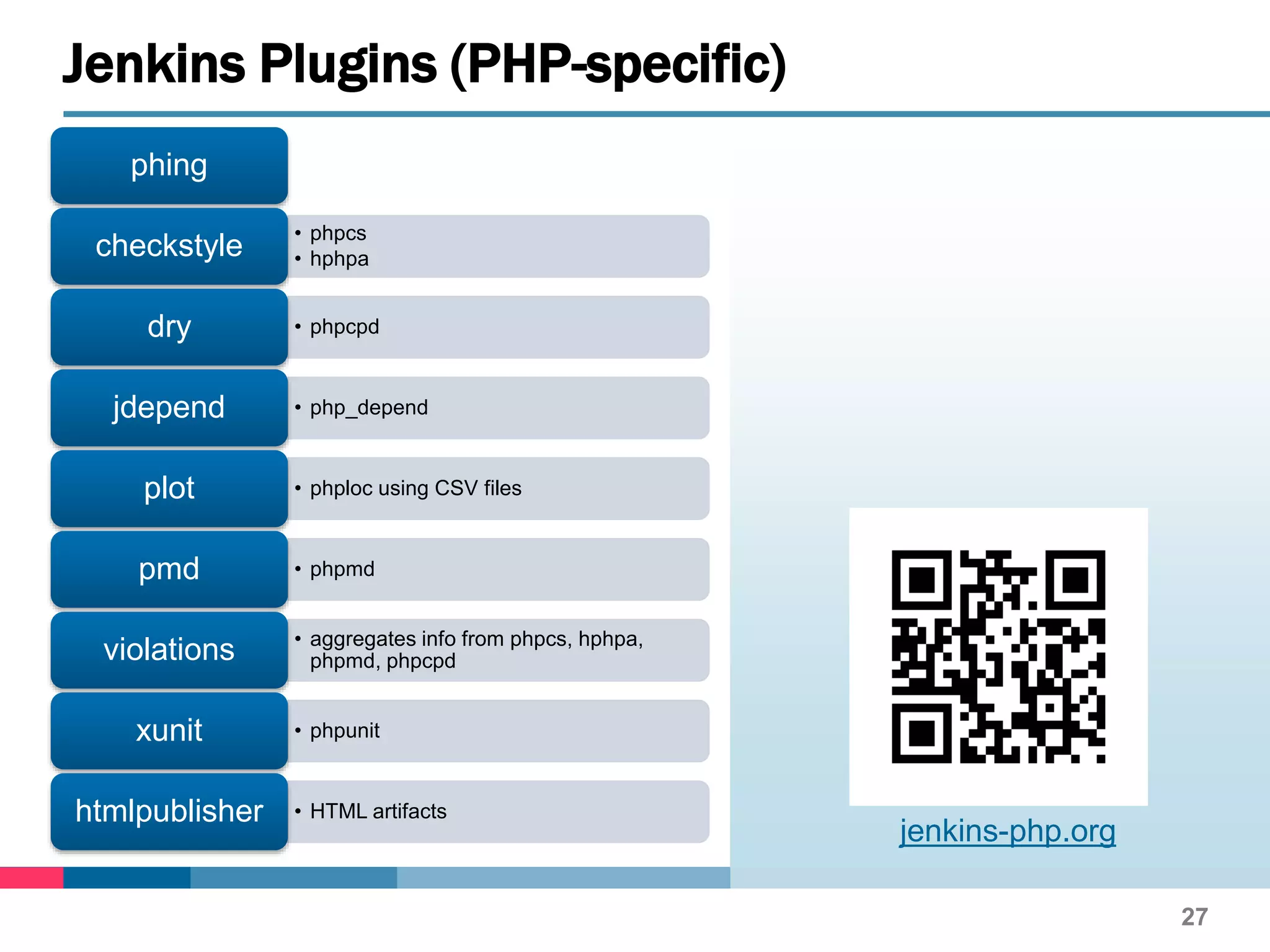

27. phing
• phpcs
• hphpacheckstyle
• phpcpddry
• php_dependjdepend
• phploc using CSV filesplot
• phpmdpmd
• aggregates info from phpcs, hphpa,
phpmd, phpcpdviolations
• phpunitxunit
• HTML artifactshtmlpublisher
27
Jenkins Plugins (PHP-specific)
jenkins-php.org

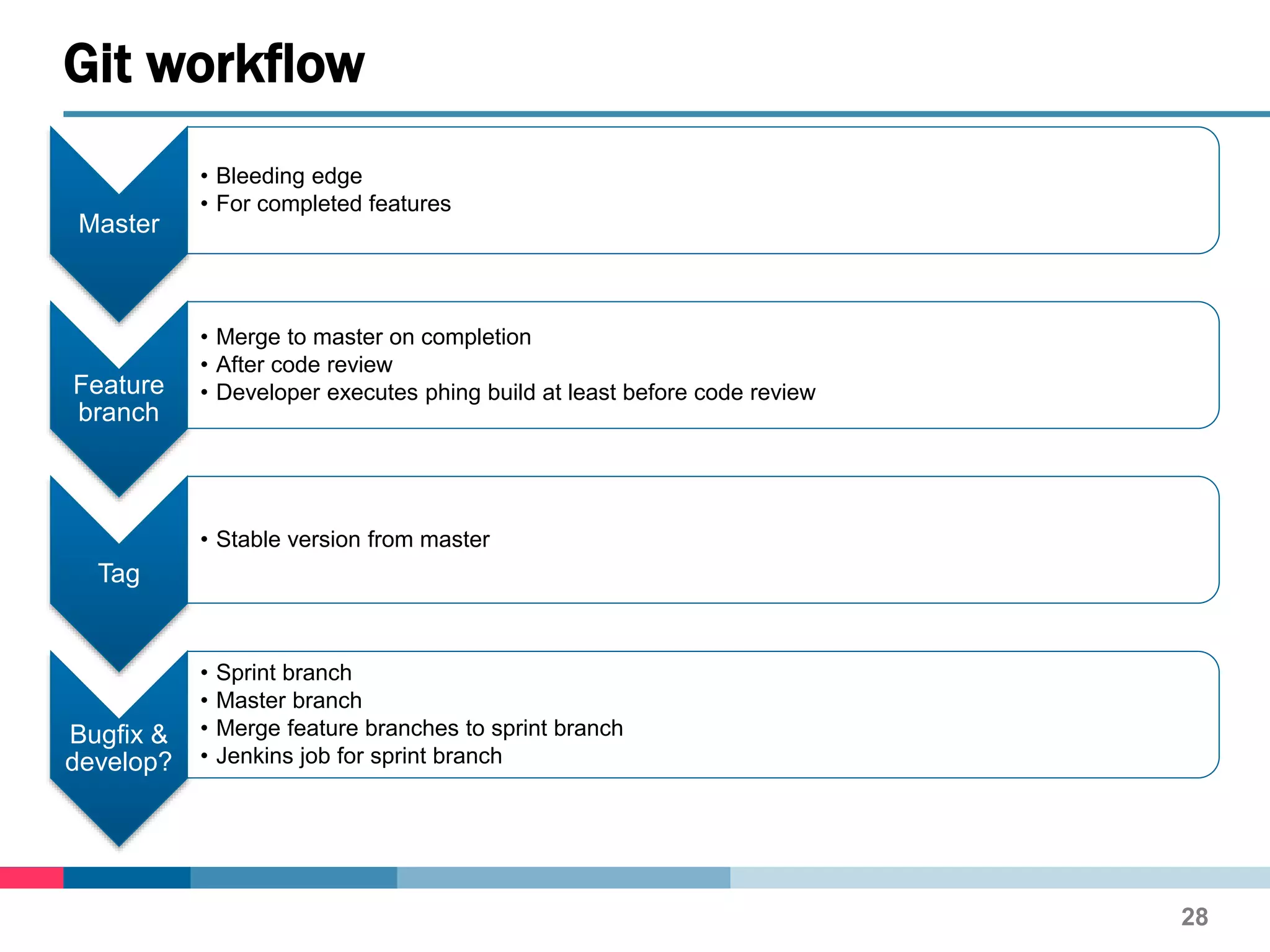

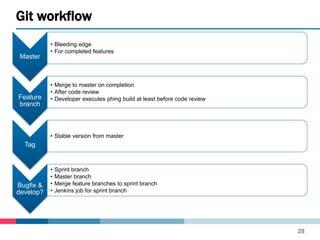

28. Master
• Bleeding edge
• For completed features
Feature
branch
• Merge to master on completion
• After code review
• Developer executes phing build at least before code review
Tag
• Stable version from master
Bugfix &
develop?
• Sprint branch
• Master branch
• Merge feature branches to sprint branch
• Jenkins job for sprint branch
Git workflow
28

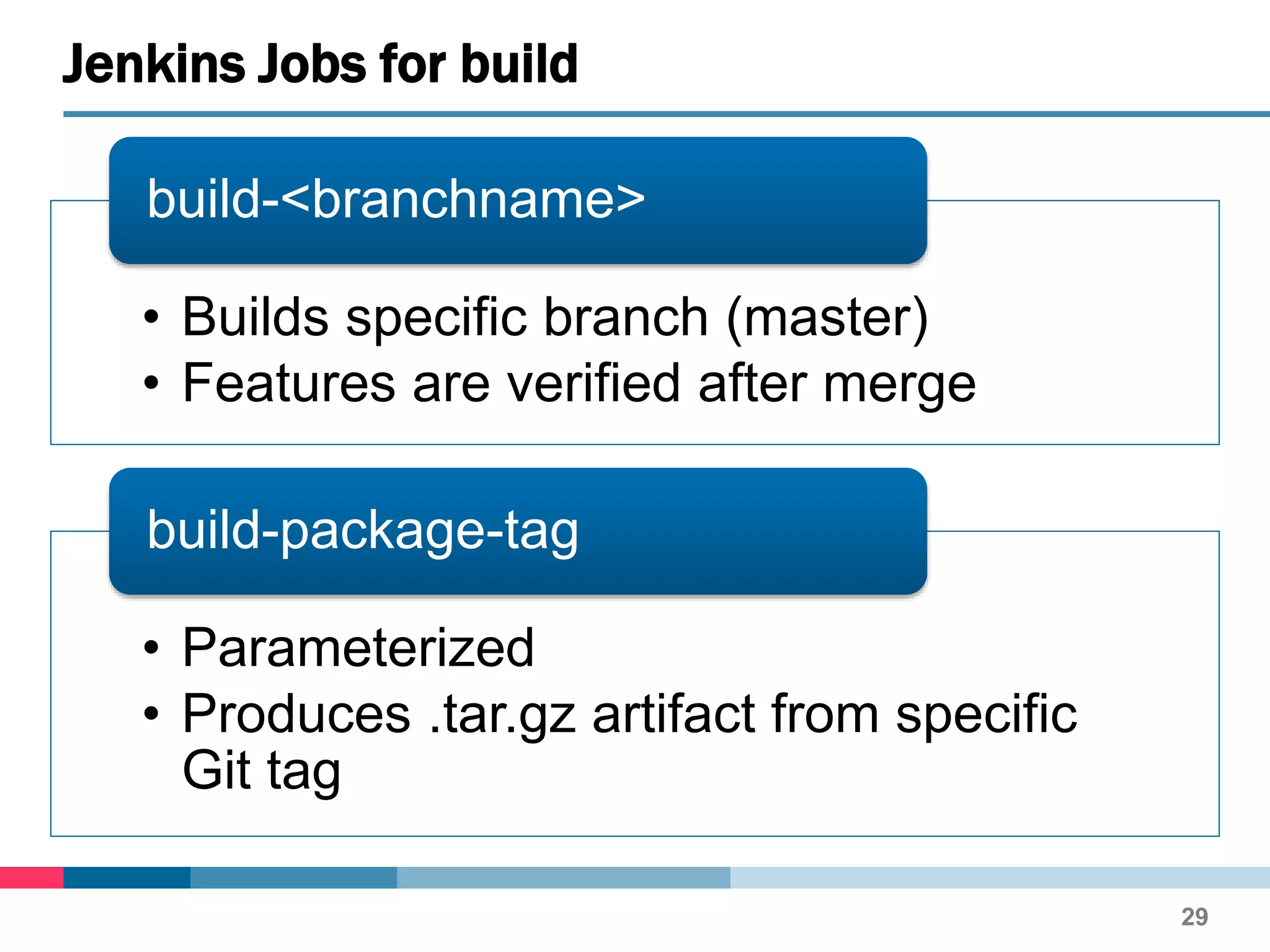

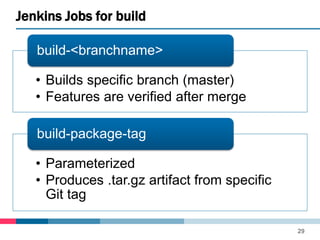

29. • Builds specific branch (master)
• Features are verified after merge
build-<branchname>
• Parameterized
• Produces .tar.gz artifact from specific
Git tag
build-package-tag
Jenkins Jobs for build
29

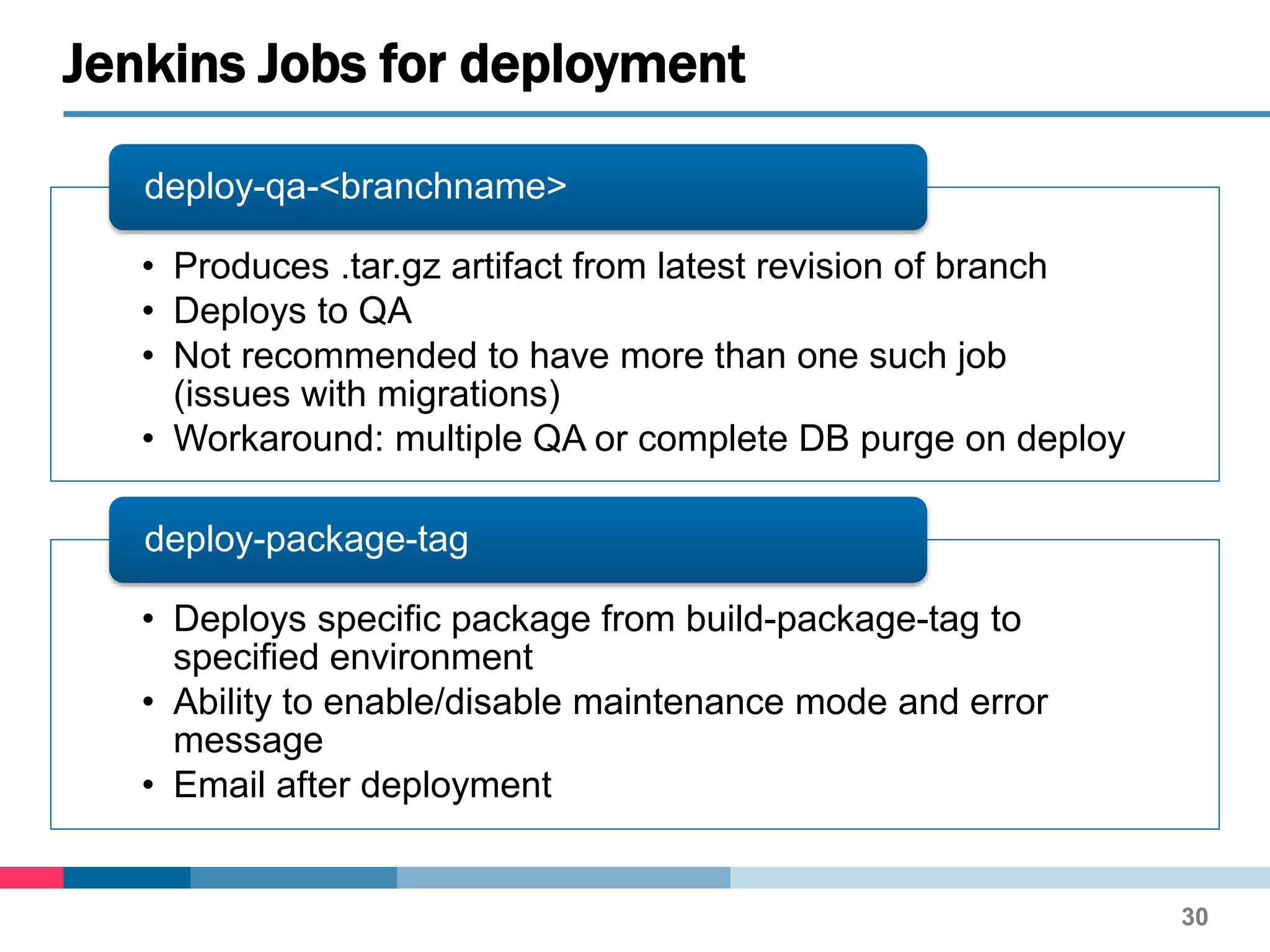

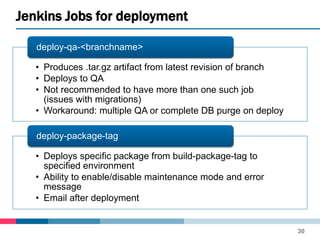

30. • Produces .tar.gz artifact from latest revision of branch
• Deploys to QA
• Not recommended to have more than one such job
(issues with migrations)
• Workaround: multiple QA or complete DB purge on deploy
deploy-qa-<branchname>
• Deploys specific package from build-package-tag to
specified environment
• Ability to enable/disable maintenance mode and error
message
• Email after deployment
deploy-package-tag
Jenkins Jobs for deployment
30

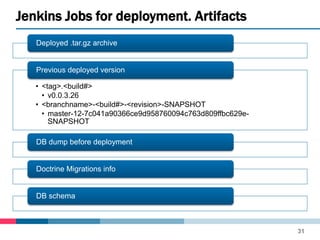

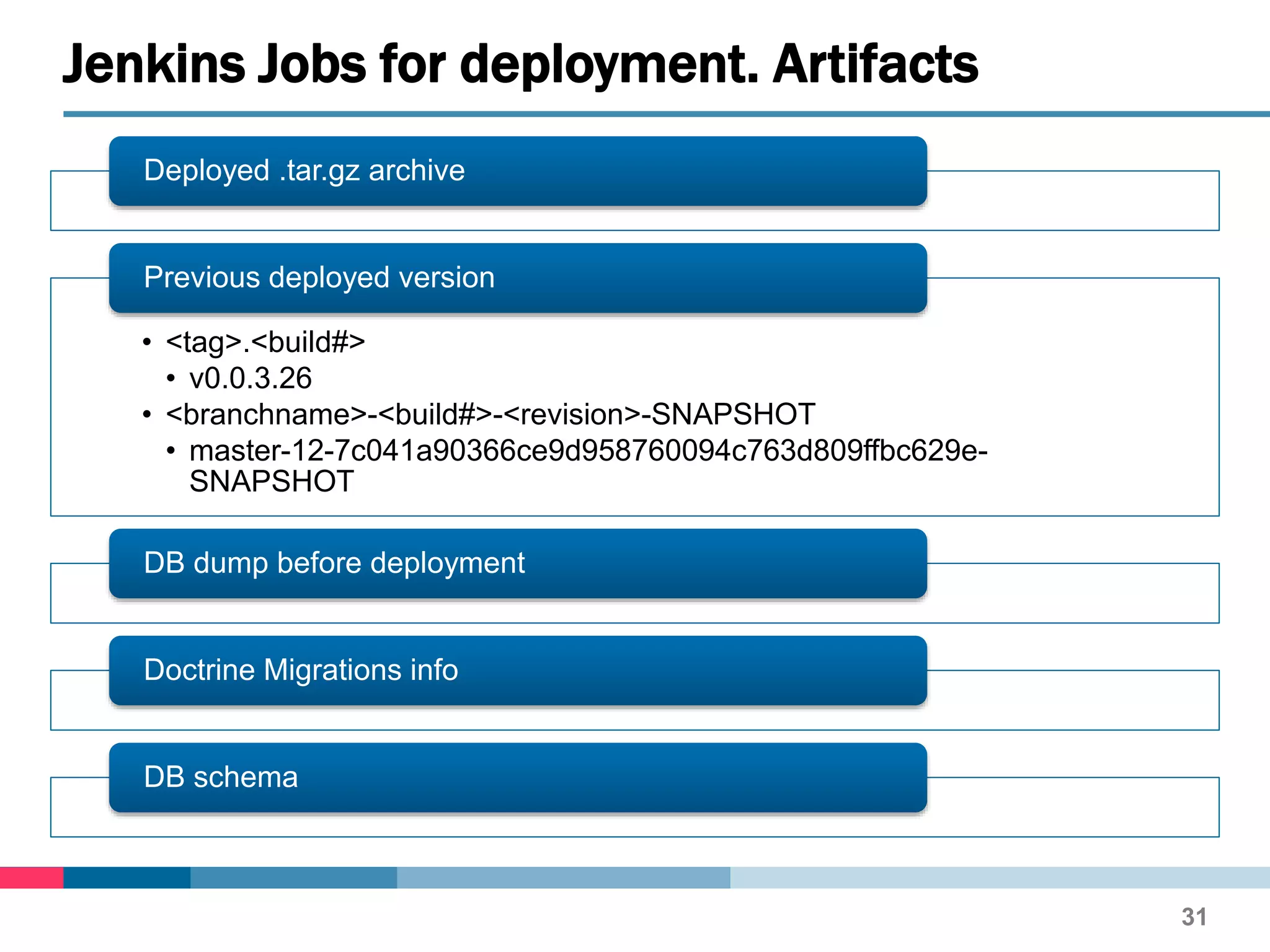

31. Deployed .tar.gz archive
• <tag>.<build#>
• v0.0.3.26
• <branchname>-<build#>-<revision>-SNAPSHOT
• master-12-7c041a90366ce9d958760094c763d809ffbc629e-
SNAPSHOT
Previous deployed version
DB dump before deployment
Doctrine Migrations info
DB schema
Jenkins Jobs for deployment. Artifacts
31

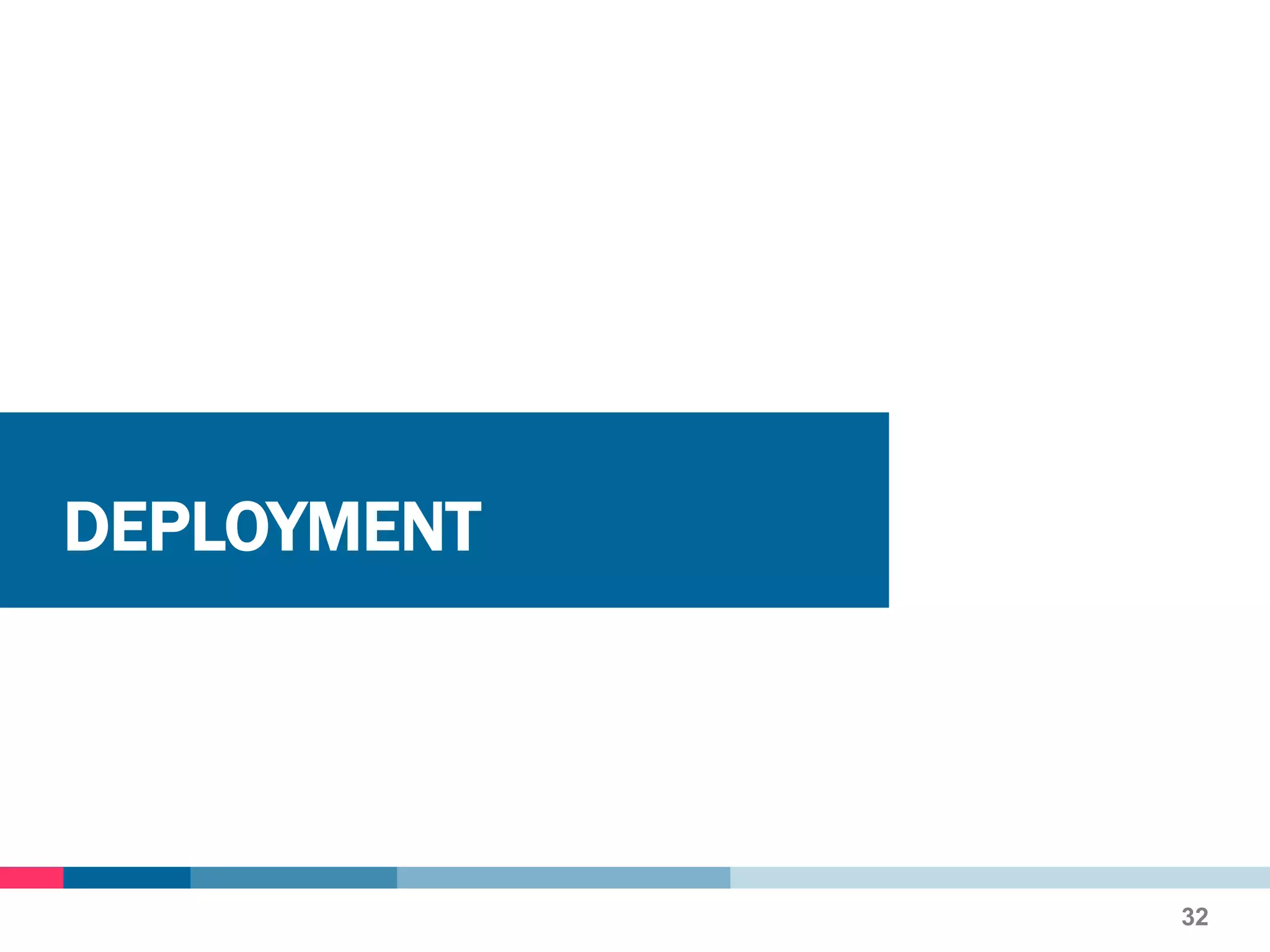

32. DEPLOYMENT
32

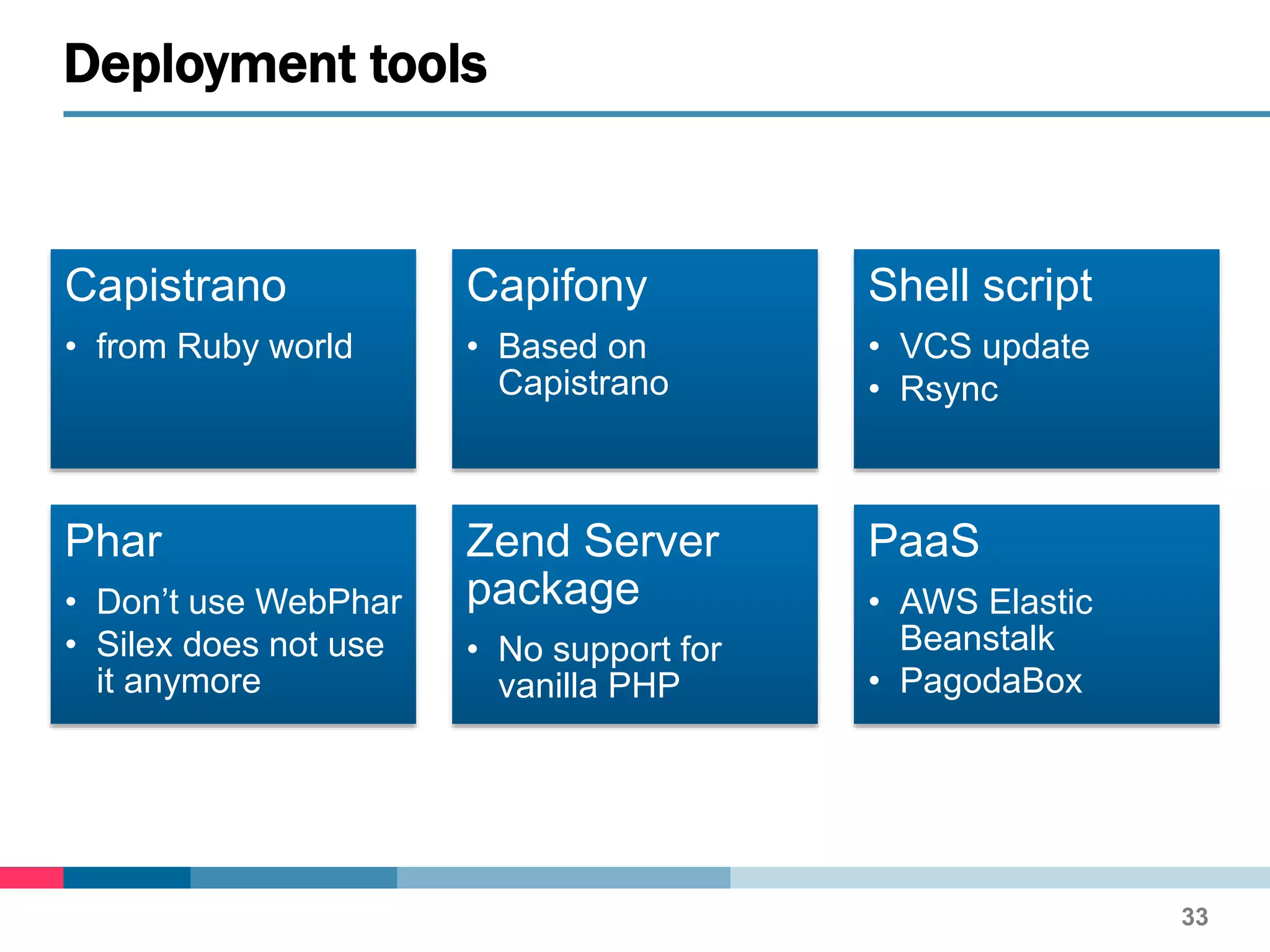

33. Capistrano
• from Ruby world
Capifony
• Based on
Capistrano
Shell script
• VCS update
• Rsync
Phar
• Don’t use WebPhar
• Silex does not use
it anymore
Zend Server
package
• No support for
vanilla PHP
PaaS
• AWS Elastic
Beanstalk
• PagodaBox
Deployment tools
33

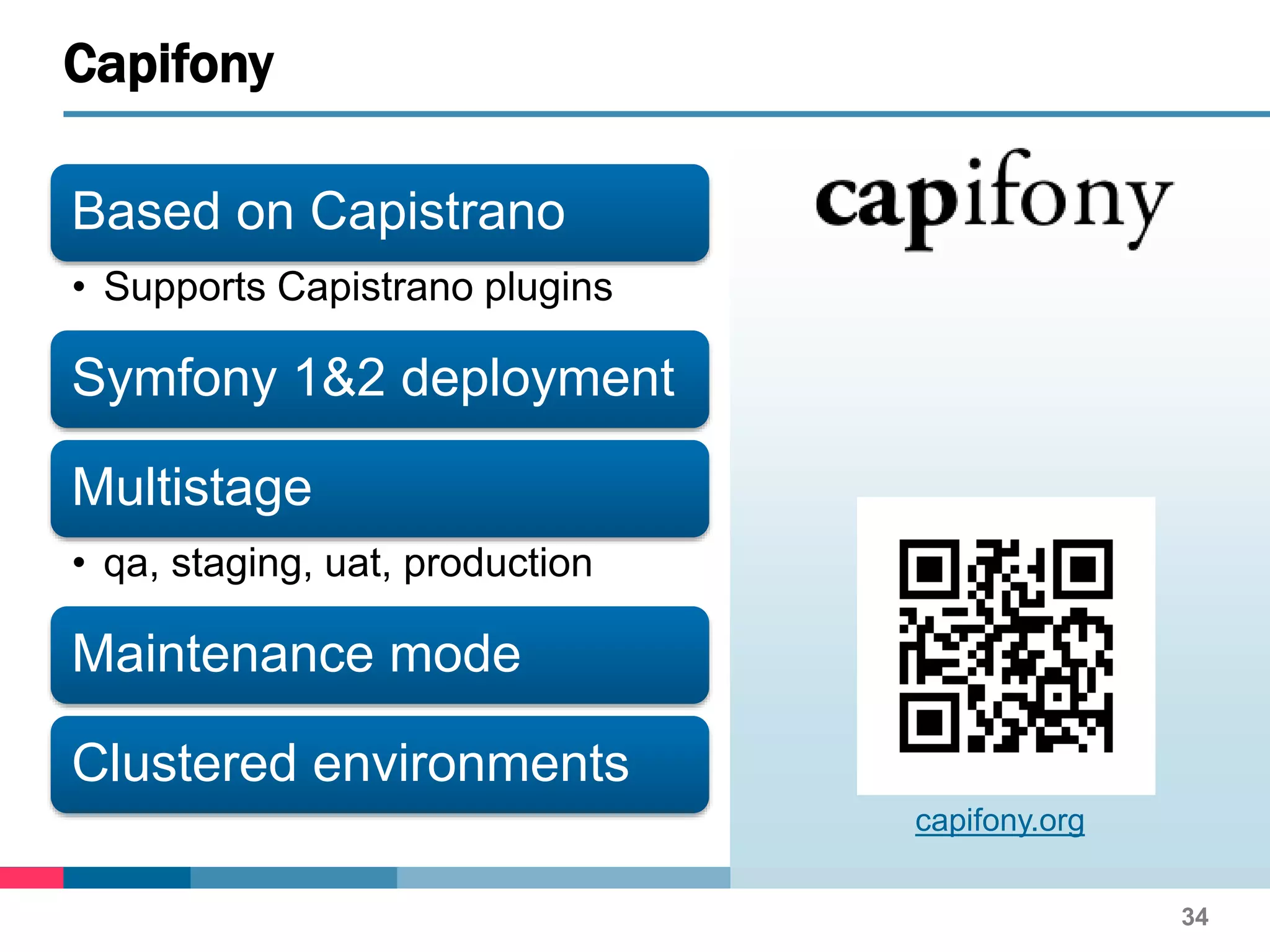

34. Based on Capistrano
• Supports Capistrano plugins
Symfony 1&2 deployment
Multistage
• qa, staging, uat, production
Maintenance mode
Clustered environments
34
Capifony
capifony.org

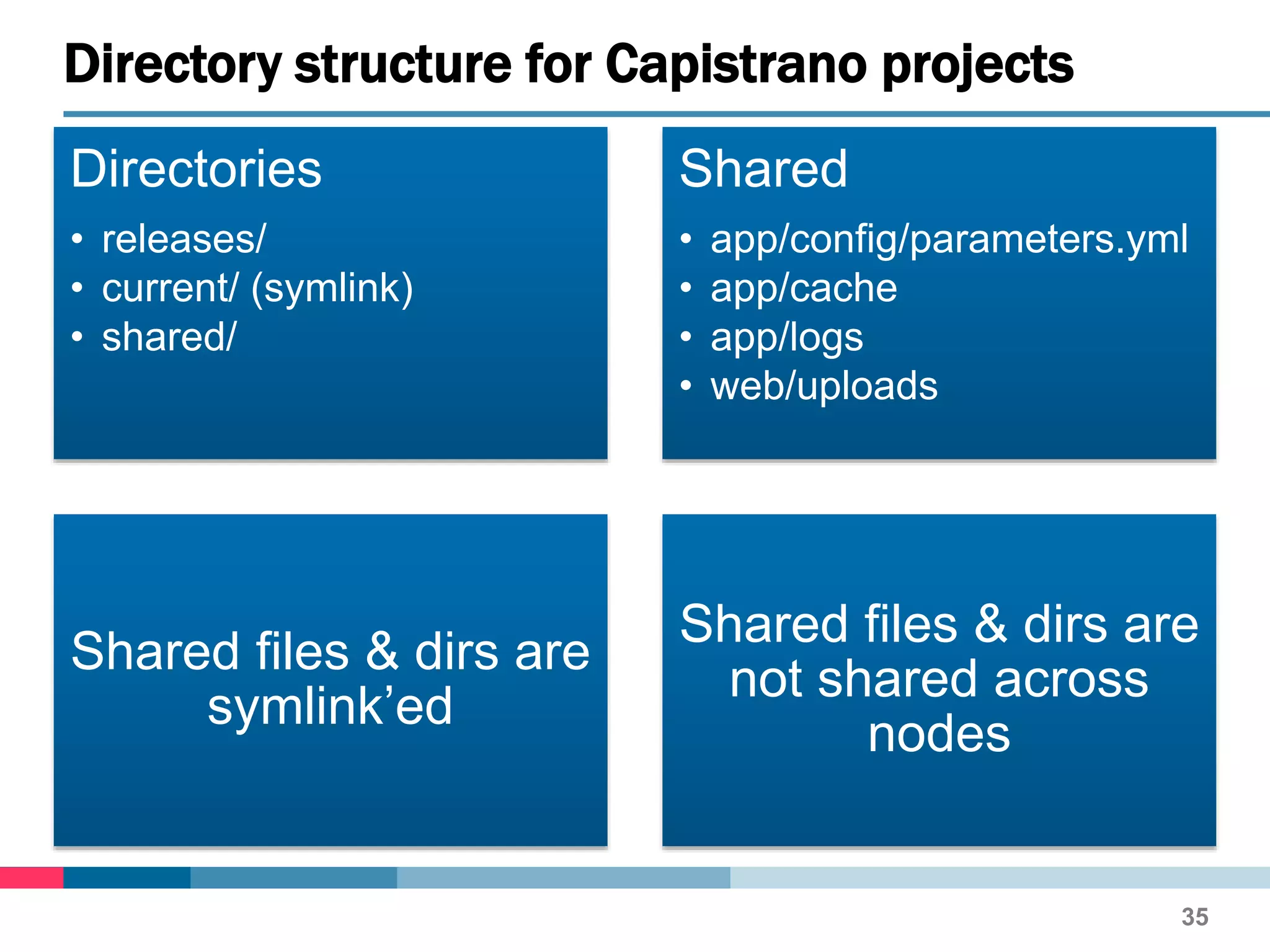

35. Directories
• releases/
• current/ (symlink)
• shared/
Shared
• app/config/parameters.yml
• app/cache
• app/logs
• web/uploads
Shared files & dirs are
symlink’ed
Shared files & dirs are
not shared across
nodes
Directory structure for Capistrano projects
35

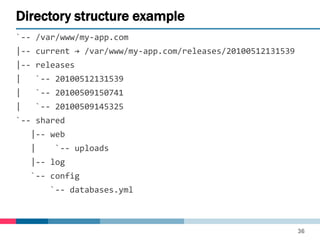

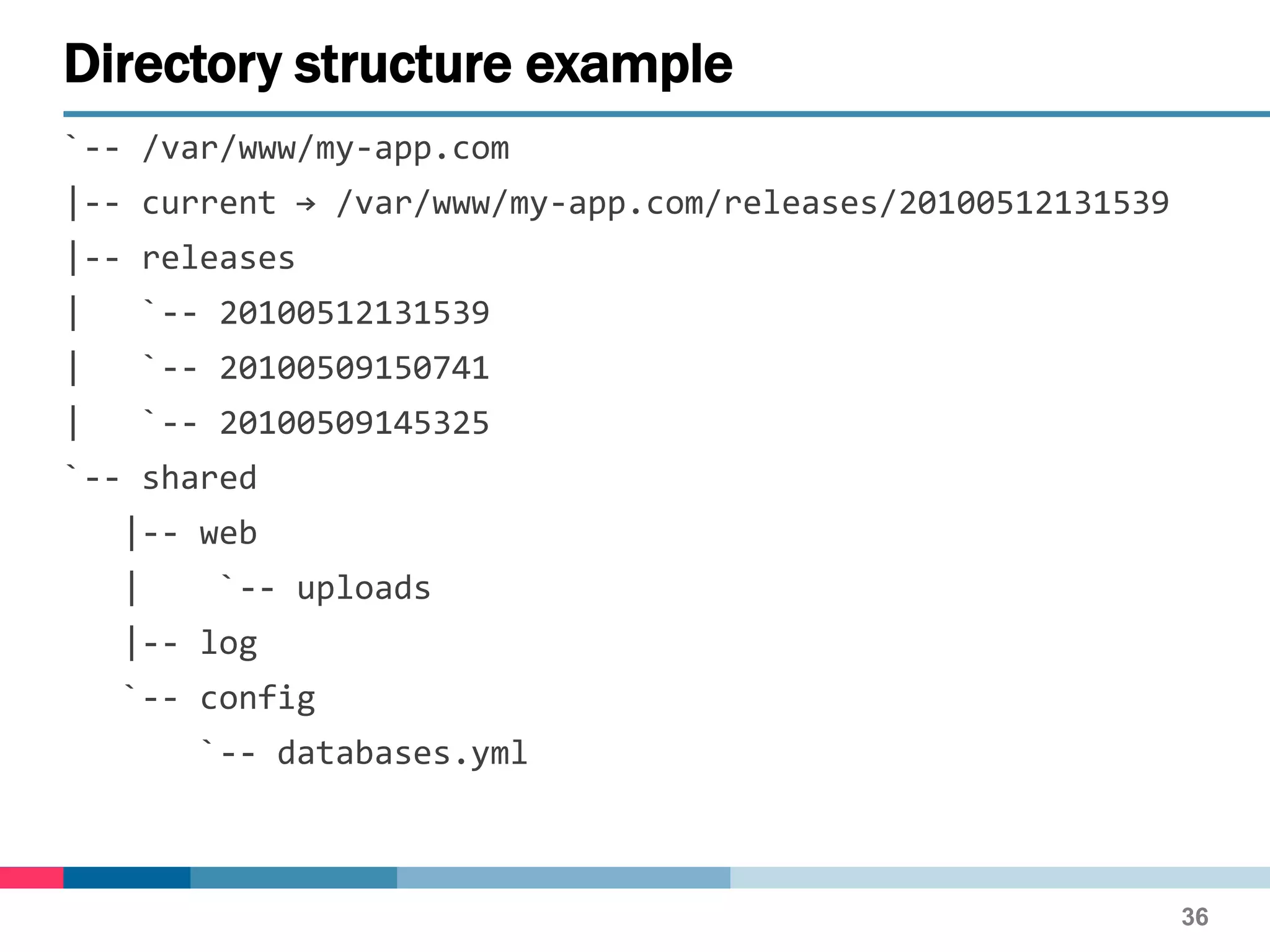

36. `-- /var/www/my-app.com
|-- current → /var/www/my-app.com/releases/20100512131539
|-- releases
| `-- 20100512131539
| `-- 20100509150741
| `-- 20100509145325
`-- shared
|-- web
| `-- uploads
|-- log
`-- config
`-- databases.yml
Directory structure example
36

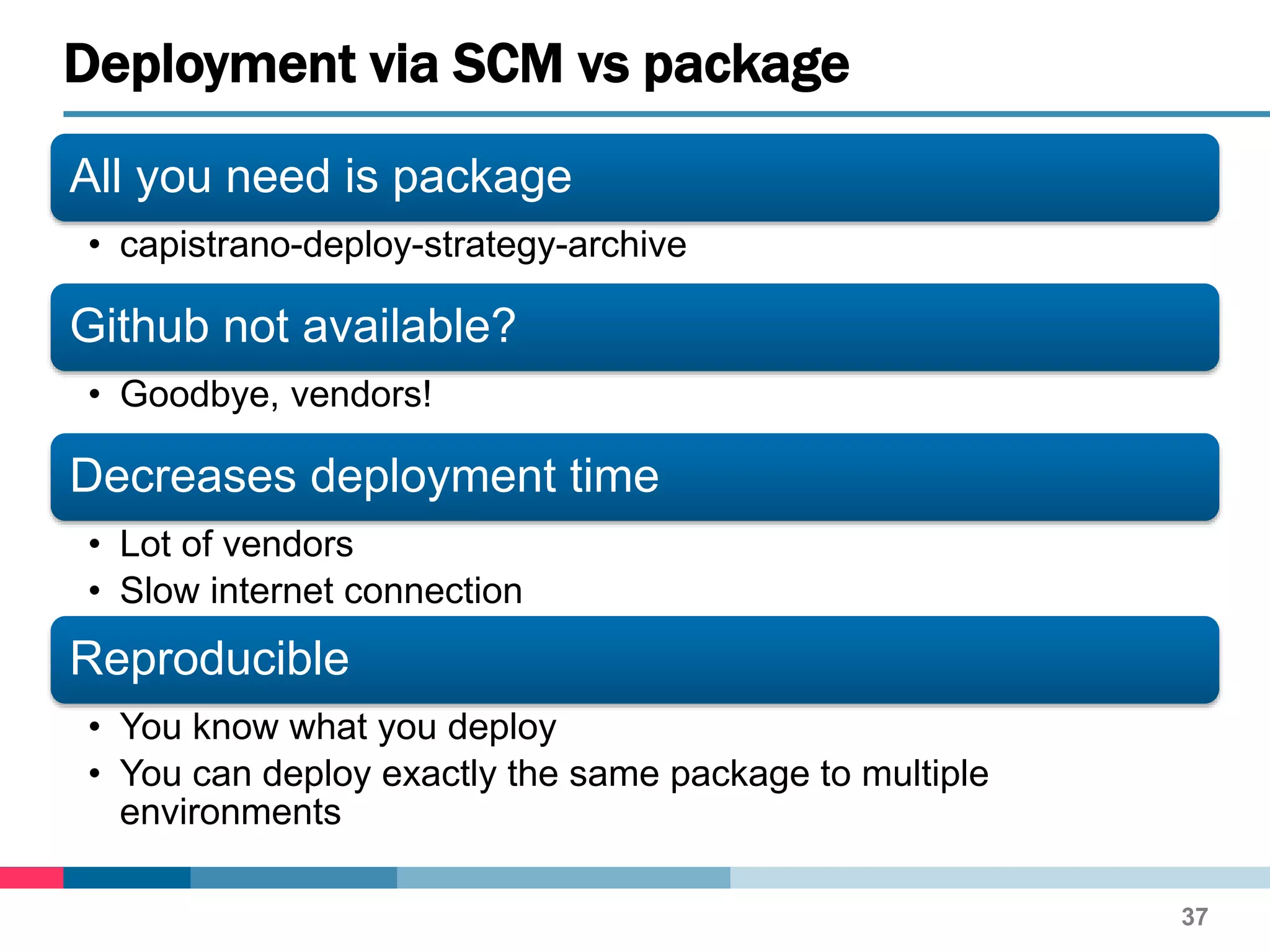

37. All you need is package
• capistrano-deploy-strategy-archive
Github not available?
• Goodbye, vendors!
Decreases deployment time
• Lot of vendors
• Slow internet connection
Reproducible
• You know what you deploy
• You can deploy exactly the same package to multiple
environments
Deployment via SCM vs package
37

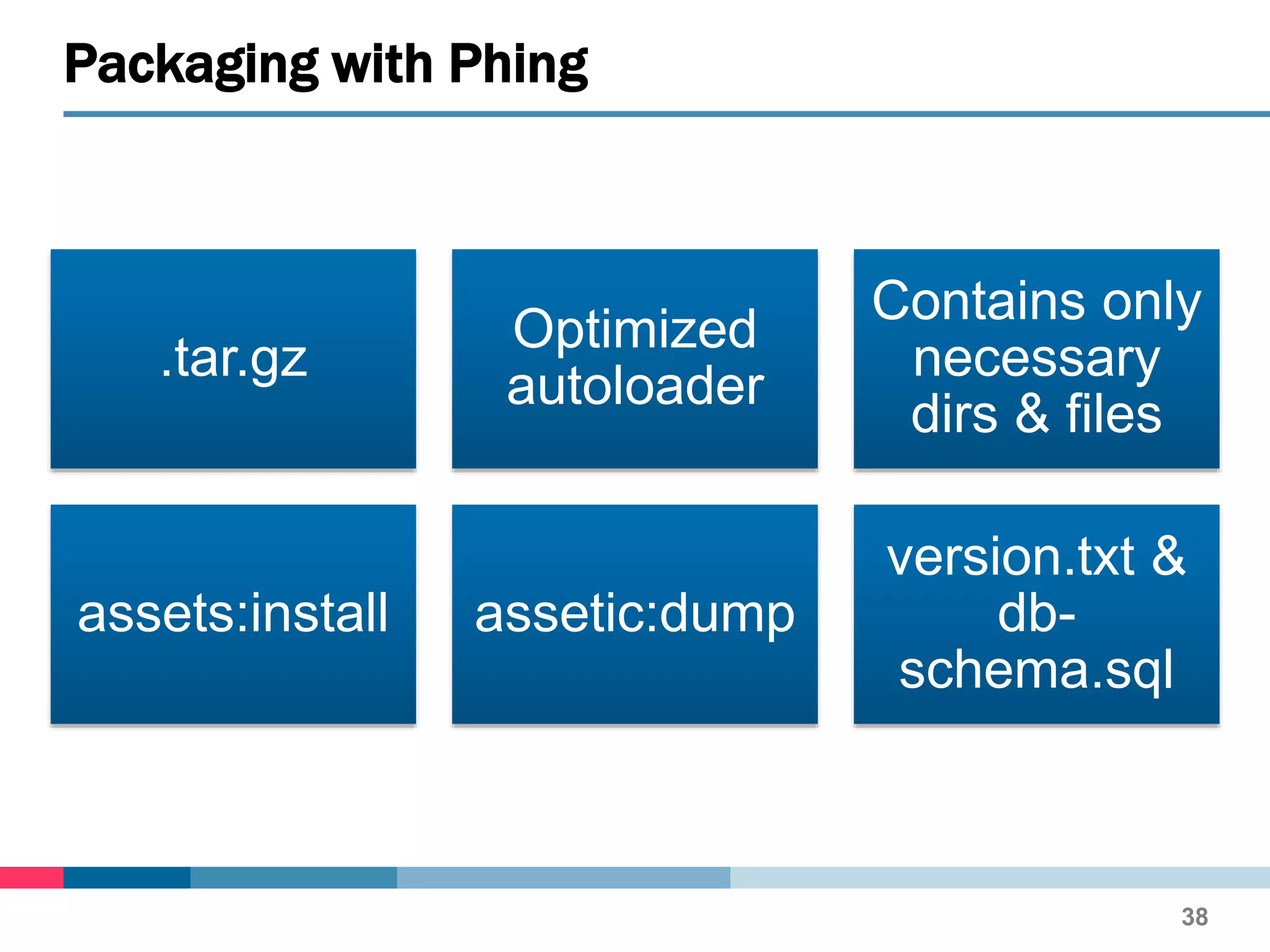

38. .tar.gz
Optimized
autoloader
Contains only
necessary
dirs & files
assets:install assetic:dump
version.txt &
db-
schema.sql
Packaging with Phing
38

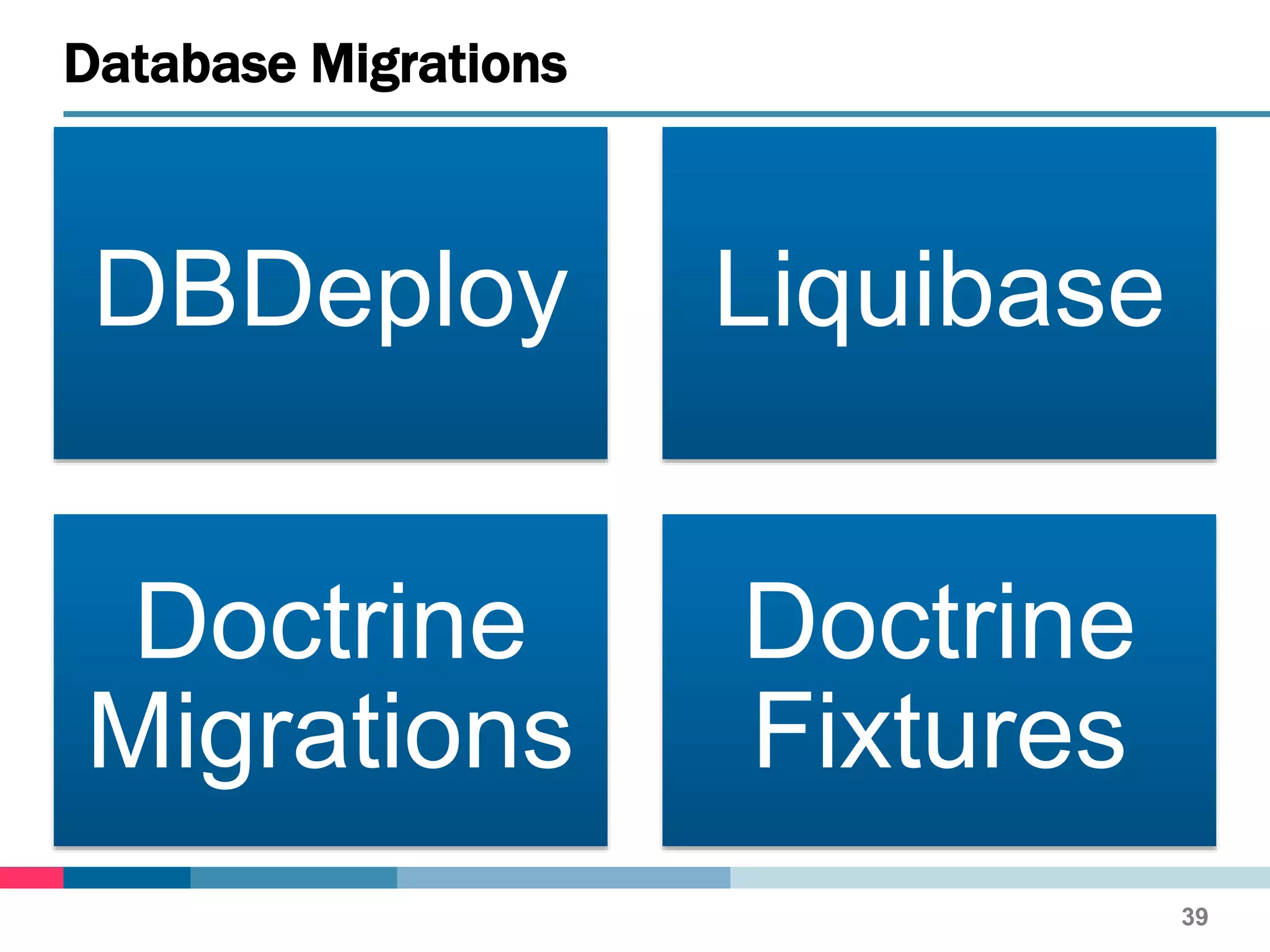

39. DBDeploy Liquibase
Doctrine
Migrations
Doctrine
Fixtures
Database Migrations
39

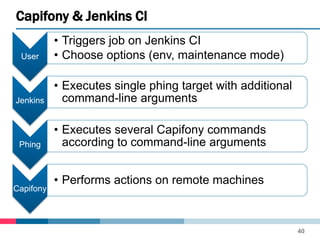

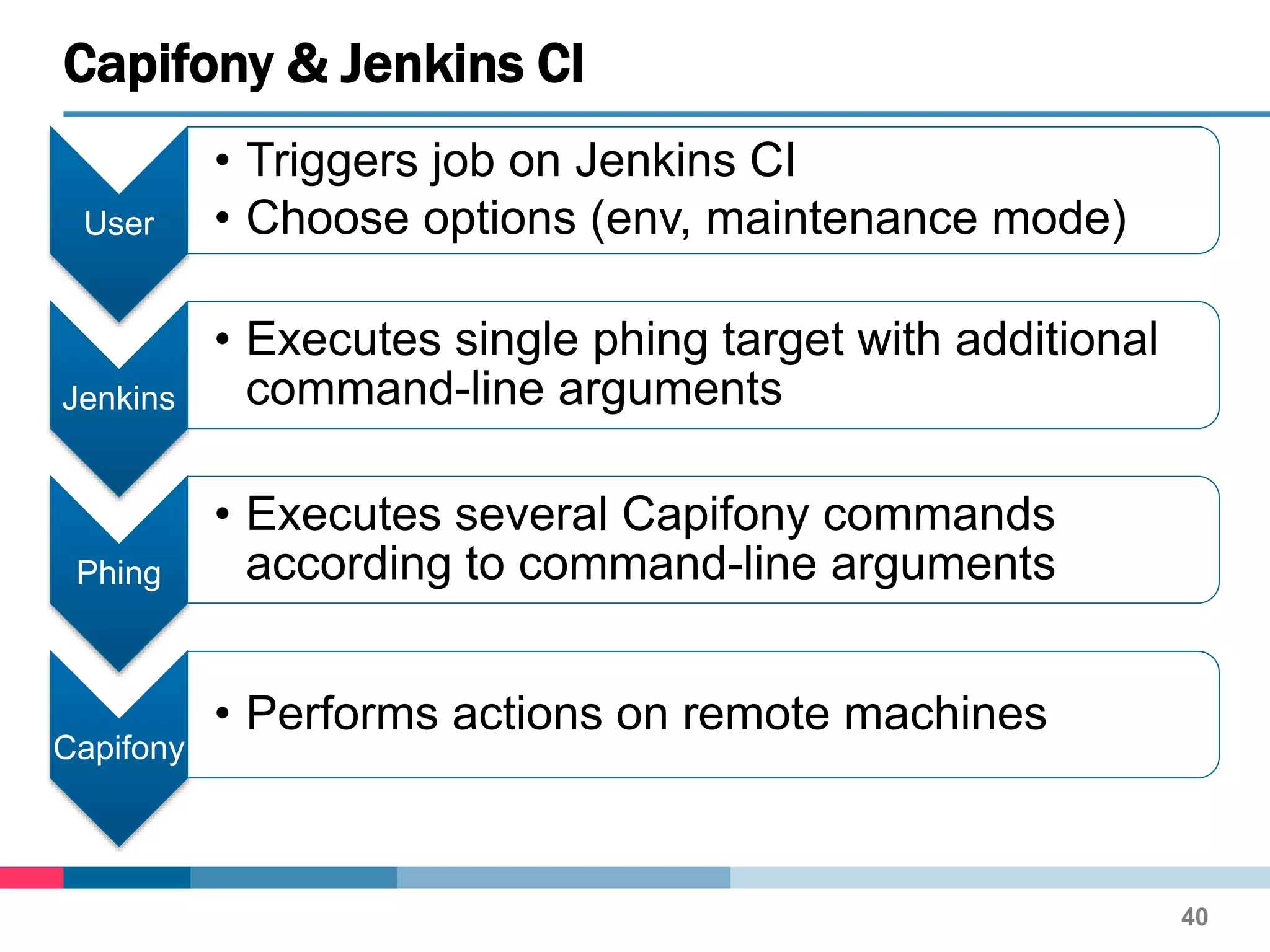

40. User
• Triggers job on Jenkins CI
• Choose options (env, maintenance mode)
Jenkins
• Executes single phing target with additional
command-line arguments
Phing
• Executes several Capifony commands
according to command-line arguments
Capifony
• Performs actions on remote machines
Capifony & Jenkins CI
40

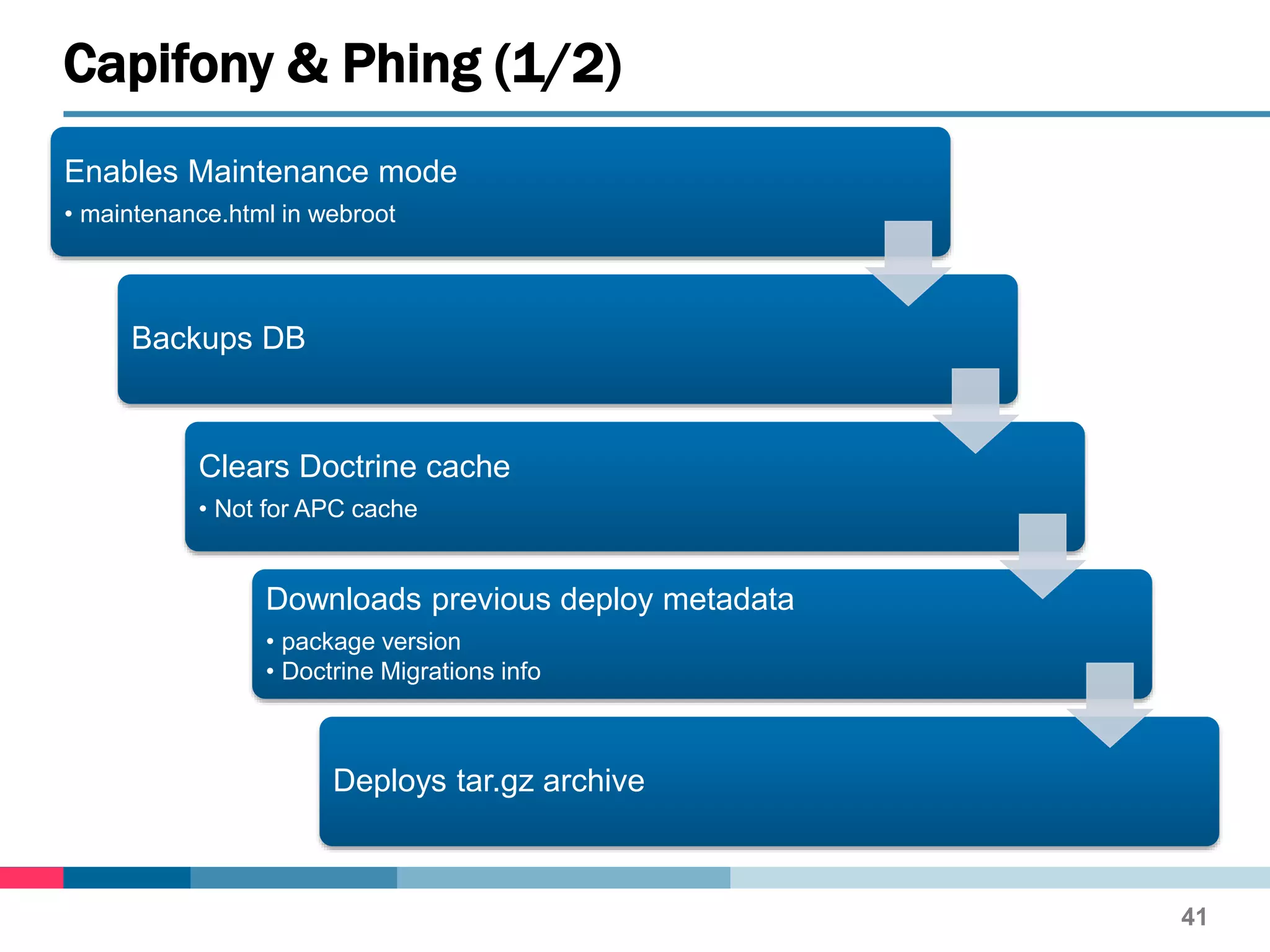

41. Enables Maintenance mode
• maintenance.html in webroot
Backups DB
Clears Doctrine cache
• Not for APC cache
Downloads previous deploy metadata
• package version
• Doctrine Migrations info
Deploys tar.gz archive
Capifony & Phing (1/2)
41

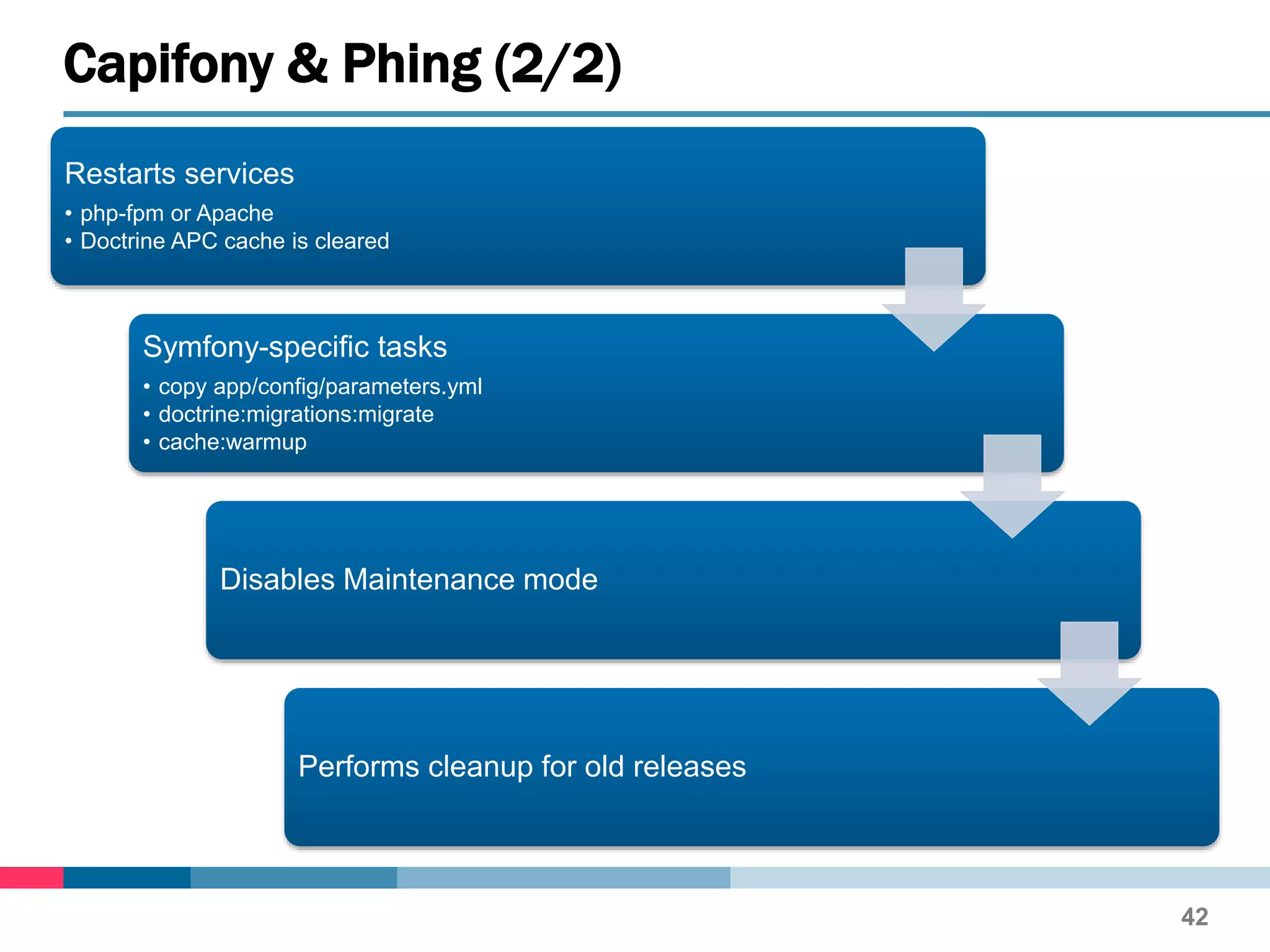

42. Restarts services
• php-fpm or Apache
• Doctrine APC cache is cleared
Symfony-specific tasks
• copy app/config/parameters.yml
• doctrine:migrations:migrate
• cache:warmup
Disables Maintenance mode
Performs cleanup for old releases
Capifony & Phing (2/2)
42

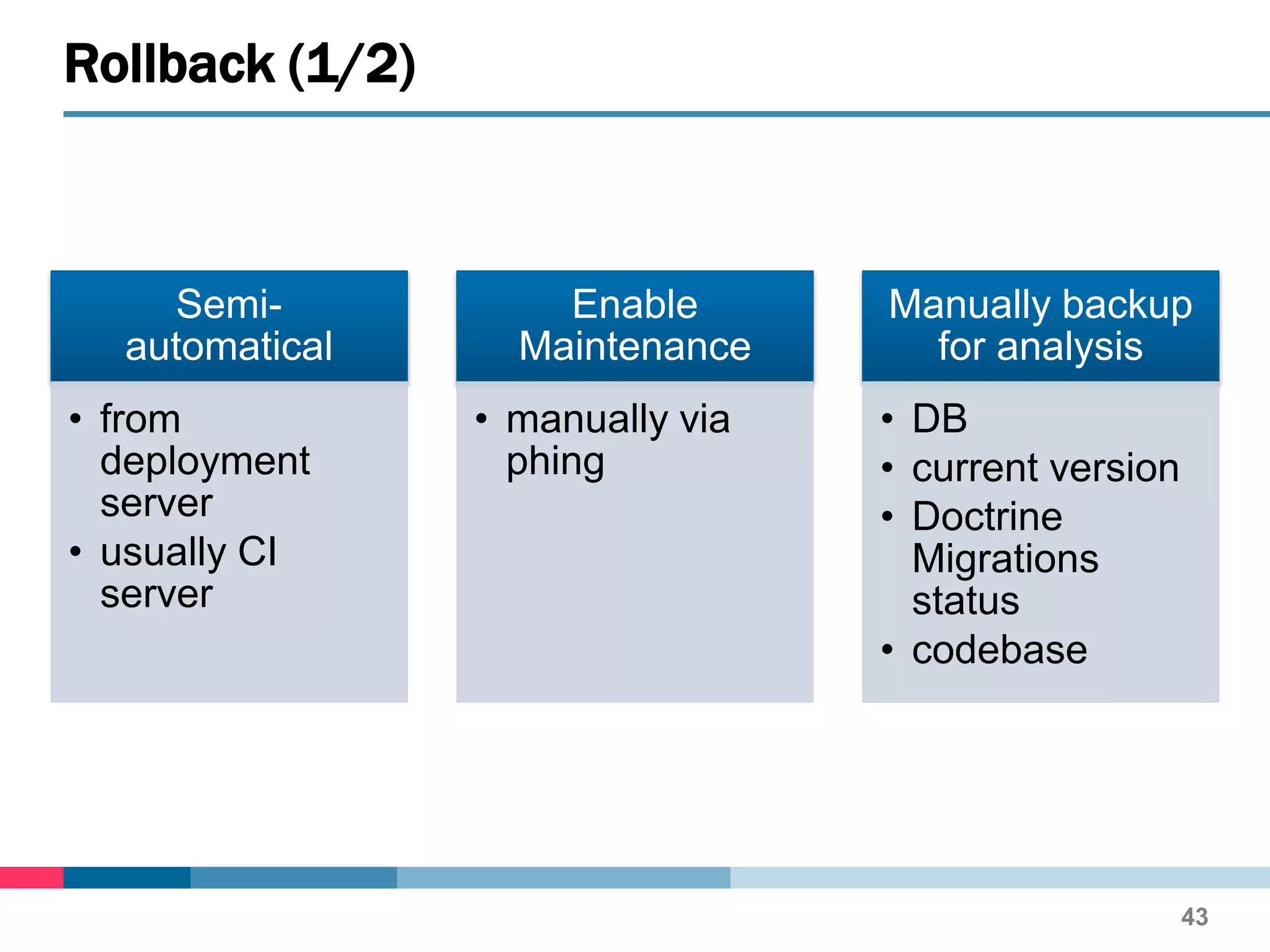

43. Semi-
automatical
• from
deployment
server
• usually CI
server
Enable
Maintenance
• manually via
phing
Manually backup
for analysis
• DB
• current version
• Doctrine
Migrations
status
• codebase
Rollback (1/2)
43

44. Switch to

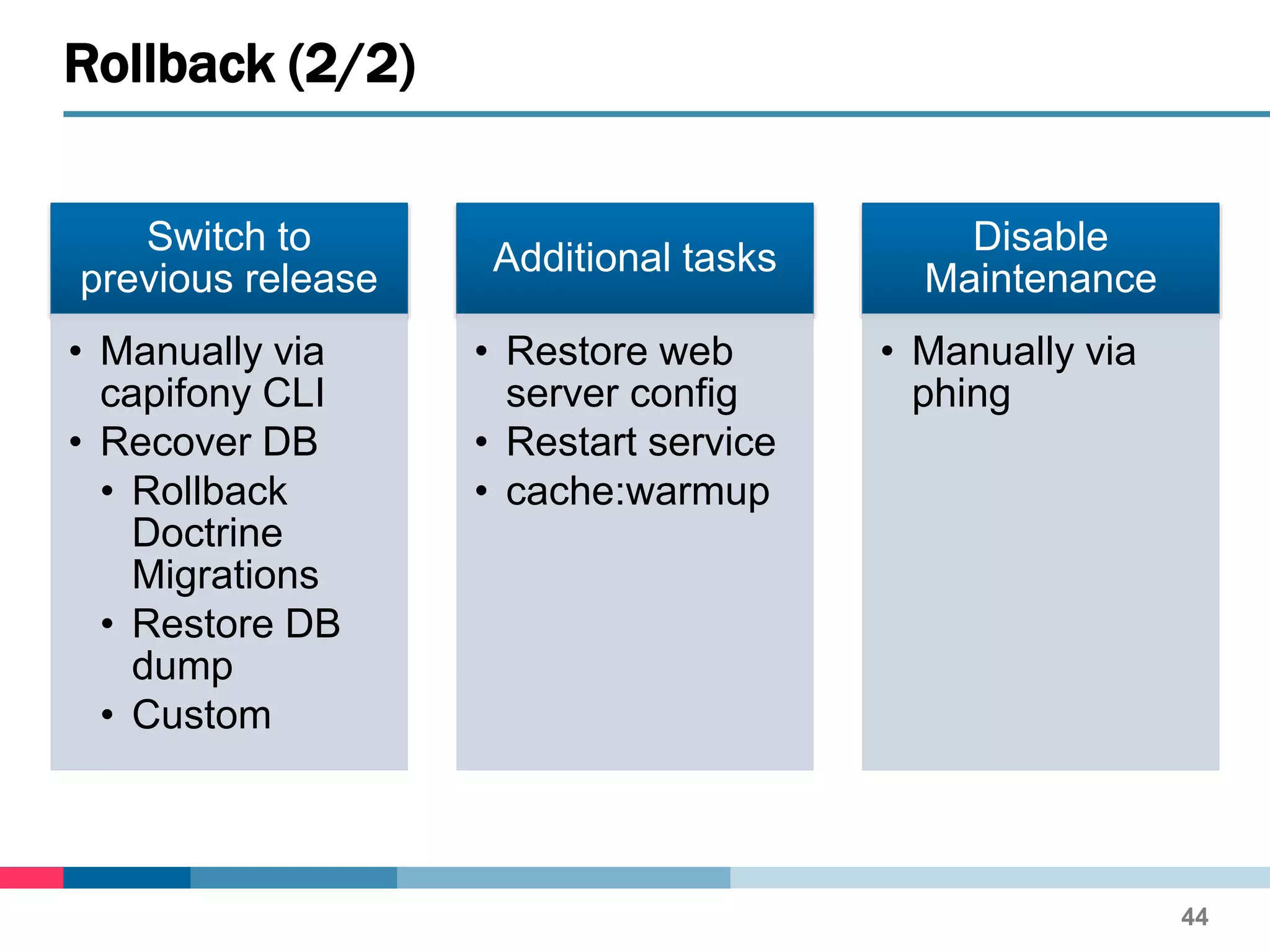

previous release
• Manually via
capifony CLI
• Recover DB
• Rollback
Doctrine
Migrations
• Restore DB
dump
• Custom
Additional tasks
• Restore web
server config
• Restart service
• cache:warmup
Disable
Maintenance
• Manually via
phing
Rollback (2/2)
44

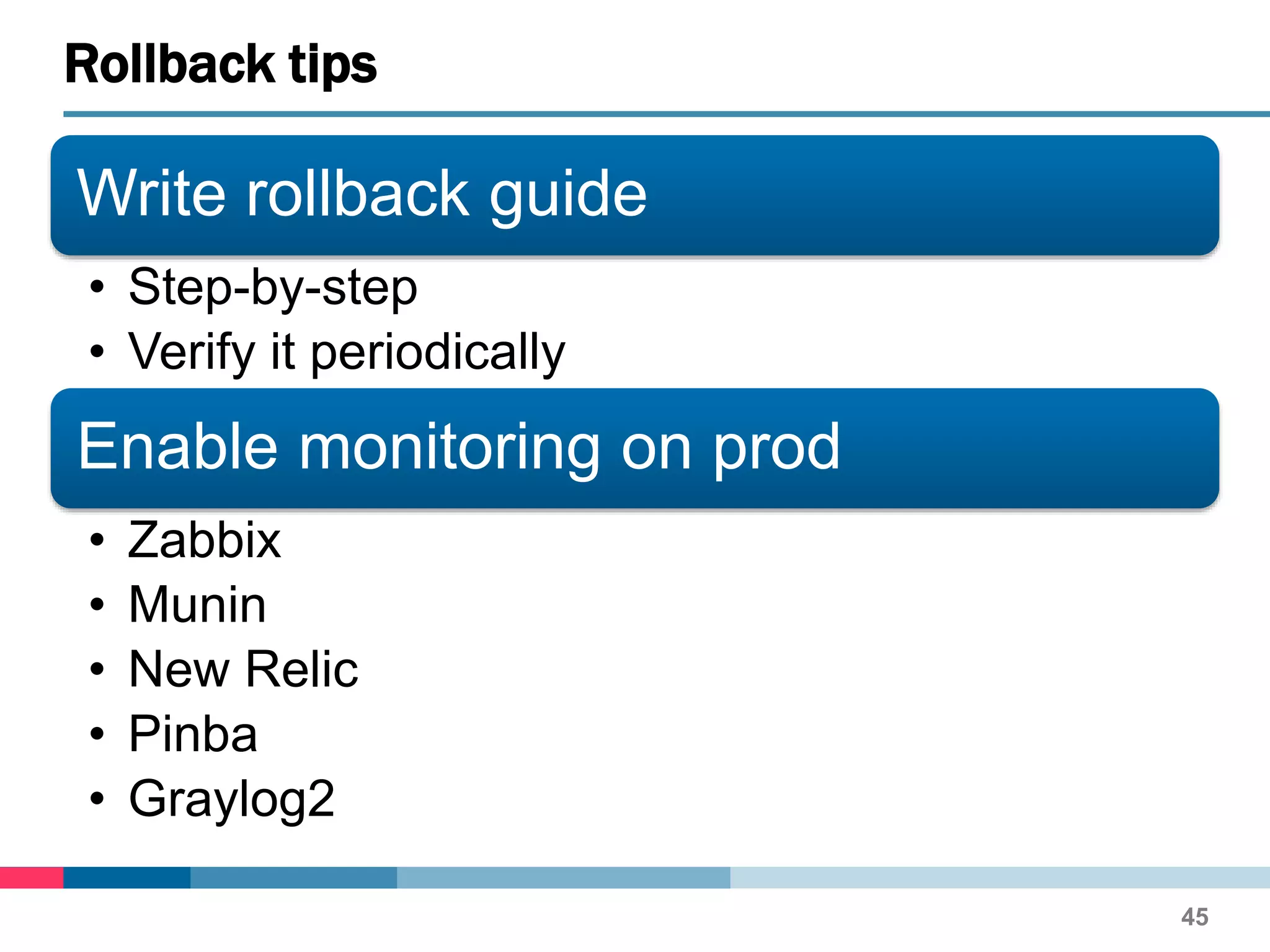

45. Write rollback guide
• Step-by-step
• Verify it periodically
Enable monitoring on prod
• Zabbix
• Munin
• New Relic
• Pinba
• Graylog2
Rollback tips
45

46. SUMMARY
46

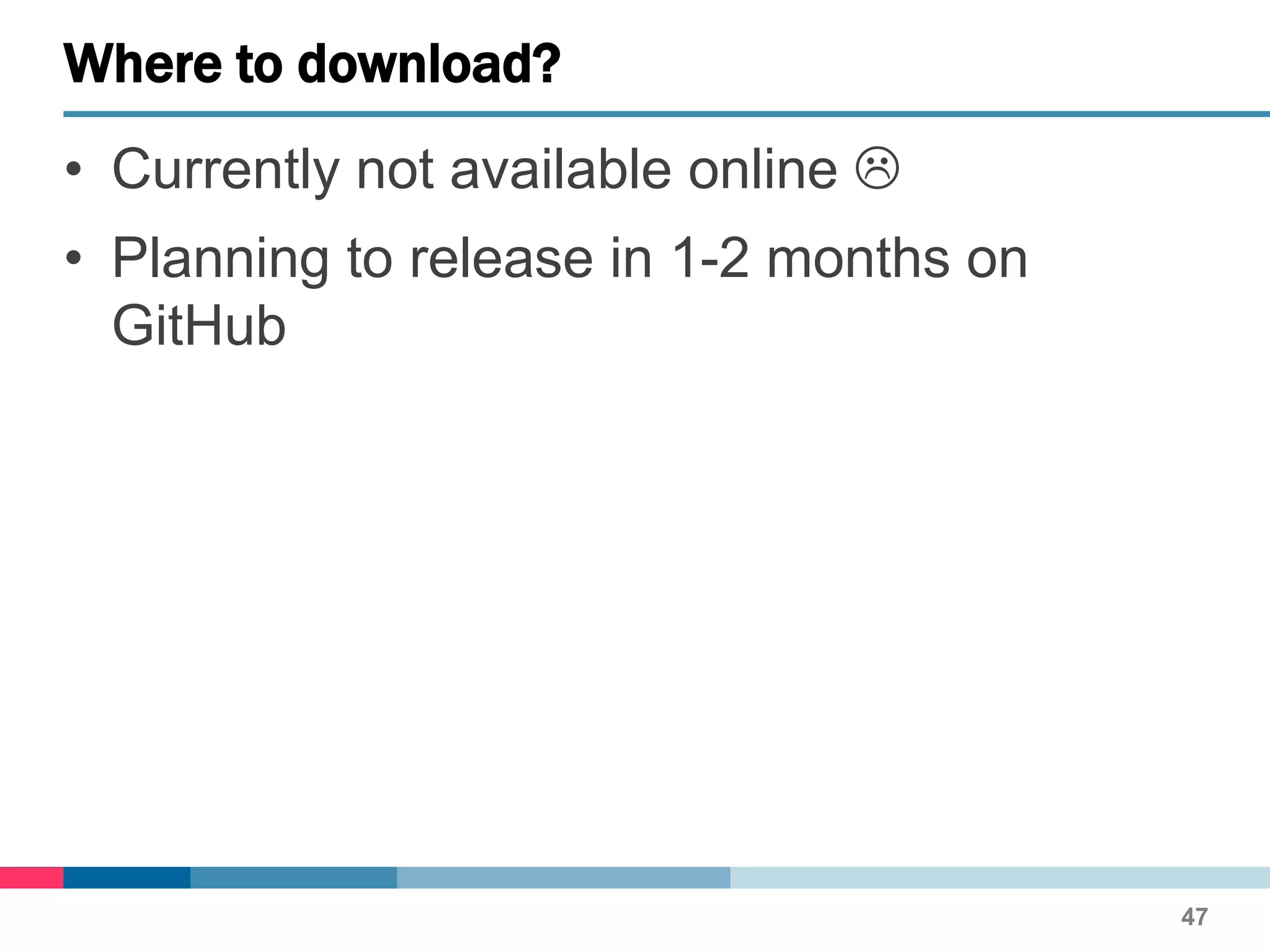

47. • Currently not available online 
• Planning to release in 1-2 months on
GitHub
Where to download?
47

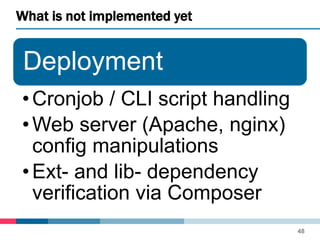

48. Deployment
•Cronjob / CLI script handling
•Web server (Apache, nginx)
config manipulations
•Ext- and lib- dependency
verification via Composer
What is not implemented yet
48

49. Questions?
